Intel® Desktop Board
DQ77MK
Technical Product Specification
July 2013
Part Number: G54941-004
The Intel Desktop Board DQ77MK may contain design defects or errors known as errata that may cause the product to deviate from published specifications.
Current characterized errata are documented in the Intel Desktop Board DQ77MK Specification Update.
-003
Specification Clarifica tio n
May 2013
Revision History
Revision Revision History Date
-001 First release of the Intel® Desktop Board DQ77MK Technical Product
Specification
-002 Specification Clarification October 2012
-004 Specification Clarifica tio n July 2013
This product spec ification applies to only the standard Intel® Desktop Board with BIOS identifier
MKQ7710H.86A.
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE,
EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS
GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL’S TERMS AND CONDITION S OF SALE FOR
SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR
IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PROD UCTS INCLUDING LIABILITY OR
WARRANTIES RELATING TO FITNESS FOR A P ARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT
OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. UNLESS OTHERWISE AGREED IN
WRITING BY INTEL, THE INTEL PRODUCTS ARE NOT DESIGNED NOR INTENDED FO R ANY AP PL I CATION IN
WHICH THE FAILURE OF THE INTEL PRODUCT COULD CREATE A SITUATION WHERE PERSONAL INJURY OR
DEATH MAY OCCUR.
®
All Intel
computers (PC) for installation in home s , offices , schoo ls , com p uter room s , and sim ilar locati o ns . The
suitability of this product for other PC or embedded non-PC applications or o ther e nviro nme nts , s uc h as
medical, industrial, alarm systems, te s t equipment, etc. may not be supported without further evaluation by
Intel.
Intel Corporation may have patents or pending pa te nt app lic ations, trademarks, copyrights, or other
intellectual property rights that r e la te to the pres e nted subjec t matte r. The furnishing of documents and
other materials and information does not provide any license, express or implied, by estoppel or otherwis e ,
to any such patents, trademarks, copyrights, or other intel le c tual p roperty rights.
Intel may make changes to specifications and produc t descriptions at any time, without notice.
Designers must not rely on the absence or characteristic s of any feature s or instructions marked “reserved”
or “undefined.” Intel reserves these for future definition and shall have no responsibility whatsoever for
conflicts or incompatibilities aris ing fr om future changes to them.
Intel desktop boards may contain design defe c ts or error s know n as err a ta, which m ay cause the product to
deviate from published specifications . C urrent characterized errata are available on request.
Contact your local Intel sales office or your distributor to obtain the latest specifications before placing your
product order.
Intel, 3
trademarks of Intel Corporation in the U.S. and/or other countries.
* Other names and brands may be claimed as the propert y of others.
Copyright 2012, 2013 Intel Corporation. All rights reserved.
desktop boards are evaluated as Information Technology Equipment (I.T.E.) for use in personal
rd
generation Intel Core processor family, and 2nd generation Intel Core processor family are
May 2012
ii
AA Revision
BIOS Revision
Notes
G39642-300
MKQ7710H.86A.0034
1,2
Date
Type of Change
Description of Change or Clarification
• Updated Table 41. Environmental Specifications to
• Added ENERGY STAR Note to Section 5.1.6.
Board Identification Information
Basic Desktop Board DQ77MK Identification Information
Notes:
1. The AA number is found on a small label on the component side of the board.
2. The Q77 chipset used on this AA revis io n co ns is ts of the follo w i ng co mponent:
Device Stepping S-Spec Numbers
Intel Q77 Express Chipset C1 SLJ83
Specification Changes or Clarifications
The table below indicates the Specifica tion Changes or Spec ificat ion Clarifications that
apply to the Intel
®
Desktop Board DQ77MK.
Specification Changes or Clarifications
October 2012 Spec Clarification
May 2013 Spec Clarification
July 2013 Spec Clarification
address operating temperature req ui r eme nts for the
board.
• Updated Section 1.11.1 Intel® vPro™ Technology to add
TPM bulleted item
• Updated Section 1.11.1.7 Trusted Platform Module (TPM)
to change TPM version and revision numbers
• Updated 1.5.2.2 Digital Visual Interface (DVI-D) and
1.5.2.3 Digital Visual Interface (DVI-I) to correct
maximum supported resolution
• Updated Section 1.8.2.1 S/PDIF Header
• Updated Section 3.10 Hard Disk Drive Password Security
Feature.
Deleted references to ENERGY STAR.
Errata
Current characterized errata, if any, are documented in a separate Specification
Update. See
motherboards/motherboards.html?wapkw=desktop+boards for the latest
documentation.
http://www.intel.com/content/www/us/en/motherboards/desktop-
iii
Intel Desktop Board DQ77MK Technical Product Specification
iv
1
A description of the hardwar e used on Intel Desktop Board DQ77MK
2
A map of the resou r ces of the Intel Desktop Board
3
The features supported by the BIOS Setup program
4
A description of the BIOS error messages, bee p c odes, and POST codes
5

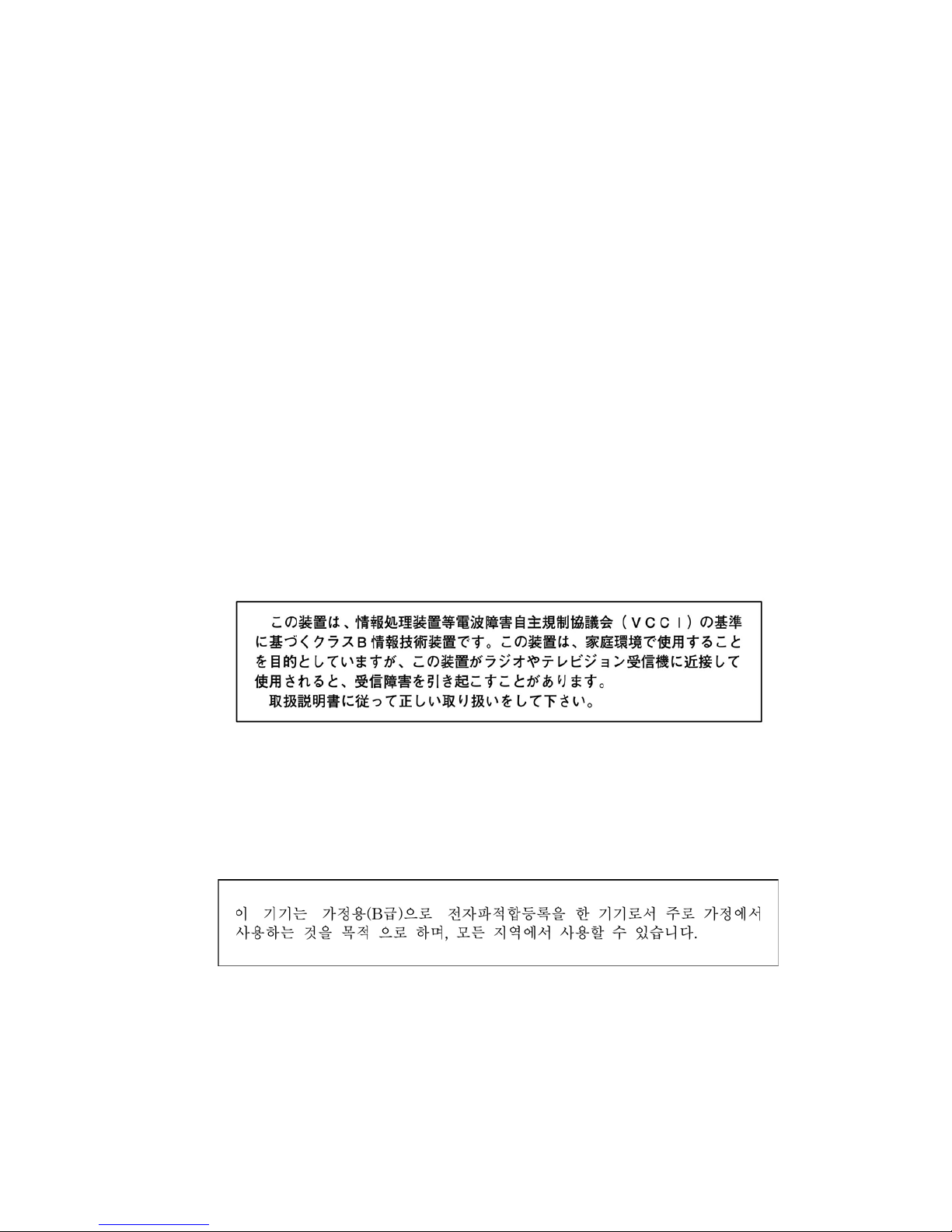

Regulatory comp lia nce and battery disposal informati on
Preface
This Technical Product Specification (TPS) specifies the board layout, components,
connectors, power and environmental requirements, and the BIOS for Intel
Board DQ77MK.
Intended Audience
The TPS is intended to provide detailed, technical information about Intel Desktop
Board DQ77MK and its components to the vendors, system integrators, and other
engineers and technicians who need this level of information. It is specifically not
intended for general audiences.
What This Document Contains
Chapter Description
Typographical Conventions
®
Desktop
This section cont ains information about t he conventions used in this specification. No t
all of these symbols and abbreviations appear in all specifications of this type.
Notes, Cautions, and Warnings
NOTE
Notes call attention to important information.
CAUTION
Cautions are included to help you avoid damaging hardware or losing data.
v
Intel Desktop Board DQ77MK Technical Product Specification
Gb/s
Gigabits per second
kb/s
1000 bits per second
Other Common Notation
# Used after a signal name to identify an active-low sig nal (s uch as USB P0# )
GB Gigabyte (1,073,741,824 bytes)
GB/s Gigabytes per second
I/O Input/Output
KB Kilobyte (1024 bytes)
Kb Kilob it (1024 bits)
MB Megabyte ( 1,048,576 byt es )
MB/s Megabytes per sec ond
Mb Megabit (1,048,576 bits)
Mb/s Megabits per second
TDP Thermal Design Power
xxh An address or data value ending with a lowercase h indicates a hexadec ima l value.
x.x V Volts. Voltages are DC unless otherwise specified .
* This symbol is used to indicate third-party brand s and names tha t are the prop e r ty of their
respective owners.
vi
Contents
Revision History
Board Identification Information .................................................................. iii
Specification Changes or Clarifications ......................................................... iii
Errata ...................................................................................................... iii
Preface
Intended Audience ..................................................................................... v
What This Document Contains ..................................................................... v
Typographical Conventions ......................................................................... v
1 Product Description
1.1 Overview ......................................................................................... 13
1.1.1 Feature Summary ................................................................. 13

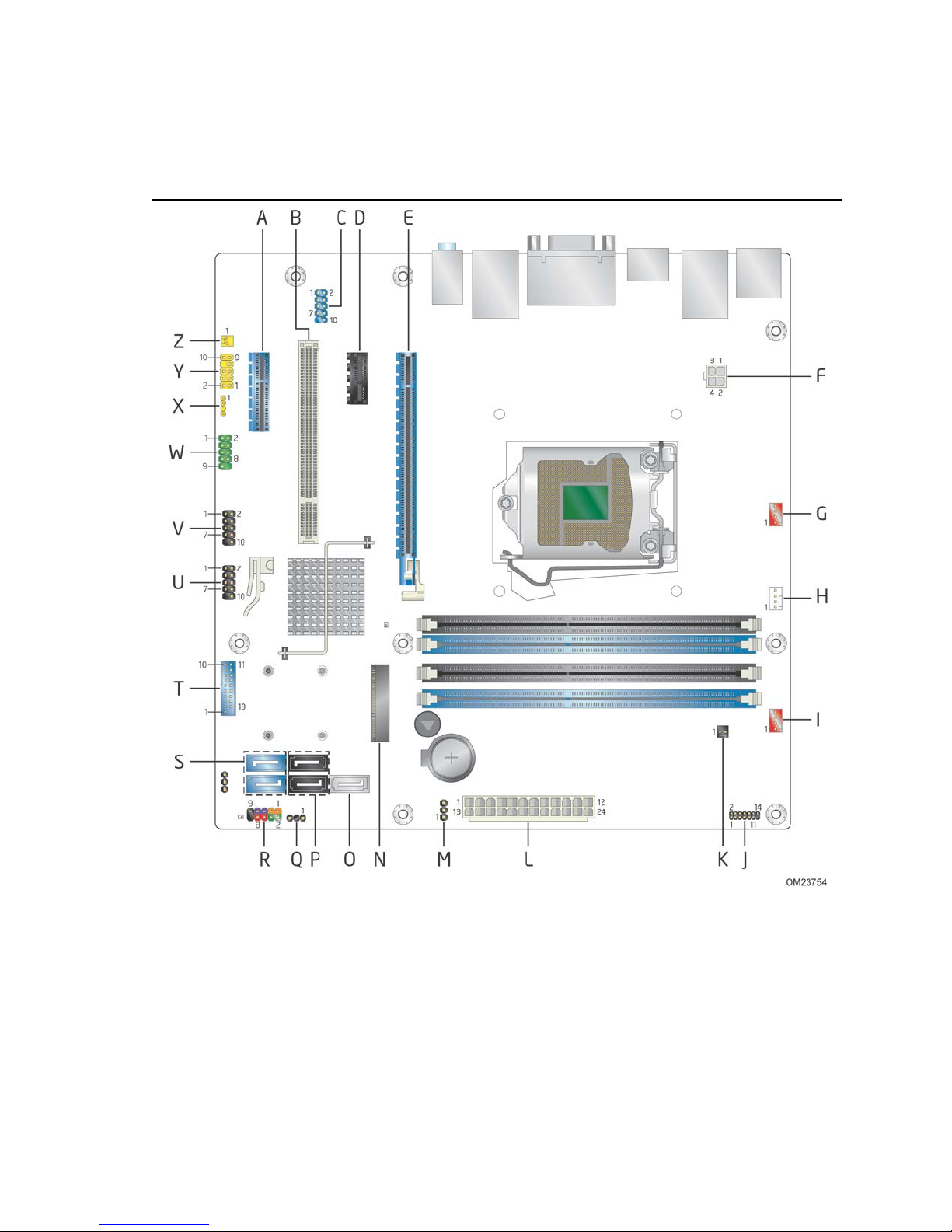

1.1.2 Board Layout ........................................................................ 15
1.1.3 Block Diagram ...................................................................... 17
1.2 Online Support ................................................................................. 18
1.3 Processor ........................................................................................ 18
1.3.1 Graphics Subsystem .............................................................. 19
1.4 System Memory ............................................................................... 21
1.4.1 Memory Configurations .......................................................... 22
®
1.5 Intel
1.5.1 Direct Media Interface (DMI) .................................................. 24
1.5.2 Display Interfaces ................................................................. 24
1.5.3 USB ..................................................................................... 26
1.5.4 SATA Interfaces .................................................................... 26
1.6 Real-Time Clock Subsystem ............................................................... 28
1.7 Legacy I/O Controller ........................................................................ 28
1.8 Audio Subsystem .............................................................................. 29
1.8.1 Audio Subsystem Software ..................................................... 29
1.8.2 Audio Connectors and Headers ................................................ 30
1.9 LAN Subsystem ................................................................................ 31
1.9.1 Intel
1.9.2 LAN Subsystem Software ....................................................... 32
1.9.
1.10 Hardware Management Subsystem ..................................................... 33
1.10.1 Hardware Monitoring ............................................................. 33
1.10.2 Fan Monitoring ...................................................................... 33
1.10.3 Chassis Intrusion and Detection .............................................. 33

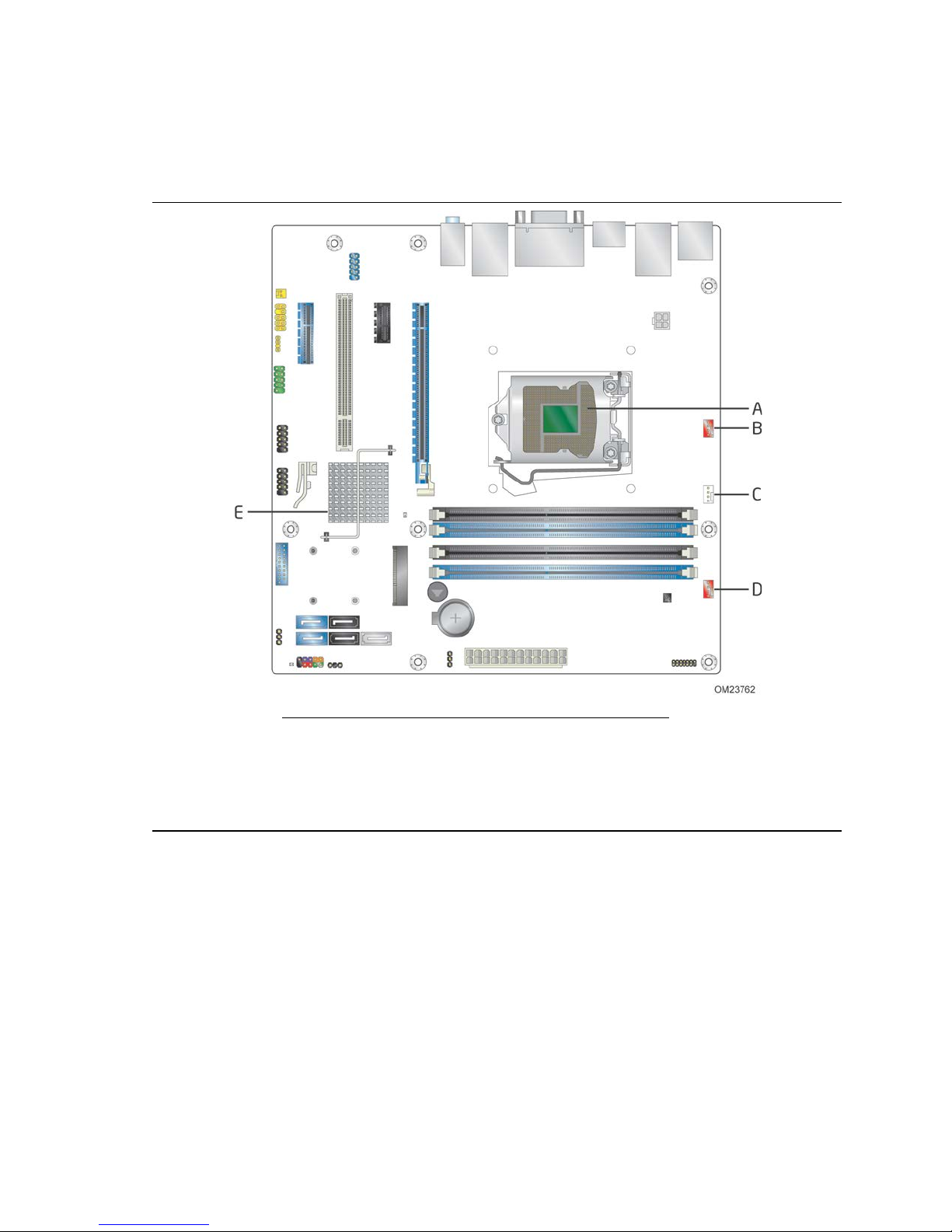

1.10.4 Thermal Monitoring ............................................................... 34
Q77 Express Chipset ................................................................ 24
®
82579LM Gigabit Ethernet Controller and Intel® 82574L
Gigabit Ethernet Controller ..................................................... 31
3 RJ-45 LAN Connectors with Integrated LEDs ............................. 32
vii
Intel Desktop Board DQ77MK Technical Product Specification
1.11 Intel® Security and Manageability Technologies .................................... 35
®
1.11.1 Intel
vPro™ Technology ........................................................ 35
1.11.2 Intel Small Business Technology ............................................. 38
®
1.11.3 Intel
Management Engine (Intel® ME) Software and Drivers ...... 39
1.12 Power Management .......................................................................... 40
1.12.1 ACPI .................................................................................... 40
1.12.2 Hardware Support ................................................................. 42
2 Technical Reference
2.1 Memory Resources ........................................................................... 47
2.1.1 Addressable Memory.............................................................. 47
2.1.2 Memory Map ......................................................................... 49
2.2 Connectors and Headers .................................................................... 49
2.2.1 Back Panel Connectors ........................................................... 50
2.2.2 Component-side Connectors and Headers ................................. 51
2.3 Jumper Block ................................................................................... 63
2.4 Intel
2.5 Mechanical Considerations ................................................................. 65
2.6 Electrical Considerations .................................................................... 66
2.7 Thermal Considerations ..................................................................... 67
2.8 Reliability ........................................................................................ 70
2.9 Environmental .................................................................................. 70
®
Management Engine BIOS Extension (Intel® MEBX) Reset Header . 64

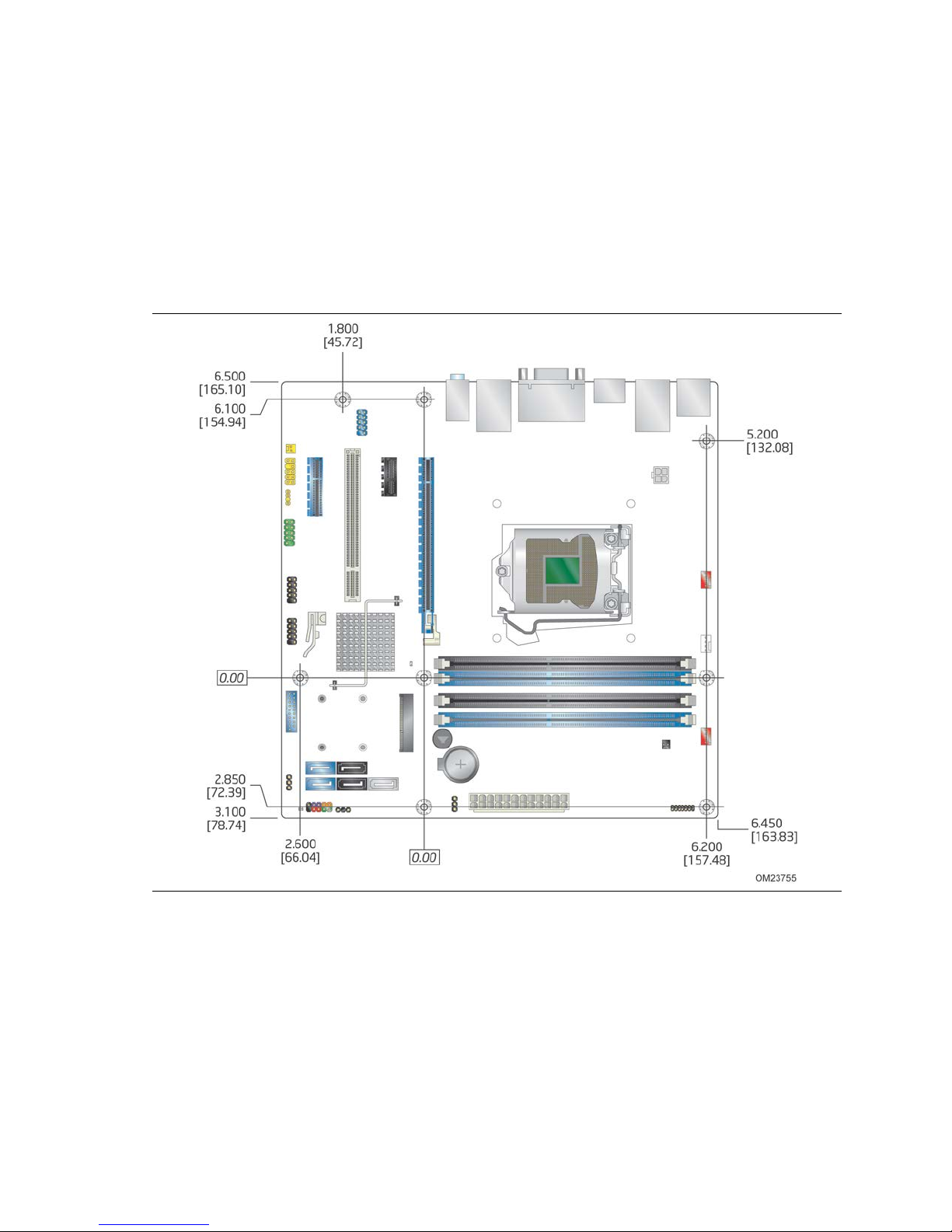

2.5.1 Form Factor .......................................................................... 65
2.6.1 Power Supply Considerations .................................................. 66
2.6.2 Power Supervisor .................................................................. 67
2.6.3 Fan Header Current Capability ................................................ 67
2.6.4 Add-in Board Considerations ................................................... 67
3 Overview of BIOS Features
3.1 Introduction ..................................................................................... 71
3.2 BIOS Flash Memory Organization ........................................................
3.3 Resource Configuration ..................................................................... 72
3.3.1 PCI Express Autoconfiguration ................................................ 72
3.4 System Management BIOS (SMBIOS) ................................................. 73
3.5 Legacy USB Support ......................................................................... 73
3.6 BIOS Updates .................................................................................. 74
3.6.1 Language Support ................................................................. 74
3.6.2 Custom Splash Screen ........................................................... 75
3.7 BIOS Recovery ................................................................................. 75
3.8 Boot Options .................................................................................... 76
3.8.1 Optical Drive Boot ................................................................. 76
3.8.2 Network Boot ........................................................................ 76
3.8.3 Booting Without Attached Devices ........................................... 76
3.8.4 Changing the Default Boot Device During POST ......................... 76
3.9 Adjusting Boot Speed ........................................................................ 77
3.9.1 Peripheral Selection and Configuration ..................................... 77
3.9.2 BIOS Boot Optimizations ........................................................ 77
72
viii
Contents
3.10 Hard Disk Drive Password Security Feature .......................................... 78
3.11 BIOS Security Features ..................................................................... 79
3.12 BIOS Performance Features ............................................................... 80
4 Error Messages and Beep Codes
4.1 Speaker .......................................................................................... 81
4.2 BIOS Beep Codes ............................................................................. 81
4.3 Front-panel Power LED Blink Codes ..................................................... 82
4.4 BIOS Error Messages ........................................................................ 82
4.5 Port 80h Power O n Self Test (POST) Codes .......................................... 83
5 Regulatory Compliance and Battery Disposal Information
5.1 Regulatory Compliance ...................................................................... 89
5.1.1 Safety Standards................................................................... 89
5.1.2 European Union Declaration of Conformity Statement ................ 90
5.1.3 Product Ecology Statements ................................................... 91
5.1.4 China RoHS .......................................................................... 94
5.1.5 EMC Regulations ................................................................... 95
5.1.6 e-Standby and ErP Compliance ............................................... 97
5.1.7 Regulatory Compliance Marks (Board Level) ............................. 98
5.2 Battery Disposal Information .............................................................. 99
Figures
1. Major Board Components .................................................................. 15
2. Block Diagram .................................................................................. 17
3. Memory Channel and DIMM Configuration ............................................ 23
4. Back Panel Audio Connectors ............................................................. 30
5. LAN Connectors LED Locations ........................................................... 32
6. Thermal Sensors and Fan Headers ...................................................... 34
7. Location of the Intel ME “M” State LED ................................................ 39
8. Location of the Standby Power LED ..................................................... 45
9. Detailed System Memory Address Map ................................................ 48
10. Back Panel Connectors ...................................................................... 50
11
. Component-side Connectors and Headers ............................................ 51
12. Connection Diagram for Front Panel Header ......................................... 60
13. Connection Diagram for Front Panel USB 2.0 Connectors ....................... 62
14. Location of the Jumper Block ............................................................. 63
15. Intel MEBX Reset H eader ................................................................... 64
16. Board Dimensions ............................................................................. 65
17. Localized High Temperature Zones ..................................................... 68
18. Intel Desktop Board DQ77MK China RoHS Material Self
Declaration Table .............................................................................. 94
ix
Intel Desktop Board DQ77MK Technical Product Specification
Tables
1. Feature Summary ............................................................................. 13
2. Components Shown in Figure 1 .......................................................... 16
3. Supported Memory Configurations ...................................................... 21
4. DVI Port Status Conditions................................................................. 25
5. DisplayPort Status Conditions ............................................................. 25
6. Audio Formats Supported by the DisplayPort Interface .......................... 25
7. Audio Jack Support ........................................................................... 29
8. LAN Connector LED States ................................................................. 33
9. Intel ME “M” State LED Behavior ........................................................ 39
10. Effects of Pressing the Power Switch ................................................... 40
11. Power States and Targeted System Power ........................................... 41
12. Wake-up Devices and Events ............................................................. 42
13. System Memory Map......................................................................... 49
14. Component-side Connectors and Headers Shown in Figure 11 ................ 52
15. Serial Port Connector ........................................................................ 53
16. Front Panel Audio Header for Intel HD Audio ........................................ 53
17. Front Panel Audio Header for AC ’97 Audio ........................................... 53
18. Front Panel USB 2.0 Connectors ......................................................... 53
19. Front Panel USB 3.0 Connector ........................................................... 54
20. IEEE 1394a Connector ....................................................................... 54
21. Internal Mono Speaker Header ........................................................... 54
22. PCI Express Full-/Half-Mini Card Connector .......................................... 55
23. SATA Connectors .............................................................................. 56
24. S/PDIF Header ................................................................................. 57
25. Chassis Intrusion Header ................................................................... 57
26. Processor, Front, and Rear Chassis (4-Pin) Fan Headers ....................... 57
27. LPC Debug Header ............................................................................ 57
28
. Processor Core Power Connect or ........................................................ 59
29. Main Power Connector ....................................................................... 59
30. Front Panel Header ........................................................................... 60
31. States for a One-Color Power LED ....................................................... 61
32. States for a Two-Color Power LED....................................................... 61
33. Alternate Front Panel Power/Sleep LED Header..................................... 61
34. BIOS Setup Configuration Jumper Settings .......................................... 63
35. Intel MEBX Reset Header Signals ........................................................ 64
36. Recommended Power Supply Current Values (High Power) .................... 66
37. Recommended Power Supply Current Values (Low Power) ..................... 66
38. Fan Header Current Capability ............................................................ 67
39. Thermal Considerations for Components .............................................. 69
40. Tcontrol Values for Components ......................................................... 69
41. Environmental Specifications .............................................................. 70
42. BIOS Setup Program Menu Bar ........................................................... 72
43. BIOS Setup Program Function Keys .................................................... 72
44. Acceptable Drives/Me d ia Types for BIOS Recovery ................................ 75
45. Boot Device Menu Options ................................................................. 76
x
Contents
51. Master Key and User Hard Drive Password Functions ............................ 78
46. Supervisor and User Password Functions ............................................. 79
47. BIOS Beep Codes ............................................................................. 81
48. Front-panel Power LED Blink Codes ..................................................... 82
49. BIOS Error Messages ........................................................................ 82
50. Port 80h POST Code Ranges .............................................................. 83
51. Port 80h POST Codes ........................................................................ 84
52. Typical Port 80h POST Sequence ........................................................ 88
53. Safety Standards .............................................................................. 89
54. EMC Regulations ............................................................................... 95
55. Regulatory Compliance Marks ............................................................ 98
xi
Intel Desktop Board DQ77MK Technical Product Specification
xii
Micro-ATX (9.60 inches by 9.60 inches [243.84 millimeters by
• 3rd generation Intel® Core processor family and 2nd generation Intel® Core
• Four 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
Intel
®
Q77 Express Chipset consisting o f the I nte l® Q77 Express Platform
• Integrated graphics support for proces sors with I nte l® Graphics Technology:
Audio
• 8-channel (6+2) Intel High Definition Audio via the Realtek* ALC892 audio
1 Product Description
1.1 Overview
1.1.1 Feature Summary
Table 1 summarizes the major feature s of the board.
Table 1. Feature Summary
Form Factor
243.84 millimeters])
Processor
processor family processors with up to 95 W TDP in an LGA1155 socket
― One PCI Express* 3.0 x16 graphics interface
― Integrated memory controller with dual channe l DDR 3 m emory support
― Integrated graphics process ing (proce s so rs with Intel
― External graphics interface controlle r
Memory
• Support for DDR3 1600 M Hz , DDR3 1333 MHz, and DDR3 1066 MHz DIMMs
• Support for 1 Gb, 2 Gb, and 4 Gb memory technology
• Support for up to 32 GB of system memory with four DIMMs using 4 Gb
memory technology
• Support for non-ECC memory
• Support for 1.5 V (standard voltage) and 1.35 V (low voltage ) JEDEC memory
• Support for XMP memory
Note: DDR3 1600 MHz DI MMs are only s uppor te d by 3
processor family processors
Chipset
Controller Hub (PCH)
Graphics
― DisplayPort*
― DVI-I
― DVI-D
• Support for a PCI Express 3.0 x16 add-in graphics card
Note: PC I Exp r ess 3 .0 is only supp or te d by 3
processor family processors
®
HD Graphics)
rd
generation Intel Core
rd
generation Intel Core
codec
• 8-channel (7.1) Intel HD Audio via the DisplayPor t connector fro m the PCH
13
continued
Intel Desktop Board DQ77MK Technical Product Specification
― One port via a front-panel connector (blue)
One PCI Express 3.0 x16 add-in card connector
family processors
Intel® BIOS resident in the SPI Flash device
and SMBIOS
• Wake on PCI, PCI Express, LAN, fr ont panel, serial, and USB ports
Controller (black connector)
support
• Fan speed control
• Intel® Anti-Theft (Intel® AT)
Table 1. Feature Summary (continued)
Peripheral
Interfaces
• Four USB 3.0 ports:
― Two USB 3.0 ports are implemented with stacked back panel connectors
(blue)
― Two front panel USB 3.0 ports are implemented through one interna l
connector (blue)
• Ten USB 2.0 ports:
― Four ports implemented with stacked back panel connectors (two black and
two orange high current charging por ts )
― Four f ro nt p ane l por ts imp le mented through two internal headers (black)
― Two ports are implemented in the PCI Express Full-/Half–Mini C ard slot
• Six Serial ATA (SATA) ports:
― Two SATA 6.0 Gb/s interface through the Intel Q77 Express Chipset with
®
Intel
Rapid Storage Technology RAID support (blue)
― Two internal SATA 3.0 Gb/s interfaces through Intel Q77 Express Chipset
with Intel Rapid Storage Technology RAID supp ort (black)
― One internal SATA connector (multiplexe d with an mSAT A por t, ro ute d to
the PCI Express Full-/Half-Mini Card slot) (gray)
― One external eSATA 3.0 Gb/s interface (red)
• One serial port connector
• Two IEEE 1394a ports:
― One port via a back panel connector
Expansion
Capabilities
•
• One PCI Express 2.0 x4 bus add-in card connector from the PCH
• One PCI Express 2.0 x1 bus add-in card connector from the PCH
• One Conventional PCI bus add-in card connecto rs from the PCH
• One PCI Express Full-/Half-Mini Card conne c tor from the PCH (supporting
mSATA, Wireless Intel
®
Active Management Technology (Intel® AMT), and USB
capabilities)
Note: PCI Express 3.0 is only supported by 3rd generation Intel Core processor
BIOS
•
• Support for Advanced Configuration and Power Inte rf a c e (ACPI ), Plug and Pla y ,
Instantly Available
PC Technology
LAN Support
• Support for PCI Express* Revision 3.0
• Suspend to RAM support
Two Gigabit (10/100/1000 Mb/s) LAN subsyste ms using the Intel
®
Gigabit Ethernet Controller (red connector) and Intel
82574L Gigabit Ethernet
®
82579LM
Legacy I/O Control Nuvoton NCT6776D I/O controller for ser ial po rt and hardware management
Hardware Monitor
Subsystem
• Hardware monitoring through the Nuvoton I/O controller
• Voltage sense to detect out of range power supply voltage s
• Thermal sense to detect out of range thermal values
• Three fan headers
• Two fan sense inputs used to monitor fan activity
®
Intel® Security and
Manageability
Technologies
• Intel
• Intel
• Intel
• Intel
• Intel
vPro™ Technology
®
Active Management Technology (Intel® AMT) 8.0
®
Small Business Technology (Intel® SBT)
®
Virtualization Technology (Intel® VT)
®
Virtualization for Directed I/O (Intel® VT-d)
14
Product Description
1.1.2 Board Layout
Figure 1 shows the location of the major components on Intel Desktop Board DQ77MK.
Figure 1. Major Board Components
15
Intel Desktop Board DQ77MK Technical Product Specification
Table 2 lists the components identified in Figure 1.
Table 2. Components Shown in Figure 1
Item/callout
from Figure 1 Description
A PCI Express x4 add-in card connector
B Conventional PCI add-in card connector
C IEEE 1394 a front panel header
D PCI Expr ess x1 add-in card connec to r
E PCI Express x16 add-in card connector
F Back panel connectors
G 12 V processor core voltage connector (2 x 2 pin)
H LGA1155 processor socket
I Rear chassis fan header
J Processor fan header
K DIMM 3 (Channel A DIMM 0)
L DIMM 1 (Channel A DIMM 1)
M DIMM 4 (Channel B DIMM 0)
N DIMM 2 (Channel B DIMM 1)
O Front chassis fan header
P Low Pin Count (LPC) Debug header
Q Chassis intrusion header
R Main p ower connector (2 x 12)
S Intel® Management Engine BIOS Extension (Intel® MEBX) Reset header
T Battery
U Piezoelectric speaker
V Intel® Management Engine “M” state LED
W PCI Express Full-/Half-Mini Card slot
X SATA 6.0 Gb/s connector (multiplexed with an mSATA por t, routed to the PCI
Express Full-/Half-Mini Card slot) (g ray)
Y SA TA 3 .0 Gb/s co nnecto rs through the PCH (black)
Z Alternate front panel power/slee p LED head er
AA Front panel connector
BB Standby power LED
CC BIOS Setup configuration jumper block
DD SATA 6.0 Gb/s connectors through the PCH (blue)
EE Front panel USB 3.0 connector (blue)
FF Intel Q77 Express Chipset
GG Front panel USB 2.0 connector
HH Fro nt p ane l USB 2.0 connector
II Serial port connector
JJ S/PDIF out header
KK Front panel audio connector
LL Inte r na l mono speake r heade r
16
1.1.3 Block Diagram
Figure 2 is a block diagram of the major functional areas of the board.
Product Description
17
Figure 2. Block Diagram
Intel Desktop Board DQ77MK Technical Product Specification
1.2 Online Support
To find information about… Visit this World Wide Web site:
Intel Desktop Board DQ77MK http://www.intel.com/products/motherboard/index.htm
Desktop Board Support http://www.intel.com/p/en_US/support?iid=hdr+support
Available configurations for Intel
Desktop Board DQ77MK
Supported processors http://processormatch.intel.com
Chipset information http://www.intel.com/products/desktop/chipsets/index.htm
BIOS and driver updates http://downloadcenter.intel.com
Tested memory http://www.intel.com/support/motherboards/desktop/sb/CS-
Integration informatio n http://www.intel.com/support/go/buildit
http://ark.intel.com
025414.htm
1.3 Processor
The board supports 3rd generation Intel Core processor family and 2nd generation Intel
Core processo r family processors.
Other processors may be supported in the future. This board supports processors with
a maximum wattage of 95 W Thermal Design Power (TDP). The processors listed
above are only supported when falling within the wattage requirements of Intel
Desktop Board DQ77MK. See the Intel web site listed below for the most up-to-date
list of supported processors.
For information about… Refer to:
Supported processors http://processormatch.intel.com
CAUTION
Use only the processors listed on the web site above. Use of unsupported processors
can damage the board, the processor, and the power supply.
NOTE
This board has specific requirements for providing power to the processor. Refer to
Section 2.6.1 on page 66 for information on power supply requirements for this board.
18
Product Description
1.3.1 Graphics Subsystem
The board supports graphics through either the processor Intel HD Graphics or a PCI
Express x16 add-in graphics card.
1.3.1.1 Processor Graphics
The board supports integrated graphics through the Intel® Flexible Display Interface
®
(Intel
1.3.1.1.1 Intel® High Definition (Intel® HD) Graphics
The Intel HD graphics controller features the following:
• 3D Features
• Video
FDI) for processors with Intel HD Graphics.
DirectX* 11 (2
nd
generation Intel Core processor family processors support
CS4.0 only) support
OpenGL* 3.0 support
Shader Model 4.0
High-Definition co nt ent at up to 1080p resolution
Hardware accelerated MPEG-2, VC-1/WMV, and H.264/AVC Hi-Definition video
formats
Intel
®
HD Graphics with Advanced Hardware Video Transcoding (Intel® Quick
Sync Video)
Note: Intel Quick Sync is enabled with the appropriate software application
Blu-ray* S3D via DisplayPort 1.1a
Dynamic Video Memory Technology (DVMT) 5.0 support
Support of up to 1.7 GB Video Memory with 4 GB and above system memory
configuration
19
Intel Desktop Board DQ77MK Technical Product Specification
1.3.1.2 PCI Express x16 Graphics
3rd generation Intel Core processor family processors support PCI Express 3.0, 2.x,
and 1.x and 2
nd
generation Intel Core processor family processors support PCI
Express 2.x and 1.x:
• PCI Express 3.0 with a raw bit rate of 8.0 GT/s results in an effective bandwidth of
1 GB/s each direction per lane. The maximum theoretical bandwidth of the x16
interface is 16 GB/s in each direction, simultaneously, for a total bandwidth of
32 GB/s.
• PCI Express 2.x with a raw bit rate of 5.0 GT/s results in an effective bandwidth of
500 MB/s each direction per lane. The maximum theoretical bandwidth of the x16
interface is 8 GB/s in each direction, simultaneously, for a total bandwidth of
16 GB/s.
• PCI Express 1.x with a raw bit rate of 2.5 GT/s results in an effective bandwidth o f
250 MB/s each direction per lane. The maximum theoretical bandwidth of the x16
interface is 4 GB/s in each direction, simultaneously, for a total bandwidth of
8 GB/s.
For information about Refer to
PCI Express technology http://www.pcisig.com
20
Product Description
Capacity
Configuration
Density
Front-side/Back-side
Devices
1024 MB
SS
1 Gbit
128 M x8/empty
8
2048 MB
DS
1 Gbit
128 M x8/128 M x8
16
2048 MB
SS
2 Gbit
256 M x8/empty
8
4096 MB
DS
2 Gbit
256 M x8/256 M x8
16
4096 MB
SS
4 Gbit
512 M x8/empty
8
8192 MB
DS
4 Gbit
512 M x8/512 M x8
16
1.4 System Memory
The board has four DIMM sockets and supports the following memory features:
• 1.5 V DDR3 SDRAM DIMMs with gold plated contacts, with the option to raise the
voltage to support higher performance DDR3 SDRAM DIMMs.
• 1.35 V Low Voltage DDR3 DIMMs (JEDEC specification)
• Two independent memory channels with interleaved mode support
• Unbuffered, sin gl e-sided or double-sided DIMMs with the following r estriction:
DIMMs with x16 organization are not supported.
• 32 GB maximum total system memory (with 4 Gb memory technology). Refer to
Section 2.1.1 on page 47 for information on the total amount of addressable
memory.
• Minimum recommended total system memory: 1 GB
• Non-ECC DIMMs
• Serial Presence Detect
• DDR3 1600 MHz, DDR3 1333 MHz, and DDR3 1066 MHz SDRAM DIMMs
Note: DDR3 1600 MHz DIM Ms are only supported by 3
processor family processors
• XMP version 1.3 performance profile support for memory speeds of 1600 MHz or
lower
rd
generation Intel Core
NOTE
To be fully compliant with all applicable DDR SDRAM memory specifications, the board
should be populated with DIMMs that suppor t the Serial Presence Detect (SPD) data
structure. This allows the BIOS to read the SPD data and program the chipset to
accurately configure memory settings for optimum performance. If non-SPD memory
is installed, the BIOS will attempt to correctl y configure the memory settings, but
performance and reliability may be impacted or the DIMMs may not function under the
determined fr eq u en cy.
Table 3 lists the supported DIMM configurations.
Table 3. Supported Memory Configurations
DIMM
Note: “DS” refers to double-sided memory modules (containing two rows of SDRAM) and “SS” refers to
single-sided memory modules (containing o ne row of SDRAM).
(Note)
SDRAM
SDRAM Organization
Number of SDRAM
21
Intel Desktop Board DQ77MK Technical Product Specification
For information about…
Refer to:
Tested Memory http://support.intel.com/support/motherboards/desktop/sb
/CS-025414.htm
1.4.1 Memory Configurations
The 3rd generation Intel Core processor family and 2nd generation Intel Core processor
family processors support the following types of memory organization:
• Dual channel (Interleaved) mode. This mode offers the highest throughput for
real world applications. Dual channel mode is enabled when the installed memory
capacities of both DIMM channels are equa l. Technology and device width c an vary
from one channel to the other but the installed memory capacity for each channel
must be equal. If different speed DIMMs are used between channels, the slowest
memory timing will be used.
• Single channel (Asymmetric) mode. This mo de is eq uivalent to single channel
bandwidth operation for rea l world applications. This mode is u sed when only a
single DIMM is installed or the memory capacities are unequal. Technology and
device width can vary from one channel to the other. If different speed DIMMs are
used between channels, the slowest memory timing will be used.
• Flex mode. This mode provides the most flexible performance characteristics.
The bottommost DRAM memory (the memory that is lowes t within the system
memory map) is mapped to dual channel operation; the top most DRAM memory
(the memory that is nearest to the 8 GB address space limit), if any, is mapped to
single channel operation. Flex mode results in multiple zones of dual and single
channel operation across the whole of DRAM memory. To use flex mode, it is
necessary to populate both channels.
For information about… Refer to:
Memory Configuration Examples http://www.intel.com/support/motherboards/desktop/sb/cs-
011965.htm
22
Figure 3 illustrates the memory channel and D IMM configuration.
Product Description
Figure 3. Memory Channel and DIMM Configuration
NOTE
For best memory performance always install memory in the blue DIMM sockets if
installing only two DIMMs on your board.
Populate DIMM soc kets in the order in which they are numbered.
23
Intel Desktop Board DQ77MK Technical Product Specification
1.5 Intel® Q77 Express Chipset
Intel Q77 Express Chipset with Intel Flexible Display Interconnect (Intel FDI) and
Direct Media Interface (DMI) interconnect provides interfaces to the processor and the
display, USB, SATA, LPC, LAN, and PCI Express interfaces. The Intel Q77 Express
Chipset is a centralized controller for the board’s I/O paths.
For information about Refer to
The Intel Q77 chipset
Resources used by the chipset Chapter 2
1.5.1 Direct Media Interface (DMI)
Direct Media Interface (DMI) is the chip-to-chip connection between the processor and
PCH. This high-speed interface integrates advanced priority-based servicing allowing
for concurrent traffic and true isochronous transfer capabilities.
1.5.2 Display Interfaces
http://www.intel.com/products/desktop/chipsets/index.htm
Display is divided between the processor and the PCH. The processor houses the
memory interface, display planes, and pipes while the PCH has transcoder and display
interface or ports.
The PCH receives the display data over Intel FDI and transcodes the data as per the
display technology protocol and sends the data through the display interface.
1.5.2.1 Intel
Intel FDI connects t he display engine in the processor with the display interfaces on
the PCH. The display data from the frame buffer is processed in the display engine of
the processor and sent to the PCH over the Intel FDI where it is transcoded as per the
display protocol and driven to the display monitor.
®
Flexible Display Interconnect (Intel
®
FDI)
1.5.2.2 Digital Visual Interface (DVI-D)
The DVI-D port supports only digital DVI displays. The maximum supported resolution
is 1920 x 1200 at 60 Hz refresh (WUXGA). The DVI-D port is compliant with the
DVI 1.0 specification.
1.5.2.3 Digital Visual Interface (DVI-I)
The DVI-I port supports both digital and analog DVI displays. The maximum supported
reso lut io n is 1920 x 1200 at 60 Hz refresh (WUXGA). The DVI por t is com pl iant with
the DVI 1.0 specification. DVI analog output can also be converted to VG A using a
DVI-VGA converter.
Depending on the type of add-in card installed in the PCI Express x16 connector, the
DVI port will behave as described in Table 4.
24
Table 4. DVI Port Status Conditions
No add-in card installed
Enabled
Enabled
PCI Express x16 add-in card installed
Enabled
(Note 2)
Enabled
(Note 2)
No add-in card installed
Enabled
PCI Express x16 add-in card installed
Enabled
(Note)
AC-3 - Dolby* Digital
No
DTS-HD*
No
Product Description
PCI Express x16 Connector Status
Notes:
1. D VI analog output can also be converted to VGA with a DVI-VGA converter.
2. May require BIOS setup menu changes.
DVI Digital (DVI-D)
Port Status
DVI Analog (DVI-A)
Port Status
(Note 1)
1.5.2.4 DisplayPort
DisplayPort is a dig ital communic ation interface that util izes differential signaling to
achieve a high bandwidth bus interface designed to support connections between PCs
and monitors, projectors, and TV displays. DisplayPort is suitable for display
connections between consumer electronics devices such as high definition optical disc
players, set top boxes, and TV displays. DisplayPort output can also be converted to
HDMI using a DisplayPort-HDMI converter. The DisplayPort interface supports the 1.1a
specification.
DisplayPort’s maximum supported display resolution is 2560 x 1600 at 60 Hz refresh
with a 16:10 aspect ratio (WQXGA).
Table 5. DisplayPort Status Conditions
PCI Express x16 Connector Status DisplayPort Status
Note: May require BIOS setup menu changes.
For information about Refer to
DisplayPort technology http://www.displayport.org
1.5.2.5 Integrated Audio Provided by the DisplayPort Interface
The DisplayPort interface from the PCH supports audio. Table 6 shows the specific
audio technologies supported by the PCH.
Table 6. Audio Formats Supported by the DisplayPort Interface
Audio Formats DisplayPort
Dolby Digital Plus No
LPCM, 192 kHz/24 bit, 8 Channel Yes
25
Intel Desktop Board DQ77MK Technical Product Specification
For information about
Refer to
1.5.3 USB
The PCH contains up to two Enhanced Host Contro ller Interface (EHCI) host controllers
that support USB high-speed signaling. High-speed USB 2.0 allows data transfers up to
480 Mb/s. All ports are high-speed, fu l l-speed, and low-speed capable.
The PCH also contains an integrated eXtensible Host Controller Interface (xHCI) host
controller which supports USB 3.0 ports . T his c ontroller allows data transfers up to
5 Gb/s. The controller supports SuperSpeed (SS), high-speed (HS), full-speed (FS),
and low-speed (LS) traffic on the bus.
The board supports up to four USB 3.0 ports and ten USB 2.0 ports.
The Intel Q77 Express Chipset provides the USB controller for the 2.0/3.0 ports. The
port arrangement is as follows:
• Two USB 3.0 ports are implemented with stacked back panel connectors (blue)
• Two front panel USB 3.0 ports are implemented through one internal connector
(blue)
• Four USB 2.0 ports implemented with stacked back panel connectors (two black
and two orange high current charging ports)
• Four USB 2.0 front panel ports implemented through two internal headers (black)
• Two USB 2.0 ports are implemented in the PCI Express Full-/Half–Mini Card slo t
NOTE
Computer systems that have an unshielded cable attached to a USB port may not
meet FCC Class B requirements, even if no device is attached to the cable. Use a
shielded cable that meets the requirements for full-speed devices.
The location of the USB connectors on the back panel Figure 10, page 50
The location of the front panel USB headers Figure 11, page 51
1.5.4 SATA Interfaces
The board provides six SATA connectors, through the PCH, which support one device
each:
• Two SATA 6.0 Gb/s interfaces through the Intel Q77 Express Chipset with Intel
Rapid Storage Technology RAID support (blue)
• Two internal SATA 3.0 Gb/s interfaces through Intel Q 77 Express Chipset with Intel
Rapid Storage Technology RAID support (black)
• One internal SATA connector (multiplexed with an mSATA port, routed to the PCI
Express Full-/Half-Mini Card slot) (gray)
• One external eSATA 3.0 Gb/s interface (red)
The PCH provides independent SATA ports with a theoretical maximum transfer rate of
6.0 Gb/s for two port and 3.0 Gb/s for four ports. A point-to-point interface is used for
host-to-device connections.
®
26
Product Description
The PC H supports the Serial ATA Specification, R evisio n 3.0. The PCH a lso supports
several optional sections of the Serial ATA II: Extensions to Serial ATA 1.0
Specification, Revision 1.0 (AHCI support is required for some elements).
The underlying SATA functionality is tra nsparent to the operating system. The SATA
controller can operate in both legacy and na tive modes. In legacy mode, standard IDE
I/O and IRQ resources are assigned (IRQ 14 and 15). In native mode, standard PCI
Conventional bus resource steering is used. Native mode is the preferred mode for
configurations using the Windows* XP, Windows Vista*, and Windows 7 operating
systems.
NOTE
When an mSATA module is plugg ed into the PCI Express Full-Mini Card slot, SATA port
4 (colored gray) will be disabled automatically.
NOTE
Many SATA drives use new low-voltage power connectors and require adapters or
power supplies equipped with low-voltage power connectors.
For more information, see: http://www.serialata.org/
For information about Refer to
The location of the SATA connectors Figure 11, page 51
.
27
Intel Desktop Board DQ77MK Technical Product Specification
1.6 Real-Time Clock Subsystem
A coin-cell battery (CR2032) powers the real-time clock and CMOS memory. When
the computer is not plugged into a wall socket, the battery has an estimated life of
three years. When the computer is plugged in, the standby current from the power
supply extends the life of the battery. The c lock is accurate to ± 13 minutes/year at
25 ºC with 3.3 VSB applied via the power supply 5V STBY rail.
NOTE
If the battery and AC power fail, date and time values will be reset and the user will be
notified during the POST.
When the voltage drops below a certain level, the BIOS Setup program settings stored
in CMOS RAM (for example, the date and time) might not be accurate. Replace the
battery with an equivalent one. Figure 1 on page 15 shows the location of the battery.
1.7 Legacy I/O Controller
The I/O controller provides the following features:
• One serial port
• Serial IRQ interface compatible with serialized IRQ support for PCI systems
• Intelligent power management, including a progra mm a b le w ake-up event interface
• Conventional PCI bus power m anagement support
The BIOS Setup program provides configuration options for the I/O controller.
28
Product Description
Front panel – Green
Default
Back panel – Pink
Default
1.8 Audio Subsystem
The board supports the Intel® High Definition Audio (Intel® HD Audio) subsystem. The
audio subsystem consists of the following:
• Intel Q77 Express Chipset
• Realtek ALC892 audio codec
The audio subsystem has the following features:
• Advanced jack sense for the back panel audio jacks that enables the audio codec to
recognize the device that is connected to an audio por t. The back panel audio
jacks are capable of retasking according to the user’s definition, or can be
automatically switched depending on the recognized device type.
• Front panel Intel HD Audio and AC ’97 audio support.
• 3-port analog audio out stack.
• A signal-to-noise (S/N) ratio of 95 dB.
• Windows 7 Ultimate certification.
Table 7 lists the supported functions of the front panel and back panel audio jacks.
Table 7. Audio Jack Support
Audio Jack
Front panel – Pink Default
Back panel – Blue Default
Back panel – Green (ctrl panel) Default
Microphone Headphones
Line Out
(Front Spks)
(ctrl panel)
Line In
(Surround)
(ctrl panel)
1.8.1 Audio Subsystem Software
The latest audio software and drivers are available from Intel’s World Wide Web site.
For information about Refer to
Obtaining audio software and driver s Section 1.2, pa ge 18
Mic-In
(Center/Sub)
(ctrl panel)
29
Intel Desktop Board DQ77MK Technical Product Specification
The locations of the front panel audio header and S/PDIF audio he ader
Figure 11, page 51
The back panel audio connectors
Section 2.2.1, page 50
1.8.2 Audio Connectors and Headers
The board contains au d io connectors and headers on both the back panel and the
component side of the board. The component-side audio headers include front panel
audio (a 2 x 5-pin header that provides mic in and line out signals for front pa nel audio
connectors). The available configurable back panel audio connectors are shown in
Figure 4.
Item Description
A Line in/surround
B Line out/front speakers
C Mic in/center/sub
Figure 4. Back Panel Audio Connectors
NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.
For information about Refer to
The signal names of the front panel audio header and S/PDIF audio header Section 2.2.2.1, page 53
1.8.2.1 S/PDIF Header
The S/PDIF header allows connections to optical dongles for digital audio output.
1.8.2.2 Internal Mono Speaker Header
The internal mono speaker header allows connection to an internal, low-power speaker
for basic system sound capability. The subsystem is capable of driving a speaker load
of 8 Ohms at 1 W (rms) or 4 Ohms at 1.5 W (rms).
30
Product Description
For information about
Refer to
1.9 LAN Subsystem
The two LAN subsystems consists of the following:
• Intel 82579LM Gigabit Ethernet Controller and Intel 82574L Gigabit Ethernet
Controller (10/100/1000 Mb/s)
• Intel Q77 Express Chipset
• RJ-45 LAN connector with integrated status LEDs
Additional features of the LAN subsystem include:
• CSMA/CD protocol engine
• LAN connect interface between the PCH and the LAN cont roller
• Conventional PCI bus power m anagement
ACPI technology support
LAN wake capabilities
• ACPI technology support
• LAN wake capabilities
• LAN subsyst em software
LAN software and drivers http://downloadcenter.intel.com
1.9.1 Intel® 82579LM Gigabit Ethernet Controller and
®
Intel
The ethernet controllers support the following features:
• 10/100/1000 BASE-T IEEE 802.3 compliant
• Energy Efficient Ethernet (EEE) IEEE802.3az support (Low Power Idle [LPI] mode)
• Dual interconnect between the Integrated LAN Controller and the Physical Layer
(PHY):
PCI Express-based interface for active state operation (S0) state
SMBUS for host and management traffic (Sx low power state)
• Compliant to IEEE 802.3x flow control support
• 802.1p and 802.1q
• TCP, IP, and UDP checksum offload (for IPv4 and IPv6)
• Full device driver compatibility
In addition, the Intel 82579LM Gigabit Ethernet Controller supports Intel AMT, which is
a part of Intel’s vPro™ technology. The associate d RJ-45 L A N connector has been
colored red for easy identification.
82574L Gigabit Ethernet Controller
31
Intel Desktop Board DQ77MK Technical Product Specification
For information about
Refer to
1.9.2 LAN Subsystem Software
When Intel AMT is not configured, the LAN controllers support featu r es of Intel®
Advanced Network Services (Intel
®
ANS). Intel ANS is included in the LAN driver
software and contains support for te aming adapters in:
• Adapter Fault Tolerance
• Switch Fault Tolerance
• Adaptive Load Balancing for both transmit and receive
• Static Link Aggregation
• IEEE 802.3ad Dynamic Link Aggregation.
LAN software and drivers are available from Intel’s World Wide Web site.
Obtaining LAN software and drivers http://downloadcenter.intel.com
Intel® Advanced Network Services and adapter teaming http://www.intel.com/support/ne
twork/sb/cs-009747.htm
1.9.3 RJ-45 LAN Connectors with Integrated LEDs
Two LEDs are built into the RJ-45 LAN connectors (shown in Figure 5).
32
Item Description
A Link LED (Green)
B Data Rate LED (Green/Yellow)
C Link LED (Green)
D Data Rate LED (Green/Yellow)
Figure 5. LAN Connectors LED Locations
Product Description
LED
LED Color
LED State
Condition
Off
LAN link is not established.
On
LAN link is established.
Blinking
LAN activity is occurring.
Off
10 Mb/s data rate is selected.
Green
100 Mb/s data rate is selected.
Yellow
1000 Mb/s data rate is selected.
For information about
Refer to
Table 8 describes the LED states when the board is powered up and the LAN
subsystem is operating.
Table 8. LAN Connector LED States
Link Green
Data Rate Green/Yellow
1.10 Hardware Management Subsystem
The hardware management features enable the board to be compatible with the Wired
for Management (WfM) specification. The board has several hardware management
features, including the following:
• Thermal and voltage monitoring
• Chassis intrusion detection
1.10.1 Hardware Monitoring
The hardware monitoring and fan control subsystem is based on the Nuvoton
NCT6776D device, which supports the following:
• Processor and system ambient temperature monitoring
• Chassis fan speed monitoring
• Power monitoring of +12 V, +5 V, +3.3 V, 3.3 Vstandby, V_SM, +VCCP,
PCH VCC
• SMBus interface
1.10.2 Fan Monitoring
Fan monitoring can be implemented using Intel® Desktop Utilities or third-party
software.
The functions of the fan headers Section 1.12.2.2, page 43
1.10.3 Chassis Intrusion and Detection
The board supports a chassis security feature tha t detects if the chassis cover is
removed. The security feature uses a mechanica l s witch on the chassis that att aches
to the chassis intrusion header. When the chassis cover is removed, the mechanical
switch is in the closed position.
For information about Refer to
The location of the chassis intrusion header Figure 11, page 51
and
33
Intel Desktop Board DQ77MK Technical Product Specification
B
Rear chassis fan header
C
Processor fan header
E
Thermal diode, located on the Intel Q77 PCH
1.10.4 Thermal Monitoring
Figure 6 shows the locations of the thermal sensors and fan headers.
Item Description
A Thermal diode, located on the processor die
D Front chassis fan header
Figure 6. Thermal Sensors and Fan Headers
34
Product Description
For information about
Refer to
1.11 Intel® Security and Manageability
Technologies
Intel® Security and Manageability Technologies provides tools and resources to help
small business owners and IT organizations protect and manage their assets in a
business or institut io n al environment.
NOTE
Software with security and/or manageability capability is required to take advanta ge of
Intel platform security and/or management technologies.
1.11.1 Intel® vPro™ Technology
Intel® vPro™ Technology is a collection of platform capabilities that s upp ort enhanced
manageability, security, virtualization and power efficiency. The key platform
capabilities include:
• Intel
• Intel
• Intel
• Intel
• Intel
• Intel
• Intel
• Intel
• Trusted Platform Module (TPM)
®
Turbo Boost Technology for increased performance and power efficiency
®
Hyper-Threading Technology (I n te l® HT) for higher performance
®
Active Management Technology (Intel® AMT)
®
Virtualization (Intel® VT)
®
Virtualization for Directed I/O (Intel® VT-d)
®
Trusted Execution Technology (Intel® TXT)
®
Identity Protection Technology (Intel® IPT)
®
Anti-Theft Technology (Intel® AT)
Intel vPro Technology http://support.intel.com/support/vpro/
1.11.1.1 Intel® Active Management Technology
When used with third-party management and security applications, Intel Active
Management Technolo g y (Intel AMT) allows business owners and IT organizations to
better discover, heal, and protect their networked computing assets.
Some of the features of Intel AMT include:
• Out-of-band (OOB) system access, to discover assets even while PCs are
powered off
• Remote trouble-shooting and recovery, which allows remote diagnosis and
recovery of systems after OS failures
• Hardware-based agent pre sen ce checking that automatically detects and alerts
when critical software agents have been stopped or are missing
• Proactive network defense, which uses filters to block incoming threats while
isolating infected clients before they impact the network
• Remote hardware and software asset tracking, helping to track computer assets
and keep virus protection up-to-date
35
Intel Desktop Board DQ77MK Technical Product Specification
For information about
Refer to
For information about
Refer to
Intel Virtualization Technology
http://www.intel.com/technology/virtualization/tec
For information about
Refer to
• Keyboard, video and mouse (KVM) remote control, which allows redirection of a
managed system’s video to a remote console which can then interact with it
using the console’s own mouse and keyboard.
NOTE
Intel AMT requires the computer system to have an Intel AMT-enabled chipset,
network hardware and software, as well as connection with a power source, a
corporate n etwork conn ecti on, and an Intel AMT-ena bled remot e mana gement con sole.
Setup requires additional configuration of the platform.
Intel Active Management Technology http://www.intel.com/technology/platform-
technology/intel-amt/index.htm
1.11.1.2 Intel® Virtualization Technology
Intel® Virtualization Technology (Intel® VT) is a hardware-assisted technology that,
when combined with software-based virtualization solutions, provides maximum
system utilization by consolidating multiple environments into a single server or
client.
NOTE
A processor with Intel VT does not guarantee that virtualization will work on your
system. Intel VT requires a computer system with a chipset, BIOS, enabling software
and/or operating system, device drivers, and applications designed for this feature.
hnology.htm
1.11.1.3 Intel® Virtualization Technology for Directed I/O
Intel® Virtualization Technology for Directed I/O (Intel® VT-d) allows addresses in
incoming I/O device memory transactions to be remapped to different host addresses.
This provides Virtual Machine Monitor (VMM) software with:
• Improved reliability and security through device isolation using hardware assisted
remapping
• Improved I/O performance and availability by direct assignment of devices.
Intel Virtualization Technology for Directed I/O http://www.intel.com/technology/itj/2006/v10i3/2-io/4-
virtualization-techniques.htm
36
1.11.1.4 Intel® Trusted Execution Technology
Intel® Trusted Execution Technology (Intel® TXT) is a hardware security solution that
protects systems against software-based attacks by validating the behavior of key
components at startup against a known good source. It requires that Intel VT be
enabled and the presence of a TPM.
For information about Refer to
Intel Trusted Execution Technology http://www.intel.com/content/www/us/en/architecture-
and-technology/trusted-execution-technology/malwarereduction-general-technology.html
1.11.1.5 Intel® Identity Protection Technology
Intel® Identity Protection Technology (Intel® IPT) provides a simple way for websites
and enterprises to validate that a user is logging in from a trusted computer. This is
accomplished by using the Intel Manageability Engine embedded in the chipset to
generate a six-digit number that, when coupled with a user name and pass word, will
generate a One-Time Password (OTP) w hen visiting Intel IPT-enabled websites. Intel
IPT eliminates the need for the additional token or key fob required previously for
two-factor authenticatio n .
For information about Refer to
Intel Identity Protection Technology http://ipt.intel.com
Product Description
1.11.1.6 Intel Anti-Theft Technology
Intel® Anti-Theft (Intel® AT) provides local, tamper-resistant defense that works like
a poison pill that disables the computer and access to its data even if the operating
system (OS) is reimaged, a new hard drive is installed, or the computer is
disconnected from the network.
NOTE
No computer system can provide absolute security under all conditions. Intel AT
requires the computer system to have an Intel
release, software, and an Intel AT-capable Service Provider/ISV application and
service subscription. The detection (triggers), response (actions), and recovery
mechanisms only work after the Intel
configured. Certain functionality may not be offered by some ISVs or service
providers and may not be available in all countries. Intel assumes no liability for lost
or stolen data and/or systems or any other damages resulting thereof.
For information about Refer to
Intel Anti-Theft http://antitheft.intel.com/welcome.aspx
®
AT functionality has been activated a nd
®
AT-enabled chipset, BIOS, firmware
37
Intel Desktop Board DQ77MK Technical Product Specification
For information about
Refer to
Intel Small Business Advantage
http://www.intel.com/go/SBA
1.11.1.7 Trusted Platform Module (TPM)
The Nuvoton NPCT420 TPM version 1.2 revision 116 component is specifically designed
to enhance platform security above-and-beyond the capabilities of today’s software by
providing a protected space for key operations and other security critical tasks. Using
both hardware and software, the TPM protects encryption and signature keys at their
most vulnerable stages—operations when the keys are being used unencrypted in
plain-text form. The TPM shields unencrypted keys and platform authentication
information from software-based attacks.
For information about Refer to
Nuvoton TPM version 1.2 http://www.nuvoton-usa.com/
1.11.2 Intel Small Business Technology
Intel® Small Business Technology (Intel® SBT) provides small businesses with security
and productivity capabilities to help keep their PCs up-to-date, protected and running
well. Intel SBT is the firmware component of Intel
SBA) and includes this hardware functionality:
• Local Maintenance Timer – Enables applications to “wake-up” the host platform
when it is powered down or in a sleep state.
• Local Software Monitor – Provides a common reporting mechanism to monitor
applications running on the host operating system.
®
Small Business Advantage (Intel®
NOTE
Systems configured for use with Intel SBA will not be configurable for Intel AMT, and
vice versa. To change from one usage to the other, the system must first be
unprovisioned back to factory defaults. This may be done by entering BIOS Setup
Configuration Mode.
Entering BIOS Setup Configuration Mode Section 2.3 on page 63
38
Product Description
For information about
Refer to
1.11.3 Intel® Management Engine (Intel® ME) Software
and Drivers
Intel ME software and drivers are available from Intel’s World Wide Web site.
Obtaining Intel ME so f tware and drivers Section 1.2 on page 18
1.11.3.1 Intel® Management Engine “M” State LED
The board has a blue-colored Intel ME “M” state LED (see Figure 7). The “M” state is
based on Intel ME status, as follows:
• M0 = Intel ME is in full control in S0
• M3 = Intel ME is in full control in S3-S5 for “out of bound” Intel manageability
• Moff = Intel ME is in sleep state after Intel ME timeout has occurred
Table 9 shows expected behavior of the “M” state LED.
Table 9. Intel ME “M” State LED Behavior
Sx/M3 Sx/Moff S0/M0
LED blinks Off On
Figure 7. Location of the Intel ME “M” State LED
39
Intel Desktop Board DQ77MK Technical Product Specification
If the system is in this
state…
…and the power switch is
pressed for
…the system enters this state
Off
(ACPI G2/G5 – Soft off)
Less than four seconds
Power-on
(ACPI G0 – working state)
On
(ACPI G0 – working state)
Less than four seconds
Soft-off/Standby
(ACPI G1 – sleeping state)
On
(ACPI G0 – working state)
More than six seconds
Fail safe power-off
(ACPI G2/G5 – Soft off)
Sleep
(ACPI G1 – sleeping state)
Less than four seconds
Wake-up
(ACPI G0 – working state)
Sleep
(ACPI G1 – sleeping state)
More than six seconds
Power-off
(ACPI G2/G5 – Soft off)
1.12 Power Management
Power management is implemented at several levels, including:
• Software support through Advanced Configuration and Pow er Interface (ACPI)
• Hardware support:
Power connector
Fan headers
LAN wake capabilities
Instantly Available PC technolog y
Wake from USB
Power Management Event signal (PME#) wake-up support
PCI Express WAKE# signal support
Wake from serial port
Wake from S5
+5 V Standby Power Indicator LED
1.12.1 ACPI
ACPI gives the operating system direct contro l ove r the power management and Plug
and Play functions of a computer. The use of ACPI with this board require s an
operating system that provides full ACPI support. ACPI features include:
• Plug and Play (including bus and device enumeration)
• Power management control of individ ual devices, add-in boards (some add-in
boards may require an ACPI-aware driver), video displays, and hard disk drives
• Methods for achieving less than 15-watt system operation in the power-on/standby
sleeping state
• A Soft-off feature that enables the operating system to power-off the computer
• Support for multiple wake-up events (see Table 12 on page 42)
• Support for a front panel power and sleep mode switch
Table 10 lists the system states based on how long the power switch is pressed,
depending on how ACPI is configured with an ACPI-aware oper ating system.
Table 10. Effects of Pressing the Power Switch
40
Product Description
G1 – sleeping
S3 – Suspend to
No power
D3 – no power
Power < 5 W
(Note 2)
1.12.1.1 System States and Power States
Under ACPI, the operating system directs all system and device power state
transitions. The operating system puts devices in and out of low-power states based
on user preferences and knowledge of how devices are being used by applications.
Devices that are not being used can be turned off. The operating system uses
infor mation from applications and user settings to put the system as a whole into a
low-power state.
Table 11 lists the power states supported by the board along with the associated
system power targets. See the ACPI specification for a complete description of the
various system and power states.
Table 11. Power States and Targeted System Power
Global States Sleeping States
G0 – working
state
state
G1 – sleeping
state
G2/S5 S5 – Soft off.
G3 –
mechanical off
AC power is
disconnected
from the
computer.
Notes:
1. To tal system power is dependent on the system configuration, including add -in board s and per ipherals
powered by the system chassis’ power supply.
2. Dependent on the standby power consumption of wake-up devices used in the sys te m.
S0 – working C0 – working D0 – working
RAM. Context
saved to RAM.
S4 – Suspend to
disk. Context
saved to disk.
Context not saved.
Cold boot is
required.
No power to the
system.
Processor
States
No power D3 – no power
No power D3 – no power
No power D3 – no powe r for
Device States
state.
except for
wake-up logic.
except for
wake-up logic.
except for
wake-up logic.
wake-up logic,
except when
provided by
battery or
external source.
Targeted System
Power
Full power > 30 W
Power < 5 W
Power < 5 W
No power to the system.
Service can be performed
safely.
(Note 1)
(Note 2)
(Note 2)
41
Intel Desktop Board DQ77MK Technical Product Specification
These devices/events can wake up the computer…
…from this state
Power switch
S3, S4, S5
(
Note)
S3, S4, S5
(Note)
LAN
S3, S4, S5
(Note)
USB
S3
(Note)
S3, S4, S5
(Note)
Serial port
S3
1.12.1.2 Wake-up Devices and Events
Table 12 lists the devices or specific events that can wake the computer from specific
states.
Table 12. Wake-up Devices and Events
RTC alarm
PME# signal
WAKE#
Note: S4 implies operating system s upport only.
NOTE
S3, S4, S5
The use of these wake-up events from an ACPI state requires an operating system
that provides full ACPI support. In addition, software, drivers, and peripherals must
fully support ACPI wake events.
1.12.2 Hardware Support
CAUTION
Ensure that the power supply provides ade qua te + 5 V standby current if LAN wake
capabilities and Instantly Available PC technology features are used. Failure to do so
can damage the power supply. The total amount of standby current required depends
on the wake devices supported and manufacturing options.
The board provides several power management hardware features, including:
• Power connector
• Fan headers
• LAN wake capabilities
• Instantly Available PC technology
• Wake from USB
• Power Management Event signal (PME#) wake-up support
• PCI Express WAKE# signal support
• Wake from serial port
• Wake from S5
• +5 V Standby Power Indicator LED
LAN wake capabilities and Instantly Available PC technology require power from the
+5 V standby line.
NOTE
The use of Wake from USB from an ACPI state requires an operating system that
provides full ACPI support.
42
Product Description
The signal names of the main power connector
Table 29, page 59
1.12.2.1 Power Connector
ATX12V-compliant power supplies can turn off the syste m powe r through system
control. When an ACPI -enabled system receives the correct command, the power
supply removes all non-standby voltages.
When resuming from an AC power failure, the computer returns to the power state it
was in before power was interrupted (on or off). The computer’s response can be set
using the Last Power State feature in the BIOS Setup program’s Boot menu.
For information about Refer to
The location of the main power connector Figure 11, page 51
1.12.2.2 Fan Headers
The function/operation of the fan header s is as follows:
• The fans are on when the board is in the S0 state
• The fans are off when the board is off or in the S3, S4, or S5 state
• Each fan header is wired to a fan tachometer input of t he hardware monitoring and
fan control ASIC
• All fan headers support closed-loop fan control that can adjust the fan speed or
switch the fan on or of f as needed
• All fan headers have a +12 V DC connection
• The fan headers are controlled by Pulse Width Modulation
For information about Refer to
The location of the fan headers Figure 11, page 51
The location of the fan headers and sensors for thermal monitoring Figure 6, page 34
1.12.2.3 LAN Wake Capabilities
CAUTION
For LAN wake capabilities, the +5 V standby line for the power supply must be capable
of providing adequate +5 V standby current. Failure to provide adequate standby
current when implementing LAN wake capabi li ties can damage the power supply.
LAN wake capabilities enable remote wake-up of the computer through a network.
The LAN subsystem PCI bus network adapter monitors network traffic at the Media
Independent Interface. Upon detecting a Magic Packet* fr ame, the LAN subsystem
asserts a wake-up signal that powers up the computer. Depending on the LAN
implementation, the board suppor ts LAN wake capabilities with ACPI in the following
ways:
• The PCI Express WAKE# signal
• By Ping
• Magic Packet
• The onboard LAN subsystem
43
Intel Desktop Board DQ77MK Technical Product Specification
1.12.2.4 Instantly Available PC Technology
CAUTION
For Instantly Available PC technology, the +5 V standby line for the power supply must
be capable of providing adequate +5 V standby current. Failure to provide adequate
standby current when implementing Instantly Available PC technology can damage the
power supply.
Instantly Available PC technology enables the board to enter the ACPI S3 (Suspend-toRAM) sleep-state. While in the S3 sleep-state, the computer will appear to be off (the
power supply is off, and the front panel LED is amber if dual colored, or off if single
colored.) When signaled by a wake-up device or event, the system quickly returns to
its last known wake state. Table 12 on page 42 lists the devices and events that can
wake the computer from the S3 state.
The board supports the PCI Bus Power Management Interface Specification. Add-in
boards that also support this specification ca n pa rticipate in power management and
can be used to wake the computer.
The use of Instantly Available PC technology requires operating system support and
PCI Express add-in cards and drivers.
1.12.2.5 Wake from USB
USB bus activity wakes the computer from an ACPI S3 state.
NOTE
Wake from USB requires the use of a USB peripheral that supports Wake from USB.
1.12.2.6 PME# Signal Wake-up Support
When the PME# signal o n t he Conventional PCI bus is a sserted, the computer wakes
from an ACPI S3, S4, or S5 state (with Wake on PME enabled in the BIOS).
1.12.2.7 WAKE# Signal Wake-up Support
When the WAKE# signal on t he PCI Express bus is asserted, the computer wakes from
an ACPI S3, S4, or S5 state.
1.12.2.8 Wake from Serial Port
Serial port activity wakes the computer from an ACPI S3 state.
1.12.2.9 Wake from S5
When the RTC Date and Time is set in the BIOS, the computer will automatically wake
from an ACPI S5 state.
44
Product Description
1.12.2.10 +5 V Standby Power Indicator LED
The +5 V standby power indicator LED shows that power is still present even when the
computer appears to be off. Figure 8 shows the location of the standby power LED.
CAUTION
If AC power has been switched off and the s ta ndby power indicator is still lit,
disconnect the power cord before installing o r removing any devices connected to the
board. Failure to do so could damage the board and any attached devices.
Figure 8. Location of the Standby Power LED
45
Intel Desktop Board DQ77MK Technical Product Specification
46
2 Technical Reference
2.1 Memory Resources
2.1.1 Addressable Memory
The board utilizes 32 GB of addressable system memory. Typically the address space
that is allocated for Conventional PCI bus add-in cards, PCI Express configuration
space, BIOS (SPI Flash device), and chipset overhead resides above the top of DRAM
(total system memory). On a system that has 32 GB of system memory installed, it is
not possible to use all of the installed memory due to system address space being
allocated f or other system critical functions. These functions include the follo wing:
• BIOS/SPI Flash device (96 Mb)
• Local APIC (19 MB)
• Direct Media Interface (40 MB)
• PCI Express configuration space (256 MB)
• PCH base address registers PCI Express ports (up to 256 MB)
• Memory-mapped I/O that is dynamically allocated for Conventional PCI and PCI
Express add-in cards (256 MB)
The board provides the capability to reclaim the physical memory overlapped by the
memory mapped I/O logical address space. The board remaps physical memory from
the top of usable DRAM boundary to the 4 GB boundary to an equiva lent sized logical
address range located just above the 4 GB boundary. Figure 9 shows a schematic of
the system memory map. All installed system memory can be used when there is no
overlap of system addresses.
47
Intel Desktop Board DQ77MK Technical Product Specification
Figure 9. Detailed System Memory Address Map
48
2.1.2 Memory Map
Table 13 lists the system memory map.
Table 13. System Memory Map
Technical Reference
Address Range
(decimal)
1024 K - 33550336 K 100000 – 7FFC00000 32764 MB Extended memory
960 K - 1024 K F0000 - FFFFF 64 KB Runtime BIOS
896 K - 960 K E0000 - EFFFF 64 KB Reserved
800 K - 896 K C8000 - DFFFF 96 KB Potential av aila b le high DOS
640 K - 800 K A0000 - C7FFF 160 KB Video memory and BIOS
639 K - 640 K 9FC00 - 9FFFF 1 KB Extended BIOS data (movable by
512 K - 639 K 80000 - 9FBFF 127 KB Extended conventional memory
0 K - 512 K 00000 - 7FFFF 512 KB Conventional memory
Address Range
(hex)
Size Description
memory (open to the PCI
Conventional bus). Dependent on
video adapter used.
memory manager software)
2.2 Connectors and Headers
CAUTION
Only the following connectors and headers have overcurrent protection: back panel
and front panel USB, as well as IEEE 1394a.
The other internal connectors and headers are not overcurrent protected and should
connect only to dev i ces inside the computer’s chassis, such as fans and internal
peripherals. Do not use these connectors or headers to power devices external to the
computer’s chassis. A fault in the load prese nted by the external devices could cause
damage to the computer, the power cable, and the external devices themselves.
Furthermore, improper connection of USB or 1394a heade r si n g le wire connectors may
eventually overload the overcurrent protection and cause damage to the board.
This section describes the board’s connectors. The connectors can be divided into
these groups:
• Back panel I/O connectors
• Component-side connectors and headers (see page 51)
49
Intel Desktop Board DQ77MK Technical Product Specification
Item
Description
A
USB 2.0 high current charging ports
B
eSATA connector
C
IEEE 1394a connector
D
LAN port
E
USB 2.0 ports
F
DisplayPort con nector
G
DVI-I connector
H
DVI-D connector
I
LAN port
J
USB 3.0 ports
K
Line in/surround
L
Line out/front speakers
M
Mic-in/center/subwoofer
2.2.1 Back Panel Connectors
Figure 10 shows the location of the back panel connectors for the board.
Figure 10. Back Panel Connectors
NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.
50
Technical Reference
2.2.2 Component-side Connectors and Headers
Figure 11 shows the locations of the component-side connectors and headers.
Figure 11. Component-side Connectors and Headers
51
Intel Desktop Board DQ77MK Technical Product Specification
Table 14 lists the component-side connectors and headers identified in Figure 11.
Table 14. Component-side Connectors and Headers Shown in Figure 11
Item/callout f
rom Figure 11 Description
A P CI Express x4 add-in card connec to r
B C onventional PCI add-in card connector
C IEEE 1394a front panel connector
D PCI Express x1 add -in card conne c to r
E PCI Express x16 add-in card connector
F 12 V processor core voltage connector (2 x 2 pin)
G Rear chassis fan header
H Processor fan header
I Front chassis fan header
J LPC Debug header
K Chassis intrusion header
L Main power connector (2 x 12)
M Intel MEBX reset header
N PCI Express Full-/Half-Mini Card slot
O SATA 6.0 Gb/s connector (multiplexed with an mSATA port, routed to the PCI
Express Full-/Half-Mini Card slot) (g ray)
P SATA 3.0 Gb/s connectors through the PCH (black)
Q Alternate front panel power/sleep LED header
R Front panel connector
S S ATA 6.0 Gb/s connectors through the PCH (blue)
T Front panel USB 3.0 connector (blue)
U Front panel USB 2.0 connector
V Front panel USB 2.0 connector
W Serial port connector
X S /PDIF out header
Y Front panel audio connector
Z Internal mono speaker header
52
Technical Reference
Pin
Signal Name
Pin
Signal Name
Pin
Signal Name
Pin
Signal Name
1
[Port 1] Left channel
2
Ground
Pin
Signal Name
Pin
Signal Name
7
Ground
8
Ground
2.2.2.1 Signal Tables for the Connectors and Headers
Table 15. Serial Port Connector
1 DCD (Data Carrier Detect) 2 RXD# (Receive Data)
3 TXD# (Transmit Data) 4 DTR (Data Terminal Ready)
5 Ground 6 DSR (Data Set Ready)
7 RTS (Reques t To Send ) 8 CTS (Clear To Send)
9 RI (Ring Indicator) 10 Key (no pin)
Table 16. Front Panel Audio Header for Intel HD Audio
3 [Port 1] Right c hanne l 4 PRESENCE# (Dongle present)
5 [Port 2] Right c hanne l 6 [Port 1] SENSE_RETURN
7 SENSE_SEN D (Jack d e tection) 8 Key (no pin)
9 [Port 2] Left channe l 10 [Port 2] SENSE_RETURN
Table 17. Front Panel Audio Header for AC ’97 Audio
Pin Signal Name Pin Signal Name
1 MIC 2 AUD_GND
3 MIC_BIAS 4 AUD_GND
5 FP_OUT_R 6 FP_RETURN_R
7 AUD_5V 8 KEY (no pin)
9 FP_OUT_L 10 FP_RETURN_L
Table 18. Front Panel USB 2.0 Connectors
1 +5 V DC 2 +5 V DC
3 D- 4 D5 D+ 6 D+
9 KEY (no pin) 10 No Connect
53
Intel Desktop Board DQ77MK Technical Product Specification
Pin
Signal Name
Pin
Signal Name
1
Data A (positive)
2
Data A (negative)
9
Key (no pin)
10
Ground
Table 19. Front Panel USB 3.0 Connector
Pin Signal Name Description
1 Vbus Power
2 IntA_P1_SSRX− USB3 ICC Port1 SuperSpeed Rx−
3 IntA_P1_SSRX+ USB3 ICC Port1 SuperSpeed Rx+
4 GND Ground
5 IntA_P1_SSTX− USB3 ICC Port1 SuperSpeed Tx−
6 IntA_P1_SSTX+ USB3 ICC Port1 SuperSpe ed Tx+
7 GND Ground
8 IntA_P1_D− USB3 ICC Port1 D− (USB2 Signal D−)
9 IntA_P1_D+ USB3 ICC Port1 D+ (USB2 Signal D+)
10 ID Over Current Protection
11 IntA_P2_D+ USB3 ICC P ort2 D+ (USB2 Signal D+)
12 IntA_P2_D− USB3 ICC Port2 D− (USB2 Signal D−)
13 GND Ground
14 IntA_P2_SSTX+ USB3 ICC Port2 SuperS p eed Tx+
15 IntA_P2_SSTX− USB3 ICC Port2 SuperSpeed Tx−
16 GND Ground
17 IntA_P2_SSRX+ USB3 ICC Port2 SuperSpe ed Rx+
18 IntA_P2_SSRX− USB3 ICC Port2 SuperSpe ed Rx+
19 Vbus Power
20 Key No pin
Table 20. IEEE 1394a Connector
3 Ground 4 Ground
5 Data B (positive ) 6 Data B (negative)
7 +12 V DC 8 +12 V DC
Table 21. Internal Mono Speaker Header
Pin Signal Name
1 −
2 +
54
Table 22. PCI Express Full-/Half-Mini Card Connector
Pin Signal Name Additional Signal N a m e
1 WAKE#
2 +3.3 V aux
3 Reserved
4 GND
5 Reserved
6 1.5 V
7 CLKREQ#
8 Reserved
9 GND
10 Reserved
11 REFCLK-
12 Reserved
13 REFCLK+
14 Reserved
15 GND
16 Reserved
17 Reserved
18 GND
19 Reserved
20 Reserved
21 GND
22 PERST#
23 PERn0
24 +3.3 V aux
25 PERp0
26 GND
27 GND
28 +1.5 V
29 GND
30 SMB_CLK
31 PETn0
32 SMB_DATA
33 PETp0
34 GND
35 GND
36 USB_D-
37 GND (mSATA) GND
38 USB_D+
continued
Technical Reference
55
Intel Desktop Board DQ77MK Technical Product Specification
Pin
Signal Name
Table 22. PCI Express Full-/Half-Mini Card Connector (continued)
Pin Signal Name Additional Signal Name
39 +3.3 V aux (mSATA) 3.3 V
40 GND
41 +3.3 V aux (mSATA) 3.3 V
42 LED_WWAN#
43 Reserved NC (mSATA indicator)
44 LED_WLAN#
(mSATA) Vendor;
45 Reserved
46 LED_WPAN#
47 Reserved
48 +1.5V
49 Reserved
50 GND
51 Reserved (mSATA) Presence Detection
52 +3.3 V aux
(Intel AMT) C-Link_CLK*
(mSATA) Vendor
(Intel AMT) C-Link_DAT*
(mSATA) DA/DSS
(Intel AMT) C-Link_RST*
NOTE
The Intel AMT C-Link signals are routed to t he PC Ie full-/half-mini card connector
to support Intel AMT Wake-on-LAN for wireless cards.
Table 23. SATA Connectors
1 Ground
2 TXP
3 TXN
4 Ground
5 RXN
6 RXP
7 Ground
56
Table 24. S/PDIF Header
Pin
Signal Name
1
Intruder#
(Note)
2
+12 V
Pin
Signal Name
Pin
Signal Name
1
CK_33M_DEBUG
2
GND
Pin Signal Name
1 Ground
2 S/PDIF out
3 Key (no pin)
4 +5 V DC
Table 25. Chassis Intrusion Header
2 Ground
Table 26. Processor, Front, and Rear Chassis
(4-Pin) Fan Headers
Pin Signal Name
1 Ground
Technical Reference
3 FAN_TACH
4 FAN_CONTROL
Note: These fan headers use Pulse Width Modulation control for fan speed.
Table 27. LPC Debug Header
3 PLTRST# 4 LFRAME#
5 LAD0 6 LAD1
7 LAD2 8 LAD3
9 GND 10 GND
11 +3.3 V 12 +3.3 V
13 Key (no pin) 14 +3.3 V
57
Intel Desktop Board DQ77MK Technical Product Specification
2.2.2.2 Add-in Card Connectors
The board has the following add-in card connectors:
• One PCI Express x16 (3.0/ 2.x/1 .x)
• One PCI Express x4 (2.x/1.x)
• One PCI Express x1 (2.x/1.x)
• One Conventional PCI (rev 2.3)
Note the following considerations for the Conventional PCI bus connector:
• The Conventional PCI bus c onnector is bus master capable.
• SMBus signals are routed to the Conventional PCI bus connector. This enables
Conventional PCI bus add-in boards with SMBus support to access sensor data on
the desktop board. The specific SMBus signals are as follows:
The SMBus clock line is connected to pin A40.
The SMBus data line is connected to pin A41.
NOTE
PCI Express 3.0 is only supported by 3rd generation Intel Core processor family
processors.
58
Technical Reference
3
+12 V
4
+12 V
(Note)
(Note)
(Note)
(Note)
2.2.2.3 Power Supply Connectors
The board has the following power supply connectors:
• Main power – a 2 x 12 connector. This connector is compatible w ith 2 x 10
connectors previously used on Intel Desktop boards. The board supports the use
of ATX12V power supplies with either 2 x 10 or 2 x 12 main power cables. When
using a power supply with a 2 x 10 main power cable, attach that cable to the main
power connector, leaving pins 11, 12, 23, and 24 unconnected.
• Processor core power – a 2 x 2 connector. This connector provides power
directly to the processor voltage regulator and must always be used. Failure to do
so will prevent the board from booting.
Table 28. Processor Core Power Connector
Pin Signal Name Pin Signal Name
1 Ground 2 Ground
Table 29. Main Power Connector
Pin Signal Name Pin Signal Name
1 +3.3 V 13 +3.3 V
2 +3.3 V 14 -12 V
3 Ground 15 Ground
4 +5 V 16 PS-ON# (power supp ly remote on/off)
5 Ground 17 Ground
6 +5 V 18 Ground
7 Ground 19 Ground
8 PWRGD (Power Good) 20 No connect
9 +5 V (Standby) 21 +5 V
10 +12 V 22 +5 V
11
12
Note: When using a 2 x 10 power supply cable, this pin will be unconnected.
+12 V
2 x 12 connector detect
23
24
+5 V
Ground
For information about Refer to
Power supply considerations Section 2.6.1 on page 66
59
Intel Desktop Board DQ77MK Technical Product Specification
Pin
Signal Name
Description
Pin
Signal Name
Description
2.2.2.4 Front Panel Header
This section describes the functions of t he front panel header. Table 30 lists the signal
names of the front panel header. Figure 12 is a connection diagram for the front panel
header.
Table 30. Front Panel Header
1 HDD_POWER_LED Pull-up resistor
(750 Ω) to +5V
3 HDD_LED# [Out] Hard disk
activity LED
5 GROUND Ground 6 POWER_SWITCH# [In] Power switch
7 RESET_SWITCH# [In] Reset switch 8 GROUND Ground
9 +5V_DC Power 10 Key No pin
2 POWER_LED_MAIN [O ut] F ro nt panel LED
(main color)
4 POWER_LED_ALT [Out] Front panel LED
(alt color)
Figure 12. Connection Diagram for Front Panel Header
2.2.2.4.1 Hard Drive Activity LED Header
Pins 1 and 3 can be connected to an LED to provide a visual indicator that data is
being read from or written to a hard drive. Proper LED function requires a SATA hard
drive or optical drive connected to an onboard SATA connector.
2.2.2.4.2 Reset Switch Header
Pins 5 and 7 can be connected to a momentary single pole, single throw (SPST) type
switch that is normally open. When the switch is closed, the board resets and runs the
POST.
60
Technical Reference
LED State
Description
Off
Power off
2.2.2.4.3 Power/Sleep LED Header
Pins 2 and 4 can be conne cted to a one- or two-color LED. Table 31 shows the
possible states for a one-color LED. Table 32 shows the possible states for a two-color
LED.
Table 31. States for a One-Color Power LED
LED State Description
Off Power off/sleeping
Steady Green Running
Table 32. States for a Two-Color Power LED
Steady Green Running
Steady Yellow Sleeping
NOTE
The colors listed in Table 31 and Table 32 are suggested colors only. Actual LED colors
are chassis-specific.
2.2.2.4.4 Power Switch Header
Pins 6 and 8 can be conne cted to a front panel mom entary-contact power switch. The
switch must pull the SW_ON# pin to ground for at least 50 ms to signal the power
supply to switch on or off. (The time requirement is due to internal debounce circuit ry
on the board.) At least two seconds must pass before the power supply will recognize
another on/off signal.
2.2.2.5 Alternate Front Panel Power/Sleep LED Header
Pins 1 and 3 of this header duplicate the signals on pins 2 and 4 of the front panel
header.
Table 33. Alternate Front Panel Power/Sleep LED Header
Pin Signal Name Description
1 POWER_LED_MAIN [Out] Front panel LED (main color)
2 Key (no p in)
3 POWER_LED_ALT [Out] Front p ane l LED (alt color)
61
Intel Desktop Board DQ77MK Technical Product Specification
2.2.2.6 Front Panel USB 2.0 Connectors
Figure 13 is a connection diagram for the front panel USB 2.0 connectors.
NOTE
• The +5 V DC power on the USB connectors is fused.
• Use only a front panel USB connector that conforms to the USB 2.0 specification for
high-speed USB devices.
Figure 13. Connection Diagram for Front Panel USB 2.0 Connectors
62
Technical Reference
2.3 Jumper Block
CAUTION
Do not move the jumper wi t h t he power on. Always turn off the power and unplug the
power cord from the computer before changing a jumper setting. Otherwise, the
board could be damaged.
Figure 14 shows the location of the jumper blo ck. The 3-pin jumper block determines
the BIOS Setup program’s mode. Table 34 describes the jumper settings for the three
modes: normal, configure, and recovery. When the jumper is set to configure mode
and the computer is powered-up, the BIOS compares the processor version and the
microcode version in the BIOS and reports if the two match.
Figure 14. Location of the Jumper Block
Table 34. BIOS Setup Configuration Jumper Settings
Function/Mode Jumper Setting Configuration
Normal
Configure
Recovery
1-2
2-3
None
The BIOS uses current configuration information and passwords
for booting.
After the POST runs, Setup runs automatically. The
maintenance menu is displayed.
Note that this Configure mode is the only way to clear the
BIOS/CMOS settings. Press F9 (restore defaults ) w hile in
Configure mode to restore the BIOS/CMOS settings to their
default values.
The BIOS attempts to recover the BIOS configuration. A
recovery CD or flash drive is required.
63
Intel Desktop Board DQ77MK Technical Product Specification
2.4 Intel® Management Engine BIOS Extension
®
(Intel
The Intel® MEBX reset header (see Figure 15) allows you to reset the Intel ME
configuration to the factory defaults. Momentarily shorting pins 1 and 2 with a jumper
(not supplied) will accomplish the following:
• Return all Intel ME parameters to their default values.
• Reset the Intel MEBX password to the default value (admin).
CAUTION
Always turn off the power and unplug the power cord from the computer before
installing an MEBX reset jumper. The jumper must be removed bef or e r ea p pl y in g
power. The system must be allowed to reach end of POST before reset is complete.
Otherwise, the board could be damaged.
NOTE
After using the MEBX Reset, a “CMOS battery failure” warning will occur during the
next POST. This is expected and does not indicate a component fa il ure.
MEBX) Reset Header
Table 35. Intel MEBX Reset Header Signals
Pin Function
1 PCH_RTCRST_PULLUP
2 Ground
3 No connection
64
Figure 15. Intel MEBX Reset Header
Technical Reference
2.5 Mechanical Considerations
2.5.1 Form Factor
The board is designed to fit into an ATX-form-factor chassis. Figure 16 illustrates the
mechanical form factor for the board. Dimensions are given in inches [millimeters].
The outer dimensions are 9.60 inches by 9.60 inches [243.84 millimeters by
243.84 millimeters]. Loc ation of the I/O connectors and mounting holes are in
compliance with the ATX specification.
65
Figure 16. Board Dimensions
Intel Desktop Board DQ77MK Technical Product Specification
Current
20 A
20 A
15 A
15 A
0.3 A
1.5 A
2.6 Electrical Considerations
2.6.1 Power Supply Considerations
CAUTION
The +5 V standby line from the power supply must be capable of providing adequate
+5 V standby current. Failure to do so can damage the power supply. The total
amount of standby current require d depends on the wake devices supported and
manufacturing options.
Additional power required will depend o n configurations chosen by the integrator.
The power supply must comply with the indicated parameters of the ATX form factor
specification.
• The potential relation between 3.3 V DC and +5 V DC pow er rails
• The current capability of the +5 VSB line
• All timing parameters
• All voltage tolerances
For example, for a high power system consisting of a supported 95 W processor (see
Section 1.3 on page 18 for a list of supported processors), 4 GB DDR3 RAM, one high
end video card, one hard disk drive, one optical drive, and all board peripherals
enabled, the minimum recommended power supply is 460 W. Table 36 lists possible
recommended power supply current rail values.
Table 36. Recommended Power Supply Current Values (High Power)
Output Voltage 3.3 V 5 V 12 V1 12 V2 -1 2 V 5 VSB
Current 22 A 20 A 20 A 20 A 0.3 A 2.5 A
For example, for a l ow p owe r system consisting of a supported 45 W processor (see
Section 1.3 on page 18 for a list of supported processor s), 2 GB DDR3 RAM, integrated
graphics, one SSD, one optical drive, and no extra onboard peripherals enabled, the
minimum recommended power supply is a 320 W. Table 37 lists possible
recommended power supply current rail values. Note: If the correct power supply and
system configuration is used, a smaller power supply will work.
Table 37. Recommended Power Supply Current Values (Low Power)
Output Voltage 3.3 V 5 V 12 V1 12 V2 -1 2 V 5 VSB
For information about Refer to
Selecting an appropriate power s upply http://support.intel.com/support/motherboards/desktop/sb
/CS-026472.htm
66
Technical Reference
Fan Header
Maximum Available Current
2.6.2 Power Supervisor
This board supports a version of the Power Supervisor feature which adds protection to
the 5 VSB power rail by limiting potential electrical overstress events to a nondestructive level.
2.6.3 Fan Header Current Capability
CAUTION
The processor fan must be connected to the processor fan header, not to a chassis fan
header. Connecting the p rocessor fan to a chassis fan header may result in o n b oard
component damage that will halt fan operation.
Table 38 lists the current capability of the fan headers.
Table 38. Fan Header Current Capability
Processor fan 2.0 A
Front chassis fan 1.5 A
Rear chassis fan 1.5 A
2.6.4 Add-in Board Considerations
The board is designed to provide 2 A (average) of current for each add-in board from
the +5 V rail. The total +5 V current draw for add-in boards for a fully loaded board
(all three expansion slots filled) must not exceed the system’s power supply +5 V
maximum current or 14 A in total.
2.7 Thermal Considerations
CAUTION
A chassis with a maximum internal ambient temperature of 38 oC at the processor fan
inlet is a requirement. Use a processor heat sink that provides omni-directional airflow
to maintain required airflow across the processor voltage regulator area.
CAUTION
Failure to ensure appropriate airflow may result in reduced performance of both the
processor and/or voltage regulator or, in some instances, damage to the board. For a
list of chassis that have been tested with Intel desktop boards please refer to the
following website:
http://www3.intel.com/cd/channel/reseller/asmo-na/eng/tech_reference/53211.htm
All responsibility for determining the adequacy of any thermal or system design
remains solely with the reader. Intel makes no warranties or representations that
merely following the instructions presented in this document will result in a system
with adequate thermal performance.
67
Intel Desktop Board DQ77MK Technical Product Specification
Item
Description
A
Processor voltage regulator area
B
Processor
CAUTION
Ensure that the ambient temperature does not exceed the board’s maximum operating
temperature. Failure to do so could cause components to exceed their maximum case
temperature and malfunction. For information about the maximum operating
temperature, see the environmental specifications in Section 2.9.
CAUTION
Ensure that proper airflow is maintained in the processor voltage regulator circuit.
Failure to do so may result in damage to the voltage regulator circuit. The processor
voltage regulator area (shown in Figure 17) can reach a temperature of up to 120
an open chassis.
Figure 17 shows the locations of the localized high temperature zones.
o
C in
Figure 17. Localized High Temperature Zones
68
C Intel Q77 Express Chipset
Technical Reference
For information about
Refer to
Intel Q77 Express Chipset
http://www.intel.com/products/desktop/
Table 39 provides maximum case temperatures for the components that are sensitive
to thermal changes. The operating temperature, current load, or operating frequency
could affect case temperatures. Maximum case temperatures are important when
considering proper airflow to cool the board.
Table 39. Thermal Considerations for Components
Component Maximum Case Temperature
Processor For processor case temperature, see processor datasheets and
processor specification updates
Intel Q77 Express Chipset 104 oC
To ensure functionality and reliability, the component is specified for proper operation
when Case Temperature is maintained at or below the maximum temperature listed in
Table 39. This is a requirement for sustained power dissipation equal to Thermal
Design Power (TDP is specified as the maximum sus ta inable power to be dissipated by
the components). When the component is dissipating less than TDP, the case
temperature should be below the Maximum Case Temperature. The surface
temperature at the geometric center of the compone nt corresponds to Case
Temperature.
It is important to note that the temperature measurement in the system BIOS is a
value reported by embedded thermal sensors in the components and does not directly
correspond to the Maximum Case Temperature. The upper operating limit when
monitoring this thermal sensor is Tcontrol.
Table 40. Tcontrol Values for Components
Component Tcontrol
Processor For processor case temperature, see processor datasheets and
processor specification updates
Intel Q77 Express Chipset 104 oC
Processor datasheets and specificatio n upd ate s Section 1.2, pa g e 18
chipsets/
69
Intel Desktop Board DQ77MK Technical Product Specification
-20 °C to +70 °C
(Note)
Packaged
Half sine 2 millisecond
41-80
24
136
20 Hz to 500 Hz: 0.02 g² Hz (flat)
2.8 Reliability
The Mean Time Between Failures (MTBF) prediction is calculated using parts count
method. The calculation is based on the Telcordia SR-332, Issue 2; Method I Case 3
50% electrical stress, 50 ºC ambient. The MTBF prediction is used to estimate repair
rates and spare parts requirements. The MTBF data is calculated from predicted da t a
at 50 ºC. The MTBF for the Intel Desktop Board DQ77MK is 211,190 hours.
2.9 Environmental
Table 41 lists the environmental specifications for the board.
Table 41. Environmental Specifications
Parameter Specification
Temperature
Non-Operating
Operating
Shock
Unpackaged 50 g trapezoidal waveform
V e locity change of 170 inches/s²
0 °C to +55 °C
The operating temperature of the board may be determined by measur i ng the
air temperature from w i thin 1 inch o f the edge of the chips e t/PCH he ats ink and
1 inch above the board, in a closed chassis, while the system is in operatio n.
Product Weight (po und s ) Free Fall (inches) V e locity Change (inches/s²)
<20 36 167
21-40 30 152
81-100 18 118
Vibration
Unpackaged 5 Hz to 20 Hz: 0.01 g² Hz sloping up to 0.02 g² Hz
Packaged 5 Hz to 40 Hz: 0.015 g² Hz (flat)
40 Hz to 500 Hz: 0.015 g² Hz sloping down to 0.00015 g² Hz
Note: Before attempting to operate this board, the overall temperature of the board must be above the
minimum operating temperature spe c ifie d . It is recom me nded that the boa rd temper ature be at least
room temperature before attempting to power on the board.
70
3 Overview of BIOS Features
3.1 Introduction
The board uses an Intel BIOS that is stored in the Serial Peripheral Interface Flash
Memory (SPI Flash) and can be updated using a disk-based program. The SPI Flash
contains the BIOS Setup program, POST, the PCI auto-configuration utility, LAN
EEPROM information, and Plug and Play suppo rt.
The BIOS displays a message during POST identifying the type of BIOS and a revision
code. The initial production BIOSs are identified as MKQ7710H.86A.
When the BIOS Setup configuration jumper is set to configure mode and the computer
is powered-up, the BIOS compares the CPU version and the microcode version in the
BIOS and reports if the two match.
The BIOS Setup program can be used to view and change the BIOS settings for the
computer. The BIOS Setup program is accessed by pressing the <F2> key after the
Power-On Self-Test (POST) memory test begins and before the operating system boot
begins. The menu bar is shown below.
Maintenance Main Configuration Performance Security Power Boot Exit
NOTE
The maintenance menu is displayed only when the board is in configure mod e.
Section 2.3 on page 63 shows how to put the board in configure mode .
71
Intel Desktop Board DQ77MK Technical Product Specification
BIOS Setup Program
<←> or <→>
Selects a different menu screen (Moves the cursor left or right)
<F9>
Load the default configuration value s for the cur rent m e nu
Table 42 lists the BIOS Setup program menu features.
Table 42. BIOS Setup Program Menu Bar
Maintenance Main
Clears
passwords and
displays
processor
information
Displays
processor
and memory
configuration
Configuration
Configures
advanced
features
available
through the
chipset
Performance Security Power
Configures
Memory, Bus
and Processor
overrides
Sets
passwords
and
security
features
Table 43 lists the function keys available for menu screens.
Table 43. BIOS Setup Program Function Keys
Function Key
<↑> or <↓>
<Tab> Sele c ts a field (Not imp l e mented )
<Enter> Executes command or selects the sub m e nu
<F10> S ave the current values and exits the BIOS Setup program
<Esc> Exits the menu
Description
Selects an item (Moves the cursor up or down)
Configures
power
management
features and
power supply
controls
Boot
Selects
boot
options
Exit
Saves or
discards
changes to
Setup
program
options
3.2 BIOS Flash Memory Organization
The Serial Peripheral Interface Flash Memory (SPI Flash) includes a 96 Mbit
(12288 KB) flash memory device.
3.3 Resource Configuration
3.3.1 PCI Express Autoconfiguration
The BIOS can automatically configure PCI Express devices. PCI Express devices may
be onboard or add-in cards. Autoconfiguration lets a user insert or remove PCI
Express cards without having to configure the system. When a user turns on the
system after adding a PCI Express card, the BIOS automatically configures interrupts,
the I/O space, and other system resources. Any interrupts set to Available in Setup
are considered to be available for use by the add-in card.
72
Overview of BIOS Features
3.4 System Management BIOS (SMBIOS)
SMBIOS is a Desktop Management Interface (DMI) compliant method for managing
computers in a managed network.
The main component of SMBIOS is the Management Inf ormation Format (MIF)
database, which contains information about the computing system and its
components. Using SMBIOS, a system administrator can obtain the system types,
capabilities, operational status, and installation dates for system components. The
MIF database defines the data and provides the method for accessing this information.
The BIOS enables applications such as third-party management software to use
SMBIOS. The BIOS stores and reports the following SMBIOS information:
• BIOS data, such as the BIOS revision level
• Fixed-system data, such as peripherals, serial numbers, and asset tags
• Resource data, such as memory size, cache size, and processor speed
• Dynamic data, such as event detection and error logging
Non-Plug and Play operating systems require an additional inter face for obtaining the
SMBIOS information. The BIOS supports an SMBIOS table inter face for such operating
systems. Using this support, an SMBIOS service-level application running on a
non-Plug and Play operating system can obtain the SMBIOS information. Additional
board information c an be found in the BIOS under the Additional Info rmation header
under the Main BIOS page.
3.5 Legacy USB Support
Legacy USB support enables USB devices to be used even when the operating
system’s USB drivers are not yet available. Legacy USB support is used to access the
BIOS Setup program, and to install an operating s ystem that supports USB. By
default, Legacy USB support is set to Enabled.
Legacy USB supp o rt op erates as follows:
1. When you apply power to the computer, legacy support is disabled.
2. POST begins.
3. Legacy USB support is enabled by the BIOS allowing you to use a USB keyboard to
enter and configure the BIOS Setup progr a m and the mainten ance menu.
4. POST com p letes.
5. The operating system loads. While the operating system is loading, USB
keyboards and mice are recognized and may be used to co nfigure the operating
system. (Keyboards and mice are not recognized during this period if Legacy USB
support was set to Disabled in the BIOS Setup program.)
6. After the operating system loads the USB drivers, all legacy and non-legacy USB
devices are recognized by the operating system, and Legacy USB support from the
BIOS is no longer used.
7. Additional USB legacy feature options can be access by using Intel
Toolkit.
®
Integrator
73
Intel Desktop Board DQ77MK Technical Product Specification
To install an operating system that supports USB, verify that Legacy USB support in
the BIOS Setup program is set to Enabled and follow the o p erating system’s
instal la tion ins t r u ctions.
3.6 BIOS Updates
The BIOS can be updated us ing either of the follo wing utilities, which ar e available on
the Intel World Wide Web site:
• Intel
• Intel
Both utilities verify that the updated BIOS ma tches the target system to prevent
accidentally installing an incompatible BIO S.
®
Express BIOS Update utility, which enables automated updating while in the
Windows environment. Using this utility, the BIOS can be updated from a file on a
hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM, or from
the file lo cation on the Web.
®
Flash Memory Update Utility, which requires booting from DOS. Using this
utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash
drive or a USB hard drive), or a CD-ROM.
NOTE
Review the instructions distributed with the upgrade utility before attempting a BIOS
update.
For information about Refer to
BIOS update utilities http://support.intel.com/support/motherboards/desktop/sb
/CS-022312.htm.
3.6.1 Language Support
The BIOS Setup program and help messages are suppor ted in US English. Check the
Intel web site for support.
74
Overview of BIOS Features
Refer to
USB diskette drive (with a 1.44 MB diskette)
No
3.6.2 Custom Splash Screen
During POST, an Intel® splash screen is displayed by default. This splash screen can
be augmented with a custom splash screen. The Intel Integrator’s Toolkit that is
available from Intel can be used to create a custom splash screen.
NOTE
If you add a custom splash screen, it will share space with the Intel branded logo.
For information about
Intel Integrator Toolkit http://developer.intel.com/design/motherbd/software/itk/
Additional Intel® software tools http://developer.intel.com/design/motherbd/software.htm
3.7 BIOS Recovery
It is unlikely that anything will interrupt a BIOS update; however, if an interruption
occurs, the BIOS could be damaged. Table 44 lists the drives and media types that
can and cannot be used for BIOS recovery. The BIOS recovery media does not need
to be made bootable.
Table 44. Acceptable Drives/Media Types for BIOS Recovery
Media Type Can be used for BIOS recovery?
CD-ROM drive connected to the SATA interface Yes
USB removable drive (a USB Flash Drive, for example) Yes
USB hard disk drive No
For information about Refer to
BIOS recovery http://www.intel.com/support/motherboards/desktop/sb/
cs-023360.htm
75
Intel Desktop Board DQ77MK Technical Product Specification
<↑> or <↓>
3.8 Boot Options
In the BIOS Setup program, the user can choose to boot from a hard drive, optical
drive, removable drive, or the network. The default setting is for the optical drive to
be the first boot device, the hard drive second, removable drive third, and the network
fourth.
3.8.1 Optical Drive Boot
Booting from the optical drive is supported in compliance to the El Torito bootable
CD-ROM format specification. Under the Boot menu in the BIO S Setup program, the
optical drive is listed as a boot device. Boot devices a re defined in priority order.
Accordingly, if there is not a bootable CD in the optical drive, the system will attempt
to boot from the next defined drive.
3.8.2 Network Boot
The network can be selected as a boot device. This selection allows booting from the
onboard LAN or a network add-in card with a remote boot ROM installed.
Pressing the <F12> key during POST automatically fo rces booting from the LAN. To
use this key during POST, the User Access Level in the BIOS Setup program's Security
menu must be set to Full.
3.8.3 Booting Without Attached Devices
For use in embedded applications, the BIOS ha s been designed so that after passing
the POST, the operating system loader is invoked even if the following devices are not
present:
• Video adapter
• Keyboard
• Mouse
3.8.4 Changing the Default Boot Device During POST
Pressing the <F10> key during POST causes a boot dev ice menu to be displayed. This
menu displays the list of available boot devices. Table 45 lists the boot device menu
options.
Table 45. Boot Device Menu Options
Boot Device Menu Function Keys Description
Selects a default boot device
<Enter> Exits the menu, and boots from the selected device
<Esc> Exits the menu and boots according to the boot priority
defined through BIOS setup
76
Overview of BIOS Features
3.9 Adjusting Boot Speed
These factors affect system boot speed:
• Selecting and configuring peripherals properly
• Optimized BIOS boot parameters
• Enabling the Fast Boot feature
3.9.1 Peripheral Selection and Configuration
The following techniques help improve system boot speed:
• Choose a hard drive with parameters such as “power-up to data ready” in less than
eight seconds that minimizes hard drive startup delays.
• Select a CD-ROM drive with a fast initial ization rate. This rate can influence POST
execution time.
• Eliminate unnecessary add-in adapter features, such as logo displays, screen
repaints, or mode changes in POST. These features may add time to the boot
process.
• Try different monitors. Som e monitors initialize and communicate with the BIOS
more quickly, which enables the system to boot more quickly.
3.9.2 BIOS Boot Optimizations
Use of the following BIOS Setup program settings reduces the POST execution time.
• In the Boot menu, enable the settings for Fast Boot. This option will all ow BIOS to
skip through various stages of POST and boot quickly to the last detected boot
device.
• In the Boot Menu, set the hard disk drive as the first boot device. As a result, the
POST does not first seek a diskette drive, which saves about one second from the
POST execution time.
• In the Peripheral Configuration submenu, disable the LAN device if it will not be
used. This can reduce up to four seconds of option ROM boot time.
NOTE
It is possible to optimize the boot process to the point where the system boots so
quickly that the Intel logo screen (or a custom logo splash screen) will not be seen.
Monitors and hard disk drives with minimum initialization times can also contribute to
a boot time that might be so fast that necessary logo screens and POST messages
cannot be seen.
This boot time may be so fast that some drives might be not be initialized at all. If
this condition should occur, it is possible to introduce a programmable delay ranging
from zero to 30 seconds by 5 second increments (using the Hard Disk Pre-Delay
feature of the Advanced Menu in the Drive Config u ration Submenu of the BIOS Setup
program).
77
Intel Desktop Board DQ77MK Technical Product Specification
Password Set
Password During Boot
Master only
None
Master and User Set
Master or User
3.10 Hard Disk Drive Password Security Feature
The Hard Disk Drive Password Security feature blocks read and write accesses to the
hard disk drive until the correct password is given. Hard Disk Drive Passwords are set
in BIOS SETUP and are prompted for during BIOS POST. For convenient support of S3
resume, the system BIOS will automatically unlock drives on resume from S3.
The User hard disk drive password, when installed, will be required upon each powercycle until the Master Key or User hard disk drive password is submitted.
The Master Key hard disk drive password, when installed, will not lock the drive. The
Master Key hard disk drive password exists as an unlock override in the event that the
User hard disk drive password is forgotten. Only the installation of the User hard disk
drive password will cause a hard disk to be locke d upon a system power-cycle.
Table 51 shows the effects of setting the Hard Disk Drive Passwords.
Table 46. Master Key and User Hard Drive Password Functions
Neither None
User only User only
During every POST, if a User hard disk drive password is set, POST execution will
pause with the following prompt to force the user to enter the Master Key or User hard
disk drive password:
Enter Hard Disk Drive Password:
Upon successful entry of the Master Key or User hard disk drive password, the system
will continue with normal POST.
If the hard disk drive password is not correc tly entered, the system will go back to the
above prompt. The user will have three attempts to correctly enter the hard disk drive
password. After the third unsuccessful hard disk drive password attempt, the system
will halt with the message:
Hard Disk Drive Password Entry Error
A manual power cycle will be required to resume system operation.
NOTE
As implemented on DQ77MK, Hard Disk Drive Password Security is only supported on
SATA port 0. The passwords are stored on the hard disk drive so if the drive is
relocated to another SATA port or computer that does not support Hard Disk Drive
Password Security feature, the drive will not be accessible.
78
Overview of BIOS Features
Set
Mode
User Mode
Setup Options
Password
Setup
Password
Boot
Neither
Can change all
options
Can change all
options
None
None
None
Supervisor
Can change all
Can change a
Supervisor Password
Supervisor
None
User only
N/A
Can change all
options
Enter Password
Clear User Password
User
User
Supervisor
Can change all
Can change a
options
Supervisor Password
Supervisor or
Supervisor or
NOTE
Hard Disk Drive Password Security is not suppor ted in PCH RAID mode. Secured hard
disk drives attached to the system when the system is in PCH RAID mode will not be
accessible due to the disabling of BIOS Hard Disk Drive Password support.
3.11 BIOS Security Features
The BIOS includes security features that restrict access to the BIOS Setup program
and who can boot the computer. A supervisor password and a user password can be
set for the BIOS Setup program and for booting the computer, with the following
restrictions:
• The supervisor password gives unrestricted access to view and change all the
Setup options in the BIOS Setup program. This is the supervisor mode.
• The user password gives restricted access to view and change Setup options in the
BIOS Setup program. This is the user mode.
• If only the supervisor password is set, pressing the <Enter> key at the password
prompt of the BIOS Setup program allows the user re stricted access to Setup.
• If both the supervisor and user passwords are set, users can enter either the
supervisor password or the user password to access Setup. Users have access to
Setup respective to which password is entered.
• Setting the user password restricts who can boot the computer. The password
prompt will be displayed before the compute r is boo ted. If only the supervisor
password is set, the computer boots without asking for a password. If both
passwords are set, the user can enter either password to boot the computer.
• For enhanced security, use different passwords for the supervisor and user
passwords.
• Valid password characters are A-Z, a-z, and 0-9. Passwords may be up to
16 characters in length.
Table 46 shows the effects of setting the supervisor password and user password.
This table is for reference only and is not displayed on the screen.
Table 47. Supervisor and User Password Functions
Password
only
and user set
Note: If no password is set, any user can change all Setup options.
79
Supervisor
(Note)
options
options
(Note)
limited
number of
options
limited
number of
Enter Password
to Enter
user
During
user
Intel Desktop Board DQ77MK Technical Product Specification
NOTE
The BIOS complies with NIST Special Publication 800-147 BIOS Protection Guidelines /
Recommendations of the National Institute of Standards and Te chnology. Refer to
http://csrc.nist.gov/publications/nistpubs/800-147/NIST-SP800-147-April2011.pdf
more information.
3.12 BIOS Performance Features
for
The BIOS includes the following options to provide custom performance enhancements
when using 3
processor family processors in an LGA1155 socket.
• Processor Maximum Non-Turbo Ratio (processor multiplier can only be adjusted
down)
• Memory multiplier adjustment
• Memory voltage adjustment
• Graphics multiplier adjustment
rd
generation Intel Core processor family and 2nd generation Intel Core
80
Type
Pattern
Frequency
4 Error Messages and Beep Codes
4.1 Speaker
The board-mounted speaker provides audible error code (beep code) information
during POST.
For information about Refer to
The location of the onboard speaker Figure 1, page 15
4.2 BIOS Beep Codes
Whenever a recoverable error occurs during POST, the BIOS causes the board’s
speaker to beep an error message describing the problem (see Table 47).
Table 48. BIOS Beep Codes
F2 Setup/F10 Boot Menu
Prompt
BIOS update in progress None
Video err or On-off (1.0 second each) two times, then
Memory error On-off (1.0 second eac h) three time s , the n
Thermal trip warning Alternate high and low beeps (1.0 second each)
One 0.5 second beep when BIOS is ready to
accept keyboard input
2.5-second pause (off), entire pattern repeats
(beeps and pause) once and the BIOS will
continue to boot.
2.5-second pause (off), entire pattern repeats
(beeps and pause) until the system is powered
off.
for eight beeps, followed by system shut down.
932 Hz
932 Hz
When no VGA option RO M i s
found.
932 Hz
High beep 2000 Hz
Low beep 1500 Hz
81
Intel Desktop Board DQ77MK Technical Product Specification
Type
Pattern
Note
F2 Setup/F10 Boot Menu
None
Error Message
Explanation
The CMOS checksum is incorrect. CMOS memory may have been
4.3 Front-panel Power LED Blink Codes
Whenever a recoverable error occurs during POST, the BIOS causes the board’s front
panel power LED to blink an error message describing the problem (see Table 48).
Table 49. Front-panel Power LED Blink Codes
Prompt
BIOS update in progress Off when the update begins, then on for
0.5 seconds, then off for 0.5 seconds. The
pattern repeats until the BIOS update is
complete.
Video err or On-off (1.0 second each) two times, then
2.5-second pause (off), entire pattern repeats
(blink and pause) until the system is powered
off.
Memory error On-off (1.0 second eac h) three times, then
2.5-second pause (off), entire pattern repeats
(blinks and pause) until the system is powered
off.
Thermal trip warning Each beep will be acco mpanie d by the fo llowing
blink pattern: .25 seconds on, .25 seconds off,
.25 seconds on, .25 seconds off. This will result
in a total of 16 blinks.
When no VGA option ROM is
found.
4.4 BIOS Error Messages
Table 49 lists the error messages and provides a brief description of each.
Table 50. BIOS Error Messages
CMOS Battery Low The battery may be losing power. Replace the battery soon.
CMOS Checksum Bad
corrupted. Run Setup to reset values.
Memory Size Decreased Memory size has decreased since the last boot. If no memory
was removed, then memory may be bad.
No Boot Device Available System did not find a device to boot.
82
Error Messages and Beep Codes
Range
Subsystem
4.5 Port 80h Power On Self Test (POST) Codes
During the POST, the BIOS generates diagnostic progress codes (POST codes) to I/O
port 80h. If the POST fails, execution stops a nd the last PO ST code generated is left
at port 80h. This code is useful for determining the point where an error occurred.
Displaying the POST codes on a medium such as a seven-segment display, requires a
POST card that can interface with the Low Pin Count (LPC) Debug header or a POST
card that can be insta lled in one of the Conventional PCI connectors. Refer to the
location of the LPC Debug header in Figure 1.
The following tables provide information about the POST codes generated by the BIOS:
• Table 50 lists the Port 80h POST code ranges
• Table 51 lists the Port 80h POST codes themselves
• Table 52 lists the Port 80h POST sequence
NOTE
In the tables listed above, all POST codes and range values are listed in hexadecimal.
Table 51. Port 80h POST Code Ranges
0x00 – 0x05 Ente ring SX states S0 to S5.
0x10, 0x20, 0 x30,
0x40, 0x50
0x08 – 0x0F Secur ity (S EC ) phase
0x11 – 0x1F PEI phase pre MRC execution
0x21 – 0x29 MRC Memory detection
0x2A – 0x2F PEI phase post MRC execution
0x31 – 0x35 Recovery
0x36 – 0x3F Platfor m DX E driver
0x41 – 0x4F CPU Initialization (PEI, DXE, SMM)
0x50 – 0x5F I/O Buses: PCI, USB, ISA, ATA etc. 0x5F is an unrecover ab le erro r. Start with PCI.
0x60 – 0x6F BDS
0x70 – 0x7F Output Dev ic es: All output consoles.
0x80 – 0x8F For future use
0x90 – 0x9F Input devices: Keyboard/Mouse.
0xA0 – 0xAF For future use
0xB0 – 0xBF Boot Devices: Inc lude s fixe d media and remov a b le media. Not that cri tic al s inc e
0xC0 – 0xCF For future use
0xD0 – 0xDF For future use
0xF0 – 0xFF
Resuming from SX states. 0x10 – S1, 0x20 – S2, 0x30 – S3, etc.
consoles should be up at this point.
83
Intel Desktop Board DQ77MK Technical Product Specification
ACPI S States
PEI before MRC
PEI Over-Clock Programming
Table 52. Port 80h POST Codes
Port 80 Code Progress Code Enumeration
0x00,0x01,0x02,0x03,0x04,0x05 Entering S0, S2, S3, S4, or S5 state
0x10,0x20,0x30,0x40,0x50 Resuming from S2, S3, S4, S5
Security Phase (SEC)
0x08 Starting BIOS executio n afte r CPU BIST
0x09 SPI prefetching and cac hing
0x0A Load BSP microcode
0x0B Load APs microcodes
0x0C Platform program baseaddresses
0x0D Wake Up All A Ps
0x0E Initialize NEM
0x0F Pass entry point of the PEI core
PEI Platform driver
0x11 Set bootmode, GPIO init
0x12 Early chipset registe r prog ramming including graphics init
0x13 Basic PCH init, discrete device init (1394, SATA)
0x14 LAN init
0x15 Exit early platform init dr iv er
PEI SMBUS
0x16 SMBUSriver init
0x17 Entry to SMBUS execute read/wr ite
0x18 Exit SMBUS execute read/write
PEI CK505 Clock Programming
0x19 Entry to CK505 programming
0x1A Exit CK505 programming
0x1B Entry to entry to PEI over-clock programming
0x1C Exit PEI over-clock programming
Memory
0x21 MRC entry point
0x23 Reading SPD from memory DIMMs
0x24 Detecting presence of memory DIMMs
0x27 Configuring memory
0x28 Testing memory
0x29 Exit MRC driver
continued
84
Error Messages and Beep Codes
PEI after MRC
CPU PEI Phase
CPU PEI SMM Phase
CPU DXE Phase
ATA/ATAPI/SATA
Table 52. Port 80h POST Codes (continued)
Port 80 Code Progress Code Enumeration
0x2A Start to Program MTRR Settings
0x2B Done Programming MTRR Settings
PEIMs/Recovery
0x31 Crisis Recovery has initiated
0x33 Loading recovery capsule
0x34 Start recovery capsule / valid cap s ule is found
CPU Initialization
0x41 Begin CPU PEI Init
0x42 XMM instruction enab l ing
0x43 End CPU PEI Init
0x44 Begin CPU SMM Init smm relocate bases
0x45 Smm relocate bases for APs
0x46 End CPU SMM Init
0x47 CPU DXE Phase begin
0x48 Refresh memory space attribute s ac co rd ing to MTRR s
0x49 Load the microcode if needed
0x4A Initialize strings to HII database
0x4B Initialize MP Support
0x4C CPU DXE Phase End
CPU DXE SMM Phase
0x4D CPU DXE SMM Phase begin
0x4E Relocate SM bases for all APs
0x4F CPU DXE SMM Phase end
IO BUSES
0x50 Enumerating PCI buses
0x51 Allocating resources to PCI bus
0x52 Hot Plug PCI controller initiali zation
USB
0x58 Resetting USB bus
0x59 Reserved for USB
0x5A Resetting PATA/SATA bus and all devices
0x5B Reserved for ATA
continued
85
Intel Desktop Board DQ77MK Technical Product Specification
BDS
Mouse (PS2 or USB)
Table 52. Port 80h POST Codes (continued)
Port 80 Code Progress Code Enumeration
0x60 BDS driver entr y po int initiali ze
0x61 BDS service ro utine entry po int (can be calle d multiple times)
0x62 BDS St ep2
0x63 BDS St ep3
0x64 BDS St ep4
0x65 BDS St ep5
0x66 BDS St ep6
0x67 BDS St ep7
0x68 BDS St ep8
0x69 BDS St ep9
0x6A BDS Step10
0x6B BDS Step11
0x6C BDS Step12
0x6D BDS Step13
0x6E BDS S t ep14
0x6F BDS return to DXE core (should not get here)
Keyboard (PS2 or USB)
0x90 Resetting keyboard
0x91 Disabling the keyboard
0x92 Detecting the presence of the keyboard
0x93 Enabling the keyboard
0x94 Clearing keyboard input buffer
0x95 Instructing keybo ard controller to run Self Test (PS2 only)
0x98 Resetting mouse
0x99 Detecting mouse
0x9A Detecting presence of mou se
0x9B Enabling mouse
Fixed Media
0xB0 Resetting fixed media
0xB1 Disabling fixed media
0xB2 Detecting presence of a fixed media (IDE hard drive detection etc.)
0xB3 Enabling/configuring a fixed media
continued
86
Error Messages and Beep Codes
Removable Media
Runtime Phase/EFI OS Boot
Table 52. Port 80h POST Codes (continued)
Port 80 Code Progress Code Enumeration
0xB8 Resetting removable media
0xB9 Disabling removable media
0xBA Detecting presence of a removable media (IDE, CDROM detection
etc.)
0xBB Enabling/configuring a removable media
DXE Core
0xE4 Entered DX E phase
BDS
0xE7 Waiting for user inp ut
0xE8 Checking password
0xE9 Entering BIOS setup
0xEB Calling Legacy Optio n ROMs
0xF8 EFI boot service ExitBootServices ( ) has been called
0xF9 EFI runtime s er v ice SetVirtualAddressMap ( ) has been called
87
Intel Desktop Board DQ77MK Technical Product Specification
Table 53. Typical Port 80h POST Sequence
POST Code Description
21 Initializing a chipset compo nent
22 Reading SPD from memory DIMMs
23 Detecting presence of memory DIMMs
25 Configuring memory
28 Testing memory
34 Loading recovery capsule
E4 Entered DXE phase
12 Starting application proce s sor initia lization
13 SMM initialization
50 Enumerating PCI buses
51 Allocating resourced to PCI bus
92 Detecting the presence of the keyboard
90 Resetting keyboard
94 Clearing keyboard input buffer
95 Keyboard Self Test
EB Calling Video BIOS
58 Resetting USB bus
5A Resetting PATA/SATA bus and all devices
92 Detecting the presence of the keyboard
90 Resetting keyboard
94 Clearing keyboard input buffer
5A Resetting PATA/SATA bus and all devices
28 Testing memory
90 Resetting keyboard
94 Clearing keyboard input buffer
E7 Waiting for user input
01 INT 19
00 Ready to boot
88
5 Regulatory Compliance and Battery
Disposal Information
5.1 Regulatory Compliance
This section cont ains the following regulatory compliance information for Intel Desktop
Board DQ77MK:
• Safety standards
• European Union Declaration of Conformity statement
• Product Ecology statements
• Electromagnetic Compatibility (EMC) standards
• Product certification markings
5.1.1 Safety Standards
Intel Desktop Board DQ77MK complies with the safety standards stated in Table 53
when correctly installed in a compatible ho st system.
Table 54. Safety Standards
Standard Title
CSA/UL 60950-1 Information Technology Equipment – Safety - Part 1: General
Requirements (USA and Canada)
EN 60950-1 Information Technology Equipment – Safety - Part 1: General
Requirements (European Union)
IEC 60950-1 Information Technology Equipment – Safety - Par t 1: General
Requirements (International)
89
Intel Desktop Board DQ77MK Technical Product Specification
5.1.2 European Union Declaration of Conformity
Statement
We, Intel Corporation, declare under our sole responsibility that the product Intel®
Desktop Board DQ77MK is in conformity with all applicable essential requirements
necessary for CE marking, following the provisions of the European Council Directive
2004/108/EC (EMC Directive), 2006/95/EC (Low Voltage Directive), and 2002/95/EC
(ROHS Directive).
The product is properly CE marked demonstrating this conformity and is for
distribution within all member states of the EU with no restrictions.
This product follows the provisions of the European Directives 2004/108/EC,
2006/95/EC, and 2002/95/EC.
Čeština Tento výrobek odpovídá požadavkům evropských směrnic 2004/108/EC,
2006/95/EC a 2002/95/EC.
Dansk Dette produkt er i overensstemmelse med det europæiske direktiv
2004/108/EC, 2006/95/EC & 2002/95/EC.
Dutch Dit product is in navolging van de bepalingen van Europees Directief
2004/108/EC, 2006/95/EC & 2002/95/EC.
Eesti Antud toode vastab Euroopa direktiivides 2004/108/EC, ja 2 006/95/EC ja
2002/95/EC kehtestatud nõuetele.
Suomi Tämä tuote noudattaa EU-direktiivin 2004/108/EC, 2006/95/EC & 2002/95/EC
määräyksiä.
Français Ce produit est conforme aux exigences de la Directive Européenne
2004/108/EC, 2006/95/EC & 2002/95/EC.
Deutsch Dieses Produkt entspricht den Bestimmungen der Europäischen Richtlinie
2004/108/EC, 2006/95/EC & 2002/95/EC.
Ελληνικά Το παρόν προϊόν ακολουθεί τις διατάξεις των Ευρωπαϊκών Οδηγιών
2004/108/EC, 2006/95/EC και 2002/95/EC.
Magyar E termék megfelel a 2004/108/EC, 2006/95/EC és 2002/95/EC Európai
Irányelv előírásainak.
Icelandic Þessi vara stenst reglugerð Evrópska Efnahags Bandalagsins númer
2004/108/EC, 2006/95/EC, & 2002/95/EC.
Italiano Questo prodotto è conforme alla Direttiva Europea 2004/108/EC,
2006/95/EC & 2002/95/EC.
Latviešu Šis produkts atbilst Eiropas Direktīvu 2004/108/EC, 2006/95/EC un
2002/95/EC noteikumiem.
Lietuvių Šis produktas atitinka Europos direktyvų 2004/108/EC, 2006/95/EC, ir
2002/95/EC nuostatas.
Malti Dan il-prodott hu konformi mal-provvedimenti tad-Direttivi Ewropej
2004/108/EC, 2006/95/EC u 2002/95/EC.
Norsk Dette produktet er i henhold til bestemmelsene i det europeiske direktivet
2004/108/EC, 2006/95/EC & 2002/95/EC.
Polski Niniejszy produkt jest zgodny z postanowieniami Dyrektyw Unii Europejskiej
2004/108/EC, 206/95/EC i 2002/95/EC.
90
Regulatory Compliance and Battery Disposal Information
中文
Portuguese Este produto cumpre com as normas da Diretiva Européia 2004/108/EC,
2006/95/EC & 2002/95/EC.
Español Este producto cumple con las normas del Directivo Europeo 2004/108/EC,
2006/95/EC & 2002/95/EC.
Slovensky Tento produkt je v súlade s ustanoveniami európskych direktív
2004/108/EC, 2006/95/EC a 2002/95/EC.
Slovenščina Izdelek je skladen z določbami evropskih direktiv 2004/108/EC,
2006/95/EC in 2002/95/EC.
Svenska Denna produkt har tillverkats i enlighet med EG-direktiv 2004/108/EC,
2006/95/EC & 2002/95/EC.
Türkçe Bu ürün, Avrupa Birliği’nin 2004/108/EC, 2006/95/EC ve 2002/95/EC
yönergelerine uyar.
5.1.3 Product Ecology Statements
The following information is provided to address worldwide product ecology concerns
and regulations.
5.1.3.1 Disposal Considerations
This product contains the following materials that may be regulated upon disposal:
lead solder on the printed wiring board assembly.
5.1.3.2 Recycling Considerations
As part of its commitment to environmental responsibility, Intel has implemented the
Intel Product Recycling Program to allow reta il consumers of Intel’s branded products
to return used products to selected locations for proper recycling.
Please consult the http://www.intel.com/intel/other/ehs/product_ecology
details of this program, including the scope of covered products, available locations,
shipping instructions, terms and co nditions, etc.
作为其对环境责任之承诺的部分，英特尔已实施 Intel Product Recycling Program （英特尔产品
回收计划），以允许英特尔品牌产品的零售消费者将使用过的产品退还至指定地点作恰当的重复使用
处理。
请参考http://www.intel.com/intel/other/ehs/product_ecology
产品之范围、回收地点、运送指导、条款和条件等。
Deutsch
Als Teil von Intels Engagement für den Umwelts chutz hat das Unternehmen d as Intel
Produkt-Recyclingprogramm impleme nt ie rt, das Einzelhandelsk un d en von Intel
Markenprodukten ermöglicht, gebrauchte Produkte an ausgewählte Standorte für
ordnungsgemäßes Recycling zurückzugeben.
Details zu diesem Programm, einschließlich der darin eingeschlossenen Produkte,
verfügbaren Stand orte, Versandanwe isun g en, Bedingungen usw., finden Sie auf der
http://www.intel.com/intel/other/ehs/product_ecology
了解此计划的详情，包括涉及
for the
91
Intel Desktop Board DQ77MK Technical Product Specification
Español
Como parte de su compromiso de responsabilidad medioambiental, Intel ha
implantado el programa de reciclaje de productos Intel, que permite que los
consumidores al detalle de los productos Intel devuelvan los productos usados en los
lugares seleccionados para su correspondiente reciclado.
Consulte la http://www.intel.com/intel/other/ehs/product_ecology
para ver los detalles
del programa, que incluye los productos que abarca, los lugares disponibles,
instrucciones de envío, términos y condiciones, etc.
Français
Dans le cadre de son engagement pour la protection de l'environnement, Intel a mis
en œuvre le programme Intel Product Recycling Program (Programme de recyclage
des produits Intel) pour permettre aux consommateurs de produits Intel de recycler
les produits usés en les retournant à des adresses spécifiées.
Visitez la page Web http://www.intel.com/intel/other/ehs/product_ecology
savoir plus sur ce programme, à savoir les produits concernés, les adresses
disponibles, les instructions d'expédition, les conditions générales, etc.
日本語
インテルでは、環境保護活動の一環として、使い終えたインテル ブランド製品を指定の場所へ返送していただき、リ
サイクルを適切に行えるよう、インテル製品リサイクル プログラムを発足させました。
対象製品、返送先、返送方法、ご利用規約など、このプログラムの詳細情報は、
http://www.intel.com/intel/other/ehs/product_ecology
（英語）をご覧ください。
pour en
Malay
Sebagai sebahagian daripada komitmennya te rhada p tanggungjawab persekitaran,
Intel telah melaksa nakan Program Kitar Semula Produk untuk membenarka n
pengguna-pengguna runcit produk jenama Intel memulangkan produk terguna ke
lokasi-lokasi terpilih untuk dikitarkan semula dengan betul.
Sila rujuk http://www.intel.com/intel/other/ehs/product_ecology
untuk mendapatkan
butir-butir program ini, termasuklah skop produk yang dirangkumi, lokasi-lokasi
tersedia, arahan penghantaran, terma & syarat, dsb.
Portuguese
Como parte deste compromisso com o respeito ao ambiente, a Intel implementou o
Programa de Reciclagem de Produtos para que os consumidores finais possam enviar
produtos Intel usados para locais selecionados, onde esses produtos são reciclados de
maneira adequada.
Consulte o site http://www.intel.com/intel/other/ehs/product_ecology
(em Inglês)
para obter os detalhes sobre este programa, inclusive o escopo dos produtos cobertos,
os locais disponíveis, as instruções de envio, os termos e condições, etc.
92
Regulatory Compliance and Battery Disposal Information
Russian
В качестве части своих обязательств к окружающей среде, в Intel создана
программа утилизации продукции Intel (Product Recycling Program) для
предоставления конечным пользователям марок продукции Intel возможности
возврата используемой продукции в специализированные пункты для должной
утилизации.
Пожалуйста, обратитесь на веб-сайт
http://www.intel.com/intel/other/ehs/product_ecology
за информацией об этой
программе, принимаемых продуктах, местах приема, инструкциях об отправке,
положениях и условиях и т.д.
Türkçe
Intel, çevre sorumluluğuna bağımlılığının bir parçası olarak, perakende tüketicilerin
Intel markalı kullanılmış ürünlerini belirlenmiş merkezlere iade edip uygun şekilde geri
dönüştürmesini amaçlayan Intel Ürünleri Geri Dönüşüm Programı’nı uygulamaya
koymuştur.
Bu programın ürün kapsamı, ürün iade merkezleri, nakliye talimatları, kayıtlar ve
şartlar v.s dahil bütün ayrıntılarını ögrenmek için lütfen
http://www.intel.com/intel/other/ehs/product_ecology
Web sayfasına gidin.
93
Intel Desktop Board DQ77MK Technical Product Specification
5.1.4 China RoHS
Intel Desktop Board DQ77MK is a China RoHS-compliant product.
The China Ministry of Information Industry (MII) stipulates that a material Self
Declaration Table (SDT) must be included in a product’s user documentation. The SDT
for Intel Desktop Board DQ77MK is shown in Figure 18.
Figure 18. Intel Desktop Board DQ77MK China RoHS Material
94
Self Declaration Table
Regulatory Compliance and Battery Disposal Information
Subpart B
Frequency Devices. (USA)
ICES-003
Interference-Causing Equipment Stand ard, Digital Apparatus. (Canada)
of Information Technology Equipment. (Eur op e an Unio n)
methods of measurement. (European Union)
Compatibility. (Australia and New Zealand)
Information Technology Equipment. (International)
Methods of Measurement. (International)
(Japan)
Telecommunications and Radio Waves Ac t (South Korea)
CNS 13438
Bureau of Standards, Metrology, and Inspection (Taiwan)
5.1.5 EMC Regulations
Intel Desktop Board DQ77MK complies with the EMC regulations stated in Table 54
when correctly installed in a compatible ho st system.
Table 55. EMC Regulations
Regulation Title
FCC 47 CFR Part 15,
Title 47 of the Code of Federal Regulations, Part 15, Subpart B, Rad io
EN55022
EN55024
EN55022
CISPR 22
CISPR 24
VCCI V-3, V-4
KN-22, KN-24
Limits and methods of measurement of Radio Interf ere nce Charac te r is ti c s
Information Technology Equipment – Immunity Char ac ter is tic s Lim its and
Australian Communications Author i ty , S tandard for Electromagnetic
Limits and methods of measurement of Radio Disturbance Characteristics of
Information Technology Equipment – Immunity Characteristics – Limits and
Voluntary Control for Interference by Information Technology Equipment.
Korean Communications Commission – Framework Act on
FCC Declaration of Conformity
This device complies with Part 15 of the FCC Rules . Oper a tion is s ubject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
For questions related to the EMC performance of this product, contact:
Intel Corporation, 5200 N.E. Elam Young Parkway, Hillsboro, OR 97124
1-800-628-8686
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FC C Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause ha rmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
95
Intel Desktop Board DQ77MK Technical Product Specification
• Connect the equipment to an outlet on a circuit other than the one to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications to the equipment not expressly approved by Intel
Corporation could void the user’s authority to operate the equipment.
Tested to comply with FCC standards for home or office use.
Canadian Department of Communications Compliance Statement
This digital apparatus does not exceed the Clas s B limits for radio noise emissions from
digital apparatus set out in the Radio Interference Regulations of the Canadian
Department of Communications.
Le présent appareil numerique német pas de bruits radioélectriques dépassant les
limites applicables aux appareils numériques de la classe B prescrites dans le
Réglement sur le broullage radioélectrique édicté par le ministére des Communications
du Canada.
Japan VCCI Statement
Japan VCCI Statement translation: This is a Class B product based on the sta nda rd of
the Voluntary Control Council for Interference from Information Technology Equipment
(VCCI). If this is used near a radio or television receiver in a domestic environment, it
may cause radio interference. Install and use the equipment according to the
instruction manua l.
Korea Class B Statement
Korea Class B Statement translation: This equipment is for home use, and has
acquired electromagnetic conformity registration, so it can be used not only in
residential areas, but also other areas.
96
Regulatory Compliance and Battery Disposal Information
5.1.6 e-Standby and ErP Compliance
Intel Desktop Board DQ77MK meets the following program requirements in an
adequate system configuration, including appropriate selection of an efficie nt power
supply:
• EPEAT*
• Korea e-Standby
• European Union Energy-related Products Directive 2013 (ErP) Lot 6
For information about Refer to
Electronic Product Environmental As s e ssm e nt Too l (EPEA T) http://www.epeat.net/
Korea e-Standby Program http://www.kemco.or.kr/new_eng/pg02/
pg02100300.asp
European Union Energy-related Products Directive 2009 (ErP) http://ec.europa.eu/enterprise/policies/s
ustainable-business/sustainableproduct-policy/ecodesign/index_en.htm
97
Intel Desktop Board DQ77MK Technical Product Specification
Printed wiring board manufacturer ’s reco g nition mark. Consists of a unique
V-0
5.1.7 Regulatory Compliance Marks (Board Level)
Intel Desktop Board DQ77MK has the regulatory compliance marks shown in Table 55.
Table 56. Regulatory Compliance Marks
Description Mark
UL joint US/Canada Recognized Compone nt mark. Inc ludes adjac e nt UL file
number for Intel Desktop Boards: E210882.
FCC Declaration of Conformity logo mark for Class B equipment.
CE mark. Declaring compliance to the European U nion (EU) EMC directive,
Low Voltage directive, and RoHS directive.
Australian Communications Author i ty (ACA) and New Zealand Radio
Spectrum Management (NZ RSM) C-tick mark. Includes adjacent Intel
supplier code number, N-232.
Japan VCCI (Voluntary Control Counc il for I nterference) mark.
Korea Certification mark. Includes an adja cent KC C (Kore an Communica tio ns
Commission) certificatio n number:
KCC-REM-CPU-DQ77MK.
Taiwan BSMI (Bureau of Standards, Metrology and Inspections) mark.
Includes adjacent Intel company number, D33025 .
UL recognized manufacturer’s logo , along with a flamm ability rating (solder
side).
China RoHS/Environmentally Friendly Use Period Logo: This is an example of
the symbol used on Intel Desktop Boards and associated collateral. The color
of the mark may vary depending upon the application. The Environme ntal
Friendly Usage Period (EFUP) for Intel Desktop Boards has been determined
to be 10 years.
98
Regulatory Compliance and Battery Disposal Information
5.2 Battery Disposal Information
CAUTION
Risk of explosion if the battery is replaced with an incorrect type. Batteries should be
recycled where possible. Disposal of used batteries must be in accordance with local
environmental regulations.
PRÉCAUTION
Risque d'explosion si la pile usagée est remplacée par une pile de type incorrect. Les
piles usagées doivent être recyclées dans la mesure du possible. La mise au rebut des
piles usagées doit respecter les réglementations locales en vigueur en matière de
protection de l'environnement.
FORHOLDSREGEL
Eksplosionsfare, hvis batteriet erstattes med et batteri af en forkert type. Batterier
bør om muligt genbruges. Bortskaffelse af brugte batterier bør foregå i
overensstemmelse med gældende miljølovgivning.
OBS!
Det kan oppstå eksplosjonsfare hvis batteriet skiftes ut med feil type. Brukte batterier
bør kastes i henhold til gjeldende miljølovgivning.
VIKTIGT!
Risk för explosion om batteriet ers ä tt s med felaktig batterityp. Batterier ska kasseras
enligt de lokala miljövårdsbestämmelserna.
VARO
Räjähdysvaara, jos pariston tyyppi on väärä. Paristot on kierrätettävä, jos se on
mahdollista. Käytetyt paristot on hävitettävä paikallisten ympäristömääräysten
mukaisesti.
VORSICHT
Bei falschem Einsetzen einer neuen Batterie besteht Explosionsgefahr. Die Batterie
darf nur durch denselben oder einen entspreche n d en , vom He rsteller empfoh l enen
Batterietyp ersetzt werden. Entsorgen Sie verbrauchte Batterien den Anweisungen
des Herstellers entsprechend.
AVVERTIMENTO
Esiste il pericolo di un esplosione se la pila non viene sostituita in modo corretto.
Utilizzare solo pile uguali o di tipo equiv alente a quelle consigliate dal produttore. Per
disfarsi delle pile usate, seguire le istruzioni del produttore.
99
Intel Desktop Board DQ77MK Technical Product Specification
PRECAUCIÓN
Existe peligro de explosión si la pila no se cambia de forma adecuada. Utilice
solamente pilas iguales o del mismo tipo que las recomendadas por el fabricante del
equipo. Para deshacerse de las pilas usadas, siga igualmente las instrucciones del
fabricante.
WAARSCHUWING
Er bestaat ontploffingsgevaar als de batterij wordt vervangen door een onjuist type
batterij. Batterijen moeten zoveel mogelijk worden gerecycled. Houd u bij het
weggooien van gebruikte batterijen aan de plaatselijke milieuwetgeving.
ATENÇÃO
Haverá risco de explosão se a bateria for substituída por um tipo de bateria incorreto.
As baterias devem ser recicladas nos locais apropriados. A eliminação de baterias
usadas deve ser feita de acordo com as regulamentações ambientais da região.
AŚCIAROŽZNAŚĆ
Існуе рызыка выбуху, калі заменены акумулятар неправільнага тыпу.
Акумулятары павінны, па магчымасці, перепрацоўвацца. Пазбаўляцца ад старых
акумулятараў патрэбна згодна з мясцовым заканадаўствам па экалогіі.
UPOZORNÌNÍ
V případě výměny baterie za nesprávný druh může dojít k výbuchu. Je-li to možné,
baterie by měly být recyklovány. Baterie je třeba zlikvidovat v souladu s místními
předpisy o životním prostředí.
Προσοχή
Υπάρχει κίνδυνος για έκρηξη σε περίπτωση που η μπαταρία αντικατασταθεί από μία
λανθασμένου τύπου. Οι μπαταρίες θα πρέπει να ανακυκλώνονται όταν κάτι τέτοιο είναι
δυνατό. Η απόρριψη των χρησιμοποιημένων μπαταριών πρέπει να γίνεται σύμφωνα με
τους κατά τόπο περιβαλλοντικούς κανονισμούς.
VIGYÁZAT
Ha a telepet nem a megfelelő típusú telepre cseréli, az felrobbanhat. A telepeket
lehetőség szerint újra kell hasznosítani. A használt telepeket a helyi környezetvédelmi
előírásoknak megfelelően kell kiselejtezni.
100
Loading...
