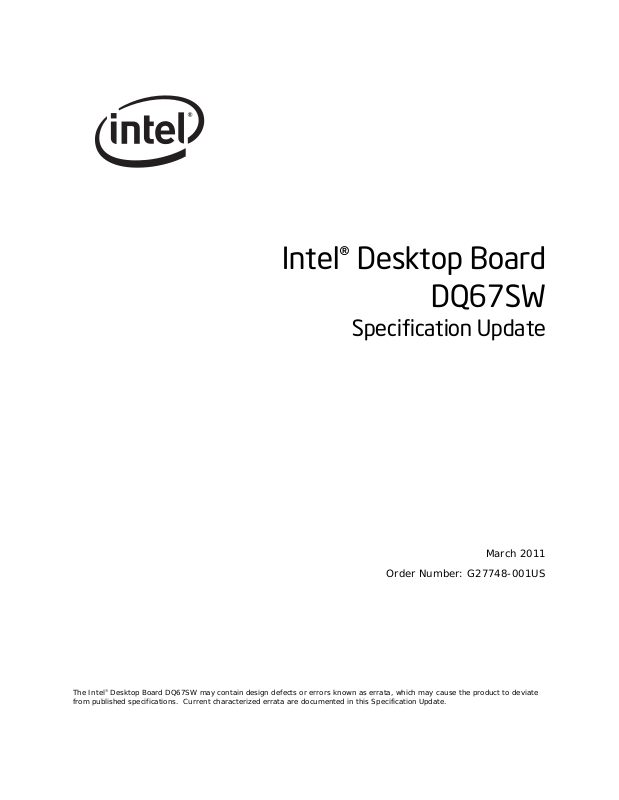

Intel DQ67SW User Manual

Intel® Desktop Board
DQ67SW
Specification Update
March 2011
Order Number: G27748-001US
The Intel® Desktop Board DQ67SW may contain design defects or errors known as errata, which may cause the product to deviate from published specifications. Current characte rized errata are documented in this Specification Update.
Revision History
Revision Revision History Date
-001 This document is the first Specification Update for the Intel® Desktop Board DQ67SW
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROP ERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL’S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PART ICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. INTEL PRODUCTS ARE NOT INTENDED FOR USE IN MEDICAL, LIFE SAVING, LIFE SUSTAINING APPLICATIONS.
Intel may make changes to specifications and product descriptions at any time, without notice. Designers must not rely on the absence or characteristics of any features or instructions marked “reserved”
or “undefined”. Intel reserves these for future definition and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to them.
®
The Intel the product to deviate from published specifications. Current characterized errata are available on request.
Desktop Board DQ67SW may contain design defects or errors known as errata which may cause
March 2011
®
PRODUCTS. NO LICENSE,
Contact your local Intel sales office or your distributor to obtain the latest specifications before placing your product order.
Copies of documents which have an ordering number and are referenced in this document, or other Intel literature, may be obtained from:
Intel Corporation P.O. Box 5937 Denver, CO 80217-9808
or call in North America 1-800-548-4725, Europe 44-0-1793-431-155, France 44-0-1793-421-777, Germany 44-0-1793-421-333, other Countries 708-296-9333
Intel and the Intel logo are registered trademarks of Intel Corporation in the U.S. and other countries. * Other names and brands may be claimed as the property of others. Copyright © 2011 Intel Corporation.
2 Intel Desktop Board DQ67SW Specification Update

Contents

Specification Update for the Intel® Desktop Board DQ67SW
Terminology ............................................................................................5
General Information .................................................................................5
Summary of Changes ............................................................................... 6
Intel Desktop Board DQ67SW Specification Update
3
Specification Update for the Intel
®
Desktop Board DQ67SW
This document is an update to the specifications contained in the Intel® Desktop Board DQ67SW Technical Product Specification (Order Number: G14714). It is intended for
hardware system manufacturers and software developers of applications, operating systems, or tools. It will contain Specification Changes, Errata, Specificat ion Clarifications, and Documentation Changes.
Refer to the 2nd Generation Intel (Order Number: 457991) for specification updates concerning the 2nd Generation
®
Intel
Core™ Processor Family that may apply to the desktop board DQ67SW. Unless
otherwise noted in this document, it should be assumed that any Processor errata f or a given stepping are applicable to the Altered Assembly (AA) revision(s) associated with that stepping.
Refer to the Intel Update (Order Number: 440377) for specification updates concerning the Intel Express Chipset that may apply to the desktop board DQ67SW. Unless otherwise noted in this document, it should be assumed that any Platform Controller Hu b errata for a given stepping are applicable to the Altered Assembly (AA) revision(s) associated with that stepping.
®
6 Series Chipset and Intel® C200 Series Chipset Specification
®
Core™ Processor Family Specification Update
®
Q67
4 Intel Desktop Board DQ67SW Specification Update

Terminology

Specification Changes are modifications to the current published specifications.
These changes will be incorporated in the next release of the specif ications. Errata are design defects or errors. Characterized errata may cause the desktop
board behavior to deviate from published specifications. Hardware and software designed to be used with any given Altered Assembly (AA) and BIOS revision level must assume that all errata documented for that AA and BIOS revision level are present on all desktop boards.
Specification Clarifications describe a specification in greater detail or further highlight a specification’s impact to a complex design situation. These clarifications will be incorporated in the next release of the specifications.
Documentation Changes include typos, errors, or omissions from the current published specifications. These changes will be incorporated in the next release of the specifications.

General Information

Basic Desktop Board DQ67SW Identification Information
AA Revision BIOS Revision Notes
G12527-302 SWQ6710H.86A.0032 1,2 G12527-305 SWQ6710H.86A.0041 1,2
Notes:
1. The AA number is found on a small label on the component side of the board.
2. The Intel
Device Stepping S-Spec Numbers
82Q67 Platform Controller Hub (PCH)
82Q67 Platform Controller Hub (PCH)
®
Q67 PCH Express Chipset used on this AA revision consists of the following component:
B2 SLH85
B3 SLJ4D
Intel Desktop Board DQ67SW Specification Update
5

Summary of Changes

The following table indicates the Specification Changes, Errata, Specification Clarifications, or Documentation Changes that apply to the Intel
®
Desktop Board DQ67SW. Intel intends to fix some of the errata in a future revision of the desktop board, and to account for the other outstanding issues through documentation or specification changes as noted.
The following notations are used in the table:
Doc: Document change or update that will be implemented. Plan Fix: This erratum may be fixed in a future revision of the desktop board, driver, or BIOS. Fixed: This erratum has been previously fixed. No Fix: There are no plans to fix this erratum. Shaded: This erratum is either new or modified from the previous version of the document.
No. Plans Errata
There are no characterized erratum for this product
6 Intel Desktop Board DQ67SW Specification Update
