1
Intel Desktop Board DH61KVCH
Table of Contents
Motherboard Specications ---------------------------------------------------------------------------------4
Motherboard Layout--------------------------------------------------------------------------------------------6
Hardware Installation ------------------------------------------------------------------------------------------8
Safety Instructions-------------------------------------------------------------------------------------------8
Preparing the Motherboard -------------------------------------------------------------------------------9
Installing the CPU --------------------------------------------------------------------------------------9
Installing the CPU Fan --------------------------------------------------------------------------------10
Installing Memory Modules --------------------------------------------------------------------------10
Installing the Motherboard --------------------------------------------------------------------------------11
Installing the I/O Shield -------------------------------------------------------------------------------11
Securing the Motherboard into the Chassis ----------------------------------------------------- 11
Connecting Cables and Setting Switches -------------------------------------------------------------12
24-pin ATX Power Connector-PW1 ----------------------------------------------------------------13
4-pin ATX_12V power connector-PW2 -----------------------------------------------------------13
COM Header-CN4 (Optional) -----------------------------------------------------------------------14
Front Panel Header-FP1 -----------------------------------------------------------------------------14
USB Headers-FP_U1~FP_U2 ----------------------------------------------------------------------15
Front Pannel Audio Header-FP_S1 ---------------------------------------------------------------15
Speaker Header-SPEAKER -------------------------------------------------------------------------16
Serial-ATA (SATA) Connectors (SATA1/2/5) -----------------------------------------------------16
Fan Connectors-----------------------------------------------------------------------------------------16
Expansion Slots ----------------------------------------------------------------------------------------17
Jumper Settings ----------------------------------------------------------------------------------------17
Conguring the BIOS ------------------------------------------------------------------------------------------18
Enter BIOS Setup -------------------------------------------------------------------------------------------18
Main Menu ----------------------------------------------------------------------------------------------------18
Advanced Menu----------------------------------------------------------------------------------------------19
X-Setting --------------------------------------------------------------------------------------------------19
Storage Conguration ---------------------------------------------------------------------------------19
H/W Monitor ---------------------------------------------------------------------------------------------19
CPU Conguration -------------------------------------------------------------------------------------20
USB Conguration -------------------------------------------------------------------------------------20
Super IO Conguration -------------------------------------------------------------------------------21
ACPI Settings -------------------------------------------------------------------------------------------21
Chipset Menu -------------------------------------------------------------------------------------------------21
Display Conguration ---------------------------------------------------------------------------------21
OnBoard Device Cong ------------------------------------------------------------------------------21
Boot Menu -----------------------------------------------------------------------------------------------------22
Boot Settings Conguration -------------------------------------------------------------------------22
2
Table of Contents
Security Menu ------------------------------------------------------------------------------------------------23
Administrator Password ------------------------------------------------------------------------------23
User Password ------------------------------------------------------------------------------------------23
Exit Menu ------------------------------------------------------------------------------------------------------24
Save Changes and Exit-------------------------------------------------------------------------------24
Discard Changes and Exit ---------------------------------------------------------------------------24
Save Changes and Reset ----------------------------------------------------------------------------24
Discard Changes and Reset ------------------------------------------------------------------------24
Save Changes ------------------------------------------------------------------------------------------24
Discard Changes ---------------------------------------------------------------------------------------25
Restore Defaults----------------------------------------------------------------------------------------25
Save as User Defaults --------------------------------------------------------------------------------25
Restore User Defaults --------------------------------------------------------------------------------25
Launch EFI Shell from lesystem device --------------------------------------------------------25
Flash Update Procedure ----------------------------------------------------------------------------------25
Installing Drivers and Software ----------------------------------------------------------------------------26
Drivers Installation ------------------------------------------------------------------------------------------26
Realtek HD Audio Driver Setup -------------------------------------------------------------------------34
Getting Started ------------------------------------------------------------------------------------------34
Sound Effect ---------------------------------------------------------------------------------------------34
Mixer -------------------------------------------------------------------------------------------------------36
Audio I/O --------------------------------------------------------------------------------------------------38
Microphone -----------------------------------------------------------------------------------------------42
3D Audio Demo -----------------------------------------------------------------------------------------43
Information -----------------------------------------------------------------------------------------------43
3
Intel Desktop Board DH61KVCH
Motherboard Specications
q Chipset
v Intel® H61 Chipset
q Size
v MATX form factor of 9.6 inch X 7.04 inch
q Microprocessor support
v Supports LGA 1155 Socket for 2nd Generation Intel® Core i3/i5/i7 and Pentium processors
q Operating systems
v Supports Windows XP 32bit/64bit, Windows Vista 32bit/64bit and Windows 7 32bit/64bit
q System Memory
v Supports 1 GB, 2 GB, 4 GB and 8 GB DDR3 DRAM devices
v Supports Dual Channel DDR3 1066 and 1333 MT/s
v Maximum memory size: 16 GB
q USB 2.0 ports
v Supports hot plug and play
v Eight USB 2.0 ports (four ports on the back panel, four via the USB brackets connected
to the internal USB headers)
v Supports USB 2.0 protocol up to 480 Mbps transmission rate
q Onboard Serial ATA ports
v Independent DMA operation on three ports
v Three SATAII ports(3.0 Gb/s)
q eSATA Port
v One eSATA port on backpanel
v Supports hot plug and play
v Provide a link for 3.0 Gb/s data speed
q Onboard LAN
v Support Full Duplex ow control (IEEE802.3x)
v 10/100/1000 BASE-T IEEE 802.3 compliant
v Wake On LAN (WOL) power management support
q Audio
v 6 channel High Denition Audio
v All DACs support 192k/96k/48k/44.1kHz sample rate
4
Motherboard Specications
q Green Function
v Support SMM, APM, ACPI
v Suspend to DRAM supported (STR)
v AC power failure recovery
q Onboard Graphics Features
v Integrated GPU contains a refresh of the sixth generation graphics core
v DX10.1 and OpenGL 3.0 are supported
v 3D Graphics Rendering Enhancements
v VGA and DVI ports output support
v Support resolution up to 1920x1200 @ 60Hz for DVI
q PCI Express Interface
v Supports PCI Express 2.0
v Wake up function is supported
v Clock spread spectrum capability
q Expansion slots
v One PCI Express x16 slot
v One PCI Express x1 slot
v Two PCI slots
5
Intel Desktop Board DH61KVCH
120
240
121
120
240
121
1.5V
1.5V
115XLM
LGA1156
REMOVE
LOTES
1
PCI1
8
SATA5
9
14
15
16
Chipset
17
18
DDRIII1
DDRIII2
U_KB1
DVI
ESATA
USB
CN4
PW1
JP1
SPEA KER
FP_S1
PW2
SATA1
SATA2
3
5
6
7
FP_U2
FP_U1
PCIE2
PCIEX1
PCIEX16
10
S-FAN1
11
12
SD1
2
CPUFAN
LAN1
VGA
4
FP1
PCI2
13
Motherboard Layout
Figure 1 shows the motherboard and Figure 2 shows the back panel connectors.
Figure 1. Board Layout
1.
2. Speaker Header-SPEAKER
3. Chipset
4. Clear CMOS Jumper-JP1
5. Front Panel Header-FP1
6. Serial-ATA Connectors (SATA1/2/5)
7. USB Headers (FP_U1~FP_U2)
8. COM Header_CN4
9. PCI Slots-PCI1~2
6
24-pin ATX Power Connector-PW1
Figure 1
10. Front Pannel Audio Header-FP_S1
11. PCI Express x1 Slot-PCIEX1
12. SYS Fan Connector-S-FAN1
13. PCI Express x16 Slot-PCIEX16
14. Backpanel Connectors
15. 4-pin ATX_12V Power Connector-PW2
16. CPU Socket
17. CPU Fan Connector_CPUFAN
18. DDRIII DIMM Sockets-DDRIII1~2
6
7
2
3
4
2
5
Figure 2. Backpanel connectors
5
6
10
15
11
1. PS/2 Keyboard Port 2. USB 2.0 Ports
3. DVI Port 4. eSATA Port
5. Port 2-Channel 4-Channel 6-Channel
Blue Line-In Rear Speaker Out Rear Speaker Out
Green Line-Out Front Speaker Out Front Speaker Out
Pink Mic I n Mic In Center/Subwoofer
Rear panel
6. LAN port LED indicators
Speed LED Activity LED
7. VGA Port
Speed LED
Status Description
Off Speed: 10 Mbps
Green Speed: 100 Mbps
Orange Speed: 1000 Mbps
Activity LED
Status Descritption
Off No link
Orange Linked
Blinking Data activity
7
Intel Desktop Board DH61KVCH
Hardware Installation
This section will guide you through the installation of the motherboard. The topics covered in this
section are:
q Preparing the motherboard
v Installing the CPU
v Installing the CPU fan
v Installing Memory DIMMs
q Installing the motherboard
q Connecting cables and setting switches
Safety Instructions
To reduce the risk of re, electric shock, and injury, always follow basic safety precautions.
Remember to remove power from your computer by disconnecting the AC main source before
removing or installing any equipment from/to the computer chassis.
8
Hardware Installation
Preparing the Motherboard
The motherboard shipped in the box does not contain a CPU or memory module. You need to
purchase them to complete this installation.
Installing the CPU
Be very careful when handling the CPU. Make sure not to bend or break any pins on the back.
Hold the processor only by the edges and do not touch the bottom of the processor.
The following illustration shows CPU installtaion components
1. Unhook the socket lever by pushing down
and away from the socket.
2. Lift the socket lever and the load plate to
fully open position.
3. Use your thumb and forenger to lift the cap
up vertically.
● Be careful not to touch the socket contacts.
4. Hold the processor with your thumb and
forenger. Insert the processor into the socket
vertically.
● Align the CPU pin 1 mark with the pin 1
corner of the CPU socket.
5. Make sure the CPU is fully seated, and then
replace the load plate.
● Be sure that the front end of the load
plate is under the shoulder screw.
6. Secure the load lever to its locked location.
9
Intel Desktop Board DH61KVCH
120
240
121
120
240
121
1.5V
1.5V
115XLM
LGA1156
REMOVE
LOTES
Installing the CPU Fan
There are many different fan types that can be used with this motherboard. Follow the instruction
that came with your fan assembly. Be sure that the fan orientation is correct for your chassis type
and your fan assembly.
Installing Memory Modules
Your new motherboard has two 1.5V 240-pin slots for DDR3 memory. These slots support 1
GB/2 GB/4 GB/8 GB DDR3 devices. There must be at least one memory bank populated to
ensure normal operation.
DDRIII1
DDRIII2
Refer to the following procedure to install memory modules into the slots on the motherboard.
Note that there is only one gap near the center of the DIMM slot. This slot matches the slot on
the memory DIMM to ensure the component is installed properly.
1. Unlock a DIMM slot by pressing the module clips outward.
2. Align the memory module to the DIMM slot, and insert the module vertically into the DIMM
slot. The plastic clips at both sides of the DIMM slot automatically lock the DIMM into the
connector.
10
Hardware Installation
Installing the Motherboard
The sequence of installing the motherboard into the chassis depends on the chassis you are
using and if you are replacing an existing motherboard or working with an empty chassis. Deter-
mine if it would be easier to make all the connections prior to this step or to secure the mother-
board and then make all the connections. It is normally easier to secure the motherboard rst.
Use the following procedure to install the I/O shield and secure the motherboard into the chassis.
Note: Be sure that the CPU fan assembly has enough clearance for the chassis covers
to lock into place and for the expansion cards. Also make sure the CPU Fan assem
-bly is aligned with the vents on the covers.
Installing the I/O Shield
The motherboard kit comes with an I/O shield that is used to block radio frequency transmis-
sions, protects internal components from dust and foreign objects, and promotes correct airow
within the chassis.
Before installing the motherboard, install the I/O shield from the inside of the chassis. Press the
I/O shield into place and make sure it ts securely. If the I/O shield does not t into the chassis,
you would need to obtain the proper size from the chassis supplier.
Securing the Motherboard into the Chassis
Most computer chassis have a base with mounting studs or spacers to allow the motherboard
to be secured to the chassis and help to prevent short circuits. If there are studs that do not
align with a mounting hole on the motherboard, it is recommended that you remove that stud
to prevent the possibility of a short circuit. In most cases, it is recommended to secure the
motherboard with spacers.
1. Carefully place the motherboard onto the studs/spacers located inside the chassis.
2. Align the mounting holes with the studs/spacers.
3. Align the connectors to the I/O shield.
4. Ensure that the fan assembly is aligned with the chassis vents according to the fan assembly
instruction.
5. Secure the motherboard with screws.
11
Intel Desktop Board DH61KVCH
Connecting Cables and Setting Switches
This section takes you through all the connectors and switch settings necessary on the mother-
board. This will include:
q Power Connectors
v 24-pin ATX Power Connector-PW1
v 4-pin ATX_12V Power Connector-PW2
q Internal Headers/Connectors
v COM Header-CN4 (Optional)
v Front Panel Header-FP1
v USB Headers (FP_U1/2)
v Front Pannel Audio Header-FP_S1
v Speaker Header-SPEAKER
q Serial-ATA (SATA) Connectors (SATA1/2/5)
q Fan Connectors
q Expansion Slots
q CMOS Jumper Settings
See Figure 1 to locate the connectors and jumpers referenced in the following procedure.
12
Hardware Installation
120
240
121
120
240
121
1.5V
1.5V
115XLM
LGA1156
REMOVE
LOTES
24-pin ATX Power Connector-PW1
PW1 is the main power supply connector. Make sure that the power supply cable and pins are
properly aligned with the connector on the motherboard. Firmly plug the power supply cable into
the connector and make sure it is secure.
PW2
1
PW1-Pin Denition
Pin Signal Pin Signal
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 GND 15 GND
PW1
12
4 +5V 16 PS_ON
24
5 GND 17 GND
6 +5V 18 GND
7 GND 19 GND
8 PWROK 20 -5V
9 +5V_AUX 21 +5V
10 +12V 22 +5V
1
13
11 +12V 23 +5V
12 +3.3V 24 GND
4-pin ATX_12V power connector-PW2
PW2, the 4-pin ATX 12V power connector, is used to provide power to the CPU. Align the pins to
the connector and press rmly until seated.
PW2-Pin Denition
Pin Signal
1 GND
2 GND
3 +12V
4 +12V
13
Intel Desktop Board DH61KVCH
120
240
121
120
240
121
1.5V
1.5V
115XLM
LGA1156
REMOVE
LOTES
COM Header-CN4 (Optional)
CN4 - Pin Denition
Pin Signal Pin Signal
1 DCD 2 RXD
3 TXD 4 DTR
5 GND 6 DSR
7 RTS 8 CTS
9 RI 10 NC
Front Panel Header-FP1
The front panel header on this motherboard is
one connector used to connect the following four
cables :
FP1-Pin Denition
Pin Signal Pin Signal
1 HDD_LED+ 2 PW_LED+
3 HDD_LED- 4 PW_LED-
5 GND 6 PWR_SW
7 RESET 8 GND
9 NC 10 KEY
CN4
1
1
FP1
q PWRLED
Attach the front panel power LED cable to these two pins of the connector. The Power LED
indicates the system’s status.
q PWR SW
Attach the power button cable from the case to these two pins. Pressing the power button
on the front panel turns the system on and off rather than using the power supply button.
q HDD LED
q RST SW
Attach the hard disk drive indicator LED cable to these two pins. The HDD indicator LED
indicates the activity status of the hard disks.
Attach the Reset switch cable from the front panel of the case to these two pins. The system
restarts when the RESET switch is pressed.
Note: Some chassis do not have all four cables. Be sure to match the name on the
connectors to the corresponding pins.
14
Hardware Installation
120
240
121
120
240
121
1.5V
1.5V
115XLM
LGA1156
REMOVE
LOTES
USB Headers-FP_U1~FP_U2
This motherboard contains four USB 2.0 ports that are exposed on the rear panel of
the chassis. The motherboard also contains two 10-pin internal headers connector
onboard.
Note: Secure the bracket to either the front or rear panel of your chassis (not all
chassis are equipped with the front panel option).
FP_U1~FP_U2-Pin Denition
PIN Assignment PIN Assignment
1 VCC 2 VCC
3 USBP0- 4 USBP1-
5 USBP0+ 6 USBP1+
7 GND 8 GND
9 KEY 10 NC
Front Panel Audio Header-FP_S1
The audio connector supports HD audio standard
and provides two kinds of audio output choices:
the Front Audio, the Rear Audio. The front Audio
supports retasking function.
FP_S1-Pin Denition
PIN Assignment PIN Assignment
1 MIC2(L) 2 GND
1
3 MIC(R) 4 -ACZ-DET
5 Front Audio(R) 6 Reserved
7 FAVDIO-JD 8 Key(No pin)
1
FP_S1
9 Front Audio(L) 10 Reserved
Note:
In order to utilize the front audio header, your chassis must have front audio
connector. Also please make sure the pin assignment on the cable is the same
as the pin assignment on the mainboard header. To nd out if the chassis you
are buying supports a front audio connector, please contact your dealer.
1
FP_U1FP_U2
15
Intel Desktop Board DH61KVCH
120
240
121
120
240
121
1.5V
1.5V
115XLM
LGA1156
REMOVE
LOTES
S-FAN1
GND
+12V
Sense
Control
CPUFAN
GND
+12V
Sense
Control
1
SPEAKER
Speaker Header
-SPEAKER
SPEAKER-Pin Denition
PIN Assignment
1 VCC
2 NC
3 NC
4 SPK-
SATA 5
SATA 1
SATA 2
Serial-ATA (SATA) Connectors (SATA1/2/5)
The Serial ATA connector is used to connect the Serial ATA
device to the motherboard. These connectors support the
thin Serial ATA cables for primary storage devices. The
current Serial ATA interface allows up to 300 MB/s data
transfer rate.
Fan Connectors
There are two fan connectors on the motherboard,
including system fan connectors-S-FAN1 and CPU fan
connector-CPUFAN.
16
SATA-Pin Denition
Pin Signal
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
Hardware Installation
120
240
121
120
240
121
1.5V
1.5V
115XLM
LGA1156
REMOVE
LOTES
Expansion Slots
The motherboard contains four expansion slots, including one PCI Express x16 slot,
one PCI Express x1 slot and two PCI slots.
PCIEX16
PCIEX1
PCI2
PCI1
PCI Express x16 Slot-PCIEX16
There is one PCI Express x16 slot reserved for graphics or video cards. The PCIe x16 slot is
complianting with PCIE 2.0 specication.
PCI Express x1 Slot-PCIEX1
There is one PCI Express x1 slot that is designed to accommodate less bandwidth intensive
cards, such as a modem or LAN card.
PCI Slots-PCI1~2
The two PCI slots support many expansion cards such as a LAN card, USB card, SCSI card and
other cards that comply with PCI specications.
Jumper Settings
This section explains how to congure the motherboard’s hardware. Before using
your computer, make sure all jumpers and DRAM modules are set correctly. Refer to
this section whenever in doubt.
CMOS Clear Jumper-JP1
JP1 Selection
1-2* Normal*
1
1
2-3 CMOS Clear
Close Open * = Default setting.
If you want to clear the system conguration, use the JP1 (Clear CMOS Jumper) to clear data.
Notice:
1. Be sure to save the CMOS setting when exit the CMOS.
2. If the CPU is frequency multiplier locked, no CPU speed change will be seen
even if the frequency multiplier setting in CMOS setup is changed.
17
Intel Desktop Board DH61KVCH
Conguring the BIOS
This section discusses how to change the system settings through the BIOS Setup
menus. Detailed descriptions of the BIOS parameters are also provided.
Enter BIOS Setup
The BIOS is the communication bridge between hardware and software. Correctly
setting the BIOS parameters is critical to maintain optimal system performance.
Refer to the following procedure to verify/change BIOS settings.
1. Power on the computer.
2. Press the Del key when the following message briey displays at the bottom of
the screen during the Power On Self Test (POST).
Pressing Del takes you to the BIOS Setup Utility.
Note: 1. We reserve the right to update the BIOS version presented in the manual. The
BIOS pictures shown in this section are for reference only.
2. It is strongly recommended that you do not change the default BIOS settings.
Changing some settings could damage your system.
Main Menu
This menu gives you an overview of the general system specications. The BIOS
automatically detects the items in this menu.
Note: Users please note that the data in gray is non-changeable, and the others are for selection.
q BIOS Information
Displays the auto-detected BIOS information.
q Memory Information
Displays the auto-detected memory information.
q System Language
Choose the system default language.
q System Date/Time
Allows you to set the system date/time.
18
Conguring the BIOS

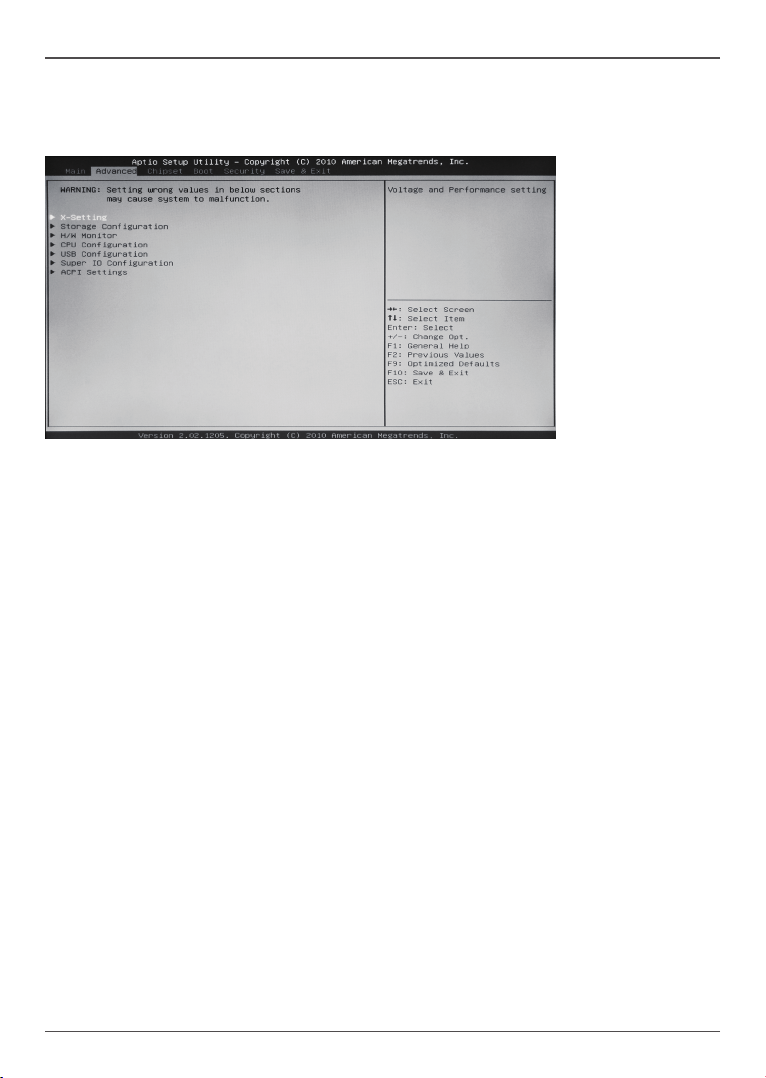

Advanced Menu
The Advanced menu items allow you to change the setting for the CPU and other
system devices. Press <enter> to display the conguration options:
X-Setting
The X-Setting menu items show the settings of CPU, memory and so on.
q Adjust Memory Voltage
Use this item to adjust memory voltage.
q Adjust PCH Voltage
Use this item to adjust PCH voltage.
Storage Conguration
The items in this menu allow you to set or change the storage congurations. Press
<enter>to display the conguration options:
q SATA Mode
Allows you to choose SATA mode, including [Disabled], [IDE Mode], and [AHCI
Mode].
q Serial-ATA Controller 0/1
Allows you to congure SATA controller.
H/W Monitor
The items in this menu allow you to monitor the hardware status. Press <enter>to
display the conguration options:
q CPU FAN Control Mode
Use this item to select CPU FAN Control mode.
q Start Temperature
Use this item to select the start temperature.
q Start Fan Duty
Use this item to select the start fan duty.
q Highest Fan Duty
Use this item to select the highest fan duty.
19
Intel Desktop Board DH61KVCH
CPU Conguration
The items in this menu show the CPU-related information that the BIOS automatically
detects. Press <enter>to display the conguration options:
q Hyper-threading
Use this item to enable or disable Hyper-threading technology.
q Active Processor Cores
This item allows you to choose the number of the active processor cores. The
default value is [All].
q Limit CPUID Maximum
Allows you to determine whether to limit CPUID maximum value. Set this item
to [Disable] Windows XP operating system; set this item to [Enable] for legacy
operating system such as Windows NT4.0..
q Execute Disable Bit
When disabled forces the XD feature ag to always return 0, defaults choose
[Enable].
q Hardware Prefetcher
Use this item to enable or disable hardware prefetcher (hardware prefetch
mechanism).
q Adjacent Cache Line Prefetch
Use this item to enable or disable the adjacent cache line prefetch mode. If you
disable this item, only one 64-bit line will be prefetched from the 128-bit section
(including the required data). If you enable this item, two lines will be prefetched
whether there is required data or not.
q Intel Virtualization Technology
Hardware Virtualization Technology enables processor feature for running multiple
simultaneous virtual machines allowing specialized software applications to run in
full isolation of each other.
q Power Technology
Use this option to set Power Technology.
USB Conguration
The items in this menu allow you to change the USB-related features. Press <enter>
To display the conguration options:
q Legacy USB Support
Allows you to enable or disable support for USB devices on legacy operating
systems.
q EHCI Hand-Off
Allows you to enable support for operating systems without an EHCI hand-off
feature.
q USB transfer time-out
Allows you to set USB transfer time-out.
q Device reset time-out
Allows you to set device reset time-out.
q Device power-up delay
Allows you to set device power-up delay.
20
Conguring the BIOS
Super IO Conguration
The items in this menu allow you to congure NCT5577D Super IO Chipset.
q PS2 Keyboard/Mouse Swap
Allows you to set PS2 Keyboard/Mouse swap. The default value is [Keyboard].
q Serial Port 0 Conguration
Allows you to set parameters of Serial Port 0 (C0MA).
ACPI Settings
The items in this menu allow you to set ACPI Conguration.
q ACPI Sleep State
Select the highest ACPI sleep state, the system will enter when the SUSPEND
button is pressed.
q Restore on AC Power Loss
This item allows you to congure how the system board responds to a power
failure.
q Deep Sleep
When enabled, wake up from S4/S5 can only be done by power button.
q Wake system with Fixed Time
Use this item to enable or disable wake system with xed time.
Chipset Menu
The chipset menu items allow you to change the advanced chipset settings. Press
<enter> to display the sub-menu:
Display Conguration
The item allows you to congure north bridge features, including Memory, Graphics,
and so on.
OnBoard Device Cong
The item allows you to congure onboard device features, including LAN, HDA, and
so on.
21
Intel Desktop Board DH61KVCH
Boot Menu
The Boot menu items allow you to change the system boot options. Press <enter> to
display the conguration options:
Boot Settings Conguration
The items allow you to congure Boot settings. Press <enter> To display the
conguration options:
q Setup Prompt Timeout
Use this item to set number of seconds to wait for setup activation key.
q Bootup NumLock State
Use this item to select the keyboard NumLock state: [On] or [Off].
q Quiet Boot
When set to [Disabled], displays normal POST message. When set to [Enabled],
displays OEM Logo instead of POST messages.
q Fast Boot
Enable or disable boot with initialization of a minimal set of devices required to
launch active boot option.
q GateA20 Active
When set to [Upon Request], GA20 can be disabled using BIOS services. When
set to [Always], GA20 can not be disabled; this option is useful when any RT code
is executed above 1MB.
q Option ROM Messages
Use this item to set display mode for Option.
q Interrupt 19 Capture
When set to [Enabled], this function allows the option ROMS to trap interrupt 19.
22
Conguring the BIOS
Security Menu
The security menu items allow you to change the system security settings. Press
<enter> to display the conguration options:
Administrator Password
Select this item to set Setup Administrator Password.
User Password
Select this item to set the user password.
To set an Administrator/User Password:
1. Select the item [Administrator/User Password] and press <Enter>.
2. From the password box, type a password composed of at least six letters and/or
numbers, then press <Enter>.
3. Conrm the password when prompted:
The message “Password Installed” appears after you successfully set your
password.
To change the administrator/user password, follow the same steps as setting a use
password.
To clear the administrator/user password, select the item [Administrator/User
password], then press <enter>. The message “Password Uninstalled” appears.
23
Intel Desktop Board DH61KVCH
Exit Menu
The exit menu items allow you to load the option or failsafe default values for the BIOS
items, and save or discard your changes to the BIOS items. Press <enter> to display
the sub-menu:
Save Changes and Exit
Select this item and press <Enter> to save the changes that you have made in the
BIOS Setup and exit the BIOS Setup. When the diolog box [Save conguration and
exit?] appears, select [Yes] to save and exit, or select [No] to return to the main menu.
Discard Changes and Exit
Select this option only if you do not want to save the changes that you have made
to the setup program. If you made changes to elds other than system date, system
time, and password, the BIOS asks for a conrmation before exiting.
Save Changes and Reset
Select this item and press <Enter> to reset the system after saving the changes.
When the diolog box [Save conguration and reset?] appears, select [Yes] to save
and reset, or select [No] to return to the main menu.
Discard Changes and Reset
Select this item and press <Enter> to reset system setup without saving any changes.
When the diolog box [Reset without saving?] appears, select [Yes] to discard and
reset, or select [No] to return to the main menu.
Save Changes
Select this item and press <Enter> to save the changes that you have made in the
BIOS Setup and exit the BIOS Setup. When the diolog box [Save conguration?]
appears, select [Yes] to save changes, or select [No] to return to the main menu.
24
Conguring the BIOS
Discard Changes
This option allows you to discard the selections you have made and restore the previ-
ously saved values. When the dialog box [Load Previous Values?] appears, select
[Yes] to discard any change and load the previously saved values.
Restore Defaults
Use this item to restore/load default values for all the setup options.
Save as User Defaults
Use this item to save the changes as User Defaults.
Restore User Defaults
Use this item to restore the User Defaults to all the setup options.
Launch EFI Shell from lesystem device
Use this item to launch EFI Shell application (Shellx64.e) from one of the available
lesystem devices.
FLASH Update Procedure
The program EFUDOS.exe is included on the driver CD (D:\Utility\EFUDOS .exe). Please follow
the recommended procedure to update the ash BIOS, as listed below.
1. Create a DOS-bootable oppy diskette. Copy the new BIOS le (just obtained or downloaded)
and the utility program EFUDOS.exe to the diskette.
2. Allow the PC system to boot from the DOS diskette.
3. At the DOS prompt, type
EFUDOS XX.ROM /P /B /N <ENTER>
Note: XX (the BIOS le name) can be dened by users.
4. Wait until the ash-update is complete.
5. Restart the PC.
Warning: - Do not turn off or RESET the computer during the ash process.
- If you are not sure how to upgrade the BIOS, please take your computer to an
Authorized Service Center and have a trained technician do the work for you.
25
Intel Desktop Board DH61KVCH
Installing Drivers and Software
Note: It is important to remember that before installing the driver CD that is shipped in the
kit, you need to load your operating system. The motherboard supports Windows
XP 32 bit/64 bit, Windows Vista 32 bit/64 bit and Windows 7 32bit/64bit.
The kit comes with a CD that contains utility drivers and additional INTEL software.
The CD that has been shipped with your motherboard contains the following software and drivers:
q Intel Chipset Driver
q HDA Sound Driver
q Intel Graphics Driver
q Ethernet PCI-E Driver
q Intel Management Engine
Note. We reserve the right to update the driver version presented in the manual. The driver
installation pictures shown in this section are for reference only.
Drivers Installation
1. Insert the driver CD into the drive after loading your operating system, and then you can see
the interface below.
26
2. Left-click Intel Chipset Driver, begin loading
Installing Drivers And Software
27
Intel Desktop Board DH61KVCH
3. Left-click HDA Sound Driver, begin loading
28
Installing Drivers And Software
4. Left-click Intel Graphics Driver, begin loading
29
Intel Desktop Board DH61KVCH
30
5. Left-click Ethernet PCI-E Driver, begin loading
Installing Drivers And Software
31
Intel Desktop Board DH61KVCH
9. Left-click Intel Management Engine, begin loading
32
Installing Drivers And Software
At last, you can enter Computer Management that provides information about the hardware
devices on this motherboard to check if the driver installation is complete.
33
Intel Desktop Board DH61KVCH
Realtek HD Audio Driver Setup
Getting Started
After Realtek HD Audio Driver being installed (insert the driver CD and follow the on-screen
instructions), “Realtek HD Audio Manager” icon will show in System tray as below. Double click
the icon and the control panel will appear:
Double click to enable Realtek
HD Audio Manager
Sound Effect
After clicking on the “Sound Effect” tab, 3 sections “Environment”, “Equalizer” and “Karaoke”
are available for selection.
Environment Simulation
You will be able to enjoy different sound experience by pulling down the arrow, totally 23 kinds
of sound effect will be shown for selection. Realtek HD Audio Sound Manager also provides ve
popular settings “Stone Corridor”, “Bathroom”, “Sewer pipe”, “Arena” and “Audio Corridor” for
quick enjoyment.
34
Installing Drivers And Software
Equalizer Selection
The Equalizer section allows you to create your own preferred settings by utilizing this tool.
In standard 10 bands of equalizer, ranging from 100Hz to 16KHz are available:
Frequently Used Equalizer Setting
Realtek recognizes the needs that you might have. By leveraging our long experience at audio
eld, Realtek HD Audio Sound Manager provides you certain optimized equalizer settings that
are frequently used for your quick enjoyment.
How to Use
Other than the buttons “Pop” “Live” “Club” & “Rock” shown on the page, to pull down the arrow
in “Others” , you will nd more optimized settings available to you.
Karaoke Mode
Karaoke mode brings Karaoke fun back home by simply using the music you usually play, Karaoke
mode can help you eliminate the vocal of the song or adjust the key to accommodate your range.
Vocal Cancellation: Single click on “Voice Cancellation”, the vocals of the songs will be erased,
while the background music is still playing which lets you take over the vocal part.
Key Adjustment: Using “Up/Down Arrow” to nd a key which better ts your vocal range.
35
Intel Desktop Board DH61KVCH
Mixer
Realtek HD Audio Sound Manager integrates Microsoft’s “Volume Control” functions into the Mixer
page. This gives you the advantage to you to create your favorite sound effect in one single tool.
Playback control
Mute
You may choose to mute single or multiple volume controls or to completely mute sound output.
Tool
√ Show the following volume control
This is to let you freely decide which volume control items to be displayed, total 10 items to
be chosen.
√ Advanced controls
√ Enable playback multi-streaming
36
Installing Drivers And Software
With this function, you will be able to have an audio chat with your friends via headphone
(stream 1 from front panel) while still have music (stream 2 from back panel) playing.
At any given period, you can have maximum 2 streams operating simultaneously.
Recording control
Mute
You may choose to mute single or multiple volume controls or to completely mute sound input.
Tool
√ Show the following volume controls
This is to let you freely decide which volume control items to be displayed.
√ Advanced controls.
Advanced control is a “Microphone Boost” icon.
Once this item is checked, you will nd “advanced” icon beside “Front Pink In” &
“Mic Volume”. With this, the input signal into “Front Pink In” & “Mic Volume” will be strengthen.
√ Enable recording multi-streaming
At any given period, you can have maximum 2 streams operating simultaneously.
37
Intel Desktop Board DH61KVCH
Audio I/O
Realtek HD Audio Manager frees you from default speaker settings. Different from
before, for each jack, they are not limited to perform certain functions. Instead, now
each jack is able to be chosen to perform either output (i.e. playback) function or
input (i.e. Recording) function, we call this “Retasking”.
Audio I/O aims to help you setting jacks as you wish. Moreover, other than blue to
blue, pink to pink, the way that you used to do, Audio I/O would guide you to other
right jacks that can also serve as microphone / speaker / headphone.
38
Installing Drivers And Software
Speaker Conguration
Step 1: Plug in the device in any available jack.
Step 2: Dialogue “Connected device” will pop up for your selection. Please select the device you
are trying to plug in.
* If the device is being plugged into the correct jack, you will be able to nd the icon beside the
jack changed to the one that is same as your device.
39
Intel Desktop Board DH61KVCH
Connector Settings
Click to access connector settings
√ Mute rear panel when front headphone plugged in
Once this option is checked, when front headphone is plugged, the music that is playing from
the back panel, will be stopped.
√ Disable front panel jack detection (option)
Did not nd any function on front panel jacks?
Please check if front jacks on your system are so-called AC’97 jacks. If so, please check this
item to disable front panel jack detection.
√ Enable auto popup dialogue, when device has been plugged in.
Once this item checked, the dialog “Connected device” would automatically pop up when
device plugged in.
40
Installing Drivers And Software
Speaker Calibration
After you have successfully plugged in speakers and assigned to the right jacks, you are only
one more step to go to enjoy the intended sound. We provide “Speaker Calibration” to help you
check if the speakers are located in the correct position.
channel)
41
Intel Desktop Board DH61KVCH
Microphone
This page is designed to provide you better microphone/recording quality.
Below picture indicates both “Noise Suppression” & “Acoustic Echo Cancellation” are both enabled.
Noise Suppression
If you feel that the background noise, especially the sound generated from the fan inside PC, is
too loud? Try “Noise Suppression”, which allows you to cut off and suppress disturbing noise.
Beam Forming
Also known as “directional recording”, this option lets you do the following: Once beam forming
is enabled; only the sound from certain direction will be recorded. You will get the best quality if
you chose 90° position, which we recommend you to use, this effectively means that you speak
right into the microphone.
Note: A Stereo Microphone is required when using Beam Forming function.
Acoustic Echo Cancellation
This function prevents playback sound from being recorded by microphone together with your
sound. For example, you might have chance to use VOIP function through Internet with your
friends. The voice of your friend will come out from speakers (playback). However, the voice of your
friend might also be recorded into your microphone then go back to your friend through Internet.
In that case, your friend will hear his/her own voice again. With AEC (Acoustic Echo Cancellation)
enabled at your side, your friend can enjoy the benet with less echo.
42
Installing Drivers And Software
3D Audio Demo
The section “3D Audio Demo” grants you another possibility to enjoy your sound. The Audio Demo
allows you to listen to sound in an extraordinary way.
Information
This section provides information about your current system audio device.
43
Intel Desktop Board DH61KVCH
44
Loading...
