Intel® Desktop Board DG965RY

Product Guide

Order Number: D46818-001

Revision History

Revision Revision History

Date

-001 First release of the Intel® Desktop Board DG965RY Product Guide June 2006

If an FCC declaration of conformity marking is present on the board, the following statement applies:

FCC Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

For questions related to the EMC performance of this product, contact:

Intel Corporation

5200 N.E. Elam Young Parkway Hillsboro, OR 97124 1-800-628-8686

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and the receiver.

Connect the equipment to an outlet on a circuit other than the one to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications to the equipment not expressly approved by Intel Corporation could void the user’s authority to operate the equipment.

Tested to comply with FCC standards for home or office use.

Canadian Department of Communications Compliance Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

Le présent appareil numerique német pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe B prescrites dans le Réglement sur le broullage radioélectrique édicté par le ministére des Communications du Canada.

Disclaimer

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL’S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. INTEL PRODUCTS ARE NOT INTENDED FOR USE IN MEDICAL, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS. Intel may make changes to specifications and product descriptions at any time, without notice.

Desktop Board DG965RY may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current characterized errata are available on request.

Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order.

Copies of documents which have an ordering number and are referenced in this document, or other Intel literature, may be obtained from Intel Corporation by going to the World Wide Web site at: http://www.intel.com/ or by calling 1-800-548-4725.

Intel, Pentium, and Celeron are registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

* Other names and brands may be claimed as the property of others. Copyright © 2006, Intel Corporation. All rights reserved.

Preface

This Product Guide gives information about board layout, component installation, BIOS update, and regulatory requirements for Intel® Desktop Board DG965RY.

Intended Audience

The Product Guide is intended for technically qualified personnel. It is not intended for general audiences.

Use Only for Intended Applications

All Intel® desktop boards are evaluated as Information Technology Equipment (I.T.E.) for use in personal computers (PC) for installation in homes, offices, schools, computer rooms, and similar locations. The suitability of this product for other PC or embedded non-PC applications or other environments, such as medical, industrial, alarm systems, test equipment, etc. may not be supported without further evaluation by Intel.

Document Organization

The chapters in this Product Guide are arranged as follows:

1Desktop Board Features: a summary of product features

2Installing and Replacing Desktop Board Components: instructions on how to install the desktop board and other hardware components

3Updating the BIOS: instructions on how to update the BIOS

AError Messages and Indicators: information about BIOS error messages and beep codes

BRegulatory Compliance: safety and EMC regulations and product certification

Conventions

The following conventions are used in this manual:

CAUTION

Cautions warn the user about how to prevent damage to hardware or loss of data.

NOTE

Notes call attention to important information.

iii

Intel Desktop Board DG965RY Product Guide

Terminology

The table below gives descriptions of some common terms used in the product guide.

Term

Description





GB

Gigabyte (1,073,741,824 bytes)





GHz

Gigahertz (one billion hertz)





KB

Kilobyte (1024 bytes)





MB

Megabyte (1,048,576 bytes)





Mbit

Megabit (1,048,576 bits)





MHz

Megahertz (one million hertz)





Box Contents

Intel® Desktop Board DG965RY

I/O shield

One ATA-66/100 cable

Two locking Serial ATA cables

One Floppy Drive cable

Quick Reference poster

Configuration and battery caution statement label

Intel® Express Installer driver CD-ROM

Intel® Express Installer software CD-ROM

iv

Contents



1

Desktop Board Features





Supported Operating Systems ..............................................................................

10



Desktop Board Components..................................................................................

11



Processor ...........................................................................................................

13



Main Memory......................................................................................................

13



Intel® G965 Express Chipset.................................................................................

14



Intel® G965 Graphics Subsystem...................................................................

14



Intel® Graphics Media Accelerator X3000 (Intel® GMA X3000) ...................

14



Onboard Audio Subsystem ...................................................................................

15



Input/Output (I/O) Controller ...............................................................................

15



LAN Subsystem...................................................................................................

16



LAN Subsystem Software..............................................................................

16



RJ-45 LAN Connector LEDs ...........................................................................

16



Hi-Speed USB 2.0 Support ...................................................................................

17



Enhanced IDE Interface .......................................................................................

17



Serial ATA ..........................................................................................................

17



Expandability......................................................................................................

17



BIOS .................................................................................................................

18



Serial ATA and IDE Auto Configuration ...........................................................

18



PCI and PCI Express* Auto Configuration .......................................................

18



Security Passwords ......................................................................................

18



Hardware Management Features ...........................................................................

19



Hardware Monitoring and Fan Speed Control...................................................

19



Chassis Intrusion.........................................................................................

19



Power Management Features ................................................................................

20



ACPI ..........................................................................................................

20



Power Connectors........................................................................................

20



Fan Connectors ...........................................................................................

20



LAN Wake Capabilities..................................................................................

21



Instantly Available PC Technology..................................................................

21



+5 V Standby Power Indicator LED ................................................................

22



Wake from USB...........................................................................................

22



Wake from PS/2 Keyboard/Mouse..................................................................

22



PME# Signal Wake-up Support......................................................................

22



WAKE# Signal Wake-up Support ...................................................................

23



Speaker .............................................................................................................

23



Battery ..............................................................................................................

23



Real-Time Clock ..................................................................................................

23

2

Installing and Replacing Desktop Board Components





Before You Begin.................................................................................................

25



Installation Precautions........................................................................................

26



Prevent Power Supply Overload.....................................................................

26



Observe Safety and Regulatory Requirements .................................................

26



Installing the I/O Shield .......................................................................................

27



Installing and Removing the Desktop Board............................................................

28

v

Intel Desktop Board DG965RY Product Guide





Installing and Removing a Processor......................................................................

29



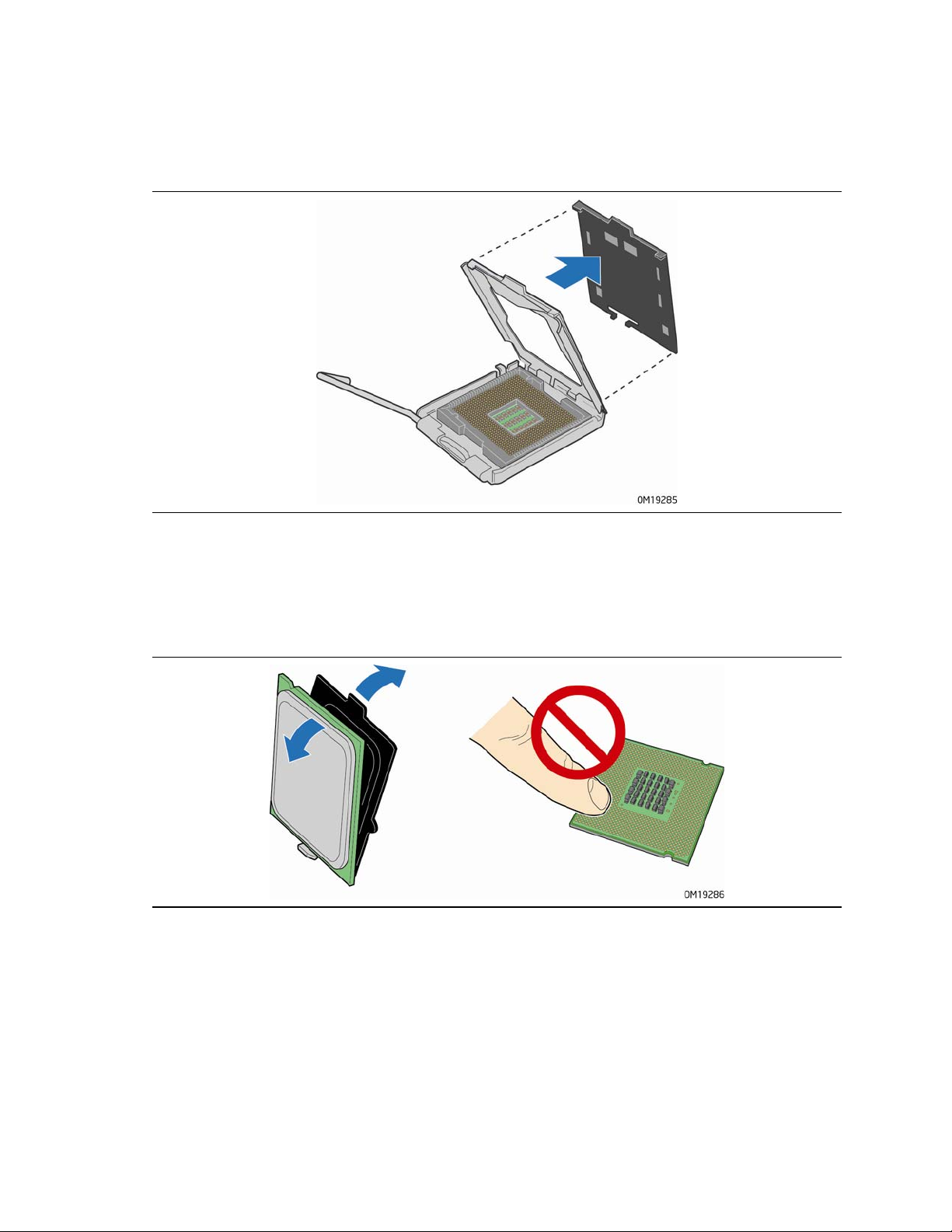

Installing a Processor ...................................................................................

29



Installing the Processor Fan Heat Sink............................................................

32



Connecting the Processor Fan Heat Sink Cable ................................................

32



Removing the Processor ...............................................................................

33



Installing and Removing Memory ..........................................................................

33



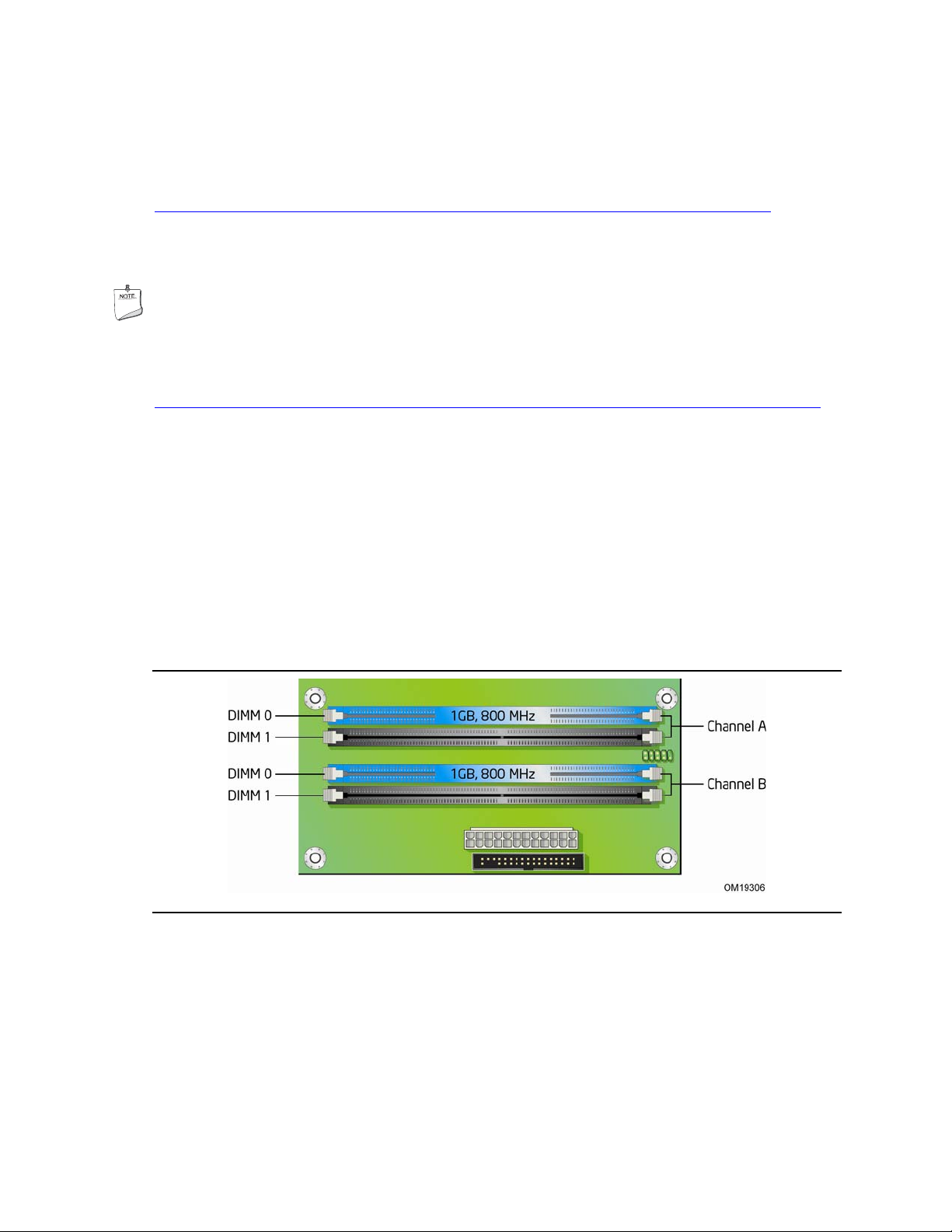

Guidelines for Dual Channel Memory Configuration ..........................................

33



Two or Four DIMMs ..............................................................................

33



Three DIMMs...............................................................................................

34



Installing DIMMs..........................................................................................

35



Installing DIMMs..........................................................................................

36



Removing DIMMs.........................................................................................

37



Installing and Removing a PCI Express x16 Card.....................................................

38



Installing a PCI Express x16 Card ..................................................................

38



Removing the PCI Express x16 Card ..............................................................

39



Connecting the IDE Cable.....................................................................................

40



Connecting the Serial ATA (SATA) Cable ................................................................

41



Connecting to Internal Headers.............................................................................

42



Connecting to the HD Audio Link Header ........................................................

43



Connecting to the IEEE 1394a Header ............................................................

43



Installing a Front Panel Audio Solution for Intel® High Definition Audio...............

43



Connecting to the Serial Header ....................................................................

45



Connecting to the Alternate Front Panel Power LED Header...............................

45



Connecting to the Front Panel Header ............................................................

45



Connecting to the USB 2.0 Header.................................................................

46



Connecting to the Flexible Audio System ................................................................

46



Connecting Chassis Fan and Power Cables..............................................................

47



Connecting Chassis Fan Cables......................................................................

47



Connecting Power Cables..............................................................................

48



Other Connectors ................................................................................................

49



Setting the BIOS Configuration Jumper ..................................................................

50



Clearing Passwords..............................................................................................

51



Back Panel Connectors.........................................................................................

52

3

Updating the BIOS





Updating the BIOS with the Intel® Express BIOS Update Utility.................................

59



Updating the BIOS with the ISO Image BIOS Update File or the Iflash





Memory Update Utility....................................................................................

60



Obtaining the BIOS Update File .....................................................................

60



Updating the BIOS with the ISO Image BIOS Update File..................................

60



Updating the BIOS with Iflash .......................................................................

61



Recovering the BIOS....................................................................................

62

A

Error Messages and Indicators





BIOS Beep Codes ................................................................................................

63



BIOS Error Messages ...........................................................................................

63

vi





Contents

B Regulatory Compliance



Safety Regulations ..............................................................................................

65



Place Battery Marking ..................................................................................

65

European Union Declaration of Conformity Statement ..............................................

66

Product Ecology Statements .................................................................................

67



Lead-Free Desktop Board .............................................................................

70

EMC Regulations .................................................................................................

71



Ensure Electromagnetic Compatibility (EMC) Compliance ..................................

72

Product Certifications...........................................................................................

73



Board-Level Certification Markings .................................................................

73



Chassis and Component Certifications ............................................................

74

Figures



1.

Desktop Board DG965RY Components..............................................................

11

2.

LAN Connector LEDs ......................................................................................

16

3.

Location of Standby Power Indicator ................................................................

22

4.

Installing the I/O Shield .................................................................................

27

5.

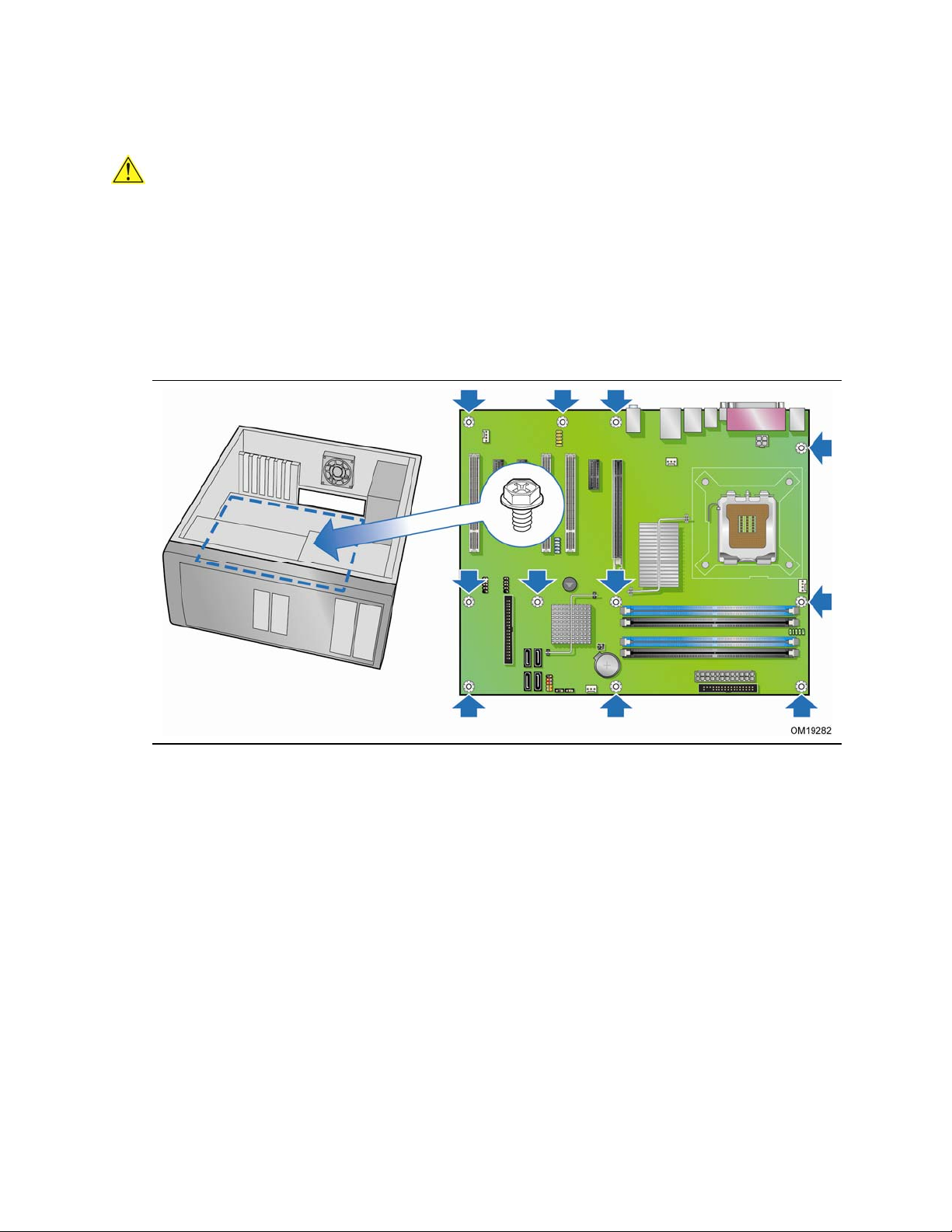

Desktop Board DG965RY Mounting Screw Hole Locations....................................

28

6.

Lift Socket Lever ...........................................................................................

29

7.

Lift the Load Plate..........................................................................................

29

8.

Remove the Protective Socket Cover................................................................

30

9.

Remove the Processor from the Protective Processor Cover ................................

30

10.

Install Processor............................................................................................

31

11.

Close the Load Plate.......................................................................................

31

12.

Connecting the Processor Fan Heat Sink Cable to the Processor Fan Header..........

32

13.

Dual Channel Memory Configuration Example 1.................................................

33

14.

Dual Channel Memory Configuration Example 2.................................................

34

15.

Dual Channel Memory Configuration Example 3.................................................

34

16.

Use DDR2 DIMMs ..........................................................................................

35

17.

Installing a DIMM ..........................................................................................

36

18.

Installing a PCI Express x16 Card ....................................................................

38

19.

Removing a PCI Express x16 Card ...................................................................

39

20.

Connecting the IDE Cable ...............................................................................

40

21.

Connecting the Serial ATA Cable......................................................................

41

22.

Internal Headers ...........................................................................................

42

23.

Back Panel Audio Connectors ..........................................................................

46

24.

Location of Chassis Fan Headers......................................................................

47

25.

Connecting Power Supply Cables .....................................................................

48

26.

Location of Other Connectors ..........................................................................

49

27.

Location of the BIOS Configuration Jumper Block...............................................

50

28.

Back Panel Connectors ...................................................................................

52

29.

Removing the Battery ....................................................................................

57

vii

Intel Desktop Board DG965RY Product Guide



Tables



1.

Feature Summary............................................................................................

9

2.

Desktop Board DG965RY Components..............................................................

12

3.

LAN Connector LEDs ......................................................................................

16

4.

High Definition Audio Link...............................................................................

43

5.

IEEE 1394a Signal Header Names....................................................................

43

6.

Front Panel Audio Header Signal Names for Intel High Definition Audio.................

43

7.

AC ’97 Audio Header Signal Names ..................................................................

44

8.

Serial Signal Header Names ............................................................................

45

9.

Alternate Front Panel Power LED Connector ......................................................

45

10.

Front Panel Header ........................................................................................

45

11.

USB 2.0 Header Signal Names.........................................................................

46

12.

Jumper Settings for the BIOS Setup Program Modes ..........................................

50

13.

Beep Codes...................................................................................................

63

14.

BIOS Error Messages .....................................................................................

63

15.

Safety Regulations.........................................................................................

65

16.

Lead-Free Board Markings ..............................................................................

70

17.

EMC Regulations............................................................................................

71

18.

Product Certification Markings .........................................................................

73

viii

1 Desktop Board Features

This chapter briefly describes the main features of Intel® Desktop Board DG965RY. Table 1 summarizes the major features of the desktop board.

Table 1. Feature Summary

Form Factor

ATX (320.04 millimeters [11.60 inches] x 243.84 millimeters



[9.60 inches])







Processor

Support for an Intel® processor in the LGA775 package

Main Memory

Four 240-pin, 1.8 V SDRAM Dual Inline Memory Module (DIMM)





sockets



800/677/533 MHz single or dual channel DDR2 SDRAM interface



Support for up to 8 GB of system memory







Chipset

Intel® G965 Express Chipset consisting of:



Intel® G965 Express Chipset Graphics Memory Controller Hub





(GMCH)



Intel® 82801HB I/O Controller Hub (ICH8)

Graphics

Intel® G965 Express Chipset with Intel® Graphics Media Accelerator





X3000 (Intel® GMA X3000)



One PCI Express* x16 connector supporting PCI Express graphics





cards









Audio

6-channel (5.1) onboard subsystem, featuring:





― Intel® High Definition Audio interface





― SigmaTel* STAC9277 audio codec



HD Audio Link header









Expansion

Three PCI Express x1 connectors

Capabilities

One PCI Express x16 connector





Three PCI connectors









Peripheral

Up to 10 USB 2.0 ports

Interfaces



― Six ports routed to the back panel









― Four ports routed to two USB headers



Up to two IEEE 1394a ports





― One port routed to the back panel





― One port routed to an IEEE 1394a header



Four Serial ATA (SATA) channels (3.0 Gb/s), via the ICH8, one





device per channel



One IDE interface with ATA-66/100 support (two devices)



One diskette drive interface



One parallel port



PS/2* keyboard and mouse ports













continued

9

Intel Desktop Board DG965RY Product Guide

Table 1. Feature Summary (continued)

BIOS

Intel® Platform Innovation Framework for extensible firmware





interface



8 Mbit symmetrical flash memory



Support for SMBIOS



Intel® Rapid BIOS Boot



Intel® Express BIOS Update

Power Management

Support for Advanced Configuration and Power Interface (ACPI)



Suspend to RAM (STR)



Wake on USB, PCI Express, PS/2, LAN, and front panel





Hardware

Hardware monitor with:

Management

Three fan sensing inputs used to monitor fan activity





Remote diode temperature sensing



Intel® Quiet System Technology fan speed control



Voltage sensing to detect out of range values





LAN Support

Intel® 82566DC Gigabit (10/100/1000 Mb/s) Ethernet LAN controller

Related Links:

For more information about Desktop Board DG965RY, including the Technical Product Specification (TPS), BIOS updates, and device drivers, go to:

http://support.intel.com/support/motherboards/desktop/

Supported Operating Systems

The desktop board supports the following operating systems:

Microsoft Windows* XP Media Center Edition 2005

Microsoft Windows XP Professional

Microsoft Windows XP Professional x64 Edition

Microsoft Windows XP Home

Microsoft Windows 2000

10

Desktop Board Features

Desktop Board Components

Figure 1 shows the approximate location of the major components on Desktop Board DG965RY.

Figure 1. Desktop Board DG965RY Components

11

Intel Desktop Board DG965RY Product Guide

Table 2. Desktop Board DG965RY Components

Label

Description





A

PCI bus connector 3





B

Auxiliary chassis fan header (4-pin)





C

PCI Express x 1 connector 3





D

PCI Express x 1 connector 2





E

High Definition Audio header





F

PCI bus connector 2





G

Front panel audio header





H

PCI bus connector 1





I

PCI Express x 1 connector 1





J

PCI Express x 16 connector





K

Back panel connectors





L

12 V processor core voltage connector (2 x 2 pin )





M

Rear chassis fan header (3-pin)





N

Processor socket





O

Processor fan header (4-pin)





P

Serial header





Q

Main power connector (2 x 12 pin)





R

Diskette drive connector





S

DDR2 DIMM 0 sockets





T

DDR2 DIMM 1 sockets





U

Battery





V

Front chassis fan header (3-pin)





W

Chassis intrusion header





X

BIOS configuration jumper block





Y

Alternate front panel power LED header





Z

Front panel header





AA

Serial ATA connectors





BB

IDE connector





CC

High-speed USB 2.0 headers





DD

Speaker





EE

IEEE 1394a header





Related Links:

Go to the following links for more information about:

Desktop Board DG965RY

Supported processors

Audio software and utilities

LAN software and drivers

http://www.intel.com/design/motherbd http://support.intel.com/support/motherboards/d esktop

http://support.intel.com/support/motherboards/d esktop

http://www.intel.com/design/motherbd http://www.intel.com/design/motherbd

12

Desktop Board Features

Processor

CAUTION

Failure to use the appropriate power supply and/or not connecting the 12 V (2 x 2 pin) power connector to the desktop board may result in damage to the board, or the system may not function properly.

Desktop Board DG965RY supports an Intel processor in the LGA775 package. Processors are not included with the desktop board and must be purchased separately. The processor connects to the desktop board through the LGA775 socket.

The supported processors list for Desktop Board DG965RY is located on the web at: http://support.intel.com/support/motherboards/desktop/

Related Links:

Go to the following page for more information about:

Instructions on installing or upgrading the processor, page 29 in Chapter 2

Main Memory

NOTE

To be fully compliant with all applicable Intel® SDRAM memory specifications, the board should be populated with DIMMs that support the Serial Presence Detect (SPD) data structure. If your memory modules do not support SPD, you will see a notification to this effect on the screen at power up. The BIOS will attempt to configure the memory controller for normal operation.

The desktop board supports the dual or single channel memory configurations defined below.

Four 240-pin Double Data Rate 2 (DDR2) SDRAM Dual Inline Memory Module (DIMM) connectors with gold-plated contacts.

Support for:

Unbuffered, non-registered single or double-sided DIMMs

Non-ECC DDR2 800/667/533 MHz memory

Serial Presence Detect (SPD) memory only

Memory configurations listed below:

Up to 2.0 GB utilizing 256 Mb technology

Up to 4.0 GB utilizing 512 Mb or 1 Gb technology

Up to 8.0 GB utilizing 1 Gb technology

13

Intel Desktop Board DG965RY Product Guide

Related Links:

Go to the following links or pages for more information about:

The latest list of tested memory, http://support.intel.com/support/motherboards/desktop/

SDRAM specifications, http://www.intel.com/technology/memory/

Installing memory, page 33 in Chapter 2

Intel® G965 Express Chipset

The Intel G965 Express Chipset consists of the following devices:

Intel G965 Express Chipset Graphics Memory Controller Hub (GMCH)

Intel 82801HB I/O Controller Hub (ICH8)

Related Links:

Go to the following link for more information about the Intel G965 Express Chipset: http://developer.intel.com/design/nav/pcserver.htm

Intel® G965 Graphics Subsystem

The Intel G965 Express Chipset contains two separate, mutually exclusive graphics options. Either the integrated Intel GMA X3000 is used or a PCI Express x16 add-in card can be used. When a PCI Express x16 add-in card is installed, the Intel GMA X3000 is disabled.

Intel® Graphics Media Accelerator X3000 (Intel® GMA X3000)

The Intel GMA X3000 features the following:

400 MHZ core frequency

Enhanced 3D graphics

Supports flat panel displays up to 2048 x 1536 at 75 Hz refresh rate (in dualchannel mode) or digital CRT/HDTV up to 1920 x 1080 at 85 Hz refresh rate

Advanced Digital Display 2 card or Media Expansion Card (ADD2/MEC) support

Dynamic Video Memory Technology support

Digital Video Interface (DVI) support

14

Desktop Board Features

Onboard Audio Subsystem

Desktop Board DG965RY has a flexible 6-channel (5.1) onboard audio subsystem that includes a SigmaTel STAC9227 audio codec and an HD Audio Link header.

The audio subsystem features:

Intel High Definition Audio interface

Advanced jack sense, for the back panel connectors, that enables the audio codec to recognize the device that is connected to an audio port and retask the connector via the audio driver.

S/N (signal-to-noise) ratio: 90 dB

Microphone input supporting:

Stereo microphone

Microphone boost

The subsystem includes the following connectors:

Front panel audio connector, including functionality for:

Line out

Microphone in

Back panel audio connectors that are configurable through the drivers of the audio devices:

Line in/retasking jack

Line out/retasking jack

Mic in/retasking jack

Related Links:

Go to the following link or pages for more information about:

Audio drivers and utilities http://support.intel.com/support/motherboards/desktop/

Installing the front panel audio solution, page 43

The location of audio connectors, Figure 23 on page 46

Input/Output (I/O) Controller

The super I/O controller features the following:

Low pin count (LPC) interface

One serial port header

One parallel port with Extended Capabilities Port (ECP) and Enhanced Parallel Port (EPP) support

Serial IRQ interface compatible with serialized IRQ support for PCI systems

PS/2-style mouse and keyboard interfaces

Interface for one 1.2 MB or 1.44 MB diskette drive

Intelligent power management, including a programmable wake up event interface

PCI power management support

15

Intel Desktop Board DG965RY Product Guide

LAN Subsystem

The LAN subsystem, with Intel 82801HB (ICH8) provides the following functions:

Intel 82566DC Gigabit (10/100/1000 Mb/s) Ethernet LAN controller

Intel 82801HB I/O Controller Hub (ICH8)

Support for RJ-45 connector with status indicator LEDs

Programmable transit threshold

Configurable EEPROM that contains the MAC address

LAN Subsystem Software

For LAN software and drivers, refer to the DG965RY link on Intel’s World Wide Web site at:

http://support.intel.com/support/motherboards/desktop

RJ-45 LAN Connector LEDs

Two LEDs are built into the RJ-45 LAN connector located on the back panel (see Figure 2). These LEDs indicate the status of the LAN.

Figure 2. LAN Connector LEDs

Table 3 describes the LED states when the board is powered up and the LAN subsystem is operating.

Table 3. LAN Connector LEDs

LED

LED Color

LED State

Indicates









A

Green

Off

LAN link is not established.













On

LAN link is established.













Blinking

LAN activity is occurring.









B

N/A

Off

10 Mb/s data rate











Green

On

100 Mb/s data rate











Yellow

On

1000 Mb/s data rate









16

Desktop Board Features

Hi-Speed USB 2.0 Support

NOTE

Computer systems that have an unshielded cable attached to a USB port might not meet FCC Class B requirements, even if no device or a low-speed USB device is attached to the cable. Use a shielded cable that meets the requirements for a fullspeed USB device.

The desktop board supports up to 10 USB 2.0 ports via ICH8 (six ports routed to the back panel and four ports routed to two internal USB 2.0 headers). USB 2.0 ports are backward compatible with USB 1.1 devices. USB 1.1 devices will function normally at USB 1.1 speeds.

USB 2.0 support requires both an operating system and drivers that fully support USB 2.0 transfer rates. Disabling Hi-Speed USB in the BIOS reverts all USB 2.0 ports to USB 1.1 operation. This may be required to accommodate operating systems that do not support USB 2.0.

Enhanced IDE Interface

The ICH8’s IDE interface handles the exchange of information between the processor and peripheral devices such as hard disk drives and CD-ROM drives. The interface supports:

Up to two IDE devices (such as hard drives)

ATAPI-style devices (such as CD-ROM drives)

Older PIO Mode devices

Ultra DMA-33 and ATA-66/100 protocols

Serial ATA

The desktop board supports four Serial ATA channels (3.0 Gb/s) via ICH8, connecting one device per channel.

Expandability

For system expansion, the desktop board provides the following:

Three PCI Express x1 connectors

One PCI Express x 16 connector

Three PCI bus connectors

17

Intel Desktop Board DG965RY Product Guide

BIOS

The BIOS provides the Power-On Self-Test (POST), the BIOS Setup program, the PCI/PCI Express and IDE auto-configuration utilities, and the video BIOS. The BIOS is stored in the Serial Peripheral Interface (SPI) Flash.

The BIOS can be updated by following the instructions on page 59 in Chapter 3.

Serial ATA and IDE Auto Configuration

If you install a Serial ATA or IDE device (such as a hard drive) in your computer, the auto-configuration utility in the BIOS automatically detects and configures the device for your computer. You do not need to run the BIOS Setup program after installing a Serial ATA or IDE device. You can override the auto-configuration options by specifying manual configuration in the BIOS Setup program.

PCI and PCI Express* Auto Configuration

If you install a PCI/PCI Express add-in card in your computer, the PCI/PCI Express auto-configuration utility in the BIOS automatically detects and configures the resources (IRQs, DMA channels, and I/O space) for that add-in card. You do not need to run the BIOS Setup program after you install a PCI/PCI Express add-in card.

Security Passwords

The BIOS includes security features that restrict whether the BIOS Setup program can be accessed and who can boot the computer. A supervisor password and a user password can be set for the BIOS Setup and for booting the computer, with the following restrictions:

The supervisor password gives unrestricted access to view and change all Setup options. If only the supervisor password is set, pressing <Enter> at the password prompt of Setup gives the user restricted access to Setup.

If both the supervisor and user passwords are set, you must enter either the supervisor password or the user password to access Setup. Setup options are then available for viewing and changing depending on whether the supervisor or user password was entered.

Setting a user password restricts who can boot the computer. The password prompt is displayed before the computer is booted. If only the supervisor password is set, the computer boots without asking for a password. If both passwords are set, you can enter either password to boot the computer.

Related Links:

For instructions on resetting the password, see Clearing Passwords on page 51.

18

Desktop Board Features

Hardware Management Features

The hardware management features of Desktop Board DG965RY enable the board to be compatible with the Wired for Management (WfM) specification. The board has several hardware management features including the following:

Fan speed monitoring and control

Thermal and voltage monitoring

Chassis intrusion detection

Hardware Monitoring and Fan Speed Control

The features of the hardware monitoring and fan speed control include:

Monitoring of power supply voltages to detect levels above and below acceptable values

Intel Quiet System Technology fan speed control, delivering acoustically-optimized thermal management

Fan speed controllers and sensors integrated into the ICH8

Thermal sensors in the processor, GMCH, and ICH8

Thermally monitored closed-loop fan control, for all on-board fans, that can adjust fan speed or switch the fans off as needed

Chassis Intrusion

The board supports a chassis security feature that detects if the chassis cover has been removed. The security feature uses a mechanical switch on the chassis that can be connected to the chassis intrusion header on the desktop board. See Figure 26 on page 49 for the location of the chassis intrusion header.

19
