Insignia NS-PWSPPYR19 User Manual

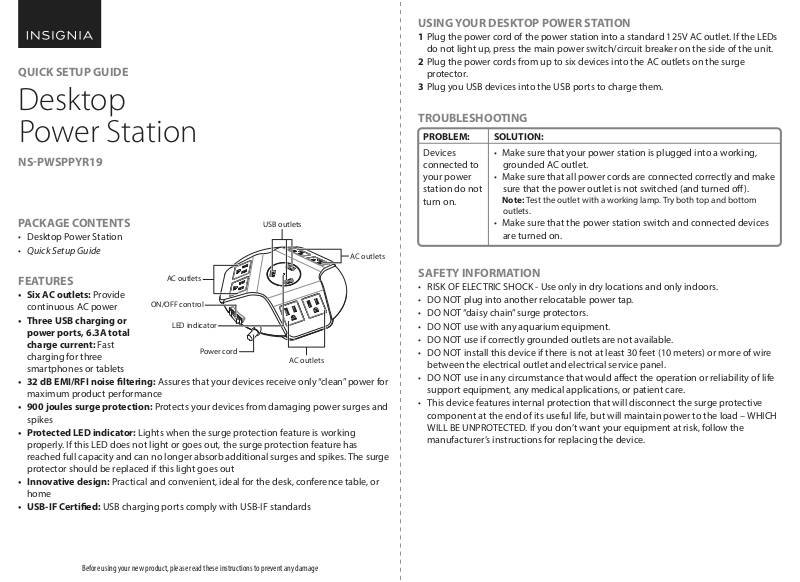

QUICK SETUP GUIDE
Desktop
USING YOUR DESKTOP POWER STATION
1 Plug the power cord of the power station into a standard 125V AC outlet. If the LEDs
do not light up, press the main power switch/circuit breaker on the side of the unit.
2 Plug the power cords from up to six devices into the AC outlets on the surge
protector.
3 Plug you USB devices into the USB ports to charge them.
TROUBLESHOOTING
Power Station
NSPWSPPYR19
PACKAGE CONTENTS
• Desktop Power Station
Quick Setup Guide
FEATURES
• Six AC outlets: Provide
continuous AC power
• Three USB charging or power ports, 6.3A total charge current: Fast
charging for three smartphones or tablets
• 32 dB EMI/RFI noise ltering: Assures that your devices receive only “clean” power for maximum product performance
• 900 joules surge protection: Protects your devices from damaging power surges and spikes
• Protected LED indicator: Lights when the surge protection feature is working properly. If this LED does not light or goes out, the surge protection feature has reached full capacity and can no longer absorb additional surges and spikes. The surge protector should be replaced if this light goes out
• Innovative design: Practical and convenient, ideal for the desk, conference table, or home
• USB-IF Certied: USB charging ports comply with USB-IF standards
AC outlets
ON/OFF control
LED indicator
Power cord
USB outlets
AC outlets
AC outlets
PROBLEM:
Devices connected to your power station do not turn on.
SOLUTION:
• Make sure that your power station is plugged into a working, grounded AC outlet.
• Make sure that all power cords are connected correctly and make sure that the power outlet is not switched (and turned o).
Note: Test the outlet with a working lamp. Try both top and bottom
outlets.
• Make sure that the power station switch and connected devices are turned on.
SAFETY INFORMATION
• RISK OF ELECTRIC SHOCK - Use only in dry locations and only indoors.
• DO NOT plug into another relocatable power tap.
• DO NOT “daisy chain” surge protectors.
• DO NOT use with any aquarium equipment.
• DO NOT use if correctly grounded outlets are not available.
• DO NOT install this device if there is not at least 30 feet (10 meters) or more of wire between the electrical outlet and electrical service panel.
• DO NOT use in any circumstance that would aect the operation or reliability of life support equipment, any medical applications, or patient care.
• This device features internal protection that will disconnect the surge protective component at the end of its useful life, but will maintain power to the load – WHICH WILL BE UNPROTECTED. If you don’t want your equipment at risk, follow the manufacturer’s instructions for replacing the device.
Before using your new product, please read these instructions to prevent any damage
SPECIFICATIONS
Dimensions (L×W×H): 7.9 × 8.1 × 1.8 in. (20.2 × 20.6 × 4.6 cm) (not including power cord)
Power cord: 6 ft. (1.8 m)
Outlets: 6
USB charging current: 6.3A
Load rating: 15 amps
Line voltage: 125V AC @ 60 Hz
Surge protection: 3 lines (L-N / L-G / N-G)
Maximum surge current: 45,000 amps
Maximum energy dissipation: 900 joules
Clamping voltage: L-N / L-G / N-G = 500 volts
EMI/RFI noise ltering: Up to 32 dB
Certication UL-1449 certied
LEGAL NOTICES
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
WARNING: This product can expose you to chemicals including styrene, which is known to the State of California to cause cancer. For more information, go to www.p65warnings.ca.gov.
ONEYEAR LIMITED WARRANTY
Visit www.insigniaproducts.com for details.
CONTACT INSIGNIA:
1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its aliated companies Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richeld, MN 55423 U.S.A. ©2018 Best Buy. All rights reserved.
Made in China
V1 ENGLISH 18-0101
