42" 1080p LED HDTV
T
V
42" 1080p LED H
QUICK SETUP GUIDE
Front features
Connecting a DVD or Blu-ray player, cable box,
satellite receiver, camcorder, or game station
Using an HDMI cable (best)
Using a composite cable (good)
NS-42E470A13
for purchasing this ne Insignia television.
We hope you enjoy the quality and reliability
of this product for years to come.
_______________________________
Power cord
Thank You
Power
indicator
Remote
control sensor
Installing the stand
1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Secure the TV stand to the stand column with the four provided screws.
AUDIO/VIDEO
OUT
Video
Y / VIDEO
P
B PR
L R
Stand cover
Remote control
and 2 AAA
batteries
M4 (12 mm) screws (4)
Installing a wall-mount bracket
1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2
Remove the four screws that secure the stand column, then remove the stand column.
3
Secure the stand cover to the back of your TV using the
4
Attach the wall-mount bracket to your TV using the mounting holes on the back
of your TV. See the instructions that came with the wall-mount bracket for
information about how to correctly hang your TV.
Stand column
four
screws you just removed.
Stand cover
Note: Cable is not provided.
Using component cables (better)
COMPONENT
OUT
Connect
the yellow
connector to the
Note: Cable is not provided.
green Y/VIDEO jack.
Connecting to an antenna/cable wall jack
Connect a coaxial cable (not included) to the ANT/CABLE IN jack on the
back of your TV and to the Antenna/Cable wall jack.
CABLE
TV stand
WE ARE GOING GREEN!
A copy of your User Guide is not provided
in the box but is available online.
Go to www.insigniaproducts.com,
click Support & Service, enter your model
number in the Product Search eld,
then click Search.
Warning
This apparatus is intended to be supported by a UL Listed wall mount bracket.
Identifying cables
Your TV has several connection types for connecting devices. For the best video quality,
connect a device to the best available connection.
Connection type
HDMI video/audio
Component video
and analog audio
Composite video
and analog audio
You can use the HDMI 1/DVI jack to connect a DVI device to your TV. You need to attach an
HDMI-to-DVI adapter to the end of the HDMI cable that connects to the DVI device’s jack.
Video quality
Cable connector
Best
OR
Better
OR
Good
Y / VIDEO
P
B PR
Note: Cables are not provided.
L R
Y / VIDEO
P
B PR
Note: Cable is not provided.
L R
42" 1080p LED HDTV I QUICK SETUP GUIDE I NS-42E470A13

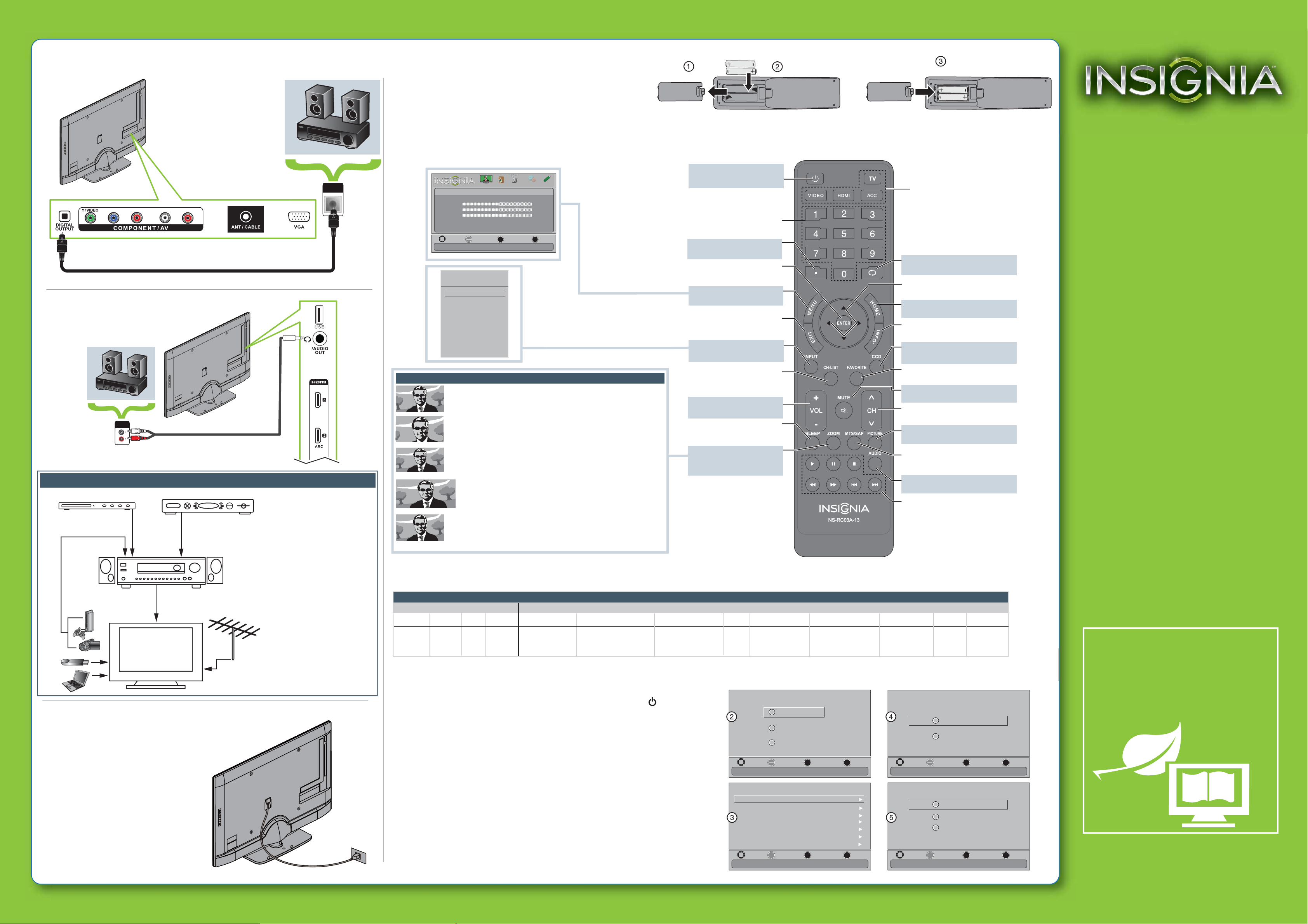

Connecting a Home Theater System
Using digital audio
Y / VIDEO
Using analog audio
P
B PR
L R
Note: Cable is not provided.
OPTICAL
AUDIO IN
Setting up and using your remote control
1 Press the release button on the back of the remote control
to remove the battery compartment cover.
2 Insert two AAA batteries into the battery compartment.
Make sure that the + and – symbols on the batteries match
the + and – symbols in the battery compartment.
3 Replace the cover.
OK
SELECT
ENTER
TV
VGA
USB
HDMI 1
HDMI 2
HDMI 3
PICTURE CHANNELS SETTINGS PHOTOSAUDIO
MENU
Energy Savings
PREVIOUS
46
50
75
EXIT
EXIT
Picture Mode
Brightness
Contrast
Color
Advanced Video
Reset Picture Settings
MOVE
Adjust settings to affect picture quality
Input Source
Component/AV
Power
Turns your TV on or o.
Numbers
Enter channel numbers.
.
Enters a digital sub-channel
number (e.g. 4.1).
ENTER
Conrms selections or
changes.
MENU
Opens the on-screen menu.
EXIT
Closes the on-screen menu.
INPUT
Opens the Input Source list.
Quick Launch Inputs
Selects another video source
connected to your TV.
RECALL
Returns to the previous channel.
Arrows
Navigate in on-screen menus.
HOME
Opens the on-screen menu.
INFO*
Opens a TV status banner.
CCD
Turns closed captioning on or o.
One-year limited warranty
Visit www.insigniaproducts.com for details.
Need additional help?
See your Online User Guide! This
comprehensive guide includes everything from
basic how-to steps to more advanced features.
A copy of your User Guide is not provided in
the box but is available online. Go to
www.insigniaproducts.com, click Support
& Service, enter your model number in the
Product Search eld, then click Search.
Check out our online community forum at
www.insigniaproducts.com for helpful
information from other Insignia TV owners.
Connecting a home theater system with multiple devices
Blu-ray player/DVD player/VCR
AV receiver
Game console
or camera
USB ash drive
Computer
Cable or satellite TV box
Connecting power
Plug the AC power cord into the AC IN jack on the
back of your TV, then plug the other end
of the cord into a power outlet.
Antenna or
cable TV
(no box)
We recommend that you
connect the AV receiver’s
HDMI OUT jack to your TV’s
HDMI 2 (ARC) jack.
In the following situations, the
HDMI cable routes Dolby
Digital audio to the AV
receiver, so you do not need to
connect a separate digital
audio cable:
• When you have a game
console connected to one of
your TV’s HDMI jacks.
• When you watch a program
through an antenna or cable
TV connected to the
ANT/CABLE jack.
FAVORITE
Opens the Favorite Channel List.
MUTE
Mutes the sound.
Channel
Changes the TV channels.
Selects the video mode.
MTS/SAP
Cycles through mono, stereo, and
secondary audio for analog programs.
AUDIO
Selects the audio mode.
Aspect ratio options
Normal:
Displays the original 4:3 aspect ratio with vertical black bars on the left
and right hand side of the screen.
Zoom:
Expands the image to ll the screen. The top and bottom of the
image may be cropped.
Wide:
Use this option to view content recorded in a 16:9 (wide-screen) aspect ratio.
Cinema:
Stretches the image at the edges, but keeps a clear image in the center.
CH-LIST
Opens the channel list.
Volume
Changes the volume.
SLEEP
Sets the sleep timer.
ZOOM
Changes how the picture
displays on the screen.
INlink Controls
Controls HDMI-CEC devices
Auto:
Automatically adjusts the image based on the screen size and the TV
program. Note: Auto is only available when Auto Zoom in the
CHANNELS menu is set to On.
connected to your TV.
Programming your remote control
To program a universal remote control to work with your new Insignia TV, see the table for common codes. If you have problems programming your remote or need a
dierent remote control code, visit www.insigniaproducts.com/remotecodes for the latest remote control code information.
Universal remote TV codes
One for All
0054
Universal remote controls
Universal remote TV codes
Philips RCA Sony Cablevision Charter Comcast Cox Direct TV Dish Network Time Warner Tivo Verizon
0198,
0490
135
068, 069,
078, 096,
100, 164,
168, 229,
026
068, 069, 078,
096, 100, 164,
168, 229, 026
2002, 1204, 1423, 1517,
0171, 1963, 0463, 1463,
0842, 1326, 167, 415,
424, 450, 456, 461, 507,
523, 567, 577, 586
10171, 11204, 11326,
11463, 11517, 11641,
11780, 11785, 11892,
11963, 12002
Cable/Satellite/Set-top boxes
1326,
1463
10171, 11204,
11326, 11517,
11564, 11641,
11963, 12002
720
400, 450, 461, 456,
10463, 1463, 0463
0091
0198,
0490
Turning on your TV for the rst time
1 Connect the power cord to your TV and to a power outlet, then press （ power）.
The power indicator turns o and the Choose Your Menu Language screen opens.
2
Press
▲ or ▼
to highlight a language, then press ENTER.
The Choose Your Time Setting screen opens with Mode highlighted.
3
Press
◄ or ►
to select Auto or Custom. If you select Auto, the date and time are
set automatically from a digital TV signal. If you select Custom, you can manually
set the date and time. Press ENTER. The Choose Your Picture Mode screen opens.
4 Press
▲ or ▼
to highlight Home Mode or Retail Mode, then press ENTER. If
you select Retail Mode, a message asks you to conrm your selection. Select Ye s
or No. Retail Mode
5
Press
▲ or ▼
to highlight Antenna, Cable,
is not an energy-saving
mode. The Choose Your TV Source screen opens.
or Satellite box. If you select
Antenna or Cable, your TV scans for available channels. The scan may take
several minutes. If you select Satellite box, a message
will ask you to select a way to connect the statellite box to the TV.
6 To watch TV, press TV on the remote control.
Choose Your Menu Language
English
Français
Español
OK
MOVE
Set menu language to English, Français, or Español
Mode
Time Zone
Daylight Savings
Year
Month
Day
Time
MOVE
If Automatic, options are automatically set by TV source
SELECT
ENTER
Choose Your Time Setting
OK
SELECT
ENTER
MENU
MENU
PREVIOUS
PREVIOUS
EXIT
Custom
Pacific
On
2011
Jan
12:25 AM
EXIT
EXIT
Reduces total power consumption
1
EXIT
Select if using an antenna for standard or HD TV.
Choose Your Picture Mode
Home Mode
Retail Mode
MOVE
ENTER
OK
SELECT
MENU
PREVIOUS
Choose Your TV Source
Antenna
Cable
Satellite box
MOVE
ENTER
OK
SELECT
MENU
PREVIOUS
EXIT
EXIT
We’re here for you
www.insigniaproducts.com
For customer service, call:
877-467-4289 (U.S./Canada markets)
Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richeld, MN USA 55423-3645
© 2012 BBY Solutions, Inc.
All rights reserved. INSIGNIA is a trademark of BBY Solutions,
Inc. Registered in some countries. All other products and
brand names are trademarks of their respective owners.
WE ARE GOING GREEN!
A copy of your User Guide is not provided
in the box but is available online.
Go to www.insigniaproducts.com,
click Support & Service, enter your model
number in the Product Search eld,
then click Search.
EXIT
EXIT
ENGLISH 12-0118
