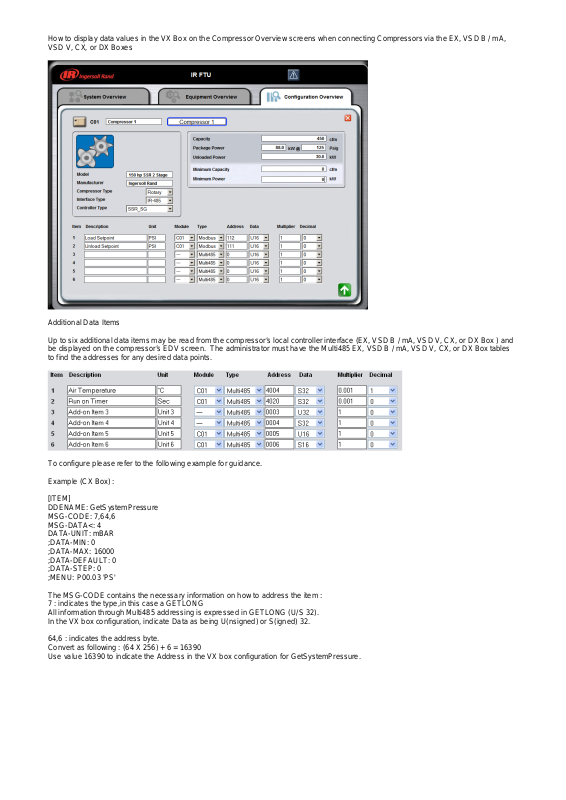

How to display data values in the VX Box on the Compressor Overview screens when connecting Compressors via the EX, VSD B / mA,
VSD V, CX, or DX Boxes
Additional Data Items
Up to six additional data items may be read from the compressor’s local controller interface (EX, VSD B / mA, VSD V, CX, or DX Box ) and
be displayed on the compressor’s EDV screen. The administrator must have the Multi485 EX, VSD B / mA, VSD V, CX, or DX Box tables
to find the addresses for any desired data points.
To configure please refer to the following example for guidance.
Example (CX Box) :
[ITEM]
DDENAME: GetSystemPressure
MSG-CODE: 7,64,6
MSG-DATA<: 4
DATA-UNIT: mBAR
;DATA-MIN: 0
;DATA-MAX: 16000
;DATA-DEFAULT : 0
;DATA-STEP: 0
;MENU: P00.03 'PS'
The MSG-CODE contains the necessary information on how to address the item :
7 : indicates the type,in this case a GETLONG
All information through Multi485 addressing is expressed in GETLONG (U/S 32).
In the VX box configuration, indicate Data as being U(nsigned) or S(igned) 32.
64,6 : indicates the address byte.
Convert as following : (64 X 256) + 6 = 16390
Use value 16390 to indicate the Address in the VX box configuration for GetSystemPressure.
Page 2
EX Box Multi485 Addressing
[ITEM]
DDENAME: GetPressure1
MSG-CODE: 7,64,4
MSG-DATA<: 4
DATA-UNIT: mBAR
;DATA-MIN: 0
;DATA-MAX: 16000
;DATA-DEFAULT : 0
;DATA-STEP: 0
;MENU: P00.02 'P1'
[ITEM]
DDENAME: GetDiffPressure1
MSG-CODE: 7,64,6
MSG-DATA<: 4
DATA-TYPE: SIGNED,NUMERIC
DATA-UNIT: mBAR
;DATA-MIN: -16000
;DATA-MAX: 16000
;DATA-DEFAULT : 0
;DATA-STEP: 0
;MENU: P00.03 '%1'
[ITEM]
DDENAME: GetSysPressure
MSG-CODE: 7,64,8
MSG-DATA<: 4
DATA-UNIT: mBAR
;DATA-MIN: 0
;DATA-MAX: 16000
;DATA-DEFAULT : 0
;DATA-STEP: 0
;MENU: P00.04 'SP'
[ITEM]
DDENAME: GetPressure2
MSG-CODE: 7,64,10
MSG-DATA<: 4
DATA-UNIT: mBAR
;DATA-MIN: 0
;DATA-MAX: 16000
;DATA-DEFAULT : 0
;DATA-STEP: 0
;MENU: P00.05 'P2'
[ITEM]
DDENAME: GetDiffPressure2
MSG-CODE: 7,64,12
MSG-DATA<: 4
DATA-TYPE: SIGNED,NUMERIC
DATA-UNIT: mBAR
;DATA-MIN: -16000
;DATA-MAX: 16000
;DATA-DEFAULT: 0
;DATA-STEP: 0
;MENU: P00.06 '%2'
[ITEM]
DDENAME: GetConfigDigIn3
MSG-CODE: 7,64,20
MSG-DATA<: 4
DATA-UNIT: UCHAR_VAL
;DATA-MIN: 0
;DATA-MAX: 1
;DATA-DEFAULT : 0
;DATA-STEP: 1
;MENU: P01.02 'D3'
Page 3
[ITEM]
DDENAME: GetConfigDigIn6
MSG-CODE: 7,64,22
MSG-DATA<: 4
DATA-UNIT: UCHAR_VAL
;DATA-MIN: 0
;DATA-MAX: 3
;DATA-DEFAULT : 0
;DATA-STEP: 1
;MENU: P01.03 'D6'
[ITEM]
DDENAME: GetConfigDigIn5
MSG-CODE: 7,64,26
MSG-DATA<: 4
DATA-UNIT: UCHAR_VAL
;DATA-MIN: 0
;DATA-MAX: 1
;DATA-DEFAULT : 0
;DATA-STEP: 1
;MENU: P02.02 'D5'
[ITEM]
DDENAME: GetConfigDigIn7
MSG-CODE: 7,64,28
MSG-DATA<: 4
DATA-UNIT: UCHAR_VAL
;DATA-MIN: 0
;DATA-MAX: 3
;DATA-DEFAULT : 0
;DATA-STEP: 1
;MENU: P02.03 'D7'
[ITEM]
DDENAME: GetNumberOfCompressors
MSG-CODE: 7,64,30
MSG-DATA<: 4
DATA-UNIT: UCHAR_VAL
;DATA-MIN: 1
;DATA-MAX: 2
;DATA-DEFAULT : 1
;DATA-STEP: 1
;MENU: P03.01 'C>'
[ITEM]
DDENAME: GetPressureUnitsSel
MSG-CODE: 7,64,32
MSG-DATA<: 4
DATA-TYPE: CODED,P_UNIT
DATA-UNIT: LONG_VAL
;DATA-MIN: 0
;DATA-MAX: 2
;DATA-DEFAULT : 0
;DATA-STEP: 1
;MENU: P03.02 'P>'
[ITEM]
DDENAME: GetConfigDigOut4
MSG-CODE: 7,64,34
MSG-DATA<: 4
DATA-UNIT: UCHAR_VAL
;DATA-MIN: 1
;DATA-MAX: 8
;DATA-DEFAULT : 1
;DATA-STEP: 1
;MENU: P03.03 'R4'
Page 4
[ITEM]
DDENAME: GetPressureEnable1
MSG-CODE: 7,64,42
MSG-DATA<: 4
DATA-UNIT: UCHAR_VAL
;DATA-MIN: 0
;DATA-MAX: 1
;DATA-DEFAULT : 0
;DATA-STEP: 1
;MENU: P04.01 'PE'
[ITEM]
DDENAME: GetPressureLimit1
MSG-CODE: 7,64,44
MSG-DATA<: 4
DATA-UNIT: mBAR
;DATA-MIN: 0
;DATA-MAX: 16000
;DATA-DEFAULT : 0
;DATA-STEP: 100
;MENU: P04.02 'PL'
[ITEM]
DDENAME: GetPressureOffset1
MSG-CODE: 7,64,46
MSG-DATA<: 4
DATA-TYPE: SIGNED,NUMERIC
DATA-UNIT: mBAR
;DATA-MIN: -1500
;DATA-MAX: 1500
;DATA-DEFAULT : 0
;DATA-STEP: 100
;MENU: P04.03 'Po'
[ITEM]
DDENAME: GetPressureRange1
MSG-CODE: 7,64,48
MSG-DATA<: 4
DATA-UNIT: mBAR
;DATA-MIN: 1000
;DATA-MAX: 630000
;DATA-DEFAULT: 16000
;DATA-STEP: 100
;MENU: P04.04 'Pr'
[ITEM]
DDENAME: GetPressureEnable2
MSG-CODE: 7,64,50
MSG-DATA<: 4
DATA-UNIT: UCHAR_VAL
;DATA-MIN: 0
;DATA-MAX: 1
;DATA-DEFAULT : 0
;DATA-STEP: 1
;MENU: P05.01 'PE'
[ITEM]
DDENAME: GetPressureLimit2
MSG-CODE: 7,64,52
MSG-DATA<: 4
DATA-UNIT: mBAR
;DATA-MIN: 0
;DATA-MAX: 16000
;DATA-DEFAULT : 0
;DATA-STEP: 100
;MENU: P05.02 'PL'
Page 5
[ITEM]
DDENAME: GetPressureOffset2
MSG-CODE: 7,64,54
MSG-DATA<: 4
DATA-TYPE: SIGNED,NUMERIC
DATA-UNIT: mBAR
;DATA-MIN: -1500
;DATA-MAX: 1500
;DATA-DEFAULT : 0
;DATA-STEP: 100
;MENU: P05.03 'Po'
[ITEM]
DDENAME: GetPressureRange2
MSG-CODE: 7,64,56
MSG-DATA<: 4
DATA-UNIT: mBAR
;DATA-MIN: 1000
;DATA-MAX: 630000
;DATA-DEFAULT: 16000
;DATA-STEP: 100
;MENU: P05.04 'Pr'
[ITEM]
DDENAME: GetSysPressureEnable
MSG-CODE: 7,64,58
MSG-DATA<: 4
DATA-UNIT: UCHAR_VAL
;DATA-MIN: 0
;DATA-MAX: 1
;DATA-DEFAULT : 0
;DATA-STEP: 1
;MENU: P06.01 'PE'
[ITEM]
DDENAME: GetSysPressureBroadcast
MSG-CODE: 7,64,60
MSG-DATA<: 4
DATA-UNIT: UCHAR_VAL
;DATA-MIN: 0
;DATA-MAX: 1
;DATA-DEFAULT : 1
;DATA-STEP: 1
;MENU: P06.02 'SP'
[ITEM]
DDENAME: GetSysPressureOffset
MSG-CODE: 7,64,62
MSG-DATA<: 4
DATA-TYPE: SIGNED,NUMERIC
DATA-UNIT: mBAR
;DATA-MIN: -1500
;DATA-MAX: 1500
;DATA-DEFAULT : 0
;DATA-STEP: 100
;MENU: P06.03 'Po'
[ITEM]
DDENAME: GetSysPressureRange
MSG-CODE: 7,64,64
MSG-DATA<: 4
DATA-UNIT: mBAR
;DATA-MIN: 1000
;DATA-MAX: 630000
;DATA-DEFAULT: 16000
;DATA-STEP: 100
;MENU: P06.04 'Pr'
Page 6
;************************
;DATA-UNIT descriptions *
;************************
; mBAR = Pressure in milliBar
; UCHAR_VAL = Value unsigned byte (8bit)
; LONG_VAL = Value signed long (32bit)
; BINARY = Value bitwise represented
; ADSTEPS = AD-steps
;************************
;DATA-TYPE descriptions *
;************************
; CODED,ACM = => see COD-file [ACM]
; CODED,DI-CONFIG = => see COD-file [DI-CONFIG]
; CODED,STATUS = => see COD-file [STATUS]
; CODED,ERROR = => see COD-file [ERROR]
; CODED,P_UNIT = => see COD-file [P_UNIT]
; STRING = String of ASCII characters (1 byte represents 1 ASCII character)
; P-PSI = Pressure in PSI
; T-FAH = Temperature in Fahrenheit
; SIGNED,NUMERIC = Value is signed numeric
Page 7
VSD B or mA Box Multi485 Addressing
[ITEM]
DDENAME: GetRunningHours
MSG-CODE: 7,64,10
MSG-DATA<: 4
DATA-UNIT: HRS
;DATA-MIN: 0
;DATA-MAX: 999999
;DATA-DEFAULT : 0
;DATA-STEP: 1
;MENU: P02.01 'H1'
;MENU: P10.06 'H1'
[ITEM]
DDENAME: GetParUnloadPressure
MSG-CODE: 7,64,16
MSG-DATA<: 4
DATA-UNIT: mBAR
;DATA-MIN: 5100
;DATA-MAX: 14000
;DATA-DEFAULT: 7000
;DATA-STEP: 100
;MENU: P01.01 'Pu'
[ITEM]
DDENAME: GetParLoadPressure
MSG-CODE: 7,64,18
MSG-DATA<: 4
DATA-UNIT: mBAR
;DATA-MIN: 5000
;DATA-MAX: 13900
;DATA-DEFAULT: 6500
;DATA-STEP: 100
;MENU: P01.03 'PL'
[ITEM]
DDENAME: GetFaultErrorLog1Fault
MSG-CODE: 7,64,22
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: P02.02 '01'
[ITEM]
DDENAME: GetFaultErrorLog1RunningHours
MSG-CODE: 7,64,22
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: P02.02 '01'
[ITEM]
DDENAME: GetFaultErrorLog2Fault
MSG-CODE: 7,64,26
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: P02.03 '02'
[ITEM]
DDENAME: GetFaultErrorLog2RunningHours
MSG-CODE: 7,64,26
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: P02.03 '02'
Page 8
[ITEM]
DDENAME: GetFaultErrorLog3Fault
MSG-CODE: 7,64,30
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: P02.04 '03'
[ITEM]
DDENAME: GetFaultErrorLog3RunningHours
MSG-CODE: 7,64,30
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: P02.04 '03'
[ITEM]
DDENAME: GetFaultErrorLog4Fault
MSG-CODE: 7,64,34
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: P02.05 '04'
[ITEM]
DDENAME: GetFaultErrorLog4RunningHours
MSG-CODE: 7,64,34
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: P02.05 '04'
[ITEM]
DDENAME: GetFaultErrorLog5Fault
MSG-CODE: 7,64,38
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: P02.06 '05'
[ITEM]
DDENAME: GetFaultErrorLog5RunningHours
MSG-CODE: 7,64,38
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: P02.06 '05'
[ITEM]
DDENAME: GetFaultErrorLog6Fault
MSG-CODE: 7,64,42
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: P02.07 '06'
[ITEM]
DDENAME: GetFaultErrorLog6RunningHours
MSG-CODE: 7,64,42
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: P02.07 '06'
Page 9
[ITEM]
DDENAME: GetFaultErrorLog7Fault
MSG-CODE: 7,64,46
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: P02.08 '07'
[ITEM]
DDENAME: GetFaultErrorLog7RunningHours
MSG-CODE: 7,64,46
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: P02.08 '07'
[ITEM]
DDENAME: GetFaultErrorLog8Fault
MSG-CODE: 7,64,50
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: P02.09 '08'
[ITEM]
DDENAME: GetFaultErrorLog8RunningHours
MSG-CODE: 7,64,50
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: P02.09 '08'
[ITEM]
DDENAME: GetFaultErrorLog9Fault
MSG-CODE: 7,64,54
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: P02.10 '09'
[ITEM]
DDENAME: GetFaultErrorLog9RunningHours
MSG-CODE: 7,64,54
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: P02.10 '09'
[ITEM]
DDENAME: GetFaultErrorLog10Fault
MSG-CODE: 7,64,58
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: P02.11 '10'
[ITEM]
DDENAME: GetFaultErrorLog10RunningHours
MSG-CODE: 7,64,58
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: P02.11 '10'
Page 10
[ITEM]
DDENAME: GetFaultErrorLog11Fault
MSG-CODE: 7,64,62
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: P02.12 '11'
[ITEM]
DDENAME: GetFaultErrorLog11RunningHours
MSG-CODE: 7,64,62
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: P02.12 '11'
[ITEM]
DDENAME: GetFaultErrorLog12Fault
MSG-CODE: 7,64,66
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: P02.13 '12'
[ITEM]
DDENAME: GetFaultErrorLog12RunningHours
MSG-CODE: 7,64,66
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: P02.13 '12'
[ITEM]
DDENAME: GetFaultErrorLog13Fault
MSG-CODE: 7,64,70
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: P02.14 '13'
[ITEM]
DDENAME: GetFaultErrorLog13RunningHours
MSG-CODE: 7,64,70
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: P02.14 '13'
[ITEM]
DDENAME: GetFaultErrorLog14Fault
MSG-CODE: 7,64,74
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: P02.15 '14'
[ITEM]
DDENAME: GetFaultErrorLog14RunningHours
MSG-CODE: 7,64,74
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: H RS
;MENU: P02.15 '14'
Page 11
[ITEM]
DDENAME: GetFaultErrorLog15Fault
MSG-CODE: 7,64,78
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: P02.16 '15'
[ITEM]
DDENAME: GetFaultErrorLog15RunningHours
MSG-CODE: 7,64,78
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: P02.16 '15'
[ITEM]
DDENAME: GetVsdSpeedPercentActual
MSG-CODE: 7,64,140
MSG-DATA<: 4
DATA-UNIT: PERCENT_DP2
;DATA-MIN: 0
;DATA-MAX: 10000
;DATA-DEFAULT : 0
;DATA-STEP: 0
;MENU: P00.04 'Sp'
[ITEM]
DDENAME: GetDeliveryPressureOut
MSG-CODE: 7,64,164
MSG-DATA<: 4
DATA-UNIT: mBAR
;DATA-MIN: 0
;DATA-MAX: 16000
;DATA-DEFAULT : 0
;DATA-STEP: 0
;MENU: P00.02 'P1'
[ITEM]
DDENAME: GetInternalPressureOut
MSG-CODE: 7,64,166
MSG-DATA<: 4
DATA-UNIT: mBAR
;DATA-MIN: 0
;DATA-MAX: 16000
;DATA-DEFAULT : 0
;DATA-STEP: 0
;MENU: P00.03 'P2'
[ITEM]
DDENAME: GetParSetpointPressure
MSG-CODE: 7,64,168
MSG-DATA<: 4
DATA-UNIT: mBAR
;DATA-MIN: 0
;DATA-MAX: 14000
;DATA-DEFAULT: 6500
;DATA-STEP: 100
;MENU: P01.02 'Pt'
Page 12
;************************
;DATA-UNIT descriptions *
;************************
; mBAR = Pressure in milliBar
; HRS = Time in Hours
; UCHAR_VAL = Value unsigned byte (8bit)
; LONG_VAL = Value signed long (32bit)
; ULONG_VAL = Value unsigned long (32bit)
; BINARY = Value bitwise represented
; PERCENT_DP2 = Percentage to 2 decimal places
; ADSTEPS = AD-steps
; HZ = Frequency in Hertz
;************************
;DATA-TYPE descriptions *
;************************
; CODED,ACM = => see COD-file [ACM]
; CODED,DI-CONFIG = => see COD-file [DI-CONFIG]
; CODED,STATUS = => see COD-file [STATUS]
; CODED,ERROR = => see COD-file [ERROR]
; CODED,P_UNIT = => see COD-file [P_UNIT]
; STRING = String of ASCII characters (1 byte represents 1 ASCII character)
; P-PSI = Pressure in PSI
; T-FAH = Temperature in Fahrenheit
; SIGNED,NUMERIC = Value is signed numeric
Page 13
VSD V Box Multi485 Addressing
[ITEM]
DDENAME: GetRunningHours
MSG-CODE: 7,64,10
MSG-DATA<: 4
DATA-UNIT: HRS
;DATA-MIN: 0
;DATA-MAX: 999999
;DATA-DEFAULT : 0
;DATA-STEP: 1
;MENU: P02.01 'H1'
;MENU: P10.06 'H1'
[ITEM]
DDENAME: GetParUnloadPressure
MSG-CODE: 7,64,16
MSG-DATA<: 4
DATA-UNIT: mBAR
;DATA-MIN: 5100
;DATA-MAX: 14000
;DATA-DEFAULT: 7000
;DATA-STEP: 100
;MENU: P01.01 'Pu'
[ITEM]
DDENAME: GetParLoadPressure
MSG-CODE: 7,64,18
MSG-DATA<: 4
DATA-UNIT: mBAR
;DATA-MIN: 5000
;DATA-MAX: 13900
;DATA-DEFAULT: 6500
;DATA-STEP: 100
;MENU: P01.03 'PL'
[ITEM]
DDENAME: GetFaultErrorLog1Fault
MSG-CODE: 7,64,22
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: P02.02 '01'
[ITEM]
DDENAME: GetFaultErrorLog1RunningHours
MSG-CODE: 7,64,22
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: P02.02 '01'
[ITEM]
DDENAME: GetFaultErrorLog2Fault
MSG-CODE: 7,64,26
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: P02.03 '02'
[ITEM]
DDENAME: GetFaultErrorLog2RunningHours
MSG-CODE: 7,64,26
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: P02.03 '02'
Page 14
[ITEM]
DDENAME: GetFaultErrorLog3Fault
MSG-CODE: 7,64,30
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: P02.04 '03'
[ITEM]
DDENAME: GetFaultErrorLog3RunningHours
MSG-CODE: 7,64,30
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: P02.04 '03'
[ITEM]
DDENAME: GetFaultErrorLog4Fault
MSG-CODE: 7,64,34
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: P02.05 '04'
[ITEM]
DDENAME: GetFaultErrorLog4RunningHours
MSG-CODE: 7,64,34
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: P02.05 '04'
[ITEM]
DDENAME: GetFaultErrorLog5Fault
MSG-CODE: 7,64,38
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: P02.06 '05'
[ITEM]
DDENAME: GetFaultErrorLog5RunningHours
MSG-CODE: 7,64,38
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: P02.06 '05'
[ITEM]
DDENAME: GetFaultErrorLog6Fault
MSG-CODE: 7,64,42
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: P02.07 '06'
[ITEM]
DDENAME: GetFaultErrorLog6RunningHours
MSG-CODE: 7,64,42
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: P02.07 '06'
Page 15
[ITEM]
DDENAME: GetFaultErrorLog7Fault
MSG-CODE: 7,64,46
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: P02.08 '07'
[ITEM]
DDENAME: GetFaultErrorLog7RunningHours
MSG-CODE: 7,64,46
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: P02.08 '07'
[ITEM]
DDENAME: GetFaultErrorLog8Fault
MSG-CODE: 7,64,50
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: P02.09 '08'
[ITEM]
DDENAME: GetFaultErrorLog8RunningHours
MSG-CODE: 7,64,50
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: P02.09 '08'
[ITEM]
DDENAME: GetFaultErrorLog9Fault
MSG-CODE: 7,64,54
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: P02.10 '09'
[ITEM]
DDENAME: GetFaultErrorLog9RunningHours
MSG-CODE: 7,64,54
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: P02.10 '09'
[ITEM]
DDENAME: GetFaultErrorLog10Fault
MSG-CODE: 7,64,58
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: P02.11 '10'
[ITEM]
DDENAME: GetFaultErrorLog10RunningHours
MSG-CODE: 7,64,58
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: P02.11 '10'
Page 16
[ITEM]
DDENAME: GetFaultErrorLog11Fault
MSG-CODE: 7,64,62
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: P02.12 '11'
[ITEM]
DDENAME: GetFaultErrorLog11RunningHours
MSG-CODE: 7,64,62
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: P02.12 '11'
[ITEM]
DDENAME: GetFaultErrorLog12Fault
MSG-CODE: 7,64,66
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: P02.13 '12'
[ITEM]
DDENAME: GetFaultErrorLog12RunningHours
MSG-CODE: 7,64,66
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: P02.13 '12'
[ITEM]
DDENAME: GetFaultErrorLog13Fault
MSG-CODE: 7,64,70
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: P02.14 '13'
[ITEM]
DDENAME: GetFaultErrorLog13RunningHours
MSG-CODE: 7,64,70
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: P02.14 '13'
[ITEM]
DDENAME: GetFaultErrorLog14Fault
MSG-CODE: 7,64,74
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: P02.15 '14'
[ITEM]
DDENAME: GetFaultErrorLog14RunningHours
MSG-CODE: 7,64,74
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: P02.15 '14'
Page 17
[ITEM]
DDENAME: GetFaultErrorLog15Fault
MSG-CODE: 7,64,78
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: P02.16 '15'
[ITEM]
DDENAME: GetFaultErrorLog15RunningHours
MSG-CODE: 7,64,78
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: P02.16 '15'
[ITEM]
DDENAME: GetVsdSpeedPercentActual
MSG-CODE: 7,64,140
MSG-DATA<: 4
DATA-UNIT: PERCENT_DP2
;DATA-MIN: 0
;DATA-MAX: 10000
;DATA-DEFAULT : 0
;DATA-STEP: 0
;MENU: P00.04 'Sp'
[ITEM]
DDENAME: GetDeliveryPressureOut
MSG-CODE: 7,64,164
MSG-DATA<: 4
DATA-UNIT: mBAR
;DATA-MIN: 0
;DATA-MAX: 16000
;DATA-DEFAULT : 0
;DATA-STEP: 0
;MENU: P00.02 'P1'
[ITEM]
DDENAME: GetInternalPressureOut
MSG-CODE: 7,64,166
MSG-DATA<: 4
DATA-UNIT: mBAR
;DATA-MIN: 0
;DATA-MAX: 16000
;DATA-DEFAULT : 0
;DATA-STEP: 0
;MENU: P00.03 'P2'
[ITEM]
DDENAME: GetParSetpointPressure
MSG-CODE: 7,64,168
MSG-DATA<: 4
DATA-UNIT: mBAR
;DATA-MIN: 0
;DATA-MAX: 14000
;DATA-DEFAULT: 6500
;DATA-STEP: 100
;MENU: P01.02 'Pt'
Page 18
;************************
;DATA-UNIT descriptions *
;************************
; mBAR = Pressure in milliBar
; HRS = Time in Hours
; UCHAR_VAL = Value unsigned byte (8bit)
; LONG_VAL = Value signed long (32bit)
; BINARY = Value bitwise represented
; PERCENT_DP2 = Percentage to 2 decimal places
; ADSTEPS = AD-steps
; HZ = Frequency in Hertz
;************************
;DATA-TYPE descriptions *
;************************
; CODED,ACM = => see COD-file [ACM]
; CODED,DI-CONFIG = => see COD-file [DI-CONFIG]
; CODED,STATUS = => see COD-file [STATUS]
; CODED,ERROR = => see COD-file [ERROR]
; CODED,P_UNIT = => see COD-file [P_UNIT]
; STRING = String of ASCII characters (1 byte represents 1 ASCII character)
; P-PSI = Pressure in PSI
; T-FAH = Temperature in Fahrenheit
; SIGNED,NUMERIC = Value is signed numeric
Page 19
CX Box Multi485 Addressing
[ITEM]
DDENAME: GetSystemPressure
MSG-CODE: 7,64,6
MSG-DATA<: 4
DATA-UNIT: mBAR
;DATA-MIN: 0
;DATA-MAX: 16000
;DATA-DEFAULT : 0
;DATA-STEP: 0
;MENU: P00.03 'PS'
[ITEM]
DDENAME: GetSystemDiffPressure
MSG-CODE: 7,64,8
MSG-DATA<: 4
DATA-TYPE: SIGNED,NUMERIC
DATA-UNIT: mBAR
;DATA-MIN: -16000
;DATA-MAX: 16000
;DATA-DEFAULT : 0
;DATA-STEP: 0
;MENU: P00.04 '_'
[ITEM]
DDENAME: GetInternalPressure
MSG-CODE: 7,64,10
MSG-DATA<: 4
DATA-UNIT: mBAR
;DATA-MIN: 0
;DATA-MAX: 16000
;DATA-DEFAULT : 0
;DATA-STEP: 0
;MENU: P00.05 'PI'
[ITEM]
DDENAME: GetInternalDiffPressure
MSG-CODE: 7,64,12
MSG-DATA<: 4
DATA-TYPE: SIGNED,NUMERIC
DATA-UNIT: mBAR
;DATA-MIN: -16000
;DATA-MAX: 16000
;DATA-DEFAULT : 0
;DATA-STEP: 0
;MENU: P00.06 '_'
[ITEM]
DDENAME: GetTemperature0Val
MSG-CODE: 7,64,14
MSG-DATA<: 4
DATA-TYPE: SIGNED,NUMERIC
DATA-UNIT: mCEL
;DATA-MIN: -50000
;DATA-MAX: 250000
;DATA-DEFAULT : 0
;DATA-STEP: 0
;MENU: P00.07 'T01'
[ITEM]
DDENAME: GetTemperature1Val
MSG-CODE: 7,64,16
MSG-DATA<: 4
DATA-TYPE: SIGNED,NUMERIC
DATA-UNIT: mCEL
;DATA-MIN: -50000
;DATA-MAX: 250000
;DATA-DEFAULT : 0
;DATA-STEP: 0
;MENU: P00.08 'T02'
Page 20
[ITEM]
DDENAME: GetTemperature2Val
MSG-CODE: 7,64,18
MSG-DATA<: 4
DATA-TYPE: SIGNED,NUMERIC
DATA-UNIT: mCEL
;DATA-MIN: -50000
;DATA-MAX: 250000
;DATA-DEFAULT : 0
;DATA-STEP: 0
;MENU: P00.09 'T03'
[ITEM]
DDENAME: GetTemperature3Val
MSG-CODE: 7,64,20
MSG-DATA<: 4
DATA-TYPE: SIGNED,NUMERIC
DATA-UNIT: mCEL
;DATA-MIN: -50000
;DATA-MAX: 250000
;DATA-DEFAULT : 0
;DATA-STEP: 0
;MENU: P00.10 'T04'
[ITEM]
DDENAME: GetAuxAnalogInput0Id
MSG-CODE: 7,64,22
MSG-DATA<: 4
DATA-UNIT: AI_VAL
;DATA-MIN: 0
;DATA-MAX: 20
;DATA-DEFAULT : 0
;DATA-STEP: 0
;MENU: P00.11 'A01'
[ITEM]
DDENAME: GetAuxAnalogInput1Id
MSG-CODE: 7,64,24
MSG-DATA<: 4
DATA-UNIT: AI_VAL
;DATA-MIN: 0
;DATA-MAX: 20
;DATA-DEFAULT: 0
;DATA-STEP: 0
;MENU: P00.12 'A02'
[ITEM]
DDENAME: GetAuxAnalogInput2Id
MSG-CODE: 7,64,26
MSG-DATA<: 4
DATA-UNIT: AI_VAL
;DATA-MIN: 0
;DATA-MAX: 20
;DATA-DEFAULT : 0
;DATA-STEP: 0
;MENU: P00.13 'A03'
[ITEM]
DDENAME: GetAuxAnalogInput3Id
MSG-CODE: 7,64,28
MSG-DATA<: 4
DATA-UNIT: AI_VAL
;DATA-MIN: 0
;DATA-MAX: 20
;DATA-DEFAULT : 0
;DATA-STEP: 0
;MENU: P00.14 'A04'
Page 21
[ITEM]
DDENAME: GetRunningHours
MSG-CODE: 7,64,30
MSG-DATA<: 4
DATA-UNIT: HRS
;DATA-MIN: 0
;DATA-MAX: 99999
;DATA-DEFAULT : 0
;DATA-STEP: 1
;MENU: P00.15 'RH'
;MENU: C02.07 'RH'
[ITEM]
DDENAME: GetLoadedHours
MSG-CODE: 7,64,32
MSG-DATA<: 4
DATA-UNIT: HRS
;DATA-MIN: 0
;DATA-MAX: 99999
;DATA-DEFAULT : 0
;DATA-STEP: 1
;MENU: P00.16 'LH'
;MENU: C02.08 'LH'
[ITEM]
DDENAME: GetOutputPercent
MSG-CODE: 7,64,34
MSG-DATA<: 4
DATA-UNIT: PERCENT_DP2
;DATA-MIN: 0
;DATA-MAX: 10000
;DATA-DEFAULT : 0
;DATA-STEP: 0
;MENU: P00.02 'OP'
[ITEM]
DDENAME: GetParUnloadPressure
MSG-CODE: 7,64,42
MSG-DATA<: 4
DATA-UNIT: mBAR
;DATA-MIN: 5100
;DATA-MAX: 14000
;DATA-DEFAULT: 7000
;DATA-STEP: 100
;MENU: S01.01 'PH'
[ITEM]
DDENAME: GetParLoadPressure
MSG-CODE: 7,64,44
MSG-DATA<: 4
DATA-UNIT: mBAR
;DATA-MIN: 5000
;DATA-MAX: 13900
;DATA-DEFAULT: 6500
;DATA-STEP: 100
;MENU: S01.02 'PL'
[ITEM]
DDENAME: GetFaultErrorLog1Fault
MSG-CODE: 7,64,46
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: E01.01 '01'
[ITEM]
DDENAME: GetFaultErrorLog1RunningHours
MSG-CODE: 7,64,46
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: E01.01 '01'
Page 22
[ITEM]
DDENAME: GetFaultErrorLog2Fault
MSG-CODE: 7,64,50
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: E01.02 '02'
[ITEM]
DDENAME: GetFaultErrorLog2RunningHours
MSG-CODE: 7,64,50
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: E01.02 '02'
[ITEM]
DDENAME: GetFaultErrorLog3Fault
MSG-CODE: 7,64,54
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: E01.03 '03'
[ITEM]
DDENAME: GetFaultErrorLog3RunningHours
MSG-CODE: 7,64,54
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: E01.03 '03'
[ITEM]
DDENAME: GetFaultErrorLog4Fault
MSG-CODE: 7,64,58
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: E01.04 '04'
[ITEM]
DDENAME: GetFaultErrorLog4RunningHours
MSG-CODE: 7,64,58
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: E01.04 '04'
[ITEM]
DDENAME: GetFaultErrorLog5Fault
MSG-CODE: 7,64,62
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: E01.05 '05'
[ITEM]
DDENAME: GetFaultErrorLog5RunningHours
MSG-CODE: 7,64,62
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: E01.05 '05'
Page 23
[ITEM]
DDENAME: GetFaultErrorLog6Fault
MSG-CODE: 7,64,66
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: E01.06 '06'
[ITEM]
DDENAME: GetFaultErrorLog6RunningHours
MSG-CODE: 7,64,66
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: E01.06 '06'
[ITEM]
DDENAME: GetFaultErrorLog7Fault
MSG-CODE: 7,64,70
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: E01.07 '07'
[ITEM]
DDENAME: GetFaultErrorLog7RunningHours
MSG-CODE: 7,64,70
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: E01.07 '07'
[ITEM]
DDENAME: GetFaultErrorLog8Fault
MSG-CODE: 7,64,74
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: E01.08 '08'
[ITEM]
DDENAME: GetFaultErrorLog8RunningHours
MSG-CODE: 7,64,74
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: E01.08 '08'
[ITEM]
DDENAME: GetFaultErrorLog9Fault
MSG-CODE: 7,64,78
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: E01.09 '09'
[ITEM]
DDENAME: GetFaultErrorLog9RunningHours
MSG-CODE: 7,64,78
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: E01.09 '09'
Page 24
[ITEM]
DDENAME: GetFaultErrorLog10Fault
MSG-CODE: 7,64,82
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: E01.10 '10'
[ITEM]
DDENAME: GetFaultErrorLog10RunningHours
MSG-CODE: 7,64,82
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: E01.10 '10'
[ITEM]
DDENAME: GetFaultErrorLog11Fault
MSG-CODE: 7,64,86
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: E01.11 '11'
[ITEM]
DDENAME: GetFaultErrorLog11RunningHours
MSG-CODE: 7,64,86
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: E01.11 '11'
[ITEM]
DDENAME: GetFaultErrorLog12Fault
MSG-CODE: 7,64,90
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: E01.12 '12'
[ITEM]
DDENAME: GetFaultErrorLog12RunningHours
MSG-CODE: 7,64,90
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: E01.12 '12'
[ITEM]
DDENAME: GetFaultErrorLog13Fault
MSG-CODE: 7,64,94
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: E01.13 '13'
[ITEM]
DDENAME: GetFaultErrorLog13RunningHours
MSG-CODE: 7,64,94
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: E01.13 '13'
Page 25
[ITEM]
DDENAME: GetFaultErrorLog14Fault
MSG-CODE: 7,64,98
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: E01.14 '14'
[ITEM]
DDENAME: GetFaultErrorLog14RunningHours
MSG-CODE: 7,64,98
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: E01.14 '14'
[ITEM]
DDENAME: GetFaultErrorLog15Fault
MSG-CODE: 7,64,102
MSG-DATA<: 2
;MSG-DATA#: 8
DATA-LOC: 2
DATA-TYPE: CODED,ERROR
;MENU: E01.15 '15'
[ITEM]
DDENAME: GetFaultErrorLog15RunningHours
MSG-CODE: 7,64,102
MSG-DATA<: 4
;MSG-DATA#: 8
DATA-LOC: 4
DATA-UNIT: HRS
;MENU: E01.15 '15'
Page 26
;************************
;DATA-UNIT descriptions *
;************************
; mBAR = Pressure in milliBar
; mCEL = Temperature in milliCelsius
; mSEC = Time in milliSeconds
; HRS = Time in Hours
; UCHAR_VAL = Value unsigned byte (8bit)
; UINT_VAL = Value unsigned integer (16bit)
; LONG_VAL = Value signed long (32bit)
; ULONG_VAL = Value unsigned long (32bit)
; BINARY = Value bitwise represented
; mAMP = Electrical milliAmp (to 2 decimal places)
; PERCENT_DP2 = Percentage to 2 decimal places
; ADSTEPS = AD-steps
; HZ_DP2 = Herz (to 2 decimal places)
; AI_VAL = Analog Input Value
; DISPL_FUNC = Display Function
; FAULT_AUX_AI = Auxiliary Fault Analog Input
; SIGNAL_LL = Signal Type
;************************
;DATA-TYPE descriptions *
;************************
; CODED,ACM = => see COD-file [ACM]
; CODED,DAC_TYPE = => see COD-file [DAC_TYPE]
; CODED,DI-CONFIG = => see COD-file [DI-CONFIG]
; CODED,STATUS = => see COD-file [STATUS]
; CODED,ERROR = => see COD-file [ERROR]
; CODED,P_UNIT = => see COD-file [P_UNIT]
; CODED,T_UNIT = => see COD-file [T_UNIT]
; CODED,AI_UNIT = => see COD-file [A I_ U N IT]
; STRING = String of ASCII characters (1 byte represents 1 ASCII character)
; P-PSI = Pressure in PSI
; T-FAH = Temperature in Fahrenheit
; SIGNED,NUMERIC = Value is signed numeric
Page 27
DX Box Multi485 Addressing
[ITEM]
DDENAME: GetPressure1
MSG-CODE: 7,64,4
MSG-DATA<: 4
DATA-UNIT: mBAR
;DATA-MIN: 0
;DATA-MAX: 16000
;DATA-DEFAULT : 0
;DATA-STEP: 0
;MENU: P00.03 'P1'
[ITEM]
DDENAME: GetDiffPressure1
MSG-CODE: 7,64,6
MSG-DATA<: 4
DATA-TYPE: SIGNED,NUMERIC
DATA-UNIT: mBAR
;DATA-MIN: -16000
;DATA-MAX: 16000
;DATA-DEFAULT : 0
;DATA-STEP: 0
;MENU: P00.04 '%1'
[ITEM]
DDENAME: GetPressure2
MSG-CODE: 7,64,8
MSG-DATA<: 4
DATA-UNIT: mBAR
;DATA-MIN: 0
;DATA-MAX: 16000
;DATA-DEFAULT: 0
;DATA-STEP: 0
;MENU: P00.05 'P2'
[ITEM]
DDENAME: GetDiffPressure2
MSG-CODE: 7,64,10
MSG-DATA<: 4
DATA-TYPE: SIGNED,NUMERIC
DATA-UNIT: mBAR
;DATA-MIN: -16000
;DATA-MAX: 16000
;DATA-DEFAULT : 0
;DATA-STEP: 0
;MENU: P00.06 '%2'
[ITEM]
DDENAME: GetPercentCapacity1
MSG-CODE: 7,64,14
MSG-DATA<: 4
DATA-UNIT: PERCENT_DP2
;DATA-MIN: 0
;DATA-MAX: 10000
;DATA-DEFAULT: 5000
;DATA-STEP: 100
;MENU: P01.01 'Pc'
[ITEM]
DDENAME: GetConfigDigIn3
MSG-CODE: 7,64,16
MSG-DATA<: 4
DATA-UNIT: UCHAR_VAL
;DATA-MIN: 0
;DATA-MAX: 1
;DATA-DEFAULT : 0
;DATA-STEP: 1
;MENU: P01.02 'D3'
Page 28
[ITEM]
DDENAME: GetConfigDigIn6
MSG-CODE: 7,64,18
MSG-DATA<: 4
DATA-UNIT: UCHAR_VAL
;DATA-MIN: 0
;DATA-MAX: 3
;DATA-DEFAULT : 0
;DATA-STEP: 1
;MENU: P01.03 'D6'
[ITEM]
DDENAME: GetPercentCapacity2
MSG-CODE: 7,64,20
MSG-DATA<: 4
DATA-UNIT: PERCENT_DP2
;DATA-MIN: 0
;DATA-MAX: 10000
;DATA-DEFAULT: 5000
;DATA-STEP: 100
;MENU: P02.01 'Pc'
[ITEM]
DDENAME: GetConfigDigIn5
MSG-CODE: 7,64,22
MSG-DATA<: 4
DATA-UNIT: UCHAR_VAL
;DATA-MIN: 0
;DATA-MAX: 1
;DATA-DEFAULT: 0
;DATA-STEP: 1
;MENU: P02.02 'D5'
[ITEM]
DDENAME: GetConfigDigIn7
MSG-CODE: 7,64,24
MSG-DATA<: 4
DATA-UNIT: UCHAR_VAL
;DATA-MIN: 0
;DATA-MAX: 3
;DATA-DEFAULT : 0
;DATA-STEP: 1
;MENU: P02.03 'D7'
[ITEM]
DDENAME: GetRotationInterval
MSG-CODE: 7,64,30
MSG-DATA<: 4
DATA-UNIT: MIN
;DATA-MIN: 60
;DATA-MAX: 1440
;DATA-DEFAULT: 1440
;DATA-STEP: 60
;MENU: P03.03 'Rt'
[ITEM]
DDENAME: GetStartDelayTim e
MSG-CODE: 7,64,32
MSG-DATA<: 4
DATA-UNIT: mSEC
;DATA-MIN: 1000
;DATA-MAX: 30000
;DATA-DEFAULT: 10000
;DATA-STEP: 200
;MENU: P03.04 'St'
[ITEM]
DDENAME: GetPressureUnitsSel
MSG-CODE: 7,64,34
MSG-DATA<: 4
DATA-TYPE: CODED,P_UNIT
DATA-UNIT: LONG_VAL
;DATA-MIN: 0
;DATA-MAX: 2
;DATA-DEFAULT : 0
;DATA-STEP: 1
;MENU: P03.05 'P>'
Page 29
[ITEM]
DDENAME: GetConfigDigOut4
MSG-CODE: 7,64,36
MSG-DATA<: 4
DATA-UNIT: UCHAR_VAL
;DATA-MIN: 1
;DATA-MAX: 9
;DATA-DEFAULT : 1
;DATA-STEP: 1
;MENU: P03.06 'R4'
[ITEM]
DDENAME: GetRegulControlPercent
MSG-CODE: 7,64,44
MSG-DATA<: 4
DATA-UNIT: PERCENT_DP2
;DATA-MIN: 0
;DATA-MAX: 10000
;DATA-DEFAULT: 0
;DATA-STEP: 0
;MENU: P04.01 'C>'
[ITEM]
DDENAME: GetRegulControlPFactor
MSG-CODE: 7,64,46
MSG-DATA<: 4
DATA-UNIT: UCHAR_VAL
;DATA-MIN: 0
;DATA-MAX: 100
;DATA-DEFAULT : 40
;DATA-STEP: 1
;MENU: P04.02 'Pf'
[ITEM]
DDENAME: GetRegulControlIFactor
MSG-CODE: 7,64,48
MSG-DATA<: 4
DATA-UNIT: UCHAR_VAL
;DATA-MIN: 0
;DATA-MAX: 100
;DATA-DEFAULT : 30
;DATA-STEP: 1
;MENU: P04.03 'If'
[ITEM]
DDENAME: GetSysPressureOffset
MSG-CODE: 7,64,50
MSG-DATA<: 4
DATA-TYPE: SIGNED,NUMERIC
DATA-UNIT: mBAR
;DATA-MIN: -1500
;DATA-MAX: 1500
;DATA-DEFAULT : 0
;DATA-STEP: 100
;MENU: P05.01 'Po'
[ITEM]
DDENAME: GetSysPressureRange
MSG-CODE: 7,64,52
MSG-DATA<: 4
DATA-UNIT: mBAR
;DATA-MIN: 1000
;DATA-MAX: 630000
;DATA-DEFAULT: 16000
;DATA-STEP: 100
;MENU: P05.02 'Pr'
[ITEM]
DDENAME: GetPressureEnable1
MSG-CODE: 7,64,54
MSG-DATA<: 4
DATA-UNIT: UCHAR_VAL
;DATA-MIN: 0
;DATA-MAX: 1
;DATA-DEFAULT : 0
;DATA-STEP: 1
;MENU: P06.01 'PE'
Page 30
[ITEM]
DDENAME: GetPressureLimit1
MSG-CODE: 7,64,56
MSG-DATA<: 4
DATA-UNIT: mBAR
;DATA-MIN: 0
;DATA-MAX: 16000
;DATA-DEFAULT : 0
;DATA-STEP: 100
;MENU: P06.02 'PL'
[ITEM]
DDENAME: GetPressureOffset1
MSG-CODE: 7,64,58
MSG-DATA<: 4
DATA-TYPE: SIGNED,NUMERIC
DATA-UNIT: mBAR
;DATA-MIN: -1500
;DATA-MAX: 1500
;DATA-DEFAULT : 0
;DATA-STEP: 100
;MENU: P06.03 'Po'
[ITEM]
DDENAME: GetPressureRange1
MSG-CODE: 7,64,60
MSG-DATA<: 4
DATA-UNIT: mBAR
;DATA-MIN: 1000
;DATA-MAX: 630000
;DATA-DEFAULT: 16000
;DATA-STEP: 100
;MENU: P06.04 'Pr'
[ITEM]
DDENAME: GetPressureEnable2
MSG-CODE: 7,64,62
MSG-DATA<: 4
DATA-UNIT: UCHAR_VAL
;DATA-MIN: 0
;DATA-MAX: 1
;DATA-DEFAULT : 0
;DATA-STEP: 1
;MENU: P07.01 'PE'
[ITEM]
DDENAME: GetPressureLimit2
MSG-CODE: 7,64,64
MSG-DATA<: 4
DATA-UNIT: mBAR
;DATA-MIN: 0
;DATA-MAX: 16000
;DATA-DEFAULT : 0
;DATA-STEP: 100
;MENU: P07.02 'PL'
[ITEM]
DDENAME: GetPressureOffset2
MSG-CODE: 7,64,66
MSG-DATA<: 4
DATA-TYPE: SIGNED,NUMERIC
DATA-UNIT: mBAR
;DATA-MIN: -1500
;DATA-MAX: 1500
;DATA-DEFAULT : 0
;DATA-STEP: 100
;MENU: P07.03 'Po'
Page 31
[ITEM]
DDENAME: GetPressureRange2
MSG-CODE: 7,64,68
MSG-DATA<: 4
DATA-UNIT: mBAR
;DATA-MIN: 1000
;DATA-MAX: 630000
;DATA-DEFAULT: 16000
;DATA-STEP: 100
;MENU: P07.04 'Pr'
Page 32
;************************
;DATA-UNIT descriptions *
;************************
; mBAR = Pressure in milliBar
; mSEC = Time in milliSeconds
; MIN = Time in Minutes
; UCHAR_VAL = Value unsigned byte (8bit)
; LONG_VAL = Value signed long (32bit)
; BINARY = Value bitwise represented
; PERCENT_DP2 = Percentage to 2 decimal places
; ADSTEPS = AD-steps
;************************
;DATA-TYPE descriptions *
;************************
; CODED,ACM = => see COD-file [ACM]
; CODED,DI-CONFIG = => see COD-file [DI-CONFIG]
; CODED,STATUS = => see COD-file [STATUS]
; CODED,ERROR = => see COD-file [ERROR]
; CODED,P_UNIT = => see COD-file [P_UNIT]
; STRING = String of ASCII characters (1 byte represents 1 ASCII character)
; P-PSI = Pressure in PSI
; T-FAH = Temperature in Fahrenheit
; SIGNED,NUMERIC = Value is signed numeric
Loading...
