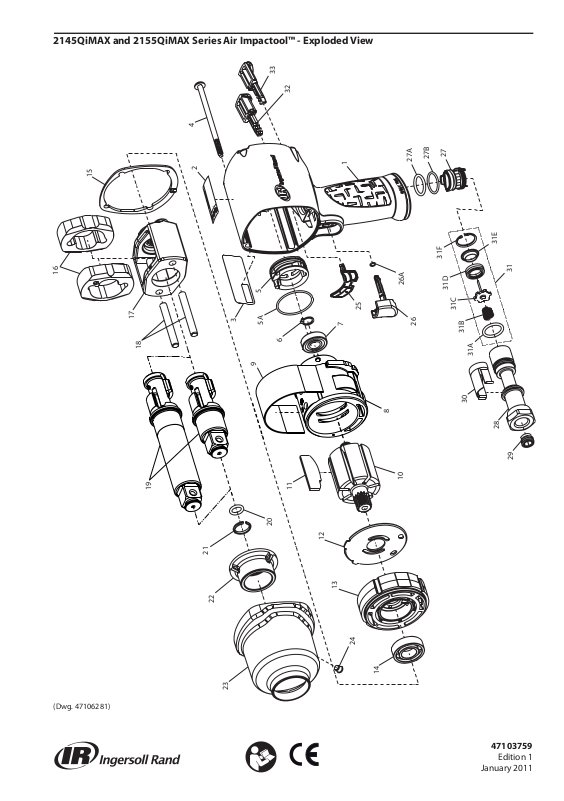

2145QiMAX and 2155QiMAX Series Air Impactool™ - Exploded View

26A

27A

27B

31E

31F

31D

31C

31B

31A

(Dwg. 47106281)

47103759

Edition 1

January 2011

2145QiMAX and 2155QiMAX Series Air Impactool™ - Parts List

Item Part Description Part Number Item Part Description Part Number

* Housing Assembly * Hammer Case Assembly

1 Housing --- 23 Hammer Case --2 Warning Label --- 24 Grease Fitting --3 Information Label --- 24 Grease Fitting 130SR-188

25 Gasket --- † 25 Gasket, Motor 2141-283

* Reverse Valve Assy --- † * Trigger Assembly 2145-D93BK * Button Kit --- 26 Trigger --2 Warning Label WARNING-2-99 26A O-Ring, Trigger --3 Information Label * Reverse Valve Assembly 2141-A329

4 Screw, Hammer Case (4 required) 2141-638 28 Inlet Bushing --* Power Regulator Assy 2135-D249A † 29 Inlet Pre-Screen 2145-61A 5 Power Regulator --- 30 Inlet Clip 2141-57

5A O-Ring, Power Regulator --- 31 Inlet Parts Kit 2141-K303

6 Retaining Ring 2131-6 31A O-Ring, Seal --7 Ball Bearing (Cylinder) 2131-97 31B Throttle Spring --8 Cylinder 2141-3 31C Throttle Valve --9 Silencer 2145Q-311 31D Valve Seat ---

10 Rotor 2145-53 31E Seat Support ---

† 11 Vane Pack (set of 7) 2145-42-7 31F Retainer ---

12 Wear Plate 2145-11X * Button Kit 2145-K75RD 13 End Plate 2145-11 32 Forward Button --14 Ball Bearing (End Plate) R38P-606 33 Reverse Button ---

† 15 Hammer Case Gasket 2145-36RD * Tune-up Kit 2145-TK2

* Hammer Mechanism Kit 2145-THK2 5A O-Ring, Power Regulator --16 Hammer (2) --- 6 Retaining Ring --17 Hammer Frame --- 7 Ball Bearing (Cylinder) --18 Hammer Pin (2) --- 14 Ball Bearing (End Plate) ---

* Anvil Assembly 11 Vane Pack (set of 7) ---

19 Anvil --- 27B O-Ring, Reverse Valve (Bottom-Blue) ---

* Socket Retainer Kit --- 31 Inlet Parts Kit --† * Socket Retainer Kit (3/4” Ring-type) * Inlet Clip Removal Tool 2131-322

† * Socket Retainer Kit (1” Ring-type) † * Air Care Kit (grease gun, grease, oil) 115-LBK1

20 O-Ring --- * Air Tool Oil (4 oz. Bottle) 10Z4 21 Socket Retainer --- * Grease (1 lb can) 105-1LB 22 Bushing, Hammer Case * Grease (8 lb can) 105-8LB

* Not Illustrated † * To keep downtime to a minimum, it’s desirable to have certain repair parts on hand. We recommend that you stock one (pair or set) of each

part indicated by a (†) for every four tools in service.

for model 2145QiMAX 2145QiMAX-A40 for models 2145QiMAX, for model 2145QiMAX-3 2145QiMAX-3-A40 for model 2145QiMAX-6 2145QiMAX-6-A40 for models 2145QiMAX-6 2145-6-D727 for model 2155QiMAX 2155QiMAX-A40 22 Bushing, Hammer Case ---

for model 2145QiMAX 2145QiMAX-300 27 Reverse Valve --for model 2145QiMAX-3 2145QiMAX-3-300 27A O-Ring, Reverse Valve (Top-Black) --for model 2145QiMAX-6 2145QiMAX-6-300 27B O-Ring, Reverse Valve (Bottom-Blue) --for model 2155QiMAX 2155QiMAX-300 *

for model 2145QiMAX 2145-A626 15 Hammer Case Gasket --for model 2145QiMAX-3 2145-A626-3 26A O-Ring, Trigger --for model 2145QiMAX-6 2145-A626-6 25 Gasket, Motor --for model 2155QiMAX 2155-A626 27A O-Ring, Reverse Valve (Top-Black) ---

for models 2145QiMAX, 2145QiMAX-3, 2145QiMAX-6

for models 2155QiMAX 2155-K425 * Grease (replacement tube for -LBK1) 115-4T

for models 2145QiMAX, 2145QiMAX-3, 2155QiMAX for models 2145QiMAX-6 2145-641-6

2145-K425

2145-641

* Socket Retention Ring (3/4” Anvil) RR10034S * Socket Retention Ring (1” Anvil) RR10015S

* Grease Gun R000A2-228

2145QiMAX-3, 2155QiMAX

Inlet Bushing Assembly (includes 28, 29, 30, 31)

2145-D727

2145-D565

Parts and Maintenance

When the life of the tool has expired, it is recommended that the tool be disassembled, degreased and parts be separated by material so that they can be recycled.

Tool repair and maintenance should only be carried out by an authorized Service Center. Refer all communications to the nearest Ingersoll Rand O ce or Distributor.
