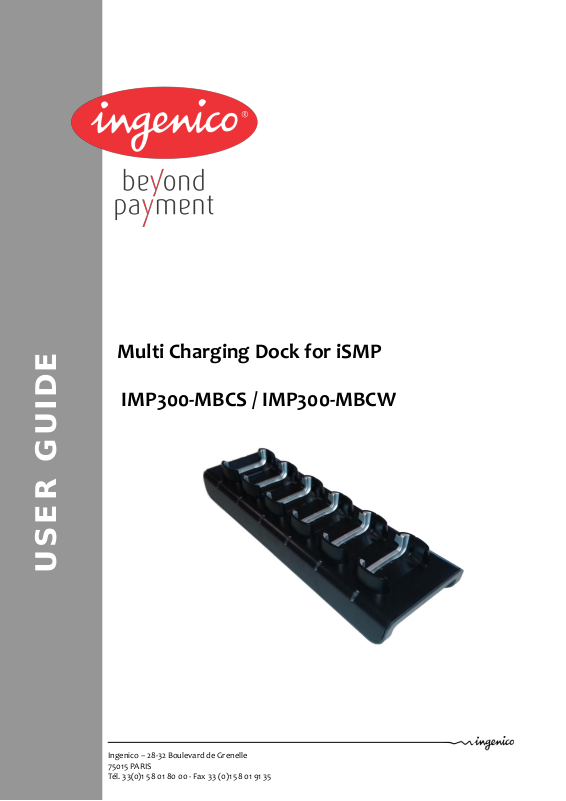

INGENICO MBISMPCBT User Manual

USER GUID

Multi Charging Dock for iSMP

IMP300-MBCS / IMP300-MBCW

Ingenico – 28-32 Boulevard de Grenelle 75015 PARIS Tél. 33(0)1 58 01 80 00 - Fax 33 (0)1 58 01 91 35

Contents

1. Introduction __________________________________________________ 3

2. Unpacking ___________________________________________________ 4

3. Recommendations _____________________________________________ 5

3.1. Main Characteristics ___________________________________________________ 5

3.2. Security _____________________________________________________________ 5

3.3. Standard compliance marking ___________________________________________ 7

3.4. EC standard compliance ________________________________________________ 7

3.5. FCC & IC Compliance. __________________________________________________ 8

4. Installation and connection _____________________________________ 10

4.1. Functional description ________________________________________________ 10

4.2. Positioning the cradle _________________________________________________ 10

4.3. PSU connection ______________________________________________________ 10

4.4. iSMP insertion _______________________________________________________ 11

4.5. Charging iSMP Companion _____________________________________________ 11

5. Maintenance _________________________________________________ 12

5.1. Cleaning of the cradle _________________________________________________ 12

5.2. Transport and storage ________________________________________________ 12

5.3. Troubleshooting _____________________________________________________ 12

5.4. Environment (WEEE, Batteries and Packaging) ____________________________ 13

1. Introduction

Thank you for choosing a payment terminal Ingenico. We recommend you to read carefully this installation guide: It gives you the necessary information about safety precautions, unpacking, installation, and maintenance of your terminal accessory.

WARRANTY / SECURITY

To benefit from the guarantee-related product, and to respect the security, we ask you to use only accessories delivered in box with the product, entrusting maintenance operations only to an authorized person.

The IMP300-MBCS (296148325) and IMP300-MBCW (296148333, Bluetooth Model) accessories have been designed for iSMP Companion product do not attempt to use for any other use.

Failure to comply with these instructions will void the manufacturer’s responsibility.

This symbol indicates an important Warning.

This symbol indicates a piece of advice.

2. Unpacking

This User guide

ADVICE

Carefully preserve the packaging of the IMP300. It must be re-used whenever the accessory is shipped.

The following items are included in the IMP300 box :

IMP300-MBPS (296148325) or IMP300-MBCW (296148333)

POWER SUPPLY

WARNING The power supply unit provided with your equipment is specially designed for Ingenico terminals. Do not use any other power supply. The use of a power supply with apparently similar voltage/current characteristics may damage your terminal.

3. Recommendations

Mass

740 g

Dimensions (Lxlxh)

400x130x64mm

Electrical mains network

100-240VAC / 50-60 Hz - Class I

PSU Models

Ingenico ref: 296202434

Ambient temperature

from -10°C to +45°C Max relative humidity

85% at +45°C

Connections for terminal

6 x 2 poles sockets – 5Vdc / 1A each slot

Storage temperature

-20°C,+55°C Max relative humidity

85% at +55°C

Mandatory conformity marking for products sold within the European Economic Area (EEA). It states that the product is assessed before being placed on the market and meets EU safety, health and environmental protection requirements

Indicates that the product has been certified to applicable standards including standards written or administered by the American National Standards Institute (ANSI), Underwriters Laboratories (UL), CSA Group (CSA), NSF International (NSF), and other North American and global organizations

Indicates that the product meet both American and Canadian standards for safety requirements

Indicates that the product has been evaluated, tested and certified for electrical safety by an independent accredited third-party against German and European standards

Indicates that the EIP contains toxic and hazardous substances or elements over the defined maximum concentration values defined above. The names and content of the toxic and hazardous substances or elements shall be provided in the product instruction manual. The number in the symbol refers to the environment friendly use period

3.1. Main Characteristics

The main technical characteristics of the cradle Ingenico IMP300-MBCS are:

Operating conditions

Storage conditions

3.2. Approvals and markings
