INGENICO M2500CL3G Users Guide

MOVE/2500

User Guide

www.ingenico.com

28-32, boulevard de Grenelle, 75015 Paris - France / (T) +33 (0)1 58 01 80 00 / (F) +33 (0)1 58 01 91 35

Ingenico - SA au capital de 47 656 332 / 317 218 758 RCS Nanterre

Contents

1_Introduction

2_Présentation

2_1 Content of the box

2_1_1 Terminal

2_2 Overview of the MOVE/2500

2_3 Keyboard details and functionality

3_Use of the terminal

3_1 Switching off the terminal

3_2 Reading card

4_Installation

4_1 Recommendation

4_2 USB Terminal connections

4_2_1 uUSB

4_3 Opening trap door

4_4 SAMs & SIMs

4

5

6

8

9

11

12

13

MOVE/2500 900022723 R11 000 03/0217

2

4_5 Battery

4_5_1 Main characteristics

4_5_2 Installing the battery

4_5_3 Charging the battery

4_5_4 Changing the battery

4_6 Paper roll

4_6_1 Mains characteristics

of INGENICO paper roll

4_6_2 Installing paper roll

14

15

16

17

18

5_Recommendations

5_1 Safety

5_2 Security of your terminal

6_Standards

6_1 Environment (WEEE, Batteries and Packaging)

6_2 FCC/IC Compliance

7_Troubleshooting

MOVE/2500 900022723 R11 000 03/0217

3

19

20

22

27

1_Introduction

We hope that you will be fully satised with yo ur new terminal MOVE/ 2500. T his terminal is available in different models. Please select by yourself in this documentation items related to yo ur model.

Read this guide to unders tand and make the be st use of yo ur terminal. It presents you the n ecess ary information ab out use, installation , maintenance, safet y and security re commen dations.

WARRANTY / SECURITY

Use only the power supply included with the pro duct to ensure be st per forman ce and safe ty. Maintenanc e should only be provided by Ingenic o authorized technician. Failure to comply with t hese ins tructions will void the manufacturer’s responsibility.

This symb ol indicates an impor tant Warning .

This symb ol indicates a piece of advice.

MOVE/2500 900022723 R11 000 03/0217

4

2_Presentation

2_1 Content of the box

2_1_1 Terminal

MOVE/2500 terminal unit equiped with a paper roll

A battery pack disconnected

WARNING

The power s upply unit provided with yo ur equipment is specially designed for Ingenico terminals. Do not use any other power supply. The use of a power s upply with apparently similar voltage/current characteristics may damage your terminal.

ADVICE

Keep the pa ckaging . It must be re-used whenever the terminal is ship ped.

MOVE/2500 900022723 R11 000 03/0217

Power adapter

5

user guide

2_2 Overview of the MOVE/2500

Terminal unit

2’’4 LCD Display

Backlit keyboard

Smart card reader

MOVE/2500 900022723 R11 000 03/0217

Easy loading printer

Magnetic card reader

6

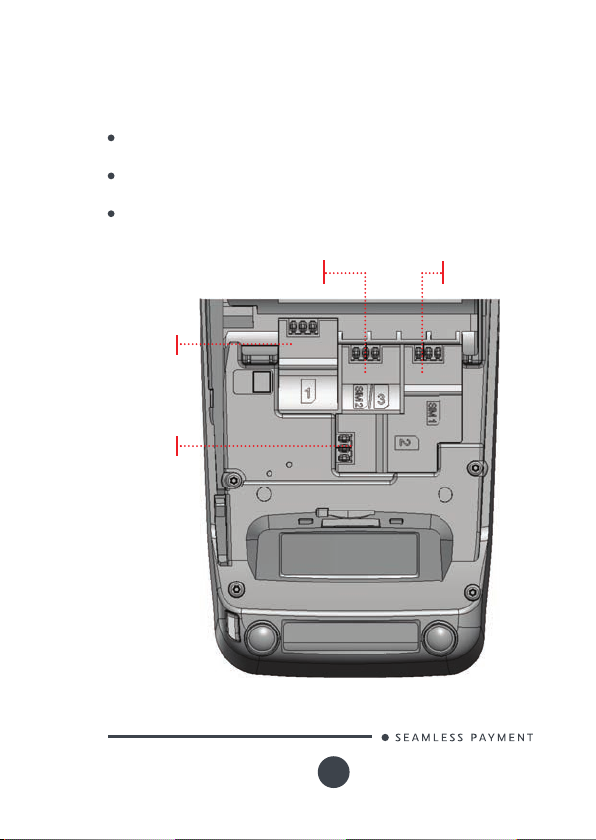

Compar tment where are lo cated:

the bat tery pack

the SAM /SIM slots

the bat tery pack the SAM /SIM slots

Weight

(without p aper roll no r battery)

275g

Dimensions (L x w x h) 168x81x69 mm

Electrical mains network

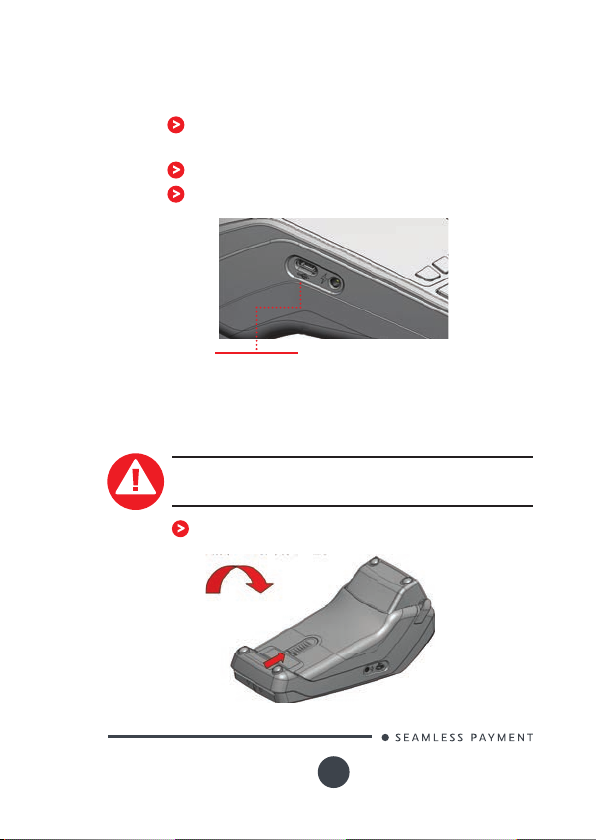

Connections on terminal

MOVE/2500 900022723 R11 000 03/0217

100-240VAC / 50-60 Hz - Class II equipment

Micro USB AB serial link Power connector

7

2_3 Keyboard details and functionality

Some keys c an have other functions accor ding to the application s that are in the terminal.

The functions key accesses the different application menus

The red key cancels the procedure in progress

The yellow key cancels the last character

The green key validates input selections and informa-

Feed paper a few centimetres if pressed for a long time (more than 2 seconds)

tion. It is also used to switch on the terminal

MOVE/2500 900022723 R11 000 03/0217

8

3_Use of the terminal

ADVICE

Before to us e the terminal, always check if the roll of paper is present.

3_1 Switching off the terminal

If the battery is empty and the terminal in use is removed from its base, the terminal automatically shuts off.

It may also be switch off by pressing simultaneously

and (yellow key) for one second.

In order to restart the terminal, press on the keyboard.

3_2 Reading card

Magnetic stripe card

The card c an be read either from b ottom to top or from top to bottom, with the stripe facing the terminal. Use a regula r movement in order to ensu re a reliable card reading.

MOVE/2500 900022723 R11 000 03/0217

9
