FOREWORD

Your INFINITI represents a new way of thinking about vehicle design. It integrates advanced engineering and superior craftsmanship with a simple, refined aesthetic sensitivity associated with traditional Japanese culture.

The result is a different notion of luxury and beauty. The car itself is important, but so is the sense of harmony that the vehicle evokes in its driver, and the sense of satisfaction you feel with the INFINITI — from the way it looks and drives to the high level of dealer service.

To ensure that you enjoy your INFINITI to the fullest, we encourage you to read this Owner’s Manual immediately. It explains all of the features, controls and performance characteristics of your INFINITI; it also provides important instructions and safety information.

A separate Warranty Information Booklet is included in your Owner’s literature portfolio. The INFINITI Service and Maintenance Guide explains details about maintaining and servicing your vehicle. Always carry it with you when you take your vehicle to an INFINITI dealer. TheWarranty InformationBooklet contents provide complete information about all warranties covering this vehicle, the requirements to keep the warranties in effect as well as the INFINITI Roadside Assistance program.

Additionally, a separate Customer Care and Lemon Law Information Booklet will explain how to resolve any concerns you may have with yourvehicle, as wellas clarify yourrights under your state’s lemon law.

READ FIRST — THEN DRIVE SAFELY

Before driving your vehicle, read your Owner’s Manual carefully. This will ensure familiarity with controls and maintenance requirements, assisting you in the safe operation of your vehicle.

WARNING

IMPORTANT SAFETYINFORMATION REMINDERS FOR SAFETY!

Follow these important driving rules to help ensure a safe and comfortable trip for you and your passengers!

● NEVER driveunder the influenceof alcoholor drugs.

● ALWAYS observe posted speed limits and never drive too fast for conditions.

● ALWAYS give your full attention to driving and avoid using vehicle features or taking other actions that could distract you.

● ALWAYS use yourseat belts and appropriate child restraint systems. Pre-teen children should be seated in the rear seat.

● ALWAYS provide information about the proper use of vehicle safety features to all occupants of the vehicle.

● ALWAYS review this Owner’s Manual for important safety information.

MODIFICATION OF YOUR VEHICLE

This vehicleshould not bemodified. Modification could affect its performance, safety or durability, and may even violate governmental regulations. In addition,damage or performance problems resulting from modification will not be covered under the INFINITI warranties.

WHEN READING THE MANUAL

This manual includes information for all options available on thismodel. Therefore, you may find some information that does not apply to your vehicle.

All information, specifications and illustrations in this manual are those in effect at the time of printing. INFINITI reserves the right to change specifications or design at any time without notice.

IMPORTANT INFORMATION ABOUT THIS MANUAL

You will see various symbols in this manual. They are used in the following ways:

WARNING

This is used to indicate the presence of a hazard that could cause death or serious personal injury. To avoid or reduce the risk, the procedures must be followed precisely.

CAUTION

This is used to indicate the presence of a hazard that could cause minor or moderate personal injuryor damageto yourvehicle. Toavoid or reduce the risk, the procedures must be followed carefully.

SIC0697

If you see the symbol above, it means “Do not do this” or “Do not let this happen” .

If you see a symbol similar to those above in an illustration, it means the arrow points to the front of the vehicle.

Arrows in an illustration that are similar to those above indicate movement or action.

Arrows in an illustration that are similar to those above call attention to an item in the illustration.

CALIFORNIA PROPOSITION 65 WARNING

WARNING

Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CALIFORNIA PERCHLORATE ADVISORY

Some vehicle parts, such as lithium batteries, may contain perchlorate material.The following advisory is provided: “Perchlorate Material special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.”

BLUETOOTH姞 is a trademark owned by Bluetooth SIG, Inc., U.S.A.

Gracenote姞 is a registered trademark of Gracenote, Inc. The Gracenote logo and logo type, and the “Powered by Gracenote” logo are trademarks of Gracenote.

XM Radio姞 requires subscription, sold separately after first 90 days. Not available in Alaska, Hawaii or Guam. For more information, visit www.xmradio.com.

Manual may be reproduced or stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Nissan Motor Co., Ltd.

INFINITI CUSTOMER CARE PROGRAM

INFINITI CARES ... Both INFINITI and your INFINITI dealer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your INFINITI dealer

are our primary concerns. Your INFINITI dealer is always available to assist you with all your automobile sales and service needs. However, if there is something that your

INFINITI dealer cannot assist you with or you would like to provide INFINITI directly with comments or questions, please contact our (INFINITI’s) Consumer Affairs Department using our toll-free number:

For U.S. customers

1-800-662-6200

For Canadian customers

1-800-361-4792

We appreciate your interest in INFINITI and thank you for buying a quality INFINITI vehicle.

The Consumer Affairs Department will ask for the following information:

– Your name, address, and telephone number – Vehicle identification number (on dash

panel) – Date of purchase – Current odometer reading – Your INFINITI dealer’s name – Your comments or questions OR

You can write to INFINITI with the information on the left at:

For U.S. customers

INFINITI Division Nissan North America, Inc. Consumer Affairs Department P.O. Box 685003 Franklin, TN 37068-5003

For Canadian customers

INFINITI Division Nissan Canada Inc. 5290 Orbitor Drive Mississauga, Ontario L4W 4Z5

Table of

Illustrated table of contents

Contents

Safety — Seats, seat belts and supplemental restraint system

Instruments and controls

Pre-driving checks and adjustments

Monitor, climate, audio, phone and voice recognition systems

Starting and driving

In case of emergency

Appearance and care

Maintenance and do-it-yourself

Technical and consumer information

Index

0 Illustrated table of contents

Seats, seat belts and supplemental restraint

system (SRS) ..................................... 0-2

Exterior front......................................0-3

Exterior rear ......................................0-4

Passenger compartment ........................... 0-5

Cockpit........................................... 0-7

Instrument panel ..................................0-8

Meters and gauges............................... 0-10

Engine compartment...............................0-11

VK45DE engine*................................0-11

VQ35HR engine* .............................. 0-12

SEATS, SEAT BELTS AND SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

1. Child restraint anchor points (for top tether strap child restraint) (Page 1-19)

2. Head restraints (P. 1-5)

— Front-seat Active Head Restraints (P. 1-6)

3. Seat belts (P. 1-8)

0-2 Illustrated table of contents

6. Front passenger air bag status light (P. 1-42)

7. Rear armrest (P. 1-7)

8. LATCH (Lower Anchors and Tethers for CHildren) system (P. 1-17)

9. Front seat-mounted side-impact supplemental air bags (P. 1-34)

10. Front armrest (P. 1-6)

11. Supplemental front-impact air bags

(P. 1-34) — Advanced air bag system (P. 1-40)

SSI0223

4. Roof-mounted curtain side-impact supplemental air bags (P. 1-34)

5. Seats (P. 1-2) — Front seats (P. 1-2) — Rear seats (P. 1-4) — Child restraints (P. 1-15)

EXTERIOR FRONT

1. Hood (P. 3-17)

2. Headlight and turn signal lights — Switch operation (P. 2-29) — Bulb replacement (P. 8-30) — Adaptive Front lighting System (AFS) (if so equipped) (P. 2-31)

4. Moonroof (P. 2-46)

5. Power windows (P. 2-43)

6. Recovery hook (P. 6-15)

7. License plate installation (P. 9-14)

8. Fog lights (P. 2-33)

9. Tires — Wheel and tires (P. 8-34, P. 9-9) — Flat tire (P. 6-2) — Tire Pressure Monitoring System (TPMS) (P. 2-15, P. 5-3)

10. Outside mirrors (P. 3-24)

11. Doors

— Keys (P. 3-2) — Door locks (P. 3-4) — Intelligent Key system (P. 3-6) — Security system (P. 2-24)

SSI0369

3. Windshield wiper and washer — Switch operation (P. 2-27) — Rain-sensing auto wiper system (P. 2-28) — Blade replacement (P. 8-23) — Window washer fluid (P. 8-17)

Illustrated table of contents 0-3

EXTERIOR REAR

1. Trunk — Trunk lid (P. 3-17) — Intelligent Key system (P. 3-6)

2. High-mounted stop light

— Bulb replacement (P. 8-30)

3. Rear window defroster (P. 2-28)

0-4 Illustrated table of contents

6. Rear view camera (if so equipped) (P. 4-22)

7. Back-up lights

— Bulb replacement (P. 8-30)

8. Rear combination lights — Bulb replacement (P. 8-30)

9. Child safety rear door locks (P. 3-6)

SSI0370

4. Satellite radio antenna (if so equipped) (P. 4-35)

5. Fuel-filler door — Operation (P. 3-20) — Fuel recommendation (P. 9-4)

PASSENGER COMPARTMENT

1. Rear sunshade (if so equipped) (P. 2-47)

2. Rear personal lights (P. 2-49)

3. Coat hooks (P. 2-43)

4. Mobile Entertainment System (MES) (if so equipped) — Flip-down screen (P. 4-62) — Digital Versatile Disc (DVD) drive (P. 4-61) — Headphones (P. 4-63) — DVD remote controller (P. 4-64)

SSI0371

5. Door armrest — Power window switches (P. 2-43) — Power door lock switch (P. 3-5)

6. Automatic drive positioner switch

(if so equipped) (P. 3-26)

7. Sun visors (P. 3-22)

8. Front map lights (P. 2-49)

9. Moonroof switch (P. 2-46)

10. Sunglasses holder (P. 2-41)

11. Inside rearview mirror (P. 3-23)

— HomeLink姞 universal transceiver (P. 2-51) — Compass (if so equipped) (P. 2-9)

12. Trunk pass-through/Rear armrest

(P. 1-7)

13. Rear seat controls (if so equipped)

— Rear power seat adjust switch (P. 1-4) — Heated seat switches (P. 2-34) — Automatic return ON/CANCEL switch (P. 1-4) — Rear sunshade control switch (P. 2-47)

14. Rear passenger control switches

(if so equipped) — For climate control (P. 4-33) — For audio system (P. 4-59)

15. Rear cup holders (P. 2-40)

Illustrated table of contents 0-5

16. Console box — Power outlet (P. 2-38) — Auxiliary input jacks (P. 4-60) — DVD drive (if so equipped) (P. 4-61) — iPod姞 connection (if so equipped) (P. 4-47)

17. Front cup holders (P. 2-40)

0-6 Illustrated table of contents

COCKPIT

1. Instrument brightness control switch

(P. 2-32)

2. Outside mirror remote control switch

(P. 3-24)

3. Adaptive Front lighting System (AFS)

switch (P. 2-31)

SIC3601

4. Vehicle Dynamic Control (VDC) OFF switch (P. 2-37)

5. Headlight, fog light and turn signal switch (P. 2-29)

Steering-wheel-mounted controls (left side)

— ENTER switch (if so equipped) (P. 4-6, P. 4-57) — For audio system (P. 4-57) — For phone system (P. 4-73, P. 4-84) — For voice recognition system (if so equipped) (P. 4-99)

7. Windshield wiper and washer switch (P. 2-27)

8. Steering-wheel-mounted controls

(right side) — Cruise control switches (P. 5-23) — Intelligent Cruise Control (ICC) switches (if so equipped) (P. 5-25) — Lane Departure Prevention (LDP) switch (if so equipped) (P. 5-16)

9. Hood release handle (P. 3-17)

10. Trunk lid release switch (P. 3-18)

11. Lane Departure Warning (LDW) switch

(if so equipped) (P. 2-36, P. 5-16)

12. Intelligent Key port (P. 5-9)

13. Tilting/telescopic steering wheel switch

(P. 3-22)

14. Steering wheel

— Horn (P. 2-34) — Driver supplemental air bag (P. 1-34)

15. Automatic Transmission (AT) selector

lever (P. 5-11)

Illustrated table of contents 0-7

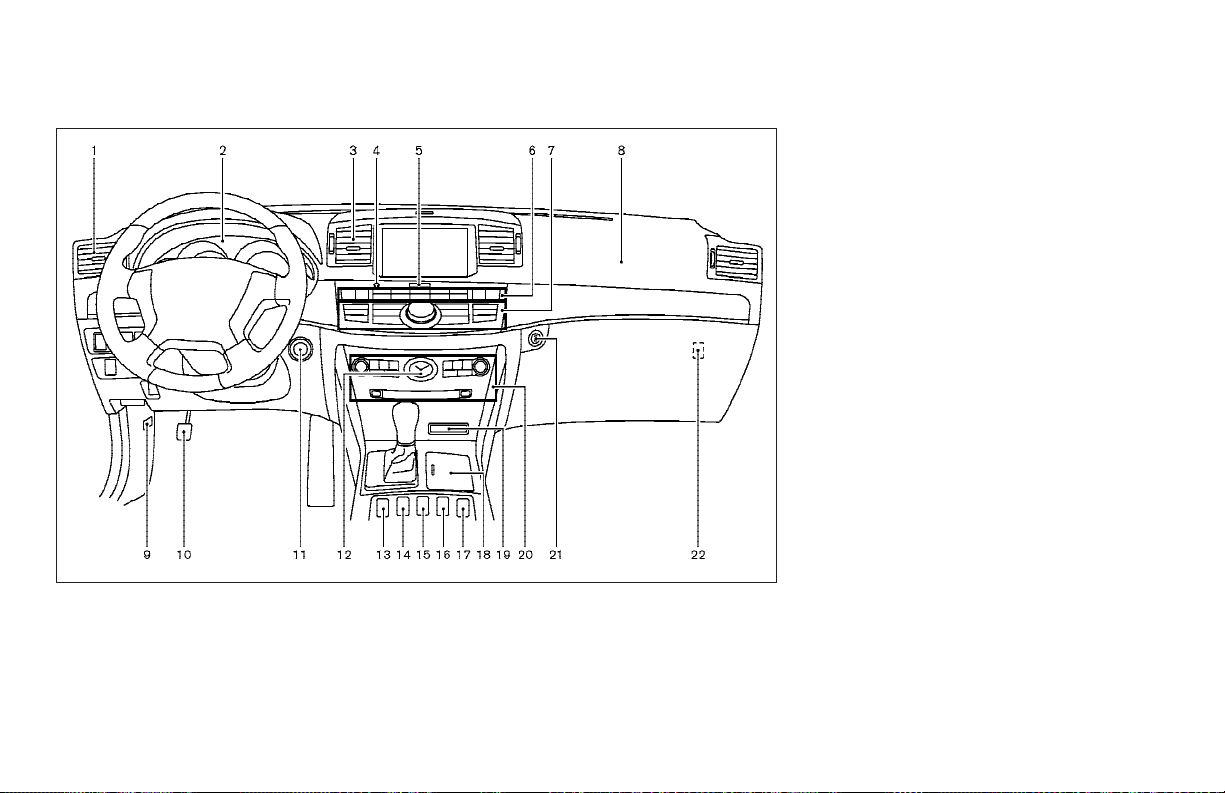

INSTRUMENT PANEL

1. Side ventilator (P. 4-28)

2. Meters and gauges (P. 2-5)

3. Center ventilator (P. 4-28)

0-8 Illustrated table of contents

SIC3551

4. Security indicator light (P. 2-26)

5. Hazard warning flasher switch (P. 2-33)

6. Automatic climate control system (P. 4-29)

7. Center multi-function control panel (P. 4-2) — Navigation system* (if so equipped) — Vehicle information and setting buttons (P. 4-7) — Phone system (P. 4-73, P. 4-84) — Audio system (P. 4-34)

8. Front passenger supplemental air bag

(P. 1-34)

9. Fuse box cover (P. 8-25)

10. Parking brake

— Operation (P. 5-15) — Parking (P. 5-48)

11. Push-button ignition switch (P. 5-7)

12. Clock (P. 2-38)

13. Climate controlled seat switch

(if so equipped) (P. 2-35)

14. Snow mode switch (if so equipped)

(P. 2-37)

15. Rear sunshade switch (if so equipped)

(P. 2-47)

16. Rear control cancel switch (if so

equipped) (P. 2-47) or Climate controlled seat switch (if so equipped) (P. 2-35)

17. Climate controlled seat switch

(if so equipped) (P. 2-35)

18. Cigarette lighter and ashtrays (P. 2-39)

19. CompactFlash card slot (if so equipped) (P. 4-46)

20. Audio system (P. 4-34)

21. Glove box lid release button (P. 2-41)

22. Trunk release power cancel switch

(P. 3-19)

*: Refer to the separate Navigation System

Owner’s Manual.

Illustrated table of contents 0-9

METERS AND GAUGES

1. Engine coolant temperature gauge

(P. 2-7)

2. Tachometer (P. 2-6)

3. Warning/Indicator lights (P. 2-12)

4. Speedometer (P. 2-6)

9. TRIP/RESET knob for twin trip odometer (P. 2-6)

SIC3605

5. Fuel gauge (P. 2-7)

6. Meter illumination control knob (P. 2-8)

7. Dot matrix liquid crystal display (P. 2-21)

8. Odometer/twin trip odometer (P. 2-6)

0-10 Illustrated table of contents

ENGINE COMPARTMENT

VK45DE ENGINE*

1. Fuse/fusible link holder (P. 8-25)

2. Battery (P. 8-17) — Jump starting (P. 6-8)

3. Engine oil filler cap (P. 8-12)

8. Radiator filler cap (P. 8-10) — Vehicle overheat (P. 6-11)

9. Engine drive belt location (P. 8-19)

10. Engine oil dipstick (P. 8-12)

11. Air cleaner (P. 8-22)

* Shown with the engine compartment access

panels removed. For removal and replacement instructions, see “ENGINE COMPARTMENT CHECK LOCATIONS” in the “8. Maintenance and do-it-yourself” section.

SDI2154

4. Brake fluid reservoir (P. 8-16)

5. Window washer fluid reservoir (P. 8-17)

6. Engine coolant reservoir (P. 8-10)

7. Power steering fluid reservoir (P. 8-16)

Illustrated table of contents 0-11

VQ35HR ENGINE*

1. Fuse/fusible link holder (P. 8-25)

2. Battery (P. 8-17) — Jump starting (P. 6-8)

7. Window washer fluid reservoir (P. 8-17)

8. Power steering fluid reservoir (P. 8-16)

9. Air cleaner (P. 8-22)

10. Engine drive belt location (P. 8-19)

11. Engine coolant reservoir (P. 8-10) * Shown with the engine compartment access

panels removed. For removal and replacement instructions, see “ENGINE COMPARTMENT CHECK LOCATIONS” in the “8. Maintenance and do-it-yourself” section.

SDI2307

3. Radiator filler cap (P. 8-10) — Vehicle overheat (P. 6-11)

4. Engine oil dipstick (P. 8-12)

5. Engine oil filler cap (P. 8-12)

6. Brake fluid reservoir (P. 8-16)

0-12 Illustrated table of contents

1 Safety — Seats, seat belts and supplemental restraint system

Seats .............................................1-2

Front seats .....................................1-2

Rear seats ......................................1-4

Head restraints .................................1-5

Front-seat Active Head Restraints .................1-6

Armrest ........................................1-6

Seat belts ........................................ 1-8

Precautions on seat belt usage .................. 1-8

Child safety....................................1-10

Pregnant women ...............................1-11

Injured persons ................................1-11

Pre-crash seat belts (front seats) ................1-11

Three-point type seat belt .......................1-12

Seat belt extenders.............................1-14

Seat belt maintenance..........................1-15

Child restraints ...................................1-15

Precautions on child restraints ..................1-15

Lower Anchors and Tethers for CHildren

system (LATCH) ................................1-17

Top tether strap child restraint ..................1-19

Child restraint installation using LATCH ......... 1-20

Child restraint installation using the seat

belts ......................................... 1-24

Booster seats .................................... 1-30

Precautions on booster seats................... 1-30

Booster seat installation ....................... 1-32

Supplemental restraint system .................... 1-34

Precautions on supplemental restraint

system ....................................... 1-34

INFINITI Advanced Air Bag System

(front seats) .................................. 1-40

Front seat-mounted side-impact supplemental air bags and roof-mounted curtain side-impact supplemental air bag

systems .......................................1-45

Seat belts with pretensioners (front seats) ...... 1-46

Supplemental air bag warning labels ........... 1-47

Supplemental air bag warning light ............. 1-48

Repair and replacement procedure ..............1-48

SEATS

● The seat back should not be reclined any more thanneeded for comfort.Seat belts are most effective when the passenger sits well back and straight up in the seat. If the seat back is reclined,the risk of slidingunder the lap belt and being injured is increased.

CAUTION

When adjusting the seat positions, be surenot to contact any moving parts to avoid possible injuries and/or damages.

WARNING

● Do not ride in a moving vehicle when the seatback is reclined. Thiscan be dangerous. The shoulder belt will not be against your body. In an accident, you could be thrown into it andreceive neck or otherserious injuries. You could also slide under the lap belt and receive serious internal injuries.

● For the most effective protection when the vehicle is in motion, the seat should be upright. Always sit well back in the seat with both feet on the floor and adjust the seat properly. See “PRECAUTIONS ON SEAT BELT USAGE” later in this section.

● Do not adjust the driver’s seat while driving so full attention may be given to vehicle operation. The seat may move suddenly and could cause loss of control of the vehicle.

● After adjustment, gently rock in the seat to make sure it is securely locked.

● Do not leave children unattended inside the vehicle. They could unknowingly activate switches or controls. Unattended children could become involved in serious accidents.

1-2 Safety — Seats, seat belts and supplemental restraint system

SSS0133

FRONT SEATS Front power seat adjustment

Operating tips::

● The power seat motor has an auto-reset overload protection circuit. If the motor stops during operation, wait 30 seconds, then reactivate the switch.

● Do not operate the power seat switch for a long period of time when the engine is off. This will discharge the battery.

See “AUTOMATIC DRIVE POSITIONER” in the “3. Pre-driving checks and adjustments” section for the seat position memory function.

Forward and backward:

Moving the switch slide the seat forward or backward to the desired position.

Reclining:

Move the recline switch desired angle is obtained. To bring the seatback forward again, move the switch

forward or backward will

䊊

backward until the

䊊

forward.

䊊

SSS0474 SSS0475

The reclining feature allows adjustment of the seatback for occupants of different sizes for added comfort and to help obtain proper seat belt fit. (See “PRECAUTIONS ON SEAT BELT USAGE” later in this section.) Also, the seatback can be reclined to allow occupants to rest when the vehicle is stopped and the transmission is in the P (Park) position with the parking brake fully applied.

Safety — Seats, seat belts and supplemental restraint system 1-3

Seat lifter:

Push the front or rear end of the switch up or down to adjust the angle of the front portion or height of the seat.

SSS0476 SSS0631 SSS0478

Lumbar support:

The lumbar support feature provides lower back support.

Push the front to adjust the seatback lumbar area.

䊊

or back

end of the switch

䊊

REAR SEATS Rear power seat adjustment (if so

equipped)

Forward and backward:

Push the front to move the rear outboard seats forward or backward. The seats move continuously while the switch is being pushed.

䊊

1-4 Safety — Seats, seat belts and supplemental restraint system

or back

end of the switch

䊊

Entry/exit assist (automatic return):

Pushing the ON side the rear center armrest, the automatic return function will activate.

When a rear door is opened, the rear seat of the corresponding side automatically slides all the way back, facilitating ease of entry and exit.

Pushing the CANCEL side deactivate the automatic return function.

of the switch located on

䊊

of the switch will

䊊

HEAD RESTRAINTS

WARNING

Head restraints shouldbe adjusted properly as they mayprovide significant protectionagainst injury in an accident. Do not remove them. Check the adjustment after someone else uses the seat.

SSS0228A SSS0287

Adjustment

To raise the head restraint, pull it up.

To lower, push and hold the lock knob push the head restraint down.

To adjust the head restraint angle the direction required. (front seat head restraints)

䊊

and

䊊

, push it in

Adjust the head restraint so the center is level with the center of your ears.

Safety — Seats, seat belts and supplemental restraint system 1-5

SSS0508 SIC2783

FRONT-SEAT ACTIVE HEAD RESTRAINTS

WARNING

● Always adjust the head restraints properly as specified in this section. Failure to do so can reduce the effectiveness of the Active Head Restraint.

● Active Head Restraints are designed to supplement other safety systems. Always wear seat belts. No system can prevent all injuries in any accident.

● Do not attach anything to the head restraint stalks. Doing so could impair Active Head Restraint function.

The Active Head Restraint moves forward utilizing the force that the seatback receives from the occupant in a rear-end collision. The movement of the head restraint helps support the occupant’s head by reducing its backward movement and helping absorb some of the forces that may lead to whiplash-type injuries.

Active Head Restraints are effective for collisions at low to medium speeds in which it is said that whiplash injury occurs most.

Active Head Restraints operate only in certain rear-end collisions. After the collision, the head restraints return to their original positions.

Properly adjust the Active Head Restraints as described earlier in this section.

ARMREST Front armrest

Pull the lever passenger’s armrest forward and backward.

Slide the armrest to the original position when using the front cup holders.

up and slide the driver’s or

䊊

1-6 Safety — Seats, seat belts and supplemental restraint system

SSS0520 SSS0479

Rear armrest

Pull the armrest down until it is horizontal.

Trunk pass-through

The rear center seatback can be folded to allow trunk access from inside of the vehicle.

To access the trunk, pull down the rear center armrest and pull out the trunk pass-through

lid

䊊

To lock the lid, use the mechanical key and turn it to the LOCK position mechanical key to the UNLOCK position the mechanical key usage, see “KEYS” in the “3. Pre-driving checks and adjustments” section.

Make sure that the mechanical key is removed from the trunk pass-through lid key cylinder before opening or closing the lid. Otherwise the lid and the rear armrest may be damaged.

. To unlock, turn the

䊊

. For

Safety — Seats, seat belts and supplemental restraint system 1-7

SEAT BELTS

PRECAUTIONS ON SEAT BELT USAGE

If you are wearing your seat belt properly adjusted, and you are sitting upright and well back in your seat with both feet on the floor, your chances of being injured or killed in an accident and/or the severity of injury may be greatly reduced. INFINITI strongly encourages you and all of your passengers to buckle up every time you drive, even if your seating position includes a supplemental air bag.

Most U.S. states and Canadian provinces or territories specify that seat belts be worn at all times when a vehicle is being driven.

SSS0136

1-8 Safety — Seats, seat belts and supplemental restraint system

SSS0134

SSS0016

SSS0014

WARNING

● Every person who drives or rides in this vehicle shoulduse a seatbelt at alltimes. Children should be properly restrained in the rear seat and, if appropriate, in a child restraint.

● The seat belt should be properly adjustedto a snug fit. Failure to do so may reduce the effectiveness of the entire restraint system and increase the chance or severity ofinjury in an accident. Serious injury or death can occur if the seat belt is not worn properly.

● Always route the shoulder belt over your shoulder and across your chest. Never put the belt behindyour back, under yourarm or across your neck. The belt should be away from your face and neck, but not falling off your shoulder.

● Position the lap belt as low and snug as possible AROUNDTHE HIPS,NOT THE WAIST. A lap belt worn too high could increase the risk of internal injuries in an accident.

● Be sure the seat belt tongue is securely fastened to the proper buckle.

● Do not wear the seat belt inside out or twisted. Doing so may reduce its effectiveness.

● Do notallow morethan oneperson touse the same seat belt.

● Never carry more people in the vehicle than there are seat belts.

● If the seat belt warning light glows continuously while theignition is turned ONwith all doors closed and all seat belts fastened, it may indicate a malfunction in the system. Have the system checked by an INFINITI dealer.

● No changes should be made to the seat belt system. For example, do notmodify the seat belt, add material, or install devices that may change the seatbelt routing or tension. Doing somay affect theoperation ofthe seat belt system. Modifying or tampering with the seat belt system may result in serious personal injury.

● Once a seat belt pretensioner has activated, it cannot be reused and must be replaced together with the retractor. See an INFINITI dealer.

● Removal andinstallation of thepretensioner system components should be done by an INFINITI dealer.

Safety — Seats, seat belts and supplemental restraint system 1-9

● All seatbelt assemblies,including retractors and attaching hardware, should be inspected after any collision by an INFINITI dealer. INFINITI recommends that all seat belt assemblies in use during a collision be replaced unless the collision was minor and the belts show no damage and continue to operate properly. Seat belt assemblies not in use during a collision should also be inspected and replaced if either damage or improper operation is noted.

● All child restraints and attaching hardware should be inspected after any collision. Always follow the restraint manufacturer’s inspection instructions and replacement recommendations. The child restraints should be replaced if they are damaged.

CHILD SAFETY

Children need adults to help protect them. They need to be properly restrained.

In addition to the general information in this manual, child safety information is available from many other sources, including doctors, teachers, government traffic safety offices, and community organizations. Every child is different, so be sure to learn the best way to transport your child.

There are three basic types of child restraint systems:

● Rear-facing child restraint

● Front-facing child restraint

● Booster seat

The proper restraint depends on the child’s size. Generally, infants (up to about 1 year and less than 20 lb (9 kg)) should be placed in rear-facing child restraints. Front-facing child restraints are available for children who outgrow rear-facing child restraints and are at least 1 year old. Booster seats are used to help position a vehicle lap/shoulder belt on a child who can no longer use a front-facing child restraint.

Infants and children need special protection. The vehicle’s seat belts may not fit them properly. The shoulder belt may come too close to the face or neck. The lap belt may not fit over their small hip bones. In an accident, an improperly fittingseat belt couldcause serious or fatal injury. Always use appropriate child restraints.

All U.S. states and Canadian provinces or territories require the use of approved child re-

1-10 Safety — Seats, seat belts and supplemental restraint system

WARNING

straints for infants and small children. (See “CHILD RESTRAINTS” later in this section.)

Also, there are other types of child restraints available for larger children for additional protection.

INFINITI recommends thatall pre-teens and children be restrained in the rear seat. According to accident statistics, children are safer when properly restrained in the rear seat than in the front seat. This is especially important because your vehicle has a supplemental restraint system (air bag system) for the front passenger. (See “SUPPLEMENTAL RESTRAINT SYSTEM” later in this section.)

Infants

Infants up to at least 1 year old should be placed in a rear-facing child restraint. INFINITI recommends that infants be placed in child restraints that comply with Federal Motor Vehicle Safety Standards or Canadian Motor Vehicle Safety Standards. You should choose a child restraint that fits your vehicle and always follow the manufacturer’s instructions for installation and use.

Small children

Children that are over 1 year old and weigh at least 20 lb (9 kg) can be placed in a front-facing child restraint. Refer to the manufacturer’s instructions for minimum and maximum weight and height recommendations. INFINITI recommends that small children be placed in child restraints that comply with Federal Motor Vehicle Safety Standards or Canadian Motor Vehicle Safety Standards. You should choose a child restraint that fits your vehicle and always follow the manufacturer’s instructions for installation and use.

Larger children

Children who are too large for child restraints should be seated and restrained by the seat belts which are provided. The seat belt may not fit properly if the child is less than 4 ft 9 in (142.5 cm) tall and weighs between 40 lb (18 kg) and 80 lb (36 kg). A booster seat should be used to obtain proper seat belt fit.

INFINITI recommends that a child be placed in a commercially available booster seat if the shoulder belt in the child’s seating position fits close to the face or neck or if the lap portion of the seat belt goes across the abdomen. The booster seat should raise the child so that the shoulder belt is properly positioned across the top, middle portion of the shoulder and the lap

belt is low on the hips. A booster seat can only be used in seating positions that have a threepoint type seat belt. The booster seat should fit the vehicle seat and have a label certifying that it complies with Federal Motor Vehicle Safety Standards or Canadian Motor Vehicle Safety Standards. Once the child has grown so the shoulder belt is no longer on or near the face and neck, use the shoulder belt without the booster seat.

WARNING

Never let achild stand or kneel onany seat and do notallow a childin thecargo areas whilethe vehicle is moving. The child could be seriously injured or killed in an accident or sudden stop.

PREGNANT WOMEN

INFINITI recommends that pregnant women use seat belts. The seat belt should be worn snug, and always position the lap belt as low as possible around the hips, not the waist. Place the shoulder belt over your shoulder and across your chest. Never run the lap/shoulder belt over your abdominal area. Contact your doctor for specific recommendations.

Safety — Seats, seat belts and supplemental restraint system 1-11

INJURED PERSONS

INFINITI recommends that injured persons use seat belts, depending on the injury. Check with your doctor for specific recommendations.

PRE-CRASH SEAT BELTS (front seats)

The pre-crash seat belt tightens the seat belt to help restrain front seat occupants under emergency braking. This can help reduce the risk of injury when a collision occurs.

Pre-crash seat belt will not be activated when:

● the brake pedal is not depressed

● the seat belt is not fastened

● the selector lever is in the R (Reverse) posi-

tion

● the vehicle speed is under 10 MPH (15 km/h) Always wear your seat belt correctly and sit

upright and well back in the seat with both feet on the floor.

If the seat belt warning light blinks even if the driver’s and front passenger’s seat belts are fastened, it may indicate the pre-crash seat belt system has a malfunction. Have your INFINITI dealer check and repair the system.

THREE-POINT TYPE SEAT BELT

WARNING

● Every person who drives or rides in this vehicle should use a seat belt at all times.

● For the most effective protection when the vehicle is in motion, the seat should be upright. Always sit well back in the seat with both feeton thefloor andadjust theseat belt properly.

SSS0292 SSS0290

Fastening the seat belts

1. Adjust the seat. (See “SEATS” earlier in this section.)

2. Slowly pull the seat belt out of the retrac-

tor and insert the tongue into the buckle until you hear and feel the latch engage.

● The retractor is designed to lock during a sudden stop oron impact. A slow pullingmotion permits thebelt to move, and allowsyou some freedom of movement in the seat.

● If the seat belt cannot be pulled from itsfully retracted position, firmly pull the belt and release it. Then smoothly pull the belt out of the retractor.

3. Position the lap belt portion low and snug on the hips as shown.

4. Pull the shoulder belt portion toward the retractor to take up extra slack. Be sure the shoulder belt is routed over your shoulder and across your chest.

The front passenger and the rear seating positions three-point type seat belts have two modes of operation:

● Emergency Locking Retractor (ELR)

● Automatic Locking Retractor (ALR)

The Emergency Locking Retractor (ELR) mode allows the seat belt to extend and retract to allow the driver and passengers some freedom

1-12 Safety — Seats, seat belts and supplemental restraint system

of movement in the seat. The ELR locks the seat belt when the vehicle slows down rapidly or during certain impacts.

The Automatic Locking Retractor (ALR) mode (child restraint mode) locks the seat belt for child restraint installation.

When the ALR mode is activated the seat belt cannot be extended again until the seat belt tongue is detached from the buckle and fully retracted. The seat belt returns to the ELR mode after the seat belt fully retracts. For additional information, see “CHILD RESTRAINTS” later in this section.

The ALR mode should be used only for child restraint installation. During normal seat belt use by anoccupant, the ALR modeshould not be activated. If it is activated it may cause uncomfortable seat belttension. It canalso change the operation of the front passenger air bag. See “Front passenger air bag and status light” later in this section.

WARNING

When fastening the seat belts, be certain that seatbacks are completely secured in the latched position. If they are not completely secured, passengers may be injured in an accident or sudden stop.

To increase your confidence in the seat belts, check the operation as follows:

● Grasp the shoulder belt and pull forward

quickly. The retractor should lock and restrict further belt movement.

If the retractor does not lock during this check or if you have any question about seat belt operation, see an INFINITI dealer.

SSS0326

Unfastening the seat belts

To unfasten the seat belt, push the button on the buckle. The seat belt automatically retracts.

Checking seat belt operation

Seat belt retractors are designed to lock seat belt movement by two separate methods:

● When the belt is pulled quickly from the retractor.

● When the vehicle slows down rapidly.

Safety — Seats, seat belts and supplemental restraint system 1-13

WARNING

● After adjustment, release the adjustment button and try to move the shoulder belt anchor up and down to make sure it is securely fixed in position.

● The shoulder belt anchor height should be adjusted to the positionbest for you. Failure to do so may reduce the effectiveness of the entire restraint system and increase the chance or severity of injury in an accident.

SPA1836 SSS0294A

Center of rear seat

Selecting correct set of seat belts

The center seat belt buckle is identified by the CENTER mark can be fastened only into the center seat belt buckle.

. The center seat belt tongue

䊊

Shoulder belt height adjustment (front seats)

The shoulder belt anchor height should be adjusted to the position best for you. (See “PRECAUTIONS ON SEAT BELT USAGE” earlier in this section.)

To adjust, push the adjustment button then move the shoulder belt anchor to the desired position, so that the belt passes over the center of the shoulder. The belt should be away from your face and neck, but not falling off of your shoulder. Release the adjustment button to lock the shoulder belt anchor into position.

1-14 Safety — Seats, seat belts and supplemental restraint system

䊊

, and

SEAT BELT EXTENDERS

If, because of body size or driving position, it is not possible to properly fit the lap-shoulder belt and fasten it, an extender is available that is compatible with the installed seat belts. The extender adds approximately 8 in (200 mm) of length and may be used for either the driver or front passenger seating position. See an INFINITI dealer for assistance if an extender is required.

WARNING

● Only INFINITI seat belt extenders, made by the same company which made the original equipment seat belts, should be used with the INFINITI seat belts.

CHILD RESTRAINTS

● Adults and children who can use the standard seat belt should not use an extender. Such unnecessary use could result in serious personal injury in the event of an accident.

● Never use seatbelt extenders to installchild restraints. If the child restraint is not secured properly, the child could be seriously injured in a collision or a sudden stop.

SEAT BELT MAINTENANCE

● To clean the seat belt webbings, apply a mild

soap solution or any solution recommended for cleaning upholstery or carpets. Then, wipe with a cloth and allow the seat belts to dry in the shade. Do not allow the seat belts to retract until they are completely dry.

● If dirt builds up in the shoulder belt guide of

the seat belt anchors, the seat belts may retract slowly. Wipe the shoulder belt guide with a clean, dry cloth.

● Periodically check to see that the seat belt and the metal components, such as buckles,

tongues, retractors, flexible wires and anchors work properly. If loose parts, deterioration, cuts or other damage on the webbing is found, the entire seat belt assembly should be replaced.

PRECAUTIONS ON CHILD RESTRAINTS

WARNING

● Infants and small children should always be placed in an appropriate child restraint while riding in the vehicle. Failure to use a child restraint can result in serious injury or death.

● Infants and small children should never be carried onyour lap.It is notpossible foreven the strongest adult to resist the forces of a

SSS0099

SSS0100

Safety — Seats, seat belts and supplemental restraint system 1-15

severe accident. The child could be crushed between the adult and parts of the vehicle. Also, do not put the same seat belt around both your child and yourself.

● Even with theINFINITI Advanced AirBag System, never install a rear-facing child restraint in thefront seat. An inflating frontair bag couldseriously injureor killyour child.A rear-facing child restraintmust only be used in the rear seat.

● INFINITI recommends that thechild restraint be installed in the rear seat. According to accident statistics, children are safer when properly restrained in the rear seat than in the front seat. If you must install a frontfacing child restraint in the front seat, see “CHILD RESTRAINT INSTALLATION USING THE SEAT BELTS” later in this section.

● Improper use or improper installation of a child restraintcan increase the riskor severity of injury for both the child and other occupants of the vehicle and can lead to serious injury or death in an accident.

● Follow all of the child restraint manufacturer’s instructions for installation and use. When purchasinga childrestraint, besure to select one which will fit your child and vehicle. It may not be possible to properly install some types of child restraints in your vehicle.

● If the child restraint is not anchored properly, the risk of a child being injured in a collision or a sudden stopgreatly increases.

● Child restraintanchor pointsare designed to withstand only those loads imposed by correctly fitted child restraints. Under no circumstances are they to be used for adult seat belts or harnesses.

● Adjustable seatbacks should be positioned to fit the child restraint, but as upright as possible.

● After attaching the child restraint, testit before you place the child in it. Push it from side to side while holding the seat near the LATCH attachment or by the seat belt path. The child restraint should not move more than 1 inch (25 mm) from side to side. Try to tug it forward and check to see if the belt holds therestraint in place.If the restraintis not secure, tighten the belt as necessary, or put the restraint in another seat and test it again. You may need to try a different child restraint. Not all child restraints fit in all types of vehicles.

● When your child restraint is not in use, keep it secured with the LATCH system or a seat belt to prevent it from being thrown around in case of a sudden stop or accident.

Remember that a child restraintleft in a closed vehicle canbecome very hot.Check the seating surface andbuckles beforeplacing yourchild in the child restraint.

1-16 Safety — Seats, seat belts and supplemental restraint system

CAUTION

This vehicle is equipped with a universal child restraint lower anchor system, referred to as the Lower Anchors and Tethers for CHildren System or LATCH. Some child restraints include two rigid or webbing-mounted attachments that can be connected to these lower anchors. For details, see “Lower Anchors and Tethers for CHildren SYSTEM (LATCH)” later in this section.

If you do not have a LATCH compatible child restraint, the vehicle seat belts can be used. (See “CHILD RESTRAINT INSTALLATION USING THE SEAT BELTS” later in this section.) In general, child restraints are also designed to be installed with a lap/shoulder seat belt.

Several manufacturers offer child restraints for infants and small children of various sizes. When selecting any child restraint, keep the following points in mind:

● Choose only a restraint with a label certifying that it complies with Federal Motor Vehicle Safety Standard 213 or Canadian Motor Vehicle Safety Standard 213.

● Check the child restraint in your vehicle to be sure it is compatible with the vehicle’s seat and seat belt system.

● If the child restraint is compatible with your vehicle, place your child in the child restraint and check the various adjustments to be sure the child restraint is compatible with

your child. Choose a child restraint that is designed for your child’s height and weight. Always follow all recommended procedures.

All U.S.states andCanadian provinces orterritories require that infants and small children be restrained in an approved child restraint at all times while the vehicle isbeing operated. Canadian law requires the top tether strap on frontfacing child restraints be secured to the designated anchor point on the vehicle.

The LATCH anchor points are provided to install child restraints in the rear outboard seating positions only. Do not attempt to install a child restraint in the center position using the LATCH anchors.

SSS0567

LATCH system anchor location

LOWER ANCHORS AND TETHERS FOR CHILDREN SYSTEM (LATCH)

Your vehicle is equipped with special anchor points that are used with Lower Anchors and Tethers for CHildren System (LATCH) compatible child restraints. This system may also be referred to as the ISOFIX or ISOFIX compatible system. With this system, you do not have to use a vehicle seat belt to secure the child restraint.

Safety — Seats, seat belts and supplemental restraint system 1-17

SSS0659

LATCH lower anchor location (Type A)

SSS0637

LATCH lower anchor location (Type B)

LATCH lower anchor point locations

The LATCH anchors are located at the rear of the seat cushion near the seatback. A label is attached to the seatback to help you locate the LATCH anchors.

WARNING

● Attach LATCH system compatible child restraints only at the locations shown in the illustration. Ifa child restraint isnot secured properly, your child could be seriously injured or killed in an accident.

● Do not secure a child restraint in the center rear seating position using the LATCH anchors. The childrestraint will not besecured properly.

● Child restraintanchor pointsare designed to withstand only those loads imposed by correctly fitted child restraints. Under no circumstances are they to be used for adult seat belts or harnesses.

SSS0643

LATCH webbing-mounted attachment

Installing child restraint LATCH anchor attachments

LATCH compatible child restraints include two rigid or webbing-mounted attachments that can be connected to two anchors located at certain seating positions in your vehicle. With this system, you do not have to use a vehicle seat belt to secure the child restraint. Check your child restraint for a label stating that it is compatible with the LATCH system. This information may also be in the instructions provided by the child restraint manufacturer.

1-18 Safety — Seats, seat belts and supplemental restraint system

SSS0644

LATCH rigid-mounted attachment

LATCH child restraints generally require the use of a top tether strap. (See “TOP TETHER STRAP CHILD RESTRAINT” later in this section for installation instructions.)

When installing a child restraint, carefully read and follow the instructions in this manual and those supplied with the child restraint. (See “CHILD RESTRAINT INSTALLATION USING LATCH” later in this section.)

TOP TETHER STRAP CHILD RESTRAINT

If the manufacturer of your child restraint requires the use of a top tether strap, it must be secured to an anchor point.

WARNING

Child restraint anchor points are designed to withstand only those loads imposed by correctly fitted child restraints. Under no circumstances are they to be usedfor adult seat belts or harnesses.

SSS0568

Top tether anchor point locations

Anchor points are located on the rear parcel shelf.

Installing top tether strap

First secure the child restraint with the LATCH system (rear outboard seating positions only) or the seat belt as applicable.

1. Flip up the anchor cover from the anchor point which is located directly behind the child seat.

2. Position the top tether strap over the top

of the seatback.

Safety — Seats, seat belts and supplemental restraint system 1-19

3. Secure the tether strap to tether anchor bracket that provides the straightest installation.

4. Tighten the strap according to the manufacturer’s instructions to remove any slack.

If you have any questions when installing a top tether strap childrestraint on the rear seat,consult your INFINITI dealer for details.

CHILD RESTRAINT INSTALLATION USING LATCH

WARNING

● Attach LATCH system compatible child restraints only at the locations shown. For the LATCH lower anchor locations, see “Lower Anchors and Tethers for CHildren SYSTEM (LATCH)” earlier in this section. If a child restraint is not secured properly, your child could be seriously injured or killed in an accident.

● The LATCH anchors are designed to withstand only those loadsimposed by correctly fitted child restraints. Under no circumstance are they to be used for adult seat belts or harnesses.

● Inspect the lower anchors by inserting your fingers into the lower anchor area and feeling to make sure there are no obstructions over the LATCH anchors, such as seat belt webbing or seat cushion material. The child restraint will not be secured properly if the LATCH anchors are obstructed.

Front-facing

Follow these steps to install a front-facing child restraint using LATCH system:

1. If your vehicle is equipped with rear power seat adjustment, adjust the rear outboard seats to the upright and rearmost position. (See “REAR SEATS” earlier in this section.)

2. Position the child restraint on the seat.

Always follow the child restraint manufacturer’s instructions.

SSS0645

Front-facing (webbing-mounted) — step 3

3. Secure the child restraint anchor attachments to the LATCH lower anchors. Check to make sure the LATCH attachment is properly attached to the lower anchors.

1-20 Safety — Seats, seat belts and supplemental restraint system

SSS0646

Front-facing (rigid-mounted) — step 3

4. The back of the child restraint should be secured against the vehicle seatback. If necessary, adjust or remove the head restraint to obtain the correct child restraint fit. (See “HEAD RESTRAINTS” earlier in this section.)

If the head restraint is removed, store it in a secure place. Be sure to reinstall the head restraint when the child restraint is removed.

If the seating position does not have an adjustable head restraint and it is interfering with the proper child restraint fit, try another seating position or a different child restraint.

SSS0647

Front-facing — step 5

5. For child restraints that are equipped with webbing-mounted attachments, remove any additional slack from the anchor attachments. Press downward and rearward firmly in the center of the child restraint with your knee to compress the vehicle seat cushion and seatback while tightening the webbing of the anchor attachments.

6. If the child restraint is equipped with a

top tether strap, route the top tether strap and secure the tether strap to the tether anchor point. (See “TOP TETHER STRAP CHILD RESTRAINT” earlier in this section.)

Safety — Seats, seat belts and supplemental restraint system 1-21

SSS0638

Front-facing — step 7

7. After attaching the child restraint, test it before you place the child in it. Push it from side to side while holding the seat near the LATCH attachment path. The child restraint should not move more than 1 inch (25 mm) from side to side. Try to tug it forward and check to see if the LATCH attachment holds the restraint in place. If the restraint is not secure, tighten the LATCH attachment as necessary, or put the restraint in another seat and test it again. You may need to try a different child restraint. Not all child restraints fit in all types of vehicles.

8. Check to make sure the child restraint is properly secured prior to each use. If the child restraint is loose, repeat steps 4 through 7.

Rear-facing

Follow these steps to install a rear-facing child restraint using LATCH system:

1. If your vehicle is equipped with rear power

seat adjustment, adjust the rear outboard seats to the upright and rearmost position. (See “REAR SEATS” earlier in this section.)

2. Position the child restraint on the seat. Always follow the child restraint manufacturer’s instructions.

SSS0648

Rear-facing (webbing-mounted) — step 3

3. Secure the child restraint anchor attachments to the LATCH lower anchors. Check to make sure the LATCH attachment is properly attached to the lower anchors.

1-22 Safety — Seats, seat belts and supplemental restraint system

SSS0649

Rear-facing (rigid-mounted) — step 3

Rear-facing — step 4

SSS0639

SSS0650

Rear-facing — step 5

4. For child restraints that are equipped with webbing-mounted attachments, remove any additional slack from the anchor attachments. Press downward and rearward firmly in the center of the child restraint with your hand to compress the vehicle seat cushion and seatback while tightening the webbing of the anchor attachments.

Safety — Seats, seat belts and supplemental restraint system 1-23

5. After attaching the child restraint, test it before you place the child in it. Push it from side to side while holding the seat near the LATCH attachment path. The child restraint should not move more than 1 inch (25 mm) from side to side. Try to tug it forward and check to see if the LATCH attachment holds the restraint in place. If the restraint is not secure, tighten the LATCH attachment as necessary, or put the restraint in another seat and test it again. You may need to try a different child restraint. Not all child restraints fit in all types of vehicles.

6. Check to make sure the child restraint is properly secured prior to each use. If the child restraint is loose, repeat steps 4 through 5.

CHILD RESTRAINT INSTALLATION USING THE SEAT BELTS

● Even with theINFINITI Advanced AirBag System, never install a rear-facing child restraint in the front passenger seat. Front air bags inflate with great force. A rear-facing child restraintcould be struckby thefront air bag in a crash and could seriously injure or kill your child.

1-24 Safety — Seats, seat belts and supplemental restraint system

WARNING

SSS0100

● INFINITI recommendsthat child restraintsbe installed in the rear seat. However, if you must install a front-facing child restraint in the front passenger seat, move the passenger seat to the rearmost position. Also, be sure the front passenger air bag statuslight is illuminated to indicate the passenger air bag isOFF. See “Front passengerair bag and status light” later in this section for details.

● The three-point seat belt in your vehicle is equipped with an Automatic LockingRetractor (ALR) mode which must be used when installing a child restraint.

● Failure to use the ALRmode will result in the child restraint not being properly secured. The restraint could tip over or otherwise be unsecured and cause injury to the child in a sudden stop or collision. Also, itcan change the operation of thefront passenger air bag. See “Front passenger air bag and status light” later in this section.

● A child restraint with a top tether strap should not be used in the front passenger seat.

The instructions in this section apply to child restraint installation using the vehicle seat belts in the rear seat or the front passenger seat.

SSS0640

Front-facing (front passenger seat) — step 1

Front-facing

Follow these steps to install a front-facing child restraint using the vehicle seat belt in the rear seat or in the front passenger seat:

1. If your vehicle is equipped with rear power seat adjustment, adjust the rear outboard seats to the upright and rearmost position. (See “REAR SEATS” earlier in this section.)

If youmust installa childrestraint inthe front seat, it should be placed in a front-facing direction only. Move theseat to the rearmost position. Child restraints for infants must be used in the rear-facing direction and therefore must not be used in the front seat.

2. Position the child restraint on the seat.

Always follow the child restraint manufacturer’s instructions.

The back of the child restraint should be secured against the seatback. If necessary, adjust or remove the head restraint to obtain the correct child restraint fit. (See “HEAD RESTRAINTS” earlier in this section.)

If the head restraint is removed, store it in a secure place. Be sure to reinstall the head restraint when the child restraint is removed.

If the seating position does not have an adjustable head restraint and it is interfering with the proper child restraint fit, try another seating position or a different child restraint.

SSS0360B

Front-facing — step 3

3. Route the seat belt tongue through the child restraint and insert it into the buckle until you hear and feel the latch engage. Be sure to follow the child restraint manufacturer’s instructions for belt routing.

Safety — Seats, seat belts and supplemental restraint system 1-25

Front-facing — step 4

SSS0651

Front-facing — step 5

SSS0652

SSS0653

Front-facing — step 6

4. Pull the shoulder belt until the belt is fully extended. At this time, the seat belt retractor is in the Automatic Locking Retrac-

5. Allow the seat belt to retract. Pull up on the shoulder belt to remove any slack in the belt.

tor (ALR) mode (child restraint mode). It reverts to the Emergency Locking Retractor (ELR) mode when the seat belt is fully retracted.

1-26 Safety — Seats, seat belts and supplemental restraint system

6. Remove any additional slack from the seat belt; press downward and rearward firmly in the center of the child restraint with your knee to compress the vehicle seat cushion and seatback while pulling up on the seat belt.

7. If the child restraint is equipped with a

top tether strap, route the top tether strap and secure the tether strap to the tether anchor point (rear seat installation only). (See “TOP TETHER STRAP CHILD RESTRAINT” earlier in this section.) Do not install child restraints that require the use of a top tether strap to seating positions that do not have a top tether anchor.

9. Check that the retractor is in the ALR mode by trying to pull more seat belt out of the retractor. If you cannot pull any more belt webbing out of the retractor, the retractor is in the ALR mode.

10. Check to make sure the child restraint is

properly secured prior to each use. If the seat belt is not locked, repeat steps 3 through 9.

SSS0641

Front-facing — step 8

8. After attaching the child restraint, test it before you place the child in it. Push it from side to side while holding the seat near the seat belt path. The child restraint should not move more than 1 inch (25 mm) from side to side. Try to tug it forward and check to see if the belt holds the restraint in place. If the restraint is not secure, tighten the belt as necessary, or put the restraint in another seat and test it again. You may need to try a different child restraint. Not all child restraints fit in all types of vehicles.

SSS0481

Front-facing — step 11

11. If the child restraint is installed in the front passenger seat, push the ignition switch to the ON position. The front pas-

senger air bag status light

should illuminate. If this light is not illuminated, see “Front passenger air bag and status light” later in this section. Move the child restraint to another seating position . Have the system checked by an INFINITI dealer.

After the child restraint is removed and the seat belt is fully retracted, the ALR mode (child restraint mode) is canceled.

Safety — Seats, seat belts and supplemental restraint system 1-27

SSS0100

Rear-facing

Follow these steps to install a rear-facing child restraint using the vehicle seat belt in the rear seat:

1. Child restraints for infantsmust be used in

the rear-facing direction and therefore

3. Route the seat belt tongue through the

Rear-facing — step 3

child restraint and insert it into the buckle until you hear and feel the latch engage. Be sure to follow the child restraint manufacturer’s instructions for belt routing.

must not be used in the front seat.

If your vehicle is equipped with rear power seat adjustment, adjust the rear outboard seats to the upright and rearmost position. (See “REAR SEATS” earlier in this section.)

2. Position the child restraint on the seat. Always follow the restraint manufacturer’s instructions.

1-28 Safety — Seats, seat belts and supplemental restraint system

SSS0654

SSS0655

Rear-facing — step 4

4. Pull the shoulder belt until the belt is fully extended. At this time, the seat belt retractor is in the Automatic Locking Retractor (ALR) mode (child restraint mode). It reverts to the Emergency Locking Retractor (ELR) mode when the seat belt is fully retracted.

Rear-facing — step 5

SSS0656

Rear-facing — step 6

SSS0657

SSS0658

Rear-facing — step 7

5. Allow the seat belt to retract. Pull up on the shoulder belt to remove any slack in the belt.

6. Remove any additional slack from the child restraint; press downward and rearward firmly in the center of the child restraint with your hand to compress the vehicle seat cushion and seatback while pulling up on the seat belt.

Safety — Seats, seat belts and supplemental restraint system 1-29

7. After attaching the child restraint, test it before you place the child in it. Push it from side to side while holding the seat near the seat belt path. The child restraint should not move more than 1 inch (25 mm) from side to side. Try to tug it forward and check to see if the belt holds the restraint in place. If the restraint is not secure, tighten the belt as necessary, or put the restraint in another seat and test it again. You may need to try a different child restraint. Not all child restraints fit in all types of vehicles.

BOOSTER SEATS

8. Check that the retractor is in the ALR mode by trying to pull more seat belt out of the retractor. If you cannot pull any more seat belt webbing out of the retractor, the retractor is in the ALR mode.

9. Check to make sure that the child restraint is properly secured prior to each use. If the seat belt is not locked, repeat steps 3 through 8.

After the child restraint is removed and the seat belt fully retracted, the ALR mode (child restraint mode) is canceled.

SSS0099

PRECAUTIONS ON BOOSTER SEATS

WARNING

● Infants and small children should always be placed in an appropriate child restraint while riding in the vehicle. Failure to use a child restraint or booster seat can result in serious injury or death.

● Infants and small children should never be carried onyour lap.It is notpossible foreven the strongest adult to resist the forces of a severe accident. The child could be crushed between the adult and parts of the vehicle. Also, do not put the same seat belt around both your child and yourself.

● INFINITI recommends that the booster seat be installed in the rear seat. According to accident statistics, children are safer when properly restrained in the rear seat than in the front seat. If you must install a booster seat in the front seat, see “BOOSTER SEAT INSTALLATION” later in this section.

● A booster seat must only be installed in a seating position that has a lap/shoulder belt. Failure to use a three-point type seat belt with a booster seat can result in a serious injury in sudden stop or collision.

● Improper use or improper installation of a booster seatcan increasethe risk orseverity of injury for both the child and other occupants of the vehicle and can lead to serious injury or death in an accident.

● Do not use towels, books, pillows or other items in place of a booster seat. Items such as these may move during normal driving or a collision and result in serious injury or death. Booster seats are designed to be used with alap/shoulder belt. Boosterseats are designed to properly route the lap and shoulder portions of the seat belt over the strongest portions of a child’s body to provide the maximum protection during a collision.

1-30 Safety — Seats, seat belts and supplemental restraint system

● Follow all ofthe booster seatmanufacturer’s instructions for installation and use. When purchasing a booster seat, be sure to select one which will fit your child and vehicle. It may not bepossible to properly installsome types of booster seats in your vehicle.

● If the booster seat and seat belt is not used properly, therisk of achild being injuredin a collision or a sudden stopgreatly increases.

● Adjustable seatbacks should be positioned to fit the booster seat, but as up- right as possible.

● After placing the child in the booster seat and fastening the seat belt, make sure the shoulder portion ofthe belt is away fromthe child’s face and neck and the lap portion of the belt does not cross the abdomen.

● Do notput the shoulderbelt behind thechild or under thechild’s arm. Ifyou must install a booster seatin thefront seat,see “BOOSTER SEAT INSTALLATION” later in this section.

● When your booster seat isnot in use, keep it secured with a seat belt to prevent it from being thrown around in case of a sudden stop or accident.

CAUTION

Remember that a booster seat left in a closed vehicle canbecome very hot.Check the seating surface andbuckles beforeplacing yourchild in the booster seat.

LRS0455

Booster seats of various sizes are offered by several manufacturers. When selecting any booster seat, keep the following points in mind:

● Choose only a booster seat with a label certifying that it complies with Federal Motor Vehicle Safety Standard 213 or Canadian Motor Vehicle Safety Standard 213.

● Check the booster seat in your vehicle to be sure it is compatible with the vehicle’s seat and seat belt system.

Safety — Seats, seat belts and supplemental restraint system 1-31

LRS0453 LRS0464

● Make sure the child’s head will be properly supported by the booster seat or vehicle seat. The seatback must be at or above the center of the child’s ears. For example, if a low back booster seat vehicle seatback must be at or above the center of the child’s ears. If the seatback is lower than the center of the child’s ears, a high back booster seat

is chosen, the

䊊

should be used.

䊊

● If the booster seat is compatible with your vehicle, place your child in the booster seat and check the various adjustments to be sure the booster seat is compatible with your child. Always follow all recommended procedures.

All U.S.states andCanadian provinces orterritories require that infants and small children be restrained in an approved child restraint at all times while the vehicle is being operated.

The instructions in this section apply to booster seat installation in the rear seats or the front passenger seat.

BOOSTER SEAT INSTALLATION

WARNING

INFINITI recommends that booster seats be installed in the rear seat. However, if you must install a booster seat in the front passenger seat, move the passenger’s seat to the rearmost position.

CAUTION

Do not use the lap/shoulder belt Automatic Locking Retractor (ALR) mode when using a booster seat with the seat belts.

Follow these steps to install a booster seat in the rear seat or in the front passenger seat:

1-32 Safety — Seats, seat belts and supplemental restraint system

Front passenger seat

SSS0640

Rear center position

LRS0451

LRS0452

Rear outboard position

1. If your vehicle is equipped with rear power seat adjustment, adjust the rear outboard seats to the upright and rearmost position. (See “REAR SEATS” earlier in this section.)

If you must install a booster seat in the front seat, move the seat to therearmost position.

2. Position the booster seat on the seat.

Only place it in a front-facing direction. Always follow the booster seat manufacturer’s instructions.

3. The booster seat should be positioned on the vehicle seat so that it is stable. If necessary, adjust or remove the head restraint to obtain the correct booster seat fit. (See “HEAD RESTRAINTS” earlier in this section.)

If the head restraint is removed, store it in a secure place. Be sure to reinstall the head restraint when the booster seat is removed.

If the seating position does not have an adjustable head restraint and it is interfering with the proper booster seat fit, try another seating position or a different booster seat.

Safety — Seats, seat belts and supplemental restraint system 1-33

4. Position the lap portion of the seat belt low and snug on the child’s hips. Be sure to follow the booster seat manufacturer’s instructions for adjusting the seat belt routing.

5. Pull the shoulder belt portion of the seat

belt toward the retractor to take up extra slack. Be sure the shoulder belt is positioned across the top, middle portion of the child’s shoulder. Be sure to follow the booster seat manufacturer’s instructions for adjusting the seat belt routing.

LRS0454

Front passenger seat

6. Follow the warnings, cautions and instructions for properly fastening a seat belt shown in the “THREE-POINT TYPE SEAT BELT” earlier in this section.

7. If the booster seat is installed in the front passenger seat, push the ignition switch to the ON position. The front passenger

air bag status light be illuminated depending on the size of the child and the type of booster seat used. (See “Front passenger air bag and status light” later in this section.)

1-34 Safety — Seats, seat belts and supplemental restraint system

SSS0481

may or may not

SUPPLEMENTAL RESTRAINT SYSTEM

PRECAUTIONS ON SUPPLEMENTAL RESTRAINT SYSTEM

This Supplemental Restraint System (SRS) section contains important information concerning the following systems:

● Driver and passenger supplemental frontimpact air bag (INFINITI Advanced Air Bag System)

● Front seat-mounted side-impact supplemental air bag

● Roof-mounted curtain side-impact supplemental air bag

● Seat belt pretensioner

Supplemental front-impact air bag system: The INFINITI Advanced Air Bag System can help cushion the impact force to the head and chest of the driver and front passenger in certain frontal collisions.

Front seat-mounted side-impact supplemental air bag system: This system can help cushion

the impact force to the chest and pelvis area of the driver and front passenger in certain side impact collisions. The side air bags are designed to inflate on the side where the vehicle is impacted.

Roof-mounted curtain side-impact supplemental air bagsystem: This system can helpcushion

the impact force to the head of occupants in front and rear outboard seating positions in certain side impact collisions. The curtain air bags are designed to inflate on the side where the vehicle is impacted.

These supplemental restraint systems are designed to supplement the crash protection provided by the driver and passenger seat belts and are not a substitute for them. Seat belts should always be correctly worn and the occupant seated a suitable distance away from the steering wheel, instrument panel and door finishers. (See “SEAT BELTS” earlier in this section for instructions and precautions on seat belt usage.)

The supplemental air bags operate only when the ignition switch is in the ON position.

After pushing theignition switch tothe ON position, thesupplemental air bagwarning lightilluminates. Thesupplemental airbag warninglight will turn off after about 7 seconds if the systems are operational.

SSS0131

SSS0132

Safety — Seats, seat belts and supplemental restraint system 1-35

WARNING

● The frontair bagsordinarily willnot inflatein the event of a side impact, rear impact, rollover, or lower severity frontal collision. Always wear yourseat belts to helpreduce the risk or severity of injury in various kinds of accidents.

● The front passenger air bagwill not inflate if the passenger air bag status light is lit or if the front passenger seat is unoccupied. See “Front passenger air bag and status light” later in this section.

● The seatbelts andthe frontair bagsare most effective when you are sitting well back and upright in the seat with both feet on the floor. The front air bags inflate with great force. Even with the INFINITI advanced air bag system, if you are unrestrained, leaning forward, sitting sideways or out of position in anyway, you areat greaterrisk of injuryor death in a crash. You may also receive serious or fatal injuries from the front air bag if

● The driver and front passenger seat belt buckles are equipped with sensors that detect if the seat belts are fastened. The Advanced AirBag Systemmonitors the severity of a collision and seat belt usage then inflates the air bags. Failure to properly wear seat beltscan increase the riskor severity of injury in an accident.

● The frontpassenger seatis equippedwith an occupant classification sensor (pressure sensor) that turns the front passenger air bag OFF under some conditions. This sensor is only used in this seat. Failure to be properly seated and wearing the seat belt can increase the risk or severity of injury in an accident. See “Front passenger air bag and status light” later in this section.

● Keep hands on the outside of the steering wheel. Placing them inside the steering wheel rim could increase the risk that they are injured when the supplemental front air bag inflates.

you areup against itwhen it inflates.Always sit back against the seatback and as faraway as practical from thesteering wheel or instrument panel. Alwaysuse the seat belts.

1-36 Safety — Seats, seat belts and supplemental restraint system

SSS0007

SSS0006

SSS0008

SSS0099

WARNING

● Never let children ride unrestrained or extend their hands or face out of the window. Do not attempt to hold them in your lap or arms. Some examples of dangerous riding positions are shown in the illustrations.

● Children may be severely injured or killed when the front air bags, side air bags or curtain air bags inflate if they are not properly restrained. Pre-teens and children should be properly restrained in the rear seat, if possible.

● Even with theINFINITI Advanced AirBag System, never install a rear-facing child restraint in thefront seat. An inflating frontair bag could seriously injure or kill your child. See “CHILD RESTRAINTS” earlier in this section for details.

SSS0009

SSS0100

Safety — Seats, seat belts and supplemental restraint system 1-37

SSS0059A

Do not lean against doors or windows.

SSS0140

SSS0159

WARNING

Front seat-mounted side-impact supplemental air bags and roof-mounted curtain side-impact supplemental air bags:

● The side air bags and curtain air bags ordinarily will not inflatein the event of a frontal impact, rear impact, rollover or lower severity side collision. Always wear your seat belts to help reduce the risk or severity of injury in various kinds of accidents.

SSS0188A

1-38 Safety — Seats, seat belts and supplemental restraint system

SSS0162

● The seat belts, the side air bags and curtain air bags are most effective when you are sitting wellback and uprightin the seat with both feet on the floor. The side air bag and curtain air bag inflate with great force. Do not allow anyone to place their hand, leg or face near the side air bag on the side of the seatback of the front seat or near the side roof rails. Do not allow anyone sitting in the front seats or rear outboard seats to extend their hand out of the windowor lean against the door. Some examples of dangerous riding positions are shown in the previous illustrations.

● When sitting in the rear seat, do not hold onto the seatback of the front seat. If the side air bag inflates, you may be seriously injured. Be especially careful with children, who should always be properly restrained. Some examples of dangerous riding positions are shown in the illustrations.

● Do not use seat covers on the front seatbacks. They may interfere with side air bag inflation.

Safety — Seats, seat belts and supplemental restraint system 1-39

1. Crash zone sensor

2. Supplemental front-impact air bag modules

3. Front seat-mounted side-impact supplemental air bag modules

4. Occupant classification system control unit

5. Occupant classification sensor (pressure

sensor)

6. Roof-mounted curtain side-impact supplemental air bags

1-40 Safety — Seats, seat belts and supplemental restraint system

SSS0480

7. Roof-mounted curtain side-impact supplemental air bags inflators

8. Air bag Control Unit (ACU)

9. Satellite sensors

10. Seat belt pretensioners

INFINITI ADVANCED AIR BAG SYSTEM (front seats)

This vehicle is equipped with the INFINITI Advanced Air Bag System for the driver and front passenger seats. This system is designed to meet certification requirements under U.S. regulations. It is also permitted in Canada.

However, all of the information, cautions and warnings in this manual still apply and must be followed.

The driver supplemental front-impact air bag is located in the center of the steering wheel. The passenger supplemental front-impact air bag is mounted in the instrument panel above the glove box. The front air bags are designed to inflate in higher severity frontal collisions, although they may inflate if the forces in another type of collision are similar to those of a higher severity frontal impact. They may not inflate in certain frontal collisions. Vehicle damage (or lack of it) is not always an indication of proper front air bag operation.

The INFINITI Advanced Air Bag System has dual stage inflators. The system monitors information from the crash zone sensor, the Air bag Control Unit (ACU), seat belt buckle switches, occupant classification sensor (pressure sensor) and passenger seat belt tension sensor. Inflator operation is based on the severity of a collision and seat belt usage for the driver. For the front passenger, it additionally monitors the weight of an occupant or object on the seat and seat belt tension. Based on information from the sensors, only one front air bag may inflate in a crash, depending on the crash severity and whether the front occupants are belted or unbelted. Additionally, the front passenger air bag may be automatically turned OFF under some conditions, depending on the weight detected on the passenger seat and how the seat belt is used. If the front passenger air bag is OFF, the passenger air bag status light will be illuminated (if the seat is unoccupied, the light will not be illuminated, but the air bag will be off). (See “Front passenger air bag and status light” later in this section for further details.) One front air bag inflating does not indicate improper performance of the system.

If you have any questions about your air bag system, contact INFINITI or an INFINITI dealer. If you are considering modification of your vehicle due to a disability, you may also contact

INFINITI. Contact information is contained in the front of this Owner’s Manual.

When a front air bag inflates, a fairly loud noise may be heard, followed by release of smoke. This smoke is not harmful and does not indicate a fire. Care should be taken not to inhale it, as it may cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly.

Front air bags, along with the use of seat belts, help to cushion the impact force on the head and chest of the front occupants. They can help save lives and reduce serious injuries. However, an inflating front air bag may cause facial abrasions or other injuries. Front air bags do not provide restraint to the lower body.

Even with INFINITI advanced air bags, seat belts should be correctly worn and the driver and passenger seated upright as far as practical away from the steering wheel or instrument panel. The front air bags inflate quickly in order to help protect the front occupants. Because of this, the force of the front air bag inflating can increase the risk of injury if the occupant is too close to, or is against, the front air bag module during inflation.

The front air bags deflate quickly after a collision.

Safety — Seats, seat belts and supplemental restraint system 1-41

The frontair bagsoperate onlywhen the ignition switch is in the ON position.

After pushing theignition switch tothe ON position, thesupplemental air bagwarning lightilluminates. Thesupplemental airbag warninglight will turnoff afterabout 7seconds ifthe systemis operational.

Status light

The front passenger air bag status light is located on the overhead console. The light operates as follows:

● Unoccupied passenger seat: The is OFF and the front passenger air bag is OFF and will not inflate in a crash.

● Passenger seat occupied by a small adult, child or child restraint as outlined in this

section: The

SSS0481

Front passenger air bag status light

Front passenger air bag and status light

WARNING

The front passenger air bag is designed to automatically turn OFF under some conditions. Read this sectioncarefully to learnhow it operates. Proper useof the seat, seat beltand child restraints is necessary for most effective protection. Failure to follow all instructions in this manual concerning the use of seats, seat belts and child restraints can increase the risk or severity of injury in an accident.

cate that the front passenger air bag is OFF and will not inflate in a crash.

● Occupied passenger seat and the passenger meets the conditions outlined in this sec-

tion: The the front passenger air bag is operational.

Front passenger air bag

The front passenger air bag is designed to automatically turn OFF when the vehicle is operated under some conditions as described below as permitted by U.S. regulations. If the front passenger air bag is OFF, it will not inflate in a crash. The driver air bag and other air bags in your vehicle are not part of this system.

The purpose of the regulation is to help reduce the risk of injury or death from an inflating air bag to certain front passenger seat occupants,

1-42 Safety — Seats, seat belts and supplemental restraint system

light

light illuminates to indi-

light is OFF to indicate that

such as children, by requiring the air bag to be automatically turned OFF. Certain sensors are used to meet the requirements.

One sensor used is the occupant classification sensor (pressure sensor). It is in the bottom of the front passenger seat cushion and is designed to detect an occupant and objects on the seat by weight. It works together with seat belt sensors described later. For example, if a child is in the front passenger seat, the Advanced Air Bag System is designed to turn the passenger air bag OFF in accordance with the regulations. Also, if a child restraint of the type specified in the regulations is on the seat, its weight and the child’s weight can be detected and cause the air bag to turn OFF. The occupant classification sensor operation can vary depending on the front passenger seat belt sensors.

The front passenger seat belt sensors are designed to detect if the seat belt is buckled and the amount of tension on the seat belt, such as when it is in the Automatic Locking Retractor (ALR) mode (child restraint mode). Based on the weight on the seat detected by the occupant classification sensor and the belt tension detected on the seat belt, the Advanced Air Bag System determines whether the front passenger air bag should be automatically turned OFF as required by the regulations.

Front passenger seat adult occupants who are properly seated and using the seat belt as outlined in this manual should not cause the passenger air bag to be automatically turned OFF. For small adults it may be turned OFF, however, if the occupant takes his/her weight off the seat cushion (for example, by not sitting upright, by sitting on an edge of the seat, or by otherwise being out of position), this could cause the sensor to turn the air bag OFF. In addition, if the occupant improperly uses the seat belt in the ALR mode, this could cause the air bag to be turned OFF. Always be sure to be seated and wearing the seat belt properly for the most effective protection by the seat belt and supplemental air bag.

INFINITI recommends that pre-teens and children be properly restrained in a rear seat. INFINITI also recommends that appropriate child restraints and booster seats be properly installed in a rear seat. If this is not possible, the occupant classification sensor and seat belt sensors are designed to operate as described above to turn the front passenger air bag OFF for specified child restraints as required by the regulations. Failing to properly secure child restrains and to use the ALR mode may allow the restraint to tip or move in an accident or sudden stop. This can also result in the passenger air bag inflating in a crash instead of being

OFF. (See “CHILD RESTRAINTS” earlier in this section for proper use and installation.)

If the front passenger seat is not occupied, the passenger air bag is designed not to inflate in a crash. However, heavy objects placed on the seat could result in air bag inflation, because of the object’s weight detected by the occupant classification sensor. Other conditions could also result in air bag inflation, such as if a child is standing on the seat, or if two children are on the seat, contrary to the instructions in this manual. Always be sure that you and all vehicle occupants are seated and restrained properly.

Using the passenger air bag status light, you can monitor when the front passenger air bag is automatically turned OFF with the seat occupied. The light will not illuminate when the front passenger seat is unoccupied.

If an adult occupant is in the seat but the passenger air bag status light is illuminated (indicating that the air bag is OFF), it could be that the person is a small adult, or is not sitting on the seat properly or not using the seat belt properly.

If a child restraint must be used in the front seat, the passenger air bag status light may or may not be illuminated, depending on the size of the child and the type of child restraint being used. If the passenger air bag status light is not

Safety — Seats, seat belts and supplemental restraint system 1-43

illuminated (indicating that the air bag might inflate in a crash), it could be that the child restraint or seat belt is not being used properly. Make sure that the child restraint is installed properly, the seat belt is used properly and the occupant is positioned properly. If the passenger air bag status light is not illuminated, reposition the occupant or child restraint in a rear seat.

If the passenger air bag status light will not illuminate even though you believe that the child restraint, the seat belts and the occupant are properly positioned, the system may be sensing an unoccupied seat (in which case the air bag is OFF). Your INFINITI dealer can check that the system is OFF by using a special tool. However, until you have confirmed with your dealer that your air bag is working properly, reposition the occupant or child restraint in a rear seat.

The INFINITI advanced air bag system and passenger air bag status light will take a few seconds to register a change in the passenger seat status. For example, if a large adult who is sitting in the front passenger seat exits the vehicle, the passenger air bag status light will change from OFF to ON for a few seconds and then to OFF. This is normal system operation and does not indicate a malfunction.

If a malfunction occurs in the front passenger air bag system, the supplemental air bag warn-

ing light gauges area, will blink. Have the system checked by an INFINITI dealer.

, located in the meter and

Other supplemental front-impact air bag precautions

WARNING

● Do not place any objects on the steering wheel pad or on the instrument panel. Also, do not place any objects between any occupant and the steering wheel or instrument panel. Such objects may become dangerous projectiles and cause injury if the front air bag inflates.

● Immediately after inflation, several front air bag system components will be hot. Do not touch them; youmay severely burn yourself.

● No unauthorized changesshould be madeto any componentsor wiring ofthe supplemental airbag system. Thisis to preventaccidental inflation of the supplemental air bag or damage tothe supplemental airbag system.

● Do not make unauthorized changes to your vehicle’s electrical system, suspension system or front end structure. This could affect proper operation ofthe front air bag system.

● Tampering with the air bag system may result in serious personal injury. Tampering includes changes to the steering wheel and the instrument panel assembly by placing material over the steering wheel pad and above the instrument panel or by installing additional trim material around the air bag system.

● Modifying or tampering with the front passenger seat may result in serious personal injury. For example, do not change the front seats by placing material on the seat cushion or by installing additional trim material, such as seat covers, on the seat that is not specifically designed to assure proper air bag operation. Additionally,do not stow any objects underthe front passengerseat orthe seat cushion and seatback. Such objects may interfere with the proper operation of the occupant classificationsensor (pressure sensor).

● No unauthorized changesshould be madeto any components or wiring of the seat belt system. This may affect the front air bag system. Tamperingwith theseat beltsystem may result in serious personal injury.

● Maintenance on andaround the front airbag system shouldbe doneby anINFINITI dealer. Installation of electrical equipment should also be done by an INFINITI dealer. The Supplemental RestraintSystem (SRS)wiring should not bemodified or disconnected. Unauthorized electrical test equipment and probing devices should not be used on the air bag system.

● A cracked windshieldshould bereplaced immediately by a qualified repair facility. A cracked windshield could affectthe function of the supplemental air bag system.

● The SRS wiring harness connectors are yellow and orange for easy identification.

When selling your vehicle, we request that you inform the buyer about the front air bag system and guide the buyer to the appropriate sections in this Owner’s Manual.

1-44 Safety — Seats, seat belts and supplemental restraint system

SSS0521

FRONT SEAT-MOUNTED SIDE-IMPACT SUPPLEMENTAL AIR BAGS AND ROOF-MOUNTED CURTAIN SIDEIMPACT SUPPLEMENTAL AIR BAG SYSTEMS

The side air bags are located in the outside of the seatback of the front seats. The curtain air bags are located in the side roof rails. These systems are designed to meet voluntary guidelines to help reduce the risk of injury to out-ofposition occupants. However, all of the informa-

tion, cautions and warnings in this manual still apply and must be followed. The side air bags

and curtain air bags are designed to inflate in higher severity side collisions, although they may inflate if the forces in another type of

collision are similar to those of a higher severity side impact. They are designed to inflate on the side where the vehicle is impacted. They may not inflate in certain side collisions on the side where the vehicle is impacted.

Vehicle damage (or lack of it) is not always an indication of proper side air bag and curtain air bag operation.

When the side air bags and curtain air bags inflate, a fairly loud noise may be heard, followed by release of smoke. This smoke is not harmful and does not indicate a fire. Care should be taken not to inhale it, as it may cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly.

Side air bags, along with the use of seat belts, help to cushion the impact force on the chest and pelvic area of the front occupants. Curtain air bags help to cushion the impact force to the head of occupants in the front and rear outboard seating positions. They can help save lives and reduce serious injuries. However, an inflating side air bag and curtain air bag may cause abrasions or other injuries. Side air bags and curtain air bags do not provide restraint to the lower body.

The seat belts should be correctly worn and the driver and passenger seated upright as far as

Safety — Seats, seat belts and supplemental restraint system 1-45

practical away from the side air bag. Rear seat passengers should be seated as far away as practical from the door finishers and side roof rails. The side air bags and curtain air bags inflate quickly in order to help protect the occupants. Because of this, the force of the side air bag and curtain air bag inflating can increase the risk of injury if the occupant is too close to, or is against, these air bag modules during inflation. The side air bag and curtain air bag will deflate quickly after the collision is over.

The side air bags and curtain air bags operate only when the ignition switch is in the ON position.

WARNING

● Do not place any objects near the seatback of the front seats. Also, do not place any objects (an umbrella, bag, etc.) between the front door finisher and the front seat. Such objects may become dangerous projectiles and cause injury if a side air bag inflates.

● Right after inflation,several side air bagand curtain air bag system components will be hot. Do not touch them; you may severely burn yourself.

● No unauthorized changesshould be madeto any components orwiring of the side airbag and curtain air bag systems. This is to prevent damage to or accidentalinflation of the side air bagand curtain airbag or damage to the side airbag and curtain air bag systems.

● Do not make unauthorized changes to your vehicle’s electrical system, suspension system or side panel. This could affect proper operation of the side air bag and curtain air bag systems.

● Tampering with the air bag system may result in serious personal injury. For example, do not change the front seats by placing material near the seatbacks or by installing additional trim material, such as seat covers, around the side air bag.

● Work around and on the side air bag and curtain air bag system should bedone by an INFINITI dealer. Installation of electrical equipment should also be done by an INFINITI dealer. The SRS wiring harnesses* should not bemodified or disconnected. Unauthorized electrical test equipment and probing devices should not be used on the side air bag or curtain air bag system. * The SRS wiring harnesses connectors are

yellow and orange for easy identification.

When selling your vehicle, we request that you inform the buyer about the side air bag and curtain air bag systems and guide the buyer to the appropriate sections in this Owner’s Manual.

SEAT BELTS WITH PRETENSIONERS (front seats)

WARNING

● The pretensioners cannotbe reusedafter activation. They must be replaced together with the retractor and buckle as a unit.

● If the vehicle becomes involved in a frontal collision but a pretensioner is not activated, be sure to have the pretensioner system checked and, if necessary, replaced by an INFINITI dealer.

● No unauthorized changesshould be madeto any components or wiring of the pretensioner system. This is to prevent damage to or accidental activation of the pretensioners. Tampering with the pretensioner system may result in serious personal injury.

● Work around and on the pretensioner system should be done by an INFINITI dealer. Installation of electrical equipment should also be done byan INFINITI dealer. Unauthorized electrical test equipment and probing devices should not be used on the pretensioner system.

1-46 Safety — Seats, seat belts and supplemental restraint system

● If you need to dispose of a pretensioner or scrap the vehicle,contact an INFINITI dealer. Correct pretensioner disposal procedures are set forth in the appropriate INFINITI Service Manual. Incorrect disposal procedures could cause personal injury.

The pretensioner system activates in conjunction with the front air bag system. Working with the seat belt retractor, it helps tighten the seat belt when the vehicle becomes involved in certain types of collisions, helping to restrain front seat occupants.

The pretensioner is encased with the seat belt retractor. These seat belts are used the same way as conventional seat belts.

When a pretensioner activates, smoke is released and a loud noise may be heard. The smoke is not harmful, and it does not indicate a fire. Care should be taken not to inhale it as it may cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly.

After pretensioner activation, load limiters allow the seat belt to release webbing (if necessary) to reduce forces against the chest.

If any abnormality occurs in the pretensioner system, the supplemental air bag warning light

will not come on, will flash intermittently or will turn on for 7 seconds and remain on after the ignition switch has been pushed to the ON position. In this case, the pretensioner may not function properly. They must be checked and repaired. Take your vehicle to the nearest INFINITI dealer.

When selling your vehicle, we request that you inform the buyer about the pretensioner system and guide the buyer to the appropriate sections in this Owner’s Manual.

SSS0330

SUPPLEMENTAL AIR BAG WARNING LABELS

Warning labels about the supplemental frontimpact air bag and front seat-mounted sideimpact supplemental air bag systems are placed in the vehicle as shown in the illustration.

SRS air bag

䊊

The warning labels are located on the surface of the sun visors.

SRS side-impact air bag

䊊

The warning label is located on the side of the passenger’s side center pillar.

Safety — Seats, seat belts and supplemental restraint system 1-47

nates for about 7 seconds and then turns off. This means the system is operational.

If any of the following conditions occur, the front air bag, side air bag, curtain air bag and pretensioner systems need servicing:

● The supplemental air bag warning light re-

mains on after approximately 7 seconds.

● The supplemental air bag warning light

flashes intermittently.

● The supplemental air bag warning light does

SPA1097

SUPPLEMENTAL AIR BAG WARNING LIGHT

The supplemental air bag warning light, displaying

tors the circuits of the supplemental frontimpact air bag, front seat-mounted side-impact supplemental air bag, roof-mounted curtain side-impact supplemental air bag and seat belt pretensioner systems. The monitored circuits include the Air bag Control Unit (ACU), satellite sensors, occupant classification system, crash zone sensor, front air bag modules, side air bag modules, curtain air bag modules, pretensioners and all related wiring.

When the ignition switch is in the ON position, the supplemental air bag warning light illumi-

in the instrument panel, moni-

not come on at all.

Under these conditions, the front air bag, side air bag, curtain air bag or pretensioner systems may not operate properly. They must be checked and repaired. Take your vehicle to the nearest INFINITI dealer.

If the supplemental air bagwarning light is on, it could mean that the front air bag, side air bag, curtain air bag and/or pretensioner systems will not operate in an accident. To help avoid injury to yourself or others, have your vehicle checked by a dealer as soon as possible.

1-48 Safety — Seats, seat belts and supplemental restraint system

REPAIR AND REPLACEMENT PROCEDURE

The front air bags, side air bags, curtain air bags and pretensioners are designed to activate on a one-time-only basis. As a reminder, unless it is damaged, the supplemental air bag warning light will remain illuminated after inflation has occurred. Repair and replacement of these systems should be done only by an INFINITI dealer.

When maintenance work is required on the vehicle, the front air bags, side air bags, curtain air bags, pretensioners and related parts should be pointed out to the person conducting the maintenance. The ignition switch should always be in the LOCK position when working under the hood or inside the vehicle.

WARNING

● Once a front air bag, side air bag or curtain air bag has inflated, the air bag module will not function again and must be replaced. Additionally, if any of the front air bags inflate, the activated pretensioner system must also be replaced. The air bag module and pretensioners should be replaced by an INFINITI dealer.The airbag modules andpretensioner system cannot be repaired.

● The front air bag, sideair bag and curtain air bag systems and pretensioner system should be inspected by an INFINITI dealer if there is any damage to the front end or side portion of the vehicle.

● If you need to dispose of the supplemental air bag, pretensioner systems or scrap the vehicle, contact an INFINITI dealer. Correct supplemental air bag and pretensioner system disposal procedures are set forth in the appropriate INFINITI Service Manual. Incorrect disposal procedures could cause personal injury.

Safety — Seats, seat belts and supplemental restraint system 1-49

2 Instruments and controls

Cockpit........................................... 2-2

Instrument panel ..................................2-3

Meters and gauges................................ 2-5

Speedometer and odometer..................... 2-6

Tachometer ....................................2-6

Engine coolant temperature gauge ............... 2-7

Fuel gauge..................................... 2-7

Meter/ring illumination and needle sweep........ 2-8

Compass (if so equipped) .......................... 2-9

Zone variation change procedure ............... 2-10

Warning/indicator lights and audible reminders..... 2-12

Checking bulbs ............................... 2-13

Warning lights ................................ 2-13

Indicator lights................................ 2-18

Audible reminders.............................2-20

Dot matrix liquid crystal display ................... 2-21

Indicators for operation........................2-22

Security systems .................................2-24

Vehicle security system........................2-24

INFINITI Vehicle Immobilizer System ............ 2-25

Windshield wiper and washer switch............... 2-27

Rain-sensing auto wiper system ................2-28

Rear window and outside mirror defroster switch . . . 2-28

Headlight and turn signal switch ..................2-29

Xenon headlights .............................2-29

Headlight switch .............................. 2-29

Turn signal switch............................. 2-33

Fog light switch ...............................2-33

Hazard warning flasher switch..................... 2-33

Horn ............................................2-34

Heated seats (rear seats) (if so equipped) .......... 2-34

Climate controlled seats (front seats) .............. 2-35

Lane Departure Warning (LDW) switch

(if so equipped) ..................................2-36

SNOW mode switch (if so equipped) ...............2-37

Vehicle Dynamic Control (VDC) OFF switch ..........2-37

Clock............................................2-38

Adjusting the time.............................2-38

Power outlets ....................................2-38

Cigarette lighter and ashtrays .....................2-39

Front .........................................2-39

Rear .........................................2-39

Storage .........................................2-40

Cup holders ..................................2-40

Sunglasses holder............................. 2-41

Glove box .................................... 2-41

Console box ..................................2-42

Coat hooks ................................... 2-43

Cargo net.....................................2-43

Windows ........................................2-43

Power windows ...............................2-43

Moonroof........................................2-46

Automatic moonroof ...........................2-46

Rear control cancel switch (if so equipped) ......... 2-47

Rear sunshade (if so equipped)....................2-47

Interior lights ....................................2-48

Map lights....................................2-49

Personal lights................................2-49

Interior light control switch ....................2-49

Vanity mirror lights............................... 2-50

Trunk light........................................2-51

HomeLink姞 universal transceiver....................2-51

Programming HomeLink姞 ...................... 2-52

Programming HomeLink姞 for Canadian

customers .................................... 2-53

Operating the HomeLink姞 universal

transceiver ................................... 2-53

Programming trouble-diagnosis................. 2-54

Clearing the programmed information ...........2-54

Reprogramming a single HomeLink姞 button ..... 2-54

If your vehicle is stolen ........................ 2-54

COCKPIT

1. Instrument brightness control switch (P. 2-32)

2. Outside mirror remote control switch

(P. 3-24)

3. Adaptive Front lighting System (AFS)

switch (P. 2-31)

2-2 Instruments and controls

SIC3601

4. Vehicle Dynamic Control (VDC) OFF switch (P. 2-37)

5. Headlight, fog light and turn signal switch

(P. 2-29)

6. Steering-wheel-mounted controls (left side)

— ENTER switch (if so equipped) (P. 4-6, P. 4-57) — For audio system (P. 4-57) — For phone system (P. 4-73, P. 4-84) — For voice recognition system (if so equipped) (P. 4-99)

7. Windshield wiper and washer switch (P. 2-27)

8. Steering-wheel-mounted controls (right

side) — Cruise control switches (P. 5-23) — Intelligent Cruise Control (ICC) switches (if so equipped) (P. 5-25) — Lane Departure Prevention (LDP) switch (if so equipped) (P. 5-16)

9. Hood release handle (P. 3-17)

10. Trunk lid release switch (P. 3-18)

11. Lane Departure Warning (LDW) switch

(if so equipped) (P. 2-36, P. 5-16)

12. Intelligent Key port (P. 5-9)

13. Tilting/telescopic steering wheel switch

(P. 3-22)

14. Steering wheel

— Horn (P. 2-34) — Driver supplemental air bag (P. 1-34)

15. Automatic Transmission (AT) selector le-

ver (P. 5-11)

INSTRUMENT PANEL

1. Side ventilator (P. 4-28)

2. Meters and gauges (P. 2-5)

3. Center ventilator (P. 4-28)

SIC3551

4. Security indicator light (P. 2-26)

5. Hazard warning flasher switch (P. 2-33)

6. Automatic climate control system (P. 4-29)

7. Center multi-function control panel — Navigation system* (if so equipped) — Vehicle information and setting buttons (P. 4-7) — Phone system (P. 4-73, P. 4-84) — Audio system (P. 4-34)

8. Front passenger supplemental air bag

(P. 1-34)

9. Fuse box cover (P. 8-25)

10. Parking brake

— Operation (P. 5-15) — Parking (P. 5-48)

11. Push-button ignition switch (P. 5-7)

12. Clock (P. 2-38)

13. Climate controlled seat switch (if so

equipped) (P. 2-35)

14. Snow mode switch (if so equipped)

(P. 2-37)

15. Rear sunshade switch (if so equipped)

(P. 2-47)

16. Rear control cancel switch (if so

equipped) (P. 2-47) or Climate controlled seat switch (if so equipped) (P. 2-35)

17. Climate controlled seat switch (if so

equipped) (P. 2-35)

18. Cigarette lighter and ashtrays (P. 2-39)

Instruments and controls 2-3

19. CompactFlash card slot (if so equipped) (P. 4-34)

20. Audio system (P. 4-34)

21. Glove box lid release button (P. 2-41)

22. Trunk release power cancel switch

(P. 3-19)

*: Refer to the separate Navigation System Owner’s Manual.

2-4 Instruments and controls

METERS AND GAUGES

1. Engine coolant temperature gauge*

2. Tachometer*

3. Warning/Indicator lights

4. Speedometer*

5. Fuel gauge*

*: The needle indicators in the meters and

gauges may move slightly after the ignition switch is pushed to the LOCKposition. This is not a malfunction.

SIC3605

6. Meter illumination control knob

7. Dot matrix liquid crystal display

8. Odometer/twin trip odometer

9. TRIP/RESET knob for twin trip odometer

Instruments and controls 2-5

SIC3606 SIC3607

SPEEDOMETER AND ODOMETER Speedometer

The speedometer indicates vehicle speed in miles per hour (MPH) and kilometers per hour (km/h).

Odometer/twin trip odometer

The odometer displayed when the ignition switch is in the ON position.

The odometer records the total distance the vehicle has been driven.

The twin trip odometer records the distance of individual trips.

and twin trip odometer

䊊

are

2-6 Instruments and controls

Changing the display :

Pushing the TRIP/RESET knob right of the combination meter panel changes the display as follows:

TRIP A → TRIP B → TRIP A

Resetting the trip odometer :

Pushing the TRIP/RESET switch than 1 second resets the trip odometer to zero.

Average fuel economy and distance to empty information is also available. (See “HOW TO USE STATUS BUTTON” in the “4. Monitor, climate, audio, phone and voice recognition systems” section.)

at the bottom

䊊

for more

TACHOMETER

The tachometer indicates engine speed in revolutions per minute (RPM). Do not rev the engine

into the red zone

The scale length and the red zone vary with the engine model.

When engine speed approaches the red zone, shift to a higher gear or reduce engine speed. Operating theengine inthe redzone maycause serious engine damage.

䊊

CAUTION

SIC3608 SIC3609

ENGINE COOLANT TEMPERATURE GAUGE

The gauge indicates the engine coolant temperature.

The engine coolant temperature is within the normal range when the gauge needle points within the zone

The engine coolant temperature varies with the outside air temperature and driving conditions.

shown in the illustration.

䊊

CAUTION

If the gauge indicates engine coolant temperature near the hot (H) end of the normal range, reduce vehicle speed to decreasetemperature. If gauge is over the normal range, stop the vehicle assoon assafely possible.If the engine is overheated, continued operation of the vehicle mayseriously damage theengine. See “IF YOUR VEHICLEOVERHEATS” in the“6. In caseof emergency” section for immediate action required.

FUEL GAUGE

The gauge indicates the approximate fuel level in the tank.

The gauge may move slightly during braking, turning, acceleration, or going up or down hills.

The gauge needle returns to E (Empty) after the ignition switch is pushed to the LOCK position.

Refill the fuel tank before the gauge registers “E” (Empty).

The low fuel warning the fuel tank is getting low. Refuel as soon as it is convenient, preferably before the gauge

appears when

䊊

Instruments and controls 2-7

reaches “E”. There will be a small reserve of fuel in the tank when the fuel gauge needle reaches “E”.

The located on the passenger’s side of the vehicle.

indicates that the fuel-filler door is

CAUTION

● If the vehicle runs out of fuel, the malfunction indicator light (MIL) may come on. Refuel as soon as possible. After a few

driving trips,the If the light remains on after a few driving trips, have the vehicle inspected by an INFINITI dealer.

● For additional information,see “Malfunction Indicator Light (MIL)” later in this section.

light shouldturn off.

SIC3610

METER/RING ILLUMINATION AND NEEDLE SWEEP

The ring illumination surrounding meters and gauges illuminates when the driver’s door is closed after getting into the vehicle with the Intelligent Key carried in.

When the engine is started, the indicator needles will sweep in the speedometer and tachometer and the ring illumination will be brightened gradually.

Meter illumination control knob

The meter illumination control knob ates when the headlight switch is in the AUTO (not lighting) or OFF position with the ignition switch in the ON position.

To adjust the brightness of the meters, push the control knob several times until the desired brightness is achieved.

To turn the ring illumination and needle sweep on and off, push the control knob and hold it for 1 second.

䊊

oper-

2-8 Instruments and controls

COMPASS (if so equipped)

SIC3181

When the ignition switch is pushed to the ON position, the compass display the direction of the vehicle’s heading.

will indicate

䊊

If the display reads “C”, calibrate the compass by driving the vehicle in 3 complete circles at less than 5 MPH (8 km/h). You can also calibrate the compass by driving your vehicle on your everyday route. The compass will be calibrated once it has tracked 3 complete circles.

To turn on and off the compass manually, push the

in the ON position.

switch

while the ignition switch is

䊊

Instruments and controls 2-9

Zone map

ZONE VARIATION CHANGE PROCEDURE

The difference between magnetic north and geographical north is known as variance. In some areas, this difference can sometimes be great enough to cause false compass readings. Follow these instructions to set the variance for your particular location if this happens:

1. Push the switch for more than 3 seconds. The current zone number will appear in the display.

2. Find your current location and variance

number on the zone map.

NOTE: Use zone number 5 for Hawaii.

3. Push the switch repeatedly until

the new zone number appears in the display, then release the switch. After you release the switch, the display will show a compass direction within a few seconds.

● If the compass deviates from the correct indication soon after repeated adjustment, have the compass checked at an INFINITI dealer.

SIC0611B

2-10 Instruments and controls

● The compass may not indicate the correct compass point in tunnels or while driving up or down a steep hill. (The compass returns to the correct compass point when the vehicle moves to an area where the geomagnetism is stabilized.)

CAUTION

● Do not installa skirack, antenna, etc.,which are attached to the vehicle by means of a magnet. They affect the operation of the compass.

● When cleaning the mirror, use a papertowel or similar material dampened with glass cleaner. Do not spray glass cleaner directly on the mirror as it may cause the liquid cleaner to enter the mirror housing.

Instruments and controls 2-11

WARNING/INDICATOR LIGHTS AND AUDIBLE REMINDERS

All-Wheel Drive (AWD) warning light (AWD models)*

Anti-lock Braking System (ABS) warning light

Automatic Transmission (AT) check warning light

Brake warning light

Charge warning light Seat belt warning light Malfunction Indicator Light (MIL)

Door open warning light Supplemental air bag warning light Slip indicator light

Engine oil pressure warning light Adaptive Front lighting System (AFS)

Intelligent Cruise Control (ICC) system warning light (orange)*

Intelligent Key system warning light Cruise main switch indicator light

Lane departure warning light (orange)* Cruise set switch indicator light

Low fuel warning light Front passenger air bag status light

Low tire pressure warning light High beam indicator light (blue)

Low washer fluid warning light Intelligent Cruise Control (ICC) system

Preview Function warning light (orange)*

Rear Active Steer warning light* Lane Departure Prevention (LDP) ON

indicator light Automatic Transmission (AT) position

indicator light

(green)

*: if so equipped

MAIN switch indicator light (green)* Intelligent Cruise Control (ICC) system

set switch indicator light*

indicator light (green)*

Small light indicator lights

Turn signal/hazard indicator lights

Vehicle Dynamic Control (VDC) off indicator light

2-12 Instruments and controls

CHECKING BULBS

With all doors closed, apply the parking brake and push the ignition switch to the ON position without starting the engine. The following lights will come on:

, or , , , , , , ,

The following lights come on briefly and then go off (if so equipped):

, or , , , , , , ,

If any light does not come on, it may indicate a burned-out bulb or an open circuit in the electrical system. Have the system checked by an INFINITI dealer.

WARNING LIGHTS

All-Wheel Drive (AWD) warning light (AWD models)

The light comes on when the ignition switch is pushed to the ON position. It turns off soon after the engine is started.

If the All-Wheel Drive (AWD) system malfunctions, or the diameter of the front and the rear wheels are different, the warning light will

either remain illuminated or blink. (See “ALLWHEEL DRIVE (AWD)” in the “5. Starting and driving” section.)

CAUTION

● If the warning light comes on while driving there may be a malfunction in the AWD system. Reducethe vehiclespeed andhave your vehicle checked by an INFINITI dealer as soon as possible.

● If the AWD warning light blinks while driving:

– blinks rapidly (about twice a second):

Pull offthe road ina safearea, and idlethe engine. The driving mode will change to 2WD to prevent the AWD system from malfunctioning. If the warning light turns off, you can drive again.

– blinks slowly (about once every 2 sec-

onds): Pull offthe road ina safearea, and idlethe

engine. Check that all tire sizes are the same, tirepressure iscorrect andtires are not worn.

● If the warning light isstill on after the above operations, have your vehiclechecked by an INFINITI dealer as soon as possible.

or Anti-lock Braking

System (ABS) warning light

When the ignition switch is in the ON position, the Anti-lock Braking System (ABS) warning light illuminates and then turns off. This indicates the ABS is operational.

If the ABS warning light illuminates while the engine is running, or while driving, it may indicate the ABS is not functioning properly. Have the system checked by an INFINITI dealer.

If an ABS malfunction occurs, the anti-lock function is turned off. The brake system then operates normally, but without anti-lock assistance. (See “BRAKE SYSTEM” in the “5. Starting and driving” section.)

Automatic Transmission (AT) check warning light

When the ignition switch is pushed to the ON position, the light comes on for 2 seconds. If the light comes on at any other time, it may indicate the transmission is not functioning properly. Have your INFINITI dealer check and repair the transmission.

Instruments and controls 2-13

or Brake warning

light

This light functions for both the parking brake and the foot brake systems.

Parking brake indicator :

When the ignition switch is in the ON position, the light comes on when the parking brake is applied.

Low brake fluid warning light :

When the ignition switch is in the ON position, the light warns of a low brake fluid level. If the light comes on while the engine is running with the parking brake not applied, stop the vehicle and perform the following:

1. Check the brake fluid level. Add brake fluid as necessary. (See “BRAKE FLUID” in the “8. Maintenance and do-it-yourself” section.)

2. If the brake fluid level is correct, have the

warning system checked by an INFINITI dealer.

Anti-lock Braking System (ABS) warning indicator :

When the parking brake is released and the brake fluid level is sufficient, if both the brake warning light and the Anti-lock Braking System

2-14 Instruments and controls

(ABS) warning light illuminate, it may indicate the ABS is not functioning properly. Have the brake system checked, and if necessary repaired, by an INFINITI dealer promptly. (See “Anti-lock Braking System (ABS) warning light” earlier in this section.)

WARNING

● Your brake systemmay not beworking properly if the warning light is on. Driving could be dangerous.If you judgeit tobe safe, drive carefully to the nearest service station for repairs. Otherwise, have your vehicle towed because driving it could be dangerous.

● Pressing the brake pedal with the engine stopped and/or low brake fluid level may increase yourstopping distanceand braking will require greater pedal effort as well as pedal travel.

● If the brake fluid levelis below the minimum or MIN mark on the brake fluid reservoir, do not drive until the brake system has been checked at an INFINITI dealer.

Charge warning light

If the light comes on while the engine is running, it may indicate the charging system is not functioning properly. Turn the engine off and

check the alternator belt. If the belt is loose, broken, missing or if the light remains on, see an INFINITI dealer immediately.

CAUTION

Do not continue driving if the alternator belt is loose, broken or missing.

Door open warning light

This light comes on when any of the doors are not closed securely while the ignition switch is in the ON position.

Engine oil pressure warning light

This light warns of low engine oil pressure. If the light flickers or comes on during normal driving, pull off the road in a safe area, stop the engine immediately and call an INFINITI dealer or other authorized repair shop.

The engine oil pressure warning light is not designed to indicate a low oil level. Use the dipstick to check the oil level. (See “ENGINE OIL” in

the “8. Maintenance and do-it-yourself” section.)

CAUTION

Running the engine with the engine oil pressure warninglight on could causeserious damage to the engine almost immediately. Such damage isnot coveredby warranty. Turnoff the engine as soon as it is safe to do so.

Intelligent Cruise Control (ICC) system warning light (orange; if so equipped)

This light comes on if there is a malfunction in the Intelligent Cruise Control (ICC) system.

If the warning light comes on, park the vehicle in a safe place. Turn the engine off, restart the engine, resume driving and set the ICC system again.

If it is not possible to set the system or the indicator stays on, it may indicate that the system is malfunctioning. Although the vehicle is still driveableunder normalconditions, havethe vehicle checked at an INFINITI dealer.

See “INTELLIGENT CRUISE CONTROL (ICC) SYSTEM” in the “5. Starting and driving” section.

Intelligent Key system warning light

After the ignition switch is pushed to the ON position, this light comes on for about 2 seconds and then turns off.

This light warns of a malfunction with the electrical steering lock system or the Intelligent Key system.

If the light comes on while the engine is stopped, it may be impossible to free the steering lock or to start the engine. If the light comes on while the engine is running, you can drive the vehicle. However in these cases, contact an INFINITI dealer for repair as soon as possible.

See “INTELLIGENT KEY SYSTEM” in the “3. Predriving checks and adjustments” section.

Lane departure warning light (orange; if so equipped)

When the ignition switch is pushed to the ON position, the light will come on in orange, turn green, and then turn off. This indicates that the Lane Departure Warning (LDW) and Lane Departure Prevention (LDP) systems are operational.

While the LDW and/or LDP system is on, the light will blink in orange and a warning chime

will sound if the vehicle is traveling close to either the left or the right of a traveling lane with detectable lane markers.

If the light comes on in orange and remains on, it may indicate that the LDW and LDP systems are not functioning properly. Have the systems checked by an INFINITI dealer.

See “LANE DEPARTURE WARNING (LDW) SYSTEM/LANE DEPARTURE PREVENTION (LDP) SYSTEM” in the “5. Starting and driving” section.

Low fuel warning light

This light comes on when the fuel in the tank is getting low. Refuel as soon as it is convenient, preferably before the fuel gauge reaches “E” (Empty).

There will bea small reserve offuel remaining in the tankwhen thefuel gauge needlereaches “E” (Empty).

Low tire pressure warning light

Your vehicle is equipped with a Tire Pressure Monitoring System (TPMS) that monitors the tire pressure of all tires except the spare.

The low tire pressure warning light warns of low tire pressure or indicates that the TPMS is not functioning properly.

Instruments and controls 2-15

After the ignition switch is pushed ON, this light illuminates for about 1 second and turns off.

Low tire pressure warning :

If the vehicle is being driven with low tire pressure, the warning light will illuminate. If you select the tire pressure information in the display, the LOW PRESSURE information will be displayed. The tire pressure for each tire will also be displayed.

When the low tire pressure warning light illuminates, you should stop and adjust the tire pressure to the recommended COLD tire pressure shown on the Tire and Loading Information label. The low tire pressure warning light does not automatically turn off when the tire pressure is adjusted. After the tire is inflated to the recommended pressure, the vehicle must be driven at speeds above 16 MPH (25 km/h) to activate the TPMS and turn off the low tire pressure warning light. Use a tire pressure gauge to check the tire pressure.

For additional information, see “TIRE PRESSURE MONITORING SYSTEM (TPMS)” in the “5. Starting and driving” section and “TIRE PRESSURE MONITORING SYSTEM (TPMS)” in the “6. In case of emergency” section. For the tire pressure information display, see “HOW TO USE INFO BUTTON” in the “4. Monitor, climate, audio, phone and voice recognition systems” section.

2-16 Instruments and controls

TPMS malfunction :

If the TPMS is not functioning properly, the low tire pressure warning light will flash for approximately 1 minute when the ignition switch is pushed ON. The light will remain on after 1 minute. Have the system checked by an INFINITI dealer.

For additional information, see “TIRE PRESSURE MONITORING SYSTEM (TPMS)” in the “5. Starting and driving” section.

WARNING

● If the light does not illuminate withthe ignition switch pushed ON, have the vehicle checked by an INFINITI dealer as soon as possible.

● If the light illuminates while driving, avoid sudden steering maneuvers or abrupt braking, reducevehicle speed,pull offthe roadto a safe location and stop the vehicle as soon as possible.Driving withunder-inflated tires may permanently damage the tires and increase the likelihood of tire failure. Serious vehicle damage could occur and may leadto an accident and could result in serious personal injury. Check the tire pressure for all four tires. Adjustthe tire pressure tothe recommended COLD tirepressure shown on the Tire and Loading Information label to turn the lowtire pressurewarning lightOFF. If the light stays on after adjusting the tire pressure anddriving over16 MPH(25 km/h),have the system checked by an INFINITI dealer. If you have a flat tire, replace it with a spare tire as soon as possible.

● When a spare tire is mounted or a wheel is replaced, tire pressure will not beindicated, the TPMS will not function and the low tire pressure warninglight will flashfor approximately 1 minute. The light will remain on after 1 minute. Contact your INFINITI dealer as soon as possible for tire replacement and/or system resetting.

● Replacing tires with those not originally specified by INFINITI could affect the proper operation of the TPMS.

CAUTION

● The TPMS is not a substitute for the regular tire pressure check.Be sure to check thetire pressure regularly.

● If thevehicle isbeing drivenat speeds ofless than 16 MPH (25 km/h), the TPMS may not operate correctly.

● Be sure to correctly installthe specified size of tires to the four wheels.

Low washer fluid warning light

This light comes on when the washer tank fluid is at a low level. Add washer fluid as necessary. See “WINDOW WASHER FLUID” in the “8. Maintenance and do-it-yourself” section.

Preview Function warning light (orange; if so equipped)

The light comes on if there is a malfunction in the Brake Assist (with Preview Function) system.

If the warning light comes on, park the vehicle in a safe place. Turn the engine off, restart the engine, resume driving and set the ICC system again.

See “PREVIEW FUNCTION (for Intelligent Cruise Control (ICC) system equipped models)” in the “5. Starting and driving” section.

Rear Active Steer warning light (if so equipped)

If the light comes on while the engine is running, it may indicate that there is a malfunction with the Rear Active Steer portion of the steering system. Have the system checked by an INFINITI dealer.

For further information about the Rear Active Steer system, see “REAR ACTIVE STEER SYSTEM” in the “5. Starting and driving” section.

If a malfunction occurs in the system, the Rear Active Steer function will cease but driving can be continued.

If the light comes on while you are driving, contact an INFINITI dealer for repair.

Seat belt warning light

The light and chime remind you to fasten seat belts. The light illuminates whenever the ignition switch is pushed to the ON position, and will remain illuminated until the driver’s seat belt is fastened. At the same time, the chime will sound for about 6 seconds unless the driver’s seat belt is securely fastened.

The seat belt warning light for the front passenger will illuminate if the seat belt is not fastened when the front passenger’s seat is occupied. For 5 seconds after the ignition switch is in the ON position, the system does not activate the warning light for the front passenger.

See “SEAT BELTS” in the “1. Safety — Seats, seat belts and supplemental restraint system” section for precautions on seat belt usage.

Supplemental air bag warning light

After pushing the ignition switch to the ON position, the supplemental air bag warning light will illuminate. The supplemental air bag warning light will turn off after about 7 seconds if the supplemental front air bag and supplemental side air bag, curtain side-impact air bag systems and/or pretensioner seat belt are operational.

Instruments and controls 2-17

If any of the following conditions occur, the front air bag, side air bag, curtain air bag and pretensioner systems need servicing and your vehicle must be taken to your nearest INFINITI dealer.

● The supplemental air bag warning light remains on after approximately 7 seconds.

● The supplemental air bag warning light flashes intermittently.

● The supplemental air bag warning light does not come on at all.

Unless checked and repaired, the supplemental restraint system (air bag system) and/or the pretensioners may not function properly.

For additional information, see “SUPPLEMENTAL RESTRAINT SYSTEM” in the “1. Safety — Seats, seat belts and supplemental restraint system” section.

WARNING

2-18 Instruments and controls

INDICATOR LIGHTS

Adaptive Front lighting System (AFS) indicator light

When the ignition switch is pushed to the ON position, the Adaptive Front lighting System (AFS) indicator light will illuminate. The light will turn off in about 1 second if the AFS is operational.

This light also comes on when the AFS is turned off by pushing the OFF side of the AFS switch.

If the AFS indicator light blinks, it may indicate the AFS is not functioning properly. Have the system checked by an INFINITI dealer.

See “Adaptive Front lighting System (AFS)” later in this section.

Automatic Transmission (AT) position indicator light

When the ignition switch is pushed to the ON position, the indicator shows the automatic selector shift position. (See “AUTOMATIC TRANSMISSION” in the “5. Starting and driving” section.)

Cruise main switch indicator light (green)

The light comes on when the cruise control main switch is pushed. The light goes out when the main switch is pushed again. When the

cruise control main switch indicator light comes on, the cruise control system is operational.

Cruise set switch indicator light

The light comes on while the vehicle speed is controlled by the cruise control system. If the light blinks while the engine is running, it may indicate the cruise control system is not functioning properly. Have the system checked by an INFINITI dealer.

Front passenger air bag status light

The front passenger air bag status light ( ) will be lit and the passenger front air bag will be OFF depending on how the front passenger seat is being used.

For front passenger air bag status light operation, see “INFINITI ADVANCED AIR BAG SYSTEM (front seats)” in the “1. Safety — Seats, seat belts and supplemental restraint system” section of this manual.

High beam indicator light (blue)

This light comes on when the headlight high beam is on and goes out when the low beam is selected.

Intelligent Cruise Control (ICC) system MAIN switch indicator light (green; if so equipped)

The light comes on when the Intelligent Cruise Control (ICC) system MAIN switch is pushed. The light goes out when the MAIN switch is pushed again. While the MAIN switch indicator light comes on, the ICC system is operational.

Lane Departure Prevention (LDP) ON indicator light (green; if so equipped)

The light comes on in green when the Lane Departure Prevention (LDP) system is turned on. The light turns off when the system is turned off.

NOTE: This light is common with the lane departure

warning light (orange). (See “Lane departure warning light” earlier in this section.)

For more details, see “LANE DEPARTURE WARNING (LDW) SYSTEM/LANE DEPARTURE PREVENTION (LDP) SYSTEM” in the “5. Starting and driving” section.

Malfunction Indicator Light (MIL)

If the malfunction indicator light comes on steady or blinks while the engine is running, it may indicate a potential emission control malfunction.

The malfunction indicator light may also come on steady if the fuel-filler cap is loose or missing, or if the vehicle runs out of fuel. Check to make sure the fuel-filler cap is installed and closed tightly, and that the vehicle has at least 3 US gallons (14 liters) of fuel in the fuel tank.

After a few driving trips, the turn off if no other potential emission control system malfunction exists.

If this indicator light remains on for 20 seconds and then blinks for 10 seconds when the engine is not running, it indicates that the vehicle is not ready for an emission control system inspection/maintenance test. (See “READINESS FOR INSPECTION/MAINTENANCE (I/M) TEST” in the “9. Technical and consumer information” section.)

light should

Operation :

The malfunction indicator light will come on in one of two ways:

● Malfunction indicator light on steady — An emission control system malfunction has been detected. Check the fuel-filler cap. If the fuel-filler cap is loose or missing, tighten or install the cap and continue to drive the

vehicle. The a few driving trips. If the

not turn off after a few driving trips, have the vehicle inspected by an INFINITI dealer. You do not need to have your vehicle towed to the dealer.

● Malfunction indicator light blinking — An engine misfire has been detected which may damage the emission control system.

To reduce or avoid emission control system damage:

a) Do not drive at speeds above 45 MPH (72

km/h). b) Avoid hard acceleration or deceleration. c) Avoid steep uphill grades. d) If possible, reduce the amount of cargo

being hauled or towed.

light should turn off after

light does

Instruments and controls 2-19

The malfunction indicator light may stop blinking and remain on.

Have the vehicle inspected by an INFINITI dealer. You do not need to have your vehicle towed to the dealer.

CAUTION

Continued vehicle operation without having the emission control system checked and repaired as necessary could lead to poor driveability, reduced fuel economy, and possible damage to the emission control system.

Slip indicator light

This light will blink when the Vehicle Dynamic Control (VDC) system is operating, thus alerting the driver to the fact that the road surface is slippery and the vehicle is nearing its traction limits.

Small light indicator light

The light comes on when the front park, side marker, tail and license plate lights are on.

Turn signal/hazard indicator lights

The light flashes when the turn signal switch lever or hazard switch is turned on.

2-20 Instruments and controls

Vehicle Dynamic Control (VDC) off indicator light

The light comes on when the Vehicle Dynamic Control (VDC) off switch is pushed to OFF. This indicates that the VDC system is not operating. When the VDC off indicator light and slip indicator light come on with the VDC system turned on, this light alerts the driver to the fact that the VDC system’s fail-safe mode is operating, for example the VDC system may not be functioning properly. Have the system checked by an INFINITI dealer. If a malfunction occurs in the system, the VDC system function will be canceled but the vehicle is still driveable. For additional information, see “VEHICLE DYNAMIC CONTROL (VDC) SYSTEM” in the “5. Starting and driving” section of this manual.

AUDIBLE REMINDERS Key reminder chime

A chime will sound if the driver side door is opened while the ignition switch is pushed to the ACC or LOCK position with the Intelligent Key left in the Intelligent Key port. Make sure the ignition switch is pushed to the LOCK position, and take the Intelligent Key with you when leaving the vehicle.

Light reminder chime

A chime will sound when the driver side door is opened with the light switch in the

position, and the ignition switch is

pushed to the ACC position. Turn the light switch off when you leave the

vehicle.

Parking brake reminder chime

The chime will sound if the vehicle is driven at more than 4 MPH (7 km/h) with the parking brake applied. Stop the vehicle and release the parking brake.

Seat belt warning chime

The chime will sound for about 6 seconds unless the driver’s seat belt is securely fastened.

Brake pad wear warning

The disc brake pads have audible wear warnings. When a brake pad requires replacement, it will make a high pitched scraping sound when the vehicle is in motion whether or not the brake pedal is depressed. Have the brakes checked as soon as possible if the warning sound is heard.

DOT MATRIX LIQUID CRYSTAL DISPLAY

Lane departure warning chime (if so equipped)

When the Lane Departure Warning (LDW) or Lane Departure Prevention (LDP) system is on, the chime sounds if the vehicle is traveling close to either the left or the right of a traveling lane with detectable lane markers.

See “LANE DEPARTURE WARNING (LDW) SYSTEM/LANE DEPARTURE PREVENTION (LDP) SYSTEM” in the “5. Starting and driving” section for more details.

SIC3611

The dot matrix liquid crystal display located under the tachometer, and it displays the Automatic Transmission (AT) position indicator, the Intelligent Cruise Control (ICC) system (if so equipped) information and the Intelligent Key operation information.

For detailed information about each system, see the following sections:

● Automatic Transmission (AT) – “WARNING/INDICATOR LIGHTS AND AU-

DIBLE REMINDERS” earlier in this section.

– “DRIVING THE VEHICLE” in the “5. Starting

and driving” section.

䊊

● Intelligent Cruise Control (ICC) system – “INTELLIGENT CRUISE CONTROL (ICC) SYS-

TEM” in the “5. Starting and driving” section.

● Intelligent Key system – “INTELLIGENT KEY SYSTEM” in the “3.

Pre-driving checks and adjustments” section.

– “PUSH-BUTTON IGNITION SWITCH” in the

“5. Starting and driving” section.

Instruments and controls 2-21

2-22 Instruments and controls

SIC2765

INDICATORS FOR OPERATION

1. Engine start operation indicator

(ignition switch in the LOCK or ACC position)

This indicator appears when the selector lever is in the P (Park) position.

This indicator means that the engine will start by pushing the ignition switch with the brake pedal depressed.

2. Engine start operation indicator

(ignition switch in the ON position)

This indicator appears when the ignition switch is in the ON position with the selector lever in the P (Park) position.

This indicator means that the engine will start by pushing the ignition switch with the brake pedal depressed.

3. Steering lock release malfunction

indicator

This indicator appears when the steering wheel cannot be released from the LOCK position.

If this indicator appears, push the ignition switch while lightly turning the steering wheel right and left.

4. Intelligent Key insertion indicator

This indicator appears when the Intelligent Key needs to be inserted into the Intelligent Key port. (For example, the Intelligent Key battery is discharged.)

If this indicator appears, insert the Intelligent Key into the Intelligent Key port in the correct direction. (See “PUSH-BUTTON IGNITION SWITCH” in the “5. Starting and driving” section.)

5. Intelligent Key removal indicator

This indicator appears when the driver’s door is opened with the ignition switch in the LOCK position and the Intelligent Key placed in the Intelligent Key port. A key reminder chime also sounds.

If this indicator appears, remove the Intelligent Key from the Intelligent Key port and take it with you when leaving the vehicle.

6. NO KEY warning

The warning appears when the door is closed with the Intelligent Key left outside the vehicle and the ignition switch in the ACC or ON position. Make sure that the Intelligent Key is inside the vehicle.

When all the doors are closed, an outside chime and inside warning chime will also sound.

See “INTELLIGENT KEY SYSTEM” in the “3. Predriving checks and adjustments” section.

7. SHIFT “P” warning

This warning appears when the ignition switch is pushed to stop the engine with the selector lever in any position except the P (Park) position.

If this warning appears, move the selector lever to the P (Park) position or push the ignition switch to the ON position.

An inside warning chime will also sound. See “INTELLIGENT KEY SYSTEM” in the “3. Pre-

driving checks and adjustments” section.

8. “LOCK” warning

This warning appears when the selector lever is moved to the P (Park) position with the ignition switch in the ACC position after the SHIFT “P” warning appears.

To push the ignition switch to the LOCK position, perform the following procedure:

SHIFT “P” warning →(Move the selector lever to “P”) → LOCK warning → (Push the ignition switch → ignition switch position is turned to ON) → LOCK warning → (Push the ignition switch → ignition switch position is turned to LOCK)

9. NO KEY ID indicator

This indicator appears when the ignition switch is pushed and the Intelligent Key cannot be recognized by the system with the ignition switch in the LOCK position.

If this indicator appears, you cannot start the engine. Check for the following causes and perform remedies:

● The battery of the Intelligent Key carried with you is discharged completely. Replace the battery with a new one.

● The Intelligent Key carried with you is not registered to the system. Use the registered Intelligent Key.

● You do not have an Intelligent Key with you. Carry an Intelligent Key with you.

Instruments and controls 2-23

SECURITY SYSTEMS

10. Intelligent Key battery discharge indicator

This indicator appears when the Intelligent Key battery is running out of power.

If this indicator appears, replace the battery with a new one. (See “BATTERY REPLACEMENT” in the “8. Maintenance and do-it-yourself” section.)

SIC2132

Your vehicle has two types of security systems, as follows:

● Vehicle security system

● INFINITI Vehicle Immobilizer System

The security condition will be shown by the security indicator light.

VEHICLE SECURITY SYSTEM

The vehicle security system provides visual and audio alarm signals if someone opens the doors, hood, or trunk lid when the system is armed. It is not, however, a motion detection type system that activates when a vehicle is moved or when a vibration occurs.

The system helps deter vehicle theft but cannot prevent it, nor can it prevent the theft of interior or exterior vehicle components in all situations. Always secure your vehicle even if parking for a brief period. Never leave your Intelligent Key(s) in the vehicle, and always lock it when unattended. Be aware of your surroundings, and park in secure, well-lit areas whenever possible.

Many devices offering additional protection, such as component locks, identification markers, and tracking systems, are available at auto supply stores and specialty shops. Your INFINITI dealer may also offer such equipment. Check with your insurance company to see if you may be eligible for discounts for various theft protection features.

2-24 Instruments and controls

SIC2766

How to arm the vehicle security system

1. Close all windows.

The system can be armed even if the windows are open.

2. Push the ignition switch to the LOCK position.

3. Remove the Intelligent Key from the vehicle.

4. Close all doors, hood and trunk. Lock all doors. The doors can be locked with the Intelligent Key, door handle request switch, power door lock switch or mechanical key.

5. Confirm that the security indicator light

comes on. The security indicator light

䊊

stays on for about 30 seconds. The vehicle security system is now pre-armed. After about 30 seconds the vehicle security system automatically shifts into the armed phase. The security light begins to flash once every approximately 3 seconds. If, during this 30-second pre-arm time period, the door is unlocked, or the ignition switch is pushed to ACC or ON, the system will not arm.

Even when the driver and/or passengers are in the vehicle, the system will activate with all doors, hood, and trunk lid locked with the ignition switch in the LOCK position. When pushing the ignitionswitch tothe ACCor ONposition, the system will be released.

Vehicle security system activation

The vehicle security system will give the following alarm:

● The headlights blink and the horn sounds intermittently.

● The alarm automatically turns off after approximately 1 minute. However, the alarm reactivates if the vehicle is tampered with again.

The alarm is activated by:

● Unlocking the door or opening the trunk lid without using the button on the Intelligent Key, the door handle request switch or the mechanical key. (Even if the door is opened by releasing the door inside lock knob, the alarm will activate.)

● Opening the hood.

How to stop an activated alarm

The alarm will stop by unlocking a door by pushing the unlock button

ligent Key, the door handle request switch or using the mechanical key. The alarm will not stop if the ignition switch is pushed to the ACC or ON position.

If the system does not operate as described above, have it checked by an INFINITI dealer.

on the Intel-

INFINITI VEHICLE IMMOBILIZER SYSTEM

The INFINITI Vehicle Immobilizer System will not allow the engine to start without the use of the registered Intelligent Key.

Statement related to section 15 of FCC rules for INFINITI Vehicle Immobilizer System (CONT ASSY - CARD SLOT)

Instruments and controls 2-25

This device complies with part 15 of the FCC Rules and RSS-210 of Industry Canada. Operation is subject to the following two conditions;

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.

CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOIDTHE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

SIC2766

Security indicator light

The security indicator light indicates the status of the INFINITI Vehicle Immobilizer System.

The light in the ACC or LOCK position. This function indicates that the security systems equipped on the vehicle are operational.

blinks when the ignition switch is

䊊

If the INFINITI Vehicle Immobilizer System is malfunctioning, this light will remain on while the ignition switch is in the ON position.

If thelight stillremains onand/or theengine will not start, see an INFINITI dealer for INFINITI Vehicle Immobilizer System service as soon as possible. Please bring all registered Intelligent Keys that you have when visiting an INFINITI dealer for service.

2-26 Instruments and controls

WINDSHIELD WIPER AND WASHER SWITCH

WARNING

In freezing temperatures the washer solution may freeze onthe windshield andobscure your vision which may lead to an accident. Warm windshield with the defroster before you wash the windshield.

CAUTION

● Do not operate the washer continuously for more than 30 seconds.

● Do not operate the washer if the reservoir tank is empty.

● Do not fill the window washer reservoir tank with washer fluid concentrates at full strength. Some methyl alcohol based washer fluid concentrates may permanently stain thegrille if spilledwhile fillingthe window washer reservoir tank.

● Pre-mix washer fluid concentrates with water to the manufacturer’s recommended levels before pouring the fluid into the window washer reservoir tank. Do not use the window washerreservoir tank tomix thewasher fluid concentrate and water.

SIC3886

The windshield wiper and washer operates when the ignition switch is in the ON position.

Push the lever down to operate the wiper at the following speed:

INT (intermittent) — rain-sensing auto wiper

䊊

system operation (See “RAIN-SENSING AUTO WIPER SYSTEM” later in this section.)

LO (low) — continuous low speed operation

䊊

HI (high) — continuous high speed operation

䊊

Push the lever up operation of the wiper.

Pull the lever toward you washer. Then the wiper will also operate several times.

to have one sweep

䊊

to operate the

䊊

Instruments and controls 2-27

To turn the rain-sensing auto wiper system off, push up the lever to the OFF position, or pull down the lever to the LO or HI position.

CAUTION

Do nottouch the rainsensor and aroundit when the wiper switch is in the INT position and the ignition switchis inthe ON position.The wipers may operate unexpectedly and cause to an injury or a wiper damage.

REAR WINDOW AND OUTSIDE MIRROR DEFROSTER SWITCH

SIC3887 SIC2767B

RAIN-SENSING AUTO WIPER SYSTEM

The rain-sensing auto wiper system can automatically turn on the wipers and adjust the wiper speed depending on the rainfall and the vehicle speed by using the rain sensor located on the upper part of the windshield.

To set the rain-sensing auto wiper system, push the lever down to the INT (intermittent) position

. The wiper will sweep once while the ignition

䊊

switch is in the ON position. The rain sensor sensitivity level can be adjusted

by turning the knob toward the front or toward the rear

● High — High sensitive operation

● Low — Low sensitive operation

䊊

(Low).

䊊

(High)

2-28 Instruments and controls

● The rain-sensing autowipers areintended for use during rain. If the switch isleft in the INT position, the wipers may operate unexpectedly whendirt, fingerprints, oilfilm or insects are stuckon or aroundthe sensor.The wipers may also operate when exhaust gas or moisture affect the rain sensor.

● The rain-sensing auto wipers may not operate if rain does not hit the rain sensor even if it is raining.

To defog/defrost the rear window glass and outside mirrors (if so equipped with defroster), start the engine and push the switch on. The indicator light again to turn the defroster off.

It will automatically turn off in approximately 15 minutes.

will come on. Push the switch

䊊

CAUTION

When cleaning the inner side of the rear window, be careful not to scratch or damage the rear window defroster.

HEADLIGHT AND TURN SIGNAL SWITCH

XENON HEADLIGHTS

WARNING

HIGH VOLTAGE

● When xenonheadlights areon, they produce a high voltage. To prevent an electric shock, never attempt to modify or disassemble. Always haveyour xenonheadlights replaced at an INFINITI dealer.

● Xenon headlightsprovide considerablymore light than conventional headlights. If they are not correctly aimed, they might temporarily blind an oncoming driver or the driver ahead of you and cause a serious accident. If headlights are not aimed correctly, immediately take your vehicle to an INFINITI dealer and have the headlights adjusted correctly.

When the xenon headlight is initially turned on, its brightness or color varies slightly. However, the color and brightness will soon stabilize.

● The life ofxenon headlights willbe shortened by frequent on-off operation. It is generally desirable not to turn off the headlights for short intervals (for example, when the vehicle stops at a traffic signal). Even whenthe daytime running lights are active (Canada only), the xenon headlights do not turn on. This way the life of the xenon headlights is not reduced.

● If the xenon headlight bulb is close to burning out, the brightness will drastically decrease, the light will start blinking, or the color of the light will become reddish. If one or moreof theabove signs appear,contact an INFINITI dealer.

HEADLIGHT SWITCH Lighting

Turn the switch to the position:

䊊

The front park, side marker, tail, license plate and instrument lights will come on.

Turn the switch to the position:

䊊

Headlights will come on and all the other lights remain on.

SIC2411

Instruments and controls 2-29

SIC2412 SAA0642A

Autolight system

The autolight system allows the headlights to be set so they turn on and off automatically.

To set the autolight system:

1. Make sure the headlight switch is in the AUTO position

2. Push the ignition switch to the ON posi-

tion.

3. The autolight system automatically turns

the headlights on and off.

To turn the autolight system off, turn the switch to the OFF,

䊊

,or position.

The autolight system can turn on the headlights automatically when it is dark and turn off the headlights when it is light.

If the ignition switch is pushed to the LOCK position and one of the doors is opened and this condition is continued, the headlights remain on for 5 minutes.

Automatic headlights off delay

You can keep the headlights on for up to 180 seconds after you push the ignition switch to LOCK and open any door then close all the doors.

You can adjust the period of the automatic headlights off delay from 0 seconds (OFF) to 180 seconds.

For automatic headlights off delay setting, see “Comfort & Conv. settings” in the “4. Monitor, climate, audio, phone and voice recognition systems” section.

Be sure not to put anything on top of the photo

sensor panel. The photo sensor controls the autolight; if it is covered, the photo sensor reacts as if itis dark and the headlights will illuminate.

located on the top of the instrument

䊊

2-30 Instruments and controls

SIC2413

Headlight beam select

To select the low beam, put the lever in the

䊊

neutral position as shown.

To select the high beam, push the lever

䊊

forward while the switch is in the position. Pull it back to select the low beam.

Pulling the lever toward you will flash the

䊊

headlight high beam even when the headlight switch is in the OFF position.

Battery saver system

● When the headlight switch is in the or

position while the ignition switch is in

the ON position, the lights will automatically

turn off 5 minutes after the ignition switch has been pushed to the LOCK position.

● When the headlight switch remains in the or position after the lights

automatically turn off, the lights will turn on when the ignition switch is pushed to the ON position.

CAUTION

● When youturn on theheadlight switchagain after the lights automatically turn off, the lights will notturn off automatically.Be sure to turn the light switch to the OFF position when you leave the vehicle for extended periods of time, otherwise the battery will be discharged.

● Never leave the light switch on when the engine isnot runningfor extended periodsof time even if the headlights turn off automatically.

Daytime running light system (Canada only)

The daytime running lights automatically illuminate when the engine is started with the parking brake released. The daytime running lights operate with the headlight switch in the OFF

position or in the

position. Turn the

headlight switch to the illumination when driving at night.

If the parking brake is applied before the engine is started, the daytime running lights do not illuminate. The daytime running lights illuminate once the parking brake is released. The daytime running lights will remain on until the ignition switch is pushed to the LOCK position.

position for full

WARNING

When the daytime running light system is active, tail lights on your vehicle are not on. It is necessary at dusk to turn on your headlights. Failure to do so could cause an accident injuring yourself and others.

Adaptive Front lighting System (AFS)

The Adaptive Front lighting System (AFS) will automatically adjust the headlights (low beam) toward the turning direction to improve the driver’s view. When the headlight switch is ON and the driver operates the steering wheel in a turn, the AFS system will be activated.

The AFS will operate:

● when the headlight switch is ON.

Instruments and controls 2-31

● when the selector lever is in any position other than P (Park) or R (Reverse).

● when the vehicle is driven at above 16 MPH (25 km/h) for the left-side headlight. Note that the right-side low beam headlight will swivel but the left side will not swivel when the vehicle is at a stop and the steering wheel is turned. The vehicle must attain a speed above 16 MPH (25 km/h) before AFS activates the left-side headlight.

SIC2645 SIC3554

To turn the AFS off, push the OFF side of the AFS switch. (The AFS OFF indicator light will illuminate.) Push the ON side of the switch to turn the system on again.

AFS will also adjust the headlight to a proper axis automatically, depending on the number of occupants in the vehicle, the load the vehicle is carrying and the road conditions.

If the AFS OFF indicator light blinks after the ignition switch has been pushed to the ON position, this may indicate that the AFS is not functioning properly. Have the system checked by an INFINITI dealer. When the engine is started, the headlights will vibrate to check the system condition. This is not a malfunction.

Instrument brightness control

The instrument brightness control operates when the light switch is in the AUTO (when

lighting), ignition switch in the ON position.

Turn the control to the darkening direction or the brightening direction brightness of instrument panel lights.

When the control is turned to the upper end, the light intensity will be at maximum. When the control is turned to the lower end, the light will be turned off.

or position with the

to adjust the

䊊

2-32 Instruments and controls

Infiniti M35 (2009) User Manual [ru]

Specifications and Main Features

Frequently Asked Questions

User Manual
