Infiniti M35 2008, M45 2008 User Manual

FOREWORD
Your INFINITI represents a new way of thinking about vehicle design. It integrates advanced engineering and superior craftsmanship with a simple, refined aesthetic sensitivity associated with traditional Japanese culture.
The result is a different notion of luxury and beauty. The car itself is important, but so is the sense of harmony that the vehicle evokes in its driver, and the sense of satisfaction you feel with the INFINITI — from the way it looks and drives to the high level of dealer service.
To ensure that you enjoy your INFINITI to the fullest, we encourage you to read this Owner’s Manual immediately. It explains all of the fea­tures, controls and performance characteristics of your INFINITI; it also provides important instructions and safety information.
A separate Warranty Information Booklet is in­cluded in your Owner’s literature portfolio. The INFINITI Service and Maintenance Guide ex­plains details about maintaining and servicing your vehicle. Always carry it with you when you take your vehicle to an INFINITI dealer. TheWar­ranty Information Booklet contents provide complete information about all warranties cov­ering this vehicle, the requirements to keep the warranties in effectas well asthe INFINITI Road­side Assistance program.
Additionally, a separate Customer Care and Lemon LawInformationBooklet willexplainhow to resolve any concerns you may have with your vehicle, as well as clarify your rights under your state’s lemon law.
READ FIRST — THEN DRIVE SAFELY
Before driving your vehicle, read your Owner’s Manual carefully. This will ensure familiarity with controls and maintenance requirements, assisting you in the safe operation of your vehicle.
WARNING
IMPORTANT SAFETYINFORMATIONREMINDERS FOR SAFETY!
Follow these important driving rules to help ensure a safe and comfortable trip for you and your passengers!
NEVER driveunderthe influenceofalcoholor drugs.
ALWAYS observe posted speed limits and never drive too fast for conditions.
ALWAYS give your full attention to driving and avoid using vehicle features or taking other actions that could distract you.
ALWAYS use yourseat beltsand appropriate child restraint systems. Pre-teen children should be seated in the rear seat.
ALWAYS provide information about the proper use of vehicle safety features to all occupants of the vehicle.
ALWAYS review this Owner’s Manual for im­portant safety information.
MODIFICATION OF YOUR VEHICLE
This vehicleshould notbemodified. Modifica­tion could affect its performance, safety or durability, and may even violate governmen­tal regulations. In addition,damage or perfor­mance problems resulting from modification will not be covered under the INFINITI warran­ties.
WHEN READING THE MANUAL
This manual includes informationfor all options available on thismodel. Therefore, youmay find some information that does not apply to your vehicle.
All information, specifications and illustrations in this manual are those in effect at the time of printing. INFINITI reserves the right to change specifications or design at any time without notice.
IMPORTANT INFORMATION ABOUT THIS MANUAL
You will see various symbols in this manual. They are used in the following ways:
WARNING
This is used to indicate the presence of a haz­ard that could cause death or serious personal injury. To avoid or reduce the risk, the proce­dures must be followed precisely.
CAUTION
This is used to indicate the presence of a haz­ard that could cause minor or moderate per­sonal injuryordamagetoyour vehicle.Toavoid or reduce the risk, the procedures must be fol­lowed carefully.
SIC0697
If you see the symbol above, it means “Do not do this” or “Do not let this happen” .
If you see a symbol similar to those above in an illustration, it means the arrow points to the front of the vehicle.
Arrows in an illustration that are similar to those above indicate movement or action.
Arrows in an illustration that are similar to those above call attention to an item in the illustration.
CALIFORNIA PROPOSITION 65 WARNING
WARNING
Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other repro­ductive harm. In addition, certain fluids con­tained in vehicles and certain products of com­ponent wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
CALIFORNIA PERCHLORATE ADVISORY
Some vehicle parts, such as lithium batteries, may contain perchlorate material.The following advisory is provided: “Perchlorate Material ­special handling may apply, See www.dtsc.ca.gov/ hazardouswaste/perchlorate.”
BLUETOOTHT is a trade­mark owned by Bluetooth SIG, Inc., U.S.A.
GracenoteT is a registered trademark of Gracenote, Inc. The Gracenote logo and logo type, and the “Powered by Gracenote” logo are trademarks of Gracenote.
© 2007 NISSAN MOTOR CO., LTD. All rights reserved. No part of this Owner’s
Manual may be reproduced or stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Nissan Motor Co., Ltd.
INFINITI CUSTOMER CARE PROGRAM
INFINITI CARES ... Both INFINITI and your INFINITI dealer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your INFINITI dealer
are our primary concerns. Your INFINITI dealer is always available to assist you with all your automobile sales and service needs.
However, if there is something that your INFINITI dealer cannot assist you with or you would like to provide INFINITI directly with comments or questions, please contact our (INFINITI’s) Consumer Affairs Department using our toll-free number:
For U.S. customers
1-800-662-6200
For Canadian customers
1-800-361-4792
We appreciate your interest in INFINITI and thank you for buying a quality INFINITI vehicle.
The Consumer Affairs Department will ask for the following information:
– Your name, address, and telephone number – Vehicle identification number (on dash
panel) – Date of purchase – Current odometer reading – Your INFINITI dealer’s name – Your comments or questions OR
You can write to INFINITI with the information on the left at:
For U.S. customers
INFINITI Division Nissan North America, Inc. Consumer Affairs Department P.O. Box 685003 Franklin, TN 37068-5003
For Canadian customers
INFINITI Division Nissan Canada Inc. 5290 Orbitor Drive Mississauga, Ontario L4W 4Z5
Table of
Illustrated table of contents
0
Contents
Safety — Seats, seat belts and supplemental restraint system
Instruments and controls
Pre-driving checks and adjustments
Monitor, climate, audio, phone and voice recognition systems
Starting and driving
In case of emergency
Appearance and care
Maintenance and do-it-yourself
Technical and consumer information
Index
1
2
3
4
5
6
7
8
9
10
0 Illustrated table of contents
Seats, seat belts and supplemental restraint
system (SRS) .....................................0-2
Exterior front......................................0-3
Exterior rear ......................................0-4
Passenger compartment ........................... 0-5
Cockpit...........................................0-7
Instrument panel ..................................0-8
Meters and gauges ................................0-9
Engine compartment.............................. 0-10
Vk45de engine* ............................... 0-10
Vq35de engine* ................................0-11
SEATS, SEAT BELTS AND SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
1. Child restraint anchor points (for top tether strap child restraint) (P. 1-19)
2. Head restraints (P. 1-5)
— Front-seat Active Head Restraints (P. 1-6)
3. Seat belts (P. 1-8)
0-2 Illustrated table of contents
6. Front passenger air bag status light (P. 1-42)
7. Rear armrest (P. 1-7)
8. LATCH (Lower Anchors and Tethers for CHildren) system (P. 1-17)
9. Front seat-mounted side-impact supple­mental air bags (P. 1-34)
10. Front armrest (P. 1-6)
11. Supplemental front-impact air bags
(P. 1-34) — Advanced air bag system (P. 1-40)
SSI0223
4. Roof-mounted curtain side-impact supplemental air bags (P. 1-34)
5. Seats (P. 1-2) — Front seats (P. 1-2) — Rear seats (P. 1-4) — Child restraints (P. 1-15)
EXTERIOR FRONT
1. Hood (P. 3-16)
2. Headlight and turn signal lights — Switch operation (P. 2-29) — Bulb replacement (P. 8-28) — Adaptive Front lighting System (AFS) (if so equipped) (P. 2-31)
6. Recovery hook (P. 6-15)
7. License plate installation (P. 9-14)
8. Fog lights (P. 2-33)
9. Tires — Wheel and tires (P. 8-32, P. 9-9) — Flat tire (P. 6-2) — Tire Pressure Monitoring System (TPMS) (P. 2-15, P. 5-3)
10. Outside mirrors (P. 3-23)
11. Doors
— Keys (P. 3-2) — Door locks (P. 3-4) — Intelligent Key system (P. 3-6) — Security system (P. 2-24)
SSI0369
3. Windshield wiper and washer — Switch operation (P. 2-27) — Blade replacement (P. 8-21) — Window washer fluid (P. 8-16)
4. Moonroof (P. 2-46)
5. Power windows (P. 2-43)
Illustrated table of contents 0-3
EXTERIOR REAR
1. Trunk — Trunk lid (P. 3-16) — Intelligent Key system (P. 3-6)
2. High-mounted stop light
— Bulb replacement (P. 8-28)
3. Rear window defroster (P. 2-28)
0-4 Illustrated table of contents
6. Rear view camera (if so equipped) (P. 4-25)
7. Back-up lights
— Bulb replacement (P. 8-28)
8. Rear combination lights — Bulb replacement (P. 8-28)
9. Child safety rear door locks (P. 3-6)
SSI0370
4. Satellite radio antenna (if so equipped) (P. 4-38)
5. Fuel-filler door — Operation (P. 3-19) — Fuel recommendation (P. 9-4)
PASSENGER COMPARTMENT
1. Rear sunshade (P. 2-47)
2. Rear personal lights (P. 2-49)
3. Coat hooks (P. 2-43)
4. Mobile Entertainment System (MES) (if so equipped) — Flip-down screen (P. 4-64) — Digital Versatile Disc (DVD) drive (P. 4-64) — Headphones (P. 4-65) — DVD remote controller (P. 4-66)
SSI0371
5. Door armrest — Power window switches (P. 2-43) — Power door lock switch (P. 3-5)
6. Automatic drive positioner switch
(if so equipped) (P. 3-25)
7. Sun visors (P. 3-21)
8. Front map lights (P. 2-49)
9. Moonroof switch (if so equipped)
(P. 2-46)
10. Sunglasses holder (P. 2-41)
11. Inside rearview mirror
— HomeLinkT universal transceiver (P. 2-51) — Compass (if so equipped) (P. 2-9)
12. Trunk pass-through/Rear armrest
(P. 1-6)
13. Rear seat controls (if so equipped)
— Rear power seat adjust switch (P. 1-4) — Heated seat switches (P. 2-34) — Automatic return ON/CANCEL switch (P. 1-4) — Rear sunshade control switch (P. 2-47)
14. Rear passenger control switches
(if so equipped) — For climate control (P. 4-36) — For audio system (P. 4-62)
Illustrated table of contents 0-5
15. Rear cup holders (P. 2-40)
16. Console box — Power outlet (P. 2-38) — Auxiliary input jacks (P. 4-63) — DVD drive (if so equipped) (P. 4-64) — iPodT connection (if so equipped) (P. 4-50)
17. Front cup holders (P. 2-40)
0-6 Illustrated table of contents
COCKPIT
1.
Instrument brightness control switch (P. 2-32)
2.
Outside mirror remote control switch (P. 3-23)
3. Adaptive Front lighting System (AFS)
switch (if so equipped) (P. 2-31)
4. Vehicle Dynamic Control (VDC) OFF switch (P. 2-37)
5. Headlight, fog light and turn signal switch (P. 2-29)
SIC3601
Steering-wheel-mounted controls (left side)
6. — ENTER switch (if so equipped) (P. 4-8, P. 4-60) — For audio system (P. 4-60) —
For phone system (P. 4-76, P. 4-87, P. 4-97) — For voice recognition system (if so equipped) (P. 4-111, P. 4-135)
7. Windshield wiper and washer switch (P. 2-27)
8. Steering-wheel-mounted controls
(right side) — Cruise control switches (P. 5-20) — Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-22)
— Lane Departure Prevention (LDP)
switch (if so equipped) (P. 5-14)
9. Hood release handle (P. 3-16)
10. Trunk lid release switch (P. 3-17)
11. Lane Departure Warning (LDW) switch (if
so equipped) (P. 2-36, P. 5-14)
12. Intelligent Key port (P. 5-8)
13. Tilting/telescopic steering wheel switch
(P. 3-21)
14. Steering wheel
— Horn (P. 2-34) — Driver supplemental air bag (P. 1-34)
15. Automatic Transmission (AT) selector
lever (P. 5-10)
Illustrated table of contents 0-7
INSTRUMENT PANEL
1. Side ventilator (P. 4-31)
2. Meters and gauges (P. 2-5)
3. Center ventilator (P. 4-31)
4. Security indicator light (P. 2-26)
5. Hazard warning flasher switch (P. 2-33)
0-8 Illustrated table of contents
6. Automatic climate control system (P. 4-32)
7. Center multi-function control panel — Navigation system* (if so equipped) (P. 4-4)
SIC3551
— Vehicle information and setting buttons (P. 4-9) — Phone system (P. 4-76, P. 4-87) — Audio system (P. 4-37)
8. Front passenger supplemental air bag (P. 1-34)
9. Fuse box cover (P. 8-23)
10. Parking brake
— Operation (P. 5-13) — Parking (P. 5-45)
11. Push-button ignition switch (P. 5-6)
12. Clock (P. 2-38)
13. Climate controlled seat switch (if so
equipped) (P. 2-35)
14. Snow mode switch (if so equipped)
(P. 2-37)
15. Rear sunshade switch (if so equipped)
(P. 2-47)
16. Rear control cancel switch (if so
equipped) (P. 2-47) or Climate con­trolled seat switch (if so equipped) (P. 2-35)
17. Climate controlled seat switch (if so
equipped) (P. 2-35)
18. Cigarette lighter and ashtrays (P. 2-39)
19. CompactFlash card slot (if so equipped)
(P. 4-37)
20. Audio system (P. 4-37)
21. Glove box lid release button (P. 2-41)
22. Trunk release power cancel switch (P. 3-18)
*: Refer to the separate Navigation System
Owner’s Manual.
METERS AND GAUGES
1. Engine coolant temperature gauge (P. 2-7)
2. Tachometer (P. 2-6)
3. Warning/Indicator lights (P. 2-12)
4. Speedometer (P. 2-6)
SIC3605
5. Fuel gauge (P. 2-7)
6. Meter illumination control knob (P. 2-8)
7. Dot matrix liquid crystal display (P. 2-21)
8. Odometer/twin trip odometer (P. 2-6)
9. TRIP/RESET knob for twin trip odometer (P. 2-6)
Illustrated table of contents 0-9
ENGINE COMPARTMENT
VK45DE ENGINE*
1. Fuse/fusible link holder (P. 8-23)
2. Battery (P. 8-16)
3. Engine oil filler cap (P. 8-11)
4. Brake fluid reservoir (P. 8-15)
0-10 Illustrated table of contents
10. Engine oil dipstick (P. 8-11)
11. Air cleaner (P. 8-20)
* Shown with the engine compartment access
panels removed. For removal and replacement instructions, see “ENGINE COMPARTMENT CHECK LOCATIONS” in the “8. Maintenance and do-it-yourself” section.
SDI2154
5. Window washer fluid reservoir (P. 8-16)
6. Coolant reservoir (P. 8-10)
7. Power steering fluid reservoir (P. 8-15)
8. Radiator filler cap (P. 8-10)
9. Drive belt location (P. 8-18)
VQ35DE ENGINE*
1. Fuse/fusible link holder (P. 8-23)
2. Battery (P. 8-16)
3. Engine oil filler cap (P. 8-11)
4. Brake fluid reservoir (P. 8-15)
10. Engine oil dipstick (P. 8-11)
11. Air cleaner (P. 8-20)
* Shown with the engine compartment access
panels removed. For removal and replacement instructions, see “ENGINE COMPARTMENT CHECK LOCATIONS” in the “8. Maintenance and do-it-yourself” section.
SDI2155
5. Window washer fluid reservoir (P. 8-16)
6. Coolant reservoir (P. 8-10)
7. Power steering fluid reservoir (P. 8-15)
8. Drive belt location (P. 8-18)
9. Radiator filler cap (P. 8-10)
Illustrated table of contents 0-11
MEMO
0-12 Illustrated table of contents
1 Safety — Seats, seat belts and supplemental restraint system
Seats .............................................1-2
Front seats .....................................1-2
Rear seats ......................................1-4
Head restraints .................................1-5
Front-seat active head restraints..................1-6
Armrest ........................................1-6
Seat belts ........................................ 1-8
Precautions on seat belt usage .................. 1-8
Child safety....................................1-10
Pregnant women ...............................1-11
Injured persons ................................1-11
Pre-crash seat belts (front seats) ................1-11
Three-point type seat belt.......................1-12
Seat belt extenders.............................1-14
Seat belt maintenance..........................1-15
Child restraints ...................................1-15
Precautions on child restraints ..................1-15
Lower Anchors and Tethers for CHildren
system (LATCH) ................................1-17
Top tether strap child restraint ..................1-19
Child restraint installation using LATCH ......... 1-20
Child restraint installation using the seat
belts ......................................... 1-24
Booster seats .................................... 1-30
Precautions on booster seats................... 1-30
Booster seat installation ....................... 1-32
Supplemental restraint system .................... 1-34
Precautions on supplemental restraint
system ....................................... 1-34
INFINITI advanced air bag system (front
seats) ........................................ 1-40
Front seat-mounted side-impact supplemental air bags and roof-mounted curtain side-impact supplemental air bag
systems .......................................1-45
Seat belts with pretensioners (front seats) ...... 1-46
Supplemental air bag warning labels ........... 1-47
Supplemental air bag warning light .............1-48
Repair and replacement procedure.............. 1-48
SEATS
WARNING
Do not ride in a moving vehicle when the seatback is reclined. Thiscan be dangerous. The shoulder belt will not be against your body. In an accident, you could be thrown into it andreceive neckor otherserious inju­ries. You could also slide under the lap belt and receive serious internal injuries.
For the most effective protection when the vehicle is in motion, the seat should be up­right. Always sit well back in the seat with both feet on the floor and adjust the seat properly. See “PRECAUTIONS ON SEAT BELT USAGE” later in this section.
SSS0133
Do not adjust the driver’s seat while driving so full attention may be given to vehicle op­eration. The seat may move suddenly and could cause loss of control of the vehicle.
Do not leave children unattended inside the vehicle. They could unknowingly activate switches or controls. Unattended children could become involved in serious accidents.
The seatback should not be reclined any more thanneeded forcomfort.Seat beltsare most effective when the passenger sits well back and straight up in the seat. If the seat­back is reclined,the riskof sliding underthe lap belt and being injured is increased.
CAUTION
When adjusting the seat positions, be surenot to contact any moving parts to avoid possible injuries and/or damages.
FRONT SEATS Front power seat adjustment
Operating tips :
The power seat motor has an auto-reset overload protection circuit. If the motor stops during operation, wait 30 seconds, then reactivate the switch.
Do not operate the power seat switch for a long period of time when the engine is off. This will discharge the battery.
See “AUTOMATIC DRIVE POSITIONER” in the “3. Pre-driving checks and adjustments” section for the seat position memory function.
1-2 Safety — Seats, seat belts and supplemental restraint system
Forward and backward :
Moving the switch slide the seat forward or backward to the desired position.
Reclining :
Move the recline switch desired angle is obtained. To bring the seatback forward again, move the switch
1
forward or backward will
s
2
backward until the
s
2
forward.
s
SSS0474 SSS0475
The reclining feature allows adjustment of the seatback for occupants of different sizes for added comfort and to help obtain proper seat belt fit. (See “PRECAUTIONS ON SEAT BELT USAGE” later in this section.) Also, the seatback can be reclined to allow occupants to rest when the vehicle is stopped and the transmission is in the P (Park) position with the parking brake fully applied.
Safety — Seats, seat belts and supplemental restraint system 1-3
Seat lifter :
Push the front or rear end of the switch up or down to adjust the angle of the front portion or height of the seat.
SSS0476 SSS0631 SSS0478
Lumbar support :
The lumbar support feature provides lower back support.
Push the front to adjust the seatback lumbar area.
s
1
or back
2
end of the switch
s
REAR SEATS Rear power seat adjustment (if so
equipped)
Forward and backward :
Push the front to move the rear outboard seats forward or backward. The seats move continuously while the switch is being pushed.
s
1
1-4 Safety — Seats, seat belts and supplemental restraint system
or back
2
end of the switch
s
Entry/exit assist (automatic return) :
1
Pushing the ON side the rear center armrest, the automatic return function will activate.
When a rear door is opened, the rear seat of the corresponding side automatically slides all the way back, facilitating ease of entry and exit.
Pushing the CANCEL side deactivate the automatic return function.
of the switch located on
s
2
of the switch will
s
HEAD RESTRAINTS
WARNING
Head restraints shouldbe adjusted properlyas they mayprovide significant protectionagainst injury in an accident. Do not remove them. Check the adjustment after someone else uses the seat.
SSS0228A SSS0287
Adjustment
To raise the head restraint, pull it up.
2
, push it in
s
s
1
and
To lower, push and hold the lock knob push the head restraint down.
To adjust the head restraint angle the direction required. (front seat head re­straints)
Adjust the head restraint so the center is level with the center of your ears.
Safety — Seats, seat belts and supplemental restraint system 1-5
SSS0508 SIC2783
FRONT-SEAT ACTIVE HEAD RESTRAINTS
WARNING
Always adjust the head restraints properly as specified in this section. Failure to do so can reduce the effectiveness of the Active Head Restraint.
Active Head Restraints are designed to supplement other safety systems. Always wear seat belts. No system can prevent all injuries in any accident.
Do not attach anything to the head restraint stalks. Doing so could impair Active Head Restraint function.
The Active Head Restraint moves forward utiliz­ing the force that the seatback receives from the occupant in a rear-end collision. The move­ment of the head restraint helps support the occupant’s head by reducing its backward movement and helping absorb some of the forces that may lead to whiplash type injuries.
Active Head Restraints are effective for colli­sions at low to medium speeds in which it is said that whiplash injury occurs most.
Active Head Restraints operate only in certain rear-end collisions. After the collision, the head restraints return to their original positions.
Properly adjust the Active Head Restraints as described earlier in this section.
ARMREST Front armrest
Pull the lever passenger’s armrest forward and backward.
Slide the armrest to the original position when using the front cup holders.
A
up and slide the driver’s or
s
1-6 Safety — Seats, seat belts and supplemental restraint system
SSS0520 SSS0479
Rear armrest
Pull the armrest down until it is horizontal.
Trunk pass-through
The rear center seatback can be folded to allow trunk access from inside of the vehicle.
To access the trunk, pull down the rear center armrest and pull out the trunk pass-through lid
1
.
s
To lock the lid, use the mechanical key and turn it to the LOCK position mechanical key to the UNLOCK position the mechanical key usage, see “KEYS” in the “3. Pre-driving checks and adjustments” section.
Make sure that the mechanical key is removed from the trunk pass-through lid key cylinder before opening or closing the lid. Otherwise the lid and the rear armrest may be damaged.
2
. To unlock, turn the
s
s
3
. For
Safety — Seats, seat belts and supplemental restraint system 1-7
SEAT BELTS
PRECAUTIONS ON SEAT BELT USAGE
If you are wearing your seat belt properly adjusted, and you are sitting upright and well back in your seat with both feet on the floor, your chances of being injured or killed in an accident and/or the severity of injury may be greatly reduced. INFINITI strongly encourages you and all of your passengers to buckle up every time you drive, even if your seating position includes a supplemental air bag.
Most U.S. states and Canadian provinces or ter­ritories specify that seat belts be worn at all times when a vehicle is being driven.
SSS0136
1-8 Safety — Seats, seat belts and supplemental restraint system
SSS0134
SSS0016
SSS0014
WARNING
Every person who drives or rides in this ve­hicle shoulduse aseatbelt atall times.Chil­dren should be properly restrained in the rear seat and, if appropriate, in a child restraint.
The seat belt should be properlyadjusted to a snug fit. Failure to do so may reduce the effectiveness of the entire restraint system and increase the chance or severity of injury in an accident. Serious injury or death can occur if the seat belt is not worn properly.
Always route the shoulder belt over your shoulder and across your chest. Never put the belt behindyour back,under your armor across your neck. The belt should be away from your face and neck, but not falling off your shoulder.
Position the lap belt as low and snug as possible AROUNDTHEHIPS, NOTTHEWAIST. A lap belt worn too high could increase the risk of internal injuries in an accident.
Be sure the seat belt tongue is securely fas­tened to the proper buckle.
Do not wear the seat belt inside out or twisted. Doing so may reduce its effectiveness.
Safety — Seats, seat belts and supplemental restraint system 1-9
Do notallowmorethanoneperson tousethe same seat belt.
Never carry more people in the vehicle than there are seat belts.
If the seat belt warning light glows continu­ously while theignition isturned ON withall doors closed and all seat belts fastened, it may indicate a malfunction in the system. Have the system checked by an INFINITI dealer.
No changes should be made to the seat belt system. For example, do notmodify the seat belt, add material, or install devices that may change the seatbelt routing ortension. Doing somay affect theoperation oftheseat belt system. Modifying or tampering with the seat belt system may result in serious personal injury.
Once a seat belt pretensioner has activated, it cannot be reused and must be replaced together with the retractor. See an INFINITI dealer.
Removal andinstallation ofthepretensioner system components should be done by an INFINITI dealer.
All seatbeltassemblies,includingretractors and attaching hardware, should be in­spected after any collision by an INFINITI dealer. INFINITI recommends that all seat belt assemblies in use during a collision be replaced unless the collision was minor and the belts show no damage and continue to operate properly. Seat belt assemblies not in use during a collision should also be in­spected and replaced if either damage or improper operation is noted.
All child restraints and attaching hardware should be inspected after any collision. Al­ways follow the restraint manufacturer’s in­spection instructions and replacement rec­ommendations. The child restraints should be replaced if they are damaged.
CHILD SAFETY
Children need adults to help protect them. They need to be properly restrained.
In addition to the general information in this manual, child safety information is available from many other sources, including doctors, teachers, government traffic safety offices, and community organizations. Every child is differ­ent, so be sure to learn the best way to trans­port your child.
There are three basic types of child restraint systems:
Rear facing child restraint
Front facing child restraint
Booster seat
The proper restraint depends on the child’s size. Generally, infants (up to about 1 year and less than 20 lb (9 kg)) should be placed in rear facing child restraints. Front facing child re­straints are available for children who outgrow rear facing child restraints and are at least 1 year old. Booster seats are used to help posi­tion a vehicle lap/shoulder belt on a child who can no longer use a front facing child restraint.
Infants and children need special protection. The vehicle’s seat belts may not fit them prop­erly. The shoulder belt may come too close to the face or neck. The lap belt may not fit over their small hip bones. In an accident, an im­properly fittingseat beltcouldcause seriousor fatal injury. Always use appropriate child restraints.
1-10 Safety — Seats, seat belts and supplemental restraint system
WARNING
All U.S. states and Canadian provinces or terri­tories require the use of approved child re­straints for infants and small children. (See “CHILD RESTRAINTS” later in this section.)
Also, there are other types of child restraints available for larger children for additional pro­tection.
INFINITI recommends thatall pre-teensand chil­dren be restrained in the rear seat. According to accident statistics, children are safer when properly restrained in the rear seat than in the front seat. This is especially important because your ve­hicle has a supplemental restraint system (air bag system) for the front passenger. (See “SUPPLEMENTAL RESTRAINT SYSTEM” later in this section.)
Infants
Infants up to at least 1 year old should be placed in a rear facing child restraint. INFINITI recommends that infants be placed in child restraints that comply with Federal Motor Ve­hicle Safety Standards or Canadian Motor Ve­hicle Safety Standards. You should choose a child restraint that fits your vehicle and always follow the manufacturer’s instructions for in­stallation and use.
Small children
Children that are over 1 year old and weigh at least 20 lb (9 kg) can be placed in a forward facing child restraint. Refer to the manufactur­er’s instructions for minimum and maximum weight and height recommendations. INFINITI recommends that small children be placed in child restraints that comply with Federal Motor Vehicle Safety Standards or Canadian Motor Vehicle Safety Standards. You should choose a child restraint that fits your vehicle and always follow the manufacturer’s instructions for in­stallation and use.
Larger children
Children who are too large for child restraints should be seated and restrained by the seat belts which are provided. The seat belt may not fit properly if the child is less than 4 ft 9 in (142.5 cm) tall and weighs between 40 lb (18 kg) and 80 lb (36 kg). A booster seat should be used to obtain proper seat belt fit.
INFINITI recommends that a child be placed in a commercially available booster seat if the shoulder belt in the child’s seating position fits close to the face or neck or if the lap portion of the seat belt goes across the abdomen. The booster seat should raise the child so that the shoulder belt is properly positioned across the top, middle portion of the shoulder and the lap
belt is low on the hips. A booster seat can only be used in seating positions that have a three­point type seat belt. The booster seat should fit the vehicle seat and have a label certifying that it complies with Federal Motor Vehicle Safety Standards or Canadian Motor Vehicle Safety Standards. Once the child has grown so the shoulder belt is no longer on or near the face and neck, use the shoulder belt without the booster seat.
WARNING
Never let achild stand orkneel onany seat and do notallow a childin thecargoareas whilethe vehicle is moving. The child could be seriously injured or killed in an accident or sudden stop.
PREGNANT WOMEN
INFINITI recommends that pregnant women use seat belts. The seat belt should be worn snug, and always position the lap belt as low as possible around the hips, not the waist. Place the shoulder belt over your shoulder and across your chest. Never run the lap/shoulder belt over your abdominal area. Contact your doctor for specific recommendations.
Safety — Seats, seat belts and supplemental restraint system 1-11
INJURED PERSONS
INFINITI recommends that injured persons use seat belts, depending on the injury. Check with your doctor for specific recommendations.
PRE-CRASH SEAT BELTS (front seats)
The pre-crash seat belt tightens the seat belt to help restrain front seat occupants under emer­gency braking. This can help reduce the risk of injury when a collision occurs.
Pre-crash seat belt will not be activated when:
the brake pedal is not depressed
the seat belt is not fastened
the selector lever is in the R (Reverse) posi-
tion
the vehicle speed is under 10 MPH (15 km/h) Always wear your seat belt correctly and sit
upright and well back in the seat with both feet on the floor.
If the seat belt warning light blinks even if the driver’s and front passenger’s seat belts are fastened, it may indicate the pre-crash seat belt system has a malfunction. Have your INFINITI dealer check and repair the system.
THREE-POINT TYPE SEAT BELT
WARNING
Every person who drives or rides in this ve­hicle should use a seat belt at all times.
Do not ride in a moving vehicle when the seatback is reclined. Thiscan be dangerous. The shoulder belt will not be against your body. In an accident, you could be thrown into it andreceive neckor otherserious inju­ries. You could also slide under the lap belt and receive serious internal injuries.
For the most effective protection when the vehicle is in motion, the seat should be up­right. Always sit well back in the seat with both feetonthefloorandadjust theseatbelt properly.
SSS0292 SSS0290
Fastening the seat belts
1. Adjust the seat. (See “SEATS” earlier in this section.)
2. Slowly pull the seat belt out of the retrac-
tor and insert the tongue into the buckle until you hear and feel the latch engage.
The retractor is designed to lock during a sudden stop oron impact. Aslow pulling mo­tion permits thebelt to move,and allowsyou some freedom of movement in the seat.
If the seat belt cannot bepulled from its fully retracted position, firmly pull the belt and release it. Then smoothly pull the belt out of the retractor.
3. Position the lap belt portion low and snug on the hips as shown.
4. Pull the shoulder belt portion toward the retractor to take up extra slack. Be sure the shoulder belt is routed over your shoulder and across your chest.
The front passenger and the rear seating posi­tions three-point type seat belts have two modes of operation:
Emergency Locking Retractor (ELR)
Automatic Locking Retractor (ALR)
The Emergency Locking Retractor (ELR) mode allows the seat belt to extend and retract to allow the driver and passengers some freedom
1-12 Safety — Seats, seat belts and supplemental restraint system
of movement in the seat. The ELR locks the seat belt when the vehicle slows down rapidly or during certain impacts.
The Automatic Locking Retractor (ALR) mode (child restraint mode) locks the seat belt for child restraint installation.
When the ALR mode is activated the seat belt cannot be extended again until the seat belt tongue is detached from the buckle and fully retracted. The seat belt returns to the ELR mode after the seat belt fully retracts. For additional information, see “CHILD RESTRAINTS” later in this section.
The ALR mode should be used only for child restraint installation. During normal seat belt use by anoccupant, theALR modeshould not be activated. If it is activated it may cause uncom­fortable seat belttension. Itcan alsochange the operation of the front passenger air bag. See “Front passenger air bag and status light” later in this section.
WARNING
When fastening the seat belts, be certain that seatbacks are completely secured in the latched position. If they are not completely se­cured, passengers may be injured in an acci­dent or sudden stop.
To increase your confidence in the seat belts, check the operation as follows:
Grasp the shoulder belt and pull forward
quickly. The retractor should lock and re­strict further belt movement.
If the retractor does not lock during this check or if you have any question about seat belt operation, see an INFINITI dealer.
SSS0326
Unfastening the seat belts
To unfasten the seat belt, push the button on the buckle. The seat belt automatically retracts.
Checking seat belt operation
Seat belt retractors are designed to lock seat belt movement by two separate methods:
When the belt is pulled quickly from the retractor.
When the vehicle slows down rapidly.
Safety — Seats, seat belts and supplemental restraint system 1-13
WARNING
After adjustment, release the adjustment button and try to move the shoulder belt anchor up and down to make sure it is se­curely fixed in position.
The shoulder belt anchor height should be adjusted to the positionbest for you.Failure to do so may reduce the effectiveness of the entire restraint system and increase the chance or severity of injury in an accident.
SPA1836 SSS0294A
Center of rear seat
Selecting correct set of seat belts :
The center seat belt buckle is identified by the CENTER mark can be fastened only into the center seat belt buckle.
A
. The center seat belt tongue
s
Shoulder belt height adjustment (front seats)
The shoulder belt anchor height should be adjusted to the position best for you. (See “PRECAUTIONS ON SEAT BELT USAGE” earlier in this section.)
To adjust, push the adjustment button then move the shoulder belt anchor to the desired position, so that the belt passes over the center of the shoulder. The belt should be away from your face and neck, but not falling off of your shoulder. Release the adjustment but­ton to lock the shoulder belt anchor into posi­tion.
1-14 Safety — Seats, seat belts and supplemental restraint system
s
A
, and
SEAT BELT EXTENDERS
If, because of body size or driving position, it is not possible to properly fit the lap-shoulder belt and fasten it, an extender is available that is compatible with the installed seat belts. The extender adds approximately 8 in (200 mm) of length and may be used for either the driver or front passenger seating position. See an INFINITI dealer for assistance if an extender is required.
WARNING
Only INFINITI seat belt extenders, made by the same company which made the original equipment seat belts, should be used with the INFINITI seat belts.
CHILD RESTRAINTS
Adults and children who can use the stan­dard seat belt should not use an extender. Such unnecessary use could result in seri­ous personal injury in the event of an accident.
Never use seatbelt extendersto installchild restraints. If the child restraint is not se­cured properly, the child could be seriously injured in a collision or a sudden stop.
SEAT BELT MAINTENANCE
To clean the seatbelt webbings, apply amild
soap solution or any solution recommended for cleaning upholstery or carpets. Then, wipe with a cloth and allow the seat belts to dry in the shade. Do not allow the seat belts to retract until they are completely dry.
If dirt builds up in the shoulder belt guide of
the seat belt anchors, the seat belts may retract slowly. Wipe the shoulder belt guide with a clean, dry cloth.
Periodically check to see that the seat belt and the metal components, such as buckles,
tongues, retractors, flexible wires and an­chors work properly. If loose parts, deterio­ration, cuts or other damage on the webbing is found, the entire seat belt assembly should be replaced.
PRECAUTIONS ON CHILD RESTRAINTS
WARNING
Infants and small children should always be placed in an appropriate child restraint while riding in the vehicle. Failure to use a child restraint can result in serious injury or death.
Infants and small children should never be carried onyourlap. Itisnot possible foreven the strongest adult to resist the forces of a
SSS0099
SSS0100
Safety — Seats, seat belts and supplemental restraint system 1-15
severe accident. The child could be crushed between the adult and parts of the vehicle. Also, do not put the same seat belt around both your child and yourself.
Even withthe INFINITIAdvanced AirBag Sys­tem, never install a rear-facing child re­straint in thefront seat. Aninflating front air bag couldseriouslyinjureorkillyour child.A rear-facing child restraintmust onlybe used in the rear seat.
INFINITI recommends thatthe child restraint be installed in the rear seat. According to accident statistics, children are safer when properly restrained in the rear seat than in the front seat. If you must install a front facing child restraint in the front seat, see “CHILD RESTRAINT INSTALLATION USING THE SEAT BELTS” later in this section.
Improper use or improper installation of a child restraintcan increasethe riskor sever­ity of injury for both the child and other oc­cupants of the vehicle and can lead to seri­ous injury or death in an accident.
Follow all of the child restraint manufactur­er’s instructions for installation and use. When purchasingachildrestraint,besure to select one which will fit your child and ve­hicle. It may not be possible to properly in­stall some types of child restraints in your vehicle.
If the child restraint is not anchored prop­erly, the risk of a child being injured in a collision or a sudden stopgreatly increases.
Child restraintanchorpointsare designedto withstand only those loads imposed by cor­rectly fitted child restraints. Under no cir­cumstances are they to be used for adult seat belts or harnesses.
Adjustable seatbacks should be positioned to fit the child restraint, but as upright as possible.
After attaching the child restraint,test it be­fore you place the child in it. Push it from side to side while holding the seat near the LATCH attachment or by the seat belt path. Try to tug it forward and check to see if the belt holds the restraint in place. The child restraint should not move more than 1 in (25 mm). If the restraint is not secure, tighten the belt as necessary, or put the restraint in another seat andtest itagain. Youmay need to try a different child restraint. Not all child restraints fit in all types of vehicles.
When your child restraint is not in use, keep it secured with the LATCH System or a seat belt to prevent it from being thrown around in case of a sudden stop or accident.
Remember that a child restraintleft in a closed vehicle canbecome veryhot.Check theseating surface andbuckles before placing yourchild in the child restraint.
1-16 Safety — Seats, seat belts and supplemental restraint system
CAUTION
This vehicle is equipped with a universal child restraint lower anchor system, referred to as the Lower Anchors and Tethers for CHildren System or LATCH. Some child restraints include two rigid or webbing-mounted attachments that can be connected to these lower anchors. For de­tails, see “Lower Anchors and Tethers for CHil­dren SYSTEM (LATCH)” later in this section.
If you do not have a LATCH compatible child restraint, the vehicle seat belts can be used. (See “CHILD RESTRAINT INSTALLATION USING THE SEAT BELTS” later in this section.) In gen­eral, child restraints are also designed to be installed with the lap portion of a lap/shoulder seat belt.
Several manufacturers offer child restraints for infants and small children of various sizes. When selecting any child restraint, keep the following points in mind:
Choose only a restraint with a label certify­ing that it complies with Federal Motor Ve­hicle Safety Standard 213 or Canadian Motor Vehicle Safety Standard 213.
Check the child restraint in your vehicle to be sure it is compatible with the vehicle’s seat and seat belt system.
If the child restraint is compatible with your vehicle, place your child in the child restraint and check the various adjustments to be
sure the child restraint is compatible with your child. Choose a child restraint that is designed for your child’s height and weight. Always follow all recommended procedures.
All U.S.statesandCanadian provincesorterrito­ries require that infants and small children be restrained in an approved child restraint at all times while the vehicle is being operated.
The LATCH anchor points are provided to install child restraints in the rear outboard seating positions only. Do not attempt to install a child restraint in the center position using the LATCH anchors.
SSS0567
LATCH system anchor location
LOWER ANCHORS AND TETHERS FOR CHILDREN SYSTEM (LATCH)
Your vehicle is equipped with special anchor points that are used with Lower Anchors and Tethers for CHildren System (LATCH) compatible child restraints. This system may also be re­ferred to as the ISOFIX or ISOFIX compatible system. With this system, you do not have to use a vehicle seat belt to secure the child restraint.
Safety — Seats, seat belts and supplemental restraint system 1-17
SSS0659
LATCH lower anchor location (Type A)
SSS0637
LATCH lower anchor location (Type B)
LATCH lower anchor point locations
The LATCH anchors are located at the rear of the seat cushion near the seatback. A label is attached to the seatback to help you locate the LATCH anchors.
WARNING
Attach LATCH compatible child restraints only at the locations shown in the illustra­tion. If a child restraint is not secured prop­erly, your child could be seriously injured or killed in an accident.
Do not secure a child restraint in the center rear seating position using the LATCH an­chors. The childrestraint willnot be secured properly.
Child restraintanchorpointsare designedto withstand only those loads imposed by cor­rectly fitted child restraints. Under no cir­cumstance are they tobe used for adultseat belts or harnesses.
SSS0643
LATCH webbing-mounted attachment
Installing child restraint LATCH anchor attachments
LATCH compatible child restraints include two rigid or webbing-mounted attachments that can be connected to two anchors located at certain seating positions in your vehicle. With this system, you do not have to use a vehicle seat belt to secure the child restraint. Check your child restraint for a label stating that it is compatible with the LATCH system. This infor­mation may also be in the instructions provided by the child restraint manufacturer.
1-18 Safety — Seats, seat belts and supplemental restraint system
SSS0644
LATCH rigid-mounted attachment
LATCH child restraints generally require the use of a top tether strap. (See “TOP TETHER STRAP CHILD RESTRAINT” later in this section for in­stallation instructions.)
When installing a child restraint, carefully read and follow the instructions in this manual and those supplied with the child restraint. (See “CHILD RESTRAINT INSTALLATION USING LATCH” later in this section.)
TOP TETHER STRAP CHILD RESTRAINT
If the manufacturer of your child restraint re­quires the use of a top tether strap, it must be secured to an anchor point.
WARNING
Child restraint anchor points are designed to withstand only those loads imposed by cor­rectly fitted child restraints. Under no circum­stances are they to be usedfor adult seat belts or harnesses.
SSS0568
Top tether anchor point locations
Anchor points are located on the rear parcel shelf.
Installing top tether strap
First secure the child restraint with the LATCH system (rear outboard seating positions only) or the seat belt as applicable.
1. Flip up the anchor cover from the anchor point which is located directly behind the child seat.
2. Position the top tether strap over the top
of the seatback.
Safety — Seats, seat belts and supplemental restraint system 1-19
3. Secure the tether strap to tether anchor bracket that provides the straightest in­stallation.
4. Tighten the strap according to the manu­facturer’s instructions to remove any slack.
If you have any questions when installing a top tether strap childrestraint on therear seat,con­sult your INFINITI dealer for details.
CHILD RESTRAINT INSTALLATION USING LATCH
WARNING
Attach LATCH compatible child restraints only at the locations shown. For the LATCH lower anchor locations, see “Lower Anchors and Tethers for CHildren SYSTEM (LATCH)” earlier in this section. If a child restraint is not secured properly, your child could be seriously injured or killed in an accident.
The LATCH anchors are designed to with­stand only those loadsimposed by correctly fitted child restraints. Under no circum­stance are they to be used for adult seat belts or harnesses.
Inspect the lower anchors by inserting your fingers into the lower anchor area and feel­ing to make sure there are no obstructions over the LATCH anchors, such as seat belt webbing or seat cushion material. The child restraint will not be secured properly if the LATCH anchors are obstructed.
Front-facing
Follow these steps to install a front-facing child restraint using LATCH:
1. If your vehicle is equipped with rear power seat adjustment, adjust the rear outboard seats to the upright and rearmost posi­tion. (See “REAR SEATS” earlier in this section.)
2. Position the child restraint on the seat.
Always follow the child restraint manufac­turer’s instructions.
SSS0645
Front facing (webbing-mounted) — step 3
3. Secure the child restraint anchor attach­ments to the LATCH lower anchors. Check to make sure the LATCH attachment is properly attached to the lower anchors.
1-20 Safety — Seats, seat belts and supplemental restraint system
SSS0646
Front facing (rigid-mounted) — step 3
4. The back of the child restraint should be secured against the vehicle seatback. If necessary, adjust or remove the head restraint to obtain the correct child re­straint fit. (See “HEAD RESTRAINTS” ear­lier in this section.)
If the head restraint is removed, store it in a secure place. Be sure to install the head restraint when the child restraint is re­moved.
If the seating position does not have an adjustable head restraint and it is interfer­ing with the proper child restraint fit, try another seating position or a different child restraint.
SSS0647
Front facing — step 5
5. For child restraints that are equipped with webbing-mounted attachments, remove any additional slack from the anchor at­tachments. Press downward and rearward firmly in the center of the child restraint with your knee to compress the vehicle seat cushion and seatback while tighten­ing the webbing of the anchor attach­ments.
6. If the child restraint is equipped with a
top tether strap, route the top tether strap and secure the tether strap to the tether anchor point. (See “TOP TETHER STRAP CHILD RESTRAINT” earlier in this section.)
Safety — Seats, seat belts and supplemental restraint system 1-21
8. Check to make sure the child restraint is properly secured prior to each use. If the child restraint is loose, repeat steps 4 through 7.
Rear-facing
Follow these steps to install a rear-facing child restraint using LATCH:
1. If your vehicle is equipped with rear power
seat adjustment, adjust the rear outboard seats to the upright and rearmost posi-
SSS0638
Front facing — step 7
7. Before placing the child in the child re­straint, hold child restraint near the LATCH attachment and use force to push the child restraint from side to side, and tug it forward to make sure that it is securely held in place. It should not move more than 1 in (25 mm). If it does move more than 1 in (25 mm), pull again on the anchor attachments to further tighten the child restraint. If you are unable to prop­erly secure the restraint, move the re­straint to another seating position and try again, or try a different child restraint. Not all child restraints fit in all types of ve­hicles.
tion. (See “REAR SEATS” earlier in this section.)
2. Position the child restraint on the seat. Always follow the child restraint manufac­turer’s instructions.
1-22 Safety — Seats, seat belts and supplemental restraint system
SSS0648
Rear facing (webbing-mounted) — step 3
3. Secure the child restraint anchor attach­ments to the LATCH lower anchors. Check to make sure the LATCH attachment is properly attached to the lower anchors.
SSS0649
Rear facing (rigid-mounted) — step 3
Rear facing — step 4
SSS0639
SSS0650
Rear facing — step 5
4. For child restraints that are equipped with webbing-mounted attachments, remove any additional slack from the anchor at­tachments. Press downward and rearward firmly in the center of the child restraint with your hand to compress the vehicle seat cushion and seatback while tighten­ing the webbing of the anchor attach­ments.
Safety — Seats, seat belts and supplemental restraint system 1-23
5. Before placing the child in the child re­straint, hold the child restraint near the LATCH attachment and use force to push the child restraint from side to side, and tug it forward to make sure that it is securely held in place. It should not move more than 1 in (25 mm). If it does move more than 1 in (25 mm), pull again on the anchor attachments to further tighten the child restraint. If you are unable to prop­erly secure the restraint, move the re­straint to another seating position and try again, or try a different child restraint. Not all child restraints fit in all types of vehicles.
6. Check to make sure the child restraint is properly secured prior to each use. If the child restraint is loose, repeat steps 4 through 5.
SSS0100
CHILD RESTRAINT INSTALLATION USING THE SEAT BELTS
WARNING
Even withthe INFINITIAdvanced AirBag Sys­tem, never install a rear-facing child re­straint in the front passenger seat. Front air bags inflate with great force. A rear-facing child restraintcould be struckbythefrontair bag in a crash and could seriously injure or kill your child.
INFINITI recommendsthatchild restraintsbe installed in the rear seat. However, if you must install a forward facing child restraint
in the front passenger seat, move the pas­senger seat to the rearmost position. Al­so,be surethefrontpassenger airbagstatus light isilluminated to indicate thepassenger air bag is OFF. See “Front passenger air bag and status light” later in this section for details.
The three-point seat belt in your vehicle is equipped with an Automatic LockingRetrac­tor (ALR) mode which must be used when installing a child restraint.
Failure to use theALR mode will resultin the child restraint not being properly secured. The restraint could tip over or otherwise be unsecured and cause injury to the child in a sudden stop or collision. Also, itcan change the operation of thefront passenger airbag. See “Front passenger air bag and status light” later in this section.
A child restraint with a top tether strap should not be used in the front passenger seat.
The instructions in this section apply to child restraint installation using the vehicle seat belts in the rear seat or the front passenger seat.
1-24 Safety — Seats, seat belts and supplemental restraint system
SSS0640
Front facing (front passenger seat) — step 1
Front-facing
Follow these steps to install a front-facing child restraint using the vehicle seat belt in the rear seat or in the front passenger seat:
1. If your vehicle is equipped with rear power seat adjustment, adjust the rear outboard seats to the upright and rearmost posi­tion. (See “REAR SEATS” earlier in this section.)
If youmustinstallachild restraintinthefront seat, it should be placed in a front-facing direction only. Move theseat to the rearmost position. Child restraints for infants must be used in the rear-facing direction and there­fore must not be used in the front seat.
2. Position the child restraint on the seat.
Always follow the child restraint manufac­turer’s instructions.
The back of the child restraint should be secured against the seatback. If necessary, adjust or remove the head restraint to ob­tain the correct child restraint fit. (See “HEAD RESTRAINTS” earlier in this section.)
If the head restraint is removed, store it in a secure place. Be sure to install the head restraint when the child restraint is re­moved.
If the seating position does not have an adjustable head restraint and it is interfer­ing with the proper child restraint fit, try another seating position or a different child restraint.
SSS0360B
Front facing — step 3
3. Route the seat belt tongue through the child restraint and insert it into the buckle until you hear and feel the latch engage. Be sure to follow the child restraint manu­facturer’s instructions for belt routing.
Safety — Seats, seat belts and supplemental restraint system 1-25
Front facing — step 4
SSS0651
Front facing — step 5
SSS0652
SSS0653
Front facing — step 6
4. Pull the shoulder belt until the belt is fully extended. At this time, the seat belt re­tractor is in the Automatic Locking Retrac-
5. Allow the seat belt to retract. Pull up on the shoulder belt to remove any slack in the belt.
tor (ALR) mode (child restraint mode). It reverts to the Emergency Locking Retrac­tor (ELR) mode when the seat belt is fully retracted.
1-26 Safety — Seats, seat belts and supplemental restraint system
6. Remove any additional slack from the seat belt; press downward and rearward firmly in the center of the child restraint with your knee to compress the vehicle seat cushion and seatback while pulling up on the seat belt.
7. If the child restraint is equipped with a
top tether strap, route the top tether strap and secure the tether strap to the tether anchor point (rear seat installation only). (See “TOP TETHER STRAP CHILD RE­STRAINT” earlier in this section.) Do not install child restraints that require the use of a top tether strap to seating positions that do not have a top tether anchor.
9. Check that the retractor is in the ALR mode by trying to pull more seat belt out of the retractor. If you cannot pull any more belt webbing out of the retractor, the retractor is in the ALR mode.
10. Check to make sure the child restraint is
properly secured prior to each use. If the seat belt is not locked, repeat steps 3 through 9.
SSS0641
Front facing — step 8
8. Before placing the child in the child re­straint, hold the child restraint near the seat belt path and use force to push the child restraint from side to side, and tug it forward to make sure that it is securely held in place. It should not move more than 1 in (25 mm). If it does move more than 1 in (25 mm), pull again on the shoulder belt to further tighten the child restraint. If you are unable to properly secure the restraint, move the restraint to another seating position and try again, or try a different child restraint. Not all child restraints fit in all types of vehicles.
SSS0481

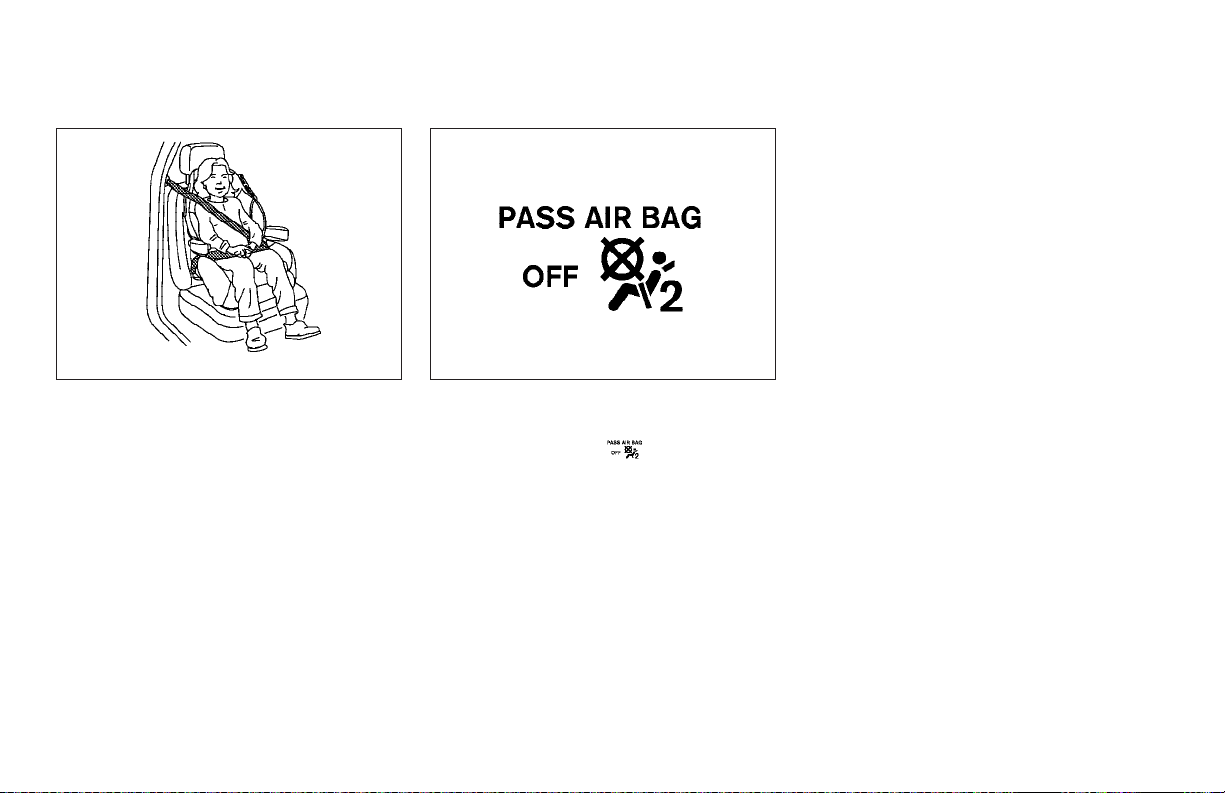

Front facing — step 11
11. If the child restraint is installed in the front passenger seat, push the ignition switch to the ON position. The front pas­senger air bag status light
should illuminate. If this light is not illuminated, see “Front passenger air bag and status light” later in this section. Move the child restraint to another seating position . Have the system checked by an INFINITI dealer.
After the child restraint is removed and the seat belt is fully retracted, the ALR mode (child restraint mode) is canceled.
Safety — Seats, seat belts and supplemental restraint system 1-27
SSS0100
Rear-facing
Follow these steps to install a rear-facing child restraint using the vehicle seat belt in the rear seat:
1. Child restraints forinfants must beused in
the rear-facing direction and therefore
3. Route the seat belt tongue through the child restraint and insert it into the buckle until you hear and feel the latch engage. Be sure to follow the child restraint manu­facturer’s instructions for belt routing.
Rear facing — step 3
must not be used in the front seat.
If your vehicle is equipped with rear power seat adjustment, adjust the rear outboard seats to the upright and rearmost position. (See “REAR SEATS” earlier in this section.)
2. Position the child restraint on the seat. Always follow the restraint manufacturer’s instructions.
1-28 Safety — Seats, seat belts and supplemental restraint system
SSS0654
SSS0655
Rear facing — step 4
4. Pull the shoulder belt until the belt is fully extended. At this time, the seat belt re­tractor is in the Automatic Locking Retrac­tor (ALR) mode (child restraint mode). It reverts to the Emergency Locking Retrac­tor (ELR) mode when the seat belt is fully retracted.
Rear facing — step 5
SSS0656
Rear facing — step 6
SSS0657
SSS0658
Rear facing — step 7
5. Allow the seat belt to retract. Pull up on the shoulder belt to remove any slack in the belt.
6. Remove any additional slack from the child restraint; press downward and rear­ward firmly in the center of the child restraint with your hand to compress the vehicle seat cushion and seatback while pulling up on the seat belt.
Safety — Seats, seat belts and supplemental restraint system 1-29
7. Before placing the child in the child re­straint, hold the child restraint near the seat belt path and use force to push the child restraint from side to side, and tug it forward to make sure that it is securely held in place. It should not move more than 1 in (25 mm). If it does move more than 1 in (25 mm), pull again on the shoulder belt to further tighten the child restraint. If you are unable to properly secure the restraint, move the restraint to another rear seating position and try again, or try a different child restraint. Not all child restraints fit in all types of ve­hicles.
BOOSTER SEATS
8. Check that the retractor is in the ALR mode by trying to pull more seat belt out of the retractor. If you cannot pull any more seat belt webbing out of the retrac­tor, the retractor is in the ALR mode.
9. Check to make sure that the child re­straint is properly secured prior to each use. If the belt is not locked, repeat steps 3 through 8.
After the child restraint is removed and the seat belt fully retracted, the ALR mode (child re­straint mode) is canceled.
SSS0099
PRECAUTIONS ON BOOSTER SEATS
WARNING
Infants and small children should always be placed in an appropriate child restraint while riding in the vehicle. Failure to use a child restraint or booster seat can result in serious injury or death.
Infants and small children should never be carried onyourlap. Itisnot possible foreven the strongest adult to resist the forces of a severe accident. The child could be crushed between the adult and parts of the vehicle. Also, do not put the same seat belt around both your child and yourself.
INFINITI recommends that the booster seat be installed in the rear seat. According to accident statistics, children are safer when properly restrained in the rear seat than in the front seat. If you must install a booster seat in the front seat, see “BOOSTER SEAT INSTALLATION” later in this section.
A booster seat must only be installed in a seating position that has a lap/shoulder belt. Failure to use a three-point type seat belt with a booster seat can result in a seri­ous injury in sudden stop or collision.
Improper use or improper installation of a booster seatcanincrease theriskor severity of injury for both the child and other occu­pants of the vehicle and can lead to serious injury or death in an accident.
Do not use towels, books, pillows or other items in place of a booster seat. Items such as these may move during normal driving or a collision and result in serious injury or death. Booster seats are designed to be used with alap/shoulder belt.Booster seats are designed to properly route the lap and shoulder portions of the seat belt over the strongest portions of a child’s body to pro­vide the maximum protection during a collision.
1-30 Safety — Seats, seat belts and supplemental restraint system
Follow all ofthebooster seatmanufacturer’s instructions for installation and use. When purchasing a booster seat, be sure to select one which will fit your child and vehicle. It may not bepossible toproperly installsome types of booster seats in your vehicle.
If the booster seat and seat belt is not used properly, therisk ofachild beinginjured ina collision or a sudden stopgreatly increases.
Adjustable seatbacks should be positioned to fit the booster seat, but as up- right as possible.
After placing the child in the booster seat and fastening the seat belt, make sure the shoulder portion ofthe belt isaway from the child’s face and neck and the lap portion of the belt does not cross the abdomen.
Do notput theshoulderbelt behind thechild or under thechild’s arm.If youmust installa booster seatinthefrontseat, see“BOOSTER SEAT INSTALLATION” later in this section.
When your booster seatis not inuse, keep it secured with a seat belt to prevent it from being thrown around in case of a sudden stop or accident.
CAUTION
Remember that a booster seat left in a closed vehicle canbecome veryhot.Check theseating surface andbuckles before placing yourchild in the booster seat.
LRS0455
Booster seats of various sizes are offered by several manufacturers. When selecting any booster seat, keep the following points in mind:
Choose only a booster seat with a label certifying that it complies with Federal Motor Vehicle Safety Standard 213 or Canadian Motor Vehicle Safety Standard 213.
Check the booster seat in your vehicle to be sure it is compatible with the vehicle’s seat and seat belt system.
Safety — Seats, seat belts and supplemental restraint system 1-31
LRS0453 LRS0464
Make sure the child’s head will be properly supported by the booster seat or vehicle seat. The seatback must be at or above the center of the child’s ears. For example, if a low back booster seat vehicle seatback must be at or above the center of the child’s ears. If the seatback is lower than the center of the child’s ears, a high back booster seat
1
is chosen, the
s
2
should be used.
s
If the booster seat is compatible with your vehicle, place your child in the booster seat and check the various adjustments to be sure the booster seat is compatible with your child. Always follow all recommended procedures.
All U.S.statesandCanadian provincesorterrito­ries require that infants and small children be restrained in an approved child restraint at all times while the vehicle is being operated.
The instructions in this section apply to booster seat installation in the rear seats or the front passenger seat.
BOOSTER SEAT INSTALLATION
WARNING
INFINITI recommends that booster seats be in­stalled in the rear seat. However, if you must install a booster seat in the front passenger seat, move the passenger’s seat to the rear­most position.
CAUTION
Do not use the lap/shoulder belt Automatic Locking Retractor (ALR) mode when using a booster seat with the seat belts.
Follow these steps to install a booster seat in the rear seat or in the front passenger seat:
1-32 Safety — Seats, seat belts and supplemental restraint system
Front passenger seat
SSS0640
Rear center position
LRS0451
LRS0452
Rear outboard position
1. If your vehicle is equipped with rear power seat adjustment, adjust the rear outboard seats to the upright and rearmost posi­tion. (See “REAR SEATS” earlier in this section.)
If you must install a booster seat in the front seat, move the seat to therearmost position.
2. Position the booster seat on the seat.
Only place it in a front facing direction. Always follow the booster seat manufac­turer’s instructions.
3. The booster seat should be positioned on the vehicle seat so that it is stable. If necessary, adjust or remove the head restraint to obtain the correct booster seat fit. (See “HEAD RESTRAINTS” earlier in this section.) If the head restraint is removed, store it in a secure place. Be sure to install the head restraint when the booster seat is removed.
If the seating position does not have an adjustable head restraint and it is interfer­ing with the proper booster seat fit, try another seating position or a different booster seat.
Safety — Seats, seat belts and supplemental restraint system 1-33
4. Position the lap portion of the seat belt low and snug on the child’s hips. Be sure to follow the booster seat manufacturer’s instructions for adjusting the belt routing.
5. Pull the shoulder belt portion of the seat
belt toward the retractor to take up extra slack. Be sure the shoulder belt is posi­tioned across the top, middle portion of the child’s shoulder. Be sure to follow the booster seat manufacturer’s instructions for adjusting the belt routing.
LRS0454
Front passenger seat
6. Follow the warnings, cautions and in­structions for properly fastening a seat belt shown in the “THREE-POINT TYPE SEAT BELT” earlier in this section.
SSS0481
7. If the booster seat is installed in the front passenger seat, push the ignition switch to the ON position. The front passenger air bag status light be illuminated depending on the size of the child and the type of booster seat used. (See “Front passenger air bag and status light” later in this section.)
may or may not
SUPPLEMENTAL RESTRAINT SYSTEM
PRECAUTIONS ON SUPPLEMENTAL RESTRAINT SYSTEM
This Supplemental Restraint System (SRS) sec­tion contains important information concerning the following systems:
Driver and passenger supplemental front­impact air bag (INFINITI Advanced Air Bag System)
Front seat-mounted side-impact supplemen­tal air bag
Roof-mounted curtain side-impact supple­mental air bag
Seat belt pretensioner
Supplemental front-impact air bag system: The INFINITI Advanced Air Bag System can help cushion the impact force to the head and chest of the driver and front passenger in certain frontal collisions.
Front seat-mounted side-impact supplemental air bag system: This system can help cushion
the impact force to the chest and pelvis area of the driver and front passenger in certain side impact collisions. The side air bags are de­signed to inflate on the side where the vehicle is impacted.
1-34 Safety — Seats, seat belts and supplemental restraint system
Roof-mounted curtain side-impact supplemen­tal air bagsystem: This systemcan helpcushion
the impact force to the head of occupants in front and rear outboard seating positions in certain side impact collisions. The curtain air bags are designed to inflate on the side where the vehicle is impacted.
These supplemental restraint systems are de­signed to supplement the crash protection pro­vided by the driver and passenger seat belts and are not a substitute for them. Seat belts should always be correctly worn and the occu­pant seated a suitable distance away from the steering wheel, instrument panel and door fin­ishers. (See “SEAT BELTS” earlier in this section for instructions and precautions on seat belt usage.)
The supplemental air bags operate only when the ignition switch is in the ON position.
After pushing theignition switchto theON posi­tion, thesupplementalair bagwarninglight illu­minates. Thesupplementalairbag warninglight will turn off afterabout 7 seconds ifthe systems are operational.
SSS0131
SSS0132
Safety — Seats, seat belts and supplemental restraint system 1-35
WARNING
The frontairbagsordinarilywillnotinflatein the event of a side impact, rear impact, roll­over, or lower severity frontal collision. Al­ways wear yourseat beltsto helpreduce the risk or severity of injury in various kinds of accidents.
The front passenger air bagwill not inflateif the passenger air bag status light is lit or if the front passenger seat is unoccupied. See “Front passenger air bag and status light” later in this section.
The seatbeltsandthefrontairbags aremost effective when you are sitting well back and upright in the seat with both feet on the floor. The front air bags inflate with great force. Even with the INFINITI advanced air bag system, if you are unrestrained, leaning forward, sitting sideways or out of position in anyway,you areatgreater riskofinjury or death in a crash. You may also receive seri­ous or fatal injuries from the front air bag if
The driver and front passenger seat belt buckles are equipped with sensors that de­tect if the seat belts are fastened. The Ad­vanced AirBagSystem monitorstheseverity of a collision and seat belt usage then in­flates the air bags. Failure to properly wear seat beltscan increasethe riskor severityof injury in an accident.
The frontpassengerseatisequipped withan occupant classification sensor (pressure sensor) that turns the front passenger air bag OFF under some conditions. This sensor is only used in this seat. Failure to be prop­erly seated and wearing the seat belt can increase the risk or severity of injury in an accident. See “Front passenger air bag and status light” later in this section.
Keep hands on the outside of the steering wheel. Placing them inside the steering wheel rim could increase the risk that they are injured when the supplemental front air bag inflates.
you areup againstit whenitinflates. Always sit back against the seatback and as far­away as practical from thesteering wheel or instrument panel. Alwaysuse theseat belts.
1-36 Safety — Seats, seat belts and supplemental restraint system
SSS0007
SSS0006
WARNING
Never let children ride unrestrained or ex­tend their hands or face out of the window. Do not attempt to hold them in your lap or arms. Some examples of dangerous riding positions are shown in the illustrations.
Children may be severely injured or killed when the front air bags, side air bags or curtain air bags inflate if they are not prop­erly restrained. Pre-teens and children should be properly restrained in the rear seat, if possible.
SSS0008
SSS0009
SSS0099
SSS0100
Safety — Seats, seat belts and supplemental restraint system 1-37
Even withthe INFINITIAdvanced AirBag Sys­tem, never install a rear-facing child re­straint in thefront seat. Aninflating front air bag could seriously injure or kill your child. See “CHILD RESTRAINTS” earlier in this sec­tion for details.
SSS0059A
Do not lean against doors or windows.
1-38 Safety — Seats, seat belts and supplemental restraint system
SSS0188A
SSS0140
SSS0162
SSS0159
WARNING
Front seat-mounted side-impact supplemental air bags and roof-mounted curtain side-impact supplemental air bags:
The side air bags and curtain air bags ordi­narily will not inflatein the eventof a frontal impact, rear impact, rollover or lower sever­ity side collision. Always wear your seat belts to help reduce the risk or severity of injury in various kinds of accidents.
The seat belts, the side air bags and curtain air bags are most effective when you are sitting wellback andupright inthe seatwith both feet on the floor. The side air bag and curtain air bag inflate with great force. Do not allow anyone to place their hand, leg or face near the side air bag on the side of the seatback of the front seat or near the side roof rails. Do not allow anyone sitting in the front seats or rear outboard seats to extend their hand out of the windowor lean against the door. Some examples of dangerous riding positions are shown in the previous illustrations.
When sitting in the rear seat, do not hold onto the seatback of the front seat. If the side air bag inflates, you may be seriously injured. Be especially careful with children, who should always be properly restrained. Some examples of dangerous riding posi­tions are shown in the illustrations.
Do not use seat covers on the front seat­backs. They may interfere with side air bag inflation.
Safety — Seats, seat belts and supplemental restraint system 1-39
1. Crash zone sensor
2. Supplemental front-impact air bag mod­ules
3. Front seat-mounted side-impact supple­mental air bag modules
4. Occupant classification system control unit
5. Occupant classification sensor (pressure sensor)
6. Roof-mounted curtain side-impact supplemental air bags
1-40 Safety — Seats, seat belts and supplemental restraint system
SSS0480
7. Roof-mounted curtain side-impact supplemental air bags inflators
8. Air bag Control Unit (ACU)
9. Satellite sensors
10. Seat belt pretensioners
INFINITI ADVANCED AIR BAG SYSTEM (front seats)
This vehicle is equipped with the INFINITI Ad­vanced Air Bag System for the driver and front passenger seats. This system is designed to meet certification requirements under U.S. regulations. It is also permitted in Canada.
However, all of the information, cautions and warnings in this manual still apply and must be followed.
The driver supplemental front-impact air bag is located in the center of the steering wheel. The passenger supplemental front-impact air bag is mounted in the instrument panel above the glove box. The front air bags are designed to inflate in higher severity frontal collisions, al­though they may inflate if the forces in another type of collision are similar to those of a higher severity frontal impact. They may not inflate in certain frontal collisions. Vehicle damage (or lack of it) is not always an indication of proper front air bag operation.
The INFINITI Advanced Air Bag System has dual stage inflators. The system monitors informa­tion from the crash zone sensor, the Air bag Control Unit (ACU), seat belt buckle switches, occupant classification sensor (pressure sen­sor) and passenger seat belt tension sensor. Inflator operation is based on the severity of a collision and seat belt usage for the driver. For the front passenger, it additionally monitors the weight of an occupant or object on the seat and seat belt tension. Based on information from the sensors, only one front air bag may inflate in a crash, depending on the crash severity and whether the front occupants are belted or un­belted. Additionally, the front passenger air bag may be automatically turned OFF under some conditions, depending on the weight detected on the passenger seat and how the seat belt is used. If the front passenger air bag is OFF, the passenger air bag status light will be illumi­nated (if the seat is unoccupied, the light will not be illuminated, but the air bag will be off). (See “Front passenger air bag and status light” later in this section for further details.) One front air bag inflating does not indicate im­proper performance of the system.
If you have any questions about your air bag system, contact INFINITI or an INFINITI dealer. If you are considering modification of your vehicle due to a disability, you may also contact
INFINITI. Contact information is contained in the front of this Owner’s Manual.
When a front air bag inflates, a fairly loud noise may be heard, followed by release of smoke. This smoke is not harmful and does not indicate a fire. Care should be taken not to inhale it, as it may cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly.
Front air bags, along with the use of seat belts, help to cushion the impact force on the head and chest of the front occupants. They can help save lives and reduce serious injuries. However, an inflating front air bag may cause facial abrasions or other injuries. Front air bags do not provide restraint to the lower body.
Even with INFINITI advanced air bags, seat belts should be correctly worn and the driver and passenger seated upright as far as practical away from the steering wheel or instrument panel. The front air bags inflate quickly in order to help protect the front occupants. Because of this, the force of the front air bag inflating can increase the risk of injury if the occupant is too close to, or is against, the front air bag module during inflation.
The front air bags deflate quickly after a colli­sion.
Safety — Seats, seat belts and supplemental restraint system 1-41
The frontairbagsoperate onlywhentheignition switch is in the ON position.
After pushing theignition switchto theON posi­tion, thesupplementalair bagwarninglight illu­minates. Thesupplementalairbag warninglight will turnoffafterabout7seconds ifthesystemis operational.
Status light :
The front passenger air bag status light is located on the overhead console. The light operates as follows:
Unoccupied passenger seat: The is OFF and the front passenger air bag is OFF and will not inflate in a crash.
Passenger seat occupied by a small adult, child or child restraint as outlined in this section: The cate that the front passenger air bag is OFF
SSS0481
Front passenger air bag status light
Front passenger air bag and status light
WARNING
The front passenger air bag is designed to au­tomatically turn OFF under some conditions. Read this sectioncarefully tolearn howit oper­ates. Proper useof the seat,seat belt andchild restraints is necessary for most effective pro­tection. Failure to follow all instructions in this manual concerning the use of seats, seat belts and child restraints can increase the risk or severity of injury in an accident.
and will not inflate in a crash.
Occupied passenger seat and the passenger meets the conditions outlined in this sec­tion: The the front passenger air bag is operational.
Front passenger air bag :
The front passenger air bag is designed to automatically turn OFF when the vehicle is operated under some conditions as described below as permitted by U.S. regulations. If the front passenger air bag is OFF, it will not inflate in a crash. The driver air bag and other air bags in your vehicle are not part of this system.
The purpose of the regulation is to help reduce the risk of injury or death from an inflating air bag to certain front passenger seat occupants, such as children, by requiring the air bag to be
1-42 Safety — Seats, seat belts and supplemental restraint system
light
light illuminates to indi-
light is OFF to indicate that
automatically turned OFF. Certain sensors are used to meet the requirements.
One sensor used is the occupant classification sensor (pressure sensor). It is in the bottom of the front passenger seat cushion and is de­signed to detect an occupant and objects on the seat by weight. It works together with seat belt sensors described later. For example, if a child is in the front passenger seat, the Advanced Air Bag System is designed to turn the passenger air bag OFF in accordance with the regulations. Also, if a child restraint of the type specified in the regulations is on the seat, its weight and the child’s weight can be detected and cause the air bag to turn OFF. The occupant classifi­cation sensor operation can vary depending on the front passenger seat belt sensors.
The front passenger seat belt sensors are de­signed to detect if the seat belt is buckled and the amount of tension on the seat belt, such as when it is in the Automatic Locking Retractor (ALR) mode (child restraint mode). Based on the weight on the seat detected by the occupant classification sensor and the belt tension de­tected on the seat belt, the Advanced Air Bag System determines whether the front passen­ger air bag should be automatically turned OFF as required by the regulations.
Front passenger seat adult occupants who are properly seated and using the seat belt as outlined in this manual should not cause the passenger air bag to be automatically turned OFF. For small adults it may be turned OFF, however, if the occupant takes his/her weight off the seat cushion (for example, by not sitting upright, by sitting on an edge of the seat, or by otherwise being out of position), this could cause the sensor to turn the air bag OFF. In addition, if the occupant improperly uses the seat belt in the ALR mode, this could cause the air bag to be turned OFF. Always be sure to be seated and wearing the seat belt properly for the most effective protection by the seat belt and supplemental air bag.
INFINITI recommends that pre-teens and chil­dren be properly restrained in a rear seat. INFINITI also recommends that appropriate child restraints and booster seats be properly installed in a rear seat. If this is not possible, the occupant classification sensor and seat belt sensors are designed to operate as described above to turn the front passenger air bag OFF for specified child restraints as required by the regulations. Failing to properly secure child restrains and to use the ALR mode may allow the restraint to tip or move in an accident or sudden stop. This can also result in the passen­ger air bag inflating in a crash instead of being
OFF. (See “CHILD RESTRAINTS” earlier in this section for proper use and installation.)
If the front passenger seat is not occupied, the passenger air bag is designed not to inflate in a crash. However, heavy objects placed on the seat could result in air bag inflation, because of the object’s weight detected by the occupant classification sensor. Other conditions could also result in air bag inflation, such as if a child is standing on the seat, or if two children are on the seat, contrary to the instructions in this manual. Always be sure that you and all vehicle occupants are seated and restrained properly.
Using the passenger air bag status light, you can monitor when the front passenger air bag is automatically turned OFF with the seat occu­pied. The light will not illuminate when the front passenger seat is unoccupied.
If an adult occupant is in the seat but the passenger air bag status light is illuminated (indicating that the air bag is OFF), it could be that the person is a small adult, or is not sitting on the seat properly or not using the seat belt properly.
If a child restraint must be used in the front seat, the passenger air bag status light may or may not be illuminated, depending on the size of the child and the type of child restraint being used. If the passenger air bag status light is not
Safety — Seats, seat belts and supplemental restraint system 1-43
illuminated (indicating that the air bag might inflate in a crash), it could be that the child restraint or seat belt is not being used properly. Make sure that the child restraint is installed properly, the seat belt is used properly and the occupant is positioned properly. If the passen­ger air bag status light is not illuminated, reposition the occupant or child restraint in a rear seat.
If the passenger air bag status light will not illuminate even though you believe that the child restraint, the seat belts and the occupant are properly positioned, the system may be sensing an unoccupied seat (in which case the air bag is OFF). Your INFINITI dealer can check that the system is OFF by using a special tool. However, until you have confirmed with your dealer that your air bag is working properly, reposition the occupant or child restraint in a rear seat.
The INFINITI advanced air bag system and pas­senger air bag status light will take a few seconds to register a change in the passenger seat status. For example, if a large adult who is sitting in the front passenger seat exits the vehicle, the passenger air bag status light will change from OFF to ON for a few seconds and then to OFF. This is normal system operation and does not indicate a malfunction.
If a malfunction occurs in the front passenger air bag system, the supplemental air bag warn­ing light gauges area, will blink. Have the system checked by an INFINITI dealer.
, located in the meter and
Other supplemental front-impact air bag precautions
WARNING
Do not place any objects on the steering wheel pad or on the instrument panel. Also, do not place any objects between any occu­pant and the steering wheel or instrument panel. Such objects may become dangerous projectiles and cause injury if the front air bag inflates.
Immediately after inflation, several front air bag system components will be hot. Do not touch them; youmay severelyburn yourself.
No unauthorizedchanges shouldbe madeto any componentsor wiringofthe supplemen­tal airbag system. Thisis to preventacciden­tal inflation of the supplemental air bag or damage tothe supplementalairbag system.
Do not make unauthorized changes to your vehicle’s electrical system, suspension sys­tem or front end structure. This could affect proper operation ofthe front airbag system.
Tampering with the air bag system may re­sult in serious personal injury. Tampering includes changes to the steering wheel and the instrument panel assembly by placing material over the steering wheel pad and above the instrument panel or by installing additional trim material around the air bag system.
Modifying or tampering with the front pas­senger seat may result in serious personal injury. For example, do not change the front seats by placing material on the seat cush­ion or by installing additional trim material, such as seat covers, on the seat that is not specifically designed to assure proper air bag operation. Additionally,do notstow any objects underthe front passengerseatorthe seat cushion and seatback. Such objects may interfere with the proper operation of the occupant classificationsensor (pressure sensor).
No unauthorizedchanges shouldbe madeto any components or wiring of the seat belt system. This may affect the front air bag system. Tamperingwiththeseatbeltsystem may result in serious personal injury.
Maintenance on andaround thefront airbag system shouldbedoneby anINFINITIdealer. Installation of electrical equipment should also be done by an INFINITI dealer. The Supplemental RestraintSystem (SRS)wiring should not bemodified or disconnected.Un­authorized electrical test equipment and probing devices should not be used on the air bag system.
A crackedwindshield shouldbereplaced im­mediately by a qualified repair facility. A cracked windshield could affectthe function of the supplemental air bag system.
The SRS wiring harness connectors are yel­low and orange for easy identification.
When selling your vehicle, we request that you inform the buyer about the front air bag system and guide the buyer to the appropriate sections in this Owner’s Manual.
1-44 Safety — Seats, seat belts and supplemental restraint system
SSS0521
FRONT SEAT-MOUNTED SIDE-IMPACT SUPPLEMENTAL AIR BAGS AND ROOF-MOUNTED CURTAIN SIDE­IMPACT SUPPLEMENTAL AIR BAG SYSTEMS
The side air bags are located in the outside of the seatback of the front seats. The curtain air bags are located in the side roof rails. These systems are designed to meet voluntary guide­lines to help reduce the risk of injury to out-of­position occupants. However, all of the informa-
tion, cautions and warnings in this manual still apply and must be followed. The side air bags
and curtain air bags are designed to inflate in higher severity side collisions, although they may inflate if the forces in another type of
collision are similar to those of a higher severity side impact. They are designed to inflate on the side where the vehicle is impacted. They may not inflate in certain side collisions on the side where the vehicle is impacted.
Vehicle damage (or lack of it) is not always an indication of proper side air bag and curtain air bag operation.
When the side air bags and curtain air bags inflate, a fairly loud noise may be heard, fol­lowed by release of smoke. This smoke is not harmful and does not indicate a fire. Care should be taken not to inhale it, as it may cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly.
Side air bags, along with the use of seat belts, help to cushion the impact force on the chest and pelvic area of the front occupants. Curtain air bags help to cushion the impact force to the head of occupants in the front and rear out­board seating positions. They can help save lives and reduce serious injuries. However, an inflating side air bag and curtain air bag may cause abrasions or other injuries. Side air bags and curtain air bags do not provide restraint to the lower body.
The seat belts should be correctly worn and the driver and passenger seated upright as far as
Safety — Seats, seat belts and supplemental restraint system 1-45
practical away from the side air bag. Rear seat passengers should be seated as far away as practical from the door finishers and side roof rails. The side air bags and curtain air bags inflate quickly in order to help protect the occupants. Because of this, the force of the side air bag and curtain air bag inflating can in­crease the risk of injury if the occupant is too close to, or is against, these air bag modules during inflation. The side air bag and curtain air bag will deflate quickly after the collision is over.
The side air bags and curtain air bags operate only when the ignition switch is in the ON posi­tion.
After pushing theignition switchto theON posi­tion, thesupplementalair bagwarninglight illu­minates. Thesupplementalairbag warninglight will turn off afterabout 7 seconds ifthe systems are operational.
WARNING
Do not place any objects near the seatback of the front seats. Also, do not place any objects (an umbrella, bag, etc.) between the front door finisher and the front seat. Such objects may become dangerous projectiles and cause injury if a side air bag inflates.
Right after inflation,several sideair bagand curtain air bag system components will be hot. Do not touch them; you may severely burn yourself.
No unauthorizedchanges shouldbe madeto any components orwiring of theside air bag and curtainairbag system.Thisisto prevent accidental inflation of the side air bag and curtain air bag or damageto the side air bag and curtain air bag systems.
Do not make unauthorized changes to your vehicle’s electrical system, suspension sys­tem or side panel. This could affect proper operation of the side air bag and curtain air bag systems.
Tampering with the air bag system may re­sult in serious personal injury. For example, do not change the front seats by placing material near the seatbacks or by installing additional trim material, such as seat cov­ers, around the side air bag.
Work around and on the side air bag and curtain air bag system should bedone by an INFINITI dealer. Installation of electrical equipment should also be done by an INFINITI dealer. The SRS wiring harnesses* should not bemodified or disconnected.Un­authorized electrical test equipment and probing devices should not be used on the side air bag or curtain air bag system.
* The SRS wiring harnesses connectors are
yellow and orange for easy identification.
When selling your vehicle, we request that you inform the buyer about the side air bag and curtain air bag systems and guide the buyer to the appropriate sections in this Owner’s Manual.
SEAT BELTS WITH PRETENSIONERS (front seats)
WARNING
The pretensionerscannot bereusedafter ac­tivation. They must be replaced together with the retractor and buckle as a unit.
If the vehicle becomes involved in a frontal collision but a pretensioner is not activated, be sure to have the pretensioner system checked and, if necessary, replaced by an INFINITI dealer.
No unauthorizedchanges shouldbe madeto any components or wiring of the preten­sioner system. This is to prevent damage to or accidental activation of the pretension­ers. Tampering with the pretensioner sys­tem may result in serious personal injury.
Work around and on the pretensioner sys­tem should be done by an INFINITI dealer. Installation of electrical equipment should also be done byan INFINITI dealer.Unautho­rized electrical test equipment and probing devices should not be used on the preten­sioner system.
If you need to dispose of a pretensioner or scrap the vehicle,contact anINFINITI dealer. Correct pretensioner disposal procedures are set forth in the appropriate INFINITI Ser­vice Manual. Incorrect disposal procedures could cause personal injury.
1-46 Safety — Seats, seat belts and supplemental restraint system
The pretensioner system activates in conjunc­tion with the front air bag system. Working with the seat belt retractor, it helps tighten the seat belt when the vehicle becomes involved in certain types of collisions, helping to restrain front seat occupants.
The pretensioner is encased with the seat belt retractor. These seat belts are used the same way as conventional seat belts.
When a pretensioner activates, smoke is re­leased and a loud noise may be heard. The smoke is not harmful, and it does not indicate a fire. Care should be taken not to inhale it as it may cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly.
After pretensioner activation, load limiters al­low the seat belt to release webbing (if neces­sary) to reduce forces against the chest.
If any abnormality occurs in the pretensioner system, the supplemental air bag warning light
will not come on, will flash intermittently or will turn on for 7 seconds and remain on after the ignition switch has been pushed to the ON position. In this case, the pretensioner may not function properly. They must be checked and repaired. Take your vehicle to the nearest INFINITI dealer.
When selling your vehicle, we request that you inform the buyer about the pretensioner system and guide the buyer to the appropriate sections in this Owner’s Manual.
SSS0330
SUPPLEMENTAL AIR BAG WARNING LABELS
Warning labels about the supplemental front­impact air bag, front seat-mounted side-impact supplemental air bag and roof-mounted curtain side-impact supplemental air bag systems are placed in the vehicle as shown in the illustra­tion.
1
SRS air bag
s
The warning labels are located on the surface of the sun visors.
2
SRS side-impact air bag
s
The warning label is located on the side of the passenger’s side center pillar.
Safety — Seats, seat belts and supplemental restraint system 1-47
SPA1097
SUPPLEMENTAL AIR BAG WARNING LIGHT
The supplemental air bag warning light, dis­playing tors the circuits of the supplemental front­impact air bag, front seat-mounted side-impact supplemental air bag, roof-mounted curtain side-impact supplemental air bag and seat belt pretensioner systems. The monitored circuits include the Air bag Control Unit (ACU), satellite sensors, occupant classification system, crash zone sensor, front air bag modules, side air bag modules, curtain air bag modules, pretension­ers and all related wiring.
in the instrument panel, moni-
When the ignition switch is in the ON position, the supplemental air bag warning light illumi­nates for about 7 seconds and then turns off. This means the system is operational.
If any of the following conditions occur, the front air bag, side air bag, curtain air bag and pretensioner systems need servicing:
The supplemental air bag warning light re­mains on after approximately 7 seconds.
The supplemental air bag warning light flashes intermittently.
The supplemental air bag warning light does not come on at all.
Under these conditions, the front air bag, side air bag, curtain air bag or pretensioner systems may not operate properly. They must be checked and repaired. Take your vehicle to the nearest INFINITI dealer.
WARNING
If the supplemental air bagwarning light is on, it could mean that the front air bag, side air bag, curtain air bag and/or pretensioner sys­tems will not operate in an accident. To help avoid injury to yourself or others, have your vehicle checked by a dealer as soon as possible.
REPAIR AND REPLACEMENT PROCEDURE
The front air bags, side air bags, curtain air bags and pretensioners are designed to acti­vate on a one-time-only basis. As a reminder, unless it is damaged, the supplemental air bag warning light will remain illuminated after infla­tion has occurred. Repair and replacement of these systems should be done only by an INFINITI dealer.
When maintenance work is required on the vehicle, the front air bags, side air bags, curtain air bags, pretensioners and related parts should be pointed out to the person conducting the maintenance. The ignition switch should always be in the LOCK position when working under the hood or inside the vehicle.
WARNING
Once a front air bag, side air bag or curtain air bag has inflated, the air bag module will not function again and must be replaced. Additionally, if any of the front air bags in­flate, the activated pretensioners must also be replaced. The air bag module and preten­sioner system should be replaced by an INFINITI dealer.Theair bagmodulesandpre­tensioner system cannot be repaired.
1-48 Safety — Seats, seat belts and supplemental restraint system
The front air bag,side air bag andcurtain air bag systems and pretensioner system should be inspected by an INFINITI dealer if there is any damage to the front end or side portion of the vehicle.
If you need to dispose of the supplemental air bag, pretensioner systems or scrap the vehicle, contact an INFINITI dealer. Correct supplemental air bag and pretensioner sys­tem disposal procedures are set forth in the appropriate INFINITI Service Manual. Incor­rect disposal procedures could cause per­sonal injury.
Safety — Seats, seat belts and supplemental restraint system 1-49
2 Instruments and controls
Cockpit...........................................2-2
Instrument panel ..................................2-3
Meters and gauges ................................ 2-5
Speedometer and odometer .....................2-6
Tachometer ....................................2-6
Engine coolant temperature gauge............... 2-7
Fuel gauge..................................... 2-7
Meter/ring illumination and needle sweep........ 2-8
Compass (if so equipped) ..........................2-9
Zone variation change procedure ............... 2-10
Warning/indicator lights and audible reminders..... 2-12
Checking bulbs ............................... 2-13
Warning lights ................................ 2-13
Indicator lights................................ 2-18
Audible reminders.............................2-20
Dot matrix liquid crystal display ................... 2-21
Indicators for operation........................2-22
Security systems .................................2-24
Vehicle security system ........................2-24
INFINITI vehicle immobilizer system .............2-25
Windshield wiper and washer switch............... 2-27
Rain-sensing auto wiper system ................2-28
Rear window and outside mirror defroster switch . . . 2-28
Headlight and turn signal switch .................. 2-29
Xenon headlights .............................2-29
Headlight switch .............................. 2-29
Turn signal switch.............................2-33
Fog light switch ...............................2-33
Hazard warning flasher switch..................... 2-33
Horn ............................................ 2-34
Heated seats (rear seats) (if so equipped) ..........2-34
Climate controlled seats (front seats) .............. 2-35
Lane departure warning (LDW) switch (if so
equipped) .......................................2-36
SNOW mode switch (if so equipped) ............... 2-37
Vehicle Dynamic Control (VDC) OFF switch .......... 2-37
Clock............................................2-38
Adjusting the time.............................2-38
Power outlet .....................................2-38
Cigarette lighter and ashtrays .....................2-39
Front .........................................2-39
Rear .........................................2-39
Storage .........................................2-40
Cup holders ..................................2-40
Sunglasses holder............................. 2-41
Glove box .................................... 2-41
Console box ..................................2-42
Coat hooks ................................... 2-43
Cargo net (if so equipped) .....................2-43
Windows ........................................2-43
Power windows ...............................2-43
Moonroof (if so equipped) ........................2-46
Automatic moonroof ...........................2-46
Rear control cancel switch (if so equipped) .........2-47
Rear sunshade (if so equipped)....................2-47
Interior lights ....................................2-48
Map lights....................................2-49
Personal lights................................2-49
Interior light control switch ....................2-49
Vanity mirror lights...............................2-50
Trunk light....................................... 2-50
HomeLinkT universal transceiver....................2-51
Programming HomeLinkT .......................2-51
Programming HomeLinkT for Canadian
customers .................................... 2-53
Operating the HomeLinkT universal
transceiver ................................... 2-53
Programming trouble-diagnosis................. 2-53
Clearing the programmed information...........2-54
Reprogramming a single HomeLinkT button ..... 2-54
If your vehicle is stolen ........................2-54
COCKPIT
1. Instrument brightness control switch (P. 2-32)
2. Outside mirror remote control switch
(P. 3-23)
3. Adaptive Front lighting System (AFS)
switch (if so equipped) (P. 2-31)
2-2 Instruments and controls
4. Vehicle Dynamic Control (VDC) OFF switch (P. 2-37)
5. Headlight, fog light and turn signal switch (P. 2-29)
6.
Steering-wheel-mounted controls (left side)
SIC3601
— ENTER switch (if so equipped) (P. 4-8, P. 4-60) — For audio system (P. 4-60) — For phone system (P. 4-76, P. 4-87, P. 4-97) — For voice recognition system (if so
equipped) (P. 4-111, P. 4-135)
7. Windshield wiper and washer switch (P. 2-27)
8. Steering-wheel-mounted controls (right
side) — Cruise control switches (P. 5-20) — Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-22) — Lane Departure Prevention (LDP) switch (if so equipped) (P. 5-14)
9. Hood release handle (P. 3-16)
10. Trunk lid release switch (P. 3-17)
11. Lane Departure Warning (LDW) switch (if so equipped) (P. 2-36, P. 5-14)
12. Intelligent Key port (P. 5-8)
13. Tilting/telescopic steering wheel switch
(P. 3-21)
14. Steering wheel
— Horn (P. 2-34) — Driver supplemental air bag (P. 1-34)
15. Automatic Transmission (AT) selector
lever (P. 5-10)
INSTRUMENT PANEL
1. Side ventilator (P. 4-31)
2. Meters and gauges (P. 2-5)
3. Center ventilator (P. 4-31)
4. Security indicator light (P. 2-26)
5. Hazard warning flasher switch (P. 2-33)
6. Automatic climate control system (P. 4-32)
SIC3551
7. Center multi-function control panel — Navigation system* (if so equipped) — Vehicle information and setting but­tons (P. 4-9) — Phone system (P. 4-76, P. 4-87) — Audio system (P. 4-37)
8. Front passenger supplemental air bag
(P. 1-34)
9. Fuse box cover (P. 8-23)
10. Parking brake
— Operation (P. 5-13) — Parking (P. 5-45)
11. Push-button ignition switch (P. 5-6)
12. Clock (P. 2-38)
13. Climate controlled seat switch (if so
equipped) (P. 2-35)
14. Snow mode switch (if so equipped)
(P. 2-37)
15. Rear sunshade switch (if so equipped)
(P. 2-47)
16. Rear control cancel switch (if so
equipped) (P. 2-47) or Climate con­trolled seat switch (if so equipped) (P. 2-35)
17. Climate controlled seat switch (if so
equipped) (P. 2-35)
18. Cigarette lighter and ashtrays (P. 2-39)
Instruments and controls 2-3
19. CompactFlash card slot (if so equipped) (P. 4-37)
20. Audio system (P. 4-37)
21. Glove box lid release button (P. 2-41)
22. Trunk release power cancel switch
(P. 3-18)
*: Refer to the separate Navigation System
Owner’s Manual.
2-4 Instruments and controls
METERS AND GAUGES
1. Engine coolant temperature gauge*
2. Tachometer*
3. Warning/Indicator lights
4. Speedometer*
5. Fuel gauge*
*: The needle indicators in the meters and
gauges may move slightly after the ignition switch is pushed to the LOCKposition. This is not a malfunction.
SIC3605
6. Meter illumination control knob
7. Dot matrix liquid crystal display
8. Odometer/twin trip odometer
9. TRIP/RESET knob for twin trip odometer
Instruments and controls 2-5
SIC3606 SIC3607
SPEEDOMETER AND ODOMETER Speedometer
The speedometer indicates vehicle speed in miles per hour (MPH) and kilometers per hour (km/h).
Odometer/twin trip odometer
The odometer displayed when the ignition switch is in the ON position.
The odometer records the total distance the vehicle has been driven.
The twin trip odometer records the distance of individual trips.
1
and twin trip odometer
s
s
2
are
2-6 Instruments and controls
Changing the display :
3
Pushing the TRIP/RESET knob right of the combination meter panel changes the display as follows:
TRIP A TRIP B TRIP A
Resetting the trip odometer :
Pushing the TRIP/RESET switch than 1 second resets the trip odometer to zero.
Average fuel economy and distance to empty information is also available. (See “HOW TO USE STATUS BUTTON” in the “4. Monitor, cli­mate, audio, phone and voice recognition sys­tems” section.)
at the bottom
s
3
s
for more
TACHOMETER
The tachometer indicates engine speed in revo­lutions per minute (RPM). Do not rev the engine
into the red zone
When engine speed approaches the red zone, shift to a higher gear or reduce engine speed. Operating theengineintheredzone maycause serious engine damage.
s
1
.
CAUTION
SIC3608 SIC3609
ENGINE COOLANT TEMPERATURE GAUGE
The gauge indicates the engine coolant tem­perature.
The engine coolant temperature is within the normal range when the gauge needle points within the zone
The engine coolant temperature varies with the outside air temperature and driving conditions.
1
shown in the illustration.
s
CAUTION
If the gauge indicates engine coolant tempera­ture near the hot (H) end of the normal range, reduce vehicle speed to decreasetemperature. If gauge is over the normal range, stop the vehicle assoonassafely possible.Iftheengine is overheated, continued operation of the ve­hicle mayseriously damagetheengine. See“IF YOUR VEHICLEOVERHEATS” in the“6. In caseof emergency” section for immediate action required.
FUEL GAUGE
The gauge indicates the approximate fuel level in the tank.
The gauge may move slightly during braking, turning, acceleration, or going up or down hills.
The gauge needle returns to E (Empty) after the ignition switch is pushed to the LOCK position.
Refill the fuel tank before the gauge registers “E” (Empty).
The low fuel warning the fuel tank is getting low. Refuel as soon as it is convenient, preferably before the gauge
1
appears when
s
Instruments and controls 2-7
reaches “E”. There will be a small reserve of fuel in the tank when the fuel gauge needle reaches “E”.
The located on the passenger’s side of the vehicle.
indicates that the fuel-filler door is
CAUTION
If the vehicle runs out of fuel, the malfunction indicator light (MIL) may come on. Refuel as soon as possible. After a few driving trips,the If the light remains on after a few driving trips, have the vehicle inspected by an INFINITI dealer.
For additionalinformation, see“Malfunction Indicator Light (MIL)” later in this section.
light shouldturn off.
2-8 Instruments and controls
SIC3610
METER/RING ILLUMINATION AND NEEDLE SWEEP
The ring illumination surrounding meters and gauges illuminates when the driver’s door is closed after getting into the vehicle with the Intelligent Key carried in.
When the engine is started, the indicator needles will sweep in the speedometer and tachometer and the ring illumination will be brightened gradually.
Meter illumination control knob
The meter illumination control knob ates when the headlight switch is in the AUTO (not lighting) or OFF position with the ignition switch in the ON position.
s
1
oper-
To adjust the brightness of the meters, push the control knob several times until the desired brightness is achieved.
To turn the ring illumination and needle sweep on and off, push the control knob and hold it for 1 second.
COMPASS (if so equipped)
SIC3181
When the ignition switch is pushed to the ON position, the compass display the direction of the vehicle’s heading.
B
will indicate
s
If the display reads “C”, calibrate the compass by driving the vehicle in 3 complete circles at less than 5 MPH (8 km/h). You can also cali­brate the compass by driving your vehicle on your everyday route. The compass will be cali­brated once it has tracked 3 complete circles.
To turn on and off the compass manually, push the in the ON position.
switch
A
while the ignition switch is
s
Instruments and controls 2-9
Zone map
ZONE VARIATION CHANGE PROCEDURE
The difference between magnetic north and geographical north is known as variance. In some areas, this difference can sometimes be great enough to cause false compass readings. Follow these instructions to set the variance for your particular location if this happens:
1. Push the switch for more than 3 seconds. The current zone number will appear in the display.
2. Find your current location and variance
number on the zone map.
NOTE:
Use zone number 5 for Hawaii.
3. Push the switch repeatedly until
the new zone number appears in the display, then release the switch. After you release the switch, the display will show a compass direction within a few seconds.
If the compass deviates from the correct indication soon after repeated adjustment, have the compass checked at an INFINITI dealer.
SIC0611B
2-10 Instruments and controls
The compass may not indicate the correct compass point in tunnels or while driving up or down a steep hill. (The compass returns to the correct compass point when the vehicle moves to an area where the geomagnetism is stabilized.)
CAUTION
Do notinstall askirack, antenna,etc., which are attached to the vehicle by means of a magnet. They affect the operation of the compass.
When cleaning the mirror, use apaper towel or similar material dampened with glass cleaner. Do not spray glass cleaner directly on the mirror as it may cause the liquid cleaner to enter the mirror housing.
Instruments and controls 2-11
WARNING/INDICATOR LIGHTS AND AUDIBLE REMINDERS
All-Wheel Drive (AWD) warning light (AWD models)*
Anti-lock Braking System (ABS) warn­ing light
Automatic Transmission (AT) check warning light
Brake warning light
Charge warning light Seat belt warning light Malfunction Indicator Light (MIL)
Door open warning light Supplemental air bag warning light Slip indicator light
Engine oil pressure warning light Adaptive Front lighting System (AFS)
Intelligent Cruise Control (ICC) sys­tem warning light (orange)*
Intelligent Key system warning light Cruise main switch indicator light
Lane departure warning light (or­ange)*
Low fuel warning light Front passenger air bag status light
Low tire pressure warning light High beam indicator light (blue)
Low washer fluid warning light Intelligent Cruise Control (ICC) sys-
Preview Function warning light (orange)*
Rear Active Steer warning light* Lane Departure Prevention (LDP) ON
indicator light* Automatic Transmission (AT) position
indicator light
(green)
*: if so equipped
Cruise set switch indicator light
tem MAIN switch indicator light (green)*
Intelligent Cruise Control (ICC) sys­tem set switch indicator light*
indicator light (green)*
Small light indicator lights
Turn signal/hazard indicator lights
Vehicle Dynamic Control (VDC) off indicator light
2-12 Instruments and controls
CHECKING BULBS
With all doors closed, apply the parking brake and push the ignition switch to the ON position without starting the engine. The following lights will come on:
, or , , , , , , ,
The following lights come on briefly and then go off (if so equipped):
, or , , , , , , ,
If any light does not come on, it may indicate a burned-out bulb or an open circuit in the elec­trical system. Have the system checked by an INFINITI dealer.
WARNING LIGHTS
All-Wheel Drive (AWD) warning light (AWD models)
The light comes on when the ignition switch is pushed to ON. It turns off soon after the engine is started.
If the AWD system malfunctions, or the diam­eter of the front and the rear wheels are differ­ent, the warning light will either remain illumi-
nated or blink. (See “ALL-WHEEL DRIVE (AWD)” in the “5. Starting and driving” section.)
CAUTION
If the warning light comes on while driving there may be a malfunction in the AWD sys­tem. Reducethevehiclespeedandhave your vehicle checked by an INFINITI dealer as soon as possible.
If the AWD warning light blinks while driving:
– blinks rapidly (about twice a second):
Pull offthe road inasafearea,andidlethe engine. The driving mode will change to 2WD to prevent the AWD system from malfunctioning. If the warning light turns off, you can drive again.
– blinks slowly (about once every 2 sec-
onds):
Pull offthe road inasafearea,andidlethe engine. Check that all tire sizes are the same, tirepressureiscorrect andtiresare not worn.
If the warning lightis still on afterthe above operations, have your vehiclechecked by an INFINITI dealer as soon as possible.
or Anti-lock Braking
System (ABS) warning light
When the ignition switch is in the ON position, the Anti-lock Braking System (ABS) warning light illuminates and then turns off. This indi­cates the ABS is operational.
If the ABS warning light illuminates while the engine is running, or while driving, it may indicate the ABS is not functioning properly. Have the system checked by an INFINITI dealer.
If an ABS malfunction occurs, the anti-lock function is turned off. The brake system then operates normally, but without anti-lock assis­tance. (See “BRAKE SYSTEM” in the “5. Starting and driving” section.)
Automatic Transmission (AT) check warning light
When the ignition switch is pushed to the ON position, the light comes on for 2 seconds. If the light comes on at any other time, it may indicate the transmission is not functioning properly. Have your INFINITI dealer check and repair the transmission.
Instruments and controls 2-13
or Brake warning
light
This light functions for both the parking brake and the foot brake systems.
Parking brake indicator :
When the ignition switch is in the ON position, the light comes on when the parking brake is applied.
Low brake fluid warning light :
When the ignition switch is in the ON position, the light warns of a low brake fluid level. If the light comes on while the engine is running with the parking brake not applied, stop the vehicle and perform the following:
1. Check the brake fluid level. Add brake fluid as necessary. (See “BRAKE FLUID” in the “8. Maintenance and do-it-yourself” section.)
2. If the brake fluid level is correct, have the
warning system checked by an INFINITI dealer.
Anti-lock Braking System (ABS) warning indicator :
When the parking brake is released and the brake fluid level is sufficient, if both the brake warning light and the Anti-lock Braking System
2-14 Instruments and controls
(ABS) warning light illuminate, it may indicate the ABS is not functioning properly. Have the brake system checked, and if necessary re­paired, by an INFINITI dealer promptly. Avoid high-speed driving and abrupt braking. (See “Anti-lock Braking System (ABS) warning light” earlier in this section.)
WARNING
Your brakesystem maynot beworking prop­erly if the warning light is on. Driving could be dangerous.Ifyou judgeitto besafe,drive carefully to the nearest service station for repairs. Otherwise, have your vehicle towed because driving it could be dangerous.
Pressing the brake pedal with the engine stopped and/or low brake fluid level may increase yourstoppingdistance andbraking will require greater pedal effort as well as pedal travel.
If the brake fluidlevel is below theminimum or MIN mark on the brake fluid reservoir, do not drive until the brake system has been checked at an INFINITI dealer.
Charge warning light
If the light comes on while the engine is run­ning, it may indicate the charging system is not
functioning properly. Turn the engine off and check the alternator belt. If the belt is loose, broken, missing or if the light remains on, see an INFINITI dealer immediately.
CAUTION
Do not continue driving if the alternator belt is loose, broken or missing.
Door open warning light
This light comes on when any of the doors are not closed securely while the ignition switch is in the ON position.
Engine oil pressure warning light
This light warns of low engine oil pressure. If the light flickers or comes on during normal driving, pull off the road in a safe area, stop the engine immediately and call an INFINITI dealer or other authorized repair shop.
The engine oil pressure warning light is not de­signed to indicate a low oil level. Use the dip­stick to check the oil level. (See “ENGINE OIL” in
the “8. Maintenance and do-it-yourself” section.)
CAUTION
Running the engine with the engine oil pres­sure warninglight oncould causeserious dam­age to the engine almost immediately. Such damage isnotcovered bywarranty.Turnoff the engine as soon as it is safe to do so.
Intelligent Cruise Control (ICC) system warning light (orange; if so equipped)
This light comes on if there is a malfunction in the Intelligent Cruise Control (ICC) system.
If the warning light comes on, park the vehicle in a safe place. Turn the engine off, restart the engine, resume driving and set the ICC system again.
If it is not possible to set the system or the indicator stays on, it may indicate that the sys­tem is malfunctioning. Although the vehicle is still driveableundernormalconditions, havethe vehicle checked at an INFINITI dealer.
Intelligent Key system warning light
After the ignition switch is pushed to the ON position, this light comes on for about 2 sec­onds and then turns off.
This light warns of a malfunction with the electrical steering lock system or the Intelligent Key system.
If the light comes on while the engine is stopped, it may be impossible to free the steering lock or to start the engine. If the light comes on while the engine is running, you can drive the vehicle. However in these cases, con­tact an INFINITI dealer for repair as soon as possible.
See “INTELLIGENT KEY SYSTEM” in the “3. Pre­driving checks and adjustments” section.
Lane departure warning light (orange; if so equipped)
When the ignition switch is pushed to the ON position, the light will come on in orange, turn green, and then turn off. This indicates that the Lane Departure Warning (LDW) and Lane Depar­ture Prevention (LDP) systems are operational.
While the LDW and/or LDP system is on, the light will blink in orange and a warning chime will sound if the vehicle is traveling close to either the left or the right of a traveling lane with detectable lane markers.
If the light comes on in orange and remains on, it may indicate that the LDW and LDP systems
are not functioning properly. Have the systems checked by an INFINITI dealer.
See “LANE DEPARTURE WARNING (LDW)/ PRE­VENTION (LDP) SYSTEMS” in the “5. Starting and driving” section.
Low fuel warning light
This light comes on when the fuel in the tank is getting low. Refuel as soon as it is convenient, preferably before the fuel gauge reaches “E” (Empty).
There will bea small reserveof fuelremaining in the tankwhenthe fuelgaugeneedlereaches “E” (Empty).
Low tire pressure warning light
Your vehicle is equipped with a Tire Pressure Monitoring System (TPMS) that monitors the tire pressure of all tires except the spare.
The low tire pressure warning light warns of low tire pressure or indicates that the TPMS is not functioning properly.
After the ignition switch is pushed ON, this light illuminates for about 1 second and turns off.
Instruments and controls 2-15
Low tire pressure warning :
If the vehicle is being driven with low tire pressure, the warning light will illuminate. If you select the tire pressure information in the display, the LOW PRESSURE information will be displayed. The tire pressure for each tire will also be displayed.
When the low tire pressure warning light illumi­nates, you should stop and adjust the tire pressure to the recommended COLD tire pres­sure shown on the Tire and Loading Information label. The low tire pressure warning light does not automatically turn off when the tire pres­sure is adjusted. After the tire is inflated to the recommended pressure, the vehicle must be driven at speeds above 16 MPH (25 km/h) to activate the TPMS and turn off the low tire pressure warning light. Use a tire pressure gauge to check the tire pressure.
For additional information, see “TIRE PRESSURE MONITORING SYSTEM (TPMS)” in the “5. Start­ing and driving” section and “TIRE PRESSURE MONITORING SYSTEM (TPMS)” in the “6. In case of emergency” section. For the tire pressure information display, see “HOW TO USE INFO BUTTON” in the “4. Monitor, climate, audio, phone and voice recognition systems” section.
TPMS malfunction :
If the TPMS is not functioning properly, the low tire pressure warning light will flash for approxi­mately 1 minute when the ignition switch is pushed ON. The light will remain on after the 1 minute. Have the system checked by an INFINITI dealer.
For additional information, see “TIRE PRESSURE MONITORING SYSTEM (TPMS)” in the “5. Start­ing and driving” section.
WARNING
If the light does not illuminate with the igni­tion switch pushed ON, have the vehicle checked by an INFINITI dealer as soon as possible.
If the light illuminates while driving, avoid sudden steering maneuvers or abrupt brak­ing, reducevehiclespeed,pulloff theroadto a safe location and stop the vehicle as soon as possible.Drivingwith under-inflatedtires may permanently damage the tires and in­crease the likelihood of tire failure. Serious vehicle damage could occur and may leadto
an accident and could result in serious per­sonal injury. Check the tire pressure for all four tires. Adjustthe tirepressure tothe rec­ommended COLD tirepressure shownon the Tire and Loading Information label to turn the lowtirepressurewarning lightOFF.Ifthe light stays on after adjusting the tire pres­sure anddriving over16MPH (25km/h), have the system checked by an INFINITI dealer. If you have a flat tire, replace it with a spare tire as soon as possible.
When a spare tire is mounted or a wheel is replaced, tire pressure will not beindicated, the TPMS will not function and the low tire pressure warninglight willflash forapproxi­mately 1 minute. The light will remain on after 1 minute. Contact your INFINITI dealer as soon as possible for tire replacement and/or system resetting.
Replacing tires with those not originally specified by INFINITI could affect the proper operation of the TPMS.
2-16 Instruments and controls
CAUTION
The TPMS is not a substitute for the regular tire pressure check.Be sure tocheck thetire pressure regularly.
If thevehicleisbeingdrivenatspeedsofless than 16 MPH (25 km/h), the TPMS may not operate correctly.
Be sure to correctlyinstall the specified size of tires to the four wheels.
Low washer fluid warning light
This light comes on when the washer tank fluid is at a low level. Add washer fluid as necessary. See “WINDOW WASHER FLUID” in the “8. Main­tenance and do-it-yourself” section.
Preview Function warning light (orange; if so equipped)
The light comes on if there is a malfunction in the Brake Assist (with Preview Function) sys­tem.
If the warning light comes on, park the vehicle in a safe place. Turn the engine off, restart the engine, resume driving and set the ICC system again.
If it is not possible to set the system or the indicator stays on, it may indicate that the sys­tem is malfunctioning. Although the vehicle is still driveableundernormalconditions, havethe vehicle checked at an INFINITI dealer.
Rear Active Steer warning light (if so equipped)
If the light comes on while the engine is run­ning, it may indicate that there is a malfunction with the Rear Active Steer portion of the steer­ing system. Have the system checked by an INFINITI dealer.
For further information about the Rear Active Steer system, see “REAR ACTIVE STEER SYS­TEM” in the “5. Starting and driving” section.
If a malfunction occurs in the system, the Rear Active Steer function will cease but driving can be continued.
If the light comes on while you are driving, con­tact an INFINITI dealer for repair.
Seat belt warning light
The light and chime remind you to fasten seat belts. The light illuminates whenever the igni­tion switch is pushed to the ON position, and will remain illuminated until the driver’s seat belt is fastened. At the same time, the chime
will sound for about 6 seconds unless the driver’s seat belt is securely fastened.
The seat belt warning light for the front passen­ger will illuminate if the seat belt is not fastened when the front passenger’s seat is occupied. For 5 seconds after the ignition switch is in the ON position, the system does not activate the warning light for the front passenger.
See “SEAT BELTS” in the “1. Safety — Seats, seat belts and supplemental restraint system” section for precautions on seat belt usage.
Supplemental air bag warning light
After pushing the ignition switch to the ON position, the supplemental air bag warning light will illuminate. The supplemental air bag warning light will turn off after about 7 seconds if the supplemental front air bag and supple­mental side air bag, curtain side-impact air bag systems and/or pretensioner seat belt are op­erational.
Instruments and controls 2-17
If any of the following conditions occur, the front air bag, side air bag, curtain air bag and pretensioner systems need servicing and your vehicle must be taken to your nearest INFINITI dealer.
The supplemental air bag warning light re­mains on after approximately 7 seconds.
The supplemental air bag warning light flashes intermittently.
The supplemental air bag warning light does not come on at all.
Unless checked and repaired, the supplemental restraint system (air bag system) and/or the pretensioners may not function properly.
For additional information, see “SUPPLEMENTAL RESTRAINT SYSTEM” in the “1. Safety — Seats, seat belts and supplemental restraint system” section.
WARNING
If the supplemental air bagwarning light is on, it could mean that the front air bag, side air bag, curtain air bag and/or pretensioner sys­tems will not operate in an accident. To help avoid injury to yourself or others, have your vehicle checked by an INFINITI dealer as soon as possible.
2-18 Instruments and controls
INDICATOR LIGHTS
Adaptive Front lighting System (AFS) indicator light (if so equipped)
When the ignition switch is pushed to the ON position, the Adaptive Front lighting System (AFS) indicator light will illuminate. The light will turn off in about 1 second if the AFS is operational.
This light also comes on when the AFS is turned off by pushing the OFF side of the AFS switch.
If the AFS indicator light blinks, it may indicate the AFS is not functioning properly. Have the system checked by an INFINITI dealer.
See “Adaptive Front lighting System (AFS)” later in this section.
Automatic Transmission (AT) position indicator light
When the ignition switch is pushed to the ON position, the indicator shows the automatic selector shift position. (See “AUTOMATIC TRANSMISSION” in the “5. Starting and driving” section.)
Cruise main switch indicator light (green)
The light comes on when the cruise control main switch is pushed. The light goes out when the main switch is pushed again. When the cruise control main switch indicator light comes on, the cruise control system is operational.
Cruise set switch indicator light
The light comes on while the vehicle speed is controlled by the cruise control system. If the light blinks while the engine is running, it may indicate the cruise control system is not func­tioning properly. Have the system checked by an INFINITI dealer.
Front passenger air bag status light
The front passenger air bag status light ( ) will be lit and the passenger front air bag will be OFF depending on how the front passenger seat is being used.
For front passenger air bag status light opera­tion, see “INFINITI ADVANCED AIR BAG SYSTEM (front seats)” in the “1. Safety — Seats, seat belts and supplemental restraint system” sec­tion of this manual.
High beam indicator light (blue)
This light comes on when the headlight high beam is on and goes out when the low beam is selected.
Intelligent Cruise Control (ICC) system MAIN switch indicator light (green; if so equipped)
The light comes on when the Intelligent Cruise Control (ICC) system MAIN switch is pushed. The light goes out when the MAIN switch is pushed again. While the MAIN switch indicator light comes on, the ICC system is operational.
Lane Departure Prevention (LDP) ON indicator light (green; if so equipped)
The light comes on in green when the Lane Departure Prevention (LDP) system is turned on. The light turns off when the system is turned off.
NOTE:
This light is common with the lane departure warning light (orange). (See “Lane departure warning light” earlier in this section.)
For more details, see “LANE DEPARTURE WARN­ING (LDW)/ PREVENTION (LDP) SYSTEMS” in the “5. Starting and driving” section.
Malfunction Indicator Light (MIL)
If the malfunction indicator light comes on steady or blinks while the engine is running, it may indicate a potential emission control mal­function.
The malfunction indicator light may also come on steady if the fuel-filler cap is loose or missing, or if the vehicle runs out of fuel. Check to make sure the fuel-filler cap is installed and closed tightly, and that the vehicle has at least 3 US gallons (14 liters) of fuel in the fuel tank.
After a few driving trips, the turn off if no other potential emission control system malfunction exists.
If this indicator light remains on for 20 seconds and then blinks for 10 seconds when the engine is not running, it indicates that the vehicle is not ready for an emission control system inspection/maintenance test. (See “READINESS FOR INSPECTION/MAINTENANCE (I/M) TEST” in the “9. Technical and consumer information” section.)
light should
Operation :
The malfunction indicator light will come on in one of two ways:
Malfunction indicator light on steady — An emission control system malfunction has been detected. Check the fuel-filler cap. If the fuel-filler cap is loose or missing, tighten or install the cap and continue to drive the
vehicle. The a few driving trips. If the
not turn off after a few driving trips, have the vehicle inspected by an INFINITI dealer. You do not need to have your vehicle towed to the dealer.
Malfunction indicator light blinking — An engine misfire has been detected which may damage the emission control system.
To reduce or avoid emission control system damage:
a) Do not drive at speeds above 45 MPH (72
km/h). b) Avoid hard acceleration or deceleration. c) Avoid steep uphill grades. d) If possible, reduce the amount of cargo
being hauled or towed.
light should turn off after
light does
Instruments and controls 2-19
The malfunction indicator light may stop blinking and remain on.
Have the vehicle inspected by an INFINITI dealer. You do not need to have your vehicle towed to the dealer.
CAUTION
Continued vehicle operation without having the emission control system checked and re­paired as necessary could lead to poor drive­ability, reduced fuel economy, and possible damage to the emission control system.
Slip indicator light
This light will blink when the Vehicle Dynamic Control (VDC) system is operating, thus alerting the driver to the fact that the road surface is slippery and the vehicle is nearing its traction limits.
Small light indicator light
The light comes on when the front park, side marker, tail and license plate lights are on.
Turn signal/hazard indicator lights
The light flashes when the turn signal switch lever or hazard switch is turned on.
2-20 Instruments and controls
Vehicle Dynamic Control (VDC) off indicator light
The light comes on when the Vehicle Dynamic Control (VDC) off switch is pushed to OFF. This indicates that the VDC system is not operating. When the VDC off indicator light and slip indi­cator light come on with the VDC system turned on, this light alerts the driver to the fact that the VDC system’s fail-safe mode is operating, for example the VDC system may not be function­ing properly. Have the system checked by an INFINITI dealer. If a malfunction occurs in the system, the VDC system function will be can­celed but the vehicle is still driveable. For additional information, see “VEHICLE DYNAMIC CONTROL (VDC) SYSTEM” in the “5. Starting and driving” section of this manual.
AUDIBLE REMINDERS Key reminder chime
A chime will sound if the driver side door is opened while the ignition switch is pushed to the ACC or LOCK position with the Intelligent Key left in the Intelligent Key port. Make sure the ignition switch is pushed to the LOCK position, and take the Intelligent Key with you when leaving the vehicle.
Light reminder chime
A chime will sound when the driver side door is opened with the light switch in the
position, and the ignition switch is
pushed to the ACC position. Turn the light switch off when you leave the
vehicle.
Parking brake reminder chime
The chime will sound if the vehicle is driven with the parking brake applied. Stop the vehicle and release the parking brake.
Seat belt warning chime
The chime will sound for about 6 seconds unless the driver’s seat belt is securely fas­tened.
Brake pad wear warning
The disc brake pads have audible wear warn­ings. When a brake pad requires replacement, it will make a high pitched scraping sound when the vehicle is in motion whether or not the brake pedal is depressed. Have the brakes checked as soon as possible if the warning sound is heard.
or
DOT MATRIX LIQUID CRYSTAL DISPLAY
Lane departure warning chime (if so equipped)
When the Lane Departure Warning (LDW) or Lane Departure Prevention (LDP) system is on, the chime sounds if the vehicle is traveling close to either the left or the right of a traveling lane with detectable lane markers.
See “LANE DEPARTURE WARNING (LDW)/ PRE­VENTION (LDP) SYSTEMS” in the “5. Starting and driving” section for more details.
SIC3611
The dot matrix liquid crystal display located under the tachometer, and it displays the Automatic Transmission (AT) position indi­cator, the Intelligent Cruise Control (ICC) system (if so equipped) information and the Intelligent Key operation information.
For detailed information about each system, see the following sections:
Automatic Transmission (AT) – “WARNING/INDICATOR LIGHTS AND AU-
DIBLE REMINDERS” earlier in this section.
– “DRIVING THE VEHICLE” in the “5. Start-
ing and driving” section.
s
1
Intelligent Cruise Control (ICC) system – “INTELLIGENT CRUISE CONTROL (ICC)
SYSTEM” in the “5. Starting and driving” section.
Intelligent Key system – “INTELLIGENT KEY SYSTEM” in the “3.
Pre-driving checks and adjustments” sec­tion.
– “PUSH-BUTTON IGNITION SWITCH” in the
“5. Starting and driving” section.
is
Instruments and controls 2-21
2-22 Instruments and controls
SIC2765
INDICATORS FOR OPERATION
1. Engine start operation indicator
(ignition switch in the LOCK or ACC position)
This indicator appears when the selector lever is in the P (Park) position.
This indicator means that the engine will start by pushing the ignition switch with the brake pedal depressed.
2. Engine start operation indicator
(ignition switch in the ON position)
This indicator appears when the ignition switch is in the ON position with the selector lever in the P (Park) position.
This indicator means that the engine will start by pushing the ignition switch with the brake pedal depressed.
3. Steering lock release malfunction
indicator
This indicator appears when the steering wheel cannot be released from the LOCK position.
If this indicator appears, push the ignition switch while lightly turning the steering wheel right and left.
4. Intelligent Key insertion indicator
This indicator appears when the Intelligent Key needs to be inserted into the Intelligent Key port. (For example, the Intelligent Key battery is discharged.)
If this indicator appears, insert the Intelligent Key into the Intelligent Key port in the correct direction. (See “PUSH-BUTTON IGNITION SWITCH” in the “5. Starting and driving” sec­tion.)
5. Intelligent Key removal indicator
This indicator appears when the driver’s door is opened with the ignition switch in the LOCK position and the Intelligent Key placed in the Intelligent Key port. A key reminder chime also sounds.
If this indicator appears, remove the Intelligent Key from the Intelligent Key port and take it with you when leaving the vehicle.
6. NO KEY warning
The warning appears when the door is closed with the Intelligent Key left outside the vehicle and the ignition switch in the ACC or ON position. Make sure that the Intelligent Key is inside the vehicle.
When all the doors are closed, an outside chime and inside warning chime will also sound.
See “INTELLIGENT KEY SYSTEM” in the “3. Pre­driving checks and adjustments” section.
7. SHIFT “P” warning
This warning appears when the ignition switch is pushed to stop the engine with the selector lever in any position except the P (Park) posi­tion.
If this warning appears, move the selector lever to the P (Park) position or push the ignition switch to the ON position.
An inside warning chime will also sound. See “INTELLIGENT KEY SYSTEM” in the “3. Pre-
driving checks and adjustments” section.
8. “LOCK” warning
This warning appears when the selector lever is moved to the P (Park) position with the ignition switch in the ACC position after the SHIFT “P” warning appears.
To push the ignition switch to the LOCK posi­tion, perform the following procedure:
SHIFT “P” warning → (Move the selector lever to “P”) LOCK warning (Push the ignition switch ignition switch position is turned to ON) LOCK warning (Push the ignition switch ignition switch position is turned to LOCK)
9. NO KEY ID indicator
This indicator appears when the ignition switch is pushed and the Intelligent Key cannot be recognized by the system with the ignition switch in the LOCK position.
If this indicator appears, you cannot start the engine. Check for the following causes and perform remedies:
The battery of the Intelligent Key carried with you is discharged completely. Replace the battery with a new one.
The Intelligent Key carried with you is not registered to the system. Use the registered Intelligent Key.
You do not have an Intelligent Key with you. Carry an Intelligent Key with you.
10. Intelligent Key battery discharge
indicator
This indicator appears when the Intelligent Key battery is running out of power.
Instruments and controls 2-23
SECURITY SYSTEMS
If this indicator appears, replace the battery with a new one. (See “BATTERY REPLACEMENT” in the “8. Maintenance and do-it-yourself” sec­tion.)
SIC2132
Your vehicle has two types of security systems, as follows:
Vehicle security system
INFINITI Vehicle Immobilizer System
The security condition will be shown by the security indicator light.
VEHICLE SECURITY SYSTEM
The vehicle security system provides visual and audio alarm signals if someone opens the doors, hood, or trunk lid when the system is armed. It is not, however, a motion detection type system that activates when a vehicle is moved or when a vibration occurs.
The system helps deter vehicle theft but cannot prevent it, nor can it prevent the theft of interior or exterior vehicle components in all situations. Always secure your vehicle even if parking for a brief period. Never leave your Intelligent Key(s) in the vehicle, and always lock it when unat­tended. Be aware of your surroundings, and park in secure, well-lit areas whenever pos­sible.
Many devices offering additional protection, such as component locks, identification mark­ers, and tracking systems, are available at auto supply stores and specialty shops. Your INFINITI dealer may also offer such equipment. Check with your insurance company to see if you may be eligible for discounts for various theft pro­tection features.
2-24 Instruments and controls
SIC2766
How to arm the vehicle security system
1. Close all windows.
The system can be armed even if the windows are open.
2. Push the ignition switch to the LOCK position.
3. Remove the Intelligent Key from the ve­hicle.
4. Close all doors, hood and trunk. Lock all doors. The doors can be locked with the Intelligent Key, door handle request switch, power door lock switch or me­chanical key.
5. Confirm that the security indicator light
A
comes on. The security indicator light
s
stays on for about 30 seconds. The ve­hicle security system is now pre-armed. After about 30 seconds the vehicle secu­rity system automatically shifts into the armed phase. The security light begins to flash once every approximately 3 sec­onds. If, during this 30-second pre-arm time period, the door is unlocked, or the ignition switch is pushed to ACC or ON, the system will not arm.
Even when the driver and/or passengers are in the vehicle, the system will activate with all doors, hood, and trunk lid locked with the igni­tion switch in the LOCK position. When pushing the ignitionswitchtotheACCor ONposition,the system will be released.
Vehicle security system activation
The vehicle security system will give the follow­ing alarm:
The headlights blink and the horn sounds intermittently.
The alarm automatically turns off after ap­proximately 1 minute. However, the alarm reactivates if the vehicle is tampered with again.
The alarm is activated by:
Unlocking the door or opening the trunk lid without using the button on the Intelligent Key, the door handle request switch or the mechanical key. (Even if the door is opened by releasing the door inside lock knob, the alarm will activate.)
Opening the hood.
How to stop an activated alarm
The alarm will stop by unlocking a door by pushing the unlock button ligent Key, the door handle request switch or using the mechanical key. The alarm will not stop if the ignition switch is pushed to the ACC or ON position.
If the system does not operate as described above, have it checked by an INFINITI dealer.
on the Intel-
INFINITI VEHICLE IMMOBILIZER SYSTEM
The INFINITI Vehicle Immobilizer System will not allow the engine to start without the use of the registered Intelligent Key.
Statement related to section 15 of FCC rules for INFINITI Vehicle Immobilizer System (CONT ASSY - CARD SLOT)
Instruments and controls 2-25
This device complies with part 15 of the FCC Rules and RSS-210 of Industry Canada. Opera­tion is subject to the following two conditions;
(1) This device may not cause harmful interfer­ence, and (2) this device must accept any inter­ference received, including interference that may cause undesired operation of the device.
CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOIDTHE USER’S AUTHOR­ITY TO OPERATE THE EQUIPMENT.
SIC2766
Security indicator light
The security indicator light indicates the status of the INFINITI Vehicle Immobilizer System.
The light in the ACC or LOCK position. This function indicates that the security systems equipped on the vehicle are operational.
If the INFINITI Vehicle Immobilizer System is malfunctioning, this light will remain on while the ignition switch is in the ON position.
A
blinks when the ignition switch is
s
If thelightstillremainsonand/ortheengine will not start, see an INFINITI dealer for INFINITI Ve­hicle Immobilizer System service as soon as possible. Please bring all registered Intelligent Keys that you have when visiting an INFINITI dealer for service.
2-26 Instruments and controls
WINDSHIELD WIPER AND WASHER SWITCH
WARNING
In freezing temperatures the washer solution may freeze onthe windshieldand obscureyour vision which may lead to an accident. Warm windshield with the defroster before you wash the windshield.
CAUTION
Do not operate the washer continuously for more than 30 seconds.
Do not operate the washer if the reservoir tank is empty.
Do not fill the window washer reservoir tank with washer fluid concentrates at full strength. Some methyl alcohol based washer fluid concentrates may permanently stain thegrille ifspilledwhile fillingthewin­dow washer reservoir tank.
Pre-mix washer fluid concentrates with wa­ter to the manufacturer’s recommended lev­els before pouring the fluid into the window washer reservoir tank. Do not use the win­dow washerreservoir tank tomix thewasher fluid concentrate and water.
SIC2821
The windshield wiper and washer operates when the ignition switch is in the ON position.
Push the lever down to operate the wiper at the following speed:
1
INT (intermittent) — See “RAIN-SENSING
s
AUTO WIPER SYSTEM” later in this sec­tion.
2
LO (low) — continuous low speed opera-
s
tion
3
HI (high) — continuous high speed opera-
s
tion
4
Push the lever up operation of the wiper.
Pull the lever toward you washer. Then the wiper will also operate several times.
to have one sweep
s
5
to operate the
s
Instruments and controls 2-27
To turn the rain-sensing auto wiper system off, push up the lever to the OFF position, or pull down the lever to the LO or HI position.
CAUTION
Do nottouch the rainsensor and aroundit when the wiper switch is in the INT position and the ignition switchisintheONposition.Thewipers may operate unexpectedly and cause an injury or wiper damage.
REAR WINDOW AND OUTSIDE MIRROR DEFROSTER SWITCH
SIC3553 SIC2767B
RAIN-SENSING AUTO WIPER SYSTEM
The rain-sensing auto wiper system can auto­matically turn on the wipers and adjust the wiper speed depending on the rainfall and the vehicle speed by using the rain sensor located on the upper part of the windshield.
To set the rain-sensing auto wiper system, push the lever down to the INT (intermittent) position
1
. The wiper will sweep once while the ignition
s
switch is in the ON position. The rain sensor sensitivity level can be adjusted
by turning the knob toward the front or toward the rear
High — High sensitive operation
Low — Low sensitive operation
s
3
(Low).
s
2
(High)
2-28 Instruments and controls
The rain-sensing auto wipers are intended for use during rain. If the switch is left in the INT position, the wipers may operate unex­pectedly when dirt, fingerprints, oil film or insects are stuck on or around the sensor. The wipers may also operate when exhaust gas or moisture affect the rain sensor.
The rain-sensing auto wipers may not oper­ate if rain does not hit the rain sensor even if it is raining.
To defog/defrost the rear window glass and outside mirrors (if so equipped with defroster), start the engine and push the switch on. The indicator light again to turn the defroster off.
It will automatically turn off in approximately 15 minutes.
1
will come on. Push the switch
s
CAUTION
When cleaning the inner side of the rear win­dow, be careful not to scratch or damage the rear window defroster.
HEADLIGHT AND TURN SIGNAL SWITCH
XENON HEADLIGHTS
WARNING
HIGH VOLTAGE
When xenonheadlightsareon, theyproduce a high voltage. To prevent an electric shock, never attempt to modify or disassemble. Al­ways have your xenon headlights replaced at an INFINITI dealer.
Xenon headlights provide considerably more light than conventional headlights. If they are not correctly aimed, they might temporarily blind an oncoming driver or the driver aheadof youand causea seriousacci­dent. If headlights are not aimed correctly, immediately take your vehicle to an INFINITI dealer and have the headlights adjusted correctly.
When the xenon headlight is initially turned on, its brightness or color varies slightly. However, the color and brightness will soon stabilize.
The lifeofxenonheadlightswillbeshortened by frequent on-off operation. It is generally desirable not to turn off the headlights for short intervals (for example, when the ve­hicle stops at a traffic signal). Even whenthe
daytime running lights are active (Canada only), the xenon headlights do not turn on. This way the life of the xenon headlights is not reduced.
If the xenon headlight bulb is close to burn­ing out, the brightness will drastically de­crease, the light will start blinking, or the color of the light will become reddish. If one or moreofthe abovesignsappear,contact an INFINITI dealer.
HEADLIGHT SWITCH Lighting
1
Turn the switch to the position:
s
The front park, side marker, tail, license plate and instrument lights will come on.
2
Turn the switch to the position:
s
Headlights will come on and all the other lights remain on.
Instruments and controls 2-29
SIC2411
SIC2412 SAA0642A
Autolight system
The autolight system allows the headlights to be set so they turn on and off automatically.
To set the autolight system:
1. Make sure the headlight switch is in the AUTO position
2. Push the ignition switch to the ON posi-
tion.
3. The autolight system automatically turns
the headlights on and off.
To turn the autolight system off, turn the switch to the OFF,
1
.
s
,or position.
The autolight system can turn on the headlights automatically when it is dark and turn off the headlights when it is light.
If the ignition switch is pushed to the LOCK position and one of the doors is opened and this condition is continued, the headlights re­main on for 5 minutes.
Automatic headlights off delay :
You can keep the headlights on for up to 180 seconds after you push the ignition switch to LOCK and open any door then close all the doors.
You can adjust the period of the automatic headlights off delay from 0 seconds (OFF) to 180 seconds.
For automatic headlights off delay setting, see “Comfort & Conv. settings” in the “4. Monitor, climate, audio, phone and voice recognition systems” section.
Be sure not to put anything on top of the photo sensor panel. The photo sensor controls the autolight; if it is covered, the photo sensor reacts as ifit is dark and the headlights will illuminate.
A
located on the top of the instrument
s
2-30 Instruments and controls
SIC2413
Headlight beam select
1
To select the low beam, put the lever in
s
the neutral position as shown.
2
To select the high beam, push the lever
s
forward while the switch is in the position. Pull it back to select the low beam.
3
Pulling the lever toward you will flash the
s
headlight high beam even when the headlight switch is in the OFF position.
Battery saver system
When the headlight switch is in the or
position while the ignition switch is in
the ON position, the lights will automatically
turn off 5 minutes after the ignition switch has been pushed to the LOCK position.
When the headlight switch remains in the or position after the lights
automatically turn off, the lights will turn on when the ignition switch is pushed to the ON position.
CAUTION
When youturnon theheadlightswitchagain after the lights automatically turn off, the lights will notturn offautomatically. Besure to turn the light switch to the OFF position when you leave the vehicle for extended pe­riods of time, otherwise the battery will be discharged.
Never leave the light switch on when the engine isnotrunningforextendedperiodsof time even if the headlights turn off automatically.
Daytime running light system (Canada only)
The daytime running lights automatically illumi­nate when the engine is started with the park­ing brake released. The daytime running lights operate with the headlight switch in the OFF position or in the
position. Turn the
headlight switch to the illumination when driving at night.
If the parking brake is applied before the engine is started, the daytime running lights do not illuminate. The daytime running lights illumi­nate once the parking brake is released. The daytime running lights will remain on until the ignition switch is pushed to the LOCK position.
position for full
WARNING
When the daytime running light system is ac­tive, tail lights on your vehicle are not on. It is necessary at dusk to turn on your headlights. Failure to do so could cause an accident injur­ing yourself and others.
Adaptive Front lighting System (AFS) (if so equipped)
The Adaptive Front lighting System (AFS) will automatically adjust the headlights (low beam) toward the turning direction to improve the driver’s view. When the headlight switch is ON and the driver operates the steering wheel in a turn, the AFS system will be activated.
The AFS will operate:
when the headlight switch is ON.
Instruments and controls 2-31
when the selector lever is in any position other than P (Park) or R (Reverse).
when the vehicle is driven at above 16 MPH (25 km/h) for the left-side headlight. Note that the right-side low beam headlight will swivel but the left side will not swivel when the vehicle is at a stop and the steering wheel is turned. The vehicle must attain a speed above 16 MPH (25 km/h) before AFS activates the left-side headlight.
SIC2645 SIC3554
To turn the AFS off, push the OFF side of the AFS switch. (The AFS OFF indicator light will illumi­nate.) Push the ON side of the switch to turn the system on again.
AFS will also adjust the headlight to a proper axis automatically, depending on the number of occupants in the vehicle, the load the vehicle is carrying and the road conditions.
If the AFS OFF indicator light blinks after the ignition switch has been pushed to the ON position, this may indicate that the AFS is not functioning properly. Have the system checked by an INFINITI dealer. When the engine is started, the headlights will vibrate to check the system condition. This is not a malfunction.
Instrument brightness control
The instrument brightness control operates when the light switch is in the AUTO (when lighting), ignition switch in the ON position.
Turn the control to the darkening direction or the brightening direction brightness of instrument panel lights.
When the control is turned to the upper end, the light intensity will be at maximum. When the control is turned to the lower end, the light will be turned off.
or position with the
2
to adjust the
s
s
1
2-32 Instruments and controls
