Indesit IDP-148 User Manual
Operating instructions
DISHWASHER
EN
English,1
IDP 148

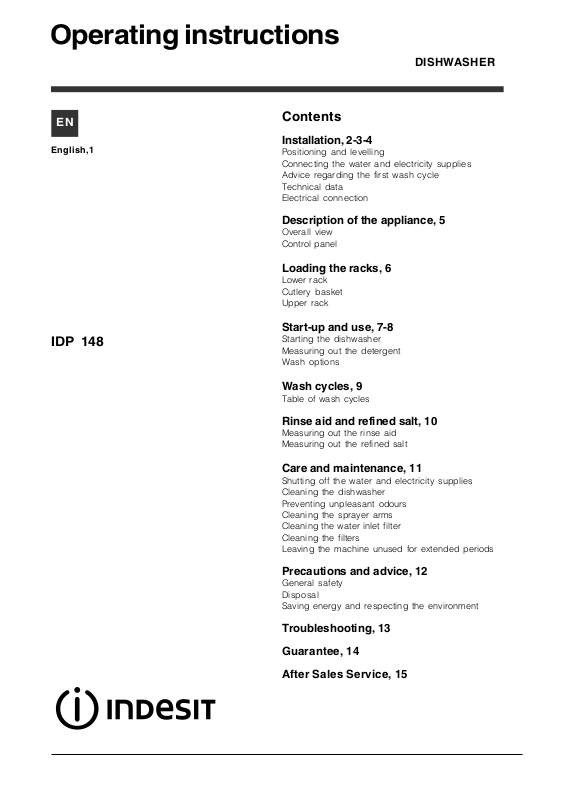

Contents
Installation, 2-3-4
Positioning and levelling
Connecting the water and electricity supplies
Advice regarding the first wash cycle
Technical data
Electrical connection
Description of the appliance, 5
Overall view
Control panel
Loading the racks, 6
Lower rack
Cutlery basket
Upper rack
Start-up and use, 7-8
Starting the dishwasher
Measuring out the detergent
Wash options
Wash cycles, 9
Table of wash cycles
Rinse aid and refined salt, 10
Measuring out the rinse aid
Measuring out the refined salt
Care and maintenance, 11
Shutting off the water and electricity supplies
Cleaning the dishwasher
Preventing unpleasant odours
Cleaning the sprayer arms
Cleaning the water inlet filter
Cleaning the filters
Leaving the machine unused for extended periods
Precautions and advice, 12
General safety
Disposal
Saving energy and respecting the environment
Troubleshooting, 13
Guarantee, 14
After Sales Service, 15
Installation
EN
Keep this instruction manual in a safe place for
future reference. If the appliance is sold, given away or
moved, please ensure the manual is kept with the
machine, so that the new owner may benefit from the
advice contained within it.
Please read this instruction manual carefully: it
contains important information regarding the safe
installation, use and maintenance of the appliance.
If the appliance must be moved at any time, keep it in
an upright position; if absolutely necessary, it may be
tilted onto its back.
This appliance is intended to be used in household and
similar applications such as:
- staff kitchen areas in shops, offices and other working
environments;
- farm houses;
- by clients in hotels, motels and other residential type
environments;
- bed and breakfast type environments.
Positioning and levelling
1. Remove the appliance from all packaging and check
that it has not been damaged during transportation.
If it has been damaged, contact the retailer and do not
proceed any further with the installation process.
2. Check the dishwasher by placing it so that its sides or
back panel are in contact with the adjacent cabinets or
even with the wall. This appliance can also be recessed
under a single worktop
sheet).
* (see the Assembly instruction
Connecting the water inlet hose
To a suitable cold water connection point: before
attaching the hose, run the water until it is perfectly
clear so that any impurities that may be present in the
water do not clog the appliance; after performing this
operation, screw the inlet hose tightly onto a tap with
a ¾ gas threaded connection.
To a suitable hot water connection point: your
dishwasher may be supplied with hot water from the
mains supply (if you have a central heating system
with radiators) provided that it does not exceed a
temperature of 60°C.
Screw the hose to the tap as described for connection
to a cold water supply.
If the inlet hose is not long enough, contact a
specialist store or an authorised technician (see
Assistance).
The water pressure must be within the values
indicated in the Technical data table (see adjacent
information).
The hose should not be bent or compressed.
Connecting the water outlet hose
Connect the outlet hose (without bending it) to a drain
duct with a minimum diameter of 4 cm.
3. Position the dishwasher on a level and sturdy floor. If
the floor is uneven, the front feet of the appliance may be
adjusted until it reaches a horizontal position. If the
appliance is levelled correctly, it will be more stable and
much less likely to move or cause vibrations and noise
while it is operating.
4. Adjust the height of the rear foot from the front of the
appliance
a hexagonal spanner (red color) with an opening of 8 mm in a
clockwise direction to increase the height or in an
anticlockwise direction to decrease the height.
* on the central lower part of the dishwasher, turning
Connecting the water and electricity
supplies
Connection to the water and electricity supplies
should only be performed by a qualified technician.
The dishwasher should not stand on top of the water
hoses or the electricity supply cable.
The appliance must be connected to the water
supply network using new hoses.
Do not use old hoses.
The water inlet and outlet hoses and the electricity
supply cable may be positioned towards the right or the
left in order to achieve the best possible installation.
The outlet hose must be at a height ranging from 40 to
80 cm from the floor / surface where the dishwasher
rests (A).
Before connecting the water outlet hose to the sink
drain, remove the plastic plug (B).
* Only available in selected models.
2
Anti-flooding protection
To ensure floods do not occur, the dishwasher:
- is provided with a special system which blocks the
water supply in the event of anomalies or leaks from
inside the appliance.
Anti-condensation strip*
After installing the dishwasher, open the door and stick
the adhesive transparent strip under the wooden shelf in
order to protect it from any condensation which may
form.
EN
Some models are also equipped with the supplementary
safety device New Acqua Stop
*, which guarantees anti-
flooding protection even in the event of a supply hose
rupture.
WARNING: HAZARDOUS VOLTAGE!
Under no circumstance should the water inlet hose be
cut as it contains live electrical parts.
Electrical connection
Before inserting the plug into the electrical socket, make
sure that:
The socket is earthed and complies with current
regulations.
The socket can withstand the maximum load of the
appliance, which is indicated on the data plate
located on the inside of the door (see chapter entitled
Description of the appliance).
The power supply voltage falls within the values
indicated on the data plate on the inside of the door.
The socket is compatible with the plug of the
appliance. If this is not the case, ask an authorised
technician to replace the plug (see Assistance); do
not use extension cables or multiple sockets.
Once the appliance has been installed, the power
supply cable and the electrical socket should be easily
accessible.
The cable should not be bent or compressed.
If the power supply cable is damaged, it must be replaced by the manufacturer or its Technical Assistance
Service in order to prevent all potential hazards. (See Assistance)
The Company shall not be held responsible for any
incidents that occur if these regulations are not
observed.
Advice regarding the first wash cycle
After the appliance has been installed, immediately
before running the first wash cycle, completely fill the
salt dispenser with water and add only then
approximately 1 kg of salt (see chapter entitled Rinse aid
and refined salt). The water may overflow: this is normal
and is not a cause for concern. Select the water
hardness value (see chapter entitled Rinse aid and
refined salt). - After the salt has been poured into the
machine, the LOW SALT indicator light
If the salt container is not filled, the water softener
and the heating element may be damaged as a result.
Technical data
Dimensions
Capacity 14 standard place-settings
Water supply
pressure
Power supply
voltage
Total absorbed
power
Fuse See appliance data plate
width 60 cm
height 85 cm
depth 60 cm
0,05 ÷ 1MPa (0.5 ÷ 10 bar)
7,25 – 145 psi
See appliance data plate
See appliance data plate
This dishwasher conforms to the
following European Community
Directives:
-2006/95/EC (Low Voltage)
-2004/108/EC (Electromagnetic
Compatibility)
-2005/32/EC (Comm. Reg.
1275/2008) (Ecodesign)
-97/17/EC (Labelling)
-2002/96/EC Waste Electrical
and Electronic Equipment
(WEEE)
* switches off.
* Only available in selected models.
3
Electrical Connection
EN
Electrical Connection
If your appliance is supplied with a 13 amp. fused plug
it can be plugged into a 13 amp socket for immediate
use. Before using the appliance please read the
instruction below.
WARNING: THIS APPLIANCE MUST BE
EARTHED.
THE FOLLOWING OPERATIONS SHOULD BE
CARRIED OUT BY A QUALIFIED ELECTRICIAN.
Replacing the fuse:
When replacing a faulty fuse, a 13 amp ASTA
approved fuse to BS 1362 should always be used, and
the fuse cover re-fitted. If the fuse cover is lost, the
plug must not be used until a replacement is obtained.
Replacemente fuse covers:
If a replacement fuse cover is fitted, it must be of the
correct colours as indicated by the coloured marking
or the colour that is embossed in words on the base of
the plug. Replacements can be obtained directly from
your nearest Service Depot.
Removing the plug:
Ifyour appliance has a non-rewireable moulded plug
and you should wish to remove it to re-route the mains
cable through partitions, units etc., please esure that
either:
- the plug is replaced by a fused 13 amp re-wireable
plug bearing the BSI mark of approval
- or:
- the mains cable is wired directly into a 13 amp cable
outlet, controlled by a switch, (in compliance with BS
5733) which is accessible without moving the
appliance.
As the colours of the wires in the mains lead may not
correspond with the coloured markings identifying the
terminal in your plug, proceed as follows:
connect Green & Yellow wire to terminal market E or
coloured Green or Green & Yellow.
Connect Brown wire to terminal marked L or
coloured Red.
Connect Blue wire to terminal marked N or coloured
Black.
If a 13 amp plug (BS 1363) is used it must be fitted with
a 13 amp fuse. A15 amp plug must be protected by a 15
amp fuse, either in the plug or adaptor or at the
distribution board.
If you are in any doubt about the electrical supply to
your machine, consult a qualified electrician before
use.
How to connect an alternative plug:
The wires in this mains lead are coloured in
accordance with the following code:
BLUE NEUTRAL (N)
BROWN LIVE (L)
GREEN AND YELLOW EARTH (E) or
Disposing of the plug:
Ensure that before disposing of the plug itself, you
make the pins unusable so that it cannot be
accidentally inserted into a socket.
Instruction for connecting cable to an altenative
plug:
Important: the wires in the mains lead are coloured
in accordance with the following code:
Green & Yellow - Earth
Blue - Neutral
Brown - Live
CAUTION:
- Once the appliance has been installed, the electrical plug
and socket should remain accessible.
- The Company shall not be held responsible for any
incidents that occur if these regulations are not observed.
4
Disposing of the appliance:
When disposing of the appliance please remove the
plug by cutting the mains cable as close as possible to
the plug body and dispose of it as described above.
Description of the
appliance
Overall view
Control panel
Select wash
cycle button
ON/OFF/RESET
button
1. Upper rack
2. Upper sprayer arm
3. Tip-up compartments
4. Rack height adjuster
5. Lower rack
6. Lower sprayer arm
7. Cutlery basket
8. Washing filter
9. Salt dispenser
10. Detergent and rinse aid dispensers
11. Data plate
12. Control Panel
***
Display
Start/Pause button
and indicator light
EN
indicator light*
Wash cycle number
light-up indicator
indicator light*
indicator light
Low Rinse aid
Low Salt
Washing
Half load
button
Drying
indicator light
Time remaining
light-up display
Delayed start
indicator light
Multi-functional tablets
indicator light
Half load
indicator light
Delayed start
button
Multi-functional
Tablets button
***Only in completely built-in models.
* Only available in selected models.
The number and type of wash cycles and options may vary depending on the dishwasher model.
5
Loading...
