INDESIT ID60E2(W) S User Manual

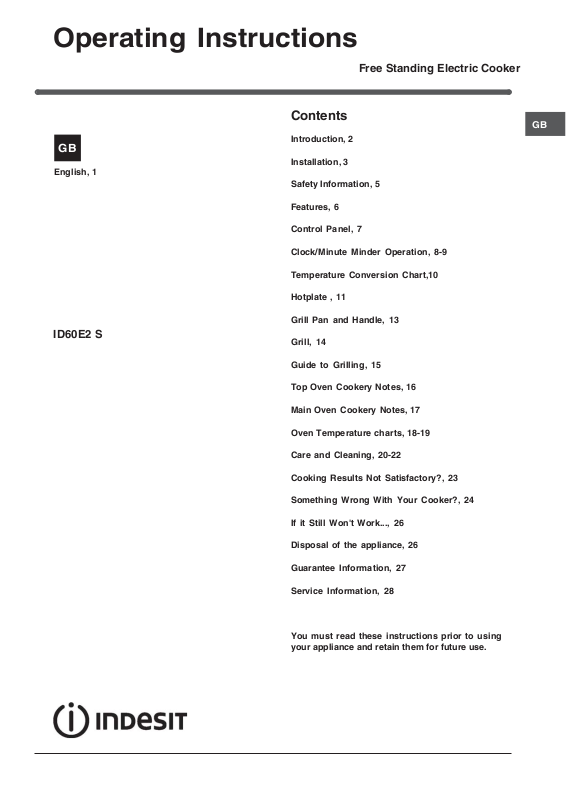

Operating Instructions

Free Standing Electric Cooker

English, 1

ID60E2 S

Contents

Introduction, 2

Installation, 3

Safety Information, 5

Features, 6

Control Panel, 7

Clock/Minute Minder Operation, 8-9

Temperature Conversion Chart,10

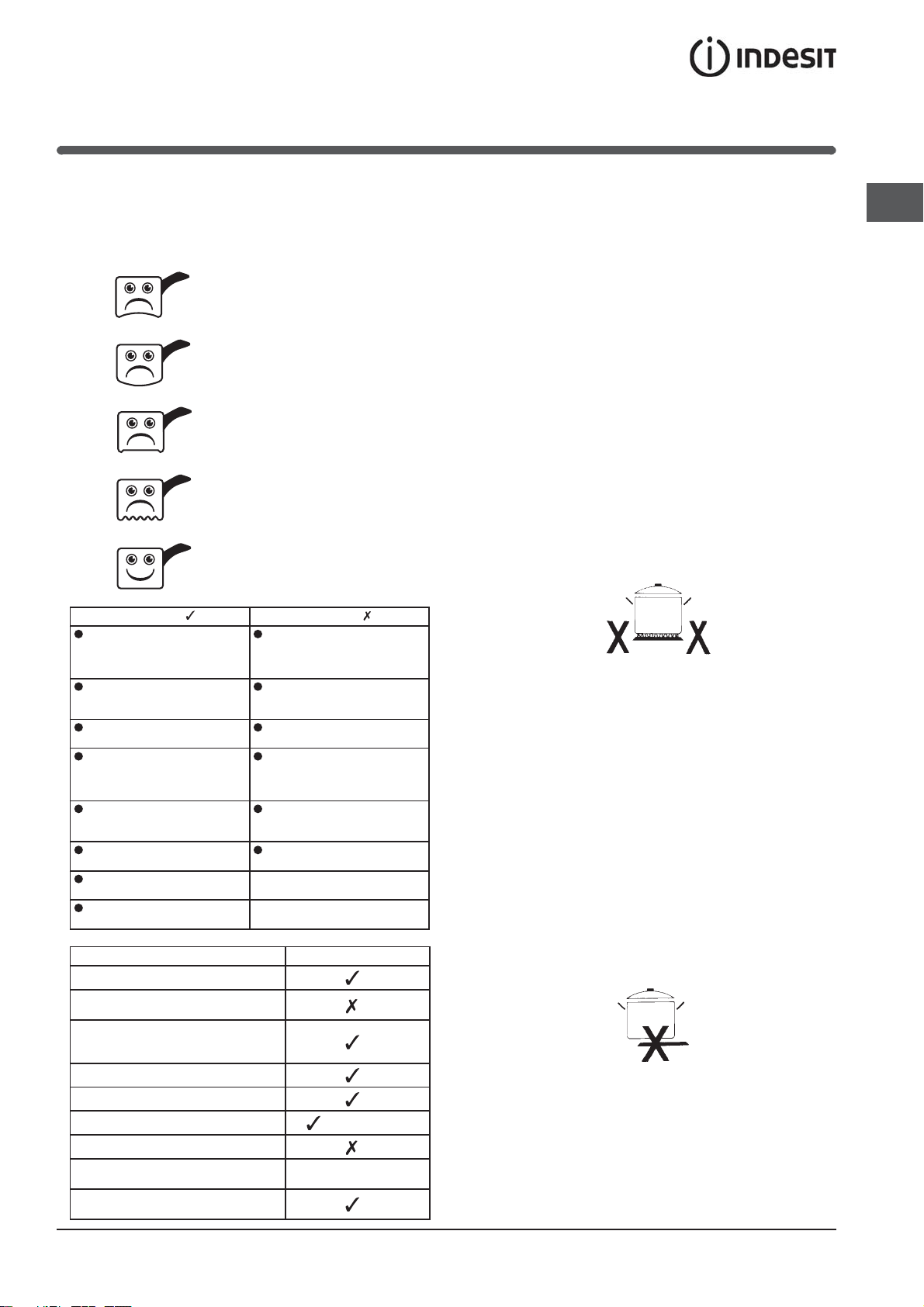

Hotplate , 11

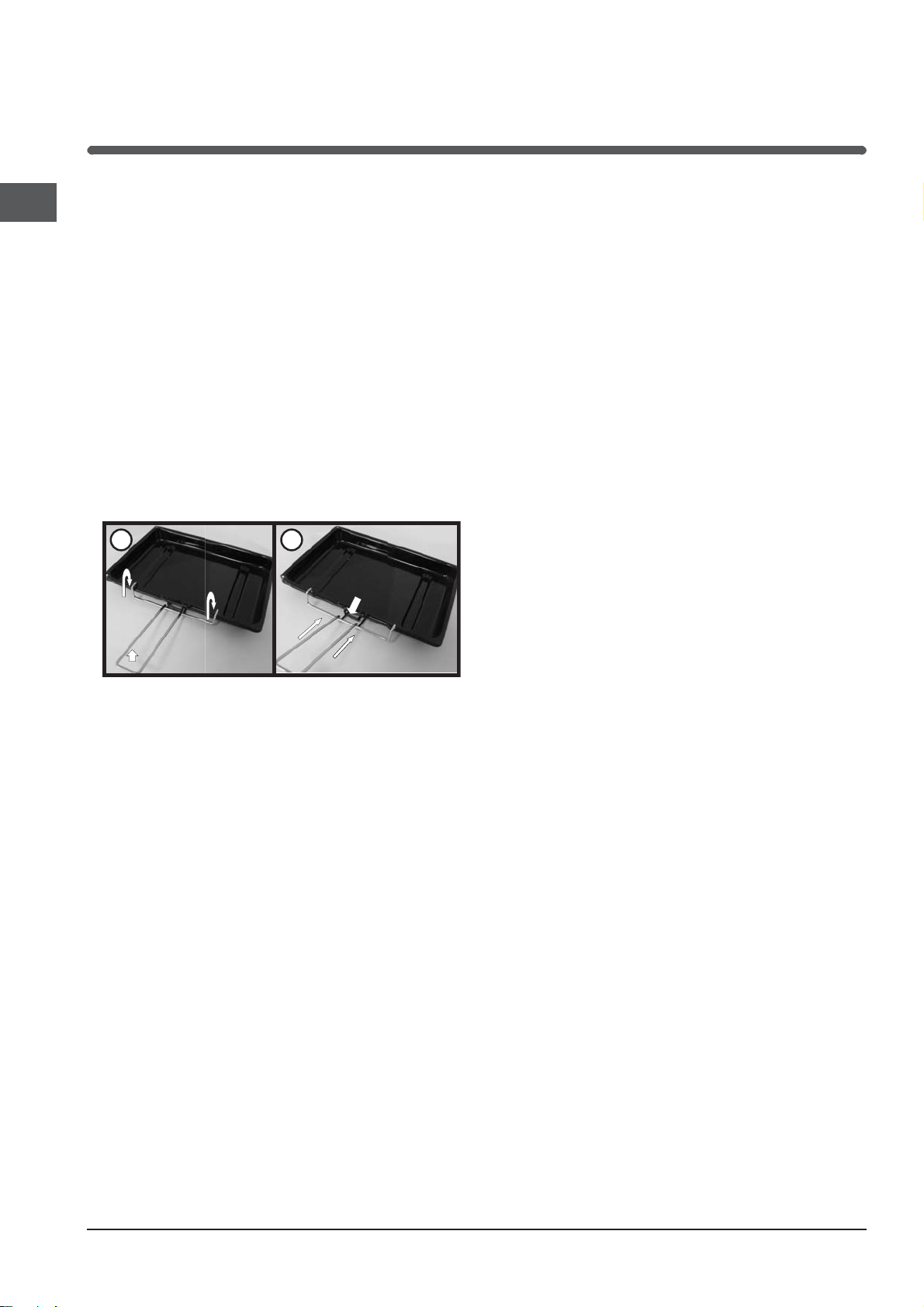

Grill Pan and Handle, 13

Grill, 14

Guide to Grilling, 15

Top Oven Cookery Notes, 16

Main Oven Cookery Notes, 17

Oven Temperature charts, 18-19

Care and Cleaning, 20-22

Cooking Results Not Satisfactory?, 23

Something Wrong With Your Cooker?, 24

If it Still Won't Work..., 26

Disposal of the appliance, 26

Guarantee Information, 27

Service Information, 28

You must read these instructions prior to using your appliance and retain them for future use.

WARNING

WARNING: The appliance and its accessible parts become hot during use.

Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

Do not close the glass cover (if present) when the gas burners or electric hotplates are still hot.

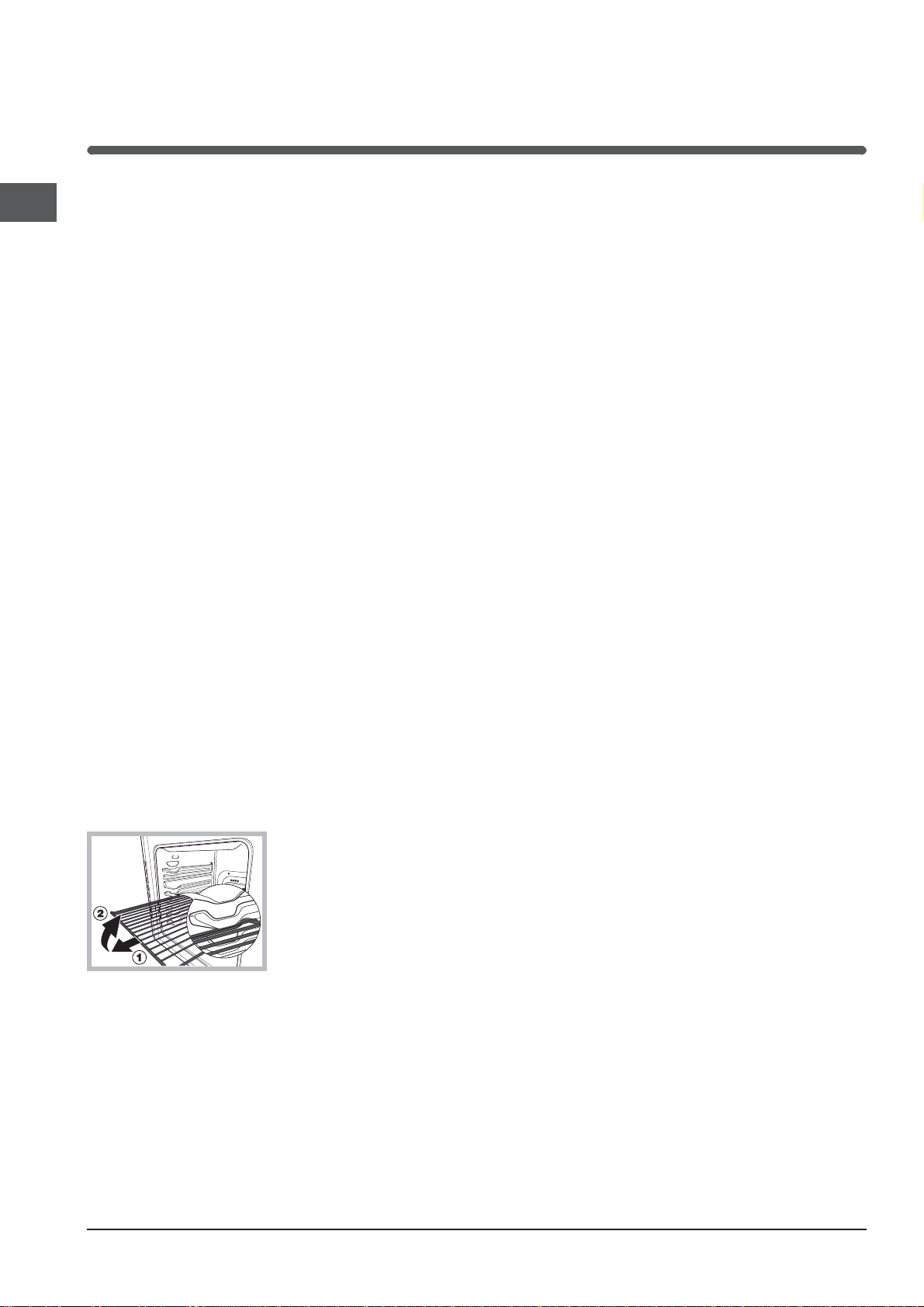

! When you place the rack inside, make sure that the stop is directed upwards and in the back of the cavity.

Introduction

Your new appliance is guaranteed* and will give lasting service.This guarantee is only applicable if the appliance has been installed in accordance with the installation instructions detailed in this booklet. To help make best use of your cooking equipment, please read this booklet carefully. The cooker is designed specifically for domestic use and responsibility will not be accepted for use in any other installation.

When the cooker is first used an odour may be emitted, this will cease after a period of use.

When first using the cooker ensure that the room is well ventilated (e.g. open a window or use an extractor fan) and that persons who may be sensitive to the odour avoid any fumes. It is suggested that any pets be removed from the room until the smell has ceased. This odour is due to temporary finish on oven liners and elements and also any moisture absorbed by the insulation.

NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

WARNING: Danger of fire: do not store items on the cooking surfaces.

WARNING: If the surface in glassceramic is cracked, switch off the appliance to avoid the possibility of electric shock.

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

The internal surfaces of the compartment (where present) may become hot.

Never use steam cleaners or pressure cleaners on the appliance. Remove any liquid from the lid before opening it.

* The guarantee is subject to the provisions that the appliance:

(a) Has been used solely in accordance with the

Users Instruction Book.

(b) Has been properly connected to a suitable supply

voltage as stated on the rating plate attached to this equipment.

been modified or repaired by any person other than the authorised employee or agent.

(d) Has been correctly installed.

This appliance conforms with the followingThis appliance conforms with the following

This appliance conforms with the following

This appliance conforms with the followingThis appliance conforms with the following European Economic Community directives:European Economic Community directives:

European Economic Community directives:

European Economic Community directives:European Economic Community directives:

EC EC

- 2006/95/ subsequent modifications;

- 2004/108/ Compatibility) and subsequent modifications;

- 2002/96/

- 1275/2008 (Stand-by/ Off mode)

EC of 12/12/06 (Low Voltage) and

EC EC

ECEC

EC of 15/12/04 (Electromagnetic

ECEC

Installation

WARNING – THIS APPLIANCE MUST BE EARTHED.

MAINS CONNECTION

UK Household:

Your cooker should have been checked to ensure

that the voltage corresponds with your supply

volt

age,

this is stated on the rating plate,which is situated

on the outer rear panel.The model number and the serial number are located on the front of the cooker, as shown on the Features page. The cooker must be connected by a competent person such as one who is a, NICEIC registered contractor to a suitable double-pole control unit with a minimum rating of 32A and a minimum contact clearance of 3mm (applicable to newer properties, older properties where a 30A double pole control unit and a minimum contact clearance of 3mm is acceptable). The double pole control unit should be fitted adjacent to the cooker, in accordance with IEE regulations.The control unit must be within 2 metres of but not directly above the appliance and should be easily accessible in the event of an emergency. The power supply cable should conform to B.S.6004 with a conductor size of 6mm2, minimum. Access to the mains terminals is gained by removing the rear access cover.The mains cable must pass through the cable clamp adjacent to the terminal block. Sufficient cable should be used to allow the cooker to be pulled out for servicing.

Ensure that the mains cable is routed away from any brackets affixed to the rear panel and is not trapped to the rear wall when pushing the cooker into position between cabinets.

uropean 3 phase Household:

Your cooker can be converted to be suitable for 3 phase European households.

Note:The conversion and connection must be done in accordance with local and national installation requirements.

To install this appliance to 3 phase, the ‘L’link pins of the MTB need to be removed.

- Remove the 2 link pins from L1/L2 and L2/L3

- Then wire the 3 phase L1, L2 and L3 into

terminals L1, L2 and L3,as shown in the diagram.

THE ‘N’ LINK PIN TO REMAIN ON THE MTB

Splashback

A splashback is also supplied, to prevent food from falling down the back of your cooker. To fit:

- Remove the two buffers from the rear of the hob - retain to one side.

- Position the splashback, as shown below.

- Replace the two buffers to hold the splashback in position.

! VERY HOT SURFACES! VERY HOT SURFACES

! VERY HOT SURFACES

FOOD OR GREASE ON THESE SURFACES COULD CAUSE SMOKE AND POSSIBLY EVEN BURN

YOU MUST KEEP THE OVEN AND GRILL CAVITIES CLEAN

! ATTENTION ! ATTENTION

! ATTENTION

DURING INSTALLATION THE FEET OF THE APPLIANCE MUST BE LOWERED SO THAT AN AIR GAP OF AT LEAST 10MM (1CM) IS LEFT BETWEEN THE BASE OF THE APPLIANCE AND THE FLOOR.

10 mm

! ATTENTION

! ATTENTION! ATTENTION

WHEN USING THE MAIN OVEN YOU MUST ENSURE THAT THE

BASE OF THE CAVITY IS NOT COVERED WITH ALUMINUM FOIL, UTENSIL OR ANY OTHER FORM OF COVERING. FAILURE TO DO THIS MAY RESULT IN THE CAVITY BEING DAMAGED.

Installation

WARNING - THIS APPLIANCE MUST BE EARTHED.

Mains Connection

Your cooker should have been checked to ensure that the voltage corresponds with your supply voltage, this is stated on the rating plate, which is situated on the outer rear panel.The model number and the serial number are located on the front of the cooker, as shown on the Features page. The cooker must be connected by a competent person such as one who is a, NICEIC registered contractor to a suitable double-pole control unit with a minimum rating of 32A and a minimum contact clearance of 3mm (applicable to newer properties, older properties where a 30A double pole control unit and a minimum contact clearance of 3mm is acceptable). The double pole control unit should be fitted adjacent to the cooker, in accordance with IEE regulations.The control unit must be within 2 metres of but not directly above the appliance and should be easily accessible in the event of an emergency. The power supply cable should conform to B.S.6004 with a conductor size of 6mm

, minimum. Access to the mains terminals is gained by removing the rear access cover. The mains cable must pass through the cable clamp adjacent to the terminal block. Sufficient cable should be used to allow the cooker to be pulled out for servicing.

Ensure that the mains cable is routed away from any brackets affixed to the rear panel and is not trapped to the rear wall when pushing the cooker into position between cabinets.

Siting the Cooker

The cooker is designed to fit between kitchen cabinets spaced 600mm apart. The space either side need only be sufficient to allow withdrawal of the cooker for servicing and cleaning. It can be used with cabinets one side or both as well as in an angled corner setting. It can also be used freestanding. Adjacent side walls which project above hob level, must not be nearer to the cooker than 150mm and should be protected by heat resistant material. Any overhanging surface or cooker hood should not be nearer than 650mm.

Note: This appliance must NOT be fitted on a platform.

Moving the Cooker

Before moving your cooker, switch off at the cooker control unit, ensure that it is cool. Open the grill door sufficiently to allow a comfortable grip on the underside front edge of the oven roof, avoiding any grill elements.

Radio Interference

This appliance conforms to EN 55014 regarding suppression of radio and television interference.

Note: Take care in moving the cooker as it is heavy.Take care to ensure that any floor covering is not damaged.

Levelling

Four feet are fitted which can be adjusted up or down to set the height (900mm - 930mm) and level the cooker. The feet can be simply screwed in or out to lower or raise the cooker. After the correct height is achieved, lock the feet into position by tightening the locking nut using an open ended spanner. CAUTION: Some soft floor coverings may get damaged if the cooker is not moved carefully. NOTE: Ensure oven shelves are level by using a spirit level on the rod shelves.

Technical Characteristics

Top Oven

ENERGY LABEL

Regulation (EU) No 65/2014 supplementing Directive 2010/30/EU. Regulation (EU) No 66/2014 implementing Directive 2009/125/EC. Standard EN 60350-1 Standard EN 50564.

and ECODESIGN

Declared energy consumption for Natural convection Class

Main Oven

ENERGY LABEL

Regulation (EU) No 65/2014 supplementing Directive 2010/30/EU. Regulation (EU) No 66/2014 implementing Directive 2009/125/EC. Standard EN 60350-1 Standard EN 50564.

and ECODESIGN

Declared energy consumption for Forced convection Class

Hob

ECODESIGN

Regulation (EU) No 66/2014 implementing Directive 2009/125/EC. Standard EN 60350-2. Standard EN 50564.

Voltage and Frequency

Usable Volume: 42 Litres

heating mode: Conventional

Usable Volume: 74 Litres

heating mode: Fan Oven

230/400V~ 50Hz

Safety Information

When used properly your appliance is completely safe but as with any electrical product there are certain precautions that must be observed. PLEASE READ THE PRECAUTIONS BELOW BEFORE USING YOUR APPLIANCE.

Always

• Remove all packing from the appliance before switching on for the first time.

• Understand the controls prior to using the appliance.

• Keep children away from the appliance when cooking

as the surfaces will get extremely hot during and after use.

• Turn controls off when not in use.

• Stand back when opening an oven door to allow any

build up of steam or heat to disperse.

• Always use dry good quality oven gloves when removing items from the oven/grill.

• Always place pans centrally over the hotplate making sure handles are kept away from the edge of the hob and cannot become heated by other hotplates or pans.

• Always take care to avoid heat or steam burns when operating the controls.

• Always turn off the electricity supply at the wall switch and allow the appliance to cool before cleaning (or changing an oven lamp if fitted).

• Always make sure the shelves are in the correct position before switching on the oven or grill.

• Always keep the oven/grill door closed when the appliance is

• Always keep the appliance clean as a build up of grease or fat from cooking can cause a fire.

• Always follow the basic principles of food handling and hygiene to prevent the possibility of bacterial growth.

• Always keep ventilation slots clear of obstructions.

• Always refer servicing to a qualified appliance service

engineer.

• Always take care when removing items from the grill compartment when the lower oven is in use as the contents will be hot

• Always turn off the electricity supply to the appliance at the wall switch should any glass panel (if fitted) crack or shatter and then DO NOT USE THE APPLIANCE until repaired.

• During use, the oven becomes hot. Care should be taken to avoid touching heating elements inside the oven.

The appliance must be used by adults only for the

preparation of food, in accordance with the instructions outlined in this booklet. Any other use of the appliance (e.g. for heating the room) constitutes improper use and is dangerous. The manufacturer may not be held liable for any damage resulting from improper, incorrect and unreasonable use of the appliance.

not in use.

Never

• Never stare at Halogen heating units

• Never leave children unsupervised where a cooking

appliance is installed as all surfaces will be hot during and after its use.

• Never allow anyone to sit or stand on any part of the appliance.

• Never store items above the appliance that children may attempt to reach.

• Never leave anything on the hob surface when unattended and not in use.

• Never remove the oven shelves whilst the oven is hot.

• Never heat up unopened food containers as pressure can build up causing the container to burst.

• Never store chemicals/food stuffs or pressurised containers in or on the appliance, or in cabinets immediately above or next to the appliance.

• Never place flammable or plastic items on or near the hob.

• Never fill a deep fat frying pan more than 1/3 full of oil. Never use a lid. DO NOT LEAVE DEEP FAT FRYING PANS UNATTENDED WHILE COOKING.

• Never use the appliance as a room heater.

• Never use the grill to warm plates.

• Never dry any items on either the hob or oven doors.

• Never install the appliance next to curtains or other

soft furnishings.

• Never operate the grill with the grill door closed as this will cause the appliance to over heat.

• Never use 'steam cleaners'.

SAFETY ADVICE IN CASE OF A CHIP-PAN FIRE

In the event of a chip pan fire or any other pan fire.

1. TURN OFF THE COOKER APPLIANCE AT THE WALL SWITCH.

2. COVER THE PAN WITH A FIRE BLANKET OR DAMP CLOTH, this will smother the flames and extinguish the fire.

3. LEAVE THE PAN TO COOL FOR AT LEAST 60 MINUTES BEFORE MOVING IT. Injuries are often caused by picking up a hot pan and rushing outside with it.

NEVER USE A FIRE EXTINGUISHER TO PUT OUT A PAN FIRE as the force of the extinguisher is likely to tip the pan over. Never use water to extinguish oil or fat fires.

! The appliance should not be operated by people

(including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance.

Features

Control panel

Clock/Minute Minder

Grill pan food support

1500W Red Spot

2000W Red Spot

2000W Sealed

Top oven/grill rod shelf

Top oven wirework shelf supports

Main oven wirework shelf supports

Main oven rod shelves

Fan blade

Model number

and Serial number

label

Inner glass panel

Conventional Grill

Grill pan with fixed/detachable handle

Splash Back

Control Panel

Main oven neon Top oven neon

Main oven

Top

oven

Clock / Minute Minder

Grill

Operating controls when the grill is in use

In common with all cookers having controls sited above the grill compartment, care must be taken when setting the controls, due to the hot air expelled from the grill compartment. Note: After use, it is advisable to check that all cooker controls have been switched Off.

Cooling fan

A gentle flow of air will be blown below the control panel when the grill is in use.When the oven/s are in use the cooling fan will operate after a short period of time and may run on, after all controls are switched off.

Hob hot neon

Left

Front

Left

Rear

Right

Rear

Right Front

Oven light

The oven light will illuminate when the main oven thermostat is operated. The light will remain on during the cook period.

Hob Hot Neon

A short time (approx. 30 seconds) after the hob heating areas have been turned on, the Hob Hot neon will illuminate. This light will remain illuminated until all the hob controls have been turned off and all hob heating areas have cooled.

Clock and Minute Minder

00.00

12.00

CLOCK OPERATION

To Set Time of Day

Step 1 Check that the electricity supply to the

cooker is turned on.

Step 2 When switched on the display will show 0.00

flashing intermittently.

Step 3 Press the "

then press either the "+" or "-" buttons to set the correct time of day.

Note: If the electricity supply has been off, the "+" button must be pressed once before the "-" button, if it is required to reduce the time of day.

" button and

THE TIME OF DAY IS NOW SET.

Clock and Minute Minder

MINUTE MINDER OPERATION

00 . 20

1 3.23

To Set the Minute Minder

Step 1 Press the "+" button until the required time

is set. A "Bell" symbol will light up. During setting the time adjusts in 10 second intervals up to a maximum of 99mins 50secs.

It can also be adjusted by pressing the "-" button.

At the end of the set time, a bleeping sound will be heard and the "Bell" will disappear.

The bleeper can be cancelled by pressing the "+" button.

The minute minder can be cancelled before the bleeper sounds by pressing the "+" and "-" buttons together until 0.00 appears in the display window.

BLEEPER SOUND

To adjust the pitch of the bleeper, press the "-" button while the bleeper is sounding. For example:-

(a) Press the "+" button and set 10 seconds. (b) When the bleeper sounds, press and release the "-"

button, until preferred pitch is set.

bleeper.

NOTE: If the sound of the bleeper appears to be different, it is most likely that the pitch of the bleeper has been inadvertently adjusted.
