Page 1

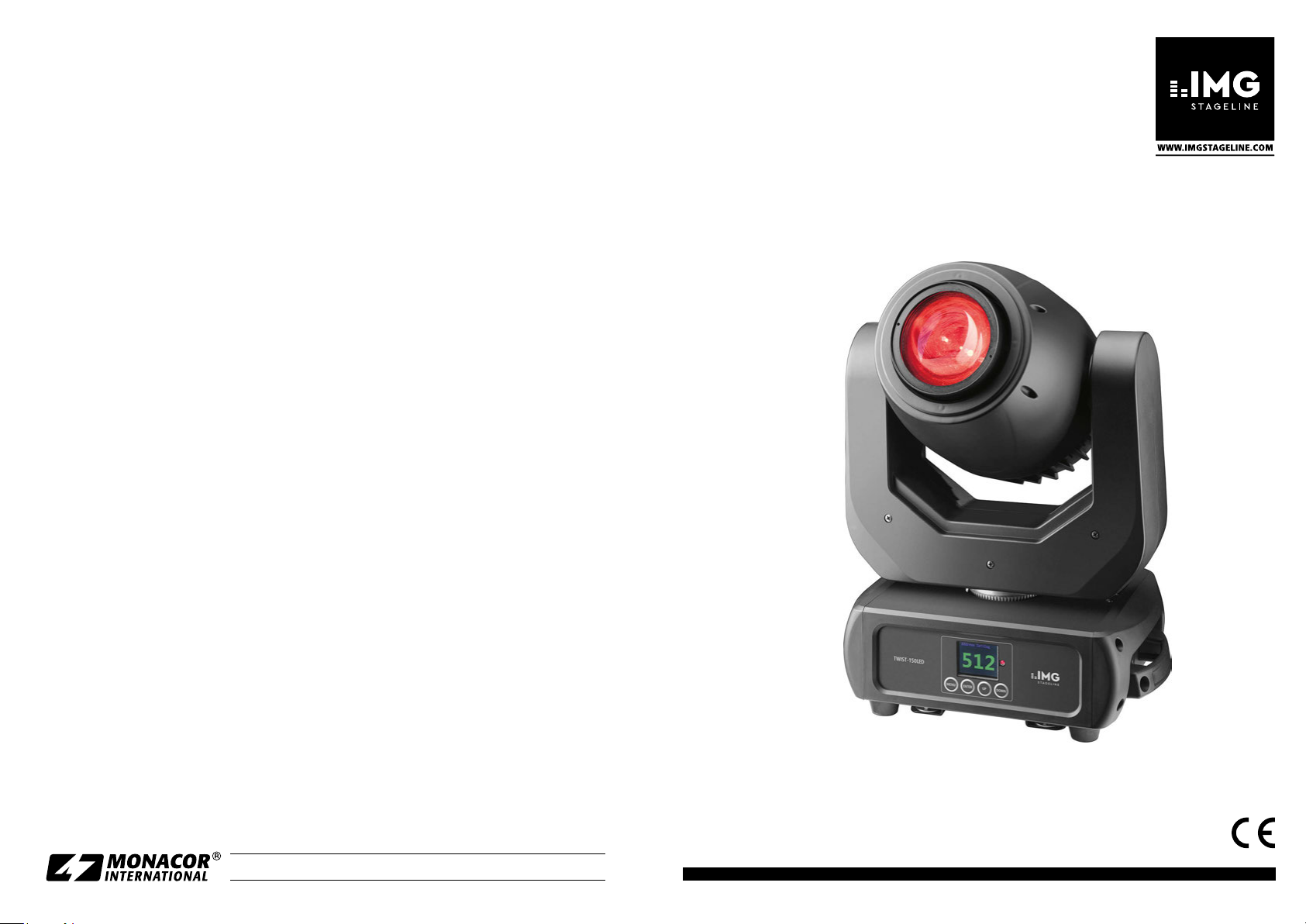

LED Beam Moving Head
TWIST-150LED
Order No. 38.7970
MONACOR INTERNATIONAL GmbH & Co. KG • Zum Falsch 36 • 28307 Bremen • Germany
www.monacor.com
01.30.11.2016
INSTRUCTION MANUAL
ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS
Page 2
1
WARNING
This device has left the factory in perfect condition. In order to maintain this condition and
to ensure a safe operation, it is absolutely necessary for the user to follow the
safety instructions and warning notes written in this user manual.
SAFETY INSTRUCTIONS
The unit uses dangerous mains voltage. Leave servicing to skilled personnel and do
not insert anything into the air vents. Inexpert handling may result in electric shock.
IMPORTANT
If the device has been exposed to temperature changes due to environmental changes, do
not switch it on immediately. The arising condensation could damage the device.
Leave the device switched off until it has reached room temperature.
This device falls under protection-class I. Therefore it is essential that the device be earthed.
The electric connection must carry out by qualified person.
The device shall only be used with rate voltage and frequency.
Make sure that the available voltage is not higher than stated at the end of this manual. Make
sure the power cord is never crimped or damaged by sharp edges. If this would be the
case, replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning it.
Only handle the power cord by the plug. Never pull out the plug by tugging the power cord.
During initial start-up some smoke or smell or smell may arise. This is a normal process
and does not necessary mean that the device is defective, it should decrease gradually.
Please don’t project the beam onto combustible substances.
Fixtures cannot be installed on combustible substances, keep more than 50cm distance
with wall for smooth air flow, so there should be no shelter for fans and ventilation
for heat radiation.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively
replaced by the manufacturer of his service agent or a similar qualified person in order to
avoid a hazard.
Install the unit safely and expertly. No guarantee claims for the unit and no liability for
any resulting personal damage or material damage will be accepted if the unit is used for
other purposes than originally intended, if it is not safely installed or not correctly
connected or operated, or if it is not repaired in an expert way.
2
Page 3
10
MAINTENANCE AND CLEANING
2 UNPACKING
The following points have to be considered during the inspection:
1) All screws for installing the devices or parts of the device have to be tightly
connected and must not be corroded.
2) There must not be any deformations on the housing, color lenses, fixations and
installation spots (ceiling, suspension, trussing).
3) Mechanically moved parts must not show any traces of wearing and must not rotate
with unbalances.
4) The electric power supply cables must not show any damage, material fatigue
or sediments.
Further instructions depending on the installation spot and usage have to be adhered by
a skilled installer and any safety problems have to be removed.
WARNING
The unit uses dangerous mains voltage.
Always disconnect the mains plug before cleaning.
In order to make the lights in good condition and extend the life time, we suggest a
regular cleaning to the lights.
1) Clean the inside and outside lens each week to avoid the weakness of the lights due
to accumulation of dust.
2) Clean the fan each week.
3) A detailed electric check by approved electrical engineer each three month, make
sure that the circuit contacts are in good condition, prevent the poor contact of
circuit from overheating.
Thank you for choosing our TWIST-150LED moving head light. For your own
safety, please read this manual before installing the device. This manual covers the
important information on installation and applications. Please install and operate the
fixture with following instructions. Meanwhile, please keep this manual well for future
needs.
The TWIST-150LED is made of a new type of high temperature strength of engineering
plastic and cast aluminum casing with nice outlook. The fixture is designed and
manufactured strictly following CE standards, complying with international standard
DMX512 protocol.
It’s available independently controlled and linkable with each other for operation. And
it is applicable for large-scale live performances, theater, studio, nightclubs and discos.
Please carefully unpack the TWIST-150LED when you receive the package and check
whether it is damaged during the transportation.
Please check whether the following items are included inside the box:
1x Moving Head
1x Power Cable
1x Omega Clamp
1x Instruction Manual
We recommend a frequent cleaning of the device. Please use a moist, lint-free cloth.
Never use alcohol solvents.
There are no serviceable parts inside the device. Please refer to the instructions
under “Installation instructions”.
Should you need any spare parts, please order genuine parts from your local dealer.
14
3
Page 4
3
FEATURES & SPECIFICATIONS
Features
150W High Output White LED
·
·
50,000 hours lifespan and low power consumption
·
Beam Angle 6°, Outstanding sharp BEAM effect and remarkable wash effect with pure
color mixing and focus Function
·
High light output, 14020LUX@5M at White light
·
Temperature protect function, when the internal temperature is up to 40° and then the
fans begin to work, when the internal temperature is up to 70° and the brightness reduce
half.
·
Color Wheel: 7 colors +white, rotation with variable direction and speed
·
1 static Gobo Wheel: 8 gobos +white, wheel rotation and shake
1 Rotate Gobo Wheel: 6 gobos +white, wheel rotation and shake
·
Prism: 8-facet Prism, bi-directionally rotatable at variable speeds
·
·
High speed strobe effect with 1-25 flashers per second
·
Internal program available
·
16/14/12/10 DMX Channels USITT DMX-512
·
DMX 512, master-slave and sound activated controllable or auto operation
·
Colorful LCD display
·
Efficient low noise fan cooling system
·
POWERCON IN/OUT
·
3-pin XLR connectors IN/OUT
Two 1/4 turn fastening Omega Clamps
·
IP 20 protection rating
·
128-191
192-255
0-15 open
16-95
96-135
CH9 CH11
CH8 CH10 CH10 CH12 Focus 0-255 Gobo hazy to clear
CH9 CH11 CH11 CH13 Prism
CH10 CH12 CH12 CH14
CH13 CH15
Gobo
Rotation
Prism
Rotation
self-setting
Prog
ram
136-155
156-175
176-215
216-255
0-63 Open
64-255 Prism In
0-15 Stop
16-135 Rotate CW slow > fast
136-255 Rotate CCW slow > fast
0-7 No
8-131 Auto mode
132-255 Sound mode
0-249 No function
Gobo Rotate CW slow to fast
Gobo Rotate CCW slow to fast
Gobo Fine 0-360
Gobo Rotating 0-90
Gobo Rotating 0-180
Gobo Rotating 0-720
Gobo self-rotating CW
from slow to fast
Gobo self-rotating CCW rotating
from slow to fast
action
CH14 CH16 Reset
4
250-253 Reset
254-255 No function
13
Page 5
21-27 Gobo 3
28-34 Gobo 4
35-41 Gobo 5
42-48 Gobo 6
49-55 Gobo 7
56-63 Gobo 8
64-70 Gobo 8 shake speed from slow to fast
71-77 Gobo 7 shake speed from slow to fast
78-84 Gobo 6 shake speed from slow to fast
85-91 Gobo 5 shake speed from slow to fast
92-98 Gobo 4 shake speed from slow to fast
99-105 Gobo 3 shake speed from slow to fast
106-112 Gobo 2 shake speed from slow to fast
113-119 Gobo 1 shake speed from slow to fast
Specifications
Input Voltage:
Light Source:
Control Signal:
Control Channel:
Power Consumption: 215VA
Dimensions:
Net Weight: 10.6kg
AC90-260V 50/60Hz
150W High Output White LED
DMX 512, master-slave, sound activated and auto operation
16/14/12/10 DMX Channels USITT DMX-512
280(W)*380(H)*275(D)mm
CH8 CH10
6 rotation
gobos
+White
120-127 Open
128-191 Gobo Rotate CW slow to fast
192-255 Gobo Rotate CCW slow to fast
0-15 open
16-31 Gobo1
32-47 Gobo2
48-63 Gobo3
64-79 Gobo4
80-95 Gobo5
96-127 Gobo6
12
5
Page 6
4 PHOTOMETRIC DATA
DMX CHANNELS
9
16/14/12/10/ channel mode sheet
CH10 CH12 14CH 16CH Function
CH1 CH1 CH1 CH1 Pan 0-255 0-540°
CH2 CH2 Pan fine 0-255 Pan Fine
CH2 CH2 CH3 CH3 Tilt 0-255 0-270°
CH4 CH4 Tilt Fine 0-255 Tilt Fine
Channel
Value
Discription
5 OPERATION INSTRUCTIONS
∙ The moving head is for beam effect for on-site decoration purpose.
∙ Don’t turn on the fixture if it’s been through severe temperature difference like after
transportation because it might damage the light due to the environment changes. So
make sure to operate the fixture until it is in normal temperature.
∙ This light should be keep away from strong shaking during any transportation or
movement.
∙ Don’t pull up the light by only the head, or it might cause damages to the mechanical
parts.
∙ Don’t expose the fixture in overheat, moisture or environment with too much dust when
installing it. And don’t lay any power cables on the floor. Or it might cause electronics
shock to the people.
∙ Make sure the installation place is in good safety condition before installing the fixture.
∙ Make sure to put the safety chain and check whether the screws are screwed properly
when installing the fixture.
∙ Make sure the lens are in good condition. It’s recommended to replace the units if there
are any damages or severe scratch.
∙ Make sure the fixture is operated by qualified personnel who know the fixture before
using.
∙ Keep the original packages if any second shipments is needed.
∙ Don’t try to change the fixtures without any instruction by the manufacturer or the
appointed repairing agencies.
∙ It is not in warranty range if there are any malfunctions from not following the user
manual to operate or any illegal operation, like shock short circuit, electronic shock, lamp
broke, etc.
CH3 CH3 CH5 CH5 X, Y speed 0-255 From fast to slow
CH4 CH4 CH6 CH6 LED Dimmer 0-255 From dark to bright
0-7 Turn on
CH5 CH5 CH7 CH7 LED Strobe
CH6 CH6 CH8 CH8
CH7 CH7 CH9 CH9
7 color +
White
8 Static Gobos
+White
8-250 Strobe from slow to fast
251-255 Turn on
0-15 White Light
16-31 Color 1
32-47 Color 2
48-63 Color 3
64-79 Color 4
80-95 Color 5
96-111 Color 6
112-127 Color 7
128-191 CW from slow to fast
192-255 CCW from slow to fast
0-6 Open
7-13 Gobo 1
14-20 Gobo 2
6
11
Page 7
8 MENU OPERATIONS
6 INSTALLATIONS
MENU
Address Set
Run Mode
[
Set Address Numbers]
[DMX]
[AUTO] Auto 1- Auto2
[SOUND]
[MANUAL] Manual Test Function and Operation
Setup [ Advanced Setting]
System Information
Ver V1
DMX Address
Temperature
Pan reverse
Tilt reverse
Display
Screen Reverse
Channel (16/14/12/10CH Select)
Sensitivity (01-100)
Motor zero
Reset
Factory Set
Cautions:
areas, or in areas were the fixture might be reached by unauthorized personnel.
Before mounting the fixture to any surface, make sure that the installation area can hold a
minimum point load of 10 items the device’s weight.
Fixture installation must always be secured with a secondary safety attachment, such as an
appropriate safety cable.
Never stand directly below the device when mounting, removing, or servicing the fixture.
From a ceiling, or set on a flat level surface (see illustration below). Be sure this fixture is kept
at least 0.5m (1.5ft) away from any flammable materials (decoration etc.).
Always use and install the supplied safety cable as a safety measure to prevent accidental
damage and/or injury in the event the clamp fails.
Mounting points:
others calculating working load limits, a fine knowledge of the installation material being used,
and periodic safety inspection of all installation material and the fixture. If you lack these
qualifications, do not attempt the installation yourself. Improper installation can result in
bodily injury.
Be sure to complete all rigging and installation procedures before connecting the main power
cord to the appropriate wall outlet.
For added protection mount the fixtures in areas outside walking paths, seating
Overhead mounting requires extensive experience, including amongst
Clamp Mounting: The LED Moving Head provides a unique mounting bracket assembly that
integrates the bottom of the base, and the safety cable rigging point in one unit (see the
illustration below). When mounting this fixture to truss be sure to secure an appropriately
rated clamp to the included omega bracket using a M10 screw fitted through the center hole
of the “omega bracket”. As an added safety measure be sure to attached at least one properly
rated safety cable to the fixture using on of the safety cable rigging point integrated in the base
assembly.
10
7
Page 8
7 DMX-512 CONTROL CONNECTIONS
Connect the provided XLR cable to the female 3-pin XLR output of your controller and the
other side to the male 3-pin XLR input of the moving head. You can chain multiple moving
head together through serial linking. The cable needed should be two core, screened cable
with XLR input and output connectors. Please refer to the diagram below.
For installations where the DMX cable has to run a long distance or is in an electrically noisy
enviroment, such as in a discotheque, it is recommended to use a DMX terminator. This helps
in preventing corruption of the digital control signal by electrical noise. The DMX terminator is
simply an XLR plug with a 120 Ω resistor connected between pins 2 and 3, which is then
plugged into the output XLR socket of the last fixture in the chain. Please see illustrations
below.
Regardless of the rigging option you choose for your LED Moving Head, always be sure to
secure your fixture with a safety cable. The fixture providers a built-in rigging point for a safety
cable on the hanging bracket as illustrated above. Be sure to only use the designated rigging
point for the safety cable and never secure a safety cable to a carrying handle.
8
9
Loading...
