IKA A10 basic Operating Instructions Manual

Page 1
20000003970
A10 basic_062016
IKA® A10 basic
Page 2
Source language: German
EN
Contents
Page
Declaration of Conformity 14 Explication of warning symbols 14 Safety instructions 15 Correct use 16 Unpacking 16 Useful information 17 Commissioning 19 Timer function 19 Interval function 19 Exchanging and replacing the grinding tools 20 Maintenance and cleaning 21 Error codes 23 Accessories 23 Warranty 23 Technical data 24
We declare under our sole responsibility that this product corresponds to the regulations 2014/35/EU, 2006/42/EC, 2014/30/EU and 2011/65/EU EN 60529 and EN ISO 12100.
and conforms with the standards or normative: EN 61010-1, EN 6010-2-051, EN 61326-1,
Explication of warning symbols
General hazard
DANGER
WARNING
CAUTION
This symbol identifies information that is of vital importance for protecting your health and safety. Disregarding this information may lead to health impairment and injuries.
This symbol identifies information that is of importance for the technically correct function­ing
of the system. Disregarding this information may result in damage to the instrument or to
system components.
This symbol indicates information which is important for proper use and ensuring that the
operations of the instrument
Failure to observe this information may result in inaccurate results.
are performed eciently and for using the instrument.
14
Page 3
Safety Instructions
Read the operating instructions fully before start
ing up and follow the safety instructions.
• Keep the operating instructions in a place where they can be accessed by everyone.
• Ensure that only trained staff work with the instrument.
• Follow the safety instructions, guidelines, occupational health and safety and accident prevention regulations.
• The instrument must be always supervised when in op­eration.
• Hearing protection must be worn when working with the instrument at high speed.
• Set up the instrument in a spacious area on an even, stable, clean, non-slip, dry and fireproof surface.
• The feet of the instrument must be clean and undam­aged.
• The instrument is not suitable for hand held operation.
• The instrument may heat up when in use.
• Check the instrument and accessories for damage be­fore each use. Do not use damaged components.
Please pay attention to avoiding
DANGER
DANGER
of energy during operation. Wear gloves if necessary or wait for material to cool down.
• Beware of the risk of flammable materials.
Do not operate the instrument in explosive atmo­spheres, with hazardous substances or under water.
• The instrument doesn’t start up again automatically fol­lowing a cut in the power supply.
• Safe operation is only guaranteed with the accessories described in the ”Accessories” chapter.
• Socket must be earthed (protective ground contact).
• The instrument could only be disconnected from the mains supply by pulling out the mains plug or the con­nector plug.
• The socket for the mains cord must be easily accessible.
• The voltage stated on the nameplate must correspond to the mains voltage.
• Protect the instrument and accessories from bumps and impacts.
hand injury when operate the instru­ment.
Always open the chamber care­fully after use, as the material in the chamber may heat up due to transfer
-
• Do not crush explosive, toxic or noxious substances.
• Please observe the relevant safety instructions and guidelines regarding dust explosions.
• Please follow the relevant safety instructions and guide­lines, and occupational health and safety regulations for use in the laboratory. When working with the mill, the user must wear his personal protective equipment.
• Always wear suitable protective equipment when em­brittling the mill feed with coolants (dry ice).
DANGER
cooled with liquid nitrogen, please cool them first be­fore filling into A10 basic grinding chamber.
• Ensure that the chamber cap is tightly closed.
DANGER
• Always switch off the instrument and disconnect the plug before cleaning or replacing parts.
DANGER
down before cleaning or before changing grinding tool.
DANGER
wear your personal protective equipment (protective gloves, etc.).
• Ensure that pressure does not build up in the grinding chamber (particularly when using coolants).
• The instrument can only be opened by trained special­ists, even during repairs. The machine is to be unplugged from the mains before opening. Live parts inside the machine may still be live for some time after unplugging from the mains.
Never cool the samples with liquid nitrogen inside A10 basic grinding chamber. If the samples have to be
Before removing the chamber cap, switch off the mill and wait until the motor stops. Beware of risk posed by trailing grinding tool.
The grinding pot, grinding tool and rotor shaft may be hot after long grinding cycles. Allow the mill to cool
Beware of the sharp edged cutter in particular when changing grind­ing tool and when cleaning. Always
WARNING
Only process dry solid sample with the instrument. Never use it for pro­cessing liquid or wet samples.
15
Page 4
Correct use
• Use
The A10 basic is a batch mill that allows for both im­pact milling and cutting milling.
Impact milling:
For use with hard, brittle material, dried material or ma­terial that is brittle because of cold (for example grain, coffee, etc.). Here the grinding material is reduced by means of a beating rotor. The grinding material is thus broken up. The granularity of the final product is determined by the duration of the grinding, the level to which the con­tainer is filled and the physical properties of the material being processed.
Cutting milling:
For use with soft, fibrous grinding material (for example hay, paper, etc.). Here the grinding material is cut by means of a rotating blade. In this case as well, the granularity of the final product is determined by the duration of the grinding, the level to which the container is filled and the physical properties of the material being processed.
Intend use: Tabletop device
WARNING
the chamber and damage the device.
• Range of use (indoor use only)
- Laboratories - Schools
- Pharmacies - Universities
This equipment is suitable for use in all areas except:
- Residential areas
-
Areas that are connected directly to a low-voltage supply
network that also supplies residential areas.
The safety of the user cannot be guaranteed:
- If the instrument is operated with accessories that are
not supplied or recommended by the manufacturer
- If the instrument is operated improperly or contrary to
the manufacturer’s specifications
- If the instrument or the printed circuit board are modified
by the third parties.
The mill is not suitable for grinding wet material with too much water. Otherwise, the water may leak from
Unpacking
• Unpacking
- Please unpack the device carefully
- In the case of any damage a detailed report must be sent immediately (post, rail or forwarder).
n

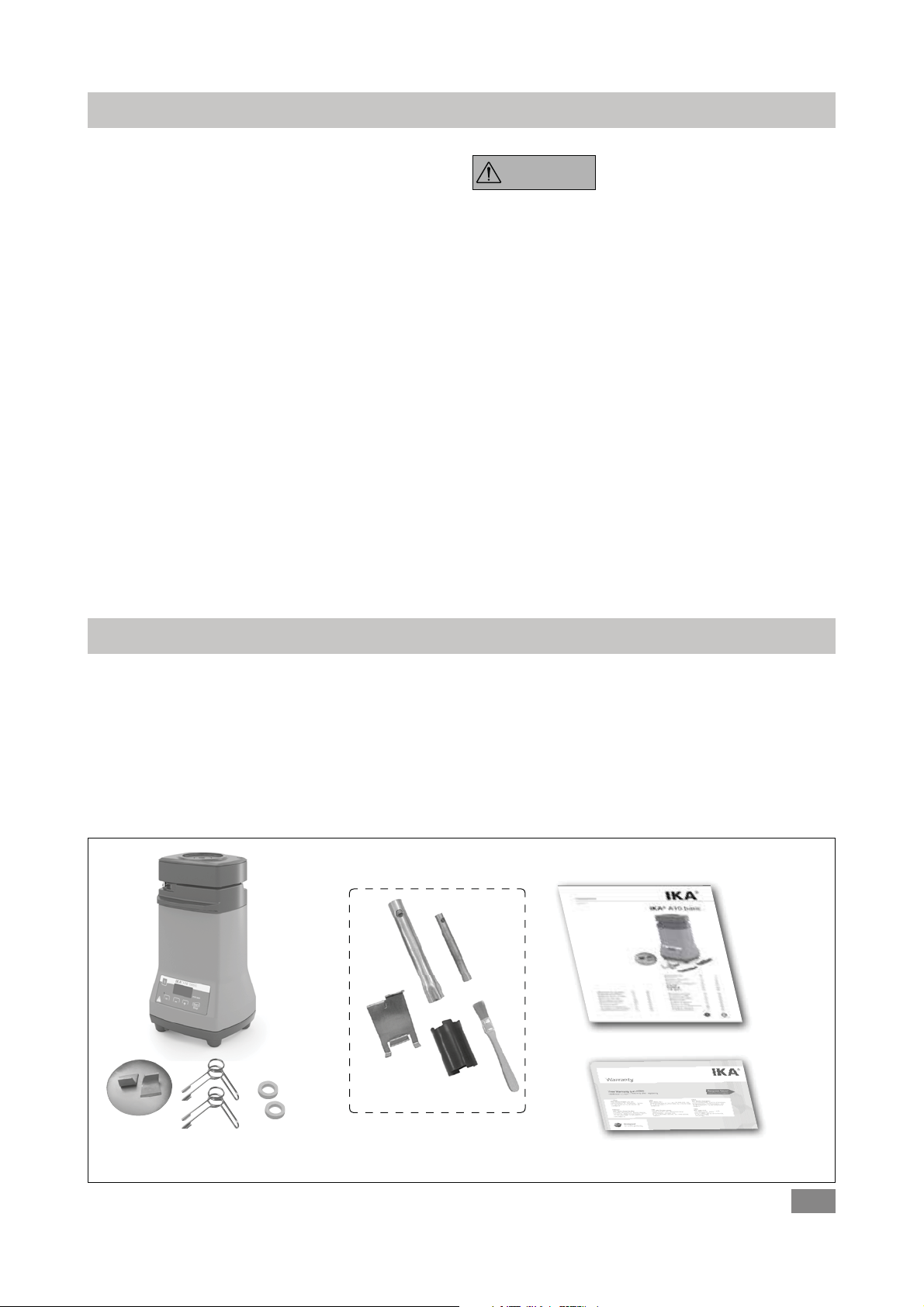

• Delivery scope see Fig. 2
-
IKA® A10 basic (include A10.1) n
- One A10.4 grinding chamber reduction o
- Two hose clips p
- Two felt rings q
- Tools kits r
- Operating instructions s
- A warranty card
t.
s
Fig. 2
o
p
q
r
t
16
Page 5
Useful information
The mill can be used in a wide range of applications. The list of grinding materials given below is not complete. It is possible to expand the range of applications further by means of grinding experiments with corresponding grind­ing procedures and sample preparations.
Impact milling:
The A10 basic with a beater reduces soft, medium hard and brittle materials with a Mohs’ scale of hardness of up to 5. For greater levels of hardness, the wear and tear on the pulverization tool is very high and grinding there­fore becomes uneconomical. If the A10 basic is used for grinding materials with hardness greater than 5 Mohs, the A10.3 hard metal beater, which is more resistant to wear and tear, must be used. This prevents the sample from be­ing contaminated by bits of the grinding tool broken off by wear and tear. Everything that breaks, is dry, and does not have a high fat content can be ground. Following is a list of substances that can be ground dry: Wheat, barley, corn, malt, pectin, roasted coffee, nutshells, bones, ergot, peat, pharmaceutical, fertilizers, feed materi­als, spices, resin, potash, seeds, salts, cinders, tablets. Tough grinding material must be cooled, for example by adding pulverized dry ice to the grinding pot. The grinding material must be initially broken down into pieces with a feed size of 6 mm (the size of a grain of corn is ideal).
Following is a list of some materials that can be reduced: Leaves, fibers, hops, cardboard, paper, hay, plastics, to­bacco and roots. The feed granularity should be no bigger than 10 mm.
Note: Materials that are not listed above should only be reduced in the A10 basic after confirmation from IKA especially if there is uncertainty about the danger of ex­plosion (dust explosion as a result of electrostatic charge).
Working with the A10.4 grinding chamber reduction:
When the sample is very light or the sample quantity is very small (1- 5 ml), the user can insert the A10.4 grinding chamber reduction into the grinding chamber for grinding as shown in Fig. 3.
®
,
Cutting milling:
The A10 basic with the A10.2 star knife reduces bulky, elastic fibrous and soft materials with high cellulose con­tent. Mixed goods such as trash must be free of iron and non-iron metals. The feed material must not be too moist or fatty. Otherwise the material may adhere to the sides of the grinding container.
Working with cooling water:
There are two hose couplings located at the bottom of the handle in order to connect the cooling water. Connect hoses as following:
- Remove the low part of the handle
- Connect the hoses to the couplings (we recommend hose Ø 8 x 1,5 mm).
- Fix the hoses to the couplings with included clips.
Fig. 3
pno
XX
Fig. 4
Then, tap water could flow into the device as cooling water from either hose.
17
Page 6

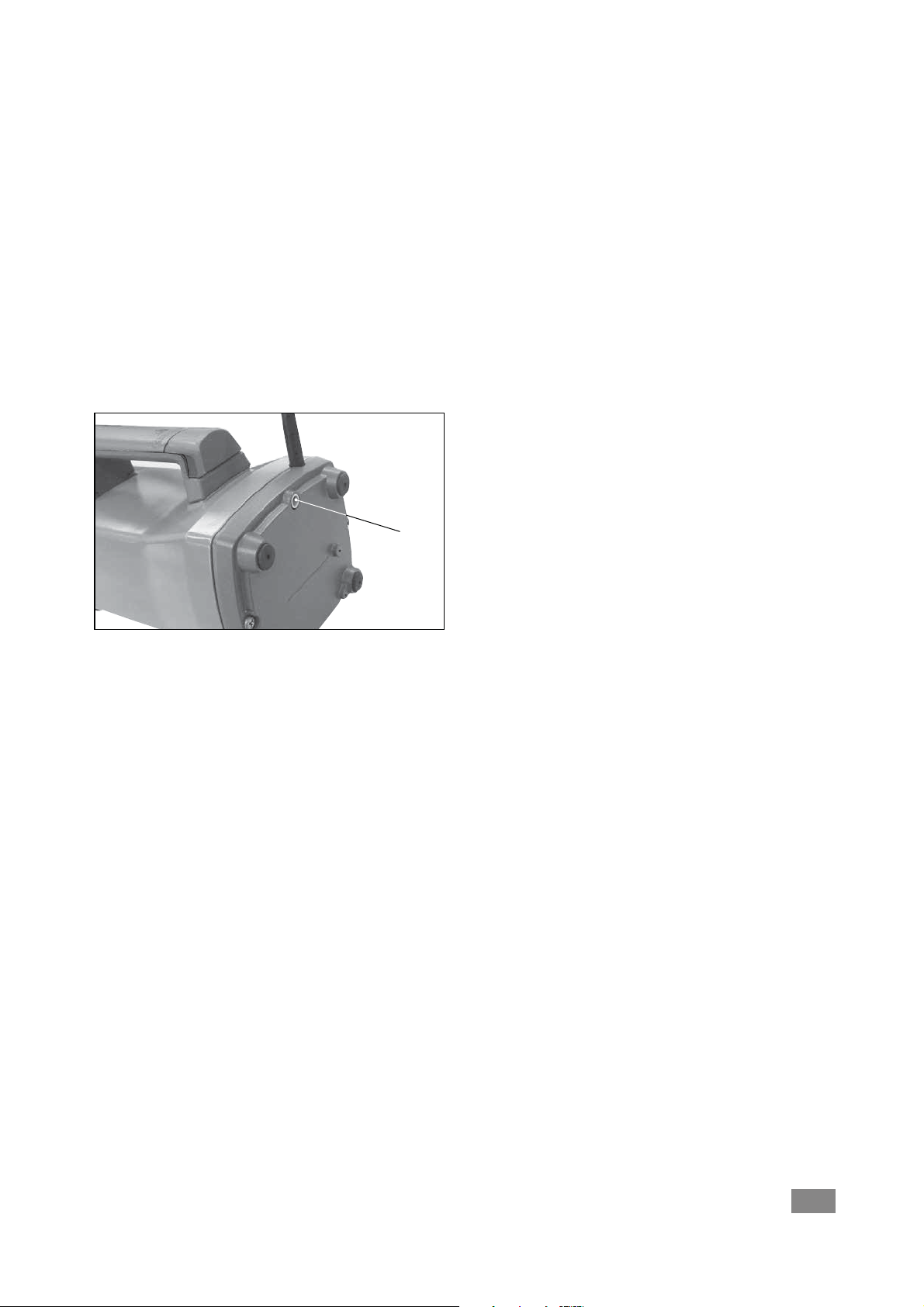

Note: only water (max. 40 °C) could be used for coolant and water pressure should less than 1 bar for the instru­ment. After the grinding, please ensure the cooling water is completely empty from the cooling chamber.
Cooling with tap water is usually sucient for substances which become hot as a result of the grinding operation and thus are given to smearing or those that produce oil. The grinding chamber may only be filled halfway espe­cially when samples containing oils and similar materials are ground.
Note: Moisture in material that is ground may evaporate because of the material temperature increasing. Then, the evaporated moisture will condense and flow out from the drain hole at the bottom of the instrument. This could prevent the motor from damage of moisture.
drain hole
Working with coolants – Dry ice cooling (CO
):
2
Please follow the safety instructions. Crushing causes the mill feed to heat up. This may not al­ways be desirable as the mill feed can change when heat­ed (e.g. increased oxidation, loss of moisture, evaporation of volatile components, etc.).
It may only be possible to crush mill feed which is viscous or has a high fat content by embrittling using coolants.
The A10 basic offers following cooling processes:
First put the feed product into the grinding pot and then add crushed dry ice. Thoroughly mix the dry ice with the mill feed. Only attach the chamber cap when the dry ice is com­pletely vaporized, otherwise high pressure may build up in the grinding chamber.
Please note that the mill feed heats up again extremely quickly during grinding (it may reach room temperature again after approximate 10 seconds of grinding). You may have to repeat the process several times if the product is not adequately ground after one cooling process.
Fig. 5
If more refrigeration is required, the ground matter should be cooled prior to being put into the grinding chamber.
Grinding dust may also leak out from this drain hole dur­ing grinding process.
18
Page 7

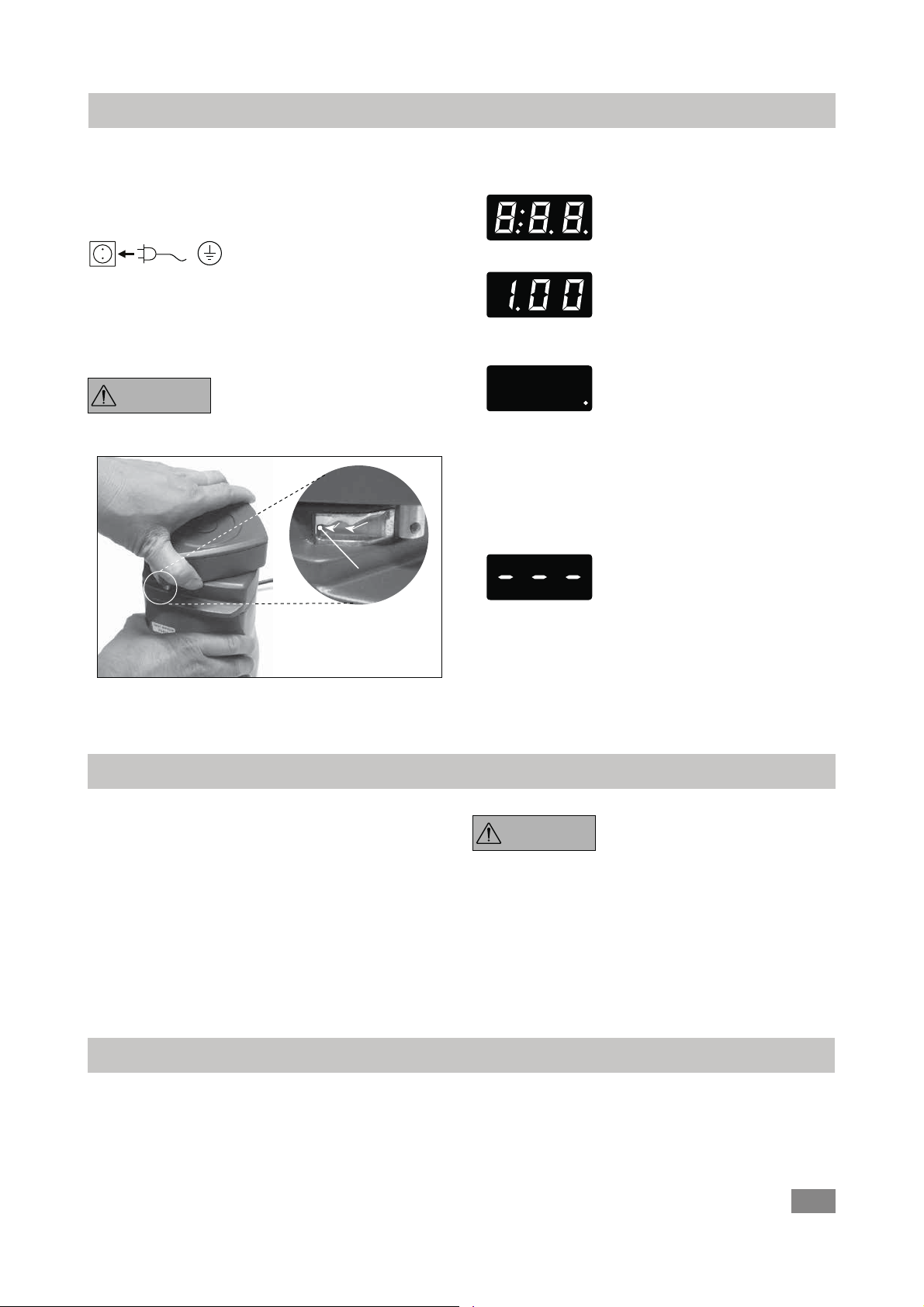

Commissioning
Pay attention to the ambient conditions listed in the “Technical data“. Check whether the voltage specified on the type plate matches the mains voltage available.
The power socket used must be earthed (protective earth).
If these conditions are met, the device is ready to operate after plugging in the mains plug. If these procedures are not followed, safe operation cannot be guaranteed and/or the equipment may be damaged.
WARNING
attached only after twoclick“!
3
Attach the grinding chamber cap by twisting it clockwise after filling grinding material. The cap is correctly
click
proper engage
position
click
When the mains plug is plugged in, all of the LEDs light up briefly during the self check.
Then, the software version is displayed.
After the software version, the right bottom LED lights up to indicate the power is connected.
Press ON/OFF switch (A), the display will show the “Timer” and “Int” setting. Press the Start/Stop key (B), the instrument will start to run at the fixed speed 25000 rpm.
If the grinding chamber cap is not attached properly, the LED display three dashes (– – –) and grinding can not start.
Fig. 6
Timer function
In stop status, press the Timer “-” button (F) and “+” but­ton (G) to adjust the timer value. Adjusting magnitude of the timer is 1 second. Keep pressing the Timer “-” button (F) or “+” button (G), the time will change continuously. The maximum timer value is 5 minutes (5:00). When the timer is activated, the value on the display will countdown. When the timer is deactivated, the instrument will auto­matically count from 0 second (0:00) to 5 minutes (5:00) and then the unit will stop running.
Interval function
Then, please check if the chamber cap is twisted to the stop position after two “click”. If three dashes ( rectly attached, please send the instrument for repair.
Note: When the interval function is activated by pressing “Int“ button (D), the “Int“ LED (E) lights up.
WARNING
start the instrument again by pressing Start/Stop button (B) again as request.
– – –
) don’t disappear after the cap is cor-
After the instrument runs 5 minutes, it should stop 10 minutes for cool­ing the motor. Then the user could
In stop status, press the button “Int” key (D), the interval function will be activated. The “Int” LED (E) lights up. If timer function is activated, when the interval function is activated, the instrument run 15 seconds and stop 1 second repeatedly until the setting time run out.
If timer function is deactivated, when the interval function is activated, the instrument run 15 seconds and stop 1 second repeatedly until 5 minutes (5:00) elapse.
19
Page 8

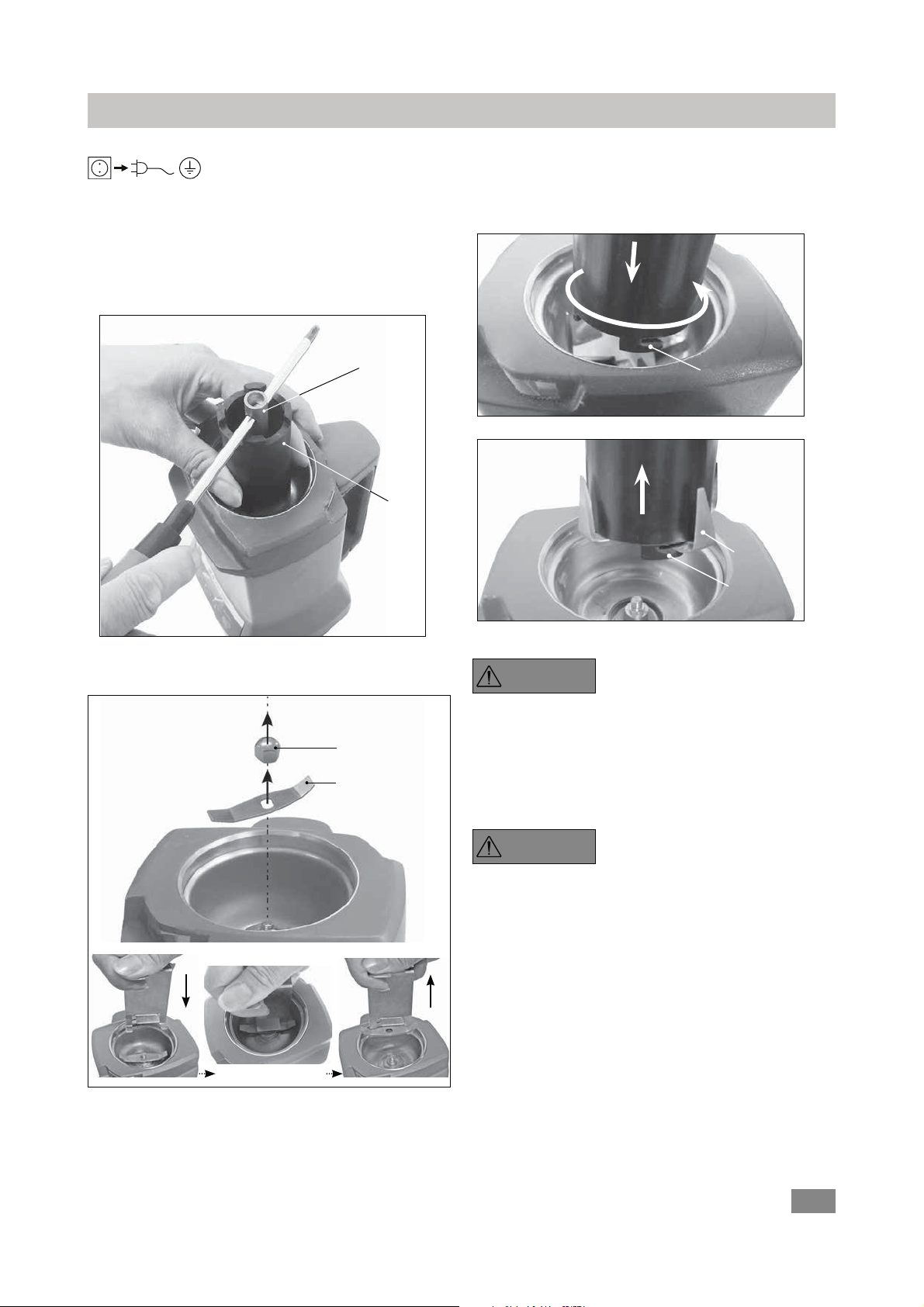

Exchanging and replacing the grinding tools
Disconnect the mains plug prior to exchanging or replacing the grinding
tools!
Exchanging and replacing the grinding tools as following: Hold the grinding tool securely in place with the bracket. Loosen the hexagonal retaining nut of the grinding tool with socket wrench SW 8 as indicated in following Fig. 7.
Fig. 7
SW 8
4
bracket
Note: When removing the A10.2 Star-shaped beater, use the hooks on the bracket to hold the cutter. Then, the cut­ter can be taken out of the chamber (see Fig. 9, Fig. 10).
Fig. 9
n
o
hook
Fig. 10
p
A17
hook
Then, the hexagonal nut and the grinding tool can be re­moved from the chamber.
Fig. 8
Hex. nut
Grinding tool
DANGER
observe the safety instructions.
After set the new or another grinding tool in place, tight­en the hexagonal nut in clock wise direction. To do this, use the tools as shown in Fig. 7.
DANGER
mill must first be allowed to cool off.
Before assembling a new or another pulverization tool, make certain that all parts are clean.
The edges of the blade are sharp. It should only be handled with protective gloves. Please
Note that when changing the tool directly after a grinding procedure, the pulverization tools are hot. The
20
Page 9

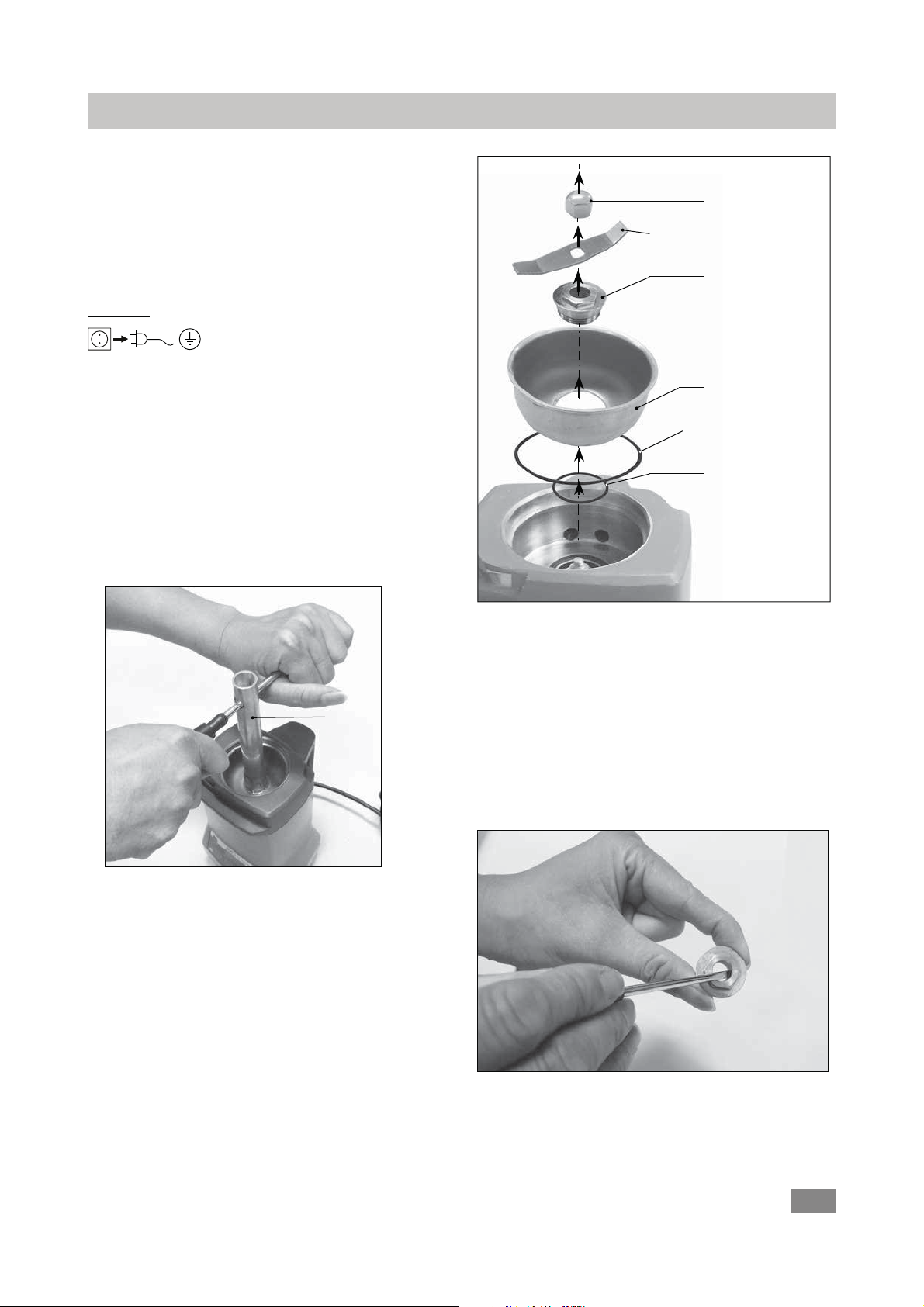

Maintenance and cleaning
Maintenance
If grinding tools wear out over the course of time, espe­cially as a result of constant grinding of very hard materi­als, so that rapid grinding with the appropriate quality is no longer possible. The worn out parts must be replaced. For replacing grinding tools, see section “Exchanging
and replacing the grinding tools“.
Cleaning
Disconnect the mains plug prior to cleaning!
Hex. nut
Grinding tool
Bushing nut
Dirty parts in the pulverization area can be cleaned with a cleaning brush or dry cloth.
If there is heavy accumulation of dirt, the grinding tool and grinding pot can be disassembled and cleaned in a dish­washer.
Disassemble the grinding tool and container as following:
- Disassemble the grinding tool (see “Exchanging and replacing the grinding tools“ section).
- Disassemble the grinding pot with socket wrench SW 17.
4
¾
SW 17
¾
Grinding pot
O-ring
Fig. 12
Note:
The chamber cap cannot be cleaned in a dishwasher.
After cleaning, all parts can be assembled in reverse se­quence.
Note: Please pay attention to O-rings during all process. When O-rings wears out, replace them timely.
For dust-free and avoid cross contamination, we recom­mend to replace the felt ring in the bushing nut after every grinding with help of a small screw driver.
Fig. 11
Then, grinding pot and grinding tool can be disassembled and cleaned with a dishwasher or by hand.
Fig. 13
21
Page 10

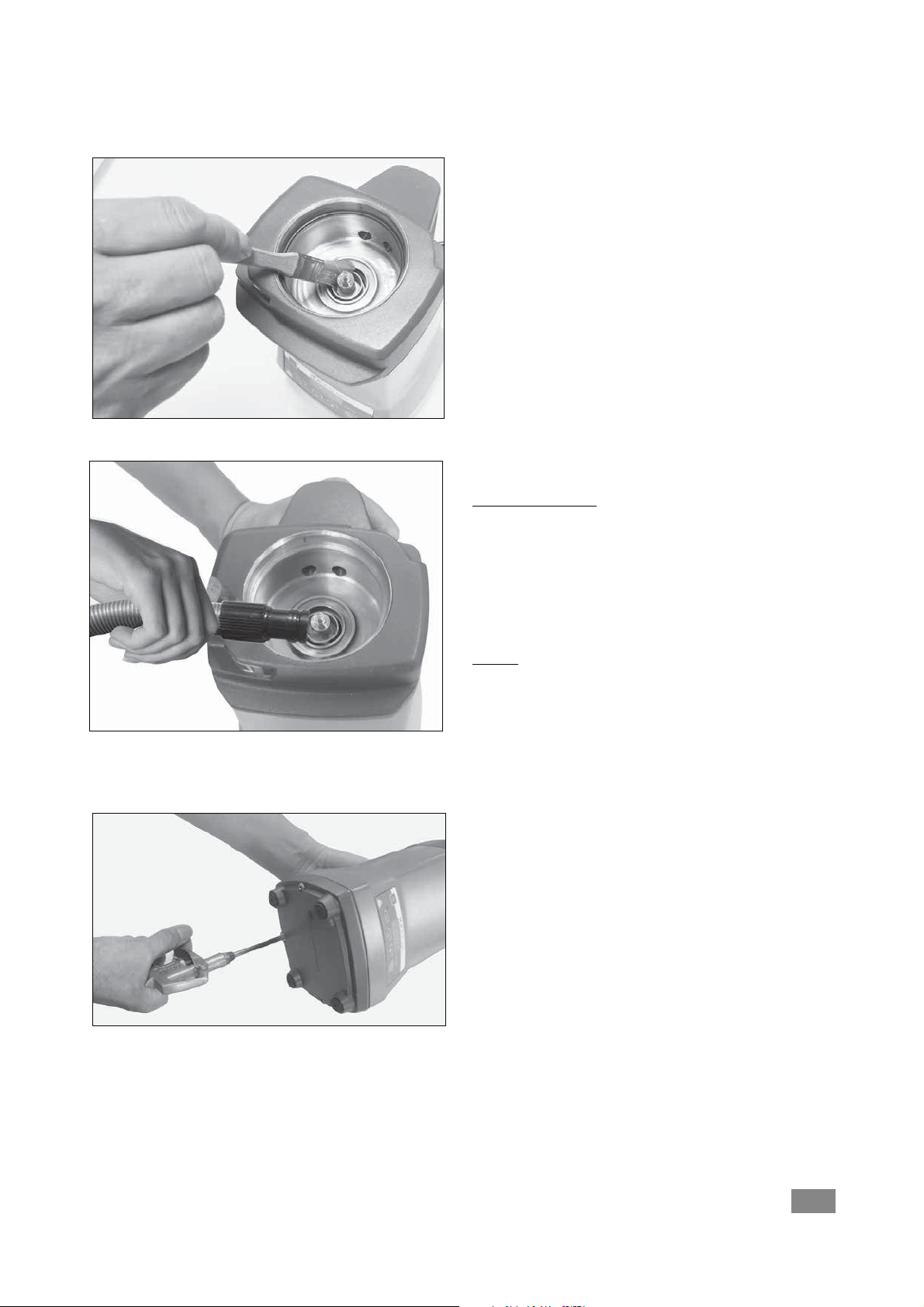

If grinding dust is found in the cavity below the grinding container, please clean it with included cleaning brush (see Fig. 14).
Use only cleaning agents which have been approved by
®
IKA
to clean the instrument and all parts.
Dirt Cleaning agent Dyes isopropyl alcohol Construction materials water containing tenside/ isopropyl alcohol Cosmetics water containing tenside/ isopropyl alcohol Foodstuffs water containing tenside Fuels water containing tenside
Fig. 14
You can also clean it with a vacuum cleaner (see Fig. 15).
Fig. 15
For materials which are not listed, please request informa­tion from IKA
®
. Wear protective gloves during cleaning the instrument. Electrical devices may not be placed in the cleansing agent for the purpose of cleaning. Do not allow moisture to get into the equipment when cleaning. Before using another than the recommended method for cleaning or decontamination, the user must ascertain with
®
IKA
that this method does not destroy the instrument.
Spare parts order
When ordering spare parts, please give:
- machine type
- serial number, see type plate
-
item number and designation of the spare part,
see www.ika.com, spare parts diagram and spare
parts list,
- Software version.
Repair Please send equipment for repair only after it has been cleaned and is free from any materials which may constitute a health hazard. For this, you should request the “Decontamination Cer­tificate” from IKA from the IKA
®
, or use the download printout of it
®
website www.ika.com. If you require servicing, return the equipment in its original packaging. Storage packaging is not sucient. Please also use suitable transport packaging.
Fig. 16
If there is heavy accumulation of dirt on this area, please wiped clean with a moist cloth. Never clean it in water or in a dishwasher.
22
Page 11
Error codes
The fault is shown by an error code in the LED display (C) as following if the error occurs. Proceed as follows in such cases:
)
Switch off the device using the main switch
)
Carry out corrective measures
)
Restart the instrument
Error code
Cause Effect Solution
– – – The cap is not closed properly instrument
does not start
E3 Temperature inside instrument is too high motor off - Switch off the instrument and allow it to
E4 Motor blockage or overload motor off - Switch off the instrument
E25 Safety relay fault motor off - Send the instrument for repair E86 Voltage is too low motor off - Switch off the instrument
If the actions described fails to resolve the fault or another error code is displayed then take one of the following steps:
- Contact the service department
- Send the instrument for repair, including a short description of the fault.
- Close the cover properly
cool down
-
Decrease the motor’s load and reduce the material to be ground
- Check the Mains voltage
Accessories
A10.1 Standard beater A10.3 Hard metal cutter
A10.2 Star-shaped knife A10.4 Grinding chamber reduction
Warranty
In accordance with IKA® warranty conditions, the war­ranty period is 24 months. For claims under the warranty please contact your local dealer. You may also send the machine direct to our factory, enclosing the delivery in­voice and giving reasons for the claim. You will be liable for freight costs.
The warranty does not cover worn out parts, nor does it apply to faults resulting from improper use, insucient care or maintenance not carried out in accordance with the instructions in this operating manual.
23
Page 12
Technical data
Operating voltage VAC 220–240 ± 10 %
100–120 ± 10 %
Frequency Hz 50 / 60
Motor rating input W 300
Motor rating output W 240
Rated speed rpm 25000 ± 2 %
Maximum circumferential speed m/s 73
Motor brushless motor
Maximum useful volume ml 50
Maximum feed hardness Mohs 5
Maximum feed grain size mm 6 – impact milling
10 – cutting milling
Parts in contact with product stainless steel
Short time operation (KB) min 5 / 10 (5 min. ON / 10 min. OFF)
Cooling water pressure bar max. 1
Cooling water temperature °C max. 40
Timer max. min 5
Time setting accur
Interval sec 15 / 1 (15 seconds ON / 1 second OFF)
Protection class according to EN 60529 IP 41
Ambient temperature °C
Ambient humidity (r
Operation at a terrestrial altitude m max. 2000
Dimension (W x D x H) mm 130 x 145 x 250
Weight kg 2,9
acy sec 1
+ 5 ... + 40
elative) % 80
Subject to technical changes!
24
Loading...
