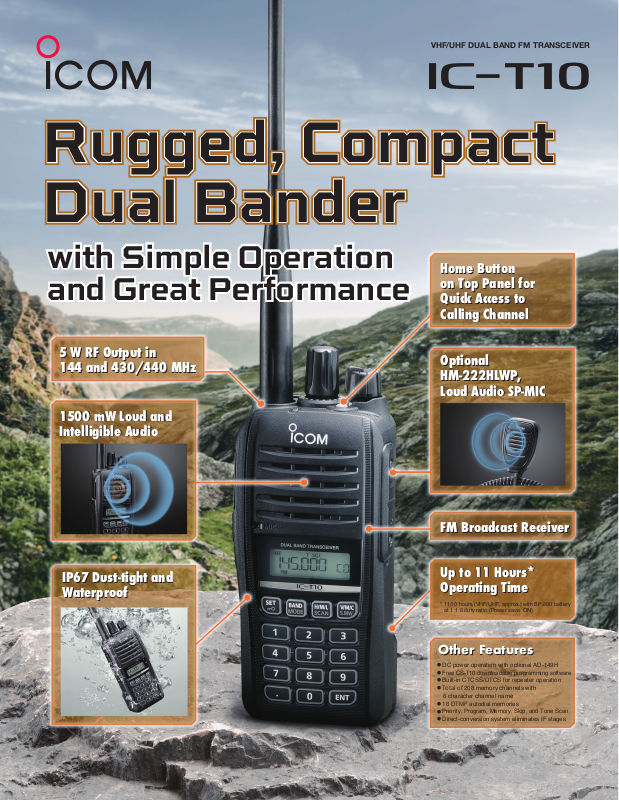

ICOM IC-T10 Brochure

VHF/UHF DUAL BAND FM TRANSCEIVER

|T10

Rugged, Compact

Rugged, Compact
Dual Bander

Dual Bander

with Simple Operation

with Simple Operation
and Great Performance

and Great Performance

Home Button

Home Button

on Top Panel for

on Top Panel for

Quick Access to

Quick Access to

Calling Channel

Calling Channel

5 W RF Output in

5 W RF Output in

144 and 430/440 MHz

144 and 430/440 MHz

1500 mW Loud and

1500 mW Loud and

Intelligible Audio

Intelligible Audio

IP67 Dust-tight and

IP67 Dust-tight and

Waterproof

Waterproof

Optional

Optional

HM-222HLWP,

HM-222HLWP,

Loud Audio SP-MIC

Loud Audio SP-MIC

FM Broadcast Receiver

FM Broadcast Receiver

Up to 11 Hours*

Up to 11 Hours*

Operating Time

Operating Time

*

11/10 hours (VHF/UHF, approx.) with BP-280 battery
at 1:1:8 duty ratio (Power save ON)

Other Features

Other Features

DC power operation with optional AD-149H

󱾀

Free CS-T10 downloadable programming software

󱾀

Built-in CTCSS/DTCS for repeater operation

󱾀

208 memory channels with

󱾀Totalof

6 character channel name

16 DTMF autodial memories

󱾀

Priority, Program, Memory, Skip, and Tone Scan

󱾀

Direct-conversion system eliminates IF stages

󱾀

VHF/UHF DUAL BAND FM TRANSCEIVER

|T10

SPECIFICATIONS

GENERAL

Frequency coverage (MHz)

Version Transmit Receive FM broadcast

USA 144–148, 430–450

Export 136–174, 400–479

Number of channels 208 channels (including 2 call and 6 scan edges)
Type of emission F2D, F3E (FM)
Frequency stability ±2.5 ppm (–20°C to +60°C on the basis of 25°C )
Power supply requirement

External DC power

Current drain (approximate)

Antenna impedance 50 Ω (SMA)
Operating temperature range
Dimensions

Projections not included)
Weight (approximate) 278 g; 9.8 oz (with BP-280 and antenna)

* Guaranteed range

(W × H × D;

*1 144–148, 440–450 MHz, *2 144–148, 430–440 MHz

7.2 V DC nominal
10–16 V DC (with AD-149H)

Tx High Less than 2.5 A
Rx Max. audio Less than 600 mA

–20°C to +60°C; –4°F to +140°F

52.2 × 111.8 × 30.3 mm;

2.1 × 4.4 × 1.2 in (with BP-280)

TRANSMITTER

Output power 5 W, 2.5 W, 0.5 W
Max. frequency deviation
Spurious emissions Less than –60 dBc (High, Mid), Less than –13 dBm (Low)
Ext. microphone connector

±5.0 kHz/±2.5 kHz (W/N)

3-conductor 2.5 (d) mm (1⁄10ʺ)/2.2 kΩ

RECEIVER

Receiver sensitivity Less than 0.18 μV (at 12 dB SINAD)
Squelch sensitivity Less than 0.18 μV (at squelch threshold)

Adjacent channel selectivity

Spurious response More than 60 dB

Audio output power
(at 10% distortion, 8 Ω load)

Ext. speaker connector 3-conductor 3.5 (d) mm (1⁄8ʺ)/8 Ω

More than 55 dB (FM, 25 kHz)
More than 50 dB (FM Narrow, 12.5 kHz)

Internal SP 1500 mW (typical)
External SP 450 mW (typical)
HM-222HLWP 1500 mW (typical)

All stated specifications are subject to change without notice or obligation.

Applicable U.S. Military Specifications

Standard

Low Pressure 500.5 I, II
High Temperature 501.5 I, II
Low Temperature 502.5 I, II
Temperature Shock 503.5 I-C
Solar Radiation 505.5 I
Rain Blowing/Drip 506.5 I, III
Humidity 507.5 II
Salt Fog 509.5 ­Dust Blowing 510.5 I
Immersion 512.5 I
Vibration 514.6 I
Shock 516.6 I, IV

Also meets equivalent MIL-STD-810-C, -D, -E and -F.

Ingress Protection Standard

Dust & Water IP67 (Dust-tight and waterproof protection)

Supplied Accessories:

• BP-280 Battery Pack • FA-S270C Antenna • MB-133 Belt Clip

• BC-213 Rapid Charger • AC Adapter (BC-242 or BC-123SA/SE)

The “3D GENUINE Icom label” is attached for proof of authentication.
https://www.icomjapan.com/explore/genuine_info/

1

*

136–174, 400–479*188–108

2

*

136–174, 400–479*276–108

Method Procedure

MIL 810G

OPTIONAL ACCESSORIES

SPEAKER MICROPHONES

Waterproof

Waterproof

Waterproof

HM-222HLWP

High-power audio
speaker with

3.5 mm earphone jack

HM-168LWP

Waterproof speaker­microphone

HEADSETS

HS-94LWP

Earhook type
headset

HS-95LWP

Neck-arm type
headset

BATTERY PACK

BP-280

2400 mAh (typ.),
2280 mAh (min.)
(Same as supplied.)

Li-ion,

RAPID CHARGER

BC-123SA/SE

Charges the BP-280 in 3 hours (approx.).
AC adapter is supplied with the BC-213,
depending on the charger version.

BC-213

OTHER ACCESSORIES

FA-S270C

VHF/UHF antenna (Same as supplied)

MB-133

Belt clip (Same as supplied)

MB-130

Charger bracket for BC-213

PROGRAMMING SOFTWARE & CABLE

CS -T 10

Programming software for Windows ™ PC
Available for free download from:
https://www.icomjapan.com/support/rmware_driver/

Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incor porated (Japan) in Japan, the United States, the
United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand and/or other countries. Windows is a trademark
of the Microsoft group of companies. All other trademarks are the properties of their respective holders.

Waterproof

HM-158LA

Compact speaker
microphone with

3.5 mm earphone jack

EARPHONE-SPEAKERS

HM-153LA

Durable lapel
microphone with
earphone

HM-166LA

Light weight
lapel microphone
with earphone

POWER SUPPLY ADAPTER

AD-149H

Use with CP-12L
or OPC-254L to
supply DC power
to the IC-T10

CP-12L (left) and AD-149H (right)

MULTI-CHARGER

BC-157S

The BC-157S and AD-130 charger adapters
are supplied with the BC-214N, depending
on the charger version.

CP-12L

Cigarette lighter cable for use with the AD-149H

CP-23L

Cigarette lighter cable for use with the BC-213

OPC-254L

DC power cable for use with the AD-149H

OPC-656

DC power cable for use with the BC-214N

OPC-478UC/-1

Programming cable (USB)

HM-159LA

Loud and clear
audio speaker
microphone

BC-214N

1-1-32, Kamiminami, Hirano-Ku, Osaka 547-0003, Japan Phone: [phone] Fax: [phone]

www.icomamerica.com

www.icomcanada.com

E-mail: [e-mail]

www.icomeurope.com

www.icomspain.com

www.icomuk.co.uk

www.icom-france.com

www.icom.net.au

www.icomasia.com

www.bjicom.com

www.icomjapan.com

Your local distributor/dealer:

22XSZ501A1 © 2022 Icom Inc.
