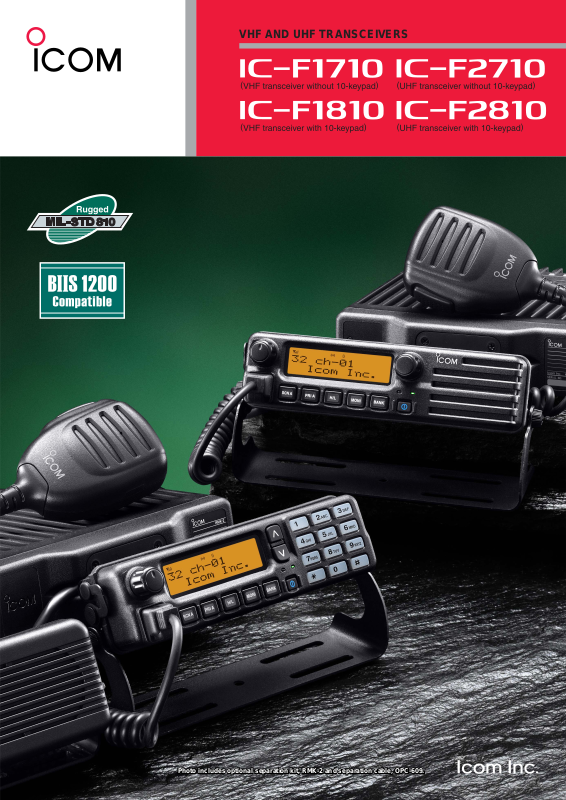

Page 1
VHF AND UHF TRANSCEIVERS
Photo includes optional separation kit, RMK-2 and separation cable, OPC-609.Photo includes optional separation kit, RMK-2 and separation cable, OPC-609.
Page 2
Versatile Multi-function Mobile Radio
Supports Demanding Communication
Versatile Multi-function Mobile Radio
Supports Demanding Communication
The IC-F1710/F1810 series offers advanced features, superior
performance and flexible installation, including:
• Built-in multiple tone signalings — CTCSS, DTCS, 2-Tone,
5-Tone, DTMF autodial and BIIS functions
• Built-in/optional voice scramblers for secure conversation
• Large dot-matrix display with user-friendly icons helps you
to grasp information immediately
• Five programmable buttons and supplied function name
stickers for quick access
• The optional separation kit and separation cable allow you
flexible installation
• Durable construction resists shock and vibration
The IC-F1710/F1810 series is ideal for public safety, business
and industrial users’ requirements.
Page 3
Detachable front panel
With the optional remote control kit, RMK2 and separation cable, OPC-609, the
front panel of the radio can be detached
from the main unit. It allows you flexible installation even in limited installation space.
Dot matrix, multi-function LCD
The IC-F1710/F1810 series has a large
dot matrix display to show information with
high resolution characters. The dot matrix
font allows upper and lower case characters to be easily distinguished. The display
setting is programmable to show one line
and 12 characters, or two lines and 24
characters.
Rugged construction
The IC-F1710/F1810 series has a durable
construction resistant to shock and vibration and provides reliable operation under
harsh conditions. The IC-F1710/ F2710 incorporates a front mounted speaker, while
the IC-F1810/F2810 has a backlit 10-keypad and external speaker for extended operation.
Built-in versatile tone signaling
Use the built-in CTCSS, DTCS, 2-Tone, 5Tone or BIIS capability to set up your own
talk groups, and have your radio standby
quietly when other groups are talking. You
can also set up selective calls to individuals or control a repeater.
Multiple 2-Tone, Multiple 5-Tone
The IC-F1710/F1810 series can decode
up to 10 2-Tone, 8 5-Tone codes on a single memory channel. This is perfect for
professionals who require multiple district
paging on one channel. When a matched
tone is received, the following items are
programmable for each code.
•
Bell icon •Answer back • Radio stun
• Beep sound •Auto transmit • Scan
• External out
256 memory channels, 32 zones
Up to 256 memory channels can be divided into 32 memory zones, and allows
you quick access to the intended channel.
Tactical group function
The tactical group function allows you to
copy memory channels into a new memory zone
(using Zone 32) without using PC
programming. This function allows you to
construct a temporary work group on site
for working with interorganization groups,
such as in case of a large scale disaster.
Built-in inversion type voice scrambler
The IC-F1710/F1810 series includes a
built-in inversion type voice scrambler in all
models. When a more secure system is
required, the optional voice scrambler unit
UT-109 or UT-110 is available.
Public address (PA) and
RX speaker functions
When an external loud speaker is connected with the radio, you can speak
through the radio’s microphone. The RX
speaker function allows you to relay the received audio over the loud speaker.
Other features
•
Microphone hanger action programmable
(Scan, monitor, priority channel)
• Radio stun/kill and Power-on password
function
• 8 DTMF autodial channels
• Built-in audio compander
• L TR
®
Trunking system capability with the
optional UT-111 installed.
• Wide/middle/narrow
(25/20/12.5kHz) chan-
nel spacing capability
•
Optional heavy-duty microphone, HM-148
• Backlit LCD and keypad
• D-SUB 25-pin connector for PC connection
• Optional OPC-617 D-SUB 9 pin connector for dimmer control, modem or printer
connection
Two line setting display example
Selective calling
Up to 32 individual and group IDs can be stored in the memory
and the caller's name can be displayed on the display.
Free text short data messages (SDM)
When connected to a PC, maximum 95-character short data messages can be sent from the radio. The DTMF keypad on the front
panel* or optional DTMF microphone, HM-152T, allows you to
input up to a 12-character message directly from the keypad.
* IC-F1810/F2810 only.
24 status messages
Status messages are simplified SDM’s. Choose a message from
24 pre-programmed status messages and send it. The emergency
signal, status 22 can be sent when in an emergency.
GPS position exchange*
When connected to a GPS receiver, position information can be
sent with PTT button or at preprogrammed intervals. If a base station is connected to a PC with mapping software, a vehicle management system can allow you to manage a vehicle fleet efficiently*.
* Ask your dealer for details.
The BIIS function uses MSK signaling to add selective calling and data communication features
to your existing conventional system cost effectively. It uses a 4-digit ID number like a telephone
number for calling. Also free text short data messages, preprogrammed status messages and
GPS* position information can be sent and received with the radio.
* External GPS receiver and connection cable required.
BIIS 1200 system
Page 4
VHF AND UHF TRANSCEIVERS
• Frequency range :
IC-F1710/F1810 136–174MHz
IC-F2710/F2810 400–470MHz, 450–520MHz
• Number of channels : Max. 256 channels/ 32 zones
• Channel spacing : 12.5/20/25kHz, 12.5/25kHz
• Antenna impedance : 50Ω nominal
• PLL channel step : 2.5, 3.125kHz
(VHF) 5.0, 6.25kHz (UHF)
• Power supply requirement : 13.2V DC
• Current drain (approx) :
Tx at 25W 7.0A
Rx Max. audio 1200mA
Stand-by 600mA
•
Operating temperature range: –25˚C to +55˚C
• Dimensions (W×H×D) : 175×45×170 mm
(Projections are not included)
•Weight (approx.) : 1.5kg
• Output power
(approx) : 25W
• Max. frequency deviation : ±5.0/4.0/2.5kHz (Wide/ middle/ narrow)
• Frequency error : ±0.85kHz (VHF) ±1.5kHz (UHF)
• Spurious emissions : 0.25µW (below 1GHz)
1.0µW (above 1GHz)
• Adjacent channel power : 70/70/60dB
(Wide/ middle/ narrow)
• Audio harmonic distortion : 3% typ. (40% deviation)
• Residual modulation : 55/53/50dB
typ. (Wide/ middle/ narrow)
(with CCITT filter)
• Modulation limiting : 70–100%
•
Ext. microphone impedance
: 600Ω (8-pin modular)
• Sensitivity : –4dBµV
typ. (emf, at 20dB SINAD)
• Squelch sensitivity : –4dBµV typ. (emf, at threshold)
•
Adjacent channel selectivity
: 80/80/75dB typ. (Wide/ middle/ narrow)
• Spurious response : 80dB typ.
• Intermodulation : 70dB
• Hum and noise ratio : 55/53/50dB typ. (Wide/ middle/ narrow)
(with CCITT filter)
• Audio output power : 4W typ. at 10% distortion with a 4Ω load
External audio (D-sub) 22W typ. at 10% distortion with a 4Ω load
•
External speaker connector
: 2-conductor 3.5 (d) mm (
1
⁄8″)/4Ω
SPECIFICATIONS
GENERAL
TRANSMITTER
RECEIVER
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following
MIL-STD requirements and strict environmental standards.
Standard
MIL 810C MIL810D MIL 810E MIL 810F
Method Proc. Method Proc. Method Proc. Method Proc.
Low Pressure
500.1 I 500.2 I, II 500.3 I, II 500.4 I, II
High Temp. 501.1 I 501.2 I, II 501.3 I, II 501.4 I, II
Low Temp. 502.1 I 502.2 I, II 502.3 I, II 502.4-3 I, II
Temp. Shock 503.1 I 503.2 I 503.3 I 503.4 I
Solar Radiation
505.1 I 505.2 I 505.3 I 505.4 I
Humidity 507.1 I, II 507.2 II, III 507.3 II, III 507.4 –
Salt Fog 509.1 I 509.2 I 509.3 I 509.4 –
Dust Blowing
510.1 I 510.2 I 510.3 I 510.4 I
Vibration 514.2 VIII, X 514.3 I 514.4 I 514.4 I
Shock 516.2 I, II, V 516.3 I, IV 516.4 I, IV 516.5 I, IV
Measurements made in accordance with EN 300 086.
All stated specifications are subject to change without notice or obligation.
Supplied Accessories
• Hand microphone, HM-152 •DC power cable • Microphone hanger
• External speaker, SP-22* • Mounting bracket kit • Key assign stickers
* IC-F1810/F2810 only.
OPTIONS
UT-109 (Ver. 02): Non-rolling type voice scrambler.
UT-110
(Ver. 02): Rolling type voice scrambler.
UT-111 : Provides LTR
®
trunking capabilities.
SP-5 : Large speaker for good audio quality.
SP-22 : Compact and easy-to-install. Same as supplied
with the IC-F1810/F2810.
HM-148
SM-25 DESKTOP MICROPHONE
SP-5 SP-22
OPC-617
ACC CABLE
HM-152T
INTERNAL UNITS
EXTERNAL SPEAKERS
UT-109 (Ver. 02)
VOICE SCRAMBLER
UNIT
UT-110 (Ver. 02)
VOICE SCRAMBLER
UNIT
OPC-607
(3m)
OPC-608
(8m)
OPC-609
(1.9m)
LTR is a registered trademark of the E.F.Johnson Company.
All other trademarks are the properties of their respective holders.
UT-111
LTR®TRUNKING
UNIT
For external connection such
as dimmer control, PTT control,
horn drive, etc.
RMK-2 : For front panel detachment installation.
OPC-609 : 1.9m Separation cable for use with the RMK-2.
OPC-607 (3m) and OPC-608 (8m) cables are EMC non-compliant.
Not available
in EU countries.
SEPARATION CABLES
Some options may not be available in some countries. Please ask your dealer for details.
Convenient for dispatching,
equipped with monitor switch.
HM-152 : Regular microphone. Same as supplied.
HM-152T : DTMF microphone.
HM-148 : Dynamic (moving coil) microphone for heavy duty use.
SEPARATION KIT
RMK-2
HAND MICROPHONES
HM-152
