iA23
iA5
VHF AIR BAND TRANSCEIVER
INSTRUCTION MANUAL
This device complies with Part 15 of the FCC rules.Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired oper ation.
i
FOREWORD
READ ALL INSTRUCTIONS carefully and completely
before using the transceiver.
SAVE THIS INSTRUCTION MANUAL— This in-
struction manual contains important operating instructions for
the IC-A23/A5.
EXPLICIT DEFINITIONS
The explicit definitions below apply to this instruction manual.
CAUTION
R WARNING! NEVER hold the transceiver so that the
antenna is very close to, or touching exposed par ts of the
body, especially the face or eyes, while transmitting. The
transceiver will perform best if the microphone is 5 to 10 cm
away from the lips and the transceiver is vertical.
R WARNING! NEVER operate the transceiver with a
headset or other audio accessories at high volume levels.
Hearing experts advise against continuous high volume operation. If you experience a ringing in your ears, reduce the
volume level or discontinue use.
NEVER connect the transceiver to an AC outlet or to a
power source of more than 14 V DC. Such a connection will
damage the transceiver.
NEVER connect the transceiver to a power source that is
DC fused at more than 5 A. Accidental re verse connection will
be protected by this fuse, higher fuse values will not give any
protection against such accidents and the transceiver will be
ruined.
NEVER short the terminals of the battery pack. Also, cur-
rent may flow into nearby metal objects, such as a necklace,
WORD DEFINITION
RWARNING
Personal injury, fire hazard or electric shock
may occur.
CAUTION
Equipment damage may occur.
NOTE
Inconvenience only. No risk of personal
injury, fire or electric shock.
FCC caution: Changes or modifications to this transceiver, not
expressly approved by Icom Inc., could void your authority to
operate this transceiver under FCC regulations.(U.S.A.only)
ii
etc.Therefore, be careful when carrying with, or placing near
metal objects, carrying in handbags, etc.
DO NOT allow children to play with any radio equipment
containing a transmitter.
DO NOT operate the transceiver near unshielded electrical
blasting caps or in an explosive atmosphere.
AVOID using or placing the transceiver in direct sunlight or
in areas with temperatures below –10°C (+14°F) or above
+60°C (+140°F).
The use of non-Icom battery packs/chargers may impair
transceiver performance and invalidate the warranty.
Even when the transceiver power is OFF, a slight current still
flows in the circuits. Remove the battery pack or case from
the transceiver when not using it for a long time. Otherwise,
the battery pack or installed dry cell batteries will become exhausted.
SUPPLIED ACCESSORIES
Accessories included with the transceiver: Qty.
q Antenna........................................................................... 1
w Belt clip............................................................................ 1
e Handstrap........................................................................ 1
r Battery pack (BP-200L)*.................................................. 1
t Wall charger* .................................................................. 1
•Carrying case (LC-147)* ............................................... 1
•HEADSET ADAPTER (OPC-967)* ............................... 1
* The battery pack, wall charger, HEADSET ADAPTER or carry-
ing case may differ depending on version. Some versions do not
include a battery pack, wall charger, HEADSET ADAPTER or
carrying case.
q
w
e
t
r
FOREWORD .................................................................................... i
EXPLICIT DEFINITIONS ................................................................. i
CAUTIONS ....................................................................................... i
SUPPLIED ACCESSORIES............................................................. ii
TABLE OF CONTENTS ..................................................................iii
1 ACCESSORY ATTACHMENT .................................................. 1
2 PANEL DESCRIPTION ........................................................ 2–7
■Panel description ............................................................... 2–5
■Function display ................................................................ 6–7
3 BASIC OPERATION .......................................................... 8 –11
■DIAL↔[Y]/[Z] trade function...................................................8
■Setting a frequency ................................................................ 8
■Accessing 121.5 MHz emergency frequency ......................... 8
■Selecting a weather channel................................................... 9
■Setting a squelch level ........................................................... 9
■Side tone function .................................................................. 9
■Beep tone ............................................................................... 9
■Lock function ........................................................................ 10
■Display backlighting ............................................................. 10
■Low battery indicator ............................................................ 10
■REC/PLY of recorded signals/messages ............................. 10
■Receiving ............................................................................. 11
■Transmitting .......................................................................... 11
4 MEMORY OPERATION ................................................... 12 –15
■Memory channel selection ................................................... 12
■Transferring memory contents ............................................. 12
■Programming a memory channel ......................................... 13
■Memory names ............................................................. 14 –15
5 SCAN OPERATION ......................................................... 16– 17
■Scan types ........................................................................... 16
■COM band scan ................................................................... 16
■Memory scan ....................................................................... 16
■Weather channel scan ......................................................... 17
■“TAG”channels ................................................................... 17
6 VOR NAVIGATION (IC-A23 only) .................................... 18– 24
■VOR indications ................................................................... 18
■VOR functions ...................................................................... 19
■Flying to a VOR station ................................................. 20 –21
■Entering a desired course .................................................... 22
■Crosschecking position ................................................. 22 –23
■Duplex operation ................................................................. 24
7 BATTERY PACKS ........................................................... 25– 27
■Charging precautions ........................................................... 25
■Battery pack charging ................................................... 25 –26
■About the battery pack ......................................................... 27
■Battery pack CAUTION ........................................................ 27
8 CLONING ................................................................................ 28
9 TROUBLESHOOTING ............................................................ 29
10 SPECIFICATIONS .................................................................. 30
11 OPTIONS ......................................................................... 31 –32
(■OPC-967 connection ......................................................... 32)
12 OPERATION GUIDE ....................................................... 33 –34
iii
TABLE OF CONTENTS
1
1
ACCESSORY ATTACHMENT
D Antenna
CAUTION:
Transmitting without an antenna may damage
the transceiver.
Insert the supplied antenna into the antenna connector and
screw down the antenna as shown below.
Keep the jack cover attached when jacks are not in use to
avoid bad contacts from dust and moisture.
D Belt clip
Conveniently attaches to your belt.
To attach:
Slide the belt clip into the plastic loop on the back of the battery case/pack.
To remove:
Push the top of the belt clip towards the transceiver and at
the same time, push it downward and free of the plastic loop.
2
2
PANEL DESCRIPTION
■ Panel description
e[DIAL]
r[MIC/SP]
w[PTT]
t[ANT]
!0[CLR(DIAL/ÙÚ)]
!1[ANL(REC)]
!2[BANK(PLAY)]
!3[FUNCTION]
!4[MR(MW)]
!5[ENT(WX)]
q[LIGHT]
yDisplay
u[UP/DOWN]
i[SQL(SCAN)]
Tx/Rx
indicator
!6[DIGIT KEYS]
o[PWR]
u
i
!0
!1
!2
!3
!4
!5
o
!6
3
2
PANEL DESCRIPTION
q LIGHT [LIGHT] (p.10)
Turns the light for display and keypad ON or OFF.
w PTT SWITCH [PTT] (p.11)
Push and hold to transmit; release to receive.
e TUNING DIAL [DIAL] (p.8)
➥Rotate [DIAL] to select the desired frequency. (default)
➥Rotate [DIAL] to select the BANK number. (default)
➥Rotate [DIAL] to select the memory channel or WX
channel number.(default)
➥Rotate [DIAL] to adjust the audio level.
r EXTERNAL SPEAKER AND MICROPHONE JACKS
[MIC/SP]
Connect an OPC-967
HEADSET ADAPTER or headset, if
desired.
t ANTENNA CONNECTOR [ANT]
Connects the supplied antenna.
y FUNCTION DISPLAY (pgs.6, 7)
u UP/DOWN KEYS [Y]/[Z] (p. 8)
➥Push [Y] to increase the audio level, push [Z] to
decrease the audio level.(default)
➥Push to select the operating channel or fre-
quency.
➥Push to select the BANK number.
i SQUELCH KEY [SQL (SCAN)] (p.9)
➥Push [SQL], then rotate the [DIAL] (or push
[Y]/[Z]) to select the squelch level.
• 24 squelch levels and squelch open (0) are available.
➥Push , then push [SQL] to starts scan func-
tion:
Frequency mode:Frequency scan function.
MEMORY mode:Bank scan or Full memory chan-
nel scan function.
o POWER SWITCH [PWR]
➥Push and hold for 0.5 sec.to turn the power ON
or OFF.
➥While pushing and holding [Y]/[Z] key, push
[PWR] to enter the cloning function mode.
(OPC-
967 must be connected.)
!0 CLR KEY [CLR (DIAL/YZ)] (p. 8)
➥Push , then push [CLR] to exchange the e
tuning Dial function and u UP [Y]/DOWN [Z]
switch function;
- Dial: tuning (default)
- UP[Y]/DOWN[Z]:audio level setting (default)
NOTE: You can adjust the audio level via [DIAL]
and select the frequency, memory channel or
BANK number via UP[Y]/DOWN[Z] keys.
➥Push [CLR] to turn to the frequency mode, when
memory channel, WX channel or 121.5 MHz is
selected.
4
2
PANEL DESCRIPTION
!0 CLR KEY [CLR(DIAL/YZ)] (continue)
➥Push [CLR] to cancel the SCAN function.
➥Push [CLR] to cancel the direct frequency enter-
ing with digit key.
➥Push [CLR] to turn the squelch level adjusting
mode OFF.
!1 ANL KEY [ANL (REC)]
➥Push to turn the ANL function ON or OFF.
➥Push , then push [ANL (REC)] to turn the
recording function ON. (p. 10)
- The transceiver records the receiving signal or operators voice message by push and holding [PTT] for 20
sec.
!2 BANK KEY [BANK (PLAY)]
➥Push [BANK] to enter the BANK selection mode
while memory channel is selected, push [CLR]
to exit the BANK selection mode.(p. 12)
➥Push , then push [BANK] to play the
recorded signals.(p. 10)
!3 FUNCTION KEY [F]
Push to call up the function indicator, “”, then
push another key to access its secondary function.
•“ ” appears for 3 sec.after [F] is pushed; at this time
pushing [F] again cancels the indication. (p.6)
NOTE: In general, “”disappears when another key is
pushed to activate a secondary function. However, some
keys which hav e more than one secondary function, (such
as [DUP]), do not cancel “”.In this case, “”disappears
automatically after 3 sec.
!4 MEMORY MODE KEY [MR (MW)] (pgs.12, 13)
➥Push [MR] to call the memory channel mode,
push [CLR] to exit the memory channel mode.
➥Push , then push [MR (MW)] to program the
contents into the memory channels.
➥Push [MR] to program the memory comment
when the memory comment function is enabled.
!5 ENTER KEY [ENT(WX)]
➥Push [ENT] to enter the numeral input. Enters
consecutive zero digits.(p.8)
➥Push , then push [ENT] to enter the weather
channel selection mode.(U.S.A.version only) (p.
9)
•Rx/Tx indicator
➥Lights red during the transmit mode.
➥Lights green during receiving a signal or squelch is
open.
NOTE:Some functions may not be available depending on
version.Please consult your dealer.
5
2
PANEL DESCRIPTION
!6 DIGIT KEYS
➥Input the specified digit during frequency input, memory
channel selection, etc.
➥In addition, each key has one or more secondary func-
tions after pushing as follows:
➥Push , then push [0 (121.5)] to select the
121.5 MHz emergency frequency. (p.8)
➥Push , then push [1 (DVOR)] to select the
DVOR display from the CDI display in NAV band.
(p.19)*
1
➥Push , then push [2 (TO)] to change the
course indicator characteristics to “TO”flag in the
DVOR display in NAV band. (p. 19)*
1
➥Corrects the deviation while using “TO”flag.*
1
➥Push , then push [3 (FROM)] to change the
course indicator characteristics to “FROM” flag
in the DVOR display in NAV band. (p. 19)*
1
➥Corrects the deviation while using “FROM”flag.
*
1
➥Push , then push [4 (CDI)] to select the CDI
display from the CDI display in NAV band. (p.
19)*
1

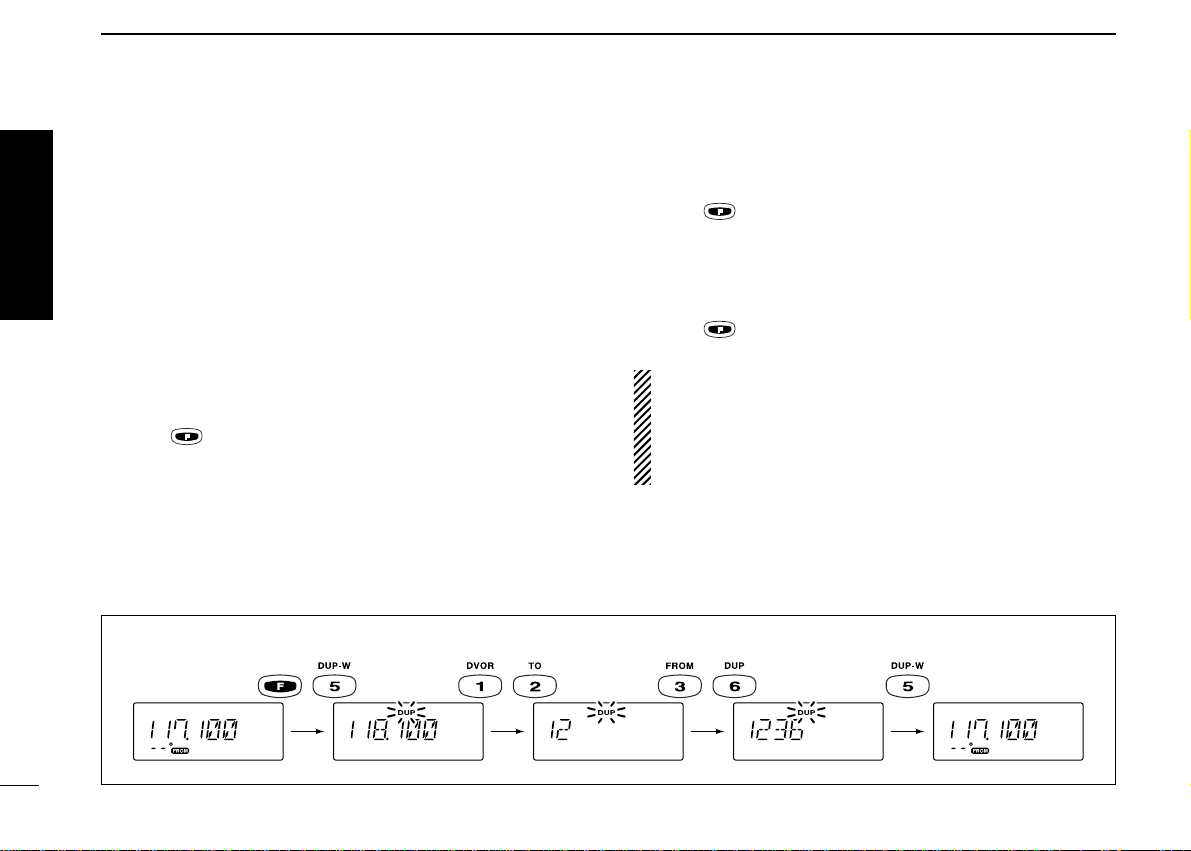

➥Push , then push [5 (DUP-W)] to set the du-
plex frequency in NAV band. (p.22)*
1
➥Push , then push [6 (DUP)] to turn the du-
plex function ON and OFF in NAV band. (p.
22)*
1
➥Push , then push [7 (KEY LOCK)] to turn
the key lock function ON and OFF. (p.10)
➥Push , then push [8 (BEEP)] to turn the
beep tone adjusting mode ON.
• Adjustable level;0 to 9 (p.9)
➥Push , then push [9 (TAG)] to set the dis-
played memory or weather channel as a “TAG”
channel. (p.17)
*
1
These functions available on the IC-A23 only.
6
2
PANEL DESCRIPTION
■ Function display (COM)
q FUNCTION INDICATOR (p.4)
Appears when is pushed.
w ANL INDICATOR (p.4)
Appears while the ANL (Automatic Noise Limiter) function
is in use.
e LOCK INDICATOR (p.10)
➥Appears while the lock function is in use.
r DUPLEX INDICATOR (IC-A23 only) (p.22)
➥“DUP” appears when the duplex function is activated in
NAV mode.
➥“DUP” blinks while setting the duplex frequency.
t LOW BATTERY INDICATOR (p.10)
➥Appears when the battery is nearing exhaustion.The at-
tached battery pack requires recharging.
➥Appears and flashes when battery replacement is nec-
essary.
y RECORD INDICATOR (p.10)
➥”REC” blinks while the internal recorder is recording the
signal.
u PLAY INDICATOR (p.10)
➥“PLAY” appears during play back of the recorded signal.
i TAG CHANNEL INDICATOR (p.17)
➥“TAG” appears when the memory channel is set as a
TAG channel.
o MEMORY CHANNEL INDICATOR (p. 12)
➥Shows the memory channel number.
yu
!1
t
!0
o
re
w
q
i
7
2
PANEL DESCRIPTION
!0 MEMORY BANK NUMBER INDICATOR (p. 12)
Shows the selected memory bank number.
!1 FREQUENCY DISPLAY (p.8)
➥Shows the operating frequency.
➥Shows the channel name when the memory name func-
tion is selected.
!2 COURSE INDICATORS (IC-A23 only) (p.19)
➥Indicates where your aircraft is located on a VOR radial
in DVOR mode.
➥Indicates where your desired course is located on a
VOR radial in CDI mode.
!3 TO-FROM INDICATOR (IC-A23 only) (p.19)
➥Indicates whether the VOR navigation information is
based on a course leading to the VOR station or leading away from the VOR station.
!4 COURSE DEVIATION NEEDLES (IC-A23 only) (p.22)
➥Indicates the deviation between the desired course and
your actual flying course every 2 degrees.
!5 OVERFLOW INDICATOR (IC-A23 only) (p.22)
➥Appears when the deviation between the desired course
and flying course is over 10 degrees.
!5
!4
!3!2
■ Function display (COM/NAV)
8
3
BASIC OPERATION
■ DIAL↔[Y]/[Z] trade function
The transceiver is equipped [DIAL]↔[Y]/[Z] keys tr ade function. Push then push [CLR (DIAL/YZ)] to trade each
function.
Default setting:
DIAL: •Setting the frequency, •Selecting the memory chan-
nel, •Selecting the bank number
YZ keys:•Increasing or decreasing the audio level
Following explanation is according to the default setting.
■ Setting a frequency
ï Using keypad
q Push [PWR] for 0.5 sec. to turn power ON, then push
[CLR] to select the frequency mode when memory CH
number or WX CH number appears on the function displa y.
w Push 5 appropriate digit keys to input the frequency.
•Enter [1] as the 1st digit.
• When a digit is mistakenly input, push [CLR] to clear,
then start again.
• Push [ENT] to enter consecutive zero digits.
•Only [2], [5], [7] and [0] can be entered as the 5th and
final digit.
ï Using the tuning dial
q Push [PWR] for 0.5 sec. to turn power ON, then push
[CLR] to select the VFO mode when memory CH number
or WX CH number appears on the function display.
w Rotate the [DIAL] to set the desired frequency.
e To select the 1 MHz tuning step, push
,
then rotate the
tuning dial. Push again to return the normal tuning.
■ Accessing 121.5 MHz emer-
gency frequency
The IC-A23 and IC-A5 can quickly access the 121.5 MHz
emergency frequency. This function can be activated even
when the key lock function is in use.
q Push , then push [121.5] to call the emergency fre-
quency.
w Push [CLR] to exit from the emergency frequency.
■ Selecting a weather channel
(U.S.A. version only)
The U.S.A. version has VHF marine WX (weather) channel
receiving capability for flight planning.
q Push
,
then push
[ENT (WX)] to select WX
channel mode.
•“WX--” and previously se-
lected channel number appears.
w Rotate the [DIAL] to select the desired WX channel.
e Push [CLR] to exit the WX channel mode and return to fre-
quency mode.
■ Setting squelch level
The transceiver has a noise squelch circuit to mute undesired
noise while receiving no signal.
D Setting the squelch level
q Push [SQL], then rotate the [DIAL] (or using [Y]/[Z]key)
to select the squelch level.
• ‘SQL--0’is loose squelch and ‘SQL--24’is tight squelch.
•Rx indicator turns to green during the squelch is open.
w Push [SQL] or [CLR] to exit the squelch set mode.
■ Side tone function
When using an optional headset, such as those from the
David Clark Co. via the OPC-967
HEAD SET ADAPTOR
, the
transceiver outputs your transmitted voice to the headset for
monitoring. (p. 32)
D Setting the side tone level
q Push [PTT] to turn the transmit mode ON.
w During transmit mode, push [Y]/[Z] sev eral times to adjust
the monitoring level.
• ‘ST--0’ is OFF and ‘ST--15’is Max. level.
NEVER operate the transceiver with a headset at high vol-
ume levels for long period. A r inging in your ears may
occur.If so, reduce the monitor level or discontinue use.
■ Beep tone
The beep tone which sounds each times a switch is pushed
can be adjusted, as desired.
q Push
,
then push [BEEP].
w Rotate [DIAL] (or using [Y]/[Z] key) to adjust the beep
level
.
e Push [CLR] to exit the beep tone set mode.
• ‘BEP-0’is OFF and ‘BEP--9’is Max. level.
9
3
BASIC OPERATION
10
3
BASIC OPERATION
■ Lock function
The lock function prev ents accidental frequency changes and
accidental function activation.
q Push , then push [KEY LOCK] to turn the function ON.
w To turn the function OFF,repeat step q above.
•“ ”disappears.
■ Display backlighting
Push [LIGHT] to turn the display backlighting ON or OFF.
■ Low battery indicator
Low battery indicator appears when the battery power has
decreased to a specified level.The attached battery pack requires recharging.
■ REC/PLAY the signals
/messages
D Recording a signal
/message
➥Push , then push [ANL
(REC)] to start to record the
message for 20 sec.
• ‘REC’blinks on the display.
•Push [CLR] to cancel the recording.
•No message is recorded when no audio comes from the speaker.
(e.g.When the squelch is closed.)
•You can record your own message by pushing and holding [PTT]
during the recording mode. Frequency or memory CH display
disappears in this case.
• No transmission available during the recording mode.
• Only the latest message is remains.
D Play
➥Push , then push
[BANK (PLAY)] to play back
the message.
• ‘PLAY’ appears on the dis-
play.
• Push [CLR] to cancel the
play back.
• Play bac k the message during the transmit mode , y ou can tr ans-
mit the recorded message.
then
then
Low battery
indicator
11
3
BASIC OPERATION
■ Receiving
q Push [PWR] to turn the power ON.
w Push [SQL], then turn the [DIAL] counterclockwise (or [Z]
key) to select the squelch level [0].
e Push [Y]/[Z] key several times to adjust the audio level.
r Push [SQL], then turn the [DIAL] clockwise (or [Y]key)
until the noise is muted.
• The Tx/Rx indicator disappears.
t Set the desired frequency using the [DIAL] or keypad.
y Push [ANL] to reduce pulse noise such as that caused by
engine ignition systems, if necessary.
• [ANL] appears on the display.
u When a signal is received on the set frequency:
• The Tx/Rx indicator lights green
• Squelch opens and audio is emitted from the speaker.
When the [SQL] control is too “deep”, squelch may not open
for weak signals.To receive weak signals, set the squelch to a
“loose” position.
■ Transmitting
q Set the desired frequency in COM band using the [DIAL]
or keypad.
• COM band frequency range: 118.00–136.975 MHz
w Push and hold [PTT] to transmit.
• The Tx/Rx indicator lights red.
e Speak into the microphone at a normal voice level.
• DO NOT hold the transceiver too close to your mouth or
speak too loudly.This may distort the signal.
r Release [PTT] to return to receive.
CAUTION: Transmitting without an antenna may damage
the transceiver.
NOTE:To prevent interference, listen on the frequency before transmitting. If the frequency is busy, wait until the
channel is clear.
12
4
MEMORY OPERATION
■ Memory channel selection
The transceiver has 200 memory channels for storage of
often-used frequencies along with 6-character notes.
q Push [MR] to select memory mode.
• Memory BANK number and memory CH number appears.
Using the [DIAL]:
w Push [BANK], then rotate the [DIAL] to select the desired
memory bank number, then push [BANK] (or [CLR]) to exit
the bank selection mode.
• “BANK”appears.
e Rotate [DIAL] to select the desired memory CH number.
• If no memory channel is programmed in the selected bank, no
memory CH selection is available.
Using the Keypad:
w Push [BANK], then push appropriate digit key (0 to 9) to
select the desired memory bank number, then push
[BANK] (or [CLR]) to exit the bank-selection mode.
• “BANK”appears.
e Push 2 appropriate digit key (00 to 19) to select the de-
sired memory CH number.
• If no memory channel is programmed in the selected bank, no
memory CH selection is available.

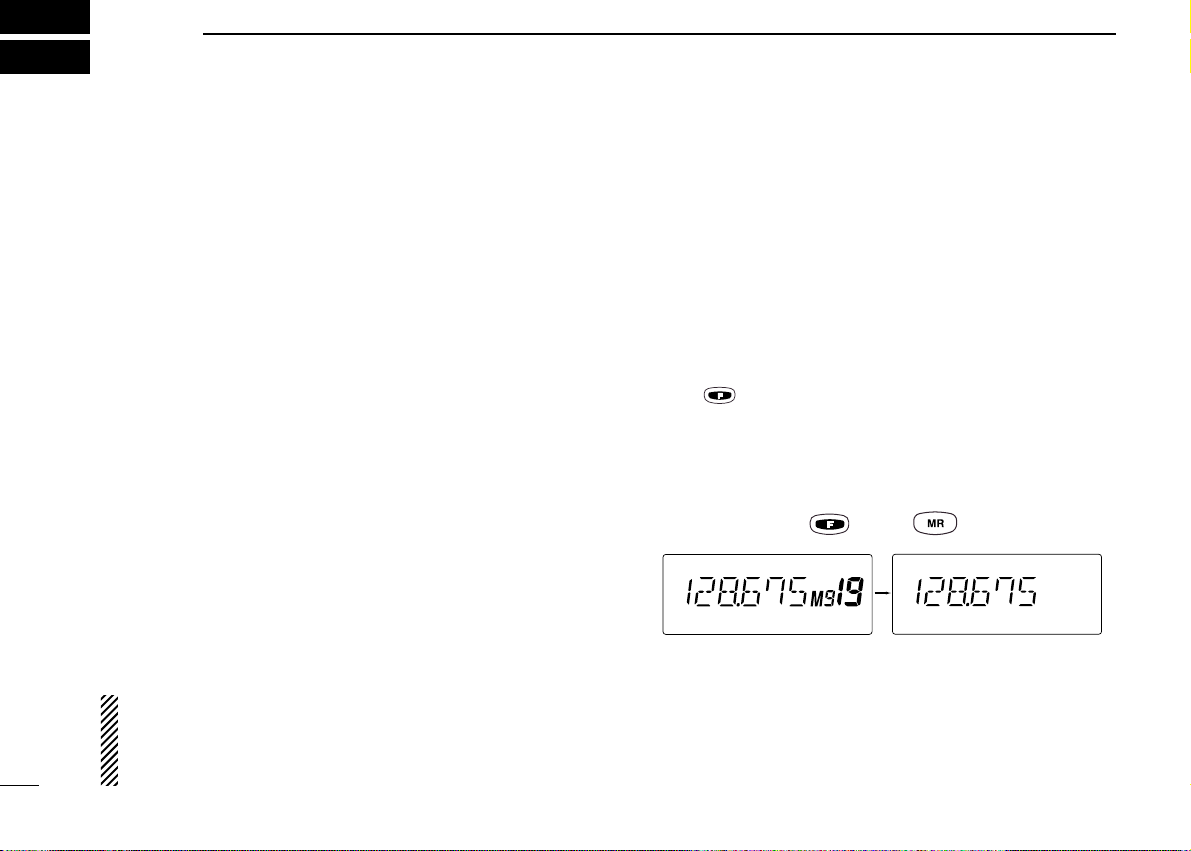

Comments appear first when programmed, however, the
transceiver can be programmed by your dealer to show
the operating frequency first. Push [MR] to display the
comment in this case.
■ Transferring memory
contents
This function transfers a memory channel’s contents into the
frequency mode. This is useful when searching for signals
around a memory channel’s frequency.
q Push [MR] to select memory mode.
w Select the desired memory channel to be transferred using
the [DIAL] or keypad.
e Push , then push [MR].
• BANK number and memory CH number disappears as
frequency mode is automatically selected and the memory contents are transferred.
then
Memory mode
Frequency mode
13
4
MEMORY OPERATION
■ Programming a memory
channel
The transceiver has 200 (10 BANK x 20 CH) memory channels for storage of often-used frequencies.
q Push [CLR] to select Frequency mode, if necessary.
w Select the desired frequency.
• Push
,
then push [ENT (WX)] to select a weather channel.*
• Set the desired frequency or WX channel* using the [DIAL] or
keypad.
e Push
,
then push [MR (MW)].
•Memory BANK and memory channel number appears.
r Rotate the [DIAL] to select the desired memory channel
number.
•[M] blinks.
•Push [BANK] to select the BANK number if desired.Push [CLR]
(or [BANK]) to exit the BANK selection mode.
t Push [ENT] to program the information into the channel
and return to Frequency mode.
*Weather channel:U.S.A.version only.
then
[0], [5] or [5] [ENT]
then
[3]
[0], [2] or [2] then [ENT]
or
•EXAMPLE: Programming WX-05* into memory BANK 3/
memory channel 2.
14
4
MEMORY OPERATION
■ Memory names
ï Programming memory names
The memory channel can display a 6-character comment as
well as a frequency.
q Rotate the [DIAL] to select the desired frequency in Fre-
quency mode.
w Push
,
then push [MR].
e Rotate the [DIAL] to select the desired memory channel to
be programmed.
•Push [BANK] to select the BANK number if desired.Push [CLR]
to exit the BANK selection mode.
r Push [MR] to enter the memory name programming mode.
•“-- -- -- -- -- -- ” appears on the display.
t Push the appropriate digit key several times to select the
desired character as listed at right.
•To erase a character, overwrite with a space (displayed as _).
•To move the cursor forwards or backwards, use [DIAL].
y Push [ENT] to program the name.
•Flashing stops.
•When no name is programmed, the display shows the operating
frequency.
•To clear the entered comment, push [CLR] before pushing [ENT].
key Character
1 1, Q, Z
4 4, G, H, I
7 7, P, R, S
ENT Program
key Character
2 2, A, B, C
5 5, J, K, L
8 8, T , U, V
0 0, space –
key Character
3 3, D, E, F
6 6, M, N, O
9 9, W , X, Y
ï Clearing memory contents
Unwanted memory channels can be cleared. Programming
over a memory channel also clears the previously programmed contents.Memory channel 1 cannot be cleared.
q Select the memory channel to be cleared.
w Push
,
then push and hold [CLR] for 1 sec.
•“-- -- -- -- -- --” appears momentarily, then the next selec-
table channel appears.
15
4
MEMORY OPERATION
[CLR], [1], [2], [5], [ENT] [F], [MR(MW)]
[1], [5]
(*see NOTE)
[MR] [2], [2], [4], [4], [4], [4] [7], [7], [7]
[0], [0], [0],[2],[3] [ENT]
•EXAMPLE: Programming 125.000 MHz into memory BANK 0/ memory channel 15
with “AIR-23”as a comment.
*NOTE: Push [BANK], then rotate the [DIAL] to select the
BANK number, if desired. Push [CLR] to continue memory
name programming.
SCAN OPERATION
5
16
■ Scan types
The U.S.A.version has 3 scan types to suit your needs. The
non-U.S.A.versions have 2 scan types.
■ COM band scan
q Push [CLR] to select VFO mode.
w Set squelch to the point where noise is just muted.
e Push , then push [SQL (SCAN)] to start the scan.
• When a signal is received, the scan pauses until it disap-
pears.
• To change the scanning direction, rotate the [DIAL].
r To stop the scan, push [CLR].
■ Memory scan
q Push [MR] to select memory mode.
w Set squelch to the point where noise is just muted.
e Push , then push [SQL (SCAN)] to start the scan.
• When a signal is received, the scan pauses until it disap-
pears.
• To change the scanning direction, rotate the [DIAL].
r To stop the scan, push [CLR].
WEATHER CHANNEL SCAN
Repeatedly scans all “TAG” weather channels. Weather
channels are available for the U.S.A.version only.
MEMORY SCAN
Repeatedly scans all
“TAG” memory channels.
Used for checking oftenused channels and bypassing usually busy
channels such as controltower frequencies..
COM BAND SCAN
Repeatedly scans all frequencies over the entire
COM band.
118.00
108.00
MHz
MHz
non-TAG channel
Mch 2 Mch 4 Mch 6
Mch 1
Mch 19 Mch 10
Scan
Jump
Mch 8
136.975
MHz
Mch 7
non-TAG
channel
5
SCAN OPERATION
17
■ Weather channel scan
(U.S.A. version only)
q Push , then push [ENT (WX)] to select a weather
channel.
w Set squelch to the point where noise is just muted.
e Push , then push [SQL (SCAN)] to start the scan.
• When a signal is received, the scan pauses until it disappears.
• To change the scanning direction, rotate the [DIAL].
r To stop the scan, push [CLR].
■ “TAG”channels
Memory and weather* channels can be specified to be
skipped for the memory and weather* channel scans respectively.The “TAG” channel function is only available during scan
operation.
q Push [MR] to select memory mode; or, push , then
push [ENT (WX)] to select a weather channel*.
w Select the desired channel to be a “TAG” channel.
e Push , then push [9 (TAG)].
•“TAG” appears.
• Non-“TAG”channels are skipped during scan.
r To cancel the “TAG” setting, repeat above steps.
*Weather channel:U.S.A.version only.
Memory channel 19 is
scanned during memory
scan.
Memory channel 19 is
skipped during scan.
Shows the
“TAG” channel.
then
18
6
VOR NAVIGATION (IC-A23 ONLY)
■ VOR indicators
214
34
FROM
COM BAND
(118.00–136.975 MHz)
NAV BAND (108.00–117.975 MHz)
DVOR MODE
Function display of the IC-A23General VOR equipment
To-from flag
indicator
CDI MODE
Course indicator
Course
indicator
Course deviation needles
Overflow indicator
Push [F] then [r CDI].Push [F] then [q DVOR].
To-from flag indicator
Course indicator
Course deviation
needle
To-from flag indicator
Two-degree deviation
marks
VOR NAVIGATION
19
6
VOR NAVIGATION
■ VOR functions
◊ To select CDI mode
To show the deviation between y our flying course and the de sired course, push , then [4 (CDI)].
◊ To select DVOR mode
When entering the NAV band, 108.000–117.975 MHz, the
IC-A23 selects DVOR mode automatically.
To show your aircraft’s direction to (or from) the VOR station,
push , then [1 (DVOR)].
◊ ‘TO’ or ‘FROM’flag selection
The to-from flag indicators indicate whether the VOR navigation information is based on a course leading to the VOR station or leading away from the VOR station.
To change the flag from ‘TO’ to ‘FROM’ or vice versa, push
, then [3 (FROM)] or [2 (TO)], respectively.
•When using the ‘TO’ flag and passing through the VOR
station, the ‘TO’flag changes to the ‘FROM’flag automat-
ically.
•When turning power ON, the ‘FROM’flag is selected au-
tomatically.
◊ Selecting the next VOR station when using
CDI mode
(when using the course deviation needle)
q Push , then [1 (DVOR)].
w Set the next VOR station’s frequency.
e Push , then [4 (CDI)].
•Select ‘TO’or ‘FROM’flag, if desired.
Operating frequency can be changed.
Course indicator shows your direction
to (or from) the VOR station.
Course deviation needle does not
appear.
Operating frequency cannot be changed.
Course indicator is fixed, but it can be
changed with the tuning dial or keypad.
Each course deviation arrow indicates
a two-degree deviation.
VOR NAVIGATION
20
6
VOR NAVIGATION
■ Flying to a VOR station
The IC-A23 shows the deviation from a VOR station.
q Select a VOR station on your aeronautical chart and set
the frequency of the station.
•The course indicator indicates where you are located on a radial
from the VOR station.
•The course indicator shows ‘- -’ when either aircraft is too far
away from the VOR station or the frequency is not set correctly at
the VOR station.
w Select the ‘TO’flag when flying to the VOR station, or se-
lect the ‘FROM’flag when flying away from the VOR sta-
tion.
•To select ‘TO,’ push , then [2 (TO)].
•To select ‘FROM,’push , then [3 (FROM)].
e Push , then [4 (CDI)] to select CDI (Course Deviation
Indicator) mode.
•The course indicator shows ‘OF’ when the desired VOR signal
cannot be received.
When CDI mode is selected, the operating frequency cannot be changed. To set the operating frequency, select
DVOR mode in advance.
r The course deviation needle appears when y our aircraft is
off course from the VOR station.
•‘Ω’or ‘≈’appears to indicate your aircraft is off course to the right
or left, respectively. Correct your course until ‘Ω’or ‘≈’ disappears.
Each arrow represents a two-degree deviation.
t To exit CDI mode, push , then [1 (DVOR)].
VOR INDICATOR NOTE
‘loc’appears on the function display as shown below when
a localizer signal is received.
However, the function display does not indicate additional
information about the localizer signal.
VOR NAVIGATION
21
6
VOR NAVIGATION
VOR
station
0°
10°
20°
30°
40°
50°
60°
70°
80°
90°
100°
110°
120°
130°
140°
150°
160°
170°
180°
190°
200°
210°
220°
230°
240°
250°
260°
270°
280°
290°
300°
310°
320°
330°
340°
350°
N
Magnetic
north
Desired course
Aircraft heading 40
°
123.65
VORTAC
SEATTLE
116.8 Ch 115 SEA
THE AIRCRAFT IS ON COURSE
VOR
station
0°
10°
20°
30°
40°
50°
60°
70°
80°
90°
100°
110°
120°
130°
140°
150°
160°
170°
180°
190°
200°
210°
220°
230°
240°
250°
260°
270°
280°
290°
300°
310°
320°
330°
340°
350°
N
Magnetic
north
Aircraft should be
heading 40
°
Aircraft heading 46
°
(6° off course)
Flown course
123.65
VORTAC
SEATTLE
116.8 Ch 115 SEA
THE AIRCRAFT IS OFF COURSE
The course deviation indicator appears when the aircraft is off
course.In this example, the aircraft
is 6 degrees off course to the left.
The pilot must turn more than 6
degrees right to get back on
course.
VOR NAVIGATION
22
6
VOR NAVIGATION
■ Entering a desired course
The IC-A23 shows not only the deviation from the VOR station but the deviation from the desired course.
q Set the frequency for the desired VOR station.
•To change the to-from flag, push , then [2 (TO)] or [3
(FROM)].
w Push , then [4 (CDI)] to select CDI mode.
e Set the desired course to the VOR station using the tuning
dial or keypad.
•‘Ω’or ‘≈’appears on the function display when your aircraft is off
the desired course.
•When your heading is correct, the ABSS function may be useful
instead of course input.
r The course deviation needle points to the right when your
aircraft is off course to the left.
•To get back on course, fly right more than the number of degrees
indicated by the CDI arrows.
•If the overflo w indicator appears on the right side, select a heading plus 10 degrees to the desired course; if the overflow indicator appears on the left side, select a heading minus 10 degrees.
■ Crosschecking position
q Select 2 VOR stations on your aeronautical chart.
w Set the frequency of one of the VOR station in DVOR
mode.
•The course indicator shows course deviation from the VOR radial. Note the radial you are on.
e Set the frequency of the other VOR station in DV OR mode .
•Note the radial from the station you are on.
r Extend the radials from each VOR station on the chart.
Your aircraft is located at the point where the lines intersect.
ABSS FUNCTION
In CDI mode, the Auto Bearing Set System (ABSS) adds
or subtracts the number of degrees indicated by the CDI
arrows from the Omni Bearing Selector (OBS).
To use ABSS, push , then [2 (TO)] while using the ‘TO
flag;or, push , then [3 (FROM)] while using the ‘FROM’
flag.
VOR NAVIGATION
23
6
VOR NAVIGATION
EXAMPLE: Entering the desired course bearing 89° to a VOR station.
CROSSCHECKING POSITION
VOR NAVIGATION
VORTAC
OLYMPIA
113.4 Ch 81 OLM
250°
240°
230°
260°
220°
270°
210°
280°
200°
290°
190°
300°
180°
310°
170°
330°
320°
VOR
station
160°
150°
340°
140°
350°
130°
120°
0°
10°
110°
20°
100°
30°
40°
50°
60°
70°
80°
90°
250°
240°
230°
260°
220°
270°
210°
280°
200°
290°
190°
300°
180°
310°
170°
330°
320°
VOR
station
160°
150°
0°
340°
350°
10°
20°
30°
40°
50°
60°
70°
80°
90°
100°
110°
120°
130°
140°
123.65
VORTAC
SEATTLE
116.8 Ch 115 SEA
N
Magnetic
north
24
6
VOR NAVIGATION
■ Duplex operation
(U.S.A. version only)
The duplex function allows you to call a flight service station
while receiving a VOR station. The duplex function requires
frequency programming for the flight service station in advance.
◊ Programming a duplex frequency
q Push [CLR] to select frequency mode.
w Set a NA V band frequency using the tuning dial or keypad.
•NAV band frequency range: 108.00–117.975 MHz
e Push , then [5 (DUP-W)].
•“DUP”flashes and transmit frequency appears.
r Set the frequency of the flight service station using the tun-
ing dial or keypad.When using the tuning dial, push [ENT]
after setting a frequency.
•The displayed frequency returns to the NAV band frequency.
◊ Operating the duplex function
q Set the desired frequency in NAV band.
•NAV band frequency range: 108.00–117.975 MHz
w Push , then [6 (DUP)] to turn the duplex function ON.
•“DUP” appears on the function display.
e Push and hold [PTT] to transmit at the pre-programmed
transmit frequency.
r Release [PTT] to return to receive.
t Push , then [6 (DUP)] to cancel the function.
A duplex frequency can be programmed into each memory channel independently.Set a duplex frequency before
programming the memory channel, if desired. The duplex
ON/OFF setting can also be programmed into a memory
channel.
EXAMPLE: Programming 123.65 MHz as the transmit frequency in the duplex function.
VOR NAVIGATION
25
7
BATTERY PACKS
■ Charging
precautions
NEVER connect two or more chargers
at the same time.
Charging may not occur under temperatures of 10°C (+50°F) or over temperatures of 40°C (+104°F).
When using BC-119: If the charge
indicator flashes orange, vehicle battery voltage is low and charging is
not possible. Check the vehicle battery voltage in this case.If the charge
indicator flashes red, there may be a
problem with the battery pack (or
charger). Re-insert the batter y pack
or contact your dealer.
■ Battery pack
charging
The BP-200L BATTERY PACK includes
rechargeable Ni-MH batteries and can
be charged approx. 300 times. Charge
the battery pack before first operating
the transceiver or when the battery
pack becomes exhausted.
If you want to be able to charge the battery pack more than 300 times, the following points should be observed:
1.Av oid o vercharging.The charging period should be less than 48 hours.
2. Use the battery until it becomes almost completely exhausted under
normal conditions. We recommend
battery charging just after transmitting
becomes impossible.
D
Rapid charging with the BC-119
The optional BC-119 provides rapid
charging of battery packs.
One AD-87 and an AC adapter (may be
supplied with the BC-119 depending on
version) are additionally required.
q Fix the optional AD-88
TERMINAL PC
BOARD FOR CHARGER into the BC-
119 with the 4 supplied screws.
w Insert the optional AD-87A*
CHARGE
ADAPTER into the charging slot of
the BC-119.
e Insert the optional AD-87B*
CHARGE
ADAPTER into the AD-87A*
CHARGE
ADAPTER.
r Insert the battery pack, either by it-
self or attached to the transceiver,
into the whole assembly for charging. (p. 26)
*AD-87A and AD-87B supplied together named
as AD-87.
•Charging period:1.5 to 2 hours
26
7
BATTERY PACKS
D Rapid charging with the BC-119 D Regular charging
q Attach the battery pack to the transceiver.
w Be sure to turn the transceiver power OFF.
e Connect the Wall charger (BC-110A) or optional cable
(CP-12L or OPC-254L) as shown below.
•Charging period: 15 hours
IC-A23/A5 with
attached
battery case
Wall charger
CP-12L
(optional)
OPC-254L
(optional)
To a 12 to
14 V DC
power source
To
[CHARGE]
white
black
*AD-87B
(supplied with AD-87A)
AD-88
(optional)
Check orientation
for correct charging
AD-87A
(optional)
BC-119
(optional)
*
BATTERY PACKS
7
27
■ About the battery pack
D Operating period
The operating period of the transceiver is 6 hours.
•Operating periods are calibrated for the following conditions:
at 25°C (77°F), Tx :Rx : standby = 5 :5 : 90
D Battery pack life
If your battery pack seems to have no capacity even after
being fully charged, completely discharge it by leaving the
power ON overnight. Then, fully charge the battery pack
again.
If the battery pack still does not retain a charge (or very little),
a new battery pack must be purchased.
■ Battery pack CAUTION
● NEVER short the terminals of the battery pack. Also , cur-
rent may flow into nearby metal objects, such as a necklace, etc. Therefore, be careful when carrying with, or
placing near metal objects, carrying in handbags, etc.
● Keep battery contacts clean. It’s a good idea to clean bat-
tery terminals once a week.
28
8
CLONING
Cloning allows you to quickly and easily transfer the
programmed data from one transceiver to another transceiver,
or, data from PC to a transceiver using the optional CS-A23
cloning software.
D Transceiver to transceiver cloning
q Connect the OPC-474 CLONING CABLEwith adapter plugs
to the [SP/MIC] jack of the master and slave tr ansceivers.
• The master transceiver is used to send data to the slave transceiver.
w While push and holding [Y]
+ [Z],push [PWR] ON to
enter cloning mode (for both
the master transceiver and
slave transceiver both.).
•“CLONE” appears and the
transceivers enter the clone
standby condition.
e Push [ENT] on the master
transceiver.
•“CL-OUT” appears in the
master transceiver’s display.
•“CL-IN” appears automati-
cally in the slave transceiver’s display.
r When cloning is finished, turn power OFF, then ON again
to exit cloning mode.
NOTE: DO NOT transfer the data from IC-A23 to IC-A5,
when the data contains the NAV band data.In such case,
cloning error may occur.
Cloning using PC
Data can be cloned to and from a PC (IBM compatible) using
the optional CS-A23
CLONING SOFTWARE and the optional
OPC-478
CLONING CABLE. Consult the CS-A23 CLONING
SOFTWARE HELP message for details.
D Cloning error
NOTE: DO NOT push [ENT] on the slave transceiver dur-
ing cloning.This will cause a cloning error.
When the display at right appears, a cloning error has occurred.
In this case, both transceivers automatically return to the
clone standby condition and cloning must be repeated.
9
TROUBLESHOOTING
29
If your transceiver seems to be malfunctioning, please check
the following points before sending it to a service center.
POSSIBLE CAUSE SOLUTION REF.
No power comes on. • The battery is exhausted.
• Bad connection for the battery pack.
• Recharge the battery pack.
• Check the connection to the
transceiver.
pgs. 25,
26
No sound comes from the
speaker.
• Squelch level is too deep.
• Volume level is too low.
• Set squelch to the threshold point.
• Set [VOL] to a suitable level.
pgs. 9, 11
Transmitting impossible. • Some channels are receive only.
• The battery is exhausted.
• Change channels.
• Recharge the battery pack.
p. 12
p. 25
The displayed channel
cannot be selected.
• Lock function is activated.
• Push [F], then push [7 (KEY LOCK)].
p. 10
Scan does not start. • All memory channels are not
programmed as “TAG” channels.
• Set the “TAG” settings of desired
channels.
p. 16
No beep sounds. • Beep tones turned OFF. • Push [F], then push [8 (BEEP)] to
adjust the beep tone level.
p. 9
PROBLEM
10
SPECIFICATIONS
D General
•Frequency coverage (MHz):TX 118.000 to 136.975
RX 108.000 to 136.975*
1
WX 161.650 to 163.275*
2
*1:IC-A23 only, IC-A5; 118.000 to 136.975
*2:U.S.A. version only.
• Mode : 6K00A3E
16K0G3E
(161.65.to 163.275 MHz)
•Number of memory channels : 200 (10 BANK x 20 CH)
•Acceptable power supply : 9.6 V DC nominal
(negative ground) (authorized battery packs)
•Usable temp.range : –10˚C to +60˚C (+14°F to +140°F)
•Frequency stability : ±17 ppm (–10˚C to +60˚C)
•Current drain :
Tx 1.8 A (CW) max.
1.1 A (CW) typical
Rx 70 mA typical (at stand by)
500 mA max. (at AF max.)
•Antenna impedance : 50 Ω (nominal)
•Dimensions :58(W)✕107(H)✕28.5(D) mm
(projections not incl.)
•Weight (with BP-200L) : 340 g
D Transmitter
•Output power : 5 W (PEP) typical
1.5 W (CW) typical
•Modulation : Low level modulation
•Modulation limiting : 70 to 100 %
•Audio harmonic distortion : Less than 10 %
(at 60 % modulation)
•Hum and noise ratio :More than 35 dB
•Spurious emissions : More than 60 dB
•Microphone impedance : 150 Ω
D Receiver
•Receive system : Double conversion
superheterodyne
•Intermediate frequencies :1st 30.05 MHz
2nd 450 kHz
•Sensitivity (AM 6dB S/N) :Less than 0dBµ
(FM 12dB SINAD): Less than 0dBµ
•Squelch sensitivity (AM) : Less than –3dBµ
(FM ) : Less than –13dBµ
•Selectivity : 7.5 kHz (at 6 dB) or more
25 kHz (at 60 dB) or less
•Spurious response : More than 60 dB
•Audio output power :500 mW (at 10% distortion
(at 9.6 V DC) with an 8 Ω load)
•Noise and hum : More than 25 dB
•External SP connector : 3-conductor 3.5 (d) mm /8 Ω
All stated specifications are subject to change without
notice or obligation.
30
11
OPTIONS
31
D Battery packs
1
Operating periods are calibrated for the following conditions:
at 25°C (77°F), Tx (high power) :Rx : standby = 5 : 5 :90
D Other options
BC-110A WALL CHARGER (same as supplied.Depends on version)
Used for regular charging of the connected battery pack.
BC-119
DESKTOP CHARGER + AD-88 CHARGER ADAPTOR
For rapid charging of battery packs. An AC adapter is supplied with the charger. Some BC-119 versions require the AD87 additionally. Charging time: 1.5 to 2 hrs.
OPC-254L
DC POWER CABLE
For operation and charging via an external power supply.
CP-12L
CIGARETTE LIGHTER CABLE WITH NOISE FILTER
For operation and charging via a 12 V cigarette lighter socket.
OPC-967 HEADSET ADAPTER
When using an optional headset, such as those from the
David Clark Co. via the adapter
, the transceiver outputs your
transmitted voice to the headset for monitoring.(p. 9)
CS-A23
CLONING SOFTWARE
Provides quick and easy programming of items , including private channels, scan settings, etc., via an IBM
®
compatible PC
to transceiver.
OPC-474
CLONING CABLE
Cloning cable for transceiver to transceiver cloning.
OPC-478
CLONING CABLE
Cloning cable for PC to transceiver cloning.
IBM®is a registered trademark of International Business Machines.
BP-200L
V6.9
hAm067
srh51srh5.1
srh6
doirepgnigrahC
yrettaB
kcap
egatloV yticapaC
llaW
regrahc
ro911-CB
121-CB
88-DAhtiw
gnitarepO
1
*doirep
11
32
OPTIONS
D OPC-967 (
HEADSET ADAPTER) connection
When using an optional headset, such as those from the
David Clark Co. via the adapter
, the transceiver outputs your
transmitted voice to the headset for monitoring.(p. 9)
PTT switch
Use a PTT switch
with a 3.5 mm diameter plug, if required.
HEADSET
(Must be purchased
separately.)
Clip the cable to the
handstrap loop on
the belt clip for support.
OPC-967
IC-A23
IC-A5
PTT
OPERATION GUIDE
iA23/A5
•
DIAL↔
[
Y
]/[
Z
] trade function
"
CHANNEL SELECTION (pgs. 7, 8)
"
BEGINNING OPERATION
Push [F], then push [CLR (DIAL/YZ)]
to trade each function.
Default:
DIAL: •Setting the frequency, • Selecting
the memory channel, • Selecting the
BANK number
[Y]/[Z]: • Adjusting the audio level
•
Using Key pad
•
Turning the power ON.
q
w
Push [CLR] to select the frequency
mode when memory CH or WX
CH* appears on the display.
Rotate the [DIAL] to select the de-
sired frequency.
Push [F], then rotate the [DIAL] to-
select the 1 MHz tuning step. Push
[F] to cancel the function.
q
w
e
r
Push [PWR] for 0.5 sec. to turn
the power ON or OFF.
Push [SQL], then push [
Z
] sev-
eral times to adjust the squelch
level ‘0’. Push [SQL] to exit the
squelch set mode.
Push [
Y
]/[
Z
] several times to
adjust the desired audio level.
Push [SQL], then push
[
Y
] sev-
eral times
to adjust the squelch
level.
Push [CLR] to select the frequency
mode when memory CH or WX CH*
appears on the display.
Push 5 appropriate digit keys to in-
put the frequency.
• Enter [1] as the 1st digit.
• Only [2], [5], [7] and [0] can be en-
tered as the 5th and final digit.
• Push [CLR] , when a digit is mis-
takenly input.
•
Using [DIAL]
q
w
e
•
Memory BANK/CH selction
Push [MR] to enter the memory CH
mode.
Push [BANK] to select the desired
BANK number. (BANK 0 to 9)
Push [BANK] or [CLR] to exit the
BANK selection mode.
q
w
e
33
12
QUICK REFERENCE
Important operating instructions are summed up in this and the following page
for your simple reference.
By cutting along the line and folding on the dotted line, it will become a card
sized operating guide which can easily be carried in a card case or wallet,
etc.
q Cut w Fold
e Complete
<CUT HERE>
34
12
OPERATION GUIDE
•
Transferring memory contents
"
MEMOR Y
q
w
e
r
t
Push [CLR] to select the frequency
mode or push [F], then push [ENT
(WX)] to select WX CH* mode.
Select the desired frequency or WX
CH*.
Push [F], then push [MR (MW)] to
enter memory programming mode.
• “M” blinks on the display.
Rotate [DIAL] to select a desired
memory CH number.
• Push [BANK], then select the
BANK number if desired. Push
[BANK] to exit the BANK selection
mode.
Push [ENT] to program the memory
contents.
q
w
e
Push [MR] to enter memory mode.
Select the desired channel to be
transferred.
Push [F], then push [MR].
• BANK number and menory CH
number disappears as frequency
mode is automatically selected
and the memory contents are
transferred.
"
SCAN (p. 14)
q
w
e
Push [CLR], [MR] or [F], then
[WX]* to select the frequency ,
memory or WX CH* mode.
Push [F], then push [SQL (SCAN)]
to start scanning.
• Decimal point blinks during scan-
ning.
• Rotate the [DIAL] to change the
scanning direction.
Push [CLR] to cancel the scanning.
"
TAG CHANNELS (p. 13)
q
w
Push [MR] to select the memory
mode.
Push [F], then [9 (TAG)] to turn the
channel “TAG” ON and OFF.
"
KEY LOCK FUNCTION (p. 8)
Push [F],Then push [7 (KELOCK)]
to turn the keylock function ON.
• “ ” appears on the display.
Push [F],Then push [7 (KELOCK)]
to turn the keylock function ON.
q
w
•
Memory programming
*WX CH available U.S.A. version only.
Count on us!
6-9-16 Kamihigashi, Hirano-ku, Osaka 547-0002 Japan
A-5665H-1EX
Printed in Japan
© 2000 Icom Inc.
Loading...
