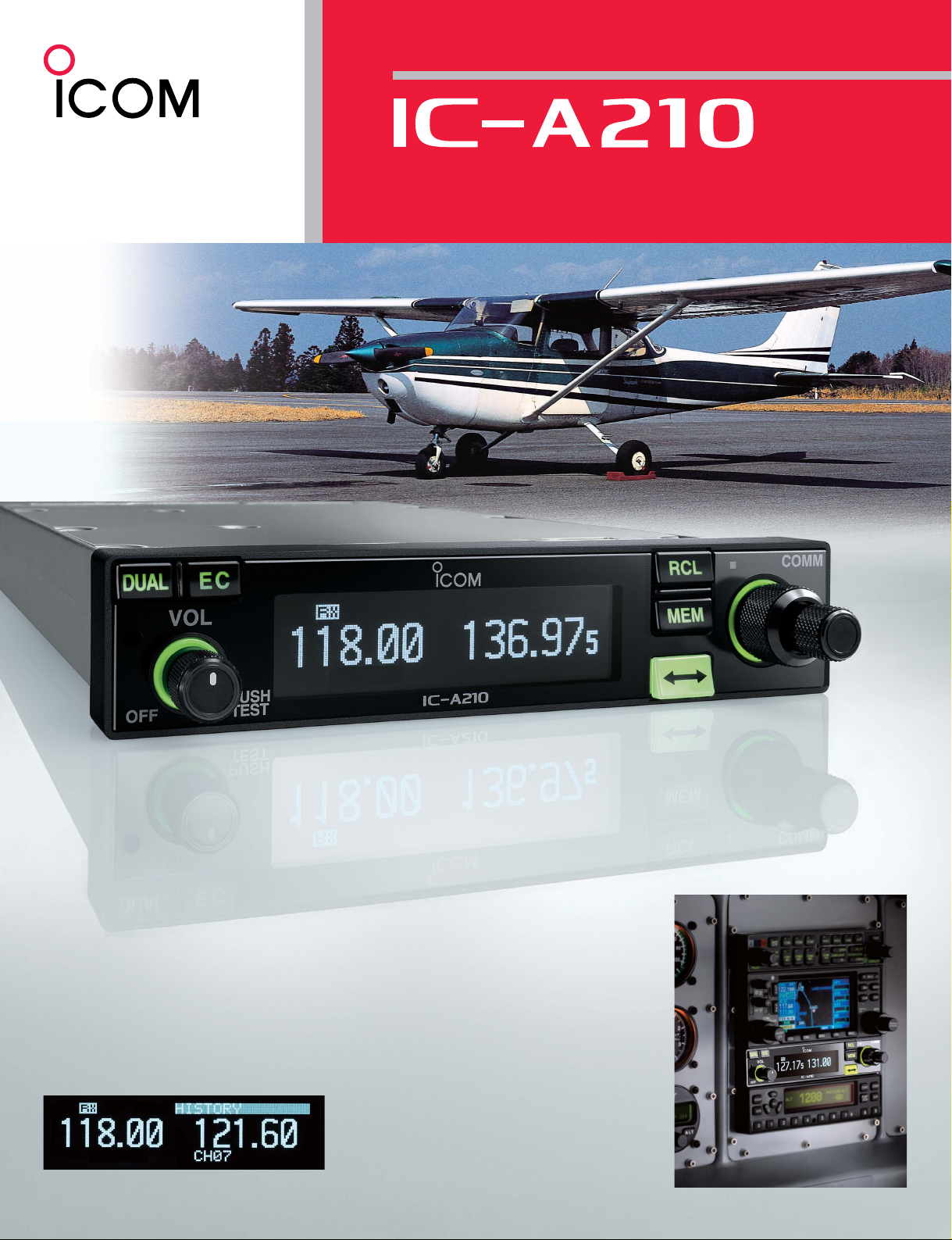

ICOM IC-A210 User Manual

VHF AIR BAND TRANSCEIVER

Innovative airband that's easier
to install and see in more places

Large, bright OLED display

Afixed mount VHF airband first! The IC-A210
has an organic light emitting diode (OLED)
display. The OLED display emits light by itself
and the display offers many advantages in
brightness, vividness, high contrast, wide
viewing angle and response time compared to
a conventional display. In addition, the auto
dimmer function adjusts the display for opti­mum brightness at day or night.

Operating information is clearly shown on the OLED display.

Easy channel selection

It’s fast and easy to select any of memory
channels in the IC-A210. The “flip-flop” arrow
button switches between main and stand-by
channels. The dualwatch function allows you
to monitor two channels simultaneously . In ad­dition, the auto stack memory stores the last
10 channels used and allows you to recall
those channels easily.

GPS memory function

When connected to an external GPS receiver*
equipped with an airport frequency database,
the frequency data such as nearby airports
can be transferred and made available in the
IC-A210.

* Ask your dealer for available GPS receiver details.

Installation example

VHF AIR BAND TRANSCEIVER

CACHET REVENDEUR

ICOM FRANCE

Zac de la Plaine - 1, Rue Brindejonc des Moulinais
BP 45804 - 31505 TOULOUSE CEDEX 5
Tél : [phone] - Fax : [phone]

WEB ICOM : http://www.icom-france.com
E-mail : [e-mail]

Les spécifications et informations données dans ce document peuvent être modifiées sans préavis.

12V/24V DC power source

The built-in DC-DC converter accepts a 12/24V DC power source. The
IC-A210 is easily installed in most airplanes or vehicles.

Intercom functions

The IC-A210 has a built-in voice activated intercom function allow­ing the pilot to talk with the copilot via the headset. The IC-A210
has adjustable audio level and squelch control functions.

Easy installation

The IC-A210 neatly fits inside the common mounting brackets used
on most airplanes including Icom’s IC-A200. Two types of rear-panel
adapters are included, allowing for streamlined plug-in connectivity.

* Ask your dealer for compatible panel mount radio details.

SPECIFICATIONS

GENERAL

• Frequency coverage :
Tx/Rx 118.000–136.975MHz
Rx WX channels 161.650–163.275MHz*

• Frequency spacing : 25kHz

• Frequency stability : ±5ppm

• Operating temperature : –20˚C to +55˚C

• Antenna impedance : 50Ω

No. of memory channels

•

• Power supply : 13.8/27.5V DC

requirement

(* USA version only.)

: 10 regular memory,

200 group memory,
10 GPS, 10 weather*,
10 auto stack memory

(* USA version only)

(Negative ground)

• Dimensions

(Projections not included) 6

•Weight

• Output power : 8W

• Spurious emission : –60dBc

• Microphone impedance : 600Ω

Measurements made in accordance with RTCA DO-186B for
USA version.
change without notice or obligation.

(W×H×D) : 160×34×271 mm

(approx.) : 1.0kg; 2.2lb

TRANSMITTER

All stated specifications are and subject to

Other features

• TSO version planned (Pending as of July 2007)

• 10 regular memory channels with a 6-character channel name

• 200 group memory channels

• NOAA weather channel receive

(20 Ch × 10 banks)

(USA version only)

• One touch access to 121.5MHz emergency frequency

• Side tone function for monitoring your voice with headset

• ANL

(Automatic noise limiter) function reduces pulse type noise

• Remote control capability

• Time-out-timer

• VFO scan

• PC programming capability

• Dial lock and panel lock

• Squelch test function

5

/16×111/32×1021/32 in

typical (Carrier power)

•

Intermediate frequencies

• Sensitivity AM : Less than 2µV

• Selectivity : 6dB ±3kHz

• Spurious rejection : More than 74dBµ

• Audio output power : 5W

Supplied Accessories

❍ Mounting bracket kit ❍Rear panel adapter

RECEIVER

with a channel tag

: 1st 38.85MHz

2nd 450kHz

at 6dB S/N

60dB ±22kHz

with a 4Ω load

60mW

with a 500Ω load

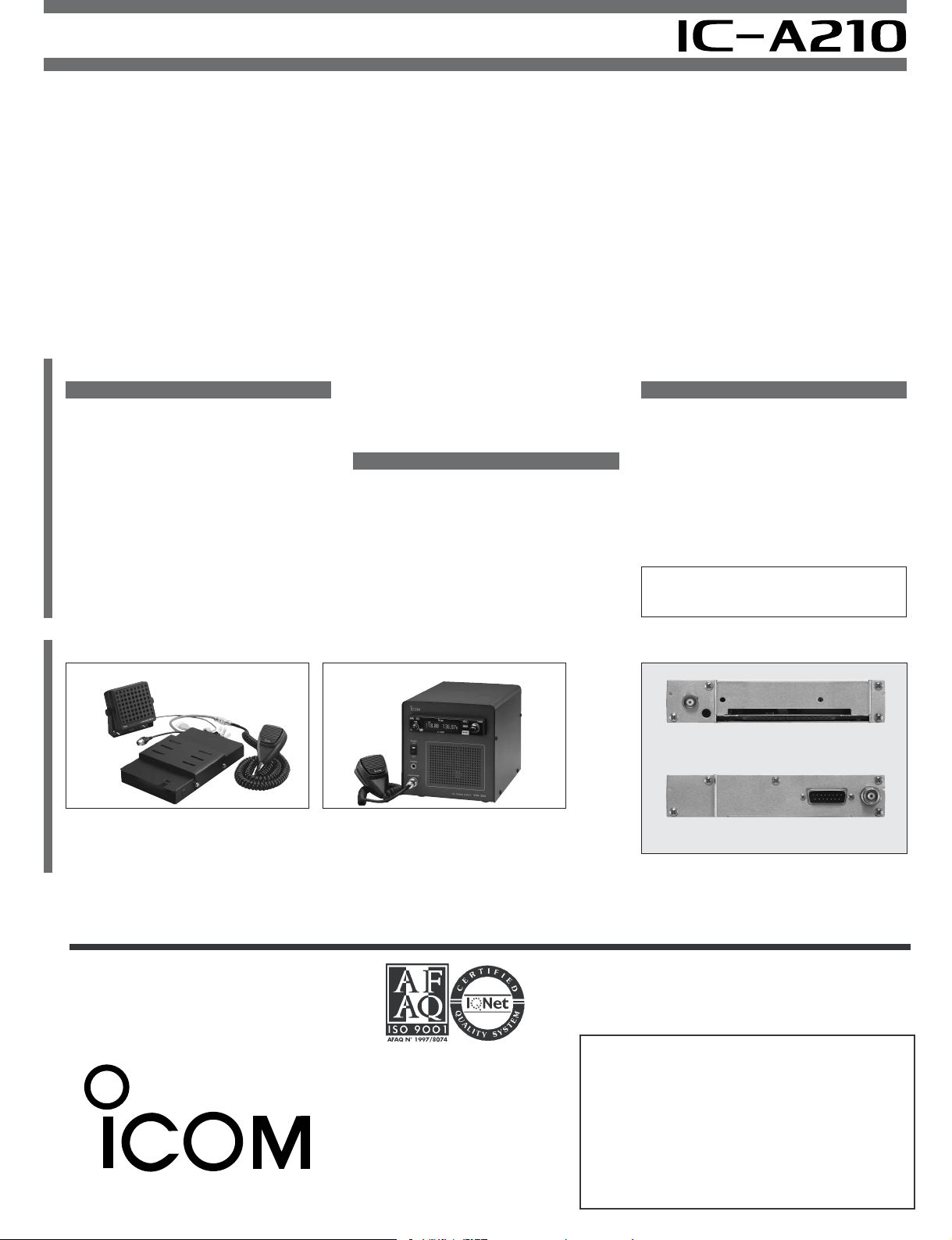

OPTIONS REAR PANEL VIEW

MB-53 MOUNTING BRACKET

For mounting the IC-A210 to a vehicle. External
speaker (SP-5) and microphone (HM-176) are in­cluded.

PS-80 POWER SUPPLY

Provides convenient ground-based IC-A210 opera­tions. Includes built-in speaker and an HM-176* mi­crophone.

• Dimensions : 200(W) × 200(H) × 300(D) mm

• Output : 13.8V DC/6A

(* Depending on version)

For PS-80 type

For the 3rd party compatible type with rear panel adapter
