Icom IC-718 service manual

HF TRANCEIVER

iC-718

INTRODUCTION

DANGER

This service manual describes the latest service information for the IC-718 HF TRANCEIVER at the time of publication.

To upgrade quality, all electrical or mechanical parts and internal circuits are subject to change without notice or obligation.

MODEL

IC-718

VERSION

U.S.A.

Europe

Italy

France

Spain Other Korea

U.S.A.

SYMBOL

USA EUR

ITA FRA ESP OTH KOR

USA-1

NEVER connect the transceiver to an AC outlet or to a DC

power supply that uses more than 16 V. This will ruin the transceiver.

DO NOT expose the transceiver to rain, snow or any liq-

uids.

DO NOT reverse the polarrities of the power supply when

connecting the tranceiver.

DO NOT apply an RF signal of more than 20 dBm (100

mW) to the antenna connector. This could damage the transceiver’s front end.

ORDERING PARTS

Be sure to include the following four points when ordering replacement parts:

1. 10-digit order numbers

2. Component part number and name

3. Equipment model name and unit name

4. Quantity required

1110001810 S.IC TA7368F IC-718 MAIN UNIT 1 piece 8810009650 Screw FH BT M3 × 8 NI-ZU IC-718 CHASSIS 6 pieces

Addresses are provided on the inside back cover for your convenience.

REPAIR NOTES

1. Make sure a problem is internal before disassembling the transceiver.

2. DO NOT open the transceiver until the transceiver is disconnected from its power source.

3. DO NOT force any of the variable components. Turn them slowly and smoothly.

4. DO NOT short any circuits or electronic parts. An insulated tuning tool MUST be used for all adjustments.

5. DO NOT keep power ON for a long time when the transceiver is defective.

6. DO NOT transmit power into a signal generator or a sweep generator.

7. ALWAYS connect a 50 dB or 60 dB attenuator between the transceiver and a deviation meter or spectrum analyser when using such test equipment.

8. READ the instructions of test equipment thoroughly before connecting equipment to the transceiver.

SECTION 1 SPECIFICATIONS

1 - 1

■ GENERAL

• Frequency coverage : Receive 0.030–29.999999 MHz*

1

Transmit 1.800–1.999 MHz*23.500–3.999 MHz*

2

7.000–7.300 MHz 10.100–10.150 MHz

14.000–14.350 MHz 18.068–18.168 MHz

21.000–21.450 MHz 24.890–24.990 MHz

28.000–29.700 MHz

*1Guaranteed range: 0.5–29.999999 MHz. *2Varies accoding to version.

• Mode : USB, LSB, CW, AM, RTTY (FSK)

• No. of memory Ch. : 101 (99 regular, 2 scan edges)

• Freq. resolution : 1 Hz

• Frequency stability : Less than ±200 Hz from 1 min. to

60 min. after power ON. After that rate of stability less than ±30 Hz/hr at +25˚C (+77˚F). Temperature fluctuations 0˚C to 50˚C (+32˚F to +122˚F) less than ± 350 Hz.

•

Power supply requirement

: 13.8 V DC ±15 %

(negative ground)

• Current consumption :

Transmit max. power 20.0 A Receive stand-by 1.3 A

max. audio 2.0 A

• Usable temp. range : –10˚C to +60˚C (14˚F to 140˚F)

• Antenna connector : SO-239 (50 Ω)

• Dimensions : 240 (W)

✕ 95(H) ✕ 239(D) mm

(projection not included) 9

7

⁄16(W) ✕ 33⁄4(H) ✕ 913⁄32(D) in

• Weight : 3.8 kg (8 lb 6 oz)

• ACC connector : 13-pin

• REMOTE connector : 2-conductor 3.5(d) mm (

1

⁄8")

■ TRANSMITTER

• Modulation system :

SSB Balanced modulation AM Low level modulation

• Output power : SSB/CW/RTTY/FM 2–100 W AM 2–40 W

• Spurious emission : Less than –50 dB below peak out-

put power

* spurious frequency ; below 30 MHz: –50 dB,

above 30 MHz: –60 dB

• Carrier suppression : More than 40 dB

• Unwanted sideband suppression:

More than 50 dB

• Mic. connector : 8-pin connector (600 Ω)

• KEY connector : 3-conductor 6.5(d) mm (

1

⁄4")

• SEND connector : Phono (RCA)

• ALC connector : Phono (RCA)

■ RECEIVER

• Receive system : Double-conversion superheterodyne

• Sensitivity

(10 dB S/N) :

SSB, CW, RTTY 0.16 µV*

1

(1.8–29.999999 MHz)

AM 13 µV (0.5–1.799999 MHz)

2.0 µV*1(1.8–29.999999 MHz)

*1Pre-amp 1 ON

• Squelch sensitivity : Less than 5.6 µ V (SSB)

• Selectivity :

SSB, CW, RTTY More than 2.1 kHz/–6 dB

Less than 4.5 kHz/–60 dB

AM More than 6.0 kHz/–6 dB

Less than 20.0 kHz/–40 dB

• Spurious and image rejection ratio: More than 70 dB (1.8–29.999999 MHz)

• Audio output power : More than 2.0 W

(at 13.8 V DC)

at 10 % distortion with an 8 Ω load

• RIT variable range : ±1200 Hz

• PHONES connector : 3-conductor 6.5(d) mm (

1

⁄4")

• EXT SP connector : 2-conductor 3.5(d) mm (

1

⁄8") 8 Ω

All stated specifications are subject to change without notice or obligation.

2 - 1

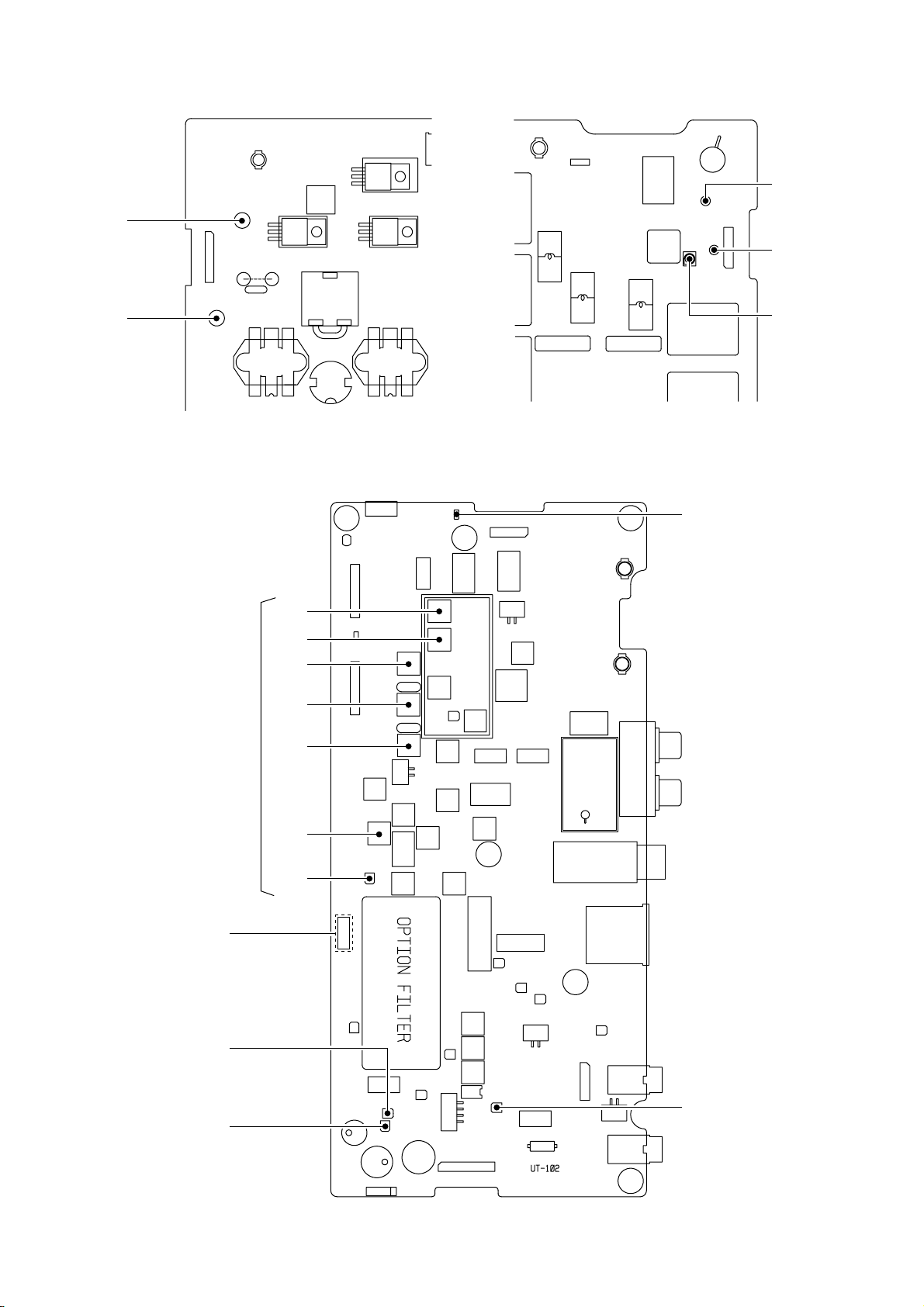

SECTION 2 INSIDE VIEWS

Filter unitPA unit

MAIN unit

PLL unit

¡Top view (PA AND FILTER UNITS)

¡Bottom view (MAIN AND PLL UNITS)

Rx RF preamplifier (Q1401, Q1402: 2SK2171)

Tx Mixer (Q101, Q102: 3SK131)

1st Lo amplifier (Q201: 2SC4673)

Rx 1st mixer circuit (64.455 MHz)

DDS gate allay IC (IC6: SC-1245A)

Reference oscillator circuit (Q9: 2SC2714, X1: CR-337, 32.000 MHz)

+5V Reg. (IC1: TA7805)

BFO DDS (IC2: SC-1287)

Rx 1st IF amplifier (Q1201: 3SK131)

2nd mixer circuit (D401: HSB88WSTR, Rx; 455 kHz, Tx; 64.455 kHz)

Predrive amplifier (Q1: 2SC1971)

Tx/Rx switching relay (RL13: AG201344)

Drive amplifier (Q2, Q3: 2SC3133)

Power amplifier (Q4, Q5: 2SC2904)

Tx 1st IF amplifier (Q151: 2SK882)

MIC amplifier (IC2201: µPC5023)

Tx 455 kHz Modulator (IC2301: MC1495)

USB, LSB, CW, RTTY filter (FI611: FL-65)

Rx 2nd IF amplifier (Q1301: 3SK131)

Tx 2nd IF amplifier (Q502: 2SK882)

FAN control-2 (Q3601: 2SD1664)

FAN control-1 (IC2101: NJM2058M)

SWR detector (L13: LR-391)

Tx low-pass filters (L13: LR-391)

3 - 1

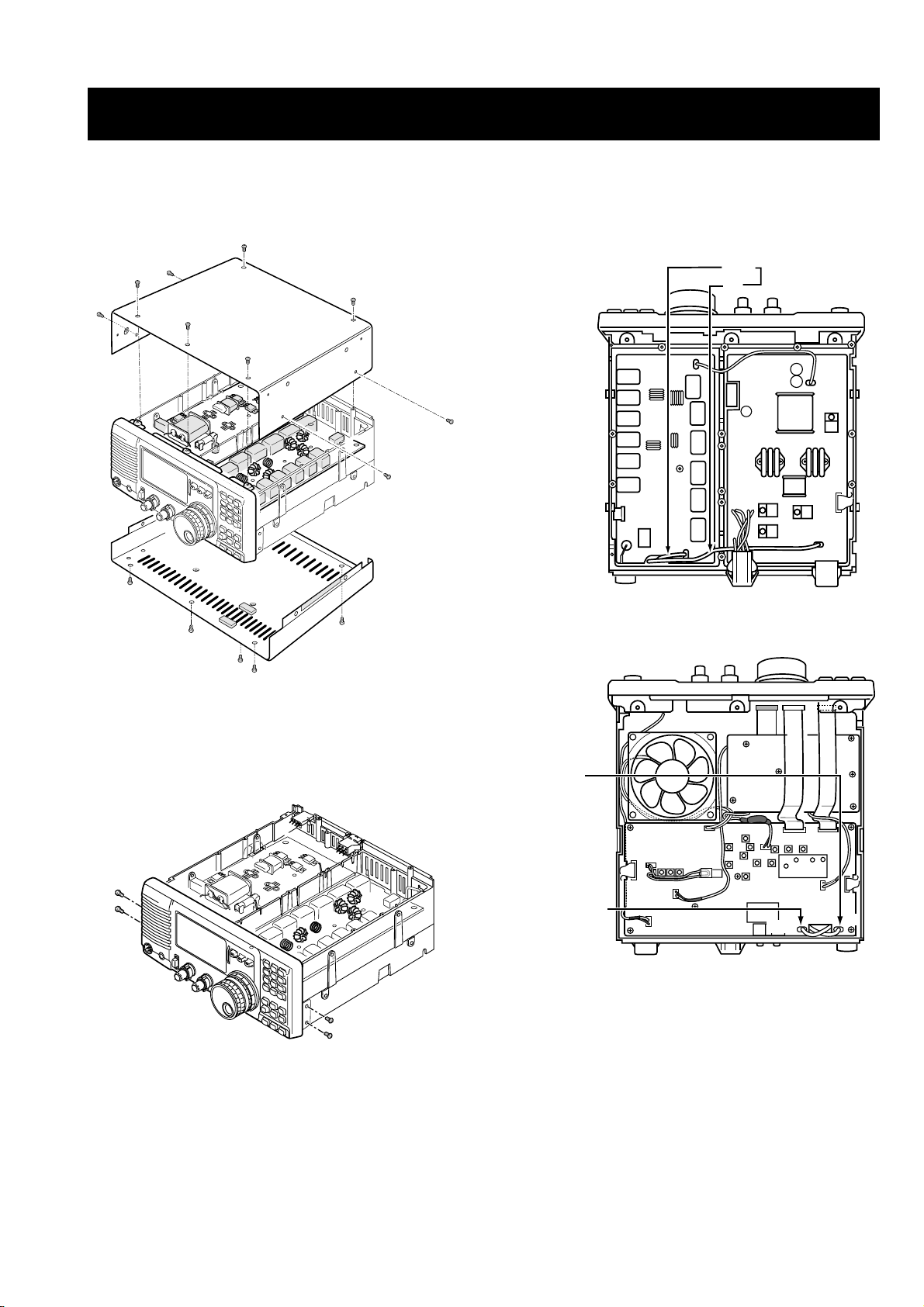

SECTION 3 DISASSEMBLY INSTRUCTIONS

• Removing the covers

Remove 14 screws from the top and bottom covers.

• Removing the Front unit

Remove 4 screws from the front panel.

• How to connect the coaxial cable

Connect the coaxial cable as shown in below.

J6

J3

to MAIN unit

PA unit

FILTER

unit

J1

J701

MAIN unit

PLL unit

J3

from FILTER unit

J6

from PA unit

J701

J1

SECTION 4 CIRCUIT DESCRIPTION

4 - 1

4-1 RECEIVER CIRCUITS

4-1-1 RF SWITCHING CIRCUIT

(FILTER AND MAIN UNITS)

The RF switching circuit leads receive signals to bandpass filters from the antenna connector while receiving. While transmitting, this circuit leads signals from the RF power amplifier to the antenna connector. This circuit includes a 20 dB RF attenuator circuit to prevent distortion from very strong signals.

RF signals from the antenna connector pass through the transmit/receive switching relay (RL13), and low-pass filter (L14, C14–C16), and are then applied to the MAIN unit via J3 (MAIN unit; J701).

The signals from the FILTER unit are either bypassed or are attenuated at the 20 dB attenuator (D701, R703). The signals are then applied to RF filters.

4-1-2 RF BANDPASS FILTER CIRCUIT

(MAIN UNIT)

RF bandpass filters pass only the desired band signals and suppress any undesired band signals.

The RF circuit has 7 RF bandpass filters (BPF) for signals above 1.6 MHz and 1 low-pass filter (LPF) for signals and suppress any undesired band signals.

(1) 0.03–1.6 MHz

The signals pass through the low-pass filter (L821, L822, C822–C824) to suppress unwanted frequencies. The filtered signals are bypassed a pre-amplifier by a BPF control signal (B0) and preamp control signal (PROF), and are then applied to the 1st mixer circuit (Q1101–Q1104).

(2) 1.6–2.0 MHz

The signals pass through a bandpass filter (L831–L833, L835, L836, C831–C834, C837–C840) to suppress unwanted frequencies. The filtered signals are then applied to the pre-amplifier circuit.

(3) 2.0–30.0 MHz

The signals pass through a high pass filter (L811–L814, C811–C817) to suppress excessively strong signals below

2.0 MHz, such as from broadcasting stations. The filtered signals are applied to a low-pass filter and one of 5 bandpass filters depending on their frequencies and are then applied to the pre-amplifier circuit.

4-1-3 PRE-AMPLIFIER CIRCUIT (MAIN UNIT)

The pre-amplifier circuit uses two 2SK2171s to obtain 10 dB of gain over a wideband frequency range. When the preamplifier is turned ON, the signals above 1.6 MHz are applied to the pre-amplifier circuit.

Q1401 and Q1402 are connected in parallel to easily match the impedance to 50 Ω. IC3003 (pins 11, 12) switches the signals from a bandpass filter, either to be bypassed, or to be applied to the pre-amplifier, depending on the [PREAMP] switch condition.

Amplified or bypassed signals are applied to the 1st mixer circuit (Q1102–Q1104)

4-1-4 1ST MIXER CIRCUIT (MAIN UNIT)

The 1st mixer circuit mixes the receive signals with the 1st LO signal to convert the receive signal frequencies to a

64.455 MHz 1st IF signal.

• Used RF filter

Band

0.03–1.6 MHz

1.6–2 MHz 2–4 MHz 4–8 MHz

Band

8–11 MHz 11–15 MHz 15–22 MHz 22–30 MHz

Control

signal

B4 B5 B6 B7

Control

signal

B0 B1 B2 B3

Input diode

D802

1

⁄2

D8021⁄2

D803 D810

Input

diode

D804 D811 D805 D812

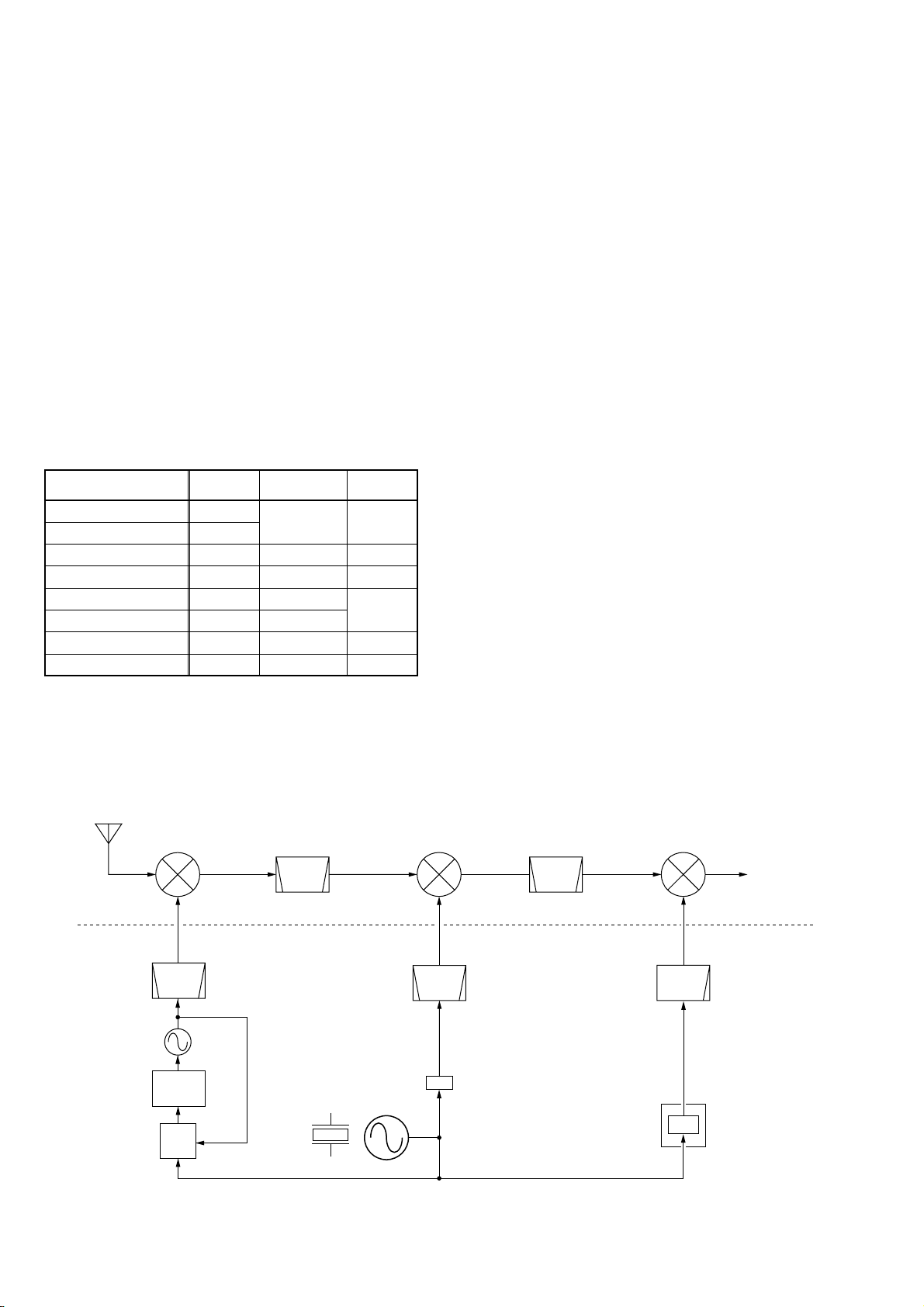

• RECEIVER CONSTRUCTION

ANT

1st mixer

Q1101–Q1104

1st LO

FI301A/B

Crystal

filter

64.455 MHz

2nd mixer

D401

2nd LO

Ceramic

BPF

455 kHz

SSB, CW, RTTY

Ceramic

BPF

FI611

AM

SSB-N,

CW-N,

RTTY-N

Crystal

BPF

(OPTION)

AM

detector

IC2001

BFO

AF

selector

SQL controll

to AF amplifier

4 - 2

The signals from the pre-amplifier circuit, or signals which bypass the pre-amplifier, pass through a low-pass filter (L902, L903, C902–C907). This low-pass filter suppresses signals above 30 MHz to eliminate direct receiving of signals at 64.455 MHz and image interference at 130–160 MHz. The signals are then applied to the 1st mixer (Q1102–Q1104).

The 1st LO signal (64.485–94.455 MHz) enters the MAIN unit from the PLL unit via J201 (PLL unit; J4). The LO signal is amplified at Q201 and then applied to the 1st mixer.

The 1st mxer (Q1101–Q1104) uses four 2SK1740s to pro- duce high level mixing with a high intercept point.

4-1-5 1ST IF CIRCUIT (MAIN UNIT)

The 1st IF circuit filters and amplifies the 1st IF signals. The 1st IF signals from the 1st mixer circuit are applied to MCF (Monolithic Crystal Filter: Fl301) to suppress out-of-band signals. The passband width of FI301 is ±7.5 kHz/–6 dB. The filtered signals are applied to the 1st IF amplifier (Q1201). AGC voltage is supplied to the 2nd gate of Q1201.

4-1-6 2ND MIXER CIRCUIT (MAIN UNIT)

The 2nd mixer circuit mixes the amplified 1st IF signals and 2nd LO signal (64.00 MHz) to convert the 1st IF signals into a 2nd IF signal.

The amplified 1st IF signals from Q1201 are converted into 455 kHz 2nd IF signal at the 2nd mixer (D401). D401 is a DBM (Double Balanced Mixer). The 2nd LO level is approx. 0 dBm.

The 2nd IF signals are applied to FI1301 to suppress undesired signals such as the 2nd LO signal, and are then applied to the NB circuit.

4-1-7 NOISE BLANKER CIRCUIT (MAIN UNIT)

The noise blanker circuit detects pulse type noise, and turns OFF the signal line when noise appears.

The 2nd IF signals from FI1301 are applied to the noise blanker gate (D1301, D1302). A portion of the signals from

FI1301 is amplified at the noise amplifiers (Q1501, Q1502, Q1503), then detected at the noise detector (D1501). The detected signal from the noise detector is applied to the noise blanker control (Q1508, Q1509).

A portion of the detected signals from the noise detector is applied to the noise AGC circuit (Q1504, Q1505, R1514, R1519, C1512) to control the bias voltage of the noise amplifier (Q1501, Q1502).

The threshold level of the noise blanker switch (Q1508) is set at 0.9 V. When the detected voltage exceeds the threshold level, Q1509 outputs a blanking signal to close the noise blanker gate (D1301, D1302), depending on the pulse noise period. When the operating frequency is changed, the “DN_” signal line becomes “LOW”, turning Q1509 ON through D1503. In this case, the noise blanker gate prevents PLL click noise.

4-1-8 2ND IF CIRCUIT (MAIN UNIT)

The signals passed through the noise blanker gate (D1301, D1302) are amplified at Q1301. AGC voltage is supplied to the 2nd gate of Q1301.

When SSB, CW or RTTY mode is selected, the amplified signals pass through FI611 (FL-65). When an optional CW narrow filter is installed and CW-N mode is selected, the signals pass through the CW narrow filter. When AM mode is selected, the signals bypass the 2nd IF filter.

The filters are selected with mode selecting signals (SSB/CW, AM, CW-N) and the “T8V” voltage line.

The filtered signal is amplified at Q1603–Q1601 to obtain a detectable level. AGC voltage is supplied to the 2nd gate of Q1603. Two thermistors (R1612, R1617), connected to the gate of Q1602, improves the temperature characteristics of the receiver gain. R1614 adjusts the receiver gain.

While in SSB, CW or RTTY mode, outputs signal from Q1601 is applied to the product detector (IC2001). In AM mode, output signals from Q1601 are shared between the AM detector (D1901) and AGC detector (D1803).

4-1-9 BFO CIRCUIT (PLL UNIT)

BFO (Beat Frequency Oscillator) frequency is used at the SSB/CW detector and the balanced modulator. The IC-718 uses a DDS IC for the BFO circuit.

Output signals from the DDS IC (IC2) are filtered by the lowpass filter (L14, L15, C50–C54), and applied to the product detector (MAIN unit; IC2001) for receive demodulation.

• Exact 2nd IF frequency

Frequency (kHz)

453.5

456.5

454.1

455.0

Mode

LSB USB

CW

AM, CW-N

• BFO frequency in each mode

Mode

LSB

USB

CW

CW-N

AM

Receive

453.5

456.5

454.1

455.0

No output

Transmit

453.5

456.5

455.0

Frequency (kHz)

• Exact 1st IF frequency

Frequency (MHz)

64.4535

64.4565

64.4541

64.4550

Mode

LSB USB

CW

AM, CW-N

4 - 3

4-1-10 SSB/CW DEMODULATOR CIRCUITS

(MAIN UNIT)

In SSB or CW mode, the 2nd IF signal from the IF amplifier (Q1601) is mixed with the BFO signal from the PLL unit at the product detector (IC2001) to demodulate the 2nd IF signal into AF signals. The detected signals (AF) from IC2001 (pin 1) are applied to the AF input mode selector switch (IC2102).

4-1-11 AM DEMODULATOR CIRCUITS

(MAIN UNIT)

In AM mode, the 2nd IF signal from the buffer amplifier (Q1601) passes through C1905 and is detected at D1901. The detected signal (AF) is then applied to the AF input mode selector switch (IC2102).

4-1-12 AF INPUT MODE SELECTOR SWITCH

(MAIN UNIT)

The AF signal from one of the detector circuits is applied to the AF input mode selector switch (IC2102). IC2102 consists of analog switches which are selected with a mode signal and the squelch control signal. The AF signal is output from IC2102 (pin 1) and then applied to the AF amplifier circuit.

4-1-13 AGC CIRCUIT (MAIN UNIT)

The AGC (Automatic Gain Control) circuit reduces IF amplifier gain to keep the audio output at a constant level.

The voltage on the AGC line (Q1805, collector) determines the receiver gain. The voltage is usually set by D1803 and the resistance ratio of R1812 and R1813.

The 2nd IF signal from the buffer amplifier (Q1601) is detected at the AGC detector (D1803) and is then applied to the DC amplifier (Q1805). –5 V is applied to the Q1805 emitter to activate the AGC line with minus voltage.

When receiving strong signals, the detected voltage increases and the voltage of the AGC line decreases via the DC amplifier (Q1805). As the AGC line is used for the bias voltage of the IF amplifiers (Q1301, Q1201, Q1603), IF amplifier gain is decreased.

When the strong signal disappears, C1804 and R1809 release the AGC line voltage in CW or RTTYmode to obtain a fast AGC release time. While in SSB or AM mode, C1803, C1805, R1808 and C1802, R1807 are connected in parallel to obtain a appropriate AGC characteristics (middle or slow AGC release time), respectively.

4-1-14 S-METER CIRCUIT (MAIN UNIT)

The S-meter circuit indicates the relative received signal strength while receiving by utilizing the AGC voltage which changes depending on the received signal strength.

The AGC bias voltage (time constant line) is applied to a differential amplifier (IC1701, pin 13) where the difference between the bias and reference voltage is detected.

The S-meter signal is applied to the A/D converter section in the CPU (LOGIC unit; IC1, pin 1) and the S/RF indicator displays the relative signal strength.

4-1-15 SQUELCH CIRCUIT (MAIN UNIT)

The squelch circuit mutes audio output when the S-meter signal is lower than the [SQL] control setting level.

The S-meter signal from IC1701d (pin 14) is applied to the CPU (LOGIC unit; IC1) to be compared with the threshold level set by the [SQL] control. When the S-meter signal is lower than the threshold level, the CPU outputs control signal to the AF input mode selector switch (IC2102, pin 5) via the D/A converter (IC3006). This cuts the AF signal OFF. The CPU also controls turning OFF the [RX] indicator, and CPU (pin 88) outputs “SQLS” signal to the [MIC] connector (pin 6) and [ACC] connector (pin 13).

4-1-16 AF AMPLIFIER CIRCUIT (MAIN UNIT)

The AF amplifier amplifies the AF input signal to a suitable driving level for the speaker.

The AF signal from the AF input mode selector switch is applied to the AF pre-amplifier (IC2101a). The CW side tone signal is also applied to IC2101a.

The amplified signal is applied to the VCA (IC2701), and then volume controlled AF signal is power-amplified at the AF power amplifier (IC2901) to drive the speaker. The AF signal is applied to the speaker.

• AGC CIRCUIT

RFGV (RF/SQL control)

2nd IF

C1815

signal

–5 V

AGC det.

D1803

R1813

R1815

C1812

D1802

R1812

R1814

Q1805

C1813

C1814

RESET

R1806Q1801

R1810

AGC

SLOW

C1802 R1801Q1802

AGC

MIDDLE

C1803R1808Q1803

C1808

AGC

FAST

C1804R1819

R1803

13 12

IC1701d

+

Meter

amp.

–

14

AGC line

“SM” S-meter signal

8 V

SCAN

SSB CW/RTTY

AM

R1804

R1805

4 - 4

4-2 TRANSMITTER CIRCUITS

4-2-1 MICROPHONE AMPLIFIER CIRCUIT

(FRONT AND MAIN UNITS)

The microphone amplifier circuit amplifies microphone-input signals and outputs the amplified signal to the balanced modulator.

Audio signals from the [MIC] connector are applied to the MIC amplifier IC (IC2201). IC2201 consists of the microphone amplifier, microphone gain control, speech compressor and VOX function. External modulation input from the [ACC] socket (pin 11) is also applied to IC2201. The microphone bias voltage is supplied from the 8V line via R2225 and R2201.

In AM mode, the ALC circuit (IC2351b, D2381) limits maximum level of the IC2201 output. The maximum modulation level is set by R2385 (MAIN unit).

4-2-2 BALANCED MODULATOR (MAIN UNIT)

The balanced modulator converts the AF signal from the microphone amplifier to a 455 kHz IF signal with a BFO signal.

Output signals from the microphone amplifier and the CW keying signal are applied to the balanced modulator (IC2301, pin 1). The BFO signal from the PLL unit is applied to IC2301 (pin 10) as a carrier signal.

C2301 is a doubled balanced mixer IC and outputs a double side band (DSB) signal with –40 dB carrier suppression.

R2303 adjusts the balanced level of IC2301 for maximum carrier suppression. In CW mode, the CW keying signal upsets the balance to create a carrier signal. In AM mode, Q2302 and R2321 upset the balance to create an AM carrier signal.

4-2-3 CW KEYING CIRCUIT (MAIN UNIT)

When the CW key is closed, control signal is output from CPU (LOGIC unit) and controls break-in operation, the side tone signal.

The input signal (DOT or DAS) from CW keyer is applied to the CPU (LOGIC unit; IC1, pins 71, 70) and then CPU outputs CW control signal (KDS) from pin 77. The CW control signal is applied to the balanced modulator (IC2301) via Q3701, Q3702, D3701 to unbalance the IC2301 input bias voltage and create a carrier signal. R3703 determines the transmit delay timing.

4-2-4 IF AMPLIFIER (MAIN UNIT)

The SSB/CW/RTTY 455 kHz IF signal passes through FI611 (FL-65) to suppress unwanted sideband signals, then the signal is applied to a transmit IF amplifier (Q502). The optional CW narrow filter is not used in transmitting.

The amplified signal from Q502 is mixed with the 2nd LO signal and converted to a 64.455 MHz IF signal at D401. D401 is used in receiving and transmitting. The AM signal bypasses FI611, and is amplified at Q502 and is then applied to D401.

The 64.455 MHz IF signal is filtered at FI301, amplified at the IF amplifier (Q151) and is then converted to the displayed frequency at the balanced mixer (Q101, Q102) with the 1st LO signal.

The gates of the IF amplifiers (Q151, Q502) are controlled by ALC bias voltage from the ALC circuit. A thermistor (R508), connected to the gate of Q502, improves the temperature characteristics of the transmitter gain. R503 adjusts the total transmitter gain.

4-2-5 RF CIRCUIT (MAIN AND PA UNITS)

The displayed frequency signal converted at the balanced mixer (MAIN unit; Q101, Q102) is applied to the bandpass filter (L101–L103, C101–C107) where unwanted LO signal emission is reduced. The filtered signal is attenuated at R5–R7 and amplified at IC1, and is then applied to the PA unit via the attenuator (R1–R3).

The signals from the MAIN unit are amplified at the predrive amplifier (Q1), drive amplifier (Q2, Q3) and power amplifier (Q4, Q5) in the PAunit to obtain a stable 100 W of RF output power.

The predrive amplifier is a class-A amplifier with a VCC of

13.8 V. The drive amplifier is a class-AB push-pull amplifier with a VCC of 13.8 V. D1 controls bias voltage to the drive amplifier.

The impedance of the signal from the drive amplifier is converted at L2, and then the signal is applied to the power amplifier (Q4, Q5). The power amplifier is a class-AB pushpull amplifier and amplifies the input signal to 100 W. D2 and D3 control bias voltage to the power amplifier. The signal from the power amplifier is applied to one of the low-pass filters in the FILTER unit.

4-2-6 LOW-PASS FILTER CIRCUIT (FILTER UNIT)

The low-pass filter circuit consists of 6 Chebyschev lowpass filters to suppress the higher harmonic components. The signal from the power amplifier (Q4, Q5) is applied to one of the low-pass filters (depending on its frequency). The filter switching voltage from the MAIN unit (J4001) is applied to the FILTER unit via J1.

The filtered signal passes through the SWR detector circuit (L13) and is then applied to the antenna connector.

4-2-7 ALC CIRCUIT (MAIN UNIT)

The ALC (Automatic Level Control) circuit controls the gain of IF amplifiers in order for the IC-718 to output a constant RF power set by the [RF PWR] control even when the supplied voltage shifts, etc.

The “FOR” voltage from the FILTER unit is applied to IC1701c (pin 9) in the MAIN unit. The “POCV” voltage from the D/A converter (IC3301, pin 2), determined by the RF power setting, is applied to IC1701c (pin 10) as the reference voltage.

4 - 5

When the “FOR” voltage exceeds the “POCV” voltage, ALC bias voltage from IC1701c (pin 8) controls the IF amplifiers (Q151, Q502). This adjusts the output power to the determined level by the RF power setting until the “FOR” and “POCV” voltages are equalized.

In AM mode, Q1705 turns ON and C1707, C1708 are connected to the “FOR” voltage line to obtain an averaging ALC operation. Q1706 turns ON and the “POCV” voltage is shifted for 40 W AM output power (maximum) through R1730.

An external ALC input from the [ACC] socket or the [ALC] jack is applied to the buffer amplifier (Q1703). External ALC operation is identical to that of the internal ALC.

4-2-8 APC CIRCUIT (MAIN UNIT)

The APC (Automatic Power Control) circuit protects the power amplifiers on the PAunit from high SWR and excessive current.

Areflected wave signal appears and increases on the antenna connector when the antenna is mismatched. D3 of the SWR detector circuit (L13, D2, D3) in the FILTER unit detects the signal and applies it to IC1701b in the MAIN unit as the “REF” signal. When the “REF” signal level increases, IC1701b decreases the ALC line voltage via R1716 to activate the ALC.

For the current APC, the power transistor current is obtained by detecting the voltage (“ICH” and “ICL”) which appear at both terminals of a 0.012 Ω resistor (PA unit; R25). The detected voltage is applied to the differential amplifier (IC1701a, pins 2, 3). When the current of the final transistors is more than 22 A, IC1701a controls the ALC line via D1705 to prevent excessive current flow.

During tuning of an antenna with an optional AH-4, The “PODN” signal turns Q51 ON. As a result, the “POCV” voltage is shifted for approx. 10 W output power.

4-2-9 TEMPERATURE PROTECTION CIRCUIT

(MAIN UNIT)

A cooling fan (CHASSIS; MF1) is activated while transmitting or if the temperature of Q4 (PAunit) exceeds the preset value.

While transmitting, PAT8 voltage is provided to MF1 via R30. Thermistor R30 on the PA unit detects the temperature of Q4. If the Q4 temperature is more than 50˚C (122˚F), R30 becomes very low impedance. Then TEMP signal from PA unit is applied to the A/D converter section of the CPU (IC1, pin 92) in the LOGIC unit as PATL signal. And the CPU outputs control signal to rotate the cooling fan at high speed via the I/O expander (IC3301)– even when the transceiver condition has changed from transmit to receive.

4-2-10 RF METER CIRCUIT (MAIN UNIT)

The “FOR” voltage from the FILTER unit is applied to the RF meter amplifier (IC1751a, pin 2) via the ALC amplifier (IC1701c). The amplified voltage is output from IC1751a (pin

1) and then applied to the A/D converter section of the CPU (IC1, pin 99) in the LOGIC unit.

4-3 PLL CIRCUITS

4-3-1 GENERAL DESCRIPTION

The PLL unit contains 2 DDS circuits for generating a 1st LO signal (64.485–94.455 MHz variable) and a BFO frequency (453.5–456.5 kHz). The 1st LO PLL employs a 1 loop DDS PLL whose reference oscillator is also used as the 2nd LO signal (64.00 MHz fixed). The DDS (Direct Digital Synthesizer) circuit performs signal-sampling, generation of digital sine wave and digital phase detection.

4-3-2 1ST LO CIRCUIT (PLL UNIT)

The PLL contain one VCO circuit (Q18, D4) for all HF band coverage within 1 Hz step. The VCO oscillation signal is buffer-amplified at Q26 and is then amplified at Q29, Q32 and Q30. The resulting signal is applied to the DDS IC (IC6).

The DDS IC outputs pulse-type signals. The signals are applied to the loop filter to be converted into DC voltage (lock voltage).

The lock voltage is applied to the varactor diode (D4) in the VCO circuit to change the capacitance of this diode and control the oscillation frequency.

The VCO oscillating signal is then buffer-amplified at the buffer amplifier (Q26), amplified at Q28, and finally applied to the MAIN unit as a 1st LO signal.

• ALC CIRCUIT

R1712R1729 R1714

R1709 R1708

R1707

AMS

RF power setting

14V

D1706

Q1705

IC3301

D/A

converter

Q1706

D1707

D1701 D1703

C1707 C1706

R1703

R1730

D1702

REF voltageFOR voltage

8V

POCV line

R1706

–5V

R1713

6

10

5

92

–

+

–

+

11

ALC amp.

4

ALC amp.

IC1701b

7

R1710

IC1701C

8

R1716

R1711

D1704

ALC

Q1703

C1744

EALC (external ALC)

R1725 R1724

4 - 6

4-3-3 REFERENCE OSCILLATOR CIRCUIT

(PLL UNIT)

The reference oscillator circuit consists of Q9 and X1. A

32.00 MHz reference frequency is oscillated to produce a 2nd LO signal, DDS reference frequency and BFO DDS clock signal.

The 32.00 MHz reference frequency is doubled at Q10 to obtain the 2nd LO signal. The resulting 64.00 MHz signal is filtered at the bandpass filter and is then applied to the MAIN unit via J1 as the 2nd LO signal.

4-4 LOGIC CIRCUITS

4-4-1 BAND SELECTION DATA (MAIN UNIT)

To selection the correct bandpass filter and low-pass filter, the CPU outputs the following band selection data from the I/O expander (MAIN unit; IC3001) depending on the displayed frequency.

4-4-2 RIT CONTROL (FRONT UNIT)

The [RIT] control shifts the “RIV” voltage in order to shift the receive frequency. The voltage is applied to the A/D converter section of the CPU (IC1, pin 1). The CPU shifts the Ndata for the DDS IC.

4-4-3 CPU (LOGIC UNIT)

The CPU (IC1) contains an 8-bit CMOS CPU, a 60 k-byte ROM, a 2 k-byte RAM. A9.8304 MHz clock is used for rapid operation. The CPU controls the operating frequency , mode, function display, etc. The memory channel information is stored in the EEPROM (IC2).

The Icom CI-V network system allows the IC-718 to be remotely controlled by a personal computer using an RS232C I/O port.

4-5 REGULATOR CIRCUITS

Either +8 V, +5 V or –5 V DC is supplied from a corresponding regulator circuit. +8 V, +5 V and –5 V DC are regulated at the following circuits using 13.8 V DC.

(1) +5 V REGULATOR (FRONT UNIT)

+ 5 V DC is provided by a three-terminal voltage regulator (IC4).

(2) + 8 V REGULATOR (MAIN UNIT)

+ 8 V DC is provided by a three-terminal voltage regulator (IC17).

(3) –5 V REGULATOR (MAIN UNIT)

IC16 generates a negative pulse-type voltage by converting the DC input to AC voltage (approx. 6.7 kHz) as a multivibrator. The voltage is rectified at D80 and D81, regulated by a Zener diode (D82) and C249, and is then applied to the MAIN and PLL units.

• Band selection data

Band

0.03–1.59999 MHz

1.6–1.99999 MHz

2.0–3.99999 MHz

4.0–7.99999 MHz

8.0–10.99999 MHz

11.0–14.99999 MHz

15.0–21.99999 MHz

22.0–30.00000 MHz

Band

voltage

7.4 V

6.0 V

5.0 V 0 V

4.0 V

3.1 V

2.2V

BPF

B0 B1 B2 B3 B4 B5 B6 B7

LPF

L1

L2 L3

L4

L5 L6

• FREQUENCY CONSTRUCTION

ANT

1st mixer

Q1101–Q1104

64.485–

97.455 MHz

BPF

Q18

Loop

filter

DDS

IC6

64.455 MHz Crystal

filter

Reference oscillator X1: 32.0 MHz

2nd mixer

D401

BPF

✕2

Q9

64.0 MHz

Q10

MAIN unit

455 kHz

BPF

PLL unit

Demodulator

BFO2nd LO1st LO

453.3–

456.5 kHz

LPF

DDS

to AF circuit

IC2

SECTION 5 ADJUSTMENT PROCEDURES

5 - 1

5-1 PREPARATION BEFORE SERVICING

■ REQUIRED TEST EQUIPMENT

DC power supply

RF power meter (terminated type)

Frequency counter

RF voltmeter

Modulation analyzer

Distortion meter

Oscilloscope

Digital multimeter

Spectram analyzer

Standard signal generator (SSG)

AC millivoltmeter DC voltmeter DC ammeter

Audio generator

Attenuator

External speaker

Terminator

EQUIPMENT GREDE AND RANGE EQUIPMENT GREDE AND RENGE

Output voltage : 13.8 V DC Current capacity : 30 A or more

Measuring range : 10–200 W Frequency range : 1.8–30 MHz Impedance : 50 Ω SWR : Less than 1.2 : 1

Frequency range : 0.1–100 MHz Frequency accuracy : ±0.5 ppm or better Sensitivity : 100 mV or better

Frequency range : 0.1–100 MHz Measuring range : 0.01–10 V

Frequency range : At least 30 MHz Measuring range : 0–100 %

Frequency range : 1 kHz ±10 % Measuring range : 1–100 %

Frequency range : DC–20 MHz Measuring range : 0.01–10 V

Imput impedance : 10 MΩ/DC or beter

Frequency range : At least 90 MHz Spectraum bandwidth : 100 kHz or more

Frequency range : 0.1–100 MHz Output level : 0.1 µV–32 mV

(–127 to –17 dBm) Measuring range : 10 mV–10 V Input impedance :

50 kΩ/V DC or better Measurement capability: 1 Aand 30 A Frequency range : 300–3000 Hz

Measuring range : 1–500 mV Power attenuation : 50 or 60 dB

Capacity : 150 W or more Input impedance : 8 Ω

Capacity : 5 W or more Resistance : 50 and 150 Ω

Capacity : 150 W or more

‘‘

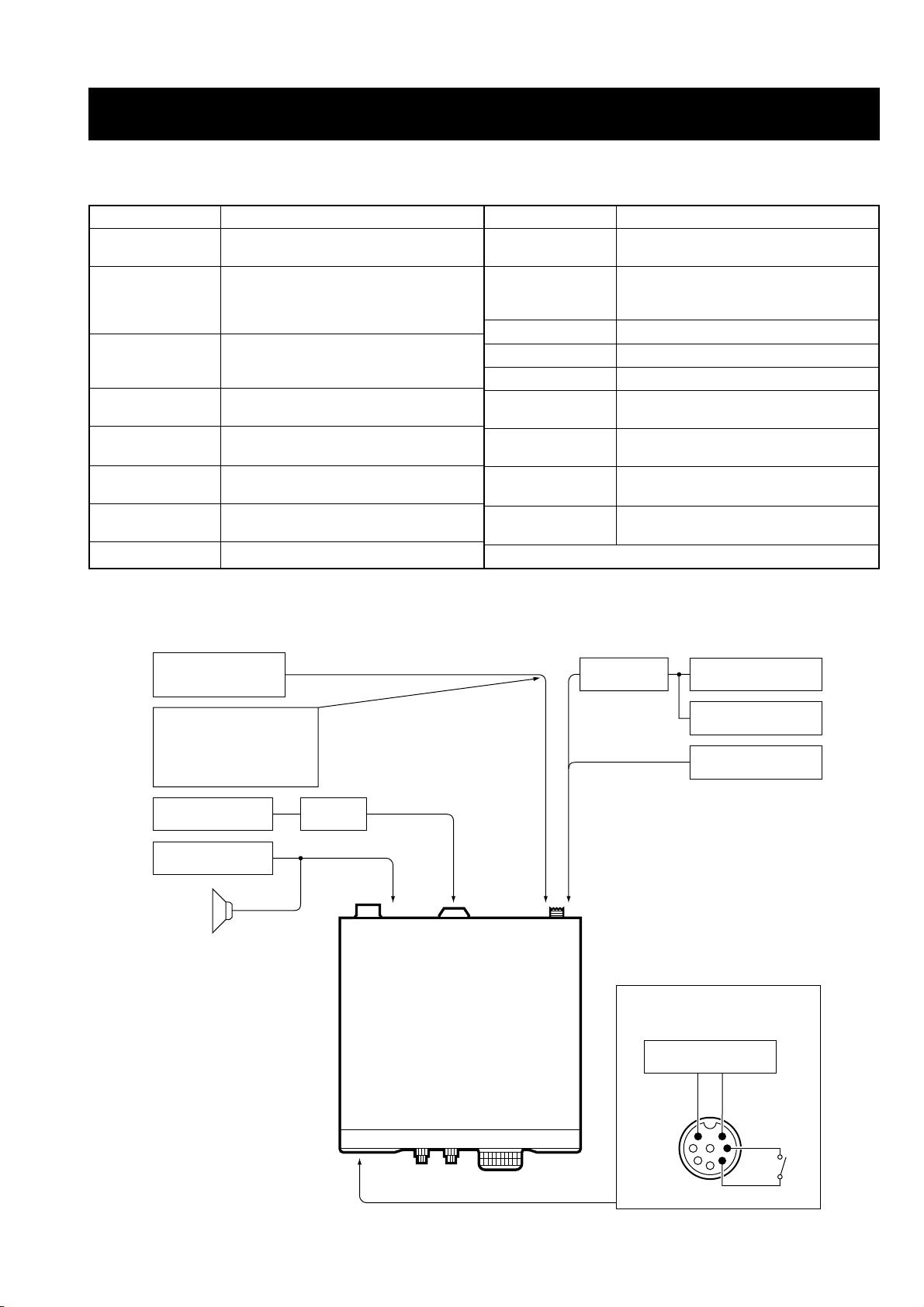

CONNECTIONS

Standard signal

DO NOT transmit while

an SSG is connected to the antenna connector.

DC power supply Ammeter

Distortion meter

Speaker

generator

CAUTION !

to [DC 13.8 V]

to [EXT SP]

IC-718

Attenuator

to the antenna connector

• Microphone connector

(Front panel view)

Audio generator

,

Modulation analyzer

Spectrum analyzer

RF power meter

.

Pin 1 Pin 7

Pin 6

PTT

Pin 5

5 - 2

5-2 PLL ADJUSTMENTS

REFERENCE FREQUENCY

VCO LOCK VOLTAGE

1ST LO OUTPUT LEVEL

2ND LO OUTPUT LEVEL

BFO OUTPUT

ADJUSTMENT

ADJUSTMENT ADJUSTMENT CONDITION

MEASUREMENT

VALUE

POINT

UNIT LOCATION UNIT ADJUST

1

2

3

1

2

1

2

1

2

3

• Display frequency: Any

• Set C16 as illustration at below.

• Receiving

• Display frequency: 29.99999 MHz

• Receiving

• Display frequency: 0.03000 MHz

• Receiving

• Display frequency: 29.99999 MHz

• Mode : USB

• Receiving

• Display frequency: 0.03000 MHz

• Mode : LSB

• Receiving

• Display frequency: 14.10000 MHz

• Mode : USB

• Receiving

• Display frequency: 14.10000 MHz

• Mode : USB

• Receiving

• Mode : AM

• Receiving

PLL

Connect a frequency counter to check point P1.

Connect an RF voltmeter to check point P1.

Connect a digital multimeter or oscilloscope to check point CP1.

Connect an RF voltmeter to check point P4.

Connect an RF voltmeter to check point P1.

Connect an RF voltmeter to check point P5.

Connect a frequency counter to check point P5.

64.00000 MHz

Maximum level

4.15 V

More than 0.8 V

–3 dBm to +3dBm

–2 dBm to +4 dBm

–18 dBm to –12 dBm

456.5 kHz

No output

PLL

L4

L6, L7

C165

Verify

Turn L6, L7 on the PLL unit to downside for presetting until the frequency counter reads frequency.

• PLL unit (bottom view)

CP1

C16

CP1

VCO lock voltage check point

5 - 3

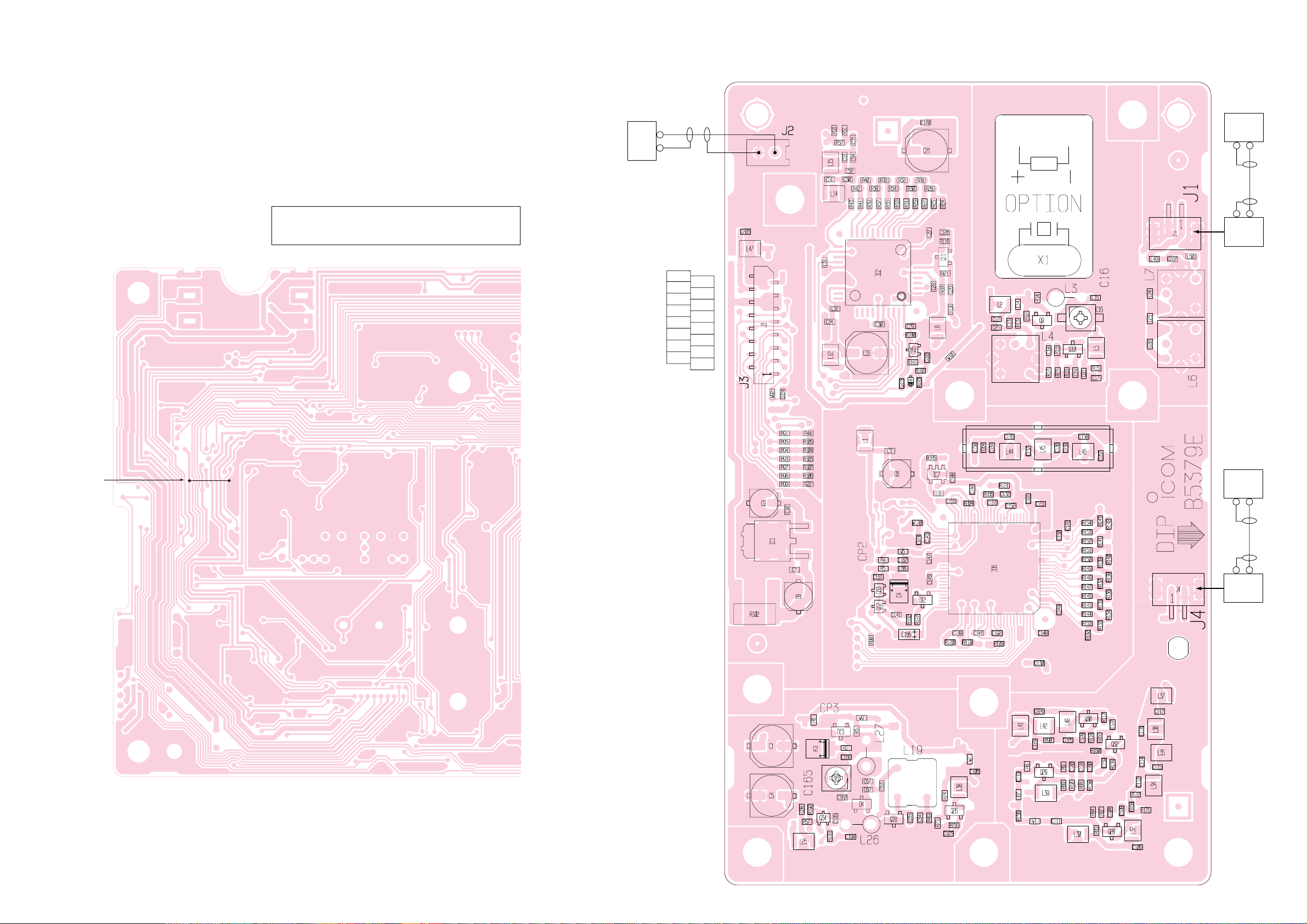

• PLL unit

P5

BFO check point

L4

Reference freauency adjustment

BFO

2nd LO

1 2

J2

J1

P2

2

1

2

1

P1

Reference frequency check point

C7

Reference OSC level adjustment

C6

C16

Reference frequency pre-setting

1st LO

P4

2

1

1st LO output level check point

J4

2

1

P3

C165

VCO lock voltage adjustment

5 - 4

5-3 TRANSMITTER ADJUSTMENTS

IDLING CURRENT (for driver)

(for final amplifier)

SWR DETECTOR

TRANSMITTER TOTAL GAIN

OUTPUT POWER

Ic APC

ADJUSTMENT

ADJUSTMENT ADJUSTMENT CONDITION

MEASUREMENT

VALUE

POINT

UNIT LOCATION UNIT ADJUST

1

2

1

2

1

2

1

• Display frequency: 14.10000 MHz

• Mode : USB

• RF power : Minimum (L)

• Mic gain : Minimum (0)

• Disconnect J3601 (MAIN unit) and preset R21, R24 (PA unit) to max. counter clockwise.

• Transmitting

• Display frequency: 14.10000 MHz

• Mode : USB

• RF power : Maximum (H)

• Connect J4 (FILTER) unit to GND.

• Connect an audio generator to [MIC] connector and set as:

Frequency : 1.5 kHz Level : 30 mVrms

• Transmitting

• Display frequency: 14.10000 MHz

• Mode : USB

• RF power : Maximum (H)

• Mic gain : Center (50)

•

R2701 (MAIN unit)

: Center

• Connect an audio generator to [MIC] connector and set as:

Frequency : 1.5 kHz Level : 3 mVrms

• Transmitting

• Display frequency: 14.10000 MHz

• Mode : USB

• RF power : Maximum (H)

• MIC gain : Center (50)

• Connect an audio generator to [MIC] connector and set as:

Frequency : 1.5 kHz Level : 30 mVrms

• Transmitting

• Display frequency: 3.55000 MHz

• Mode : USB

• Connect CP4002 (MAIN unit) to GND.

• RF power : Maximum (H)

• Mic gain : Center (50)

• Connect an audio generator to [MIC] connector and set as:

Frequency : 1.5 kHz Level : 30 mVrms

• Transmitting

PA

Rear

panel

FILTER

Rear

panel

Rear

panel

Rear

panel

Connect an ammeter (3 A) between power supply and the IC-

718.

Connect an RF power meter to [ANT] connector.

Connect a digital multimeter or oscilloscope to J5.

Connect an RF power meter to [ANT] connector.

Connect an ammeter (30A) between power supply and the IC-

718.

At the point where the Tx current Increases 200 mA.

At the point where the Tx current Increases 400 mA.

100 W

Minimum voltage

Maximum output

power

50 W

100 W

22 A

PA

Front panel

FILTER

MAIN

R21

R24

Mic gain control in the quick set mode

C17

L106, L151, L301, L302, L303, L501

R503

R1707

R1720

After adjustment, connect J3601 on the MAIN unit.

After adjustment, disconnect J4 on the FILTER unit from GND.

After adjustment, disconnect CP4002 on the MAIN unit from GND.

5 - 5

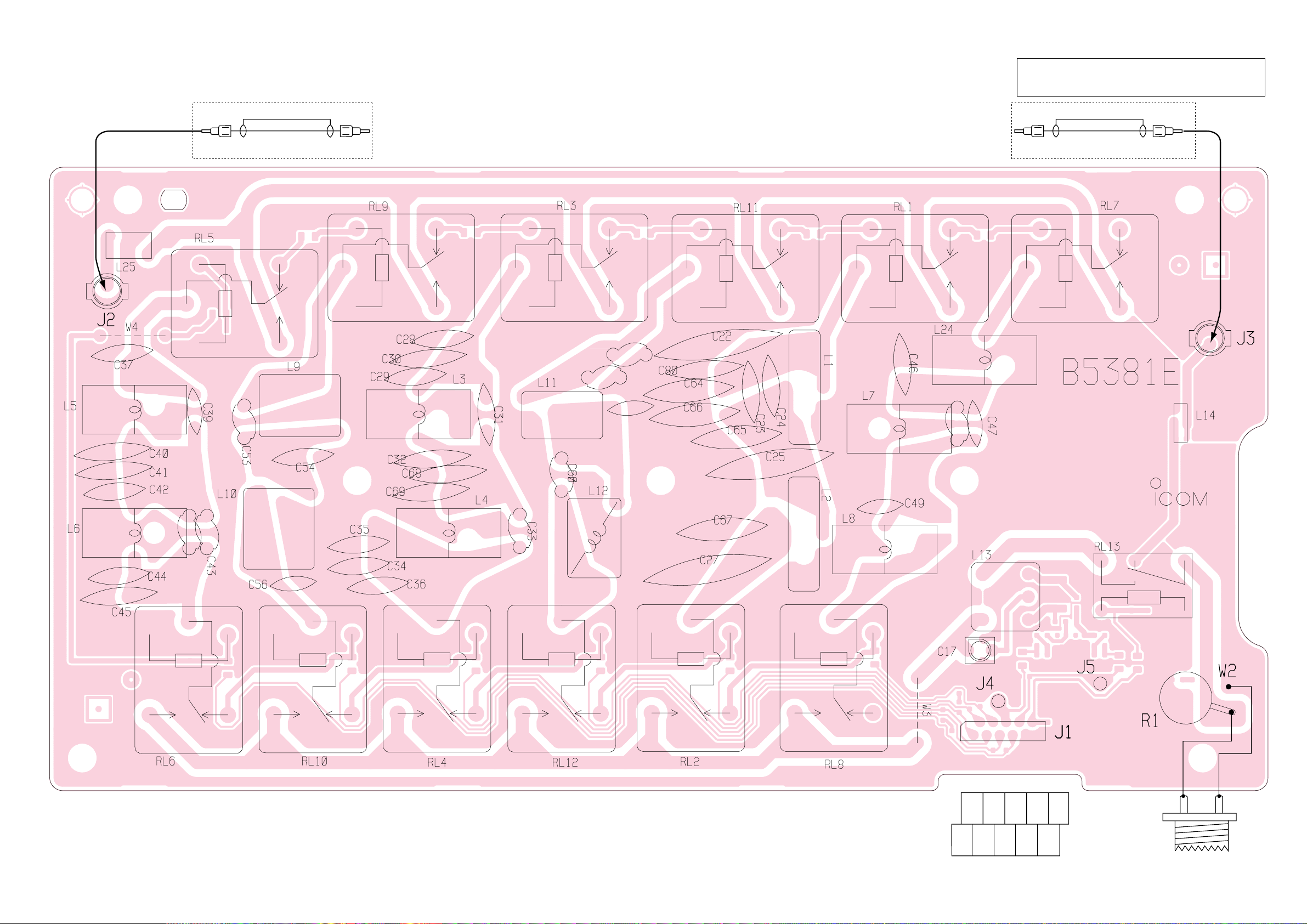

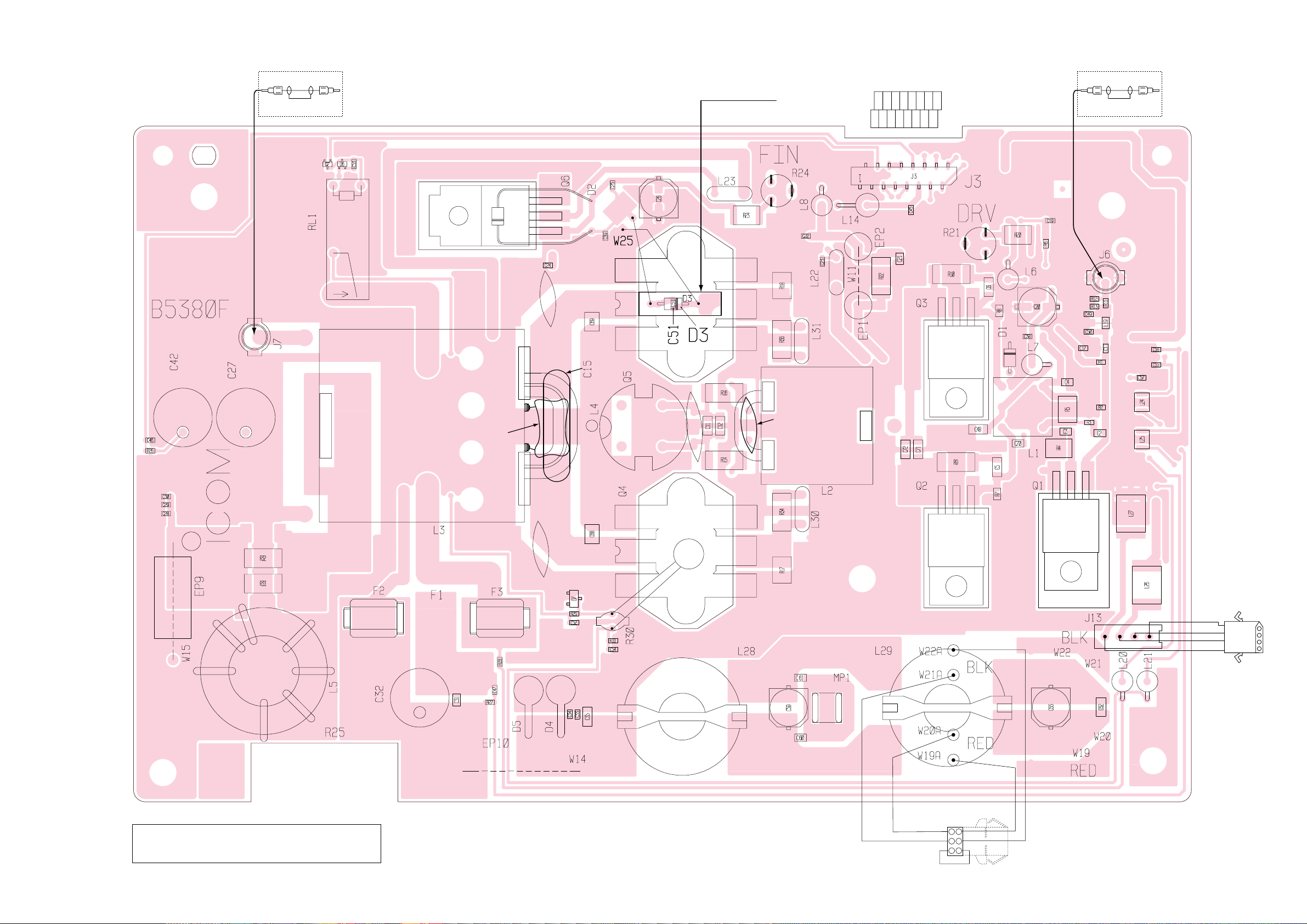

• PA unit • FILTER unit

• MAIN unit

R21

Idling current adjustment (Driver)

J5

SWR detector check point

J4

SWR detector pre-setting

R24

Idling current adjustment (Final)

Tx total gain adjustment

C17

SWR detector adjustment

CP4002

Ic APC pre-setting

L106 L151

L301

L302

L303

J3601

Idling current pre-setting

R1720

Ic APC adjustment

R1707

Output power adjustment

L501

R503

R2701

Tx total gain pre-setting

5 - 6

TRANSMITTER ADJUSTMENTS—continued

CARRIER SUPPRESSION

AM CARRIER

AM MODULATION

CW CARRIER

ADJUSTMENT

ADJUSTMENT ADJUSTMENT CONDITION

MEASUREMENT

VALUE

POINT

UNIT LOCATION UNIT ADJUST

1

2

1

• Display frequency: 14.10000 MHz

• Mode : USB

• Mic gain : Minimum (0)

• Apply no audio signals to [MIC]

connector.

• Transmitting

• Display frequency: 14.10000 MHz

• Mode : AM

• RF power : Maximum (H)

• Mic gain : Minimum (0)

•

R2321 (MAIN unit)

: Center

•

R2385 (MAIN unit)

: Center

• Apply no audio signals to [MIC] connector.

• Transmitting

• Display frequency: 14.10000 MHz

• Mode : AM

• RF power : Maximum (H)

• Mic gain : Center (50)

•

R2385 (MAIN unit)

: Center

• Connect an audio generator to [MIC] connector and set as:

Frequency : 1 kHz Level : 30 mVrms

• Transmitting

• Set an AG as:

Frequency : 1 kHz Level : 3 mVrms

• Transmitting

• Display frequency: 14.10000 MHz

• Mode : CW

• RF power : Maximum (H)

• Connect a keyer to the [KEY] jack.

• Key down (transmitting)

Rear

panel

Rear

panel

Rear

panel

MAIN

Connect a spectrum analyzer to the [ANT] connector through an attenuator.

Connect an RF power meter to [ANT] connector.

Connect a modulation analyzer to the [ANT] connector through an attenuator.

Connect an oscilloscope to CP3701 and [ANT] connector.

Minimum carrier level

40 W

90% modulation

70% modulation

Adjust as follows:

MAIN

R2303

R1730

R2321

Verify

R3703

Keying (CP3701)

10 msec.

5 - 7

• MAIN unit

CP3701

CW carrier check point

R3703

CW carrier adjustment

R1730

AM carrier adjustment

R2303

Carrier suppression adjustment

R2321

AM modulation adjustment (or AM carrier pre-setting)

R2385

AM carrier and AM modulation pre-setting

5 - 8

*This output level of a standard signal generator (SSG) is indicated as SSG’s open circuit.

5-4 RECEIVER ADJUSTMENTS

Receiver total gain adjustment must perform after transmitter total gain adjustment.

RECEIVER TOTAL GAIN

NOISE BLANKER

ADJUSTMENT

ADJUSTMENT ADJUSTMENT CONDITION

MEASUREMENT

VALUE

POINT

UNIT LOCATION UNIT ADJUST

1

2

1

2

• R2701 (MAIN unit): Center

• Turn R1614 (MAIN unit) to 90

˚

counter clockwise from center position.

• Display frequency: 14.10000 MHz

• Mode : USB

• [RIT] : OFF (Center)

• [NB] : OFF

• [P.AMP] : ON

• [ATT] : OFF

• Connect an SSG to [ANT] connec-

tor and set as:

Frequency : 14.10150 MHz Level : 1.0 µV* (–107 dBm) Modulation: OFF

• Receiving

• [P.AMP] : OFF

• [ATT] : OFF

• Set an SSG as:

Level : 1.0 mV* (–47 dBm)

and OFF

• Receiving

• Display frequency: 14.10000 MHz

• Mode : USB

• [P.AMP] : ON

• [NB] : OFF

• Connect an SSG to [ANT] connec-

tor and set as:

Frequency : 14.10150 MHz Level : 3.2 µV* (–97 dBm)

Modulation: OFF and apply following signal to [ANT] connector.

• Receiving

• [NB] : ON

• Receiving

Rear

panel

MAIN

Connect an AC millivolt meter to [EXT SP] connector with an 8 Ω load.

Connect an oscilloscope to check point CP1501.

Maximum audio output level

30 dB of AF level difference

Maximum noise waveform

The noise must be blanked

MAIN

L1103, L1201, L1202, L1621,

R1614

L1501, L1502

Verify

100 msec.

1 msec.

5 - 9

• MAIN unit

L1103

Rx total gain adjustment

L1201

L1202

L1621

L1614

L1502 L1501

Noise blanker adjustment

CP1501

Noise blanker check point

R2701

Rx total gain pre-setting

5 - 10

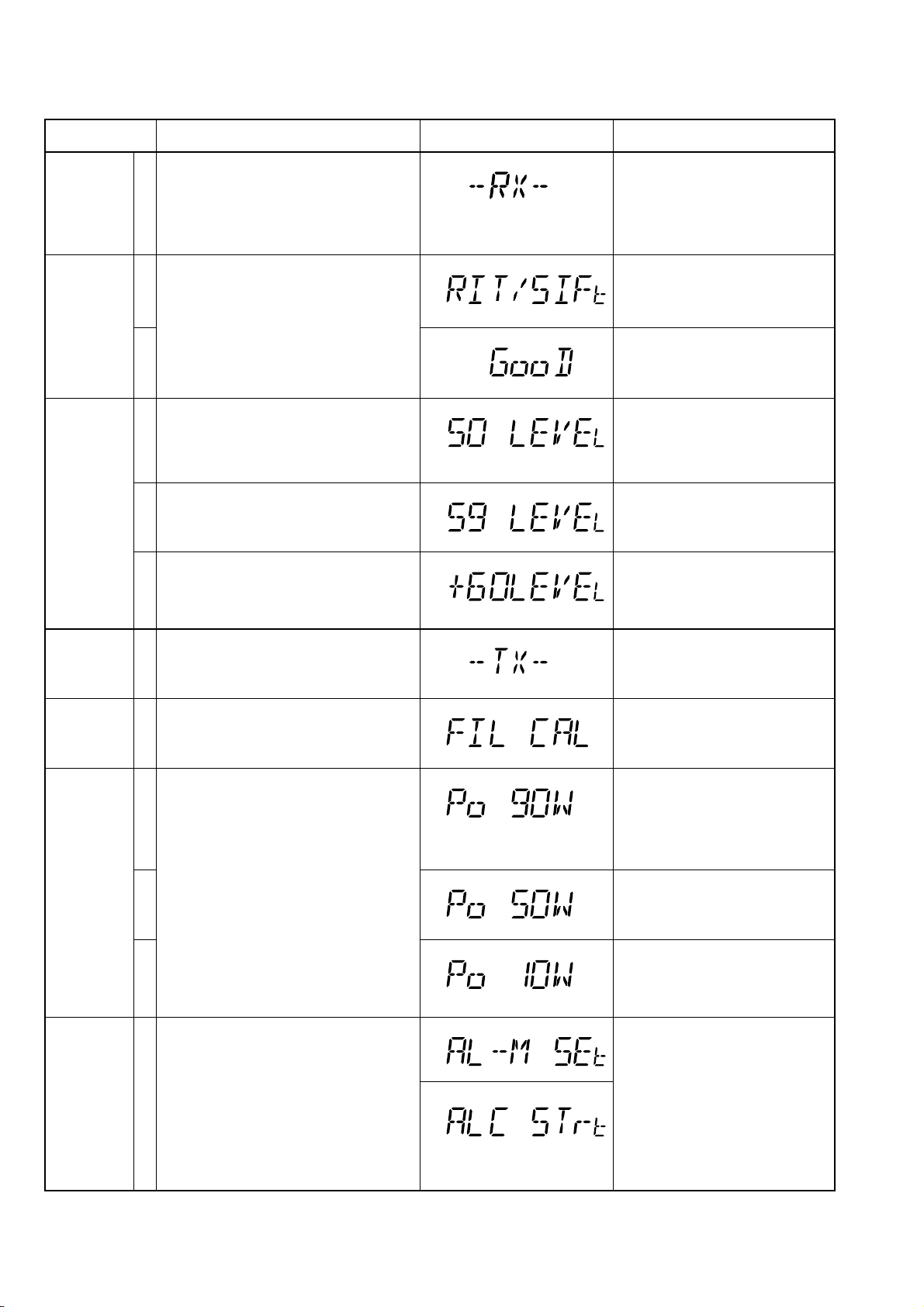

5-5 SET MODE ADJUSTMENT

ENTERING SET MODE ADJUSTMENT FOR RX

VOLUME CENTER

S METER

SET MODE ADJUSTMENT FOR TX

FILTER CALIBRATION

POWER METER

ALC METER

ADJUSTMENT ADJUSTMENT CONDITION DISPLAY OPERATION

• Enter set mode adjustment for RX:

1 Turn power OFF. 2 Terminate the [REMOTE] jack with a

3.5(d) mm mini-plug.

3 While pushing [MODE] and [TS]

keys, turn power ON.

• Set the [RIT] and [SHIFT] controls to center.

• Connect a standard signal generator to [ANT] and set as :

Frequency : 14.15150 MHz Level : OFF

• Receiving

• Set an SSG as :

Level : 50 µV (–73 dBm) Modulation : OFF

• Receiving

• Set an SSG as :

Level : 50 mV (–13 dBm) Modulation : OFF

• Receiving

• Push [UP] to enter the set mode adjust-

ment for TX.

• Connect an RF power meter to [ANT] connector.

• Connect an audio generator to [MIC] jack and set as:

Frequency : 1.5 kHz Level : 30 mVrms

• Connect an RF power meter to [ANT] connector.

• Connect an audio generator to [MIC] jack and set as:

Frequency : 1.5 kHz Level : 30 mVrms

1

2

1

2

3

1

2

3

1

Push [SET] key to enter the RX setting.

Or push [UP] key to skip the set mode adjustment for RX.

Push and hold [SET] key to set the volume center positions.

Verify the display shows “GooD”, then push [UP] key to enter the “S METER” adjustment.

Push [SET] key to set the "S0 level".

Push [SET] key to set the "S9 level".

Push [SET] key to set the "+60 dB level".

Push [UP] key to return the set mode adjustment for RX.

Push [SET] key to enter the TX setting.

Push [SET] key to make the calibration.

• Transceiver transmits for a while.

Push [SET] key to transmit.

• Transceiver transmits automatically.

Set to 90 W using [MAIN DIAL], then push [SET] key while transmitting.

Set to 50 W using [MAIN DIAL], then push [SET] key while transmitting.

Set to 10 W using [MAIN DIAL], then push [SET] key while transmitting.

Push [UP] key to enter the “ALC METER” adjustment.

Push [SET] key to set ALC reference level.

• Transceiver transmits automatically.

Push [UP] key to enter the “SWR METER” adjustment.

5 - 11

SET MODE ADJUSTMENT —continued

SWR METER

ADJUSTMENT ADJUSTMENT CONDITION DISPLAY OPERATION

• Connect a 50 Ω dummy load or power meter to [ANT] connector.

• Connect a 100 Ω dummy load or power meter to [ANT] connector.

1

2

Transmit using an external PTT switch to set SWR reference level after pushing [SET].

Transmit using an external PTT switch to set SWR2 level after pushing [SET].

• The display returns to the same as the set mode adjustment for TX.

S.=Surface mount

SP1 2510000670 SPEAKER VS-50-0827

W3 8900008930 CABLE OPC-885 W4 8900008930 CABLE OPC-885 W5 8900006990 CABLE OPC-683

WS1 8970023640 E.OTHER SX2242 ICOM SHIELD (1)/FR

EP1 6910012480 E.OTHER RMS20-250-201-1R EP2 6450001230 E.OTHER HLJ0999-01-480

IC1 1140009160 S.IC HD6433837SD17H IC2 1140005880 S.IC X25320S8I-2.7T6 IC3 1130009110 S.IC S-80942ANMP-DD6-T2 IC5 1180000420 S.IC TA78L05F (TE12R) IC6 1180001070 S.IC TA7805F (TE16L) IC7 1140005130 S.IC HD66100F IC40 1130007040 S.IC TC7W32F (TE12L) IC103 1130005720 S.IC TC7W04F (TE12L)

Q1 1590000680 S.TRANSISTOR DTC114EUA T106 Q2 1530002060 S.TRANSISTOR 2SC4081 T107 R Q3 1590001330 S.TRANSISTOR DTA114EUAT106 Q70 1540000440 S.TRANSISTOR 2SD1619-T-TD Q71 1590000680 S.TRANSISTOR DTC114EUA T106 Q72 1590000680 S.TRANSISTOR DTC114EUA T106 Q102 1590001650 S.TRANSISTOR XP4601 (TX) Q103 1590000680 S.TRANSISTOR DTC114EUAT106 Q104 1590000680 S.TRANSISTOR DTC114EUAT106 Q105 1590000680 S.TRANSISTOR DTC114EUAT106 Q106 1590001330 S.TRANSISTOR DTA114EUA T106

D1 1160000070 S.DIODE DAN202K T146 D30 1160000070 S.DIODE DAN202K T146 D31 1160000070 S.DIODE DAN202K T146 D32 1750000550 S.DIODE 1SS355 TE-17 D33 1160000070 S.DIODE DAN202K T146 D34 1750000550 S.DIODE 1SS355 TE-17 D35 1160000070 S.DIODE DAN202K T146 D36 1750000550 S.DIODE 1SS355 TE-17 D37 1160000070 S.DIODE DAN202K T146 D38 1750000550 S.DIODE 1SS355 TE-17 D39 1160000070 S.DIODE DAN202K T146 D40 1750000550 S.DIODE 1SS355 TE-17 D41 1160000070 S.DIODE DAN202K T146 D42 1750000550 S.DIODE 1SS355 TE-17 D43 1160000070 S.DIODE DAN202K T146 D44 1750000550 S.DIODE 1SS355 TE-17 D45 1160000070 S.DIODE DAN202K T146 D46 1730002530 S.ZENER NNCD6.2G-T1 D47 1750000550 S.DIODE 1SS355 TE-17 D48 1750000550 S.DIODE 1SS355 TE-17

[USA], [ESP], [KOR] D49 1750000550 S.DIODE 1SS355 TE-17 [EUR], [ITA] D50 1750000550 S.DIODE 1SS355 TE-17 [ITA], [FRA], [ESP] D51 1750000550 S.DIODE 1SS355 TE-17 [KOR], [USA-1] D53 1750000550 S.DIODE 1SS355 TE-17 D54 1750000550 S.DIODE 1SS355 TE-17 D55 1750000550 S.DIODE 1SS355 TE-17 D102 1750000550 S.DIODE 1SS355 TE-17 D120 1750000370 S.DIODE DA221 TL D121 1750000370 S.DIODE DA221 TL D122 1750000370 S.DIODE DA221 TL

D123 1750000370 S.DIODE DA221 TL D124 1750000370 S.DIODE DA221 TL

X1 6050009870 S.XTAL CR-567 (9.8304 MHz)

L1 6200001830 S.COIL NL 322522T-100J L2 6200001830 S.COIL NL 322522T-100J L40 6200003260 S.COIL NL 322522T-101J L41 6200002040 S.COIL NL 252018T-101J L42 6200002040 S.COIL NL 252018T-101J L43 6200003950 S.COIL HF50ACC 322513-T L44 6200009300 S.COIL ELJPA 100KF 10U L47 6200003950 S.COIL HF50ACC 322513-T L48 6200003950 S.COIL HF50ACC 322513-T L49 6200003950 S.COIL HF50ACC 322513-T L100 6200003260 S.COIL NL 322522T-101J L101 6200003950 S.COIL HF50ACC 322513-T L102 6200003950 S.COIL HF50ACC 322513-T L103 6200003950 S.COIL HF50ACC 322513-T L104 6200003950 S.COIL HF50ACC 322513-T

R1 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R2 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R3 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R4 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R5 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R7 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R8 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R9 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R10 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R11 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R12 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R13 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R14 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R15 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R16 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R17 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R18 7030006220 S.RESISTOR ERJ12YJ470U (47 Ω) R19 7030007190 S.RESISTOR ERJ12YJ220U (22 Ω) R20 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R21 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ) R22 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R24 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R25 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R26 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R27 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R30 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R31 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R32 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R33 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R34 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R35 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R36 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R37 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R38 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R39 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R40 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R41 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R42 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R43 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R44 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω) R45 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R46 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R47 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R48 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R49 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R50 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R51 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R52 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R53 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R54 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R55 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R56 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)

6 - 1

SECTION 6 PARTS LIST

REF ORDER

DESCRIPTION

NO. NO.

[FRONT UNIT]

REF ORDER

DESCRIPTION

NO. NO.

[LOGIC BOARD]

REF ORDER

DESCRIPTION

NO. NO.

[LOGIC BOARD][LOGIC BOARD]

S.=Surface mount

R59 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R62 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R63 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R70 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω) R71 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω) R72 7030003430 S.RESISTOR ERJ3GEYJ 821 V (820 Ω) R73 7030003510 S.RESISTOR ERJ3GEYJ 392 V (3.9 kΩ) R74 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R75 7030009670 S.RESISTOR ERJ1WYJ390U (39 Ω) R100 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R101 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R102 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R103 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ) R104 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ) R105 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) R106 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R107 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R108 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R111 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R112 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R113 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R114 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R115 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R116 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R117 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R118 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R119 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R126 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R127 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R128 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R129 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R130 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R131 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R132 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R133 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R134 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R135 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R136 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R137 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R138 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R139 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R141 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R142 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R143 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R144 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R145 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R146 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R147 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R148 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R149 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R150 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R151 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R153 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R154 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R156 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R158 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R160 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R161 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R162 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R163 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R164 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R165 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R166 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R169 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R171 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R172 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R173 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R174 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R175 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R176 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R177 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R179 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R180 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R182 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R185 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R186 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R188 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R190 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R191 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R193 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R195 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R196 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)

R197 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R198 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R199 7030003430 S.RESISTOR ERJ3GEYJ 821 V (820 Ω) R201 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R211 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R212 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω)

C1 4030007030 S.CERAMIC C1608 CH 1H 150J-T-A C2 4030007030 S.CERAMIC C1608 CH 1H 150J-T-A C3 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C4 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C5 4510004630 S.ELECTROLYTIC ECEV1CA100SR C6 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C7 4510004440 S.ELECTROLYTIC ECEV1HA010SR C8 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C9 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C11 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C12 4510004630 S.ELECTROLYTIC ECEV1CA100SR C13 4510004630 S.ELECTROLYTIC ECEV1CA100SR C14 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C15 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C16 4510004630 S.ELECTROLYTIC ECEV1CA100SR C17 4510004630 S.ELECTROLYTIC ECEV1CA100SR C18 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C19 4510004630 S.ELECTROLYTIC ECEV1CA100SR C20 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C21 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C22 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C40 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A C41 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A C42 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C43 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C44 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C45 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C46 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C47 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C101 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C102 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C103 4030009110 S.CERAMIC C3216 JB 1C 474K-T-A

J1 6510020420 S.CONNECTOR S4B-PH-SM3-TB J3 6510021990 S.CONNECTOR 10FMN-BMTTR-TBT J4 6510021990 S.CONNECTOR 10FMN-BMTTR-TBT J5 6510021990 S.CONNECTOR 10FMN-BMTTR-TBT J6 6510021720 S.CONNECTOR 30FLT-SM1-TB J7 6510021720 S.CONNECTOR 30FLT-SM1-TB J9 6510022000 S.CONNECTOR 16FMN-BMTTR-TBT

DS1 5030001820 LCD A0087 DS70 5040002600 LED TLYU1002 DS71 5040002600 LED TLYU1002 DS72 5040002600 LED TLYU1002 DS73 5040002600 LED TLYU1002 DS74 5040002600 LED TLYU1002 DS75 5040002600 LED TLYU1002 DS76 5040002600 LED TLYU1002 DS77 5040002600 LED TLYU1002 DS78 5040002600 LED TLYU1002 DS79 5040002600 LED TLYU1002 DS80 5040002600 LED TLYU1002 DS81 5040002600 LED TLYU1002 DS82 5040002600 LED TLYU1002 DS83 5040002600 LED TLYU1002 DS84 5040002600 LED TLYU1002 DS85 5040002600 LED TLYU1002 DS86 5040002600 LED TLYU1002 DS87 5040002600 LED TLYU1002 DS88 5040002600 LED TLYU1002 DS89 5040002600 LED TLYU1002 DS90 5040002600 LED TLYU1002

W1 7030003860 S.JUMPER ERJ3GE JPW V W70 7030003860 S.JUMPER ERJ3GE JPW V W101 7030003860 S.JUMPER ERJ3GE JPW V W102 7030003860 S.JUMPER ERJ3GE JPW V

6 - 2

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[MAIN UNIT][LOGIC BOARD]

S.=Surface mount

EP1 0910052055 PCB B 5382E EP2 6910012350 S.BEAD MMZ1608Y 102BT EP40 6910012350 S.BEAD MMZ1608Y 102BT EP45 6910012350 S.BEAD MMZ1608Y 102BT EP46 6910012350 S.BEAD MMZ1608Y 102BT EP70 8930051450 LCD CONTACT SRCN-2241-SP-N-W EP152 6910012350 S.BEAD MMZ1608Y 102BT EP155 6910012350 S.BEAD MMZ1608Y 102BT EP157 6910012350 S.BEAD MMZ1608Y 102BT EP159 6910012350 S.BEAD MMZ1608Y 102BT

L1 6200003950 S.COIL HF50ACC 322513-T

R1 7030006070 S.RESISTOR ERJ12YJ101U (100 Ω) R2 7030006070 S.RESISTOR ERJ12YJ101U (100 Ω) R3 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)

C1 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C3 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A

J1 6450001250 CONNECTOR HLJ4306-01-3070 J2 6510021990 S.CONNECTOR 10FMN-BMTTR-TBT

EP1 0910052163 PCB B 5434C

R1 7210003040 VARIABLE TP96D26-22F-10KBX2-2240 R2 7210003030 VARIABLE TP96D00-22F-10KBX2-2240 R4 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ)

J1 6510022050 S.CONNECTOR 10FM-1.0SP-1.9-TF

EP1 0910052174 PCB B 5435D

J1 6510000190 CONNECTOR FM214-8SS (P) J2 6510021990 S.CONNECTOR 10FMN-BMTTR-TBT

EP1 0910052153 PCB B 5433C

IC1 1110004080 S.IC µPC2709T-E3 IC1701 1110003870 S.IC NJM2058M-T1 IC1751 1110002700 S.IC NJM2904M-T1 IC2001 1110004870 S.IC TA4101F (TE12L) IC2101 1110003870 S.IC NJM2058M-T1 IC2102 1130005640 S.IC TC4W53F (TE12L) IC2201 1140005280 S.IC µPC5023GS-077-E1 IC2301 1110004840 S.IC NJM1496V-TE1 IC2351 1110002700 S.IC NJM2904M-T1 IC2701 1110003300 S.IC M5282FP 70CD IC2702 1110001810 S.IC TA7368F (TP1) IC2801 1130004200 S.IC TC4S66F (TE85R) IC2901 1110003090 IC LA4425A IC3001 1130007700 S.IC BU4094BCF-T1 IC3002 1160000130 S.IC TD62783AF (TP1) IC3003 1160000130 S.IC TD62783AF (TP1) IC3004 1130007700 S.IC BU4094BCF-T1 IC3005 1160000130 S.IC TD62783AF (TP1) IC3006 1130007700 S.IC BU4094BCF-T1 IC3301 1110004310 S.IC M62352GP 75EC IC3401 1110002030 IC TA7808S IC3501 1110001400 S.IC µPC1555G2-T1

Q101 1580000620 S.FET 3SK131-T2 MAS Q102 1580000620 S.FET 3SK131-T2 MAS Q151 1560000560 S.FET 2SK882-GR (TE85L) Q201 1530003150 S.TRANSISTOR 2SC4673D-TD Q501 1590002310 S.TRANSISTOR DTC114EE TL Q502 1560000560 S.FET 2SK882-GR (TE85L) Q503 1590002310 S.TRANSISTOR DTC114EE TL Q511 1590002310 S.TRANSISTOR DTC114EE TL Q701 1590002310 S.TRANSISTOR DTC114EE TL Q1001 1510000510 S.TRANSISTOR 2SA1576A T106R Q1002 1590002310 S.TRANSISTOR DTC114EE TL Q1101 1560000640 S.FET 2SK1740-TA Q1102 1560000640 S.FET 2SK1740-TA Q1103 1560000640 S.FET 2SK1740-TA Q1104 1560000640 S.FET 2SK1740-TA Q1201 1580000620 S.FET 3SK131-T2 MAS Q1301 1580000620 S.FET 3SK131-T2 MAS Q1401 1560000720 S.FET 2SK2171-4-TD Q1402 1560000720 S.FET 2SK2171-4-TD Q1501 1560000560 S.FET 2SK882-GR (TE85L) Q1502 1560000560 S.FET 2SK882-GR (TE85L) Q1503 1560000560 S.FET 2SK882-GR (TE85L) Q1504 1530002060 S.TRANSISTOR 2SC4081 T107 R Q1505 1510000510 S.TRANSISTOR 2SA1576A T106R Q1506 1590002310 S.TRANSISTOR DTC114EE TL Q1507 1530002060 S.TRANSISTOR 2SC4081 T107 R Q1508 1530002060 S.TRANSISTOR 2SC4081 T107 R Q1509 1590001870 S.TRANSISTOR DTA114EE TL Q1601 1530002060 S.TRANSISTOR 2SC4081 T107 R Q1602 1560000560 S.FET 2SK882-GR (TE85L) Q1603 1580000620 S.FET 3SK131-T2 MAS Q1611 1530002060 S.TRANSISTOR 2SC4081 T107 R Q1703 1510000510 S.TRANSISTOR 2SA1576A T106R Q1705 1590002310 S.TRANSISTOR DTC114EE TL Q1706 1590002310 S.TRANSISTOR DTC114EE TL Q1801 1590001540 S.TRANSISTOR UMD6N TR Q1802 1590001540 S.TRANSISTOR UMD6N TR Q1803 1590001540 S.TRANSISTOR UMD6N TR Q1805 1530002060 S.TRANSISTOR 2SC4081 T107 R Q2302 1590002310 S.TRANSISTOR DTC114EE TL Q2381 1530002060 S.TRANSISTOR 2SC4081 T107 R Q2383 1590002310 S.TRANSISTOR DTC114EE TL Q2384 1590002310 S.TRANSISTOR DTC114EE TL Q3101 1590002310 S.TRANSISTOR DTC114EE TL Q3601 1540000550 S.TRANSISTOR 2SD1664 T100Q Q3701 1590002310 S.TRANSISTOR DTC114EE TL Q3702 1590001870 S.TRANSISTOR DTA114EE TL Q3801 1590002310 S.TRANSISTOR DTC114EE TL Q3802 1590001870 S.TRANSISTOR DTA114EE TL Q4601 1540000440 S.TRANSISTOR 2SD1619-T-TD Q4801 1590002310 S.TRANSISTOR DTC114EE TL

D201 1790000620 S.DIODE MA77 (TX) D202 1790000620 S.DIODE MA77 (TX) D301 1790000620 S.DIODE MA77 (TX) D302 1790000620 S.DIODE MA77 (TX) D303 1790000620 S.DIODE MA77 (TX)

6 - 3

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[PHONE BOARD]

REF ORDER

DESCRIPTION

NO. NO.

[MIC BOARD]

REF ORDER

DESCRIPTION

NO. NO.

[VR BOARD]

REF ORDER

DESCRIPTION

NO. NO.

[MAIN UNIT][MAIN UNIT]

S.=Surface mount

D304 1790000620 S.DIODE MA77 (TX) D305 1790000620 S.DIODE MA77 (TX) D306 1790000620 S.DIODE MA77 (TX) D401 1750000430 S.DIODE HSB88WSTR D501 1160000070 S.DIODE DAN202K T146 D502 1790001250 S.DIODE MA2S111-(TX) D503 1160000070 S.DIODE DAN202K T146 D601 1160000080 S.DIODE DAP202K T146 D602 1160000070 S.DIODE DAN202K T146 D603 1160000080 S.DIODE DAP202K T146 D604 1160000070 S.DIODE DAN202K T146 D605 1160000080 S.DIODE DAP202K T146 D606 1160000070 S.DIODE DAN202K T146 D607 1160000080 S.DIODE DAP202K T146 D608 1160000070 S.DIODE DAN202K T146 D701 1750000640 S.DIODE 1SV312 (TE85L) D801 1750000640 S.DIODE 1SV312 (TE85L) D802 1750000640 S.DIODE 1SV312 (TE85L) D803 1790000620 S.DIODE MA77 (TX) D804 1790000620 S.DIODE MA77 (TX) D805 1790000620 S.DIODE MA77 (TX) D806 1790000620 S.DIODE MA77 (TX) D807 1790000620 S.DIODE MA77 (TX) D808 1790000620 S.DIODE MA77 (TX) D809 1790000620 S.DIODE MA77 (TX) D810 1790000620 S.DIODE MA77 (TX) D811 1790000620 S.DIODE MA77 (TX) D812 1790000620 S.DIODE MA77 (TX) D813 1790000620 S.DIODE MA77 (TX) D814 1790000620 S.DIODE MA77 (TX) D815 1790000620 S.DIODE MA77 (TX) D816 1790000620 S.DIODE MA77 (TX) D901 1790000620 S.DIODE MA77 (TX) D902 1790000620 S.DIODE MA77 (TX) D903 1790000620 S.DIODE MA77 (TX) D904 1790000620 S.DIODE MA77 (TX) D1301 1790000620 S.DIODE MA77 (TX) D1302 1790000620 S.DIODE MA77 (TX) D1501 1790001210 S.DIODE 1SS375-TL D1503 1790001250 S.DIODE MA2S111-(TX) D1510 1790001250 S.DIODE MA2S111-(TX) D1631 1160000070 S.DIODE DAN202K T146 D1632 1790000620 S.DIODE MA77 (TX) D1701 1730002450 S.ZENER MA8043-H (TX) D1702 1730002450 S.ZENER MA8043-H (TX) D1703 1790001240 S.DIODE MA2S728-(TX) D1704 1160000080 S.DIODE DAP202K T146 D1705 1160000080 S.DIODE DAP202K T146 D1706 1790001250 S.DIODE MA2S111-(TX) D1707 1790001250 S.DIODE MA2S111-(TX) D1801 1790001210 S.DIODE 1SS375-TL D1802 1790001250 S.DIODE MA2S111-(TX) D1803 1790001210 S.DIODE 1SS375-TL D1901 1790001210 S.DIODE 1SS375-TL D2101 1790001250 S.DIODE MA2S111-(TX) D2201 1750000370 S.DIODE DA221 TL D2202 1750000370 S.DIODE DA221 TL D2301 1790001250 S.DIODE MA2S111-(TX) D2381 1790001210 S.DIODE 1SS375-TL D2701 1160000080 S.DIODE DAP202K T146 D3001 1160000070 S.DIODE DAN202K T146 D3002 1160000070 S.DIODE DAN202K T146 D3502 1750000370 S.DIODE DA221 TL D3503 1730002320 S.ZENER MA8051-M (TX) D3701 1160000070 S.DIODE DAN202K T146 D4220 1790001240 S.DIODE MA2S728-(TX) D4801 1790001250 S.DIODE MA2S111-(TX)

FI301 2010002470 XTAL FL-315 (64.45500 MHz) FI611 2020000210 CERAMIC CFJ455K5 (FL-65) FI1301 2020001330 CERAMIC CFWS455HT

L1 6200003260 S.COIL NL 322522T-101J L2 6200003000 S.COIL NL 322522T-R22J-3 L100 6200004790 S.COIL MLF1608D R47K-T L101 6200003000 S.COIL NL 322522T-R22J-3 L102 6200003010 S.COIL NL 322522T-R27J-3 L103 6200001850 S.COIL NL 322522T-5R6J L104 6200003260 S.COIL NL 322522T-101J L105 6140003210 S.COIL LR-358

L106 6150004270 COIL LS-483A(C-14924) L151 6150004280 COIL LS-484B (C-14927) L152 6200003260 S.COIL NL 322522T-101J L153 6200003550 S.COIL MLF1608A 4R7K-T L201 6200001830 S.COIL NL 322522T-100J L202 6200003000 S.COIL NL 322522T-R22J-3 L301 6150004280 COIL LS-484B (C-14927) L302 6150004280 COIL LS-484B (C-14927) L303 6150004280 COIL LS-484B (C-14927) L401 6140003210 S.COIL LR-358 L402 6140003530 COIL LR-395 L501 6150004090 COIL LS-469 (C-13969) L701 6200003260 S.COIL NL 322522T-101J L702 6200003260 S.COIL NL 322522T-101J L703 6200003260 S.COIL NL 322522T-101J L801 6200003260 S.COIL NL 322522T-101J L802 6200009310 S.COIL ACL3225S-331M-T L811 6200002960 S.COIL NL 322522T-4R7J-3 L812 6200003320 S.COIL NL 322522T-3R3J-3 L813 6200003260 S.COIL NL 322522T-101J L814 6200003260 S.COIL NL 322522T-101J L821 6200001850 S.COIL NL 322522T-5R6J L822 6200003110 S.COIL NL 322522T-6R8J L831 6200003260 S.COIL NL 322522T-101J L832 6200003090 S.COIL NL 322522T-2R7J-3 L833 6200003100 S.COIL NL 322522T-3R9J-3 L835 6200002960 S.COIL NL 322522T-4R7J-3 L836 6200001850 S.COIL NL 322522T-5R6J L841 6200003260 S.COIL NL 322522T-101J L842 6200002990 S.COIL NL 322522T-2R2J-3 L843 6200002990 S.COIL NL 322522T-2R2J-3 L851 6200003260 S.COIL NL 322522T-101J L852 6200003050 S.COIL NL 322522T-R82J-3 L853 6200003060 S.COIL NL 322522T-1R2J-3 L854 6200003080 S.COIL NL 322522T-1R8J-3 L855 6200003070 S.COIL NL 322522T-1R5J-3 L861 6200003260 S.COIL NL 322522T-101J L862 6200003060 S.COIL NL 322522T-1R2J-3 L863 6200003330 S.COIL NL 322522T-1R0J-3 L864 6200003050 S.COIL NL 322522T-R82J-3 L865 6200003060 S.COIL NL 322522T-1R2J-3 L871 6200003260 S.COIL NL 322522T-101J L872 6200003030 S.COIL NL 322522T-R47J-3 L873 6200002980 S.COIL NL 322522T-R56J-3 L874 6200003040 S.COIL NL 322522T-R68J-3 L875 6200003050 S.COIL NL 322522T-R82J-3 L881 6200003260 S.COIL NL 322522T-101J L882 6200003250 S.COIL NL 322522T-R39J-3 L883 6200003250 S.COIL NL 322522T-R39J-3 L884 6200003030 S.COIL NL 322522T-R47J-3 L885 6200002980 S.COIL NL 322522T-R56J-3 L891 6200003260 S.COIL NL 322522T-101J L892 6200003010 S.COIL NL 322522T-R27J-3 L893 6200003010 S.COIL NL 322522T-R27J-3 L894 6200003020 S.COIL NL 322522T-R33J-3 L895 6200003250 S.COIL NL 322522T-R39J-3 L901 6200003260 S.COIL NL 322522T-101J L902 6180002960 S.COIL NL 322522T-R18J-3 L903 6200003010 S.COIL NL 322522T-R27J-3 L904 6200003020 S.COIL NL 322522T-R33J-3 L1101 6140003210 S.COIL LR-358 L1102 6140003620 COIL LR-403 L1103 6150004270 COIL LS-483A (C-14924) L1104 6200003260 S.COIL NL 322522T-101J L1201 6150004280 COIL LS-484B (C-14927) L1202 6150004280 COIL LS-484B (C-14927) L1301 6150004080 COIL LS-468 (C-13958) L1302 6150004080 COIL LS-468 (C-13958) L1303 6150004080 COIL LS-468 (C-13958) L1304 6200009310 S.COIL ACL3225S-331M-T L1401 6140000640 COIL LR-86 L1402 6140003550 COIL LR-397 L1501 6150002291 COIL LS-450 L1502 6150002291 COIL LS-450 L1503 6200009310 S.COIL ACL3225S-331M-T L1601 6150002291 COIL LS-450 L1611 6150002291 COIL LS-450 L1621 6150002291 COIL LS-450 L2001 6200003260 S.COIL NL 322522T-101J L2301 6200003260 S.COIL NL 322522T-101J L2901 6170000140 COIL LW-15 L3501 6180000960 COIL LAL 03NA 102K

6 - 4

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[MAIN UNIT][MAIN UNIT]

S.=Surface mount

L3502 6180000960 COIL LAL 03NA 102K L4501 6200003950 S.COIL HF50ACC 322513-T L4651 6200003950 S.COIL HF50ACC 322513-T L4652 6200001830 S.COIL NL 322522T-100J L4653 6200003950 S.COIL HF50ACC 322513-T L4654 6200003950 S.COIL HF50ACC 322513-T L4656 6200001830 S.COIL NL 322522T-100J L4657 6200001830 S.COIL NL 322522T-100J L4658 6200003260 S.COIL NL 322522T-101J L4659 6200001830 S.COIL NL 322522T-100J L4660 6200001830 S.COIL NL 322522T-100J L4661 6200003260 S.COIL NL 322522T-101J L4801 6200003260 S.COIL NL 322522T-101J L4802 6200003950 S.COIL HF50ACC 322513-T L5101 6200003330 S.COIL NL 322522T-1R0J-3 L5102 6200003330 S.COIL NL 322522T-1R0J-3

R1 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω) R2 7030003230 S.RESISTOR ERJ3GEYJ 180 V (18 Ω) R3 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω) R4 7030003220 S.RESISTOR ERJ3GEYJ 150 V (15 Ω) R5 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω) R6 7030003230 S.RESISTOR ERJ3GEYJ 180 V (18 Ω) R7 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω) R101 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R102 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R103 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R104 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R105 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R106 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R107 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R108 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R151 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R152 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω) R153 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ) R154 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R155 7510001330 S.THERMISTOR NTCCM1005 4BH 332KC-T R156 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R201 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R202 7030007180 S.RESISTOR ERJ12YJ150U (15 Ω) R203 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R204 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω) R205 7030003290 S.RESISTOR ERJ3GEYJ 560 V (56 Ω) R206 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω) R301 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R302 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R303 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R304 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R401 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω) R402 7030003230 S.RESISTOR ERJ3GEYJ 180 V (18 Ω) R403 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω) R501 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R502 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R503 7310002600 S.TRIMMER RV-110 (RH03A3AS4X0AA) 473 R504 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R505 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R506 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R507 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R508 7510000751 S.THERMISTOR NTCCM2012 3NH 103KC-T R509 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R510 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R511 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R512 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R513 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) R514 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) R601 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R602 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) R603 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) R604 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R605 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R606 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R611 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R612 7030003530 S.RESISTOR ERJ3GEYJ 562 V (5.6 kΩ) R613 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R614 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R621 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ) R622 7030003530 S.RESISTOR ERJ3GEYJ 562 V (5.6 kΩ) R623 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R624 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ) R631 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R632 7030003530 S.RESISTOR ERJ3GEYJ 562 V (5.6 kΩ)

R633 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R634 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R635 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R701 7030009830 S.RESISTOR ERJ12YJ391U (390 Ω) R703 7030006250 S.RESISTOR ERJ12YJ271U (270 Ω) R704 7030009830 S.RESISTOR ERJ12YJ391U (390 Ω) R705 7030006260 S.RESISTOR ERJ12YJ471U (470 Ω) R801 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R802 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R821 7030003240 S.RESISTOR ERJ3GEYJ 220 V (22 Ω) R822 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R823 7030003240 S.RESISTOR ERJ3GEYJ 220 V (22 Ω) R824 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R831 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R832 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R841 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R842 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R851 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R852 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R861 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R862 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R871 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R872 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R881 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R882 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R891 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R892 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R901 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R902 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R903 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R904 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R1001 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R1002 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R1101 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R1102 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R1103 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω) R1105 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω) R1107 7030000220 S.RESISTOR MCR10EZHJ 47 Ω (470) R1108 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R1201 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R1202 7030003530 S.RESISTOR ERJ3GEYJ 562 V (5.6 kΩ) R1204 7030003470 S.RESISTOR ERJ3GEYJ 182 V (1.8 kΩ) R1205 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R1206 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω) R1207 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R1208 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R1209 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R1300 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R1301 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R1302 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R1304 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R1305 7030003470 S.RESISTOR ERJ3GEYJ 182 V (1.8 kΩ) R1306 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ) R1307 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ) R1308 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R1310 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R1311 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R1401 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R1402 7030003240 S.RESISTOR ERJ3GEYJ 220 V (22 Ω) R1403 7030004040 S.RESISTOR ERJ3GEYJ 4R7 V (4.7 Ω) R1404 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R1501 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R1502 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R1503 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R1504 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R1505 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R1506 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R1507 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R1508 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R1509 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ) R1510 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R1511 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R1513 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R1514 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R1515 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R1516 7030003840 S.RESISTOR ERJ3GEYJ 225 V (2.2 MΩ) R1517 7030003510 S.RESISTOR ERJ3GEYJ 392 V (3.9 kΩ) R1518 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R1519 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R1520 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ) R1521 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R1522 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω)

6 - 5

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[MAIN UNIT][MAIN UNIT]

S.=Surface mount

R1523 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R1601 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R1602 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R1603 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ) R1604 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R1610 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R1611 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R1612 7510000721 S.THERMISTOR NTCCM2012 3FH 332KC-T R1614 7310002720 S.TRIMMER RV-148 (RH03A3AS3X0DA) 472 R1615 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R1616 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R1617 7510001330 S.THERMISTOR NTCCM1005 4BH 332KC-T R1621 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R1622 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R1623 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω) R1624 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R1625 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ) R1626 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R1627 7510001330 S.THERMISTOR NTCCM1005 4BH 332KC-T R1631 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R1632 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R1633 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R1703 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R1706 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R1707 7310002580 S.TRIMMER RV-108 (RH03A3A15X05A) 104 R1708 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R1709 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R1710 7030003840 S.RESISTOR ERJ3GEYJ 225 V (2.2 MΩ) R1711 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R1712 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R1713 7030003840 S.RESISTOR ERJ3GEYJ 225 V (2.2 MΩ) R1714 7030003730 S.RESISTOR ERJ3GEYJ 274 V (270 kΩ) R1715 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ) R1716 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R1717 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R1718 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R1719 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) R1720 7310002740 S.TRIMMER RV-150 (RH03A3A14X0FC) 103 R1721 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) R1722 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R1723 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R1724 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R1725 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R1729 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R1730 7310002580 S.TRIMMER RV-108 (RH03A3A15X05A) 104 R1751 7030003790 S.RESISTOR ERJ3GEYJ 824 V (820 kΩ) R1752 7030003840 S.RESISTOR ERJ3GEYJ 225 V (2.2 MΩ) R1754 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ) R1755 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R1801 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R1802 7030003840 S.RESISTOR ERJ3GEYJ 225 V (2.2 MΩ) R1803 7030003830 S.RESISTOR ERJ3GEYJ 185 V (1.8 MΩ) R1804 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R1805 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R1806 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R1807 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R1808 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R1809 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R1810 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R1812 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ) R1813 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ) R1814 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R1815 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R1901 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R1902 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R1903 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R1904 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R1905 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R1906 7030003650 S.RESISTOR ERJ3GEYJ 563 V (56 kΩ) R1907 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2001 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R2002 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R2003 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R2004 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R2005 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R2006 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R2007 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R2008 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R2101 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R2102 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R2103 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R2104 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)

R2105 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R2106 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R2107 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R2108 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R2201 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2202 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R2203 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R2204 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R2206 7030003710 S.RESISTOR ERJ3GEYJ 184 V (180 kΩ) R2208 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R2209 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R2210 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R2211 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ) R2212 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R2213 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R2214 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R2215 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R2216 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R2217 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R2218 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R2219 7030003290 S.RESISTOR ERJ3GEYJ 560 V (56 Ω) R2220 7310002800 S.TRIMMER RV-156 (RH03A3AJ5) 224 R2221 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R2222 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ) R2223 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ) R2224 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R2225 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R2300 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω) R2301 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2302 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R2303 7310002720 S.TRIMMER RV-148 (RH03A3AS3X0DA) 472 R2304 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R2305 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2306 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R2307 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R2308 7510001330 S.THERMISTOR NTCCM1005 4BH 332KC-T R2310 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2312 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R2313 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R2317 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2318 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω) R2319 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω) R2320 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ) R2321 7310002800 S.TRIMMER RV-156 (RH03A3AJ5) 224 R2352 7030003650 S.RESISTOR ERJ3GEYJ 563 V (56 kΩ) R2353 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R2381 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R2382 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ) R2383 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R2384 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2385 7310002740 S.TRIMMER RV-150 (RH03A3A14X0FC) 103 R2386 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R2387 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R2401 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R2402 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R2403 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R2406 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R2407 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R2501 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R2601 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2602 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2603 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2604 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2605 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2606 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R2607 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R2701 7310002720 S.TRIMMER RV-148 (RH03A3AS3X0DA) 472 R2702 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R2703 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R2704 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R2705 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R2706 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R2707 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R2708 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ) R2709 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R2710 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ) R2720 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R2721 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω) R2722 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R2803 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R2804 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R2805 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)

6 - 6

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[MAIN UNIT][MAIN UNIT]

S.=Surface mount

R2901 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R2902 7030004040 S.RESISTOR ERJ3GEYJ 4R7 V (4.7 Ω) R3001 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R3002 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R3003 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R3004 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R3005 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R3006 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R3007 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R3008 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R3009 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R3010 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R3011 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R3012 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R3013 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R3101 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R3102 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R3201 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R3202 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R3203 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R3302 7030007660 S.RESISTOR RR0816P-331-D (330 Ω) R3303 7030006520 S.RESISTOR RR0816P-561-D (560 Ω) R3501 7030003350 S.RESISTOR ERJ3GEYJ 181 V (180 Ω) R3502 7030003350 S.RESISTOR ERJ3GEYJ 181 V (180 Ω) R3503 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R3504 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R3505 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R3506 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R3601 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R3602 7030003740 S.RESISTOR ERJ3GEYJ 334 V (330 kΩ) R3603 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R3701 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R3702 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R3703 7310002590 S.TRIMMER RV-109 (RH03A3AJ3X0BA) 222 R3704 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R4001 7030004040 S.RESISTOR ERJ3GEYJ 4R7 V (4.7 Ω) R4002 7030004040 S.RESISTOR ERJ3GEYJ 4R7 V (4.7 Ω) R4003 7030004040 S.RESISTOR ERJ3GEYJ 4R7 V (4.7 Ω) R4004 7030004040 S.RESISTOR ERJ3GEYJ 4R7 V (4.7 Ω) R4005 7030004040 S.RESISTOR ERJ3GEYJ 4R7 V (4.7 Ω) R4006 7030004040 S.RESISTOR ERJ3GEYJ 4R7 V (4.7 Ω) R4007 7030004040 S.RESISTOR ERJ3GEYJ 4R7 V (4.7 Ω) R4101 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R4102 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R4201 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R4202 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R4203 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R4204 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R4205 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R4206 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R4207 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R4208 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R4209 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R4210 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R4211 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R4213 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R4214 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R4215 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R4217 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R4218 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R4219 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R4220 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R4221 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R4222 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R4223 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R4224 7030003510 S.RESISTOR ERJ3GEYJ 392 V (3.9 kΩ) R4225 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R4226 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R4227 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)

C1 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C3 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C4 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A C5 4030007120 S.CERAMIC C1608 CH 1H 820J-T-A C100 4030007120 S.CERAMIC C1608 CH 1H 820J-T-A C101 4030007110 S.CERAMIC C1608 CH 1H 680J-T-A C102 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C103 4030007150 S.CERAMIC C1608 CH 1H 151J-T-A C104 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A C105 4030007120 S.CERAMIC C1608 CH 1H 820J-T-A

C106 4030008650 S.CERAMIC C1608 JB 1H 332K-T-A C107 4030008470 S.CERAMIC C1608 JB 1H 272K-T-A C108 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C109 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C110 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C111 4030006980 S.CERAMIC C1608 CH 1H 070D-T-A C112 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C113 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A C151 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C152 4030008250 S.CERAMIC C1608 UJ 1H 120J-T-A C153 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C154 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C155 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C156 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C157 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C158 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C201 4030011340 S.CERAMIC C1608 CH 1H 471J-T-A C202 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C203 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C204 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C205 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C206 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A C301 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C302 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C303 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C304 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C305 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C306 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C307 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C401 4030011340 S.CERAMIC C1608 CH 1H 471J-T-A C501 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C502 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C503 4510005810 S.ELECTROLYTIC ECEV1HAR47R C504 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C506 4510004640 S.ELECTROLYTIC ECEV1CA470SP C507 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C508 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C509 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C510 4510004440 S.ELECTROLYTIC ECEV1HA010SR C511 4510004990 ELECTROLYTIC 16 MV 100 HC C601 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C602 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C603 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C611 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C612 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C621 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C622 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C631 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C632 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C633 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C701 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C702 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C703 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C704 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C801 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C802 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C803 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C811 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C812 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C813 4030009980 S.CERAMIC C1608 JB 1H 152K-T-A C814 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C815 4030008470 S.CERAMIC C1608 JB 1H 272K-T-A C816 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C817 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C821 4510004440 S.ELECTROLYTIC ECEV1HA010SR C822 4030008470 S.CERAMIC C1608 JB 1H 272K-T-A C823 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A C824 4030006870 S.CERAMIC C1608 JB 1H 222K-T-A C831 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C832 4030009970 S.CERAMIC C1608 JB 1H 182K-T-A C833 4030011280 S.CERAMIC C1608 CH 1H 271J-T-A C834 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C837 4030008470 S.CERAMIC C1608 JB 1H 272K-T-A C838 4030008850 S.CERAMIC C1608 JB 1C 123K-T-A C839 4030009980 S.CERAMIC C1608 JB 1H 152K-T-A C840 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C841 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C842 4030010020 S.CERAMIC C1608 JB 1H 122K-T-A C843 4030007100 S.CERAMIC C1608 CH 1H 560J-T-A C844 4030009580 S.CERAMIC C1608 JB 1H 681K-T-A C845 4030010040 S.CERAMIC C1608 JB 1H 561K-T-A C846 4030007150 S.CERAMIC C1608 CH 1H 151J-T-A

6 - 7

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[MAIN UNIT][MAIN UNIT]

S.=Surface mount

C851 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C852 4030011340 S.CERAMIC C1608 CH 1H 471J-T-A C853 4030007110 S.CERAMIC C1608 CH 1H 680J-T-A C854 4030011280 S.CERAMIC C1608 CH 1H 271J-T-A C855 4030010020 S.CERAMIC C1608 JB 1H 122K-T-A C856 4030008770 S.CERAMIC C1608 JB 1H 562K-T-A C857 4030009580 S.CERAMIC C1608 JB 1H 681K-T-A C858 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C861 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C862 4030010760 S.CERAMIC C1608 CH 1H 331J-T-A C863 4030007100 S.CERAMIC C1608 CH 1H 560J-T-A C864 4030010760 S.CERAMIC C1608 CH 1H 331J-T-A C865 4030009580 S.CERAMIC C1608 JB 1H 681K-T-A C866 4030008470 S.CERAMIC C1608 JB 1H 272K-T-A C867 4030010760 S.CERAMIC C1608 CH 1H 331J-T-A C868 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C871 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C872 4030011280 S.CERAMIC C1608 CH 1H 271J-T-A C873 4030007100 S.CERAMIC C1608 CH 1H 560J-T-A C874 4030007150 S.CERAMIC C1608 CH 1H 151J-T-A C875 4030011340 S.CERAMIC C1608 CH 1H 471J-T-A C876 4030009980 S.CERAMIC C1608 JB 1H 152K-T-A C877 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A C878 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C881 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C882 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A C883 4030007070 S.CERAMIC C1608 CH 1H 330J-T-A C884 4030007140 S.CERAMIC C1608 CH 1H 121J-T-A C885 4030011280 S.CERAMIC C1608 CH 1H 271J-T-A C886 4030010020 S.CERAMIC C1608 JB 1H 122K-T-A C887 4030007150 S.CERAMIC C1608 CH 1H 151J-T-A C888 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C891 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C892 4030007140 S.CERAMIC C1608 CH 1H 121J-T-A C893 4030007080 S.CERAMIC C1608 CH 1H 390J-T-A C894 4030007110 S.CERAMIC C1608 CH 1H 680J-T-A C895 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A C896 4030009490 S.CERAMIC C1608 JB 1H 821K-T-A C897 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A C898 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C899 4030007070 S.CERAMIC C1608 CH 1H 330J-T-A C901 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C902 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C904 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C905 4030007150 S.CERAMIC C1608 CH 1H 151J-T-A C906 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A C907 4030007120 S.CERAMIC C1608 CH 1H 820J-T-A C1001 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1101 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1102 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1103 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1104 4030006940 S.CERAMIC C1608 CH 1H 030C-T-A C1105 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1106 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1108 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1201 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1202 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1203 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1204 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1205 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A C1206 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1207 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1208 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A C1209 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1301 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1305 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1307 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1308 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1309 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1310 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1401 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1402 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1404 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1405 4510005310 S.ELECTROLYTIC ECEV1CA220SR C1501 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1502 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1504 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1505 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1507 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1508 4030010760 S.CERAMIC C1608 CH 1H 331J-T-A C1509 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1510 4030011600 S.CERAMIC C1608 JB 1C 104KT-N

C1511 4030011340 S.CERAMIC C1608 CH 1H 471J-T-A C1512 4510004440 S.ELECTROLYTIC ECEV1HA010SR C1513 4510004640 S.ELECTROLYTIC ECEV1CA470SP C1514 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1515 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1516 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1601 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1602 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C1611 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1613 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1615 4510004440 S.ELECTROLYTIC ECEV1HA010SR C1621 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1623 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1624 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1625 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1631 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1632 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1701 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1702 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1704 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1706 4510007490 S.ELECTROLYTIC ECEV1VA2R2NR C1707 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1708 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1751 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1752 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1801 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1802 4510007490 S.ELECTROLYTIC ECEV1VA2R2NR C1803 4510007490 S.ELECTROLYTIC ECEV1VA2R2NR C1804 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1805 4510005810 S.ELECTROLYTIC ECEV1HAR47R C1812 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A C1813 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1814 4510004630 S.ELECTROLYTIC ECEV1CA100SR C1815 4030007150 S.CERAMIC C1608 CH 1H 151J-T-A C1901 4550006390 S.TANTALUM TEMSVA 1C 335M-8L C1902 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1903 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C1904 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C1905 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2001 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2002 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A C2003 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2004 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2005 4510004440 S.ELECTROLYTIC ECEV1HA010SR C2006 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2007 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2008 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2009 4510004630 S.ELECTROLYTIC ECEV1CA100SR C2010 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2101 4510004440 S.ELECTROLYTIC ECEV1HA010SR C2102 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2103 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2104 4030006870 S.CERAMIC C1608 JB 1H 222K-T-A C2105 4030006870 S.CERAMIC C1608 JB 1H 222K-T-A C2107 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2201 4510004640 S.ELECTROLYTIC ECEV1CA470SP C2202 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2203 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2204 4510004440 S.ELECTROLYTIC ECEV1HA010SR C2205 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A C2206 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2207 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C2208 4030011340 S.CERAMIC C1608 CH 1H 471J-T-A C2209 4510004440 S.ELECTROLYTIC ECEV1HA010SR C2210 4030011340 S.CERAMIC C1608 CH 1H 471J-T-A C2211 4510004630 S.ELECTROLYTIC ECEV1CA100SR C2212 4510004630 S.ELECTROLYTIC ECEV1CA100SR C2213 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2214 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2215 4510004440 S.ELECTROLYTIC ECEV1HA010SR C2216 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2217 4030008910 S.CERAMIC C1608 JB 1C 393K-T-A C2219 4510005810 S.ELECTROLYTIC ECEV1HAR47R C2301 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2303 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2304 4510004630 S.ELECTROLYTIC ECEV1CA100SR C2305 4510004630 S.ELECTROLYTIC ECEV1CA100SR C2306 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2309 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2310 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2312 4510005810 S.ELECTROLYTIC ECEV1HAR47R C2313 4030011600 S.CERAMIC C1608 JB 1C 104KT-N

6 - 8

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[MAIN UNIT][MAIN UNIT]

S.=Surface mount

C2314 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2315 4510005810 S.ELECTROLYTIC ECEV1HAR47R C2352 4030006870 S.CERAMIC C1608 JB 1H 222K-T-A C2353 4030011330 S.CERAMIC C1608 CH 1H 391J-T-A C2354 4510004630 S.ELECTROLYTIC ECEV1CA100SR C2380 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2381 4510004630 S.ELECTROLYTIC ECEV1CA100SR C2382 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2383 4510004630 S.ELECTROLYTIC ECEV1CA100SR C2384 4510004440 S.ELECTROLYTIC ECEV1HA010SR C2401 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2402 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2403 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C2405 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2501 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2502 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2601 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2602 4550006390 S.TANTALUM TEMSVA 1C 335M-8L C2701 4510004630 S.ELECTROLYTIC ECEV1CA100SR C2702 4030010760 S.CERAMIC C1608 CH 1H 331J-T-A C2703 4510004630 S.ELECTROLYTIC ECEV1CA100SR C2704 4510004630 S.ELECTROLYTIC ECEV1CA100SR C2705 4510004630 S.ELECTROLYTIC ECEV1CA100SR C2706 4510004630 S.ELECTROLYTIC ECEV1CA100SR C2708 4510004630 S.ELECTROLYTIC ECEV1CA100SR C2709 4510004630 S.ELECTROLYTIC ECEV1CA100SR C2710 4510007490 S.ELECTROLYTIC ECEV1VA2R2NR C2720 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2721 4510004990 ELECTROLYTIC 16 MV 100 HC C2722 4510004640 S.ELECTROLYTIC ECEV1CA470SP C2723 4510004640 S.ELECTROLYTIC ECEV1CA470SP C2801 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2901 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C2902 4510004630 S.ELECTROLYTIC ECEV1CA100SR C2903 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2904 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C2905 4510004600 ELECTROLYTIC 16 MV 1000 HC C2906 4510004590 ELECTROLYTIC 16 MV 470 HC C2907 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C3001 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C3002 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C3003 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C3004 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C3005 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C3006 4510004590 ELECTROLYTIC 16 MV 470 HC C3007 4510004590 ELECTROLYTIC 16 MV 470 HC C3101 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C3301 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C3302 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C3401 4510004990 ELECTROLYTIC 16 MV 100 HC C3402 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C3403 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C3404 4510004990 ELECTROLYTIC 16 MV 100 HC C3501 4510004640 S.ELECTROLYTIC ECEV1CA470SP C3502 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C3503 4510005310 S.ELECTROLYTIC ECEV1CA220SR C3504 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C3505 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C3506 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C3507 4510004640 S.ELECTROLYTIC ECEV1CA470SP C3508 4510004640 S.ELECTROLYTIC ECEV1CA470SP C3509 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C3510 4510004630 S.ELECTROLYTIC ECEV1CA100SR C3511 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C3512 4510004640 S.ELECTROLYTIC ECEV1CA470SP C3513 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C3601 4510004630 S.ELECTROLYTIC ECEV1CA100SR C3602 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C3702 4550006390 S.TANTALUM TEMSVA 1C 335M-8L C3801 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4003 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C4005 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C4006 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C4007 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C4008 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C4009 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C4101 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4102 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4103 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4104 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4105 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4106 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A

C4107 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4200 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4201 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C4202 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C4203 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C4204 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C4205 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C4206 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C4207 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C4208 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C4209 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C4210 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C4211 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4212 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4213 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4214 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4215 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4216 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4217 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4218 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4219 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4220 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C4221 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4222 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4223 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4224 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4225 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4226 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4227 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C4401 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4402 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4403 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4404 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4405 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4407 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4408 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4409 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4410 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4411 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4412 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4413 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4414 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4415 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C4416 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4417 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C4501 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4648 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4651 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4653 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4654 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4655 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4656 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4659 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4660 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4661 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4662 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4801 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4802 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4803 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C5101 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C5102 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A

RL4801 6330001320 RELAY AHY103

J1 6510007020 CONNECTOR TMP-J01X-V6 J201 6510018960 S.CONNECTOR B2B-PH-SM3-TB J401 6510018960 S.CONNECTOR B2B-PH-SM3-TB J701 6510007020 CONNECTOR TMP-J01X-V6 J2001 6510018960 S.CONNECTOR B2B-PH-SM3-TB J2501 6510019190 S.CONNECTOR 52365-0891 J2602 6510018970 S.CONNECTOR B4B-PH-SM3-TB J2603 6510021990 S.CONNECTOR 10FMN-BMTTR-TBT J3601 6510003390 CONNECTOR B03B-EH-S J4001 6510021990 S.CONNECTOR 10FMN-BMTTR-TBT J4101 6510022000 S.CONNECTOR 16FMN-BMTTR-TBT J4201 6510021720 S.CONNECTOR 30FLT-SM1-TB J4401 6510021720 S.CONNECTOR 30FLT-SM1-TB J4501 6450000140 CONNECTOR HSJ0807-01-010 J4502 6510018960 S.CONNECTOR B2B-PH-SM3-TB J4651 6450001640 CONNECTOR TCS5044-01-4111

6 - 9

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[PLL UNIT][MAIN UNIT]

S.=Surface mount

J4801 6450001130 CONNECTOR JPJ2042-01-110 J5001 6450000140 CONNECTOR HSJ0807-01-010 J5101 6450001790 CONNECTOR HLJ7000-01-3010

W801 7030003860 S.JUMPER ERJ3GE JPW V W1202 7030003860 S.JUMPER ERJ3GE JPW V W1311 7030003860 S.JUMPER ERJ3GE JPW V W1726 7030003860 S.JUMPER ERJ3GE JPW V W2101 7030003860 S.JUMPER ERJ3GE JPW V W2201 7030003860 S.JUMPER ERJ3GE JPW V W2351 7030003860 S.JUMPER ERJ3GE JPW V W3601 7030003860 S.JUMPER ERJ3GE JPW V W4216 7030003860 S.JUMPER ERJ3GE JPW V W4401 7030003860 S.JUMPER ERJ3GE JPW V

WS1 8970023610 E.OTHER SX2242 ICOM SHIELD (1)/MA WS2 8970023660 E.OTHER SX2242 J LEAD SET (2)/MA

EP1 0910052016 PCB B 5378F EP4801 6910012350 S.BEAD MMZ1608Y 102BT

IC1 1180001070 S.IC TA7805F (TE16L) IC2 1140004550 S.IC M65343FP/SC1287 IC6 1140007880 S.IC SC-1246A (TC190G08AF-0046-Z) IC7 1130003610 S.IC TC4SU69F (TE85R)

Q9 1530002370 S.TRANSISTOR 2SC2714-O (TE85R) Q10 1530002370 S.TRANSISTOR 2SC2714-O (TE85R) Q11 1530002370 S.TRANSISTOR 2SC2714-O (TE85R) Q12 1530002060 S.TRANSISTOR 2SC4081 T107 R Q18 1560000490 S.FET 2SK508 K52 T2B Q26 1530002370 S.TRANSISTOR 2SC2714-O (TE85R) Q28 1530002370 S.TRANSISTOR 2SC2714-O (TE85R) Q29 1530002370 S.TRANSISTOR 2SC2714-O (TE85R) Q30 1530002370 S.TRANSISTOR 2SC2714-O (TE85R) Q32 1530002370 S.TRANSISTOR 2SC2714-O (TE85R) Q33 1590000680 S.TRANSISTOR DTC114EUA T106 Q34 1530002060 S.TRANSISTOR 2SC4081 T107 R Q35 1530002060 S.TRANSISTOR 2SC4081 T107 R

D4 1720000390 S.VARICAP KV1470TL D12 1750000020 S.DIODE 1SS184 (TE85R) D15 1750000070 S.DIODE 1SS226 (TE85R) D16 1790001250 S.DIODE MA2S111-(TX)

X1 6050007350 XTAL CR-337 (32.000 MHz)

L1 6200009300 S.COIL ELJPA100KF 10U L2 6200001830 S.COIL NL 322522T-100J L3 6170000230 COIL LW-25 L4 6150004370 COIL LS-472C (C-15045) L5 6200001830 S.COIL NL 322522T-100J L6 6150004250 COIL LS-471A (C-14922) L7 6150004250 COIL LS-471A (C-14922) L8 6200001830 S.COIL NL 322522T-100J L9 6200003960 S.COIL MLF1608A 1R0K-T L12 6200003260 S.COIL NL 322522T-101J L14 6200003130 S.COIL NL 322522T-120J L15 6200003140 S.COIL NL 322522T-150J L19 6190001280 COIL E544GN-110248 L25 6200001830 S.COIL NL 322522T-100J L26 6170000230 COIL LW-25 L27 6170000230 COIL LW-25 L30 6200001830 S.COIL NL 322522T-100J L32 6200003050 S.COIL NL 322522T-R82J-3 L34 6200003430 S.COIL NL 322522T-R10J L35 6200003420 S.COIL NL 322522T-R15J-3

L36 6200003430 S.COIL NL 322522T-R10J L37 6200003450 S.COIL NL 322522T-082J L38 6200001720 S.COIL NL 322522T-1R0J L39 6200003050 S.COIL NL 322522T-R82J-3 L41 6200001830 S.COIL NL 322522T-100J L42 6200003050 S.COIL NL 322522T-R82J-3 L44 6200003160 S.COIL NL 322522T-270J L45 6200001710 S.COIL NL 322522T-220J L46 6200003150 S.COIL NL 322522T-180J L47 6200001830 S.COIL NL 322522T-100J L48 6200003040 S.COIL NL 322522T-R68J-3 L49 6200004470 S.COIL MLF1608D R12K-T L50 6200004470 S.COIL MLF1608D R12K-T

R2 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R3 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R4 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R5 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R6 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R7 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R8 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R9 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R10 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R12 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ) R13 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R14 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R15 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R16 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R17 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R18 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R19 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R20 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R21 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R22 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R23 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R24 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R25 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R26 7030005390 S.RESISTOR RR0816P-102-D (1 kΩ) R27 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R28 7030005390 S.RESISTOR RR0816P-102-D (1 kΩ) R29 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R30 7030005390 S.RESISTOR RR0816P-102-D (1 kΩ) R31 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R32 7030005390 S.RESISTOR RR0816P-102-D (1 kΩ) R33 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R34 7030005390 S.RESISTOR RR0816P-102-D (1 kΩ) R35 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R36 7030005390 S.RESISTOR RR0816P-102-D (1 kΩ) R37 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R38 7030005380 S.RESISTOR RR0816P-102-B (1 kΩ) R39 7030005370 S.RESISTOR RR0816P-202-B (2 kΩ) R40 7030005380 S.RESISTOR RR0816P-102-B (1 kΩ) R41 7030005370 S.RESISTOR RR0816P-202-B (2 kΩ) R42 7030005380 S.RESISTOR RR0816P-102-B (1 kΩ) R43 7030005370 S.RESISTOR RR0816P-202-B (2 kΩ) R44 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R49 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R51 7030003510 S.RESISTOR ERJ3GEYJ 392 V (3.9 kΩ) R52 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω) R53 7030003510 S.RESISTOR ERJ3GEYJ 392 V (3.9 kΩ) R57 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R74 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ) R75 7030003510 S.RESISTOR ERJ3GEYJ 392 V (3.9 kΩ) R78 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R84 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ) R85 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ) R87 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R88 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R89 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R90 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R91 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R93 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R94 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R95 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R96 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R97 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R98 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R99 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R102 7030006080 S.RESISTOR ERJ1WYJ220U (22 Ω) R103 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R104 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)

6 - 10

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[PLL UNIT]

REF ORDER

DESCRIPTION

NO. NO.

[PLL UNIT][PLL UNIT]

S.=Surface mount

R105 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R106 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R107 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R108 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R116 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R117 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R118 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R119 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R120 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R121 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R127 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R132 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R133 7030005390 S.RESISTOR RR0816P-102-D (1 kΩ) R134 7030005390 S.RESISTOR RR0816P-102-D (1 kΩ) R135 7030005390 S.RESISTOR RR0816P-102-D (1 kΩ) R136 7030005390 S.RESISTOR RR0816P-102-D (1 kΩ) R137 7030005390 S.RESISTOR RR0816P-102-D (1 kΩ) R138 7030005390 S.RESISTOR RR0816P-102-D (1 kΩ) R139 7030005380 S.RESISTOR RR0816P-102-B (1 kΩ) R140 7030005380 S.RESISTOR RR0816P-102-B (1 kΩ) R141 7030005380 S.RESISTOR RR0816P-102-B (1 kΩ) R142 7030005380 S.RESISTOR RR0816P-102-B (1 kΩ) R143 7030005380 S.RESISTOR RR0816P-102-B (1 kΩ) R144 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R145 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R146 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R147 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R148 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R149 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R150 7030005370 S.RESISTOR RR0816P-202-B (2 kΩ) R151 7030005370 S.RESISTOR RR0816P-202-B (2 kΩ) R152 7030005370 S.RESISTOR RR0816P-202-B (2 kΩ) R153 7030005370 S.RESISTOR RR0816P-202-B (2 kΩ) R154 7030005370 S.RESISTOR RR0816P-202-B (2 kΩ) R155 7030005400 S.RESISTOR RR0816P-202-D (2 kΩ) R156 7030003350 S.RESISTOR ERJ3GEYJ 181 V (180 Ω) R158 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R159 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R160 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R161 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R162 7030003430 S.RESISTOR ERJ3GEYJ 821 V (820 Ω) R164 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R165 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R166 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R169 7030003260 S.RESISTOR ERJ3GEYJ 330 V (33 Ω) R171 7030003350 S.RESISTOR ERJ3GEYJ 181 V (180 Ω) R172 7030003350 S.RESISTOR ERJ3GEYJ 181 V (180 Ω) R180 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R181 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ) R182 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) R183 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R191 7030003350 S.RESISTOR ERJ3GEYJ 181 V (180 Ω) R192 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R204 7030003330 S.RESISTOR ERJ3GEYJ 121 V (120 Ω)

C1 4510006220 S.ELECTROLYTIC ECEV1CA101UP C2 4550006080 S.TANTALUM TEMSVB2 1C 106M-8L C3 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C4 4550006080 S.TANTALUM TEMSVB2 1C 106M-8L C5 4510004870 S.ELECTROLYTIC ECEV1CA330P C6 4510004630 S.ELECTROLYTIC ECEV1CA100SR C7 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C8 4510004630 S.ELECTROLYTIC ECEV1CA100SR C9 4510004630 S.ELECTROLYTIC ECEV1CA100SR C10 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C12 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C13 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C14 4030007380 S.CERAMIC C1608 PH 1H 820J-T-A C15 4030008300 S.CERAMIC C1608 UJ 1H 330J-T-A C16 4610002200 S.TRIMMER TZBX4R200BE110T00 C17 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C18 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A C19 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C20 4030007030 S.CERAMIC C1608 CH 1H 150J-T-A C21 4510006220 S.ELECTROLYTIC ECEV1CA101UP C22 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C23 4030009500 S.CERAMIC C1608 CH 1H 0R5B-T-A C24 4030007030 S.CERAMIC C1608 CH 1H 150J-T-A C25 4030007400 S.CERAMIC C1608 PH 1H 121J-T-A C26 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A C27 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A

C28 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C29 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C30 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C31 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C32 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C33 4510006220 S.ELECTROLYTIC ECEV1CA101UP C34 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C50 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A C51 4030006930 S.CERAMIC C1608 CH 1H 020C-T-A C52 4030007060 S.CERAMIC C1608 CH 1H 270J-T-A C53 4030009500 S.CERAMIC C1608 CH 1H 0R5B-T-A C54 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A C55 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C62 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C63 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C64 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C65 4030006920 S.CERAMIC C1608 CH 1H 010C-T-A C66 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C67 4030010760 S.CERAMIC C1608 CH 1H 331J-T-A C68 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C103 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C104 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C106 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C108 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C109 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C111 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C112 4030007100 S.CERAMIC C1608 CH 1H 560J-T-A C114 4030007080 S.CERAMIC C1608 CH 1H 390J-T-A C115 4030009650 S.CERAMIC C1608 CH 1H 240J-T-A C116 4030006990 S.CERAMIC C1608 CH 1H 080D-T-A C117 4030007070 S.CERAMIC C1608 CH 1H 330J-T-A C118 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C119 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C120 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C126 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C127 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C128 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C129 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C130 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C132 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A C134 4030007100 S.CERAMIC C1608 CH 1H 560J-T-A C135 4030006950 S.CERAMIC C1608 CH 1H 040C-T-A C136 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C137 4030007110 S.CERAMIC C1608 CH 1H 680J-T-A C138 4030007100 S.CERAMIC C1608 CH 1H 560J-T-A C139 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C141 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C143 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C144 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C145 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C146 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C147 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C148 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C149 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C150 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C151 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C152 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C153 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C155 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C156 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A C157 4030007080 S.CERAMIC C1608 CH 1H 390J-T-A C158 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C159 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C160 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C161 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C162 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C165 4610001830 S.TRIMMER TZBX4N100BA110T00 10P C166 4550000460 S.TANTALUM TESVA 1C 105M1-8L C167 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C168 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C170 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C172 4030007060 S.CERAMIC C1608 CH 1H 270J-T-A C174 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C188 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C191 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C192 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C194 4030011340 S.CERAMIC C1608 CH 1H 471J-T-A C195 4030011340 S.CERAMIC C1608 CH 1H 471J-T-A C203 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C204 4030007060 S.CERAMIC C1608 CH 1H 270J-T-A C222 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C223 4030011600 S.CERAMIC C1608 JB 1C 104KT-N

6 - 11

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[PA UNIT][PLL UNIT]

S.=Surface mount

C224 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C225 4030006940 S.CERAMIC C1608 CH 1H 030C-T-A C226 4030006940 S.CERAMIC C1608 CH 1H 030C-T-A C227 4030007100 S.CERAMIC C1608 CH 1H 560J-T-A

J1 6510018960 S.CONNECTOR B2B-PH-SM3-TB J3 6510022000 S.CONNECTOR 16FMN-BMTTR-TBT J4 6510018960 S.CONNECTOR B2B-PH-SM3-TB

W1 7030003860 S.JUMPER ERJ3GE JPW V W5 7030003860 S.JUMPER ERJ3GE JPW V W7 7030003860 S.JUMPER ERJ3GE JPW V W9 7030003860 S.JUMPER ERJ3GE JPW V W10 7030003860 S.JUMPER ERJ3GE JPW V W92 7030003860 S.JUMPER ERJ3GE JPW V W170 7030003860 S.JUMPER ERJ3GE JPW V

WS1 8970023621 E.OTHER

SX2242 0.8D COAXIAL TUBE (2)/PL

WS2 8970023630 E.OTHER SX2242 ICOM SHIELD (1)/PL

EP1 0910052025 PCB B 5379E

Q1 1530000790 TRANSISTOR 2SC1971 Q2 1530000190 TRANSISTOR 2SC3133 Q3 1530000190 TRANSISTOR 2SC3133 Q4 1530000200 TRANSISTOR 2SC2904 Q5 1530000200 TRANSISTOR 2SC2904 Q6 1540000500 TRANSISTOR 2SD1585K Q7 1590001150 S.TRANSISTOR UN9211 (TX)

D1 1790000710 VARISTOR MA29B D2 1790000710 VARISTOR MA29B D3 1790000710 VARISTOR MA29B D4 1790000700 DIODE DSA3A1 D5 1790000700 DIODE DSA3A1 D6 1160000140 S.DIODE DAP222 TL D7 1730000480 S.ZENER RD10M-T2B3

L1 6140002350 COIL LR-274 (RIB4X7X5 3A6) L2 6140002980 COIL LR-143 L3 6140003600 COIL LR-401 L4 6140003590 COIL LR-400 L5 6140003220 COIL LR-359 (SK-10M-15YY(120) L6 6910000670 COIL BL01RN1-A62-001 L7 6910000670 COIL BL01RN1-A62-001 L8 6910000670 COIL BL01RN1-A62-001 L14 6180001230 COIL LAL 04NA 8R2K L19 6200003840 S.COIL MLF2012D R22K-T L20 6910000670 COIL BL01RN1-A62-001 L21 6910000670 COIL BL01RN1-A62-001 L22 2040000490 COIL EXC-ELDR25C L23 2040000490 COIL EXC-ELDR25C L24 6200003240 S.COIL NL 322522T-221J L25 6200003240 S.COIL NL 322522T-221J L26 6200008820 S.COIL HF70ACC 635050-T L27 6200008820 S.COIL HF70ACC 635050-T L28 6140003440 COIL LR-386 [EUR], [ITA], [FRA], [ESP] L29 6140003440 COIL LR-386 [EUR], [ITA], [FRA], [ESP] L30 2040000490 COIL EXC-ELDR25C L31 2040000490 COIL EXC-ELDR25C

R1 7030003310 S.RESISTOR ERJ3GEYJ 820 V (82 Ω) R2 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R3 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω) R4 7030006210 S.RESISTOR ERJ12YJ4R7U (4.7 Ω) R5 7030006250 S.RESISTOR ERJ12YJ271U (270 Ω) R6 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω)

R7 7030000220 S.RESISTOR MCR10EZHJ 47 Ω (470) R8 7030000220 S.RESISTOR MCR10EZHJ 47 Ω (470) R9 7030009230 S.RESISTOR ERJ1WYJ121U (120 Ω) R10 7030009230 S.RESISTOR ERJ1WYJ121U (120 Ω) R11 7030004040 S.RESISTOR ERJ3GEYJ 4R7 V (4.7 Ω) R12 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R13 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R15 7030008000 S.RESISTOR ERJ1WYJ3R3U (3.3 Ω) R16 7030008000 S.RESISTOR ERJ1WYJ3R3U (3.3 Ω) R17 7030006060 S.RESISTOR ERJ12YJ100U (10 Ω) R18 7030006060 S.RESISTOR ERJ12YJ100U (10 Ω) R20 7030006070 S.RESISTOR ERJ12YJ101U (100 Ω) R21 7310003750 TRIMMER EVN-2ACA00 B52 (501) R22 7030006130 S.RESISTOR ERJ1WYJ100U (10 Ω) R23 7030010070 S.RESISTOR ERJ12YJ681U (680 Ω) R24 7310003240 TRIMMER EVN-2ACA00 B23 (202) R25 7100000640 RESISTOR 5 SI 0.012 Ω (J) R26 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R27 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R28 7030004040 S.RESISTOR ERJ3GEYJ 4R7 V (4.7 Ω) R29 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω) R30 7510000130 THERMISTOR ERT-D2FHL 333S R31 7030003470 S.RESISTOR ERJ3GEYJ 182 V (1.8 kΩ) R32 7030006130 S.RESISTOR ERJ1WYJ100U (10 Ω) R33 7030006130 S.RESISTOR ERJ1WYJ100U (10 Ω) R34 7030008000 S.RESISTOR ERJ1WYJ3R3U (3.3 Ω) R35 7030008000 S.RESISTOR ERJ1WYJ3R3U (3.3 Ω) R36 7030008000 S.RESISTOR ERJ1WYJ3R3U (3.3 Ω) R37 7030008000 S.RESISTOR ERJ1WYJ3R3U (3.3 Ω)

C1 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C2 4030004720 S.CERAMIC C2012 JB 1H 102K-T-A C3 4030004740 S.CERAMIC C2012 JB 1H 472K-T-A C4 4030005110 S.CERAMIC C2012 JB 1E 473K-T-A C5 4030012490 S.CERAMIC GRM42-6 SL 472J 100PT C6 4030012490 S.CERAMIC GRM42-6 SL 472J 100PT C8 4030011260 S.CERAMIC GRM42-6 W5R 102K 500PT C11 4030011260 S.CERAMIC GRM42-6 W5R 102K 500PT C13 4010005870 CERAMIC HM95SJ SL 221J 500V C14 4010005870 CERAMIC HM95SJ SL 221J 500V C15 4320000650 DIP MICA KD20C 102J5 C16 4320000780 DIP MICA KD19C 821J5 C17 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C19 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C20 4510006230 S.ELECTROLYTIC ECEV1EA470UP C21 4030005110 S.CERAMIC C2012 JB 1E 473K-T-A C22 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C23 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C24 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C25 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C26 4510006230 S.ELECTROLYTIC ECEV1EA470UP C27 4510004600 ELECTROLYTIC 16 MV 1000 HC C28 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C29 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C30 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A C31 4030005110 S.CERAMIC C2012 JB 1E 473K-T-A C32 4510004600 ELECTROLYTIC 16 MV 1000 HC C33 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C34 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A C35 4030005140 S.CERAMIC C3216 JB 1E 104K-T-A

[USA/-1], [OTH], [KOR] C38 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C39 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C42 4510004600 ELECTROLYTIC 16 MV 1000 HC C45 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C46 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C47 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C48 4030005140 S.CERAMIC C3216 JB 1E 104K-T-A C49 4030007120 S.CERAMIC C1608 CH 1H 820J-T-A C50 4030007120 S.CERAMIC C1608 CH 1H 820J-T-A C51 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C52 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C53 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C54 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C55 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C56 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C57 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C59 4510006650 S.ELECTROLYTIC ECEV1EA100SR

[EUR], [ITA], [FRA], [ESP]

C60 4030004740 S.CERAMIC C2012 JB 1H 472K-T-A

[EUR], [ITA], [FRA], [ESP]

6 - 12

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[PA UNIT]

REF ORDER

DESCRIPTION

NO. NO.

[FILTER UNIT][PA UNIT]

S.=Surface mount

C61 4030004740 S.CERAMIC C2012 JB 1H 472K-T-A

[EUR], [ITA], [FRA], [ESP]

C62 4030005140 S.CERAMIC C3216 JB 1E 104K-T-A

[EUR], [ITA], [FRA], [ESP]

C63 4510006650 S.ELECTROLYTIC ECEV1EA100SR

[EUR], [ITA], [FRA], [ESP] C68 4030011740 S.CERAMIC GRM42-2 CH 201J 500PT C69 4030011740 S.CERAMIC GRM42-2 CH 201J 500PT C70 4030005050 S.CERAMIC C2012 CH 1H 331J-T-A C71 4030011550 S.CERAMIC GRM42-6 CH 680J 500PT C72 4030014460 S.CERAMIC GRM42-6 CH 820J 500PT C73 4030011760 S.CERAMIC GRM44-1 SL 682J 200PT C74 4030011760 S.CERAMIC GRM44-1 SL 682J 200PT C75 4030011760 S.CERAMIC GRM44-1 SL 682J 200PT C76 4030011760 S.CERAMIC GRM44-1 SL 682J 200PT

RL1 6330001600 RELAY ALD 112

J3 6510022000 S.CONNECTOR 16FMN-BMTTR-TBT J6 6510007020 CONNECTOR TMP-J01X-V6 J7 6510007020 CONNECTOR TMP-J01X-V6

F1 5210000130 FUSE FGB 4A F2 5220000230 HOLDER S-N5054 #01 F3 5220000230 HOLDER S-N5054 #01

WS1 8600036630 E.OTHER SX2242 J01

✕14✕15✕16✕17PA

WS2 8600036640 E.OTHER SX2242 J12

✕13PA

EP1 6910000610 BEAD FSOH050RN01 EP2 6910000610 BEAD FSOH050RN01 EP9 6910000630 BEAD FSOH070RN EP10 6910000630 BEAD FSOH070RN EP11 0910052036 PCB B 5380F EP15 9045810001 TUBE IRRAX 0.8 (d) L=20 mm EP16 9045810001 TUBE IRRAX 0.8 (d) L=20 mm EP18 9045810001 TUBE IRRAX 0.8 (d) L=20 mm EP21 0910052522 PCB B 5477B

D1 1160000070 S.DIODE DAN202K T146 D2 1790000980 S.DIODE MA742 (TX) D3 1790000980 S.DIODE MA742 (TX)

L1 6140001990 COIL LR-226 (T68-2) L2 6140002000 COIL LR-227 (T68-2) L3 6140001780 COIL LR-214 (T50-2) L4 6140001790 COIL LR-215 (T50-2) L5 6140001800 COIL LR-216 (T50-2) L6 6140001800 COIL LR-216 (T50-2) L7 6140003500 COIL LR-392 L8 6140003500 COIL LR-392 L9 6110002910 COIL LA-480 L10 6110002920 COIL LA-481 L11 6110002890 COIL LA-478 L12 6110002900 COIL LA-479 L13 6140003490 COIL LR-391 L14 6140002520 COIL LR-290 (TR6X3X2 7A3) L15 6200002040 S.COIL NL 252018T-101J L16 6200005050 S.COIL NL 252018T-330J L17 6200005050 S.COIL NL 252018T-330J L18 6200005050 S.COIL NL 252018T-330J L19 6200005050 S.COIL NL 252018T-330J L20 6200005010 S.COIL NL 252018T-100J L21 6200005010 S.COIL NL 252018T-100J L22 6200002040 S.COIL NL 252018T-101J L23 6200002040 S.COIL NL 252018T-101J L24 6140001810 COIL LR-217 (T50-10) L25 6110001680 COIL LA-254

L100 6200005050 S.COIL NL 252018T-330J L101 6200005050 S.COIL NL 252018T-330J L102 6200005010 S.COIL NL 252018T-100J L103 6200005050 S.COIL NL 252018T-330J L104 6200005010 S.COIL NL 252018T-100J L105 6200005050 S.COIL NL 252018T-330J

R1 7540000100 ABSORBER SRYH-350L R2 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ) R3 7030008190 S.RESISTOR ERJ12YJ330U (33 Ω) R4 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R5 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R6 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R7 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R8 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R9 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R20 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ)

C1 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C2 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C3 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C4 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C5 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C6 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C7 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C8 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C9 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C10 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C11 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C12 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C13 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C14 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A C15 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A C16 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A C17 4610001340 TRIMMER ECR-LA010 A12 C18 4030007160 S.CERAMIC C1608 CH 1H 181J-T-A C19 4030006870 S.CERAMIC C1608 JB 1H 222K-T-A C20 4030011340 S.CERAMIC C1608 CH 1H 471J-T-A C21 4030011340 S.CERAMIC C1608 CH 1H 471J-T-A C22 4010007510 CERAMIC HM17SJ SL 821J 500V C23 4010005880 CERAMIC HM95SJ SL 271J 500V C24 4010005880 CERAMIC HM95SJ SL 271J 500V C25 4010007510 CERAMIC HM17SJ SL 821J 500V C26 4030012480 S.CERAMIC GRM42-6 CH 121J 500PT C27 4010007510 CERAMIC HM17SJ SL 821J 500V C28 4010005870 CERAMIC HM95SJ SL 221J 500V C29 4010005850 CERAMIC HM95SJ SL 181J 500V C30 4010005360 CERAMIC HM11SJ SL 301J 500V C31 4010005870 CERAMIC HM95SJ SL 221J 500V C32 4010005930 CERAMIC HM11SJ SL 391J 500V C33 4010005750 CERAMIC HM60SJ SL 680J 500V C34 4010005870 CERAMIC HM95SJ SL 221J 500V C35 4010005870 CERAMIC HM95SJ SL 221J 500V C36 4010005870 CERAMIC HM95SJ SL 221J 500V C37 4010005850 CERAMIC HM95SJ SL 181J 500V C38 4030012480 S.CERAMIC GRM42-6 CH 121J 500PT C39 4010005820 CERAMIC HM74SJ SL 121J 500V C40 4010005370 CERAMIC HM11SJ SL 331J 500V C41 4010005880 CERAMIC HM95SJ SL 271J 500V C43 4010005760 CERAMIC HM60SJ SL 750J 500V C44 4010005880 CERAMIC HM95SJ SL 271J 500V C45 4010005830 CERAMIC HM74SJ SL 151J 500V C46 4010005860 CERAMIC HM95SJ SL 201J 500V C47 4010005780 CERAMIC HM60SJ SL 101J 500V C48 4030014460 S.CERAMIC GRM42-6 CH 820J 500PT C49 4010005830 CERAMIC HM74SJ SL 151J 500V C50 4030011180 S.CERAMIC GRM42-6 CH 220J 500PT C51 4030014460 S.CERAMIC GRM42-6 CH 820J 500PT C52 4030011730 S.CERAMIC GRM42-6 CH 101J 500PT C53 4010005750 CERAMIC HM60SJ SL 680J 500V C54 4010005850 CERAMIC HM95SJ SL 181J 500V C55 4030011240 S.CERAMIC GRM42-6 CH 470J 500PT C56 4010005780 CERAMIC HM60SJ SL 101J 500V C58 4030011230 S.CERAMIC GRM42-6 CH 390J 500PT C60 4010005620 CERAMIC HM60SJ SL 120J 500V C61 4030014460 S.CERAMIC GRM42-6 CH 820J 500PT C63 4030006870 S.CERAMIC C1608 JB 1H 222K-T-A C64 4010007590 CERAMIC HM15SJ SL 681J 500V C65 4010007590 CERAMIC HM15SJ SL 681J 500V C66 4010007590 CERAMIC HM15SJ SL 681J 500V

6 - 13

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

[FILTER UNIT]

REF ORDER

DESCRIPTION

NO. NO.

[CHASSIS PARTS][FILTER UNIT]

S.=Surface mount

C67 4010007590 CERAMIC HM15SJ SL 681J 500V C68 4010005930 CERAMIC HM11SJ SL 391J 500V C69 4010005930 CERAMIC HM11SJ SL 391J 500V C70 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C71 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C72 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C73 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C74 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C75 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C76 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C78 4030014460 S.CERAMIC GRM42-6 CH 820J 500PT C80 4010005930 CERAMIC HM11SJ SL 391J 500V C104 4030011550 S.CERAMIC GRM42-6 CH 680J 500PT C107 4030011170 S.CERAMIC GRM42-6 CH 180J 500PT C108 4030011550 S.CERAMIC GRM42-6 CH 680J 500PT

RL1 6330001470 RELAY AJS1311 RL2 6330001470 RELAY AJS1311 RL3 6330001470 RELAY AJS1311 RL4 6330001470 RELAY AJS1311 RL5 6330001470 RELAY AJS1311 RL6 6330001470 RELAY AJS1311 RL7 6330001470 RELAY AJS1311 RL8 6330001470 RELAY AJS1311 RL9 6330001470 RELAY AJS1311 RL10 6330001470 RELAY AJS1311 RL11 6330001470 RELAY AJS1311 RL12 6330001470 RELAY AJS1311 RL13 6330001330 RELAY AG 201344

J1 6510021980 CONNECTOR 10FMN-BTRK J2 6510007020 CONNECTOR TMP-J01X-V6 J3 6510007020 CONNECTOR TMP-J01X-V6 J4 6910001040 CONNECTOR IPS-1136 J5 6910001040 CONNECTOR IPS-1136

W3 6910001030 JUMPER IPS-1041-4 W4 6910001030 JUMPER IPS-1041-4 W5 7030008240 S.JUMPER ERJ12YJ0R00U W72 7030003860 S.JUMPER ERJ3GE JPW V W73 7030003860 S.JUMPER ERJ3GE JPW V

EP1 0910052045 PCB B 5381E

J1 6510000370 CONNECTOR MR-DS

MF1 2710000520 FAN SB0812H-ICOM-00

W1 8900009501 CABLE OPC-939A W2 8900009511 CABLE OPC-940A W3 8900009511 CABLE OPC-940A W4 8900009521 CABLE OPC-941A W5 8900009531 CABLE OPC-942A

WS1 8970023580 E.OTHER

SX2242 1.5D COAXIAL TUBE (1)/CH

WS2 8970023590 E.OTHER

SX2242 1.5D COAXIAL TUBE (1)/CH

WS3 8970023600 E.OTHER

SX2242 1.5D COAXIAL TUBE (1)/CH

EP1 8930021010 PLUG DOMED PLUG DP-500 EP2 6910000310 PLATE B312D INSULATION WASHER EP3 6910000340 SHEET P101 KD INSULATION SHEET

6 - 14

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

MP1 8510013040 2241 mixer case 1 MP25 8510013140 DC-A case 1

F1 5210000080 Fuse FGB 20A 1 F2 5210000130 Fuse FGB 4A 1

MC1

Optional product

Microphone HM-36 1

W1

Optional product

DC power cable OPC-025 A 1

SP1 2510000670 Speaker VS-50-0827 1

EP1 6910012480 Sensor RMS20-250-201-1R 1 EP2 6450001230 Snap plate HLJ0999-01-480 1

MP1 8210016660 2241 front panel (A) 1 MP2 8930051400 2241 21-key (A) 1 MP3 8930050930 2241 3-key 1 MP4 8930050960 2241 power key 1 MP5 8930050950 2241 lock key 1 MP6 8010018050 2241 sub chassis assembly 1 MP9 8610010420 Knob N261 1 MP10 8610010420 Knob N261 1 MP11 8610010710 Knob N272 1 MP12 8610010710 Knob N272 1 MP13 8610007510 Knob spring No.7800 1 MP14 8610007510 Knob spring No.7800 1 MP15 8610009230 Knob N213 assembly 1 MP18 8610009170 Knob N-213 cover 1 MP21 8830001100 Knut M9 B11-H2 1 MP22 8810008660 Screw PH BT M3 x 8 NI-ZU 5 MP23 8810009130 Screw PH BT M3 x 12 NI-ZU 6 MP24 8930049930 Non-woven sheet 2 MP25 8930036870 Sponge (DZ) 1

7 - 1

Screw abbreviations: PH: Pan head FH: Flat head

BT, A0: Self-tapping ZK: Black NI-ZU: Nickel-Zinc

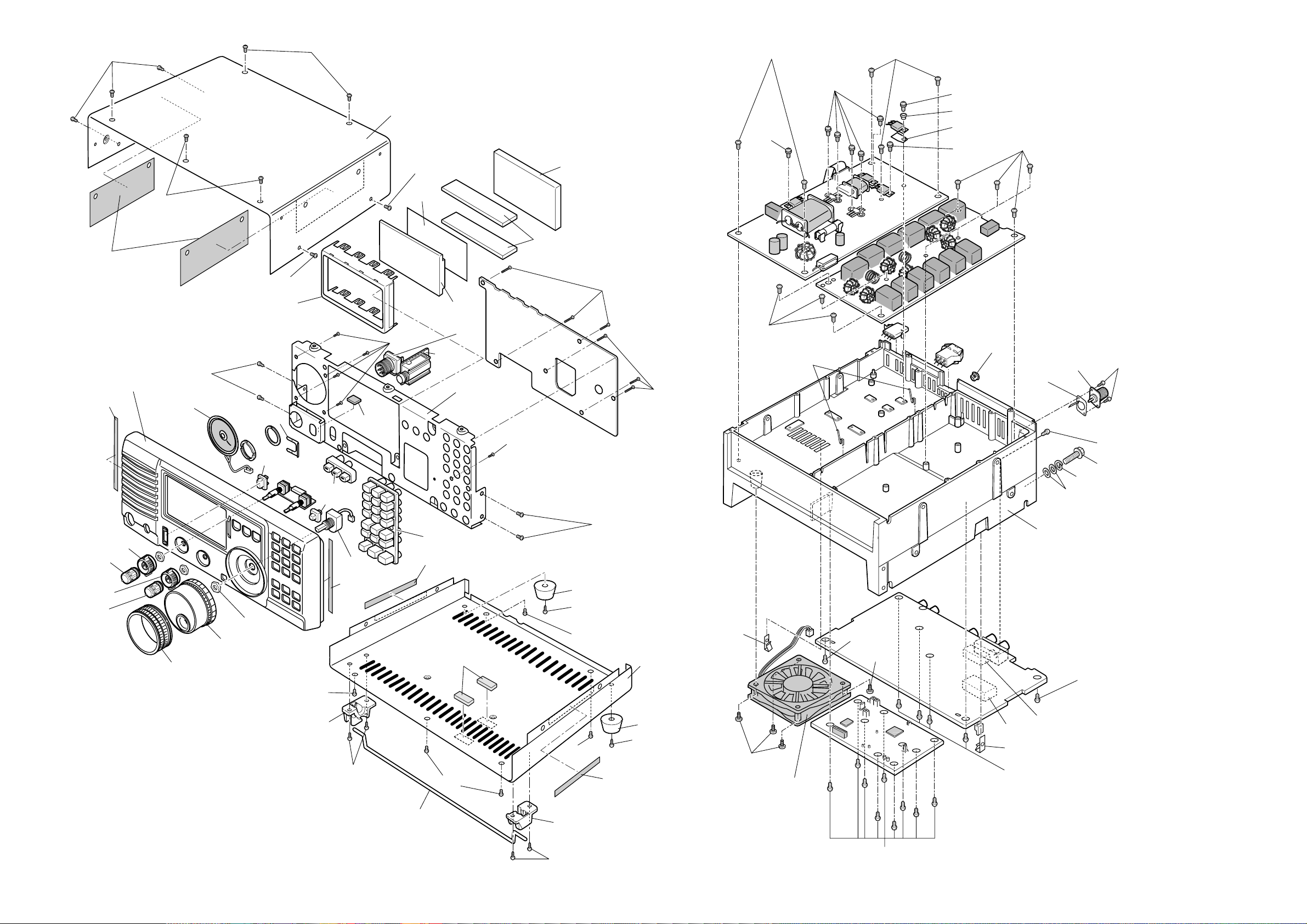

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY

[CHASSIS PARTS]

[FRONT UNIT]

F1

W1 MC1

F2

REF NO.

ORDER

NO.

DESCRIPTION QTY.

QTY .

J 1 6510000370 ANT connector MR-DS 1

MF1 2710000520 Fan SB0812H-ICOM-00 1

EP1 8930021010 Domed plug DP-500 1 EP2 6910000310 B312D insulation washer 1 EP3 6910000340 P101 KD insulation sheet 1

MP1 8110007050 Bottom cover 2241 L-cover 1 MP2 8110007060 Top cover 2241 U-cover 1 MP3 8010018020 2241 chassis 1 MP4 8930037001 1691 grounding plate-1 1 MP6 8930002900 Rubber foot (A) SK1912A 2 MP7 8010001520 Stand (C) 1 MP8 8930005790 Color foot (A) for stand 1 MP9 8930005800 Color foot (B) for stand 1 MP10 8930018520 TR clip (A) 1 MP11 8930018520 TR clip (A) 1 MP12 8810009650 Screw FH BT M3 x 8 NI-ZU 4 MP13 8810008660 Screw PH BT M3 x 8 NI-ZU 2 MP14 8810008660 Screw PH BT M3 x 8 NI-ZU 5 MP15 8810008660 Screw PH BT M3 x 8 NI-ZU 7 MP16 8810008660 Screw PH BT M3 x 8 NI-ZU 6 MP17 8810008660 Screw PH BT M3 x 8 NI-ZU 9 MP18 8810008660 Screw PH BT M3 x 8 NI-ZU 4 MP19 8810008660 Screw PH BT M3 x 8 NI-ZU 1 MP20 8810003170 Set screw A M3 x 8 8 MP21 8820000550 Cap bolt M4 x 8 ZK 4 MP22 8810005770 Bind M3 x 8 ZK 14 MP23 8820000530 Frange bolt M4 x 8 NI 1 MP24 8850000140 Flat washer M4 NI BS 2 MP25 8850000430 Spring washer M4 NI 1 MP26 8930052550 2241 sheet 4 MP28 8810009130 Screw FH BT M3 x 12 NI-ZU 2 MP29 8930052080 2241 grounding spring 1 MP31 8930007120 Non-woven sheet B 2 MP32 8930028840 Sponge (DF) 2

REF NO.

ORDER

NO.

DESCRIPTION

QTY .

[MAIN UNIT]

[ACCESSORIES]

REF NO.

ORDER

NO.

DESCRIPTION QTY.

REF NO.

ORDER

NO.

DESCRIPTION

DS1 5030001820 LCD A0087 1

EP70 8930051450 LCD contact SRCN-2241-SP-N-W 2

MP1 8210016610 2241 reflector 1 MP2 8930050970 2241 LCD holder 1 MP3 8930051090 2241 LCD filter 1

[LOGIC UNIT]

REF NO.

ORDER

NO.

DESCRIPTION QTY.

7 - 2

MP22 (C)

MP26 (C)

MP22 (C)

MP1 (L)

MP3 (L)

DS1 (L)

EP70 (L)

MP23 (F)

MP2 (C)

MP2 (L)

MP22 (F)

MP12 (C)

MP24 (F)

MP6 (F)

MP2 (F) MP31(C)

MP24 (F)

MP6 (C)

MP1 (C)

MP28 (C)

MP22 (C)

MP28 (C)

MP31 (C)

MP8 (C)

MP18 (C)

MP22 (C)

MP32 (C)

MP3 (F) MP5 (F)

MP4 (F)

EP2 (F)

MP12 (C)

SP1 (F)

MP25 (F)

MP1 (F)

MP12 (F)

MP11 (F) MP9 (F)

MP10 (F)

MP18 (F)

MP15 (F)

MP21 (F)

PHONE BOARD

VR BOARD

EP1

(F)

MIC BOARD

LOGIC UNIT

MP7 (C)

MP18 (C)

MP9 (C)

MP22 (C)

Unit abbreviations: (F): FRONT UNIT, (M): MAIN UNIT, (L): LOGIC UNIT

(C): CHASSIS PARTS

FILTER UNIT

PA UNIT

MAIN UNIT

PLL UNIT

MP14 (C)

MP20 (C)

MP15 (C)

EP1 (C)

J1 (C)

MP15 (C)

MP29 (C)

MP3 (C)

MP23 (C)

MP13 (C)

MP4 (C)

EP2 (C)

MP20 (C)

MP14 (C)

EP3 (C)

MP19 (C)

MP25 (C)

MP24 (C)

MP1 (M) MP11 (C)

MP25 (M)

MP16 (C)

MP17 (C)

MP16 (C)

MP10 (C)

MP21 (C)

MF1 (C)

SECTION PARTS LISTSECTION 8 SEMI-CONDUCTOR INFORMATIONS

8-1 TRANSISTORS

NAME

SYMBOL

INSIDE VIEW NAME

SYMBOL

INSIDE VIEW

2SC1971 None 2SC3133 None

2SD1585K None

B

E

C

B

E

C

2SD1619-T-TD DB 2SD1664 T100Q DA

B CC E

2SA1576A R FR

C

BE

2SC4673D-TD CO

C

E

C

B

2SK508 K52 2SK1740-TA IJ

G

SD

2SC2904 None

2SC2714-O QO 2SC4081 R BR

BE

C

2SK882-GR TG

S

DG

2SK2171-4 KM

G

SGD

3SK131-T2 MAS V11

SD

G1G2

DTC114EE TL 24 DTC114EUA 24 UN9211 (TX) 8A

BE

C

DTA114EE TL 14 DTA114EUAT106 16

BE

C

XP4601 (TX) 5C

XP4311 (TX) 7X

EBCC

E

B

E1

E2

B1

C1

C2

B2

8 - 1

8-2 DIODES

NAME

SYMBOL

INSIDE VIEW

NAME

SYMBOL

INSIDE VIEW

1SS184 B3 DAN202K N

1SS226 C3 1SS375-TL FH DA221 TL K

A

C

1SS355 A MA2S111 A MA2S728 B

AC

1SV312 BB

A1

C1A2C2

DAP202K T146 P DAP222 TL P

C1

A

C2

HSB88WSTR Silver

line

KV1470TL F7

MA77 4B

AC

MA8043-H 4^3 MA8051-M (TX) 5-1

NNCD6.2G-T1 62G

RD10M-T2B3 103

MA29B Y

C

B

C

E

B

E

A1CA2

C

A

E

C

E

B

E

C

B

E

C

A

1

2

5

10

15

20

25

30

1

2

5

10

15

20

25

30

1

2

10

2

J201

J4001

J1 J701

to FILTER unit J1

from PLL unit P4

GND

1LO

1LOE

P1

P2

W6

to PA unit J6

W7

P5

P6

W10

to FILTER unit J3

W11

L3

L5

L2

L6

10

9

1

2

GND

T13V

L3

REF

L5

FOR

L2

L4

L6

L1

T13V

REF

FOR

L4

L1

2nd LO

J401

J3601

1

2

from PLL unit P2

2LO

2LOE

2LO

2LOE

GND

DOTK

DASK

VOXL

AVXL

SML

ALML

REFL

FORL

PATL

BEEP

DNB

RXS

TXS

SBSY

KDS

DSPS

DSST

SSTB

DINT

DRES

ASTB

MSTB

FSTB

BSTB

MCK

MDAT

POWS

GND

to LOGIC unit J6

STRT

5V

SNDS

8V

HV

14V

FSKK

MICE

MIC

SEND

SQLS

SEND

SPS

PHOE

PHO

GND

CIVE

CIV

ALMS

NC

KEY

J4201

1

2

30

29

to LOGIC unit J7

J4401

1

230

29

GND

14V

PAT8

HV

KEY

GND

PWS

14V

ICL

ICH

STRT

TEMP

J4101

J2601

J2602

1

1 2

88

8

2

15

16

GND

DOE

DOUT

DOE

DOUT

14V

PAT8

HV

KEY

GND

PWS

14V

ICL

ICH

STRT

TEMP

16

1

15

2

1

J2603

J4502

CIV

CIVE

SP1

GND

SPE

ESPO

SPO

SPO SPE

GND

5V

MDAT

DINT

GND

DSPS

MCK

DSST

DRES

1

2

9

10

1

23

1

BLACK

FAN MOTOR MF1

RED

3

FAN–

FAN+

to PA unit J3

Optional unit UT-102

Optional unit UT-106

J2501

SST

MC

SPCE

SPCH

MDA

SBSY

5V

GND

1

2

7

8

SPEAKER

1

2

12

34

5

678

910

11

12

13

EXT SP

ALC

ACC

J4651

SEND

REMOTE

ELEC-KEY

1 2

J2001

from PLL unit P5

BFO

BFOE

BFO

SPE

SPO

1st LO

CHASSIS

SQLS

SEND

MOD

13.8V

8V GND BDT

AFO

FSKK KEY BAND ALC

2

12

7

3

4

11

1

10

6 5

13

8

1

2

4

3

56

7

9

11

10

8

12

13

9

9 - 1

SECTION 9 BOARD LAYOUTS

9-1 MAIN UNIT

• TOP VIEW

The combination of this page and the next page shows the unit layout in the same configuration as the actual P.C. Board.

W2501

to MAIN unit J9

15

16

1

2

GND

8V

13V

DNB DSTB PDAT CON1 FSKK

NC 13V 13V

PSTB

PCK CON2 CON0 SRST

2nd LO

J1

1

2

1

2

to MAIN unit J401

P2

P1

2LO2LOE

BFO

J2

J3

1 2

to MAIN unit J2001

P5

BFO

BFOE

1st LO

J4

1

2

1

2

to MAIN unit J201

P4

P3

1LO1LOE

9 - 2

MAIN UNIT

• BOTTM VIEW

9-2 PLL UNIT

• TOP VIEW

The combination of this page and the previous page shows the unit layout in the same configuration as the actual P.C. Board.

12345678910

110

AFGL

GND

RFGL

GND

RITL

GND

SFTL

GND

5VL

5VL 5VL

GND

to LOGIC unit J3

SHIFTRIT RF/SQLAF

J1

10

2

9

1

ESPO

AFO

AFE

GND

ESPO

AFO

AFE

to LOGIC unit J5

J2

GND

6

8

5

4

3

2

1

7

9 - 3

9-3 LOGIC BOARD

• TOP VIEW

9-4 PHONE BOARD

• TOP VIEW

9-5 MIC BOARD

• TOP VIEW

9-6 VR BOARD

• TOP VIEW

The combination of this page and the next page shows the unit layout in the same configuration as the actual P.C. Board.

6

8

5

4

3

2

1

7

GND

8V

SEND

GND

MIC

GND

UD

SQLS

AFO

MICE

to LOGIC unit J4

J2

1

9

2

10

ESPO

AFO

AFE

GND

ESPO

AFO

AFE

to PHONE board J2

to VR board J1

J5

1

9

2

10

GND

AFGL

RFGL

RITL

SFTL

5VL

J3

1

2

10

9

SENSOR

+5V

SEN1

SEN2

GND

1

4

MICE

AFO

SQLS

8V

GND

MIC

GND

SEND

UD

GND

to MIC board J2

J4

1

9

2

10

GND

DOTK

DASK

VOXL

AVXL

SML

ALML

REFL

FORL

PATL

BEEP

DNB

RXS

TXS

SBSY

KDS

DSPS

DSST

SSTB

DINT

DRES

ASTB

MSTB

FSTB

BSTB

MCK

MDAT

POWS

GND

29

115

5

15

25

30

2

10

20

30 2

1

to MAIN unit J4401

J6

STRT

5V

SNDS

8V

HV

14V

FSKK

MICE

MIC

SEND

SQLS

SEND

SPS

PHOE

PHO

GND

CIVE

CIV

ALMS

NC

KEY

29

30 1

2

GND

8V

13V

DNB

DSTB

PDAT

CON1

FSKK

1

15

216

J9

NC

13V

PSTB

PCK

CON2

CON0

SRST

to MAIN unit J4401

9 - 4

LOGIC UNIT

• BOTTOM VIEW

PHONE BOARD

• BOTTOM VIEW

MIC BOARD

• BOTTOM VIEW

The combination of this page and the previous page shows the unit layout in the same configuration as the actual P.C. Board.

ANTENNA

J1

13579

246810

to LOGIC unit J4001

10

9

1

2

F1F6F4

F2

FOR

F5

REF

F3

T13V

GND

J4

J3

P5 P6

to MAIN unit J701

W11

W10

CHASSIS

J2

P4

P3

W9

to PA unit J7

W8

CHASSIS

9 - 5

9-7 FILTER UNIT

• TOP VIEW

The combination of this page and the next page shows the unit layout in the same configuration as the actual P.C. Board.

9 - 6

FILTER UNIT

• BOTTOM VIEW

The combination of this page and the previous page shows the unit layout in the same configuration as the actual P.C. Board.

C14

C13

C16

C8

E

B

BEC

E

C

B

E C

E

B

E

C

E

R30

D2

J3

to MAIN unit J4101

1

5

10

15

16

162

2

GND

PWS

GND

14V

ICL

ICH

STAR

TEMP

14V

PAT8

HV

KEY

J12

BROWN

ORANGE

RED

YELLOW

KEY STAR

14V GND

1 2 3 4

1 2 3

4 5 6

J1

RED RED BLACKBLACK

J6

P1P2

W6

to MAIN unit J1

W7

J7

P4P3

W8

to FILTER unit J2

W9

VARISTOR BOARD

CHASSIS CHASSIS

9 - 7

9-8 PA UNIT

• TOP VIEW

The combination of this page and the next page shows the unit layout in the same configuration as the actual P.C. Board.

VARISTOR BOARD

9 - 8

PA UNIT

• BOTTOM VIEW

The combination of this page and the previous page shows the unit layout in the same configuration as the actual P.C. Board.

10 - 1

SECTION 10 BLOCK DIAGRAM

MAIN UNIT

Q1508 2SC4081 Q1509 DTA114

AFGV

TO MIC

IC2702

TA7368F

D1901

1SS375

IC2001 TA4101

AF

SELECT

IC2101A

NJM2058

IC2801

TC4566

IC2901

LA4425

IC2701

M5282FP

SIDE TONE/BEEP

UT-102

OPTION

UT-106

OPTION

VCA

IC2102 TC4W53

AGC

NBS

D1501

1SS375

Q1506

FI611 FL-65

Q1603

3SK131

Q1602

2SK882

Q1601

2SC4081

D1803

1SS375

Q1805 2SC4081

SSB-N

RTTY-N

CW-N

USB, LSB, CW, RTTY

NB

LEVEL

Q1507

2SC4081

NBLV

DTC114

CW

KEYING

D401

HSB88WS

FI1301

CFW455HT

Q1501

2SK882

Q1502

2SK882

Q1503

2SK882

Q1504 2SC4081 Q1505 2SA1576

D1301 D1302

MA77×2

Q1301

3SK131

Q502 2SK882

PRES

Q1401, Q1402

2SK2171×2

PROS

Q1101, Q1102 Q1103, Q1104

2SK1740×4

Q201 2SC4673

Q1201

3SK131

FI301A, FI301B

FL-315

SW

IC3003

below 1.6 M

1.6–2 M

2–4 M

4–8 M

8–11 M

IC3005 TD62783

20 dB

ATTS

RX

Q2,Q3 2SC3133×2

Q4,Q5 2SC2904×2

IC1

µPC1678

FILTER UNIT

0.03–2.0 M

11–15 M

15–22 M

22–30 M

Q1 2SC1971

PA UNIT

Q101, Q102 3SK131×2

Q151 2SK882

KDS

Q501

DTC114

(OPTION)

FL-52A FL-53A

FL222

IC1701D

NJM2058

CW AM Carrier SET

Carrier

SET

SQL CONT

IC2201 UPC5023

IC2301 MC1496

IC1701A NJM2058

ALC DET

IC2351B

NJM2904

ANALOG MASTER

MIC

ICH ICL

KDS

MIGV

REF

FOR

POCV

IC1701B NJM2058

IC1701C NJM2058

IC1751A NJM2904

DDS

PLL UNIT

Q29

2SC2714

Q32

2SC2714

Q30

2SC2714

IC6

SC-1246A

IC7 TC4SU69F

Q26

2SC2714

Q28 2SC2714

Q18 2SK508

64.485–97.455 MHz

1Lo

64.485–97.455 MHz

Q3601 2SD1664 IC2101D NJM2058

VCA,etc

IC3301 M62352

FANV

D2,D3

1SS375×2

D1

MA29B

D2,D3

MA29B×2

Q6

2SD1585

15.0–22.0 M

22.0–30.0 M

2.0–4.0 M

4.0–8.0 M

8.0–15.0 M

TX

SW

HV

13V

A/D

MAIN DIAL

RIT

AF VOL

SHIFT

A/D

IC40

TC7W32

WAVE

FORMER

CI-V

I/F

RF/SQL VOL

IC100 7W04

CPU

FRONT UNIT

IC1 HD6473834H

IC3006 BU4094

SERI

PARA

SERI

PARA

SERI

PARA

IC3001 BU4094

IC3004 BU4094

MODE

DATA

BPF

LPF

+5

REG

13V

5V

IC1

TA7805

IC 3002

TD62783

IC3003

TD62783

IF FIL

IC3005

TD62783

Q9

2SC2714

IC2

SC-1287

BFO

DDS

Q11

2SC2714

Q35 2SC4081

R13

REG

R13V

T8V

R8V

IC3005

TD62783

IC3005

TD62783

IC3002

TD62783

IC3005

TD62783

T13V

T13

REG

Q3801 DTC114 Q3802 DTA114

TXS

RXS

14V

FSKK

KEYJACK

–5V

PAT8

8V

IC3005

TD62783

IC3501

UPC1555

Q10

2SC2714

2LO

PTT

X1

DATA

SW

IC104

TC7W32

CR-337

32.000 MHz

A/D A/D

SMV FOR

A/D

REF

HV

IC5

TA78L05

A/D

ALC

DATA

DS1

DISPLAY

POWER

SW

LCD

DRIVE

IC7

HD66100F

10KEY

EEPROM

13V

IC6

TA7805

IC2 X25320S

AF

AMP

AF

AMP

AF

MUTE

PWR AMP

MIC

ALC AMP

T8

REG

R8

REG

+8

REG

PAT8 REG

–5V

DC-DC

AM

DET

AGC DET

BUFF

IF

AMP

AGC AMP

METER

AMP

IF

AMP

UT-102

NB

SW

GATE CTRL

NB

DET

NOISE

AMP

AGC AMP

NOISE

AMP

NOISE

AMP

IF

AMP

IF

AMP

CERAMIC

BPF

XTAL

BPF

NB

GATE

CERAMIC

BPF

IF

AMP

XTAL

BPF

LO

AMP

IF

AMP

LPF

ATT

BPF

PREAMP

SW

PRE

AMP

ATT

YGR AMP

ATT

HPF

ATT

LPF

BPF

LPF

BPF

LPF

SWR

DET

LPF

PWR AMP

BIAS BIAS

DRIVE

AMP

PRE

DRIVE

LPF

ATT

METER AMP

LPF AMP

AMP AMP

BUFF

LO AMP

BPF

LOOP

FIL

AMP

BUFF

LPF

BPF

× 2

FAN

CTRL

BUFF

LCD

SEND

SW

+5

REG

+5

REG

D/A

COMMON LINE

TX LINE

RX LINE

LPF

IC2351A

NJM2904

LPF

REMOTE

RF GAIN

AM

Q1 DTC114 Q2 2SC4081

11 - 1

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

J3

GND

W4

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

J4101

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

J4401

CHASSIS

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

J6

W2

FRONT UNIT

+5V SEN1 SEN2 GND

1 2 3 4

J1

1 2 3 4

S1

LOGIC UNIT

EP1

SENSOR

+5V SEN1 SEN2 GND

MAIN UNIT

5V 8V

8V HV 14V 14V

MICE MIC

FSKK

SEND SQLS

PHOE PHOE PHO PHO

CIVE CIV ALMS

STRT

GND

SPS

SEND

SNDS

NC

GND

PWS

14V

ICL

ICH

HV

STAR

KEY

TEMP

14V

P1

P2

W6 W7

J1

PAT8

PA UNIT

J6

J7

P3

GND GND GND PWS 14V 14V 14V 14V 14V ICL

ICH

STAR KEY TEMP

PAT8

1 2 3 4

J13

J1

2 3 4

1

J12

KEY STAR 14V GND

HV

GND

HV

ASC2

ASC1

FILTER

UNIT

T13V GND REF L3 FOR L5 L4 L2 L1 L6

1

2

3

4

5

6

7

8

9

10

J1

W8

W9

P4

J2

W5

1

2

3

4

5

6

7

8

9

10

J4001

T13V GND REF L3 FOR L5 L4 L2 L1 L6

KEY

DOTK DASK VOXL AVXL SML ALML REFL FORL PATL BEEP DNB RXS TXS SBSY KDS

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

J4201

GND

AFGL GND RFGL GND RITL GND SFTL GND 5VL

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

J7

W3

5V 8V

8V HV 14V 14V

MICE MIC

FSKK

SEND SQLS

PHOE PHOE PHO PHO

CIVE CIV ALMS

STRT

GND

SPS

SEND

SNDS

NC KEY

DOTK DASK VOXL AVXL SML ALML REFL FORL PATL BEEP DNB RXS TXS SBSY KDS

GND

1 2 3 4 5 6 7 8 9

10

J3

W3

1 2 3 4 5 6 7 8 9 10

J1

GND

AFGL GND RFGL GND RITL GND SFTL GND 5VL

VR BOARD

MIC BOARD

PHONE BOARD

J1

1 2 3 4 5 6 7 8 9

10

J5

W4

W5

1

2

3

4

5

6

7

8

9

10

J4

1

2

3

4

5

6

7

8

9

10

J2

MIC MICE GND AFO SEND SQLS UD 8V

W1

DSPS DSST SSTB DINT DRES ASTB MSTB FSTB BSTB MCK MDAT POWS GND GND

GND GND

AFO

AFE AFE AFE

GND

DSPS DSST SSTB DINT DRES ASTB MSTB FSTB BSTB MCK MDAT POWS GND

GND

UT-106 (OPT)

P6

P5

W10

W11

J701

W2

J14

J3

R1

1234

ANT

FAN+

FAN-

1 2 3

J3601

FAN

1

2

3

P1

ALC

SQLS

SEND

MOD

13.8V

8V GND

J4801

ALC GND

BDT

AFO

ACC

FSKK KEY BAND ALC

2

12

7

3

4

11

1

10

6

5

13

8

J4651

12

J2601

1234

1

234

P2601

123

4

J2602

1

2

3

4

5

6

7

8

9

10

J2603

PLL UNIT

1 2

J2

1st LO

2nd LO BFO

1 2

J2001

1 2

J1

1 2

J201

1 2

J401

1 2

J4

1 2

P3

1 2

P1

1 2

P4

1 2

P2

1 2

P5

W102

W101

W105 W106

W103 W104

GND

8V

13V 13V 13V

DNB

PSTB

DSTB

PCK

PDAT

CON2

CON1

CON0

FSKK

SRST

1LO 1LOE

2LO 2LOE

BFO BFOE

1LO 1LOE

2LO 2LOE

BFO BFOE

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16

J3

NC

AFO AFO ESPO ESPO ESPO

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

J9

GND

8V

13V 13V 13V

DNB

PSTB

DSTB

PCK

PDAT

CON2

CON1

CON0

FSKK

SRST

NC

AFO

AFE AFE AFE

GND

AFO AFO ESPO ESPO ESPO

SP1

W1, W2

SP

1 2

J4502

1 2

P1

UT-102

(OPT)

SPCE SPCH

5V GND

DRES

DINT

DSST

MDAT

MCK

DSPS

GND

SPE

GND

MDA SBS

SST MC

SPO

1

2

3

4

5

6

7

8

J2501

DOUT

DOE

DOUT

DOE

SEND

J5001

J5101

REMOTE

DASK

CIV CIVE

GND

ESPO SPE

EXT SP

J4501

SEND

ELEC-KEY

DOTK GND

1

2

3

4

5

6

1

2

4

3

56

7

9

11

10

8

12

13

GND

9

1

2

3

4

5

6

7

8

910

HV

J1

UD

8V

MIC

MICE

GND

SEND

AFO

SQLS

GND GND

10

9

8

7

6

5

4

3

2

1

J2

1

8

7

6

4

3

2

5

SECTION 11 WIRING DIAGRAM

SECTION 12 VOLTAGE DIAGRAM

P6

P5

W10

W11

P4

P3

W8

W9

P1

P2

W6

W7

USA, USA-1 KOR, OTH

W19A, W20A W21A, W22A

EUR, ITA, FRA, ESP, DEN

W19, W20 W21, W22

J1 : LLR-06

FILTER UNIT

PA UNIT

VARISTOR BOARD

R604

4.7k R605

4.7k

R614 10k

D601 DAP202K

R611 10k

D605 DAP202K

FI611 FL-65

WCNT

2nd Lo

C502

0.0047

Q501 DTC114EE

D502 MA2S111

R602 33k

1

2

J401

Q503 DTC114EE

Q511 DTC114EE

R511

2.2k

C503

0.47

C511 100

8V 5V T8V

WCNT

ALC

R512

4.7k

R513 33k

R514 33k

R2312

4.7k

R505 22k

2LO

2LOE

R403 270

C306

0.0047 R303 1k

C158

0.0047

L153

4.7µH

R401 270

R402 18

C204

0.0047

C154

0.0047 R152 150

L152 100µH

C202

0.0047

C203

0.1 L201 10µH

T8

R202 15

8V

R104 100k

R105 1k

L104 100µH

C108

0.1

R102 100k

C109 0.1

C110

0.1

C151

0.0047

R151 100

T8

L105 LR-358

R101 100

C2

0.1

R4 15

RX

R6 18

R5 270

Q701 DTC114EE

C701

0.1 C702

0.1

L701 100µH

L702 100µH

L801 100µH

C801

0.1

L703 100µH

J701

C703

0.1

C1

0.1

C704

0.1

R703 270

R701 390

R704 390

R705 470

ATT8

43 1

2

D701 1SV312

L1 100µH

C4 100p

1

4

6

235

IC1 µPC2709T

C3

0.1

R7 270

L2

0.22µH

MP1

C823 220p

C833 270p

C101 68p

L101

0.22µH

C103 150p

C105 82p

L102

0.27µH

L103

5.6µH

Q101 3SK131

R103 100k

Q102 3SK131

C111 7p

R106 22k

C112

0.1

L106 LS-483A

C153

0.0047

R801 470

R82122R82322L821

5.6µH

R822 47

R824 470

C822

0.0027

C824

0.0022

L822

6.8µH

L832

2.7µH

L831 100µH

L833

3.9µH

C837

0.0027

L835

4.7µH

C839

0.0015

L836

5.6µH

L802 330µH

R802 470

C901

0.1

L901 100µH

C902

0.1

R901 470

R904 10k

R1404 10k

R902 220

D806 MA77

D813 MA77

D901 MA77

D903 MA77

L151 LS-484B

C821 1

C102 47p

C104 22p

R108

4.7k

R107

2.2k

PROF

B0

4

312

D802 1SV312

C106

0.0033 C107

0.0027

W801

C113 10p

L100

0.47 µH

C100 82p

C152 12p

1st Lo

C155

0.0047

R153

3.3k

R156 1k

R155 332KC

C156

0.0047

C157

0.0047

R154 1k

C205

0.0047

L202

0.22µH

R205 56

R301 1k

R903 1k

C904

0.1

L902

0.18µH

R1001 47k

Q1001 2SA1576

R1002 1k

Q1002 DTC114EE

C1101

0.0047

L903

0.27µH

C906 10p

C905 150p

C907 82p

R1103 560

C1102

0.1

R1105 560

Q1101 2SK1740

Q1102 2SK1740

Q1103 2SK1740

L1104 100µH

R1107 47

C1106

0.0047

Q1104 2SK1740

L1103 LS-483A

Q151 2SK882

D201 MA77

D202 MA77

D904 MA77

D304 MA77

C301

0.0047

D301 MA77

C1103

0.1

L1101 LR-358

1

2

1

2

J201

PLL unit J4

P3

P4

D902 MA77

L904

0.33µH

L1102 LR-403

C201 470p

8V

R13V

14V

R8V

C1105

0.1

R201 1k

R206 10

C206 220p

R204 680

Q201 2SC4673

R203

4.7k

R1102 100

C1104 3p

R1101 1k

C1001

0.1

1LO

1LOE

1LO 1LOE

R1208 100

C1301

0.1

D401 HSB88WS

L302 LS-484B

C305

0.0047

R302 1k

R304 1k

C307

0.0047

R1108 1k

R1201 1k

C1201

0.0047

L1201 LS-484B

C1202

0.0047

C1203

0.1

R1204

1.8k

C1204

0.0047

C1209

0.0047

R1206 150

C1205 10p

C1206

0.0047

C1207

0.0047

R1209 1k

R1301 1k

12

345

FI1301 CFWS455HT

D302 MA77

D303 MA77

D306 MA77

D305 MA77

L303 LS-484B

L301 LS-484B

L1202 LS-484B

L1301 LS-468

AGC

W1202

C1108

0.1

R1202

5.6k

R8V

L401 LR-358

FI301A FL-315

FI301B FL-315

C1208 10p

C302 12p

C303 12p

C304 12p

Q1201 3SK131

R1207

2.2k

R1205 1M

C401 470p

L402 LR-395

R502 1k

C506 47

C507

0.1

R504 100

R507

4.7k

R508

103KCT

R603 33k

C1305

0.1

L1303 LS-468

C1307

0.1

R1304

4.7k

C1308

0.1

R1305

1.8k

C1310

0.1

R1308 220

Q1301 3SK131

L1304 330µH

R1306 470k

C1309

0.1

W1311

R1307

6.8k

R1310

2.2k

R1311

2.2k

D501 DAN202K

R1302 220

Q502 2SK882

R509 10k

D503 DAN202K

D1301 MA77

D1302 MA77

L1302 LS-468

R1300 100k

L501 LS-469

R503 47k

R501 1k

C504

0.0047

C509

0.0047

C508

0.1

C501

0.0047

C510 1

14V

R506 10k

R633 1k

C631

0.1

C601

0.1

R612

5.6k C611

0.1

C612

0.1

R613 100

D606 DAN202K

D602 DAN202K

R621

3.3k

R624

3.3k

R622

5.6k

C621

0.1

R623 100

C622

0.1 D603 DAP202K

D604 DAN202K

C602

0.1

R631 10k

R632

5.6k

C632

0.1

R634 100

C633

0.1

R635 10k

D607 DAP202K

D608 DAN202K

C603

0.1

R510 10k

R601 10k

R606 10k

2NTH

2NOP

2N3K

14V

R8V

8V

CP1621 CP1622

BFO

R2004 220

R2006 330

R2005 470

BFO BFOE

1 2

J2001

P2

PLL unit J2

Q1603 3SK131

R1622

2.2k R1623

560

R1624 470

R1625 470k

R1626 220k

C1625

0.1

C1631

0.1

D1631 DAN202K

D1632 MA77

C1632

0.1

C2010

0.1

L2001 100µH

C2009 10

C2008

0.1

C2007

0.1

C2006

0.0047

C2004

0.1

C2003

0.1

C2002 100p

R2001 100

C2001

0.1

C1905

0.0047

D1901 1SS375

R1907 1k

C1904

0.1

C1903

0.0047

L1621 LS-450

R1631 10k

R1632 10k

R1633 100k

R2002 22k

C1623

0.1

C1624

0.1

R2003 100

IFOUT

1

VCC

2

OSCIN

3

BASE

4

BASE

5

BASE

6

GND

7

COLECT

8

IC2001 TA4101F

C2005 1

SSBAF

8V 5V ALC

14V

8V

AMS

5V

14V

AGC

R1906 56k

R1905 100k

R1810 1M

R1814 1k

C1514

0.1

D1503 MA2S111

Q1509 DTA114EE

C1516

0.1

R1522 220

C1601

0.1

R1601 47

R1603 27k

Q1601 2SC4081

R1602 470

R1604 47k

C1602

0.001

C1611

0.1

R1611 100

R1615 10k

R1610 10k

R1614

4.7k

R1612 332KCT

R1617 332KC

R1627 332KC

R1610

2.2k

C1613

0.1

C1615 1

R1621 100

C1621

0.1

C1902

0.0047

R1902 47k

R1903 1k

C1815 150p

D1803 1SS375

C1813

0.0047 C1812 100p

Q1805 2SC4081

R1815 22k

C1803

2.2

C1804

0.1

R1808 1k

R1809 100

Q1602 2SK882

Q1611 2SC4081

L1611 LS-450

R1813

3.3k

D1802 MA2S111

R1812 15k

AMAF

DN

8V

R1904 47

R1901 10k

6

5

43

2 1

Q1803 UMD6

AGC

AGMS

AGSS

AGRS

C1805

0.47

C1901

3.3

R1521 1k

C1515

0.1

L1601 LS-450

D1801 1SS375

C1509

0.1

R1510 470

L1503 330µH

C1508 330p

R1509

3.3k C1510

0.1

D1501 1SS375

R1511 100k

C1511 470p

R1513 47k

Q1504 2SC4081

R1514 47k

R1515 330

R1516

2.2M

C1512 1

C1513 47

Q1508 2SC4081

R1520

6.8k

R1807 10k

C1802

2.2

R1806 1M

14

13 12

IC1701D NJM2058

C1801

0.0047

R1801 1k

Q1503 2SK882

R1805 100k

R1755 1k

NBS

SM

ALM

NBLV

CP1501

6

5

4 3

2 1

Q1802 UMD6

6

5

43

2 1

Q1801 UMD6

R1802

2.2M

R1803

1.8M

R1804 220k

R1519 100

Q1506 DTC114EE

R1523 47k

R1518 1k

R1517

3.9k

Q1505 2SA1576

D1510 MA2S111

Q1507 2SC4081

R1403

4.7

L1402 LR-397

C1404

0.1

R1501 47k

C1501

0.1

R1502 470

R1503 100

R1504 22k

C1504

0.1

R1505 470

C1505

0.1

R1506 100

R1508 27k

R1507 100

C1507

0.1

R1703 100k

R1709 100k

R1708 220k

R1710

2.2M

8

9 10

IC1701C NJM2058M

R1711 330

C1704

0.0047

Q1703 2SA1576

R1713

2.2M

C1502

0.1

D1704 DAP202K

Q1501 2SK882

Q1502 2SK882

L1501 LS-450

L1502 LS-450

C1405 22

Q1402 2SK2171

Q1401 2SK2171

C1751

0.1

R1752

2.2M

R1751 820k

ALC

Q1705 DTC114EE

C1707

0.1 C1708

0.1

3

2

1

4

8

IC1751A NJM2904M

R1754 470k

C831

0.1 R831

470

C834

0.001

C838

0.012 R8321kC840

0.1

L842

2.2µH

L841 100µH

L843

2.2µH

C841

0.1

R841 470

L852

0.82µH

L851 100µH

C851

0.1

R851 470

L853

1.2µH

C853 68p

C854 270p

C855

0.0012

C856

0.0056

L855

1.5µH

L854

1.8µH R852

1k

C858

0.1

L861 100µH

L862

1.2µH

L863 1µH

C863 56p

C865 680p

C866

0.0027

C867 330p

L865

1.2µH

C832

0.0018

C842

0.0012

C852 470p

R1401 220

L1401 LR-86

C1401

0.1

C1402

0.1 R1402

22

D807 MA77

D808 MA77

D803 MA77

D810 MA77

D814 MA77

D815 MA77

D804 MA77

D811 MA77

C843 56p

C844 680p

C845 560p

C846 150p

FOR POCV

PRON

B1

B2

B3

ATT8

R1729 10k

C857 680p

R842 470

D1707 MA2S111

D1706 MA2S111

L813 100µH

L814 100µH

C811

0.1

C816

0.1

C803

0.0047

C812

0.047

L811

4.7µH

C813

0.0015

L812

3.3µH

C815

0.0027

C817

0.0047

C814

0.0047

4

312

D801 1SV312

C861

0.1

R861 470

C864 330p

L864

0.82µH R862

1k

C868

0.1

L871 100µH

L872

0.47µH

C871

0.0047 R871

470

L873

0.56µH

C873 56p

C874 150p

C872 270p

C862 330p

C875 470p

C877 220p

C876

0.0015

L874

0.68µH

L875

0.82µH

L881 100µH

L882

0.39µH

L883

0.39µH

C881

0.0047 R881

470

C882 220p

C883 33p

C884 120p

C885 270p

C886

0.0012

L884

0.47µH

C887 150p

L885

0.56µH

C888

0.0047

C878

0.0047

R882 1k

L892

0.27µH

C899 33p

L893

0.27µH

C895 220p

C897 100p

R1706 330

C2401

0.047

R2401 100k

R872 1k

D805 MA77

D809 MA77

D812 MA77

D816 MA77

ICH ICL

REF

BEPI

AMS

B4

B5

B6

AMS

Q1706 DTC114EE

D1701 MA8043H

D1702 MA8043H

D1703 MA2S728

OPTION UT-106

1

2 3

11

4

IC1701A NJM2058M

R1707 100k

R1725 100k

7

6 5

IC1701B NJM2058M

R1712 100k

R1714 270k

R1716 470

R1717 47k

R1718 47k

R1719 33k

R1720 10k

R1721 33k

C1702

0.1

C1701

0.1

R1723 470

C2103

0.1

1

2 3

11

4

IC2101A NJM2058

R2402 100k

R2403 47k

C2403

0.001

7

6 5

IC2101B NJM2058M

12 34 56 78

J2501

R2501 47k

W2501

D1705 DAP202K

R2101 470

R2108 470

C1752

0.1

C2101 1

MDA SST SBS

SPCE SPCH

5V GND

EALC

MC

C2405

0.1

C2501

0.1

R1722 1M

R1715 12k

R1730 100k

C1706

2.2

W1726

R1724 10k

VCC2

1

IN+

2

IN–

3

OUT

4

VCAIN

7

CTL

8

VCAOUT

9

VCC

10

GND

5

NC

6

IC2701 M5282FP

W2101

C2102

0.1

R2105 47k

1 2 3 45

6

7

8

IC2102 TC4W53F

R2106 47k

C2107

0.1

R2107 47k

R2201 1k

R2204 100k

C2203

0.1

R2202 10k

R2203 10k

R2208 10k

C2207

0.047

R2210

4.7k

C2205 100p

R2209 100k

C2208 470p

R2211 82k

C2210 470p

W2201

R2601

1k

R2602

1k

R2603

1k

R2604

1k

R2605

1k

R2606

1k

R2701

4.7k R2703

100k

C2702 330p

R2704 100k

C2704 10

C2705 10

R2104 47k

D2101 MA2S111

C2202

0.1

R2225 220

C2201 47

C2204 1

R2102 10k

R2103 10k

SQLS

DRE DIN DSS

MC

DSP

AVX

PHO

VOX

MIC

MICE

MDA

1

2

3

4

5

6

7

8

9

10

J2603

C2104

0.0022

C2105

0.0022 C2206

0.1

C2209 1

R2206 180k

C1814 10

NC

1

CMPI

2

CMPO

3

SWI

4

BU1I

5

BU1O

6

SWO

7

VCAI

8

VCAO

9

VCAC

10

SWC

11

VCC

12

NC

13

AVI

14

AVO

15

MUTE

16

VOXO

17

VOXI

18

BU2O

19

BU2I

20

AMPO

21

AMP–

22

AMP+

23

GND

24

IC2201 µPC5023

C2211 10

R2212 220k

R2213 220k

C2212 10

R2214

4.7k

R2215

10k R2217 47k

C2214

0.1

R2220 220k

R2221 22k

R2218 10k

C2216

0.1

D2202 DA221

C2217

0.039

R2222

6.8k

R2219 56

R2707 100

R2708 27k

C2801

0.1

5 4

3

2 1

IC2801 TC4S66F

R2804 10k

D2201 DA221

C2213

0.1

C2219

0.47

R2224

4.7k

R2383 22k

R2381 100k

C2381 10

R2382 470k

C2382

0.1

C2380

0.1

R2384 1k

AFGV

AAFO

R2223

6.8k

W2351

R2720 10k

C2720

0.1 C2721

100

C2723 47

PHOEPHO

NC

1

VCC

2

NC

3

VIN

4

RIPPLE

5

NF

6

PHASE

7

PREGND

8

PWGND

9

POUT

10

IC2702 TA7368F

SPS

AFMS

D2701 DAP202K

R2722 47k

5 6

7

IC2351B NJM2904M

R2216 47k

C2215 1

C2710

2.2 L2901 LW-15

C2904

0.1

R2306 330

C2304 10

R2320

8.2k

R2007

2.2k R2008

2.2k

C2305 10

R2301 1k

R2317 1k

L2301 100µH

C2303

0.1

R2352 56k

C2352

0.0022

R2353 47k

C2353 390P

D2381 1SS375

R2385 10k

C2383 10

Q2381 2SC4081R

8V

CARR C2384 1

R2386 10k

R2387 10k

Q2384 DTC114EE

Q2383 DTC114EE

C2905 1000

3 2

1

4

8

IC2351A NJM2904M

C2354 10

R2307

4.7k C2312

0.47

R2300 560

R2303

4.7k

R2302

47k R2304 47k

C2306

0.1

C2301

0.1

C2313

0.1

R2319 560

R2318 560

R2305 1k

D2301 MA2S111

D4220 MA2S728

C2315

0.47

R2803 10k

EXT SP

J4501

P1

C2314

0.1

Q2302 DTC114EE

R2321 220k

R2310 1k

C2310

0.1

C2309

0.1

R2313 10k

T8V

–5V

8V 5V

14V

–5V

SPE

ESPO

SPE

ESPO

121

2

J4502 SPO SPE

AMS

VS+

1

VCS

2

VCS

3

VS–

4

BIAS

5

VO+

6

NC

7

VC+

8

NC

9

VC–

10

NC

11

VO–

12

NC

13

V–

14

IC2301 NJM1496V

ALC

GND

SEND GND

SEND

MOD

GND

AFO

SQLS

13.8V

8V

BAND

FSKK

ACC

BDT

KEY

J4801

L4651 HF50ACC322513-B

L4501 HF50ACC322513-B

L4653 HF50ACC322513-B

L4654 HF50ACC322513-B

L4656 10µH L4657 10µH

C4660

0.0047

L4652 10µH

C4656

0.0047

C4501

0.0047

L4660 10µH

C4648

0.0047

C4659

0.0047

L4801 100µH

EP4801

L4802 HF50ACC322513-B

2

12

7

3

4

11

1

1234 567 8

101112 9

13

10

6

9 5

8

J4651

SP1

L4661 100µH

L4658 100µH

L4659 10µH

RL4801 AHY103

C4801

0.0047

C4661

0.0047

C2903

0.1

C2902 10

1 2

3

4

5

IC2901 LA4425A

C2906 470

R2901 470

R2902

4.7

C2907

0.1

C3512 47

C4651

0.0047

8V

SEND

AAFO

AMOD

SQLS FSK

BAND

EALC

STRT

KEY

C4653

0.0047

C4654

0.0047

C4655

0.0047

SNDS

Q4601 2SD1619T

R4227 10k

C4662

0.0047

GND

1

TRG

2

OUT

3

RESET

4

VCONT

5

VTH

6

DISCHARGE

7

VCC

8

IC3501 µPC1555G2

C3507 47

R2709

2.2k

C270810C270910R2710

8.2k

R2805 1k

C3511

0.1

C3509

0.1

C3508 47

D3503 MA8051

R3506 100

R3505 100

D3502 DA221

R3503 10k

R3504 100k

C3504

0.1

C3510 10

MICE MIC SEND SQLS SQLS

SPS

KEY KEY

PHOE PHO

FSK

L3502 1M

W4401

C2901

0.047

C3505

0.0047

C3506

0.1

R2721 560

C2722 47

MP25 R3302 330

R3303 560

C2703 10

C2706 10

C3302

0.1

VSS

1

AO3

2

AO4

3

AO5

4

AO6

5

AO7

6

AO8

7

AO9

8

AO10

9

VDD

10

VCC

11

AO11

12

AO12

13

DO

14

LD

15

CLK

16

DI

17

AO1

18

AO2

19

GND

20

IC3301 M62352GP

W2602

W2601

1 2

J2601

C2601

0.1

R2607 100k

R2702 470

C2701 10

R2705

4.7k

R2706

4.7k

C3503 22

C3502

0.1

C3501

47

C3301

0.1

IC3401 TA7808S

R4101 1k

SPCO

BEPO

NBLV

RFGV AFGV

MIGV

BAND

POCV

PAT

C2602

3.3

C3401 100

C3404 100

L3501 1M

C3513

0.1

FANV

C3403

0.1

C3402

0.1

R3501 180

R3502 180

OPTION UT-102

C2502

0.1

1 2

3 4

J2602

DOUT

DOE

NC NC

DOUT DOE

NC NC

1 2

3 4

P2601

R3202 100k

R3101

4.7k

Q3101 DTC114EE

R3201 100k

8

9 10

IC2101C NJM2058

R3203 470

C3005

0.1

STR.

1

D

2

CLK

3

OE

15

Q1

4

Q2

5

Q3

6

Q4

7

Q5

14

Q6

13

Q7

12

Q8

11

QS

9

QS

10

1

6

8

IC3006 BU4094BCF

R4007

4.7

SPCO

BEPO

MST MDA MC

AGRS AGMS

AFS AFMS

COMS

2N3K

R3011

R3012

R3013

2NTH 2NOP

T8V R8V

R8V

DRE

MDA

MC

AST

BANV

BEPV

BEE

BEPI

AMS

AGSS

NBS

PAT8

ATT8

R4001 4.7

R4002 4.7

R4003 4.7

R4004 4.7

R4005 4.7

R4006 4.7

R3102

4.7k

C3101

0.1

R2406

4.7k

R2407

4.7k

C3003

0.1 IN1

1

IN2

2

IN3

3

IN4

4

IN5

5

IN6

6

IN7

7

IN8

8

VS

9

O1

18

O2

17

O3

16

O4

15

O5

14

O6

13

O7

12

O8

11

GND

10

IC3005 TD62783AF

C891

0.0047

R891 470

L891 100µH

C892 120p

C893 39p

C894 68p

C896 820p

L894

0.33µH

L895

0.39µH

R8921kC898

0.0047

C3004

0.1

STR D CLK OE

Q1

4

Q2

5

Q3

6

Q4

7

Q5

14

Q6

13

Q7

12

Q8

11

QS

9

QS

10

.

1

6

8

IC3004 BU4094BCF

IN1

1

IN2

2

IN3

3

IN4

4

IN5

5

IN6

6

IN7

7

IN8

8

VS

9

O1

18

O2

17

O3

16

O4

15

O5

14

O6

13

O7

12

O8

11

GND

10

IC3002 TD62783AF

B7

MDA MC

FST

B7 B6 B5 B4 B3 B2 B1 B0

2S3K 2STH 2SOP

PROS

PRES ATTS

TX RX

DRE

14V

IFS

B0 B1 B2 B3 B4 B5 B6 B7

C2402

0.0047

D3002 DAN202K

C3007 470

FANV

CARR

KDS

TX_

C3001

0.1

STR

1

D

2

CLK

3

OE

15

Q1

4

Q2

5

Q3

6

Q4

7

Q5

14

Q6

13

Q7

12

Q8

11

QS

9

QS

10

1

6

8

IC3001 BU4094BCF

D3001 DAN202K

R3003 47k R3004 47k R3005 47k R3006 47k R3007 47k

R3008 47k R3009 47k

R3010 47k

MDA MC

BST

B0S

B1S

B2S

B3S

B4S

B5S

B6S

B7S

DRE

PROS

PRES R3001 47k

FAN

CHASSIS

MAIN UNIT

C3002

0.1

IN1

123456789

IN2

IN3

IN4

IN5

IN6

IN7

IN8

VS

O118O217O316O415O514O613O712O8

11

GND

10

IC3003 TD62783AF

R3002 47k

W3601

C3601 10

R3601 1k

14

13

12

IC2101D NJM2058

R3603 100k

D3701 DAN202K

R3701

4.7k

R3702 470

123

J3601

MF1 SB0812H-ICOM-00

123

Q3601 2SD1664

PRON

PROF

FAN+

FAN–

L3L5L4L2L1

L6

C3702

3.3

R3602 330k

FILTER

C3602

0.1

C4101

0.0047

C4102

0.0047

C4103

0.0047

C4104

0.0047

Q3801 DTC114EE

Q3802 DTA114EE

C3801

0.0047

Q3701 DTC114EE

Q3702 DTA114EE

10

9

8

7

6

5

4

3

2

1

J4001

CP4002 CP4001

5 6

7

IC1751B NJM2904M

R3703 RV-109

R3704 1k

CP3701

C4003

0.1

C4005

0.1

C4009

0.1

C4008

0.1

C4007

0.1

C4006

0.1

C4202 47p

C4203 47p

C4204 47p

C4205 47p

C4201 47p

C4206 47p

C4207 47p

C4208 47p

C4107

0.0047

C4106

0.0047

C4105

0.0047

C4209 47p

C4210 47p

C4211 0.0047

C4212 0.0047

C4213 0.0047

R4201 1k

R4202 1k

R4203 1k

R4204 1k

R4205 1k

R4206 1k

R4207 1k

R4208 1k

R4209 1k

R4210 1k

R4211 1k

R4213 1k

R4214 1k

R4217 1k

R4218 1k

R4219 1k

R4220 1k

J4201

to LOGIC unit J7

to LOGIC unit J6

POWS

J4101

R4102 100

C4200

0.0047

HV

W4216

R4215 1k

R4221 1k

R4222 1k

R4223 1k

R4225 1k

R4226 1k

C4214 0.0047

C4216 0.0047

C4220 0.1

C4222 0.0047

C4224 0.0047

C4226 0.0047

C4227 0.1

C4215 0.0047

C4219 0.0047

C4221 0.0047

C4223 0.0047

C4218 0.0047

C4217 0.0047

C4225 0.0047

C4401

0.0047

C4402

0.0047

J4401

STRT

R4224 3.9k

Q4801 DTC114EE

D4801 MA2S111

C4416

C4412

C4414

C4410

C4408

C4404

C4403

C4403–C4410

0.0047

C4405

C4407

C4409

C4411

C4411–C4414, C4416, C4417 0.001

C4413

C4417

T8V

C802

0.1

C4803

0.0047

C5101

0.0047

C5102

0.0047

C4415 0.1

SEND

REMOTE

J5001

CIV CIVE

C4802

0.0047

GND GND GND PWS 14V 14V 14V 14V 14V

14V

ICL PAT8

ICL

PAT8

ICH

HV

STRT

KEY

ICH HV STRT KEY TEMP

16 15 14 13 12 11 10

9 8 7 6 5 4 3 2 1

WCNT

L6 L1 L2 L4 L5 FOR L3 REF

GND

T13V

– +

–

+

C3006 470

+

M

14V

+

–

– +

–

+

– +

–

+

– +

+

++

+

++

+

IO

G

IO

+

–

+

++

–

+

– +

ESPO

SPE

SSBAF

AFS

AMAF

COMS

MIGV

AMOD

TALM

AMS

STRT 5V SNDS 8V 8V HV 14V 14V

5V

8V

HV

14V

FSKK MICE MIC SEND SQLS SEND SEND SEND SPS PHOE PHOE PHO PHO GND GND GND GND CIVE CIV ALMS NC KEY

DOT DAS VOX AVX SM ALM REF

REF

TX

FOR

PAT BEE DN RX TX SBS KDS DSP DSS SST DIN DRE

DRE

AST MST FST BST MC

MC MC MC MC MC MC

MDA MDA MDA MDA MDA MDA

MDA

GND DOTK DASK VOXL AVXL SML ALML REFL FORL PATL BEEP DNB RXS TXS SBSY KDS DSPS DSST SSTB DINT DRES ASTB MSTB FSTB BSTB MCK MDAT POWS GND GND

30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10

9 8 7 6 5 4 3 2 1

30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10

9 8 7 6 5 4 3 2 1

RFGV

RL7

AJS1311

L24

LR-217

L7

LR-392

L8

LR-392

RL8

AJS1311

L16

33µH

RL13

AG201344

L13 LR-391

C8

0.047

C2

0.047

C17 ECR-LA010A12 10p

W3

L17

33µH

C71

0.0047

L1

LR-226

L2

LR-227

L12

LA-479

C49 150p

RL12

AJS1311

C25 820p

C27 820p

C26

120p

C66 680p

C67 680p

RL2

AJS1311

C51

82p

C50 22p

C107

18p

C24

270p

C23

270p

C1

0.047

C7

0.047

RL1

AJS1311

RL11

AJS1311

C22 820p

C64 680p

C80 390p

C47 100p

L100 33µH

L101

33µH

C46

200p

J2

L25

LA-254

L3

LR-214

C28 220p

C29 180p

C3

0.047

C11

0.0047

RL3

AJS1311

C31 220p

L102

10µH

L103 33µH

C30 300p

C32 390p

C34 220p

C35 220p

C36 220p

C60 12p

L4

LR-215

C33 68p

RL4

AJS1311

C68 390p

C69 390p

C61 82p

C104 68p

C108 68p

C4

0.047

C12

0.0047

C18

180p

R4 10k

R6 10k

R8 47k

C20 470p

C21 470p

D2 MA742

L20

10µH

L22 100µH

R3

33

C63

0.0022

L18

33µH

C72

0.0047

C73

0.0047

W73

W72

C15 10p

R5 10k

R7 470

R9

47k

L14

LR-290

D3

MA742

L23

100µH

R2

18k

R20

15k L15 100µH

C19

0.0022

C76

0.0047

D1

DAN202k

C13

0.0047

RX

J3

R1 SRYH-350L

W2

C14 100p

C16

100p

1 2 3 4 5 6 7 8 9

10

J1

W5

W4

T13V

GND

REF

FOR

L5

L4

L2

L1

L6

L3

C10

0.0047

C6

0.047

L21

10µH

L19

33µH

C74

0.0047

C75

0.0047

W5

C54 180p

C55 47p

C56 100p

L6

LR-216

C41 270p

C43

75p

C44 270p

C45 150p

L10

LA-481

RL10

AJS1311

RL6

AJS1311

C9

0.0047 C52 100p

C5

0.047

C37 180p

C78 82p

C38 120p

L5

LR-216

C39 120p

C40 330p

L9

LA-480

RL9

AJS1311

RL5

AJS1311

L104

10µH

C53

68p

L105 33µH

W4

J4

J5

R15

3.3

R34

3.3

L6

BL01RN1A-62-001

L7

BL01RN1A-62-001

Q1 2SC1971

L1

LR-274

C20 47

R4

4.7

R7

47

R8 47

R2 220

C5

0.0047

C6

0.0047

C17

0.047

R20 100

D1 MA29B

C2

0.001

R3

560

C3

0.0047

R5

270

R1 82

R6 680

R9

120

R10

120

C38

0.1

C48

0.1

C70 330p

C4

0.047

EP1/EP2

Q4 2SC2904

Q5 2SC2904

Q2 2SC3133

Q3 2SC3133

L22

EXC-ELDR25C

C26 47

W11

R17 10

R18 10

C39

0.047

C25

0.047

D2 MA29B

R22 10

Q6 2SD1585k

R16 3.3

L8 BL01RN1A-62-001

R23 680

C71 68p

C72 82p

R35

3.3

C8

0.001

C74

0.0068

C75 0.0068 C76 0.0068

L30

EXC-ELDR25C

L2

LR-143

R36

3.3

R37

3.3

C73

0.0068

L31

EXC-ELDR25C

C23

0.047

C24

0.047

W25

D3 MA29B

PAO

EP9

C27 1000

C59 10

C63 10

C42 1000

R25

0.012

Version number

Connected terminals

W15

R27

1k

R26

1k

C29

0.1

C30 220p

C28

0.0047

L3

LR-401

L4

LR-400

J7

CP1

CP2

C15

0.001

C16 820p

C68 200p

C13 220p

C14 220p

C69 200p

C11

0.001

C51

0.047

L5 LR-359

R32 10

R33 10

J1

LLR-06

W22

W21

W20

W19

L29

LR-386

W21A

W22A

W19A

W20A

C62

0.1

EP10

D5 DSA3A1

C32 1000

D4 DSA3A1

L28

LR-386

W14

C47

0.0047

C46

0.0047

C33

0.0047

C34 220p

C60

0.0047

C61

0.0047

C31

0.047

C35

0.1

C45

0.0047

RL1 ALD112

L23

EXC-ELDR25C

C21

0.047 R24

EVN-2ACA00B23 2k

L14

8.2µH

C22

0.001

F1

FGB

F3

S-N5054

F2

S-N5054

R21 EVN-2ACA00B52 500

C19

0.047

L20

BL01RN1-A62-001

R28

4.7

R30 ERT-D2FHL333S

D7

RD10M B3

Q7

µN9211

C54

0.047

C53

0.047

R31

1.8k

R29 680

C52

0.047

D6

DAP222

L21

BL01-RN01-A62-001

GND GND GND PWS

PAT8

ICL ICH

HV

14V 14V 14V 14V 14V

TEMP

KEY STAR 14V GND

KEY

STAR

L26

HF70ACC635050-T

L25

220µH

L24

220µH

1 2 3 4

J13

2 3 4

1

J12

C55

0.0047

C56

0.0047 1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

J3

154

326

L11

LA-478

C58 39p

L27 HF70ACC635050-T

C48

82p

C57

0.0047

C70

0.0047

to ANT

PAO

C65 680p

ELEC-KEY

J5101 L5101 1µH L5102 1µH

DAS DOT

PAI

J6

R11

4.7

R12

1k

R13

1k

C49 82p

C50 82p

C1

0.0047

L19

0.22µH

1 2

3

15

+ –

R3011–R3013 220

R2308 332KC

+

1

2

PLL unit J1

P1

P2

2LO 2LOE

PAI

J1

R2 18

R1 270

R3 270

C5 82p

Tx: 2.4V Rx: 0V

While rotating the fan: 8.4V While stopping the fan: 0V

Tx: 0.8V Rx: 0V

Tx: 3.3V Rx: 0V

Tx: 3.5V Rx: 0V

Tx: 6.3V Rx: 0V

Tx: 0V Rx: 3.5V

Tx: 2.6V Rx: 0V

1.5V 5.5V

Tx: 0V Rx: 3.5V

7.8V

Tx: 3.4V Rx: 0V

1.1V

3.0V

1.1V

AM ON: 0.6V except AM: 3.4V

3.1V

6.8V

1.1V

AM ON: 0.6V except AM: 3.5V

Tx: 0V Rx: 6.5V

OP FILTER Select: 4.6V Unselect: 0.6V

OP FILTER Select: 4.8V

Unselect: 0.6V Tx: 0V Rx: 3.6V

7.6V

ATT ON: 6.6V ATT OFF: 0V

Tx: 12.5V Rx: 0V

CW ON KEY UP: 0V KEY DOWN: 8.0V

*LINE ON: 5.2V LINE OFF: 0V

PRE ON: 0V PRE OFF: 7.5V

PRE ON: 11.7V PRE OFF: 0V

PRE ON: 1.0V PRE OFF: 0V

*LINE ON: 6.4V LINE OFF: 0V

*LINE ON: 5.1V LINE OFF: 0V

*LINE ON: 6.4V LINE OFF: 0V

*LINE ON: 7.0V LINE OFF: 0V

*LINE ON: 7.5V LINE OFF: 0V

*LINE ON: 7.0V LINE OFF: 0V

*LINE ON: 7.6V LINE OFF: 0V

*LINE ON: 6.6V LINE OFF: 0V

4.8V

Tx: 1.7V Rx: 0.7V

8.0V

0.8V

13.1V

*LINE ON: 6.5V LINE OFF: 0V

0V

0.8V

0V

Tx: 0.5V Rx: 0.6V

Tx: 5.6V Rx: 6.0V

Tx: –1.5V Rx: 7.6V

Tx: 3.2V Rx: 0V

Tx: 1.8V Rx: 2.6V

Tx: 0V Rx: 7.3V

Tx: 0V Rx: 6.5V

Tx: 0V Rx: 5.8V

Tx: 0V Rx: 0.4V

12.0V

7.2V

2.6V

4.3V

4.8V

8.1V

8.2V

0.1V

AM ON: 0V

AM Tx: 9.2V except AM Rx: 0V

AM ON: 0V except AM: 7.5V

Tx: 5.2V Rx: 5.7V

Tx: 0.5V Rx: 4.9V

8.0V

3.9V

NOTE:

*LINE ON and LINE OFF

Each line is ON when the frequency is displaied in the table below .

*LINE

name

B0

B2 B3 B4 B5 B6 B7

Display frequency

(MHz)

0.03 – 1.59999

2.0 – 3.99999

4.0 – 7.99999

8.0 – 10.99999

11.0 – 14.99999

15.0 – 21.99999

22.0 – 29.99999

B11.6 – 1.99999

Tx: 0V Rx: 1.1V

Tx: 0V Rx: 0.4V

Tx: 0V Rx: 2.1V

Tx: 0V Rx: 6.0V

2.8V Tx: 0V

Rx: 1.4V

Tx: 0V Rx: 2.9V

Tx: 3.4V Rx: 0V

Tx: 0V Rx: 1.9V

Tx: 0V Rx: 6.4V

Tx: 0V Rx: 6.9V

13.5V 8.0V

Tx: 1.3V Rx: 0V

Tx: 12.3V Rx: 13.3V

Tx: 0.6V Rx: 0V

Tx: 12.3V Rx: 13.3V

Tx: 0.6V Rx: 0V

Tx: 12.3V Rx: 13.3V

3.3V

Tx: 0.6V Rx: 0V

Tx: 12.3V Rx: 13.4V

Tx: 12.2V Rx: 13.3V

Tx: 0.6V Rx: 0V

Tx: 12.3V Rx: 13.4V

Tx: 1.3V Rx: 0V

Tx: 0.5V Rx: 0V

Voltage (V)

7.4

6.0

5.0 0

4.0

3.1

2.2

Display frequency (MHz) Voltage (V)Display frequency (MHz)

0.03 – 1.99999

2.0 – 3.99999

4.0 – 7.99999

8.0 – 10.99999

11.0 – 14.99999

15.0 – 21.99999

22.0 – 29.99999

12-1 FILTER, PA and MAIN unit

12 - 1

SECTION 12 VOLTAGE DIAGRAM

12-1 FILTER, PA and MAIN unit

12 - 1

VR BOARD

RIT

SHIFT

R1 10k-B

SQL/RF

AF

R2 10k-B

R4

6.8k

GND

SFTL

5VL

RITL

RFGL

AFGL

J1

UD

8V

MIC

MICE

GND

SEND

AFO

SQLS

GND GND

10

9

8

7

6

5

4

3

2

1

J2

1

8

7

6

4

3

2

5

MIC BOARD

PHONE BOARD

J2

GND

AFE AFE AFE

ESPO ESPO

ESPO

AFO AFO AFO

L1

HF50ACC322513-B

R1 100 R2 100

C3

0.0047

C1

0.0047

C2

R3 1k

1 2

3

4 7

8

J1

PHONES

+5V

SENSOR

SEN1 SEN2 GND

DAN202K

MIC MICE GND

AFO SEND SQLS

UD 8V

AFO

ESPO

AFE

GND

GND GND

L1

Q104 DTC114EU

P75

C4

0.1

POWER

GND

SFTL

5VL

RITL

RFGL

AFGL

AFO

100 9998

97

96

95

94939291908988878685848382818079787776

LCD

DS70 TLYU1002

DS71 TLYU1002

DS72 TLYU1002

DS73 TLYU1002

DS74 TLYU1002

DS75 TLYU1002

DS1 A0087

R47

100k

R48 1M

100k

L40

100µH

C42

0.0047

1 2

7

8

4

IC40A TC7W32F

P16

R45 100k

R46 220k

C40 100p

R44 10

1 2 3 4

J1

1 2 3 4

S1EP1

R50

100k

R51 220k

C41

100p

1

3

45 D46 NNCD6.2G

W42

W41

R52 100k

R53

1M

R54

100k

R55 47k

R56 47k

5 6

3

IC40B TC7W32F

P21

P20 P22

VEE

31

Y50

81

Y31

100

NC

50

V1

32

V2

33

V3

34

V4

35

GND

36

CL1

37

NC

38

SHL

39

CL2

40

DI

41

DO

42

NC

43

M

44

NC

45

VCC

46

NC

47

NC

48

NC

49

Y49

82

Y48

83

Y47

84

Y46

85

Y45

86

Y44

87

Y43

88

Y42

89

Y41

90

Y40

91

Y39

92

Y38

93

Y37

94

Y36

95

Y35

96

Y34

97

Y33

98

Y32

99

IC7 HD66100F

S39 S38 S37 S36

C20

0.1

C19 10

L2 10µH

P94

P95 P96

P97

R196 47k

R197

2.2k

R199 820

R198

2.2k

D1

Q2 2SC4081

R201 1k

P43

R17

100k

R16 100k

R15

100k

R14

100k

R195 47k

Q1 DTC114EU

P94

P95

P96

P97

V1

V2 V3

PB3

PB2

PB1

PB0

PB5

PC2

PC1

PC0

PB7

PB6

PB4

P43

S1 S2

S10

S11

S3 S4 S5

S6

S7

S8

S9

8V

C46

0.0047

C45

0.0047

C44

0.0047

C43

0.0047

R59 10k

L41

100µH

L42

100µH

MIC

PB0

EP40

EP2

PB1 PB2 PB3

10

9 8 7 6 5 4 3 2 1

10

9 8 7 6 5 4 3 2 1

J4

10

9

8

7

6

5

4

3

2

1

10

9

8

7

6

5

4

3

2

1

10

9

8

7

6

5

4

3

2

1

J3

J5

R63

2.2k

L43 HF50ACC322513-B

EP45

MMZ1608Y102BT

EP46

MMZ1608Y102BT

L47

HF50ACC322513-B

L48 HF50ACC322513-B

L49 HF50ACC322513-B

D47 1SS355

L44

100µH

C47

0.0047

MICE PHO

P43

C1 15p

C2 15p

X1 CR-567

9.8304 MHz

5V

PHO

8V

PHOE

SPE

P16

PC3/AN11

1

P97/SEG40/CL1

75

AVSS

2

TEST

3

X2

4

X1

5

VSS

6

OSC1

7 8

RES

9

MD0

10

P20/IRQ4/ADTRG

11

P21/UD

12

P22

13

P23

14

P24

15

P25

16

P26

17

P27

18

P30/SCK1

19

P31/SI1

20

P32/SO1

21

P33/SCK2

22

P34/SI2

23

P35/SO2

24

P36/STRB

25

P67/SEG16

51

P70/SEG17

52

P71/SEG18

53

P72/SEG19

54

P73/SEG20

55

P74/SEG21

56

P75/SEG22

57

P76/SEG23

58

P77/SEG24

59

P80/SEG25

60

P81/SEG26

61

P82/SEG27

62

P83/SEG28

63

P84/SEG29

64

P85/SEG30

65

P86/SEG31

66

P87/SEG32

67

P90/SEG33

68

P91/SEG34

69

P92/SEG35

70

P93/SEG36

71

P94/SEG37/M

72

P95/SEG38/D0

73

P96/SEG39/CL2

74

IC1

HD6433837SD17H

R1 1M

R30 47k

R2 22k

R7 22k

C22

0.1

P42

P41

P17

C5 10

C21

0.1

P14

P13

P12

P11

P10

P97 P96 P95 P94 P93 P92

P90 P87

P40

H5V

CS

1

SO

2

WP

3

VSS

4

SI

5

SCK

6

HOLD

7

VCC

8

IC2

X25320SI

R9 10k

R24 47k

R25 47k

R26 47k

R27 47k

Q103 DTC114 EU

SQLS

P86 P85 P84

P75

P71 P70

P76

P67

P74 P73 P72

C6 0.1

P37

P50

P51

P52

P53

P54

P55

P56

P60

P61

P62

P63

P64

P65

P66

P36

P35

P34

P33

P32

P30

P27

P26

P25

P24

P21

P20 P22

P23

R35 47k

R31 47k

R32 47k

R36 47k

R8 10k

R34 47k

Q3 DTA114EU

P60

MODE FIL TS

R43

47k

D30 DAN202K

D32 1SS355

D44 1SS355

D45 DAN202k

D31 DAN202K

D33 DAN202K

P54

P50

P52

P51

P67

D34 1SS355

D36 1SS355

D48

D49

D50

D51

D35 DAN202K

D37 DAN202K

P60

P61

P62

P63

R37 47k

R38 47k

P61

P62

V1

V2

V3

COM1

COM2

COM4 COM3

R5 10k

R4 10k

R3 10k

W1

C71C8

0.1

C9

0.01

OUT

1

VDD

2

VSS

3

NC

4

CD

5

IC3 S-80942ANMP

R22 1k

R39 47k

R40 47k

R20 47k

R21 39k

P63

P64

P65

D38 1SS355

D40 1SS355

D52

D53

1SS355

D54

1SS355

D55

1SS355

D39 DAN202K

D41 DAN202K

P64

P65

P66

P67

D42 1SS355

D43 DAN202k

W101

W102

R41 47k

R42

47k

P66

P16/IRQ2/TMIC

P15/IRQ1/TMIB

P17/IRQ3/TMIF

P40/SCK3

P41/RXD

P42/TXD

P43/IRQ0

AVCC

PB0/AN0

PB1/AN1

PB2/AN2

PB3/AN3

PB4/AN4

PB5/AN5

PB6/AN6

PB7/AN7

PC0/AN8

PC1/AN9

PC2/AN10

P14/PWM

P13/TMIG

P12/TMOFH

P11/TMOFL

P10/TMOW

VCC

P57/WKP7/SEG8

P60/SEG9

P56/WKP6/SEG7

PP55/WKP5/SEG6

P54/WKP4/SEG5

P53/WKP3/SEG4

P52/WKP2/SEG3

P51/WKP1/SEG2

P50/WKP0/SEG1

PA0/COM1

PA1/COM2

PA2/COM3

PA3/COM4

VCCV1V2V3VSS

P37/CS

P61/SEG10

P62/SEG11

P63/SEG12

P64/SEG13

P65/SEG14

P66/SEG15

R62

2.2k

PB5

R49

P30

P32

R173 220

R171 220

R172 220

R174 220

R175 220

R176 220

R177 220

R212 220

R193 220

P34

P33

P24

P23

P27

P25 P26

P50

P52

P51

P50

P52

P51

P50

P52

P51

P52

P51

P50

P52

P51

P50

P52

P51

P50

P52

P51

P53

P50

P52

P51

P54

P53

Y51

Y70

Y52

Y53

Y54

Y55

Y56

Y57

Y58

Y59

Y60

Y61

Y62

Y63

Y64

Y65

Y66

Y67

Y68

Y69

Y71

Y72

Y73

Y74

Y75

Y76

Y77

Y78

Y79

Y80

Y12

Y30

Y29

Y28

Y27

Y26

Y25

Y24

Y23

Y22

Y21

Y20

Y19

Y18

Y17

Y16

Y15

Y14

Y13

Y11

Y10

Y9

Y8

Y7

Y6

Y5

Y4

Y3

Y2

Y1

S16

S17

S12

S13

S14

S15

S21

S22

S18

S35

S19

S20

S27

S28

S23

S24

S25

S26

S29

S30

S31

S32

S33

S34

20 1 19

18

17

16

15

14

13

12

11

10 9 8 7 6 5 4 3 2

30

29 242827262523

22

21

S44

S45

S40

S41

S42

S43

S50

S51

S46

S47

S48

S49

S55

S56

S52

S69

S53

S54

S61

S62

S57

S58

S59

S60

S63

S64

S65

S66

S67

S68

S10

S11

S6

S7

S8

S9

S16

S17

S12

S13

S14

S15

S21

S22

S18

S35

S19

S20

S27

S28

S23

S24

S25

S26

S29

S30

S31

S32

S33

S34

S5

S1

S2

S3

S4

20 1 19

18

17

16

15

14

13

12

11

10 9 8 7 6 5 4 3 2

30

29

28

27

26

25

24

23

22

21

31

35

34

33

32

S44

S45

S40

S41

S42

S43

S50

S51

S46

S47

S48

S49

S55

S56

S52

S69

S53

S54

S61

S62

S57

S58

S59

S60

S63

S64

S65

S66

S67

S68

S36

S37

S38

S39

55

36

54

53

52

51

50

49

48

47

46

45

44

43

42

41

40

39

38

37

65

64

63

62

61

60

59

58

57

56

66

70

69

68

67

73

72

71

COM1

COM2

COM3

COM4

SEG44

SEG45

SEG40

SEG41

SEG42

SEG43

SEG50

SEG51

SEG46

SEG47

SEG48

SEG49

SEG55

SEG56

SEG52

SEG69

SEG53

SEG54

SEG61

SEG62

SEG57

SEG58

SEG59

SEG60

SEG63

SEG64

SEG65

SEG66

SEG67

SEG68

SEG36

SEG37

SEG38

SEG39

COM0

COM1

COM2

COM3

SEG10

SEG11

SEG6

SEG7

SEG8

SEG9

SEG16

SEG17

SEG12

SEG13

SEG14

SEG15

SEG21

SEG22

SEG18

SEG35

SEG19

SEG20

SEG27

SEG28

SEG23

SEG24

SEG25

SEG26

SEG29

SEG30

SEG31

SEG32

SEG33

SEG34

SEG5

SEG1

SEG2

SEG4

SEG3

61

80

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

51

52

57

53

54

55

56

58

59

60

R71 560

R74 1k

Q71 DTC114 EU

Q72 DTC114 EU

R70 270

R75 39

Q70 2SD1619 T

R72 820

R73

3.9k

P55

P56

TLYU1002

DS82 TLYU1002

DS83 TLYU1002

DS84 TLYU1002

DS85 TLYU1002

DS86 TLYU1002

DS87 TLYU1002

DS88 TLYU1002

DS89 TLYU1002

DS90 TLYU1002

W70

DS76 TLYU1002

DS77 TLYU1002

DS78 TLYU1002

DS79

DS80

DS81

C102

0.001

R100 100k

L100 100µH

P42

P41

R104

6.8k

R105 33k

R101 100k

53

IC103C TC7W04F

6 5 4

3 2 1

Q102 XP4601

D102 1SS355

CIV

CIVE

R106 47k

R103 18k

2

6

IC103B TC7W04F

7

1

8

4

IC103A TC7W04F

R19 22

C15

0.1

C101

0.1

R102 100k

R107 22k

C103

0.47

P17

R11 100k

R12 100k

R13 100k

R10 100k

H5V

5V

8V

C18

0.1

OI

G

OI

G

C17 10

C16 10

IC6 TA7805F

R18 47

C14

0.1

C13 10

C11

0.1

IC5 TA78L05F

C12 10

C3

0.01

LOGIC UNIT

26272829303132333435363738394041424344454647484950

PC3

1st Lo

MAIN unit J201

1 2

P4

1 2

P3

CP316

CP315

CP314

CP313

CP312

CP311

CP310

CP309

CP308

CP307

SRST FSKK

FSKK

CON0 CON1 CON2 PDAT

PCK DSTB PSTB

DNB

13V

10 11 12 13 14 15 16

3 4

1 2

5 6 7 8 9

J3

13V

FSKK

DNB

13V

GND

8V

NC

CP305

CP306

CP304

CP303

2nd Lo

1LO

1LOE

1 2

J4

L36

0.1µH

L37 82nH

C112 56p

C114 39p

C116 8p

C111

0.001

W1

L30 10µH

L32

0.82µH

C108

0.0047

R85

8.2k

C109

0.0047

Q28 2SC2714

R169 33

R171 180

R172 180

8V

C106

0.0047

L26 LW-25

C194 470p

W7

C68

0.001 C1 100

R57

1k

R192 1k

C5 33

C195 470p

Q34 2SC4081 R

L25 10µH

8V

5V

L8 10µH

R20 470

R21 10k

C26 100p

Q11 2SC2714

R26 1k

R28 1k

R30 1k

R24 2k

R25

2k

R27

2k

R29

2k

C28

0.0047

1

VDD

44

2345678

9

10

11

VSS

12

DA0

13

DA1

14

DA2

15

DA3

16

DA4

17

VSS

18

DA5

19

DA6

20

DA7

21

DA8

22

VSS

34

UL

35

P1

36

TREE

37

P2

38

VDD

39

VSS

40

STRB

41

DATA

42

CON CLK

43

IC2

SC-1287

R19 220

R116 100

C27

0.0047

C126

0.0047

C168

0.047

C2 10

R2 100

C67 330p

D4 KV1470

C165 TZBX4N100BA110T 10p

C62

0.001

L27 LW-25

C162 12p

C63

0.0047

C64

0.0047

Q18 2SK508

L19

E544GN-110248

R75

3.9k

R78 100

L38 1µH

R74

8.2k

C103

0.0047

C65 1p

R7 220

R49 220

L39

0.82µH

L41 10µH

L42

0.82µH

R88 100

R89 470

R90

470

R117 47k

R158 100

R159 10k

C118

0.0047

R84

3.3k

C104

0.0047

R87 100

L34

0.1µH

L35

0.15µH

R120 47k

C115 24p

C129

0.0047

C117 33p

L48

0.68µH

C130

0.001

RESET

PST

DT

CK

DST

CON2

CON1

CON0

CK

DT

R119 47k

C139

0.0047

C143

0.0047

C226 3p

C225

3p

Q32 2SC2714

R9 22k

R10 22k

R160 10k

C120

0.0047

C159

0.001

C148

0.0047

L1

10µH

C3

0.0047

C6 10

C192

0.0047

R161 220

C127

0.001 R11847C128

0.0047

Q30 2SC2714

DT

CK

CON0

CON1

CON2

DST

R133 1k

R155

2k

R8 220

R132

2k

C119

0.001

CP2

W9

CP20

8V

LFO

R6

10k

R3

2.2k

D15 1SS226

C29

0.0047

C30

0.0047

CP1

CP3

CP30

PST

CK DT

RESET

R31

2k

R33

2k

R35

2k

R37

2k

R39

2k

C32

0.0047

C31

0.0047

R32 1k

R34 1k

R36 1k

R40 1k

R42 1k

R41

2k

R43

2k

C34

0.0047

L12

100µH

C33

100

R182

33k

R181 15k

C222

0.0047

Q35 2SC4081R

R180

2.2k

R183

4.7k

R134 1k

R135 1k

R136 1k

R137 1k

R138 1k

R145

2k

R144

2k

R146

2k

R147

2k

R148

2k

C223

0.1

D16 MA2S111

L47

10µH

C203

0.0047

5V

8V

C149

0.0047 VSS SYSCLKO

2

VDD

3

VDD

4

VSS

5

DA0

6

DA1

7

DA2

8

DA3

9

VSS

10

DA4

11

DA5

12

DA6

13

DA7

14

VSS

15

VSS

16

DA8

17

DA9

18

DA10

19

DA11

20

VDD

21

TE1

22

TE2

23

TE3

24

VDD

25

PD2

51

PD1

52

VDD

53

PD0

54

VSS

55

PDTRI

56

VDD

57

REF OSC

58

RC

59

FCK

60

VSS

61

Q16MA

62

Q4MA

63

VDD

64

VSS

65

ETCO7

66

ETCO6

67

ETCO5

68

VSS

69

ETCO4

70

ETCO3

71

VSS

72

ETCO2

73

ETCO1

74

ETCO0

75

IC6

SC-1246A

D12

1SS184

C146

0.0047

R127

2.2k

R162 820

R104 47k

R105 47k

R106 47k

R107 47k

R22 47k

R108 47k

R103 47k

Q12 2SC4081

C141

0.0047

CON0

CON1

CON2

CK DST

DT

PST

C147

0.0047

C145

0.0047

C174

0.047

W170

C151

0.0047

C150

0.0047

R139 1k

R140 1k

R141 1k

R142 1k

R149

2k

R150

2k

R151

2k

R152

2k

R153

2k

W10

13V

L3

LW-25

TZBX4R200BA110T00 20p

C15 33p

C13

0.0047

Q9 2SC2714

R12 15k

R13 470

R14

4.7k

C12

0.0047

C14 82p

L2

10µH

C25 120p

X1

CR-337

C21 100

L5

10µH

R15

100

C17

0.0047

L4 LS-472C

R154

2k

L45

22µH

L46

18µH

C157 39p

C138 56p

C156 22p

L44

27µH

L9 1µH

R165

1M

C135 4p

C136 12p

C134 56p

C158

0.001

C161

0.047

C153

0.0047

R5 100

C188

0.1

1 2 3

5

4

IC7 TC4SU69F

C191

0.0047

C152

0.0047

C137 68p

C172 27p

R164 1k

R4

470

R204 120

R166 1M

C144

0.0047

W5

C155

0.0047

R44 47k

R97 1k

R98 1k

R99 1k

R95 1k

R93 1k

R96 1k

R94 1k

R91 1k

W92

CK

RESET

DST PST

DT

CON0 CON1

CON2

C224

0.1

C170

0.0047

CP301

GND

Q33 DTC114EU

C166 1

C66

0.0047

C167

0.0047

C4 10

C8 10

R102 22

C7

0.1

13V

R121

220

C132 100p

IC1

TA7805F

C9 10

C10

0.1

8V

5V

13V

LFO

Q10

2SC2714

R16

22k

R17 220

R23 10k

C18 100p

C19

0.0047

R18 220

C20 15p

C22

0.0047

C227 56p

C23

0.5p

C24

15p

L7

L49 0.12µH L50 0.12µH

LS-471A

L6 LS-471A

1 2

J1

1 2

P1

1 2

P2

W101, W102

2LO

2LOE

2LO

2LOE

C16

PLL UNIT

R156

180

1

R143 1k

Q29 2SC2714

R191 180

C160

0.0047

R38 1k

Q26 2SC2714

VDD

VSS

FSK1

FSK0

ETC0

ETC1

VDD

SYS CLK

NUM0

NUM1

NUM2

100

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

VDD

DATA

CONTCLK

VSS

BUSY

VSS

CON0

CON1

CON2

STRB

VSS

SYS CLK

DVV

VSS

BUN4O

BUN2O

VDD

BUN4I

BUN2I

VDD

VSS

26

50

49

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

VSS

VDD

TEOUTH0

TEOUTH1

TEOUTH2

TEOUTH3

TEOUTH4

VDD

SYSRESET

VSS

VDD

OSCI

VSS

OSCF

VDD

VSS

OSCO

VSS

PDIN

REFIN

VSS

DIVOUT

VDD

DA9

VDD

ROMCE

RESET

VSS

VDD

PDM0

PDM1

PDM2

Q

I

23

24

25

26

27

28

29

30

31

32

33

10

11

12

13

14

15

16

3

4

1

2

5

6

7

8

9

J9

STRT 5V

8V 8V HV 14V 14V FSKK MICE

to MAIN unit J4401

to MAIN unit J4201

MIC SEND

SNDS

J6

SQLS

SEND SPS PHOE PHOE PHO PHO

CIVE CIV ALMS

KEY

GND GND GND GND

GND DOTK DASK VOXL AVXL SML ALML REFL FORL PATL

SEND

NC

BEEP DNB RXS TXS

KDS DSPS DSST SSTB DINT DRES ASTB MSTB FSTB BSTB MCK MDAT POWS GND GND

SBSY

10µH

Q106 DTA114EU

R108 330

8V

P74

MICE MIC P43

L101 HF50ACC322513-B

L102 HF50ACC322513-B

L103 HF50ACC322513-B

L104 HF50ACC322513-B

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

R126 220

R127

220

R128

220

R129

220

R130

220

R133

220

R166 220

R186

220

R134

220

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

J7

R169 220

CIV

CIVE

R111 47k

R112 47k

D122

DA221

D123 DA221

R190 1k

R191 1k

R118 47k

R115 47k

R179 47k

R119 47k

R185 47k

R114 22k

R113

R116 10k

R117 10k

R131 1k

R132 1k

R180 47k

R182 47k

P93 P92

PC3

PC2

PC1 PB7 PB6

PC0

SQLS

PHOE PHO

P70 P71 P76

PB4

R135

R136

P12 P10

P84

P13

P86

P87 P27

P90 P85

P40 P37 P36 P35 P72 P73

P11

P14

R141

R142

R143

R144

R145

R146

R147

R148

R149

R165 10k

R137

R138

R139

R211

R150

220

R151

220

R153

220

R154

220

R156

220

R158

220

R160

220

R161

220

R162

220

R163

220

R164

220

D120 DA221

D124 DA221

Q105 DTC114EU

D121 DA221

R188

4.7k

EP157

EP155

EP159

EP152

22k

P50

L15 15µH

L14 12µH

C55

0.0047

R52

680 1 2

J2

1 2

P2

BFO

MAIN unit J2001

MAIN unit J401

BFOE

CP201

BFO

R51

3.9k

R53

3.9k

CP202

C52 27p

C54 22p

C51 2p

C53

0.5p

C50 22p

O

G

I

R33 47k

47k

2

LOCK

ENT

TUNERNB COMP

P.AMP ATT SET

DNCH UP

123

456

789

0

4.8V

Hi : 8.1V Lo : 11.0V OFF: 13.0V

Hi : 6.0V Lo : 5.6V OFF: 4.4V

Hi : 6.6V Lo : 6.3V OFF: 4.9V

4.9V

0

0.1µS

1.8

3.6 V

V

0V

5.0V

13.8V

4.8V

100mS

5.0V

0.1V

12.5V

With DSP: 10.7V Without DSP: 12.6V

2.0V

1.3V

0.5V

3.2V

3.9V

7.9V

1.0V

7.9V

1.4V

2.2V

1.8V

2.5V

7.0V

2.4V

1.9V

1.3V

7.8V

2.9V

2.2V

6.8V

0.5V

4.6V

7.8V

0.1V

5.4V

2.4V

2.3V

10.3V4.8V

1.9V

1.4V

1.1V

7.9V

1.7V

7.2V

12.5V

7.9V

4.6V

0V

0.6V

P6

P5

W10

W11

P4

P3

W8

W9

P1

P2

W6

W7

USA, USA-1 KOR, OTH

W19A, W20A W21A, W22A

EUR, ITA, FRA, ESP, DEN

W19, W20 W21, W22

J1 : LLR-06

FILTER UNIT

PA UNIT

VARISTOR BOARD

R604

4.7k R605

4.7k

R614 10k

D601 DAP202K

R611 10k

D605 DAP202K

FI611 FL-65

WCNT

2nd Lo

C502

0.0047

Q501 DTC114EE

D502 MA2S111

R602 33k

1

2

J401

Q503 DTC114EE

Q511 DTC114EE

R511

2.2k

C503

0.47

C511 100

8V 5V T8V

WCNT

ALC

R512

4.7k

R513 33k

R514 33k

R2312

4.7k

R505 22k

2LO

2LOE

R403 270

C306

0.0047 R303 1k

C158

0.0047

L153

4.7µH

R401 270

R402 18

C204

0.0047

C154

0.0047 R152 150

L152 100µH

C202

0.0047

C203

0.1 L201 10µH

T8

R202 15

8V

R104 100k

R105 1k

L104 100µH

C108

0.1

R102 100k

C109 0.1

C110

0.1

C151

0.0047

R151 100

T8

L105 LR-358

R101 100

C2

0.1

R4 15

RX

R6 18

R5 270

Q701 DTC114EE

C701

0.1 C702

0.1

L701 100µH

L702 100µH

L801 100µH

C801

0.1

L703 100µH

J701

C703

0.1

C1

0.1

C704

0.1

R703 270

R701 390

R704 390

R705 470

ATT8

43 1

2

D701 1SV312

L1 100µH

C4 100p

1

4

6

235

IC1 µPC2709T

C3

0.1

R7 270

L2

0.22µH

MP1

C823 220p

C833 270p

C101 68p

L101

0.22µH

C103 150p

C105 82p

L102

0.27µH

L103

5.6µH

Q101 3SK131

R103 100k

Q102 3SK131

C111 7p

R106 22k

C112

0.1

L106 LS-483A

C153

0.0047

R801 470

R82122R82322L821

5.6µH

R822 47

R824 470

C822

0.0027

C824

0.0022

L822

6.8µH

L832

2.7µH

L831 100µH

L833

3.9µH

C837

0.0027

L835

4.7µH

C839

0.0015

L836

5.6µH

L802 330µH

R802 470

C901

0.1

L901 100µH

C902

0.1

R901 470

R904 10k

R1404 10k

R902 220

D806 MA77

D813 MA77

D901 MA77

D903 MA77

L151 LS-484B

C821 1

C102 47p

C104 22p

R108

4.7k

R107

2.2k

PROF

B0

4

312

D802 1SV312

C106

0.0033 C107

0.0027

W801

C113 10p

L100

0.47 µH

C100 82p

C152 12p

1st Lo

C155

0.0047

R153

3.3k

R156 1k

R155 332KC

C156

0.0047

C157

0.0047

R154 1k

C205

0.0047

L202

0.22µH

R205 56

R301 1k

R903 1k

C904

0.1

L902

0.18µH

R1001 47k

Q1001 2SA1576

R1002 1k

Q1002 DTC114EE

C1101

0.0047

L903

0.27µH

C906 10p

C905 150p

C907 82p

R1103 560

C1102

0.1

R1105 560

Q1101 2SK1740

Q1102 2SK1740

Q1103 2SK1740

L1104 100µH

R1107 47

C1106

0.0047

Q1104 2SK1740

L1103 LS-483A

Q151 2SK882

D201 MA77

D202 MA77

D904 MA77

D304 MA77

C301

0.0047

D301 MA77

C1103

0.1

L1101 LR-358

1

2

1

2

J201

PLL unit J4

P3

P4

D902 MA77

L904

0.33µH

L1102 LR-403

C201 470p

8V

R13V

14V

R8V

C1105

0.1

R201 1k

R206 10

C206 220p

R204 680

Q201 2SC4673

R203

4.7k

R1102 100

C1104 3p

R1101 1k

C1001

0.1

1LO

1LOE

1LO 1LOE

R1208 100

C1301

0.1

D401 HSB88WS

L302 LS-484B

C305

0.0047

R302 1k

R304 1k

C307

0.0047

R1108 1k

R1201 1k

C1201

0.0047

L1201 LS-484B

C1202

0.0047

C1203

0.1

R1204

1.8k

C1204

0.0047

C1209

0.0047

R1206 150

C1205 10p

C1206

0.0047

C1207

0.0047

R1209 1k

R1301 1k

12

345

FI1301 CFWS455HT

D302 MA77

D303 MA77

D306 MA77

D305 MA77

L303 LS-484B

L301 LS-484B

L1202 LS-484B

L1301 LS-468

AGC

W1202

C1108

0.1

R1202

5.6k

R8V

L401 LR-358

FI301A FL-315

FI301B FL-315

C1208 10p

C302 12p

C303 12p

C304 12p

Q1201 3SK131

R1207

2.2k

R1205 1M

C401 470p

L402 LR-395

R502 1k

C506 47

C507

0.1

R504 100

R507

4.7k

R508

103KCT

R603 33k

C1305

0.1

L1303 LS-468

C1307

0.1

R1304

4.7k

C1308

0.1

R1305

1.8k

C1310

0.1

R1308 220

Q1301 3SK131

L1304 330µH

R1306 470k

C1309

0.1

W1311

R1307

6.8k

R1310

2.2k

R1311

2.2k

D501 DAN202K

R1302 220

Q502 2SK882

R509 10k

D503 DAN202K

D1301 MA77

D1302 MA77

L1302 LS-468

R1300 100k

L501 LS-469

R503 47k

R501 1k

C504

0.0047

C509

0.0047

C508

0.1

C501

0.0047

C510 1

14V

R506 10k

R633 1k

C631

0.1

C601

0.1

R612

5.6k C611

0.1

C612

0.1

R613 100

D606 DAN202K

D602 DAN202K

R621

3.3k

R624

3.3k

R622

5.6k

C621

0.1

R623 100

C622

0.1 D603 DAP202K

D604 DAN202K

C602

0.1

R631 10k

R632

5.6k

C632

0.1

R634 100

C633

0.1

R635 10k

D607 DAP202K

D608 DAN202K

C603

0.1

R510 10k

R601 10k

R606 10k

2NTH

2NOP

2N3K

14V

R8V

8V

CP1621 CP1622

BFO

R2004 220

R2006 330

R2005 470

BFO BFOE

1 2

J2001

P2

PLL unit J2

Q1603 3SK131

R1622

2.2k R1623

560

R1624 470

R1625 470k

R1626 220k

C1625

0.1

C1631

0.1

D1631 DAN202K

D1632 MA77

C1632

0.1

C2010

0.1

L2001 100µH

C2009 10

C2008

0.1

C2007

0.1

C2006

0.0047

C2004

0.1

C2003

0.1

C2002 100p

R2001 100

C2001

0.1

C1905

0.0047

D1901 1SS375

R1907 1k

C1904

0.1

C1903

0.0047

L1621 LS-450

R1631 10k

R1632 10k

R1633 100k

R2002 22k

C1623

0.1

C1624

0.1

R2003 100

IFOUT

1

VCC

2

OSCIN

3

BASE

4

BASE

5

BASE

6

GND

7

COLECT

8

IC2001 TA4101F

C2005 1

SSBAF

8V 5V ALC

14V

8V

AMS

5V

14V

AGC

R1906 56k

R1905 100k

R1810 1M

R1814 1k

C1514

0.1

D1503 MA2S111

Q1509 DTA114EE

C1516

0.1

R1522 220

C1601

0.1

R1601 47

R1603 27k

Q1601 2SC4081

R1602 470

R1604 47k

C1602

0.001

C1611

0.1

R1611 100

R1615 10k

R1610 10k

R1614

4.7k

R1612 332KCT

R1617 332KC

R1627 332KC

R1610

2.2k

C1613

0.1

C1615 1

R1621 100

C1621

0.1

C1902

0.0047

R1902 47k

R1903 1k

C1815 150p

D1803 1SS375

C1813

0.0047 C1812 100p

Q1805 2SC4081

R1815 22k

C1803

2.2

C1804

0.1

R1808 1k

R1809 100

Q1602 2SK882

Q1611 2SC4081

L1611 LS-450

R1813

3.3k

D1802 MA2S111

R1812 15k

AMAF

DN

8V

R1904 47

R1901 10k

6

5

43

2 1

Q1803 UMD6

AGC

AGMS

AGSS

AGRS

C1805

0.47

C1901

3.3

R1521 1k

C1515

0.1

L1601 LS-450

D1801 1SS375

C1509

0.1

R1510 470

L1503 330µH

C1508 330p

R1509

3.3k C1510

0.1

D1501 1SS375

R1511 100k

C1511 470p

R1513 47k

Q1504 2SC4081

R1514 47k

R1515 330

R1516

2.2M

C1512 1

C1513 47

Q1508 2SC4081

R1520

6.8k

R1807 10k

C1802

2.2

R1806 1M

14

13 12

IC1701D NJM2058

C1801

0.0047

R1801 1k

Q1503 2SK882

R1805 100k

R1755 1k

NBS

SM

ALM

NBLV

CP1501

6

5

4 3

2 1

Q1802 UMD6

6

5

43

2 1

Q1801 UMD6

R1802

2.2M

R1803

1.8M

R1804 220k

R1519 100

Q1506 DTC114EE

R1523 47k

R1518 1k

R1517

3.9k

Q1505 2SA1576

D1510 MA2S111

Q1507 2SC4081

R1403

4.7

L1402 LR-397

C1404

0.1

R1501 47k

C1501

0.1

R1502 470

R1503 100

R1504 22k

C1504

0.1

R1505 470

C1505

0.1

R1506 100

R1508 27k

R1507 100

C1507

0.1

R1703 100k

R1709 100k

R1708 220k

R1710

2.2M

8

9 10

IC1701C NJM2058M

R1711 330

C1704

0.0047

Q1703 2SA1576

R1713

2.2M

C1502

0.1

D1704 DAP202K

Q1501 2SK882

Q1502 2SK882

L1501 LS-450

L1502 LS-450

C1405 22

Q1402 2SK2171

Q1401 2SK2171

C1751

0.1

R1752

2.2M

R1751 820k

ALC

Q1705 DTC114EE

C1707

0.1 C1708

0.1

3

2

1

4

8

IC1751A NJM2904M

R1754 470k

C831

0.1 R831

470

C834

0.001

C838

0.012 R8321kC840

0.1

L842

2.2µH

L841 100µH

L843

2.2µH

C841

0.1

R841 470

L852

0.82µH

L851 100µH

C851

0.1

R851 470

L853

1.2µH

C853 68p

C854 270p

C855

0.0012

C856

0.0056

L855

1.5µH

L854

1.8µH R852

1k

C858

0.1

L861 100µH

L862

1.2µH

L863 1µH

C863 56p

C865 680p

C866

0.0027

C867 330p

L865

1.2µH

C832

0.0018

C842

0.0012

C852 470p

R1401 220

L1401 LR-86

C1401

0.1

C1402

0.1 R1402

22

D807 MA77

D808 MA77

D803 MA77

D810 MA77

D814 MA77

D815 MA77

D804 MA77

D811 MA77

C843 56p

C844 680p

C845 560p

C846 150p

FOR POCV

PRON

B1

B2

B3

ATT8

R1729 10k

C857 680p

R842 470

D1707 MA2S111

D1706 MA2S111

L813 100µH

L814 100µH

C811

0.1

C816

0.1

C803

0.0047

C812

0.047

L811

4.7µH

C813

0.0015

L812

3.3µH

C815

0.0027

C817

0.0047

C814

0.0047

4

312

D801 1SV312

C861

0.1

R861 470

C864 330p

L864

0.82µH R862

1k

C868

0.1

L871 100µH

L872

0.47µH

C871

0.0047 R871

470

L873

0.56µH

C873 56p

C874 150p

C872 270p

C862 330p

C875 470p

C877 220p

C876

0.0015

L874

0.68µH

L875

0.82µH

L881 100µH

L882

0.39µH

L883

0.39µH

C881

0.0047 R881

470

C882 220p

C883 33p

C884 120p

C885 270p

C886

0.0012

L884

0.47µH

C887 150p

L885

0.56µH

C888

0.0047

C878

0.0047

R882 1k

L892

0.27µH

C899 33p

L893

0.27µH

C895 220p

C897 100p

R1706 330

C2401

0.047

R2401 100k

R872 1k

D805 MA77

D809 MA77

D812 MA77

D816 MA77

ICH ICL

REF

BEPI

AMS

B4

B5

B6

AMS

Q1706 DTC114EE

D1701 MA8043H

D1702 MA8043H

D1703 MA2S728

OPTION UT-106

1

2 3

11

4

IC1701A NJM2058M

R1707 100k

R1725 100k

7

6 5

IC1701B NJM2058M

R1712 100k

R1714 270k

R1716 470

R1717 47k

R1718 47k

R1719 33k

R1720 10k

R1721 33k

C1702

0.1

C1701

0.1

R1723 470

C2103

0.1

1

2 3

11

4

IC2101A NJM2058

R2402 100k

R2403 47k

C2403

0.001

7

6 5

IC2101B NJM2058M

12 34 56 78

J2501

R2501 47k

W2501

D1705 DAP202K

R2101 470

R2108 470

C1752

0.1

C2101 1

MDA SST SBS

SPCE SPCH

5V GND

EALC

MC

C2405

0.1

C2501

0.1

R1722 1M

R1715 12k

R1730 100k

C1706

2.2

W1726

R1724 10k

VCC2

1

IN+

2

IN–

3

OUT

4

VCAIN

7

CTL

8

VCAOUT

9

VCC

10

GND

5

NC

6

IC2701 M5282FP

W2101

C2102

0.1

R2105 47k

1 2 3 45

6

7

8

IC2102 TC4W53F

R2106 47k

C2107

0.1

R2107 47k

R2201 1k

R2204 100k

C2203

0.1

R2202 10k

R2203 10k

R2208 10k

C2207

0.047

R2210

4.7k

C2205 100p

R2209 100k

C2208 470p

R2211 82k

C2210 470p

W2201

R2601

1k

R2602

1k

R2603

1k

R2604

1k

R2605

1k

R2606

1k

R2701

4.7k R2703

100k

C2702 330p

R2704 100k

C2704 10

C2705 10

R2104 47k

D2101 MA2S111

C2202

0.1

R2225 220

C2201 47

C2204 1

R2102 10k

R2103 10k

SQLS

DRE DIN DSS

MC

DSP

AVX

PHO

VOX

MIC

MICE

MDA

1

2

3

4

5

6

7

8

9

10

J2603

C2104

0.0022

C2105

0.0022 C2206

0.1

C2209 1

R2206 180k

C1814 10

NC

1

CMPI

2

CMPO

3

SWI

4

BU1I

5

BU1O

6

SWO

7

VCAI

8

VCAO

9

VCAC

10

SWC

11

VCC

12

NC

13

AVI

14

AVO

15

MUTE

16

VOXO

17

VOXI

18

BU2O

19

BU2I

20

AMPO

21

AMP–

22

AMP+

23

GND

24

IC2201 µPC5023

C2211 10

R2212 220k

R2213 220k

C2212 10

R2214

4.7k

R2215

10k R2217 47k

C2214

0.1

R2220 220k

R2221 22k

R2218 10k

C2216

0.1

D2202 DA221

C2217

0.039

R2222

6.8k

R2219 56

R2707 100

R2708 27k

C2801

0.1

5 4

3

2 1

IC2801 TC4S66F

R2804 10k

D2201 DA221

C2213

0.1

C2219

0.47

R2224

4.7k

R2383 22k

R2381 100k

C2381 10

R2382 470k

C2382

0.1

C2380

0.1

R2384 1k

AFGV

AAFO

R2223

6.8k

W2351

R2720 10k

C2720

0.1 C2721

100

C2723 47

PHOEPHO

NC

1

VCC

2

NC

3

VIN

4

RIPPLE

5

NF

6

PHASE

7

PREGND

8

PWGND

9

POUT

10

IC2702 TA7368F

SPS

AFMS

D2701 DAP202K

R2722 47k

5 6

7

IC2351B NJM2904M

R2216 47k

C2215 1

C2710

2.2 L2901 LW-15

C2904

0.1

R2306 330

C2304 10

R2320

8.2k

R2007

2.2k R2008

2.2k

C2305 10

R2301 1k

R2317 1k

L2301 100µH

C2303

0.1

R2352 56k

C2352

0.0022

R2353 47k

C2353 390P

D2381 1SS375

R2385 10k

C2383 10

Q2381 2SC4081R

8V

CARR C2384 1

R2386 10k

R2387 10k

Q2384 DTC114EE

Q2383 DTC114EE

C2905 1000

3 2

1

4

8

IC2351A NJM2904M

C2354 10

R2307

4.7k C2312

0.47

R2300 560

R2303

4.7k

R2302

47k R2304 47k

C2306

0.1

C2301

0.1

C2313

0.1

R2319 560

R2318 560

R2305 1k

D2301 MA2S111

D4220 MA2S728

C2315

0.47

R2803 10k

EXT SP

J4501

P1

C2314

0.1

Q2302 DTC114EE

R2321 220k

R2310 1k

C2310

0.1

C2309

0.1

R2313 10k

T8V

–5V

8V 5V

14V

–5V

SPE

ESPO

SPE

ESPO

121

2

J4502 SPO SPE

AMS

VS+

1

VCS

2

VCS

3

VS–

4

BIAS

5

VO+

6

NC

7

VC+

8

NC

9

VC–

10

NC

11

VO–

12

NC

13

V–

14

IC2301 NJM1496V

ALC

GND

SEND GND

SEND

MOD

GND

AFO

SQLS

13.8V

8V

BAND

FSKK

ACC

BDT

KEY

J4801

L4651 HF50ACC322513-B

L4501 HF50ACC322513-B

L4653 HF50ACC322513-B

L4654 HF50ACC322513-B

L4656 10µH L4657 10µH

C4660

0.0047

L4652 10µH

C4656

0.0047

C4501

0.0047

L4660 10µH

C4648

0.0047

C4659

0.0047

L4801 100µH

EP4801

L4802 HF50ACC322513-B

2

12

7

3

4

11

1

1234 567 8

101112 9

13

10

6

9 5

8

J4651

SP1

L4661 100µH

L4658 100µH

L4659 10µH

RL4801 AHY103

C4801

0.0047

C4661

0.0047

C2903

0.1

C2902 10

1 2

3

4

5

IC2901 LA4425A

C2906 470

R2901 470

R2902

4.7

C2907

0.1

C3512 47

C4651

0.0047

8V

SEND

AAFO

AMOD

SQLS FSK

BAND

EALC

STRT

KEY

C4653

0.0047

C4654

0.0047

C4655

0.0047

SNDS

Q4601 2SD1619T

R4227 10k

C4662

0.0047

GND

1

TRG

2

OUT

3

RESET

4

VCONT

5

VTH

6

DISCHARGE

7

VCC

8

IC3501 µPC1555G2

C3507 47

R2709

2.2k

C270810C270910R2710

8.2k

R2805 1k

C3511

0.1

C3509

0.1

C3508 47

D3503 MA8051

R3506 100

R3505 100

D3502 DA221

R3503 10k

R3504 100k

C3504

0.1

C3510 10

MICE MIC SEND SQLS SQLS

SPS

KEY KEY

PHOE PHO

FSK

L3502 1M

W4401

C2901

0.047

C3505

0.0047

C3506

0.1

R2721 560

C2722 47

MP25 R3302 330

R3303 560

C2703 10

C2706 10

C3302

0.1

VSS

1

AO3

2

AO4

3

AO5

4

AO6

5

AO7

6

AO8

7

AO9

8

AO10

9

VDD

10

VCC

11

AO11

12

AO12

13

DO

14

LD

15

CLK

16

DI

17

AO1

18

AO2

19

GND

20

IC3301 M62352GP

W2602

W2601

1 2

J2601

C2601

0.1

R2607 100k

R2702 470

C2701 10

R2705

4.7k

R2706

4.7k

C3503 22

C3502

0.1

C3501

47

C3301

0.1

IC3401 TA7808S

R4101 1k

SPCO

BEPO

NBLV

RFGV AFGV

MIGV

BAND

POCV

PAT

C2602

3.3

C3401 100

C3404 100

L3501 1M

C3513

0.1

FANV

C3403

0.1

C3402

0.1

R3501 180

R3502 180

OPTION UT-102

C2502

0.1

1 2

3 4

J2602

DOUT

DOE

NC NC

DOUT DOE

NC NC

1 2

3 4

P2601

R3202 100k

R3101

4.7k

Q3101 DTC114EE

R3201 100k

8

9 10

IC2101C NJM2058

R3203 470

C3005

0.1

STR.

1

D

2

CLK

3

OE

15

Q1

4

Q2

5

Q3

6

Q4

7

Q5

14

Q6

13

Q7

12

Q8

11

QS

9

QS

10

1

6

8

IC3006 BU4094BCF

R4007

4.7

SPCO

BEPO

MST MDA MC

AGRS AGMS

AFS AFMS

COMS

2N3K

R3011

R3012

R3013

2NTH 2NOP

T8V R8V

R8V

DRE

MDA

MC

AST

BANV

BEPV

BEE

BEPI

AMS

AGSS

NBS

PAT8

ATT8

R4001 4.7

R4002 4.7

R4003 4.7

R4004 4.7

R4005 4.7

R4006 4.7

R3102

4.7k

C3101

0.1

R2406

4.7k

R2407

4.7k

C3003

0.1 IN1

1

IN2

2

IN3

3

IN4

4

IN5

5

IN6

6

IN7

7

IN8

8

VS

9

O1

18

O2

17

O3

16

O4

15

O5

14

O6

13

O7

12

O8

11

GND

10

IC3005 TD62783AF

C891

0.0047

R891 470

L891 100µH

C892 120p

C893 39p

C894 68p

C896 820p

L894

0.33µH

L895

0.39µH

R8921kC898

0.0047

C3004

0.1

STR D CLK OE

Q1

4

Q2

5

Q3

6

Q4

7

Q5

14

Q6

13

Q7

12

Q8

11

QS

9

QS

10

.

1

6

8

IC3004 BU4094BCF

IN1

1

IN2

2

IN3

3

IN4

4

IN5

5

IN6

6

IN7

7

IN8

8

VS

9

O1

18

O2

17

O3

16

O4

15

O5

14

O6

13

O7

12

O8

11

GND

10

IC3002 TD62783AF

B7

MDA MC

FST

B7 B6 B5 B4 B3 B2 B1 B0

2S3K 2STH 2SOP

PROS

PRES ATTS

TX RX

DRE

14V

IFS

B0 B1 B2 B3 B4 B5 B6 B7

C2402

0.0047

D3002 DAN202K

C3007 470

FANV

CARR

KDS

TX_

C3001

0.1

STR

1

D

2

CLK

3

OE

15

Q1

4

Q2

5

Q3

6

Q4

7

Q5

14

Q6

13

Q7

12

Q8

11

QS

9

QS

10

1

6

8

IC3001 BU4094BCF

D3001 DAN202K

R3003 47k R3004 47k R3005 47k R3006 47k R3007 47k

R3008 47k R3009 47k

R3010 47k

MDA MC

BST

B0S

B1S

B2S

B3S

B4S

B5S

B6S

B7S

DRE

PROS

PRES R3001 47k

FAN

CHASSIS

MAIN UNIT

C3002

0.1

IN1

123456789

IN2

IN3

IN4

IN5

IN6

IN7

IN8

VS

O118O217O316O415O514O613O712O8

11

GND

10

IC3003 TD62783AF

R3002 47k

W3601

C3601 10

R3601 1k

14

13

12

IC2101D NJM2058

R3603 100k

D3701 DAN202K

R3701

4.7k

R3702 470

123

J3601

MF1 SB0812H-ICOM-00

123

Q3601 2SD1664

PRON

PROF

FAN+

FAN–

L3L5L4L2L1

L6

C3702

3.3

R3602 330k

FILTER

C3602

0.1

C4101

0.0047

C4102

0.0047

C4103

0.0047

C4104

0.0047

Q3801 DTC114EE

Q3802 DTA114EE

C3801

0.0047

Q3701 DTC114EE

Q3702 DTA114EE

10

9

8

7

6

5

4

3

2

1

J4001

CP4002 CP4001

5 6

7

IC1751B NJM2904M

R3703 RV-109

R3704 1k

CP3701

C4003

0.1

C4005

0.1

C4009

0.1

C4008

0.1

C4007

0.1

C4006

0.1

C4202 47p

C4203 47p

C4204 47p

C4205 47p

C4201 47p

C4206 47p

C4207 47p

C4208 47p

C4107

0.0047

C4106

0.0047

C4105

0.0047

C4209 47p

C4210 47p

C4211 0.0047

C4212 0.0047

C4213 0.0047

R4201 1k

R4202 1k

R4203 1k

R4204 1k

R4205 1k

R4206 1k

R4207 1k

R4208 1k

R4209 1k

R4210 1k

R4211 1k

R4213 1k

R4214 1k

R4217 1k

R4218 1k

R4219 1k

R4220 1k

J4201

to LOGIC unit J7

to LOGIC unit J6

POWS

J4101

R4102 100

C4200

0.0047

HV

W4216

R4215 1k

R4221 1k

R4222 1k

R4223 1k

R4225 1k

R4226 1k

C4214 0.0047

C4216 0.0047

C4220 0.1

C4222 0.0047

C4224 0.0047

C4226 0.0047

C4227 0.1

C4215 0.0047

C4219 0.0047

C4221 0.0047

C4223 0.0047

C4218 0.0047

C4217 0.0047

C4225 0.0047

C4401

0.0047

C4402

0.0047

J4401

STRT

R4224 3.9k

Q4801 DTC114EE

D4801 MA2S111

C4416

C4412

C4414

C4410

C4408

C4404

C4403

C4403–C4410

0.0047

C4405

C4407

C4409

C4411

C4411–C4414, C4416, C4417 0.001

C4413

C4417

T8V

C802

0.1

C4803

0.0047

C5101

0.0047

C5102

0.0047

C4415 0.1

SEND

REMOTE

J5001

CIV CIVE

C4802

0.0047

GND GND GND PWS 14V 14V 14V 14V 14V

14V

ICL PAT8

ICL

PAT8

ICH

HV

STRT

KEY

ICH HV STRT KEY TEMP

16 15 14 13 12 11 10

9 8 7 6 5 4 3 2 1

WCNT

L6 L1 L2 L4 L5 FOR L3 REF

GND

T13V

– +

–

+

C3006 470

+

M

14V

+

–

– +

–

+

– +

–

+

– +

+

++

+

++

+

IO

G

IO

+

–

+

++

–

+

– +

ESPO

SPE

SSBAF

AFS

AMAF

COMS

MIGV

AMOD

TALM

AMS

STRT 5V SNDS 8V 8V HV 14V 14V

5V

8V

HV

14V

FSKK MICE MIC SEND SQLS SEND SEND SEND SPS PHOE PHOE PHO PHO GND GND GND GND CIVE CIV ALMS NC KEY

DOT DAS VOX AVX SM ALM REF

REF

TX

FOR

PAT BEE DN RX TX SBS KDS DSP DSS SST DIN DRE

DRE

AST MST FST BST MC

MC MC MC MC MC MC

MDA MDA MDA MDA MDA MDA

MDA

GND DOTK DASK VOXL AVXL SML ALML REFL FORL PATL BEEP DNB RXS TXS SBSY KDS DSPS DSST SSTB DINT DRES ASTB MSTB FSTB BSTB MCK MDAT POWS GND GND

30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10

9 8 7 6 5 4 3 2 1

30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10

9 8 7 6 5 4 3 2 1

RFGV

RL7

AJS1311

L24

LR-217

L7

LR-392

L8

LR-392

RL8

AJS1311

L16

33µH

RL13

AG201344

L13 LR-391

C8

0.047

C2

0.047

C17 ECR-LA010A12 10p

W3

L17

33µH

C71

0.0047

L1

LR-226

L2

LR-227

L12

LA-479

C49 150p

RL12

AJS1311

C25 820p

C27 820p

C26

120p

C66 680p

C67 680p

RL2

AJS1311

C51

82p

C50 22p

C107

18p

C24

270p

C23

270p

C1

0.047

C7

0.047

RL1

AJS1311

RL11

AJS1311

C22 820p

C64 680p

C80 390p

C47 100p

L100 33µH

L101

33µH

C46

200p

J2

L25

LA-254

L3

LR-214

C28 220p

C29 180p

C3

0.047

C11

0.0047

RL3

AJS1311

C31 220p

L102

10µH

L103 33µH

C30 300p

C32 390p

C34 220p

C35 220p

C36 220p

C60 12p

L4

LR-215

C33 68p

RL4

AJS1311

C68 390p

C69 390p

C61 82p

C104 68p

C108 68p

C4

0.047

C12

0.0047

C18

180p

R4 10k

R6 10k

R8 47k

C20 470p

C21 470p

D2 MA742

L20

10µH

L22 100µH

R3

33

C63

0.0022

L18

33µH

C72

0.0047

C73

0.0047

W73

W72

C15 10p

R5 10k

R7 470

R9

47k

L14

LR-290

D3

MA742

L23

100µH

R2

18k

R20

15k L15 100µH

C19

0.0022

C76

0.0047

D1

DAN202k

C13

0.0047

RX

J3

R1 SRYH-350L

W2

C14 100p

C16

100p

1 2 3 4 5 6 7 8 9

10

J1

W5

W4

T13V

GND

REF

FOR

L5

L4

L2

L1

L6

L3

C10

0.0047

C6

0.047

L21

10µH

L19

33µH

C74

0.0047

C75

0.0047

W5

C54 180p

C55 47p

C56 100p

L6

LR-216

C41 270p

C43

75p

C44 270p

C45 150p

L10

LA-481

RL10

AJS1311

RL6

AJS1311

C9

0.0047 C52 100p

C5

0.047

C37 180p

C78 82p

C38 120p

L5

LR-216

C39 120p

C40 330p

L9

LA-480

RL9

AJS1311

RL5

AJS1311

L104

10µH

C53

68p

L105 33µH

W4

J4

J5

R15

3.3

R34

3.3

L6

BL01RN1A-62-001

L7

BL01RN1A-62-001

Q1 2SC1971

L1

LR-274

C20 47

R4

4.7

R7

47

R8 47

R2 220

C5

0.0047

C6

0.0047

C17

0.047

R20 100

D1 MA29B

C2

0.001

R3

560

C3

0.0047

R5

270

R1 82

R6 680

R9

120

R10

120

C38

0.1

C48

0.1

C70 330p

C4

0.047

EP1/EP2

Q4 2SC2904

Q5 2SC2904

Q2 2SC3133

Q3 2SC3133

L22

EXC-ELDR25C

C26 47

W11

R17 10

R18 10

C39

0.047

C25

0.047

D2 MA29B

R22 10

Q6 2SD1585k

R16 3.3

L8 BL01RN1A-62-001

R23 680

C71 68p

C72 82p

R35

3.3

C8

0.001

C74

0.0068

C75 0.0068 C76 0.0068

L30

EXC-ELDR25C

L2

LR-143

R36

3.3

R37

3.3

C73

0.0068

L31

EXC-ELDR25C

C23

0.047

C24

0.047

W25

D3 MA29B

PAO

EP9

C27 1000

C59 10

C63 10

C42 1000

R25

0.012

Version number

Connected terminals

W15

R27

1k

R26

1k

C29

0.1

C30 220p

C28

0.0047

L3

LR-401

L4

LR-400

J7

CP1

CP2

C15

0.001

C16 820p

C68 200p

C13 220p

C14 220p

C69 200p

C11

0.001

C51

0.047

L5 LR-359

R32 10

R33 10

J1

LLR-06

W22

W21

W20

W19

L29

LR-386

W21A

W22A

W19A

W20A

C62

0.1

EP10

D5 DSA3A1

C32 1000

D4 DSA3A1

L28

LR-386

W14

C47

0.0047

C46

0.0047

C33

0.0047

C34 220p

C60

0.0047

C61

0.0047

C31

0.047

C35

0.1

C45

0.0047

RL1 ALD112

L23

EXC-ELDR25C

C21

0.047 R24

EVN-2ACA00B23 2k

L14

8.2µH

C22

0.001

F1

FGB

F3

S-N5054

F2

S-N5054

R21 EVN-2ACA00B52 500

C19

0.047

L20

BL01RN1-A62-001

R28

4.7

R30 ERT-D2FHL333S

D7

RD10M B3

Q7

µN9211

C54

0.047

C53

0.047

R31

1.8k

R29 680

C52

0.047

D6

DAP222

L21

BL01-RN01-A62-001

GND GND GND PWS

PAT8

ICL ICH

HV

14V 14V 14V 14V 14V

TEMP

KEY STAR 14V GND

KEY

STAR

L26

HF70ACC635050-T

L25

220µH

L24

220µH

1 2 3 4

J13

2 3 4

1

J12

C55

0.0047

C56

0.0047 1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

J3

154

326

L11

LA-478

C58 39p

L27 HF70ACC635050-T

C48

82p

C57

0.0047

C70

0.0047

to ANT

PAO

C65 680p

ELEC-KEY

J5101 L5101 1µH L5102 1µH

DAS DOT

PAI

J6

R11

4.7

R12

1k

R13

1k

C49 82p

C50 82p

C1

0.0047

L19

0.22µH

1 2

3

15

+ –

R3011–R3013 220

R2308 332KC

+

1

2

PLL unit J1

P1

P2

2LO 2LOE

PAI

J1

R2 18

R1 270

R3 270

C5 82p

Tx: 2.4V Rx: 0V

While rotating the fan: 8.4V While stopping the fan: 0V

Tx: 0.8V Rx: 0V

Tx: 3.3V Rx: 0V

Tx: 3.5V Rx: 0V

Tx: 6.3V Rx: 0V

Tx: 0V Rx: 3.5V

Tx: 2.6V Rx: 0V

1.5V 5.5V

Tx: 0V Rx: 3.5V

7.8V

Tx: 3.4V Rx: 0V

1.1V

3.0V

1.1V

AM ON: 0.6V except AM: 3.4V

3.1V

6.8V

1.1V

AM ON: 0.6V except AM: 3.5V

Tx: 0V Rx: 6.5V

OP FILTER Select: 4.6V Unselect: 0.6V

OP FILTER Select: 4.8V

Unselect: 0.6V Tx: 0V Rx: 3.6V

7.6V

ATT ON: 6.6V ATT OFF: 0V

Tx: 12.5V Rx: 0V

CW ON KEY UP: 0V KEY DOWN: 8.0V

*LINE ON: 5.2V LINE OFF: 0V

PRE ON: 0V PRE OFF: 7.5V

PRE ON: 11.7V PRE OFF: 0V

PRE ON: 1.0V PRE OFF: 0V

*LINE ON: 6.4V LINE OFF: 0V

*LINE ON: 5.1V LINE OFF: 0V

*LINE ON: 6.4V LINE OFF: 0V

*LINE ON: 7.0V LINE OFF: 0V

*LINE ON: 7.5V LINE OFF: 0V

*LINE ON: 7.0V LINE OFF: 0V

*LINE ON: 7.6V LINE OFF: 0V

*LINE ON: 6.6V LINE OFF: 0V

4.8V

Tx: 1.7V Rx: 0.7V

8.0V

0.8V

13.1V

*LINE ON: 6.5V LINE OFF: 0V

0V

0.8V

0V

Tx: 0.5V Rx: 0.6V

Tx: 5.6V Rx: 6.0V

Tx: –1.5V Rx: 7.6V

Tx: 3.2V Rx: 0V

Tx: 1.8V Rx: 2.6V

Tx: 0V Rx: 7.3V

Tx: 0V Rx: 6.5V

Tx: 0V Rx: 5.8V

Tx: 0V Rx: 0.4V

12.0V

7.2V

2.6V

4.3V

4.8V

8.1V

8.2V

0.1V

AM ON: 0V

AM Tx: 9.2V except AM Rx: 0V

AM ON: 0V except AM: 7.5V

Tx: 5.2V Rx: 5.7V

Tx: 0.5V Rx: 4.9V

8.0V

3.9V

NOTE:

*LINE ON and LINE OFF

Each line is ON when the frequency is displaied in the table below .

*LINE

name

B0

B2 B3 B4 B5 B6 B7

Display frequency

(MHz)

0.03 – 1.59999

2.0 – 3.99999

4.0 – 7.99999

8.0 – 10.99999

11.0 – 14.99999

15.0 – 21.99999

22.0 – 29.99999

B11.6 – 1.99999

Tx: 0V Rx: 1.1V

Tx: 0V Rx: 0.4V

Tx: 0V Rx: 2.1V

Tx: 0V Rx: 6.0V

2.8V Tx: 0V

Rx: 1.4V

Tx: 0V Rx: 2.9V

Tx: 3.4V Rx: 0V

Tx: 0V Rx: 1.9V

Tx: 0V Rx: 6.4V

Tx: 0V Rx: 6.9V

13.5V 8.0V

Tx: 1.3V Rx: 0V

Tx: 12.3V Rx: 13.3V

Tx: 0.6V Rx: 0V

Tx: 12.3V Rx: 13.3V

Tx: 0.6V Rx: 0V

Tx: 12.3V Rx: 13.3V

3.3V

Tx: 0.6V Rx: 0V

Tx: 12.3V Rx: 13.4V

Tx: 12.2V Rx: 13.3V

Tx: 0.6V Rx: 0V

Tx: 12.3V Rx: 13.4V

Tx: 1.3V Rx: 0V

Tx: 0.5V Rx: 0V

Voltage (V)

7.4

6.0

5.0 0

4.0

3.1

2.2

Display frequency (MHz) Voltage (V)Display frequency (MHz)

0.03 – 1.99999

2.0 – 3.99999

4.0 – 7.99999

8.0 – 10.99999

11.0 – 14.99999

15.0 – 21.99999

22.0 – 29.99999

12 - 2

6-9-16, Kamihigashi, Hirano-ku, Osaka 547-0002, Japan Phone : 06 6793 5302 Fax : 06 6793 0013 URL : http://www.icom.co.jp/world/index.html

<

Corporate Headquarters 2380 116th Avenue N.E., Bellevue, WA 98004, U.S.A. Phone: (425) 454-8155 Fax : (425) 454-1509 URL : http://www.icomamerica.com

<

Customer Service Phone: (425) 454-7619

Glenwood Centre #150-6165 Highway 17 Delta, B.C., V4K 5B8, Canada Phone: (604) 952-4266 Fax : (604) 952-0090 URL : http://www.icomcanada.com

A.C.N. 006 092 575 290-294 Albert Street, Brunswick, Victoria, 3056, Australia Phone: 03 9387 0666 Fax : 03 9387 0022 URL : http://www.icom.net.au

6F No. 68, Sec. 1 Cheng-Teh Road, Taipei, Taiwan, R.O.C. Phone: (02) 2559 1899 Fax : (02) 2559 1874

>

Communication Equipment Himmelgeister Str. 100, D-40225 Düsseldorf, Germany Phone: 0211 346047 Fax : 0211 333639 URL : http://www.icomeurope.com

Crta. de Gracia a Manresa Km. 14,750 08190 Sant Cugat del Valles Barcelona, SPAIN Phone: (93) 590 26 70 Fax : (93) 589 04 46 URL : http://www.icomspain.com

Unit 9, Sea St., Herne Bay, Kent, CT6 8LD, U.K. Phone: 01227 741741 Fax : 01227 741742 URL : http://www.icomuk.co.uk

Zac de la Plaine, Rue Brindejonc des Moulinais BP 5804, 31505 Toulouse Cedex, France Phone: 561 36 03 03 Fax : 561 36 03 00 URL : http://www.icom-france.com

Count on us!

6-9-16, Kamihigashi, Hirano-ku, Osaka 547-0002, Japan

S-13701MZ-C1

Icom IC-718 service manual

Specifications and Main Features

Frequently Asked Questions

User Manual

INTRODUCTION

TABLE OF CONTENTS

SECTION 1 SPECIFICATIONS

SECTION 2 INSIDE VIEWS

SECTION 3 DISASSEMBLY INSTRUCTIONS

SECTION 4 CIRCUIT DESCRIPTION

SECTION 5 ADJUSTMENT PROCEDURES

SECTION 6 PARTS LIST

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY

SECTION PARTS LISTSECTION 8 SEMI-CONDUCTOR INFORMATIONS

SECTION 10 BLOCK DIAGRAM

SECTION 11 WIRING DIAGRAM
