Husqvarna WH4817E, WH3615E User Manual

Operator's manual
WH4817E/968999238 WH3615E/968999237
Please read the operator’s manual carefully and make sure you
understand the instructions before using the machine.
English
OPERATOR’S MANUAL
MOWER
WH3615E WH4817E
Contents
Introduction ............................................................ 3
Congratulations....................................................3
General ................................................................3
Driving and Transport on Public Roads ...............3
Towing .................................................................3
Operating .............................................................3
Good Service .......................................................4
Manufacturing Number ........................................4
Symbols and Decals .............................................. 5
Safety Instructions................................................. 7
General Use.........................................................7
Driving on Slopes.................................................9
Children..............................................................10
Maintenance ......................................................11
Transport............................................................13
Customer responsibilities...................................13
Controls ................................................................ 14
Control Locations ...............................................14
1. Recoil Starter Grip .........................................15
2. Ground Speed Lever......................................15
3. Motion control levers......................................16
4. Ignition Switch................................................16
5. Operator Presence Lever...............................17
6. Throttle Control ..............................................17
7. Brake/Bypass Lever.......................................18
8. Blade Engagement Switch.............................18
9. Neutral Bail ....................................................19
10. Choke Control ..............................................19
11. Hour Meter ...................................................20
12. Tracking Knob..............................................20

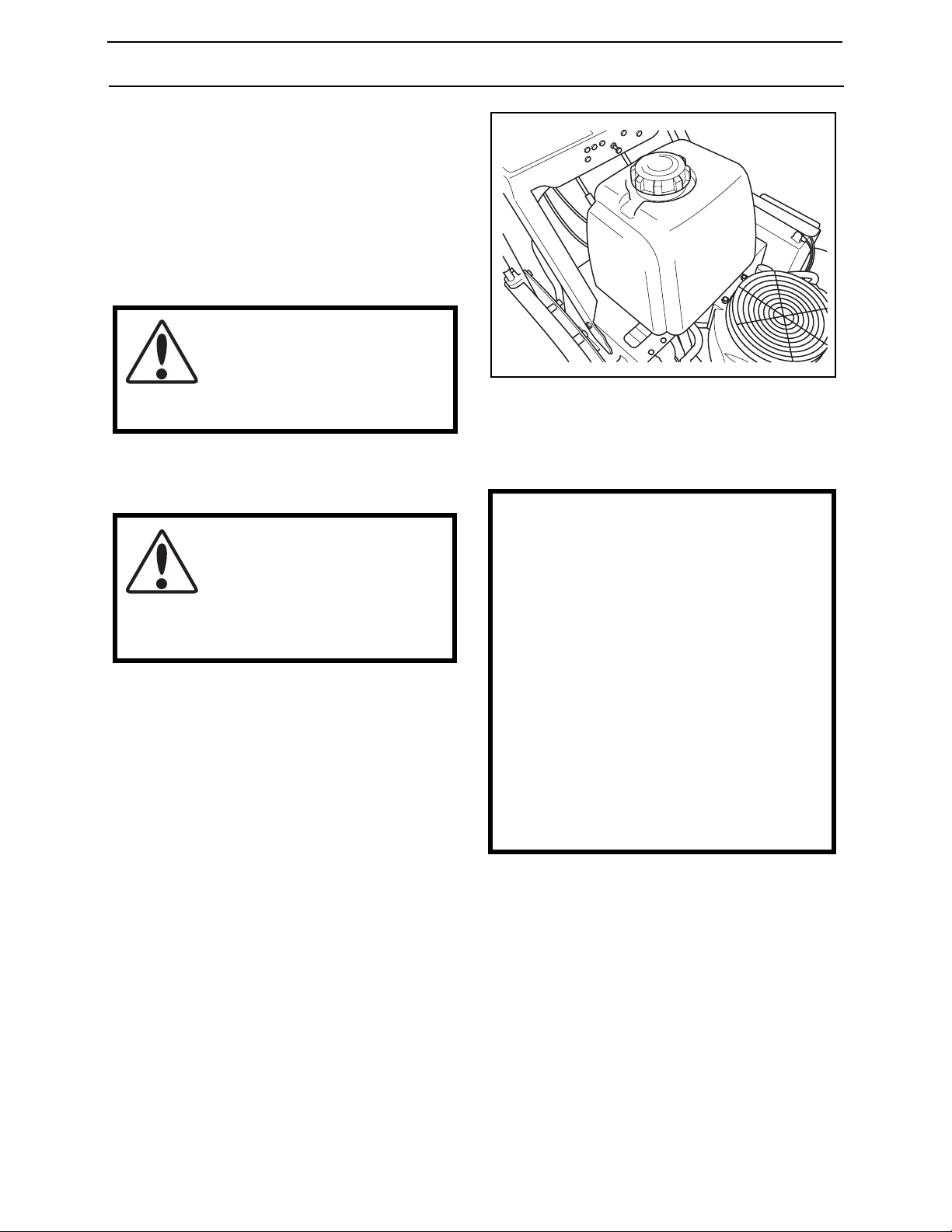

13. Refueling......................................................21
14. Fuel Shut-off Valve ......................................22
Fuse ...................................................................22
Accessories........................................................22
Operation .............................................................. 23
Before Starting ...................................................23
Starting the Engine ............................................24
Driving forward...................................................26
Reversing...........................................................27
To operate on hills .............................................27

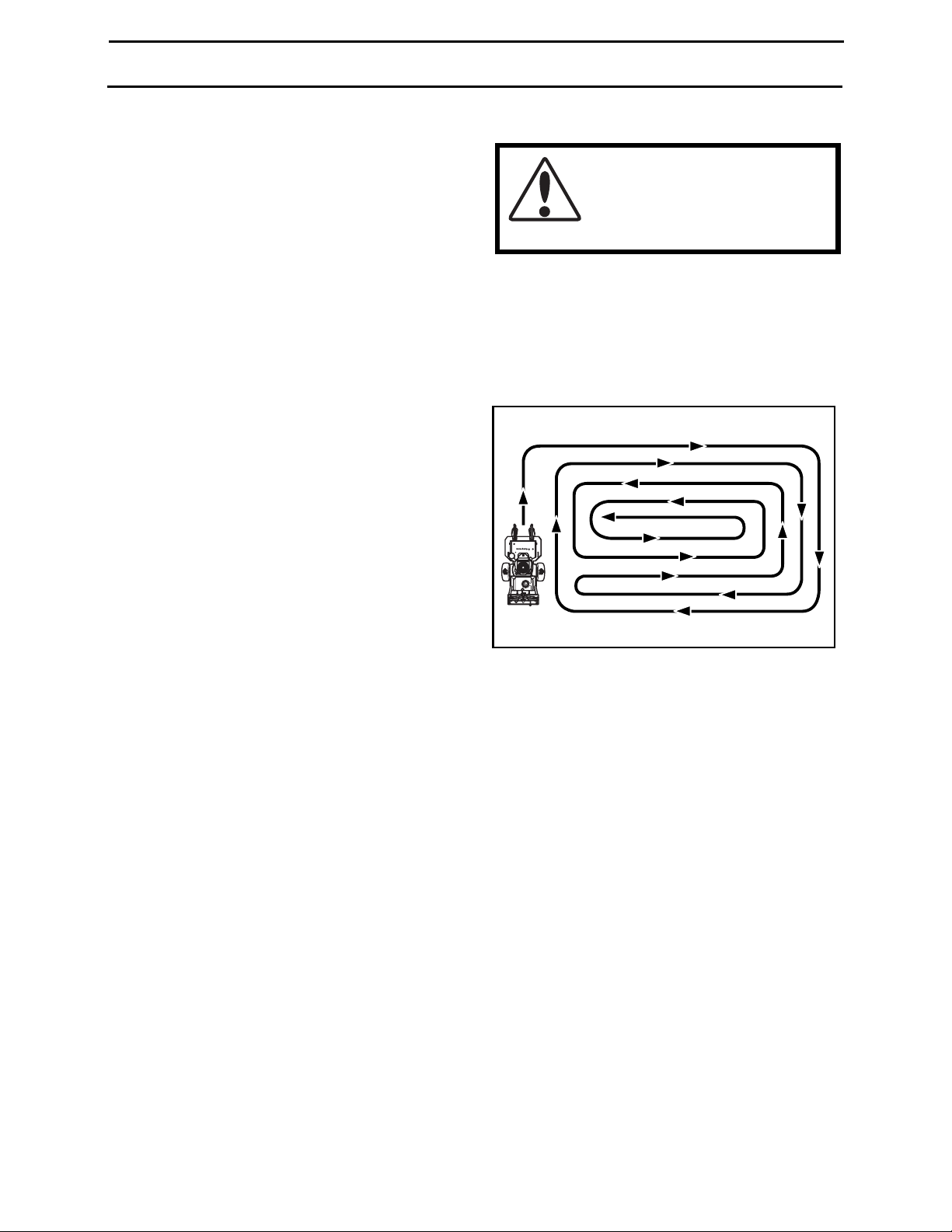

Mowing Tips ......................................................28
Stopping.............................................................29
Stopping the Engine...........................................30

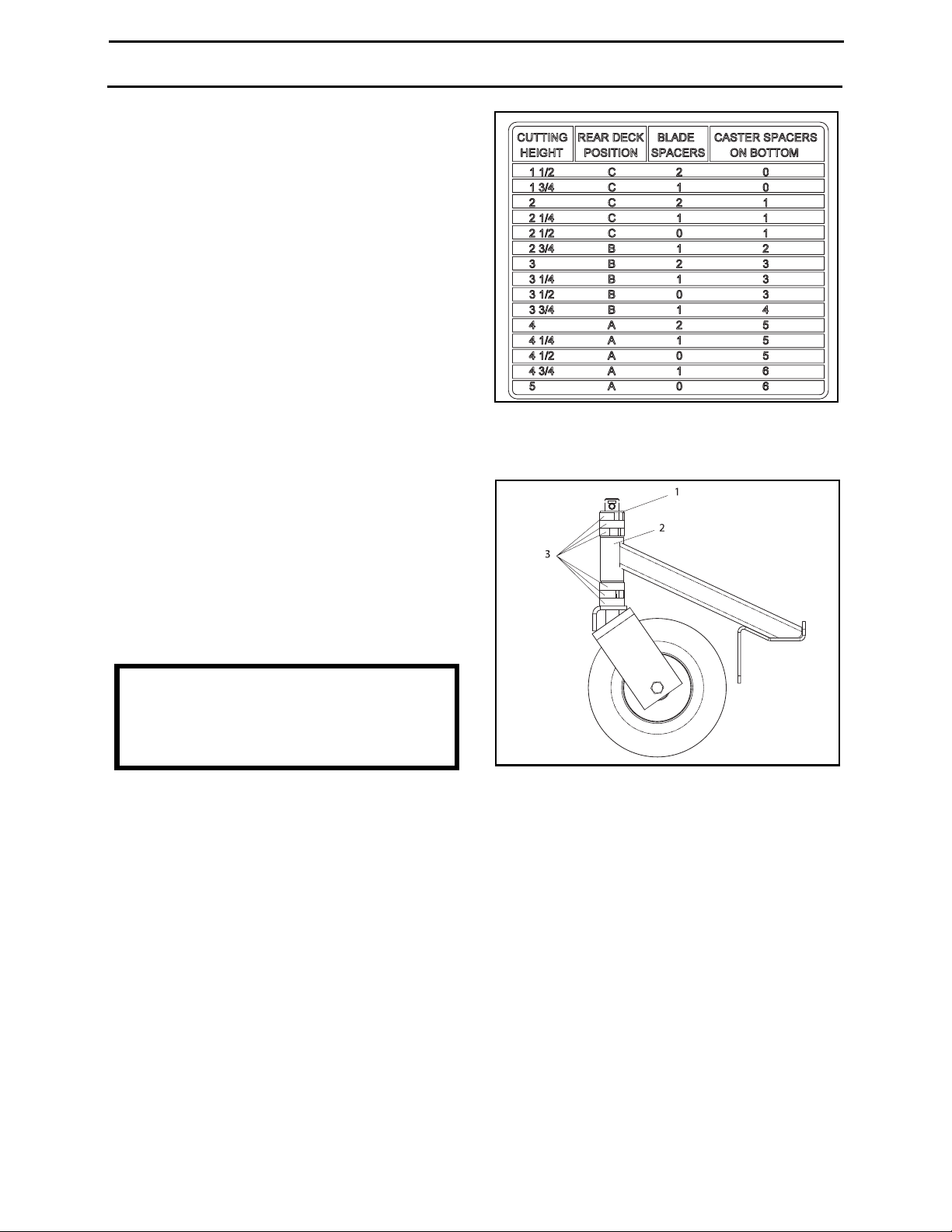

Cutting height adjustment ..................................31
Moving by hand..................................................33
Maintenance ........................................................ 34
Maintenance Schedule...................................... 34

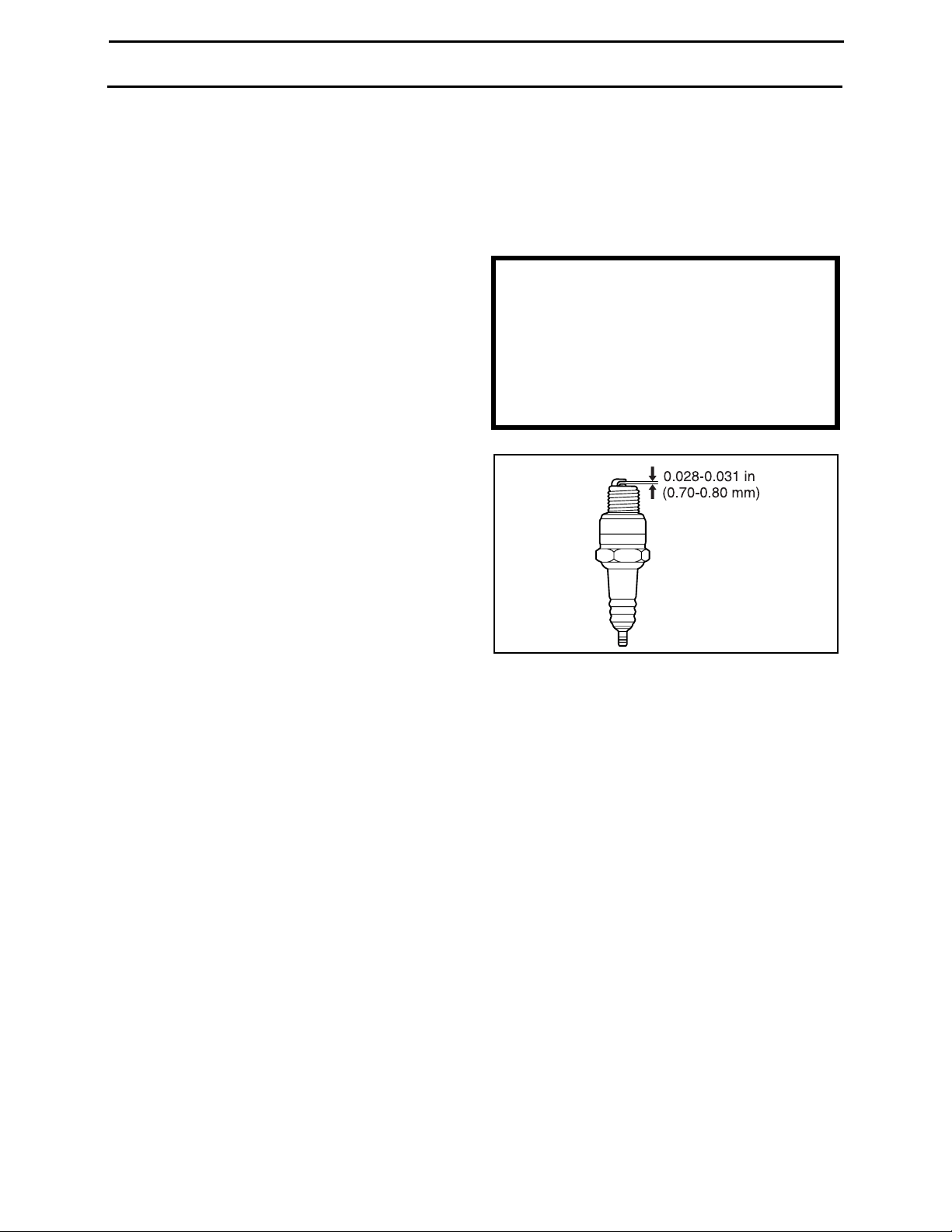

Ignition System.................................................. 36
Checking the Safety System ............................. 37

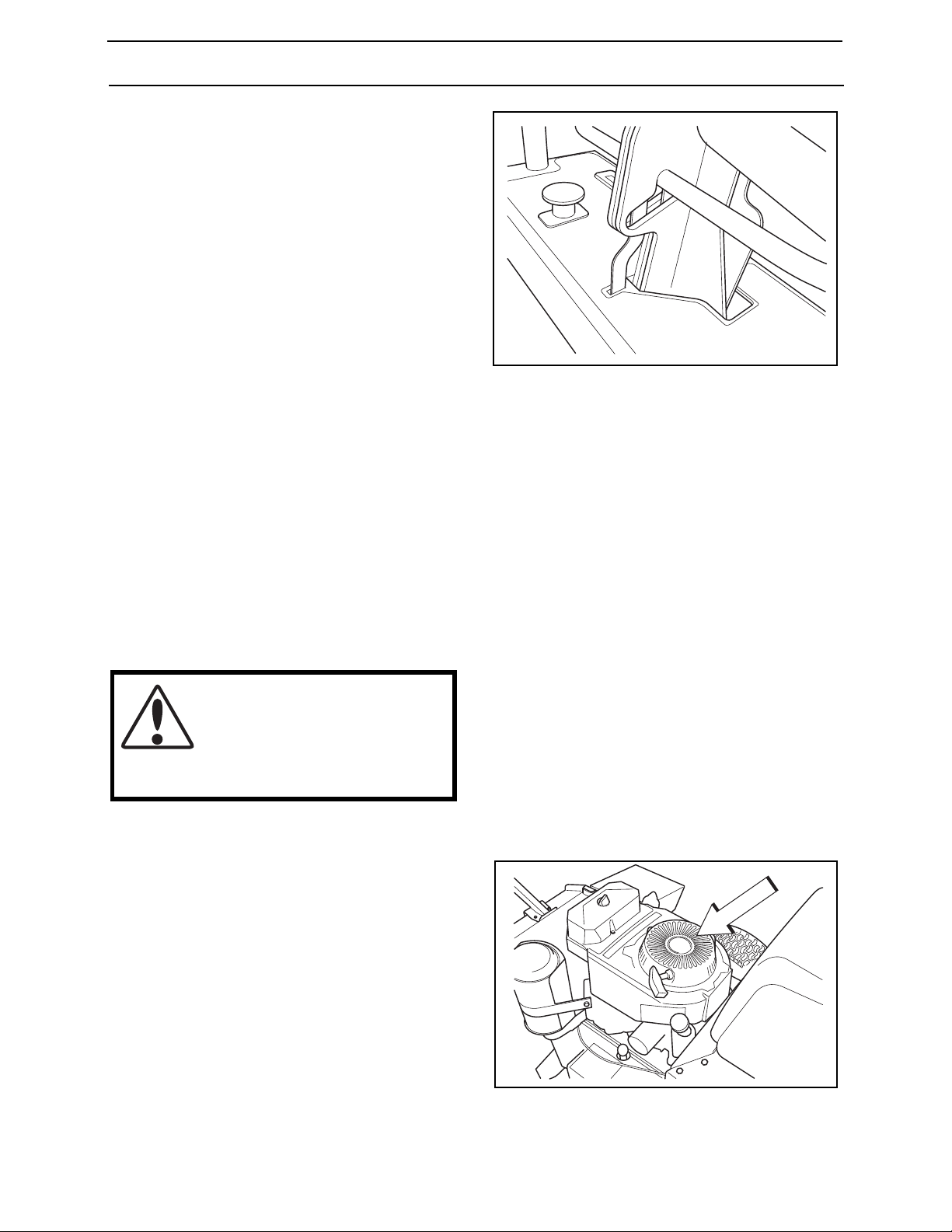

Checking the Engine's Cooling Air Intake ......... 37

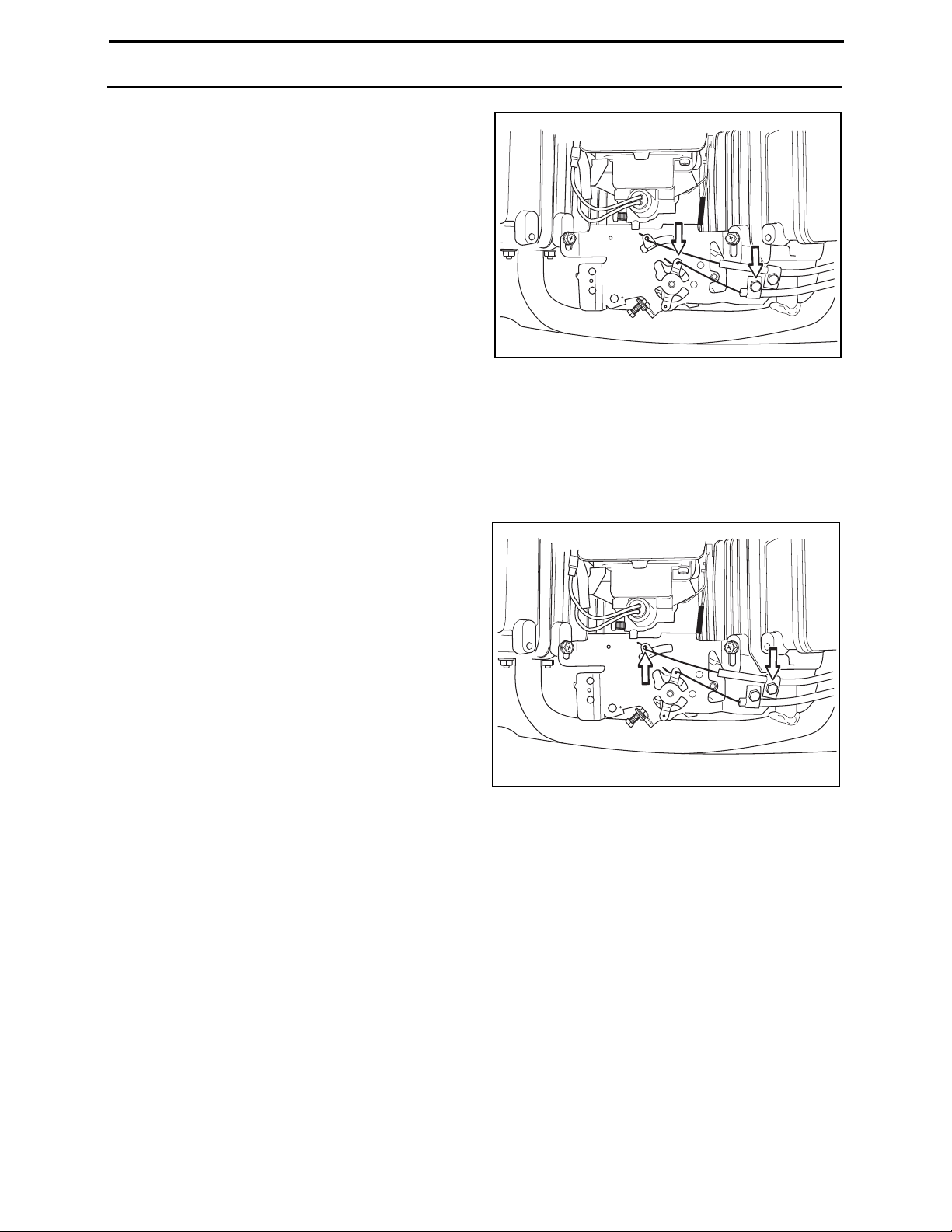

Checking and Adjusting the Choke Cable......... 38

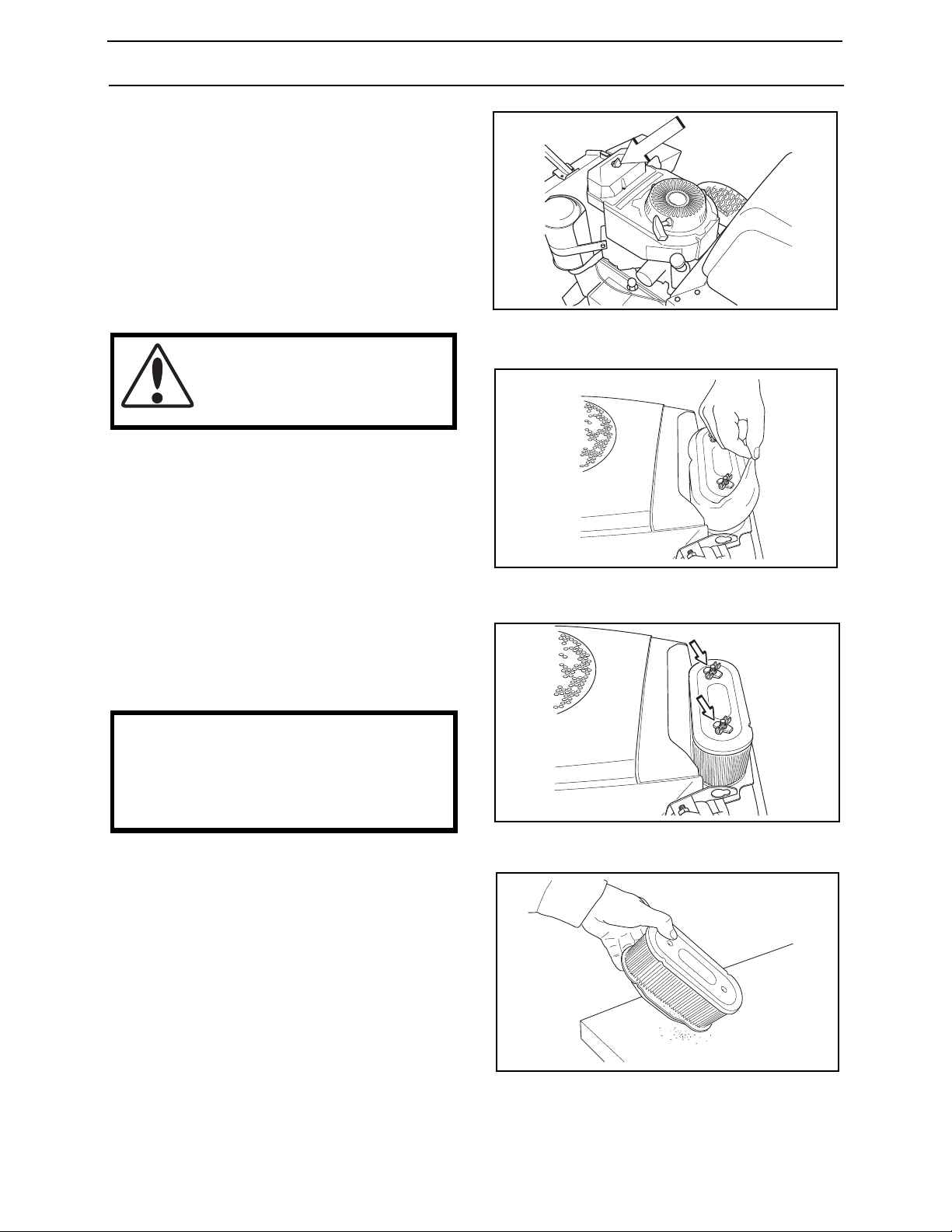

Replacing the Air Filter...................................... 39
Replacing the Fuel Filter ................................... 40
Checking the Fuel Pump’s Air Filter.................. 40
Checking Tire Pressures................................... 40
Checking the Parking Brake.............................. 41

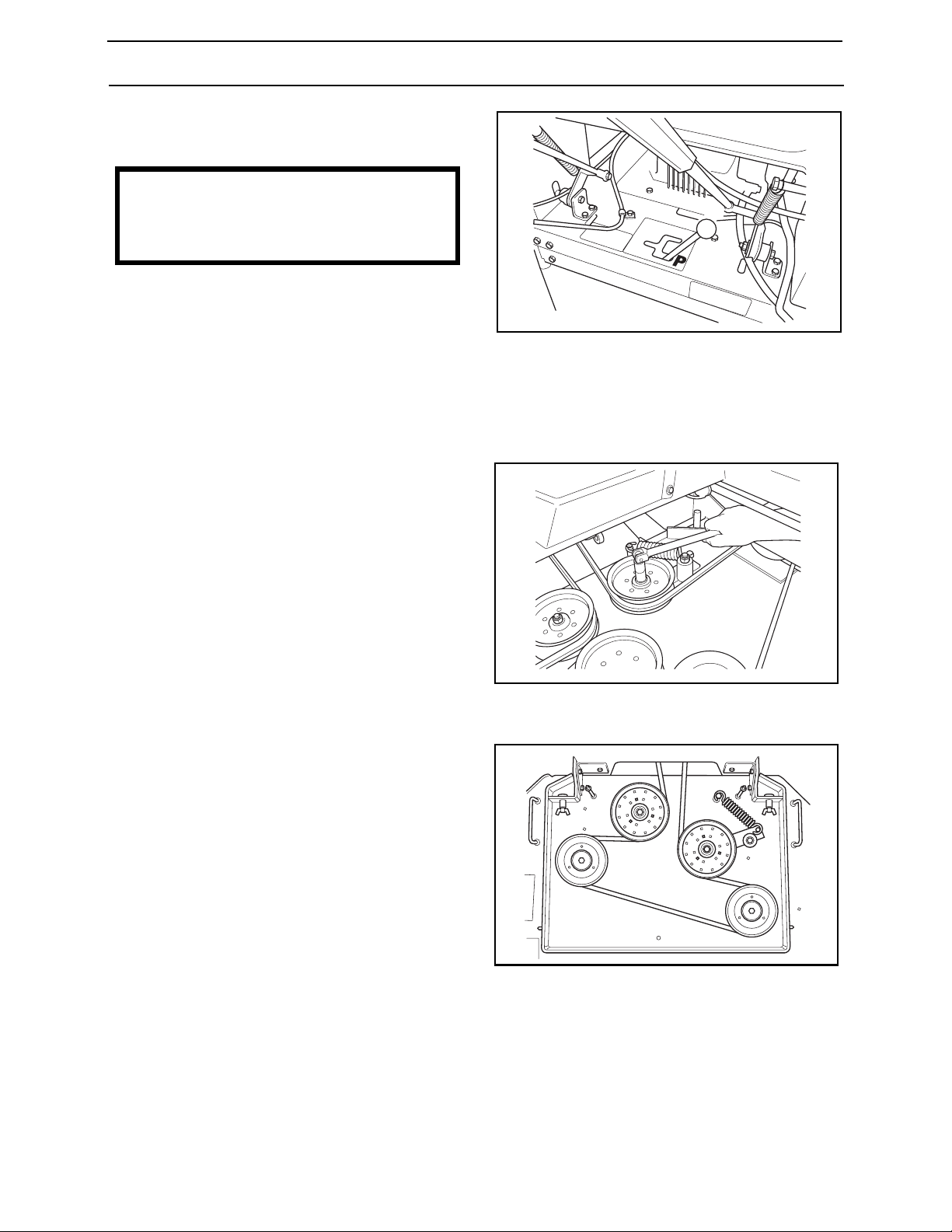

Checking the V-belts ......................................... 41
Checking the Blades ......................................... 42
Adjustment of the handle .................................. 42

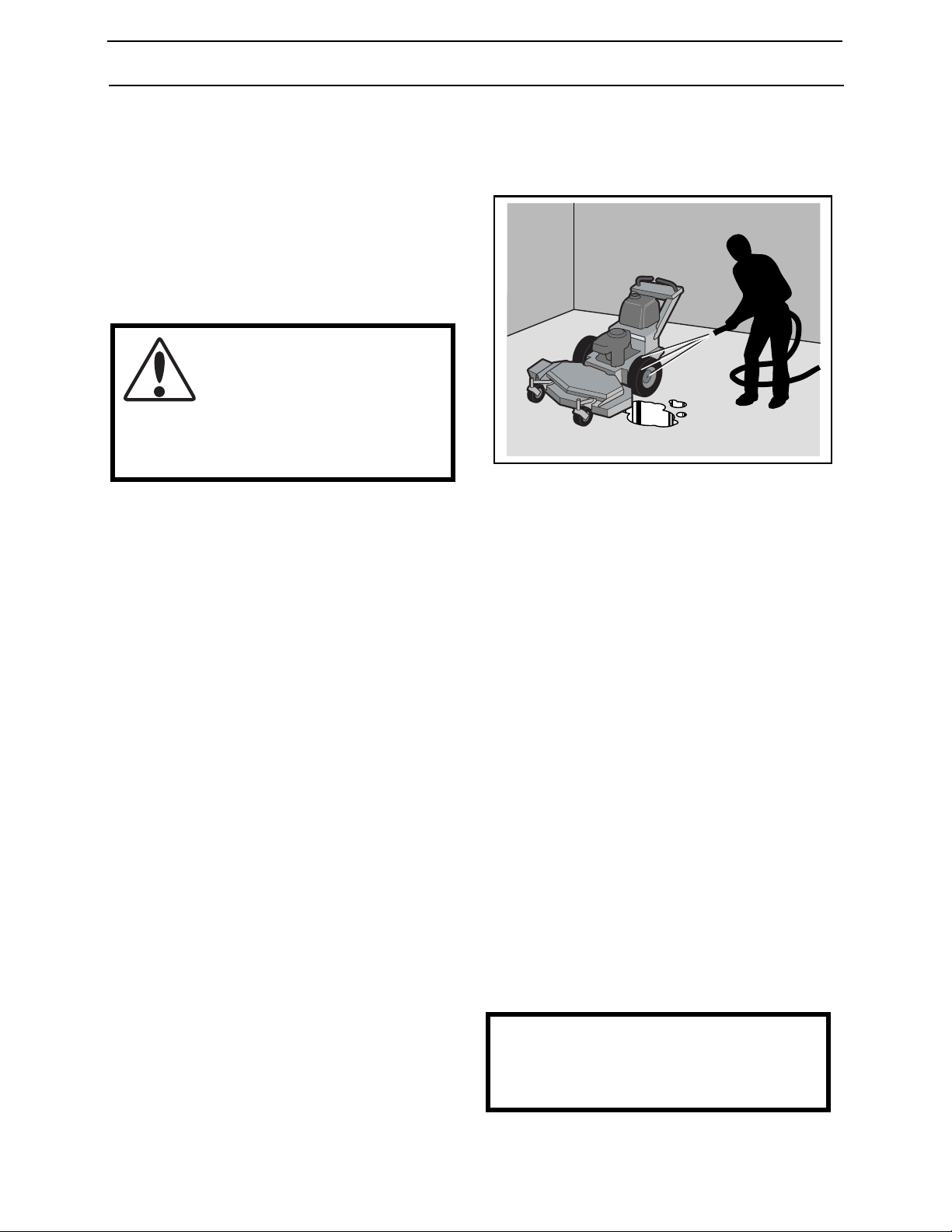

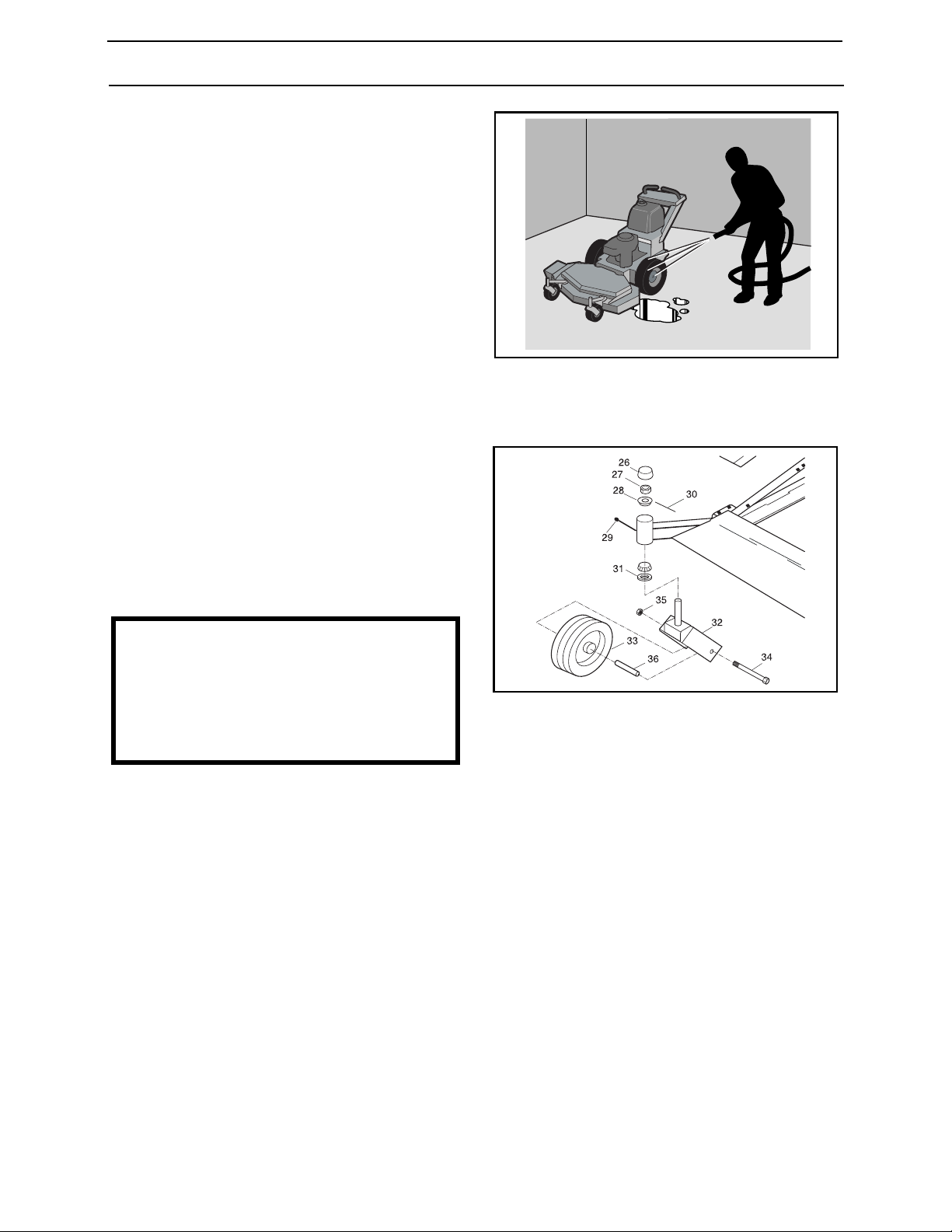

Cleaning and Washing ...................................... 43

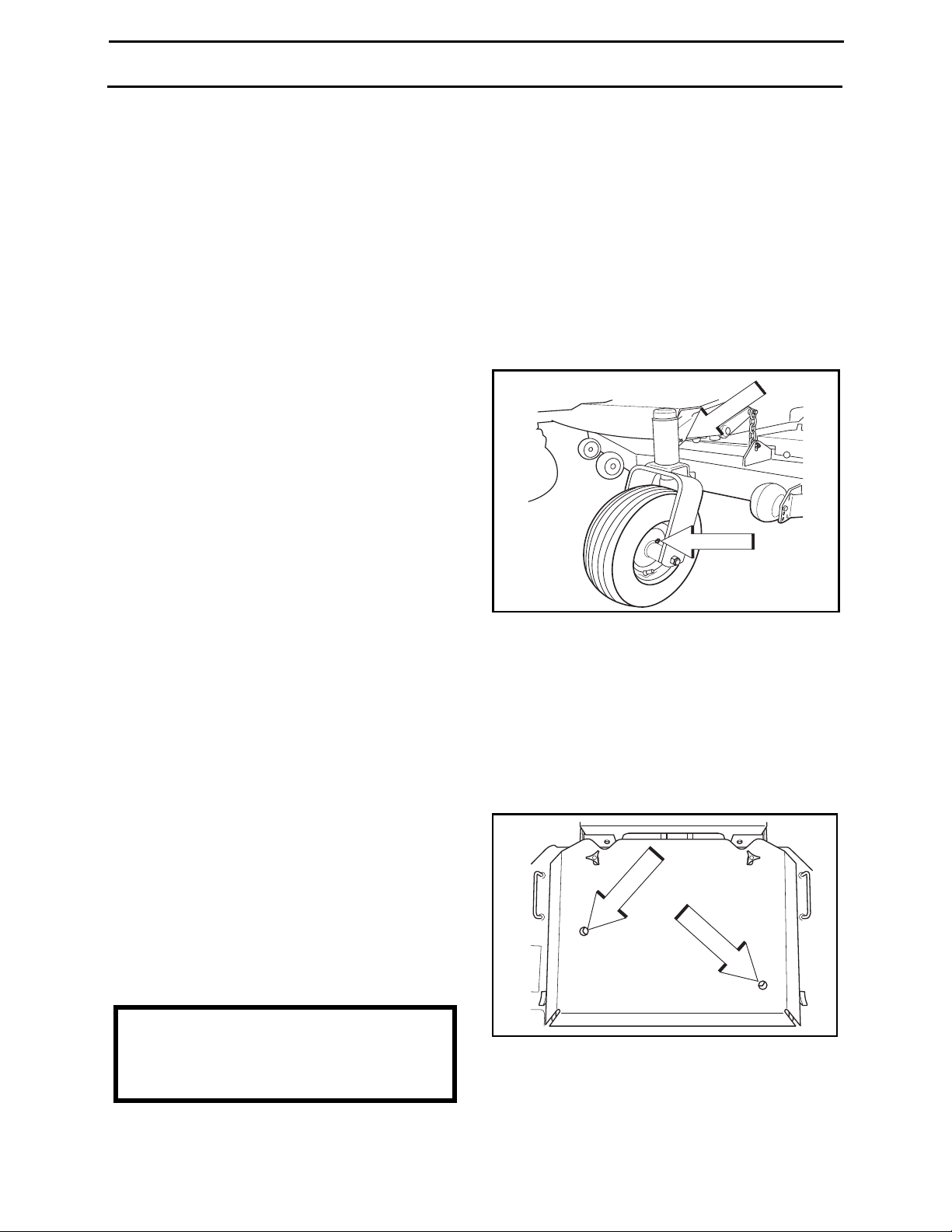

Caster Wheels................................................... 43
Hardware........................................................... 43

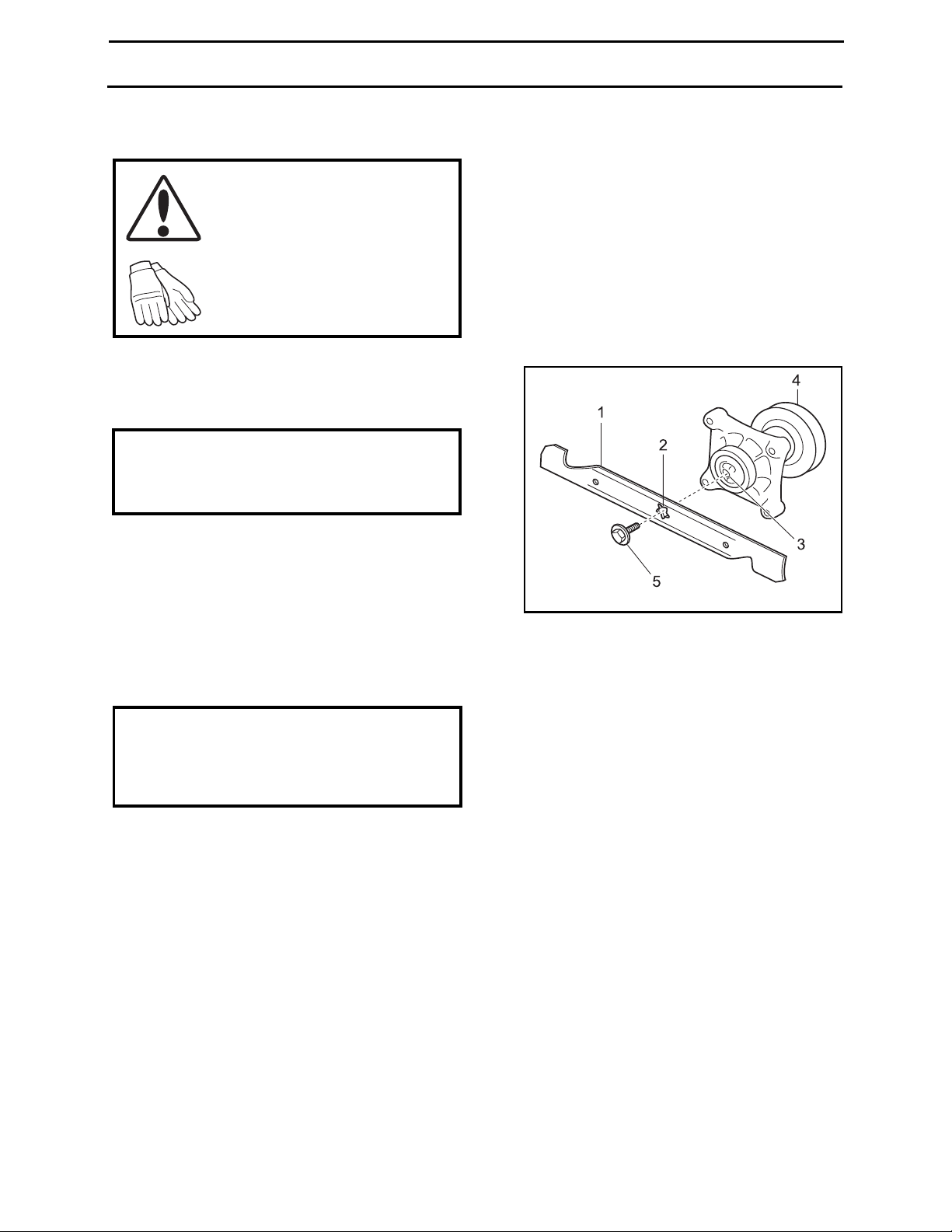

Blade replacement ............................................ 44
Lubrication........................................................... 45

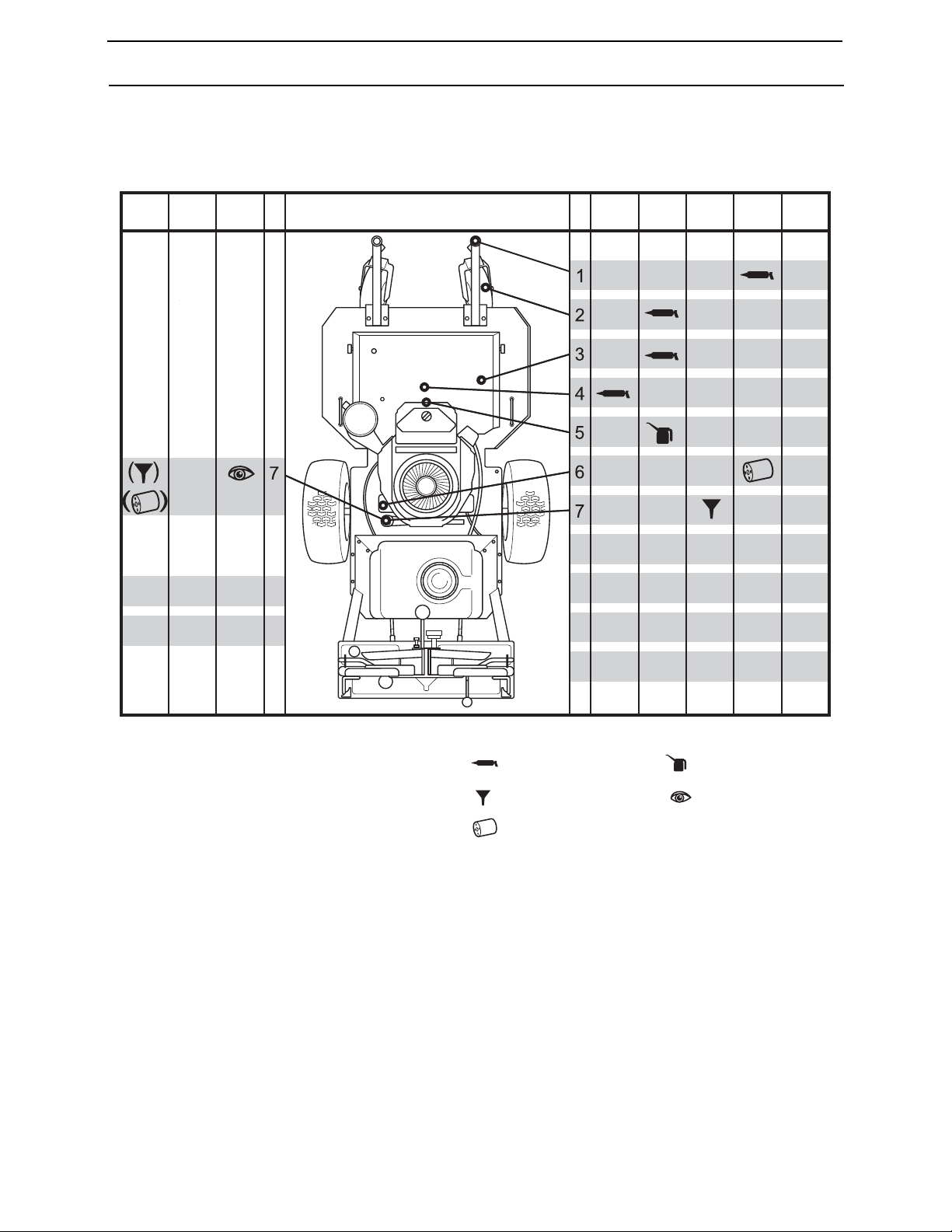

Lubrication Schedule......................................... 45
General ............................................................. 45
Lubricating the Cables ...................................... 46
Lubricating in Accordance with the Lubrication
Schedule ........................................................... 46
Trouble Shooting Guide ..................................... 50
Storage................................................................. 53
Winter Storage .................................................. 53
Service .............................................................. 53

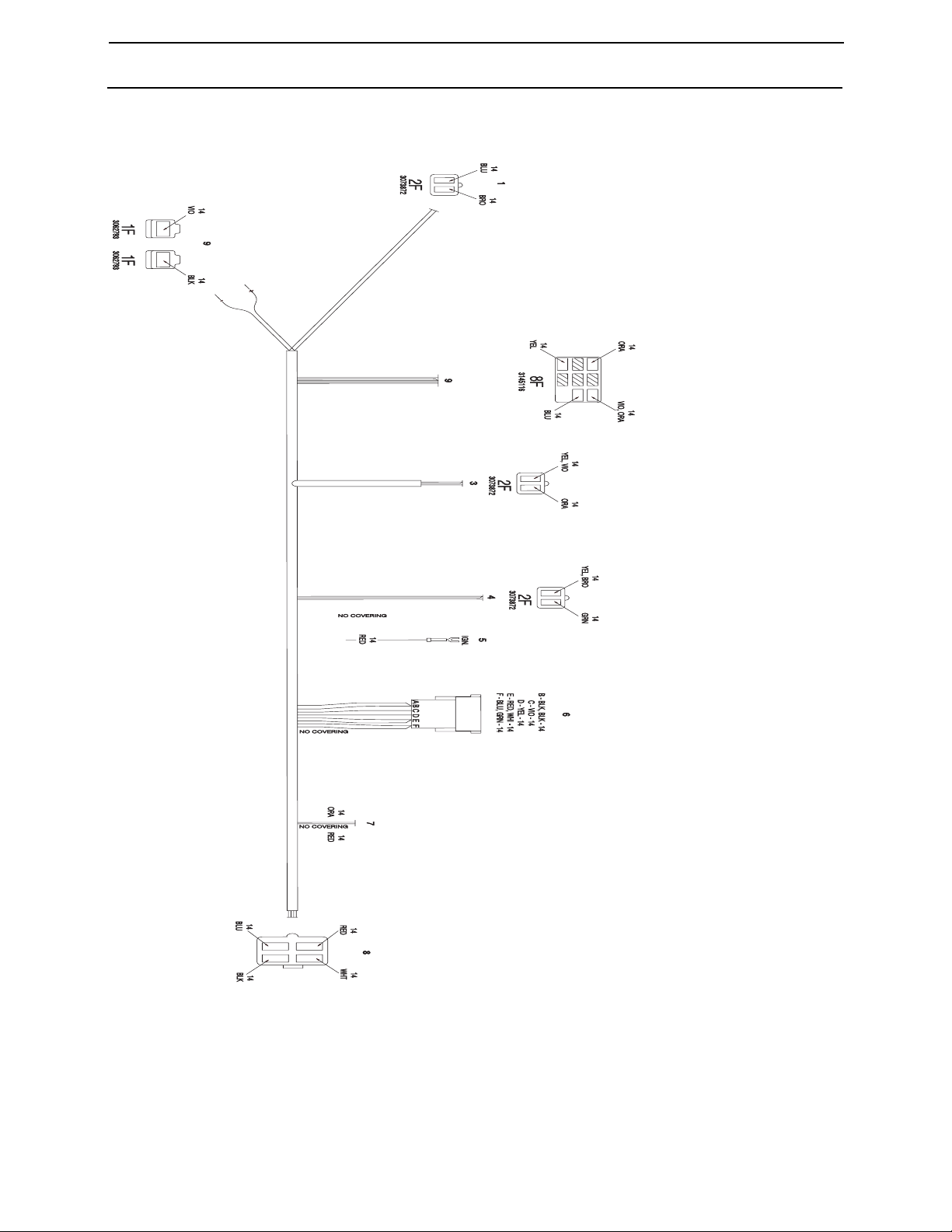

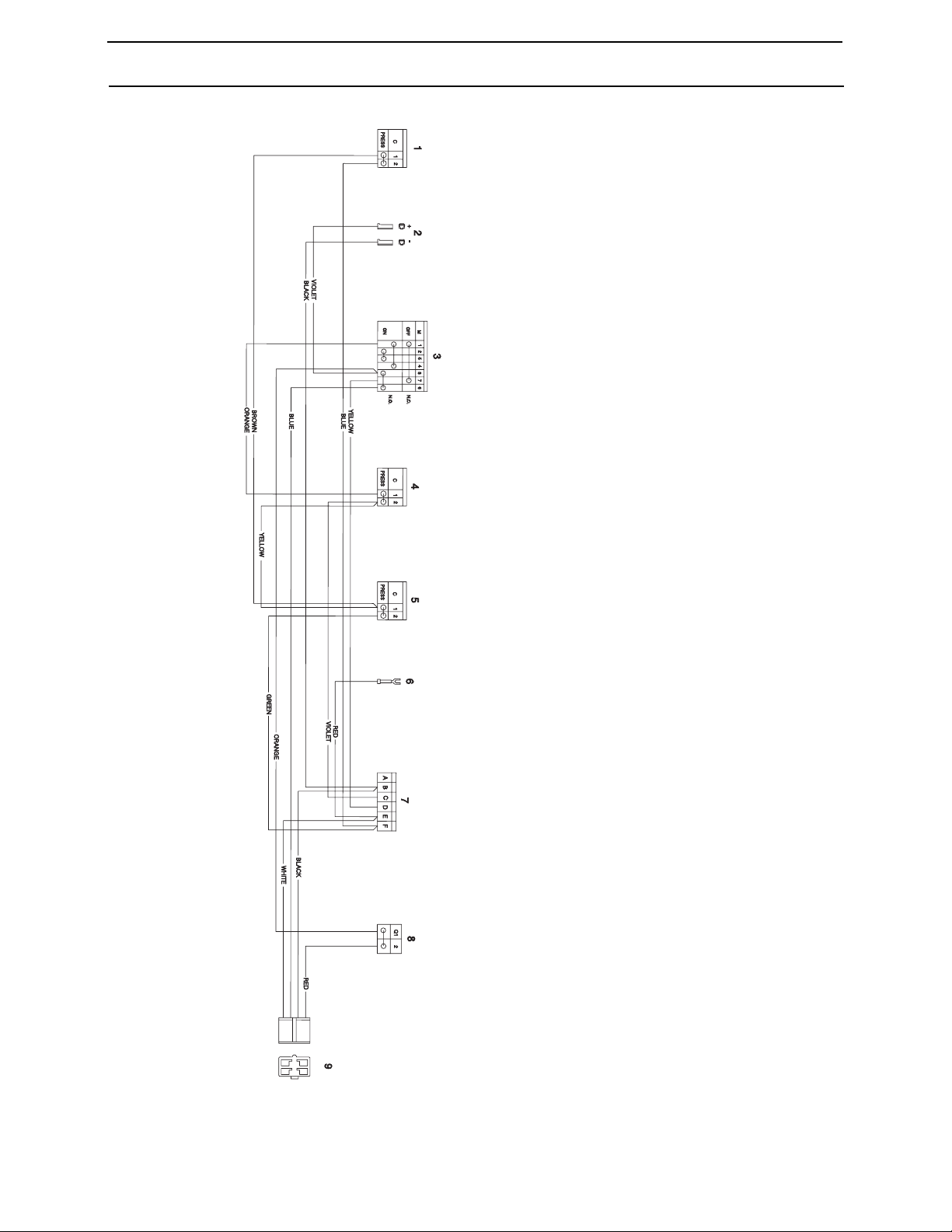

Wiring diagrams .................................................. 54
Technical Data..................................................... 56
Torque Specifications........................................ 57
Conformity Certificates....................................... 58
USA requirements............................................. 58
Service Journal ................................................... 59
Delivery Service ................................................ 59
After the First 8 Hours ....................................... 59
25-Hour Service ................................................ 60
50-Hour Service ................................................ 61
100-Hour Service .............................................. 62
300-Hour Service .............................................. 63
At Least Once Each Year.................................. 64
English-1
WARNING !
Failure to follow cautious operating practices can result in serious injury to the operator or other persons. The owner must understand these instructions, and must allow only trained persons who understand these instructions to operate the mower. Each person operating the mower must be of sound mind and body and must not be under the influence of any mind altering substance.
WARNING !
Engine exhaust, some of its constituents, and certain vehicle componets contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
English-2

INTRODUCTION

Introduction
Congratulations
Thank you for purchasing a Husqvarna Walk-BehindMower. This machine is built for the greatestefficiency and rapid mowing primarily of large areas. Controls in one place and a transmission regulated by steering controls contribute to the machine’s performance.
This manual is a valuable document. Following the instructions (use, service, maintenance, etc.) can considerably increase the lifespan of your machine and even increase its resale value.
If you sell your machine, be sure to give this Operator’s manual to the new owner. The final chapter of this Operator’s manual comprises a Service Journal. Ensure that service and repair
work is documented. A well kept service journal reduces service costs for the season-based maintenance and affects the machine’s resale value. Take the Operator’s manual along when the machine is left to the workshop for service.
General
In this Operator’s manual, left and right, backward and forward are used in relation to the machine’snormal driving direction.
Driving and Transport on Public Roads
Check applicable road traffic regulations before driving and transport on public roads. If the machine i s transported, you should always use approved fastening equipment and ensure that the machine is well anchored.
Towing
Do not tow this machine, it may cause damage to the drive system. Do not tow any trailers, etc. with this mower. They may jackknife or overturn causing damage to the mower
and possibly serious injury to the operator.
Operating
This machine is constructed only for mowing grass on lawns and other free and level ground without obstacles such as stones, tree stubs, etc. The machine can also be used for other tasks when equipped with special accessories provided by the manufacturer, for which the operating instructions are provided in conjunction with delivery. All other types of use are incorrect. The manufacturer’s directions concerning operation, maintenance, and repairs must be carefully followed.
Lawnmowers and all power equipment, can be potentially dangerous if used im properly. Safety requires good judgement, careful use in accordance with these instructions and common sense.
The machine must only be operated, maintained, and repaired by persons that are familiar with t he machine’s special characteristics and who are well versed in the safety instructions.
Accident prevention regulations, other general safety regulations, occupational safety rules, and traffic regulations must be followed without fail.
Unauthorized modifications to the design of the machine may absolve the manufacturer from liability for any resulting personal injury or property damage.
English-3
INTRODUCTION
Good Service
Husqvarna’sproducts are sold all over the world and only in specialized retail stores with complete service. This ensures that you as a customer receive only the best support and service. Before the product i s delivered, the machine has, for example, been inspected and adjusted by your retailer, see the certificate in the Service Journal in this operator’s manual.
When you need spare parts or support in service questions, warranty issues, etc., please consult the following professional:
This Operator’s Manual belongs to the machine with manufacturing number:
Engine Transmission
Manufacturing Number
The machine’s manufacturing number can be found on the printed plate of the rear part of the chassi. Stated on the plate, from the top are:
The machine’s type designation (I.D.).
The manufacturer's type number (Model).
The machine’s serial number (Serial no.) Please state the type designation and serial number when ordering spare parts.
The engine’s manufacturing number is stated on a barcode decal. This is placed on the left side of the crankcase. The pl ate states:
The engine’s serial number (E/NO).
The engine’s type designation (Code). Please state these when ordering spare parts.
English-4
SYMBOLS AND DECALS
Symbols and Deca ls
These symbols are found on the machine and in the operator’s manual. Study them carefully so that you know what they mean.
WARNING! Xxxxxxx xxxx xxxxxxxx xxx x
Xxxxx xxxxxx xx. xx xxxxxxxx xxxxx xxx xx.
Used in this publication to notify the reader of a risk of personal injury, particularly if the reader should neglect to follow instructions given in the manual.
IMPORTANT INFORMATION Xxxxxxx xxxx xxxxxxxx xxx xxx
xxxx xxxxxx xx.
Used in this publication to notify the reader of a risk of material damage, particularly if the reader should neglect to follow instructions given in the manual. Used also when there is a potential f or misuse or misassembly.
Warning!
Noise emissions to the surroundings in accordance with the European Union’s directive. The machine’s emission is stated in the chapter TECHNICAL
and on the
DATA
decals.. Only machines for European market
Fast
CE conformity marking
Warning! Rotating blades, keep away from the discharge deck
ChokeSlow
Do not touch rotating parts
Fuel
Use protective glasses
Useprotective gloves
Do not stand here
English-5
SYMBOLS AND DECALS
Moving sharp blades under cover.
Keep a safe distancefrom the machine.
Read Operator´s Manual.
Whole body exposure to thrown objects.
Severing of fingers & toes.
Rotating blades.
Shut off engine & remove key before performing any maintenance or repair work.
English-6

SAFETY INSTRUCTIONS

Safety Instructions
These instructions are for your safety. Read them carefully.
WARNING! This symbol means that important safety instructions need to be emphasized. It
concerns your safety.
General Use
Read all instructions in this operator’s manual and on the machine before starting i t. Ensure that you understand them and then abide by them.
Learn how to use the machine and its controls safely and learn how to stop quickly. Also learn to recognize the safety decals.
Only allow the machine to be used by adults who are familiar with its use.
Make sure nobody else is in the vicinity of the machine when you start the engine, engage the drive, or run the machine.
Make sure animals and people maintaina safe distance from the machine.
Stop the machine if someone enters the work area.
Clear the area of objects such as stones, toys, steel wire, etc. that may become caught in the blades and thrown out before operating the unit.
Read the operator’s manual before starting the machine
8011-630
Beware of t he discharge deck and do not point it at any one. Do not use the machine without the discharge chute in place.
Stop the engine and prevent it from starting before you clean the discharge deck.
Remember that the operator is responsible for dangers or accidents.
Never take passengers. The machine is only intended for use by one person.
Always look down and behind before and during reversing maneuvers. Look out for both large and small obstacles.
Slow down before turning.
8011-631
Clear the area of objects before mowing
8011-632
Never take passengers
English-7
SAFETY INSTRUCTIONS
Shut down the blades when not mowing.
Be careful when turning around fixed objects, so that the blades do not hit them. Never drive over foreign objects.
Only use the machine in daylight or in other well-lit conditions. Keep the machine a safe distance from holes or other irregularities.Pay attention to other possible risks.
Never use the machine if you are tired, if you have consumed alcohol, or if you are takingother drugs or medication that can affect your vision, judgment, or coordination.
Beware of traffic when working near or crossing a road.
Never leave the machine unsupervised with the engine running. Always shut down the blades, apply the parking brake, if so equipped, stop the engine, and remove the ignition key before leaving the machine.
Neverallow children or otherpersons not trained in the use of the machine to use or service it. Local laws may regulate the age of the user.
WARNING! Engine exhaust and certain
vehicle components contain or emit chemicals considered to cause cancer, birth defects, or other reproductive system damage. The engine exhaust contains carbon monoxide, which is a colorless, poisonous gas. Do not use the machine in enclosed spaces.
8011-633
Keep children away from the work area
WARNING! When using the machine, approved personal protective equipment shall be
used. Personal protective equipment cannot eliminate the risk of injury but it will reduce the degree of injury if an accident does happen. Ask your retailerfor help in choosing t he right equipment.
Make sure that you have first aid equipment close at hand when using the machine.
Never use the machine when barefoot. Always wear protective shoes or boots, preferably with steel toecaps.
Always wear approved protective glasses or a full visor when assembling or driving.
Always wear gloves when handling the blades.
Never wear loose clothing that can get caught in moving parts.
Use ear protectors to avoid impaired hearing.
8011-670
Personal protective equipment
English-8
SAFETY INSTRUCTIONS
Driving on Slopes
Driving on slopes is one of the operations where the risk is greatest that the driver will lose controlor the machine willtip over,which can result in serious injury or death. All slopes require extra caution. If you cannot reverse up a slope or if you feel unsure, do not mow the slope.
Do as follows
Remove obstacles such as stones, tree branches, etc.
Watch out for and avoid driving over furrows, holes, and bumps. On uneven terrain, the machine can tip more easily. Long grass can hide obstacles.
Mow up and down, not side-to-side.
If machine stops while going uphill, disengage blades and back down slowly.
Drive evenly and slowly. Use small movements of the steering controls.
Be extra cautious with any additional equipment, which can alter the machine’s stability.
Do not
Do not make sudden changes in speed or direction.
Do not drive the machine on terrain that slopes more than 10°.
Do not mow near verges, ditches, or banks. The machine can suddenly spin around if a wheel goes over the edge of adroporditch,orifanedgegivesway.
Do not mow wet grass. It is slippery,and the tires can lose their grip, so that the machine slides.
Avoid unnecessary turns on slopes, and if it proves necessary, turn slowly and gradually downward, if possible.
8011-634
Mow up and down, not side-to-side
8011-635
Be extra cautious when driving on slopes
Avoid starting or stopping on a slope. If the tires begin to slip, shut down the bladesand drive slowly straightdown the slope.
English-9
SAFETY INSTRUCTIONS
Children
Serious accidentsmay occur if you fail to be on guard for children in the vicinity of the machine.Children are often attracted to the machine and mowing work. Never assume that children will stay put where you last saw them.
Keepchildrenawayfromthemowing area and under close supervision by another adult.
Keep an eye out and shut off the machine if children enter the work area.
Beforeand during a reversing maneuver, look backward and downward for small children.
Never allow a child to ride with you. They can fall off and injure themselves seriously or prevent risk-free maneuvering of the machine.
Never allow children to operate the machine.
Be particularly cautious near corners, bushes, trees, or other objects that block your view.
8011-636
Never allow children to operate the machine
English-10
SAFETY INSTRUCTIONS
Maintenance
WARNING! The engine must not be started when the protective plate for the mower deck’s
drive belt is removed.
Stop the engine. Prevent the engine from startingby removing the spark plug cables from the spark plugs or by removing the ignition key before making any adjustments or performing maintenance.
Never fill the fuel tank indoors.
Fuel and fuel fumes are poisonous and extremely flammable. Be especially cautious when handling fuel, as carelessness can result in personal injury or fire.
Only store fuel in containers approved for the purpose.
Never remove the fuel tank cap and never fill the fuel tank while the engine is running.
Allow the engine to cool before refueling. Do not smoke. Do not fill fuel in the vicinity of sparks or open flames.
If leaks arise in the fuel system, the engine must not be started until the problem has been resolved.
Store the machine and fuel in such a way that there is no risk of leaking fuel or fuel vapor leading to damages.
Check the fuel level before each use and leave space for the fuel to expand, because the heat from the engine and the sun may otherwise cause the fuel to expand and overflow.
Avoid overfilling. If you spill fuel on the machine, wipe up the spill and wait until it has evaporated before starting the engine. If you have spilled fuel on your clothing, change your clothing.
Allow the machine to cool before taking any actions in the engine compartment.
Never smoke or go near open flames or sparks while using the machine
8011-637
Never fill the fuel tank indoors
WARNING! The engine, the exhaust
system’s components become very warm during operation. Risk for burns if touched.
Ensurethat nuts and bolts,especially the fasteningboltsfor the bladeattachments, are properly tightened and that the equipment is in good condition.
8011-777
No smoking
English-11
SAFETY INSTRUCTIONS
Do not modify safety equipment. Check regularly to be sure it works properly. The machine must not be driven with defective or unmounted protective plates, protective cowlings, safety switches, or other protective devices.
Do not change the settings of governors and avoid running the engine wi th overly high engine speeds. If you run the engine too fast, you risk damaging the machine components.
Never use the machine indoors or in spaces lacking proper ventilation. The exhaustfumes contain carbonmonoxide, an odorless, poisonous, and lethal gas.
Stop and inspect the equipment if you run over or into anything. If necessary, make repairs before starting.
Never make adjustments with the engine running.
Use protective glasses at maintenance work.
Themachine is testedand approvedonly with the equipment originally provided or recommended by the manufacturer.
The blades are sharp and can cause cutsand gashes. Wrap the blades or use protective gloves when handling them.
Check the parking brake’s functionality regularly. Adjust and service as necessary.
When mowing familiar areas use mulch deck.
Reduce the risk of fire by removing grass, leaves, and other debris that m ay haveaccumulated on the machine. Allow the machine to cool before putting it in storage.
Have your mower inspected and serviced each year by an authorized Husqvarna dealer.
Use only authentic Husqvarna replacement parts to insure that the safety and quality of your mower is maintained.
8011-638
Never drive the machine in an enclosed space
Safety decals should be replaced if they are missing or illegible. Decals can be purchased from your Husqvarna dealer.
English-12
8011-639
Clean the machine regularly
SAFETY INSTRUCTIONS
Transport
The machine is heavy and can cause serious crushing injuries. Be extra cautious when it is loaded on or unloaded from a vehicle or trailer.
Use an approved trailer t o transport the machine.Activate the parkingbrake, turn off the fuel supply, and fasten the machine with approved fastening devices, such as bands, chains, or ropes, when transporting.
Check and abide by local traffic regulations before transporting or driving the machine on any road.
Do not tow this machine, it may cause damage to the drive system.
Do not tow any trailers, etc. with t his mower. They may jackknife or overturn causing damage to the mower and possibly serious injury to the operator.
IMPORTANT INFORMATION The parking brake is not sufficient to lock
the machine in place during transport. Ensure that the machine is well fastened to the transport vehicle. Reverse the machine onto the transport vehicle to avoid tipping it over.
Customer resp onsi bilities
Read and observe the safety rules.
Followa regular schedule in maintaining, caring for and using your mower.
Follow the instructions under "Maintenance” and "Storage” sections of this owner’s manual.
WARNING! This mower is equipped with an internal combustion engine and should not be
used on or near any unimproved forest-covered, bush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
A spark arrester for the muffler is available through your authorized Husqvarna dealer.
English-13

CONTROLS

Controls
This operator’s manual describes the Husqvarna Walk-Behind Mowers WH3615E and WH4817E. The machines are fitted with a Kawasaki four-stroke V-Twin engine, see Technical Data on page 56.
Transmission from the engine is made via two IZT gears, one for each wheel.
8011-433
Walk behind mower
Locations of the controls
Control Locations
Page Page
1. Recoil starter grip 15. 8. Blade engagement switch 18.
2. Ground speed lever 15. 9. Neutral bail 19.
3. Motion control lever 16. 10. Choke control 19.
4. Ignition switch 16. 11. Hour meter 20.
5. Operator presence lever 17. 12. Tracking knob 20.
6. Throttle control 17. 13. Fuel cap 21.
7. Brake/By pass lever 18. 14. Fuel shut-off valve 22.
English-14
8011-676
CONTROLS
1. Recoil Starter Grip
IMPORTANT INFORMATION
Do not let recoil cord snap back by itself. This may damage the cord or the recoil starter assembly.
Pull the recoil starter grip slowly until you feel compression, then pull it briskly.
Normally this engine will not backfire. If you get backfires, contact your Husqvarna dealer for service.

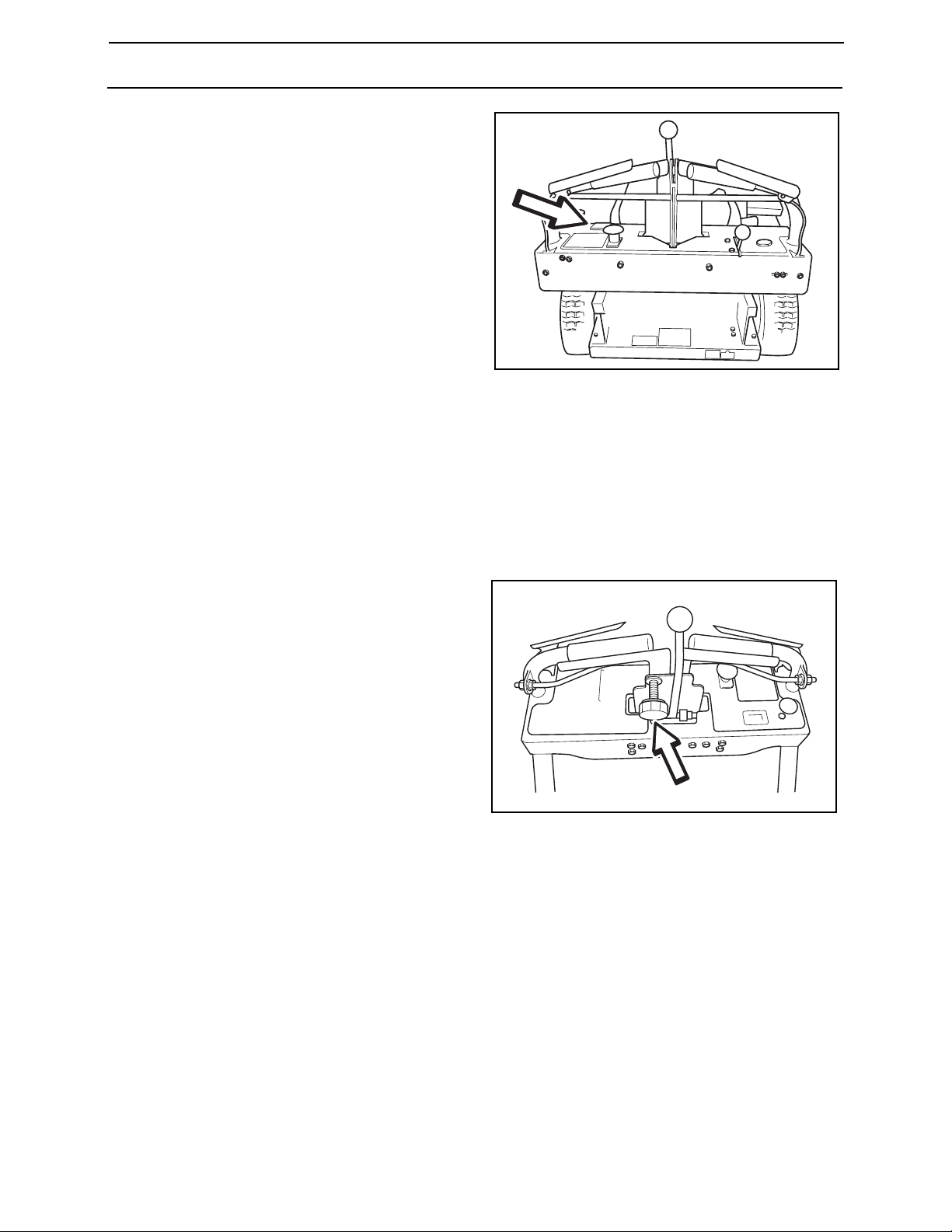

2. Ground Speed Lever
Located in the center of the console. Controls the forward speed of the mower. Push the lever forward if you want to go faster, pull it back to go slower or pull it all the way back to the stop postion.
To begin motion, the operator must move the ground speed lever forward before disengaging the neutral lock bail.
Ground Speed Lever Stop is the adjustment screw placed on the front edge of the driver´s panel. It is used to insure ground speed lever does not over travel drive levers into reverse.
8011-435
Recoil starter grip
8011-654
Ground Speed Lever
English-15
CONTROLS
3. Motion control levers
The machine’s speed and direction are continuously variable using the two motion control levers.
When both controls are in the neutral position, the machine stands still. The controls can be locked in neutral position by the Neutral bail
By moving both controls an equal amount the machine moves in a straight line forward.
WARNING !
The machine can turn very rapidly if one steering control is moved much further than the other.
In order, for example, to turn right while moving forward, move the right control towards the handle (neutral position). The rotation of the right wheel is reduced and the machine turns to the right.
8011-663
Motion control lever
To reverse, squeeze the control levers against the handle grip.
4. Ignition Switch
The ignition key switch is placed on the control panel.
8011-656
Ignition key
English-16
CONTROLS
5. Operator Presence Lever
Located on the handle. As an additional safety feature, these mowers are equipped with an Operators Presence System. This is an electrical interlock safety system which is activated by depressing either one or both of the Operator Presence Levers at the handle grips.
Releasing both Operators Presence Levers while mowing or transporting will break the electrical circuit and cause the engine and mower to stop. The mower will not stop immediately after releasing the O.P. levers, some travel does occur.
One or both levers must be pressed against the handle for the engine to remain running, when the blades are engaged or neutral lock bail is not locked in drive levers.
8011-661
Operator presence lever
6. Throttle Control
The throttle control regulates the engine speed and thereby the rate of rotation of the blades, assuming the control switch for engaging the mower deck is pulled out, see Engaging the Mower Deck.
In order to increase or decrease the engine speed, the control is moved forward or backward respectively.
Avoid idling the engine for longer periods, as there is a risk of the spark plugs fouling.
8011-653
Throttle control
English-17
CONTROLS
7. Brake/Bypass Lever
Located at the back of the rear deck. Used to apply park brake or bypass the IZT gears for free wheel (neutral) condition.
The functions for the lever is:
1. Drive, used when operating the machine.
2. Parking, parking brake applied.
3. Bypass, used when moving the machine by hand.
8011-411
Brake/Bypass lever
Parking Brake
The parking brake on IZT machines is applied when the Brake/Bypass lever is set in position 2. The parking brake must only be used to brake a machine which is standing still. Be careful if you release the parking brake on sloping ground. The machine is heavy and can move uncontrolled, especially if the lever is set to the bypass position (3).
8. Blade Engagement Switch
In order to engage the blades, pull the knob out. The blades are disengaged when the knob is depressed.
The switch energizes the clutch for the V-belt pulley, placed on the crankshaft, to drive the blades.
8011-643
Brake/Bypass lever positions
English-18
8011-655
Engaging the mower deck
CONTROLS
9. Neutral Bail
Keeps the unit from moving while idling. The neutral bail will lock the motion control levers in neutral position and must be activated when starting the engine.
To engage the neutral bail, pull the Ground Speed Lever fully back and press up the bail into position, see illustration.
10. Choke Control
The choke control is used for cold starts to provide the engine with a richer fuel mixture.
8011-416
Neutral bail
For cold starts the control should be pulled out.
Push the choke control gradually in when the engine is started, to get the engine running smooth.
Do not use the choke when starting a warm engine.
8011-652
Choke control
English-19
Loading...
+ 47 hidden pages
