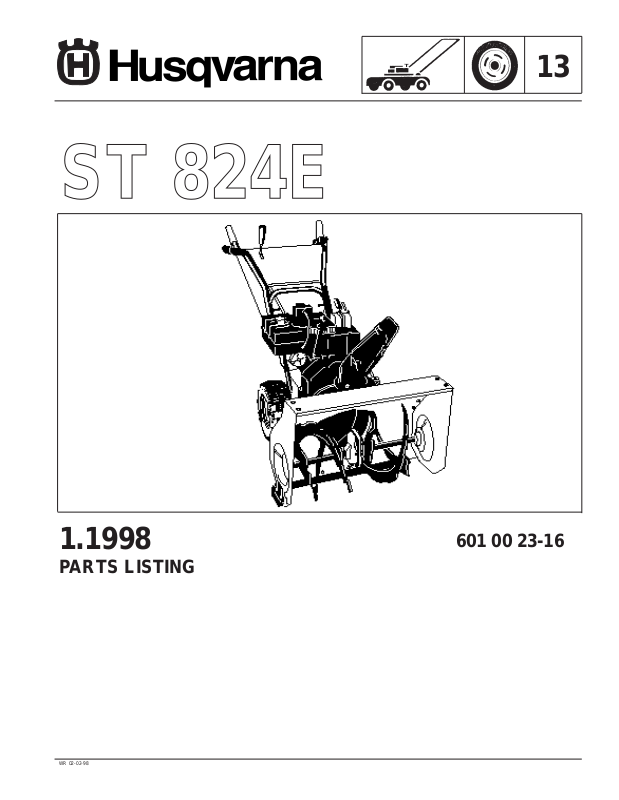

SSTT 882244EE
13
1.1998
PARTS LISTING
WR 02-02-98
601 00 23-16
ST824 Electric Starter Assembly
9
8
10
6
REF. ENGINE
REF
NO. PART NO. PART NAME
6 601 00 15 88 MOTOR, STARTER
7 601 00 15 89 SCREW, 1/4-20X .50
8 60 100 15 90 SCREW, #6-32X2.50
9 601 00 15 91 CORD, STARTER
601 00 23 16 OPERATOR'S MANUAL
ST824 Engine Assembly
10
12
13
REF. AUGER
FRAME
31
33
41
34
57
43
54
44
51
53
53
58
58
PULLEY
60
REF.
59
60
63
67
68
69
REF.
PULLEY
REF.
NO. PART NO. PART NAME
10 ENGINE 8HP (See Engine Manual)
12 601 00 15 92 SCREW 5/16-18X1.50
13 601 00 00 23 WASHER, .328X.60X.09
31 601 00 14 32 GUIDE, ROD BELT RH
33 601 00 00 23 WASHER,.328X.60X.09
34 601 00 14 43 SCREW, 5/16-24X 1.00
41 601 00 14 32 GUIDE, ROD BELT RH
43 601 00 00 23 WASHER, .328X.60X.09
44 601 00 14 43 SCREW, 5/16-24X 1.00
51 601 00 14 34 WASHER, CRANKSHAFT
53 601 00 14 36 PULLEY, HALF
REF
NO. PART NO. PART NAME
54 601 00 14 35 FLATWASHER.752X.91X.02
57 601 00 14 37 BELT, V 3L 33.13LG
58 601 00 14 38 FLATWASHER.765X1.12X.06
59 601 00 20 20 SPACER, SLEEVE
60 601 00 20 21 PULLEY, ENG
63 601 00 15 94 BELT, V 4L 38.1LG
67 601 00 14 41 WASHER, FLAT
68 601 00 00 15 WASHER, 393X.68X.10
69 601 00 05 27 SCREW, 3/8-24X1.00
ST824 Frame Components Assembly
REF.
ENGINE
115
109
91
80
106
90
161
88
146
148
144
143
142
162
145
149
141
104
112
140
103
117
108
128
116
111
119
124
127
110
126
133
125
REF.
AUGER
HOUSING
160
129
120
100
122
121
105
118
REF.
AUGER
HOUSING
REF.
AUGER
HOUSING
REF
NO. PART NO. PART NAME
80 601 00 21 63 FRAME, ASSY
88 601 00 05 19 SCREW, 5/16-18X .50
90 601 00 17 39 COVER, BOTTOM
91 601 00 14 45 SCREW, 1/4-20X .63
100 601 00 23 47 PLATE, CLUTCH ARM
103 601 00 24 06 BRACKET, IDLER
104 601 00 23 49 BOLT, HHSH 3/8-16
105 601 00 24 07 NUT, 3/8-16 CTRLK
106 601 00 20 27 CLIP, CABLE
108 601 00 24 21 CABLE, AUGER
109 601 00 20 30 SHIELD, CABLE GUARD
110 601 00 15 98 C. BOLT, 3/8-16X1.25
111 601 00 06 71 FLATWASHER
112 601 00 14 54 PULLEY, IDLER
115 601 00 13 35 NUT, 3/8-16
116 601 00 16 02 BOLT, BRAKE ARM
117 601 00 16 01 NUT, 9/16-18JAMCTRLK
118 601 00 16 04 BOLT-BRAKE ARM
119 601 00 14 51 SPRING PIN
120 601 00 14 59 PAD, AUGER/IMP
121 601 00 24 68 BRACKET PUCK
122 601 00 16 03 NUT, 1/2-20 JAMCTRLK
123
REF
NO. PART NO. PART NAME
123 601 00 00 60 NUT, 3/8-16RGHXCTRLK
124 601 00 24 09 STUD, BRAKE ARM
125 601 00 00 15 WASHER, REGSPTLK
126 601 00 23 18 NUT, 1/4-20RGHXCTRLK
127 601 00 05 60 PULLEY, METAL
128 601 00 20 59 BOLT, SH 1/4-20
129 601 00 00 17 FLATWASHER
133 601 00 20 60 SPRING, IDLER BRAKE
140 601 00 14 61 LEVER, IDLER ARM
141 601 00 00 73 SCREW, 5/16-18X .75
142 601 00 14 62 WASHER, FLAT.328X1.25X.075
143 601 00 14 63 BUSHING, IDLER LE-VER
144 601 00 14 64 NUT, 5/16-18 HEXNYL
145 601 00 10 89 I DLER SPRING
146 601 00 17 40 SCREW, 3/8-16X1.25
148 601 00 14 54 PULLEY, IDLER
149 601 00 13 35 NUT, 3/8-16
160 601 00 14 65 COVER, BELT
161 601 00 14 45 SCREW, 1/4-20X .63
162 601 00 00 18 WASHER, FLAT
ST824 Drive Components Assembly
190
192
191
211
198
195
210
215
217
221
216
231
222
232
247
196
193
271
249
246
257
245
243
244
250
256
277
REF. FRAME
223
255
226
225
227
229
224
228
235
240
230
REF
NO. PART NO. PART NAME
190 601 00 14 66 LEVER, ASSY TRACTION
191 601 00 14 47 BEARING, FLANGE
192 601 00 09 30 PIN, COTTER.125DIAX1.00LG
193 601 00 14 67 SPRING, RETURN
195 601 00 23 17 LEVER, SPRING
196 601 00 13 74 SCREW, 1/4-20X .63 HHCFT
198 601 00 23 18 NUT, 1/4-20 REGHEXCTRLK
210 601 00 20 31 DISC, ASSY FRICWHL
211 601 00 23 19 ZERK, GREASE.25 28X1.12LG
215 601 00 14 71 SHAFT, HEX TRACTION
216 601 00 14 72 BEARING, TRUNION 1.25 ID
217 601 00 14 46 WASHER, FLAT.53 X1.00X.063
221 601 00 14 74 RING, RETEX
222 601 00 14 75 FLATWASHER.680X1.12X.060
223 601 00 05 39 BEARING, BALL
224 601 00 14 76 KEY, SQUARE .18SQX.63LG
225 601 00 14 77 PULLEY, V3L 6.50X .56
226 601 00 14 78 WASHER, WAVE
227 601 00 23 21 WASHER, FLAT .281X1.00X.063
270
276
278
275
REF
NO. PART NO. PART NAME
228 601 00 00 14 WASHER, 263X.49X.07
229 601 00 00 68 SCREW, 1/4-20X .75 HHC
230 601 00 14 79 BEARING & RETAINER, ASSY
231 601 00 05 19 SCREW, 5/16-18X .50
232 601 00 00 23 WASHER, .328X.60X.09
235 601 00 14 84 WASHER, SP .502X .75X.0605
240 601 00 23 22 HEX, ASSY#40-8TW/PBRG
243 601 00 23 23 RING, RETEX
244 601 00 14 46 WASHER, FLAT.53 X1.00X.063
245 601 00 17 41 BEARING, TRUNION
246 601 00 14 83 WHEEL, ASSYFRICTION DISC
247 601 00 13 74 SCREW, 1/4-20X .63 HHCFT
249 601 00 17 90 NUT, 1/4-20 HEX KEPS
250 601 00 14 84 WASHER, SP .502X 75X.0605
255 601 00 14 79 BEARING & RETAINER, ASSY
256 601 00 05 19 SCREW, 5/16-18X .50
257 601 00 00 23 WASHER, .328X.60X.09\
270 601 00 14 79 BEARING & RETAINER, ASSY
271 601 00 05 19 SCREW, 5/16-18X .50
275 601 00 16 06 JACK, ASSY#41-36T&7T
ST824 Gear Case Assembly
304
340
305
310
320
326
321
303
322
323
300
311
324
316
314
327
315
330
313
312
306
301
304
REF
NO. PART NO. PART NAME
300 601 00 14 83 CASE, GEAR RH
301 601 00 14 88 CASE, GEAR LH
303 601 00 14 43 SCREW, 5/16-24X1.00
304 601 00 08 23 NUT, 5/16-24
305 601 00 16 07 SCREW, 5/16-24X1.50
306 601 00 14 90 PIPE PLUG
310 601 00 23 24 SEAL, OIL
311 601 00 14 92 BEARING, SLEEVE
312 601 00 14 93 WASHER, FLAT
313 601 00 24 27 SHAFT, AUGER OUTPUT
314 601 00 14 95 GASKET, GEAR BOX
315 601 00 14 96 WORM GEAR
316 601 00 14 97 KEY, WDRF
REF
NO. PART NO. PART NAME
320 601 00 14 98 RING, QUAD
321 601 00 14 99 BRNG, FL
322 601 00 23 26 FLATWASHER
323 601 00 15 01 BEARING, ROLL
324 601 00 23 26 FLATWASHER
.752X1.24X.093PL
326 601 00 15 02 KEY, HI-PRO
327 601 00 15 03 WORM GEAR
330 601 00 15 04 BEARING, SLEEVE
340 601 00 15 05 IMPEL, ASSY
ST824 Auger Housing Assembly
499
490
491
484
483
480
485
482
KEY # 500 IS A
WELDMENT AND
INCLUDES TWO
SIDE PANELS
500
REF. KEY #500
544
543
527
500
542
540
509
511
525
541
526
REF.
IMPELLER
520
522
523
521
524
510
514
REF
NO. PART NO. PART NAME
480 601 00 16 09 PULLEY, V4L 8.40 OD
482 601 00 15 07 KEY, SQUARE
483 601 00 14 46 WASHER, FLAT .53 X1.00X.063
484 601 00 01 07 NUT, 1/2-20
485 601 00 16 10 SPACER, SLEEVE
490 601 00 15 09 RETAINER, BALL
491 601 00 05 39 BEARING, BALL
493 601 00 00 73 SCREW, 5/16-18X .75
499 601 00 20 36 NUT, 5/16-18
500 601 00 23 81 HSNG, ASSY
509 601 00 21 74 PLUG, CHRISTMAS TREE
510 601 00 23 82 BLADE, SCRAPER
511 601 00 14 11 BOLT, 5/16-18X..75 CARR.
514 601 00 20 36 NUT, 5/16-18 HXWDFLLK
520 601 00 23 83 AUGER, ASSY LH
REF
NO. PART NO. PART NAME
521 601 00 23 84 AUGER, ASSY RH
522 601 00 14 56 SCREW, 1/4-20X1.75
523 601 00 15 17 SPACER, SLEEVE
524 601 00 23 18 NUT, 1/4-20 RGHXCTRLK
525 601 00 15 18 AUGER SHAFT BEARING
526 601 00 15 19 FLATWASHER 1.005X1.31X.035
527 601 00 05 20 SCREW, 5/16-18X .75
540 601 00 17 45 SKID, HEIGHT ADJUST
541 601 00 14 11 BOLT, 5/16-18X .75
542 601 00 00 18 FLATWASHER .344X.69X.065
543 601 00 00 23 WASHER, .328X.60X.09
544 601 00 00 12 NUT, 5/16-18 REGHEX
ST824 Chute Assembly
598
597
590
596
594
584
603
591
595
602
608
609
593
593
610
606
585
600
586
592
587
580
586
599
601
608
607
REF
NO. PART NO. PART NAME
580 601 00 2425 CHUTE, UPPER
582 601 00 20 38 SCREW, 5/16-18X .75
584 601 00 14 64 NUT, 5/16-18
585 601 00 20 38 SCREW, 5/16-18X .75
586 601 00 15 24 WASHER, PLASTIC
587 601 00 14 64 NUT, 5/16-18
590 601 00 17 04 RIVET, POP
591 601 00 17 02 SKIRT, CHUTE EXT.
592 601 00 21 26 WASHER, PLASTIC
593 601 00 15 24 WASHER, PLASTIC
594 601 00 00 19 FLATWASHER .344X.69X.065
595 601 00 00 23 WASHER, SPLITLOCK
596 601 00 00 19 FLATWASHER .344X.69X.065
611
REF. AUGER
HOUSING
REF
NO. PART NO. PART NAME
597 601 00 06 84 KNOB, T
598 601 00 00 12 NUT, 5/16-18 REGHEX
599 601 00 08 99 BOLT, 5/16-18X1.00
600 601 00 24 26 CHUTE, LOWER
601 601 00 20 40 BOLT, 5/16-18X1.00
602 601 00 00 19 FLATWASHER .344X .69X.065
603 601 00 14 64 NUT, 5/16-18
606 601 00 18 38 COLLAR, CHUTE
607 601 00 00 68 SCREW, 1/4-20X .75
608 601 00 00 18 FLATWASHER .281X .63X.065
609 601 00 23 18 NUT, 1/4-20 RGHXCTRLK
610 601 00 18 39 RETAINER, RING INNER
611 601 00 18 40 RETAINER, RING OUTER
ST824 Wheels Assembly
679
REF. RIGHT
WHEEL
676
673
671
655
653
652
654
650
655
REF. LEFT
WHEEL
675
671
678
673
678
656
677
675
REF
NO. PART NO. PART NAME
650 601 00 16 53 SHAFT, AXLE
652 601 00 16 54 SPRKT & HUB, ASSY
653 601 00 15 35 SCREW, 1/4-20X2.25
654 601 00 23 18 NUT, 1/4-20
655 601 00 15 36 BEARING, FLANGE
656 601 00 16 55 CHAIN, ROLLER420X 41P
671 601 00 14 38 FLATWASHER
673 601 00 17 46 BUSHING, WHEEL 4"LG
675 601 00 20 43 TIRE & RIM
676 601 00 15 39 SCREW, SHR 1/4-20X1.75
677 601 00 23 18 NUT, 1/4-20
678 601 00 15 40 RING, RET
679 601 00 15 41 PIN, KLIK .25 X 1.38 DIA
ST824 Handle Assembly
733
730
729
748
739
741
724
733
721
723
732
725
748
720
725
726
731
750
754
751
727
752
728
727
726
753
743
REF
NO. PART NO. PART NAME
720 601 00 15 42 HANDLE, UPPER LH
721 601 00 15 43 HANDLE, UPPER RH
723 601 00 15 55 SCREW, 3/8-16X2.00
724 601 00 15 44 SCREW, 3/8-16X3.00
725 601 00 00 20 WASHER, FLAT .406X
.81X.065
726 601 00 00 75 WASHER, 393X.68X.10
727 601 00 00 60 NUT, 3/8-16REGHXCTRLK
728 601 00 15 45 STOP, PLASTIC
729 601 00 15 46 GRIP, HANDLE
730 601 00 24 29 ASSY, CLUTCH LEVER RH
731 601 00 20 45 ASSY, CLUTCH LEVER LH
732 601 00 23 79 PIN, PIVOT CLUTCH
744
745
REF. AUGER
FRAME
REF
NO. PART NO. PART NAME
733 601 00 05 16 NUT, PUSH ON NUT
739 601 00 15 50 BUMPER, FLAT
741 601 00 15 51 CABLE, CLUTCH 32.19"
743 601 00 15 52 SPRING, TENSION
744 601 00 15 53 SPRING, AUGER CLUTCH
745 601 00 23 18 NUT, 1/4-20 RGHXCTRLK
748 601 00 23 80 GRIP, CLUTCH HANDLE
750 601 00 15 54 HANDLE, LOWER
751 601 00 05 20 SCREW, 5/16-18X .75
752 601 00 00 23 WASHER, .328X.60X.09
753 601 00 00 59 NUT, 5/16-18
ST824 Panel Assembly
779
REF. UPPER
HANDLE
762
761
762
762
764
774
812
773
788
811
781
772
778
770
784
771
780
760
766
789
790
813
REF
NO. PART NO. PART NAME
754 601 00 05 20 SCREW, 5/16-18X .75
760 601 00 23 78 ASSY, PANEL
761 601 00 01 80 SCREW 5/16-18X1.75
762 601 00 00 19 FLATWASHER
764 601 00 20 36 NUT 5/16-18 HEXWDFLLK
766 601 00 15 58 PLATE, PANEL
770 601 00 15 59 HANDLE ASSY SPD CTRL
771 601 00 15 55 SCREW 3/8-16X2.00
772 601 00 15 60 SPRING
773 601 00 00 20 FLATWASHER
774 601 00 06 53 NUT, 3/8-16 HEXNYL
778 601 00 00 60 NUT, 3/8-16RGHXCTRLK
REF
NO. PART NO. PART NAME
779 601 00 02 36 HANDLE 3/8-16
780 601 00 00 25 PIN, COTTER
781 601 00 00 19 FLATWASHER
784 601 00 15 62 ROD, SPEED CONTROL
788 601 00 15 63 NUT, TRUNNION
789 601 00 00 19 FLATWASHER
790 601 00 00 25 COTTER PIN
811 601 00 15 64 BEARING, FLANGE
812 601 00 20 47 ROD, ASSY YOKE
813 601 00 00 60 NUT, 3/8-16RGHXCTRLK
ST824 Chute Rod Assembly
856
855
854
855
850
860
863
863
864
867
REF. LOWER
HANDLE
866
REF
NO. PART NO. PART NAME
850 601 00 17 49 CRANK, ASSY W/YOKE
854 601 00 15 69 KNOB, SLEEVE
855 01 00 00 20 WASHER, FLAT
856 601 00 18 63 NUT, PUSH ON 3/8"
860 601 00 17 50 BOLT, EYE 6"
861 601 00 14 08 GROMMET, EYE BOLT
863 601 00 14 09 NUT, 3/8-16 HEXJAM
864 601 00 00 20 WASHER, FLAT .406X
.81X.065
861
873
875
872
874
REF
NO. PART NO. PART NAME
866 601 00 00 20 WASHER, FLAT
.406X .81X.065
867 601 00 06 53 NUT, 3/8-16
870 601 00 18 30 BRACKET, WORM
871 601 00 18 31 WORM, GEAR CHUTE
872 601 00 20 53 BLOCK, UNIVERSAL
873 601 00 20 54 PIN, CLEVIS
874 601 00 20 55 PIN, UNIV JOINT
875 601 00 18 35 PIN, COTTER .06X .50
871
870
ST824 Decals
838
834
833
824
832
829
821
822
VIEW FROM REAR
826
826
823
825
VIEW FROM REAR
REF
NO. PART NO. PART NAME
821 - NOT A SERVICABLE PART
822 601 00 23 74 DECAL, OVER ADJ OF DISC
823 601 00 23 30 DECAL, DANGER CHUTE
824 601 00 23 29 DECAL, DANGER AUGER
825 601 00 23 31 DECAL, DANGER
826 601 00 23 75 DECAL, ST824E
829 601 00 20 97 DECAL, CROWN
832 601 00 15 81 DECAL, TRACTION DRIVE
833 601 00 23 76 DECAL, SNOW COND-
TIONS
834 601 00 15 83 DECAL, GEAR SELECT
835 601 00 21 72 DECAL, CONTROL PANEL
838 601 00 23 77 DECAL, BELT STRETCH &
ADJ
Loading...
