Please read the operator’s manual carefully and make sure
you understand the instructions before using the machine.
Parts Manual
SG13HB CE / 966042701
©2009 HTC. All rights reserved.
Beatrice, NE. Printed in U.S.A.
CONTENTS
FRAME ....................................................................... 4
HANDLE & CONTROLS............................................. 6
BELT GUARD & PULLEY ........................................... 8
COVER & BLADE..................................................... 10
DECALS ................................................................... 12
NOTE: ALL FASTENERS ARE GRADE 5 UNLESS OTHERWISE SPECIFIED.
FRAME
28
38
37
3
5
24
22
23
27
19
11
16
15
18
17
20
21
9
10
31
11
26
25
1
12
13
7
30
13
12
11
14
10
31
9
32
29
20
23
2
8
35
33
6
4
23
36
19
4 - HUSQVARNA
34
FRAME
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
539 1093161.. ....1 .... DECK
540 2001782.. ....2 .... BRACKET
539 1093213.. ....1 .... HANDLE, LOWER
539 0200244.. ....1 .... BRAKE, CALIPER
539 1086495.. ....1 .... BRACKET, HANDLE
539 0200826.. ....2 .... PIN, HANDLE ADJUSTMENT
539 1092837.. ....1 .... FENDER
539 9905638.. ....4 .... HCS 3/8-16 x 1
539 9905469.. ....8 .... NUT 3/8-16 CNTRLK
539 99051710.. ....9 .... WASHER 3/8 FLAT STD
539 97693411.. ..14 ....HCS 5/16-18 x ¾
539 99069212.. ....9 .... WASHER 5/16
539 99018413.. ..14 .... NUT 5/16-18 CNTRLK
539 02009414.. ....1 .... DEFLECTOR, REAR
539 20078115.. ....1 .... STRAP, DEFLECTOR
539 02008416.. ....1 .... DEFLECTOR, SIDE
539 02008517.. ....1 .... AXLE
540 02002518.. ....1 .... WHEEL, RT
539 02002819.. ....2 .... SET COLLAR, ¾"
539 99076120.. ....3 .... NUT ¼-20 CNTRLK
539 10026621.. ....1 .... HCS ¼-20 x 1¼
539 99005222.. ....2 .... LOCKWASHER ¼
539 99059823.. ....6 .... WASHER ¼
539 99058024.. ....2 .... HCS ¼-20 x ¾
539 10938925.. ....2 .... HCS
539 99013026.. ....2 .... NUT 3/8-16
539 02002027.. ....1 .... CLUTCH -NORAM
505 194401 ...1 .... CLUTCH-AMSBECK
539 91703328.. ....1 .... KEY ¼ SQ x 2½
539 99016429.. ....1 .... HCS 3/8-24 x 1½
539 10955430.. ....1 .... WASHER ½ FLAT
539 99011831.. ....5 .... WASHER 3/8 SPLIT LK
539 99036532.. ....2 .... PIN, COTTER 1/8 x ¾
539 99025033.. ....2 .... WASHER ½, SAE
539 99092334.. ....4 .... RHSNB 3/8-16 x 1¾
539 02003435.. ....2 .... SPRING, COMPRESSION
539 02007436.. ....1 .... WHEEL w/ DISC
539 02009237.. ....1 .... DEFLECTOR, EXHAUST
539 10849538.. ....3 .... SCREW #8-32 x 3/8
NOT SHOWN
539 109299 ...1 .... WIRE HARNESS, ENGINE
FOR NORAM CLUTCH
539 110762....1 .... KIT, SNAP RINGS & BRGS
539 110763....1 .... KIT, CLUTCH SHOE / SPRGS
FOR AMSBECK CLUTCH
505 246401 ...1 .... KIT, CLUTCH SHOE
3
/8-16 x 3½ TPBLT
3 SHOE
2 SHOE
HUSQVARNA - 5
14
HANDLE & CONTROLS
2
23
18
22
16
15
14
9
3
1
7
4
8
6
27
33
28
29
20
19
5
11
6
34
35
10
27
26
18
12
17
32
13
27
21
31
32
30
24
32
6 - HUSQVARNA
25
HANDLE & CONTROLS
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
539 1093191.. ....1 .... HANDLE UPPER
539 1308182.. ....1 .... BAIL
539 1086473.. ....1 .... HANDLE, POSITION ADJ
539 9769344.. ....1 .... HCS 5/16-18 x ¾
539 1029985.. ....1 .... WASHER, FRICTION
539 9901846.. ....2 .... NUT 5/16-18 CNTRLK
539 1090897.. ....1 .... RIVET, SNAP, MALE
539 1090908.. ....1 .... RIVET, SNAP, FEMALE
539 1108659.. ....1 ....GRIP
539 10927910.. ....1 .... BUSHING, STEP ¾ ID
539 10899511.. ....1 ....HANDLE, WHEEL BRAKE
5
539 97693812.. ....1 .... HCS
/16-18 x 2¼
539 10899613.. ....1 .... GRIP, PARK BRAKE
539 10879214.. ....2 .... NUT 5/16 PUSH CAP
539 02001715.. ....1 .... SWITCH, NC
539 10267816.. ....1 .... PLATE, TAPPED
539 10955217.. ....2 .... LOCKWASHER #10
539 10853518.. ....4 .... SCREW #10-24 x ¾
539 02002319.. ....1 .... THROTTLE CNTRL w/ KNOB
539 97697720.. ....2 .... NUT #10-24 NYLOC
539 02001621.. ....1 .... SWITCH, TOGGLE
539 02004122.. ....1 .... BOOT, TOGGLE SWITCH
539 02003523.. ....1 .... SPRING
539 10899224.. ....1 .... ROD, PARK BRAKE
539 97648125.. ....1 .... YOKE,
5
/16
539 10010226.. ....1 .... SPRING
539 99051727.. ....7 .... WASHER 3/8 FLAT STD
539 10897528.. ....1 .... PIN, CLEVIS ¼ x 7/8
539 97698829.. ....1 .... HAIRPIN COTTER
539 10864830.. ....1 .... ROD
539 99018831.. ....2 .... WASHER 5/16 SAE
539 99036532.. ....4 .... PIN, COTTER 1/8 x ¾
539 99054633.. ....4 .... NUT 3/8-16 CNTRLK
539 99058834.. ....4 .... HCS 3/8-16 x 2
539 11094335.. ....1 .... NUT 5/16-24 NYLOC
NOT SHOWN
539 976856 ...5 .... WIRE TIE
539 109298 ...1 .... WIRE HARNESS
HUSQVARNA - 7
BELT GUARD & PULLEY
19
7
16
3
15
2
8
17
1
14
10
18
11
6
17
14
12
13
5
9
4
20
8 - HUSQVARNA
BELT GUARD & PULLEY
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
539 1082131.. ....1 .... PLATE COVER
539 1083982.. ....4 .... HCS 5/16-24 x 1
539 1085053.. ....1 .... HCS ¾-16 x 5½
539 1087464.. ....3 .... NUT 3/8-16 ACORN
539 1093325.. ....3 .... NUT 3/8-16 JAM
539 1122986.. ....1 ....COVER, BELT, w/ TRIM
540 2003507.. ....1 .... BACK PLATE, BELT GUARD
539 2007518.. ....1 .... BELT, SET OF 2
539 0200899.. ....1 .... DEFLECTOR, LEFT SIDE
539 91021010.. ....1 .... KEY ¼ SQ x 2
539 92338111.. ....1 ....BUSHING, TAPERLOCK
539 97693412.. ....4 .... HCS 5/16-18 x ¾
539 99011813.. ....3 .... WASHER 3/8 SPLIT LK
539 99018414.. ....6 .... NUT 5/16-18 CNTRLK
539 99018715.. ....4 .... WASHER 5/16 SLW
539 99051716.. ....1 .... WASHER 3/8 FLAT STD
539 99069217.. ....6 .... WASHER 5/16
539 11114218.. ....1 ....PULLEY, TAPERLOCK
539 10282719.. ....1 .... SPACER, PULLEY
539 11229420.. ....1 .... TRIM, FLEX
HUSQVARNA - 9

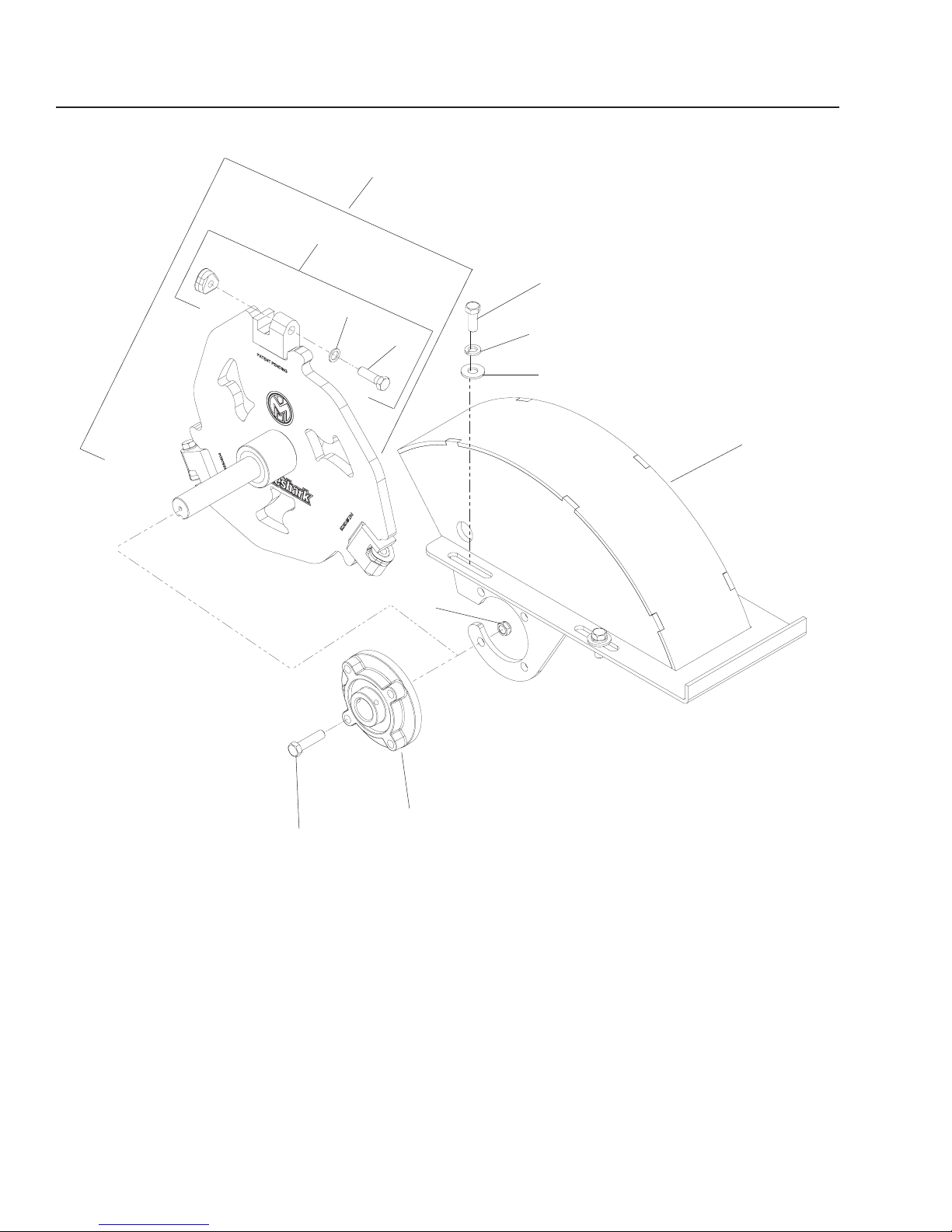

COVER & BLADE
8
9
11
10
5
6
7
1
4
2
3
10 - HUSQVARNA
COVER & BLADE
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
540 0202251.. ....1 .... SHROUD KIT w/DECAL
and Items 5-7
539 0200272.. ....2 .... BEARING
539 9906553.. ....8 .... HCS 3/8-16 x 1½
539 2002824.. ....8 .... NUT, 3/8-16 JAM NYLOC
539 9905635.. ....4 .... HCS 3/8-16 x 1
539 9901186.. ....4 ....WASHER 3/8 SPLIT LK
539 9905177.. ....4 .... WASHER 3/8 FLAT STD
525 4352018.. ....1 .... WHEEL w/TEETH, BOLTS,
WASHERS
525 4353019.. ....1 .... KIT, TOOTH (STANDARD)
525 435302 ...1 .... KIT, TOOTH (SAND & CLAY)
525 435303 ...1 .... KIT, TOOTH (ROCK)
525 43540110.. ....1 .... HCS 3/8-16 x 1¼
525 43550111.. ....1 ....WASHER, 3/8 SPRING
NOT SHOWN
539 020226 ...1 .... KIT, BEARING
Items 2-4
HUSQVARNA - 11
DECALS
11
3
10
4
6
9
12
13
15
1
7
5
14
8
2
12 - HUSQVARNA
DECALS
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
532 4220121.. ....1 .... DECAL, LOGO
532 4220102.. ....1 .... DECAL, CROWN
539 2008303.. ....1 .... DECAL, ON/OFF
539 1089874.. ....1 .... DECAL, HANDLE ADJ
525 4561015.. ....1 .... DECAL, SG13
539 1018816.. ....1 .... DECAL, PROP 65
539 1057437.. ....1 .... DECAL, NO STEP
539 0083698.. ....1 .... DECAL, DANGER FOOT
539 2008299.. ....1 .... DECAL, THROTTLE
540 20012610.. ....1 .... DECAL, EAR/EYE WARN
540 20002711.. ....1 ....DECAL, CAUTION LIST
539 11059012.. ....1 .... DECAL, OPERATION
539 10731113.. ....1 .... DECAL, CE
525 47510114.. ....1 .... DECAL, CE966042701
539 10817315.. ....1 .... DECAL, STARTER-HONDA
HUSQVARNA - 13
P/N 115 152027 IR 02/19/09
