Page 1

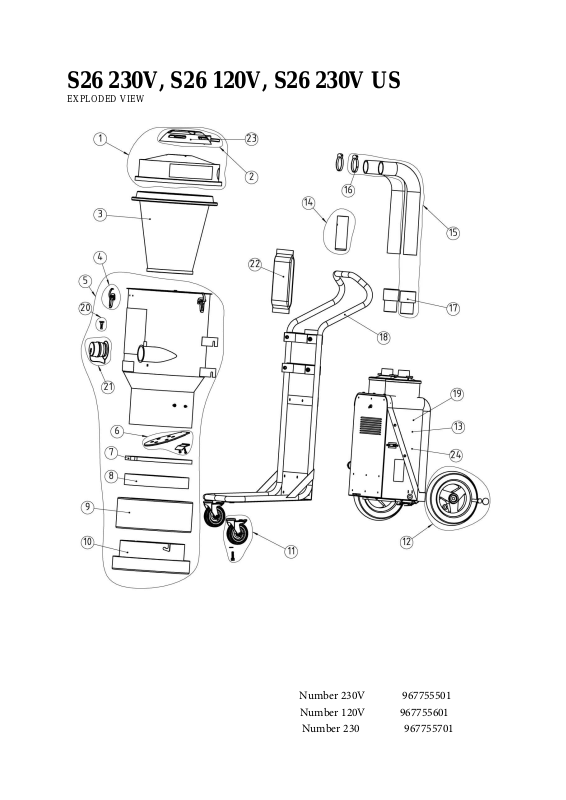

S26 230V, S26 120V, S26 230V US
EXPLODED VIEW
Number 230V 967755501
Number 120V 967755601
Number 230 967755701
Page 2

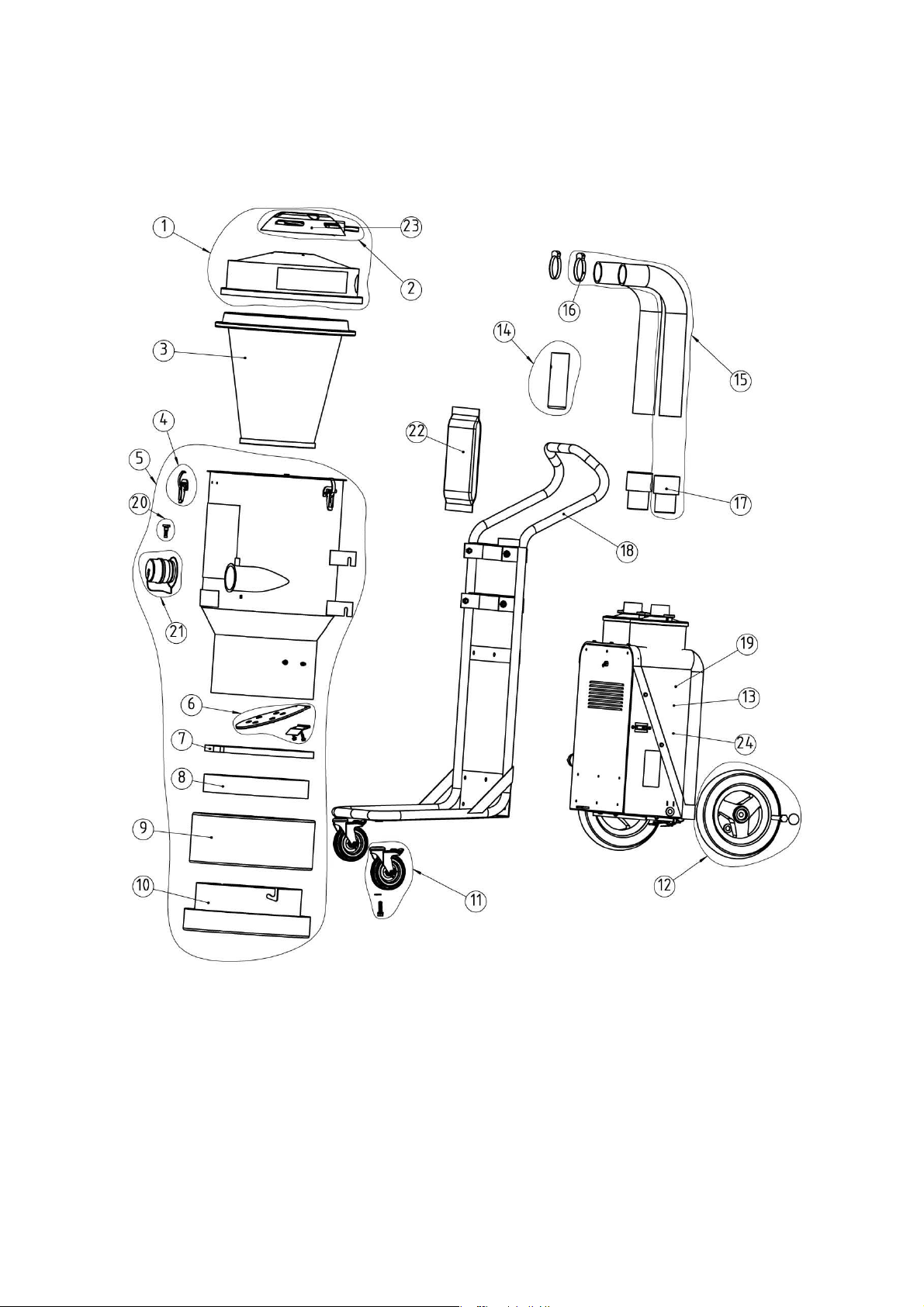

S26
230V,
S26
120V,
S26
EXPLODED VIEW
Pos
P.E Article Number
(valid until 2018-02-28)
HVA Article Number
(valid from 2017-11-27)
Description QTY
1 201000143 590477701 TOP COVER KIT (ex.S26) 1
2 201000118 590415001 CLEAN UNIT ASSEMBLY PACKING 1
3 200900050 590426501 MAIN FILTER 1
4 200600799 590396401 HOLDER KIT 3
5 201000129 590477401 TANK COMPLETE PACKING (ex. S26) 1
6 201000116 590398601 FLAP KIT 1
7 201100140 590401801 BELT PACKING 1
8 201100141 590402301 ANTI-SKID PACKING 1
9 1376013 590429201 LONGOPAC BAG 4 PACK 1
10 201100135 590426901 LONGOPAC HOLDER PACKING 1
11 200800152 590397201 FRONT WHEEL KIT 1
12 200800151 590397001 REAR WHEEL KIT 1
13 201000130 590477501 ENGINE PACK KIT PACKING (ex.S26 230V) 1
14 200800153 590426401 CLIP HOLDER KIT 1
15 201000144 590426601 HOSE KIT S26 2
16 201100137 590400801 HOSE CLAMP 60-65 PACKING 2
17 201100125 590438101 HOSE END (51MM) PACKING 2
18 201000831 590426801 WAGON COMPLETE PACKING 1
19 201000130a 590478001 ENGINE PACK KIT PACKING (ex.S26 120V) 1
20 201100139 590401601 LOCKING DEVICE PACKING 1
21 201000145 590426701 INLET SEAL COMPLETE SET (ex.S26) 1
22 95102 590426001 LONGOPAC SEAL CLIPS(60 PCS) 1
23 201000670 590399601 PLASTIC COVER KIT (ex. CLEAN UNIT) 1
24 201000130b 590478101
1
Page 3

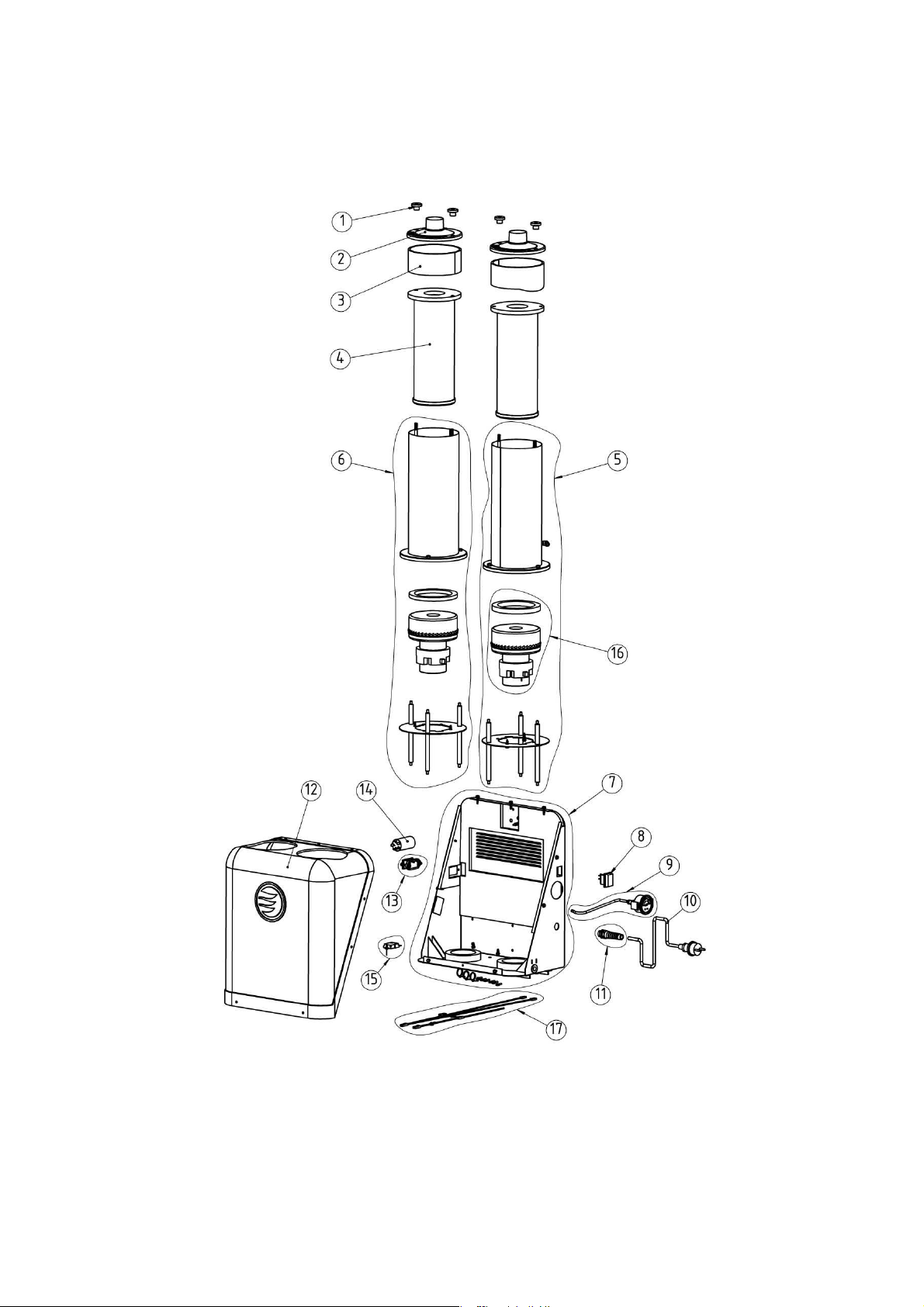

S26 230V
MOTOR PACKAGE
Page 4
S26
230V
MOTOR PACKAGE
Pos
P.E Article Number
(valid until 2018-02-28)
HVA Article Number
(valid from 2017-11-27)
Description QTY
1 201100128 590400701 NUT 4
2 201000121 590398901 FILTER COVER KIT 2
3 201100127 590400401 SEALING PACKING 2
4 200700070 590396601 HEPA FILTER S-LINE 2
5 201100144 590415501
1
6 201100152 590427001
1
7 201000135 590477601 CHASSIS KIT 1
8 201100151 590402601 SWITCH PACKING 1
9 200700413 590396701 MANOMETER, KIT 1
10 201100132 590401001 CORD SET PACKING 1
11 201000141 590399501 CABLE FIX KIT (PG11) 1
12 200600805 590477301 ENGINE COVER , KIT 1
13 201000133 590415301 COUNTER, KIT 1
14 201100158 590427201 ELECTRICAL FILTER 1
15 200700410 590426201 SOFT START 230V, KIT 1
16 200800060 590396901 MOTOR 230V KIT 2
17 201100157 590477801 CABLE KIT 230V 1
Page 5

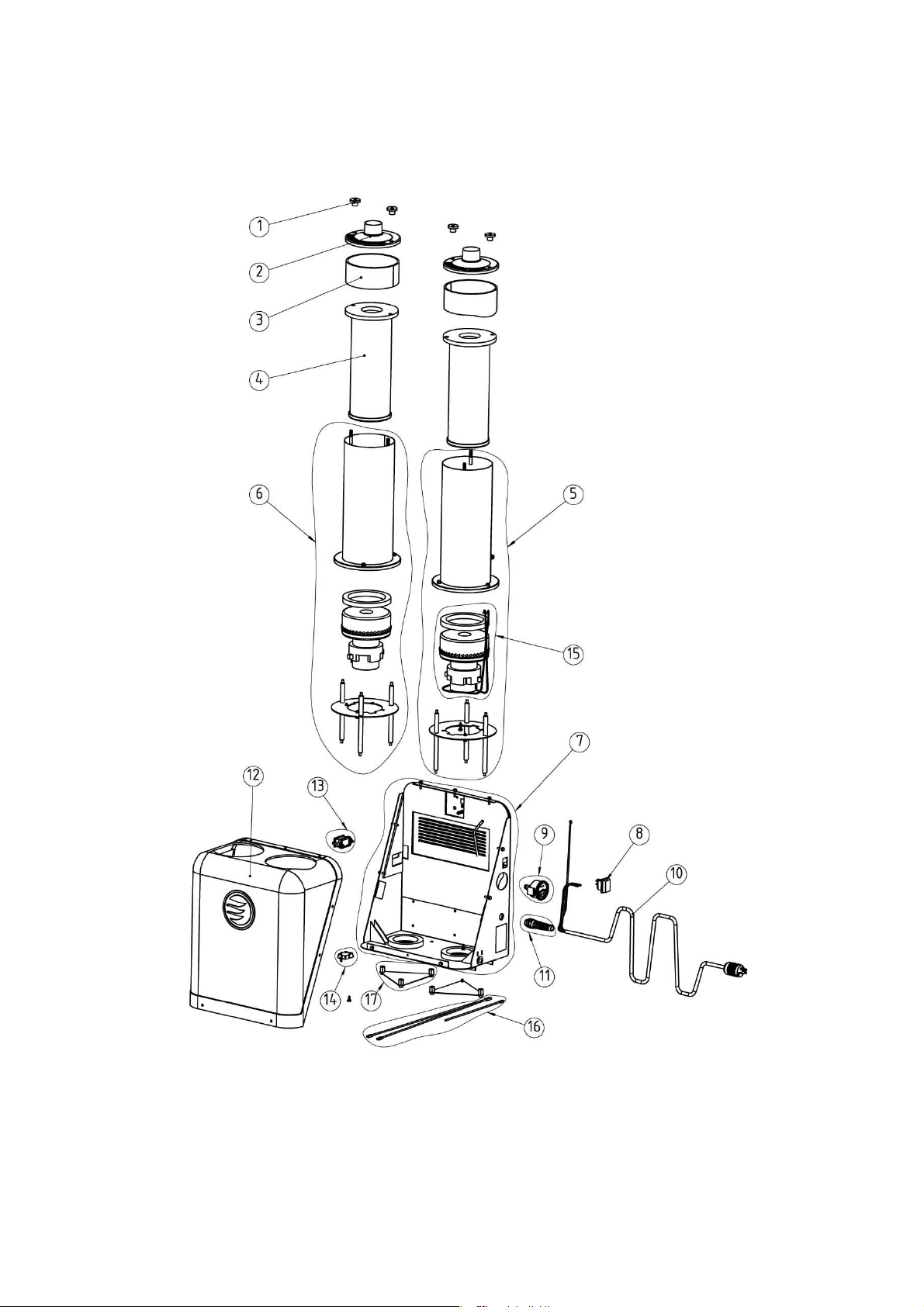

S26 120V
MOTOR PACKAGE
Page 6
S26
120V
MOTOR PACKAGE
Pos
P.E Article Number
(valid until 2018-02-28)
HVA Article Number
(valid from 2017-11-27)
Description QTY
1 201100128 590400701 NUT 4
2 201000121 590398901 FILTER COVER KIT 2
3 201100127 590400401 SEALING PACKING 2
4 200700070a 590429801 HEPA FILTER S-LINE USA 2
5 201100144a 590415701
1
6 201100152a 590427101
1
7 201000135a 590478201 CHASSIS ETL VERSION KIT 1
8 201100151 590402601 SWITCH PACKING 1
9 200700413 590396701 MANOMETER, KIT 1
10 201500177 590427301 CORD SET PACKING (NEMA 5-20P) 1
11 201100150 590402501 CABLE FIX KIT (PG13) 1
12 200600805a 590477901 ENGINE COVER ETL VERSION, KIT 1
13 201000133 590415301 COUNTER, KIT 1
14 200700531 590426301 SOFT START 120V, KIT 1
15 200800227 590397301 MOTOR 120V 1200W KIT 2
16 201100157a 590427501 CABLE KIT 120V 1
17 201500175 590476801 BOTTOM COVER KIT 2
Page 7

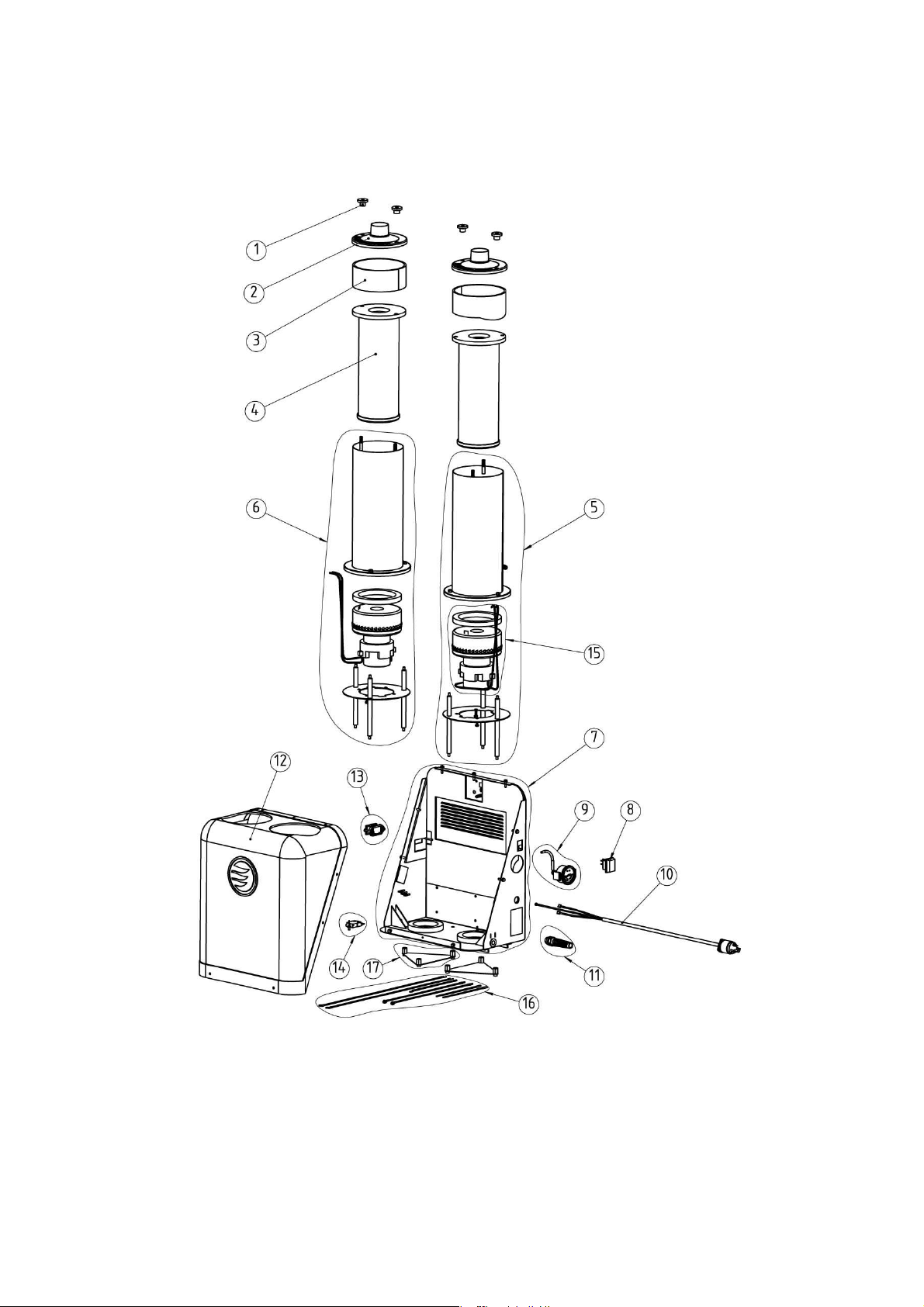

S26 230V US
MOTOR PACKAGE
Page 8
S26
230V
US
MOTOR PACKAGE
Pos
P.E Article Number
(valid until 2018-02-28)
HVA Article Number
(valid from 2017-11-27)
Description QTY
1 201100128 590400701 NUT 4
2 201000121 590398901 FILTER COVER KIT 2
3 201100127 590400401 SEALING PACKING 2
4 200700070a 590429801 HEPA FILTER S-LINE USA 2
5 201100144 590415501
1
6 201100152 590427001
1
7 201000135a 590478201 CHASSIS ETL VERSION KIT 1
8 201100151 590402601 SWITCH PACKING 1
9 200700413 590396701 MANOMETER, KIT 1
10 201500178 590427401 CORD SET PACKING (NEMA L6-15P) 1
11 201100150 590402501 CABLE FIX KIT (PG13) 1
12 200600805a 590477901 ENGINE COVER ETL VERSION, KIT 1
13 201000133 590415301 COUNTER, KIT 1
14 200700410 590426201 SOFT START 230V, KIT 1
15 200800060 590396901 MOTOR 230V KIT 2
16 201100157a 590427501 CABLE KIT 120V 1
17 201500175 590476801 BOTTOM COVER KIT 2
Page 9

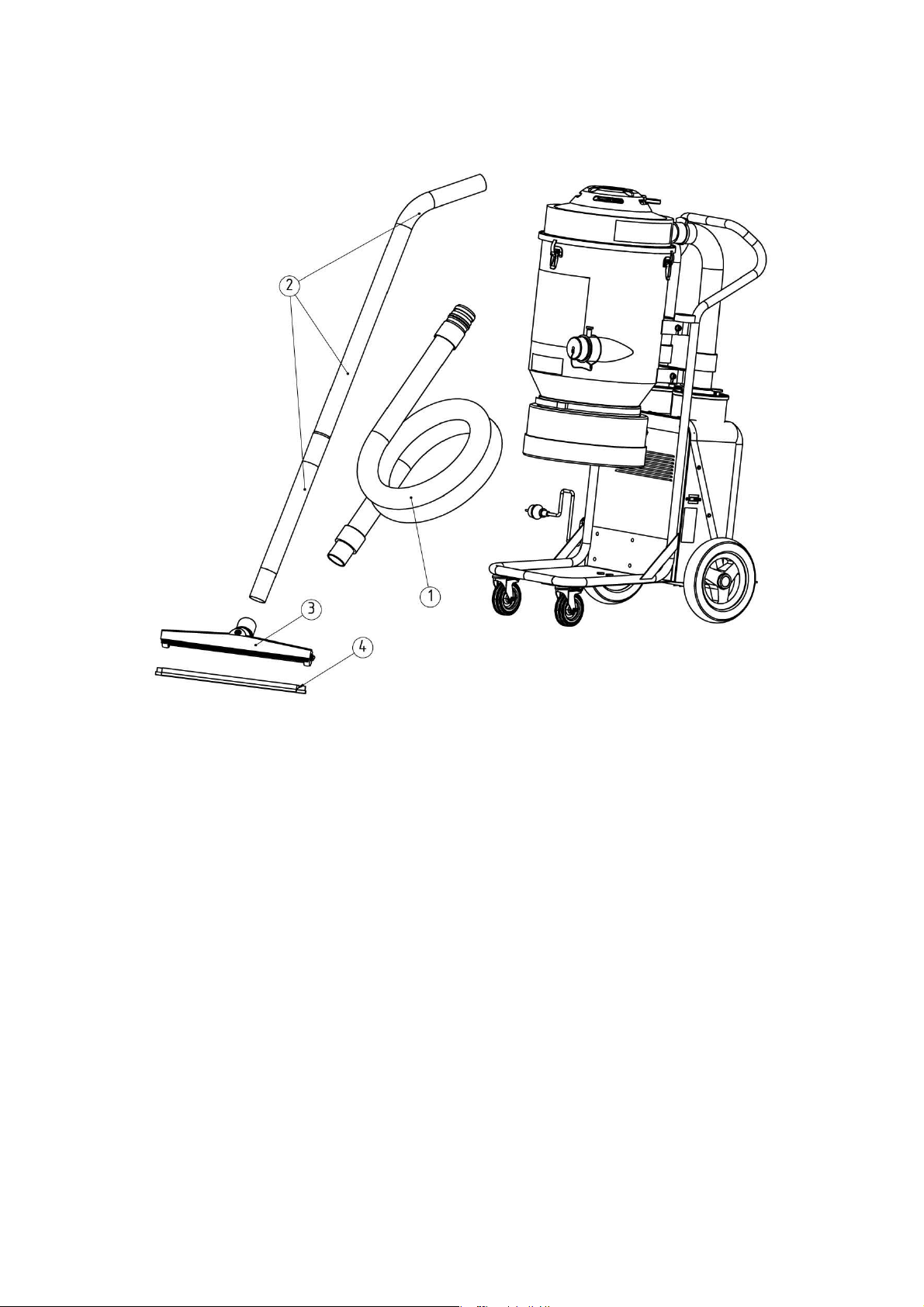

ACCESSORIES S26
Page 10
S26 ACCESSORIES
Pos
P.E Article Number
(valid until 2018-02-28)
HVA Article Number
(valid from 2017-11-27)
Description QTY
1 200900288 591956501 HOSE 51mm x 4m (ex. S26 230V) 1
(1) 201000061 591966301 HOSE 51mm x 7,5m (ex. S26 120V) 1
2 1224035 590829401 50S WAND 51mm 1
3 1326087 590428302 S450 FLOOR TOOL 50mm x 450mm 1
4 1340005 590428503 AG46A BRUSHES (L=400/445) 1
