Page 1
LT152
Spare parts
Ersatzteile
Pièces détachées
Reserve onderdelen
Repuestos
Reservdelar
IPL, LT152, 96041002906, 2011-01
Page 2
ILLUSTRATED PARTS LIST
47
MODEL NO. 96041002906
CUSTOMER CATALOG NO. LT152
PRODUCT NO. 960 41 00-29
47
532 44 10-14 Rev. 6
Page 3
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-tex
TRACTOR - MODEL NO. LT152 (96041002906), PRODUCT NO. 960 41 00-29
27
27
DECALS
2
5
6
10
12
4
8
3
2
9
1
10
14
13
11
KEY PART
NO. NO. DESCRIPTION
1 532 40 03-89 Decal, Operators
2 581 62 73-01 Decal, Emblem
3 532 18 21-66 Decal, Cutfinger
4 532 43 79-91 Decal, Hood Panel
5 532 19 68-41 Decal, Engine
6 532 43 00-35 Decal, Replacement
8 532 19 63-57 Decal, Deflect
9 532 14 50-05 Decal, Battery Dnge/Poi
10 532 15 97-36 Decal, Chassis Hot Muffler
11 532 15 97-37 Decal, Brake/Clutch
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION
12 532 16 03-96 Decal, Mower V-Belt Schematic
13 532 14 08-37 Decal, Saddle
14 532 18 04-32 Decal, Fender DB/CE
- - 532 16 25-98 Decal, Drawbar
- - 532 41 08-05 Pad, Footrest, LH
- - 532 41 10-56 Pad, Footrest, RH
- - 532 43 40-82 Manual, Operator's (Euro)
- - 532 43 40-83 Manual, Operator's (Scand)
- - 532 43 40-84 Manual, Operator's (E-Bloc)
- - 532 43 40-85 Manual, Operator's (Baltic)
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 13 83-36 Rim Asm 6" Front
4 532 05 99-04 Tube Front
5 532 10 62-22 Tire F T 15 x 6.0 - 6"
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel Only)
8 532 17 50-39 Cap Axle Blk 1 50 x 1 00
9 532 42 05-31 Tire R 18 x 9.5-8 Turf Saver LT
10 532 12 49-26 Tube Rear
11 532 13 83-37 Rim Asm 8" Rear
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
2
Page 4
TRACTOR - MODEL NO. LT152 (96041002906), PRODUCT NO. 960 41 00-29
38
38
SCHEMATIC
SCH10
RED
(OPTIONAL)
B
G
L
A
AMMETER
S
M
A1
A2
WHITE
FUSE
BATTERY
BLACK
BLACK
BLACK
SOLENOID
DER
CLUTCH/BRAKE
(PEDAL UP)
2
3
1
6
JUNCTION
CONNECTOR
WHITE
BLACK
BLACK
BLACK
BLACKBLACK
GRAY
BLACK
STARTER
M
M
ATTACHMENT CLUTCH
(CLUTCH OFF)
BLACK
GRAY
REVERSE SWITCH
(NOT IN REVERSE)
SEAT SWITCH
(NOT OCCUPIED)
IGNITION SWITCH
POSITION
OFF
RUN/OVERRIDE
B+S+A1START
CIRCUIT
M+G+A1
B+A1
B+A1RUN
“MAKE”
L+A2
BLACK
03107
BLUE
(IF SO EQUIPPED)
ORANGE
63
52
41
CHASSIS HARNESS
CONNECTOR
(MATING SIDE)
BLACK /WHITE
BLUE
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
RED
LIGHT
SWITCH
DASH HARNESS
CONNECTOR
(MATING SIDE)
CHASSIS
HARNESS
IGNITION
UNIT
(OPTIONAL)
HOUR
METER
CHARGING SYSTEM OUTPUT
9-16 AMP DC @ 3600 RPM
REGULATOR
BROWN
6
3
5
2
4
1
SHORTING
CONNECTOR
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
BLACK
12V
POWER OUTLET
(OPTIONAL)
STATOR
28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)
BLACK
HEADLIGHTS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE RE-INSTALLED TO
PROPERLY SECURE YOUR
WIRING.
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
3
Page 5
TRACTOR - MODEL NO. LT152 (96041002906), PRODUCT NO. 960 41 00-29
32
32
103
79
22
33
30
21
87
ELECTRICAL
T02S
With 12V Outlet Option
59
With Service Minder Option
4646
90
26
16
34
71
40
27
43
42
41
25
28
2
94
29
55
92
93
4
Page 6
TRACTOR - MODEL NO. LT152 (96041002906), PRODUCT NO. 960 41 00-29
32
32
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532 16 34-65 Battery
2 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4
8 532 19 32-28 Box Battery
16 532 17 61-38 Switch Interlock Push-In
21 532 40 02-52 Harness Socket Light w/4152J
22 532 00 41-52 Bulb Light
25 532 41 28-94 Cable Starter
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 unc
28 532 19 88-85 Cable, Ground
29 532 40 15-45 Switch, Seat
30 532 19 33-50 Switch, Ign
33 532 41 19-35 Key/Chain
34 532 11 07-12 Switch Light / Reset
40 532 40 10-98 Harness Ign. Dash
41 817 72 04-08 Screw Thd Cut 1/4-20 x 1/2
42 532 43 53-95 Cover, Terminal
43 532 19 25-07 Solenoid
55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4
71 532 40 04-49 Harness Chassis
79 532 17 52-42 Socket Asm Bulb
87 532 19 78-02 Switch Interlock Clutch Cable
90 532 13 15-63 Cover Square Terminal
92 532 19 66-15 Harness Pigtail Reverse Switch
93 532 19 25-40 Screw Plastite 10-14 x 2.0
94 532 19 18-34 Module Reverse ROS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
5
Page 7
TRACTOR - MODEL NO. LT152 (96041002906), PRODUCT NO. 960 41 00-29
39
39
CHASSIS AND ENCLOSURES
286
283
176
199
284
203
195
206
5
36
176
285
137
194
36
234
204
214
182
176
137
234
177
175
176
15
205
130
130
130
14
297
150
130
18
6
202
3
6
238
191
25
151
282
287
282
162
chassis-tex_TEX LT HUSQ_42
189
282
58
194
37
189
159
68
236
183
228
68
183
235
68
236
159
34
194
228
235
68
152
180
213
218
68
68
217
189
52
189
6
Page 8
TRACTOR - MODEL NO. LT152 (96041002906), PRODUCT NO. 960 41 00-29
39
39
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
3 532 40 50-12 Logo
5 532 40 75-92 Dash
6 532 40 48-83 Clip Tinnerman
14 532 44 12-67 Hood
15 532 41 10-79 Lens LH
18 532 42 69-63 Grille
25 532 41 10-78 Lens RH
34 532 19 61-25 Plate Engine
36 817 06 05-12 Screw 5/16-18 x 3/4
37 532 41 63-07 Fender
52 873 68 05-00 Nut Lock 5/16-18
58 532 41 22-80 Drawbar, Upper
68 817 49 05-08 Screw Thdrol 5/16-18 x 1/2
130 532 41 63-58 Screw#10 x 0.750 BOS Thread
137 532 40 75-90 Bumper Dash
150 532 40 75-37 Air Duct
151 532 40 78-07 Bracket Pivot
152 532 19 95-35 Shield Browning
159 817 00 06-12 Screw Hexwsh Thdrol 3/8-16 x 3/4
162 532 14 24-32 Screw
175 532 19 94-72 Crossmember
176 532 40 07-76 Screw 10-24 x 5/8
177 532 19 52-28 Bushing Steering
180 532 41 50-63 Chassis
182 532 40 71-76 Dash Lower
183 874 78 05-20 Bolt 5/16-18 unc x 1-1/4
189 817 00 05-12 Screw 5/16-18 x 3/4
191 532 41 65-01 Insert Reflective RH
KEY PART
NO. NO. DESCRIPTION
194 873 90 05-00 Nut Lock Hex Flange 5/16-18
195 532 41 11-15 Plug Dash
199 532 41 34-85 Plate Deck Lift Husqvarna LT
202 532 41 10-75 Vent Side Hood RH
203 532 41 10-74 Vent Side Hood LH
204 532 41 11-16 Vent Top Hood
205 532 41 10-76 Skirt Side RH
206 532 41 10-77 Skirt Side LH
213 874 76 05-12 Bolt Hex 5/16-18 unc x 3/4
214 532 19 91-45 Clip Retainer
217 532 40 91-67 Rod Pivot Hood
218 532 19 63-95 X-Piece Hood Stop
228 532 19 51-61 Stud Fastener
234 532 40 47-42 Bumper Hood
235 532 40 61-29 Spacer Fender
236 873 93 05-00 Nut Centerlock 5/16-18 unc
238 532 44 11-28 Trim
282 532 41 41-10 Clip Retainer Console
283 532 41 63-16 Console Deck Lift Husq N/FR GR
284 532 41 63-14 Console SHFT HYD HUSQ LT
285 532 41 63-15 Console INSRT RH HUSQ
286 532 41 63-17 Console INSRT LH HUSQ
287 817 60 04-06 Screw Hex WASHEAD 1/4-20 x 3/8
297 532 40 66-65 Insert Reflective LH
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
7
Page 9
TRACTOR - MODEL NO. LT152 (96041002906), PRODUCT NO. 960 41 00-29
40
40
DRIVE
185
56
184
42
61
64
116
221
35
125
155
160
158
160
139
140
141
157
172
167
203
188
202
193
134
192
178
161
165
192
166
23
176
174
172
125
190
233
232
49
186
189
187
50
51
52
51
195
125
2
73
drive-tex_peerless_fender_36
1
116
73
2
22
17
183
205
26
29
37
175
33
166
15
159
8
Page 10
TRACTOR - MODEL NO. LT152 (96041002906), PRODUCT NO. 960 41 00-29
40
40
DRIVE
KEY PART
NO. NO. DESCRIPTION
1 – – – – – – Transaxle, Peerless 206-565
(Order parts from transaxle
manufacturer)
2 532 12 35-83 Key Square
15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
17 532 19 72-97 Spring, Brake
22 532 19 76-60 Rod Shift
23 532 12 12-74 Knob
26 532 19 74-55 Spring Brake Return
29 532 19 72-67 Rod, Brake
33 812 00 00-01 Ring E
35 532 40 10-31 Rod, Brake, Park
37 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
42 532 12 48-72 Cover, Foot Pedal
49 872 11 06-14 Bolt
50 532 19 43-27 Pulley Idler Flat
51 873 90 06-00 Lock Nut 3/8-16
52 532 19 43-26 Idler V-Groove
56 532 19 43-46 V-Belt, Drive
61 532 12 36-66 Pulley Transaxle
64 532 19 62-00 Shaft Asm. Pedal Brake Control
73 874 49 05-40 Bolt Hex Flghd 5/16-18 Gr. 5
116 873 90 05-00 Nut Lock Hex Flange 5/16-18
125 817 00 05-12 Screw 5/16-18 x 3/4
134 532 19 78-57 Asm Shift
139 874 55 04-12 Bolt 1/4-28 unf Gr. 8 w/Patch
140 810 04 04-00 Washer Lock Hvy Helical 1/4
141 819 09 12-10 Washer 9/32 x 3/4 x 10 Ga.
155 812 00 00-28 Ring Retainer
157 532 10 57-01 Washer Plate Shift
158 532 19 43-52 Belt Keeper
159 876 02 04-12 Pin Cotter 1/8 x 3/4
KEY PART
NO. NO. DESCRIPTION
160 532 16 94-84 Retainer Clip
161 532 10 57-09 Spring, Return, Clutch
165 532 19 62-12 Busing Shaft Brake Hand Control
166 532 42 91-64 Nut Push .625
167 532 40 52-57 Latch Brake Parking
172 532 19 76-57 Strap Torque LH
174 532 19 72-89 Nut Push
175 532 19 78-58 Shaft Asm. Shift
176 532 19 62-14 Arm Clevis Rod Shift
178 532 19 74-56 Spring Shift
183 532 13 70-57 Spacer Axle
184 532 40 97-47 Handle Parking Brake
185 872 11 06-22 Bolt 3/8-16 unc x 2-3/4 Gr. 5
186 532 19 43-21 Spacer Retainer
187 819 13 32-10 Washer
188 532 19 43-23 Link Clutch Ground Drive
189 532 19 43-17 Bellcrank Ground Drive
190 532 19 43-18 Keeper Bellcrank Ground Drive
192 532 15 03-60 Nut Lock Center 1/4-28 Fnthd
193 817 06 05-12 Screw 5/16-18 x 3/4
195 532 19 73-32 Bracket Brake Rod
202 532 19 78-59 Link Transaxle
203 819 11 11-16 Washer 11/32 x 11/16 x 16 Ga.
205 532 12 17-48 Washer 25/32 x 1-5/8 16 Ga.
221 532 40 31-87 Retainer Spring Clip Handle
232 874 78 07-16 Bolt Hex 7/16-14 x 1 Gr. 5
233 532 40 52-96 Washer Serrated
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
9
Page 11
TRACTOR - MODEL NO. LT152 (96041002906), PRODUCT NO. 960 41 00-29
24
24
ENGINE
18
21
20
97
15
96
122
1
83
45
37
29
SPARK ARRESTER KIT
engine-tex_kohl_23
28
37
42
92
90
69
86
94
12
2
9
85
10
Page 12
TRACTOR - MODEL NO. LT152 (96041002906), PRODUCT NO. 960 41 00-29
24
24
ENGINE
KEY PART
NO. NO. DESCRIPTION
1 – – – – – – Engine Kohler Model No. SV470-3212
(438330) (Order parts from engine
manufacturer)
2 532 18 86-55 Muffler
9 532 19 43-19 Keeper Belt Engine
12 532 40 19-85 Pulley Engine
15 532 40 75-45 Tank Fuel
18 532 43 02-20 Cap Fuel
20 532 18 38-97 Control Throttle
21 532 41 63-58 Screw #10 x 0.750 BOS Thread
28 532 13 70-40 Fuel Line
29 532 13 71-80 Spark Arrester Kit
37 532 12 34-87 Clamp Hose
42 810 04 07-00 Washer Lock 7/16
45 873 51 04-00 Nut Keps Hex 1/4-20 unc
69 532 18 59-09 Gasket
83 532 17 18-77 Bolt 5/16-18 unc x 3/4 w/Sems
85 532 17 39-37 Bolt Hex 7/16-20 x 4 Gr. 5
86 532 19 23-34 Screw Socket HD 5/16-18 x .75
90 817 00 06-16 Screw 3/8-16 x 1
92 817 12 06-16 Screw 3/8-16 x 1
94 532 18 86-54 Tube Exhaust
96 819 09 14-16 Washer 9/32 x 7/8 x 16 Gr.
97 817 67 04-12 Screw Hexwsh Thdrol 1/4-20 x 3/4
122 532 42 19-22 Extension Oil Drain
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
11
Page 13
TRACTOR - MODEL NO. LT152 (96041002906), PRODUCT NO. 960 41 00-29
41
41

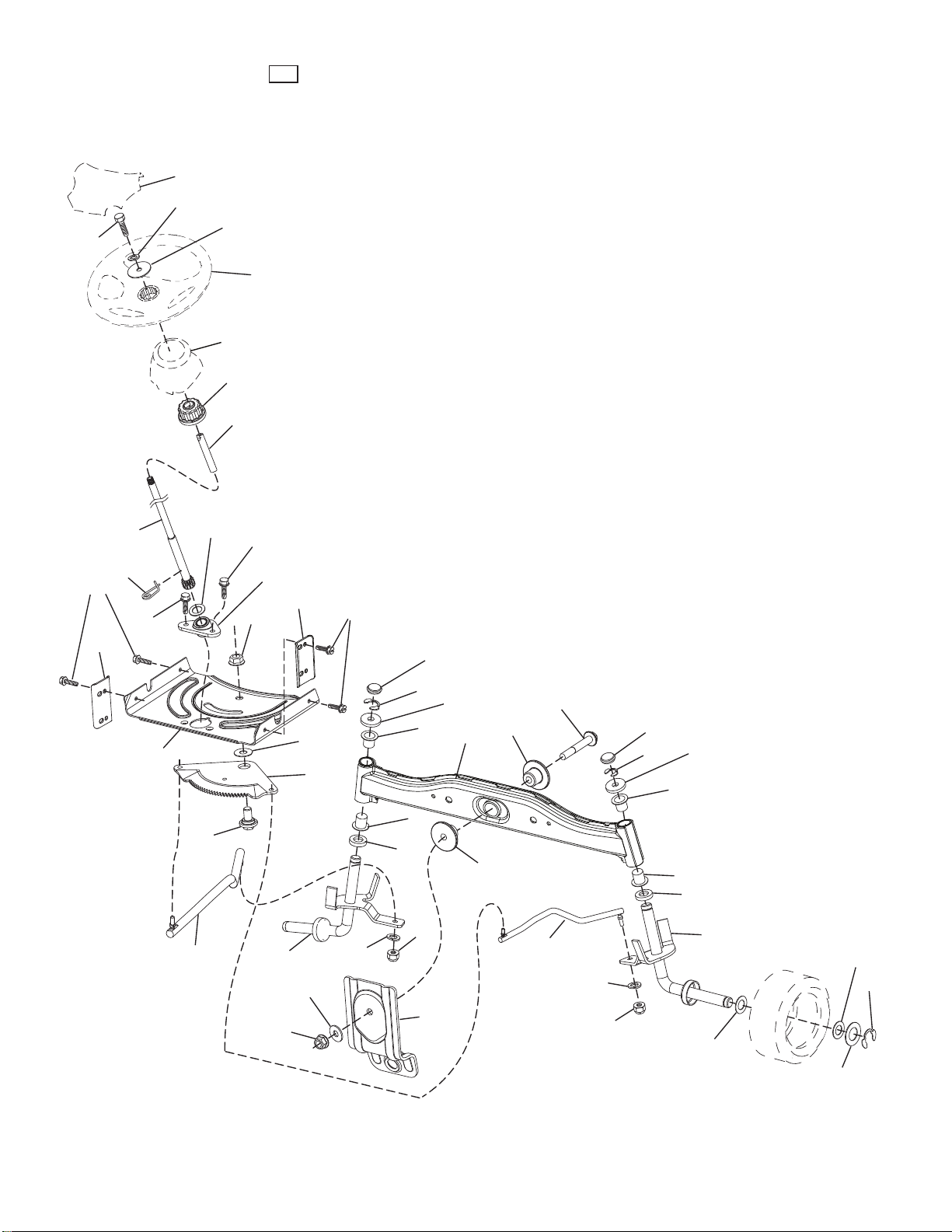

STEERING ASSEMBLY
26
33
45
72
20
1
21
71
63
57
64
16
28
19
61
58
13
60
28
22
68
57
4
69
59
35
63
14
9
8
7
74
74
6
15
70
67
2
67
66
62
14
15
9
7
8
74
74
6
5
13
8
13
steering-tex_HUSQSR_10_r1
53
12
Page 14
TRACTOR - MODEL NO. LT152 (96041002906), PRODUCT NO. 960 41 00-29
41
41
STEERING ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 532 41 64-80 Wheel, Steering Husq SR
2 532 41 81-68 Axle Asm., Front
4 532 40 30-87 Spindle Asm., LH
5 532 40 30-88 Spindle Asm., RH
6 532 12 49-31 Washer, Thrust Hardened
7 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
8 812 00 00-29 Ring, Klip #T5304-75
9 532 12 12-32 Cap, Spindle
13 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
14 810 04 06-00 Washer, Lock Hvy Hlcl Spr 3/8
15 873 54 06-00 Nut, Crown Lock 3/8-24 unf
16 532 42 93-73 Shaft Steering
19 532 19 47-29 Plate Steering
20 532 44 11-13 Boot, Steering
21 532 18 67-37 Adapter, Wheel Steering
22 532 42 05-37 Steering Support
26 532 41 59-87 Insert, Wheel Steering Husq SR
28 817 00 06-12 Screw 3/8-16 x 3/4
33 810 04 05-00 Washer Lock 5/16
35 532 19 47-32 Gear, Sector Plate
45 819 11 38-12 Washer 11/32 ID x 2-3/8 x 12 Ga.
53 532 18 89-67 Washer Hardened .793 x 1.637 x .060
57 532 40 74-65 Bracket Upstop
58 532 19 47-47 Bolt Shoulder Sector Pivot CFM
59 532 19 47-48 Washer Thrust Sector Steering
60 873 97 10-00 Nut Flange Lock 5/8-11
61 532 19 47-40 Draglink LH
62 532 19 47-41 Draglink, RH
63 817 00 05-12 Screw 5/16-18 x 3/4
64 532 19 98-49 Retainer Clip Spring Steering
66 871 02 07-48 Bolt Hex Fghd 7/16-14 x 3 Serr
67 532 19 47-37 Bushing PM Front Axle
68 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5
69 532 19 91-62 Washer 1.5 x .505 x .118
70 532 19 61-97 Bracket Deck Susp. Front
71 532 19 07-52 Shaft Ext Steering
72 532 42 89-82 Bolt Fin. Hx. 5/16-18 x 4
74 532 12 49-37 Bearing
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
13
Page 15
TRACTOR - MODEL NO. LT152 (96041002906), PRODUCT NO. 960 41 00-29
44
44
MOWER DECK
117
152
116
119
1
70
118
37
7
38
30
47
192
43
42
113
7
57
56
64
144
241
242
60
36
40
67
145
59
56
57
40
34
55
46
63
147
30
38
33
32
31
30
21
68
118
119
195
122
123
195
117
116
19
6
42_D_man-tex_LT_33_r3
188
189
113
6
19
189
62
188
15
14
13
21
23
69
21
29
20
69
27
69
11
8
24
25
26
14
Page 16
TRACTOR - MODEL NO. LT152 (96041002906), PRODUCT NO. 960 41 00-29
44
44
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
1 532 19 64-95 Mower Housing
6 532 19 51-86 Arm Suspension
7 532 41 63-58 Screw #10 x 0.750 BOS Thread
8 532 19 30-03 Bolt/Washer Asm 7/16-20 unf
11 532 13 89-71 Blade, 42" Hi-Lift
(For bagging or discharge)
13 532 19 28-72 Shaft Assembly, Mandrel
14 532 18 72-81 Housing, Mandrel
15 532 11 04-85 Bearing, Ball, Mandrel
19 532 19 65-39 Bolt, Shoulder
20 532 15 97-70 Baffle, Vortex
21 873 68 05-00 Nut, Crownlock 5/16-18 unc
23 532 19 25-57 Bracket, Deflector
24 532 10 53-04 Cap, Sleeve
25 532 19 70-26 Spring, Torsion, Deflector
26 532 11 04-52 Nut, Push
27 532 40 30-04 Shield, Deflector
29 532 13 14-91 Rod, Hinge
30 532 17 39-84 Screw Thdrol Rolling Wsh Hd
31 532 18 76-90 Washer, Spacer
32 532 19 74-73 Pulley, Mandrel
33 532 40 02-34 Nut, Toplock, Flanged
34 872 11 06-12 Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5
36 532 19 73-79 Pulley Idler
37 819 13 13-16 Washer
38 532 43 25-20 Keeper Belt LH Mandrel
40 873 90 06-00 Nut, Lock Flg. 3/8-16 unc
42 532 19 84-10 Spring Torsion Brake
43 532 19 72-56 Spring Torsion Retainer
46 532 13 77-29 Screw Thd Roll 1/4-20 x 5/8
47 532 19 72-50 Bracket Clutch Cable
55 532 43 71-10 Arm, Idler
56 532 19 90-92 Spacer, Retainer
57 817 00 06-16 Screw 3/8-16 x 1
59 532 14 10-43 Guard, Tuv Idler
KEY PART
NO. NO. DESCRIPTION
60 532 19 72-61 Arm Brake Mower
62 872 11 06-16 Bolt Rd Hd Sq Nk 3/8-16 unc x 2
63 532 19 94-77 Arm Brake Mower
64 532 19 97-90 Link Brake
67 532 40 30-12 Handle Clutch Cable
68 532 42 96-36 V-Belt
69 872 14 05-05 Bolt
70 532 40 12-46 Clutch Asm Manual
113 817 00 05-10 Screw 5/16-18
116 532 12 48-42 Bolt, Shoulder
117 532 18 86-06 Wheel, Gauge
118 873 90 06-00 Nut, Crownlock 3/8-1
119 819 12 14-14 Washer 13/32 x 7/8 x 14 Ga.
122 532 19 72-58 Keeper Belt Engine LH
123 532 19 72-59 Keeper Belt Engine RH
144 532 19 92-04 Keeper Belt
145 532 19 31-97 Pulley, Idler, Flat
147 532 40 19-71 Spring Return
152 532 43 51-11 Manual Clutch Cable
188 532 19 51-61 Stud Fastener
189 873 90 05-00 Nut Lock Hex Flange
192 532 19 72-60 Bracket Brake Stand LH
195 817 00 06-12 Screw 3/8-16 x 3/4
241 532 15 29-27 Screw
242 532 41 55-98 Port Washout
- - 532 19 28-70 Mandrel Assembly (Includes
housing, shaft assembly, and
bearing only - pulley/nut/washer
and blade bolt/washers not included)
- - 532 43 77-30 Replacement Mower, Complete
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
15
Page 17
TRACTOR - MODEL NO. LT152 (96041002906), PRODUCT NO. 960 41 00-29
42
42
SEAT ASSEMBLY
8
1
8
8
8
41
40
10
21
7
6
37
7
seat-tex_6.5SL_1_r1
KEY PART
NO. NO. DESCRIPTION
1 532 43 98-19 Seat
2 532 18 01-66 Bracket Pivot Fender
3 532 14 06-75 Strap, Asm Fender
6 873 80 06-00 Nut, Lock w/Ins. 3/8-16 unc
7 532 12 41-81 Spring, Seat Cprsn
8 532 17 18-77 Bolt 5/16-18 unc x 3/4 w/Sems
10 532 19 69-77 Pan, Seat
21 532 17 18-52 Bolt, Shoulder 5/16-18
37 873 80 05-00 Nut, Lock 5/16-18 unc
43
44
37
2
21
3
KEY PART
NO. NO. DESCRIPTION
40 532 19 76-61 Handle Slide Seat
41 532 19 82-00 Spring Latch
43 874 76 06-12 Bolt Fin Hex 3/8-16 unc x 3/4
44 819 13 38-12 Washer 13/32 x 2-3/8 x 12
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
16
Page 18
TRACTOR - MODEL NO. LT152 (96041002906), PRODUCT NO. 960 41 00-29
45
45
MOWER LIFT
91
7
10
87
89
90
87
98
3
97
100
2
88
97
87
89
lift-tex_16_r3
KEY PART
NO. NO. DESCRIPTION
2 532 42 20-27 Shaft Asm., Cross Lift
3 532 19 52-31 Lever Asm., Lift Rh
7 532 41 15-55 Grip, Lever
10 532 19 63-14 Spring Torsion
87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock
88 532 41 07-10 Spring Lift Assist
89 819 19 19-12 Washer Clear Zinc
90 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock
101*
87
*Key 91 may be substituted for Key 101
KEY PART
NO. NO. DESCRIPTION
91 532 19 51-81 Link Lift Susp Mower Rear
97 817 00 06-12 Screw Hexwsh Thdr. 3/8-16 x 3/4
98 532 19 52-70 Link Lift Susp. Front Mower
100 873 93 06-00 Nut Hex Jam ASF 7/16-20 unf
101 532 40 70-03 Link Asm. Lift FXD
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
17
