LOGTH2448T
LOGTH2448T
Operator's Manual
03002
SAFETY RULES
DANGER: This cutting machine is ca pa ble of amputating hands and feet and
throwing objects. Failure to observe the fol low ing safety instructions could result
in serious injury or death.
WARNING: In order to prevent ac-
ci den tal starting when setting up, trans port ing, ad just ing or making repairs,
always dis con nect spark plug wire and
place wire where it can not contact spark
plug.
WARNING: Do not coast down a hill in
neutral, you may lose control of the tractor.
WARNING: Tow only the at tach ments
that are rec om mend ed by and comply with
spec i fi ca tions of the man u fac tur er of your
tractor. Use common sense when towing.
Operate only at the lowest possible speed
when on a slope. Too heavy of a load,
while on a slope, is dan ger ous. Tires can
lose trac tion with the ground and cause
you to lose control of your tractor.
WARNING: Engine exhaust, some of
its constituents, and certain vehicle com po nents contain or emit chem i cals known
to the State of Cal i for nia to cause can cer
and birth defects or oth er re pro duc tive
harm.
WARNING: Battery posts, terminals
and related accessories contain lead and
lead compounds, chemicals known to the
State of Cal i for nia to cause can cer and
birth defects or oth er re pro duc tive harm.
Wash hands after handling.
I. GENERAL OPERATION
• Read, understand, and follow all
instructions on the machine and in the
manual before starting.
• Do not put hands or feet near rotating
parts or under the machine. Keep clear
of the discharge opening at all times.
• Only allow responsible adults, who are
familiar with the instructions, to operate
the machine.
• Clear the area of objects such as
rocks, toys, wire, etc., which could be
picked up and thrown by the blades.
• Be sure the area is clear of bystand-
ers before operating. Stop machine if
anyone enters the area.
• Never carry passengers.
• Do not mow in reverse unless abso-
lutely necessary. Always look down
and behind before and while backing.
• Never direct discharged material
toward anyone. Avoid discharging
material against a wall or obstruction.
Material may ricochet back toward the
operator. Stop the blades when crossing gravel surfaces.
• Do not operate machine without the
entire grass catcher, discharge guard,
or other safety devices in place and
working.
• Slow down before turning.
• Never leave a running machine
unattended. Always turn off blades,
set parking brake, stop engine, and
remove keys before dismounting.
• Disengage blades when not mowing.
Shut off engine and wait for all parts to
come to a complete stop before cleaning the machine, removing the grass
catcher, or unclogging the discharge
guard.
• Operate machine only in daylight or
good artifi cial light.
• Do not operate the machine while
under the infl uence of alcohol or drugs.
• Watch for traffi c when operating near
or crossing roadways.
• Use extra care when loading or unloading the machine into a trailer or truck.
• Always wear eye protection when operating machine.
• Data indicates that operators, age 60
years and above, are involved in a
large percentage of riding mower-related injuries. These operators should
evaluate their ability to operate the
riding mower safely enough to protect
themselves and others from serious
injury.
• Follow the manufacturer’s recommendation for wheel weights or counterweights.
• Keep machine free of grass , leaves
or other debris build-up which can
touch hot exhaust / engine parts and
burn. Do not allow the mower to plow
leaves or other debris which can cause
build-up to occur. Clean any oil or fuel
spillage before operating or storing the
machine. Allow machine to cool before
storage.
2
SAFETY RULES
II. SLOPE OPERATION
Slopes are a major factor related to loss of
control and tip-over accidents, which can
result in severe injury or death. Operation on all slopes requires extra caution. If
you cannot back up the slope or if you feel
uneasy on it, do not mow it.
• Mow up and down slopes, not across.
• Watch for holes, ruts, bumps, rocks, or
other hidden objects. Uneven terrain
could overturn the machine. Tall grass
can hide obstacles.
• Choose a low ground speed so that
you will not have to stop or shift while
on the slope.
• Do not mow on wet grass. Tires may
lose traction.
Always keep the machine in gear when
going down slopes. Do not shift to
neutral and coast downhill.
• Avoid starting, stopping, or turning on
a slope. If the tires lose traction, disengage the blades and proceed slowly
straight down the slope.
• Keep all movement on the slopes slow
and gradual. Do not make sudden
changes in speed or direction, which
could cause the machine to roll over.
• Use extra care while operating machine with grass catchers or other attachments; they can affect the stability
of the machine. Do no use on steep
slopes.
• Do not try to stabilize the machine by
putting your foot on the ground.
• Do not mow near drop-offs, ditches,
or embankments. The machine could
suddenly roll over if a wheel is over the
edge or if the edge caves in.
III. CHILDREN
Tragic accidents can occur if the operator
is not alert to the presence of children.
Children are often attracted to the machine
and the mowing activity. Never assume
that children will remain where you last
saw them.
• Keep children out of the mowing area
and in the watchful care of a responsible adult other than the operator.
• Be alert and turn machine off if a child
enters the area.
• Before and while backing, look behind
and down for small children.
• Never carry children, even with the
blades shut off. They may fall off and
be seriously injured or interfere with
safe machine operation. Children who
have been given rides in the past may
suddenly appear in the mowing area
for another ride and be run over or
backed over by the machine.
• Never allow children to operate the
machine.
• Use extra care when approaching blind
corners, shrubs, trees, or other objects
that may block your view of a child.
IV. TOWING
• Tow only with a machine that has a
hitch designed for towing. Do not attach towed equipment except at the
hitch point.
• Follow the manufacturer’s recommendation for weight limits for towed
equipment and towing on slopes.
• Never allow children or others in or on
towed equipment.
• On slopes, the weight of the towed
equipment may cause loss of traction
and loss of control.
• Travel slowly and allow extra distance
to stop.
V. SERVICE
SAFE HANDLING OF GASOLINE
To avoid personal injury or property
damage, use extreme care in handling
gasoline. Gasoline is extremely fl ammable
and the vapors are explosive.
• Extinguish all cigarettes, cigars, pipes,
and other sources of ignition.
• Use only approved gasoline container.
• Never remove gas cap or add fuel with
the engine running. Allow engine to
cool before refueling.
• Never fuel the machine indoors.
• Never store the machine or fuel container where there is an open fl ame,
spark, or pilot light such as on a water
heater or other appliances.
• Never fi ll containers inside a vehicle
or on a truck or trailer bed with plastic
liner. Always place containers on the
ground away from your vehicle when
fi lling.
3
SAFETY RULES
• Remove gas-powered equipment from
the truck or trailer and refuel it on the
ground. If this is not possible, then
refuel such equipment with a portable
container, rather than from a gasoline
dispenser nozzle.
• Keep the nozzle in contact with the rim
of the fuel tank or container opening at
all times until fueling is complete. Do
not use a nozzle lock-open device.
• If fuel is spilled on clothing, change
clothing immediately.
• Never overfi ll fuel tank. Replace gas
cap and tighten securely.
GENERAL SERVICE
• Never operate machine in a closed
area.
• Keep all nuts and bolts tight to be sure
the equipment is in safe working condition.
• Never tamper with safety devices.
Check their proper operation regularly.
• Keep machine free of grass, leaves, or
other debris build-up. Clean oil or fuel
spillage and remove any fuel-soaked
debris. Allow machine to cool before
storing.
• If you strike a foreign object, stop and
inspect the machine. Repair, if necessary, before restarting.
• Never make any adjustments or repairs
with the engine running.
• Check grass catcher components and
the discharge guard frequently and
replace with manufacturer’s recommended parts, when necessary.
• Mower blades are sharp. Wrap the
blade or wear gloves, and use extra
caution when servicing them.
• Check brake operation frequently. Adjust and service as required.
• Maintain or replace safety and instruction labels, as necessary.
• Be sure the area is clear of bystanders before operating. Stop machine if
anyone enters the area.
• Never carry passengers.
• Do not mow in reverse unless absolutely necessary. Always look down
and behind before and while backing.
• Never carry children, even with the
blades shut off. They may fall off and
be seriously injured or interfere with
safe machine operation. Children who
have been given rides in the past may
suddenly appear in the mowing area
for another ride and be run over or
backed over by the machine.
• Keep children out of the mowing area
and in the watchful care of a responsible adult other than the operator.
• Be alert and turn machine off if a child
enters the area.
• Before and while backing, look behind
and down for small children.
• Mow up and down slopes (15° Max),
not across.
• Choose a low ground speed so that
you will not have to stop or shift while
on the slope.
• Avoid starting, stopping, or turning on
a slope. If the tires lose traction, disengage the blades and proceed slowly
straight down the slope.
• If machine stops while going uphill,
disengage blades, shift into reverse
and back down slowly.
• Do not turn on slopes unless necessary, and then, turn slowly and gradually downhill, if possible.
4
PRODUCT SPECIFICATIONS
Gasoline Capacity 4 Gallons
and Type: Unleaded Regular
Oil Type
(API-SG-SL): SAE 5W30
(below 32°F)
Oil Capacity: W/ Filter: 4.0 Pints
W/O Filter: 3.75 Pints
Spark Plug: Champion QC12YC
(Gap: .030")
Ground Speed Forward: 0-5.5
Reverse: 0-2.4
Charging System:
Battery: Amp/Hr: 35
Min. CCA: 280
Case size: U1R
Blade Bolt Torque: 45-55 Ft. Lbs.
CONGRATULATIONS on your purchase
of a new tractor. It has been designed,
engineered and manu fac tured to give
you the best possible dependability and
performance.
Should you experience any problem you
cannot easily remedy, please contact a
qualifi ed service center. We have com pe tent, well-trained tech ni cians and the
proper tools to ser vice or repair this tractor.
Please read and retain this manual. The
instructions will enable you to assemble
and maintain your tractor prop erly. Always
observe the “SAFETY RULES”.
SAE 30 (above 32°F)
16 Amps @ 3600 RPM
CUSTOMER RESPONSIBILITIES
• Read and observe the safety rules.
• Follow a regular schedule in main-
tain ing, caring for and using your tractor.
• Follow the instructions under “Main te -
nance” and “Stor age” sec tions of this
own er’s manual.
WARNING: This tractor is equipped
with an internal com bus tion engine and
should not be used on or near any un im proved forest-covered, brush-covered or
grass-cov ered land unless the engine’s
exhaust system is equipped with a spark
arrester meeting applicable local or state
laws (if any). If a spark arrester is used, it
should be maintained in effective working
order by the operator.
In the state of California the above is
required by law (Section 4442 of the
California Public Resources Code). Other
states may have similar laws. Federal
laws apply on federal lands. A spark arrester for the muffl er is available through
your nearest service center (See RE PAIR
PARTS manual).
TABLE OF CONTENTS
Safety Rules ..........................................2
Product Specifi cations........................... 5
Assembly/Pre-Operation .......................6
Operation............................................... 8
Maintenance Schedule........................ 16
Maintenance........................................ 16
Service and Adjustments.....................20
Storage................................................ 27
Troubleshooting ................................... 28
Warranty.............................................. 31
5
UNASSEMBLED PARTS
Slope Sheet
Keys
(2) Keys
(1) Oil Drain Tube
For Future Use
ASSEMBLY/PRE-OPERATION
Your new tractor has been assembled at the factory with the exception of those parts left
unassembled for shipping purposes.
When right or left hand is mentioned in
this man ual, it means, from your point of
view, when you are in the op er at ing po sition (seat ed be hind the steer ing wheel).
TO REMOVE TRACTOR FROM
CARTON
UNPACK CARTON
1. Cut along dashed lines on all four panels of carton. Remove end panels and
lay side panels fl at.
2. Remove protective materials from tractor hood and grille.
IMPORTANT: Check for and remove any
staples in skid that may puncture tires
where tractor is to roll off skid.
CHECK BATTERY
1. Lift hood to raised position.
NOTE: If this battery is put into service
after month and year indicated on label
(L) (label is located between terminals)
charge battery for minimum of one hour at
6-10 amps. (See "BATTERY" in Maintenance section of this manual for charging
instructions).
L
02931

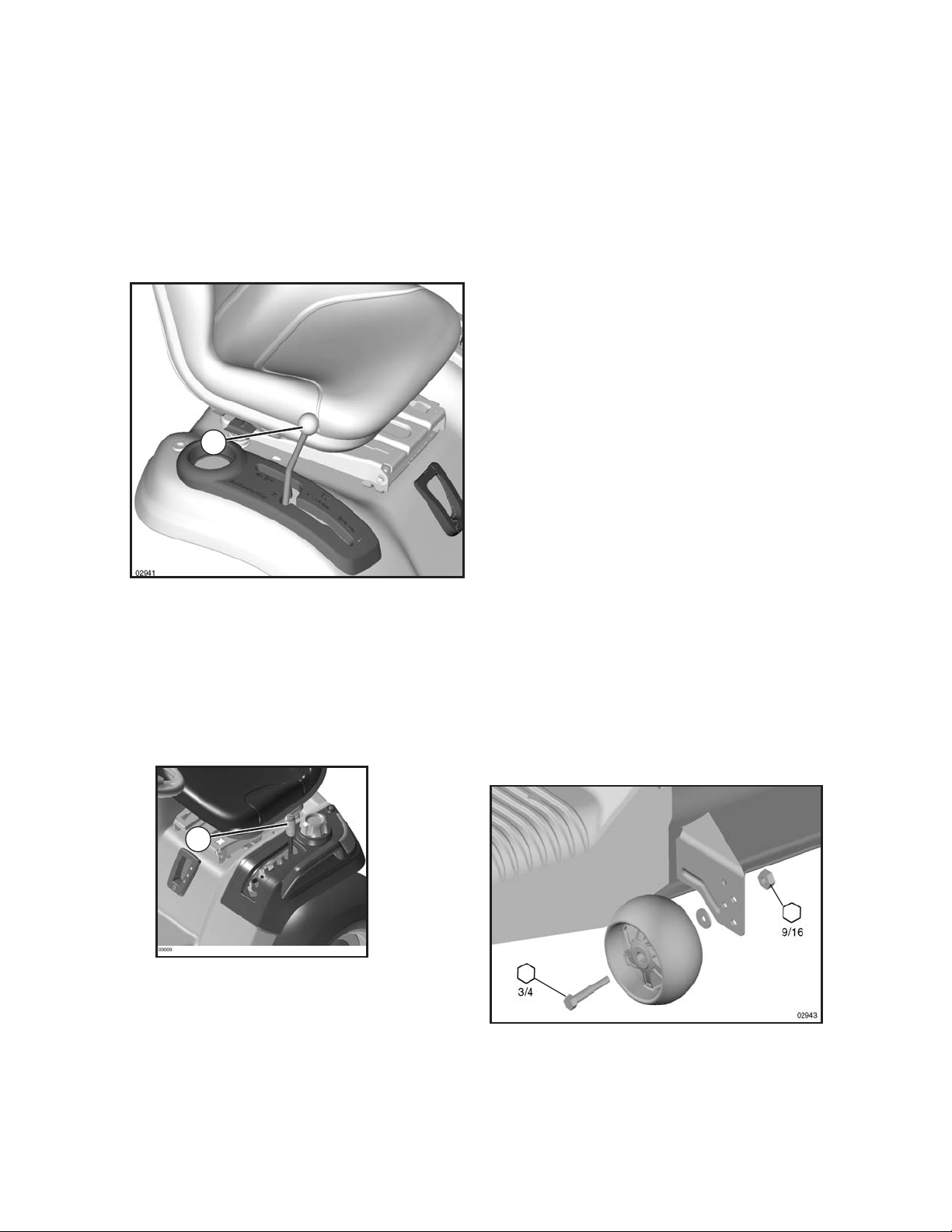

ADJUST SEAT
1. Sit in seat.
2. Lift up adjustment lever (A) and slide
seat until a comfortable position is
reached which allows you to press
clutch/brake pedal all the way down.
3. Release lever to lock seat in position.
A
NOTE: You may now roll or drive your
tractor off the skid. Follow the ap pro pri ate
instruction below to remove the tractor
from the skid.
WARNING: Before start ing, read, un-
der stand and fol low all in struc tions in the
Op er a tion section of this man u al. Be sure
tractor is in a well-ventilated area. Be sure
the area in front of tractor is clear of other
peo ple and objects.
TO ROLL TRACTOR OFF SKID (See
Op er a tion section for location and
function of con trols)
1. Raise attachment lift lever to its highest
po si tion.
2. Release parking brake by de press ing
clutch/brake ped al.
3. Place freewheel control in "trans mis sion disengaged position" (See “TO
TRANS PORT” in the Op er a tion section
of this manual).
6
4. Roll tractor forward off skid.
5. Remove banding holding the defl ector
shield up against tractor.
TO DRIVE TRAC TOR OFF SKID
(See Op er a tion section for location
and function of con trols)
1. Be sure all the above assembly steps
have been completed.
2. Check engine oil level and fi ll fuel tank
with gasoline.
3. Place freewheel control in "trans mis sion engaged" position (see "TO
TRANSPORT" in Operation section of
this manual).
4. Sit on seat in operating position,
depress clutch/brake pedal and set the
parking brake.
5. Place motion control lever in neutral
(N) position.
6. Raise attachment lift lever to its highest
position.
7. Remove key from bag and start the
engine (see "TO START ENGINE" in
the Operation section of this manual).
After engine has started, move throttle
control to idle (slow) position.
8. Release parking brake.
9. Slowly move the mo tion control lever
for ward and slowly drive tractor off
skid.
10.Apply brake to stop trac tor, set park ing
brake and place motion con trol lever in
neutral po si tion.
11.Turn ignition key to "STOP" position.
Continue with the in struc tions that follow.
CHECK TIRE PRESSURE
The tires on your tractor were overinfl ated
at the factory for shipping purposes. Correct tire pressure is important for best
cutting performance.
• Reduce tire pressure to PSI shown on
tires.

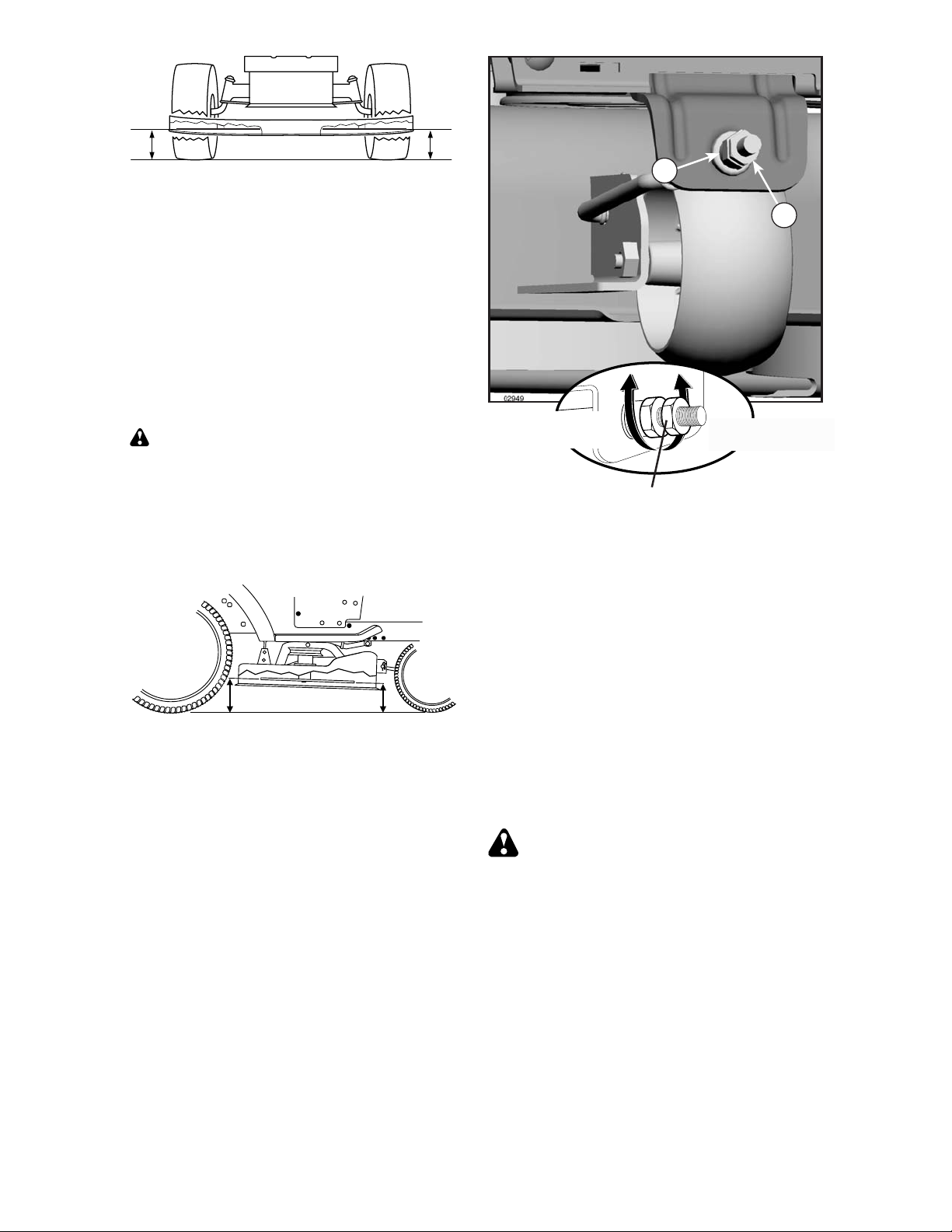

CHECK DECK LEVELNESS
For best cutting results, mower housing should be properly leveled. See “TO
LEVEL MOWER” in the Service and
Adjustments section of this manual.
CHECK FOR PROPER POSITION
OF ALL BELTS

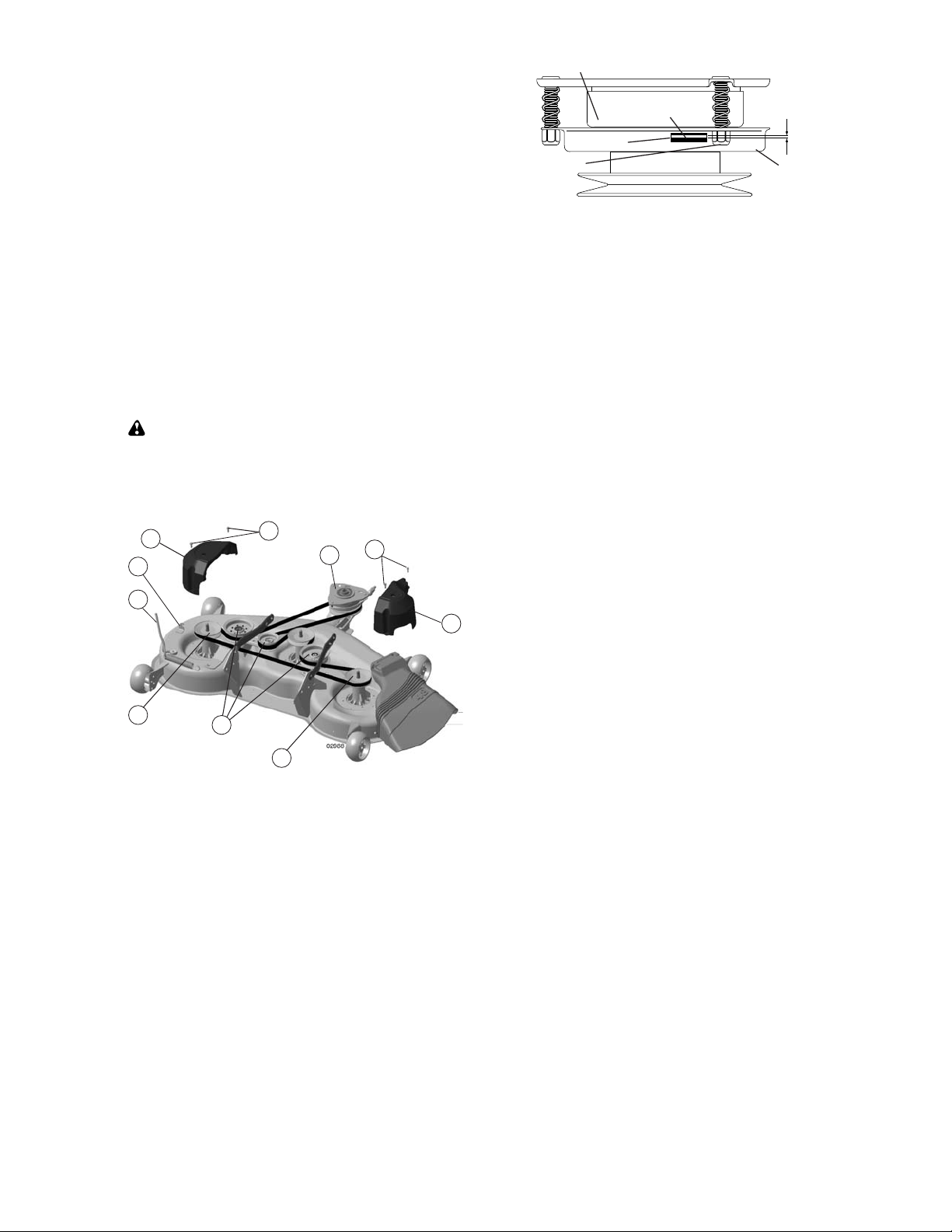

See the fi gures that are shown for replacing motion and mower blade drive belts
in the Service and Adjustments sec tion
of this manual. Verify that the belts are
routed cor rect ly.
CHECK BRAKE SYSTEM
After you learn how to operate your tractor, check to see that the brake is operating properly. See “TO CHECK BRAKE”
in the Service and Adjustments section of
this manual.
✓CHECKLIST
Before you operate your new trac tor, we
wish to assure that you receive the best
performance and satisfaction from this
Quality Product.
Please review the following checklist:
✓ All assembly instructions have been
com plet ed.
✓ No remaining loose parts in carton.
✓ Battery is properly prepared and
charged.
✓ Seat is adjusted comfortably and tight-
ened securely.
✓ All tires are properly infl ated. (For ship-
ping purposes, the tires were overinfl ated at the factory).
✓ Be sure mower deck is properly leveled
side-to-side/front-to-rear for best cutting
results. (Tires must be properly infl ated
for leveling).
✓ Check mower and drive belts. Be sure
they are routed properly around pulleys
and inside all belt keepers.
✓ Check wiring. See that all connections
are still secure and wires are properly
clamped.
✓ Before driving tractor, be sure free wheel
control is in “transmission engaged”
position (see “TO TRANS PORT” in the
Operation section of this man u al).
While learning how to use your tractor, pay
extra attention to the following important
items:
✓ Engine oil is at proper level.
✓ Fuel tank is fi lled with fresh, clean, regu-
lar unleaded gasoline.
✓ Become familiar with all controls, their
location and function. Operate them
before you start the engine.
✓ Be sure brake system is in safe operat-
ing condition.
✓ Be sure Operator Presence System
and Reverse Operation System (ROS)
are working properly (See the Opera-
tion and Maintenance sections in this
manual).
✓ It is important to purge the transmission
before op er at ing your tractor for the fi rst
time. Follow proper starting and transmis-
sion purging instructions (See “TO START
EN GINE” and “PURGE TRANSMISSION”
in the Op er a tion section of this manual).
7
OPERATION
These symbols may appear on your tractor or in literature supplied with the product.
Learn and understand their meaning.
REVERSE
ENGINE OFF
LIGHTS ON
ATTACHMENT
CLUTCH DISENGAGED
FREE WHEEL
(Automatic Models only)
NEUTRAL
REVERSE
OPERATION
SYSTEM (ROS)
FUEL
BATTERY
CLUTCH ENGAGED
HIGH
ENGINE ON
ATTACHMENT
Failure to follow instructions
could result in serious injury or
death. The safety alert symbol
is used to identify safety information about hazards which can
result in death, serious injury
and/or property damage.
LOW
ENGINE START
REVERSE
DANGER, KEEP HANDS
AND FEET AWAY
CHOKE
FORWARD
FAST
PARKING BRAKE
CRUISE CONTROL
KEEP AREA CLEAR
(SEE SAFETY RULES SECTION)
SLOW
MOWER HEIGHT
15
SLOPE HAZARDS
IGNITION SWITCH
MOWER LIFT
CLUTCH/BRAKE
PEDAL
DANGER indicates a hazard which, if not avoided,
will result in death or serious injury.
WARNING indicates a hazard which, if not avoided,
could result in death or serious injury.
CAUTION indicates a hazard which, if not avoided,
might result in minor or moderate injury.
CAUTION when used without the alert symbol,
indicates a situation that could result in damage
to the tractor and/or engine.
HOT SURFACES indicates a hazard which,
if not avoided, could result in death, serious injury
and/or property damage.
FIRE indicates a hazard which, if not avoided,
could result in death, serious injury and/or
property damage.
15
8
KNOW YOUR TRACTOR
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR
TRACTOR
Compare the illustrations with your tractor to familiarize yourself with the locations of
various controls and ad just ments. Save this manual for future reference.
P
N
M
D
C
B
F
Q
A
H
E
G
J
Our tractors conform to the applicable safety standards of the
American National Stan dards Institute.
(A) ATTACHMENT LIFT LEVER – Used
to raise and lower the mower or other attachments mounted to your trac tor.
(B) BRAKE PEDAL – Used for brak ing
the tractor and start ing the engine.
(C) PARKING BRAKE – Locks brake
pedal into the brake position.
(D) THROTTLE CONTROL - Used to control engine speed.
(E) ATTACHMENT CLUTCH SWITCH
– Used to engage the mow er blades, or
other at tach ments mounted to your tractor.
(F) IGNITION SWITCH – Used for starting
and stopping the engine.
(G) REVERSE OPERATION SYSTEM
(ROS) "ON" POSITION – Allows opera-
tion of mower or other powered attachment while in reverse.
(H) LIGHT SWITCH – Turns the headlights on and off.
(J) MOTION CONTROL LEVER - Selects
the speed and di rec tion of the tractor.
(M) FREEWHEEL CONTROL – Disengages transmission for pushing or slowly
tow ing the trac tor with the engine off.
(N) CHOKE CONTROL - Used when
starting a cold engine.
(P) SERVICE REMINDER / HOUR METER – Indicates when service is required
for the engine and mower.
(Q) 12-VOLT POWER PORT – Used for
12-volt accessories.
9
The operation of any tractor can result in foreign objects thrown into the
eyes, which can result in severe eye dam age. Always wear safety glass es
or eye shields while operating your tractor or per form ing any ad just ments
or repairs. We rec om mend standard safety glasses or a wide vision safety
mask worn over spectacles.
HOW TO USE YOUR TRAC TOR
TO SET PARKING BRAKE
Your tractor is equipped with an operator
presence sens ing switch. When engine
is running, any attempt by the op er a tor
to leave the seat without fi rst setting the
parking brake will shut off the engine.
1. Depress brake pedal (B) all the way
down and hold.
2. Pull parking brake lever (C) up and
hold, re lease pres sure from brake
pedal (B), then release parking brake
lever. Pedal should re main in brake
position. Make sure parking brake will
hold tractor secure.
B
C
GROUND DRIVE -
• To stop ground drive, depress brake
pedal all the way down.
• Move motion control lever (J) to neutral
(N) position.
ENGINE -
• Move throttle control (D) between half
and full speed (fast) position.
NOTE: Failure to move throttle control
between half and full speed (fast) position, before stopping, may cause engine to
“backfi re”.
• Turn ignition key (F) to “STOP” position
and remove key. Always remove key
when leaving tractor to prevent un au tho rized use.
• Never use choke to stop engine.
IMPORTANT: Leaving the ignition switch
in any position other than "STOP" will
cause the battery to discharge and go
dead.
NOTE: Under certain conditions when
tractor is standing idle with the engine running, hot engine exhaust gases may cause
“browning” of grass. To elim i nate this possibility, always stop en gine when stopping
tractor on grass areas.
STOPPING
MOWER BLADES -
• To stop mower blades, push at tach ment
clutch switch in to disengaged position
(OFF).
(ON) Attachment
Clutch Switch
Pull Out To “Engage”
(OFF) Push-In to
“Dis en gaged”
CAUTION: Always stop tractor com-
plete ly, as de scribed above, before leav ing
the operator's position.
D
N
F
TO USE THROTTLE CONTROL (D)
Always operate engine at full speed (fast).
• Operating engine at less than full speed
(fast) reduces engine's operating effi ciency.
• Full speed (fast) of fers the best mower
per for mance.
10
Loading...
