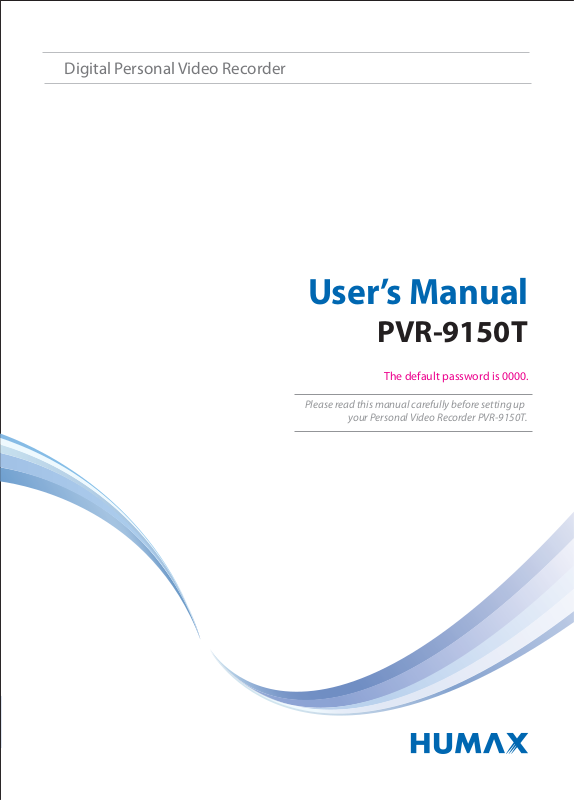

Humax PVR-9150T User Manual
Digital Personal Video Recorder
User’s Manual
PVR-9150T
The default password is 0000.
Please read this manual carefully before setting up
your Personal Video Recorder PVR-9150T.
Notice
Thank you for purchasing a Humax PVR-9150T product.
Freeview Playback explained:
• Accurate recording
The start and end times of scheduled recordings will track the signal meaning the recording will start
and stop at the times sent by the broadcasters. If a programme starts early or runs late the record time
will automatically be adjusted to record the whole programme.
• Series Link
If a programme you wish to record is in a series, you can now record the whole series. If the
programme changes to a dierent day or time the PVR-9150T will track these changes and still record
the programme.
• Alternate Instances
If a scheduled recording(s) overlap with other programmes set to record you will be given the option
to record one of the programmes later that, day or week, on the same channel or a dierent channel.
• Split Recordings
If a programme has two parts split by another entry in the Guide (e.g. a lm divided in to two parts by
a News programme) you will be given the option to set both parts to record.
Note: The above Freeview Playback features are available on channels where the correct and accurate
data is being broadcast. Some channels may not support all services.
GB1
User’s Manual
Notice
Thank you for purchasing a HUMAX product. Please read this user’s manual carefully to be able to safely
install, use and maintain the product at maximum performance. Keep this user’s manual next to your
product for future reference. The information in this user’s manual is subject to change without notice.
Copyright (Copyright © 2008 HUMAX Corporation)
Not to be copied, used or translated in part or whole without HUMAX’s prior consent in writing except
approval of ownership of copyright and copyright law.
Warranty
The warranty does not cover parts which may become defective due to misuse of the information
contained in this manual.
Trademarks
• Viaccess is a trademark of France Telecom.
• CryptoWorks is a trademark of Irdeto Access B.V.
• Irdeto is a trademark of Irdeto Access B.V.
• Nagravision is a registered trademark of KUDELSKI S.A.
• Conax is a trademark of Telenor Conax AS.
Warnings, Cautions and Notes
Throughout the whole manual, pay special attention to the following marks that indicate hazardous
situations.
• Warning
Indicates a hazardous situation which could result in serious injury.
• Caution
Indicates a situation which could damage the equipment or other apparatus.
• Note
Indicates additional information to make the user aware of possible problems and information of any
importance to help understand, use and maintain the installation.
Meaning of Symbols
To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts
inside. Refer servicing to qualied service personnel.
This symbol indicates dangerous voltage inside the product that presents a risk of electric
shock or personal injury.
This symbol indicates important instructions accompanying the product.
GB2
User’s Manual
Notice
Instruction about the ‘WEEE’ Symbol
This product should not be disposed with other household wastes at the end of its working
life. Please separate this from other types of wastes and recycle it responsibly to promote the
sustainable reuse of material resources. This will prevent possible harm to the environment
or human health from uncontrolled waste disposal.
• Domestic users: Please contact either the retailer where you purchased this product or their local
government oce for details of where and how they can take this item for environmentally safe
recycling.
• Business users: Contact your supplier and check the terms and conditions of the purchase contract.
This product should not be mixed with other commercial wastes for disposal.
Important Notice
Before unpacking this product, you should check that you are in a Freeview Coverage area in one of the
follow ways:
• Contact the Humax Customer Helpline on 0844 669 8800 for information on Freeview coverage in your
area.
• Text your postcode to Freeview on 83331 (standard text rates apply). Freeview will reply with advice
on whether you can receive Digital TV.
• Telephone Freeview on 08708 80 99 80. They will tell you whether you can receive Digital TV in your
postcode area.
• Visit www.freeview.co.uk. You can enter your postcode for information on availability in your area.
• Telephone the shop where you bought this product. (The number is usually printed on the till receipt).
Note: To receive digital signals you may need to reposition or upgrade your existing roof aerial.
1. Due to the age or condition of your aerial and cabling you may not be able to receiver digital signals.
2. In your location the digital channels may be transmitted on a dierent frequency to your existing
analogue signals and you may need a dierent type of aerial to receive them.
3. The new digital channels may be transmitted from a new transmitter, which means your aerial may
need to be realigned. (Alternatively, you could add a second aerial to your system.)
For any further information contact the Humax Customer Helpline:
• Tel: 0844 669 8800
• Email : uksupport@humax-digital.co.uk
• Open : Lines open Monday to Friday 9:00am to 5:30pm (Excludes Bank Holidays)
GB3
User’s Manual
Safety Warning
This product has been manufactured to comply with international safety standards. Please read the
following safety precautions carefully.
Safety Instructions and Precautions
1. MAINS SUPPLY
90-250V a.c., 50/60Hz
• Operate this product only from the type of power supply indicated on the marking label. If you are not
sure of the type of power supplied to your home, consult your local power company.
• Disconnect the product from the mains before you start any maintenance or installation procedures.
2. OVERLOADING
• Do not overload a wall outlet, extension cord or adapter as this may result in electric re or shock.
3. LIQUIDS
• The product should not be exposed to liquid of any kind. In addition, no objects lled with liquid should
be placed on the apparatus.
4. CLEANING
• Disconnect the product from the wall outlet before cleaning.
• Use a light damp cloth (no solvents) to dust the product.
5. VENTILATION
• The slots on top of the product must be left uncovered to allow proper airow into the unit.
• Do not stand the product on soft furnishings or carpets.
• Do not stack electronic equipments on top of the product.
6. ATTACHMENTS
• Do not use any unsupported attachments as these may be hazardous or cause damage to the product.
7. CONNECTION TO THE AERIAL
• Disconnect the product from the mains before connecting or disconnecting the cable from the aerial.
Failure to do so can damage the aerial.
8. CONNECTION TO THE TV
• Disconnect the product from the mains before connecting or disconnecting the cable from the TV.
Failure to do so can damage the TV.
9. LOCATION
• Place the product indoors to avoid exposing it to lightning, rain or sun.
• Do not place it near a radiator or heat register.
• We recommend that the product has 10 cm clearance from any other appliances susceptible to
electromagnetic inuences, such as a TV or a VCR.
• Do not block the openings with any object, and do not place the product on a bed, sofa, rug, or other
similar surface.
• If you place the product on a rack or a bookcase, ensure that there is adequate ventilation and that you
have followed the manufacturer’s instructions for mounting.
• Do not place the product on an unstable cart, stand, tripod, bracket, or table where it can fall. A falling
product can cause serious injury to a child or adult, and serious damage to the appliance.
10. LIGHTNING, STORM or NOT IN USE
• Unplug the product from the wall outlet and disconnect the antenna during a thunderstorm or when left
unattended and unused for long periods of time. This will prevent damage to the unit due to lightning
and power-surges.
GB4
User’s Manual
Safety Warning
11. EXTRANEOUS OBJECTS
• Do not insert anything through the openings in the unit, where they can touch dangerous voltage points
or damage parts.
12. REPLACEMENT of PARTS
• When replacement of parts is required, be sure the service technician uses replacement parts specied
by the manufacturer or those that have the same characteristics as the original part. Unauthorized
substitution may result in additional damage to the unit.
Warning
1. To avoid damage of the power cord or plug;
• Do not modify or process the power cord or plug arbitrarily.
• Do not bend or twist the power cord.
• Make sure to disconnect the power cord holding the plug.
• Keep heating appliances as far as possible from the power cord in order to prevent the cover vinyl from
melting.
• The mains plug, as a disconnection device, shall remain readily accessible by the user.
2. To avoid electrical shock;
• Do not open the main body.
• Do not insert metal or inammable objects inside the product.
• Do not touch the power plug with wet hands.
• Disconnect the power cord in case of lightning.
3. To avoid damage of product;
• Do not use the product when it is out of order. If you continue to use the product when defective, serious
damage can be caused to it. Make sure to contact your local product distributor if the product is out of
order.
• Do not insert metal or alien substance into the slots for the modules or Smartcards. It may cause damage
to the product and reduce its life span.
4. Hard Disk Drive
• Do not move the product or turn the power o suddenly while the hard disk drive is running. The
company shall not be liable for any corruption of data on the hard disk drive caused by the carelessness
or misuse of users.
GB5
User’s Manual
Contents
1. Before Using the Product. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB8
1.1 Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB8
1.2 Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB9
1.3 Conditional Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB10
1.4 Rear Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB11
1.5 Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB12
2. Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB15
2.1 Connecting the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB15
2.2 Connecting the TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB16
2.3 Connecting the TV and VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB17
2.4 Powering On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB19
3. Installation Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB20
3.1 Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB20
4. Basic Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB21
4.1 Switching Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB21
4.2 Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB21
4.3 Text and Interactive Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB21
4.4 Programme Information (i-plate) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB22
4.5 Option List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB23
4.6 Channel List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB26
4.7 PIP (Picture-in-Picture) Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB27
4.8 Game. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB28
5. PVR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB29
5.1 Time Shifted Recording (TSR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB29
5.2 Recording. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB31
5.3 Programme Playback in the Play List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB32
5.4 Chase Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB33
5.5 Bookmark . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB33
5.6 Additional Time Shift Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB34
6. Programme Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB35
6.1 Viewing Programme Guide Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB35
6.2 Selecting Channel Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB36
6.3 Using Time Bar. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB37
6.4 Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB37
6.5 Finding Programmes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB38
7. Record. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GB39
7.1 Recorded Programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB39
7.2 Recording Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB42
7.3 HDD Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB45
7.4 Recording’s Start/End Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB45
GB6
User’s Manual
Contents
8. Preferences. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB46
8.1 Parental Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB46
8.2 Language Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB47
8.3 Time Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB48
8.4 A/V Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB49
8.5 Miscellaneous Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB50
9. Edit Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB52
9.1 Edit Channel Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB52
9.2 Edit Favourite Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB53
10. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB54
10.1 Automatic Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB54
10.2 Manual Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB55
10.3 Default Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB56
10.4 Antenna Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB56
11. Software Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB57
11.1 OTA (Over the Air) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB57
11.2 Updating Software from Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB58
11.3 Software Update from PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB60
12. System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB61
12.1 Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB61
12.2 Signal Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB61
12.3 Common Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB61
13. Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB62
13.1 Menu Map. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB62
13.2 Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB63
13.3 Error Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB67
13.4. Specication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB68
13.5 Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB70
13.6 Service and Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB71
User’s Manual
GB7
1. Before Using the Product
This chapter provides detail instructions on the product and its accessories.
1.1 Package Contents
Please check all package contents before using your product.
User’s Manual
Quick Guide
Remote Control Quick Guide
Batteries
Note: Package contents may vary according to area.
Warning: The company shall not be liable for problems caused by changing hard disk drive by user.
User’s Manual
SCART Cable
GB8
User’s Manual
1. Before Using the Product
1.2 Front Panel
1 2 103 6 7 8
1. GUIDEGUIDE
Displays the programme guide.
2. STANDBY BUTTONSTANDBY BUTTON
Switches between operation and standby modes.
3. MENU
Displays the main menu.
4. ARROW BUTTONS
Changes the channel or moves the cursor up, down, left or right.
5. OK
Selects a menu or conrms the selected operation.
6. TV/RADIO BUTTON
Switches between TV and radio modes.
7. CH-/CH+ BUTTON
Moves the TV/radio channel up or down.
8. RECORD BUTTON
Records programme.
9. STOP BUTTON
Stops recording or playback.
10. CI-MODULE SLOT
A slot for a CI-Module
Note: The front of the product is subject to change without notice.
4 5
9
GB9
User’s Manual
1. Before Using the Product
1.3 Conditional Access
Most TV and radio channels are free to air, however some TV and radio/music channels are available on a
subscription basis and can only be enjoyed via a Conditional Access component. The Conditional Access
component is a removable Smartcard.
1. Inserting a CI-Module (with Smartcard)
A CI-Module looks like a PC map (PCMCIA) for laptops. There are dierent kinds of CI-Modules, suitable for
dierent coding systems; Irdeto, Conax and more. Additionally to the CI-Module, a Smartcard is needed to
decode the channels.
1. Open the right-hand ap on the front of the product.
2. Follow the instructions of the module and insert the Smartcard into the CI-Module.
3. Keep the CI-Module (with the Smartcard) horizontal.
4. Insert the CI-Module into the slot.
GB10
User’s Manual
CI-Module
Smartcard
1. Before Using the Product
1.4 Rear Panel
1
1. TV SCART
Connects to the TV using a TV SCART cable
2. VCR SCART
Connects to the VCR or DVD using a VCR SCART cable.
3. RS-232C
Connects to the PC to update software.
4. ANTENNA IN
Connects the aerial cable.
5. TV/VCR
Connects to the RF IN of the TV or VCR using an RF cable.
6. ON/OFF
Powers on/o.
Note: The rear of the product is subject to change without notice.
2
3 4
5 6
GB11
User’s Manual
1. Before Using the Product
1.5 Remote Control
1. NUMERIC(0-9) BUTTONS
Enters a TV/radio channel number or menu
option number.
2. MENU
Displays the main menu.
3. PLAYBACK CONTROL BUTTONS
a. FAST REWIND
Rewinds at high speed. Each time you press
this button the rewind speed is increased.
b. PL AY
Plays at normal speed or resumes.
c. FAST FORWARD
Fasts forward at high speed. Each time you press
this button the fast forward speed is increased.
d. RECORD
Records programme.
e. PAUSE
Pauses the live programme or recording.
f. STOP
Stops a recording or goes to the live
programme.
4. COLOUR BUTTONS
Selects colour keys for interactive/text
channels.
5. LIST
Displays the channel list.
Please slide down the
bottom section of the
remote control to nd
the additional buttons.
Note: The remote control is subject to change
without notice.
6. ARROW BUTTONS
Navigates through the menu options.
7. EXIT
Exits all On-Screen Display (OSD) screens.
8. VOL+/VOL Adjusts the audio volume.
9. i (INFORMATION)
Displays the channel and programme
information.
GB12
User’s Manual
1. Before Using the Product
10. STANDBY
Switches between operation and standby
modes.
11. TEXT
Enters digital text service.
12. GUIDE
Displays the programme guide.
13. OK
Selects a menu or conrms the selected
operation. Also, displays the channel list while
watching a programme.
14. BACK
Closes and returns to the previous menu and
screen.
15. CH+/CH- or PAGE+/PAGE-
Changes the channel or page.
16. MUTE
Mutes or unmutes the audio temporarily.
17. Group 17
g. SOURCE
Controls the input of TV.
h. OPT+
Displays the channel attributes while watching
a programme.
Please slide down the
bottom section of the
remote control to nd
the additional buttons.
i. PLAY LIST
Displays the recorded programme list.
j. SUBTITLE
Displays the subtitle language list.
k. SOUNDTRACK
Displays the soundtrack list.
l. WIDE
Sets the display format.
User’s Manual
GB13
1. Before Using the Product
18. Group 18
m.ADD BOOKMARK
Saves the current viewing position as a
bookmark.
n. BOOKMARK LIST
Displays the list of saved viewing positions.
o. A-B
Plays back a specied block repeatedly.
p. INSTANT REPLAY
Jumps back and plays from that location.
(See section 5.6)
q. SLOW MOTION
Plays the programme in slow motion. Each
time you press this button, speed is slowed
progressively more.
r. COMMERCIAL SKIP
Jumps ahead in a recording. (See section 5.6)(See section 5.6)
19. PIP BUTTONS
s. PIP
Displays the PIP (Picture in Picture) screen.
t. PIP CH+/CH-
Changes the PIP channel.
u. MOVE PIP
Changes the position of the PIP screen.
v. SWAP PIP
Swaps the focus between the main and the PIP
screen.
20. G (Game)
Displays the games.
21. TV/RADIO
Switches between TV and radio modes.
GB14
User’s Manual
Please slide down the
bottom section of the
remote control to nd
the additional buttons.
2. Setup
This chapter describes how to connect the product to the TV with the particular equipments for gaining
optimum signal quality. The product provides various interfaces to connect to the TV, VCR or other
devices. Select the most appropriate procedure depending on the equipment you have.
Note: If you encounter any problems setting up your product, please contact your local product
distributor.
2.1 Connecting the Antenna
Connect your aerial to the ANTENNA IN.
Note: Connect the product and the TV using an RF cable to watch analogue channels.
TV Antenna IN
RF Cable
GB15
User’s Manual
2. Setup
2.2 Connecting the TV
1. Using SCART Cable
Connect the product and the TV using a SCART cable.
GB16
User’s Manual
SCART Cable
TV SCART
2. Setup
2.3 Connecting the TV and VCR
1. Using SCART Cable
Connect the product and the TV/VCR using a SCART cable.
SCART Cable
SCART Cable
TV SCART VCR SCART
GB17
User’s Manual
2. Setup
2. Using RF Cable
1. Connect the TV/VCR (LOOP OUT) of the product and the aerial input of the VCR using an RF cable.
2. Connect the aerial output of the VCR and the aerial input of the TV using an RF cable.
GB18
User’s Manual
TV Antenna IN TV Antenna OUT
RF Cable
RF Cable
VCR Antenna IN
VCR Antenna OUT
2. Setup
2.4 Powering On
1. Connect the power cord of the product to a wall outlet.
2. Turn on the power switch located at the back left of the product.
3. Power on by pressing the STANDBY button of the remote control or the STANDBY button at the front
of the product.
Zoom in
STANDBY
1 2 3
4 5 6
7 8 9
TEXT
MENU
0
GB19
User’s Manual
3. Installation Wizard
This will guide you through the installation procedure to automatically search for the digital channels.
(Installation wizard will also run after the product has been returned to default settings.)
3.1 Search
Please wait until the channel search is complete.
1. During the channel search, the cursor is located at Stop.
Therefore, if you press the OK button during the search, the
search will stop and the channels found until then will be
displayed.
2. If the search does not nd any channels, then press the OK
button to access the installation menu to search for the
channels again. Please make sure that you have connected your
aerial correctly.
3. You can delete unwanted channels from the found channels.
Select the channels to delete and press the OK button. Then
select Delete and press the OK button. To delete all channels,
select Select All to select all channels, select Delete and press
the OK button.
4. After completing the channel search and deleting unwanted
channels, select Save to save the changes.
Warning: If you exit the install wizard without fully completing
the channel searching procedure, you may not have all
of the channels available. In this case, you can use the
installation menu to search for the channels.
GB20
User’s Manual
4. Basic Operation
This chapter describes functions such as switching channel, volume control and basic features for
watching programmes.
4.1 Switching Channel
You can switch the current channel using one of the following methods.
1. Press the CH+/CH- button.
2. Enter the channel number using the NUMERIC(0-9) buttons to move to the channel directly.
3. Press the TV/RADIO button to switch between TV channels and radio channels.
Note:
• You can switch channel using the channel list or programme guide.
• Please refer to 4.6 Channel List and Chapter 6. Programme Guide for more information.
4.2 Volume Control
1. Press the VOL+/VOL- button to adjust the audio volume.
2. Press the MUTE button to stop the audio temporarily.
Note: The mute function remains set while you switch channels.
4.3 Text and Interactive Services
If your chosen channel has digital teletext features, you can access them. Teletext services often load
automatically shortly after the digital teletext window is displayed. In which case, simply follow the on
screen instructions(press color buttons).
1. Press the TEXT button to access digital teletext.
2. Press the TEXT button again to return to normal viewing.
3. Press the CH+/CH- button to exit this service.
Note: Interactive service(MHEG) is not available when subtitles are displayed.
GB21
User’s Manual
4. Basic Operation
1
2
3
4
5
6
7
8
4.4 Programme Information (i-plate)
Programme information is always displayed for a certain period of time whenever you switch channels.
You can view the programme information by pressing the i button while watching a programme. Press the
EXIT button to hide the i-plate.
1. General Information
The general information is displayed on the screen as the following.
1. Channel number and name
2. Programme name
3. Detailed programme information: Displayed if detailed programme information is provided.
4. Current channel list icon
5. Current time
6. Icons
Displayed only when the programme is a split programme.
Displayed only when the programme is a series programme.
UHF4
7. Next programme information: Displayed if next programme information is provided. Press the
button to display the next programme information.
8. Programme broadcasting time and progress bar: Displays programme playing time and progress bar.
Note: If there is no programme information available, programme information is not displayed.
GB22
User’s Manual
Displayed only if the programme is recording.
Displayed only if the programme is reserved.
Represents parental level. Indicates age classication level-if supplied by the broadcaster
Displayed only when the channel is a locked channel.
Displayed only when the channel is a scrambled (Pay TV channel) channel.
Displayed only when subtitle information is available.
PKHJ
Displayed when the channel supports teletext (MHEG).
Displayed when the channel supports data channel.
Loading...
