Huawei WS331C Users Manual

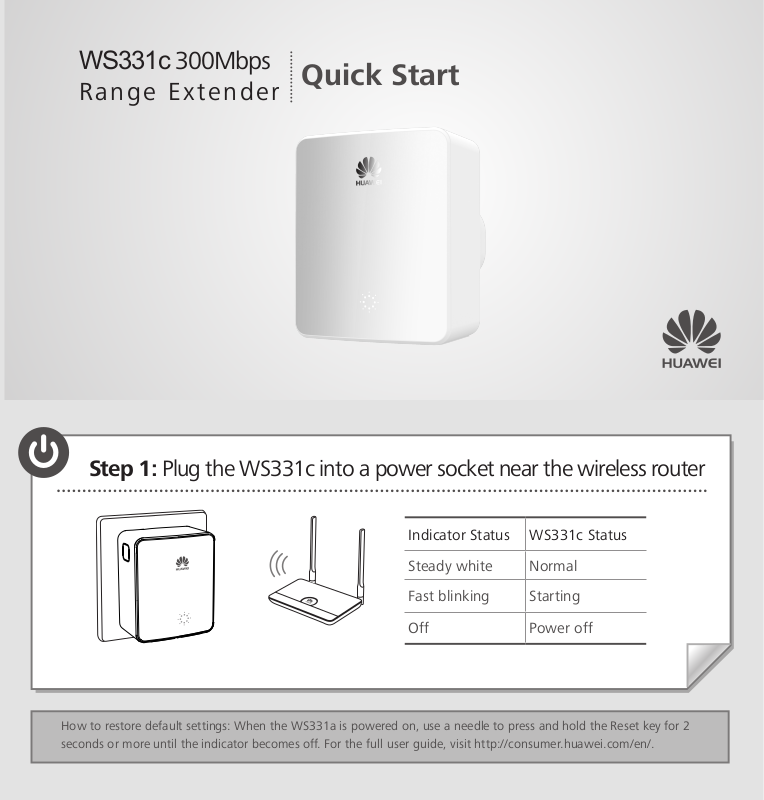

WS331c 300Mbps	Quick Start
Range Extender

Step 1: Plug the WS331c into a power socket near the wireless router

Indicator Status	WS331c Status
Steady white	Normal
Fast blinking	Starting
Off	Power off

How to restore default settings: When the WS331a is powered on, use a needle to press and hold the Reset key for 2 seconds or more until the indicator becomes off. For the full user guide, visit http://consumer.huawei.com/en/.

Step 2: Wirelessly connecting WS331c to the wireless router

Method 1: Automatic Connection through WPS Button

2

1

Method 2: Manual Connection through the WS331c Web Page

You can configure the WS331c using a phone, tablet, or laptop. This guide uses a phone as an example.

1	Check the WS331c's Wi-Fi	2	On your phone, open a browser	3	Touch Internet Connection
	network name (unencrypted		and enter 192.168.3.1 or		Wizard. Complete the
	by default), and then wirelessly		mediarouter.home to access		configuration by following
	connect your phone to the Wi-Fi		the WS331a configuration		the Internet Connection
	network.		screen. Then enter the login		Wizard.
			password (default value: admin).

Login Password

Remember password

Log in

/TZKXTKZ )UTTKIZKJ

)UTLOM[XK =O ,O

*U]TRUGJ 8[SGZK 'VV 3GTGMK _U[X XU[ZKX GT_ZOSK GT_]NKXK

Safety Information

1 Safety information

This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device.

Electronic device

Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices.

Interference with medical equipment

•Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited.

1

•Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information.

•Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket.

Areas with flammables and explosives

•Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols.

2

•Do not store or transport the device in containers with flammable liquids, gases, or explosives.

Operating environment

•Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in these environments may result in circuit malfunctions.

•Keep the device away from electronic appliances that generate strong magnetic or electric fields, such as a microwave oven or refrigerator.

•During thunderstorms, power off your device to protect against lightning strikes.

•Do not use your device during thunderstorms to protect your device against any danger caused by lightning.

3

•Ideal operating temperatures are 0°C to 40°C. Extreme heat or cold may damage your device or accessories.

•Keep the device and accessories in a well-ventilated and cool area away from direct sunlight. Do not enclose or cover your device with towels or other objects. Do not place the device in a container with poor heat dissipation, such as a box or bag.

•To protect your device or accessories from fire or electrical shock hazards, avoid rain and moisture.

•Keep the device away from sources of heat and fire, such as a heater, microwave oven, stove, water heater, radiator, or candle.

•Observe local laws and regulations, and respect the privacy and legal rights of others.

4
