AP8130DN
Product Description
Issue 02
Date 2014-12-05
HUAWEI TECHNOLOGIES CO., LTD.
Copyright © Huawei Technologies Co., Ltd. 2014. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied.
The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute a warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website: http://enterprise.huawei.com
Issue 02 (2014-12-05) |
Huawei Proprietary and Confidential |
i |
|
Copyright © Huawei Technologies Co., Ltd. |
|||
|
|
AP8130DN |
|
Product Description |
Contents |
Contents
1 Product Positioning and Characteristics |
...................................................................................1 |
|
1.1 |
Product Positioning .......................................................................................................................................... |
1 |
1.2 |
Product Characteristics..................................................................................................................................... |
6 |
2 Hardware Structure....................................................................................................................... |
9 |
|
2.1 AP8130DN ....................................................................................................................................................... |
9 |
|
3 Product Features .......................................................................................................................... |
14 |
|
3.1 WLAN Features ............................................................................................................................................. |
14 |
|
3.2 |
Network Features ........................................................................................................................................... |
15 |
3.3 |
QoS Features .................................................................................................................................................. |
15 |
3.4 |
Security Features ............................................................................................................................................ |
15 |
3.5 |
Maintenance Features..................................................................................................................................... |
16 |
3.6 BYOD ............................................................................................................................................................ |
16 |
|
3.7 |
Locating Service............................................................................................................................................. |
17 |
3.8 |
Spectrum Analysis.......................................................................................................................................... |
17 |
4 Technical Specifications ........................................................................................................ |
xviii |
|
4.1 |
Basic Specifications .................................................................................................................................... |
xviii |
4.2 |

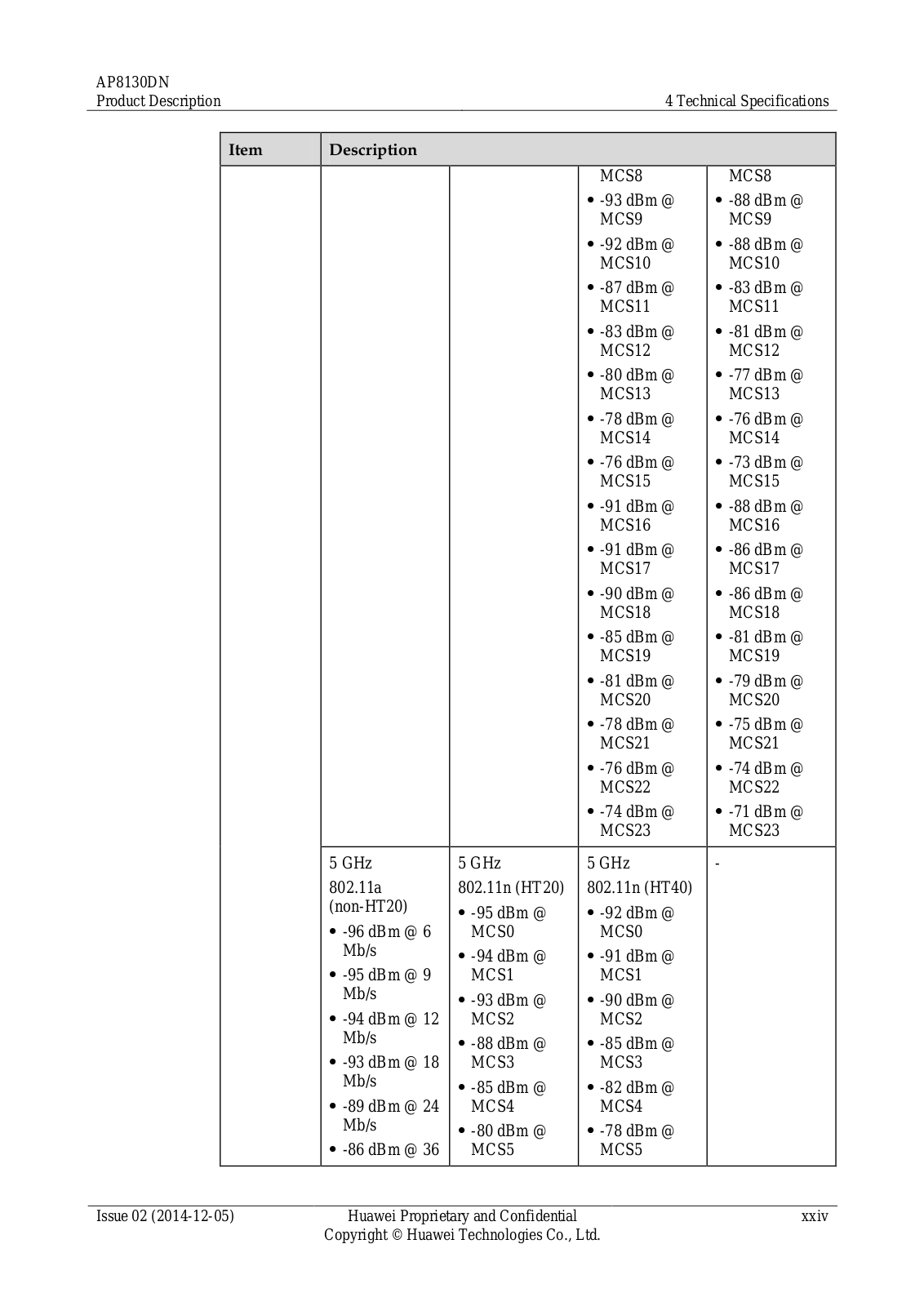

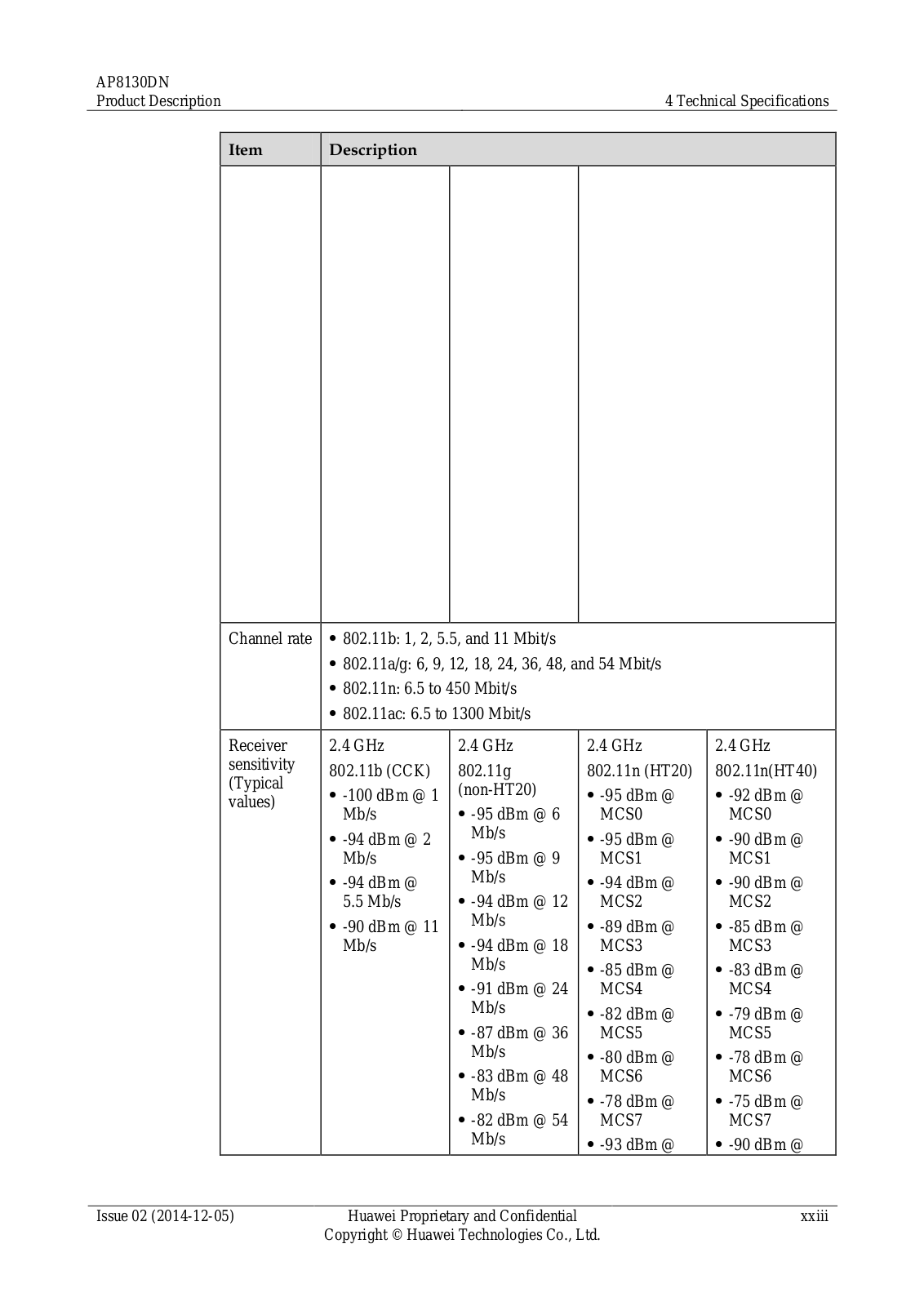

Radio Specifications...................................................................................................................................... |
xix |

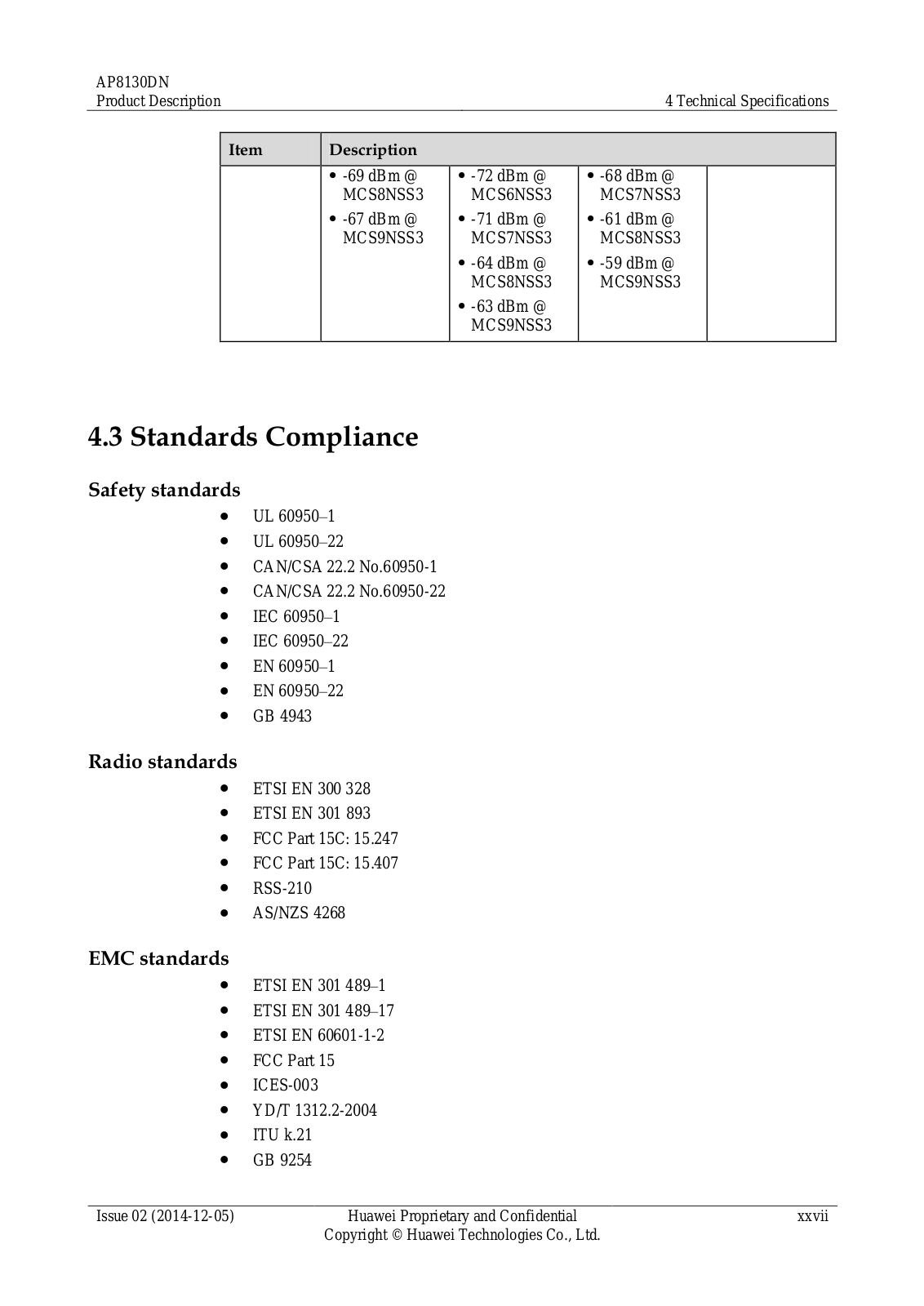

4.3 |
Standards Compliance ................................................................................................................................ |
xxvii |
Issue 02 (2014-12-05) |
Huawei Proprietary and Confidential |
ii |
|
Copyright © Huawei Technologies Co., Ltd. |
|
AP8130DN |
|
Product Description |
1 Product Positioning and Characteristics |
1 Product Positioning and Characteristics
1.1 Product Positioning
Table 1-1 Product positioning
|
Product |
|
|
Frequency |
IEEE |
|
|
Positioning |
|
|
Usage |
|
Model |
|
|
Band |
Standard |
|
|
|
|
|
Scenario |
|
|
|
|
|
Compliance |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AP8130DN |
|
|
Dual band: |
IEEE |
|
|
Huawei |
|
|
Huawei |
|
|
|
|
2.4 GHz |
802.11a/b/g/n/a |
|
|
AP8030DN, |
|
|
AP8130DNs |
|
|
|
|
5 GHz |
c |
|
|
physically |
|
|
comply with |
|
|
|
|
|
|
|
hardened, |
|
|
IP67 dustproof |
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
The AP8130DN |
|
|
|
supports 3x3 |
|
|
and waterproof |
|
|
|
|
can provide |
|
|
|
MIMO and |
|
|
protection |
|
|
|
|
services |
|
|
|
offers enhanced |
|
|
standards, |
|
|
|
|
simultaneously |
|
|
|
outdoor |
|
|
applicable to |
|
|
|
|
on the 2.4 GHz |
|
|
|
coverage |
|
|
coverage |
|
|
|
|
and 5 GHz |
|
|
|
performance. |
|
|
scenarios (for |
|
|
|
|
frequency |
|
|
|
The AP can |
|
|
example, |
|
|
|
|
bands to |
|
|
|
provide services |
|
|
squares, |
|
|
|
|
support more |
|
|
|
simultaneously |
|
|
pedestrian |
|
|
|
|
access users. |
|
|
|
on the 2.4 GHz |
|
|
streets, and |
|
|
|
|
It supports |
|
|
|
and 5 GHz |
|
|
amusement |
|
|
|
|
|
|
|
frequency |
|
|
parks) and |
|
|
|
|
|
2.4G-to-5G |
|
|
|
|
|
||
|
|
|
|
|
|
|
bands to |
|
|
bridging |
|
|
|
|
|
switchover and |
|
|
|
|
|
||
|
|
|
|
|
|
|
support more |
|
|
scenarios (for |
|
|
|
|
|
works on dual 5 |
|
|
|
|
|
||
|
|
|
|
|
|
|
access users. It |
|
|
example, |
|
|
|
|
|
GHz frequency |
|
|
|
|
|
||
|
|
|
|
|
|
|
provides |
|
|
wireless |
|
|
|
|
|
bands. |
|
|
|
|
|
||
|
|
|
|
|
|
|
comprehensive |
|
|
harbors, data |
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
service support |
|
|
backhaul, video |
|
|
|
|
|
|
|
|
capabilities and |
|
|
surveillance, |
|
|
|
|
|
|
|
|
features high |
|
|
and |
|
|
|
|
|
|
|
|
reliability, high |
|
|
train-to-ground |
|
|
|
|
|
|
|
|
security, simple |
|
|
backhaul). |
|
|
|
|
|
|
|
|
network |
|
|
|
|
|
|
|
|
|
|
|
deployment, |
|
|
|
|
|
|
|
|
|
|
|
automatic AC |
|
|
|
|
|
|
|
|
|
|
|
discovery and |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Issue 02 (2014-12-05) |
|
Huawei Proprietary and Confidential |
|
|
|
1 |
|||||
|
|
Copyright © Huawei Technologies Co., Ltd. |
|
|
|
AP8130DN |
|
|
|
|
|
|
Product Description |
|
|
1 Product Positioning and Characteristics |
|||
|
|
|
|
|
|
|
|
Product |
Frequency |
IEEE |
|
Positioning |
Usage |
|
Model |
Band |
Standard |
|
|
Scenario |
|
|
|
Compliance |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
configuration, |
|
|
|
|
|
|
and real-time |
|
|
|
|
|
|
management |
|
|
|
|
|
|
and |
|
|
|
|
|
|
maintenance, |
|
|
|
|
|
|
which meets |
|
|
|
|
|
|
requirements of |
|
|
|
|
|
|
outdoor |
|
|
|
|
|
|
deployment. |
|
|
|
|
|
|
|
|
The AP8130DN can work as a Fat AP or Fit AP and switch flexibly between the two working modes based on the network plan.
When the wireless network scale is small, customers need to purchase only AP products and set the APs to work as Fat APs. As the network scale expands, tens of or hundreds of APs exist on the network. To simplify network management, customers are advised to purchase ACs to perform centralized management on the APs and set the APs to work as Fit APs.
Typical networking modes are as follows:
Issue 02 (2014-12-05) |
Huawei Proprietary and Confidential |
2 |
|
Copyright © Huawei Technologies Co., Ltd. |
|
AP8130DN |
|
Product Description |
1 Product Positioning and Characteristics |
Figure 1-1 Fit AP networking (AP mode)
NMS |
Authentication system |
AC
Switch
AP1 |
…… |
AP n |
STA |
STA |
Residential |
Business |
|
users |
users |
|||
|
|
Management channel between
NMS and AC
Management channel between the AC and the AP and data channel Where data flows are encapsulated with CAPWAP
Channel where data flows are not encapsulated with CAPWAP
In this networking, the AP functions as a fit AP and provides only data forwarding functions. The AC is responsible for user access, AP go-online, AP management, authentication, routing, security, and QoS.Huawei AC products include the AC6605, AC6005, and Access Controller Unit (ACU2).
Issue 02 (2014-12-05) |
Huawei Proprietary and Confidential |
3 |
|
Copyright © Huawei Technologies Co., Ltd. |
|
AP8130DN |
|
Product Description |
1 Product Positioning and Characteristics |
Figure 1-2 Fit AP networking (WDS mode: point-to-point)
Figure 1-3 Fit AP networking (WDS mode: point-to-multipoint)
In this networking, the AP connects two or more independently wired or wireless LANs through wireless links to construct a network on which users can exchange data. In Wireless Distribution System (WDS) mode, the AP supports point-to-point (P2P) and point-to-multipoint (P2MP) networking modes. With 5 GHz and 2.4 GHz frequency bands, the AP can implement wireless bridging and access functions.
Issue 02 (2014-12-05) |
Huawei Proprietary and Confidential |
4 |
|
Copyright © Huawei Technologies Co., Ltd. |
|
AP8130DN |
|
Product Description |
1 Product Positioning and Characteristics |
Figure 1-4 Fit AP mesh networking
On the preceding network, APs function as mesh points (MPs) and are fully-meshed to establish an auto-configured and self-healing wireless mesh network (WMN). APs with the gateway function can work as the mesh portal points (MPPs) through which the WMN can provide access to the Internet. Terminals connect to APs to access the WMN. The WMN uses dedicated mesh routing protocols to guarantee high transmission quality and is more applicable to scenarios that require high bandwidth and highly stable Internet connections.
Issue 02 (2014-12-05) |
Huawei Proprietary and Confidential |
5 |
|
Copyright © Huawei Technologies Co., Ltd. |
|
AP8130DN |
|
Product Description |
1 Product Positioning and Characteristics |
Figure 1-5 Fat AP networking
Switch
AP1 |
…… |
AP n |
STA |
STA |
STA |
STA |
On the preceding network, the device functions as a Fat AP to implement functions such as user access, authentication, data security, service forwarding, and QoS.
1.2 Product Characteristics
|
Product |
|
|
Description |
|
|
Characteristics |
|
|
|
|
|
|
|
|
|
|
|
High-speed and |
|
|
Complies with IEEE 802.11a/b/g/n/ac. |
|
|
reliable wireless |
|
|
Supports 3×3 MIMO and provides a maximum rate of 1.75 Gbit/s. |
|
|
access |
|
|
Supports Wi-Fi Multimedia (WMM) and priority mapping on the |
|
|
|
|
|
|
|
|
|
|
|
air interface and wired interface. |
|
|
|
|
|
Supports wired link integrity check. |
|
|
|
|
|
Provides two GE auto-sensing uplink electrical ports and supports |
|
|
|
|
|
PoE power supply. |
|
|
|
|
|
Supports load balancing. |
|
|
|
|
|
Supports roaming without service interruption in Fit AP mode. |
|
|
|
|
|
Supports AC dual-link backup in Fit AP mode. |
|
|
|
|
|
Uses the latest 802.11ac chip to provide higher performance and |
|
|
|
|
|
wider coverage. |
|
|
|
|
|
Uses a metal shell and heat dissipation design to ensure high |
|
|
|
|
|
reliability. |
|
|
|
|
|
|
|
|
|
|
|
|
|
Issue 02 (2014-12-05) |
Huawei Proprietary and Confidential |
6 |
Copyright © Huawei Technologies Co., Ltd.
AP8130DN |
|
|
|
|
Product Description |
|
1 Product Positioning and Characteristics |
||
|
|
|
|
|
|
Product |
|
Description |
|
|
Characteristics |
|
|
|
|
|
|
|
|
|
|
|
Supports airtime scheduling which ensures fairness in channel |
|
|
|
|
occupation time for all users. |
|
|
|
|
|
|
|
Comprehensive |
|
Supports access control lists (ACLs) and implements user access |
|
|
user access control |
control based on the user group policy. |
|
|
|
capability |
|
Provides fine-grained bandwidth management for each user. |
|
|
|
|
Supports user isolation policies. |
|
|
|
|
Supports unified authentication on the AC in Fit AP mode. |
|
|
|
|
Identifies the device type according to the organizationally unique |
|
|
|
|
identifier (OUI) in the MAC address, user agent (UA) information |
|
|
|
|
in an HTTP packet, and DHCP options in Fit AP mode. |
|
|
|
|
The RADIUS server delivers packet forwarding, security, and QoS |
|
|
|
|
policies according to the device type carried in the RADIUS |
|
|
|
|
authentication and accounting packets in Fit AP mode. |
|
|
|
|
|
|
|
High network |
|
Open system authentication |
|
|
security |
|
WEP authentication/encryption |
|
|
|
|
WPA/WPA2/WPA-WPA2-PSK authentication and encryption |
|
|
|
|
WPA/WPA2/WPA-WPA2-802.1x authentication and encryption |
|
|
|
|
WPA, WPA2, and WPA-WPA2 support TKIP and CCMP |
|
|
|
|
encryption algorithms, where CCMP uses 128-bit advanced |
|
|
|
|
encryption standard (AES) encryption algorithm and has high |
|
|
|
|
security. |
|
|
|
|
WAPI authentication and encryption |
|
|
|
|
Supports wireless intrusion detection system (WIDS) and wireless |
|
|
|
|
intrusion prevention system (WIPS), including rogue device |
|
|
|
|
detection and countermeasure, attack detection and dynamic |
|
|
|
|
blacklist, STA/AP blacklist and whitelist. |
|
|
|
|
|
|
|
Flexible |
|
Provides flexible networking capabilities and applies to various |
|
|
networking and |
|
application scenarios. Mesh and WDS scenarios are supported only |
|
|
environment |
|
in Fit AP mode. |
|
|
adaptability |
|
Has strong environment adaptability. The AP can automatically |
|
|
|
|
select the transmission rates, channels, and transmit power to adapt |
|
|
|
|
to various radio environments and avoid interference in real time. |
|
|
|
|
Adjusts bandwidth allocation based on the user quantity and |
|
|
|
|
environment to improve user experience. |
|
|
|
|
Supports the MIMO antenna system and connects to external |
|
|
|
|
dual-band antennas (2.4 GHz and 5 GHz). The antennas can be |
|
|
|
|
flexibly adjusted. |
|
|
|
|
Identifies interference sources such as baby monitors, Bluetooth |
|
|
|
|
devices, digital cordless phones (at 2.4 GHz frequency band only), |
|
|
|
|
wireless audio transmitters (at both the 2.4 GHz and 5 GHz |
|
|
|
|
frequency bands), wireless game controllers, and microwaves in Fit |
|
|
|
|
AP mode and works with eSight to locate interference sources and |
|
|
|
|
display spectrums. |
|
|
|
|
|
|
|

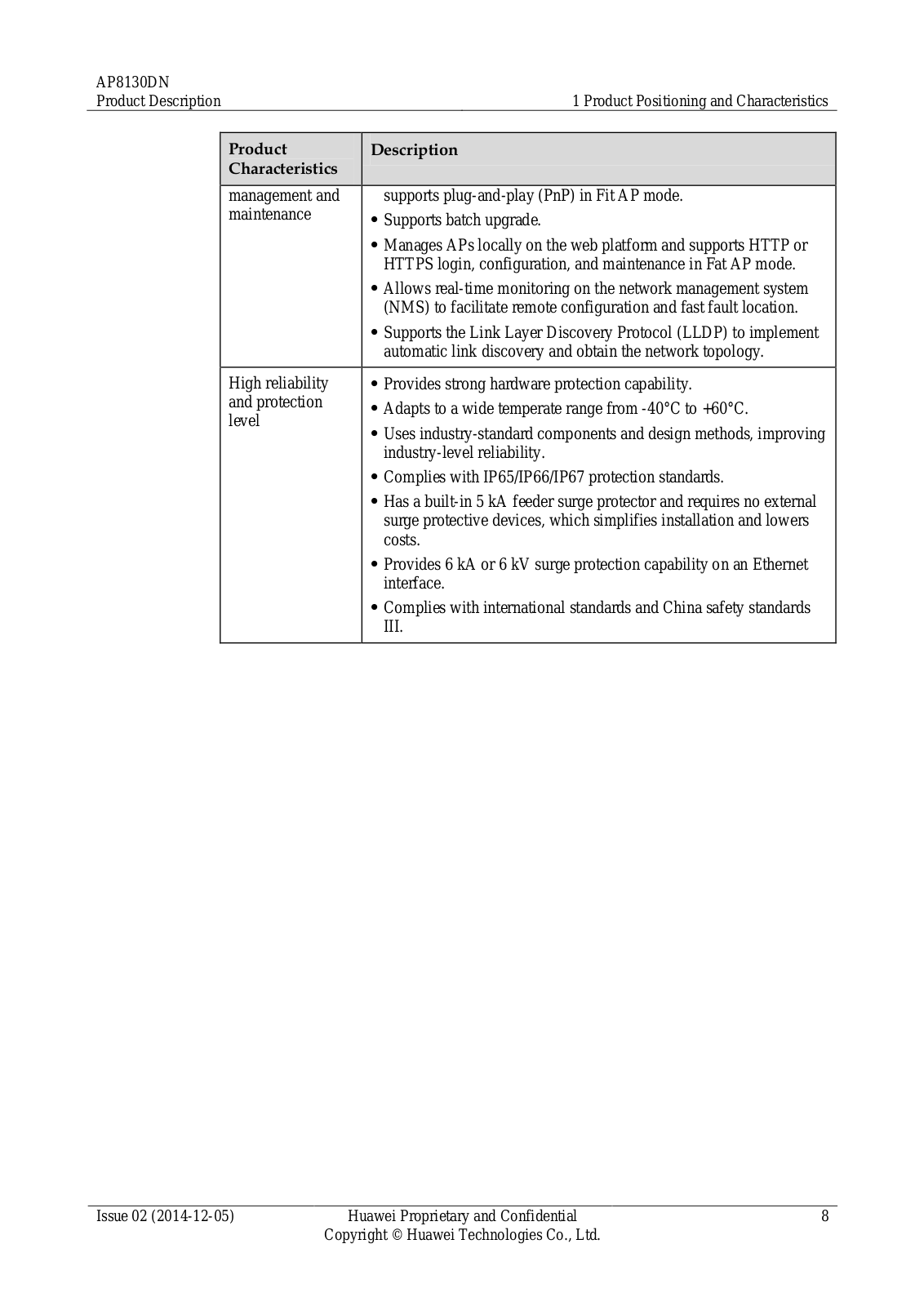

Easy device |
|
Automatically goes online and loads the configuration, and |
|
|
|
|
|
|
Issue 02 (2014-12-05) |
