HTC PC36100 User Manual

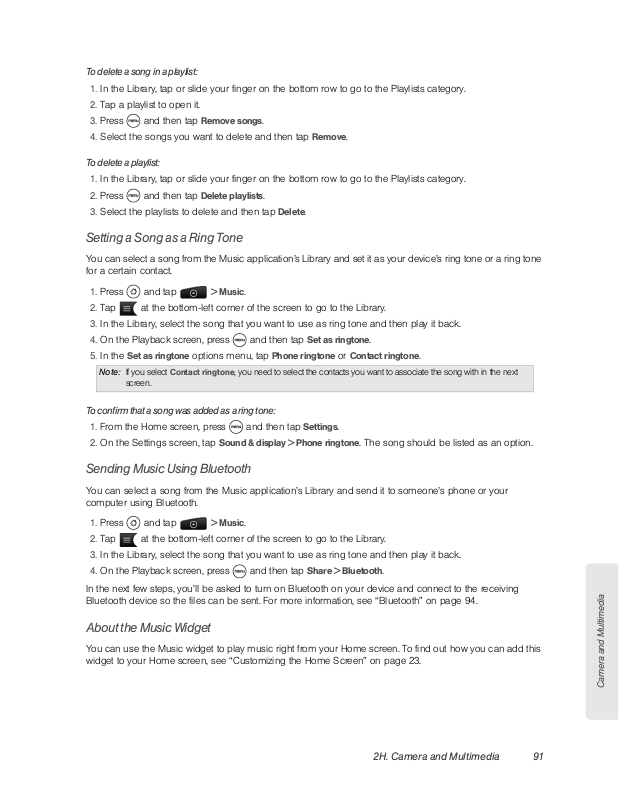

To delete a song in a playlist:
1. In the Library, tap or slide your finger on the bottom row to go to the Playlists category.
2. Tap a playlist to open it.
3. Press and then tap Remove songs.
4. Select the songs you want to delete and then tap Remove.
To delete a playlist:
1. In the Library, tap or slide your finger on the bottom row to go to the Playlists category.
2. Press and then tap Delete playlists.
3. Select the playlists to delete and then tap Delete.
Setting a Song as a Ring Tone
You can select a song from the Music application’s Library and set it as your device’s ring tone or a ring tone
for a certain contact.
1. Press and tap > Music.
2. Tap at the bottom-left corner of the screen to go to the Library.
3. In the Library, select the song that you want to use as ring tone and then play it back.
4. On the Playback screen, press and then tap Set as ringtone.
5. In the Set as ringtone options menu, tap Phone ringtone or Contact ringtone.
Note: If you select Contact ringtone, you need to select the contacts you want to associate the song with in the next
screen.
To confirm that a song was added as a ring tone:
1. From the Home screen, press and then tap Settings.
2. On the Settings screen, tap Sound & display > Phone ringtone. The song should be listed as an option.
Sending Music Using Bluetooth
You can select a song from the Music application’s Library and send it to someone’s phone or your
computer using Bluetooth.
1. Press and tap > Music.
2. Tap at the bottom-left corner of the screen to go to the Library.
3. In the Library, select the song that you want to use as ring tone and then play it back.
4. On the Playback screen, press and then tap Share > Bluetooth.
In the next few steps, you’ll be asked to turn on Bluetooth on your device and connect to the receiving
Bluetooth device so the files can be sent. For more information, see “Bluetooth” on page 94.
About the Music Widget
You can use the Music widget to play music right from your Home screen. To find out how you can add this
widget to your Home screen, see “Customizing the Home Screen” on page 23.
Camera and Multimedia
2H. Camera and Multimedia 91
Listening to the Radio
2
1
4
3
9
5
7
6
8
10
FM Radio lets you listen to FM radio stations on your phone. You will first need to connect a wired headset to
the audio jack of your device to use FM Radio. FM Radio uses the stereo headset as the FM radio antenna.
Note: A wired headset is not included with your device. It must be purchased separately.
1. FM radio frequency
2. Drag to tune in to a frequency on the FM band.
3. Tap to fine tune the radio frequency by -0.1 MHz.
4. Tap to search the FM band for the previous FM station.
5. View the All presets list.
6. Tap to change the name of the current station you are tuned into.
7. Tap to search the FM band for the next FM station.
8. Tap to fine tune the radio frequency by +0.1 MHz.
9. Radio signal strength
10. Turn FM Radio off or on.
Listening to an FM Station
1. Press and then tap > FM Radio.
The first time you open FM Radio, it automatically scans for available FM stations, saves them as presets,
and plays the first FM station found.
Note: To repeat scanning and saving of FM stations, press , and then tap Scan & Save.
2. Press to stop the auto-scan.
3. On the FM Radio screen, you can:
䡲 Tap and then select a station you want to listen to.
䡲 Tap to go to the previous available FM station, or to go to the next available FM station.
䡲 Press the volume buttons on the side of the phone to adjust the volume.
䡲 Press to set more FM Radio options.
92 2H. Camera and Multimedia
Adding Station Names
1. Press and then tap > FM Radio.
2. Tune in to the desired FM station, and then tap .
3. Enter a station name for the selected FM station, and then tap Save.
Minimizing or Turning Off FM Radio
䊳 Do one of the following:
䡲 Press to minimize and keep FM Radio running in the background so you can listen to the radio
while going to another screen.
䡲 On the FM Radio screen, tap on the upper-right corner of the FM Radio screen to turn off FM
Radio.
2H. Camera and Multimedia 93
Camera and Multimedia
⽧ Turning Bluetooth On or Off (page 94)
2I. Bluetooth
⽧ Changing the Device Name (page 94)
⽧ Connecting a Bluetooth Headset or Car Kit (page 94)
⽧ Reconnecting a Headset or Car Kit (page 95)
⽧ Disconnecting or Unpairing From a Bluetooth Device (page 95)
⽧ Sending and Receiving Information Using Bluetooth (page 96)
⽧ Adding the Bluetooth Received Folder to the Home Screen (page 98)
Using Bluetooth
Bluetooth is a short-range communications technology that allows you to connect wirelessly to a number of
Bluetooth devices, such as headsets and hands-free car kits, and Bluetooth-enabled handhelds, computers,
printers, and wireless phones. The Bluetooth communication range is usually up to approximately 30 feet.
Turning Bluetooth On or Off
1. Press > , and then tap Settings > Wireless & networks.
2. Select or clear the Bluetooth check box.
An even easier way to turn Bluetooth on or off is with the Bluetooth widget on the Home screen.
For instructions on adding a widget to the Home screen, see “Customizing the Home Screen” on page 23.
Note: Turn off Bluetooth when not in use to conserve battery power, or in places where using a wireless device is
prohibited, such as aboard an aircraft and in hospitals.
Changing the Device Name
The device name identifies your device to other devices.
1. Press > , and then tap Settings > Wireless & networks.
2. If the Bluetooth check box is not selected, select it to turn Bluetooth on.
3. Tap Bluetooth settings > Device name.
4. Enter the name for your device in the dialog box, and then tap OK.
Connecting a Bluetooth Headset or Car Kit
You can listen to music over an Bluetooth stereo headset, or have hands-free conversations using a
compatible Bluetooth headset or car kit. It’s the same procedure to set up stereo audio and hands-free
devices.
For you to listen to music with your headset or car kit, the headset or car kit must support the A2DP
Bluetooth profile.
1. Press > , and then tap Settings > Wireless & networks > Bluetooth settings.
2. If Bluetooth is not switched on, tap the Bluetooth check box to switch it on.
94 2I. Bluetooth
3. Make sure that the headset is discoverable, so that your device can find the headset. Refer to the
instructions that came with the headset to find out how to set it in discoverable mode.
4. Tap Scan for devices. Your device will start to scan for Bluetooth devices within range.
5. When you see the name of your headset displayed in the Bluetooth devices section, tap the name.
Your device then automatically tries to pair with the headset.
6. If automatic pairing fails, enter the passcode supplied with your headset.
The pairing and connection status is displayed below the hands-free headset or car kit name in the
Bluetooth devices section. When the Bluetooth headset or car kit is connected to your device, the Bluetooth
connected icon is displayed in the status bar. Depending on the type of headset or car kit you have
connected, you can then start using the headset or car kit to listen to music or make and receive phone
calls.
Reconnecting a Headset or Car Kit
When you have paired a headset with your device, you should be able to reconnect it automatically by
turning on Bluetooth on your device, and then turning on the headset. However, sometimes you will need to
reconnect manually, for example if you have been using your headset with another Bluetooth device.
1. Press > , and then tap Settings > Wireless & networks > Bluetooth settings.
2. If Bluetooth is not switched on, tap the Bluetooth check box to switch it on.
3. Make sure that the headset is discoverable.
4. Tap the headset’s name in the Bluetooth devices section.
5. If prompted to enter a passcode, try 0000 or 1234, or consult the headset/car kit documentation to find
the passcode.
Bluetooth
If you still cannot reconnect to the headset or car kit, follow the instructions in “Disconnecting or Unpairing
From a Bluetooth Device” in this chapter, and then follow the instructions in “Connecting a Bluetooth
Headset or Car Kit.”
Disconnecting or Unpairing From a Bluetooth Device
To disconnect a Bluetooth device:
1. Press > , and then tap Settings > Wireless & networks > Bluetooth settings.
2. In the Bluetooth devices section, press and hold the device to disconnect.
3. Tap Disconnect.
To unpair from a Bluetooth device:
You can make your device forget its pairing connection with another Bluetooth device. To connect to the
other device again, you may need to enter or confirm a passcode again.
1. Press > , and then tap Settings > Wireless & networks > Bluetooth settings.
2. In the Bluetooth devices section, press and hold the device to unpair.
3. Tap Unpair.
2I. Bluetooth 95
Sending and Receiving Information Using Bluetooth
You can use Bluetooth to transfer information between your device and another Bluetooth-enabled device
such as a phone or notebook computer. The first time you transfer information between your device and
another device, you need to enter or confirm a security passcode. After that, your device and the other
device are paired, and you will not need to exchange passcodes to transfer information in the future.
Sending Information From Your Device to Another Device
You can send the following types of information, depending on the device you are sending to:
䡲 Images and videos
䡲 Calendar events
䡲 Contacts
䡲 Audio files
1. Set the receiving device to discoverable mode. You may also need to set it to “Receive Beams” or
“Receive Files”. Refer to the device’s documentation for instructions on receiving information over
Bluetooth.
2. On the device, open the application that contains the information or file you want to send. For example, if
you want to send a photo, press and tap
3. Follow the steps for the type of item you want to send:
䡲 Photo or video (in Camera). After capturing a photo, on the preview screen, tap the Share button ,
and then tap
䡲 Photos and videos (in Gallery). On the Albums tab , tap an album. Tap the Share button , tap
Bluetooth.
Bluetooth, select the items you want to share, and then tap
䡲 Calendar event. In the Calendar’s Day view, Agenda view, or Week view, press and hold the event, and
then tap
䡲 Contact. On the People screen’s All tab , press and hold the contact, and then tap Send contact as
vCard
䡲 Music track. With the track displayed on the Now playing screen, press , and then tap
Share vCalendar > Bluetooth.
. Tap the down arrow icon, and then select Bluetooth from the displayed list.
Share > Bluetooth.
䡲 Voice recording. On the main Voice Recorder screen, tap the Share button , and then tap Bluetooth.
4. If you are prompted to turn on Bluetooth, tap Yes .
5. Tap the name of the receiving device.
6. If prompted, accept the connection on the receiving device, and enter the same passcode on both your
device and the other device, or confirm the auto-generated passcode.
7. On the receiving device, accept the file.
The location where the information is saved depends on the type of information and the receiving device:
> Gallery.
Next.
䡲 If you send a calendar event or contact, it is normally added directly to the corresponding application
on the receiving device. For example, if you send a calendar event to a compatible phone, the event is
shown in that phone’s calendar application.
䡲 If you send another file type to a Windows computer, it is normally saved in the Bluetooth Exchange
folder within your personal document folders.
● On Windows XP, the path may be: C:\Documents and Settings\[your username]\
My Documents\Bluetooth Exchange.
● On Windows Vista, the path may be: C:\Users\[your username]\Documents.
䡲 If you send a file to another device, the saved location may depend on the file type. For example, if you
send an image file to another wireless phone, it may be saved in a folder named “Images.”
96 2I. Bluetooth
Receiving Information From Another Device
Your device is capable of receiving a wide variety of file types with Bluetooth, including photos, music tracks,
and documents such as PDFs.
To receive files from another device, you need to have a microSD card installed in your device.
1. Press > , and then tap Settings > Wireless & networks > Bluetooth settings.
2. If Bluetooth is not switched on, tap the Bluetooth check box to switch it on.
3. Tap t h e Discoverable check box.
4. On the sending device, send one or more files to your device. Refer to the device’s documentation for
instructions on sending information over Bluetooth.
5. If prompted, enter the same passcode on both your device and the other device, or confirm the auto-
generated passcode. A Bluetooth authorization request is displayed on your device.
6. If you want to automatically receive files from the sending device in future, select the Always trust device
check box.
7. Ta p OK.
8. When your device receives a file transfer request notification, slide down the notifications panel, and then
tap
Accept.
9. When a file is transferred, a notification is displayed. To open the file immediately, slide down the
notifications panel, and then tap the relevant notification.
When you open a received file, what happens next depends on the file type:
䡲 Media files and documents are usually opened directly in a compatible application. For example, if you
open a music track, it starts playing in the Music application.
䡲 For a vCalendar file, select the calendar where you want to save the event, and then tap Import.
The vCalendar is added to your Calendar events. For more information on using Calendar, see
“Calendar” on page 54.
䡲 For a vCard contact file, if there are multiple vCard files on your storage card, you can choose to import
one, several, or all of those contacts to your contacts list.
Bluetooth
Using Bluetooth FTP Server
Bluetooth FTP Server allows other devices with Bluetooth FTP profile to view, access, copy, and delete files
from your device’s microSD card.
Note: To use Bluetooth FTP Server, you need to have a microSD card installed in your device.
To turn Blueooth FTP Server on and allow access to the microSD card contents:
1. Press > , and then tap Settings > Wireless & networks > Bluetooth settings > Advanced Settings.
2. Select the FTP Server check box.
3. Pair your device with the other Bluetooth device that wants to access the microSD card contents.
For more information about Bluetooth pairing, see “Connecting a Bluetooth Headset or Car Kit.”
4. When the other device attempts to access your device’s microSD card, a Bluetooth Authorization
Request appears on the screen. Tap
your device’s microSD card, select the
The microSD card contents appear on the other device’s screen.
Accept. If you want to allow the connecting device to always access
Always check box before you tap Accept.
2I. Bluetooth 97
Adding the Bluetooth Received Folder to the Home Screen
You can add a folder to the Home screen that shows all files you have received with Bluetooth.
1. Press and tap .
2. On the Add to Home screen, tap Folder > Bluetooth Received.
3. Press and hold the Bluetooth received folder icon, and drag it to the Home screen position you want.
4. To view the folder contents, tap the folder icon. To open a file, tap the file name.
98 2I. Bluetooth
Section 3
Sprint Service
⽧ Voicemail (page 100)
3A. Sprint Service: The Basics
⽧ Text Messaging (SMS) and Multimedia Messaging (MMS) (page 102)
⽧ Caller ID (page 108)
⽧ Call Waiting (page 108)
⽧ Making a 3-Way Call (page 108)
⽧ Call Forwarding (page 108)
⽧ Roaming (page 109)
Voicemail
Setting Up Your Voicemail
Your device automatically transfers all unanswered calls to your voicemail, even if your device is in use or
turned off. You should set up your Sprint Voicemail and personal greeting as soon as your device is
activated.
1. Press and tap > Voicemail.
2. In the Personalize your Voicemail window, tap Personalize now.
3. Your device will automatically connect with Sprint Voicemail service. Follow the voice prompts to:
䡲 Create your passcode.
䡲 Record your name announcement.
䡲 Record your greeting.
Note: Voicemail Passcode
Sprint strongly recommends that you create a passcode when setting up your voicemail to protect against
unauthorized access. Without a passcode, anyone who has access to your handset is able to access your voicemail
messages.
Voicemail Notification
There are several ways your device alerts you to a new message:
䢇 By sounding the assigned ringer type.
䢇 By displaying at the top of your screen.
䢇 By flashing the notification LED (if enabled).
New Voicemail Message Alerts
When you receive a new voice message, you will see a message in the Notification panel (see “Notifications
Panel” on page 11).
100 3A. Sprint Service: The Basics
Note: When you are roaming off the Nationwide Sprint Network, you may not receive notification of new voicemail messages.
Sprint recommends that you periodically check your voicemail by dialing 1 + area code + your wireless phone
number. When your voicemail answers, press and enter your passcode. Roaming rates apply when you
access voicemail while roaming off the Nationwide Sprint Network.
Your device accepts messages even when it is turned off. However, your device notifies you of new messages only
when it is turned on and you are in a Sprint service area.
Retrieving Your Voicemail Messages
You can review your messages directly from your wireless device or from any other touch-tone phone.
Using Your Device
1. Press and tap > Voicemail.
2. Tap on a message to play it back.
Using Another Phone to Access Messages
1. Dial your wireless phone number.
2. When your voicemail answers, tap .
3. Enter your passcode.
Tip: When you call voicemail from another phone, you first hear the header information (date, time, and sender information)
for the message. To skip directly to the message, tap during the header.
Clearing the Message Icon
Your device may temporarily continue to display the message icon after you have checked your voice and
text messages.
䊳 Open the Notifications panel (see “Notifications Panel” on page 11) and tap Clear notifications.
Voicemail Key Guide
Here’s a quick guide to your keypad functions while listening to voicemail messages.
Date/Time Send Reply Advance
Replay Rewind Forward
Erase Return Call Save
Cancel Help Skip
Sprint Service: The Basics
3A. Sprint Service: The Basics 101
Text Messaging (SMS) and Multimedia Messaging (MMS)
With Text Messaging (SMS), you can send and receive instant text messages between your wireless device
and another messaging-ready phone.
In addition, Text Messaging includes a variety of preset messages, such as “I’m running late, I’m on my way,”
that make composing messages fast and easy. Use your device to customize your own preset messages
(up to 160 characters).
Multimedia messages, or MMS, can contain text and pictures, recorded voice, audio or video files, picture
slideshows, contact cards (vCard), or appointments (vCalendar).
Note: See your service plan for applicable charges for Text Messaging and SMS Voice Messaging.
Composing Text Messages
1. Press and tap > Messages.
On the All messages screen, tap New message. The Compose screen opens.
2.
3. Fill in one or more recipients. You can:
䡲 Enter phone numbers directly in the To field. If you’re sending the message to several phone numbers,
separate the phone numbers with a comma. As you enter information, any matching phone numbers
from your contacts list are displayed. Tap a match to enter that number or address directly.
䡲 Tap the icon, and then select the phone numbers of the contacts to whom you want to send the
message. You can also select contact groups as recipients. When you have selected all the message
recipients, tap
4. Tap the “Tap to compose” text box and then start composing your message.
Done.
Note: A counter appears at the top of the Send button to tell you how many characters you have entered and how many
characters are left. Once you go over the 160-character limit, a new message is created but automatically joined
into one when received.
Tap the navigation buttons at the bottom of the onscreen keyboard to navigate between text fields.
5. When done, tap Send to send the text message.
102 3A. Sprint Service: The Basics
Preset Messages
Preset messages make it easy to compose text messages.
To add or edit preset messages:
1. Press and tap > Messages.
On the All messages screen, tap New message. The Compose screen opens.
2.
3. Fill in one or more recipients. You can:
䡲 Enter phone numbers directly in the To field. If you’re sending the message to several phone numbers,
separate the phone numbers with a comma. As you enter information, any matching phone numbers
from your contacts list are displayed. Tap a match to enter that number or address directly.
䡲 Tap the icon, and then select the phone numbers of the contacts to whom you want to send the
message. You can also select contact groups as recipients. When you have selected all the message
recipients, tap
4. Tap the “Tap to compose” text box, press and tap Quick text. (You will see the list of preset
messages.)
5. To add a new message, press and tap Insert.
Enter your message and tap
– or –
To edit a preset message, press and tap
Tap the message you want to edit, edit the message, and then tap
Done.
OK.
Edit.
OK.
Sending a Multimedia Message (MMS)
1. Press and tap > Messages.
On the All messages screen, tap New message. The Compose screen opens.
2.
3. Fill in one or more recipients. You can:
䡲 Enter phone numbers or email addresses directly in the To field. If you’re sending the message to
several recipients, separate the phone numbers or email addresses with a comma. As you enter
information, any matching phone numbers or addresses from your contacts list are displayed. Tap a
match to enter that number or address directly.
䡲 Tap the icon, and then select the contacts to whom you want to send the message. You can also
select contact groups as recipients. When you have selected all the message recipients, tap
Note: You can add a subject line by pressing and then tapping Add subject.
4. Tap the text box that contains the text “Tap to compose”, and then start composing your message.
5. Press and then tap Attach.
6. On the Attach window, select from the following file attachments:
䡲 Picture. Select Camera to take a photo and attach it, or Pictures to attach a photo from your storage card.
䡲 Video. Select Camcorder to capture a video and attach it, or Videos to attach a video from your storage
card.
䡲 Audio. Select Voice Recorder to make a voice recording and attach it, or Music & sounds to attach a
music file or voice recording from your storage card.
䡲 Location. You can attach location information. Send your current location (requires GPS to be turned
on), a location stored in Footprints, or a location you pick on a map. For more information about GPS,
maps, and Footprints, see “GPS Navigation” on page 155.
䡲 Contact (vCard). Select a contact from your phone, and then select which contact information you want
to attach.
䡲 Appointment (vCalendar). Select the calendar event you want to attach.
Done.
Sprint Service: The Basics
3A. Sprint Service: The Basics 103
䡲 Slideshow. Opens the Edit slideshow screen. Tap Add slide to create a new slide. Tap the created slide
(for example, Slide 1), tap
can also navigate to the text box and enter a caption for the picture. When finished, tap
Insert picture, and then select the picture you want to add to the slide. You
Done to attach
the slideshow to your message.
Tip: When editing multiple slides, tap to edit the next slide or tap to return to the previous slide.
While editing the slideshow, press to let you preview the slideshow, add music or video to a slide,
remove a slide, and more.
7. When you have finished composing the multimedia message, tap Send.
Saving and Resuming a Draft Message
While composing a text or multimedia message, press to automatically save your message as a draft.
To resume composing the message:
1. On the All messages screen, press , and then tap Drafts.
2. Tap the message to resume editing it.
3. When you finish editing the message, tap Send.
New Messages Notification
Depending on your notification settings, the device will play a ring tone, vibrate, or display the message
briefly in the status bar when you receive a new text or multimedia message. To change the notification for
new text and multimedia messages, see “Setting Text and Multimedia Message Options” for details.
A new message icon ( ) also appears in the notifications area of the status bar to notify you of a new text
or multimedia message. The Messages application icon (if shown on the Home screen) also displays the
number of new messages .
104 3A. Sprint Service: The Basics
To open the message, press and hold the status bar, and then slide the status bar down to open the
Notifications panel. Tap the new message to open and read it. For information on reading and replying to
messages see “Managing Message Conversations” in this chapter.
Managing Message Conversations
Text and multimedia messages that are sent to and received from a contact (or a number) are grouped into
conversations or message threads in the All messages screen. Threaded text or multimedia messages let
you see exchanged messages (similar to a chat program) with a contact on the screen.
To read a text message:
Do one of the following:
䡲 On the All messages screen, tap the text message or message thread to open and read it.
䡲 If you have a new message notification, press and hold the status bar, and then slide the status bar
down to open the Notifications panel. Tap the new message to open and read it.
To return to the All messages screen from a text message thread, press and then tap
Note: To view the details of a particular message, in the message thread, press and hold the message to open the options
menu, and then tap View message details.
If a message contains a link to a Web page, tap the message and then tap the link to open it in the Web browser.
If a message contains a phone number, tap the message and then tap the phone number to dial the number or add it
to your contacts.
All messages.
Viewing a multimedia message (MMS):
1. Press and tap > Messages.
On the All messages screen, tap a multimedia message or message thread to open it.
2.
3. Tap the attachment to open it. If the attachment is a vCard contact, it is imported to your device’s contacts
list. For more information, see “People” on page 41. If the attachment is a vCalendar file, you can choose
the calendar where you want to save the event. For information on using Calendar, see “Calendar” on
page 54.
4. To save the attachment to the storage card, press and hold the sender’s name or number, and then tap
Save [attachment type] on the options menu.
Note: When Auto-retrieve in MMS settings is disabled, only the message header is downloaded. To download the entire
message, tap the
Message Options” later in this chapter.
If you are concerned about the size of your data downloads, check the multimedia message size before you
download it.
Download button at the right side of the message. For details, see “Setting Text and Multimedia
To reply to a text or multimedia message:
1. Press and tap > Messages.
On the All messages screen, tap a text or multimedia message thread to open it.
2.
3. Tap the text box at the bottom of the screen, enter your reply message, and then tap Send.
Note: To reply to a text message with a multimedia message, open the text message, press and then tap
More > Add subject, or Attach. The text message is automatically converted into a multimedia message.
Sprint Service: The Basics
3A. Sprint Service: The Basics 105
To protect a message from deletion:
You can lock a message so that it will not be deleted even if you delete the other messages in the
conversation.
1. Press and tap > Messages.
On the All messages screen, tap a message thread.
2.
3. Press and hold the message that you want to lock
4. Tap Lock message on the options menu.
A lock icon is displayed at the right hand side of the message.
To delete a message thread:
1. Press and tap > Messages.
On the All messages screen, tap the message thread that you want to delete.
2.
3. Press , and then tap Delete.
4. When prompted to confirm, tap OK.
Any locked messages in the thread will not be deleted unless you select the
Delete locked messages
check box.
To delete several message threads:
1. Press and tap > Messages.
2.
On the All messages screen, press , and then tap Delete.
3. Select the message threads you want to delete.
4. Tap Delete. Any locked messages will not be deleted.
To delete a single message:
1. While viewing a message thread, press and hold the message that you want to delete.
2. If the message is locked, tap Unlock message on the options menu, and then press and hold the
message to display the options menu again.
3. Tap Delete message on the options menu.
4. When prompted to confirm, tap OK.
To view contact details and communicate with a contact:
When you have received a message from someone in your stored contacts, you can tap the contact’s photo
or icon in the message thread to open a menu of options. Depending on the stored contact information, you
can view the contact details, phone or send an email message to the contact, and more.
106 3A. Sprint Service: The Basics
Setting Text and Multimedia Message Options
Press and tap > Messages. On the All messages screen, press and then tap Settings to set
the text or multimedia message options. You can set the following:
SMS settings
䢇 Priority setting: Set the message priority of text messages sent.
MMS settings
䢇 Auto-retrieve: Select this option to automatically retrieve all your multimedia messages completely. When
selected, the multimedia message header plus the message body and attachments will automatically
download to your device. If you clear this check box, only the multimedia message header will be
retrieved and shown in your All messages screen.
䢇 Priority setting: Set the message priority of text messages sent.
䢇 Maximum message size: Set the maximum file size of a multimedia message. The multimedia message
will not be sent out if it exceeds the file size set here.
䢇 Connection settings: View various MMS connection settings such as the MMS connection name and
server address.
Received messages
䢇 Received notification: Select this option if you want to receive a notification in the status bar when a new
text or multimedia message arrives.
䢇 Play notification sound: If you want the device to ring when a new message arrives, select this option.
䢇 Notification sound: Select a ring tone that is specific to new text and multimedia messages. Note that the
ring tone briefly plays when selected.
䢇 Vibrate: Select this option if you want the device to vibrate when a new text or multimedia message arrives.
Sent messages
䢇 Sent notification: Select this option if you want to receive a notification in the status bar when a message is
sent successfully.
䢇 Failure notification: Select this option if you want to receive a notification in the status bar when a message
is not sent successfully.
䢇 Play notification sound: If you want the device to ring when a sent or failure notification is received, select
this option.
䢇 Notification sound: Select a ring tone that is specific to sent or failure notifications. Note that the ring tone
briefly plays when selected.
䢇 Vibrate: Select this option if you want the device to vibrate when a new text or multimedia message arrives.
Adding the Messages Widget
Add the Messages widget to let you read your messages on the Home screen. To learn how to add widgets,
refer to “Customizing the Home Screen” on page 23.
Sprint Service: The Basics
3A. Sprint Service: The Basics 107
Caller ID
Caller ID allows people to identify a caller before answering the device by displaying the number of the
incoming call. If you do not want your number displayed when you make a call, follow these steps.
1. Press and tap .
2. Ta p .
3. Enter a phone number.
4. Tap .
To permanently block your number, call Sprint Customer Service.
Call Waiting
When you’re on a call, Call Waiting alerts you to incoming calls by sounding two beeps. Your device’s screen
informs you that another call is coming in and displays the caller’s phone number (if it is available and you
are in digital mode).
To respond to an incoming call while you’re on a call:
䊳 Press and then tap Flash. (This puts the first caller on hold and answers the second call.)
To switch back to the first caller:
䊳 Press and then tap Flash again.
Tip: For those calls where you don’t want to be interrupted, you can temporarily disable Call Waiting by pressing
before placing your call. Call Waiting is automatically reactivated once you end the call.
Making a 3-Way Call
With 3-Way Calling, you can talk to two people at the same time. When using this feature, the normal airtime
rates will be charged for each of the two calls.
1. On the Phone screen, enter a number and tap .
2. Once you have established the connection, press , tap Add call, and dial the number of the second
participant. (This puts the first caller on hold and dials the second number.)
3. When you’re connected to the second party, press and tap Merge calls.
If one of the people you called hangs up during your call, you and the remaining caller stay connected. If
you initiated the call and are the first to hang up, all callers are disconnected.
To end the three-way call, tap .
Call Forwarding
Call Forwarding lets you forward all your incoming calls to another phone number – even when your device
is turned off. You can continue to make calls from your device when you have activated Call Forwarding.
To activate Call Forwarding:
1. Press and tap .
108 3A. Sprint Service: The Basics
2. Ta p .
3. Enter the area code and phone number to which you want your calls forwarded.
4. Tap . (You will see a message and hear a tone to confirm the activation of Call Forwarding.)
To deactivate Call Forwarding:
1. Press and tap .
2. Ta p .
3. Tap . (You will see a message and hear a tone to confirm the deactivation.)
Note: You are charged a higher rate for calls you have forwarded.
Roaming
Roaming Icon
Your display screen always lets you know when you’re off the Nationwide Sprint Network. Anytime you are
roaming, the device displays the roaming icon ( ).
Tip: Remember, when you are using your device off the Nationwide Sprint Network, always dial numbers using 11 digits
(1 + area code + number).
Roaming on Other Digital Networks
When you’re roaming on digital networks, your call quality and security will be similar to the quality you
receive when making calls on the Nationwide Sprint Network. However, you may not be able to access
certain features, such as data services, depending on the available network.
Note: If you’re on a call when you leave the Nationwide Sprint Network, your call is dropped. If your call is dropped in an
area where you think Sprint service is available, turn your device off and on again to reconnect to the network.
Checking for Voicemail Messages While Roaming
When you are roaming off the Nationwide Sprint Network, you may not receive on-device notification of new
voicemail messages. Callers can still leave messages, but you will need to periodically check your voicemail
for new messages if you are in a roaming service area for an extended period of time.
1. Dial 1 + area code + your phone number.
2. When you hear your voicemail greeting, tap .
3. Enter your passcode at the prompt and follow the voice prompts.
When you return to the Nationwide Sprint Network, voicemail notification will resume as normal.
Setting Roam Mode
Your device allows you to control your roaming capabilities. By using the Roaming menu option, you can
determine which signals your device accepts.
Choose from two different settings on your dual-band phone to control your roaming experience.
1. Press > > Settings > Wireless & networks > Mobile networks.
2. Ta p Roaming.
䡲 Sprint Only to access only the Sprint network and prevent roaming on other networks.
䡲 Automatic to seek service on the Nationwide Sprint Network. When Sprint service is unavailable, the
device searches for an alternate system.
Sprint Service: The Basics
3A. Sprint Service: The Basics 109
Call Guard
Your device has two ways of alerting you when you are roaming off the Nationwide Sprint Network: the
onscreen roaming icon and Call Guard. Call Guard makes it easy to manage your roaming by requiring an
extra step before you can place or answer a roaming call. (This additional step is not required when you
make or receive calls while on the Nationwide Sprint Network.)
To turn Call Guard on or off:
1. Press > > Settings > Wireless & networks > Mobile networks.
2. Select the Call guard check box to turn on Call Guard; clear the check box to turn off Call guard.
Note: Your device’s Call Guard is turned off by default.
Voice dialing and speed dialing are not available when you are roaming with Call Guard enabled.
To place roaming calls with Call Guard on:
1. On the Phone screen, dial 1 + area code + the seven-digit number and tap .
2. Select Roam Call.
To answer incoming roaming calls with Call Guard on:
䊳 Tap Answer. (A message will be displayed notifying you that roaming charges will apply.)
Note: If the Call Guard check box is selected, you need to take extra steps to make and receive roaming calls.
Data Roam Guard
Depending on service availability and roaming agreements, your device may be able to access data
services while roaming on certain digital systems. You can set your device to alert you when you are
roaming off the Nationwide Sprint Network and try to use data services such as messaging.
Note: You r device’s Data Roam Guard is turned off by default.
To set your Data Roam Guard notification:
1. Press > > Settings > Wireless & networks > Mobile networks.
2. Ta p Data Roam Guard.
䡲 Default enables data roaming internationally. The Data Roam Guard may display a confirmation
message and alert.
䡲 Always ask sets your device’s Data Roam Guard feature on. You will see a prompt and will be required
to respond anytime you access data services while roaming.
䡲 Never ask turns your device’s Data Roam Guard feature off. You will not be notified of your roaming
status when accessing data services.
To use data services when Data Roam Guard is active:
䊳 When a pop-up notification appears informing you that data roam charges may apply, tap Roam to
connect.
110 3A. Sprint Service: The Basics
⽧ Ways of Connecting to the Internet (page 111)
3B. Web and Data Services
⽧ Connecting Using Wi-Fi (page 111)
⽧ Connecting Using Sprint 4G (page 113)
⽧ Getting Started With Data Services (page 114)
⽧ Connecting to a Virtual Private Network (VPN) (page 115)
⽧ Using the Device’s Web Browser (page 116)
⽧ Accessing Email Messages (page 122)
⽧ Google Talk (page 131)
⽧ Downloading Applications and Games From Android Market (page 136)
⽧ Peep (page 138)
⽧ Stocks (page 140)
⽧ Weather (page 141)
⽧ News Feeds (page 143)
⽧ Sprint Mobile Hotspot (page 145)
⽧ Using Your Device as a Modem (Internet Sharing) (page 147)
⽧ Data Services FAQs (page 147)
Ways of Connecting to the Internet
Your device’s networking capabilities allow you to wirelessly access the Internet or your corporate network
through one of the following connections:
䢇 Wi-Fi (See “Connecting Using Wi-Fi” for details.)
䢇 Sprint 4G (See “Connecting Using Sprint 4G” for details.)
䢇 Data Services (See “Getting Started With Data Services” for details.)
䢇 Virtual Private Networks or VPN (See “Connecting to a Virtual Private Network (VPN)” for details.)
Connecting Using Wi-Fi
Wi-Fi provides wireless Internet access over distances of up to 300 feet. To use your device’s Wi-Fi, you need
access to a wireless access point or “hotspot”.
Note: The availability and range of the Wi-Fi signal depends on the number, infrastructure, and other objects through
which the signal passes.
Turning Wi-Fi On and Connecting to a Wireless Network
1. Press > and tap Settings > Wireless & networks.
2. Select the Wi-Fi check box to turn Wi-Fi on. The device will scan for available wireless networks.
3. Tap Wi-Fi settings. The network names and security settings (Open network or Secured with WEP) of
detected Wi-Fi networks are displayed in the Wi-Fi networks section.
4. Tap a Wi-Fi network to connect. If you selected an open network, you will be automatically connected to
the network. If you selected a network that is secured with WEP, enter the key, and tap
Connect.
Web and Data Services
3B. Web and Data Services 111
Depending on the network type and its security settings, you may also need to enter more information or
choose a security certificate.
When your device is connected to a wireless network, the Wi-Fi icon ( ) appears in the status bar and
tells you the approximate signal strength (number of bands that light up). If
Network notification in Wi-Fi
settings is enabled, this icon ( ) appears in the status bar whenever the device detects an available
wireless network within range.
Note: The next time your device connects to a previously accessed secured wireless network, you will not be prompted
to enter the WEP key again, unless you reset your device to its factory default settings.
Wi-Fi networks are self-discoverable, which means no additional steps are required for your device to connect to a
Wi-Fi network. It may be necessary to provide a username and password for certain closed wireless networks.
Checking the Wireless Network Status
1. Press > and tap Settings > Wireless & networks.
2. On the Wireless & networks screen, tap Wi-Fi settings, and then tap the wireless network that the device is
currently connected to.
A message box is then displayed showing the Wi-Fi network name, status, speed, signal strength, and more.
Note: If you want to remove the device’s wireless network settings, tap Forget on this window. You need to enter the
settings again if you want to connect to this wireless network.
Connecting to Another Wi-Fi Network
1. On the Wireless controls screen, tap Wi-Fi settings. Detected Wi-Fi networks are displayed in the Wi-Fi
networks section. To manually scan for available Wi-Fi networks, on the Wi-Fi settings screen,
press and tap
2. Tap another Wi-Fi network to connect to it.
Note: If the wireless network you want to connect to is not in the list of detected networks, scroll down the screen,
and tap
Scan.
Add Wi-Fi network. Enter the wireless network settings and tap Save.
Adding the Wi-Fi Widget
Add the Wi-Fi widget to the Home screen to make it faster for you to turn Wi-Fi on or off.
To learn how to add widgets, see “Customizing the Home Screen” on page 23.
112 3B. Web and Data Services
Connecting Using Sprint 4G
Sprint 4G — a Mobile WiMAX (Worldwide Interoperability for Microwave Access) technology — provides your
device with wireless Internet access over greater distances than Wi-Fi and delivers data transfer rates of up
to 30 Mbps. To connect your device to Sprint 4G network, you need access to a Sprint 4G base station.
For more information about the availability of Sprint 4G in your location, visit
Web.
Note: The availability and range of the Sprint 4G depends on a number of factors including your distance to the Sprint 4G
base station, and infrastructure and other objects through which the signal passes.
www.sprint.com/coverage on the
Turning Sprint 4G On and Connecting to the Sprint 4G Network
1. Press > and tap Settings > Wireless & networks.
2. Scroll down the screen and select the 4G check box to turn Sprint 4G on. The device will automatically
scan for the Sprint 4G network and will automatically connect to it.
When your device is connected to the Sprint 4G network, the 4G icon ( ) appears in the status bar and
tells you the approximate signal strength (number of bands that light up). If
settings is enabled, this icon ( ) appears in the status bar whenever the device detects the Sprint 4G
network.
Note: The Sprint 4G network is self-discoverable, which means no additional steps are required for your device to
connect to it.
Network notification in 4G
Checking the Sprint 4G Network Status
1. Press > and tap Settings > Wireless & networks.
2. Scroll down the screen and tap 4G settings. The network provider name, signal strength, and IP address
are displayed.
Adding the Sprint 4G Widget
Add the Sprint 4G widget to the Home screen to make it faster for you to turn it on or off.
To learn how to add widgets, see “Customizing the Home Screen” on page 23.
Web and Data Services
3B. Web and Data Services 113
Getting Started With Data Services
With your Sprint service, you are ready to start enjoying the advantages of data services. This section will
help you learn the basics of using your data services, including managing your user name, launching a data
connection, and navigating the Web with your device.
Your User Name
When you buy your device and sign up for service, you’re automatically assigned a user name, which is
typically based on your name and a number, followed by “@sprintpcs.com.” (For example, the third John
Smith to sign up for Sprint data services might have
When you use Sprint data services, your user name is submitted to identify you to the Nationwide Sprint
Network. Your user name will be automatically programmed into your device. You don’t have
to enter it.
Finding Your User Name
If you aren’t sure what your user name is, you can easily find it on your device.
䊳 Press > , tap Settings > About phone > Network > Current username.
Updating Your User Name
If you choose to change your user name and select a new one online, you must then update the user name
on your device.
jsmith003@sprintpcs.com as his user name.)
䊳 Press > and tap Settings > System updates > Update profile. (To cancel, press before
completing the update.)
Launching a Web Connection
䊳 Press and tap > Internet
(Your data connection starts and you see the SprintWeb
SM
home page.)
Data Connection Status and Indicators
Your device displays the current status of your data connection through indicators at the top of the screen.
The following symbols are used:
Your device is connected to the high-speed Sprint 3G network (EVDO). When the arrows are white, your device
is transferring data (for example, when you are opening a Web page); when the triangles are gray, your device
is connected to the network but is not currently transferring data (for example, when you are viewing a Web
page that is completely open). In either state, you can receive incoming calls.
Your device is on and is connected to the Sprint 1xRTT data network. When the arrows are white, your device is
transferring data (for example, when you are opening a Web page) and you cannot receive calls. When the arrows
are gray, your device is connected to the network but is not currently transferring data (for example, when you are
viewing a Web page that is completely open), and you can receive calls.
If you do not see an indicator, your device does not have a current data connection. To launch a connection,
see “Launching a Web Connection.”
114 3B. Web and Data Services
Turning the Data Connection On or Off
Turning your data connection off can help optimize your battery life. It can also save money on data charges.
However, when your data connection is turned off, you may not always receive automatic updates to your
email, social network accounts, and other synchronized information.
1. Press > and then tap Settings > Wireless & networks.
2. Select the Mobile network check box to turn on the data connection; clear the check box to turn off the
data connection.
Adding the Data Connection Widget
Add the Data connection widget to the Home screen to make it faster for you to turn the device’s data
connection on or off.
To learn how to add widgets, see “Customizing the Home Screen” on page 23.
Connecting to a Virtual Private Network (VPN)
From your device, you can add, set up, and manage virtual private networks (VPNs) that allow you to
connect and access resources inside a secured local network, such as your corporate network.
Preparing Your Device for VPN Connection
Depending on the type of VPN you are using at work, you may be required to enter your login credentials or
install security certificates before you can connect to your company’s local network. You can get this
information from your network administrator.
Also, your device must first establish a Wi-Fi or data connection before you can initiate a VPN connection.
For information about setting up and using these connections on your device, see “Launching a Web
Connection” and “Turning Wi-Fi On and Connecting to a Wireless Network.”
Setting Up Secure Credential Storage
If your network administrator instructs you to download and install security certificates, you must first set up
the device’s secure credential storage.
1. Press > , tap Settings > Security, and then tap Set password.
2. Enter a new password (at least 8 characters without any spaces) for the credential storage, scroll down
and confirm the password, and then tap
3. Select the Use secure credentials check box.
You can then download and install the certificates needed to access your local network. Your network
administrator can tell you how to do this.
OK.
Adding a VPN Connection
1. Press > and then tap Settings > Wireless & networks > VPN settings.
2. Ta p Add VPN, and then tap the type of VPN you want to add.
3. Tap VPN settings and set them up according to the security details you have obtained from your network
administrator.
4. When finished, press , and then tap Save.
The VPN is then added to the VPNs section of the VPN settings screen.
Web and Data Services
3B. Web and Data Services 115
Connecting to a VPN
1. Press > and then tap Settings > Wireless & networks > VPN settings.
2. In the VPNs section, tap the VPN that you want to connect to.
3. When prompted, enter your log in credentials, and then tap Connect. When you are connected, the VPN
connected icon appears in the notification area of the title bar.
4. Open the Web browser to access resources such as intranet sites on your corporate network. For more
information, see “Opening the Browser.”
Disconnecting From a VPN
1. Press and hold the title bar, and then slide down your finger to open the Notifications panel.
2. Tap the VPN connection to return to the VPN settings screen, and then tap the VPN connection to
disconnect from it.
When your device has disconnected from the VPN, the VPN disconnected icon is displayed in the
notification area of the title bar.
Using the Device’s Web Browser
Open the browser to start surfing the Web. The browser is fully optimized and comes with advanced features
that let you enjoy Internet browsing on your device.
Opening the Browser
䊳 Press and tap > Internet
The Browser Menu
Although the home page offers a broad and convenient array of sites and services for you to browse, not all
sites are represented, and certain functions, such as going directly to specific websites, are not available. For
these and other functions, you will need to use the browser menu. The browser menu offers additional
options to expand your use of the Web on your device.
Opening the Browser Menu
The browser menu may be opened anytime you have an active data session, from any page you are
viewing.
To open the browser menu:
䊳 Press while on the browser. (You will see the browser menu.)
Options available under the browser menu include:
䢇 Back: Returns you to a previously viewed page (after having tapped Forward).
䢇 Forward: Returns you to a previously viewed page (after having tapped Back).
䢇 Add bookmark: Allows you to bookmark the current site.
䢇 Bookmarks: Allows you to access and manage your bookmarks.
䢇 Windows: Allows you to open additional browser windows.
䢇 More
䡲 Home: Lets you return to your home page.
䡲 Find on page: Allows you to find specific text on a Web page.
116 3B. Web and Data Services
䡲 Text selection: Allows you to select text to copy, looking up for information, and share. For more
information, see “Copying Text, Looking Up Information, and Sharing.”
䡲 Page info. Lets you display the information about the website.
䡲 Share page. Lets you send the website URL using Facebook, Friend Stream, email, MMS, or Peep.
䡲 Downloads. Lets you view applications that you have downloaded from the Web.
䡲 History. Keeps a list of links to your most recently visited sites. To navigate to a site, touch a site.
䡲 Settings. Opens the browser settings.
Going to a Website
1. On the browser screen, press and tap the URL box at the top of the screen.
2. Enter the website address using the keyboard. As you enter the address, matching website addresses
will appear on the screen. Tap an address to go directly to that website or continue entering the website
address.
3. Tap on the onscreen keyboard.
Setting Your Home Page
1. With the browser open, press , and then tap More > Settings > Set home page.
2. In the Set home page screen, select the home page you want to use.
䡲 Use default to set the SprintWeb
䡲 Use current to set the current Web page you are browsing as your home page.
䡲 Set home page to enter the URL of the website you want to use as your home page.
SM
home page as your home page.
Changing the Screen Orientation
The device automatically changes the screen orientation depending on how you are holding your device.
Note: The Orientation check box in > > Settings > Sound & display needs to be selected for the screen
orientation to automatically change.
Browsing Full Versions (not Mobile Version) of Web Pages
Some websites display a mobile version of their pages to phone Web browsers. You can choose to view the
full version of all pages, even for these sites.
䊳 On the browser screen, press , tap More > Settings, and clear the Mobile view check box.
Navigating on a Web Page
Panning on a Web Page
䊳 Slide your finger on the screen in any direction to navigate and view other areas of the Web page.
Web and Data Services
3B. Web and Data Services 117
Zooming In or Out on a Web Page
1 2
Tap to close
the Web page.
Tap to display
the Web page
in full screen.
䊳 Tap the screen twice quickly to zoom in; tap the screen twice quickly again to zoom out.
– or –
Pinch or spread the screen to zoom in and out.
Opening a New Browser Window
Open multiple browser windows to make it easier for you to switch from one website to another. You can
open up to four browser windows.
1. On the browser screen, press and then tap Windows.
2. Tap . A new browser window opens and goes to the home page that is set.
Switching Between Browser Windows
1. On the browser screen, press and then tap Windows.
2. Select the browser window you want to view by sliding your finger on the screen from right to left.
3. Tap the browser window to open it in full-screen mode.
Finding Text In a Web Page
1. While viewing a Web page, press and tap More > Find on page.
2. Enter the search item. As you enter characters, matching characters will be highlighted in green.
Tap the left or right arrow to go to the previous or next matching item.
118 3B. Web and Data Services
Selecting Links in Web Pages
Links can be selected as shown below. Links are enclosed in a colored box when selected.
Link What to do
Web page address
(URLs)
Email address
The browser also recognizes some phone numbers and addresses that allow you to call the phone number
or locate the address in Google Maps™. Recognized phone numbers and addresses are highlighted in
green when navigated to.
Link What to do
Location address Tap the address to open Google Maps and locate the address.
Phone number Tap to open the Phone screen to call the phone number.
Tip: Zoom in on the Web page when links are too small for tapping directly on the screen.
䢇 Tap the link to open the Web page.
䢇 Press and hold the link to open a menu that allows you to open,
bookmark, copy to the clipboard, or share the link using email.
䢇 Tap to send an email message to the email address.
䢇 Press and hold and tap Copy on the menu to copy the email
address to the clipboard. You can paste the email address later
when creating a new contact or sending a new email message.
Downloading Applications From the Web
Before you can download applications from the Web, you must first enable downloading from the device
settings.
1. Press > and tap Settings > Applications.
2. Select the Unknown sources check box.
3. When the Attention dialog box opens, tap OK.
Note: All downloaded applications are saved to the microSD card. Before you download an application from the Web,
make sure that you have installed a microSD card on your device. For information on how to install a microSD card,
“Inserting the microSD Card” on page 73.
WARNING: Applications downloaded from the Web can be from unknown sources. To protect your device and personal
data, download applications only from trusted sources such as Android Market. Refer to “Downloading
Applications and Games From Android Market” for details.
To view your downloads:
䊳 On the browser screen, press and tap More > Downloads.
Copying Text, Looking Up Information, and Sharing
You can select text on a Web page and then:
䡲 Copy it.
䡲 Look it up on Wikipedia or Google Dictionary.
䡲 Get a translation of the text from Google Translate.
䡲 Share the text in a new email, text, or multimedia message or in your status update on a social network.
Web and Data Services
3B. Web and Data Services 119
Selecting Text
2
3
1. Press and hold on a word.
Tip: To select text in a link, press and hold the link, and then tap Text selection.
2. Drag the start and end markers to highlight the surrounding text you want to select. You can drag to
increase or decrease the text selection area.
3. Tap an icon to copy, search or translate, or share the selected text.
When you select a larger block of text, the appearance of the markers changes. You can drag these markers
up or down to select multiple paragraphs of text.
Copying and Pasting Text
1. After you have selected the text you want to copy, tap . The selected text is then copied to the
clipboard.
2. In a text box (for example while composing a message), press and hold at the point where you want to
paste the text.
3. Tap Paste.
120 3B. Web and Data Services
Loading...
