Service Handbook

HP VISUALIZE J6700 Workstations

Manufacturing Part Number: n.a.

Edition E0501

Notice

The information contained in this document is subject to change without notice.

Restricted Rights Legend

Use, duplication, or disclosure by government is subject to restrictions as set forth in subdivision (c) (1) (ii) of the Rights in Technical Data and Computer Software Clause at DFARS 252.227.7013.

copyright. All rights are reserved. No part of this document may be photocopied, reproduced or translated to another language without the prior written consent of Hewlett-Packard Company.

UNIX is a registered trademark in the United States and other countries, licensed exclusively through X/Open Company Limited.

California. This software and documentation is based in part on the Fourth Berkeley

Software Distribution under license from the Regents of the University of California.

Contents

1. Product Information

Chapter Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Product Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Net Dimensions and Weights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Key Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Front Panel Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Power Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Thumbscrew on the Front Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

System LCD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Internal Storage Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Rear Panel Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Connectors on the Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Internal Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Monitors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Mouse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Site Preparation and Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

2. Conﬁguration

Chapter Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Workstation Conﬁgurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Field Replaceable Unit (FRU) Conﬁgurations. . . . . . . . . . . . . . . . . . . . .32

Internal Storage Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

I/O Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Contents

3.Troubleshooting

Chapter Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Introduction to Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

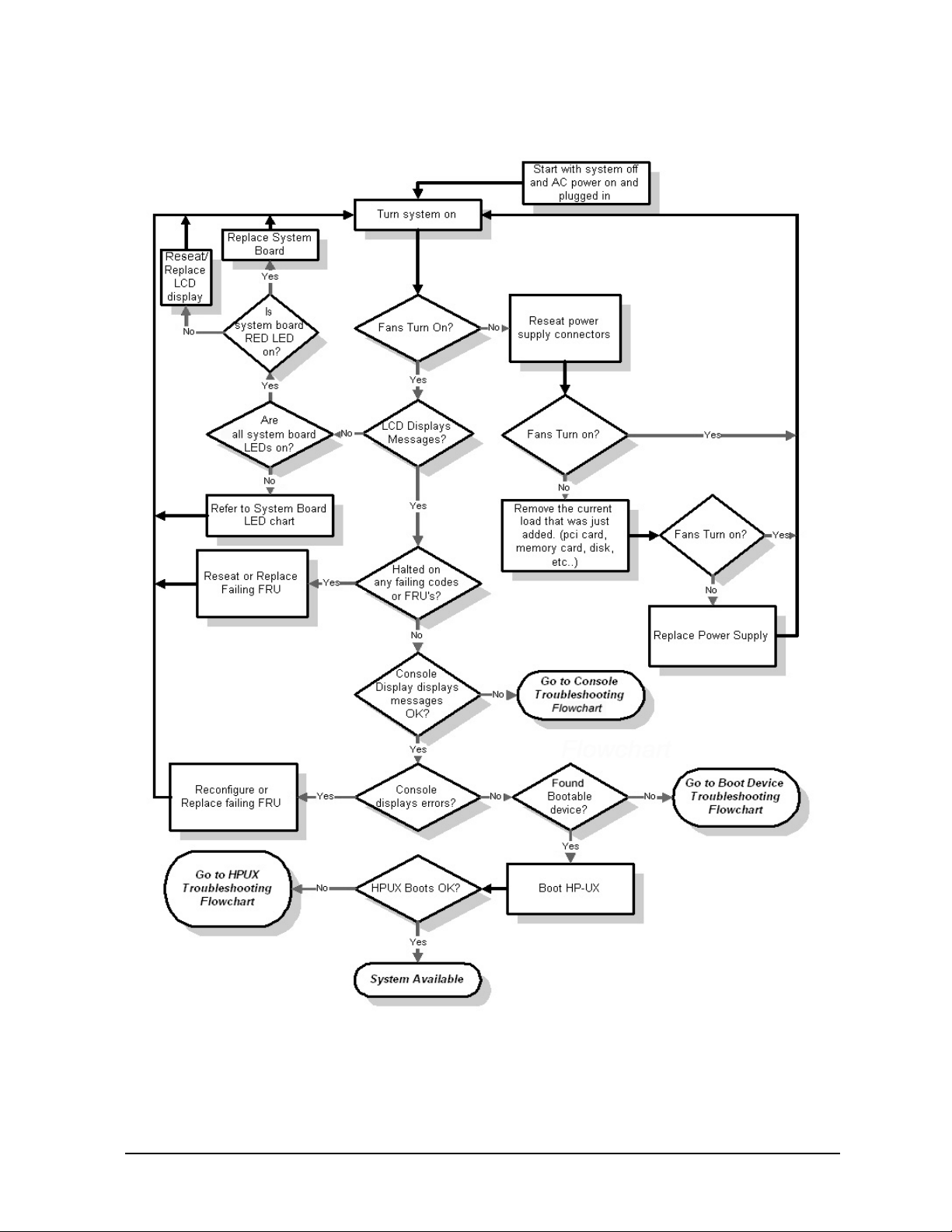

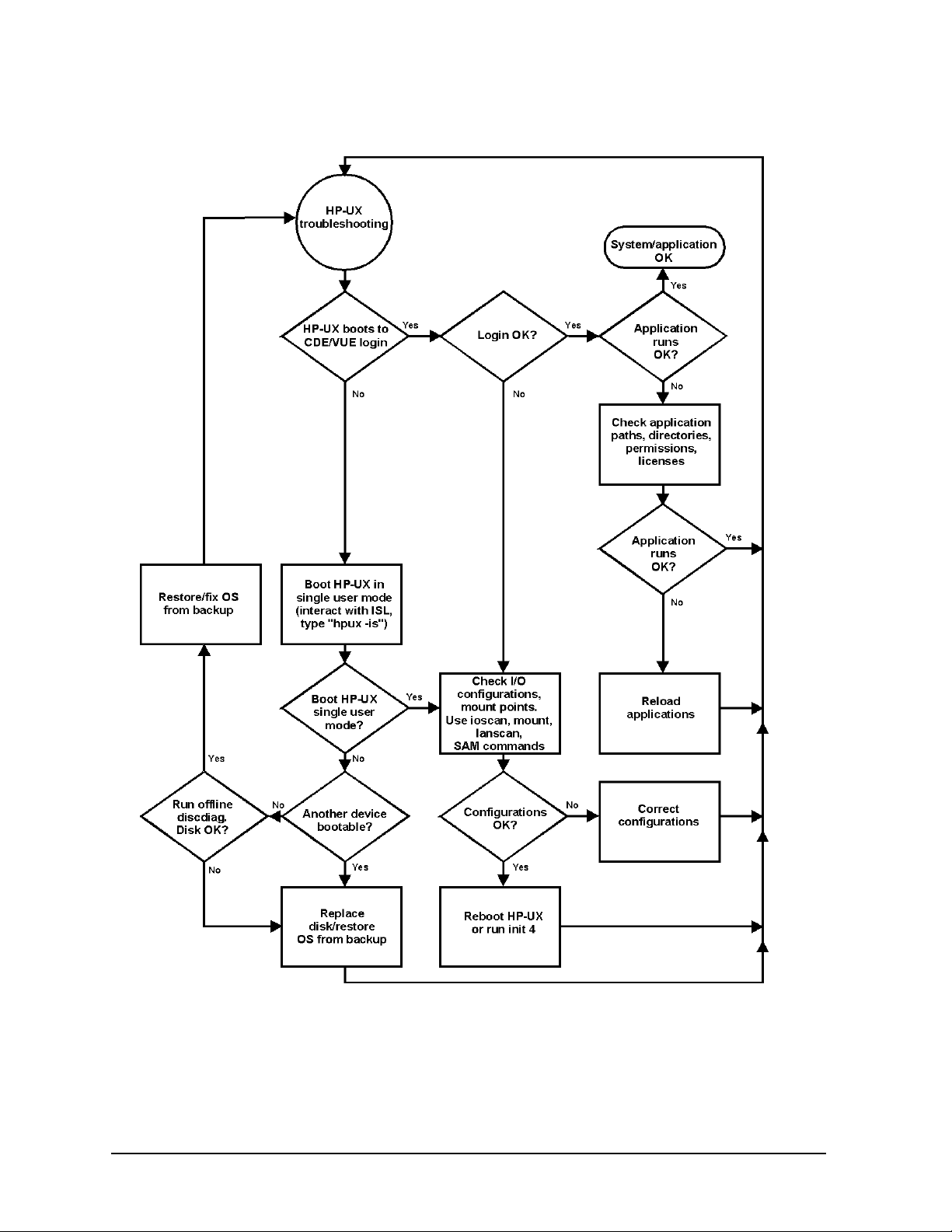

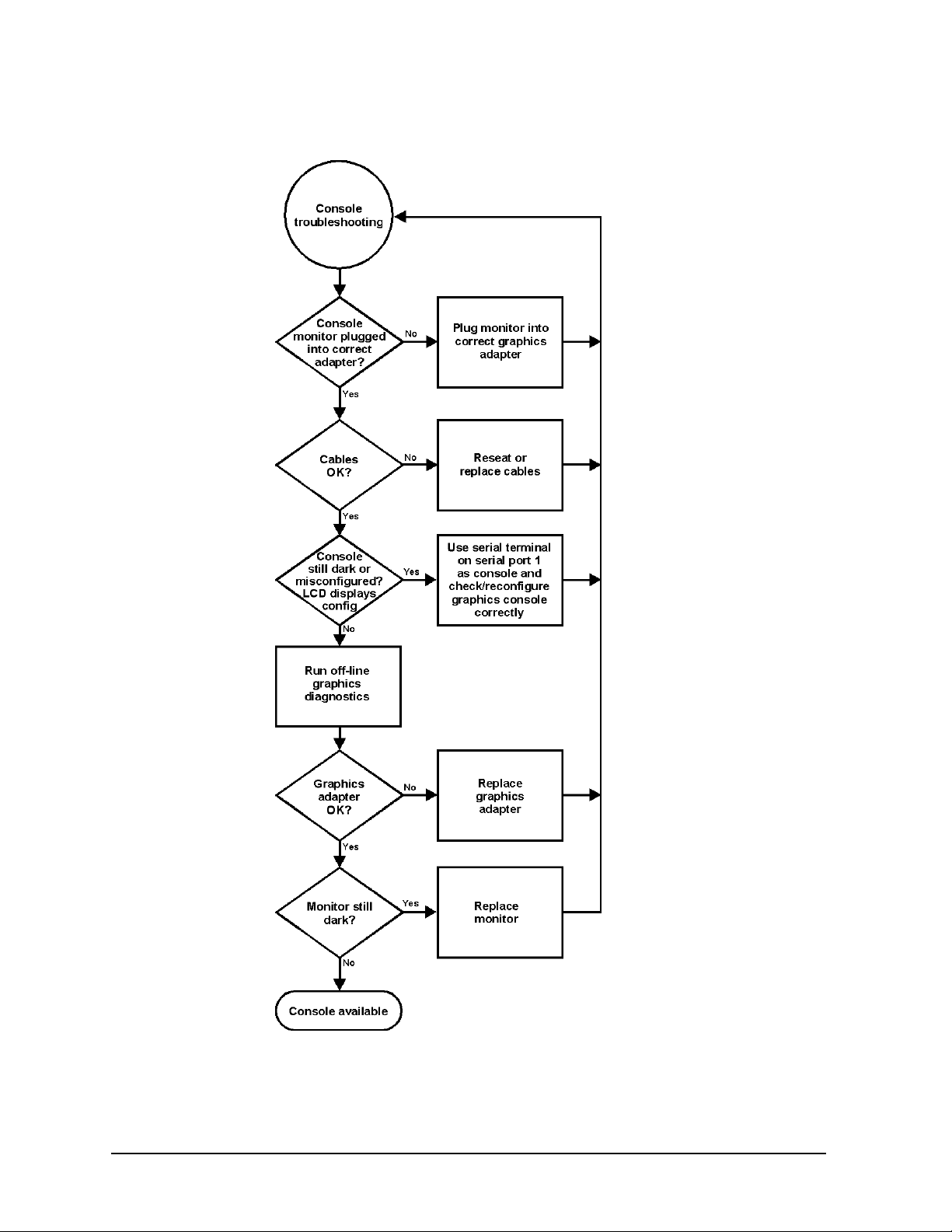

Flowcharts for Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Dealing with a Boot Failure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Special Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Searching for Bootable Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Stable Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Boot Command Notations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Supported Boot Paths. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Intermediate System Loader (ISL) Environment . . . . . . . . . . . . . . . . 43

Identifying LCD-Indicated Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Selftest Failures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Memory Failures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Chassis Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Running System Veriﬁcation Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Running ODE-Based Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Using the System Board LEDs for Troubleshooting . . . . . . . . . . . . . . . 71

Interpreting the LED Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Troubleshooting with System Board LEDs . . . . . . . . . . . . . . . . . . . . . 73

4. Field Replaceable Units (FRUs)

Chapter Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Exploded View Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Exchange and Nonexchange Part Numbers. . . . . . . . . . . . . . . . . . . . . . 81

FRU Removal and Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Contents

Electrostatic Discharge (ESD) Precautions . . . . . . . . . . . . . . . . . . . . .84

Prerequisite Steps for All Removal and Replacement Procedures . . .85

Front Bezel and Top Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86

Internal CD ROM Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91

Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92

PCI Cage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94

Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95

Removing the System Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96

Replacing the System Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98

Removing and Replacing the Real-Time Clock. . . . . . . . . . . . . . . . . . .99

5. Boot Console Handler

Chapter Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102

Boot Console Handler Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103

Accessing the Boot Console Handler . . . . . . . . . . . . . . . . . . . . . . . . . . .104

Boot Console Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105

Booting the Workstation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .109

Searching for Bootable Media. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111

Resetting the Workstation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112

Displaying and Setting Paths. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113

Displaying and Setting the Monitor Type . . . . . . . . . . . . . . . . . . . . . . .115

The Monitor Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115

Displaying the Current Monitor Conﬁguration . . . . . . . . . . . . . . . . .116

Setting the Monitor Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116

Setting the Monitor Type at Power On. . . . . . . . . . . . . . . . . . . . . . . .118

Troubleshooting Monitor Problems. . . . . . . . . . . . . . . . . . . . . . . . . . .119

Changing the Console to an External Terminal. . . . . . . . . . . . . . . . .119

Displaying the Current Memory Conﬁguration. . . . . . . . . . . . . . . . . . .120

Contents

Displaying the Status of the I/O Slots. . . . . . . . . . . . . . . . . . . . . . . . . . 122

Setting the Auto Boot and Auto Search Flags . . . . . . . . . . . . . . . . . . . 123

Displaying and Setting the Security Mode. . . . . . . . . . . . . . . . . . . . . . 124

Displaying and Setting Fastboot Mode . . . . . . . . . . . . . . . . . . . . . . . . . 125

Displaying the LAN Station Address . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Displaying System Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Displaying PIM Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Using Remote Power-On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Troubleshooting Hint for an Unresponsive RPC. . . . . . . . . . . . . . . . 129

Setting the Fan Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Rack-Mount Fan Speed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Desk-Side Fan Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Initial System Loader (ISL) Environment . . . . . . . . . . . . . . . . . . . . . . 132

Invoking ISL from the Boot Console Handler. . . . . . . . . . . . . . . . . . 132

ISL User Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

6. Block Diagram

System Board and PCI Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

A. Speciﬁcations

Environmental Speciﬁcations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Altitude . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

DC Magnetic Field Interference. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Electromagnetic Interference (EMI) . . . . . . . . . . . . . . . . . . . . . . . . . 138

Electrostatic Discharge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Humidity (Non-condensing) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Leakage Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Contents

Shock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .139

Vibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .139

Electrical Speciﬁcations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .140

Input Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .140

B. SCSI Connections

Appendix Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142

SCSI Bus Differences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .143

SCSI Restrictions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .144

Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .144

Terminators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .144

SCSI Conﬁguration Constraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . .145

SCSI Bus Length Constraints. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .146

SE SCSI Bus Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .146

LVD SCSI Bus Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .146

Assigning SCSI Device IDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .147

Assigning External SCSI Device IDs . . . . . . . . . . . . . . . . . . . . . . . . .148

Assigning Internal SCSI Device IDs. . . . . . . . . . . . . . . . . . . . . . . . . .148

How To Connect An SE SCSI Device . . . . . . . . . . . . . . . . . . . . . . . . . . .149

C. Related Documentation

Additional Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .152

Site Preparation Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .152

Installation Poster and Getting Started Guide. . . . . . . . . . . . . . . . . .152

Parts and Replacement Guide and Technical Reference . . . . . . . . . .152

Contents

1 Product Information

This chapter provides general product information about the HP VISUALIZE J6700 workstation. This information is provided to help familiarize you with the main features and components of the workstation.

Product Information

Chapter Overview

This chapter contains the following main sections:

• Product Description

• Front Panel Components

• Rear Panel Components

• Internal Components

• Monitors

• Keyboard and Mouse

Product Description

The HP VISUALIZE J6700 workstation is a high-performance system capable of handling the most complex problems in computational analysis, advanced 3-D design, and electronic circuit design and veriﬁcation.

The J6700 has two PA-8700 microprocessors and sixteen memory slots on its system board. It has a 715 Watt power supply with no DC/DC converter units required.

Net Dimensions and Weights

The dimensions for the deskside system are listed below.

• Depth: 25.8 inches (65.5 cm)

• Width: 10.0 inches (25.4 cm)

• Height: 19.8 inches (53.3 cm) The dimensions for the rack system are listed below.

• Depth: 24.5 inches (62.2 cm)

• Width: 16.7 inches (42.4 cm)

• Height: 3.4 inches (8.6 cm)

10 Chapter1

. Table 1-1 lists the net weights for the J6700.

Table 1-1. Net Weights for the J6700 Workstations

Weight

Deskside Conﬁguration Min. - 40lbs. (17 kg.)

Max. - 49 lbs (22 kg.)

Product Information

Product Description

Maximum Conﬁguration (Rack Mount)

Maximum Conﬁguration (Twenty Fully Equipped Workstations and the Rack)

1. The rails weigh approximately 10 lbs. (4 kg.). This weight is not included in these ﬁgures.

Min. - 36lbs. (16 kg.) Max. - 41 ls. (18 kg.)

1200 pounds (544 kg)

NOTE For environmental and electrical requirements, see Appendix B.

Chapter 1 11

Product Information

Product Description

Key Features

The J6700 workstations have the following key features.

• CPUs: — Two 750MHz PA-8700 microprocessors, each with 0.75 MB instruction cache and 1.5

MB data cache.

• Operating System (Native HP-UX): — 64-bit support requires HP-UX version 11.0 plus ACE 1199 and HP-UX version 11i

plus ACE 0601.

• User Interface: HP CDE (Common Desktop Environment) graphical user interface

• Compatibility: Source- and binary-code compatible with the B

-, C-, and J-Class

product families

• Main Memory: Using 512MB or 1 GB DIMMs — Sixteen DIMM slots in pairs (from 1GB up to 16GB total)

• Power Supply: — 500 Watt (output power), 715 Watt (input power) with two VRM modules

• Remote Power-On — Remote power-on feature that allows you to power up and shut down your

workstation remotely through the RS232 port.

• Internal Storage Devices: — Up to two Low-Voltage Differential (LVD) SCSI hard drives.

— One optional ATAPI Slim-line CD drive.

• Standard Networking: Ethernet IEEE 802.3 RJ45, Twisted Pair 10/100 Base T

• Standard I/O: Two GB/sec aggregate I/O bandwidth — One Low-Voltage Differential (LVD)/Single-ended (SE) SCSI connector (multi-mode)

— Two USB (Universal Serial Bus) connectors (keyboard and mouse) — Two serial interface connectors (RS-232C) — Audio connectors (line input, line output, headphone, and microphone)

12 Chapter1

Product Information

Product Description

• I/O Expansion Capabilities: 64-bit PCI (Peripheral Connect Interface) slots — Three PCI-4X slots at 3.3V, 66MHz

• Optional Graphics Cards Currently Supported: — HP VISUALIZE-fx

— HP VISUALIZE-fxe

• Monitors Currently Supported: — PC compatible monitors that support a minimum resolution of 1024×768 and a

frequency of 75Hz

• Standard Keyboard: The USB connector provides an interface for the keyboard to the system. This keyboard provides the standard keys found on most PC keyboards.

• Mouse: The HP mouse (USB) has left, middle, and right buttons that function the same as most mice. For general information on the various cursor shapes associated with different areas of HP CDE while using a mouse, see the Using Your HP Workstation document.

Chapter 1 13

Product Information

Front Panel Components

Before powering on your system, you should become familiar with the system unit controls.

Figure 1-1 shows the front panel components with the bezel attached.

Figure 1-1. System Unit Front Panel Controls With Bezel

CD ROM Bay

Hard Drive Bays Power Switch

System LCD

Figure 1-2. System Unit Front Panel Controls With Bezel Removed

Locking ScrewCD Drive

Hard Disk Drive Bay Areas

Captive Thumbscrew

System LCD

CAUTION This workstation is designated for two-person lifting. It weighs

approximately 36 to 49 pounds (16 to 22 kg), depending on the conﬁguration. Do not attempt to lift it by yourself, or injury may result.

Power Switch

This switch turns the system on and off.When you turn your workstation off, the operating system automatically executes the shutdown -q command. This prevents any damage to programs and data on your system disk. Turning the power switch back on again automatically boots up the HP-UX operating system if your system has been conﬁgured to auto boot.

14 Chapter1

Product Information

Front Panel Components

Thumbscrew on the Front Panel

There is one captive thumbscrew near the center of the front panel. Loosening and pulling toward you with this screw allows the top panel to be removed. The top panel must be in place or the system will not power up.

Between the LCD panel and the CD ROM drive, there is a threaded hole for an optional locking screw. The locking screw is included in the bag of miscellaneous parts which comes with the workstation. This locking screw allows the user to protect his/her workstation form unwanted entry.

System LCD

The Liquid Crystal Display (LCD) indicator is located on the front panel. The LCD has two 16 characters lines. The LCD displays messages about the state of the system, including chassis codes. The symbols in Figure 1-3 appear in the LCD if you have the HP-UX 11.0 or 11i operating system booted on your system. They represent the different system activities.

Figure 1-3. LCD Symbols

Operating system running (Heart Beat)

Disk access in progress

Network receive in progress

Network transmit in progress

Chapter 1 15

Product Information

Front Panel Components

Internal Storage Devices

The J6700 workstations support the following internal storage devices, which are also located on the front panel, under the bezel:

• Up to two hot-pluggable, Low-Voltage Differential (LVD) hard disk drives

• One ATAPI (IDE) Slim-Line CD drive (optional) The following subsections describe these internal storage devices.

Hard Disk Drive(s)

The J6700 workstations can support up to two hot-pluggable, Low-Voltage Differential (LVD) hard disk drives. These hard disk drives are 3.5-inch form factor, 10K RPM devices which connect to Ultra2 Wide LVD (Low Voltage Differential) SCSI interfaces on the disk bay backplane. The hard disk drive bays are located on the lower left side of the front panel, below the CD ROM drive. See Figure 1-1.

The two hard disk drive models currently supported are:

• 18 GB LVD 10K RPM disk drive (Product Number A4998A)

• 36 GB LVD 10K RPM disk drive (Product Number A6013A)

NOTE The ability to hot plug the hard disk drive(s) requires MirrorDisk/UX

(Product Number B2491BA on HP-UX 11.0 ACE 1199 or HP-UX 11i ACE

0601).

16 Chapter1

Product Information

Front Panel Components

The Hot-Plug Process

The physical aspect of inserting and removing a disk drive is discussed in the document that comes with the drive. However, the operating system must be prepared for the insertion or removal of a disk, or unexpected and harmful effects may occur.

There is a signiﬁcant difference between the terms “hot-pluggable” and “hot-swappable”. Hot swapping happens at the device level; that is, a hot-swappable device manages insertion/removal on its own without assistance from HP-UX commands. The disk drive(s) in the J6700 are not hot-swappable; they are merely hot-pluggable. Thus, a manual software procedure must be done in order to safely remove or insert disk drives while the system is running.

The hot-plug process allows you to replace a defective disk drive in a high-available system while it is running.

Replacing a Failed Disk Drive

In the context of replacing a failed disk drive, the system administrator must determine which disk has failed. Depending on how the system was set up, the identity of the failed drive may or may not be obvious. This determination may be done in either of two ways:

• Tracking the error message written by the LVM (Logical Volume Manager) to the system console and/or a log ﬁle. For information on LVM commands, see the man pages for vgchange, lvreduce, vgfgrestore, lvlnboot, lvextend, lvsync, etc.

• If installed, run the diagnostic utility Support Tool Manager (xstm) to determine disk malfunction.

The removal of a defective disk drive from an active ﬁle system is supported through LVM commands if hot-pluggable disks have been conﬁgured into the HP-UX ﬁle system with LVM. To provide high availability, without impact to users, the disks must also be conﬁgured as mirrored disks. Disk-mirroring is accomplished through use of the MirrorDisk/UX software (HP part number B2491BA); for information on classes, see http://www.hgp.com/education/courses/h628s.html.

No graphical user interface is currently offered through the System Administrator Manager (SAM) for doing the required LVM commands because manipulation of the LVM requires specialized knowledge that only experienced system administrators are expected to have (see below for details).

Chapter 1 17

Product Information

Front Panel Components

Hot-Plug Example

The following example describes a particular system problem where the solution is to replace a hot-plug disk module.

Volume group /dev/vg00 contains the two disks, with the logical volume conﬁguration as shown:

Table 1-2. Example Conﬁguration

Volume Description Volume Description

Logical Volume 1 Logical Volume 3 Logical Volume 2 Logical Volume 4 Logical Volume 3 Logical Volume 5

hardware address 10/0/12/0.0 10/0/13/0.0 device file (/dev/dsk/) c2t6d0 c2t5d0

The system problem for this example is that the disk at hardware address 10/0/13/0.0 has a head crash, and as a result, is unusable. The steps described in the Hot-Plug Procedure section below outline a method that can be used to recover from this state.

1. All of the replaced disk’s in-use extents must belong to mirrored logical volumes which were created with the “strict” option (-s); see the documentation for MirrorDisk/UX.

2. You must have an up-to-date conﬁguration backup ﬁle. This is done automatically each time an LVM command changes LVM conﬁguration.

The default backup ﬁle’s path is:

/etc/lvmconf/<

base_vg_name

>.conf

For example,

/etc/lvmconf/vg00.conf

3. The replacement disk must be the same product ID as the replaced one.

NOTE HP often uses different manufacturers for disks having the same product

number. The hot-plug manual procedure will not update the disk driver’s internal information to that of the replaced disk.

The replacement disk will have the same capacity and block size as the defective disk because they have the same product number. The only ﬁeld that could be incorrect is the string specifying the vendor’s name. This will not affect the behavior of the LVM. If it is desired to update the manufacturer’s name, the disk’s volume group must be deactivated and reactivated. See the HP-UX System Administration Tasks manual for details.

18 Chapter1

Product Information

Front Panel Components

The Hot-Plug Procedure

These are the steps required to properly hot-plug a disk drive:

Step 1

• Check if the LVM found the physical volume to be defective when the volume group was activated.

• The “vgchange -a y” command would have printed the following message on the console:

WARNING: VGCHANGE:WARNING: COULDN’T ATTACH TP THE VOLUME GROUP PHYSICAL VOLUME “/DEV/DSK/cXtXdX”

THE PATH OF THE PHYSICAL VOLUME REFERS TO A DEVICE THAT DOES NOT EXIST, OR IS NOT CONFIGURED INTO THE KERNEL.

• If the status of the “vgchange -v vg02” is unknown, you may checkif this occurred by doing a vgdisplay command:

vgdisplay<

VG name

For our example:

vgdisplay /dev/vg00

• If the disk was defective at vgchange time, the following messages will be printed one or more times:

WARNING: VGDISPLAY: WARNING: COULDN’T QUERY PHYSICAL VOLUME

“/DEV/DSK/cXtXdX” THE SPECIFIED PATH DOES NOT CORRESPOND TO PHYSICAL VOLUME ATTACHED TO THE VOLUME GROUP.

VGDISPLAY: WARNING: COULDN’T QUERY ALL OF THE PHYSICAL VOLUMES

• If you see these messages, the disk was defective at the time the volume group was activated.

Otherwise, your disk became defective after the vgchange and you must continue with step 2 of this procedure.

Chapter 1 19

Product Information

Front Panel Components

Step 2

• Reduce any logical volumes that have mirror copies on the faulty disk so that they no longer mirror onto that disk (note the -A n option). This will take a several minutes.

lvreduce -m 0 -A n <

LV name

> /dev/dsk/<

hard drive

(for 1-way mirroring)

For example:

lvreduce -m 0 -A n /dev/vg00/stand /dev/dsk/c2t5d0 lvreduce -m 0 -A n /dev/vg00/swap /dev/dsk/c2t5d0 lvreduce -m 0 -A n /dev/vg00/ /dev/dsk/c2t5d0

The number of logical volumes that this step needs is variable. For instance, on a mirror of a root disk you should have at least three logical volumes: /stand (is lvol1), /swap (is lvol2), and / (is lvol3). Note that if your root mirror disk dies, you need to do the following:

— Follow the procedure in the section “Initial System Loader (ISL) Environment” in

the chapter “Boot Console Handler” in this document. At the Main Menu prompt

boot from the good disk. — Type y at the Interact with ISL prompt and press — Type this command at the ISL prompt and press

Enter.

Enter: hpux -lq

The -lq option stands for loss of quorum. Once this procedure has been completed the system will boot.

Step 3

• Replace the faulty disk.

•Doanioscan on the replaced disk to insure that it is accessible and also as a double check that it is a proper replacement.

For example:

ioscan /dev/dsk/c2t5d0

Step 4

• Restore the LVM conﬁguration/headers onto the replaced disk from your backup of the LVM conﬁguration:

vgcfgrestore -n <

volume group name

> /dev/rdsk/cxtxd

where x is the logical unit number of the disk that has been replaced. For example:

vgcfgrestore -n /dev/vg00 /dev/rdsk/c2t5d0

20 Chapter1

Product Information

Front Panel Components

Step 5

• Attach the new disk to the active volume group with the vgchange command.

vgchange -a y /dev/vg00

Step 6

• If the disk is not a mirror of a root disk, then skip this step.

• Run the mkboot command. For example:

mkboot /dev/rdsk/c2t5d0

• Run lvlnboot -R to relink the replaced disk into the Boot Data Reserved Area of all the Physical volumes in the Volume group.

lvlnboot -R

Step 7

• Run the lvsync command to synchronize the physical extents of each logical volume speciﬁed by logical volume path. Synchronization occurs only on physical extents that are stale mirrors of the original logical extent.

lvsync /dev/<volume group name>/<

LV name

For example:

lvsync /dev/vg00/stand lvsync /dev/vg00/swap lvsync /dev/vg00/

At this stage, your system should be fully functioning. Use the xstm command to verify.

Chapter 1 21

Product Information

Front Panel Components

CD ROM Drive (Optional)

As an optional component, the J6700 workstations support one slim-line CD ROM drive with an ATAPI (IDE) interface.

Figure 1-4 shows the operating features of the CD ROM drive, and Table 1-3 describes these features.

Figure 1-4. CD ROM Drive Features

Emergency Eject Button

Disk Tray

Eject Button

Busy Indicator Light

Table 1-3. CD ROM Drive Features

Feature Purpose

Busy Indicator • Lights during a data access operation and during a data

transfer.

• Flashes at a one second rate when a disk is loaded.

• Continues to ﬂash if a disk or hardware error is detected.

• Flashes at a three second rate while playing an audio disk.

Emergency Eject Hole

Eject Button Opens the Disk Tray so that a CD ROM disk may be inserted

Disk Tray Holds the CD ROM disk. (Note that this style of CD ROM

Opens the Disk Tray when the end of a paper clip is inserted into it. Used when the workstation does not have power and the Disk Tray cannot be opened by pressing the Eject Button.

in it or removed from it. When the drive is in use, press the Eject Button for more than one second to open the Disk Tray. The Disk Tray does not open if the workstation power is off.

drive does not use a disk caddy.)

22 Chapter1

Product Information

Rear Panel Components

This section describes the following components on the system unit’s rear panel. Figure 1-5 shows the locations of these rear panel components.

• Power cord connector

• Transfer of Control (TOC) Button

• Audio connectors

• Two serial ports

• 802.3 Twisted Pair (TP) LAN connector

• Two USB connectors

• Single-Ended/Low-Voltage Differential (SE/LVD) SCSI connector

NOTE To maintain FCC/EMI compliance, verify that all cables are fully seated and

properly fastened.

Figure 1-5. System Unit Rear Panel Connectors

Power Connector

Serial Port 1

LAN Connector

Serial Port 2

SERIAL

IOIOI

LAN TP 10/100

USB

SE LVD

SCSI

COMPATIBLE CABLE REQUIRED

TOC

USB Connectors

SE/LVD

Audio Connectors

SCSI Connector

I/O Card Slots

15-Pin D-Sub Connector (optional graphics card)

slot 1

slot 2 slot 3

Chapter 1 23

Product Information

Rear Panel Components

Connectors on the Rear Panel

Power Cord Connector

Plug the power cord into the power cord connector to provide AC power to the workstation. The J6700 power cord is rated at 15A for a 100–120V source.

RS-232C Serial Connectors

You can attach a variety of pointing devices (such as a mouse or trackball) or peripheral devices (such as printers, plotters, modems, and scanners) to the RS-232C Serial Input/Output (SIO) ports on this workstation. Consult the documentation that accompanies the device for speciﬁc information concerning its use.

LAN 10/100 BaseT RJ45 Connector

Your workstation has a built-in Twisted Pair (TP) connector for the 802.3 (ETHERNET) or 10 BaseT/100 BaseT network. Your workstation will automatically select the correct network setting.

USB Connectors

The two Universal Serial Bus (USB) connectors support only the HP keyboard, mouse, or hub (D6804A). You can connect the HP keyboard, mouse, or hub in either of the USB connectors.

The USB mouse and keyboard were shipped with your system unit. The HP hub can be ordered separately. Note that you should consult the documentation that accompanies each input device for speciﬁc information concerning its use.

Formore information on the Universal Serial Bus, use your browser to access the following URL: http://www.usb.org.

HP Hub for USB Devices

The HP USB hub provides you with the ability to connect more than two USB devices to the workstation, as well as the ability to extend the USB device’s cable length. As an example, you may desire to locate the workstation’s keyboard and mouse at a greater distance from the workstation, but the keyboard and mouse cables are not long enough. To increase the cable length, you must make use of the USB hub’s extra cable length and connect the hub’s cable to one of the two connectors on the back of the workstation. You then connect the keyboard and mouse into their separate connectors on the USB hub.

24 Chapter1

Product Information

Rear Panel Components

SCSI Connectors

There is one Single-Ended/Low-voltage Differential (SE/LVD) SCSI connector on the rear panel. This connector will support SE SCSI and LVD SCSI, but not both at the same time. Use the SCSI connector to connect external SCSI devices such as hard disk drives, optical disk drives, DDS-format tape drives, and CD ROM drives.

Consult the documentation that accompanies each SCSI device for speciﬁc information concerning its use. Also see Appendix C, “SCSI Connections,” for information about connecting SCSI devices to the J6700 workstations.

CAUTION Do not mix NSE and LVD SCSI devices on the same SCSI bus as this can

cause reduction of device performance.

Audio Connectors

Your workstation has audio input and output capability through external input and output connectors on the rear panel and through an internal speaker. The rear panel contains the line input jack, line output jack, headphone jack, and microphone jack connectors.

Figure 1-6. Audio Connectors

Line Input

Line Output

Headphone Microphone

The audio connectors are standard stereo audio mini-jacks. Hewlett-Packard recommends using gold-plated plugs available through audio retailers for best quality recording and playback through the external connectors. Table 1-4 on the next page provides a summary of the audio electrical speciﬁcations.

Table 1-4. Audio Electrical Speciﬁcations

Frequency Response 25 Hz to 20 kHz Input Sensitivity/Impedance:

– Line in – Microphone

Chapter 1 25

2.0 Vpk/47 Kohm 22 mVpk/1 Kohm

Product Information

Rear Panel Components

Table 1-4. Audio Electrical Speciﬁcations

Maximum Output Level/Impedance: – Line out – Headphones – Speaker (internal)

Output Impedance: – Line out – Headphones

2.8 Vpp/47 Kohm

2.8 Vpp/50 ohm

5.9 Vpp/48 ohm

619 ohm 118 ohm

26 Chapter1

Product Information

Internal Components

This section describes the internal components of the J6700 workstations. For instructions on how to remove the workstation’s top panel in order to access these

internal components, as well as instructions on how to remove and replace these internal components to service them, see Chapter 4.

Figure 1-7. Internal Components of the J6700

Memory Slots

Processor 0

System Board

The system board in the J6700 contains the PA-RISC microprocessors, memory slots, and PCI cage as well as connectors to other components.

Processor 1

VRMs

Chapter 1 27

Product Information

Internal Components

Microprocessors

The J6700 has two PA-8700 microprocessors with operating frequencies of 750MHz. Each processor has 0.75 MB instruction cache and a 1.5 MB data cache. Each microprocessor is cooled by a “turbocooler” which consists of a cylindrical heat sink and an integrated fan.

Power Supply

The power system is comprised of one apparent power factor 500W output power supply. The maximum power needed by a fully-conﬁgured SPU is 715W input power. The temperature sensor is located in the front of the power supply. The power supply weighs approximately 8 lbs. (4 kg.). Please note that the system speaker is located in the power supply.

CAUTION HP does not recommend and does not support the use of “ferro-active” or

“ferro-resonant” power correction in conjunction with the J6700 workstation. This type of line conditioner represents an older technology that is not compatible with the most recent designs in active Power Factor Correction (PFC) power supplies such as those in the HP J6700 workstations. “Ferro-active” or “ferro-resonant” line conditioners may cause an increase in total harmonic distortion and may produce signiﬁcant and unpredictable voltage regulation anomalies.

PCI Cage

The PCI (Peripheral Connect Interface) cage is located on the left side of the system board, behind the CD ROM and hard disk drive bays. There are three PCI-4X, 64 bit, 3.3v, 66 MHz slots which provide I/O expansion capabilities for the workstation. There are no primary and secondary card slots.

CD ROM and Hard Disk Drive Bays

The J6700 supports two Low-Voltage Differential (LVD) SCSI hard disk drives (one standard and one optional) and one optional ATAPI slim-line CD ROM drive. The internal SCSI Bus is independent of the external SCSI Bus.

The hard disk drives are hot-pluggable. More information on this was provided earlier in this chapter in the Hard Disk Drive section.

Voltage Regulator Modules (VRMs)

NOTE These VRMs are designed to function ONLY with the J6700 power supply.

The output is 2VDC. The maximum current is 52A.

28 Chapter1

Product Information

Monitors

The J6700 workstations currently support the following HP monitors:

• 19-inch (18.3-inch viewable) VGA 1600×1200 color monitor (Product Number A4575A)

• 21-inch (19.9-inch viewable) VGA 1600×1200 color monitor (Product Number A4576A)

• 18.1-inch L1800 color ﬂat panel display VGA up to 1280×1024 (Product Number D5065W)

• 19-inch (18-inch viewable) display VGA 1600x1200 (Product Number D8910W)

• 21-inch (19.8-inch viewable) display VGA 1800x1440 (Product Number D2847A)

• 24-inch (22.5-inch viewable) display VGA 1920x1200 (Product Number A1295A)

Keyboard

The standard USB keyboard (Product Number A4983-604xx – the actual sufﬁx number depends on the localized version of the keyboard) with the J6700 workstations is a 104-key input device. It is a PC-104 compatible keyboard.

Mouse

The USB mouse is either a scroll wheel type mouse (Product Number A4983-60101) where the scroll wheel also serves as the middle button, or a true three-button type mouse (Product Number A4983-60111).

Site Preparation and Installation

For information on:

• Preparing customers’ sites for the delivery and installation of J6700 workstations, refer to the HP VISUALIZE J6000 Site Preparation Guide (www.docs.hp.com)

• Installing J6700 workstations, refer to the QuikInstall Poster which came with the workstation (Part Number A5991-90000) and the Getting Started Guide - HP VISUALIZE J6700 Workstation (Part Number A5990-90021).

For a listing of documentation for the J6700 workstations, see Appendix D.

Chapter 1 29

Product Information

Monitors

30 Chapter1

2 Conﬁguration

This chapter provides details about setting up and changing the system conﬁguration for HP VISUALIZE J6700 workstations.

Conﬁguration

Chapter Overview

This chapter contains the following main sections:

• Workstation Conﬁgurations

• Field Replaceable Unit (FRU) Conﬁgurations — Internal Storage Devices

— Memory — I/O Cards

Workstation Conﬁgurations

Refer to the HP Workstations web site for a complete list of supported accessories, peripherals, and operating system versions for the J6700 workstations. The URL for the web site is:

http://www.hp.com/workstations/

Field Replaceable Unit (FRU) Conﬁgurations

This section provides information for setting up or changing the conﬁguration of the Field Replaceable Units (FRUs) for the J6700 workstations.

Internal Storage Devices

Hard Disk Drive Conﬁguration

The SCSI IDs for hard disk drives are hard-wired into the SCA Ultra2 Wide LVD SCSI interfaces in the backplane of the two disk bays within the J6700 workstations. Hence, SCSI IDs do not need to be set for the hard disk drives installed in these workstations. From top to bottom, the pre-set SCSI IDs for hard disk drives are: 6 and 5.

Similarly, no jumpers are installed at the factory, nor is any jumper installation required at the customer’s site, on either of the hard disk drive models that are supported with the J6700 workstations. Both hard disk drive models may be installed as is into these workstations.

32 Chapter2

Conﬁguration

Field Replaceable Unit (FRU) Conﬁgurations

Memory

There is a label on the inside cover of the workstation which shows the J6700’s memory loading sequence.

J6700 Memory Conﬁguration

The J6700 workstation has sixteen memory slots, labeled 0A, 0B to 7A, 7B. Memory DIMMs must be installed in pairs in this workstation, and both DIMMs in each pair must be of equal size. The DIMMs for this workstation currently come in 512 MB and 1 GB sizes. This workstation comes with two 512 MB DIMMs as its standard conﬁguration from the factory. Thus, currently the minimum memory conﬁguration for this workstation is 1GB, and the maximum is 16 GB.

DIMMs should be loaded in the order shown with 0A, 0B being the ﬁrst pair of DIMMs loaded, and 7A, 7B being the last pair loaded. Figure 2-1 shows the installation sequence.

NOTE If memory is installed improperly or it is bad and fastboot is not enabled, your

workstation’s operating system will not boot-up and a DIMM error will appear in your workstation’s LCD. For more information see the section “Displaying and Setting Fastboot Mode” in Chapter 5.

Figure 2-1. Memory Loading Sequence in the J6700

Chapter 2 33

Conﬁguration

Field Replaceable Unit (FRU) Conﬁgurations

I/O Cards

The three I/O slots located in the PCI cage area of the J6700 workstations are 64-bit, 4x,

3.3v, 66 MHz PCI (Peripheral Connect Interface) slots, providing I/O expansion

capabilities for the J6700 workstations.

CAUTION The J6700 workstations supply about 75 Watts of power to the PCI slots. Do

not insert I/O cards that together draw more than 75 Watts, or damage to the workstation may result. Please look at the speciﬁcations that come with your individual I/O cards for power requirements. Note that each PCI slot can provide up to 25 watts.

34 Chapter2

3 Troubleshooting

This chapter provides information about isolating a failing component, known as a Field Replaceable Unit (FRU), in HP VISUALIZE J6700 workstations.

Troubleshooting

Chapter Overview

This chapter contains the following main sections:

• Introduction to Troubleshooting

• Flowcharts for Troubleshooting

• Dealing with a Boot Failure

• Identifying LCD-Indicated Conditions

• Running System Veriﬁcation Tests

• Running ODE-Based Diagnostics

• LED Diagnostics

Introduction to Troubleshooting

To troubleshoot HP VISUALIZE J6700 workstations, you must be familiar with the HP-UX operating system and be able to start and stop processes. You should also be familiar with the boot ROM diagnostics, ISL diagnostics, and the Support Tools Manager online tests, which are described in this chapter.

First note any error or status messages, and then run the power-up boot ROM diagnostics, known as Selftest. If the Selftest diagnostics fail, replace the FRU that is indicated. If the tests pass but you still suspect a problem, run the ISL diagnostics and the Support Tools Manager online tests.

For a complete description of using ISL diagnostics and using the Support Tools Manager, see the Support Media User’s Manual (Part Number B3782-90176).

Flowcharts for Troubleshooting

The following four ﬁgures contain troubleshooting ﬂowcharts you can follow to isolate a failing Field Replaceable Unit (FRU). Figure 3-1 on the next page contains the main troubleshooting ﬂowchart. Figures 3-2 through 3-4 on the following pages contain the ﬂowcharts for console, bootable device, and HP-UX troubleshooting, respectively.

36 Chapter3

Figure 3-1. Main Flowchart for Troubleshooting

Troubleshooting

Flowcharts for Troubleshooting

Chapter 3 37

Troubleshooting

Flowcharts for Troubleshooting

Figure 3-2. Console Troubleshooting Flowchart

38 Chapter3

Flowcharts for Troubleshooting

Figure 3-3. Bootable Device Troubleshooting Flowchart

Troubleshooting

Chapter 3 39

Troubleshooting

Flowcharts for Troubleshooting

Figure 3-4. HP-UX Troubleshooting Flowchart

40 Chapter3

Troubleshooting

Dealing with a Boot Failure

This section contains information for searching for bootable media, stable storage, boot command notations, supported boot paths and the Intermediate System Loader (ISL) environment. Some of the examples in this section require the use of the Boot Console Handler, which is discussed in Chapter 5 of this handbook.

Special Considerations

When dealing with boot failures, you will need to consider the scenarios in this section.

• To boot from a known device containing a bootable operating system, type the following at the prompt:

Main Menu: Enter command > boot

where

device

is the hardware path to the device, speciﬁed in Mnemonic Style

device

[Enter]

Notation. Example: to boot an operating system stored on an IDE CD ROM, go to the Main Menu

of the Boot Console Handler and then type the following command at the prompt:

Main Menu: Enter command > boot ide [Enter]

The operating system on the speciﬁed device is used to start the workstation.

• To interact with the Initial System Loader (ISL) before booting the workstation, type the following at the prompt:

Main Menu: Enter command > boot

device

[Enter]

You are prompted: Interact with ISL (Y or N) > y [Enter] Answering yes (y) causes the ISL to be loaded from the speciﬁed device. After a short

time, the following prompt appears on the screen:

ISL>

ISL is the program that actually controls the loading of the operating system. By interacting with ISL, you can choose to load an alternate version of the HP-UX operating system.

For example, if the usual kernel (/stand/vmunix) on the root disk has become corrupted, boot the workstation from the backup kernel (/stand/vmunix.prev)by typing the following at the ISL> prompt:

ISL> hpux /stand/vmunix.prev [Enter]

• To ﬁnd the location of the bootable operating systems on the various media in the ﬁle system, use the search ipl command. See the next subsection, “Searching for

Bootable Media.”

Chapter 3 41

Troubleshooting

Dealing with a Boot Failure

Searching for Bootable Media

To list all devices that contain bootable media, go to the Main Menu of the Boot Console Handler, and then type the following at the prompt:

Main Menu: Enter command > search ipl [Enter]

The search command searches all buses. The search may turn up more devices than there are lines on the display. If you are using a text terminal, you can control the progress of the search from the terminal’s keyboard by doing any of the following:

• To temporarily suspend the search, press [Ctrl]-[S].

• To continue the search, press [Ctrl]-[Q].

• To halt the search, press any other key. These ﬂow-control commands do not work with a bitmapped display, but such a display can

show more than forty lines of text, so you are unlikely to need them. To search for devices of just one type that actually contain bootable media, go to the Main

Menu of the Boot Console Handler, and then type the following at the prompt:

Main Menu: Enter command > search ipl

where

device_type

is one of the following:

device_type

[Enter]

• fwscsi is the internal, Ultra2 Wide LVD (Low Voltage Differential) SCSI bus.

• scsi is the external SE/LVD SCSI bus.

• lan is all connections to the built-in LAN.

• ide is the built-in CD ROM drive.

• pci

is an optional SCSI interface in slot numbern.

Stable Storage

Stable Storage is non-volatile memory associated with the PA-RISC processor module. Stable Storage is used by the processor (CPU) to store device path information, the state of the boot ﬂags, HPMC error information, and operating system initialization data.

Boot Command Notations

The boot command supports the following two notations:

• Mnemonic

• Path number Type help scsi or help lan for more information on the boot path parameters. Here are examples of mnemonic notation:

• boot with no parameters selects the primary boot path in stable storage.

• boot with the alternate or alt parameter selects the alternate boot path in stable storage.

42 Chapter3

Troubleshooting

Dealing with a Boot Failure

Here is an example of path number notation:

• boot p1 [Enter] attempts to boot from the second path in a list generated by a previous search command.

Supported Boot Paths

SCSI devices are bootable when connected to any SCSI port on the system. Workstations can only boot from the built-in LAN port. The workstation can be booted from the CD ROM drive for software installation.

Intermediate System Loader (ISL) Environment

The ISL environment provides the means to load the operating system (HP-UX) environment. The ISL environment also provides an ofﬂine platform to execute diagnostic and utility programs from a boot device when HP-UX does not load.

The ISL program is the ﬁrst program loaded into main memory from an external media (LAN, disk, or tape) and launched by the initial program loader (IPL) routine during the Boot Administration environment.

The ISL environment provides the following capabilities:

• Execute user-entered commands to modify boot device paths and boot options in stable storage.

• Run off-line diagnostic programs and utilities.

• Provide automatic booting of the HP-UX operating system after power-on or reset.

Chapter 3 43

Troubleshooting

Identifying LCD-Indicated Conditions

This workstation uses a 2-line LCD, with up to 16-characters per line, to display ﬁrmware/operating system progress codes. These codes are referred to as chassis codes. The information displayed on the LCD has the following format:

XXX YYYY: ZZZZZZ (Line 1) AAAAAAAAAAAAAAAA (Line 2)

Where:

XXX Three-character Operating Status YYYY Four-digit hex code identifying the code module being executed ZZZZZZ Six-digit FRU descriptor AAAAAAAAAAAAAAAA Diagnostic message of up to 16 characters

The 3-character operating status can be one of the following:

FLT (fault) TST (test) INI (initialize) SHU (shutdown) WRN (warning) RUN (running)

A hardware error has been detected Hardware being tested Hardware being initialized System being shutdown A non-optimal operating condition exists The operating system is running

Selftest Failures

Chassis codes are the key to debugging selftest errors. If a failure is found during selftest, chassis codes are displayed in the system LCD. To debug a failure:

1. In Table 3-1 starting on the next page, ﬁnd the chassis code listed on the LCD.

2. In the Boot Console Handler, use the Service Menu’s pim, pdt, and ChassisCodes commands to get additional information about the failure.

The FRU column in Table 3-1 shows messages printed on the LCD that refer to system FRUs. All codes are listed in numeric order.

44 Chapter3

Troubleshooting

Identifying LCD-Indicated Conditions

Memory Failures

The J6700 workstations require special Memory Page Deallocation to be implemented. This feature allows the workstation to provide information to the operating system about memory failures.

HP-UX uses this information to map out failing memory areas and continue normal operation. You can check the Memory Page Deallocation Table (PDT) using the pdt command in the Service menu of the Boot Console Handler (refer to Chapter 5). If a failing DIMM is replaced, use the command pdt clear in the Service Menu to clear out the PDT.

Chapter 3 45

Troubleshooting

Identifying LCD-Indicated Conditions

Chassis Codes

Table 3-1 lists all of the chassis codes for the J6700 workstations.

Table 3-1. Chassis Codes for J6700 Workstations

Ostat Code FRU Message Description

FLT 1n01 SYS BD HPMC occurred CPU n detected an unexpected HPMC. FLT 1n02 SYS BD powerfail intrpt CPU n detected an unexpected power fail

interrupt.

FLT 1n03 SYS BD recvry cntr trap CPU n detected an unexpected recovery

counter trap.

FLT 1n04 SYS BD external intrrpt CPU n detected an unexpected external

interrupt.

FLT 1n05 SYS BD LPMC occurred CPU n detected an unexpected LPMC. FLT 1n06 SYS BD ITLB mis/Ipg flt CPUn detected an unexpected ITLB miss

or instruction page fault.

FLT 1n07 SYS BD I mem prot trap CPU n detected an unexpected instruction

memory protection trap.

FLT 1n08 SYS BD illegal inst trp CPU n detected an unexpected illegal

instruction trap.

FLT 1n09 SYS BD break instr trap CPU n detected an unexpected break

instruction trap.

FLT 1n0A SYS BD privilgd op trap CPU n detected an unexpected privileged

operation trap.

FLT 1n0B SYS BD privlgd reg trap CPU n detected an unexpected privileged

FLT 1n0C SYS BD overflow trap CPU n detected an unexpected overﬂow

trap.

FLT 1n0D SYS BD conditional trap CPUndetected an unexpected conditional

trap.

FLT 1n0E SYS BD assist exep trap CPU n detected an unexpected assist

exception trap.

FLT 1n0F SYS BD DTLB mis/Dpg flt CPU n detected an unexpected DTLB

miss or data page fault.

FLT 1n10 SYS BD non-acc ITLB mis CPUn detected an unexpectednon-access

ITLB miss fault.

FLT 1n11 SYS BD non-acc DTLB mis CPUn detected an unexpectednon-access

DTLB miss or data page fault.

46 Chapter3

Troubleshooting

Identifying LCD-Indicated Conditions

Table 3-1. Chassis Codes for J6700 Workstations

Ostat Code FRU Message Description

FLT 1n12 SYS BD data mem prot tr CPU n detected an unexpected data

memory protection trap.

FLT 1n13 SYS BD data mem brk trp CPU n detected an unexpected data

memory break trap.

FLT 1n14 SYS BD TLB dirty bit tr CPU n detected an unexpected TLB dirty

bit trap.

FLT 1n15 SYS BD page refrnce trp CPU n detected an unexpected page

reference trap.

FLT 1n16 SYS BD assist emul trap CPU n detected an unexpected assist

emulation trap.

FLT 1n17 SYS BD hi-priv xfer trp CPU n detected an unexpected

higher-privilege transfer trap.

FLT 1n18 SYS BD lo-priv xfer trp CPU n detected an unexpected

lower-privilege transfer trap.

FLT 1n19 SYS BD taken branch trp CPU n detected an unexpected

taken-branch trap.

FLT 1n1A SYS BD data mem acc rts CPU n detected an unexpected data

memory access rights trap.

FLT 1n1B SYS BD data mem prot ID CPU n detected an unexpected data

memory protection ID trap.

FLT 1n1C SYS BD unalign data ref CPU n detected an unexpected unaligned

data reference trap.

FLT 1n1D SYS BD perf mon intrrpt CPU n detected an unexpected

performance monitor interrupt.

TST 1n20 SYS BD CPUn basic test CPU n is starting its basic operations

self-test.

TST 1n21 SYS BD CPUn alu test CPU n is starting its arithmetic and

logical unit self-test.

TST 1n22 SYS BD CPUn branch test CPU n is starting its branch instruction

self-test.

TST 1n23 SYS BD CPUn arith cond CPU n is starting its arithmetic condition

self-test.

TST 1n24 SYS BD CPUn bit opers CPU n is starting its bit operation

instruction self-test.

TST 1n25 SYS BD CPUn cntrl regs CPU n is starting its control register

self-test.

Chapter 3 47

Troubleshooting

Identifying LCD-Indicated Conditions

Table 3-1. Chassis Codes for J6700 Workstations

Ostat Code FRU Message Description

TST 1n26 SYS BD CPUn ext intrpt CPU n is starting its external interrupt

self-test.

TST 1n27 SYS BD CPUn itimer test CPU n is starting its interval timer

self-test.

TST 1n28 SYS BD CPUn multi-media CPU n is starting its multi-media

instructions self-test.

TST 1n29 SYS BD CPUn shadow reg CPU n is starting its shadow register

self-test.

TST 1n2A SYS BD CPUn diagnse reg CPU n is starting its diagnose register

self-test.

TST 1n2B SYS BD CPUn rdr test CPU n is starting its remote diagnose

TST 1n2C SYS BD CPUn bypass test CPU n is starting its integer bypass

operation self-test.

TST 1n30 SYS BD CPUn start est CPU n is starting its early (pre-memory)

self-tests.

WRN 1n31 SYS BD CPUn skip est CPU n is bypassing its early self-tests to

save time.

FLT 1n32 SYS BD CPUn bad tst mod CPU n detected an unsupported system

mode.

INI 1n3C SYS BD CPUn initialize CPU n is initializing after self-tests. TST 1n3E SYS BD CPUn exit est CPU n ﬁnished its early self-tests. TST 1nA0 SYS BD CPUn fpu tests CPU n is starting its ﬂoating-point unit

self-tests.

TST 1nA1 SYS BD CPUn fpu reg tst CPU n is starting its ﬂoating-point

TST 1nA2 SYS BD CPUn fpu inst CPU n is starting its ﬂoating-point

instruction self-test.

TST 1nA3 SYS BD CPUn fpu traps CPU n is starting its ﬂoating-point trap

self-test.

TST 1nA4 SYS BD CPUn fpu misc CPU n is starting its ﬂoating-point

miscellaneous operations self-test.

TST 1nA5 SYS BD CPUn fpu bypass CPU n is starting its ﬂoating-point

bypassing self-test.

TST 1nB1 SYS BD CPUn TLB RAM tst CPU n is starting its TLB register

self-test.

48 Chapter3

Troubleshooting

Identifying LCD-Indicated Conditions

Table 3-1. Chassis Codes for J6700 Workstations

Ostat Code FRU Message Description

TST 1nB2 SYS BD CPUn TLB trans CPU n is starting its TLB translation

self-test.

FLT 1nBA SYS BD monarch CPU FLT 1nBB SYS BD bad CPUn number The CPU identiﬁer was out of range. FLT 1nBF SYS BD CPUn halt boot Bootstrap failure--machine halted. INI 1nCA SYS BD CPUn sys bus arb Monarch CPU is initializing the system

WRN 1nCD SYS BD CPUn deconfig CPU n deconﬁgured itself. WRN 1nCE SYS BD CPUn extinguish PDC_PROC halted CPU n. FLT 1nCF SYS BD slaven failed Slave CPU n failed self-test. WRN 1mDs SYS BD slaves deconfig Monarch CPU m deconﬁgured slave CPU

WRN 1nEF SYS BD CPUn slftst warn CPU n detected a non-fatal error during

WRN 1mFs SYS BD monm stop slave INI 1nFC SYS BD CPUn sync’ing CPU n is synchronizing with the rest of

INI 1nFD SYS BD CPUn stat wd tst CPU n is testing the system status word. FLT 1nFF SYS BD monarchn selftst Monarch CPU n failed self-test.

fail

The monarch CPU failed.

bus arbitration.

its self-tests.

Monarch CPU m halted slave CPU s.

the system.

TST 2n20 SYS BD CPUn icache RAM CPU n is starting its instruction cache

RAM self-test.

FLT 2n25 SYS BD CPUn ic ld d err CPU n detected a data error during data

cache load.

FLT 2n26 SYS BD CPUn ic ld t err CPU n detected a tag error during data

cache load.

TST 2n30 SYS BD CPUn icache tag CPU n is starting its instruction cache tag

self-test.

TST 2n40 SYS BD CPUn icache par CPU n is starting its instruction cache

parity detection self-test.

TST 2n50 SYS BD CPUn dc stor que CPU n is starting its data cache store

queue self-test.

FLT 2n51 SYS BD CPUn dc st q err CPU n detected an error during its data

cache store queue self-test.

TST 2n70 SYS BD CPUn dcache RAM CPU n is starting its data cache RAM

self-test.

Chapter 3 49

Troubleshooting

Identifying LCD-Indicated Conditions

Table 3-1. Chassis Codes for J6700 Workstations

Ostat Code FRU Message Description

TST 2n80 SYS BD CPUn dcache tag CPU n is starting its data cache tag

self-test.

TST 2n90 SYS BD CPUn dcache ECC CPU n is starting its data cache ECC

self-test.

FLT 2BAD SYS BD assertion fail A ﬁrmware assertion failed. TST 3n00 SYS BD ROM checksum tst Monarch CPU n is testing the boot ROM

integrity.

FLT 3n00 SYS BD ROM checksum BAD The boot ROM failed checksum. INI 3n00 SYS BD ROM checksum ok The boot ROM passed checksum. TST 3n01 SYS BD PDH control test Monarch CPU n is testing PDH control

INI 3n01 SYS BD PDH control init Monarch CPU n is initializing the PDH

control register.

FLT 3n01 SYS BD PDH control err Monarch CPU n detected an error in the

PDH control register.

TST 3n02 SYS BD scratch RAM test Monarch CPU n is testing scratch RAM. INI 3n02 SYS BD scratch RAM ok The scratch RAM test failed. FLT 3n02 SYS BD scratch RAM bad The scratch RAM test passed. WRN 3n03 SYS BD stbl st read err CPU n detected a non-fatal error reading

the stable store.

FLT 3n03 SYS BD stbl st read err CPU n detected a non-fatal error reading

the stable store.

INI 3nC4 SYS BD clearing EEPROM Monarch CPU n is clearing the EEPROM. INI 3nD4 SYS BD deflting EEPROM2 Monarch CPU n is initializing the

EEPROM to system defaults.

WRN 3n04 SYS BD EEPROM write err CPU n detected a non-fatal error writing

the EEPROM.

FLT 3n04 SYS BD EEPROM write err CPU n detected a fatal error writing the

EEPROM.

FLT 3n05 SYS BD EEPROM wrt limit CPU n detected a fatal error writing the

EEPROM.

WRN 3n06 SYS BD EEPROM read err CPU n detected a non-fatal error reading

the EEPROM.

FLT 3n06 SYS BD EEPROM read err CPU n detected a fatal error reading the

EEPROM.

50 Chapter3

Troubleshooting

Identifying LCD-Indicated Conditions

Table 3-1. Chassis Codes for J6700 Workstations

Ostat Code FRU Message Description

INI 3n07 SYS BD CPUn invoke LDB CPU n is starting the low-level debugger. FLT 3n09 SYS BD bad sys mde byte CPU n detected an unsupported system

mode.

WRN 3n1A SYS BD hversion mismtch Stable store hardware version doesn’t

match system.

TST 3n1B SYS BD chck model strng Check model string with version in stable

store.

WRN 3n1B SYS BD model str msmtch Model string doesn’t match that in stable

store.

FLT 3n1B SYS BD fatal model str Error reading model string from stable

store.

TST 3n1C SYS BD test software ID Check LANIC address. WRN 3n1C SYS BD update sw ID Update LANIC address. FLT 3n1C SYS BD update sw ID err Error updating LANIC address. INI 3n2s SYS BD Invoke LDB:

TST 3nBC IO BD test sys clocks CPU n is verifying processor clocks with

INI 3nBC SYS BD init sys clocks CPU n has initialized the processor clocks. FLT 3nBC IO BD RTC tick timeout The real-time clock is ticking too slowlyor

TST 3nCD SYS BD check defaults CPUn is initializing stable store valuesto

INI 3nCD SYS BD init defaults CPU n ﬁnished initializing stable store

FLT 3nCD SYS BD init EEPROM err CPU n detected an error writing to stable

FLT 3nEC SYS BD bad sys config CPU n detected an illegal CPU board

FLT 3nF4 SYS BD EEPROM boot limt CPU n detected a fatal error writing the

CPU n is awaiting the low-level debugger for s more seconds.

the real-time clock.

not at all.

system defaults.

values.

store.

conﬁguration.

EEPROM.

FLT 3nFC SYS BD bad sys bd id CPU n cannot identify CPU board. TST 4n00 SYS BD CPUn start lst CPU n is starting its late (with memory)

self-tests.

Chapter 3 51

Troubleshooting

Identifying LCD-Indicated Conditions

Table 3-1. Chassis Codes for J6700 Workstations

Ostat Code FRU Message Description

WRN 4n01 SYS BD CPUn skip lst CPU n is bypassing its late self-tests to

save time.

TST 4n0E SYS BD CPUn exit lst CPU n ﬁnished its late self-tests. TST 4n20 SYS BD CPUn lst erly st CPU n is re-executing some of its early

self-tests from system memory.

TST 4n21 SYS BD CPUn lst basic CPU n is re-executing its basic operations

self-test.

TST 4n22 SYS BD CPUn lst alu CPU n is re-executing its arithmetic and

logic unit self-test.

TST 4n23 SYS BD CPUn lst branch CPU n is re-executing its branch

instruction self-test.

TST 4n24 SYS BD CPUn lst arth cd CPU n is re-executing its arithmetic

conditions self-test.

TST 4n25 SYS BD CPUn lst bit ops CPU n is re-executing its bit operations

self-test.

TST 4n26 SYS BD CPUn lst ctl reg CPU n is re-executing its control register

self-test.

TST 4n27 SYS BD CPUn lst ext int CPU n is re-executing its external

interrupt self-test.

TST 4n28 SYS BD CPUn lst itimer CPU n is re-executing its interval timer

self-test.

TST 4n29 SYS BD CPUn lst mltimed CPU n is re-executing its multi-media

instructions self-test.

TST 4n2A SYS BD CPUn lst shadow CPU n is re-executing its shadow register

self-test.

TST 4n2B SYS BD CPUn lst dg regs CPU n is re-executing its diagnose

TST 4n2C SYS BD CPUn lst rdrs CPU n isre-executing its remote diagnose

TST 4n2D SYS BD CPUn lst bypass CPU n is re-executing its integer bypass

operation self-test.

TST 4n30 SYS BD CPUn cache byte CPU n is starting its data cache sub-word

operations self-test.

TST 4n40 SYS BD CPUn cache flush CPU n is starting its cache ﬂush self-test. TST 4n50 SYS BD CPUn icache miss CPU n is starting its instruction cache

miss self-test.

52 Chapter3

Troubleshooting

Identifying LCD-Indicated Conditions

Table 3-1. Chassis Codes for J6700 Workstations

Ostat Code FRU Message Description

TST 4n60 SYS BD CPUn dcache miss CPU n is starting its data cache miss

self-test.

FLT 5n00 SYS BD unknown bus err CPU n detected an unknown error on the

system bus (Runway).

FLT 5n02 SYS BD path err assertd CPU n detected a path error on the

system bus (Runway).

FLT 5n04 SYS BD data parity err CPU n detected a data, address, or control

parity error on the system bus (Runway).

FLT 5n07 SYS BD Runway dir error CPU n detected a directed error on the

system bus (Runway).

FLT 5n08 SYS BD Runway broad err CPU n detected a broadcast error on the

system bus (Runway).

FLT 5n0A SYS BD illegal response CPU n received data that did not match

any outstanding data request.

FLT 5n0B SYS BD bus timeout CPU n timed out before receiving

requested data. The responder is logged in the system responder address.

FLT 5n0C SYS BD CPU sync failure CPU n’s synchronizer detected a rule

violation on the system bus (Runway).

INI 7000 DIMM start DIMM scan Start looking for installed DIMMs. INI 7002 SYS BD init mem tables Initialize memory data structures. FLT 7004 SYS BD mem plt upd fail Error updating memory platform data. FLT 7005 DIMM insufficient mem Insufﬁcient memory detected to continue. TST 7010 DIMM check DIMM order Start memory DIMM order check. WRN 7011 DIMM skip DIMM ord ck Bypass memory DIMM order check. FLT 7012 DIMM DIMM order error Memory DIMMs are not in the proper

order.

FLT 7013 DIMM DIMM order error Memory DIMMs are not in the proper

order. As a result, the system cannot access one or more DIMMs and has deallocated all inaccessible DIMMs.

TST 7016 DIMM DIMM pair check Start memory DIMM pair check (DIMMs

in a pair (e.g. 0a/0b) must match in J7xxx).

WRN 7017 DIMM skip mem pair ck Bypass memory DIMM set check. FLT 701F DIMM no memory found Memory scan couldn’t ﬁnd any DIMMs.

Chapter 3 53

Troubleshooting

Identifying LCD-Indicated Conditions

Table 3-1. Chassis Codes for J6700 Workstations

Ostat Code FRU Message Description

TST 7020 SYS BD search for IMM Try to ﬁnd a single memory bank to use

for the initial memory module.

TST 703s DIMM DIMMs IMM vrfy DIMM s was the initial memory module

last boot. Verify it still works.

FLT 704s DIMM DIMMs IMM fail DIMM s failed the initial memory module

test.

TST 705s DIMM DIMM

INI 706s DIMM DIMMs is IMM DIMM s chosen as initial memory module. INI 70F0 DIMM DIMM scan done Memory DIMM scan complete. TST 7100 SYS BD mem register tst Start testing registers in memory

WRN 7101 SYS BD skip mem reg tst Bypass the memory controller register

FLT 7102 SYS BD mem addr reg tst Firmware detected an error in the

FLT 7103 SYS BD mem mbat reg tst Firmware detected an error in the

FLT 7104 SYS BD mem reg tst fail Firmware detected an error in the

FLT 7105 SYS BD mem err reg test Firmware detected an error in the

FLT 7106 SYS BD mem err clr fail Firmware was unable to clear the error

s IMM test

TestDIMM in slot s as the initial memory module.

controller.

test.

memory controller address registers.

memory controller bank registers.

memory controller memory registers.

memory controller error registers.

registers after testing.

INI 7200 DIMM strt DIMM detect Start the Serial Presence Detection (SPD)

to search for memory DIMMs.

INI 7201 DIMM DIMM detectx% SPD is x% ﬁnished. WRN 7202 SYS BD skip DIMM detect Bypass Serial Presence Detection. FLT 7203 DIMM unsupp DIMM type SPD found an unsupported DIMM type. FLT 7204 DIMM SPD fatal error SPD detected an unexpected, fatal error. INI 7205 DIMM add HP DIMM type New HP manufactured DIMM type added

to tables.

INI 7206 DIMM non-HP DIMM type New non-HP DIMM type added to tables

(use at own risk).

54 Chapter3

Troubleshooting

Identifying LCD-Indicated Conditions

Table 3-1. Chassis Codes for J6700 Workstations

Ostat Code FRU Message Description

FLT 7207 DIMM DIMM table full The DIMM table is full--cannot add new

type.

FLT 7208 DIMM no DIMMs found SPD didn’t ﬁnd any memory DIMMs. INI 721s DIMM is DIMMs inst? SPD is checking memory slot s. INI 722s DIMM ???? DIMM in

INI 723s DIMM 128M DIMM in INI 724s DIMM 256M DIMM in INI 725s DIMM 512M DIMM in FLT 72As DIMM DIMMs checksum DIMM in slot s failed SPD checksum and

FLT 72Cs DIMM DIMMs mismatch DIMM in slot s didn’t match the other in

FLT 72Ds DIMM DIMMs load err Memory DIMMs are not in the proper

INI 7300 SYS BD mem config start Starting main memory conﬁguration. TST 7301 SYS BD check mem config Checking for memory conﬁguration

WRN 7302 SYS BD mem confg changd Memory physical conﬁguration changed

s s s

SPD found a DIMM in slot s, but can’t determine its size. DIMM will not be used.

SPD found a 128MB DIMM in slot s. SPD found a 256MB DIMM in slot s. SPD found a 512MB DIMM in slot s.

will not be used.

pair. (J7xxx only--DIMMs must be in matched pairs.)

order. As a result, the system cannot access DIMM s and has deallocated it.

change since last boot.

since last boot.

INI 7303 SYS BD use confg change Memory physical conﬁguration didn’t use

saved conﬁguration change. Use stored conﬁguration data.

INI 7304 SYS BD build mem intrlv Building memory conﬁguration with all

DIMMs interleaved.

INI 7305 SYS BD save mem config Saving memory conﬁguration information

in non-volatile memory.

WRN 7306 SYS BD use alt mem conf Memory will be conﬁgured from ﬁxed

values, instead of detected DIMMs.

INI 7307 SYS BD interleve memory Generating the memory interleave. FLT 7308 SYS BD PDT is disabled Firmware detected bad memory pages,

but the Page Deallocation Table is disabled.

Chapter 3 55

Troubleshooting

Identifying LCD-Indicated Conditions

Table 3-1. Chassis Codes for J6700 Workstations

Ostat Code FRU Message Description

FLT 7309 DIMM insufficient mem Insufﬁcient error-free memory to

continue.

FLT 730C SYS BD mem intrlv fail Memory interleave generation failed. INI 730F SYS BD mem config done Main memory conﬁguration complete. TST 7400 DIMM non-dest mem tst Starting non-destructive memory test. TST 740F DIMM non-dst tst done Non-destructive memory test complete. INI 7500 SYS BD memory reset Resetting memory system. WRN 7501 SYS BD mem log clr warn Memory error logs didn’t clear on ﬁrst try. FLT 7502 SYS BD mem err log fail Firmware could not clear memory error

logs.

TST 7600 DIMM dest mem test Starting the destructive memory test. WRN 7601 DIMM mem init only Skip the test, just initialize memory to

save time.

TST 7602 DIMM tst 1st mem page Starting 3-pass test of ﬁrst memory page. TST 7603 DIMM tst rest of mem Starting 3-pass test of the rest of memory. TST 7604 DIMM start 1st pass Starting 1st pass of memory test (write

pseudorandom sequence).

TST 7605 DIMM 1st pass TST 7606 DIMM start 2nd pass Starting 2nd pass of memory test (verify

TST 7607 DIMM 2nd pass TST 7608 DIMM start 3rd pass Starting 3rd pass of memory test (verify

TST 7609 DIMM 3rd passx% Third pass is x% complete. TST 760A DIMM start mem init Starting memory initialization. (Initialize

TST 760B DIMM mem init WRN 760C DIMM repeat dest test Re-execute destructive test for hardware

First pass is x% complete.

pseudorandom sequence, write inverse). Second pass is x% complete.

inverse sequence).

to zero to set ECC.) Memory initialization is x% complete.

troubleshooting.

FLT 760D DIMM mem code cpy err Firmware tried to copy code from ROM to

memory, but the copy didn’t match the original.

FLT 7610 DIMM ECC wrt/read err Writing and reading back good data

caused memory ECC error.

56 Chapter3

Troubleshooting

Identifying LCD-Indicated Conditions

Table 3-1. Chassis Codes for J6700 Workstations

Ostat Code FRU Message Description

FLT 7611 DIMM ECC single data Memory ECC test failed to detect

single-bit data error.

FLT 7612 DIMM ECC single ECC Memory ECC test failed to detect

single-bit ECC error.

FLT 7613 DIMM ECC multipl data Memory ECC test failed to detect

multiple-bit data error.

FLT 7614 DIMM ECC multpl signl Memory ECC test failed to signal

multiple-bit error.

FLT 7800 SYS BD mem err summary Printing memory error summary word to

RS-232.

FLT 7801 SYS BD bus ctrl par err System bus (Runway) control parity error

detected.

FLT 7802 SYS BD bus addr par err System bus (Runway) address parity error

detected.

FLT 7803 SYS BD bus data par err System bus (Runway) data parity error

detected.

FLT 7804 SYS BD mem out of range Memory access outside conﬁgured

memory space.

FLT 7805 SYS BD bus broadcst err System bus (Runway) broadcast error

detected.

FLT 7806 SYS BD mem addr par err Memory bus address parity error

detected.

FLT 7807 SYS BD mem ctlr stat wd Printing memory controller status word to

RS-232.

FLT 781s DIMM DIMMs uncor err Uncorrectable ECC error detected in

DIMM s.

FLT 782s DIMM DIMMs corr err DIMM s is bad and needs replacing. FLT 783s DIMM Replace DIMM

FLT 7840 SYS BD unexpected HPMC Unexpected HPMC detected. FLT 7841 SYS BD mem status invld Memory error status word is invalid. FLT 7842 SYS BD mem summ invalid Memory summary word is invalid.

Correctable ECC error detected in DIMM s.

FLT 7843 SYS BD fwd prog invalid Memory forward progress word is invalid. FLT 7844 SYS BD mem HPMC summ wd Printing memory error summary word to

RS-232.

Chapter 3 57

Troubleshooting

Identifying LCD-Indicated Conditions

Table 3-1. Chassis Codes for J6700 Workstations

Ostat Code FRU Message Description

FLT 7845 SYS BD mem ctlr stat wd Printing memory controller status word to

RS-232.

FLT 7846 SYS BD mem err overflow Multiple memory errors detected. FLT 7848 SYS BD addr not mapped Memory address outside conﬁgured

memory space.

FLT 785s DIMM MBE in DIMM

FLT 786s DIMM SBE&MBE DIMM

FLT 787s DIMM mem err DIMM

FLT 788s DIMM SBE in DIMM

FLT 7890 DIMM MBE overwrt SBE Firmware replaced a correctable memory

FLT 7891 DIMM dup entry in PDT The PDT already contains an entry at

FLT 7892 SYS BD PDT write error Error adding the entry to the PDT. FLT 7893 SYS BD PDT is full The PDT is full--cannot add new entry. FLT 7900 SYS BD no DMT entry Internal error--cannot ﬁnd DIMM entry. FLT 7901 SYS BD no rank entry Internal error--cannot ﬁnd rank entry.

Destructive memory test detected an uncorrectable memory error in DIMM s.

Destructive memory test detected both an uncorrectable and a correctable memory error in DIMM s.

Destructive memory test detected a pattern compare error in DIMM s.

Destructive memory test detected a correctable memory error in DIMM s.

error entry in the PDT with an uncorrectable memory error entry at the same address.

that address.

FLT 7902 SYS BD bad refrsh intvl Computed refresh interval is invalid. FLT 7903 SYS BD mem intrlv fail Cannot generate memory interleave. FLT 7904 SYS BD mem reloc failed Cannot interleave with relocated range

(3.75GB - 4.0GB).

FLT 7905 SYS BD mem intrlv error Undeﬁned memory interleave failure. FLT 79FF SYS BD mem firmware err Internal error--never expected this to

happen.

WRN 80F3 SYS BD err rd IODC byte Cannot read IODC from ROM or card. WRN 80F4 EXT IO boot read error Cannot load IODC entry_init for boot

device.

WRN 80F5 EXT IO boot exec error Error initializing boot device.

58 Chapter3

Troubleshooting

Identifying LCD-Indicated Conditions

Table 3-1. Chassis Codes for J6700 Workstations

Ostat Code FRU Message Description

WRN 80F6 EXT IO boot read error Cannot load IODC entry_io for boot

device.

WRN 80F7 EXT IO boot IO error Error detected during boot device I/O. WRN 80F8 EXT IO invalid boot dev Invalid boot device class; bad IODC? WRN 80FC EXT IO invalid boot dev Unexpected error; bad IODC? INI 8800 IOCARD PCI BusWlk start Starting PCI bus and device discovery. INI 88r1 IOCARD PCI Rope r walk Starting PCI bus and device discovery on

Rope r.

INI 8802 IOCARD PCI BusWalk done PCI bus and device discovery complete. INI 8803 SYS BD PCI alloc done Done allocating address space for PCI

devices.

INI 8804 SYS BD PCI config done Done conﬁguring PCI devices. FLT 881r IO BD R2PCIr not found Rope-to-PCI bridge r not found. WRN 882 FLT 883r IO BD Roper config err Rope r conﬁguration failed. INI 884 FLT 884 INI 8850 SYS BD early rope0 init Initializing rope 0 for early RS-232

FLT 8850 SYS BD rope0 init fail Couldn’t initialize rope 0. INI 8860 SYS BD rope0 init done Rope 0 initialization complete. INI 8870 IO BD early R2PCI init Initializing Rope-to-PCI bridge 0 for early

FLT 8870 IO BD R2PCI init fail Couldn’t initialize Rope-to-PCI bridge 0. INI 8880 IO BD R2PCI init done Rope-to-PCI bridge 0 initialization

INI 8890 IO BD early Super init Initializing Super-I/O for early RS-232

FLT 8890 IO BD Super init fail Couldn’t initialize Super-I/O.

IO BD R2PCIr not found Rope-to-PCI bridge r initialization failed.

EXT IO Roper debug tggl Rope r debug register toggled.

EXT IO Roper tgl fail Rope r debug register toggle failed.

output.

RS-232 output.

complete.

output.

INI 88A0 IO BD Super init done Super-I/O initialization complete. WRN 8A03 EXT IO No graph console Cannot re-establish communications with

the graphics console.

Chapter 3 59

Troubleshooting

Identifying LCD-Indicated Conditions

Table 3-1. Chassis Codes for J6700 Workstations

Ostat Code FRU Message Description

WRN 8A04 EXT IO No USB keyboard Cannot re-establish communications with

the USB keyboard.

TST 8C06 EXT IO PCI BIST test Running PCI Built-In Self-Test WRN 8C07 EXT IO PCI BIST error PCI Built-In Self-Test failed. WRN 8C08 SYS BD PCI alloc error PCI address space allocation failed. WRN 8C09 IO BD PCI mem mngr err Memory allocation for PCI device failed. WRN 8C0A EXT IO PCI mem type err PCI device requested invalid memory

type.

WRN 8C0B IO BD PCI max bus dpth PCI bus depth exceeded maximum

supported depth.

WRN 8C0C EXT IO PCI dev not cnfg Unable to conﬁgure PCI device. WRN 8C0F IO BD dev tree ovrflow Data space for PCI devices is full. WRN 8DEC IO BD init LAN SROM Initializing the core LAN serial EPROM. SHU 8DEC IO BD resetting system Restarting system after core LAN

initialization.

FLT 8E10 IO BD PARALEL port cfg Parallel port conﬁguration failed. FLT 8E11 IO BD SERIAL1 port cfg Serial 1 port conﬁguration failed. FLT 8E12 IO BD SERIAL2 port cfg Serial 2 port conﬁguration failed. FLT 8E13 IO BD FLOPPY drive cfg Floppy drive conﬁguration failed. FLT 8E20 IO BD bad USB port cfg USB port conﬁguration failed. WRN 9001 EXT IO no console found Search for console display device failed. INI 9151 IO BD init SERIAL_1 Initializing serial 1 port as console

display.

INI 9152 IO BD init SERIAL_2 Initializing serial 2 port as console

display.

INI 915F IO BD init unknown dev Initializing unknown device as console

display.

INI 916s EXT IO init PCI slot

Initializing PCI device in slot s as console display.

INI 91DB IO BD init SERIAL_LDB Initializing serial LDB port as console

display.

INI 9C51 IO BD consol is SER_1 Console display is on serial port 1.

60 Chapter3

Troubleshooting

Identifying LCD-Indicated Conditions

Table 3-1. Chassis Codes for J6700 Workstations

Ostat Code FRU Message Description

WRN 9C51 IO BD bad init SERIAL1 Serial port 1 failed to initialize as a

console device.

INI 9C52 IO BD consol is SER_2 Console display is on serial port 2. INI 9160 EXT IO builtin GRAPHICS Initializing built-in graphics as console

display.

INI 9C52 IO BRD consol is SER_2 Console display is on serial port 2. WRN 9C52 IO BD bad init SERIAL2 Serial port 2 failed to initialize as a

console device.

INI 9C6s EXT IO consol is GRAPH

WRN 9C6s EXT IO bad PCI slot

INI 9C8t EXT IO cnfg mon type

WRN 9C8t EXT IO mon type t fail Failedto conﬁgure console to monitor type

INI 9CDB IO BD consl is SER_LDB Console display is on serial LDB port. WRN 9CDB IO BD bad init SER_LDB Serial LDB port failed to initialize as a

FLT A088 IO BD consl path fault Unable to boot--no console device found. WRN A008 EXT IO no boot device Unable to boot--no bootable device found. WRN A0BD EXT IO device not ready Boot device not ready--operation may be

FLT A0FF EXT IO unknown launch Unable to boot. Explanation may appear

WRN A50F EXT IO init pri pth err Unable to boot from primary boot device.

Console display is on graphics card in PCI slot s.

Graphics in PCI slot s failed to initialize as a console device.

Set graphics console to monitor type t. (Seen when cycling through types.)

console device.

retried.

on console.

WRN A70F EXT IO init otr pth err Unable to boot from non-primary boot

device.

INI C10m SYS BD CPUm is monarch CPU m was chosen as the monarch

processor. (All other CPUs are slaves.)

INI C30m SYS BD monarchm test CPU m ﬁnished the monarch-only tests

and system initialization.

INI C30C SYS BD mnrch slv chck The monarch CPU is checking whether

the slaves are in the correct rendezvous.

Chapter 3 61

Troubleshooting

Identifying LCD-Indicated Conditions

Table 3-1. Chassis Codes for J6700 Workstations

Ostat Code FRU Message Description

INI C3FF SYS/IO late monarch tst The monarch CPU is starting the late

(post-memory) monarch-only tests.

FLT C3FF SYS/IO late monarch flt The late (post-memory) monarch-only

tests failed.

INI C4CC SYS BD initialize ccp Searching for (lab-only) debugger card. INI C4CD SYS BD no ccp found Debugger card not found. INI C4CE SYS BD ccp disabled Debugger card disabled. INI C4CF SYS BD ccp found Debugger card found. INI C500 SYS BD get primary path Autoboot is reading primary boot path

from stable store.

INI C540 EXT IO init pri path Autoboot is trying to boot from primary

boot device.

INI C580 EXT IO load IPL pri pth Loading IPL from primary boot device. WRN C5F0 EXT IO err read pri IPL Error loading IPL from primary boot

device.

FLT C5F0 EXT IO pri IPL fault Error loading IPL from primary boot

device.

WRN C5F1 EXT IO err read pri IPL Cannot load IPL from primary boot

device--load address invalid.

WRN C5F2 EXT IO err read pri IPL Cannot load IPL from primary boot

device--ﬁle is not IPL image.

WRN C5F3 EXT IO err read pri IPL Cannot load IPL from primary boot

device--IPL image size invalid.

WRN C5F4 EXT IO err read pri IPL Cannot load IPL from primary boot

device--IPL entry point address invalid.

WRN C5F8 EXT IO err read pri IPL Cannot load IPL from primary boot

device--IPL image checksum failed.

INI C5FF <blank> launch pri IPL Booting from primary boot path. INI C642 EXT IO init kybrd consl Try to initialize USB keyboard. FLT C642 EXT IO keyboard error An error was detected trying to access the

keyboard.

WRN C643 EXT IO keyboard reinit Keyboard was re-initialized. WRN C64F EXT IO reset montr type The console device failed to initialize with

the given monitor type. Try again with type 1.

62 Chapter3

Identifying LCD-Indicated Conditions

Table 3-1. Chassis Codes for J6700 Workstations

Ostat Code FRU Message Description

TST C680 SYS BD builtin graphics Look for built-in graphics card.

Troubleshooting

TST C68s SYS BD test graph in INI C68s SYS BD init graph in s Successfully initialized graphics card in

INI C68

WRN C68 WRN C68s SYS BD fail graph in

INI C740 EXT IO init other path Autoboot is trying to boot from

INI C780 EXT IO ld IPL othr path Loading IPL from non-primary boot

WRN C7F0 EXT IO other IPL fault Error loading IPL from non-primary boot

WRN C7F1 EXT IO bad alt IPL read Cannot load IPL from non-primary boot

WRN C7F2 EXT IO bad alt IPL read Cannot load IPL from non-primary boot

SYS BD bultin graphics Successfully initialized built-in graphics

SYS BD bultin graphics built-in graphics initialization failed.

Look for graphics card in PCI slot s.

PCI slot s.

card.

Card in PCI slot s failed graphics initialization or is not a graphics card.

non-primary boot device.

device.

device--load address invalid.

device--ﬁle is not IPL image.

WRN C7F3 EXT IO bad alt IPL read Cannot load IPL from non-primary boot

device--IPL image size invalid.

WRN C7F4 EXT IO bad alt IPL read Cannot load IPL from non-primary boot

device--IPL entry point address invalid.

WRN C7F8 EXT IO bad alt IPL read Cannot load IPL from non-primary boot

device--IPL image checksum failed.

WRN C7FF <blank> launch IPL other Booting from a device other than the

primary boot path.

INI CB00 SYS BD TOC initiated A Transfer of Control entered the

ﬁrmware TOC handler.

WRN CB01 SYS BD no OS TOC vector There is no TOC vector for the operating

system. Firmware will soft boot the system.

WRN CB02 SYS BD bad OS TOC addr The operating system TOC handlervector

is invalid. Firmware will soft boot the system.

Chapter 3 63

Troubleshooting

Identifying LCD-Indicated Conditions

Table 3-1. Chassis Codes for J6700 Workstations

Ostat Code FRU Message Description

WRN CB03 SYS BD bad OS TOC code The operating system TOC handler is

invalid. Firmware will soft boot the system.

WRN CB04 SYS BD bad OS TOC len The size of the operating system TOC

handler is invalid. Firmware will soft boot the system.

WRN CB05 SYS BD bad OS TOC chksm The operating system TOC handler failed

the checksum test. Firmwarewill soft boot the system.

WRN CB0A SYS BD prev TOC logged Firmware detected unread PIM datafrom

a previous TOC and will not overwrite it. (PIM for this TOC is lost.)

INI CB0B SYS BD branch to OS TOC Branching to the operating system TOC

handler.

WRN CB0C SYS BD br OS TOC failed Branch to the operating system TOC

handler failed. Firmware will soft boot the system.

WRN CB10 SYS BD LPMC initiated A Low-Priority Machine Check entered

the ﬁrmware LPMC handler. The handler should log the error and return to normal operation.

WRN CB11 SYS BD icache LPMC err An instruction cache parity error caused

the LPMC.

WRN CB12 SYS BD dcache LPMC err A data cache parity/ECC error caused the

LPMC.

WRN CB13 SYS BD dcache tag error The parity error is in the tag portion of

the data cache.

WRN CB14 SYS BD dcache data err The parity error is in the data portion of

the data cache.

FLT CB1F SYS BD OS LPMC failed Firmwarecouldn’t branch to theoperating

system LPMC handler. It will halt the CPU, requiring a power cycle to recover.

WRN CB71 SYS BD HPMC occurred A High-Priority Machine Check caused

entry to PDCE_CHECK (the ﬁrmware trap handler).

WRN CB72 SYS BD LPMC occurred A Low-Priority Machine Check caused

entry to PDCE_CHECK (the ﬁrmware trap handler).

64 Chapter3

Troubleshooting

Identifying LCD-Indicated Conditions

Table 3-1. Chassis Codes for J6700 Workstations

Ostat Code FRU Message Description

WRN CB73 SYS BD TOC occurred A Transfer of Control caused entry to

PDCE_CHECK (the ﬁrmware trap handler).

FLT CB9r IO BD Error on roper An error was detected on rope r. FLT CB99 SYS BD seed IVA handler PDC_SEED_ERROR triggered an HPMC. FLT CB9A SYS BD HPMC overwrite Firmware is overwriting PIM data from a

previous HPMC.

OFF CBA1 SYS BD AIOC int dat err I/O controller internal error. OFF CBA2 IO BD EtoA rope perr Parity error between I/O controller and

Rope-to-PCI bridge.

OFF CBA3 SYS BD access invld TLB An invalid I/O TLB entry was accessed. OFF CBA4 IO BD EtoA rp cmd perr Command parity error between I/O

controller and Rope-to-PCI bridge.

OFF CBA5 IO BD CDF timeout Rope Command/Data FIFO is backed up. OFF CBA6 IO BD R2PCI resp tmout Rope-to-PCI bridge timed out. Could be a

failure of the PCI card, rope, or R2PCI bridge.

OFF CBA7 IO BD Unknown AIOC err Unknown I/O controller error. OFF CBB1 IO BD PCI timeout A PCI card requested the bus but failed to

use it.

OFF CBB2 IO BD PCI timeout; OV More than once aPCI card requested the

bus but failed to use it.

OFF CBB3 IO BD R2PCI intrnl err Rope-to-PCI bridge internal error. OFF CBB4 IO BD R2PCI int err;OV Multiple Rope-to-PCI bridge internal

errors.

OFF CBB6 IO BD PCI data req err PCI bus data requestor error: R2PCI

detected PERR# assertion.

OFF CBB8 IO BD PCI D req err;OV Rope-to-PCI bridge detected multiple

PERR# assertions.

OFF CBBA IO BD PCI data par err PCI bus data parity error. OFF CBBC IO BD PCI Dpar err;OV Multiple PCI bus data parity errors. OFF CBBE IO BD R2PCI intrnl err Error in R2PCI internal data to PCI bus. OFF CBC0 IO BD R2PCI int err;OV Multiple R2PCI internal data to PCI bus

errors.

Chapter 3 65

Troubleshooting

Identifying LCD-Indicated Conditions

Table 3-1. Chassis Codes for J6700 Workstations

Ostat Code FRU Message Description

OFF CBC2 IO BD PCI data parity PCI data parity error. I/O error log word 3

contains the error address.

OFF CBC4 IO BD PCI data par; OV Multiple PCI data parity errors. I/O error

log word 3 contains the error address.

OFF CBC6 IO BD R2PCI intrnl err Rope-to-PCI bridge internal data error:

R2PCI detected PERR# assertion.

OFF CBC8 IO BD R2PCI int err;OV Multiple R2PCI internal data errors:

R2PCI detected multiple PERR# assertions.

OFF CBCA IO BD PCI data rs err PCI bus data responder error: R2PCI

detected PERR# assertion.

OFF CBCC IO BD PCI D rs err; OV Multiple PCI bus data responder errors:

R2PCI detected multiple PERR# assertions.

OFF CBCE IO BD R2PCI T-Abort Rope-to-PCI bridge signalled Target

Abort.

OFF CBD0 IO BD R2PCI T-Abort;OV Rope-to-PCI bridge signalled multiple

Target Aborts.

OFF CBD2 IO BD PCI parity err PCI address/command parity error. OFF CBD4 IO BD PCI par err; OV Multiple PCI address/command parity

errors.

OFF CBD6 IO BD PCI no DEVSEL# No PCI device selected (DEVSEL#

assertion). I/O error log word 3 contains the error address.

OFF CBD8 IO BD PCI no DEVSEL;OV Multiple DEVSEL# assertions. I/O error

log word 3 contains the error address.

OFF CBDA IO BD PCI target abort A PCI device signalled Target Abort. I/O

error log word 3 contains the error address.

OFF CBDC IO BD PCI T-Abort; OV A PCI device signalled multiple Target

Aborts. I/O error log word 3 contains the error address.

OFF CBDD IO BD PCI assrts LOCK# A PCI device asserted LOCK#. OFF CBDE IO BD PCI LOCK#; OV A PCI device asserted LOCK# multiple

times.

OFF CBE0 IO BD PCI assrts SERR# A PCI device asserted SERR#: address

parity error or other system error.

66 Chapter3

Troubleshooting

Identifying LCD-Indicated Conditions

Table 3-1. Chassis Codes for J6700 Workstations

Ostat Code FRU Message Description

OFF CBE2 IO BD PCI SERR#; OV A PCI device asserted SERR# multiple

times.

OFF CBE3 IO BD Unknown PCI err Unknown PCI error detected. OFF CBE6 SYS BD AtoE rope perr Parityerror between system I/O controller

and Rope-to-PCI bridge.

OFF CBE7 IO BD R2PCI intrnl err Rope-to-PCI bridge internal data error. OFF CBE8 SYS BD AtoE rope perr Command parity error between system

I/O controller and Rope-to-PCI bridge.

OFF CBE9 IO BD Unknown Rope err Unknown rope error occurred. FLT CBF0 SYS BD HPMC initiated A High-Priority Machine Check entered

the ﬁrmware HPMC handler.

FLT CBF1 SYS BD no OS HPMC IVA There is no HPMC vector for the

operating system. Firmware will halt the CPU, requiring a power cycle to recover.

FLT CBF2 SYS BD bad OS HPMC len The size of the operating system HPMC

handler is invalid. Firmware will halt the CPU, requiring a power cycle to recover.

FLT CBF3 SYS BD bad OS HPMC addr The operating system HPMC handler

vector is invalid. Firmware will halt the CPU, requiring a power cycle to recover.

FLT CBF4 SYS BD bad OS HPMC cksm The operating system HPMC handler

failed the checksum test. Firmware will halt the CPU, requiring a power cycle to recover.

FLT CBF5 SYS BD OS HPMC vector 0 The size of the operating system HPMC

handler is zero. Firmware will halt the CPU, requiring a power cycle to recover.

WRN CBFA SYS BD prev HPMC logged Firmware detected unread PIM data from

a previous HPMC and will overwrite it.

FLT CBFB SYS BD brnch to OS HPMC Branching to the operating system HPMC

handler.

FLT CBFC SYS BD OS HPMC br err Branch to the operating system HPMC

handler failed. Firmware will halt the CPU, requiring a power cycle to recover.

FLT CBFD SYS BD unknown check The ﬁrmware trap handler didn’t detect

an HPMC, LPMC, or TOC.

FLT CBFE SYS BD HPMC during TOC A High-Priority Machine Check occurred

during Transfer of Control processing.

Chapter 3 67

Troubleshooting

Identifying LCD-Indicated Conditions

Table 3-1. Chassis Codes for J6700 Workstations

Ostat Code FRU Message Description

FLT CBFF SYS BD multiple HPMCs A High-Priority Machine Check occurred

while processing another HPMC.

INI CC0n SYS BD CPUn OS rendezvs Slave CPU n entering the ﬁnal

rendezvous, waiting for the operating system to awaken it.

INI CC1n SYS BD CPUn early rend Slave CPU n entering the early

rendezvous, waiting forthe monarchCPU to initialize scratch RAM and other system state.

INI CC2n SYS BD CPUn rendezvous Slave CPU n entering rendezvous. Slave

CPUs enter this rendezvous numerous times during boot.

INI CC3n SYS BD CPUn cache rend Slave CPU n entering cached rendezvous,

waiting for the monarch CPU to conﬁgure the system bus.

INI CC4n SYS BD CPUn mem rendez Slave CPU n entering memory

rendezvous, waiting forthe monarchCPU to select a boot device.

TST D000 SYS BD micro controller Firmware is initializing communications

with the system controller.

WRN D004 SYS BD micro not resp Firmware detected a communications

error with the system controller.

INI D005 SYS BD set dom1 fan spd Firmware is initializing communications

with the system controller.

INI D006 SYS BD set dom2 fan spd Firmware is initializing communications

with the system controller.

WRN D007 SYS BD bad microctl cmd Firmware detected a communications

error with the system controller.

FLT D01n SYS/IO fann: failure! Firmware detected system fan n stopped. WRN D02n SYS/IO fann: too slow! Firmware detected system fan n is

running too slowly.

68 Chapter3

Troubleshooting

Running System Veriﬁcation Tests

HP-UX uses an online diagnostics product called the Support Tools Manager that allows system operation veriﬁcation.

Three interfaces are available with the Support Tools Manager: a command line interface (accessed through the cstm command), a menu-driven interface (accessed through the mstm command), and the graphical user interface (accessed through the xstm command).

For more information on these user interfaces, see the online man pages by entering the following at a command line prompt:

man cstm [Enter]

man mstm [Enter]

man xstm [Enter]

For information on the enhanced online diagnostics, see the Support Media User’s Manual (HP Part Number B3782-90176).

To access the Support Tools Manager, perform the following steps:

1. In a terminal window, type the following at the # prompt to invoke the command line interface:

# cstm [Enter]

2. The following message appears:

Support Tool Manager Version A.01.00 Type ‘help’ for a list of available commands. CSTM>

3. To verify the system operation, type the following at the CSTM> prompt:

CSTM> verify all [Enter]

Messages similar to the following appear:

Verification has started on device (CPU). Verification has started on device (FPU).

CSTM> Verification of (FPU) has completed. CSTM> Verification of (CPU) has completed.

4. Press [Enter] to return to the CSTM> prompt after all test results are reported.

5. To exit the Support Tools Manager, enter the following:

CSTM> exit [Enter]

If any tests failed, run Selftest and ISL diagnostics to isolate the problem.

Chapter 3 69

Troubleshooting

Running ODE-Based Diagnostics

The Ofﬂine Diagnostic Environment (ODE) consists of diagnostic modules for testing and verifying system operation. ODE provides all the necessary functions for the user to load speciﬁed tests and interact with those tests.

ODE is an ISL utility. To boot ODE:

1. Invoke the ISL environment from the system disk or a CD ROM.

2. Type ode [Enter] after the ISL> prompt to invoke ODE from the LIF directory on the system disk. The prompt changes to ODE>.

Not all of the test modules are available on all systems. To see what test modules are available to run on this system, type ls at the ODE> prompt. The available modules include the following:

• astrodiag – tests and veriﬁes the basic functionality of the Astro memory controller/I/O chip.

• siodiag – tests and veriﬁes the basic functionality of the SuperI/O multifunction I/O chip, including serial, parallel, USB, and so forth.

• wdiag – tests and veriﬁes the functionality of the PA-RISC chip.

• memtest – tests and veriﬁes the memory arrays. If an error is detected, the diagnostic reports the memory card and its slot number that needs replacement. It also provides a map of the memory conﬁguration so that the user can identify the type of memory and its slot location.

• fupdate – updates the system’s Processor Dependent Code (PDC) ﬁrmware in the EEPROM.

• mapper – identiﬁes the conﬁguration of HPPA systems. It displays path, identiﬁcation, and revision information of I/O components, conﬁguration of memory controllers, processors, co-processors, cache, and TLB, as well as processor board component revisions and values of various HPPA system identiﬁers, revisions, and capabilities.

For further information on the various ODE commands and a complete listing of the command set, type help [Enter] at the ODE> prompt or at the prompt of one of the test modules.

70 Chapter3

Troubleshooting

Using the System Board LEDs for Troubleshooting

This section provides a description of the system board’s Light Emitting Diodes (LEDs) and how to use them for troubleshooting. These LEDs are located inside of the workstation on the system board’s left-back edge. See Figure 3-5.. Note that you will have to view these LEDs through the airﬂow holes on the back of your workstation.

NOTE The SUPPLY LED is not currently implemented. Therefore, it does not

provide any troubleshooting information.

Figure 3-5. System Board LEDs

For those system problems that this section is not able to solve, you will have to call your local HP Support Representative. Before you call, record the state (on, off or blinking) of your LEDs and give this information to your local HP support representative. The representative will use this information to determine the course of action to take.

Interpreting the LED Information

Table 3-2. explains how to interpret the information the system board LEDs provide. Note that the SUPPLY LED is reserved for future functionality.

Table 3-2. Interpreting the System Board LEDs

LED Name LED’sColor

When On

VRM1 Green This light, when on, indicates that the

Chapter 3 71

Description

voltage regulator module is working correctly for processor one.The default state for this light is on.

Troubleshooting

Using the System Board LEDs for Troubleshooting

Table 3-2. Interpreting the System Board LEDs

LED Name LED’sColor

When On

VRM0 Green This light, when on, indicates that the

FETCH Green This light, when on, indicates that one

FANS Yellow

(blinking)

Over Current Red This light, when on, indicates there is

Description

voltage regulator module is working correctly for processor zero. The default state for this light is on.

or both processors is fetching code. The default state for this light is on.

Note that the yellow light blinks a heart beat when the system is working correctly. See Table 3-3. for more details for interpreting the blinks of this light.

a short somewhere in the system. The default state for this light is off.

There are six LED blink sequences supported by the System Controller. The LED blink sequences are shown in Table 3-3. Note that each blink of the LED represents a tenth of a second (0.1 sec.).

If the FANS LED is ever stuck either ON or OFF, a system problem has occurred. This system problem is most likely an I2C bus hang. A potential ﬁx may be to check that the power supply cables are correctly plugged in. If this does not work, call you local HP Support Representative.

Table 3-3. Blink Sequences for the FANS LED

Blink Sequence Number

System Controller Non-error Blink Sequences 1 ● ❍ ● ❍ ❍ ❍ ❍ ❍ ❍ ❍ System controllers

2 ● ● ● ● ● ❍ ❍ ❍ ❍ ❍ This is a transient

3 ●●●●●●●●●●❍❍❍❍❍❍❍❍❍❍ System controller’s

LED Blink Sequence (black dot represents 0.1 second LED on; white dot is 0.1 second LED is off)

Description

normal heart beat.

state shown by the system controller at power up.

transient state. There is no system problem.

72 Chapter3

Table 3-3. Blink Sequences for the FANS LED

Troubleshooting

Using the System Board LEDs for Troubleshooting

Blink Sequence Number

System Controller Error Blink Sequences 4 ● ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ System controller

5 ● ● ● ● ● ● ● ● ● ❍ System controller

6 ● ❍ ● ❍ ● ❍ ❍ ❍ ❍ ❍ System controller is

LED Blink Sequence (black dot represents 0.1 second LED on; white dot is 0.1 second LED is off)

Description

shut off power to the system because the ambient temperature exceeded 60˚C or 140˚F.

detects a fan failure. If this happens you need to read the message in the LCD on the front of the workstation.

reporting an error.

Troubleshooting with System Board LEDs

This section explains what to do when you see the LEDs on your system board in a non-default state, and when the yellow FANS LED displays certain blink sequences. For the default states, see Table 3-2. Note that the non-default state is a state that should not exist, and it is a state that requires a solution.

Table 3-4. Solutions for the Non-Default LED States

LED Name

VRM1 OFF If the following solutions do not bring this LED back

Non-Default State

Solution

on, replace VRM1 board.

• Swap VRM cards to determine if VRM1 is bad

• Determine that the power cable to the system is plugged in

• Check that the power button has been pressed on

• Re-seat the VRM1 board in its connector

• Check that the VRM1 connector cable is properly plugged in

Chapter 3 73

Troubleshooting

Using the System Board LEDs for Troubleshooting

Table 3-4. Solutions for the Non-Default LED States

LED Name

Non-Default State

VRM0 OFF If the following solutions do not bring this LED back

FETCH OFF If the following solutions do not bring this LED back

Solution

on, replace VRM0 board.

• Swap VRM cards to determine if VRM0 is bad

• Determine that the power cable to the system is plugged in

• Check that the power button has been pressed on

• Re-seat the VRM0 board in its connector

• Check that the VRM0 connector cable is properly plugged in

on, replace the system board.

• Look at the system’s LCD to determine if the ﬁrmware update process has been interrupted

• Determine that the power cable to the system is plugged in

• Check that the power button has been pressed on

• Determine that all external peripheral devices are turned on and that their cables are properly connected

• Check that all internal devices are powered on and that their cables are properly connected

74 Chapter3

Using the System Board LEDs for Troubleshooting

Table 3-4. Solutions for the Non-Default LED States

LED Name

Non-Default State

Solution

Troubleshooting

FANS OFF or

blink sequence 4, 5 or 6

If the following solutions do not bring the LED back on or cause it to properly blink, replace the system board.

OFF Unplug the system and replace the

system board

Blink Sequence 4 Unplug the system and operate the

unit when its environment gets cooler

Blink Sequence 5 Replace the fan associated with the

message in your system LCD. If power supply fans are bad, you have to replace the power supply. If the PCI fan is bad, replace it. If either one of the processor fans are bad, you must replace the system board. Note, fans may still be spinning, but their control signal may have failed.

Blink Sequence 6 Check that the 24-pin power supply

signal cable is properly connected Press the power button off and

unplug the system and wait for two minutes before turning the system back on

SHORT ON If the following solutions do not turn this LED off,

replace the system board.

• Check that no pieces of metal are shorting connections anywhere in the system

• Check that no pins on system connectors are bent and touching each other

1. The LEDs are in the OFF state, or in the case of the FANS LED, the LED is blinking sequence 1, 2, or 6 or it is not blinking.

Chapter 3 75

Troubleshooting

Using the System Board LEDs for Troubleshooting

76 Chapter3

4 Field Replaceable Units (FRUs)

This chapter lists the Field Replaceable Units (FRUs) for the HP VISUALIZE J6700 workstations. This chapter then provides procedures for removing and replacing the FRUs in the workstations.

Field Replaceable Units (FRUs)

Chapter Overview

This chapter contains the following main sections:

• Tools Required

• Exchange and Nonexchange Part Numbers

• FRU Removal and Replacement — Electrostatic Discharge (ESD) Precautions

— Prerequisite Steps for All Removal and Replacement Procedures — Exploded View Diagram — Front Bezel and Top Panel — LCD Panel — Hard Disk Drives — Hard disk Drive Backplane — CD ROM Drive — Memory DIMMs — Power Supply — PCI Cage — PCI Backplane — Speaker — System Board — Real-Time Clock

WARNING For most of the removal and replacement procedures in this chapter,

you must power off the workstation and unplug the workstation power cord from the AC power outlet. The exceptions to this are the removal and replacement of DIMMs and the PCI cage. For these you only need to power off the workstation.

NOTE To maintain FCC/EMI compliance, verify that all covers are replaced and

that all screws are properly seated.

78 Chapter4

Field Replaceable Units (FRUs)

Tools Required

Use the following tools to remove or replace FRUs:

• Light-duty ﬂat blade screwdriver with 6-inch (150 mm) blade

• T-15 Torx and T-20 (for rack mounting) Torx drivers

• ESD equipment (see the “Electrostatic Discharge (ESD) Precautions” section later in this chapter for detailed information)

Chapter 4 79

Field Replaceable Units (FRUs)

Exploded View Diagram

Figure 4-1 shows an exploded view of the internal components (FRUs) in the J6700 workstations.

Refer to this ﬁgure to identify the various workstation FRUs while performing the FRU removal and replacement procedures in this chapter.

Figure 4-1. Exploded View of the J6700 Workstation

Desk side only

Plastic cover desk side only

80 Chapter4

Field Replaceable Units (FRUs)

Exchange and Nonexchange Part Numbers

In this chapter we refer to exchange and nonexchange part numbers. You must return FRUs with exchange part numbers in exchange for replacement FRUs. Do not return FRUs with nonexchange part numbers – you may discard them.

The following Tables 4-1 lists the exchange part numbers for the J6700 workstation.

Table 4-1. J6700 Exchange Part Numbers

Numbers in Figure 4-1 Part Number Description

1 2

A5990-69010 J6700 System Board Assembly A5990-69001 Power supply 500W includes system speaker,

power supply fans, and LCD display cable

A3863-69001 512 MB SDRAM DIMM A3864-69001 1 GB SDRAM DIMM A1658-69031 LVD Ultra SCSI hard disk 18 GB 10K RPM A1658-69032 LVD Ultra SCSI hard disk 36 GB 10K RPM

Chapter 4 81

Field Replaceable Units (FRUs)

Exchange and Nonexchange Part Numbers

The following Tables 4-2 lists the nonexchange part numbers for the J6700 workstation.

Table 4-2. J6700 Nonexchange Part Numbers

Numbers in Figure 4-1 Part Number Description

5 A5990-62023 CD ROM slim-line, ATAPI Assembly 6 A5990-66530 PCA, SCA backplane (disk drive) 7 A5990-62015 LCD/power switch assembly 8 0950-4156 VRM assembly 9 A5990-66520 PCA-PCI backplane board

Not Shown A1658-86004 Real Time Clock/Battery Module

10 A5990-62006 PCI cage assembly includes PCI tray fan

11 A5990-62003 Disk drive bracket assembly Not Shown 1390-1266 Locking Thumbscrew Not Shown 0515-2721 T15 Screw - M3x6 (Mounts CD ROM drive to

chassis, system board mounting, PCI backplane

mounting, and power supply mounting) Not Shown 0380-2018 Jackscrew - 4 - 40Mx4F Not Shown 0515-2332 M3 screws for mounting SCA board

12 A5990-62002

Main chassis assembly

14 A5990-63003 Internal SCSI cable 13 A5990-62004 Disk EMI cover assembly

Not Shown A5990-62005 Top cover assembly

14 A5990-62007 Front bezel assembly Not Shown A5990-63004 CD ROM IDE cable Not Shown A5990-40021 Trim - bezel bottom (with J6700 branding) Not Shown A5990-40002 Trim - bezel bottom (blank - no branding) Not Shown A5990-62002

Not Shown A5990-62020

J6700 Rack Mount Kit Rack mounting hardware kit

Not Shown A5990-62021 Cable management assembly Not Shown A5990-40006 Front bezel end caps Not Shown A5990-40019

Not Shown A5990-40020

Right side cover (with logo) Left side cover (with logo)

82 Chapter4

Table 4-2. J6700 Nonexchange Part Numbers

Numbers in Figure 4-1 Part Number Description

Field Replaceable Units (FRUs)

Exchange and Nonexchange Part Numbers

15 A5990-40010 16 A5990-40009

Not Shown A5990-00044

Cosmetic cover (without logo) Deskside pedestal Drip pan

Not Shown A4983-60111 USB mouse, 3 buttons Not Shown A4983-60401 USB keyboard, U.S. English Not Shown A4983-60403 USB keyboard, German, Euro Not Shown A4983-60404 USB keyboard, Spanish, Euro Not Shown A4983-60405 USB keyboard, French, Euro Not Shown A4983-60406 USB keyboard, Kanji, JIS-109 Not Shown A4983-60409 USB keyboard, Norwegian, Euro Not Shown A4983-60411 USB keyboard, Swiss-German, Euro Not Shown A4983-60412 USB keyboard, Swedish, Euro Not Shown A4983-60413 USB keyboard, U.K. English, Euro Not Shown A4983-60414 USB keyboard, Belgian/Flemish, Euro Not Shown A4983-60416 USB keyboard, Danish, Euro Not Shown A4983-60421 USB keyboard, Korean Not Shown A4983-60423 USB keyboard, Chinese/Trad

1. Order this for all sheet metal parts unless otherwise listed.

2. Used on rack mounted systems only.

3. Used on desk side mounted systems only.

Chapter 4 83

Field Replaceable Units (FRUs)

FRU Removal and Replacement

The procedures in this section describe how to remove and replace J6700 workstation FRUs. Observe the electrostatic discharge (ESD) precautions and the prerequisites for removing and replacing FRUs in the next two subsections, as well as any NOTEs, CAUTIONs, and WARNINGs in each FRU removal and replacement procedure.

NOTE If you need to install a new FRU, simply follow the procedures for replacing

the FRU in this chapter. (That is, replacement procedures are the same as those for installing new FRUs.)

Electrostatic Discharge (ESD) Precautions

To prevent damage to the J6700 workstation, observe all of the following ESD precautions while performing FRU removal and replacement procedures:

1. Remove all ESD-generating materials from the work area in which you will remove and replace a workstation’s FRU(s).

2. Stand on an ESD (static-free) mat.

3. Wear a grounding wrist strap to ensure that any accumulated electrostatic charge discharges from your body to ground.

4. Connect all equipment together, including the ESD mat, grounding wrist strap, workstation, and peripherals.

5. Keep uninstalled printed circuit boards in their protective antistatic bags.

6. Once you have removed printed circuit boards from their protective antistatic bags, handle the printed circuit boards by their edges only.

84 Chapter4

Field Replaceable Units (FRUs)

FRU Removal and Replacement

Prerequisite Steps for All Removal and Replacement Procedures

You must complete the following steps before performing any of the FRU removal and replacement procedures in this chapter:

1. Power off the workstation (either by executing shutdown -h as root, or by simply pressing the power switch on the front panel of the workstation, which accomplishes the same thing), as well as the monitor and any attached peripheral devices.

2. Unplug the workstation power cord and all peripheral devices from AC power outlets.

3. Attach the static-grounding wrist strap by following the instructions on the package. Attach the sticky end of the wrist strap to bare metal on the rear panel of the workstation.

NOTE To make access to the internal FRUs easier, you may want to place the

workstation on a table or workbench instead of leaving it on the ﬂoor.

CAUTION This workstation is designated for two-person lifting; it weighs approximately

36 to 49 pounds (12 to 22 kg), depending on the conﬁguration. Do not attempt to lift it by yourself, or injury may result.

Chapter 4 85

Field Replaceable Units (FRUs)

FRU Removal and Replacement

Front Bezel and Top Cover

This section describes how to remove and replace the J6700 workstation’s front bezel and top cover.

Note that you can perform certain operations, like removing and replacing hard disk drives, simply removing the front bezel of the workstation. Other operations require more access to the interior of the workstation, so you will need to remove the front bezel or top panel to perform those procedures.

CAUTION The system will not operate with the top panel removed.

86 Chapter4

Removing the Top Cover

Figure 4-2. Removing the Top Cover

Field Replaceable Units (FRUs)

FRU Removal and Replacement

- Remove all connectors from

back of workstation

- Remove workstation from pedestal.

Hold down pedestal when removing workstation

- Remove top cover

1. Unscrew captive screw

2. Pull cover forward

3. Lift cover up.

- Place workstation on a padded surface

- Remove bezel

- Press in on both sides of bezel and pull forward as shown.

- Attach anti-static strap

To replace the top cover or front bezel, perform the above steps in reverse.

NOTE The graphics in these steps depict a desk side unit. If this is a rack mount

unit, the skins and pedestal will not be present. Rack mounted systems will not have air louvres mounted in the front bezel. When replacing the bezel, remove and discard the louvres from the new bezel unit.

Chapter 4 87

Field Replaceable Units (FRUs)

FRU Removal and Replacement

Removing the LCD Panel

To remove the LCD panel, do the following:

Figure 4-3. Removing the LCD Panel

1. Push LCD tab from one side to remove

2. Remove LCD

3. Remove connector

To replace the LCD panel, perform the above steps in reverse.

88 Chapter4

Removing the Hard Disk Drives

To remove a hard disk drive do the following:

Figure 4-4. Removing the Hard Disk Drives

1. Remove optional locking thumbscrew

2. Press HDD cover release tab to remove cover

Locking

Thumbscrew

Field Replaceable Units (FRUs)

FRU Removal and Replacement

Removing a HDD

- Pull out bracket

- Remove bracket and HDD

Adding a HDD

- Remove bracket and screws

Removing a HDD

- Install hard drive in bracket

- Insert in HDD cage till firmly seated

Adding a HDD

- Carefully remove bar

- Install HDD

Carefully remove and discard

To replace the hard disk drives, perform the above steps in reverse. You should make sure that the disks are ﬁrmly seated. Reinstall the hard disk drive cover and optional locking thumbscrew, if applicable.

Chapter 4 89

Field Replaceable Units (FRUs)

FRU Removal and Replacement

Removing the Hard Disk Drive Backplane

To replace the hard disk drive backplane, do the following:

Figure 4-5. Removing the Hard Disk Drives Backplane

Remove PCI Cage

- Lift PCI handle to remove PCI cage from workstation

- Unplug four connectors

3 4

Press sides of connector to remove CD cable

- Remove disk drives BEFORE removing board.

- Remove four screws

- Lift board out

Back view

2 3

To replace the hard disk drive backplane, perform the above steps in reverse.

90 Chapter4

Internal CD ROM Drive

To remove the CD ROM drive, do the following:

Figure 4-6. Removing the CD ROM Drive

1. Press sides of connector in back of CD to remove cable

2. Remove two screws

3. Slide CD to front 1

Field Replaceable Units (FRUs)

FRU Removal and Replacement

To replace the CD ROM drive, perform the above steps in reverse.

Removing and Replacing Memory DIMMs

To remove and replace memory DIMMs in the J6700, refer to the memory sequence label inside the system. Be sure to press the tabs at both ends of the DIMM slots to release the DIMM, then lift the DIMM out of the slot.

When replacing the DIMMs, press the DIMM into the slot until the tabs on each end snap into place.

Removing and Replacing the Voltage Regulator Modules (VRMs)

To remove and replace the VRMs, see the section on removing and replacing the system board.

Chapter 4 91

Field Replaceable Units (FRUs)

FRU Removal and Replacement

Power Supply

To remove the power supply, do the following:

Figure 4-7. Removing the Power Supply

- Remove two VRM connectors

- Remove VRM 1 board as shown

VRM 0

VRM connector

- Remove screw from back of workstation to remove power plug

- Disconnect five connectors (2-6)

power plug

Back

VRM 1

VRM connector

screw

Power Supply

92 Chapter4

Figure 4-8. Removing the Power Supply (cont’d)

- Remove two screws from front of workstation

- Push power supply to back of workstation to lift out.

Field Replaceable Units (FRUs)

FRU Removal and Replacement

To replace the power supply, do the above steps in reverse.

Chapter 4 93

Field Replaceable Units (FRUs)

FRU Removal and Replacement

PCI Cage

To remove the PCI Cage, do the following:

Figure 4-9. Removing the PCI Cage

- Lift PCI handle to remove cage from workstation

1. Slide PCI retainer back

2. Lift off cage

- Remove screw to remove card

- Slide I/O card out as shown

PCI CARD RETAINER

Bulkhead screw

94 Chapter4

Figure 4-10. Removing the PCI Backplane

1. Disconnect fan power plug

2. Remove mounting screw

Field Replaceable Units (FRUs)

FRU Removal and Replacement

Fan power plug

- Slide board to back of cage and lift out

PCI mounting screw

To replace the PCI Backplane and Cage, do the above steps in reverse.

Speaker

The speaker is integrated into the power supply. If the speaker fails, replace the power supply.

Chapter 4 95

Field Replaceable Units (FRUs)

FRU Removal and Replacement

Removing the System Board

To remove the system board, do the following:

Figure 4-11. Removing the System Board

Lift PCI handle to remove PCI cage from workstation

Remove memory cards from system board

Remove VRM connectors and

VRM 0 and VRM 1 cards

VRM 1

VRM 0

- Remove screw from back of workstation to remove power plug

- Disconnect five connectors from system board (2-6)

power plug

power plug screw

96 Chapter4

Figure 4-12. Removing the System Board

Field Replaceable Units (FRUs)

FRU Removal and Replacement

- Remove two mounting screws from

system board.

Mounting Screws

- Pull system board toward front of workstation to remove from slots

- Lift system board up

- Remove four serial port screws

from back of workstation.

Back

serial port screws

Slots

Front

Chapter 4 97

Field Replaceable Units (FRUs)

FRU Removal and Replacement

Replacing the System Board

To replace the system board, perform the above steps in reverse. Pay close attention to installing the PCI cage.

Figure 4-13. Replacing the System Board

- Reverse steps

- Install PCI cage in workstation, with handle up, then press down.

NOTE If you are replacing the system board on a desk side unit, go into the Boot

Console Handler (BCH) and set the fan choice to desk side.

NOTE Be sure to install the four serial port screws BEFORE installing the two

system board mounting screws.

98 Chapter4

Field Replaceable Units (FRUs)

FRU Removal and Replacement

Removing and Replacing the Real-Time Clock

To remove the real-time clock, you ﬁrst need to follow the procedure in the section “Front Bezel and Top Cover” of this chapter. After this procedure has been completed, you can remove the real-time clock as shown in Figure 4-14. You may need to rock the real-time clock back and forth to loosen it in its socket.

Figure 4-14. Removing the Real-Time Clock

Locator Dot

Real-time Clock

To replace the real-time clock, reverse the above procedure. Note that you should be careful to not bend any of the real-time clock’s pins, and you must position the locator dot as shown in Figure 4-14. Once the real-time clock is in place, reverse the procedure in the section “Front Bezel and Top Cover” to replace the top cover.

Chapter 4 99

Field Replaceable Units (FRUs)

FRU Removal and Replacement

100 Chapter4

Hp VISUALIZE J6700 Service Handbook

Specifications and Main Features

Frequently Asked Questions

User Manual

Service Handbook

HP VISUALIZE J6700 Workstations

Edition E0501

Notice

The information contained in this document is subject to change without notice.

Restricted Rights Legend

1 Product Information

Chapter Overview

Chapter Overview

This chapter contains the following main sections:

Product Description

Net Dimensions and Weights

The dimensions for the deskside system are listed below.

• Depth: 25.8 inches (65.5 cm)

• Width: 10.0 inches (25.4 cm)

• Depth: 24.5 inches (62.2 cm)

• Width: 16.7 inches (42.4 cm)

• Height: 3.4 inches (8.6 cm)

. Table 1-1 lists the net weights for the J6700.

NOTE For environmental and electrical requirements, see Appendix B.

Key Features

The J6700 workstations have the following key features.

• User Interface: HP CDE (Common Desktop Environment) graphical user interface

• Standard Networking: Ethernet IEEE 802.3 RJ45, Twisted Pair 10/100 Base T

Front Panel Components

Front Panel Components

Before powering on your system, you should become familiar with the system unit controls.

Figure 1-1 shows the front panel components with the bezel attached.

Hard Drive Bays Power Switch

Power Switch

Thumbscrew on the Front Panel

System LCD

Internal Storage Devices

• Up to two hot-pluggable, Low-Voltage Differential (LVD) hard disk drives

Hard Disk Drive(s)

The two hard disk drive models currently supported are:

• 18 GB LVD 10K RPM disk drive (Product Number A4998A)

• 36 GB LVD 10K RPM disk drive (Product Number A6013A)

The Hot-Plug Process

Replacing a Failed Disk Drive

Hot-Plug Example

Volume Description Volume Description

Logical Volume 1 Logical Volume 3 Logical Volume 2 Logical Volume 4 Logical Volume 3 Logical Volume 5

3. The replacement disk must be the same product ID as the replaced one.

The Hot-Plug Procedure

These are the steps required to properly hot-plug a disk drive:

Step 1

• Check if the LVM found the physical volume to be defective when the volume group was activated.

• The “vgchange -a y” command would have printed the following message on the console:

• If you see these messages, the disk was defective at the time the volume group was activated.

Step 2

Step 3

• Replace the faulty disk.

•Doanioscan on the replaced disk to insure that it is accessible and also as a double check that it is a proper replacement.

Step 4

Step 5

Step 6

• If the disk is not a mirror of a root disk, then skip this step.

• Run lvlnboot -R to relink the replaced disk into the Boot Data Reserved Area of all the Physical volumes in the Volume group.

Step 7

• Run the lvsync command to synchronize the physical extents of each logical volume speciﬁed by logical volume path. Synchronization occurs only on physical extents that are stale mirrors of the original logical extent.

CD ROM Drive (Optional)

Figure 1-4 shows the operating features of the CD ROM drive, and Table 1-3 describes these features.

Disk Tray

Eject Button

Feature Purpose

Busy Indicator • Lights during a data access operation and during a data

• Flashes at a one second rate when a disk is loaded.

• Flashes at a three second rate while playing an audio disk.

Emergency Eject Hole

Rear Panel Components

Rear Panel Components

• Power cord connector

• Transfer of Control (TOC) Button

• Audio connectors

• Two serial ports
