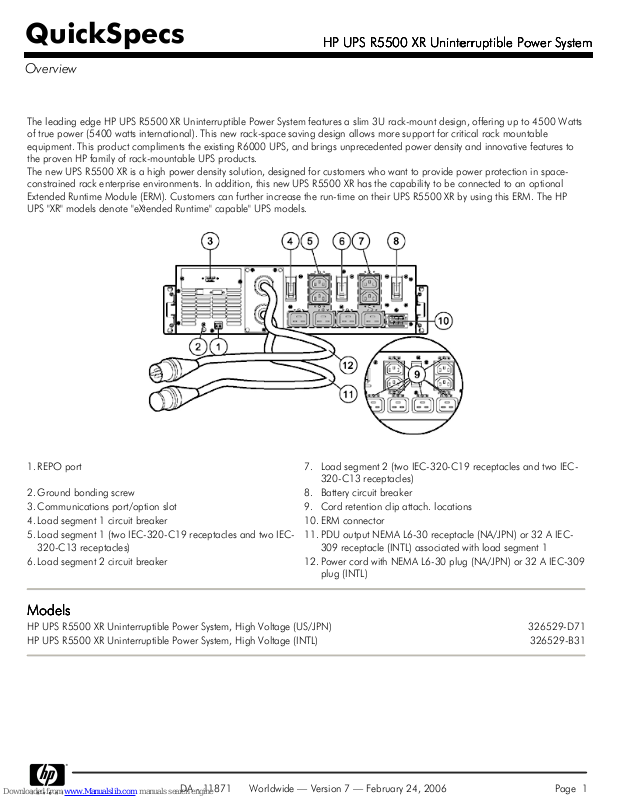

HP UPS R5500 XR Uninterruptible Specification
The leading edge HP UPS R5500 XR Uninterruptible Power System features a slim 3U rack-mount design, offering up to 4500 Watts
of true power (5400 watts international). This new rack-space saving design allows more support for critical rack mountable
equipment. This product compliments the existing R6000 UPS, and brings unprecedented power density and innovative features to
the proven HP family of rack-mountable UPS products.
The new UPS R5500 XR is a high power density solution, designed for customers who want to provide power protection in spaceconstrained rack enterprise environments. In addition, this new UPS R5500 XR has the capability to be connected to an optional
Extended Runtime Module (ERM). Customers can further increase the run-time on their UPS R5500 XR by using this ERM. The HP
UPS "XR" models denote "eXtended Runtime" capable" UPS models.
1.
REPO port
7.
Load segment 2 (two IEC-320-C19 receptacles and two IEC320-C13 receptacles)
2.
Ground bonding screw
8.
Battery circuit breaker
3.
Communications port/option slot
9.
Cord retention clip attach. locations
4.
Load segment 1 circuit breaker
10.
ERM connector
5.
Load segment 1 (two IEC-320-C19 receptacles and two IEC320-C13 receptacles)
11.
PDU output NEMA L6-30 receptacle (NA/JPN) or 32 A IEC309 receptacle (INTL) associated with load segment 1
6.
Load segment 2 circuit breaker
12.
Power cord with NEMA L6-30 plug (NA/JPN) or 32 A IEC-309
plug (INTL)
Models
ModelsModels
Models
HP UPS R5500 XR Uninterruptible Power System, High Voltage (US/JPN)
326529-D71
HP UPS R5500 XR Uninterruptible Power System, High Voltage (INTL)
326529-B31
QuickSpecs
HP UPS R5500 XR Uninterruptible Power System
HP UPS R5500 XR Uninterruptible Power SystemHP UPS R5500 XR Uninterruptible Power System
HP UPS R5500 XR Uninterruptible Power System
Overview
DA - 11871 Worldwide — Version 7 — February 24, 2006
Page 1
Key Features
Key FeaturesKey Features
Key Features
Increased power density with up to 5500VA / 4500 Watts of power packed in just 3U rack space (5400 watts international)
Greater system uptime with support for Extended Runtime Modules (ERM)
Easy configuration through enhanced front panel display
Enterprise-wide intelligent manageability with bundled power management software
Support for HP Option Cards that extend the power management capabilities of the UPS
More efficient voltage regulation with revolutionary technology
Ultimate long-term battery reliability with HP Enhanced Battery Management
Enhanced system flexibility with two independently controlled load segments
Support for Remote Emergency Power Off (REPO) circuitry
Easy serviceability through modular design
Hot-Swappable Battery and Electronics Modules
Backed by a three year warranty with the first year including parts and labor. HP's Pre-Failure warranty, and a $25,000 load
protection guarantee.
(Certain restrictions and exclusions apply)
QuickSpecs
HP UPS R5500 XR Uninterruptible Power System
HP UPS R5500 XR Uninterruptible Power SystemHP UPS R5500 XR Uninterruptible Power System
HP UPS R5500 XR Uninterruptible Power System
Overview
DA - 11871 Worldwide — Version 7 — February 24, 2006
Page 2
3U Power Packed Design
3U Power Packed Design3U Power Packed Design
3U Power Packed Design
Rated near unity at 5500VA / 4500W (5400W international), the HP UPS R5500 XR packs more power
in space-conserving rack-mount design, allowing you to support more critical equipment in your rack.
Increase System Uptime
Increase System UptimeIncrease System Uptime
Increase System Uptime
with Extended Runtime
with Extended Runtimewith Extended Runtime
with Extended Runtime
Modules
ModulesModules
Modules
The Extended Runtime Modules are rack mounted battery modules that occupy 3U (5.25 inches) of rack
space. The HP UPS R5500 XR supports up to two Extended Runtime Module (ERM), which extend your
overall battery runtime.
Lower Cost of Ownership
Lower Cost of OwnershipLower Cost of Ownership
Lower Cost of Ownership
with Innovative
with Innovativewith Innovative
with Innovative
Technology
TechnologyTechnology
Technology
The HP UPS R5500 XR utilizes a new industry-leading technology that continually conditions and
regulates power without using the battery, thereby increasing the life of the battery. The output voltage is
automatically regulated, based on the connected load and the input voltage.
Investment Protection with
Investment Protection withInvestment Protection with
Investment Protection with
HP Enhanced Battery
HP Enhanced BatteryHP Enhanced Battery
HP Enhanced Battery
Management
ManagementManagement
Management
HP UPS R5500 XR incorporates Enhanced Battery Management: an exclusive, patented technology that
doubles battery service life, optimizes battery recharge time, and provides advance notice of pending
battery failure. With Enhanced Battery Management, you have a lower total cost of ownership and
receive the best in the industry protection for your critical equipment.
Enhanced System
Enhanced SystemEnhanced System
Enhanced System
Flexibility with HP Option
Flexibility with HP OptionFlexibility with HP Option
Flexibility with HP Option
Cards
CardsCards
Cards
The UPS R5500 XR models are equipped with a standard serial communications port via an internal slot.
This option slot supports one option card, the Six Port Card and the SNMP / Serial Port Card. These
option cards seamlessly integrate into the back of the R5500 XR and provide increased system flexibility.
Remotely Monitor UPSs on
Remotely Monitor UPSs onRemotely Monitor UPSs on
Remotely Monitor UPSs on
the Network
the Networkthe Network
the Network
The SNMP / Serial Port Card features the ability to perform simultaneous network and out-of-band
communications. It enables network administrators to remotely monitor UPSs and reboot network
devices. It provides SNMP functionality, including power event alerts, network power diagnostics, and
remote UPS reboot and testing. Used in conjunction with the provided Online power management
software or SNMP capable Network Management Software, power-related problems on the network are
quickly discovered and remedied.
Easy Configuration via
Easy Configuration viaEasy Configuration via
Easy Configuration via
Enhanced Front Panel
Enhanced Front PanelEnhanced Front Panel
Enhanced Front Panel
Display
DisplayDisplay
Display
LED and switch membrane integrated into the front panel with four button controls (three buttons for UPS
power control and one button under the front bezel for configuration)
QuickSpecs
HP UPS R5500 XR Uninterruptible Power System
HP UPS R5500 XR Uninterruptible Power SystemHP UPS R5500 XR Uninterruptible Power System
HP UPS R5500 XR Uninterruptible Power System
Product Highlights
DA - 11871 Worldwide — Version 7 — February 24, 2006
Page 3
1. LED indicating Overload capacity
9. STANDBY Button
2. LED indicating 76% to 100% load capacity
10. ON Button
3. LED indicating 51% to 75% load capacity
11. General Alarm
4. LED indicating 26% to 50% load capacity
12. On Battery
5. LED indicating 0% to 25% load capacity
13. Bad Battery/Low Battery
6.Configure mode on LED
*
14. Site Wiring Fault Indicator
7. Configure Button
*
15. Utility LED
8.TEST/ALARM RESET Button
A. Voltage Configuration Panel
*
*NOTE:
*NOTE:*NOTE:
*NOTE:
Accessible only when the front bezel is removed
Intelligent Manageability
Intelligent ManageabilityIntelligent Manageability
Intelligent Manageability
Free HP Power Management Software, an integrated component of HP Systems Insight Manager, the
industry-leading hardware management platform, is included with the HP UPS R5500 XR models. The HP
Power Management Software enables you to monitor and control HP UPSs locally or remotely. This
software is a versatile, fully configurable, alert response tool that gives system administrators a full
overview of the network's conditions. It enables you to monitor system status and power conditions,
configure shut down timing, customize alert messages, and perform UPS diagnostic checks quickly and
easily.
Independently
IndependentlyIndependently
Independently
Controllable Load
Controllable LoadControllable Load
Controllable Load
Segments
SegmentsSegments
Segments
With two load segments, you have the flexibility to configure scheduled startups and shutdowns, in
addition to independently control the separate load segments. Working in conjunction with HP Power
Management Software, the HP UPS R5500 XR can be configured to extend the runtime for more critical
devices.
Ease of Maintenance with
Ease of Maintenance withEase of Maintenance with
Ease of Maintenance with
Hot-Swappable Batteries
Hot-Swappable BatteriesHot-Swappable Batteries
Hot-Swappable Batteries
and Electronics Modules
and Electronics Modulesand Electronics Modules
and Electronics Modules
The UPS R5500 XR is modular in design, and both the battery and the electronics modules are hot
swappable. HP UPSs are designed with simple access through the front panel. Users can safely install
new batteries and even the electronics module without ever powering down connected server and server
options.
HP Quality
HP QualityHP Quality
HP Quality
HP's hardware qualification is the toughest in the industry. Extensive evaluation, testing, product
improvement, and an unsurpassed warranty guarantee the highest level of system protection, electrical
performance, product quality and compatibility.
Compatibility
CompatibilityCompatibility
Compatibility
Compatible with all HP servers, storage, racks, rack options, and other rack mountable HP equipment
(for PDU options please refer to the UPS/PDU compatibility matrix on
http://www.HP.com/ups
).
Warranty
WarrantyWarranty
Warranty
The HP UPS R5500 XR is covered by a three year warranty, with the first year including parts and labor.
Also, standard on all HP UPS units, is our exclusive Pre-Failure Warranty, which extends the advantage of
a HP three-year, limited warranty by applying it to the battery before it actually fails. This warranty is
offered worldwide. Specifically, the Pre-Failure Battery Warranty ensures that when customers receive
notification from HP Power Management Software that the battery may fail, the battery is replaced free of
charge under the warranty.
NOTE:
NOTE:NOTE:
NOTE:
$25,000 Computer/Load Protection Guarantee is also provided in NA, in addition to the HP
three year, limited warranty.
QuickSpecs
HP UPS R5500 XR Uninterruptible Power System
HP UPS R5500 XR Uninterruptible Power SystemHP UPS R5500 XR Uninterruptible Power System
HP UPS R5500 XR Uninterruptible Power System
Product Highlights
DA - 11871 Worldwide — Version 7 — February 24, 2006
Page 4
