Page 1
HP Media Remote Control (Select Models Only)
User Guide
Page 2
© Copyright 2008 Hewlett-Packard
Development Company, L.P.
Windows and Windows Vista are U.S.
registered trademarks of Microsoft
Corporation.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
First Edition: August 2008
Document Part Number: 492641-001
Page 3
Table of contents
1 Component functions
2 Button quick reference
3 Inserting or replacing the battery
4 Troubleshooting
Index ..................................................................................................................................................................... 9
iii
Page 4
iv
Page 5
1 Component functions
NOTE: Your computer may include an updated remote control that functions differently than described
in this guide. For the latest user guide for your remote control, go to the product support page for your
computer at
The infrared lens on the remote control links the remote control to the computer. The link requires a lineof-sight path between the infrared lens on the remote control and the infrared lens on the computer.
Things to remember:
The remote control operates within the Windows® operating system, within HP MediaSmart (select
●
computer models only) and within QuickPlay (select computer models only). Button functions may
vary, depending on the active program.
NOTE: For information on using MediaSmart, refer to the MediaSmart software Help.
http://www.hp.com/support/.
Some remote control buttons perform the same functions as computer buttons. For example, the
●
power button on the remote control and the power button on the computer have the same functions
and can be used interchangeably.
Some remote control buttons perform the same functions as computer hotkeys. Refer to the
●
computer user guides for information on supported hotkeys.
To access the user guides, select Start > Help and Support > User Guides.
Other remote control buttons provide functions that are not duplicated by computer buttons or
●
hotkeys.
1
Page 6
2 Button quick reference
This section provides information on the functions of the remote control buttons.
NOTE: The position of the buttons may vary, depending on your remote control model.
Button Function
Power
Recorded TV In Live TV mode, press the button to start recording the current program.
Arrows, OK
Guide Press the button to open the Windows Media Center electronic program guide.
When the computer is on, press the button to emulate the computer power button.
●
Refer to the computer user guides for information.
To access the user guides, select Start > Help and Support > User Guides.
NOTE: The remote control cannot be used when the computer is off.
When the computer is in the Sleep state, briefly press the button to exit Sleep.
●
When the computer is in Hibernation, briefly press the button to exit Hibernation.
●
Press an arrow to move between menus, windows, or activities.
●
Press the OK button to select a desired action. The OK button functions like the enter
●
button.
Back Press the button to emulate the “back” function of the backspace key in the active program.
Mute
Volume up Press the button to increase speaker volume.
2 Chapter 2 Button quick reference
Press the button to mute speaker volume.
●
If the volume is muted, press the button to restore speaker volume.
●
Page 7
Button Function
Volume down Press the button to decrease speaker volume.
Previous Press the button to jump from one area, menu, or button to the previous one.
Play/pause
Rewind
Keypad Press the button to change channels or enter text into a text box.
Clear Press the button to clear or delete the last character entered.
Print NOTE: The print button is included on select remote controls only.
Switch screens NOTE: The switch screens button is included on select remote controls only.
Snapshot NOTE: The snapshot button is included on select remote controls only.
When media is not playing, press the button to play the selected media.
●
When media is playing, press the button to pause the media.
●
Press the button to rewind the selected media.
●
NOTE: The button does not work with some media files.
Press the rewind button and then press the play button to activate play.
●
NOTE: Each time you press a number button, a different letter is displayed. Press the
enter button to select a letter.
Press the button to print pictures that you select in the My Pictures window.
Press the button to switch the computer image between the computer display and an
external display.
Press the button to capture a picture of the computer screen and save it to the clipboard.
Zoom NOTE: The zoom button is included on select remote controls only.
Press the button to alternate between various aspect modes in TV.
MediaSmart Press the button to launch MediaSmart (for models with MediaSmart preinstalled) or
QuickPlay (for models with QuickPlay preinstalled).
NOTE: If the computer has been set up to require a logon password, you may be asked
to log on to Windows.
3
Page 8
Button Function
Live TV
DVD NOTE: The DVD button is included on select remote controls only.
Teletext NOTE: The Teletext button is included on select remote controls only.
Red NOTE: The red button is included on select remote controls only.
Green NOTE: The green button is included on select remote controls only.
Yellow NOTE: The yellow button is included on select remote controls only.
Press the button to move a TV program forward to the end of the pause buffer and
●
resume playing live TV. When you pause a TV program, press the button to resume
playing live TV.
Press the button to open the multimedia software and then begin playing live TV in
●
full-screen mode.
If a DVD is playing, press the button to open the DVD disc menu.
●
If a DVD is not playing, press the button to open the default DVD player.
●
NOTE: If the computer has been set up to require a logon password, you may be asked
to log on to Windows.
Enables Teletext, when available, during Live TV.
NOTE: This button does not function when Teletext is not supported.
Opens Teletext button links marked in red on the Teletext screen.
Opens Teletext button links marked in green on the Teletext screen.
Opens Teletext button links marked in yellow on the Teletext screen.
Blue NOTE: The blue button is included on select remote controls only.
Opens Teletext button links marked in blue on the Teletext screen.
Settings Press to display system information. The button may also be used to display settings menus
for some multimedia software.
Windows Media Center If the computer uses Windows Vista® Premium or Windows Vista Ultimate, press the button
to open the Windows Media Center main menu. The Windows Media Center button has no
function with other operating systems.
NOTE: Refer to the label on the bottom of the computer to determine the operating
system.
Channel/page up
Channel/page down
Press to emulate the pg up key on a keyboard.
●
Press to change channels in ascending order.
●
Press to emulate the pg dn key on a keyboard.
●
Press to change channels in descending order.
●
Next Press the button to jump from one area, menu, or button to the next one.
4 Chapter 2 Button quick reference
Page 9
Button Function
Stop Press the button to stop the current media activity.
Fast-forward
enter Press the button to enter or select the desired action, menu, or window option.
Press the button to fast- forward the selected media.
●
NOTE: The button does not work with some media files.
Press the fast-forward button and then press the play button to activate play.
●
5
Page 10
3 Inserting or replacing the battery
WARNING! Dispose of used batteries according to the instructions in the Regulatory, Safety and
Environmental Notices located in Help and Support. To access the notices, select Start > Help and
Support > User Guides.
To insert or replace the battery in the remote control, follow these instructions:
1. On the back of the remote control, slide the battery compartment cover in the direction of the arrow
(1), and then lift the cover to remove it (2).

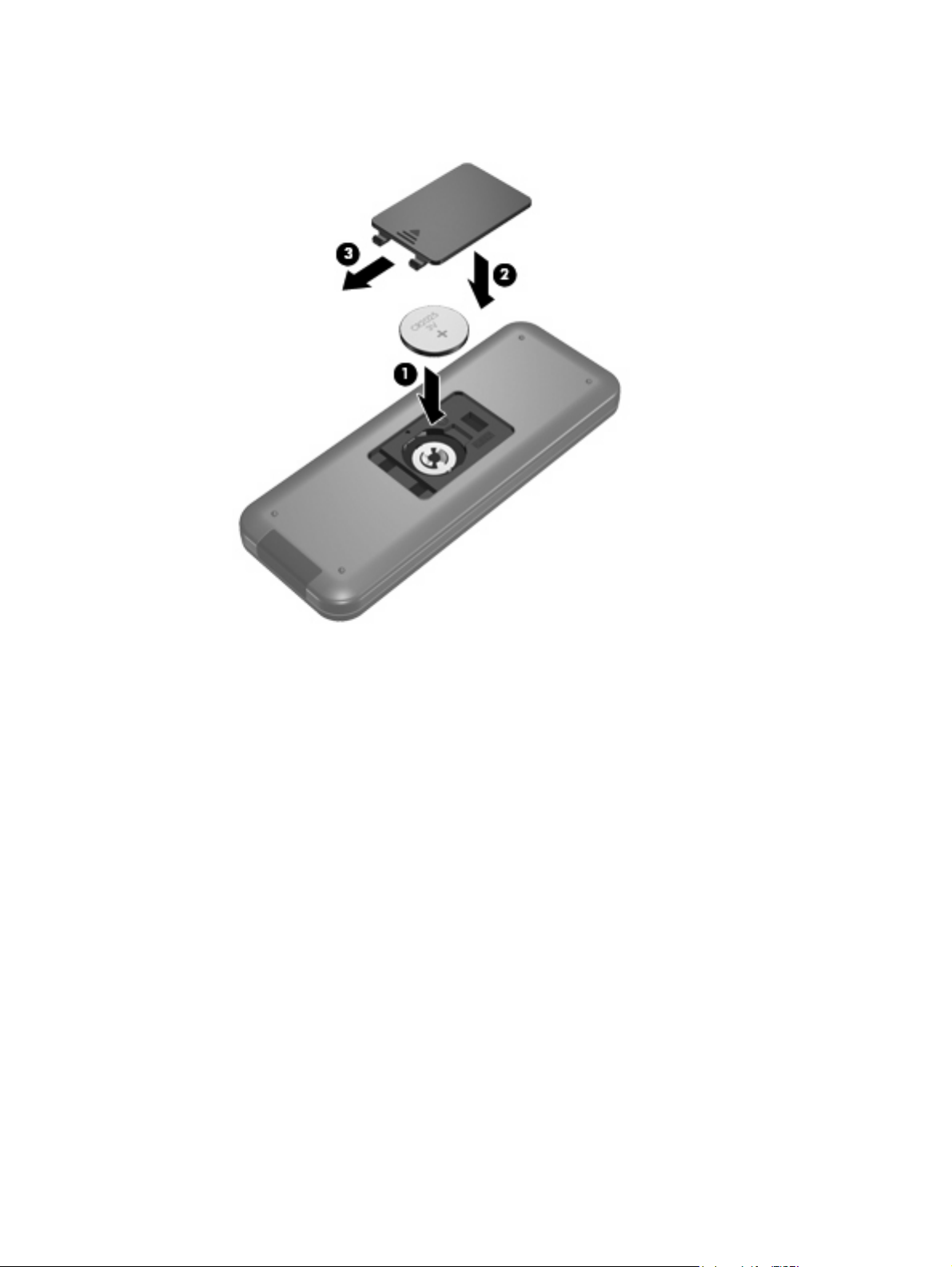

2. With the positive side of the battery facing up, insert the battery into the compartment (1).
6 Chapter 3 Inserting or replacing the battery
Page 11
3. Align the battery compartment cover with the battery compartment (2), and then slide the cover to
close it (3).
7
Page 12
4 Troubleshooting
Try the following solutions if your remote control does not function properly:
Be sure that you have a clear line of sight from the remote control to the infrared port on the
●
computer or optional docking device.
Be sure that you are within range of the infrared port on the computer or optional docking device.
●
Be sure that the battery is properly installed and has a charge. Replace the battery if necessary.
●
Be sure that you are using the remote control with a supported computer or optional docking device.
●
8 Chapter 4 Troubleshooting
Page 13
Index
A
arrow buttons 2
B
back button 2
battery, inserting 6
buttons
arrow 2
back 2
change/page up 4
channel/page down 4
clear 3
DVD 4
enter 5
forward 5
guide 2
information 4
keypad 3
live TV 4
MediaSmart 3
mute 2
next 4
OK 2
play 3
power 2
previous 3
print 3
quick reference 2
recorded TV 2
rewind 3
snapshot 3
stop 5
switch screens 3
Teletext 4
volume down 3
volume up 2
Windows Media Center 4
zoom 3
C
change/page up button 4
channel/page down button 4
clear button 3
D
DVD button 4
E
enter button 5
F
forward button 5
G
guide button 2
I
information button 4
infrared lens 1
inserting battery 6
K
keypad buttons 3
L
live TV button 4
M
MediaSmart 1
MediaSmart button 3
mute button 2
N
next button 4
O
OK button 2
P
play/pause button 3
power button 2
previous button 3
print button 3
R
recorded TV button 2
rewind button 3
S
snapshot button 3
stop button 5
switch screens button 3
T
Teletext button 4
troubleshooting 8
V
volume down button 3
volume up button 2
W
Windows Media Center button 4
Z
zoom button 3
Index 9
