HP TFT7210R Installation Instructions

Installation Checklist

HP TFT7210R

Installation Instructions

Read Instructions Completely Before Beginning
Installation Procedures

© Copyright 2003 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The

only warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services. Nothing
herein should be construed as constituting an additional warranty. HP shall
not be liable for technical editorial errors or omissions contained herein.

Before installation, refer to the following list to be sure that all
of the listed components were received.

Kit contents

• HP TFT7210R

• HP 1U Adjustable Toolless Rails

• Brace rail assembly

− Brace rail

− Cable management arm

• Lock plates

• M6 screws

• 6-32 screws

• High-voltage power cord (10 ft), C13-C14

This kit might contain extra hardware for your convenience.

WARNING: To reduce the risk of personal

injury or damage to the equipment, be sure that:

• The leveling jacks are extended to the floor.

• The full weight of the rack rests on the leveling
jacks.

• The stabilizing feet are attached to the rack if it is a
single-rack installation.

• The racks are coupled together in multiple-rack
installations.

• Only one component is extended at a time. A rack

may become unstable if more than one component
is extended for any reason.

First Edition (November 2003)
Part Number 349954-001

349954- 001

Installing the HP TFT7210R

1. Align the lower edge of the rack template with the top of

the previous rack component, and push the tabs in to hold
the rack template in place. Mark the rack to indicate where
the HP 1U Adjustable Toolless Rails are to be located.

2. Align the HP 1U Adjustable Toolless Rails with the holes

marked with the rack template, and snap them into place.

a. Snap one end of the HP 1U Adjustable Toolless Rails

into the Retma rails.

b. Extend the other half of the HP 1U Adjustable Toolless

Rails to meet the appropriate rack depth, and snap them
into place.

NOTE: If the HP 1U Adjustable Toolless Rails do not
snap into place, be sure that they align with the holes
marked with the rack template. The holes marked with the
rack template must be in the same location for the front
and rear of the rack.

5. Slide the brace rail assembly into the HP 1U Adjustable

Toolless Rails from the rear of the rack, ensuring that the
cable access hole faces the left side of the rack.

NOTE: The cable access hole must be positioned on the
left side of the rack to enable appropriate routing of the
cables.

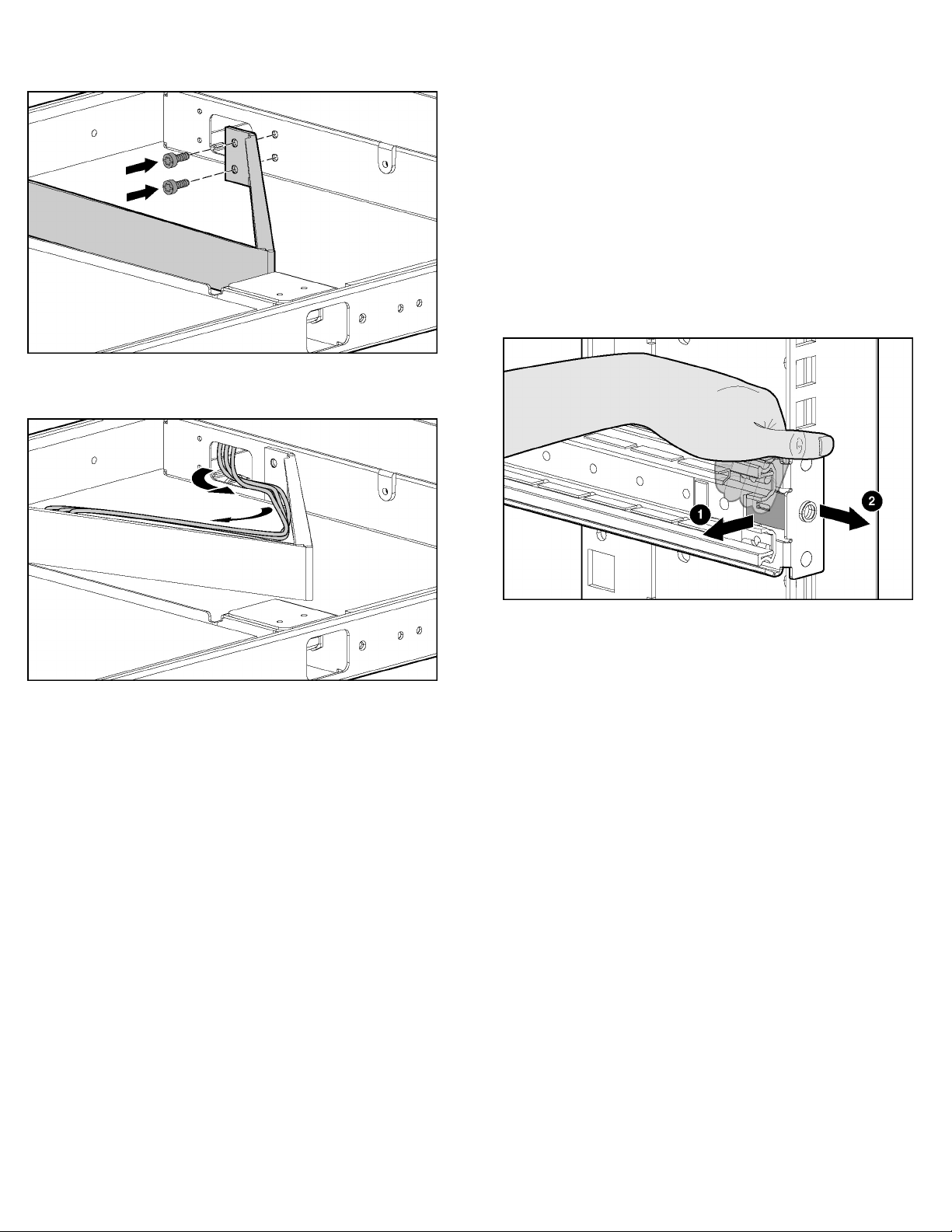

6. Align the screw holes on the brace rail with the screw holes

on the HP 1U Adjustable Toolless Rails.

7. Secure the brace rail to the HP 1U Adjustable Toolless

Rails by inserting three screws and tightening them.

3. Extend the inner slides until they lock into place.

4. Align the HP TFT7210R with the extended inner slides,

and pull the release mechanism toward you while inserting
the HP TFT7210R into the rack.

WARNING: To reduce the risk of personal
injury, release the release mechanisms after pushing
the HP TFT7210R slightly forward.
