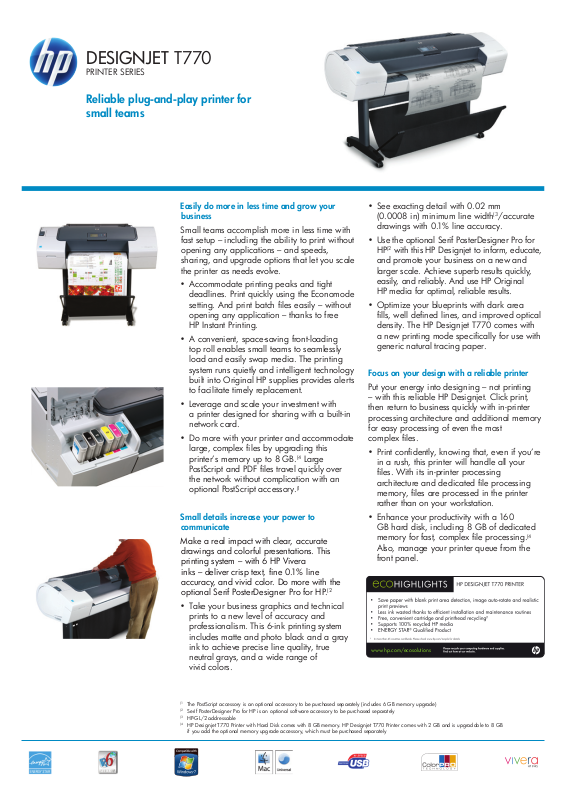

HP t770 Datasheet

DESIGNJET T770

PRINTER SERIES

Reliable plug-and-play printer for
small teams

Easily do more in less time and grow your
business

Small teams accomplish more in less time with
fast setup – including the ability to print without
opening any applications – and speeds,
sharing, and upgrade options that let you scale
the printer as needs evolve.

• Accommodate printing peaks and tight
deadlines. Print quickly using the Economode
setting. And print batch files easily – without
opening any application – thanks to free
HP Instant Printing.

• A convenient, space-saving front-loading
top roll enables small teams to seamlessly
load and easily swap media. The printing
system runs quietly and intelligent technology
built into Original HP supplies provides alerts
to facilitate timely replacement.

• Leverage and scale your investment with
a printer designed for sharing with a built-in
network card.

• Do more with your printer and accommodate
large, complex files by upgrading this
printer’s memory up to 8 GB.(4 Large
PostScript and PDF files travel quickly over
the network without complication with an
optional PostScript accessory.

(1

Small details increase your power to
communicate

Make a real impact with clear, accurate
drawings and colorful presentations. This
printing system – with 6 HP Vivera
inks – deliver crisp text, fine 0.1% line
accuracy, and vivid color. Do more with the
optional Serif PosterDesigner Pro for HP.

(2

• Take your business graphics and technical
prints to a new level of accuracy and
professionalism. This 6-ink printing system
includes matte and photo black and a gray
ink to achieve precise line quality, true
neutral grays, and a wide range of
vivid colors.

• See exacting detail with 0.02 mm
(0.0008 in) minimum line width(3/accurate
drawings with 0.1% line accuracy.

• Use the optional Serif PosterDesigner Pro for
HP(2 with this HP Designjet to inform, educate,
and promote your business on a new and
larger scale. Achieve superb results quickly,
easily, and reliably. And use HP Original
HP media for optimal, reliable results.

• Optimize your blueprints with dark area
fills, well defined lines, and improved optical
density. The HP Designjet T770 comes with
a new printing mode specifically for use with
generic natural tracing paper.

Focus on your design with a reliable printer

Put your energy into designing – not printing
– with this reliable HP Designjet. Click print,
then return to business quickly with in-printer
processing architecture and additional memory
for easy processing of even the most
complex files.

• Print confidently, knowing that, even if you’re
in a rush, this printer will handle all your
files. With its in-printer processing
architecture and dedicated file processing
memory, files are processed in the printer
rather than on your workstation.

• Enhance your productivity with a 160
GB hard disk, including 8 GB of dedicated
memory for fast, complex file processing.(4
Also, manage your printer queue from the
front panel.

www.hp.com/ecosolutions

(1

The PostScript accessory is an optional accessory to be purchased separately (includes 6 GB memory upgrade)

(2

Serif PosterDesigner Pro for HP is an optional software accessory to be purchased separately

(3

HP-GL/2 addressable

(4

HP Designjet T770 Printer with Hard Disk comes with 8 GB memory. HP Designjet T770 Printer comes with 2 GB and is upgradable to 8 GB

if you add the optional memory upgrade accessory, which must be purchased separately

DESIGNJET T770 PRINTER SERIES

TECHNICAL SPECIFICATIONS ORDERING INFORMATION

Print

Line drawings
Color images

Print resolution Up to 2400 x 1200 optimized dpi
Margins
(top x bottom x left x right)
Technology HP Thermal Inkjet
Ink types Dye-based (C, M, Y, G, PK); pigment-based (MK)
Ink cartridge colors Cyan, gray, magenta, matte black, photo black, yellow
Ink drop 6 pl (C, M, PK, G), 9 pl (Y, MK)
Ink cartridge size 130 ml (cyan, gray, magenta, matte black, photo black, yellow)

Printheads 3 (matte black and yellow, magenta and cyan, gray and photo black)
Line accuracy +/- 0.1%
Minimum line width 0.02 mm (0.0008 in) (HP-GL/2 addressable)
Guaranteed minimum line width

Media

Handling Sheet feed, roll feed, automatic cutter
Types Bond and coated papers, technical papers, films, photographic papers,

Weight 60 to 328 g/m²
Size 24-in printers: 210 x 279 to 610 x 1676 mm (8.26 x 11 to 24 x 66 in)

Thickness Up to 0.8 mm (31.5 mil)

Processing and memory

Connectivity

Interfaces (standard) Fast Ethernet (100Base-T), Hi-Speed USB 2.0 certified, EIO Jetdirect

Interfaces (optional) HP Jetdirect EIO print servers
Print languages (standard) Basic printer: HP-GL/2, HP-RTL, HP PCL 3 GUI

Print languages (optional) Adobe® PostScript® 3™, Adobe PDF 1.7 (with optional PostScript

Drivers (included)

Software solutions

Dimensions (w x d x h)

Printer 24-in printers: 1262 x 698 x 1050 mm (49.7 x 27.5 x 41.3 in)

Shipping 24-in printers: 1440 x 770 x 600 mm (56.7 x 30.3 x 23.6 in)

Weight

Printer 24-in printers: 61 kg (134.5 lb)

Shipping 24-in printers: 70 kg (154.3 lb)

What’s in the box

Environmental ranges

Operating temperature 5 to 40° C (41 to 104° F)
Storage temperature -25 to 55° C (-13 to 131° F)
Recommended operating

humidity
Storage humidity 0 to 95% RH

Acoustic

Sound pressure, active 46 dB(A)
Sound pressure, standby 26 dB(A)
Sound power, active 6.2 B(A)
Sound power, standby 4.4 B(A)

Power

Maximum 120 watts
Powersave < 7 watts (< 25 watts with embedded DFE)
Off 0.1 watts
Requirements Input voltage (auto ranging) 100 to 240 VAC (+/- 10%), 50/60 Hz

Certification

Safety USA and Canada (CSA certified); EU (LVD and EN60950-1 compliant);

Electromagnetic Compliant with Class B requirements, including: USA (FCC rules),

Environmental WEEE, EU RoHS, China RoHS, REACH, EuP, FEMP
ENERGY STAR® qualified

models

Warranty

(1

(2

Fast: 28 sec/page on A1/D, 103 A1/D prints per hour on plain media
Fast: 41 m2/hr (445 ft²/hr) on coated media
Best: 3.1 m2/hr (33.3 ft²/hr) on glossy media

Roll: 5 x 5 x 5 x 5 mm (0.2 x 0.2 x 0.2 x 0.2 in)
Sheet: 5 x 17 x 5 x 5 mm (0.2 x 0.67 x 0.2 x 0.2 in)

69 ml (cyan, gray, magenta, photo black, yellow)

(3

0.06 mm (0.0024 in) (ISO/IEC 13660:2001(E))

(4

backlit materials, self-adhesive materials

sheets; 279 to 610 mm (11 to 24 in) rolls
44-in printers: 210 x 279 to 1118 x 1676 mm (8.26 x 11 to 44 x 66 in)

sheets; 279 to 1118 mm (11 to 44 in) rolls

Basic printer: Intel® Pentium® M 800 MHz, 2 GB dedicated
file-processing memory

Printer with Hard Disk: Intel Pentium M 800 MHz, 8 GB dedicated
file-processing memory(5, 160 GB hard disk

(5

accessory slot

Printer with Hard Disk: HP-GL/2, HP-RTL, CALS G4, HP PCL 3 GUI

Upgrade accessory)
HP-GL/2, HP-RTL drivers for Windows® (optimized for AutoCAD 2000 and

higher); HP PCL 3 GUI driver for Mac OS X; PostScript drivers for Windows,
Mac OS X, and Linux with optional dongle (will remove HP PCL 3 GUI driver
support); support for Citrix XenApp and Citrix XenServer environments

HP Instant Printing: Easily and quickly print your files in large format with
the simple click of a button.
More information: www.hp.com/go/hpinstantprintingutility

44-in printers: 1770 x 702 x 1050 mm (69.7 x 27.6 x 41.3 in)

44-in printers: 1930 x 766 x 778 mm (75.98 x 30.16 x 30.7 in)

44-in printers: 81.6 kg (180 lb)

44-in printers: 111 kg (244 lb)

HP Designjet T770 Printer, printheads, introductory ink cartridges, printer
stand(6, spindle, quick reference guide, setup poster, Serif PosterDesigner Pro
for HP poster, start-up software, power cord

20 to 80% RH (depending on paper type)

(+/- 3 Hz), 2 A max

Russia (GOST); Singapore (PSB); China (CCC); Argentina (IRAM);
Mexico (NYCE)

Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand
(RSM), China (CCC), Japan (VCCI); Certified as Class A product:
Korea (KCC)

see: www.hp.com/go/energystar

One-year limited hardware warranty

Product

CQ305A HP D esignjet T770 24-in Printer
CQ306A HP D esignjet T770 24-in Printer with Hard Disk

CH539A HP Designjet T770 44-in Printer
CN375A HP Designjet T770 44-in Printer with Hard Disk

Accessories

Q6709A HP Designjet 44-inch Roll Fee d Spindle
CN500A HP Designjet T770 PostScript Upgrade
CN499A HP Designjet T770 Memor y Upgrade
J7961G HP Jetdirect 635n IPv6/IPsec Print Server
CN088A Serif PosterDesigner Pro for HP
CQ783A HP Designjet T7xx 24-in Spindle
Q6663A HP Designjet T/Z 24-in Stand

Original HP printheads

C9380A HP 72 Gray and Photo Black Printhead
C9383A HP 72 Magenta and Cyan Printhead
C9384A HP 72 Matte Black and Yellow Printhead

Original HP ink cartridges

C9397A HP 72 69-ml Photo Black Ink Cartridge
C9398A HP 72 69-ml Cyan Ink Cartridge
C9399A HP 72 69-ml Magenta Ink Cartridge
C9400A HP 72 69-ml Yellow Ink Cartridge
C9401A HP 72 69-ml Gray Ink Cartridge
C9403A HP 72 130-ml Matte Black Ink Cartridge
C9370A HP 72 130-ml Photo Black Ink Car tridge
C9371A HP 72 130-ml Cyan Ink Cartridge
C9372A HP 72 130-ml Magenta Ink Car tridge
C9373A HP 72 130-ml Yellow Ink Cartridge
C9374A HP 72 130-ml Gray Ink Cartridge

Original HP large-format printing materials

HP Bright White Inkjet Paper with ColorPRO
Technology
HP Universal Bond Paper with ColorPRO
Technology

HP Recycled Bond Paper CG889A, CG890A, CG891A
HP Heavyweight Coated Paper C6029C, C6030C, C6569C, C6570C, C6977C, Q1956A,

HP Universal Coated Paper Q1404A, Q1405A, Q1406A, Q1408A
HP Coated Paper C6019B, C6020B, C6567B, C6568B, C6980A, Q1441A,

HP Natural Tracing Paper C3869A, C3868A, Q1439A
HP Clear Film C3875A, C3876A
HP Matte Film 51642A, 51642B
HP Universal Instant-dry Gloss Photo Paper Q6574A, Q6575A, Q6576A, Q6578A
HP Universal Instant-dry Semi-gloss Photo Paper Q6579A, Q6580A, Q6581A, Q6582A, Q6583A
HP Premium Plus Satin Photo Paper Q7920A, Q5491A, Q5489A, Q5490A
HP Universal High-gloss Photo Paper Q1426A, Q1427A, Q1428A, Q1429A, Q1430A
HP Universal Semi-gloss Photo Paper Q1420A, Q1421A, Q1422A, Q1423A, Q1424A
HP Adhesive-backed Polypropylene Q8044A, Q8884A, Q8045A

For more HP large-format printing materials and detailed information on sizes and region availability,
please visit us online at: http://www.hp.com/go/lfprinting/materials-supplies .

With the addition of ColorPRO Technology, HP papers provide professional quality
and striking results at production speed for high-quality, high-productivity printing of
graphics and technical applications.

Service and suppor t

24-in 44 -in

UU957E US251E HP 3 year Next Business Day Onsite Support
UV196E US248E HP 3 year 4 hour response, 9x5 Onsite Support
UV199E US244E HP 3 year 4 hour response, 13x5 Onsite Support
UV202PE US245PE HP 1 year, Post Warranty, Next Business Day Onsite Support
UV203PE US283PE HP 2 year Post Warranty, Next Business Day Onsite Support
UV205PE US240PE HP 1 year Post Warranty, 4 hour response, 9x5 Onsite Support
UV206PE US239PE HP 1 year Post Warranty, 4 hour response, 13x5 Onsite Support
H4518E H4518E HP Network Installation Service Designjet 400-6100 SVC

(1

Mechanical printing time. Printed with Economode on. Measured on 44-in printer

(2

Mechanical printing time. Measured on 44-in printer

(3

+/- 0.1% of the specified vector length or +/- 0.1 mm (whichever greater) at 23º C (73º F), 50-60% relative

humidity, on A0/E printing material in Best or Normal mode with HP Matte Film

(4

Measured on HP Matte Film

(5

384 MB RAM

(6

Stand not included in the box for 24-in printers outside of NA and LAR

C1860A, C1861A, C6035A, C6036A, C6810A,
Q1444A, Q1445A, Q1446A
Q1396A, Q1397A, Q1398A, Q8003A, Q8004A,
Q8005A

Q1957A

Q1442A, Q1443A

For more information, visit our website at www.hp.com/go/designjetT770

© Copyright 2010 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements
accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Adobe PostScript 3 is a trademarks of Adobe Systems Incorporated. ENERGY STAR and the ENERGY STAR mark are registered U.S. marks. Intel and Pentium are trademarks of Intel Corporation in the U.S. and other countries.
Windows is a U.S. registered trademark of Microsoft Corporation.

4AA2-7657ENW, April 2010
