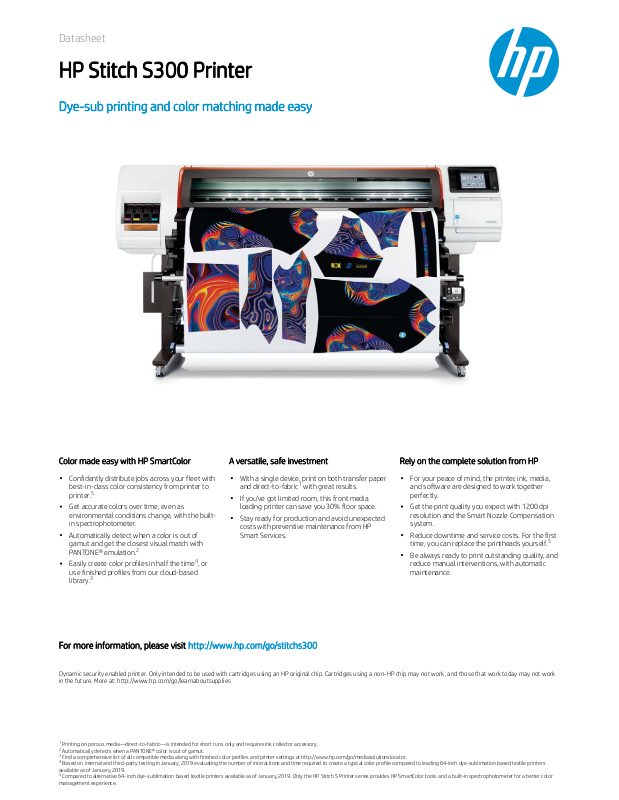

HP Stitch S300 Datasheet
Datasheet
HP Stitch S300 Printer
Dye-sub printing and color matching made easy
Color made easy with HP SmartColor |
|
A versatile, safe investment |
|
Rely on the complete solution from HP |
Confidently distribute jobs across your fleet with best-in-class color consistency from printer to printer.5
Get accurate colors over time, even as environmental conditions change, with the builtin spectrophotometer.
Automatically detect when a color is out of gamut and get the closest visual match with PANTONE® emulation.2
Easily createxcolor profiles in half the time4, or use finished profiles from our cloud-based library.3
With a single device, print on both transfer paper and direct-to-fabric1 with great results.
If you've got limited room, this front media loading printer can save you 30% floor space.
Stay ready for production and avoid unexpected costs with preventive maintenance from HP Smart Services.
For your peace of mind, the printer, ink, media, and software are designed to work together perfectly.
Get the print quality you expect with 1200 dpi resolution and the Smart Nozzle Compensation system.
Reduce downtime and service costs. For the first time, you can replace the printheads yourself.5
Be always ready to print outstanding quality, and reduce manual interventions, with automatic maintenance.
For more information, please visit http://www.hp.com/go/stitchs300
Dynamic security enabled printer. Only intended to be used with cartridges using an HP original chip. Cartridges using a non-HP chip may not work, and those that work today may not work in the future. More at: http://www.hp.com/go/learnaboutsupplies
1 3ULQWLQJ RQ SRURXV PHGLD GLUHFW WR IDEULF LV LQWHQGHG IRU VKRUW UXQV RQO\ DQG UHTXLUHV LQN FROOHFWRU DFFHVVRU\
2Automatically detects when a PANTONE® color is out of gamut.
3Find a comprehensive list of all compatible media along with finished color profiles and printer settings at http://www.hp.com/go/mediasolutionslocator.
4Based on internal and third-party testing in January, 2019 evaluating the number of interactions and time required to create a typical color profile compared to leading 64-inch dye-sublimation based textile printers available as of January, 2019.
5Compared to alternative 64-inch dye-sublimation based textile printers available as of January, 2019. Only the HP Stitch S Printer series provides HP SmartColor tools and a built-in spectrophotometer for a better color management experience.
Data sheet | HP Stitch S300 Printer
Technical specifications
Printing modes |
62 m²/hr (665 ft²/hr) - Max Speed (2-pass) |
|
34 m²/hr (365 ft²/hr)- Production (4-pass) |
|
22 m²/hr (235 ft²/hr) - Quality (6-pass) |
|
17 m²/hr (185 ft²/hr) - High Quality (8-pass) |
|
|
Print resolution |
Up to 1200 x 1200 dpi |
|
|
Ink types |
HP Dye Sub Inks |
|
|
Ink cartridges |
4 (cyan, magenta, yellow, black) |
|
|
Cartridge size |
775 ml |
|
|
Printheads |
4 HP Thermal Inkjet (2 cyan/black, 2 magenta/yellow) |
|
|
Long-term print-to-print |
Average <= 1 dE2000, 95% of colors <= 1.5 dE20001 |
repeatability |
|
|
|
Media
Handling |
Roll feed; Take-up reel; Automatic cutter (for transfer media) |
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Media types |
Sublimation transfer papers, sublimation polyester fabrics, sublimation film |
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Roll size |
580 to 1625 mm rolls (23 to 64 in rolls) |
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Roll weight |
42 kg (92.6 lb) |
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Roll diameter |
250 mm (9.8 in) |
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Thickness |
Up to 0.5 mm (19.7 mil) |
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Interior decoration; Fashion; Sportswear; Soft signage |
|
Applications |
|||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Connectivity |
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Interfaces |
Gigabit Ethernet (1000Base-T) |
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
Dimensions (w x d x h) |
|||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Printer |
2560 x 710 x 1380 mm (101 x 28 x 54 in) |
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Shipping |
2836 x 760 x 1248 mm (1116 x 30 x 49 in) |
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
Weight |
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Printer |
171 kg (377 lb) |
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Shipping |
280 kg (617 lb) |
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
HP Stitch S300 64-in Printer; printer stand; printheads; maintenance cartridge; 3-in spindle; take-up reel; edge |
|||||||
What's in the box |
|||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
holders; user maintenance kit; quick reference guide; setup poster; power cords; HP Ergosoft RIP Color Edition; |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
waste bottle |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
Environmental ranges |
|||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Operating temperature |
15 to 30ºC (59 to 86ºF) |
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Operating humidity |
20 to 80% RH (non-condensing)2 |
||||||||||||||
|
|
|
|
|
|
|
|
|
|||||||
Acoustics |
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Sound pressure |
53 dB(A) (operating);x38 dB(A) (idle);x< 16 dB(A) (sleep);x |
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Sound power |
7.1 B(A) (operating);x5.7 B(A) (idle);x< 3.5 B(A) (sleep);x |
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
Power |
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Consumption |
1 kW (printing); 80 W (ready); < 2 W (sleep) |
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Requirements |
Input voltage (auto ranging) 200-240 V (±10%) two wires and PE; 50/60 Hz (±3 Hz); one power cord; 13 A max |
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
Certification |
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Safety |
IEC 60950-1+A1+A2 compliant; USA and Canada (CSA listed) |
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Electromagnetic |
Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES) |
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Environmental |
ENERGY STAR®; WEEE; REACH; EPEAT; OSHA; CE marking compliant |
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
One-year limited hardware warranty |
||||||||||||
Warranty |
|||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Ordering information
Product
2ET72A |
HP Stitch S300 64-in Printer |
Accessories |
5JX30A |
HP Stitch S300/S500 Ink Collector |
5QG72A |
HP Stitch S300/S500 User Maintenance Kit |
F0M56A |
HP Latex 64-in Printer 2-in Spindle |
F0M58A |
HP Latex 64-in Printer 3-in Spindle |
T7U74A |
+3 6HULHV ,QN &ROOHFWRU )RDP .LW |
) 0 $ |
+3 6HULHV 0HGLD /RDGLQJ DFFHVVRU\ |
Original HP printing supplies
2LL53A |
HP 624 775-ml Black Stitch Dye Sublimation Ink Cartridge |
2LL54A |
HP 624 775-ml Cyan Stitch Dye Sublimation Ink Cartridge |
2LL55A |
HP 624 775-ml Magenta Stitch Dye Sublimation Ink Cartridge |
2LL56A |
HP 624 775-ml Yellow Stitch Dye Sublimation Ink Cartridge |
2LL61A |
HP 614 Stitch Dye Sublimation Printhead Cleaning Kit |
2LL62A |
HP 614 Cyan and Black Stitch Dye Sublimation Printhead |
2LL63A |
HP 614 Magenta and Yellow Stitch Dye Sublimation Printhead |
ECO highlights
ECO PASSPORT certified dye sublimation inks1
ENERGY STAR® certified2
EPEAT® registered as environmentally preferable product3
Free, convenient HP ink cartridge and printhead recycling4
Please recycle large-format printing hardware and printing supplies. Find out how at our website hp.com/ecosolutions
1Original HP Dye Sublimation Inks for the HP Stitch S Printer series are certified ECO PASSPORT by Oeko-Tex,® which is a globally uniform testing and certification system for textile chemicals, colorants, and auxiliaries. It consists of a two-step verification procedure that analyzes whether the compounds and each ingredient meet specific criteria for sustainability, safety, and regulatory compliance.
2ENERGY STAR and the ENERGY STAR mark are registered trademarks owned by the U.S. Environmental Protection Agency.
3EPEAT® registered where applicable. EPEAT registration varies by country. See http://www.epeat.net for registration status by country.
4Program availability varies. Please check http://www.hp.com/recycle for details.
1The color variation inside a printed job has been measured at 6-pass mode on transfer media and also in direct-to-fabric situations within this limit: maximum color difference (95% of colors) <= 1.5 dE2000. Reflective measurements on a 943 color target under CIE standard illuminant D50, and according to the standard CIEDE2000 as per CIE Draft Standard DS 014- 6/E:2012. 5% of colors may experience variations above 1.5 dE2000. Backlit substrates measured in transmission mode may yield different results. Results are dependent on sublimation process variability.
2Papers are hygroscopic materials. They can absorb or lose moisture depending on external humidity conditions. A low level of substrate’s moisture and external relative humidity is always recommended when printing on paper based materials. Recommended external relative humidity is between 25% to 50%.
© Copyright 2019 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
3XEOLVKHG LQ $06 $SULO
