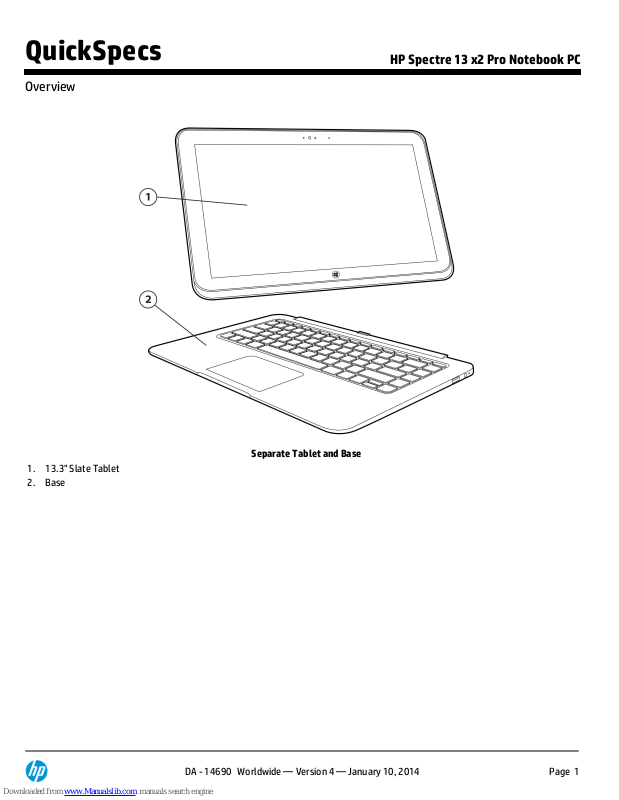

HP Spectre 13 x2 Pro Specification

Separate Tablet and Base

1.

13.3" Slate Tablet

2.

Base

QuickSpecs

HP Spectre 13 x2 Pro Notebook PC

Overview

DA - 14690 Worldwide — Version 4 — January 10, 2014

Page 1

Integrated Tablet and Base, Right Front View

1.

WLAN antennas (2)

6.

Power connector

2.

Internal microphones (2)

7.

Power connector

3.

Webcam

8.

Button to detach tablet from base

4.

Webcam light

9.

Clickpad

5.

AC Adapter/battery light

10.

Windows home button

QuickSpecs

HP Spectre 13 x2 Pro Notebook PC

Overview

DA - 14690 Worldwide — Version 4 — January 10, 2014

Page 2

Rear View

1.

Power button

2.

Volume +/- button

At A Glance

Detachable hybrid tablet combines a super sleek design with key business features and the ability to seamlessly transition
between notebook or tablet with one device.
Windows 8.1 Pro 64, Windows 8.1 ML 64 or Windows 8.1 EM 64
Ultrabook™ compliant
4th generation Intel® Core™ i5-4202Y processor or 4th generation Intel® Core™ i3-4012Y processor
Integrated Intel HD Graphics 4200
Widescreen LED-backlit HD (1366 x 768) or FHD (1920x1080) slim 13.3" touchscreen displays that support eDP and are multi­touch enabled
128 GB or 256 GB mSATA Solid State Drive

0.71 inch (18 mm) thin profile (at front)
Weight starting at 4.39 lb (1.99 kg)
HP Beats Audio with integrated stereo speakers, integrated dual-microphone array, HD Webcam
Full sized backlit island-style keyboard with UV coating
Easily hot dock with one of the optional HP docking stations
3-cell (33 WHr) polymer battery (tablet) and 2-cell (18 WHr) polymer battery (base)
Clickpad w/ multi-touch gesture support image sensor
Security features including a security lock slot and TPM 1.2 Embedded Security Chip
Wireless connectivity:

Integrated HP Mobile Broadband Module

QuickSpecs

HP Spectre 13 x2 Pro Notebook PC

Overview

DA - 14690 Worldwide — Version 4 — January 10, 2014

Page 3

Integrated 802.11 ac, a/b/g/n or b/g/n with Bluetooth 4.0 combo card

Standard commercial 1 year warranty with upgrade available with HP Care Pack

NOTE:

See important legal disclosures for all listed specs in their respective features sections.

QuickSpecs

HP Spectre 13 x2 Pro Notebook PC

Overview

DA - 14690 Worldwide — Version 4 — January 10, 2014

Page 4

OPERATING SYSTEM

Preinstalled

Windows 8.1 Pro 64

*

Windows 8.1 64

*

* Not all features are available in all editions of Windows 8.1. Systems may require upgraded and/or separately purchased
hardware, drivers and/or software to take full advantage of Windows 8.1 functionality. See

http://www.microsoft.com

for details.

PROCESSOR

4th Generation Intel® Core™ i5-4202Y (1.6 GHz, 3 MB L3 cache, 2 cores)

*

Up to 2.60 GHz with Intel Turbo Boost Technology

**

4th Generation Intel® Core™ i3-4012Y (1.5 GHz, 3 MB L3 cache, 2 cores)

*

* Multi-Core is designed to improve performance of certain software products. Not all customers or software applications will
necessarily benefit from use of this technology. 64-bit computing on Intel® architecture requires a computer system with a
processor, chipset, BIOS, operating system, device drivers, and applications enabled for Intel® 64 architecture. Processors will not
operate (including 32-bit operation) without an Intel® 64 architecture-enabled BIOS. Performance will vary depending on your
hardware and software configurations. Intel's numbering is not a measurement of higher performance.
** Intel® Turbo Boost technology requires a PC with a processor with Intel Turbo Boost capability. Intel Turbo Boost performance
varies depending on hardware, software and overall system configuration. See

www.intel.com/technology/turboboost

for more

information.

CHIPSET

Integrated SoC PCH

GRAPHICS

Integrated:
Intel HD Graphics 4200

Support HD Decode, DX11, and HDMI
Support PX5.0

QuickSpecs

HP Spectre 13 x2 Pro Notebook PC

Features

DA - 14690 Worldwide — Version 4 — January 10, 2014

Page 5

DISPLAY

Internal

13.3" diagonal HD LED (1366x768) (Slim 3.0mm) UWVA

Supports eDP
Touchscreen, Multitouch enabled

13.3" diagonal FHD LED (1920x1080) (Slim 3.0mm) UWVA

Supports eDP
Touchscreen, Multitouch enabled

External

Up to 32-bit per pixel color depth

HDMI

1.4a port supports up to 1080p, 1920 x 1080 at 60Hz

NOTE:

Resolutions are dependent upon monitor capability, and resolution and color depth settings.

STORAGE AND DRIVES

Internal Storage Device

*

128/256 GB mSATA 3 Solid State

* For hard drives and SSD's, GB=1 billion bytes. TB=1 trillion bytes. Actual formatted capacity is less. Up to 36GB (for Windows 8.1)
of system disk is reserved for system recovery software.

MEMORY

DDR3L SDRAM (1600 MHz)
On-board
Standard 4096 MB memory

*
*While your notebook may show 4GB available, up to 1GB of this memory may not be available with a 32 bit OS due to system
resource requirements.

QuickSpecs

HP Spectre 13 x2 Pro Notebook PC

Features

DA - 14690 Worldwide — Version 4 — January 10, 2014

Page 6

NETWORKING/COMMUNICATIONS

Wireless

Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring support for the latest industry
standards. Broadband Wireless (WWAN) requires a Windows operating system and is available in select countries as an optional,
factory configurable feature only. Integrated Bluetooth is also available (factory configurable only) and can be combined with any
of the supported wireless LAN and wireless WAN options.

Broadband Wireless (WWAN)

HP hs3110 HSPA+ Mobile Broadband Module*,

**

HP lt4112 LTE/HSPA+ Gobi 4G** Module*,

**

Wireless LAN (WLAN)

Intel Dual Band Wireless-AC 7260 802.11ac (2x2) WiFi and Bluetooth 4.0 Combo*,

***

Intel Dual Band Wireless-N 7260AN

802.11a/b/g/n (2x2) WiFi and Bluetooth 4.0 Combo*,

***

Intel Dual Band Wireless-N 7260BN 802.11b/g/n (2x2) WiFi and Bluetooth 4.0 Combo*,

***

* Sold separately or as an optional feature.
** WWAN use requires separately purchased service contract. Check with service provider for coverage and availability in your
area. Connection speeds will vary due to location, environment, network conditions, and other factors. 4G LTE not available in all
regions.
***Wireless access point and internet service required and sold separately. Availability of public wireless access points limited.

AUDIO/MULTIMEDIA

Audio

HP Beats Audio™
High Definition Beats Audio™ speakers (front facing)
Integrated Dual array Digital Microphones w/ appropriate software - beam forming, echo cancellation, noise suppression
Formats: MP3, AAC,AAC+, EAAC+ OGG, MIDI
Headphone/Line-out (Beats supported) and Mic-in (combo) - Voice recognition

Webcam

Integrated HD* Webcam

**

FHD* format
1080p

2.0MP
Supports videoconferencing and still image capture
High quality fixed focus lens
Video capture at various resolutions up to 1920x1080 resolution (1080p) and up to 30fps
M-JPEG compression supports higher frame rates for video capture and videoconferencing
Improved low light sensitivity
Improved dynamic range

*HD content required to view HD images.
** Internet access required.

QuickSpecs

HP Spectre 13 x2 Pro Notebook PC

Features

DA - 14690 Worldwide — Version 4 — January 10, 2014

Page 7

KEYBOARDS/POINTING DEVICES/BUTTONS & FUNCTION KEYS

Keyboard

The 101/102-key island-style keyboard features a full-pitch key layout with desktop keyboard features, such as editing keys,
both left and right control and alt keys, and function keys. US and International key layouts are available.

Backlit Keyboard

The standard backlit keyboard for low light environments is toggled on and off with a function key.

Pointing Devices

Clickpad w/ multi-touch gesture support image sensor, on/off button with LED indicator, two-way scroll

Buttons

Power, Volume Up, Volume Down, Windows Start/Home

Sensors

Accelerometer, Gyroscope, Digital Compass, NFC*, ALS

* NFC software is not included and sold separately. Internet access required.

SOFTWARE AND SECURITY

Preinstalled Software with Windows Operating System

Browser and Toolbars

Internet Explorer 10

UI Enhancements

HP Wallpapers

Productivity

Buy Office

Windows® Live™

MovieMaker
Photo Gallery
SkyDrive

Photos and Videos

Cyberlink YouCam DE
Cyberlink Power DVD
Adobe Photoshop Lightroom 5
Adobe® Shockwave Player
Adobe Flash® Player
HP Connected Photo powered by Snapfish

Music - HP

HP Connected Music powered by Meridian* (includes UMG for Arabic and India)

* Availability of features varies by country. Streaming services may require a paid subscription. May not be compatible with all
music files. Not compatible with DRM tracks. Internet access is required and not included.

Movies

Netflix

Multimedia Codecs

Dolby

QuickSpecs

HP Spectre 13 x2 Pro Notebook PC

Features

DA - 14690 Worldwide — Version 4 — January 10, 2014

Page 8

MPEG2

Audio Post processing

Beats Audio™

Communication

Skype
Nuance Dragon Assistant

Cloud Storage

Box.net

*

HP File Viewer/Connected Drive (US only)

HP Utilities and Support

HP Online User Guide
Getting Started with Windows 8.1??
HP Registration for Windows 8.1??
HP Recovery Manager
HP Support Assistant

**

HP CoolSense
ENERGY STAR® Logo
HP Utility Center
HP ePrint Driver

***

*50 GB Box account available on new 2013 HP Business Desktops, Notebooks, and Tablets. Requires Box registration. Offer
available to new Box users only. Offer subject to change without notice. Box app requires Windows 8 or 8.1
** Requires Windows and internet access.
***Requires an Internet connection to HP web-enabled printer and HP ePrint account registration (for a list of eligible printers,
supported documents and image types and other HP ePrint details, see www.hp.com/go/eprintcenter).Requires optional
broadband module. Broadband use requires separately purchased service contract. Check with service provider for coverage and
availability in your area. Separately purchased data plans or usage fees may apply. Print times and connection speeds may vary.

Security

Standard

Symantec Norton Internet Securities (60 Day Subscription - BNB SMB BBY)

*

Absolute Data Protect (90-day subscription)

**

Intel Experience Center
Security Lock Slot
TPM 1.2 Embedded Security Chip

* Internet access required. First 60 days included. Subscription required for live updates afterwards.
** Absolute Data Protect agent is shipped turned off, and must be activated by customers. 90 day subscription included.
Subscription and internet access required for updates after the 90 day period. Service may be limited, check with Absolute for
availability outside the U.S. The optional subscription service of Absolute Recovery Guarantee is a limited warranty. Certain
conditions apply. For full details visit:

http://www.absolute.com/company/legal/agreements/computrace-agreement

.

Optional

Security Lock
CompuTrace

*

*Computrace agent is shipped turned off, and must be activated by customers when they purchase a subscription. Subscriptions

QuickSpecs

HP Spectre 13 x2 Pro Notebook PC

Features

DA - 14690 Worldwide — Version 4 — January 10, 2014

Page 9

can be purchased for terms ranging from one to five years. Service is limited, check with Absolute for availability outside the U.S.
For more information on HP security solutions refer to:

http://www.hp.com/go/security

.

POWER

Power Supply

External 45-watt HP Smart AC Adapter
Power cord included is 3.3-foot (1.0 meter)
Total length including external AC adapter is TBD feet (TBD meter)

Primary Battery

Slate

HP 3-cell Polymer Battery (33 WHr)

Base

HP 2-cell Polymer Battery (18 WHr)

Battery Life*,**

Up to 9 hours and 45 minutes combined in the tablet and Keyboard

* Testing conducted by HP consisting of full battery discharge while running a series of productivity scripts against the following
applications (which may or may not be included with your particular product): Adobe® Acrobat® Reader 7.0, Adobe Illustrator®
CS2, Adobe Photoshop® CS2, Apple® QuickTime® 7.1, Intervideo® WinDVD® 8, Macromedia® Flash 8, Microsoft® Office 2003 Pro,
Microsoft Project 2003, and Winzip® 10.0. Prior to testing, the system was fully charged and set to display brightness of 60 nits,
auto dim disabled, wireless off, suspend and hibernate disabled, and all other programs, utilities, and services not essential to
running the computer system or battery life test. Battery life will vary depending on the product model, configuration, loaded
applications, features, use, wireless functionality, and power management settings. The maximum capacity of the battery will
naturally decrease with time and usage. Disclaimer to be determined when battery testing is complete.
** Battery life of 7:45 as tested in the tablet with an additional 2 hours provided by the secondary battery in the keyboard when
the unit is attached.

System Standby Time

Up to TBD weeks*
* Standby time will vary depending on various factors including battery, Memory, CPU, EC and LAN chip. The maximum capacity of
the battery will naturally decrease with time and usage.

QuickSpecs

HP Spectre 13 x2 Pro Notebook PC

Features

DA - 14690 Worldwide — Version 4 — January 10, 2014

Page 10

ENVIRONMENTAL

Low halogen

*

RFID support
WEEE compliant (Waste Electric and Electronic Equipment)
RoHS 2 Compliant
MSH/OBL compliant
E-Standby compliant
DLNA certification
Anti-theft

**

California Battery Charger Energy Efficiency compliant
Skype Acceptance Test
China CEL label

* External power supplies, power cords, cables and peripherals are not Low Halogen. Service parts obtained after purchase may
not be Low Halogen.
** Intel AT security requires a separately purchased Absolute Computrace service subscription and must be activated and
configured. Check with Absolute for availability in your country. Intel and HP assume no liability for lost or stolen data and/or
systems or any other damages resulting therefrom. See

http://www.intel.com/technology/anti-theft/

NOTE:

This product has received or is in the process of being certified to the following approvals and may be labeled with one or

more of these marks.

WEIGHTS & DIMENSIONS

Weight (Total)

Starting at 4.39 lb (1.99 kg)

Weight (Slate)

Starting at 2.18 lb (0.99 kg)

Dimensions (Total) (w x d x h)

13.39 x 9.06 x 0.72 in
340 x 230 x 18 mm

Dimensions (Slate) (w x d x h)

13.39 x 8.54 x 0.27 in
340 x 217 x 6.9 mm

NOTE:

Height varies depending upon where on the notebook the measurement is made. Weight varies by configuration and

components. Total weight includes batteries in tablet and base, solid state drive, and 4 GB memory.

QuickSpecs

HP Spectre 13 x2 Pro Notebook PC

Features

DA - 14690 Worldwide — Version 4 — January 10, 2014

Page 11

PORTS/SLOTS

Ports - Slate

Headphone/Line-out (Beats Audio™ supported) and Mic-in (combo) - Voice recognition - One
Docking Connector - One

Ports - Base

USB 3.0 - Two
HDMI v1.4a - One
Docking Connector (Power + USB) - One

Digital Media Slots (Tablet only)

1 Micro Secure Digital (SD) Media Reader (Push-Push Insertion/Removal)
Support both SDHC and SDXC

SERVICE AND SUPPORT

HP Services offers a 1 year standard commercial warranty; 1 year limited warranty on primary battery. On-site service and
optional* HP Care Pack Services** are available to extend your protection beyond the standard warranty. For more details visit:

http://www.hp.com/go/cpc

.

*Sold separately or as an optional feature.
** Service levels and response times for HP Care Packs may vary depending on your geographic location. Service starts on date of
hardware purchase. Restrictions and limitations apply. Consult the HP Customer Support Center for details.

http://www.hp.com/go/cpc

.

QuickSpecs

HP Spectre 13 x2 Pro Notebook PC

Features

DA - 14690 Worldwide — Version 4 — January 10, 2014

Page 12

SYSTEM UNIT

Stand-Alone Power
Requirements

(AC Power)

Nominal Operating
Voltage

TBD V

Average Operating Power

Integrated graphics: TBD W
Discrete graphics: TBD W

Max Operating Power

< 45 W

Temperature

Operating

32° to 95° F (0° to 35° C) (not writing optical)
41° to 95° F (5° to 35° C) (writing optical)

Non-operating

-4° to 140° F (-20° to 60° C)

Relative Humidity

Operating

10% to 90%, non-condensing

Non-operating

5% to 95%, 101.6° F (38.7° C) maximum wet bulb temperature

Shock

Operating

40 G, 2 ms, half-sine

Non-operating

200 G, 2 ms, half-sine

Random Vibration

Operating

0.75 grms

Non-operating

1.50 grms

Altitude

(unpressurized)

Operating

-50 to 10,000 ft (-15.24 to 3,048 m)

Non-operating

-50 to 40,000 ft (-15.24 to 12,192 m)

Planned Industry
Standard
Certifications

UL

Yes

CSA

Yes

FCC Compliance

Yes

ENERGY STAR®

TBD

*

EPEAT

Registered TBD in United States

**

ICES

Yes

Australia /
NZ A-Tick Compliance

Yes

CCC

Yes

Japan VCCI Compliance

Yes

KC

Yes

BSMI

Yes

CE Marking Compliance

Yes

BNCI or BELUS

Yes

CIT

Yes

GOST

Yes

Saudi Arabian Compliance
(ICCP)

Yes

SABS

Yes

UKRSERTCOMPUTER

Yes

QuickSpecs

HP Spectre 13 x2 Pro Notebook PC

Technical Specifications

DA - 14690 Worldwide — Version 4 — January 10, 2014

Page 13

* Configurations of the HP Spectre 13 x2 Pro that are ENERGY STAR qualified are identified as HP Spectre 13 x2 Pro on HP websites and
on

www.energystar.gov

.

** EPEAT registration varies by country. See

www.epeat.net

for registration status by country.

EPEAT status listed above applies to U.S.

For accessibility information on HP products, please visit:

http://www.hp.com/accessibility

.

DISPLAY

13.3-inch LED HD
(1366 x 768)

Dimensions

(W x H)

11.53 x 6.49 in (29.3 x 16.5 cm)

Diagonal Size

13.3 in (33.8 cm)

Contrast Ratio

*

500:1 (typical)

Refresh Rate

*

60 Hz

Brightness

*

200 nit (typical)

Pixel Resolution

Pitch

0.215 mm

Format

1366 x 768

Configuration

RGB Stripe

Backlight

LED

PPI

118 ppi

Viewing Angle

±30° Horizontal, ±10° Vertical (minimum)
30/30/20/10 (Left/Right/Down/Up) (minimum) or
45/45/35/25 (Left/Right/Down/Up) (typical)

* All specifications represent the typical specifications provided by HP's
component manufacturers; actual performance may vary either higher or
lower

13.3-inch LED FHD
(1900 x 1080)

Dimensions

(W x H)

11.53 x 6.49 in (29.3 x 16.5 cm)

Diagonal Size

13.3 in (33.8 cm)

Contrast Ratio

*

500:1 (typical)

Refresh Rate

*

60 Hz

Brightness

*

200 nit (typical)

Pixel Resolution

Pitch

0.215 mm

Format

1900 x 1080

Configuration

RGB Stripe

Backlight

LED

PPI

118 ppi

QuickSpecs

HP Spectre 13 x2 Pro Notebook PC

Technical Specifications

DA - 14690 Worldwide — Version 4 — January 10, 2014

Page 14

Viewing Angle

±30° Horizontal, ±10° Vertical (minimum)
30/30/20/10 (Left/Right/Down/Up) (minimum) or
45/45/35/25 (Left/Right/Down/Up) (typical)

* All specifications represent the typical specifications provided by HP's
component manufacturers; actual performance may vary either higher or
lower

STORAGE AND DRIVES

Internal Storage

128 GB* 2.5-inch mSATA
Solid State Drive

Drive Weight

75 Grams

Capacity

128 GB

Height

0.276 in (7 mm)

Width

2.76 in (70 mm)

Interface

SATA Gen 2

Performance

Maximum Sequential Read

Maximum Sequential Write

250 MB/s 140 MB/s

Logical Blocks

250,069,680

Operating Temperature

32° to 158°F (0° to 70°C) [case temp]

Features

ATA Security; ATA-7; SATA 2.6; DIPM; TRIM

*For storage drives, GB = 1 billion bytes. Actual formatted capacity is less. Up
to 36GB of system disk is reserved for system recovery software.

SATA 6 Gb/s 256 GB*,
mSATA Solid State Drive

Drive Weight

Up to 10 Grams

Capacity

256 GB

Height

Up to 0.191 in (Up to 4.85 mm)

Width

1.18 in (29.85 mm)

Interface

SATA 3 (6 Gb/s)

Performance

Maximum Sequential Read

Maximum Sequential Write

Up to 490 MB/s Up to 250 MB/s

Logical Blocks

500,118,192

Operating Temperature

32° to 158°F (0° to 70°C) [case temp]

Features

ATA Security; ATA-8, SATA 3.0; DIPM; TRIM

*For storage drives, GB = 1 billion bytes. Actual formatted capacity is less. Up
to 36GB of system disk is reserved for system recovery software.

QuickSpecs

HP Spectre 13 x2 Pro Notebook PC

Technical Specifications

DA - 14690 Worldwide — Version 4 — January 10, 2014

Page 15

NETWORKING/COMMUNICATIONS

HP 3110 HSPA+ Mobile
Broadband Module

*

Technology/Operating
Bands

CDMA/1xRTT/EvDO: 800MHz (Cell), 1900MHz (PCS)
GSM/GPRS/EDGE: 850MHz (Cell), 900MHz (EGSM), 1800MHz (DCS), 1900MHz
(PCS)
UMTS/WCDMA with receive diversity: 2100MHz (UTRA FDD Band I), 1900MHz
(UTRA FDD Band II), 900MHz (UTRA FDD Band VIII), 850 MHz (UTRA FDD Band
V)
LTE: 700 MHz (Verizon, Band XIII)

Mobile Operator

Verizon (US only)

Wireless Protocol
Standards

GSM/GPRS/EDGE: Class B, Multi-slot class 10 operation, coding schemes CS1 ­CS4 and MSC1 - MSC9.
CDMA: 1xEVDO Release 0 and Release A, IS-95A, IS-95B, IS-856, IS-2000
UMTS/WCDMA: Release 99 and Release 7
LTE: Power Class III as per 3GPP TS 36.101

Wireless Parametric
Standards

Complies with 3GPP specifications Release 8 for LTE

Maximum Data Rates

EvDO (Revision A) - 3.1 Mbps (Download), 1.8 Mbps (Upload)
WCDMA (DC-HSPA+) - 42Mbps (Download)
LTE (Category 3) - 100 Mbps (Download ), 50Mbps (Upload)

GPS

Standalone, Assisted, XTRA

GPS Bands

1575.42 MHz (± 1.023 MHz)

Maximum Output Power

GSM/GPRS/EDGE: 32dBm (+/-1)
WCDMA: 24dBm (+0.7/-2.3)
LTE: +23 dBm (+2.7 dBm/-1.7 dBm)
1xRTT/EvDO: +24 dBm (+0.5 dBm/-1.5 dBm)

Maximum Power
Consumption

2700mA (peak)

Power Consumption,
Sleep Mode

10 mA

Power Management

USB selective suspend
Integrated notebook wireless button

Antenna Type

Dual high efficiency 6 band antennae with spatial diversity, mounted in the
display enclosure

Form Factor

PCI-Express MiniCard, USB 2.0 interface

Weight

< 10 g

Dimensions

(Length x

Width x Thickness)

2.01 x 1.18 x 0.18 in (51 x 30 x 4.5 mm)

Voltage, Operating

3.3v +/- 9%

Temperature, Operating

-4° to 149° F (-20° to 65° C)

Temperature, Non­operating, 96 hours

(from

MIL-STD 202 Method 108)

-40° to 185° F (-40° to 85° C)

Humidity, Non-operating

85% relative humidity for 48 hours @ 185° F (85° C) (non-condensing)

QuickSpecs

HP Spectre 13 x2 Pro Notebook PC

Technical Specifications

DA - 14690 Worldwide — Version 4 — January 10, 2014

Page 16

LED Activity

LED Off - Radio Off;
Solid LED On - Radio On

* Mobile Broadband is an optional feature sold separately or as an add-on feature. Connection requires
wireless data service contract, network support, and is not available in all areas. Contact service provider
to determine the coverage area and availability. Connection speeds will vary due to location, environment,
network conditions, and other factors.

HP lt4112 LTE/HSPA+
Gobi 4G Module

*

Technology/Operating
bands

LTE FDD all bands with diversity: 2100 MHz (Band I), 1900 MHz (Band II), 1800
MHz (Band III), 850 MHz (Band V), 2600 MHz (Band VII), 900 MHz (Band VIII),
800 MHz (Band XX, DD800)
WCDMA/HSDPA/HSUPA/HSPA+ all bands with diversity: 2100 MHz (Band I),
1900 MHz (Band II), 800 MHz (Band V), 900 MHz (Band VIII)
GSM/GPRS/EDGE: 1900 MHz (Band II), 1800 MHz (Band III), 850 MHz (Band V),
900 MHz (Band VIII)

Wireless protocol
standards

3GPP Release 8 LTE Specification
WCDMA R99, 3GPP Release 5, 6 and 7 UMTS Specification

Wireless parametric
standards

Complies with 3GPP specifications Release 8 for LTE

Maximum data rates

LTE (Category 3): 100 Mbps (Download), 50Mbps (Upload)
DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload)
HSPA+: 21.6 Mbps (Download), 5.76 Mbps (Upload)
EDGE: 236.8 kbps (Download), 236.8 kbps (Upload)
GPRS: 85.6 kbps(Download), 85.6 kbps (Upload)

GPS

Standalone

GPS bands

1575.42 MHz (± 1.023 MHz), GLONASS 1596-1607MHz

Maximum output power

LTE: +23 dBm (+/- 2 dBm)
WCDMA: +23.5 dBm (+/- 1 dBm)
GPRS Band II, III: +29.5 dBm (+/- 1 dBm)
GPRS Band V, VIII: +32.5 dBm (+/- 1 dBm)
EGPRS Band II, III: +26.5 dBM (+/-1.5 dBm)
EGPRS Band V, VIII: +27.5 dBM (+/-1.5 dBm)

Maximum power
consumption

LTE: 1,200 mA (peak); <900 mA (average)
WCDMA: 1,100 mA (peak); <800 mA (average)
EGPRS: 2,800 mA (peak); <700 mA (average)

Power consumption,
sleep mode

3 mA

Power management

USB selective suspend, Integrated notebook wireless button

Antenna type

Dual high efficiency multi-band antennae with spatial diversity

Form Factor

M.2, USB 2.0 interface

Weight

6 g

Dimensions

(Length x

Width x Thickness)

42 mm × 30 mm × 2.3 mm

Voltage, Operating

3.135 V to 4.4 V (3.3 V +1.1V/-0.165V)

Temperature, operating

(from TIA/EIA/IS-98-D)

14° to 131° F (-10° to 55° C)

QuickSpecs

HP Spectre 13 x2 Pro Notebook PC

Technical Specifications

DA - 14690 Worldwide — Version 4 — January 10, 2014

Page 17

Temperature, non­operating, 96 hours

(from

MIL-STD 202 Method 108)

-40° to 185° F (-40° to 85° C)

Humidity, non-operating

95% relative humidity for 48 hours @ 185° F (85° C) (non-condensing)

LED activity

LED Off - Radio Off; Solid LED On - Radio On

* 4G LTE not available on all products, in all regions. Mobile broadband use requires separately purchased
service contract. Check with service provider for coverage and availability in your area. Connection speeds
will vary due to location, environment, network conditions, and other factors.

Intel Dual Band Wireless­N 7260AN 802.11 a/b/g/n
(2x2) WiFi + Bluetooth 4.0
Combo Adaptor

Wireless LAN Standards*IEEE 802.11a

IEEE 802.11b
IEEE 802.11g
IEEE 802.11n

Interoperability

Wi-Fi certified

*Wireless access point and internet service required. Availability of public
wireless access points limited.

Cisco Compatible Extensions Program compliant with Microsoft Windows 7,
Windows Vista and XP (details at:

http://www.hp.com/go/notebooks/WLAN

)

Frequency Band

802.11b/g/n

2.402 - 2.482 GHz

802.11a/n

4.9 - 4.95 GHz (Japan)

5.15 - 5.25 GHz

5.25 - 5.35 GHz

5.47 - 5.725 GHz

5.825 - 5.850 GHz

Antenna Structure

2 transmit; 2 receive (2x2)

Data Rates

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: card will support rates for NSS=1 and NSS=2 for RX and TX for 20
and 40 MHz channels. Short and long guard interval shall be supported.

Modulation

Direct Sequence Spread Spectrum
CCK, BPSK, QPSK, 16-QAM, 64-QAM

Security

1

IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode
only
AES-CCMP: 128 bit in hardware

802.1x authentication
WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
WPA2 certification
IEEE 802.11i
Cisco Certified Extensions, all versions through CCX4 and CCX Lite
WAPI

Sub-channels

Multinational support with frequency bands and channels compliant to local
regulations.

Network Architecture
Models

Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)

QuickSpecs

HP Spectre 13 x2 Pro Notebook PC

Technical Specifications

DA - 14690 Worldwide — Version 4 — January 10, 2014

Page 18

Roaming

IEEE 802.11 compliant roaming between band Access Points

Output Power

2

2.4G: +13.5dBm minimum
5G: +12dBm minimum

Power Consumption

Transmit: 2.0 Watts
Receive: 1.6 Watts
Idle mode3: 250 mW (WLAN Associated)
Idle mode: 100 mW (WLAN unassociated)
Radio off: 75 mW

Power Management

ACPI and PCI Express compliant power management

802.11 compliant power saving mode

Receiver Sensitivity

4

802.11g:-90 dBm (6 Mbps), -89 dBm (9 Mbps), -87 dBm (12 Mbps), -85 dBm
(18 Mbps), -82 dBm (24 Mbps), -79 dBm (36 Mbps), -76 dBm (48 Mbps), -74
dBm (54 Mbps)

802.11b:-95 dBm (1 Mbps), -93 dBm (2 Mbps), -91 dBm (5.5 Mbps), -88 dBm
(11 Mbps)

802.11g:-90 dBm (6 Mbps), -89 dBm (9 Mbps), -87 dBm (12 Mbps), -85 dBm
(18 Mbps), -82 dBm (24 Mbps), -79 dBm (36 Mbps), -76 dBm (48 Mbps), -74
dBm (54 Mbps)

802.11n:-69 dBm (150 Mbps), -66 dBm (300 Mbps)

Antenna Connections

2 U.FL type connectors (output impedance of 50 ± 2 ohms)

Form Factor

PCI-Express Half-MiniCard

Dimensions

0.12 x 1.06 x 1.18 in (3.1 x 26.8 x 30.0 mm)

Weight

3.1g

Operating Voltage

3.3v +/- 9%

Temperature

Operating
Non-operating

14° to 158° F (-10° to 70° C)

-40° to 176° F (-40° to 80° C)

Humidity

Operating
Non-operating

10% to 90% (non-condensing)
5% to 95% (non-condensing)

Altitude

Operating
Non-operating

0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)

LED Activity

LED Off - Radio OFF; Solid LED On - Radio ON

1. Check latest software/driver release for updates on supported security features.

2. Maximum output power may vary by country according to local regulations.

3. In Power Save Polling mode and on battery power.

4. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a packet
error rate of 10% for 802.11a/g (OFDM modulation).

5. WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft
Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN supplier
IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows Vista.

HP Integrated Module with Bluetooth 4.0+EDR Wireless Technology

Bluetooth Specification

4.0+EDR Compliant

Dimensions

1.18 x 0.26 x 0.13 in (30 x 6.5 x 3.25 mm)

Frequency Band

2402 to 2480 MHz

QuickSpecs

HP Spectre 13 x2 Pro Notebook PC

Technical Specifications

DA - 14690 Worldwide — Version 4 — January 10, 2014

Page 19

Number of Available
Channels

79 (1 MHz) available channels

Data Rates and
Throughput

3 Mbps data rate; throughput up to 2.17 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or

1306.9 kbps symmetric

Transmit Power

-1.5 dBm to 4 dBm (Bluetooth Class II)

Receiver Sensitivity

Better than -20 dBM at 0.1 % raw bit error rate

Power Consumption

Peak (Tx) 264 mW
Peak (Rx) 231 mW
Sleep <1 mW

Antenna

Internally integrated within module

Range

Up to 33 ft (10 m)

Electrical Interface

USB 2.0 compliant
Microsoft Windows Plug and Play compliant

Bluetooth Software
Supported

Broadcom Bluetooth for Windows

Microsoft Windows Bluetooth Software

Link Topology

Point to Point, Multipoint Pico Nets up to 7 slaves

Security

Full support of Bluetooth Security Provisions

Power Management

Microsoft Windows ACPI, and USB Bus Support
Self configurable to optimize power conservation in all operating modes,

including Standby, Hold, Park, and Sniff

Certifications

All necessary regulatory approvals for supported countries, including:
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark

Bluetooth Profiles
Supported

Serial Port Profile (SPP)

1

Service Discovery Application Profile (SDAP)
Dial-Up Networking (DUN)

1,2

Generic Object Exchange Profile (GOEP)

1,2

Object Push Profile (OPP)

1,2

File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)

1,2

Personal Area Networking Profile (PAN)

1,2

Human Interface Device Profile (HID)

1,2

FAX Profile (FAX)
Basic Imaging Profile (BIP)

2

Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)

1. indicates the profile is supported by Microsoft Windows XP SP2

2. indicates the profile is part of Windows Vista

QuickSpecs

HP Spectre 13 x2 Pro Notebook PC

Technical Specifications

DA - 14690 Worldwide — Version 4 — January 10, 2014

Page 20

Intel Dual Band Wireless­AC 7260 802.11 ac (2x2)
WiFi + BT 4.0 combo
Adapter

Wireless LAN Standards*IEEE 802.11a

IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac

**

Interoperability

Wi-Fi certified

*Wireless access point and internet service required. Availability of public
wireless access points limited.
**The specifications for the 802.11ac WLAN are draft specifications and are
not final. If the final specifications differ from the draft specifications, it may
affect the ability of the notebook to communicate with other 802.11ac WLAN
devices.

Frequency Band

802.11b/g/n

2.402 - 2.482 GHz

802.11a/n

4.9 - 4.95 GHz (Japan)

5.15 - 5.25 GHz

5.25 - 5.35 GHz

5.47 - 5.725 GHz

5.825 - 5.850 GHz

2.402 - 2.482 GHz

Data Rates

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)

802.11ac : MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, and 80MHz)

Modulation

Direct Sequence Spread Spectrum
BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM

Security

1

IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode
only
AES-CCMP: 128 bit in hardware

802.1x authentication
WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
WPA2 certification
IEEE 802.11i
Cisco Certified Extensions, all versions through CCX4 and CCX Lite
WAPI

Network Architecture
Models

Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)

Roaming

IEEE 802.11 compliant roaming between access points

QuickSpecs

HP Spectre 13 x2 Pro Notebook PC

Technical Specifications

DA - 14690 Worldwide — Version 4 — January 10, 2014

Page 21

Output Power

2

2.4G: +13.5dBm minimum
5G: +12dBm minimum
Maximum output power must be able to achieve modular regulatory
certification with notebooks that have antennas >20cm from the user
and peak gain of +3dBi at 2.4GHz and +4dBi at 5GHz

Power Consumption

Transmit: 2.0 W (max)
Receive: 1.6 W (max)
Idle mode (PSP): 250 mW (WLAN Associated)
Idle mode: 100 mW (WLAN unassociated)
Radio disabled: 75 mW

Power Management

ACPI and PCI Express compliant power management

802.11 compliant power saving mode

Receiver Sensitivity

3

802.11b:-95 dBm (1 Mbps), -93 dBm (2 Mbps), -91 dBm (5.5 Mbps), -88 dBm
(11 Mbps)

802.11a/g:-90 dBm (6 Mbps), -89 dBm (9 Mbps), -87 dBm (12 Mbps), -85 dBm
(18 Mbps), -82 dBm (24 Mbps), -79 dBm (36 Mbps), -76 dBm (48 Mbps), -74
dBm (54 Mbps)

802.11n:-69 dBm (72.2 Mbps), -66 dBm (300 Mbps)

Antenna type

High efficiency antenna with spatial diversity, mounted in the display
enclosure
Two embedded dual band 2.4/5 GHz antennas are provided to the card to
support WLAN MIMO communications and Bluetooth communications

Form Factor

PCI-Express Half-MiniCard

Dimensions

0.19 x 1.06 x 1.18 in (4.75 x 26.8 x 30 mm)

Weight

3.1g

Operating Voltage

3.3v +/- 9%

Temperature

Operating
Non-operating

14° to 158° F (-10° to 70° C)

-40° to 176° F (-40° to 80° C)

Humidity

Operating
Non-operating

10% to 90% (non-condensing)
5% to 95% (non-condensing)

Altitude

Operating
Non-operating

0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)

LED Activity

LED Off - Radio OFF; Solid LED On - Radio ON

1. Check latest software/driver release for updates on supported security features.

2. Maximum output power may vary by country according to local regulations.

3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet
error rate of 10% for 802.11a/g (OFDM modulation).

Bluetooth Specification

V4.0 High Speed, V2.1+EDR, backwards compatible with V1.1, 1.2 and 2.0

Number of Available
Channels

79 (1 MHz) available channels

QuickSpecs

HP Spectre 13 x2 Pro Notebook PC

Technical Specifications

DA - 14690 Worldwide — Version 4 — January 10, 2014

Page 22

Data Rates and
Throughput

3 Mbps data rate; throughput up to 2.17 Mbps

Synchronous Connection Oriented links up to 3, 64 kbps, voice channels

Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or

1306.9 kbps symmetric

Transmit Power

-6 dBm to 4 dBm (Bluetooth Class II)

Receiver Sensitivity

Better than -80 dBM at 0.1 % raw bit error rate

Power Consumption

Peak (Tx) 330 mW
Peak (Rx) 230 mW
Sleep <17 mW

Antenna

Internally integrated within module

Range

Up to 33 ft (10 m)

Electrical Interface

USB 2.0 compliant
Microsoft Windows Plug and Play compliant

Bluetooth Software
Supported

Broadcom Bluetooth for Windows
Microsoft Windows Bluetooth Software

Link Topology

Point to Point, Multipoint Pico Nets up to 7 slaves

Security

Full support of Bluetooth Security Provisions

Power Management

Microsoft Windows ACPI, and USB Bus Support
Self-configurable to optimize power conservation in all operating modes,
including Standby, Hold, Park, and Sniff

Certifications

All necessary regulatory approvals for supported countries, including:
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark

Bluetooth Profiles
Supported

Generic Access Profile (GAP)
Service Discovery Application Profile (SDAP)
Serial Port Profile (SPP)
Dial_Up Networking Profile (DUN)
Generic Object Exchange Profile (GOEP)
Object Push Profile (OPP)
File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)
Personal Area Networking Profile (PAN)
Human Interface Device Profile (HID)
Generic Audio/Video Distribution Profile (GAVDP)
Advanced Audio/Video Distribution Profile (A2DP)
FAX Profile (FAX)
Basic Imaging Profile (BIP)
Headset Profile (HSP)
Hands Free Profile (HFP)
Basic Printing Profile (BPP)
VDP (Video Distribution Profile)
AVRCP (Audio Video Remote Control Profile)

QuickSpecs

HP Spectre 13 x2 Pro Notebook PC

Technical Specifications

DA - 14690 Worldwide — Version 4 — January 10, 2014

Page 23

Intel Dual Band Wireless­N 7260BN 802.11 a/b/g/
WiFi + BT 4.0 combo
Adapter

Wireless LAN Standards*IEEE 802.11b

IEEE 802.11g
IEEE 802.11n

Interoperability

Wi-Fi certified

*Wireless access point and internet service required. Availability of public
wireless access points limited.

Cisco Compatible Extensions Program compliant with Microsoft Windows 7,
Windows Vista and XP (details at:

http://www.hp.com/go/notebooks/WLAN

)

Frequency Band

802.11b/g/n

2.402 - 2.482 GHz

Antenna Structure

2 transmit; 2 receive (2x2)

Data Rates

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: card will support rates for NSS=1 and NSS=2 for RX and TX for 20
and 40 MHz channels. Short and long guard interval shall be supported.

Modulation

Direct Sequence Spread Spectrum
CCK, BPSK, QPSK, 16-QAM, 64-QAM

Security

1

IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode
only
AES-CCMP: 128 bit in hardware

802.1x authentication
WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
WPA2 certification
IEEE 802.11i
Cisco Certified Extensions, all versions through CCX4 and CCX Lite
WAPI

Sub-channels

Multinational support with frequency bands and channels compliant to local
regulations.

Network Architecture
Models

Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)

Roaming

IEEE 802.11 compliant roaming between band Access Points

Output Power

2

2.4G: +13.5dBm minimum

Power Consumption

Transmit: 2.0 Watts
Receive: 1.6 Watts
Idle mode3: 250 mW (WLAN Associated)
Idle mode: 100 mW (WLAN unassociated)
Radio off: 75 mW

Power Management

ACPI and PCI Express compliant power management

802.11 compliant power saving mode

Receiver Sensitivity

4

802.11g:-90 dBm (6 Mbps), -89 dBm (9 Mbps), -87 dBm (12 Mbps), -85 dBm
(18 Mbps), -82 dBm (24 Mbps), -79 dBm (36 Mbps), -76 dBm (48 Mbps), -74
dBm (54 Mbps)

802.11b:-95 dBm (1 Mbps), -93 dBm (2 Mbps), -91 dBm (5.5 Mbps), -88 dBm
(11 Mbps)

QuickSpecs

HP Spectre 13 x2 Pro Notebook PC

Technical Specifications

DA - 14690 Worldwide — Version 4 — January 10, 2014

Page 24

802.11n:-69 dBm (150 Mbps), -66 dBm (300 Mbps)

Antenna Connections

2 U.FL type connectors (output impedance of 50 ± 2 ohms)

Form Factor

PCI-Express Half-MiniCard

Dimensions

0.12 x 1.06 x 1.18 in (3.1 x 26.8 x 30.0 mm)

Weight

3.1g

Operating Voltage

3.3v +/- 9%

Temperature

Operating
Non-operating

14° to 158° F (-10° to 70° C)

-40° to 176° F (-40° to 80° C)

Humidity

Operating
Non-operating

10% to 90% (non-condensing)
5% to 95% (non-condensing)

Altitude

Operating
Non-operating

0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)

LED Activity

LED Amber - Radio OFF; Solid LED On - Radio ON

1. Check latest software/driver release for updates on supported security features.

2. Maximum output power may vary by country according to local regulations.

3. In Power Save Polling mode and on battery power.

4. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a packet
error rate of 10% for 802.11a/g (OFDM modulation).

5. WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft
Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN supplier
IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows Vista.

Bluetooth Specification

V4.0 High Speed, V2.1+EDR, backwards compatible with V1.1, 1.2 and 2.0

Number of Available
Channels

79 (1 MHz) available channels

Data Rates and
Throughput

3 Mbps data rate; throughput up to 2.17 Mbps

Synchronous Connection Oriented links up to 3, 64 kbps, voice channels

Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or

1306.9 kbps symmetric

Transmit Power

-6 dBm to 4 dBm (Bluetooth Class II)

Receiver Sensitivity

Better than -80 dBM at 0.1 % raw bit error rate

Power Consumption

Peak (Tx) 330 mW
Peak (Rx) 230 mW
Sleep <17 mW

Antenna

Internally integrated within module

Range

Up to 33 ft (10 m)

Electrical Interface

USB 2.0 compliant
Microsoft Windows Plug and Play compliant

Bluetooth Software
Supported

Broadcom Bluetooth for Windows
Microsoft Windows Bluetooth Software

Link Topology

Point to Point, Multipoint Pico Nets up to 7 slaves

QuickSpecs

HP Spectre 13 x2 Pro Notebook PC

Technical Specifications

DA - 14690 Worldwide — Version 4 — January 10, 2014

Page 25

Security

Full support of Bluetooth Security Provisions

Power Management

Microsoft Windows ACPI, and USB Bus Support
Self-configurable to optimize power conservation in all operating modes,
including Standby, Hold, Park, and Sniff

Certifications

All necessary regulatory approvals for supported countries, including:
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark

Bluetooth Profiles
Supported

Generic Access Profile (GAP)
Service Discovery Application Profile (SDAP)
Serial Port Profile (SPP)
Dial_Up Networking Profile (DUN)
Generic Object Exchange Profile (GOEP)
Object Push Profile (OPP)
File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)
Personal Area Networking Profile (PAN)
Human Interface Device Profile (HID)
Generic Audio/Video Distribution Profile (GAVDP)
Advanced Audio/Video Distribution Profile (A2DP)
FAX Profile (FAX)
Basic Imaging Profile (BIP)
Headset Profile (HSP)
Hands Free Profile (HFP)
Basic Printing Profile (BPP)
VDP (Video Distribution Profile)
AVRCP (Audio Video Remote Control Profile)

* Wireless access point and internet service required. Availability of public wireless access points limited.

AUDIO/MULTIMEDIA

Audio

Hardware

Implementation

IDT92HD99 High Definition CODEC

Function Key Volume
Controls

Volume up, volume down, and mute

Full Duplex

Yes

Microphone In

Stereo

Headphone/Line Out

Stereo

Integrated Microphone

Yes, dual digital microphone array

QuickSpecs

HP Spectre 13 x2 Pro Notebook PC

Technical Specifications

DA - 14690 Worldwide — Version 4 — January 10, 2014

Page 26

Audio Output Quality

Frequency Response

20 Hz - 20 kHz

Signal to Noise Ratio

>85 dB

Total Harmonic Distortion

0.01%

Noise Floor

-110 dB

Play/Record Sampling
Rate

(s)

8 kHz - 48kHz

DAC

16, 20 or 24-bit

ADC

16 or 20-bit

Internal Stereo Speaker

Power Rating

2 Watts

Impedance

4 ohms

POWER

HP 45W Smart AC Adapter

Dimensions

3.78 x 1.95 x 0.88 in (9.6 x 4.95 x 2.24 cm)

Input

90 to 265 VAC

Input Efficiency

87% min at 115 VAC

Input frequency range

47 to 63 Hz

Input AC current

1.4 A at 90 VAC and maximum load

Output

Output power

45W

DC output

19.5V

Hold-up time

5 msec at 115 VAC input

Output current limit

<8A, Over voltage protection- 29V max automatic
shutdown

Connector

3 pin/grounded, mates with interchangeable cords

Environmental Design

Operating
temperature

32° to 95° F (0° to 35° C)

Non-operating (storage)
temperature

-4° to 121° F (-20° to 85° C)

Altitude

0 to 16,405 ft (0 to 5,000 m)

Humidity

0% to 95%

Storage Humidity

0% to 95%

EMI and Safety
Certifications

CE Mark - full compliance with LVD and EMC directives; Worldwide safety
standards - IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals ­C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B,
CCC, NOM-1 NYCE; Reliability - failure rate of less than 0.1% annually within
the first three years of operation.

QuickSpecs

HP Spectre 13 x2 Pro Notebook PC

Technical Specifications

DA - 14690 Worldwide — Version 4 — January 10, 2014

Page 27

HP 2-cell Polymer Battery
(18 WHr)

Dimensions

(h x w x l)

294.0 x 130.8 x 3.43 (not including WTB connector)

294.0 x 148.30 x 3.43 (including WTB connector)

Weight

(max)

< 185 g

Cells/Type

2-cell Polymer

Energy

Voltage

TBD

Amp-hour capacity

TBD

Watt-hour capacity

18 WHr

Temperature

Operating (Charging)

32° to 113° F (0° to 45° C)

Operating (Discharging)

14° to 140° F (-10° to 60° C)

Non-operating

-4° to 140° F (-20° to 60° C)

Battery
Re-Charge Time

System in OFF or Standby
Mode

TBD hours

System ON

TBD hours (depending on system power
consumption)

Fuel Gauge LED

TBD

Warranty

1 year

HP 3-cell Polymer Battery
(33 WHr)

Dimensions

(h x w x l)

268.0 x 119.0 x 4.25 mm (not including screw holes)

284.2 x 134.9 x 4.25 mm (including screw holes)

Weight

(max)

< 190 g

Cells/Type

3-cell Polymer

Energy

Voltage

TBD

Amp-hour capacity

TBD

Watt-hour capacity

33 WHr

Temperature

Operating (Charging)

32° to 113° F (0° to 45° C)

Operating (Discharging)

14° to 140° F (-10° to 60° C)

Non-operating

-4° to 140° F (-20° to 60° C)

Battery
Re-Charge Time

System in OFF or Standby
Mode

TBD hours

System ON

TBD hours (depending on system power
consumption)

Fuel Gauge LED

TBD

Warranty

1 year

ENVIRONMENTAL

TBD

COUNTRY OF ORIGIN

TBD

QuickSpecs

HP Spectre 13 x2 Pro Notebook PC

Technical Specifications

DA - 14690 Worldwide — Version 4 — January 10, 2014

Page 28

Type

Description

Part #

Cases

HP Business Slim Top Load (up to 14.1" x .75" thick)

H5M91AA

Docking

HP USB 2.0 Port Replicator

H1L07AA#xxx

HP USB 3.0 Port Replicator

H1L08AA#xxx

Input/Output

HP Stylish Wireless KB/Mouse

H4B79AA

HP USB Ethernet Adapter

XZ613AA#ABA

HDMI to VGA Adapter

H2L54AA#xxx

Power

HP 45W Smart AC Adapter 4.5mm

H6Y88AA#xxx

Storage - External
Storage

HP External USB Optical Drive

F2B56AA

Copyright © 2014 Hewlett-Packard Development Company, L.P.

Intel and Core are registered trademarks or trademarks of Intel Corporation in the U.S. and/or other countries. Bluetooth is a registered
trademark owned by its proprietor and used by Hewlett-Packard Company under license. . Adobe is a trademark of Adobe Systems
Incorporated. Microsoft, Windows and Vista are U.S. registered trademarks of Microsoft Corporation.

The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The
warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.

QuickSpecs

HP Spectre 13 x2 Pro Notebook PC

Options and Accessories (sold separately and availability may vary by country)

DA - 14690 Worldwide — Version 4 — January 10, 2014

Page 29
