HP ProBook 6565b Maintenance and Service Guide

HP ProBook 6565b Notebook PC

Maintenance and Service Guide

© Copyright 2011 Hewlett-Packard
Development Company, L.P.

Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. Advanced Micro
Devices, Inc. AMD are trademarks of
Advanced Micro Devices, Inc. Microsoft,
Windows, and Windows Vista are either
trademarks or registered trademarks of
Microsoft Corporation in the United States
and/or other countries. SD Logo is a
trademark of its proprietor.

The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.

Second Edition: October 2011

First Edition: June 2011

Document Part Number: 654365-002

Safety warning notice

WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not

place the computer directly on your lap or obstruct the computer air vents. Use the computer only on
a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to
contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer
and the AC adapter comply with the user-accessible surface temperature limits defined by the
International Standard for Safety of Information Technology Equipment (IEC 60950).

iii

iv Safety warning notice

Table of contents

1 Product description ........................................................................................................................................ 1

2 External component identification ................................................................................................................ 7

Display .................................................................................................................................................. 7

Top ....................................................................................................................................................... 9

TouchPad ............................................................................................................................ 9

Lights ................................................................................................................................. 10

Buttons and fingerprint reader ........................................................................................... 11

Keys ................................................................................................................................... 13

Front ................................................................................................................................................... 14

Left ..................................................................................................................................................... 15

Rear .................................................................................................................................................... 16

Right ................................................................................................................................................... 17

Bottom ................................................................................................................................................ 18

3 Illustrated parts catalog ............................................................................................................................... 20

Service tag ......................................................................................................................................... 20

Computer major components ............................................................................................................. 21

Display components ........................................................................................................................... 25

Plastics Kit .......................................................................................................................................... 27

Cable Kit ............................................................................................................................................. 27

Mass storage devices ......................................................................................................................... 29

Miscellaneous parts ............................................................................................................................ 29

Sequential part number listing ............................................................................................................ 30

4 Removal and replacement procedures ....................................................................................................... 34

Preliminary replacement requirements ............................................................................................... 34

Tools required .................................................................................................................... 34

Service considerations ....................................................................................................... 34

Plastic parts ....................................................................................................... 34

Cables and connectors ..................................................................................... 35

v

Drive handling ................................................................................................... 35

Grounding guidelines ......................................................................................................... 36

Electrostatic discharge damage ........................................................................ 36

Packaging and transporting guidelines ............................................. 37

Workstation guidelines ..................................................................... 37

Equipment guidelines ....................................................................... 38

Component replacement procedures ................................................................................................. 39

Service tag ......................................................................................................................... 39

Rubber screw covers ......................................................................................................... 40

Battery ............................................................................................................................... 41

Display assembly (panel, bezel, webcam, microphone) .................................................... 42

SIM .................................................................................................................................... 46

Bottom door ....................................................................................................................... 47

Optical drive ....................................................................................................................... 48

Upgrade bay ...................................................................................................................... 50

Hard drive .......................................................................................................................... 52

RTC battery ....................................................................................................................... 54

Memory modules ............................................................................................................... 55

WWAN module .................................................................................................................. 57

WLAN module .................................................................................................................... 59

Bluetooth module ............................................................................................................... 62

Modem module .................................................................................................................. 63

Fan ..................................................................................................................................... 65

Heat sink ............................................................................................................................ 66

Processor ........................................................................................................................... 69

Keyboard ........................................................................................................................... 71

Bottom cover ...................................................................................................................... 73

Speaker assembly ............................................................................................................. 78

RJ-11 jack cable ................................................................................................................ 80

Function board ................................................................................................................... 82

System board ..................................................................................................................... 83

USB board ......................................................................................................................... 87

Display assembly and components (whole hinge-up, cable, antennas, hinges,

enclosure) .......................................................................................................................... 89

5 Computer Setup (BIOS) and System Diagnostics ..................................................................................... 98

Using Computer Setup ....................................................................................................................... 98

Starting Computer Setup ................................................................................................... 98

Navigating and selecting in Computer Setup ..................................................................... 98

Restoring factory settings in Computer Setup ................................................................... 99

Updating the BIOS ........................................................................................................... 100

vi

Determining the BIOS version ......................................................................... 100

Downloading a BIOS update ........................................................................... 100

Using System Diagnostics ................................................................................................................ 101

6 Specifications .............................................................................................................................................. 102

Computer specifications ................................................................................................................... 102

39.6-cm (15.6-in), HD display specifications .................................................................................... 103

39.6-cm (15.6-in), HD+ display specifications .................................................................................. 104

Hard drive specifications .................................................................................................................. 105

Blu-ray BD-R/RE + DVDSM DL Drive .............................................................................................. 106

DVD±RW and CD-RW SuperMulti DL Combo Drive specifications ................................................. 107

Blu-ray ROM DVD±RW SuperMulti DL Drive ................................................................................... 108

DVD-ROM Drive specifications ........................................................................................................ 109

Specification information in Device Manager ................................................................................... 110

7 Backup and recovery .................................................................................................................................. 111

Windows 7 ........................................................................................................................................ 111

Backing up your information ............................................................................................ 111

Performing a system recovery ......................................................................................... 112

Using the Windows recovery tools .................................................................. 113

Using f11 recovery tools .................................................................................. 113

Using a Windows 7 operating system DVD (purchased separately) ............... 114

Windows Vista .................................................................................................................................. 115

Backing up your information ............................................................................................ 115

Performing a recovery ..................................................................................................... 116

Using the Windows recovery tools .................................................................. 116

Using f11 recovery tools .................................................................................. 117

Using a Windows Vista operating system DVD (purchased separately) ......... 117

8 Power cord set requirements .................................................................................................................... 119

Requirements for all countries and regions ...................................................................................... 119

Requirements for specific countries and regions ............................................................................. 120

9 Recycling ..................................................................................................................................................... 121

Battery .............................................................................................................................................. 121

Display .............................................................................................................................................. 121

Index ................................................................................................................................................................. 127

vii

viii

1 Product description

Category Description

Product Name HP ProBook 6565b Notebook PC

Processors (Accelerated

Processing Unit [APU])

AMD Quad-Core A6-3410MX Accelerated Processor with Radeon HD 6520G

AMD Dual-Core A4-3310MX Accelerated Processor with Radeon HD 6480G

Chipset (Fusion Controller Hub) AMD A60M FCH

Graphics ATI (AMD Integrated) UMA

Supports dual-display ports through the dock

Panel All display assemblies include 2 wireless local area network (WLAN) antennas

39.6-cm (15.6-in) HD, anti-glare, LED SVA (1366x768)

39.6-cm (15.6-in) HD+, anti-glare, LED WVA (1600x900)

39.6-cm (15.6-in) HD, anti-glare, LED SVA (1366x768) with WWAN

39.6-cm (15.6-in) HD+, anti-glare, LED WVA (1600x900) with WWAN

39.6-cm (15.6-in) HD, anti-glare, LED SVA (1366x768) with camera

39.6-cm (15.6-in) HD+, anti-glare, LED WVA (1600x900) with camera

39.6-cm (15.6-in) HD, anti-glare, LED SVA (1366x768) with camera and WWAN

AMD Quad-Core A8-3510MX Accelerated Processor with Radeon HD 6620G
Graphics (2.5 GHz/1.8 GHz; 4 MB L2 cache; 45W)

Graphics (2.3 GHz/1.6 GHz; 4 MB L2 cache; 45W)

Graphics (2.5 GHz/2.1 GHz; 2 MB L2 cache; 45W)

Processor-specific, see Processors.

39.6-cm (15.6-in) HD+, anti-glare, LED WVA (1600x900) with camera and WWAN

Support privacy filter

Memory Two customer-accessible/upgradeable memory module slots supporting up to 16 GB

of RAM

Supports dual-channel memory

PC3-10600, 1333-MHz, DDR3

1

Category Description

Supports the following configurations:

● 16384 (8192 × 2)

8192 (8192 × 1)

●

8192 (4096 × 2)

●

● 6144 (4096 + 2048)

4096 (2048 × 2)

●

4096 (4096 × 1)

●

● 3072 (2048 + 1024)

2048 (2048 × 1)

●

Storage Supports 9.5-mm or 7-mm, 6.35-cm (2.50-in) SATA hard drives

Customer-accessible

Supports the following 7-mm or 9.5-mm, 6.35-cm (2.5-in) hard drives:

● 320-GB, 7200-rpm, self-encrypting

320-GB, 7200-rpm

● 250-GB, 7200

Supports the following 9.5-mm, 6.35-cm (2.5-in) hard drives:

750-GB, 7200

●

500-GB, 7200

●

Supports the following solid-state drives:

● 128-GB

Upgrade bay Supports “No Drive” option

Supports the following 12.7-mm SATA optical drives:

DVD-ROM drive

●

DVD+/-RW SuperMulti DL drive

●

● Blu-ray ROM DVD+/-RW SuperMulti DL drive

Supports the following 9.5-mm SATA hard drive:

● 500-GB, 7200-rpm

Microphone Integrated dual-array microphone (webcam models only)

Integrated mono (non-webcam models only)

Audio SRS Premium Sound

HP Premier Sound

Stereo speakers (2)

Supports “No camera” option

Webcam Integrated webcam (720p HD)

2 Chapter 1 Product description

Category Description

Modem 56K V.92 MDC data/fax modem

Modem cable not included

Supports “No Modem” option

Ethernet Realtek RTL8151EH-CG LAN 10/100/1000 network interface card (NIC)

S3/S4/S5 wake on LAN

NIC power down technology

Ethernet cable not included

Wireless Integrated WLAN options by way of wireless module:

Two WLAN antennas built into display assembly

Supports “no WLAN” option

Supports the following WLAN formats:

● Broadcom 802.11 b/g/n, 1×1

● Broadcom 802.11 a/b/g/n, 2×2

Integrated WWAN options by way of wireless module:

Two WWAN antennas built into display assembly (world-wide 5 band, in WWAN

panels only)

Subscriber identity module (SIM) security (customer-accessible in battery bay)

Supports “no WWAN” option

Supports the following WWAN modules:

● Gobi 3000: HP un2430 EV-DO/HSPA Mobile Broadband

Ericsson: HP hs2340 HSPA+ Mobile Broadband

●

Integrated personal area network (PAN) options by way of Bluetooth® module:

Supports “no PAN” option

Integrated Bluetooth 2.1

External media card One ExpressCard/54 slot

Integrated Media Card Reader with SD, MMC support

Ports Audio-in (stereo microphone)

Audio-out (stereo headphone)

DisplayPort 1.1a

RJ-11 (modem)

RJ-45 (Ethernet, includes link and activity lights)

USB 2.0 (4)

eSATA/USB 2.0 combo port

VGA (Dsub 15-pin) supporting 1920 × 1200 external resolution at 75-GHz (hot plug

with auto-detect)

3

Category Description

1394a

Serial port

3-pin AC power

Secondary battery connector

Docking connector

Docking HP Docking Station

HP Advanced Docking Station

Keyboard/pointing devices Keyboard with numeric keypad

Dual point

Spill-resistant design

Full chiclet keyboard

Touchpad includes: on/off button, supports 2-way scroll with legend, taps enabled by

Power requirements Smart AC adapter with localized cable plug support (3-wire plug with ground pin,

9-cell, 3.0-Ah (100-Wh) Li-ion battery

6-cell, 2.8-Ah (62-Wh) Li-ion battery

6-cell, 2.55-Ah (55-Wh) Li-ion battery

3-cell, 2.8-Ah (31-Wh) Li-ion battery

9-cell, 73-Wh HP Ultra-Capacity Extended Life Battery

9-cell, 100-Wh, HP Extended Life Battery

6-cell, 55 WHr (2.8 Ahr) HP Long Life Li-ion battery (available only with 3-year

HP Fast Charge Technology

Security Integrated fingerprint reader

Integrated smart card reader

Security cable slot

Trusted platform module (TPM) V.1.2

default, 2-finger scrolling and zoom enabled by default

supports 3-pin DC connector):

90-W

●

platinum warranty)

Full volume encryption

Preboot authentication (password, smart card)

Operating system Preinstalled:

Windows 7 Professional 32 with Microsoft® Basics (localizations for only U.S. and

Windows 7 Professional 64 with Microsoft Basics (localizations for only U.S. and

4 Chapter 1 Product description

French Canada)

French Canada)

Category Description

Windows 7 Home Premium 64 with Microsoft Basics (localizations for only U.S. and

Windows 7 Home Premium 32 with Microsoft Basics (localizations for only U.S. and

Novell™: SuSE Linux™ – SLED 11 (available worldwide)

FreeDOS (available worldwide)

Preinstalled with Microsoft Office:

Windows 7 Professional 32 with Microsoft Office 2010 Starter

Windows 7 Professional 64 with Microsoft Office 2010 Starter

Windows 7 Home Premium 32 with Microsoft Office 2010 Starter

Windows 7 Home Premium 64 with Microsoft Office 2010 Starter

Windows 7 Home Basic 32 with Microsoft Office 2010 Starter

Windows 7 Professional 64

Windows 7 Professional 32

Windows 7 Home Basic 32

Windows 7 Home Premium 64

French Canada)

French Canada)

Restore Media:

Windows 7 Home Premium 32

DRDVD Windows 7 (available with Windows 7 Home Basic and Windows 7 Starter)

DRDVD Windows 7 with WinDVD (available with Windows 7 Professional and

Web-only support:

Windows XP Professional 32

Windows Vista Enterprise 32/64

Windows Vista Business 32/64

Windows 7 Enterprise 32/64

Windows 7 Ultimate 32/64

Certified:

Microsoft WHQL

Novell: SuSE Linux

Serviceability End-user replaceable parts:

AC adapter

Battery (system)

Hard drive

Windows 7 Home Premium)

Memory module

5

Category Description

Optical drive

Mini-PCI components (WLAN, WWAN, SIM)

Modem

Keyboard

Bluetooth module

6 Chapter 1 Product description

2 External component identification

Display

Component Description

(1) Internal display switch Turns off the display or initiates Sleep if the display is closed

(2) WLAN antennas (2)* Send and receive wireless signals to communicate with wireless

(3) WWAN antennas (2)* (select models only) Send and receive wireless signals to communicate with wireless

(4) Internal microphone(s) (1 or 2 depending on

model)

(5) Webcam light (select models only) On: The webcam is in use.

while the power is on.

NOTE: The display switch is not visible from the outside of the

computer.

local area networks (WLAN).

wide area networks (WWAN).

Record sound.

Display 7

Component Description

(6) Webcam (select models only) Records video and captures still photographs.

To use the webcam, select Start > All Programs > HP >
HP Webcam.

*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately
around the antennas free from obstructions. To see wireless regulatory notices, refer to the section of the Regulatory, Safety
and Environmental Notices that applies to your country or region. These notices are located in Help and Support.

8 Chapter 2 External component identification

Top

TouchPad

Component Description

(1) Pointing stick (select models only) Moves the pointer and selects or activates items on the

(2) Left pointing stick button Can be used with the pointing stick and functions like the

(3) TouchPad on/off button Turns the TouchPad on and off.

(4) TouchPad zone Moves the pointer and selects or activates items on the

(5) Left TouchPad button Functions like the left button on an external mouse.

(6) Right pointing stick button Can be used with the pointing stick and functions like the

(7) Right TouchPad button Functions like the right button on an external mouse.

screen.

left button on an external mouse.

screen.

NOTE: Vertical scrolling is supported on the right edge of

the TouchPad.

right button on an external mouse.

Top 9

Lights

Component Description

(1) TouchPad light

(2) Caps lock light On: Caps lock is on.

(3)

(4)

(5)

(6)

(7)

Power light ● On: The computer is on.

Wireless light

QuickWeb light ● On: The computer is on.

Mute light

Calculator light

Amber: The TouchPad is off.

●

● Off: The TouchPad is on.

Blinking: The computer is in the Sleep state.

●

Off: The computer is off or in Hibernation.

●

White: An integrated wireless device, such as a

●

wireless local area network (WLAN) device and/or a
Bluetooth® device, is on.

● Amber: All wireless devices are off.

Off: The computer is off or in Hibernation.

●

NOTE: For more information, refer to the HP Quickweb

software Help

Amber: Computer sound is off.

●

● Off: Computer sound is on.

On: The Windows® calculator function is on.

●

(8) Num lock light On: Num lock is on.

10 Chapter 2 External component identification

● Blinking: The Windows calculator has been activated.

Buttons and fingerprint reader

Component Description

(1) TouchPad on/off button Turns the TouchPad on and off.

(2)

(3)

Power button ● When the computer is off, press the button to turn on

Wireless button Turns the wireless feature on or off but does not establish a

the computer.

When the computer is on, press the button briefly to

●

initiate Sleep.

When the computer is in the Sleep state, press the

●

button briefly to exit Sleep.

● When the computer is in Hibernation, press the button

briefly to exit Hibernation.

If the computer has stopped responding and Windows®
shutdown procedures are ineffective, press and hold the
power button for at least 5 seconds to turn off the computer.

To learn more about your power settings:

Windows 7—Select Start > Control Panel > System

●

and Security > Power Options.

– or –

Windows Vista—Select Start > Control Panel >
System and Maintenance > Power Options

Or refer to the HP Notebook Reference Guide.

●

wireless connection.

Top 11

Component Description

(4)

(5)

(6)

(7) Fingerprint reader (select models only) Allows a fingerprint logon to Windows, instead of a

QuickWeb button

Volume mute button Mutes and restores speaker sound.

Calculator button (select models only) Opens the Windows calculator function.

When the computer is off or in Hibernation, press the

●

button to open HP QuickWeb.

When the computer is in Microsoft Windows, press the

●

button to open the default Web browser.

● When the computer is in HP QuickWeb, press the

button to open the default Web browser.

NOTE: For more information, refer to the HP QuickWeb

software Help. If your computer does not have HP
QuickWeb software, the button does not perform any action
or function.

password logon.

12 Chapter 2 External component identification

Keys

Component Description

(1) esc key Displays system information when pressed in combination

with the fn key.

(2) Function keys Execute frequently used system functions when pressed in

combination with the fn key.

(3) fn key Executes frequently used system functions when pressed

in combination with a function key, the num lk key, or the

esc key.

(4)

(5)

(6) Integrated numeric keypad When the keypad has been enabled, the keys can be used

(7) num lk key Turns the integrated numeric keypad on and off when

Windows logo key Displays the Windows Start menu.

Windows applications key Displays a shortcut menu for items beneath the cursor.

like an external numeric keypad.

pressed in combination with the fn key.

Top 13

Front

Component Description

(1) Display release latch Opens the computer.

(2)

(3)

(4) Battery light

(5)

Wireless light

Power light ● On: The computer is on.

Hard drive light

White: An integrated wireless device, such as a

●

wireless local area network (WLAN) device and/or a
Bluetooth® device, is on.

● Amber: All wireless devices are off.

Blinking: The computer is in the Sleep state.

●

Off: The computer is off or in Hibernation.

●

Amber: The computer is connected to external power

●

and the battery is charged from 0 to 90%.

● White: The computer is connected to external power

and the battery is charged from 90 to 99%.

Blinking amber: A battery that is the only available

●

power source has reached a low battery level. When
the battery reaches a critical battery level, the battery
light begins blinking rapidly.

Off: The battery is fully charged.

●

Blinking turquoise: The hard drive or optical drive is

●

being accessed.

Amber: HP 3D DriveGuard has temporarily parked

●

the hard drive.

(6) Speakers (2) Produce sound.

14 Chapter 2 External component identification

NOTE: For information on HP 3D DriveGuard, refer

to the HP Notebook Reference Guide.

NOTE: To use the SRS Premium sound software, select

Start > All Programs > SRS Premium Sound.

Left

Component Description

(1)

(2) Media Card Reader Supports the following digital card formats:

(3)

(4) Vents (2) Enable airflow to cool internal components.

(5)

(6)

(7)

USB 2.0 ports (2) Connects an optional USB device.

Secure Digital (SD) Memory Card

●

MultiMediaCard (MMC)

●

1394 port Connects an optional IEEE 1394 or 1394a device, such as

a camcorder.

NOTE: The computer fan starts up automatically to cool

internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during routine
operation.

eSATA/USB 2.0 combo port Connects a high-performance eSATA component, such as

External monitor port Connects an external VGA monitor or projector.

ExpressCard slot or smart card reader
(depending on configuration)

an eSATA external hard drive, or connects an optional USB
device.

Supports optional ExpressCards or smart cards.

Left 15

Rear

Component Description

(1)

(2)

(3)

(4)

RJ-11 (modem) jack Connects a modem cable.

Serial port Connects an optional device such as a serial

modem, mouse, or printer.

Power connector Connects an AC adapter.

DisplayPort Connects an optional digital display device, such

as a high-performance monitor or projector.

16 Chapter 2 External component identification

Right

Component Description

(1)

(2)

(3)

(4) Upgrade bay (optical drive shown) An optical drive installed in the bay (select models only)

(5) Optical drive eject button (select models

(6)

Audio-out (headphone) jack Connects optional powered stereo speakers, headphones,

earbuds, a headset, or television audio.

WARNING! To reduce the risk of personal injury, adjust

the volume before putting on headphones, earbuds, or a
headset. For additional safety information, refer to the
Regulatory, Safety, and Environmental Notices.

NOTE: When a device is connected to the headphone

jack, the computer speakers are disabled.

Audio-in (microphone) jack Connects an optional computer headset microphone,

stereo array microphone, or monaural microphone.

USB 2.0 ports (2) Connect optional USB devices.

reads and writes to an optical disc.

NOTE: The upgrade bay can hold either a hard drive, an

optical drive, or a weight saver option.

Ejects the optical drive disc tray.

only)

RJ-45 (network) jack Connects a network cable.

(7)

Security cable slot Attaches an optional security cable to the computer.

NOTE: The security cable is designed to act as a

deterrent, but it may not prevent the computer from being
mishandled or stolen.

Right 17

Bottom

Component Description

(1)

(2) Docking connector Connects an optional docking device.

(3)

(4)

(5) Battery bay Holds the battery.

(6) Vents (3) Enable airflow to cool internal components.

(7) Speakers (2) Produce sound.

(8)

Battery release latch Releases the battery from the battery bay.

Bottom cover release latch Releases or locks the bottom cover.

SIM slot Supports a wireless subscriber identity module (SIM). The

SIM slot is located inside the battery bay.

NOTE: The computer fan starts up automatically to cool

internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during routine
operation.

Bluetooth compartment Contains a Bluetooth device.

18 Chapter 2 External component identification

Component Description

(9)

(10) Accessory battery connector Connects an optional accessory battery.

Wireless and memory module
compartments and hard drive bay

Holds the wireless LAN module slot, the WWAN module
slot, the memory module slots, and the hard drive.

CAUTION: To prevent an unresponsive system, replace

the wireless module only with a wireless module
authorized for use in the computer by the governmental
agency that regulates wireless devices in your country or
region. If you replace the module and then receive a
warning message, remove the module to restore computer
functionality, and then contact technical support through
Help and Support.

Bottom 19

3 Illustrated parts catalog

Service tag

When ordering parts or requesting information, provide the computer serial number and model
description provided on the service tag.

Product name (1). This is the product name affixed to the front of the computer.

●

Serial number (s/n) (2). This is an alphanumeric identifier that is unique to each product.

●

Part number/Product number (p/n) (3). This number provides specific information about the

●

product's hardware components. The part number helps a service technician to determine what
components and parts are needed.

Warranty period (4). This number describes the duration (in years) of the warranty period for the

●

computer.

20 Chapter 3 Illustrated parts catalog

Computer major components

Computer major components 21

Item Description Spare part number

(1) Display assembly

NOTE: For a list of individual parts spared in the display panel, see

on page 25.

(2) Keyboard (includes cable)

NOTE: For a detailed list of available keyboards, see

For use in models without a pointing stick 641180-xxx

For use in models with a pointing stick 641179-xxx

(3) Top cover

● For use on models that include a pointing stick, without a fingerprint reader 641206-001

(4) Fan 641183-001

(5) Heat sink (includes replacement thermal pads and grease) 658140-001

(6) System board (includes thermal pad)

For use in models with WWAN 658143-001

For use in models without WWAN 665718-001

(7) Speaker assembly 641186-001

For use on models that include a fingerprint reader, without a pointing stick 641204-001

●

For use on models that include a fingerprint reader and a pointing stick 641205-001

●

Sequential part number listing on page 30.

Display components

not spared

(8) Processor (APU)

AMD Quad-Core A8-3510M (2.5-GHz/1.5-GHz, 4-MB L2 cache, 45W) 653358-001

AMD Quad-Core A6-3410M (2.3-GHz/1.6-GHz, 4-MB L2 cache, 45W) 653357-001

AMD Dual-Core A4-3310M (2.5-GHz/2.1-GHz, 2-MB L2 cache, 45W) 653356-001

AMD Dual Core E2-3000M (2.4-GHz/1.8-GHz, 1-MB L2 cache, 35W) 653351-001

(9) Modem module

NOTE: The modem module spare part kit does not include a modem module cable. The

modem module cable is included in the Cable Kit, spare part number 646968-001. See

Cable Kit on page 27 for more Cable Kit spare part number information.

(10) Function board 658142-001

(11) USB board (includes Mylar) 658141-001

(12) Bottom cover (includes rubber feet)

NOTE: Make sure to remove the modem plug from the slot in the bottom cover if the

repaired unit includes a modem.

(13) Battery, Li-ion

9-cell (100 WHr, 3.0 Ah) 631243-001

6-cell (62 WHr, 2.8 Ah) 628668-001

6-cell (55 WHr, 2.8 Ah, long life) 628670-001

628824-001

644695-001

3-cell (31 WHr, 2.8 Ah) 628664-001

22 Chapter 3 Illustrated parts catalog

Item Description Spare part number

(14) Bluetooth module (does not include Bluetooth module cable)

NOTE: The Bluetooth module spare part kit does not include a Bluetooth module cable.

The Bluetooth module cable is included in the Cable Kit, spare part number 646968-001.
See

Cable Kit on page 27 for more Cable Kit spare part number information.

(15) Memory modules (PC3-10600, 1333-MHz, DDR3)

8-GB 634091-001

4-GB 621569-001

2-GB 621565-001

1-GB 639736-001

(16) WLAN module

Broadcom 4313AGN 802.11a/b/g/draft-n WiFi Adapter for use in Afghanistan, Albania,

Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia,
Austria, Azerbaijan, Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize,
Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British
Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Canada,
Cape Verde, the Cayman Islands, Central African Republic, Chad, People's Republic of
China, Colombia, Comoros, Congo, Costa Rica, Croatia, Cyprus, the Czech Republic,
Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El
Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French
Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada,
Guadeloupe, Guam, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong
Kong, Hungary, Iceland, India, Iraq, Ireland, Israel, Italy, Ivory Coast, Jamaica, Japan,
Jordan, Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho,
Liberia, Martinique, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar,
Malawi, Malaysia, Maldives, Mali, Malta, Marshall Islands, Mauritania, Mauritius, Mexico,
Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru,
Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria,
Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Puerto Rico,
Peru, Philippines, Poland, Portugal, Qatar, Republic of Moldova, Romania, Russia,
Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia and
Montenegro, Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, Solomon Islands,
Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St.
Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Syria, Taiwan,
Tajikistan, Tanzania, Thailand, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey,
Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom,
Uruguay, the United States, the US Virgin Islands, Uzbekistan, Vanuatu, Venezuela,
Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

537921-001

593836-001

Broadcom 43224AGN 802.11a/b/g/draft-n WiFi Adapter for use in Antigua and Barbuda,

Aruba, the Bahamas, Barbados, Belize, Canada, Guam, Guinea, Haiti, Jamaica, the Nether
Antilles, Puerto Rico, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines,
Suriname, the US Virgin Islands, and the United States

Computer major components 23

582564-001

Item Description Spare part number

Broadcom 43224AGN 802.11a/b/g/draft-n WiFi Adapter for use in Albania, Algeria,

Andorra, Angola, Argentina, Armenia, Australia, Austria, Azerbaijan, Bahrain, Belarus,
Belgium, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the
British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Cape
Verde, the Cayman Islands, Central African Republic, Chad, Chile, People's Republic of
China, Colombia, Comoros, Congo, Costa Rica, Croatia, Cyprus, the Czech Republic,
Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El
Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji Finland, France, French Guiana,
Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe,
Guatemala, Guinea, Guinea-Bissa, Honduras, Hong Kong, Hungary, Iceland, India, Ireland,
Italy, Ivory Coast, Japan, Jordan, Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan, Laos,
Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia,
Madagascar, Malawi, Malaysia Maldives, Mali, Malta, Marshall Islands, Martinique,
Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco,
Mozambique, Namibia, Nauru, Nepal, Netherlands, New Zealand, Nicaragua, Niger,
Nigeria, Norway, Oman, Palau, Panama, Papua New Guinea, Paraguay, Peru, Philippines,
Poland, Portugal, Qatar, Republic of Moldova, Romania, Rwanda, Samoa, San Marino,
Sao Tome and Principe, Saudi Arabia, Senegal, Serbia and Montenegro, Seychelles,
Sierra Leone, Singapore, Slovakia, Slovenia, Solomon Islands, Somalia, South Africa,
South Korea, Spain, Sri Lanka, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan,
Tanzania, Thailand, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan,
Tuvalu, Uganda, United Arab Emirates, United Kingdom, Uruguay, Uzbekistan, Vanuatu,
Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

(17) WWAN modules

HP hs2340 HSPA+ Mobile Broadband Module 632155-001

HP un2430 EV-DO/HSPA Mobile Broadband Module 634400-001

582564-002

(18) RTC battery 641200-001

(19) Optical drive (includes bracket, bezel, and screws)

● Blu-ray ROM DVD±RW SuperMulti DL Drive 664019-001

Cable Kit (not illustrated; see

(20) Hard drive

750-GB, 7200-rpm 633252-001

500-GB, 7200-rpm 634926-001

320-GB, 7200-rpm, Self-Encrypting Drive (SED) 641674-001

320-GB, 7200-rpm 641672-001

Solid-state drive, 128-GB 662394-001

Bottom door blank 670434-001

DVD±RW and CD-RW SuperMulti DL Combo Drive 664018-001

●

DVD-ROM Drive 664017-001

●

information)

Cable Kit on page 27 for more Cable Kit spare part number

646968-001

24 Chapter 3 Illustrated parts catalog

Display components

Display components 25

Item Description Spare part number

(1) Display bezel

For use with models with a webcam 660276-001

For use with models without a webcam 660277-001

(2) Display hinges (includes left and right hinges, brackets, and covers) 647677-001

(3) Display panel

39.6-cm (15.6-in), HD+, anti-glare, LED, WVA 662395-001

39.6-cm (15.6-in), HD anti-glare, LED, SVA for use in models without WWAN 646978-001

39.6-cm (15.6-in), HD anti-glare, SVA for use in models with WWAN 662393-001

(4) Webcam module 647599-001

Microphone module 647600-001

(5) Display Cable Kit

For use in models with HD displays 646969-001

For use in models with HD+ displays 646970-001

(6) WLAN antennas

Included in Cable Kit

Included in Display Panel Support Kit

(7) WWAN antennas

Included in Cable Kit

Included in Display Panel Support Kit

(8) Display enclosure

Enclosure

Included in Display Panel Support Kit

Display Panel Support Kit (includes WLAN antennas, WWAN antennas, and display

enclosure)

646968-001

657831-001

646968-001

657831-001

641202-001

657831-001

657831-001

26 Chapter 3 Illustrated parts catalog

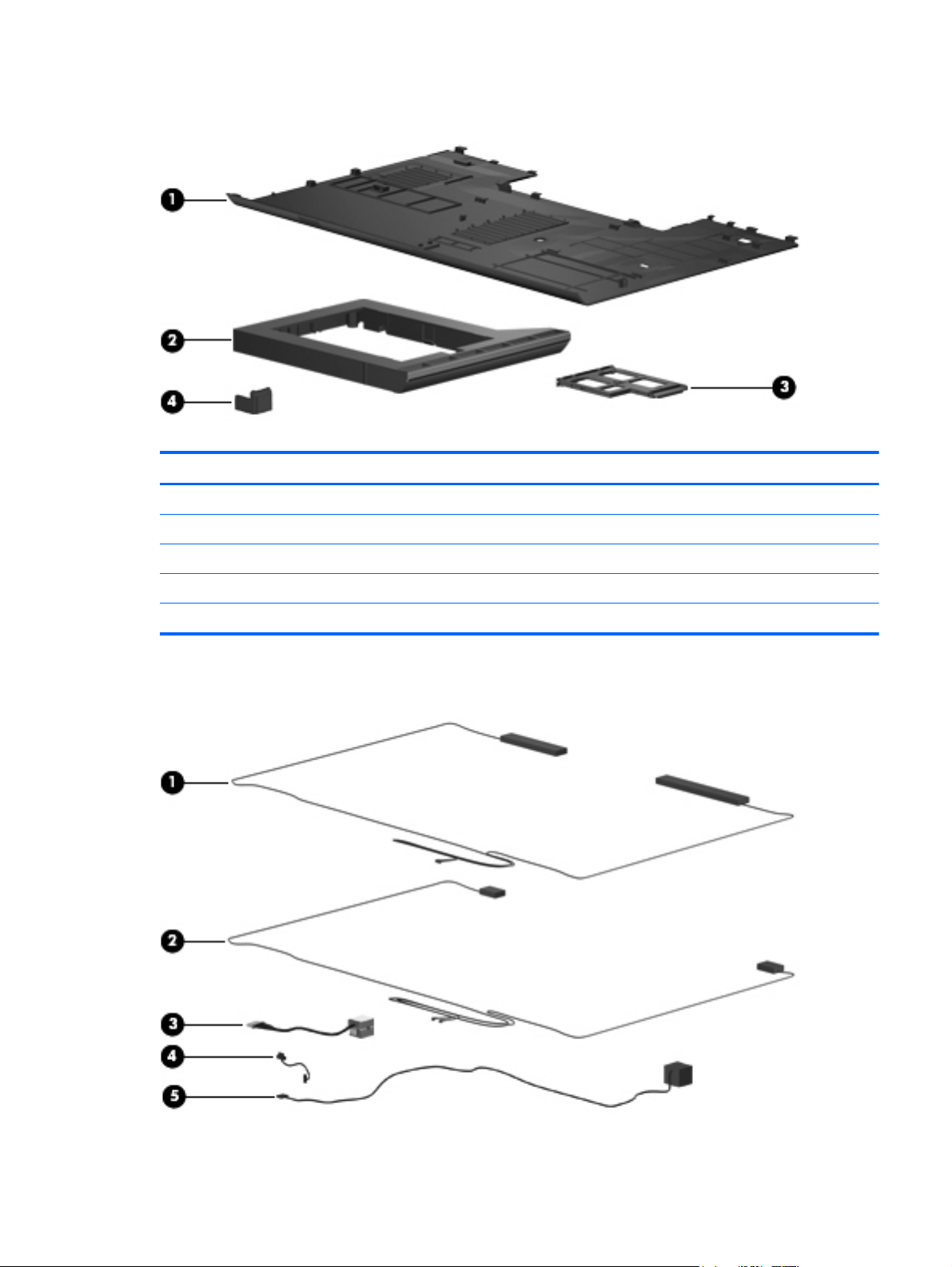

Plastics Kit

Item Description Spare part number

Plastics Kit 646971-001

(1) Bottom door

(2) Optical drive protective insert

(3) ExpressCard slot protective insert

(4) RJ-11 cover

Cable Kit

Plastics Kit 27

Item Description Spare part number

Cable Kit: 646968-001

(1) WWAN antennas

(2) WLAN antennas

(3) Power connector cable

(4) Bluetooth module cable

(5) RJ-11 jack cable

28 Chapter 3 Illustrated parts catalog

Mass storage devices

Description Spare part number

Optical drive

Blu-ray Disc ROM with SuperMulti DVD±R/RW DL Drive 664019-001

DVD±RW and CD-RW SuperMulti DL Combo Drive 664018-001

DVD-ROM Drive 664017-001

Hard drive

750-GB, 7200-rpm 633252-001

500-GB, 7200-rpm 634926-001

320-GB, 7200-rpm, Self-Encrypting Drive (SED) 641674-001

320-GB, 7200-rpm 641672-001

Solid-state drive, 128-GB 662394-001

Miscellaneous parts

Description Spare part number

AC adapters

90-W AC adapter 609940-001

90-W AC adapter for use in India 609947-001

Power cords:

For use in Argentina 490371-D01

For use in Brazil 490371-202

For use in the United States 490371-001

Rubber Kit (includes rubber feet and display rubber covers) 646608-001

Screw Kit 646972-001

Cradle, hard drive 652688-001

Mouse, optical, 2-button 390632-001

HP optical travel mouse 434594-001

HP basic carrying case 455084-001

Professional slim, top load case 592923-001

Notebook combination lock 591699-001

Nylon case 612757-001

Mass storage devices 29

Sequential part number listing

Spare part
number

390632-001 Mouse, optical, 2-button

434594-001 HP USB optical travel mouse

455084-001 HP basic carrying case

490371-001 Power cord for use in North America

490371-202 Power cord for use in Brazil

490371-D01 Power cord for use in Argentina

537921-001 Bluetooth module

582564-001 Broadcom 43224AGN 802.11a/b/g/draft-n WiFi Adapter for use in Antigua and Barbuda, Aruba, the

582564-002 Broadcom 43224AGN 802.11a/b/g/draft-n WiFi Adapter for use in Albania, Algeria, Andorra, Angola,

Description

Bahamas, Barbados, Belize, Canada, Guam, Guinea, Haiti, Jamaica, the Nether Antilles, Puerto Rico, St.
Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname, the US Virgin Islands, and the United
States

Argentina, Armenia, Australia, Austria, Azerbaijan, Bahrain, Belarus, Belgium, Benin, Bermuda, Bhutan,
Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina
Faso, Burundi, Cambodia, Cameroon, Cape Verde, the Cayman Islands, Central African Republic, Chad,
Chile, People's Republic of China, Colombia, Comoros, Congo, Costa Rica, Croatia, Cyprus, the Czech
Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador,
Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji Finland, France, French Guiana, Gabon, Gambia, Georgia,
Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Honduras,
Hong Kong, Hungary, Iceland, India, Ireland, Italy, Ivory Coast, Japan, Jordan, Kazakhstan, Kenya, Kiribati,
Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg,
Macedonia, Madagascar, Malawi, Malaysia Maldives, Mali, Malta, Marshall Islands, Martinique, Mauritania,
Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru,
Nepal, Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Palau, Panama, Papua New
Guinea, Paraguay, Peru, Philippines, Poland, Portugal, Qatar, Republic of Moldova, Romania, Rwanda,
Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia and Montenegro, Seychelles,
Sierra Leone, Singapore, Slovakia, Slovenia, Solomon Islands, Somalia, South Africa, South Korea, Spain,
Sri Lanka, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Thailand, Togo, Tonga, Trinidad
and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, United Arab Emirates, United Kingdom,
Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

591699-001 Combination lock

592923-001 Professional, slim top load case

30 Chapter 3 Illustrated parts catalog

Spare part
number

Description

593836-001 Broadcom 4313AGN 802.11a/b/g/draft-n WiFi Adapter for use in Afghanistan, Albania, Algeria, Andorra,

609940-001 90-W AC adapter

609947-001 90-W AC adapter for use in India

612757-001 Nylon case

Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, Bahamas,
Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and
Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi,
Cambodia, Cameroon, Canada, Cape Verde, the Cayman Islands, Central African Republic, Chad,
People's Republic of China, Colombia, Comoros, Congo, Costa Rica, Croatia, Cyprus, the Czech Republic,
Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial
Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia,
Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guam, Guatemala, Guinea, Guinea-Bissa,
Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Iraq, Ireland, Israel, Italy, Ivory Coast,
Jamaica, Japan, Jordan, Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho,
Liberia, Martinique, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia,
Maldives, Mali, Malta, Marshall Islands, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia,
Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New
Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea,
Paraguay, Puerto Rico, Peru, Philippines, Poland, Portugal, Qatar, Republic of Moldova, Romania, Russia,
Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia and Montenegro,
Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, Solomon Islands, Somalia, South Africa, South
Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname,
Swaziland, Sweden, Switzerland, Syria, Taiwan, Tajikistan, Tanzania, Thailand, Togo, Tonga, Trinidad and
Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United
Kingdom, Uruguay, the United States, the US Virgin Islands, Uzbekistan, Vanuatu, Venezuela, Vietnam,
Yemen, Zaire, Zambia, and Zimbabwe

621565-001 2-GB memory module (PC3-10600, 1333-MHz, DDR3)

621569-001 4-GB memory module (PC3-10600, 1333-MHz, DDR3)

628664-001 3-cell, 31 WHr, 2.8 Ah Li-ion battery

628668-001 6-cell (62 WHr, 2.8 Ah)

628670-001 6-cell, 55 WHr, 2.8 Ah, long life Li-ion battery

628824-001 Modem module

NOTE: The modem module spare part kit does not include a modem module cable. The modem module

cable is included in the Cable Kit, spare part number 646968-001. See
Cable Kit spare part number information.

632155-001 HP hs2340 HSPA+ Mobile Broadband Module

633252-001 750-GB, 7200-rpm hard drive

631243-001 9-cell, 100 WHr, 3.0 Ah Li-ion battery

634091-001 8-GB memory module (PC3-10600, 1333-MHz, DDR3)

634400-001 HP un2430 EV-DO/HSPA Mobile Broadband Module

634926-001 500-GB, 7200-rpm hard driv

639736-001 1-GB memory module (PC3-10600, 1333-MHz, DDR3)

641179-001 Keyboard with pointing stick for use in the United States (includes keyboard and pointing stick cables)

Cable Kit on page 27 for more

641179-121 Keyboard with pointing stick for use in French Canada (includes keyboard and pointing stick cables)

641179-161 Keyboard with pointing stick for use in Latin America (includes keyboard and pointing stick cables)

Sequential part number listing 31

Spare part
number

641179-201 Keyboard with pointing stick for use in Brazil (includes keyboard and pointing stick cables)

641180-001 Keyboard without pointing stick for use in the United States (includes keyboard cable)

641180-121 Keyboard without pointing stick for use in French Canada (includes keyboard cable)

641180-161 Keyboard without pointing stick for use in Latin America (includes keyboard cable)

641180-201 Keyboard without pointing stick for use in Brazil (includes keyboard cable)

641183-001 Fan

641186-001 Speaker assembly

641200-001 RTC battery

641202-001 Display enclosure

641204-001 Top cover for use on models that include a fingerprint reader, without a pointing stick

641205-001 Top cover for use on models that include a fingerprint reader and a pointing stick

641206-001 Top cover for use on models that include a pointing stick, without a fingerprint reader

641672-001 320-GB, 7200-rpm hard drive

641674-001 320-GB, 7200-rpm hard drive (Self-Encrypting Drive (SED)

644695-001 Bottom cover (includes rubber feet)

Description

646608-001 Rubber Kit (includes rubber feet and display rubber covers)

646968-001 Cable Kit (see

646969-001 Display Cable Kit for use in models with HD displays

646970-001 Display Cable Kit for use in models with HD+ displays

646971-001 Plastics Kit (see

646972-001 Screw Kit

646978-001 Display panel, 39.6-cm (15.6-in), HD anti-glare, LED, SVA for use in models without WWAN

647599-001 Webcam module

647600-001 Microphone module

647677-001 Display hinges (includes left and right hinges, brackets, and covers)

652688-001 Cradle, hard drive

653351-001 AMD Dual Core E2-3000M (2.4-GHz/1.8-GHz, 1-MB L2 cache, 35W) APU

653356-001 AMD Dual-Core A4-3310M processor (2.5-GHz/2.1-GHz, 2-MB L2 cache, 45W) APU

653357-001 AMD Quad-Core A6-3410M processor (2.3-GHz/1.6-GHz, 4-MB L2 cache, 45W) APU

653358-001 AMD Quad-Core A8-3510M processor (2.5-GHz/1.5-GHz, 4-MB L2 cache, 45W) APU

657831-001 Display Panel Support Kit

Cable Kit on page 27 for more Cable Kit spare part information)

Plastics Kit on page 27 for more Plastics Kit spare part information)

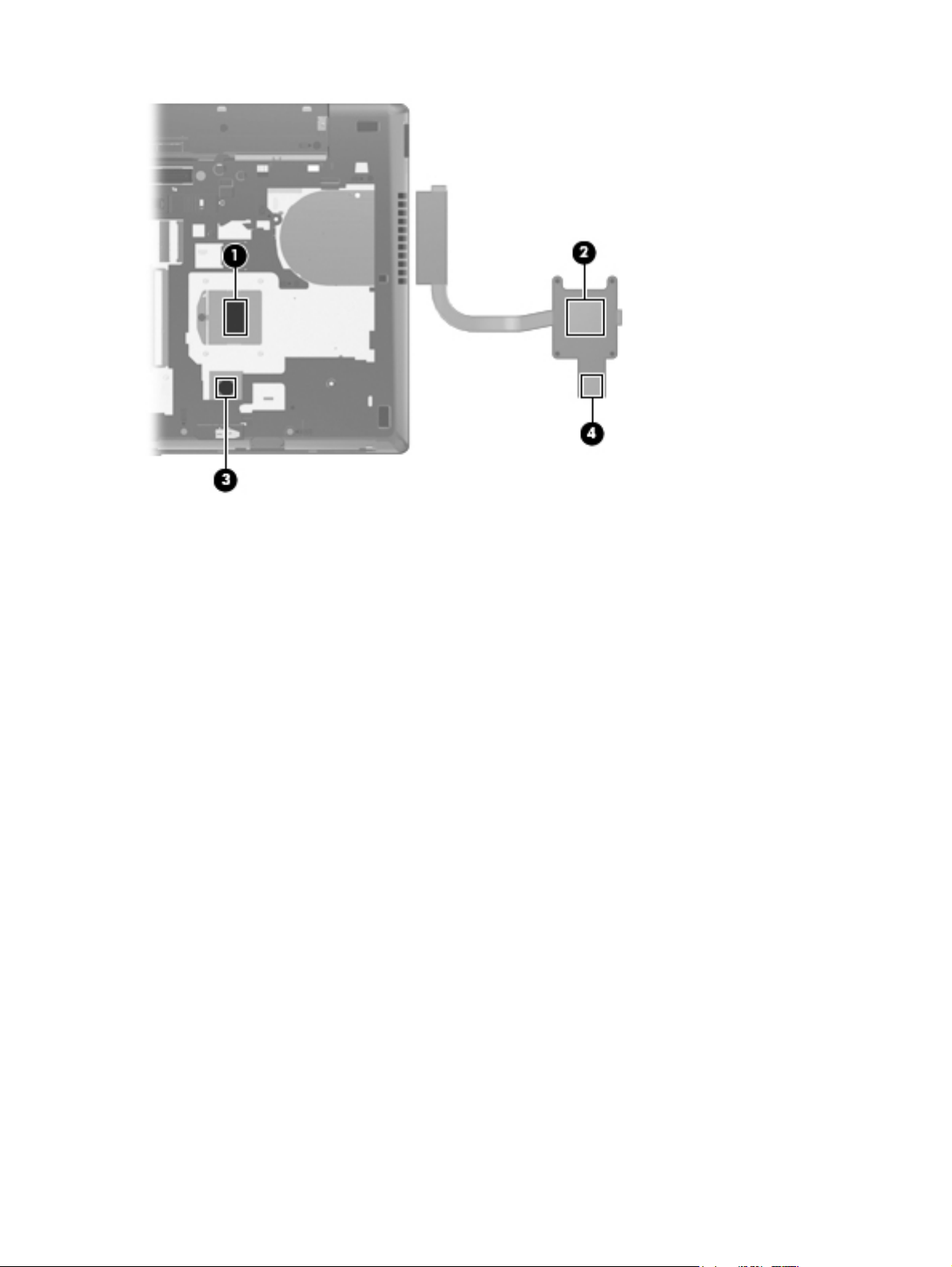

658140-001 Heat sink (includes replacement thermal pads and grease)

658141-001 USB 2.0 board (includes Mylar)

658142-001 Function board

32 Chapter 3 Illustrated parts catalog

Spare part
number

658143-001 System board for use in models with WWAN (includes thermal pad)

660276-001 Display bezel for use with models with a webcam

660277-001 Display bezel for use with models without a webcam

662393-001 Display panel, 39.6-cm (15.6-in), HD anti-glare, SVA for use in models with WWAN

662394-001 Solid-state drive, 128-GB

662395-001 Display panel, 39.6-cm (15.6-in), HD+, anti-glare, LED

664017-001 DVD-ROM drive

664018-001 DVD±RW and CD-RW SuperMulti DL combo drive

664019-001 Blu-ray ROM DVD±RW SuperMulti DL Drive

665718-001 System board for use in models without WWAN (includes thermal pad)

670434-001 Bottom door blank

Description

Sequential part number listing 33

4 Removal and replacement procedures

Preliminary replacement requirements

Tools required

You will need the following tools to complete the removal and replacement procedures:

● Flat-bladed screwdriver

● Phillips P0 and P1 screwdrivers

Torx T8 screwdriver

●

Service considerations

The following sections include some of the considerations that you must keep in mind during
disassembly and assembly procedures.

NOTE: As you remove each subassembly from the computer, place the subassembly (and all

accompanying screws) away from the work area to prevent damage.

Plastic parts

CAUTION: Using excessive force during disassembly and reassembly can damage plastic parts.

Use care when handling the plastic parts. Apply pressure only at the points designated in the
maintenance instructions.

34 Chapter 4 Removal and replacement procedures

Cables and connectors

CAUTION: When servicing the computer, be sure that cables are placed in their proper locations

during the reassembly process. Improper cable placement can damage the computer.

Cables must be handled with extreme care to avoid damage. Apply only the tension required to
unseat or seat the cables during removal and insertion. Handle cables by the connector whenever
possible. In all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in
such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex
cables with extreme care; these cables tear easily.

Drive handling

CAUTION: Drives are fragile components that must be handled with care. To prevent damage to

the computer, damage to a drive, or loss of information, observe these precautions:

Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the
computer is off or in Hibernation, turn the computer on, and then shut it down through the operating
system.

Before handling a drive, be sure that you are discharged of static electricity. While handling a drive,
avoid touching the connector.

Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and
be sure that the optical drive tray is closed.

Handle drives on surfaces covered with at least one inch of shock-proof foam.

Avoid dropping drives from any height onto any surface.

After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.

Avoid exposing a hard drive to products that have magnetic fields, such as monitors or speakers.

Avoid exposing a drive to temperature extremes or liquids.

If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective
packaging and label the package “FRAGILE.”

Preliminary replacement requirements 35

Grounding guidelines

Electrostatic discharge damage

Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure
determine the degree of sensitivity. Networks built into many integrated circuits provide some
protection, but in many cases, ESD contains enough power to alter device parameters or melt
silicon junctions.

A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or
microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.

An electronic device exposed to ESD may not be affected at all and can work perfectly throughout a
normal cycle. Or the device may function normally for a while, and then degrade in the internal layers,
reducing its life expectancy.

CAUTION: To prevent damage to the computer when you are removing or installing internal

components, observe these precautions:

Keep components in their electrostatic-safe containers until you are ready to install them.

Use nonmagnetic tools.

Before touching an electronic component, discharge static electricity by using the guidelines
described in this section.

Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.

If you remove a component, place it in an electrostatic-safe container.

The following table shows how humidity affects the electrostatic voltage levels generated by different
activities.

CAUTION: A product can be degraded by as little as 700 V.

Typical electrostatic voltage levels

Relative humidity

Event 10% 40% 55%

Walking across carpet 35,000 V 15,000 V 7,500 V

Walking across vinyl floor 12,000 V 5,000 V 3,000 V

Motions of bench worker 6,000 V 800 V 400 V

Removing DIPS from plastic tube 2,000 V 700 V 400 V

Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V

Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V

Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V

Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V

36 Chapter 4 Removal and replacement procedures

Packaging and transporting guidelines

Follow these grounding guidelines when packaging and transporting equipment:

● To avoid hand contact, transport products in static-safe tubes, bags, or boxes.

Protect ESD-sensitive parts and assemblies with conductive or approved containers or

●

packaging.

● Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.

Place items on a grounded surface before removing items from their containers.

●

Always be properly grounded when touching a component or assembly.

●

Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive

●

foam.

Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that

●

mechanized equipment used for moving materials is wired to ground and that proper materials
are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate
electric charges.

Workstation guidelines

Follow these grounding workstation guidelines:

● Cover the workstation with approved static-shielding material.

Use a wrist strap connected to a properly grounded work surface and use properly grounded

●

tools and equipment.

● Use conductive field service tools, such as cutters, screwdrivers, and vacuums.

When fixtures must directly contact dissipative surfaces, use fixtures made only of static-safe

●

materials.

● Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and

Styrofoam.

● Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle

these items only at static-free workstations.

Avoid contact with pins, leads, or circuitry.

●

● Turn off power and input signals before inserting or removing connectors or test equipment.

Preliminary replacement requirements 37

Equipment guidelines

Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.

● When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible

straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper
ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug
connectors, use alligator clips to connect a wrist strap.

When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps)

●

can be used at standing workstations and are compatible with most types of shoes or boots. On
conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one
megohm resistance between the operator and ground. To be effective, the conductive strips
must be worn in contact with the skin.

The following grounding equipment is recommended to prevent electrostatic damage:

Antistatic tape

●

Antistatic smocks, aprons, and sleeve protectors

●

Conductive bins and other assembly or soldering aids

●

Nonconductive foam

●

● Conductive tabletop workstations with ground cords of one megohm resistance

● Static-dissipative tables or floor mats with hard ties to the ground

Field service kits

●

Static awareness labels

●

Material-handling packages

●

Nonconductive plastic bags, tubes, or boxes

●

● Metal tote boxes

● Electrostatic voltage levels and protective materials

The following table lists the shielding protection provided by antistatic bags and floor mats.

Material Use Voltage protection level

Antistatic plastic Bags 1,500 V

Carbon-loaded plastic Floor mats 7,500 V

Metallized laminate Floor mats 5,000 V

38 Chapter 4 Removal and replacement procedures

Component replacement procedures

This chapter provides removal and replacement procedures.

There are as many as 95 screws and screw locks, in 15 different sizes, that must be removed,
replaced, or loosened when servicing the computer. Make special note of each screw and screw lock
size and location during removal and replacement.

Service tag

When ordering parts or requesting information, provide the computer serial number and model
description provided on the service tag.

Product name (1). This is the product name affixed to the front of the computer.

●

Serial number (s/n) (2). This is an alphanumeric identifier that is unique to each product.

●

Part number/Product number (p/n) (3). This number provides specific information about the

●

product's hardware components. The part number helps a service technician to determine what
components and parts are needed.

Warranty period (4). This number describes the duration (in years) of the warranty period for the

●

computer.

Component replacement procedures 39

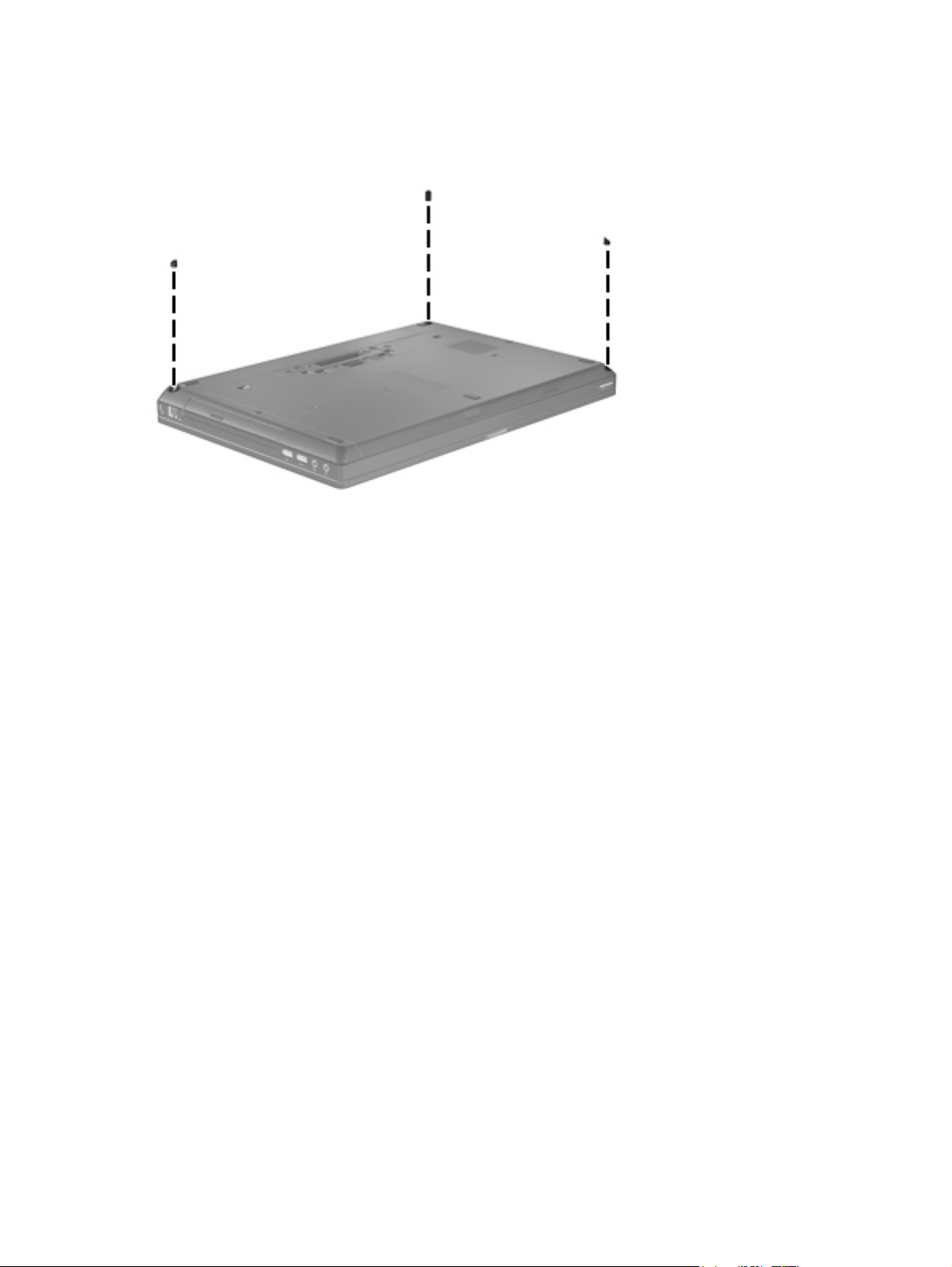

Rubber screw covers

Three bottom screws have rubber covers. The screw covers are included in the Rubber Kit, spare
part number 646608-001, and attach to the base enclosure in the locations illustrated below.

40 Chapter 4 Removal and replacement procedures

Battery

Description Spare part number

9-cell, 100 WHr, 3.0 Ah Li-ion battery 631243-001

6-cell (62 WHr, 2.8 Ah) 628668-001

6-cell, 55 WHr, 2.8 Ah, long life Li-ion battery 628670-001

3-cell, 31 WHr, 2.8 Ah Li-ion battery 628664-001

Before disassembling the computer, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet,

and then unplugging the AC adapter from the computer.

Remove the battery:

1. Position the computer upside-down on a flat surface, with the battery bay toward you.

2. Slide the battery release latch (1) to release the battery.

3. Remove the battery (2) from the computer.

Install the battery by inserting it into the battery bay until you hear a click.

Component replacement procedures 41

Display assembly (panel, bezel, webcam, microphone)

All display assemblies include WLAN antenna transceivers and cables. WWAN models include 2
WWAN antenna transceivers and cables.

NOTE: Full hinge-up displays are not spared.

This section describes removing components that do not require that you entirely remove the display
assembly from the computer. You can remove the display bezel, webcam/microphone module, and
display panel with the display assembly still attached to the computer.

To remove the remaining display components, including the display brackets, antennas, cable, and
enclosure, you must remove the entire display assembly from the computer. See

and components (whole hinge-up, cable, antennas, hinges, enclosure) on page 89 for more

information about removing the remaining components.

Description Spare part number

Display panels

39.6-cm (15.6-in), HD+, anti-glare, LED, WVA 662395-001

39.6-cm (15.6-in), HD anti-glare, LED, SVA for use in models without WWAN 646978-001

39.6-cm (15.6-in), HD anti-glare, SVA for use in models with WWAN 662393-001

Display bezels

Display assembly

For use in models with a webcam 660276-001

For use in models without a webcam 660277-001

Webcam module 647599-001

Microphone module 647600-001

Before removing the display assembly, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet,

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 41).

Remove the display assembly:

1. Position the computer right-side up with the front toward you.

2. Open the computer as far as possible.

42 Chapter 4 Removal and replacement procedures

3. To replace the display bezel, remove the two rubber screw covers (1) and the two Phillips

PM2.5×5.0 screws (2) in the bottom corners of the display bezel.

4. Flex the top (1) of the bezel, the inside edges of the left and right sides (2), and then the bottom

(3) of the bezel until it disengages from the display enclosure.

5. Remove the display bezel (4).

Component replacement procedures 43

6. If it is necessary to replace the webcam module from the display enclosure, gently pull the

webcam module away from the double-sided tape on the display enclosure (1), disconnect the
webcam cable from the module (2), and then remove the webcam (3).

7. If it is necessary to replace the display panel, remove the six Phillips PM2.5×5.0 screws (1) at

the bottom and two Phillips PM2.5×5.0 screws (2) at the top that secure the panel to the display
enclosure.

8. Pivot the display panel upward until it sits at a 90 degree angle (3).

9. Disconnect the display panel cable from the back of the display panel (1).

10. Remove the four Phillips PM2.5×4.0 screws (2) that secure the display panel to the brackets.

44 Chapter 4 Removal and replacement procedures

11. Slide the display panel up and out of the hinges (3).

Reverse this procedure to reassemble and install the display assembly.

Component replacement procedures 45

SIM

NOTE: This section applies only to computer models with WWAN capability.

NOTE: If there is a SIM inserted in the SIM slot, it must be removed before disassembling the

computer. Be sure that the SIM is reinserted in the SIM slot after reassembling the computer.

Before removing the SIM, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet,

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

Remove the SIM:

1. Press in on the SIM (1). (The module is partially ejected from the SIM slot.)

2. Remove the SIM (2) from the SIM slot.

Battery on page 41).

Reverse this procedure to install the SIM.

46 Chapter 4 Removal and replacement procedures

Bottom door

The bottom door is available in the Plastics Kit, spare part number 646971-001.

Before disassembling the computer, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet,

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

Remove the bottom door:

1. Position the computer upside-down on a flat surface, with the battery bay toward you.

2. Slide the release latch (1) and remove the locking screw (if installed) (2).

3. Slide the release latch (3) to disengage the door from the computer.

4. Slide the door toward the front of the computer (4), and then lift the door off the computer (5).

Battery on page 41).

Reverse the removal procedures to install the bottom door.

Component replacement procedures 47

Optical drive

NOTE: All optical drive spare part kits include an optical drive bezel.

Description Spare part number

Blu-ray ROM DVD±RW SuperMulti DL Drive 664019-001

DVD±RW and CD-RW SuperMulti DL Combo Drive 664018-001

DVD-ROM Drive 664017-001

Before removing the optical drive, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet,

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the bottom door (see

Battery on page 41).

Bottom door on page 47).

Remove the optical drive:

1. Position the computer upside-down with the right side toward you.

2. Loosen the captive Phillips screw (1) that secures the optical drive to the computer.

3. Push the optical drive tab (2) to release the optical drive from the computer.

48 Chapter 4 Removal and replacement procedures

4. Remove the optical drive (3) from the computer.

5. If it is necessary to replace the optical drive bracket, position the optical drive with the rear

toward you.

6. Remove the two Phillips PM2.0×3.0 screws (1) that secure the optical drive bracket to the optical

drive.

7. Remove the optical drive bracket (2).

Reverse this procedure to install an optical drive.

Component replacement procedures 49

Upgrade bay

Description Spare part number

500-GB, 7200-rpm hard drive 634926-001

Before removing a drive from the upgrade bay, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet,

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the bottom door (see

Battery on page 41).

Bottom door on page 47).

Remove the drive from the upgrade bay:

1. Position the computer upside-down with the right side toward you.

2. Remove the four Phillips PM2.0×4.0 screws that secure the drive assembly into the upgrade

bay.

3. Loosen the captive Phillips screw that secures the drive in the bay (1).

4. Push the drive tab (2) to release the drive from the computer.

50 Chapter 4 Removal and replacement procedures

5. Remove the drive assembly (3) from the computer.

Reverse this procedure to install the drive into the upgrade bay.

Component replacement procedures 51

Hard drive

NOTE: All hard drive spare part kits include a hard drive bracket and screws.

Description Spare part number

750-GB, 7200-rpm hard drive 633252-001

500-GB, 7200-rpm hard drive 634926-001

320-GB, 7200-rpm hard drive 641672-001

320-GB, 7200-rpm hard drive (Self-Encrypting Drive (SED)) 641674-001

Solid-state drive, 128-GB 662394-001

Before disassembling the computer, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet,

the computer on, and then shut it down through the operating system.

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the bottom door (see

Battery on page 41).

Bottom door on page 47).

Remove the hard drive:

1. Position the computer upside-down, with the battery bay toward you.

2. Loosen the three captive Phillips screws (1) that secure the hard drive to the computer.

3. Grasp the Mylar tab on the hard drive and slide the hard drive to the right (2) to disconnect it

from the system board connector.

52 Chapter 4 Removal and replacement procedures

4. Remove the hard drive (3) from the hard drive bay.

5. If it is necessary to replace the hard drive bracket, remove the two Phillips PM3.0×5.0 hard drive

bracket screws (1) from each side of the hard drive (4 total screws).

6. Lift the bracket (2) straight up to remove it from the hard drive.

Reverse this procedure to reassemble and install the hard drive.

Component replacement procedures 53

RTC battery

Description Spare part number

RTC battery 641200-001

Before removing the RTC battery, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet,

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the bottom door (see

Battery on page 41).

Bottom door on page 47).

Remove the RTC battery:

1. Position the computer upside-down, with the front toward you.

2. Remove the battery from the slot as far as the attached cable will allow (1).

3. Disconnect the battery cable from the system board (2).

Reverse this procedure to install the RTC battery.

54 Chapter 4 Removal and replacement procedures

Memory modules

NOTE: Primary and expansion memory is installed in a stacked configuration in the bottom of the

computer.

Description Spare part number

1-GB (PC3-10600, 1333-MHz, DDR3) 639736-001

2-GB (PC3-10600, 1333-MHz, DDR3) 621565-001

4-GB (PC3-10600, 1333-MHz, DDR3) 621569-001

8-GB (PC3-10600, 1333-MHz, DDR3) 634091-001

Update BIOS before adding memory modules

Before adding new memory, make sure you update the computer to the latest BIOS.

CAUTION: Failure to update the computer to the latest BIOS prior to installing new memory may

result in various system problems.

To update BIOS:

1. Navigate to

www.hp.com.

2. Click Support & Drivers > click Drivers & Software.

3. In the Enter a product name/number box, type the computer model information, and then click

Search.

4. Click the link for the computer model.

5. Select the operating system, and then click Next.

6. Under Step 2: Select a Download, click the BIOS link.

7. Click the link for the most recent BIOS.

8. Click the Download button, and then follow the on-screen instructions.

Before removing the memory module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet,

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 41).

5. Remove the bottom door (see

Bottom door on page 47).

Component replacement procedures 55

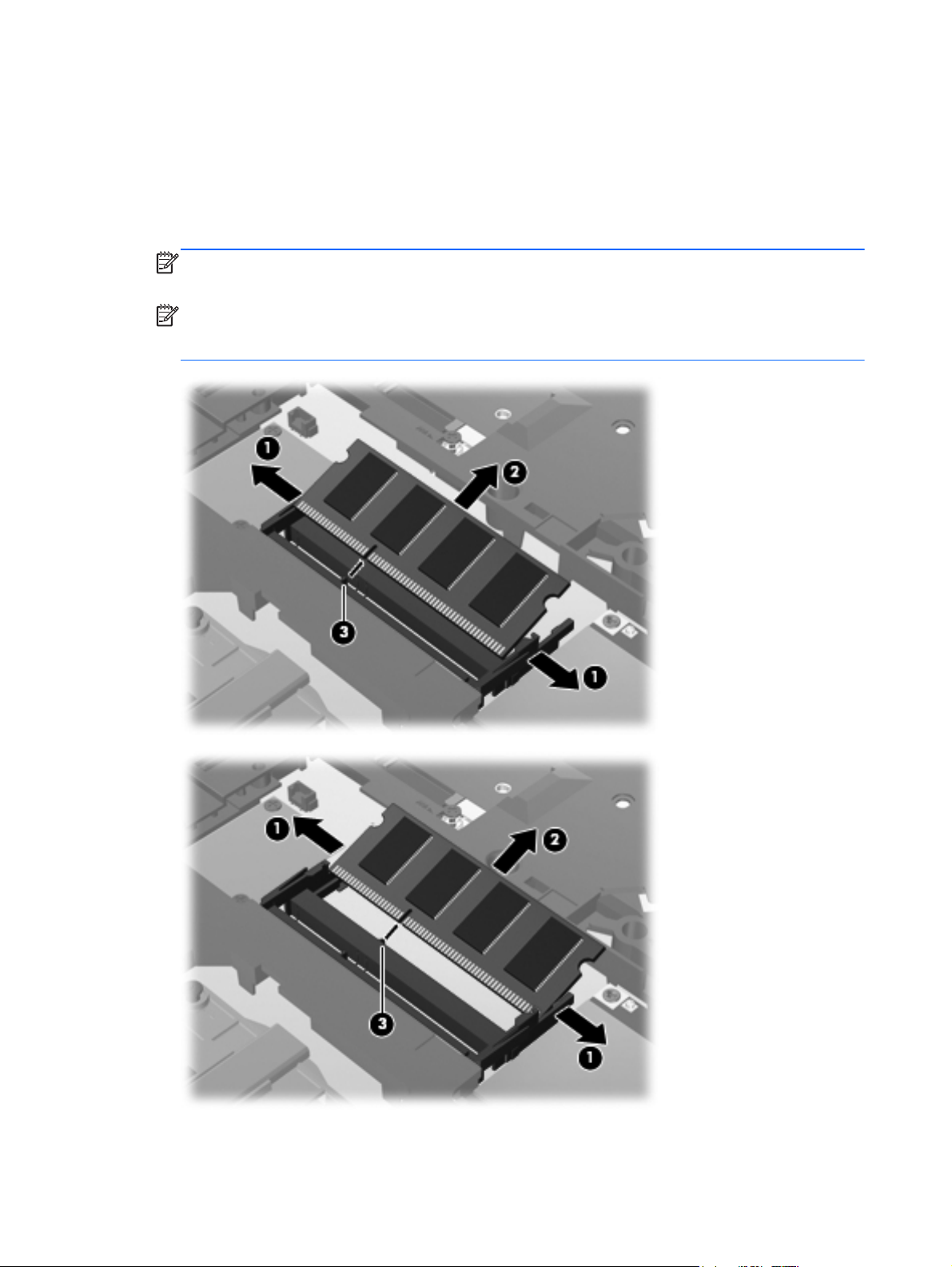

Remove the memory module:

1. Position the computer upside-down with the battery bay toward you.

2. Spread the retaining tabs (1) on each side of the memory module slot to release the memory

module. (The edge of the module opposite the slot rises away from the computer.)

3. Remove the memory module (2) by pulling the module away from the slot at an angle.

NOTE: Memory modules are designed with a notch (3) to prevent incorrect insertion into the

memory module slot.

NOTE: The computer uses two memory slots. The top slot houses the expansion memory

module and is shown in the first image below. The bottom slot houses the primary memory
module and is shown in the second image below.

Reverse this procedure to install a memory module.

56 Chapter 4 Removal and replacement procedures

WWAN module

CAUTION: The WWAN module and the WLAN module are not interchangeable.

Description Spare part number

HP hs2340 HSPA+ Mobile Broadband Module 632155-001

HP un2430 EV-DO/HSPA Mobile Broadband Module 634400-001

Before removing the WWAN module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet,

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the SIM (see

6. Remove the bottom door (see

Battery on page 41).

SIM on page 46).

Bottom door on page 47).

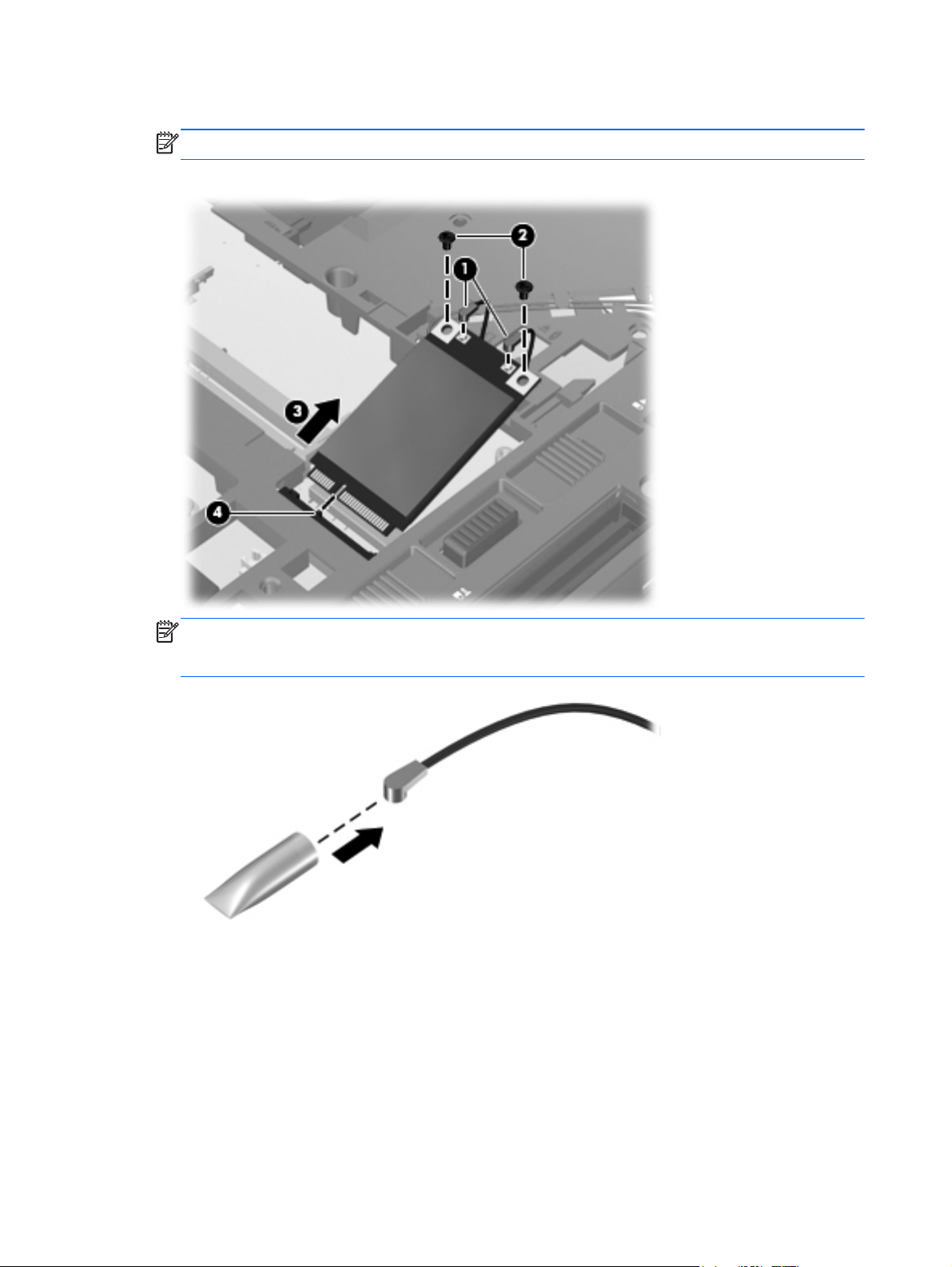

Remove the WWAN module:

1. Disconnect the WWAN antenna cables (1) from the terminals on the WWAN module.

NOTE: The red WWAN antenna cable is connected to the WWAN module “Main” terminal. The

blue WWAN antenna cable is connected to the WWAN module “Aux” terminal.

2. Remove the two Phillips PM2.0×3.0 screws (2) that secure the WWAN module to the computer.

(The edge of the module opposite the slot rises away from the computer.)

Component replacement procedures 57

3. Remove the WWAN module (3) by pulling the module away from the slot at an angle.

NOTE: WWAN modules are designed with a notch (4) to prevent incorrect insertion.

Figure 4-1 Removing the WWAN module

NOTE: If the WWAN antennas are not connected to the terminals on the WWAN module, the

protective sleeves must be installed on the antenna connectors, as shown in the following
illustration.

Reverse this procedure to install the WWAN module.

58 Chapter 4 Removal and replacement procedures

WLAN module

CAUTION: The WLAN module and the WWAN module are not interchangeable.

Description Spare part number

Broadcom 4313AGN 802.11a/b/g/draft-n WiFi Adapter for use in Afghanistan, Albania, Algeria,
Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan,
Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan,
Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cambodia, Cameroon, Canada, Cape Verde, the Cayman Islands, Central
African Republic, Chad, People's Republic of China, Colombia, Comoros, Congo, Costa Rica,
Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East
Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland,
France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada,
Guadeloupe, Guam, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong,
Hungary, Iceland, India, Iraq, Ireland, Israel, Italy, Ivory Coast, Jamaica, Japan, Jordan,
Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia,
Martinique, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia,
Maldives, Mali, Malta, Marshall Islands, Mauritania, Mauritius, Mexico, Micronesia, Monaco,
Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the
Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama,
Papua New Guinea, Paraguay, Puerto Rico, Peru, Philippines, Poland, Portugal, Qatar, Republic
of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi
Arabia, Senegal, Serbia and Montenegro, Seychelles, Sierra Leone, Singapore, Slovakia,
Slovenia, Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and
Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland,
Syria, Taiwan, Tajikistan, Tanzania, Thailand, Togo, Tonga, Trinidad and Tobago, Tunisia,
Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom,
Uruguay, the United States, the US Virgin Islands, Uzbekistan, Vanuatu, Venezuela, Vietnam,
Yemen, Zaire, Zambia, and Zimbabwe

Broadcom 43224AGN 802.11a/b/g/draft-n WiFi Adapter for use in Antigua and Barbuda, Aruba,
the Bahamas, Barbados, Belize, Canada, Guam, Guinea, Haiti, Jamaica, the Nether Antilles,
Puerto Rico, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname, the US
Virgin Islands, and the United States

593836-001

582564-001

Broadcom 43224AGN 802.11a/b/g/draft-n WiFi Adapter for use in Albania, Algeria, Andorra,
Angola, Argentina, Armenia, Australia, Austria, Azerbaijan, Bahrain, Belarus, Belgium, Benin,
Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands,
Brunei, Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Cape Verde, the Cayman
Islands, Central African Republic, Chad, Chile, People's Republic of China, Colombia, Comoros,
Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the
Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia,
Ethiopia, Fiji Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana,
Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Honduras, Hong
Kong, Hungary, Iceland, India, Ireland, Italy, Ivory Coast, Japan, Jordan, Kazakhstan, Kenya,
Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania,
Luxembourg, Macedonia, Madagascar, Malawi, Malaysia Maldives, Mali, Malta, Marshall Islands,
Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco,
Mozambique, Namibia, Nauru, Nepal, Netherlands, New Zealand, Nicaragua, Niger, Nigeria,
Norway, Oman, Palau, Panama, Papua New Guinea, Paraguay, Peru, Philippines, Poland,
Portugal, Qatar, Republic of Moldova, Romania, Rwanda, Samoa, San Marino, Sao Tome and
Principe, Saudi Arabia, Senegal, Serbia and Montenegro, Seychelles, Sierra Leone, Singapore,
Slovakia, Slovenia, Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka,
Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Thailand, Togo, Tonga, Trinidad
and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, United Arab Emirates, United
Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and
Zimbabwe

582564-002

Component replacement procedures 59

Before removing the WLAN module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet,

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the bottom door (see

Remove the WLAN module:

1. Position the computer right-side up with the battery bay toward you.

2. Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.

NOTE: The WLAN antenna cable labeled “1” connects to the WLAN module “Main” terminal

labeled “1”. The WLAN antenna cable labeled “2” connects to the WLAN module “Aux” terminal
labeled “2”. If the computer is equipped with an 802.11a/b/g/n WLAN module, the yellow WLAN
antenna cable connects to the middle terminal on the WLAN module.

3. Remove the two Phillips PM2.0×3.0 screws (2) that secure the WLAN module to the computer.

(The edge of the module opposite the slot rises away from the computer.)

Battery on page 41).

Bottom door on page 47).

60 Chapter 4 Removal and replacement procedures

4. Remove the WLAN module (3) by pulling the module away from the slot at an angle.

NOTE: WLAN modules are designed with a notch (4) to prevent incorrect insertion.

NOTE: If the WLAN antennas are not connected to the terminals on the WLAN module, the

protective sleeves must be installed on the antenna connectors, as shown in the following
illustration.

Reverse this procedure to install the WLAN module.

Component replacement procedures 61

Bluetooth module

NOTE: The Bluetooth module spare part kit does not include a Bluetooth module cable. The

Bluetooth module cable is included in the Cable Kit, spare part number 646968-001. See

on page 27 for more Cable Kit spare part number information.

Description Spare part number

Bluetooth module 537921-001

Before removing the Bluetooth module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet,

and then unplugging the AC adapter from the computer.

Cable Kit

4. Remove the battery (see

5. Remove the bottom door (see

Battery on page 41).

Bottom door on page 47).

Remove the Bluetooth module:

1. Position the computer upside-down with the front toward you.

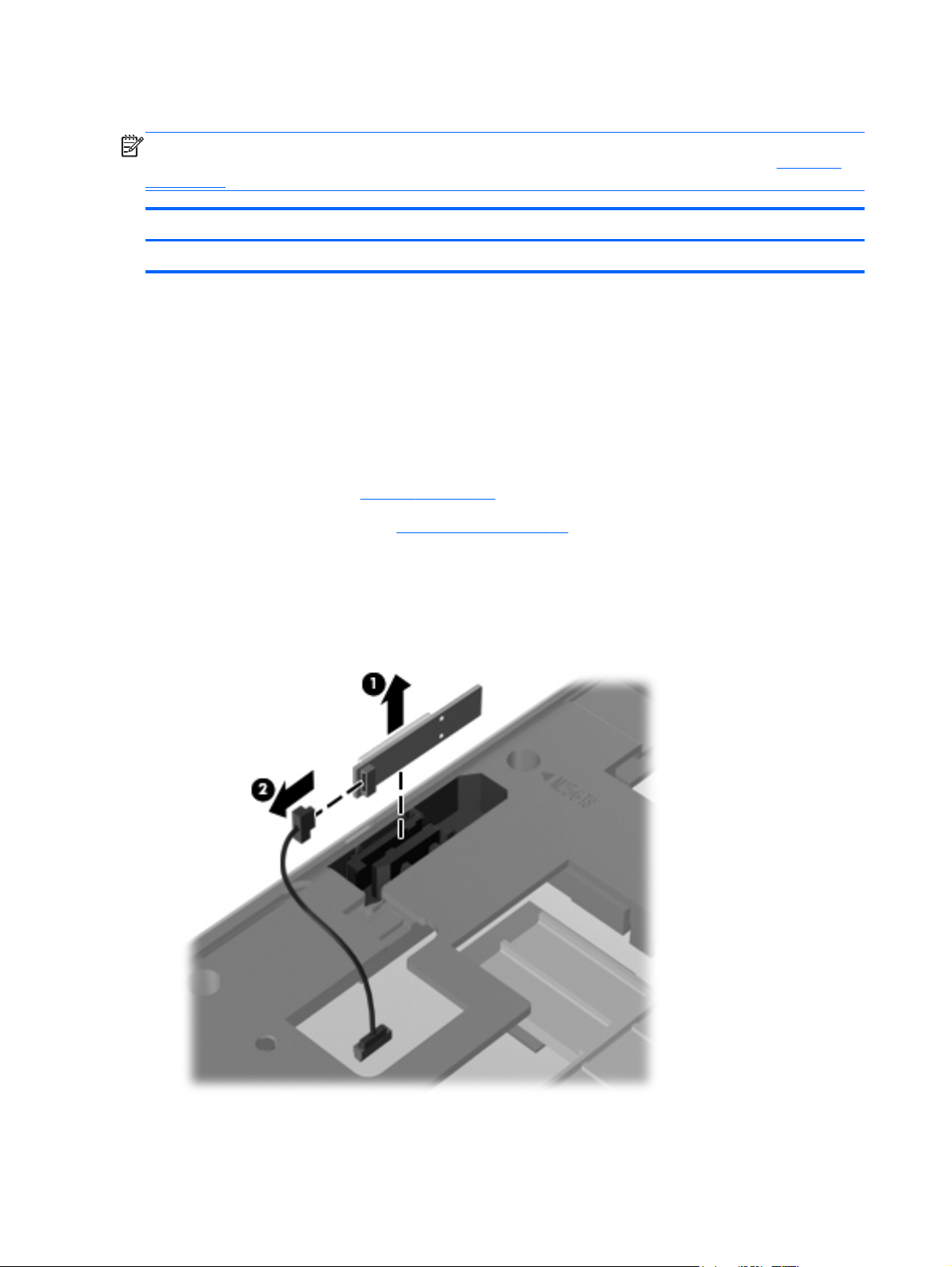

2. Lift the module straight up out of the computer (1), and then disconnect the cable (2) from the

module.

3. Remove the module from the computer.

62 Chapter 4 Removal and replacement procedures

Reverse this procedure to install the Bluetooth module.

Modem module

NOTE: The modem module spare part kit does not include a modem module cable. The modem

module cable is included in the Cable Kit, spare part number 646968-001. See
for more Cable Kit spare part number information.

Description Spare part number

Modem module 628824-001

Before removing the modem module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet,

and then unplugging the AC adapter from the computer.

Cable Kit on page 27

4. Remove the battery (see

5. Remove the bottom door (see

Battery on page 41).

Bottom door on page 47).

Remove the modem module:

1. Position the computer upside-down with the front toward you.

2. Remove the two Phillips PM2.0×3.0 screws (1) that secure the modem module to the system

board.

3. Disconnect the modem module (2) from the system board by lifting it straight up.

Component replacement procedures 63

4. Disconnect the modem module cable (3) from the modem module.

Reverse this procedure to install the modem module.

64 Chapter 4 Removal and replacement procedures

Fan

Description Spare part number

Fan 641183-001

Before removing the fan, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet,

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the bottom door (see

Battery on page 41).

Bottom door on page 47).

Remove the fan:

1. Position the computer upside-down with the front toward you.

2. Loosen the three captive Phillips screws (1) that secure the fan to the base enclosure.

3. Lift the fan straight up (2) to gain access to the system board connector.

4. Disconnect the fan cable (3) from the system board.

Reverse this procedure to install the fan.

Component replacement procedures 65

NOTE: To properly ventilate the computer, allow at least a 7.6-cm (3-in) clearance on the left side of

the computer.

The computer uses an electric fan for ventilation. The fan is controlled by a temperature sensor and is
designed to turn on automatically when high temperature conditions exist. These conditions are
affected by high external temperatures, system power consumption, power management/battery
conservation configurations, battery fast charging, and software requirements. Exhaust air is
displaced through the ventilation grill located on the left side of the computer.

Heat sink

All heat sink spare part kits include replacement thermal material, including thermal grease and pads.

Description Spare part number

Heat sink 658140-001

Before removing the heat sink, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

2. Disconnect all external devices connected to the computer.

the computer on, and then shut it down through the operating system.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet,

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the bottom door (see

6. Remove the fan (see

Battery on page 41).

Bottom door on page 47).

Fan on page 65).

Remove the heat sink:

1. Position the computer upside-down with the front toward you.

2. In the order indicated, loosen the captive Phillips screws (1) that secure the heat sink to the

system board.

3. Lift the heat sink up at an angle (2).

66 Chapter 4 Removal and replacement procedures

4. Pull the heat sink away from the side of the computer to remove it (3).

NOTE: Thoroughly clean thermal material from the surfaces of the system board (1)(3) and heat

sink (2)(4) each time you remove the heat sink. All heat sink and processor spare part kits include
thermal material.

In the following illustration, the location denoted by callout (2) on the heat sink uses thermal grease.
The location denoted by callout (4) on the heat sink uses a PCH thermal pad.

Component replacement procedures 67

Reverse this procedure to install the heat sink.

68 Chapter 4 Removal and replacement procedures

Processor

NOTE: All processor spare part kits include replacement thermal material, including thermal grease

and pads.

Description Spare part number

AMD Quad-Core A8-3510M (2.5-GHz/1.5-GHz, 4-MB L2 cache, 45W) APU 653358-001

AMD Quad-Core A6-3410M (2.3-GHz/1.6-GHz, 4-MB L2 cache, 45W) APU 653357-001

AMD Dual-Core A4-3310M (2.5-GHz/2.1-GHz, 2-MB L2 cache, 45W) APU 653356-001

AMD Dual Core E2-3000M (2.4-GHz/1.8-GHz, 1-MB L2 cache, 35W) 653351-001

Before removing the processor, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet,

the computer on, and then shut it down through the operating system.

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the bottom door (see

6. Remove the fan (see

7. Remove the heat sink (see

Battery on page 41).

Bottom door on page 47).

Fan on page 65).

Heat sink on page 66).

Remove the processor:

1. Position the computer upside-down with the front toward you.

2. Use a flat-bladed screwdriver to turn the processor locking screw (1) one-half turn

counterclockwise until you hear a click.

Component replacement procedures 69

3. Lift the processor (2) straight up and remove it.

NOTE: The gold triangle (3) on the processor must be aligned with the triangle (4) embossed

on the processor slot when you install the processor.

Reverse this procedure to install the processor.

70 Chapter 4 Removal and replacement procedures

Keyboard

NOTE: For a detailed list of available keyboards, see Sequential part number listing on page 30.

Description Spare part number

Keyboard for use in models without a pointing stick 641180-xxx

Keyboard for use in models with a pointing stick 641179-xxx

Before removing the keyboard, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet,

the computer on, and then shut it down through the operating system.

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the bottom door (see

6. Remove the fan (see

7. Remove the heat sink (see

Battery on page 41).

Bottom door on page 47).

Fan on page 65).

Heat sink on page 66).

Remove the keyboard:

1. Position the computer upside-down with the battery bay toward you.

2. Loosen the three Phillips captive screws that secure the keyboard to the computer.

Component replacement procedures 71

3. Using a screwdriver or similar too, press in the gap in the left side of the battery bay to

disengage the keyboard.

4. Position the computer right-side up with the front toward you.

5. Open the computer as far as possible.

6. Open the computer as far as possible.

7. Lift and rotate the keyboard upward to gain access to the cables.

72 Chapter 4 Removal and replacement procedures

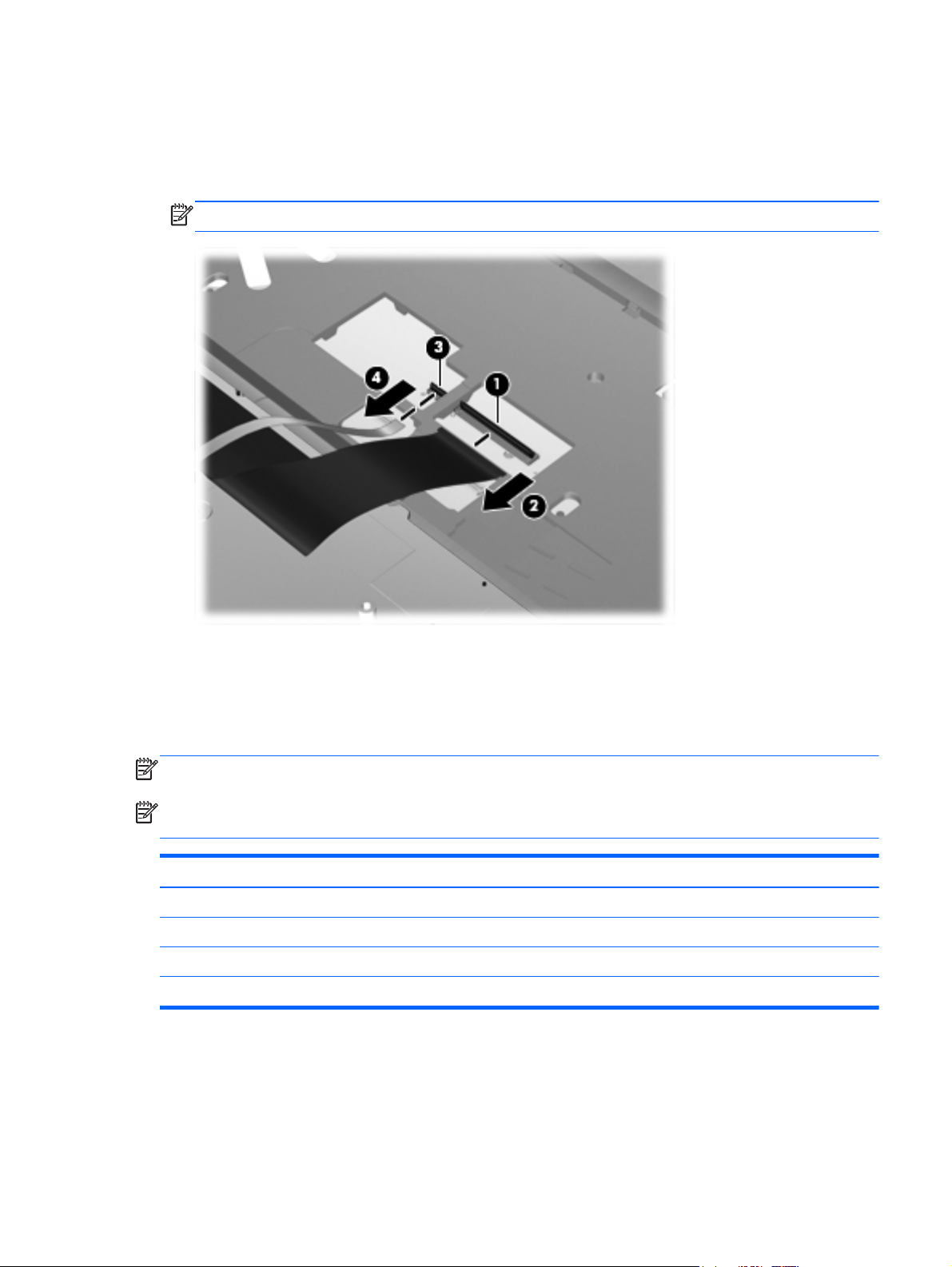

8. Lift the keyboard connector latch (1), and then disconnect the keyboard cable from the system

board (2).

9. If applicable, lift the pointing stick connector latch (3), and then disconnect the pointing stick

cable from the system board (4).

NOTE: Some models are not equipped with a pointing stick.

10. Remove the keyboard.

Reverse this procedure to install the keyboard.

Bottom cover

NOTE: The bottom covers includes rubber feet.

NOTE: Make sure to remove the modem plug from the slot in the bottom cover if the repaired unit

includes a modem.

Description Spare part number

Bottom cover 644695-001

Top cover for use on models that include a fingerprint reader, without a pointing stick 641204-001

Top cover for use on models that include a fingerprint reader and a pointing stick 641205-001

Top cover for use on models that include a pointing stick, without a fingerprint reader 641206-001

Component replacement procedures 73

Before removing the bottom cover, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet,

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 41).

5. Remove the following components:

a. Bottom door (see

b. Hard drive (see

c. Optical drive (see

d. WLAN module (see

e. WWAN module (see

f. Modem module (see

g. Fan (see

Fan on page 65)

h. Heat sink (see

i. Keyboard (see

Bottom door on page 47).

Hard drive on page 52)

Optical drive on page 48)

WLAN module on page 59)

WWAN module on page 57)

Modem module on page 63)

Heat sink on page 66)

Keyboard on page 71)

Remove the bottom cover:

1. Position the computer upside-down with the front toward you.

74 Chapter 4 Removal and replacement procedures

2. Remove the following covers and screws that secure the bottom cover to the computer:

(1) 2 small rubber screw covers

(2) 1 large rubber screw cover

(3) 7 Torx T8M2.5×6.0 screws

(4) 4 Phillips PM2.5×3.0 screws from the battery bay

3. Remove the following screws that secure the bottom cover to the computer:

(1): 2 Phillips PM2.5×3.0 screws from the hard drive bay

(2): 3 Phillips PM2.0×3.0 screws from the optical drive bay

Component replacement procedures 75

4. Remove the 4 Torx T8M2.5×5.0 screws from the rear of the computer.

5. Remove the wireless cables from their routing path on the bottom cover (1), and disconnect the

speaker cable from the system board (2).

6. Position the computer upright with the front toward you.

7. Open the computer as far as possible.

76 Chapter 4 Removal and replacement procedures

8. Remove the 2 Phillips PM2.0×6.0 screws from the top of the computer.

9. Pry up on the edges of the bottom cover to disengage the cover from the computer.

10. Remove the bottom cover from the computer.

Reverse this procedure to install the bottom cover.

NOTE: When replacing the bottom cover, make sure to remove the modem plug from the slot in the

bottom cover if the repaired unit includes a modem.

Component replacement procedures 77

Speaker assembly

Description Spare part number

Speaker assembly 641186-001

Before removing the speaker assembly, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet,

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 41).

5. Remove the following components:

a. Bottom door (see

b. Hard drive (see

c. Optical drive (see

d. WLAN module (see

e. WWAN module (see

f. Fan (see

Fan on page 65)

g. Heat sink (see

h. Keyboard (see

i. Top cover (see

Bottom door on page 47).

Hard drive on page 52)

Optical drive on page 48)

WLAN module on page 59)

WWAN module on page 57)

Heat sink on page 66)

Keyboard on page 71)

Bottom cover on page 73)

Remove the speaker assembly:

1. Position the top cover with the front toward you.

2. Remove the two Phillips PM2.0×3.0 screws (1) that secure the speaker assembly to the top

cover.

78 Chapter 4 Removal and replacement procedures

3. Remove the speaker assembly (2) from the top cover.

Reverse this procedure to install the speaker assembly.

Component replacement procedures 79

RJ-11 jack cable

NOTE: The RJ-11 jack cable is included in the Cable Kit, spare part number 646968-001.

Before removing the RJ-11 jack cable, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet,

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the following components:

a. Bottom door (see

b. Hard drive (see

c. Optical drive (see

d. WLAN module (see

e. WWAN module (see

f. Modem module (see

g. Fan (see

h. Heat sink (see

i. Keyboard (see

j. Top cover (see

Remove the RJ-11 jack cable:

1. Position the top cover with the front toward you.

Fan on page 65)

Battery on page 41).

Bottom door on page 47).

Hard drive on page 52)

Optical drive on page 48)

WLAN module on page 59)

WWAN module on page 57)

Modem module on page 63)

Heat sink on page 66)

Keyboard on page 71)

Bottom cover on page 73)

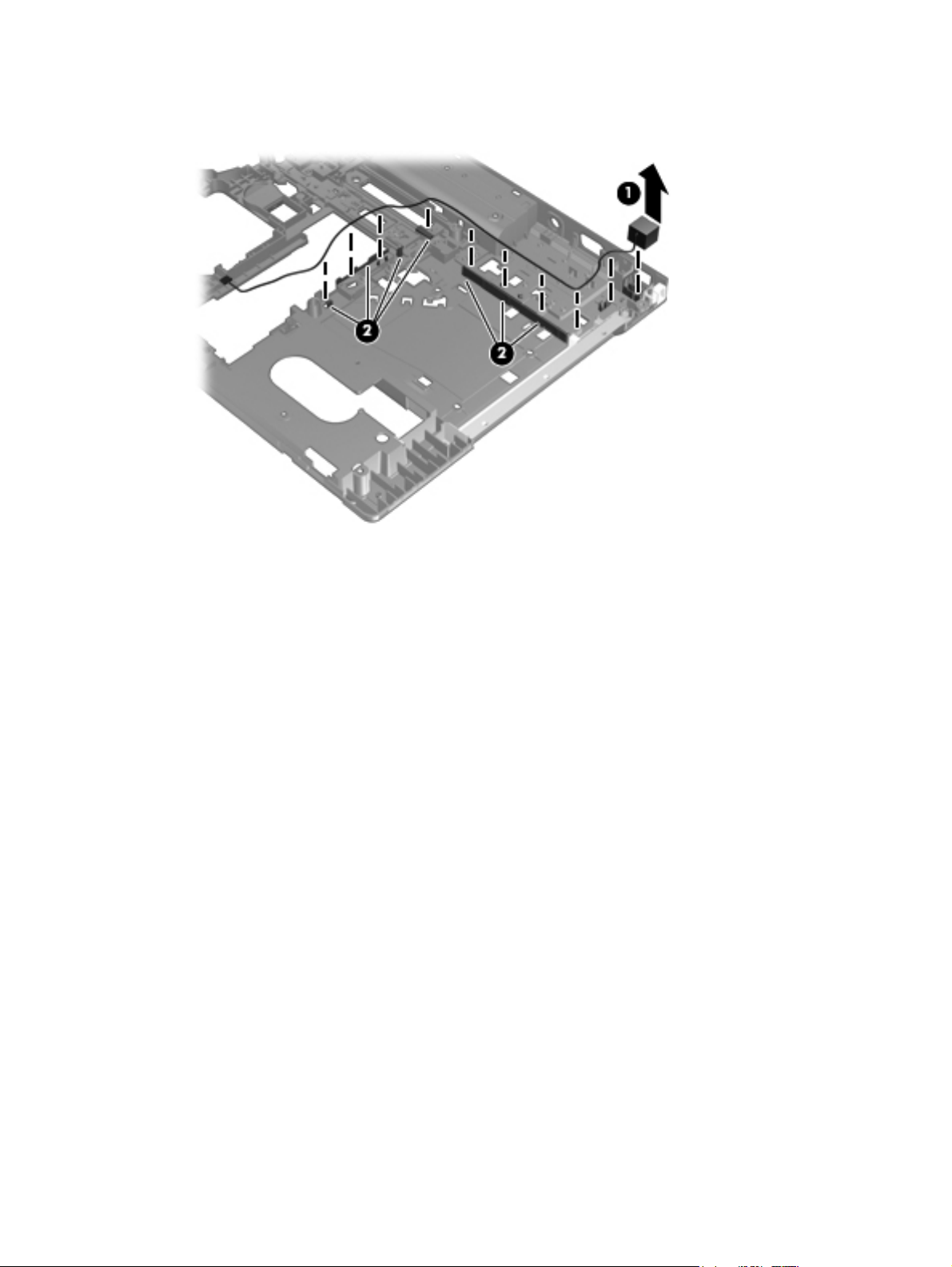

2. Remove the RJ-11 jack (1) from the clip built into the base enclosure.

80 Chapter 4 Removal and replacement procedures

3. Remove the RJ-11 jack cable from the clips and routing channel (2) built into the base

enclosure.

4. Remove the RJ-11 jack cable from the top cover.

Reverse this procedure to install the RJ-11 jack cable.

Component replacement procedures 81

Function board

Description Spare part number

Function board 658142-001

Before removing the function board, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet,

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 41).

5. Remove the following components:

a. Bottom door (see

b. Hard drive (see

c. Optical drive (see

d. WLAN module (see

e. WWAN module (see

f. Fan (see

Fan on page 65)

g. Heat sink (see

h. Keyboard (see

i. Top cover (see

Bottom door on page 47).

Hard drive on page 52)

Optical drive on page 48)

WLAN module on page 59)

WWAN module on page 57)

Heat sink on page 66)

Keyboard on page 71)

Bottom cover on page 73)

Remove the function board:

1. Position the computer upside-down with the front toward you.

2. Remove the wireless cable from atop the board (1).

82 Chapter 4 Removal and replacement procedures

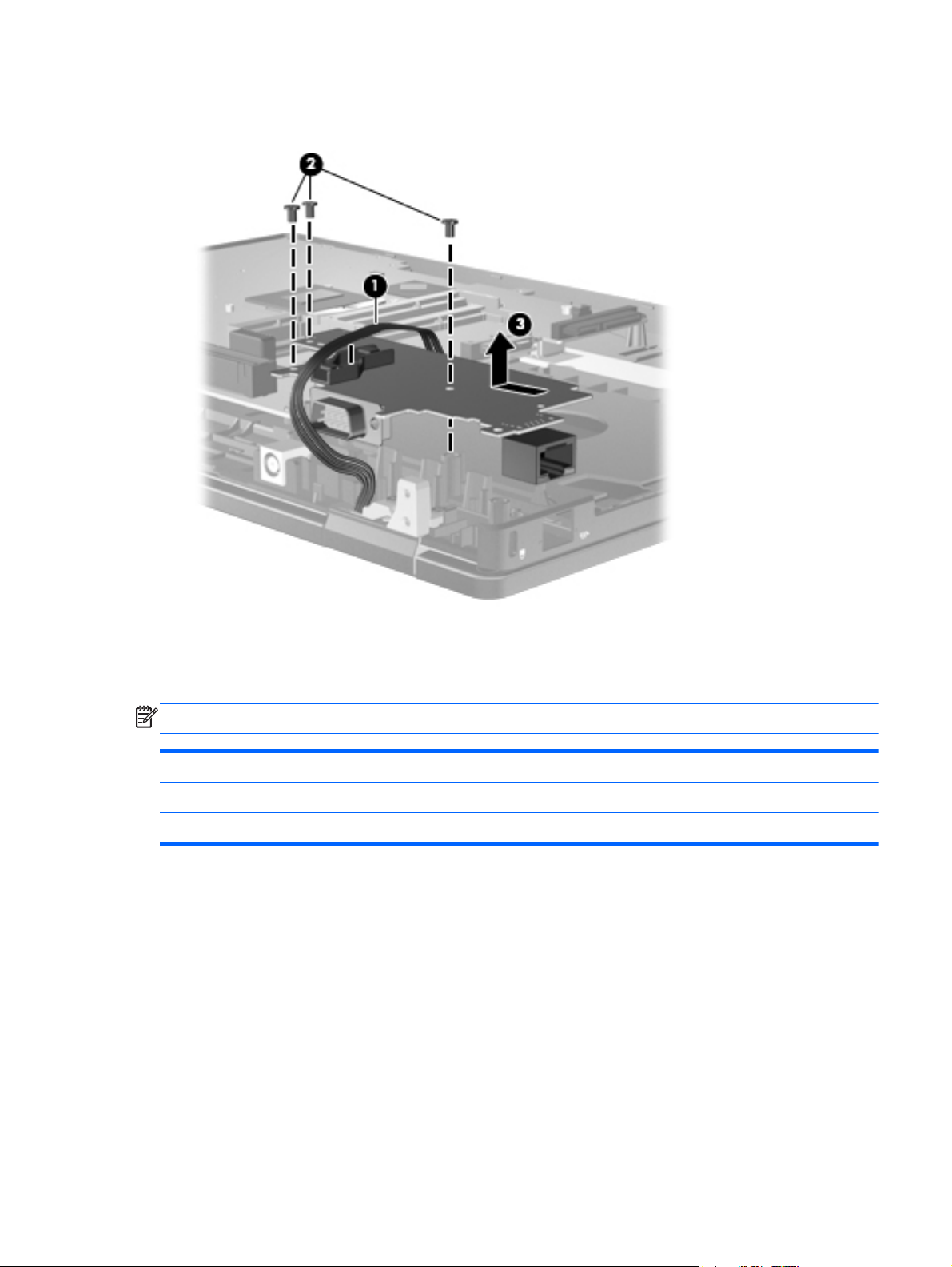

3. Remove the three Phillips PM2.5×7.0 screws (2) that secure the board to the computer, and

then slide the board away from the side and lift it out of the computer (3).

Reverse this procedure to install the function board.

System board

NOTE: All system board spare part kits include thermal pads.

Description Spare part number

System board for use in models with WWAN 658143-001

System board for use in models without WWAN 665718-001

Before removing the system board, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet,

and then unplugging the AC adapter from the computer.

Component replacement procedures 83

4. Remove the battery (see Battery on page 41).

5. Remove the following components:

a. Bottom door (see

b. Hard drive (see

c. Optical drive (see

d. Modem module (see

e. Fan (see

f. Heat sink (see

g. Keyboard (see

h. Top cover (see

i. Function board (see

When replacing the system board, be sure that the following components are removed from the
defective system board and installed on the replacement system board:

SIM (see

●

Memory module (see

●

WLAN module (see

●

WWAN module (see

●

Fan on page 65)

SIM on page 46)

Bottom door on page 47).

Hard drive on page 52)

Optical drive on page 48)

Modem module on page 63)

Heat sink on page 66)

Keyboard on page 71)

Bottom cover on page 73)

Function board on page 82)

Memory modules on page 55)

WLAN module on page 59)

WWAN module on page 57)

Modem module (see

●

Processor (see

●

Remove the system board:

1. Position the computer right-side up, with the front toward you.

2. Lift the Touchpad connector latch (1) and disconnect the Touchpad cable (2).

3. Lift the fingerprint reader connector latch (3) and disconnect the fingerprint reader cable (4).

Modem module on page 63)

Processor on page 69)

84 Chapter 4 Removal and replacement procedures

4. Disconnect the power connector cable (5).

5. Position the computer upside-down with the rear toward you.

6. Remove the display cable from the rubber routing path mounted on the computer (1).

7. Disconnect the display cable from the system board (2).

Component replacement procedures 85

8. Remove the five Phillips PM2.5×5.0 screws that secure the system board to the base enclosure.

NOTE: For system board replacement, note the location of the screw with the ground.

9. Lift the system board up at an angle (1), and then lift the system board up and out of the

computer (2).

10. Remove the system board from the chassis.

Reverse this procedure to install the system board.

NOTE: Make sure you install the display cable ground with the correct system board screw when

replacing the system board.

86 Chapter 4 Removal and replacement procedures

USB board

Description Spare part number

USB 2.0 board (includes Mylar) 658141-001

Before removing the USB board, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet,

the computer on, and then shut it down through the operating system.

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 41).

5. Remove the following components:

a. Bottom door (see

b. Hard drive (see

c. Optical drive (see

d. WLAN module (see

e. WWAN module (see

f. Fan (see

Fan on page 65)

g. Heat sink (see

h. Keyboard (see

i. Top cover (see

j. Function board (see

k. System board (see

Bottom door on page 47).

Hard drive on page 52)

Optical drive on page 48)

WLAN module on page 59)

WWAN module on page 57)

Heat sink on page 66)

Keyboard on page 71)

Bottom cover on page 73)

Function board on page 82)

System board on page 83)

Remove the USB board:

1. Position the computer upside-down with the front toward you.

Component replacement procedures 87

2. Lift the board straight up out of the computer.

Reverse this procedure to install the USB board.

88 Chapter 4 Removal and replacement procedures

Display assembly and components (whole hinge-up, cable, antennas, hinges, enclosure)

NOTE: This section describes removing components that require you to completely remove the

display panel. For more information about removing display components that do not require that you
remove the assembly from the computer, see

on page 42.

All display assemblies include WLAN antenna transceivers and cables. WWAN models include 2
WWAN antenna transceivers and cables.

Display assembly (panel, bezel, webcam, microphone)

For a complete list of individual display spare parts, see

Description Spare part number

Display bezel

For use with models with a webcam 660276-001

For use with models without a webcam 660277-001

Display hinges (includes left and right hinges, brackets, and covers) 647677-001

Display Cable Kit

For use in models with HD displays 646969-001

For use in models with HD+ displays 646970-001

WLAN antennas

Included in Cable Kit

Included in Display Panel Support Kit

WWAN antennas

Included in Cable Kit

Included in Display Panel Support Kit

Display enclosure

Display components on page 25.

646968-001

657831-001

646968-001

657831-001

Enclosure

Included in Display Panel Support Kit

Display Panel Support Kit (includes WLAN antennas, WWAN antennas, and display enclosure) 657831-001

641202-001

657831-001

For a list of display spare parts, see Display components on page 25.

Before removing the display assembly, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet,

and then unplugging the AC adapter from the computer.

Component replacement procedures 89

4. Remove the battery (see Battery on page 41).

5. Remove the following components:

a. Bottom door (see

b. Hard drive (see

c. Optical drive (see

d. WLAN module (see

e. WWAN module (see

f. Fan (see

Fan on page 65)

g. Heat sink (see

h. Modem module (see

i. Keyboard (see

j. Top cover (see

k. Function board (see

l. System board (see

Bottom door on page 47).

Hard drive on page 52)

Optical drive on page 48)

WLAN module on page 59)

WWAN module on page 57)

Heat sink on page 66)

Modem module on page 63)

Keyboard on page 71)

Bottom cover on page 73)

Function board on page 82)

System board on page 83)

Remove the display assembly:

1. Position the computer right-side up with the front toward you.

2. Open the computer as far as possible.

3. Remove the four Phillips PM2.5×7.0 screws (1) and the Phillips PM2.5×4.5 screw that secures

the display to the computer.

90 Chapter 4 Removal and replacement procedures

4. For reassembly, note the routing path of the wireless antennas (3) and the display cable (4).

5. Lift the display assembly straight up and remove it.

CAUTION: When installing the display assembly, be sure that the wireless antenna cables are

routed and arranged properly.

Failure to properly route the antennas can result in degradation of the computer's WLAN and
WWAN performance.

Component replacement procedures 91

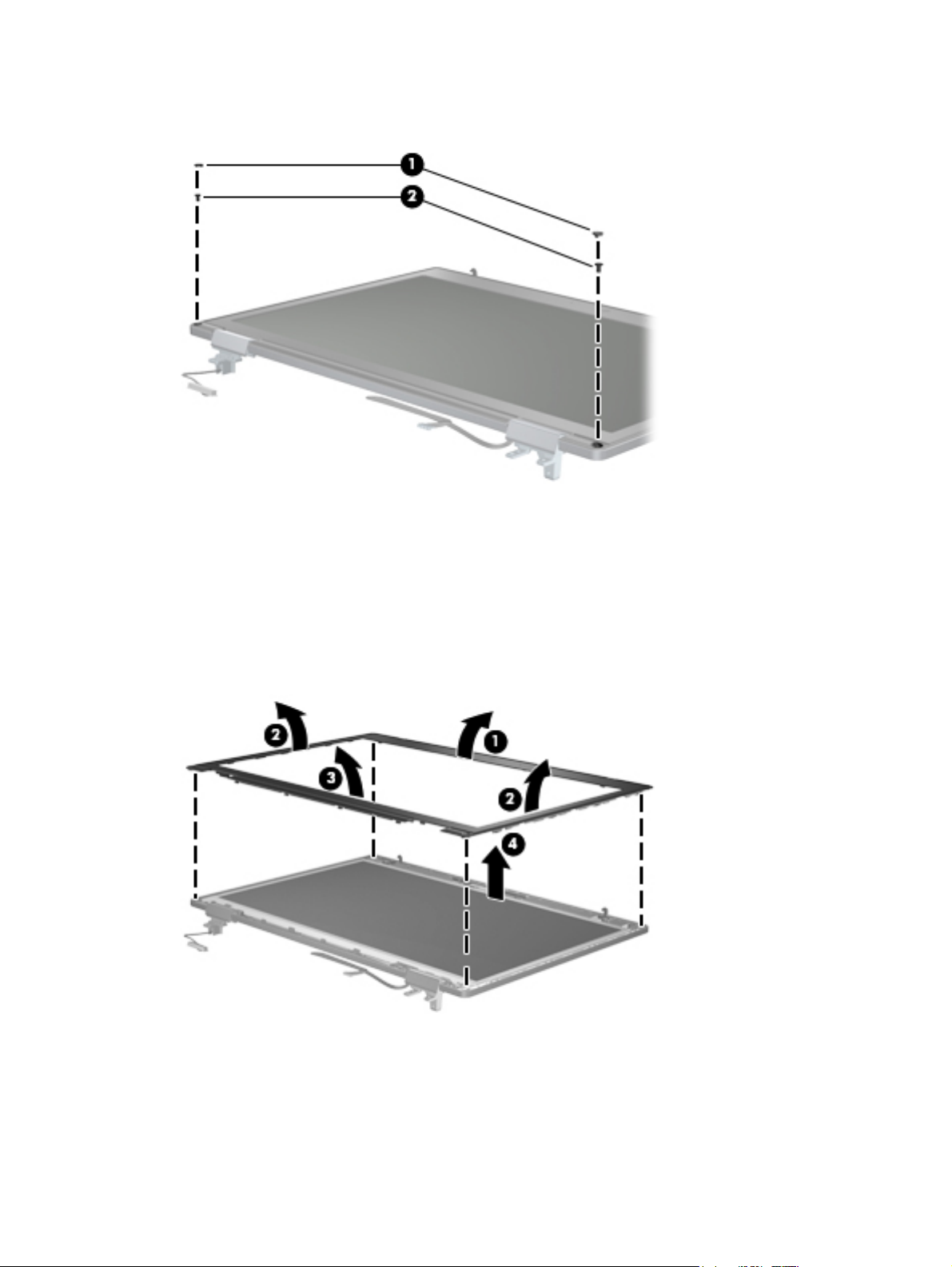

6. To replace the display bezel, remove the two rubber screw covers (1) and the two Phillips

PM2.5×5.0 screws (2) in the bottom corners of the display bezel.

7. Flex the top (1) of the bezel, the inside edges of the left and right sides (2), and then the bottom

(3) of the bezel until it disengages from the display enclosure.

8. Remove the display bezel (4).

Display bezels are available using the following spare part numbers:

660276-001 for use in models with a webcam

660277-001 for use in models without a webcam

9. To remove the display panel, remove the eight Phillips PM2.5×4.0 screws (1) that secure the

display panel to the brackets.

10. Rotate the top of the panel upward (2).

92 Chapter 4 Removal and replacement procedures
