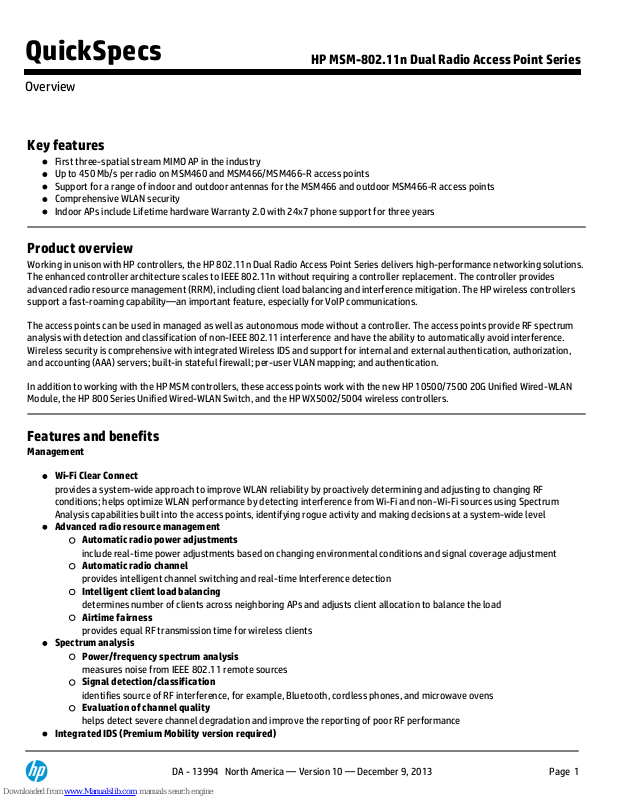

HP MSM-802.11 Specifications

Key features

First three-spatial stream MIMO AP in the industry
Up to 450 Mb/s per radio on MSM460 and MSM466/MSM466-R access points
Support for a range of indoor and outdoor antennas for the MSM466 and outdoor MSM466-R access points
Comprehensive WLAN security
Indoor APs include Lifetime hardware Warranty 2.0 with 24x7 phone support for three years

Product overview

Working in unison with HP controllers, the HP 802.11n Dual Radio Access Point Series delivers high-performance networking solutions.
The enhanced controller architecture scales to IEEE 802.11n without requiring a controller replacement. The controller provides
advanced radio resource management (RRM), including client load balancing and interference mitigation. The HP wireless controllers
support a fast-roaming capability—an important feature, especially for VoIP communications.

The access points can be used in managed as well as autonomous mode without a controller. The access points provide RF spectrum
analysis with detection and classification of non-IEEE 802.11 interference and have the ability to automatically avoid interference.
Wireless security is comprehensive with integrated Wireless IDS and support for internal and external authentication, authorization,
and accounting (AAA) servers; built-in stateful firewall; per-user VLAN mapping; and authentication.

In addition to working with the HP MSM controllers, these access points work with the new HP 10500/7500 20G Unified Wired-WLAN
Module, the HP 800 Series Unified Wired-WLAN Switch, and the HP WX5002/5004 wireless controllers.

Features and benefits

Management

Wi-Fi Clear Connect

provides a system-wide approach to improve WLAN reliability by proactively determining and adjusting to changing RF
conditions; helps optimize WLAN performance by detecting interference from Wi-Fi and non-Wi-Fi sources using Spectrum
Analysis capabilities built into the access points, identifying rogue activity and making decisions at a system-wide level

Advanced radio resource management

Automatic radio power adjustments

include real-time power adjustments based on changing environmental conditions and signal coverage adjustment

Automatic radio channel

provides intelligent channel switching and real-time Interference detection

Intelligent client load balancing

determines number of clients across neighboring APs and adjusts client allocation to balance the load

Airtime fairness

provides equal RF transmission time for wireless clients

Spectrum analysis

Power/frequency spectrum analysis

measures noise from IEEE 802.11 remote sources

Signal detection/classification

identifies source of RF interference, for example, Bluetooth, cordless phones, and microwave ovens

Evaluation of channel quality

helps detect severe channel degradation and improve the reporting of poor RF performance

Integrated IDS (Premium Mobility version required)

QuickSpecs

HP MSM-802.11n Dual Radio Access Point Series

Overview

DA - 13994 North America — Version 10 — December 9, 2013

Page 1

detects and locates unknown and rogue devices

Access point management

provides secure Web browser (SSL and VPN), command-line interface, SNMP v2c, SNMP v3, MIB-II with traps, and RADIUS
Authentication Client MIB (RFC 2618); offers embedded HTML management tool with secure access (SSL and VPN); implements
scheduled configuration and firmware upgrades from a central controller

HP Intelligent Management Center and Wireless Services Manager Software

provides central management for discovery, logging, status, and configuration management

Diagnostics

client event log records association, authentication, and DHCP events; packet capture tool for Ethernet and IEEE 802.11
interfaces (PCAP format); includes data rate matrix

Enhanced AP survivability

continues to operate using the old IP address while the AP searches for a new controller

Compatible with HP controllers, unified switches, and modules

HP MSM710, MSM720, MSM760, and MSM765 zl Controllers; min. software version 5.5
HP WX5000 Access Controllers; min. software version CMW520-R2308P18
HP 10500/7500 20G Unified Wired-WLAN Module; min. software version CMW520-R6708 on 7500 switch
HP 10500/7500 20G Unified Wired-WLAN Module; min. software version CMW520-R1208 on 10500 switch
HP 830 Unified Wired-WLAN Switch Series controllers, min. software version CMW520-R3308P19

Quality of Service

(QoS)

Rate limiting

supports per-wireless client ingress-enforced maximums and per-wireless client, per-queue guaranteed minimums

Centralized traffic

Layer 2 and Layer 3 QoS settings are maintained when using Mobility Traffic Manager or guest access

IEEE 802.1p prioritization

delivers data to devices based on the priority and type of traffic

Wireless

L2/L3/L4 classification

IEEE 802.1p VLAN priority, SpectraLink SVP, and DiffServ

Assigned by VSC

Wi-Fi MultiMedia (WMM), IEEE 802.11e EDCF, and Service-Aware priority

Maximum VoIP call capacity

12 active calls on IEEE 802.11 a/b/g/n

SpectraLink Voice Priority (SVP) support

prioritizes SpectraLink voice IP packets sent from a SpectraLink NetLink SVP server to SpectraLink wireless voice handsets to
help ensure excellent voice quality

Connectivity

IEEE 802.3af Power over Ethernet (PoE) support

simplifies deployment and dramatically reduces installation costs by helping to eliminate the time and cost involved in supplying
local power at each access point location

Auto-MDIX

automatically adjusts for straight-through or crossover cables on the Ethernet interface

Mobility

Three spatial stream MIMO technology

provides the latest in Wi-Fi technology, which allows for 450 Mbps of signaling per radio; delivers potentially more than a 50
percent increase in performance over any two spatial stream product

QuickSpecs

HP MSM-802.11n Dual Radio Access Point Series

Overview

DA - 13994 North America — Version 10 — December 9, 2013

Page 2

Beamforming

provides better coverage area and better performance at distances from the AP

Bandsteering

redirects 5 GHz-capable clients automatically to the less-congested 5 GHz spectrum

Concurrent operation in the 5 GHz band

provides the ability to run both radios in the 5 GHz band for outstanding performance (MSM466 and MSM466-R access points
only)

MSM430 and MSM 460 AP antennas

embedded high-gain antennas (4 dBi antenna at 2.4 GHz and 7 dBi antenna at 5 GHz) provide excellent coverage without the
added cost of external antennas

MSM466 and MSM466-R access points

Optional external antennas options

MSM466 access point includes six indoor RP-SMA connectors; MSM466-R access point includes six outdoor standard N
connectors

Two indoor ceiling mount antennas

provide good coverage when embedded antennas are not an option

Outdoor IP67-rated antennas

two omnidirectional and two directional MIMO antennas are weatherproof IP67 tested for point-to-point, multipoint,
mesh, and outdoor coverage

Anywhere, anytime wireless coverage

includes dual-radio IEEE 802.11a/b/g/n and 802.11a/n access points; per-radio software-selectable configuration of frequency
bands; self-healing, self-optimizing local mesh that extends network availability; Wi-Fi Alliance Certifications for interoperability
with all IEEE 802.11a/b/g/n client devices; and IEEE 802.3af PoE

Medical standards

meets the European EN60601-1-2 standard for healthcare

Virtual Service Communities (VSCs)

includes up to 16 SSIDs, each with unique MAC address and configurable SSID broadcasts; individual security and QoS profiles
per VSC; configurable DTIM and minimum data rate per VSC; VSCs that can be mapped to separate IEEE 802.1Q VLANs; WMM
and/or WMM-PS; a security filter; and an IP filter

AP client access control functions

offers IEEE 802.1X authentication using EAP-SIM, EAP-FAST, EAP-TLS, EAP-TTLS, and PEAP
delivers MAC address authentication using local or RADIUS access lists
provides RADIUS AAA using EAP-MD5, PAP, CHAP, and MS-CHAPv2
supports RADIUS Client (RFC 2865 and 2866) with location-aware support
provides Layer 2 wireless client isolation

Security

Automated AP and client classification

reduces manual effort (administrator can override AP classification)

Comprehensive detection capabilities

detects a wide range of attacks

Flexible event reporting

enables configuration of which events will result in notifications

Location tracking capabilities

helps identify the location of the rogue device

Flexible deployment models

supports time slicing or dedicating a radio to detect fulltime

IEEE 802.1X support

provides port-based user authentication with support for Extensible Authentication Protocol (EAP) MD5, TLS, TTLS, and PEAP

QuickSpecs

HP MSM-802.11n Dual Radio Access Point Series

Overview

DA - 13994 North America — Version 10 — December 9, 2013

Page 3

with choice of AES, TKIP, and static or dynamic WEP encryption for protecting wireless traffic between authenticated clients and
the access point

Choice of IEEE 802.11i, WPA2, or WPA

locks out unauthorized wireless access by authenticating users prior to granting network access; robust Advanced Encryption
Standard (AES) or Temporal Key Integrity Protocol (TKIP) encryption secures the data integrity of wireless traffic

TKIP/WEP encryption

is supported only on legacy IEEE 802.11a/b/g clients as it has been deprecated from the IEEE 802.11n standard

Local wireless bridge client traffic filtering

prevents communication between wireless devices associated with the same access point

Additional information

RFC support

refer to the "Mobility Specification Sheet" for a list of RFCs and other industry standards supported by the MSM solution at

http://h17007.www1.hp.com/docs/mobility/4AA3-3883ENW.pdf

Warranty and support

Lifetime Warranty 2.0

for indoor access points, advance hardware replacement for as long as you own the product with next-business-day delivery
(available in most countries)†

Electronic and telephone support (for Lifetime Warranty 2.0)

for indoor access points, limited 24x7 telephone support is available from HP for the first 3 years; limited electronic and
business hours telephone support is available from HP for the entire warranty period; to reach our support centers, refer to

www.hp.com/networking/contact-support

; for details on the duration of support provided with your product purchase, refer to

www.hp.com/networking/warrantysummary

1-year Warranty 2.0

for outdoor access points, advance hardware replacement with next-business-day delivery (available in most countries)

Electronic and telephone support (for Warranty 2.0)

for outdoor access points, limited electronic and 24x7 telephone support is available from HP for the entire warranty period; to
reach our support centers, refer to

www.hp.com/networking/contact-support

; for details on the duration of support provided

with your product purchase, refer to www.hp.com/networking/warrantysummary

Software releases

to find software for your product, refer to

www.hp.com/networking/support

; for details on the software releases available with

your product purchase, refer to

www.hp.com/networking/warrantysummary

†HP warranty includes repair or replacement of hardware for as long as you own the product, with next business day advance
replacement (available in most countries). The disk drive included with HP AllianceOne Advanced Services and Services zl Modules, HP
Threat Management Services zl Module, HP AllianceOne Extended zl Module with Riverbed Steelhead, HP MSM765zl Mobility Controller
and HP Survivable Branch Communication zl Module powered by Microsoft® Lync has a five-year hardware warranty. For details, refer
to the Software license and hardware warranty statements at

www.hp.com/networking/warranty

.

QuickSpecs

HP MSM-802.11n Dual Radio Access Point Series

Overview

DA - 13994 North America — Version 10 — December 9, 2013

Page 4

Build To Order:

BTO is a standalone unit with no integration. BTO products ship standalone are not part of a CTO or Rack­Shippable solution.

MSM430 Dual Radio 802.11n AP (AM)

J9650B

1 RJ-45 autosensing 10/100/1000 port

HP MSM430 Dual Radio 802.11n Access Point (WW)

J9651A

1 RJ-45 autosensing 10/100/1000 port

See Configuration

Note:2

MSM430 Dual Radio 802.11n AP (WW)

J9651B

1 RJ-45 autosensing 10/100/1000 port

See Configuration

Note:2

HP MSM430 Dual Radio 802.11n Access Point (JP)

J9652A

1 RJ-45 autosensing 10/100/1000 port

MSM430 Dual Radio 802.11n AP (JP)

J9652B

1 RJ-45 autosensing 10/100/1000 port

HP MSM430 Dual Radio 802.11n Access Point (IL)

J9653A

1 RJ-45 autosensing 10/100/1000 port

See Configuration

Note:3

MSM430 Dual Radio 802.11n AP (IL)

J9653B

1 RJ-45 autosensing 10/100/1000 port

See Configuration

Note:3

HP MSM460 Dual Radio 802.11n Access Point (AM)

J9590A

1 RJ-45 autosensing 10/100/1000 port

MSM460 Dual Radio 802.11n AP (AM)

J9590B

1 RJ-45 autosensing 10/100/1000 port

HP MSM460 Dual Radio 802.11n Access Point (WW)

J9591A

1 RJ-45 autosensing 10/100/1000 port

See Configuration

Note:2

MSM460 Dual Radio 802.11n AP (WW)

J9591B

1 RJ-45 autosensing 10/100/1000 port

See Configuration

Note:2

HP MSM460 Dual Radio 802.11n Access Point (JP)

J9589A

QuickSpecs

HP MSM-802.11n Dual Radio Access Point Series

Configuration

DA - 13994 North America — Version 10 — December 9, 2013

Page 5

1 RJ-45 autosensing 10/100/1000 port

MSM460 Dual Radio 802.11n AP (JP)

J9589B

1 RJ-45 autosensing 10/100/1000 port

HP MSM460 Dual Radio 802.11n Access Point (IL)

J9618A

1 RJ-45 autosensing 10/100/1000 port

See Configuration

Note:3

MSM460 Dual Radio 802.11n AP (IL)

J9618B

1 RJ-45 autosensing 10/100/1000 port

See Configuration

Note:3

HP MSM466 Dual Radio 802.11n Access Point (AM)

J9621A

1 RJ-45 autosensing 10/100/1000 port

MSM466 Dual Radio 802.11n AP (AM)

J9621B

1 RJ-45 autosensing 10/100/1000 port

HP MSM466 Dual Radio 802.11n Access Point (WW)

J9622A

1 RJ-45 autosensing 10/100/1000 port

See Configuration

Note:2

MSM466 Dual Radio 802.11n AP (WW)

J9622B

1 RJ-45 autosensing 10/100/1000 port

See Configuration

Note:2

HP MSM466 Dual Radio 802.11n Access Point (JP)

J9620A

1 RJ-45 autosensing 10/100/1000 port

MSM466 Dual Radio 802.11n AP (JP)

J9620B

1 RJ-45 autosensing 10/100/1000 port

HP MSM466 Dual Radio 802.11n Access Point (IL)

J9619A

1 RJ-45 autosensing 10/100/1000 port

See Configuration

Note:3

MSM466 Dual Radio 802.11n AP (IL)

J9619B

1 RJ-45 autosensing 10/100/1000 port

See Configuration

Note:3

HP MSM466-R Dual Radio Outdoor 802.11n Access Point (AM)

J9715A

1 RJ-45 autosensing 10/100/1000 port

HP MSM466-R Dual Radio Outdoor 802.11n Access Point (WW)

J9716A

QuickSpecs

HP MSM-802.11n Dual Radio Access Point Series

Configuration

DA - 13994 North America — Version 10 — December 9, 2013

Page 6

1 RJ-45 autosensing 10/100/1000 port

See Configuration

Note:2

HP MSM466-R Dual Radio Outdoor 802.11n Access Point (JP)

J9717A

1 RJ-45 autosensing 10/100/1000 port

HP MSM466-R Dual Radio Outdoor 802.11n Access Point (IL)

J9718A

1 RJ-45 autosensing 10/100/1000 port

See Configuration

Note:3

Configuration Rules:

Note 2

Not available Israel. (Warning in Clic only)

Note 3

Only available in Israel. (Warning in Clic only)

Access Point Options

External Power
Supplies

HP 1-port Power Injector

J9407B

External Antenna

HP Indoor Omnidirectional Dual Band 2.5/6dBi MIMO 6
Element Antenna

J9659A

See Configuration

Note:1

HP Indoor Omnidirectional Dual Band 3/4dBi MIMO 3
Element Antenna

J9171A

See Configuration

Note:1

HP Indoor-Outdoor Narrow Sector Dual Band 8/10dBi
MIMO 3 Element Antenna

J9169A

See Configuration

Note:1, 4

HP Indoor-Outdoor Point-to-Point Dual Band 10/13dBi
MIMO 3 Element Antenna

J9170A

See Configuration

Note:1, 4

HP Antenna Lightning Arrester

J8996A

See Configuration

Note:1

QuickSpecs

HP MSM-802.11n Dual Radio Access Point Series

Configuration

DA - 13994 North America — Version 10 — December 9, 2013

Page 7

HP Outdoor Omnidirectional 6dBi at 2.4GHz MIMO 3
Element Antenna

J9719A

See Configuration

Note:2, 3

HP Outdoor Omnidirectional 8dBi at 5GHz MIMO 3
Element Antenna

J9720A

See Configuration

Note:2, 3

Configuration Rules:

Note 1

This Antenna is supported on the following Access Points:
HP MSM466 Dual Radio 802.11n Access Point (JP)

J9620A

MSM466 Dual Radio 802.11n AP (JP)

J9620B

HP MSM466 Dual Radio 802.11n Access Point (AM)

J9621A

MSM466 Dual Radio 802.11n AP (AM)

J9621B

HP MSM466 Dual Radio 802.11n Access Point (WW)

J9622A

MSM466 Dual Radio 802.11n AP (WW)

J9622B

HP MSM466-R Dual Radio Outdoor 802.11n Access Point (AM)

J9715A

HP MSM466-R Dual Radio Outdoor 802.11n Access Point (WW)

J9716A

HP MSM466-R Dual Radio Outdoor 802.11n Access Point (JP)

J9717A

HP MSM466-R Dual Radio Outdoor 802.11n Access Point (IL)

J9718A

HP MSM466 Dual Radio 802.11n Access Point (IL)

J9619A

MSM466 Dual Radio 802.11n AP (IL)

J9619B

Note 2

This Antenna is supported on the following Access Points:
HP MSM466-R Dual Radio Outdoor 802.11n Access Point (AM)

J9715A

HP MSM466-R Dual Radio Outdoor 802.11n Access Point (WW)

J9716A

HP MSM466-R Dual Radio Outdoor 802.11n Access Point (JP)

J9717A

HP MSM466-R Dual Radio Outdoor 802.11n Access Point (IL)

J9718A

Note 3

If this Antenna is select then THREE of the following Lightning Arresters per sku ordered is
required:

HP Antenna Lightning Arrester

J8996A

Note 4

If this Antenna is select then THREE of the following Lightning Arresters per sku ordered is
required for Outdoor use:

HP Antenna Lightning Arrester

J8996A

Remarks:

If you plan on connecting an outdoor antenna to the unit make sure that proper lightning surge
protection and grounding precautions are taken according to local electrical code.

QuickSpecs

HP MSM-802.11n Dual Radio Access Point Series

Configuration

DA - 13994 North America — Version 10 — December 9, 2013

Page 8

HP MSM430 Dual Radio

802.11n Access Point (AM)

(J9650A)

HP MSM430 Dual Radio

802.11n Access Point
(WW)

(J9651A)

HP MSM430 Dual Radio

802.11n Access Point (JP)

(J9652A)

HP MSM430 Dual Radio

802.11n Access Point (IL)

(J9653A)

HP MSM430 Dual Radio

802.11n Access Point

(TAA) (J9654A)

Ports

1 RJ-45 autosensing 10/100/1000 port; Duplex: 10BASE-T/100BASE-TX: half
or full; 1000BASE-T: full only (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type
100BASE-TX, IEEE 802.3ab Type 1000BASE-T)

1 RJ-45 serial console port

AP characteristics

Radios (built-in)

802.11 a/n, b/g

Radio operation modes

Client access, Local mesh, Packet capture

AP operation modes

Autonomous and controlled

Wi-Fi Alliance
Certification

*

a/b/g/n Wi-Fi Certified

Antenna

(3) 4 dBi 2.4 GHz and (3) 7 dBi 5 GHz
omnidirectional ant

Number of internal
antennas

6

Physical characteristics

Dimensions

8(w) x 6.75(d) x 2.62(h) in (20.32 x 17.15 x 6.65
cm)

Weight

2.25 lb (1.02 kg) mounting bracket

Memory and processor

Dual core @ 800 MHz, 128 MB flash, 256 MB SDRAM

Mounting and enclosure

Indoor, plenum rated;Includes two ceiling mounting clips

Environment

Operating temperature

32°F to 122°F (0°C to 50°C)

Operating relative
humidity

5% to 95%, noncondensing

Nonoperating/Storage
temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage
relative humidity

5% to 95%, noncondensing

Electrical characteristics

Description

IEEE 802.3af PoE compliant for Gigabit Ethernet

Maximum power rating

12.9 W

Frequency band and
operating channels

Americas

2.412 - 2.462 GHz (1 - 11 channels)

5.180 - 5.320 GHz (36 - 64 channels)

5.500 - 5.700 GHz (100 - 140 (excluding 5600­5670 MHz) channels)

5.745 - 5.825 GHz (149 - 165 channels)

European Union

2.412 - 2.472 GHz (1 - 13 channels)

5.180 - 5.320 GHz (36 - 64 channels)

5.500 - 5.700 GHz (100 - 140 (excluding 5600­5650 MHz) channels)

Rest of World (Actual
channels designated by
selecting
country in UI)

2.412 - 2.472 GHz (1 - 13 channels)

5.180 - 5.320 GHz (36 - 64 channels)

5.500 - 5.700 GHz (100 - 140 channels)

5.745 - 5.825 GHz (149 - 165 channels)

QuickSpecs

HP MSM-802.11n Dual Radio Access Point Series

Technical Specifications

DA - 13994 North America — Version 10 — December 9, 2013

Page 9

Taiwan

2.412 - 2.462 GHz (1 - 11 channels)

5.280 - 5.320 GHz (56 - 64 channels)

5.500 - 5.700 GHz (100 - 140 (excluding 5600­5670 MHz) channels)

Japan

2.412 - 2.472 GHz (1 - 13 channels)

5.180 - 5.320 GHz (36 - 64 channels)

5.500 - 5.700 GHz (100 - 140 channels)

Israel

2.412 - 2.472 GHz (1 - 13 channels)

5.180 - 5.320 GHz (36 - 64 channels)

Radio

FCC Part 15.247; FCC Part 15.407 (US); RSS-210 (Canada); EN 300 328; ARIB
STD-T66; IDA Registration (Singapore); RCR STD-33; ARIB STD-T71 (Japan); EN
301 893 (EU); KCC approval (Korea)

Safety

UL 2043; UL 60950-1; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1

Emissions

EN 55022 Class B; EN 301 489-1; EN 301 489-17; ICES-003 Class B; FCC Part
15, Class B

Medical

EN60601-1-2

RF Exposure

FCC Bulletin OET-65C; RSS-102; CFR 47, Part 2, Subpart J; ANSI/IEEE C95.1
(99); Ministry of Health Safety Code 6; Australian Radiation Protection Std.

Features

Dual radio: IEEE 802.11a/n for high-throughput applications and IEEE

802.11b/g/n for legacy support and high-speed applications

- Integrated antennas for both IEEE radios, supporting two spatial streams
and 3x3 MIMO

- Six embedded antennas

- Both radios operate at full power and full performance on IEEE 802.3af
PoE/Gigabit Ethernet

Notes

The MSM430 and MSM460 access point power information listed includes the
embedded antenna. Review the HP documentation for your AP to understand
the maximum output setting for your AP based on your country's regulations.
Two spatial stream AP, supporting 300 Mb/s per radio.
Maximum transmit power varies by country.
Regulatory model number: MRLBB-1001

Services

3-year, 4-hour onsite, 13x5 coverage for hardware (UN683E)
3-year, 4-hour onsite, 13x5 coverage for hardware (UY966E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UY967E)
3-year, 4-hour onsite, 24x7 coverage for hardware (UN684E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 SW phone support
and SW updates (UY968E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 SW phone support
and SW updates (UN686E)
3-year, 24x7 SW phone support, software updates (UY969E)
3-year, 24x7 SW phone support, software updates (UN685E)
1-year, post-warranty, 4-hour onsite, 13x5 coverage for hardware (HR624E)
1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware (HR625E)
1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware, 24x7
software phone support (HR626E)
4-year, 4-hour onsite, 13x5 coverage for hardware (US013E)
4-year, 4-hour onsite, 13x5 coverage for hardware (UY976E)
4-year, 4-hour onsite, 24x7 coverage for hardware (UY977E)

QuickSpecs

HP MSM-802.11n Dual Radio Access Point Series

Technical Specifications

DA - 13994 North America — Version 10 — December 9, 2013

Page 10
