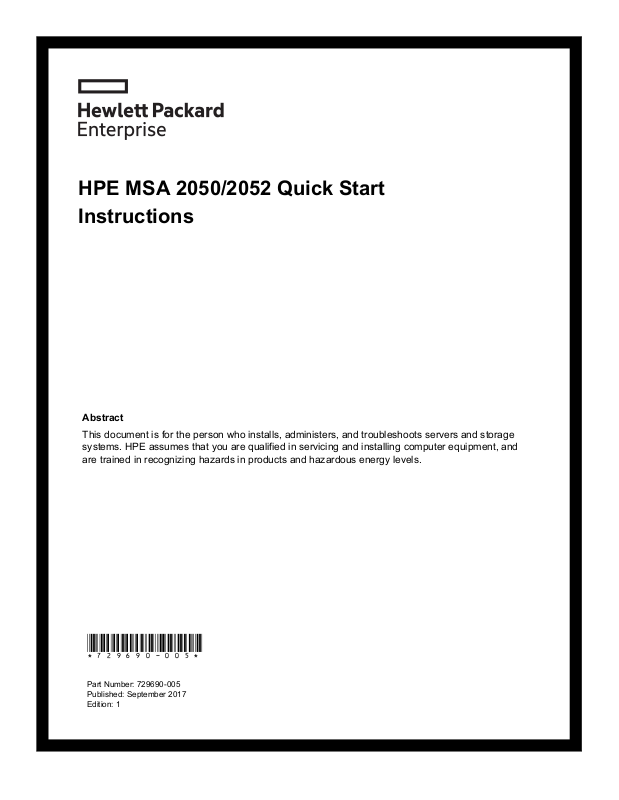

HPE MSA 2050/2052 Quick Start Instructions
Abstract
This document is for the person who installs, administers, and troubleshoots servers and storage
systems. HPE assumes that you are qualified in servicing and installing computer equipment, and
are trained in recognizing hazards in products and hazardous energy levels.
*729690-005*
Part Number: 729690-005
Published: September 2017
Edition: 1
Page 2
©
Copyright 2017 Hewlett Packard Enterprise Development LP
Notices
The information contained herein is subject to change without notice. The only warranties for Hewlett Packard
Enterprise products and services are set forth in the express warranty statements accompanying such
products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett
Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
Confidential computer software. Valid license from Hewlett Packard Enterprise required for possession, use,
or copying. Consistent with FAR 12.211 and 12.212, Commercial Computer Software, Computer Software
Documentation, and Technical Data for Commercial Items are licensed to the U.S. Government under
vendor's standard commercial license.
Links to third-party websites take you outside the Hewlett Packard Enterprise website. Hewlett Packard
Enterprise has no control over and is not responsible for information outside the Hewlett Packard Enterprise
website.
Page 3
Contents
MSA Quick Start Instructions..................................................................... 4
Feature overview.................................................................................................................................4
MSA 2050/2052 front features.............................................................................................................4
MSA 2050/2052 rear features............................................................................................................. 4
Prepare for the installation...................................................................................................................4
Obtain the latest user documents.............................................................................................5
Confirm support for your hardware and software components.................................................5
Verify the operating environment..............................................................................................5
Install the MSA chassis.............................................................................................................5
Websites..............................................................................................................................................8
Documentation feedback.....................................................................................................................8
Contents 3
Page 4
MSA Quick Start Instructions
Feature overview
The HPE MSA 2050/2052 is available in two models:
• 24 disk capacity model for 2.5 inch Small Form Factor (SFF) disks
• 12 disk capacity model for 3.5 inch Large Form Factor (LFF) disks
For detailed reference information, instructions, and cabling examples, see the following documents:
• HPE MSA 2050/2052 QuickSpecs
• HPE MSA 2050/2052 User Guide
• HPE MSA 2050/2052 Cable Configuration Guide
• HPE MSA 2050/2052 SMU Reference Guide
• HPE MSA 2050/2052 Best Practices Guide
MSA 2050/2052 front features
24 disk slots for SFF disks
12 disk slots for LFF disks
MSA 2050/2052 rear features
Dual Power Supply and Fan modules
Dual Array Controller modules
Prepare for the installation
Prerequisites
The following items will be shipped with the MSA 2050/2052 :
• HPE MSA 2050/2052 LFF or HPE MSA 2050/2052 SFF chassis.
• Rack mounting kit
• Mini-USB CLI cable
• PSU power cords
• HPE MSA 2050 front faceplate
• HPE MSA 2052 systems include 2 SDDs
Other items you may need:
• Screwdrivers (Phillips #1 and #2)
• Antistatic protection device
• Expansion disk enclosures and cables
• Servers that need access to the MSA Storage array
• SAN or Ethernet Switches
• Cables for connecting to the host
• RJ-45 Ethernet cable for connecting to a remote management host
4 MSA Quick Start Instructions
Page 5
• Access from a workstation or a server to the MSA Storage array management to access the Storage
Management Utility (SMU) and validate host connections
• Access to the Internet (to access HPE websites for the latest QuickSpecs, user documents, and firmware)
Obtain the latest user documents
Locate MSA 2050/2052 user guides to help with the planning, installation, and configuration processes. User
documents are available on the Hewlett Packard Enterprise Information Library at http://www.hpe.com/info/
storage/docs.
Confirm support for your hardware and software components
Confirm that the devices you plan to connect and their installed firmware and software versions are supported
for use with each other. The latest support information is available on the HPE Single Point of Connectivity
Knowledge (SPOCK) website at http://www.hpe.com/storage/spock.
Verify the operating environment
Review the HPE MSA 2050/2052 User Guide and ensure that all environmental requirements are met,
including site wiring and electrical power inputs, ventilation and cooling, and weight considerations.
Install the MSA chassis
Use the following steps to install your MSA chassis. For more information, see the HPE MSA 2050/2052 User
Guide.
WARNING:
At least two people are needed to lift a fully populated MSA storage enclosure or expansion disk
enclosure into the rack.
• Install the device into the rack
• Connect expansion disk enclosures
• Connect the MSA Controllers to data hosts
• Connect the MSA Controller to a remote management host (optional)
• Connect two MSA storage systems to replicate volumes (optional)
• Connect power cords and power on devices
• Update firmware on all components
• Configure the MSA storage systems
Install the device into the rack
Use the instructions provided with the rack mounting kits or other devices to rack the MSA chassis, expansion
disk enclosures, switches, and servers.
Connect expansion disk enclosures
If expansion disk enclosures are included in your environment, connect SAS cables employing either a
straight-through or fault tolerant cabling plan. Mini-SAS to Mini-SAS cables are required for each disk
enclosure.
The following disk enclosures are supported:
Obtain the latest user documents 5
Page 6
Disk enclosure model Description
HPE MSA 2050 SFF Disk Enclosure 24-disk SFF enclosure
HPE MSA 2050 LFF Disk Enclosure 12-disk LFF enclosure
HPE MSA 2040 LFF Disk Enclosure 12-disk LFF enclosure
HPE D2700 Disk Enclosure (supported in upgrade
scenarios only)
Disk enclosure connection guidelines
• Expansion disk enclosures can be connected to an operational MSA Storage Array, see the HPE MSA
1050/2050/2052 Best Practices Guide.
• Mini-SAS to Mini-SAS 0.5 m (1.64 ft) cables are provided with all supported expansion Disk Enclosures.
• The maximum length cable supported for connecting disk enclosures is 2 m (6.56 ft).
• Cables longer than those supplied with the disk enclosure must be purchased separately. For a list of
cables available from HPE, see the HPE MSA 2050/2052 QuickSpecs.
• The maximum number of enclosures supported with an MSA 2050/2052 solution is eight (one MSA
2050/2052 and up to seven expansion disk enclosures).
Example MSA 2050/2052 disk enclosure connections
MSA 2050/2052 firmware supports both fault-tolerant and straight-through SAS cabling to cascaded disk
enclosures. For more information about these cabling schemes and for additional cabling examples, see the
HPE MSA 2050/2052 Cabling Configuration Guide.
Connect the MSA Controllers to data hosts
Direct-connect and switch-connect environments are supported. For direct-connect configurations, connect
cables from the MSA controller host ports to the host. For switch-connect configurations, connect cables from
the MSA controller host ports to the switch ports and from the switch ports to the hosts.
25-disk SFF enclosure
For cabling examples, including connecting directly to a server, see the HPE MSA 2050/2052 Cabling
Configuration Guide.
MSA 2050/2052 connection guidelines
• No host interface cables are shipped with MSA 2050/2052 Storage Systems. For a list of cables available
from HPE, see the HPE MSA 2050/2052 QuickSpecs.
• In direct-connect deployments, connect each host to the same port on both of the MSA controllers.
• In switch-connect deployments, connect an MSA Controller A port and the corresponding MSA Controller
B port to one switch, and connect a second MSA Controller A port and the corresponding MSA Controller
B port to a separate switch.
Connect the MSA Controller to a remote management host (recommended)
A remote management host directly manages systems out-of-band over an Ethernet network.
If a remote management host is included in your environment, connect an RJ-45 Ethernet cable from the
network management port on each MSA 2050/2052 controller to a switch that your management host can
access (preferably on the same subnet).
Connect two MSA storage systems to replicate volumes (optional)
HPE MSA Remote Snap Software is an optional licensed disaster-recovery utility that performs asynchronous
(batch) replication of block-level data from a volume on a primary MSA storage system to a secondary volume
6 Connect the MSA Controllers to data hosts
Page 7
on an independent MSA storage system. These two MSA Storage systems connect through switches and are
on the same fabric or network.
The MSA 2052 ships with the advanced data services license, which is customer installable.
For more information about Remote Snap Software, including cabling requirements and user information, see
the HPE MSA 2050/2052 User Guide, HPE MSA 1050/2050/2052 SMU Reference Guide, and HPE MSA
Remote Snap Technical White Paper.
Connect power cords and power on devices
IMPORTANT:
The power cord must be approved for use in your country. The power cord must be rated for the product
and for the voltage and current marked on the electrical ratings label of the product.
Apply power to the devices in the following order:
1. Connect power cords from the power distribution units (PDUs) to separate external power sources.
2. Power on the SAN/LAN switches (if necessary).
3. If applicable, ensure all enclosure power switches are in the Off position.
4. Connect each power supply module in all attached expansion disk enclosures to the PDUs. If the
expansion disk enclosures have power switches, apply power. If the disk enclosures do not have power
switches, they automatically start.
5. Wait two minutes to ensure that all disks in the disk enclosure are powered up and ready.
6. Connect each power supply module in the MSA 2050/2052 array enclosure to the PDUs.
If the array enclosures have power switches, apply power. If the array enclosures do not have power
switches, they automatically start.
7. Observe the LEDs on the front and the rear of the MSA 2050/2052 and any expansion disk enclosures,
and confirm that no LEDs are amber.
8. Power on the servers (if necessary).
Update firmware on all components
After installing hardware and powering on devices for the first time, verify that MSA 2050/2052 controller
modules, expansion disk enclosure I/O modules, and all disk drives are running the latest available firmware.
If updates are necessary, obtain the firmware from the HPE website and install the downloaded firmware.
Firmware is available from HPE at: http://www.hpe.com/support/msa2050.
NOTE:
A valid HPE passport connected to the MSA hardware will be required to download the firmware. See
http://h20564.www2.hpe.com/hpsc/doc/public/display?docLocale=en_US&docId=emr_nac05349541 for the HPE passport for MSA arrays.
Configure the MSA storage systems
Key configuration steps include setting the system date and time, entering system parameters, and
configuring storage volumes. For more information, see the HPE MSA 2050/2052 SMU Reference Guide.
NOTE:
For better array monitoring, configure either email or SNMP alerts.
Connect power cords and power on devices 7
Page 8
Websites
General websites
Hewlett Packard Enterprise Information Library
www.hpe.com/info/EIL
Single Point of Connectivity Knowledge (SPOCK) Storage compatibility matrix
www.hpe.com/storage/spock
Storage white papers and analyst reports
www.hpe.com/storage/whitepapers
MSA websites
MSA 2050 manuals page:
http://www.hpe.com/support/msa2050
MSA 2050 product page:
http://www.hpe.com/support/msa2050
HPE Passport for MSA arrays
http://h20564.www2.hpe.com/hpsc/doc/public/display?docLocale=en_US&docId=emr_nac05349541
Documentation feedback
Hewlett Packard Enterprise is committed to providing documentation that meets your needs. To help us
improve the documentation, send any errors, suggestions, or comments to Documentation Feedback
(docsfeedback@hpe.com). When submitting your feedback, include the document title, part number, edition,
and publication date located on the front cover of the document. For online help content, include the product
name, product version, help edition, and publication date located on the legal notices page.
8 Websites
