hp
mp3220 series
digital projector
user’s guide
1
Notice
The information contained herein is subject to change without notice. The only warranties for HP
products and services are set forth in the express warranty statements accompanying such products
and services. Nothing herein should be construed as constituting an additional warranty. HP shall
not be liable for technical or editorial errors or omissions contained herein.
Consumer transactions in Australia and the United Kingdom: The above disclaimers and
limitations shall not apply to consumer transactions in Australia and the United Kingdom and shall
not affect the statutory rights of consumers.
© Copyright 2004 Hewlett-Packard Development Company, L.P. Reproduction, adaptation, or
translation without prior written permission is prohibited, except as allowed under the copyright
laws.
The programs that control this product are copyrighted and all rights are reserved. Reproduction,
adaptation, or translation of those programs without prior written permission of Hewlett-Packard
Company is also prohibited.
Microsoft® and Windows® are US registered trademarks of Microsoft Corporation. Adobe® and
Acrobat® are trademarks of Adobe Systems Incorporated.
Hewlett-Packard Company
Digital Projection and Imaging
1000 NE Circle Blvd.
Corvallis, OR 97330
First Edition (May 2004)
Contents
1 Setting Up
What’s in the Box?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Identifying Common Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Projector at a glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Projector buttons and lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Back panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Setting Up the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
To position the projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
To set up on a table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
To connect power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
To connect a computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
To connect a handheld organizer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
To connect video sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Turning On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
To turn the projector on. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
To turn the projector off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Making Basic Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

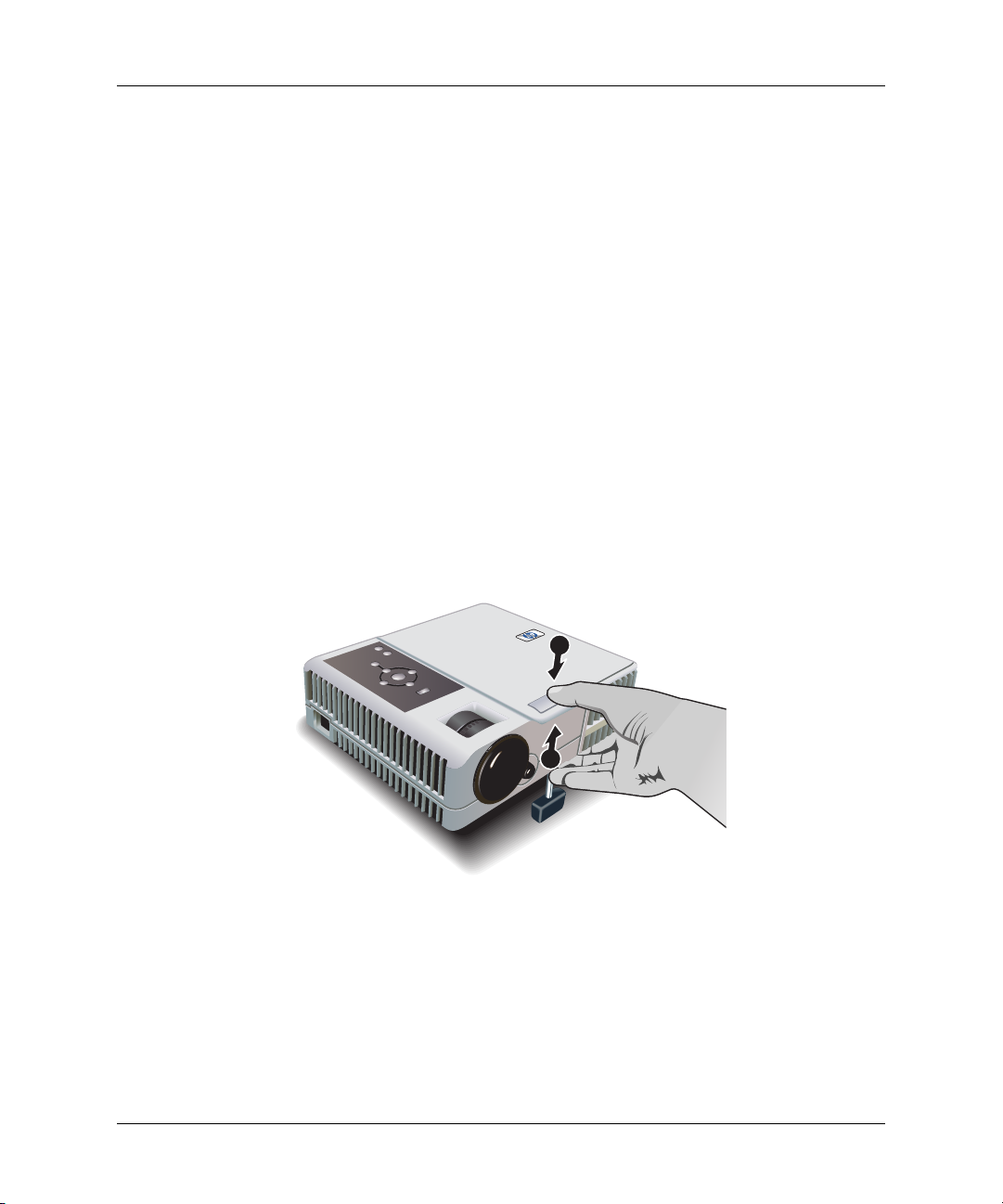

To aim the projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

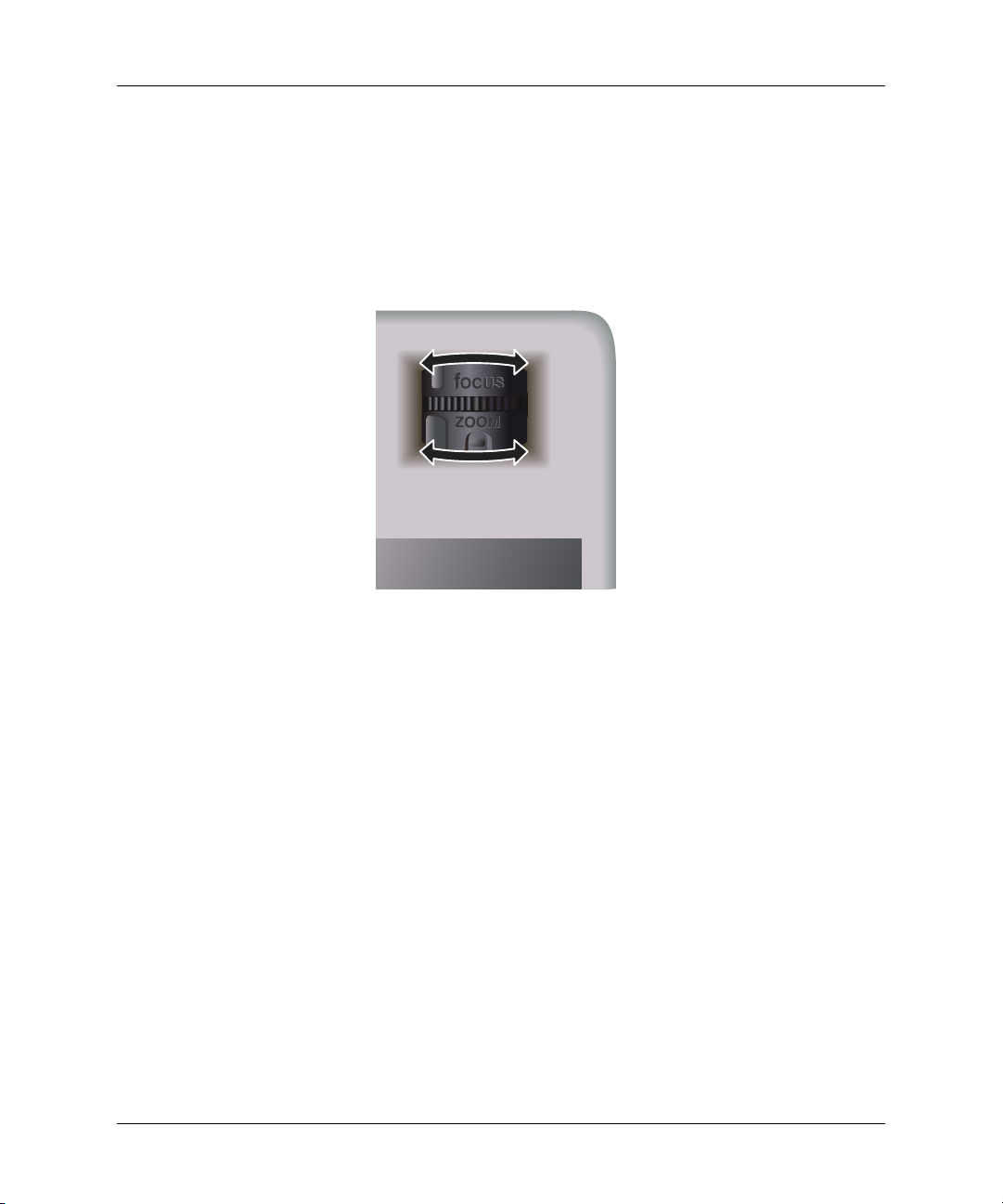

To adjust the focus and zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
2 Giving Presentations
Using the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Showing Presentations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
To present from a computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
To change the source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
To hide or show the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
User’s Guide 3
Contents
3 Adjusting the Projector
Adjusting the Picture and Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
To adjust a slanted picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
To adjust the image according to the type of picture . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
To adjust other image settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
To adjust the audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
To adjust the projector setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Using the On-Screen Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
To change settings using the on-screen menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Quick choice menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Select input menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Adjust picture menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Setup menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Help menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
4 Maintaining the Projector
Performing Routine Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
To get the projector status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
To clean the projector lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

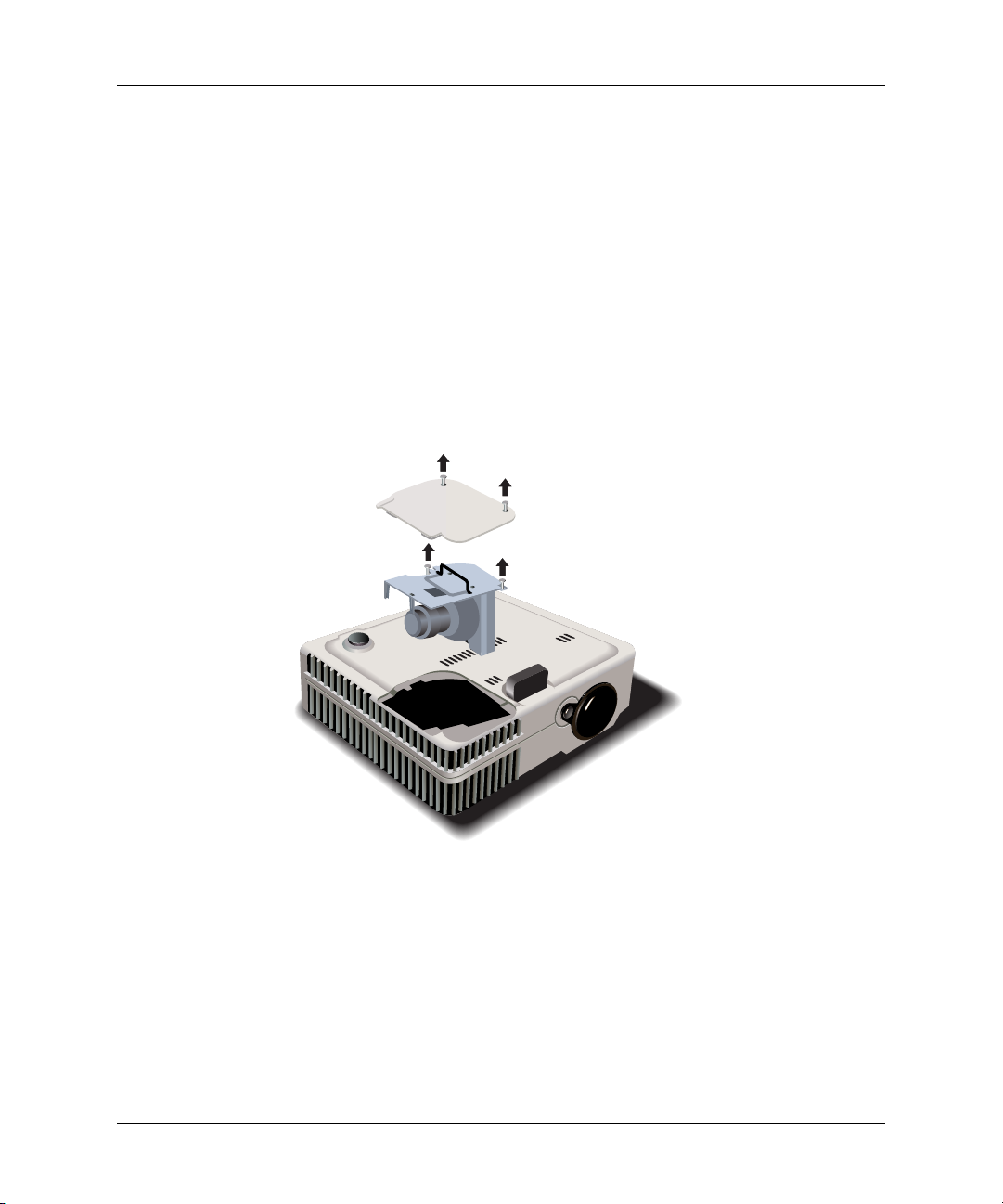

To replace the lamp module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

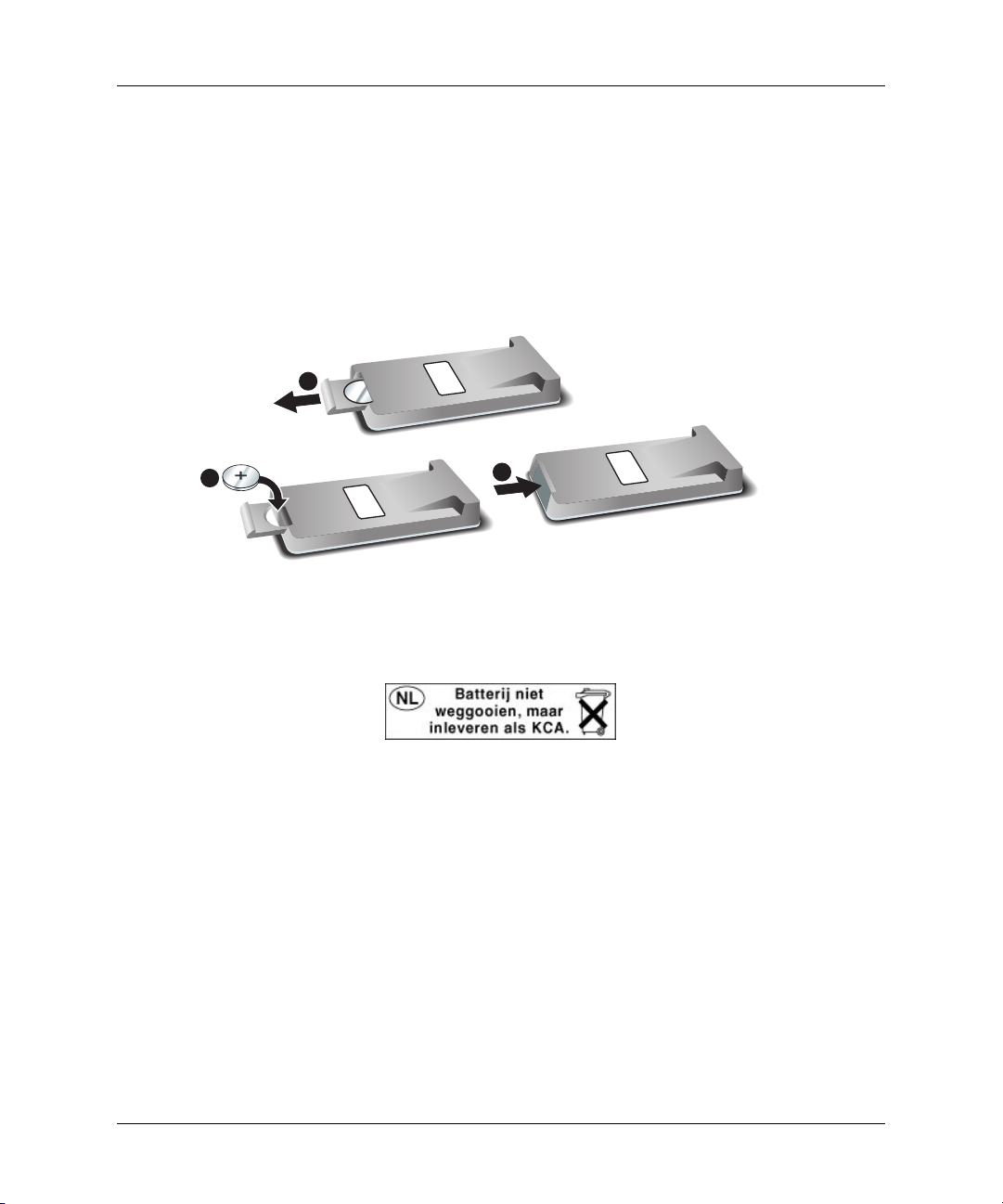

To replace the battery in the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Upgrading the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
To update the firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
5 Installing Permanently
Installing the Projector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
To install on a table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
To install on the ceiling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
To install for rear projection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
To mount the projector on a tripod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
To lock the projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
4 User’s Guide
Contents
6 Fixing Problems
Troubleshooting Suggestions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Start-up problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Picture problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Sound problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Interruption problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Remote control problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Testing the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
To run the projector diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
7 Reference
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
LED safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Mercury safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
U.S.A. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Japan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Korea . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
International. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Index
User’s Guide 5
Contents
6 User’s Guide
Setting Up
The chapter explains how to install and set up the HP digital projector.
■ “What’s in the Box?” on page 8
■ “Identifying Common Features” on page 9
■ “Setting Up the Projector” on page 15
■ “Turning On and Off” on page 24
■ “Making Basic Adjustments” on page 26
1
User’s Guide 7
Setting Up
What’s in the Box?
Before setting up your projector, be sure your shipping box includes the following
items. If the shipping box does not contain any of the following items, contact HP.
1
8
7
6
5
Identifying the contents of the box
Symbol Item Function
1
2
3
4
5
6
7
8
Projector Displays images.
Carrying case Carries and protects projector.
USB cable Connects to computer USB input.
VGA cable Connects to computer video output.
Remote control Control projector.
Quick Setup Guide, warranty,
support, and port activation
documentation
Documentation CD Contains user's guide and other
Power cord Connects projector to power source.
Provide documentation to help get started
and find support.
documentation.
2
4
3
8 User’s Guide
Identifying Common Features
This section identifies common features and functions of the projector.
■ “Projector at a glance” on page 10
■ “Projector buttons and lights” on page 11
■ “Back panel” on page 12
■ “Remote control” on page 13
■ “Accessories” on page 14
Setting Up
User’s Guide 9
Setting Up
Projector at a glance
2
3
4
1
Identifying the projector
Symbol Item Function
1
2
3
4
5
6
7
Power cord socket Connects power cord to projector.
Button panel Contains buttons and lights.
Zoom ring Enlarges picture size 100–120%.
Focus ring Focuses at distances of 1.2 to 12 m
(4 to 40 ft).
Height adjustment button Adjusts the height of the picture.
Receiver for remote control Receives signals from the remote control.
Lens cover Protects lens.
5
6
7
10 User’s Guide
Projector buttons and lights
9
Setting Up
1
2
3
4
DXWR
V\QF
Identifying buttons and lights on the projector
Symbol Item Function
Power button Turns the projector on or off.
1
Enter button, back button,
2
and directional arrows
Auto sync button Resynchronizes the projector to the input
3
Page-up and page-down
4
buttons
Lamp-warning light Turns on when lamp fails.
5
Change projector settings using the on-screen
menu.
signal.
Scroll up and down through pages on a
connected computer.
5
EDFN
6
8
7
Temperature-warning light Turns on when the internal temperature is
6
too high.
Video button Optimizes the picture for video input.
7
Graphics button Optimizes the picture for data input.
8
Source button Switches to the next input source.
9
User’s Guide 11
Setting Up
Back panel
4
3
2
5
6
7
9*$
6
LQLQ
LQ
1
Identifying the back panel
Symbol Item Function
1
2
3
4
5
6
7
Security slot Secures the projector using a cable lock.
Receiver for remote control Receives signals from the remote control.
USB output Connects to computer to control the mouse.
Audio input Connects audio source.
Composite-video input (RCA) Connects video input from devices like VCRs.
S-video input Connects video input from devices like VCRs
and DVD players.
VGA input Connects video input from computers.
12 User’s Guide

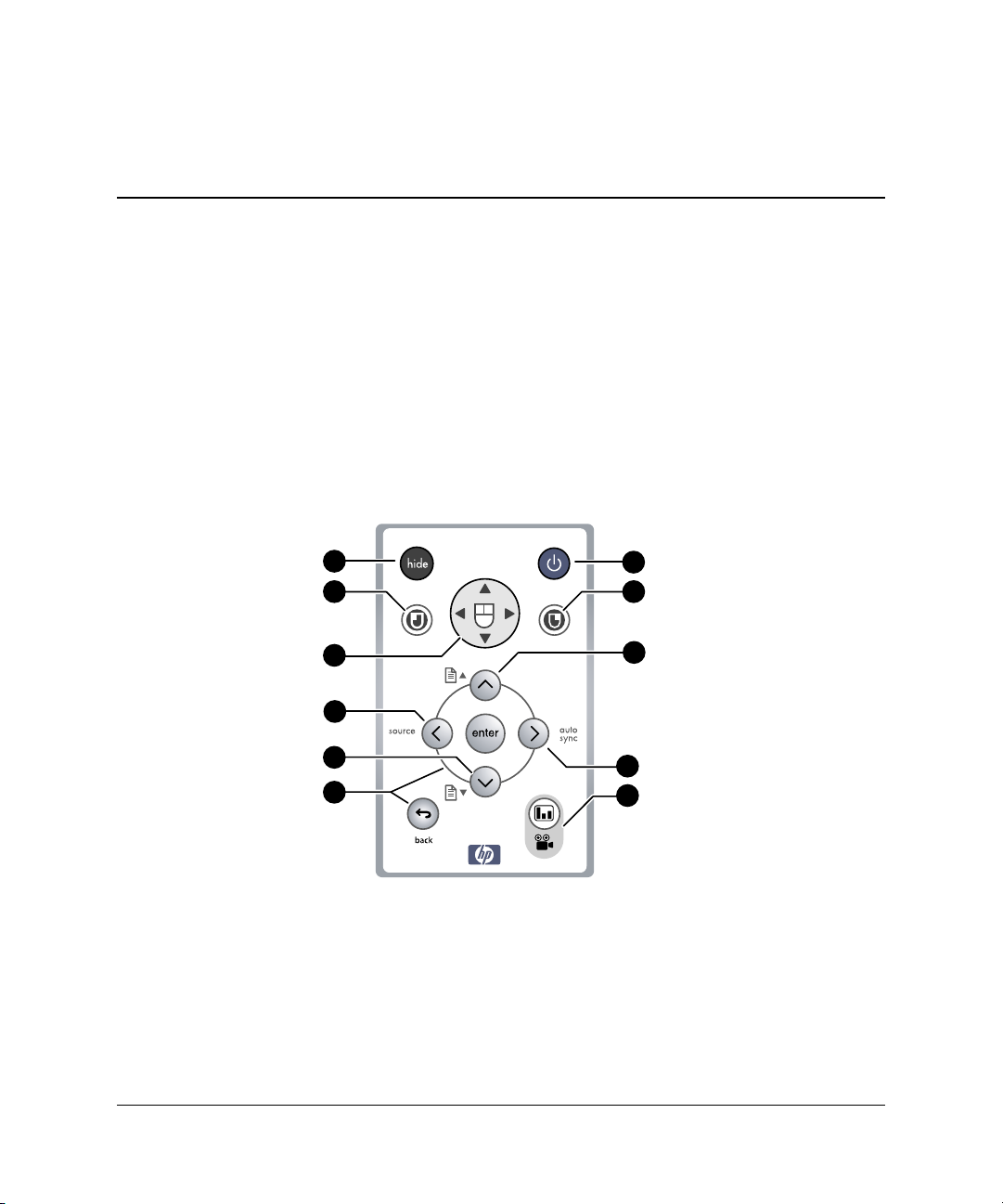

Remote control
Before using the remote control, remove the battery protector by pulling the plastic tab
✎
until it comes out of the remote control.
Setting Up
6
5
4
3
2
1
Identifying the remote control buttons
Symbol Item Function
1
2
3
4
5
6
7
8
9
Enter button, back button, and
directional arrows
Page-up and page-down
buttons
Source button Switches to the next input source.
Mouse pad Moves the mouse pointer on a connected
Left-click and right-click mouse
buttons
Hide button Hides the display.
Power button Turns the projector on or off.
Auto sync button Resynchronizes the projector to the input
Picture mode button Adjusts the picture so it is optimized for
Change projector settings using the
on-screen menu.
Scroll up and down through pages on a
connected computer.
computer.
Perform left-click and right-click mouse
functions for a connected computer.
signal.
either video input or data input.
7
5
2
8
9
User’s Guide 13
Setting Up
Accessories
Get more from your presentations with HP projector accessories. You can purchase
accessories at www.hp.com or through your projector dealer.
■ HP ceiling mount kit enables you to simply and discreetly install your projector
on the ceiling.
■ HP mobile screens with built-in handles are easy to carry and set up anywhere
you need them.
■ HP premium remote control allows you to control every aspect of your
presentation.
■ HP power cables allow you to connect in any region.
■ HP cables allow you to connect all audio-video equipment.
■ HP replacement lamp brings your projector up to factory-fresh brightness.
14 User’s Guide
Setting Up the Projector
This section describes how to set up, plan, and connect the projector.
■ “To position the projector” on page 16
■ “To set up on a table” on page 17
■ “To connect power” on page 18
■ “To connect a computer” on page 19
■ “To connect a handheld organizer” on page 20
■ “To connect video sources” on page 21
Setting Up
User’s Guide 15
Setting Up
To position the projector
The following tables show you where to position the projector in relation to the
screen.
Identifying image size relative to distance from screen
Image size (diagonal) Image size (width) Distance (lens to screen)
30 in. 0.8 m 24 in. 0.6 m 48–58 in. 1.2–1.5 m
40 in. 1.0 m 32 in. 0.8 m 64–77 in. 1.6–2.0 m
60 in. 1.5 m 48 in. 1.2 m 96–115 in. 2.4–2.9 m
80 in. 2.0 m 64 in. 1.6 m 128–154 in. 3.3–3.9 m
100 in. 2.5 m 80 in. 2.0 m 160–192 in. 4.1–4.9 m
120 in. 3.0 m 96 in. 2.4 m 192–230 in. 4.9–5.9 m
150 in. 3.8 m 120 in. 3.0 m 240–288 in. 6.1–7.3 m
180 in. 4.6 m 144 in. 3.7 m 288–346 in. 7.3–8.8 m
200 in. 5.1 m 160 in. 4.1 m 320–384 in. 8.1–9.8 m
240 in. 6.1 m 192 in. 4.9 m 384–461 in. 9.8–11.7 m
270 in. 6.9 m 216 in. 5.5 m 432–480 in. 11.0–12.0 m
290 in. 7.4 m 232 in. 5.9 m 464–480 in. 11.8–12.0 m
16 User’s Guide
Setting Up
If you do not want to use the distance table, you can use the following equations to
help determine where to install the projector relative to the screen.
Calculating projection dimensions
distance from lens to screen = A × width of screen
minimum and maximum distance from screen = B
width of screen = 0.8 × diagonal of screen (for 4:3 screen)
projector lens below bottom of screen = C × width of screen (for 4:3 screen)
A = 2.0 to 2.4
B = 1.2 to 12 m (4 to 40 ft)
C = 0.11 to 0.42
To set up on a table
1. Place the projector on a stable platform located 1.2 to 12 m (4 to 40 ft) in front of
the screen. Ideally, the platform should be lower than the bottom of the screen.
2. Connect one end of the power cord to the side of the projector and the other end to
an electrical outlet.
3. When you first turn on the projector, if the image is upside-down or backward,
you should change a menu setting. Open the on-screen menu (see “To change
settings using the on-screen menu” on page 37) and select Setup > Projector
position. Then choose Front Table from the drop-down list—this is the default
setting.
If you want to permanently install the projector on the ceiling or behind the screen, see
“Installing the Projector” on page 49.
User’s Guide 17
Setting Up
To connect power
■ Connect one end of the power cord to the side of the projector 1 and the other
end to an electrical outlet
2
2.
1
18 User’s Guide
Setting Up
To connect a computer
1. Connect the VGA cable between the VGA port on the projector 1 and the VGA
port on the computer
2. (Optional) To allow the remote control to function as the computer mouse,
connect the USB cable between the USB port on the projector
port on the computer
3. (Optional) To get audio, connect a mini-phone audio cable (not provided)
between the audio port on the projector
2.
3 and the USB
4.
5 and the computer 6.
1
2
4
9*$LQ
6
5
3
S
in
in
User’s Guide 19
Setting Up
✎
To connect a handheld organizer
1. Be sure the handheld organizer has a VGA-out port. If necessary, install a
VGA-out accessory card into the organizer.
Not all handhelds come with VGA-out ports. For example, the iPAQ Pocket PC
requires a VGA-out PC Card with 15-pin connector.
2. Connect the VGA cable between the VGA port on the projector
VGA-out PC Card
2 on the organizer.
2
1
9*$LQ
1 and the
20 User’s Guide
Setting Up
To connect video sources
If you have a SCART video device, you will need an adapter (available from HP) to
connect the device to the projector.
S-video connection
Many DVD players and VCRs have S-video output.
1. Connect an S-video cable (not provided) between the S-video port on the
projector
2. (Optional) To get audio, connect a mini-phone audio cable (not provided)
between the audio port on the projector
device has RCA audio connectors, use a mini-phone to RCA adapter or cable.
1 and the video device 2.
3 and the video device 4. If the video
4
2
1
3
User’s Guide 21
S
in
in
Setting Up
Composite video connection
Many VCRs and other video equipment have composite video output, a single RCA
video output connector.
1. Connect a composite video cable (RCA connector) (not provided) between the
composite video port on the projector
device
2.
1 and the RCA video port on the video
2. (Optional) To get audio, connect a mini-phone audio cable (not provided)
between the audio port on the projector
3 and the video device 4. If the video
device has RCA audio connectors, use a mini-phone to RCA adapter or cable.
4
3
2
1
S
in
in
22 User’s Guide
Setting Up
Component video connection
Many DVD players and other video equipment have component-video output, three
RCA connectors labeled "Y,Pb,Pr", "R,G,B", or similar.
1. Connect a VGA-to-component video cable (available from HP) between the VGA
port on the projector
video device
2.
1 and the three RCA component-video connectors on the
2. (Optional) To get audio, connect a mini-phone audio cable (not provided)
between the audio port on the projector
3 and the video device 4. If the video
device has RCA audio connectors, use a mini-phone to RCA adapter or cable.
2
4
1
9*$LQ
3
S
in
in
User’s Guide 23
Setting Up
Turning On and Off
This section provides instructions on turning the projector on and off.
■ “To turn the projector on” on page 24
■ “To turn the projector off” on page 25
To turn the projector on
1. Be sure the power cord is connected.
2. Open the lens cover
3. Press the power button
remote control.
4. Connect and power on the source, such as computer, handheld organizer, or DVD
player. See “Setting Up the Projector” on page 15 for more information.
1 by rotating it.
2 on top of the projector, or press the power button on the
2
1
24 User’s Guide
To turn the projector off
1. Press the power button on the projector or remote control to turn off the projector.
The power button blinks during the cool-down period, then the projector turns off.
2. You can disconnect video and audio equipment from the projector during the
cool-down period, but not the power cord.
3. If you must unplug or remove the projector, wait until the power light stops
blinking, then unplug the power cord.
CAUTION: Do not disconnect power until the projector has cooled down (the fan
Ä
stops) and the power button stops blinking. Otherwise, you might shorten the life of
the lamp.
If you try to turn on the projector again during the cool-down period, it does not turn
on. Wait until the cool-down period ends and the power button stops blinking.
Setting Up
User’s Guide 25
Setting Up
Making Basic Adjustments
This section provides instructions on making basic adjustments to the projector.
■ “To aim the projector” on page 26
■ “To adjust the focus and zoom” on page 27
To aim the projector
■ To raise the projected picture on the screen, press the height adjustment button 1
and lift the front of the projector to the desired display angle
button to lock the adjustment.
■ To lower the projected picture, press the height adjustment button while lowering
the front of the projector. Release the button to lock the adjustment.
■ To store the projector, press the height adjustment button and lower the projector
fully, then release the button.
2. Release the
1
2
When you tilt the projector up or down, the sides of the picture might become slanted.
To adjust the picture so the sides are vertical, see “To adjust a slanted picture” on
page 33.
If the picture is not level on the screen, screw the adjustable back foot in or out to level
the projector.
26 User’s Guide
Setting Up
To adjust the focus and zoom
1. Rotate the focus ring until the image becomes clear. The projector can be focused
at distances of 1.2 to 12 m (4 to 40 ft).
2. Rotate the zoom ring to adjust the picture size from 100 to 120%.
If the picture does not fit the screen, you might have to move the projector closer to
the screen.
User’s Guide 27
Setting Up
28 User’s Guide
The chapter explains how to give presentations with the projector.
■ “Using the Remote Control” on page 29
■ “Showing Presentations” on page 31
Using the Remote Control
2
Giving Presentations
6
5
4
3
2
1
■ To turn the projector on or off, press the power button 7.
■ To hide or unhide the projected picture, press the hide button 6.
■ To switch to the next connected input source, press the source button 3.
7
5
2
8
9
User’s Guide 29
Giving Presentations
■ To operate as a mouse on a computer, press the edge of the mouse pad 4 in the
direction you want the pointer to move, and press the left-click
button. This feature requires a USB connection between the projector and
computer.
■ To control page-up and page-down on a computer, press the page-up and
page-down buttons
projector and computer.
■ To optimize the picture for the type of input signal, press the picture mode /
button. This changes between adjustments for video input and for data input.
■ To change projector settings using the on-screen menu, press enter and use the
navigation buttons to make the changes. See “Using the On-Screen Menu” on
page 36 for more details.
■ To exit from any on-screen menu or adjustment, press the back button.
■ To adjust synchronization, press the auto sync button.
From within a distance of 9 m (30 ft), aim the remote control at the screen or at the
✎
front or back of the projector.
5 or right-click 5
2. This feature requires a USB connection between the
30 User’s Guide
Showing Presentations
This section describes several things you can do during presentations.
■ “To present from a computer” on page 31
■ “To change the source” on page 32
■ “To hide or show the display” on page 32
To present from a computer
1. Be sure the computer is connected to the projector. See “To connect a computer”
on page 19 for more information.
2. Be sure the computer and the projector are on. See “To turn the projector on” on
page 24 for more information.
If the computer display is not projected on the screen, you might have to press a
✎
function key (such as Fn + F4 or Fn + F5) to turn on the computer’s video port. See
the video port card shipped with the projector for more information.
3. If you want to adjust the projected image, see “Adjusting the Picture and Sound”
on page 33.
Giving Presentations
4. You can use the remote control to enhance your presentation. For more
information, see “Using the Remote Control” on page 29.
❏ To page through a presentation, press the page-up or page-down
buttons.
❏ To move the mouse pointer, press the edge of the mouse pad in the direction
you want the pointer to move.
For the mouse and page-up or page-down operations, aim the remote control
✎
at the screen or at the front or back of the projector from within a distance of 9 m
(30 ft).
These operations require a USB connection from the projector to the computer.
User’s Guide 31
Giving Presentations
To change the source
To change the source, either:
■ Press the source button on the projector or remote control.
■ Open the on-screen menu, go to Select input and select the port to which the input
source is connected.
To hide or show the display
You can hide the display from your audience temporarily.
■ Press the hide button on the remote control. (If you press the hide button again
within 5 seconds, the display becomes completely blank, without the reminder
how to show the display again.)
■ Open the on-screen menu and select Quick choice > Hide.
The screen remains blank until you press the hide button again or any other button on
the projector or remote control.
If you are using Microsoft PowerPoint, you can also press the B key or the W key to
✎
hide the display. The screen remains blank until you press the B key or the W key
again.
32 User’s Guide
This chapter describes how to make adjustments to the projector.
■ “Adjusting the Picture and Sound” on page 33
■ “Using the On-Screen Menu” on page 36
Adjusting the Picture and Sound
This section provides the following instructions on adjusting the picture and sound.
■ “To adjust a slanted picture” on page 33
■ “To adjust the image according to the type of picture” on page 34
■ “To adjust other image settings” on page 34
■ “To adjust the audio” on page 34
■ “To adjust the projector setup” on page 35
3
Adjusting the Projector
To adjust a slanted picture
If the picture has slanted sides on the screen, you can straighten them. This is done by
making the top or bottom shorter until the sides are straight.
1. Open the on-screen menu and select Quick choice > Keystone.
2. Adjust the keystone setting as needed using the menu buttons on the projector or
remote control:
❏ If the top of the picture is too wide or too narrow, press left or right
until the width is corrected.
❏ If one side of the picture is too tall or too short, move the projector until it is
straight in front of the screen, not off to one side.
3. Press the back button to save the settings.
User’s Guide 33
Adjusting the Projector
To adjust the image according to the type of picture
Use the picture mode buttons on the projector or the remote control to optimize the
image.
■ To optimize the picture for data presentations, press the graphics button on the
projector.
The graphics button turns on.
■ To optimize the picture for video images, press the video button on the
projector.
The video button turns on.
■ To switch between these settings, press the picture mode / button on the
remote control.
To adjust other image settings
The on-screen menu provides many settings that allow you to fine-tune the picture.
1. Open the on-screen menu and select Adjust picture.
2. Change the picture adjustments as needed.
From the Adjust picture menu, you can change basic and advanced picture
options, such as brightness, contrast, aspect ratio, and keystone correction.
To get descriptions for all available picture adjustments, see “Adjust picture menu” on
page 40.
To exit from any on-screen menu or adjustment, press the back button.
✎
To adjust the audio
1. Open the on-screen menu and select Quick choice.
2. Set the audio adjustments.
From the Quick choice menu, you can adjust mute and volume.
34 User’s Guide
Adjusting the Projector
To adjust the projector setup
1. Open the on-screen menu and select Setup.
2. Set the setup adjustments as needed.
From the Setup menu, you can select settings such as menu language, projector
position, and lamp saver mode.
To get descriptions for all available setup adjustments, see “Setup menu” on page 42.
User’s Guide 35
Adjusting the Projector
Using the On-Screen Menu
This section explains how to navigate the on-screen menu and provides function
definitions. The tables in this section describe all the functions available in the
on-screen menu for the firmware version at publication. If your firmware is a different
version, some menus might differ from those shown.
■ “To change settings using the on-screen menu” on page 37
■ “Quick choice menu” on page 38
■ “Select input menu” on page 39
■ “Adjust picture menu” on page 40
■ “Setup menu” on page 42
■ “Help menu” on page 42
To exit from any on-screen menu or adjustment, press the back button.
✎
36 User’s Guide
Adjusting the Projector
To change settings using the on-screen menu
You can change the on-screen menu settings with either the buttons on the projector or
on the remote control.
SCREENSHOT
DXWR
V\QF
EDFN
1. Press enter on the projector or the remote control to open the on-screen menu.
2. Press up or down to highlight the desired menu, and press right to
select the highlighted menu.
3. Press up or down to highlight the desired parameter, and press enter to
select the highlighted option.
4. Press left or right to select the desired setting. For certain settings, you see
a different display while making the change.
5. Press enter or other indicated button to return to the menu.
6. To go to a different menu, press left and select the menu.
7. To close the on-screen menu, press the back button.
If nothing occurs for a period of time, the on-screen menu closes. To change the
amount of time until the on-screen menu closes, open the on-screen menu and select
Setup > Timeout for menu.
When you make certain adjustments, you may want to change several related settings.
✎
If a setting adjustment includes a hint for moving to related settings, you can press up
or down to quickly move to another setting and adjust it.
User’s Guide 37
Adjusting the Projector
Quick choice menu
Quick choice
Keystone Corrects the slanted sides of an image.
Reset keystone Resets keystone correction to zero.
Next input Searches for the next available signal from an input
Picture mode Adjusts the color settings for the type of picture. You
Brightness Brightens or darkens the image.
Contrast Sets difference between light and dark areas.
Hide Removes all images from the screen.
source.
can optimize the picture for computer presentations
or video output. The remote control and projector
have buttons to change the picture mode.
Mute Stops audio output.
Volume Adjusts the volume.
38 User’s Guide
Adjusting the Projector
Select input menu
For a visual aid, see “Back panel” on page 12.
Select input
VGA Shows the input to the VGA port. This usually
connects to a computer, although it can also connect
to a component-video device. This input is normally
considered a graphics input.
Composite video Shows the input to the yellow composite port (the
input to the left of the S-video port on the back
panel). The port usually connects to a TV or VCR.
This input is normally considered a video input.
S-video Shows the input to the S-video port. This usually
connects to a video device, such as a VCR,
camcorder, or DVD player. This connection is
normally considered a video input.
Auto-scan sources Sets whether the projector automatically searches for
input signals and displays the next one found.
User’s Guide 39
Adjusting the Projector
Adjust picture menu
Adjust picture
Picture mode Adjusts the color settings for the type of picture. You
Adjust picture mode... Changes settings that define the current picture
White intensity Sets the brightness of white areas.
Picture enhancement Refines the color, lightness, and other characteristics
Color temperature Shifts colors toward red or blue.
Aspect ratio Selects the proportions of the image that is not
can optimize the picture for computer presentations
or video output. The remote control and projector
have buttons to change the picture mode.
mode.
of the picture.
automatically corrected by the projector.
• To automatically adapt to most inputs, select
Best Fit.
• To stretch the picture to cover the entire projection
area, select Fill.
• To show each picture dot as one projected dot,
select 1-to-1.
If the input source is a widescreen device, go to
Adjust picture > Shape settings >
Widescreen input.
Reset this picture mode Resets the current picture mode to its default settings.
Color settings... Adjusts the picture and colors.
Brightness Brightens or darkens the image.
Contrast Sets the difference between light and dark areas.
Sharpness Sharpens or softens the image.
Color saturation Adjusts the intensity of colors.
40 User’s Guide
Adjusting the Projector
Adjust picture (continued)
Tint Shifts colors toward red or green.
Red Adjusts the amount of red in the picture.
Green Adjusts the amount of green in the picture.
Blue Adjusts the amount of blue in the picture.
Color space For certain component inputs, selects the type of
signal encoding used by the input source. You can
override the selection made by the projector.
Reset color settings Resets these color settings to their default settings.
Shape settings... Adjusts the shape of the picture.
Keystone Corrects the slanted sides of an image.
Reset keystone Resets keystone correction to zero.
Widescreen input Sets whether a widescreen (16:9) input device is in
use.
VGA settings... Adjusts settings for the VGA input port.
Auto-sync Resynchronizes the projector to the input signal from
a computer. This can compensate for any change in
the signal.
Frequency Adjusts the timing of the projector relative to a
computer graphics card.
Tracking Synchronizes the projector to a computer graphics
card.
Vertical offset Shifts the image up or down within the projection
area.
Horizontal offset Shifts the image left or right within the projection
area.
Reset video settings Resets all video settings to default settings.
User’s Guide 41
Adjusting the Projector
Setup menu
Setup
Language... Selects the language for the menus.
Lamp saver Sets a lower power level for the lamp.
Projector position Adjusts the image to match the orientation of the
Timeout for menu Sets how many seconds the on-screen menu waits for
Auto-scan sources Sets whether the projector automatically searches for
Reset lamp hours For a new lamp, resets hours of use.
Reset all settings Resets all menu settings to default settings.
projector: upright or upside-down, in front of or
behind the screen. Inverts or reverses the image
accordingly.
input before it closes.
input signals and displays the next one found.
Help menu
Help
Displays information and status for the projector.
Diagnostics... Show tests for checking the operation of the projector
and the remote control.
42 User’s Guide
Maintaining the Projector
This chapter explains how to maintain the projector.
■ “Performing Routine Maintenance” on page 43
■ “Upgrading the Projector” on page 47
Performing Routine Maintenance
This section provides instructions on performing routing maintenance.
■ “To get the projector status” on page 43
■ “To clean the projector lens” on page 44
■ “To replace the lamp module” on page 44
■ “To replace the battery in the remote control” on page 46
To get the projector status
4
■ Open the on-screen menu and select Help. This screen shows information and
status for the projector.
User’s Guide 43
Maintaining the Projector
To clean the projector lens
■ To minimize the risk of damaging or scratching the lens surface, blow dust
particles off the lens with clean, dry, deionized air.
If this method does not work, use the following method:
■ Wipe the lens in a single direction with a clean, dry cloth. Do not wipe back and
forth across the lens.
If the cloth is dirty or smears the lens, wash the cloth. If the cloth is still dirty after
washing it or the fabric is damaged, replace it.
CAUTION: Cleaning requires special consideration:
Ä
■ Do not spray any type of fluid or cleaner directly on the lens surface. Cleaners
might damage the lens.
■ Do not use fabric softener when washing a cleaning cloth or softener sheets
when drying the cloth. Chemicals on the cloth might damage the surface of the
lens.
■ Do not store a cleaning cloth in contact with the lens for a long time because
doing so contaminates the lens with dye from the cloth. The cloth can be
contaminated if left in the open air.
To replace the lamp module
WARNING: Replacing the lamp module requires special consideration:
Å
■ To reduce the risk of injury, be careful when removing the lamp module as
broken glass might be present in the unlikely event the lamp is broken. If the
lamp is broken, contact HP about repairs that might be required.
■ The lamp contains a small amount of mercury. If the lamp breaks, adequately
ventilate the area where the breakage occurred. Disposal of this lamp might be
regulated due to environmental considerations. For disposal or recycling
information, contact your local authorities or the Electronic Industries Alliance
(http://www.eiae.org).
■ Because the lamp assembly operates at a very high temperature, wait
30 minutes before removing the lamp module.
44 User’s Guide
Maintaining the Projector
1. Turn off the projector and allow it to cool for 30 minutes.
2. On the bottom of the projector, loosen the two screws on the lamp cover and
remove the cover.
3. Loosen the two screws on the lamp module and pull out the module.
4. Insert the lamp module and tighten the two screws.
5. Install the cover and tighten the two screws.
6. Turn on the projector. If the lamp does not turn on after the warm-up period, try
reinstalling the lamp again.
7. Open the on-screen menu and select Setup > Reset lamp hours.
User’s Guide 45
Maintaining the Projector
To replace the battery in the remote control
1. Pull out the battery holder.
2. Insert the new battery in the holder.
3. Push the holder into the remote control.
1
2
3
When discarding old batteries, contact your local waste-disposal provider regarding
local restrictions on the disposal or recycling of batteries.
46 User’s Guide
Upgrading the Projector
To update the firmware
HP might periodically release updated versions of the projector firmware to enhance
the projector performance. The projector firmware version is shown in the on-screen
menu at Help. Check for updated versions at http://www.hp.com/go/proj_firmware.
USB method
1. On a computer with a USB port, go to the HP projector upgrade website (see
introduction for this section) and download the latest file intended for a USB
upgrade.
2. Connect the USB cable between the USB port on the projector and the USB port
on the computer.
3. On the computer, run the file you downloaded by double-clicking the file. Follow
the on-screen instructions.
Maintaining the Projector
User’s Guide 47
Maintaining the Projector
48 User’s Guide
This chapter explains how to permanently install the digital projector.
Installing the Projector
This section provides instructions on how to permanently install the projector.
■ “To install on a table” on page 49
■ “To install on the ceiling” on page 50
■ “To install for rear projection” on page 52
■ “To mount the projector on a tripod” on page 53
■ “To lock the projector” on page 53
To install on a table
5
Installing Permanently
This installation is covered in detail in Chapter 1. See “Setting Up the Projector” on
page 15 for more information.
User’s Guide 49
Installing Permanently
To install on the ceiling
WARNING: To minimize the risk of injury from improperly installed equipment, it
Å
is recommended that a professional installer performs the ceiling installation.
The actual projector and mounting plate differ from those shown below, but the steps
✎
are the same.
1. Attach the mounting plate to the bottom of the projector. The pointed part of the
hole in the bracket faces the back of the projector. See the instructions that came
with the ceiling mount.
2. Attach the ceiling-mount bracket to the ceiling, and firmly secure with three or
four screws capable of holding 9 kg (20 lb). The ceiling-mount bracket must be
located 1.2 to 12 m (4 to 40 ft) in front of the screen. See the table in “Setting Up
the Projector” on page 15.
50 User’s Guide
Installing Permanently
3. With the projector lens aiming away from the screen, insert the mounting plate
onto the bracket so the tabs engage, then pivot the projector so it aims forward.
Tighten the rear thumbscrew fully, then tighten the two other thumbscrews.
4. Adjust the on-screen menu to match your settings. Open the on-screen menu and
select Setup > Projector position. Then select Front Ceiling from the
drop-down list.
User’s Guide 51
Installing Permanently
If you do not use an HP ceiling mount, mount the projector according to the following
dimensions:
■ X = 82 mm (3.23 in.)
■ Y = 55 mm (2.17 in.)
■ Z = 110 mm (4.33 in.)
■ Thread size = M3
To install for rear projection
1. Place the projector 1.2 to 12 m (4 to 40 ft) behind a translucent screen that is
designed for rear projection.
See “To set up on a table” on page 17 or “To install on the ceiling” on page 50 for
more instructions.
2. Open the on-screen menu and select Setup > Projector position. Then select
Rear Table or Rear Ceiling from the drop-down list.
52 User’s Guide
Installing Permanently
To mount the projector on a tripod
The projector includes standard tripod mount on the bottom of the projector. This
allows the projector to be mounted on tripods readily available at camera and other
electronic stores.
CAUTION:
Ä
■ The tripod should be capable of supporting a weight of at least 5 lb. Refer to the
owner’s manual that came with your tripod for more information.
■ Do not overtighten the tripod mount screw. Doing so could strip the screw and
cause the projector to fall off the tripod.
To lock the projector
The projector includes a built-in slot to secure the projector with a cable and a lock
(such as the Kensington MicroSaver lock system, available at many computer stores).
1. Wrap the cable around a secure object, such as a table leg. Loop the cable to create
a slip knot around the stationary object, and be sure it cannot slip off.
2. Insert the lock
1 into the hole and twist the key 2.
1
2
User’s Guide 53
Installing Permanently
54 User’s Guide
This chapter describes potential problems and offers suggestions to help correct them.
■ “Troubleshooting Suggestions” on page 55
■ “Testing the Projector” on page 63
Troubleshooting Suggestions
To use this section, find the problem statement that is closest to your problem, then try
each bulleted item one at a time until your problem is fixed. If the suggestions do not
solve your problem, contact HP. See the Support Guide included with the projector.
■ “Start-up problems” on page 56
■ “Picture problems” on page 57
■ “Sound problems” on page 61
■ “Interruption problems” on page 61
6
Fixing Problems
■ “Remote control problems” on page 62
User’s Guide 55
Fixing Problems
Start-up problems
If no lights or sounds turn on:
If nothing is projected but the projector seems to start up:
If the projector makes a “ticking” sound, if the projector lamp does not turn on,
and if the lamp indicator is on or blinking:
❏ Be sure that the power cable is securely connected to the
projector and the other end is plugged into an outlet with power.
❏ Press the power button again.
❏ Be sure the lens cover is open.
❏ If the lamp indicator is on or blinking, unplug the projector after
it cools down. Remove and reinstall the lamp module. If this does
not fix the problem, install a new lamp.
❏ If the temperature indicator is on or blinking, turn off the
projector and allow it to cool before restarting it. If the warning
light turns on or blinks again, contact HP for assistance.
❏ The projector lamp is too hot to light. Turn off the projector and
wait for it to cool before turning it on again.
❏ If the lamp indicator is on or blinking, unplug the projector after
it cools down. Remove and reinstall the lamp module. If this does
not fix the problem, install a new lamp.
❏ The projector lamp has reached the end of its life. Replace the
lamp.
56 User’s Guide
Picture problems
If the image is not displayed on the screen, but the HP startup screen
is displayed:
❏ Press the source button on the projector or remote control.
❏ Turn off or disable the notebook or desktop computer screen
saver function.
❏ For a computer connection, ensure your notebook computer’s
external video port is turned on. See the video port card shipped
with the projector. On some notebooks, for example, press the
Fn + F4 function keys to turn on the external video port.
❏ Verify that the right input source is connected. Open the
on-screen menu and go to Select input. Then set the correct input
port where the equipment is connected.
❏ Verify that auto search is enabled. Open the on-screen menu and
go to Select input > Auto-scan sources.
If the wrong input source is displayed:
Fixing Problems
❏ Press the source button on the projector or the remote control to
select another active input source.
❏ Verify that the right input source is connected. Open the
on-screen menu and go to Select input. Then set the correct input
source.
❏ Verify that the projector is enabled for auto-searching. Open the
on-screen menu and go to Select input > Auto-scan sources.
❏ If the input source might turn off and on, open the on-screen
menu and go to Select input. Set Auto-scan sources to Off and
select the correct input source.
User’s Guide 57
Fixing Problems
If the image is out of focus:
If an upside-down or reversed image is displayed:
If the image is too small or too large:
❏ Be sure the lens cover is open.
❏ While displaying the on-screen menu, adjust the focus ring. (The
image size should not change; if it does, you are adjusting the
zoom not the focus.)
❏ Ensure the projection screen is 1.2 to 12 m (4 to 40 ft) from the
projector.
❏ For a computer connection, set the display resolution on the
computer to 1024 x 768 pixels. If the computer has multiple
monitors, adjust the resolution of the monitor assigned to the
projector.
❏ Check the projection lens to see if it needs cleaning.
❏ The projector has been set to the wrong position setting. Open the
on-screen menu, select Setup > Projector position, and select
the correct setting.
❏ Adjust the zoom ring on top of the projector.
❏ Be sure the projector is 1.2 to 12 m (4 to 40 ft) from the
projection screen.
❏ Open the on-screen menu and select Adjust picture > Adjust
picture mode > Aspect ratio. Try the different settings.
❏ For a wide-screen picture, open the on-screen menu and select
Adjust picture > Shape settings and try setting Widescreen
input to Yes.
If the image has slanted sides:
❏ As much as possible, reposition the projector so that it is centered
on the screen and below the bottom or above the top of the
screen.
❏ Open the on-screen menu and select Quick choice > Keystone.
Adjust the setting as needed.
58 User’s Guide
If a scrolling or cut-off image is displayed:
❏ Press the auto sync button on the projector or remote control.
❏ For a computer connection, turn everything off, then power on
the projector first and power on the notebook or desktop
computer second.
❏ For a computer connection, if the above steps do not correct the
display image, adjust the resolution of the notebook or desktop
computer to 1024 x 768 pixels. If the computer has multiple
monitors, adjust the resolution of the monitor assigned to the
projector.
If the image is flickering or unstable:
❏ Press the auto sync button on the projector panel or remote
control.
❏ For a computer connection, set the display resolution to
1024 x 768 pixels. If the computer has multiple monitors, adjust
the resolution of the monitor assigned to the projector.
❏ For a computer connection, open the on-screen menu, select
Adjust picture > VGA settings and adjust the Frequency or
Tracking.
Fixing Problems
If the image is stretched:
❏ Open the on-screen menu and select Adjust picture > Adjust
picture mode > Aspect ratio. Try the different settings.
❏ Open the on-screen menu and select Adjust picture > Shape
settings. Try changing the Widescreen input setting.
If the image disappears from the computer screen:
❏ For a notebook computer, you might be able to turn on both the
external VGA port and the built-in screen. See the computer
manual or the projector’s video port guide.
If text or lines from a computer display seem rough or uneven:
❏ Check the focus adjustment.
❏ Open the on-screen menu and select Quick choice > Reset
keystone.
User’s Guide 59
Fixing Problems
If the projected colors seem slightly wrong:
If the projected colors seem completely wrong:
❏ If the video button on the projector is not lit, try pressing the
video button on the projector or the picture mode button on the
remote control.
❏ Open the on-screen menu and select Adjust picture > Color
settings. Adjust the color settings as needed.
❏ Open the on-screen menu and select Adjust picture > Color
Settings > Color space. Change the selection.
❏ Open the on-screen menu and select Help > Diagnostics.
Run color tests.
❏ Be sure the pins on the cable connectors are not bent or broken.
❏ Open the on-screen menu and select Adjust picture > Color
settings > Color space. Change the selection.
❏ Open the on-screen menu and select Help > Diagnostics.
Run color tests.
❏ Reset the picture settings to the factory-default settings. See the
following problem.
If the picture settings are completely wrong and you cannot fix them:
❏ Reset the projection settings to the factory-default settings. To do
this, open the on-screen menu and select Setup > Reset all
settings, or hold down the down + up + right buttons
on the projector for 5 seconds.
If the projector stops responding to all controls:
❏ If possible, turn off the projector, then unplug the power cord and
wait at least 15 seconds before reconnecting power.
60 User’s Guide
Sound problems
If no sound is coming out of the projector:
❏ Be sure you have an audio cable securely connected between the
projector and the input device.
❏ Be sure that the mute and volume settings are correct on the input
device, such as a computer, DVD player, or camcorder.
❏ Open the on-screen menu and select Quick choice. Check the
following settings:
◆ Mute is turned off.
◆ Volume is correct.
Interruption problems
If the lamp indicator or temperature indicator turns on or blinks:
❏ If the lamp indicator blinks, the lamp is not able to light. Wait for
the projector to cool, then try starting it again.
Fixing Problems
❏ If the lamp indicator is on or blinking, unplug the projector after
it cools down. Remove and reinstall the lamp module. If this does
not fix the problem, install a new lamp.
❏ If the temperature indicator turns on or blinks, the projector is too
hot. See the following problem.
If the projector suddenly shuts down and the temperature light turns on:
❏ If the temperature light is blinking, the fan is not working. Allow
the projector to cool for several minutes.
❏ If the temperature light is steady, the projector has overheated.
Allow it to cool for several minutes.
❏ If airflow is obstructed, remove the obstruction.
❏ If possible, remove any sources of excess heat in the room.
❏ If the condition occurs after restarting the projector, contact HP
to have the projector serviced or repaired.
User’s Guide 61
Fixing Problems
If the lamp shuts off during a presentation:
If the lamp burns out or makes a popping sound:
Remote control problems
If the remote control does not operate:
❏ A minor power surge might cause the lamp to shut off. Wait a
few minutes, then power on the projector.
❏ If the lamp indicator is on or blinking, unplug the projector after
it cools down. Remove and reinstall the lamp module. If this does
not fix the problem, install a new lamp.
❏ If the lamp burns out and makes a popping sound, the projector
will not turn back on until the lamp module has been replaced.
❏ If the lamp breaks, contact HP about repairs that might be
required.
❏ Be sure nothing is blocking the remote control receiver on the
front or back of the projector. Move to within 9 m (30 ft) of the
projector.
❏ Open the on-screen menu and select Help > Diagnostics.
Run remote control test.
❏ Replace the battery in the remote control.
If only the mouse and page-up and page-down buttons do not work:
❏ Be sure you have a USB connection between the projector and
the computer.
❏ Open the on-screen menu and select Help > Diagnostics.
Run remote control test and USB test.
62 User’s Guide
Testing the Projector
The on-screen menu contains diagnostic tests you can use to verify the proper
operation of the projector and the remote control.
To run the projector diagnostics
1. Open the on-screen menu and select Help > Diagnostics.
2. Select a test to perform.
Fixing Problems
User’s Guide 63
Fixing Problems
64 User’s Guide
This chapter lists the specifications, safety information, and regulatory information for
the projector.
■ “Specifications” on page 65
■ “Safety Information” on page 70
■ “Regulatory Information” on page 72
Specifications
Because HP continually improves its products, the following specifications are subject
to change. For the latest specifications, visit the HP website at http://www.hp.com.
Identifying the projector specifications
Size 251 mm × 210 mm × 69 mm
7
Reference
(9.9 in. × 8.3 in. × 2.7 in.)
Weight 1.8 kg (3.9 lb)
Resolution XGA
Technology DLP
Video connectors VGA input, S-video input, composite-video input (RCA)
Optional cable for component-video input
Audio connectors Mini-phone stereo audio input
Video compatibility NTSC M (3.58 MHz), 4.43 MHz; PAL B, D, G, H, I, M, N;
SECAM B, D, G, K, K1, L; HDTV 480i/p, 575i/p, 720p,
1080i
IR receivers On front and back of projector
User’s Guide 65
Reference
Identifying the projector specifications
Lens 2.0 to 2.4 throw ratio (distance/width)
Optical zoom 1:1.2
Keystone Manual correction: up to +25° to –30° vertical
Audio Monaural speaker, 1-W peak output
Lamp 200-W P-VIP lamp, 1.0-mm arc
2000 hours (half life)
Lamp-saver mode reduces lamp power to 160 W, extends
lamp life
Replacement lamp: L1720A
Light engine 0.7-in. 12° DDR DMD
XGA
Color system Two preset color modes are available:
Graphics
Video
Remote control USB mouse
(continued)
Mounting options Ceiling and tabletop, front and rear projection
Security Kensington lock compatible
Power 100 to 240 V at 50 to 60 Hz
66 User’s Guide
Reference
Identifying the projector specifications
Noise level 38±2 dBA
Environment Operating:
Temperature: 10 to 35°C (50 to 95°F)
Humidity: 80% RH max, non-condensing
Altitude: up to 3,000 m (10,000 ft), up to 25°C (77°F)
Storage:
Temperature: –20 to 55°C (–4 to 131°F)
Humidity: 80% RH max, non-condensing
Altitude: up to 12,000 m (40,000 ft)
(continued)
User’s Guide 67
Reference
Analog Video Mode Compatibility
Compatibility Resolution V-Sync (Hz) H-Sync (kHz)
VGA 640 x 350 70 31.5
640 x 350 85 37.9
640 x 400 85 37.9
640 x 480 60 31.5
640 x 480 72 37.9
640 x 480 75 37.5
640 x 480 85 43.3
720 x 400 70 31.5
720 x 400 85 37.9
SVGA 800 x 600 56 35.2
800 x 600 60 37.9
800 x 600 72 48.1
800 x 600 75 46.9
800 x 600 85 53.7
XGA 1024 x 768 60 48.4
1024 x 768 70 56.5
1024 x 768 75 60.0
1024 x 768 85 68.7
SXGA 1280 x 1024 60 63.98
1280 x 1024 75 79.98
SXGA+ 1400 x 1050 60 65.22
1400 x 1050 60 63.98
MAC LC 13 640 x 480 66.66 34.98
68 User’s Guide
Reference
Analog Video Mode Compatibility
(continued)
Compatibility Resolution V-Sync (Hz) H-Sync (kHz)
MAC II 13 640 x 480 66.68 35
MAC 16 832 x 624 74.55 49.725
MAC 19 1024 x 768 75 60.24
MAC 1152 x 870 75.06 68.68
MAC G4 640 x 480 60 31.35
MAC G4 640 x 480 120 68.03
MAC G4 1024 x 768 120 97.09
i Mac DV 640 x 480 117 60
i Mac DV 800 x 600 95 60
i Mac DV 1024 x 768 75 60
i Mac DV 1152 x 870 75 68.49
i Mac DV 1280 x 960 75 75
i Mac DV 1280 x 1024 75 90.9
User’s Guide 69
Reference
Safety Information
Safety precautions
WARNING: Observe the following precautions to reduce the risk of injury.
Å
To prevent eye injury, do not look directly into the lens when the lamp is on.
■
■ To prevent electrical shock, do not expose the projector to rain or moisture. Do
not open the projector except as instructed by the manual.
■ To reduce the risk of fire or electrical shock, do not allow small metallic objects to
get inside the projector. Carry the projector only in its protective case, and do not
store paper clips or other small objects inside the case.
■ Allow the projector to cool before removing any cover and touching internal
components, as instructed by the manual.
■ Keep paper and other combustible material away from the projector lens to
prevent the possibility of fire.
■ Use only an approved power cord rated for the voltage and current marked on the
product label. Do not overload any outlet or extension cord.
70 User’s Guide
LED safety
The infrared ports located on the digital projector and remote control are classified as
Class 1 LED devices according to International Standard IEC 825-1 (EN60825-1).
This device is not considered harmful, but the following precautions are
recommended:
■ If the unit requires service, contact an authorized HP service center.
■ Do not attempt to make any adjustment to the unit.
■ Avoid direct eye exposure to the infrared LED beam. Be aware that the beam is
invisible light and cannot be seen.
■ Do not attempt to view the infrared LED beam with any type of optical device.
Mercury safety
WARNING: This digital projector lamp contains a small amount of mercury. If the
Å
lamp breaks, adequately ventilate the area where the breakage occurred. Disposal
of the lamp might be regulated due to environmental considerations. For disposal
or recycling information, please contact your local authorities or the Electronic
Industries Alliance at http://www.eiae.org.
Reference
User’s Guide 71
Reference
Regulatory Information
This section presents information that shows how your digital projector complies
with regulations in certain regions. Any modifications to your digital projector not
expressly approved by HP could void the authority to operate the digital projector in
these regions.
U.S.A.
This digital projector has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This digital projector generates, uses, and can radiate radio frequency energy.
If not installed and used in accordance with the instructions, it can cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this digital projector does
cause harmful interference to radio or television reception (which can be determined
by unplugging the unit), try the following:
■ Reorienting or relocating the receiving antenna.
■ Relocating the digital projector with respect to the receiver.
■ Connecting the digital projector’s power cord to another power outlet.
Connections to peripheral devices
To maintain compliance with FCC Rules and Regulations, use properly shielded
cables with this device.
For more information, consult your dealer, an experienced radio/television technician,
or, prepared by the Federal Communications Commission, How to Identify and
Resolve Radio-TV Interference Problems. This booklet is available from the
U.S. Government Printing Office, Washington, DC 20402, Stock Number
004-000-00345-4. At the first printing of this manual, the telephone number was
202-512-1800.
Canada
This Class B digital apparatus complies with Canadian ICES-003.
72 User’s Guide
Japan
Korea
Reference
User’s Guide 73
Reference
International
For regulatory identification purposes, your product is assigned a regulatory model
number. The regulatory model number for your product is listed in the declaration of
conformity. This regulatory number is different from the marketing name and product
number.
DECLARATION OF CONFORMITY
According to ISO/IEC Guide 22 and EN 45014
Manufacturer's Name: Hewlett Packard Company
Manufacturer's Address: Hewlett Packard Company
Digital Projection & Imaging
1000 NE Circle Blvd.
Corvallis, OR 97330-4239
Declares, that the product(s):
Product Name: Digital Projector
Model Number(s): mp3220 series
Regulatory Model: CRVSB-04VU
Conforms to the following product specifications:
Safety: IEC 60950:1999/ EN 60950:2000
IEC 60825-1:1993 +A1 / EN 60825-1:1994 +A11 Class 1 LED
GB4943-1995
EMC: EN 55022: 1998 Class B [1]
CISPR 24:1997 / EN 55024: 1998
IEC 61000-3-2:1995 / EN 61000-3-2:2000
IEC 61000-3-3:1994 / EN 61000-3-3:1995+A1:2001
GB9254-1998
FCC Title 47 CFR, Part 15 Class B/ANSI C63.4:1992
AS/NZS CISPR 22:2002
Supplementary information:
The product herewith complies with the requirements of following Directives and carries the CE marking
accordingly:
-Low Voltage Directive: 73/23/EEC
-EMC Directive: 89/336/EEC
[1] The product was tested in a typical configuration with Hewlett Packard Personal Computer peripherals.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Corvallis, Oregon, May 1, 2004
Steve Brown, General Manager
European Contact for regulatory topics only: Hewlett Packard GmbH, HQ-TRE, Herrenberger Straße 140, 71034
Boeblingen, Germany. (FAX:+49-7031-143143).
USA Contact: Hewlett Packard Co., Corporate Product Regulations Manager, 3000 Hanover Street, Palo Alto, CA
94304. Phone: (650) 857-1501.
74 User’s Guide
Index
A
accessories
listing
14
adjust picture
aiming the projector
raising and lowering
analog video mode
compatibility
audio
adjusting
34
26
68
34
B
back panel
identifying
buttons
projector
remote control
12
11
13
C
ceiling installation
setting up
component video connection
connecting video source
composite video connection
connecting video source
configuration
using on-screen menu
connecting input sources
component video connection
composite video connection
computer with VGA port
handheld organizer
50
37
20
23
22
19
23
22
with S-video
contents
in the box
21
8
D
dimensions
of screen and room
distance
setting up in relation to image
16
F
firmware
updating
focus
adjusting
range of
47
27
27
G
graphics mode
see picture mode
H
handheld organizer
connecting
hide button
using
20
32
I
adjusting
input/output connectors
see back panel
installation
34
15
User’s Guide Index 75
Index
see ceiling installation
see rear projection installation
see table installation
K
Kensington lock 53
keystone correction
adjusting
33
L
lamp module
replacing
lamp saver mode
language
changing
LED safety
precautions
lens
care
cleaning
lights
identifying
location
see ceiling installation
see rear projection installation
see table installation
lock
53
44
35
35
71
44
44
11
M
maintenance
routine maintenance
menu
see on-screen menu
43
O
on-screen menu
about menu definitions
adjust picture menu definitions
quick choice menu definitions
select input menu definitions
setup menu definitions
42
42
38
39
40
36, 37
using
optimizing image
34
P
adjusting
picture mode
changing
definition
power
turning off
turning on
presentations
changing source
from a computer
projector
adjusting
identifying parts
maintaining
setting up
troubleshooting
upgrading
34
30, 34
34
25
24
32
31
33
10
43
15
55
47
R
rear panel
see back panel
rear projection installation
setting up
remote control
battery replacement
identifying
using
reset
60
resetting
projection settings
projector
52
46
13
29
60
60
S
safety information
LED
71
Index 76 User’s Guide
Index
precautions 70
SCART device
security
locking
setup
adjusting
see also ceiling installation
see also rear projection
see also table installation
slanted picture
see keystone correction
sound
see audio
source
changing
specifications
of the projector
status
of projector
S-video connection
connecting video source
21
53
35
32
65
43
T
table installation
setting up
17
21
testing
diagnostics
tripod
mounting on
troubleshooting
interruption problems
picture problems
remote control problems
sound problems
start-up problems
suggestions
turning off
turning on
63
53
61
55
25
24
U
upgrading 47
V
video mode
see picture mode
video sources
21
Z
zoom
adjusting
range of
27
27
61
57
62
56
User’s Guide Index 77
Index
Index 78 User’s Guide
Loading...
