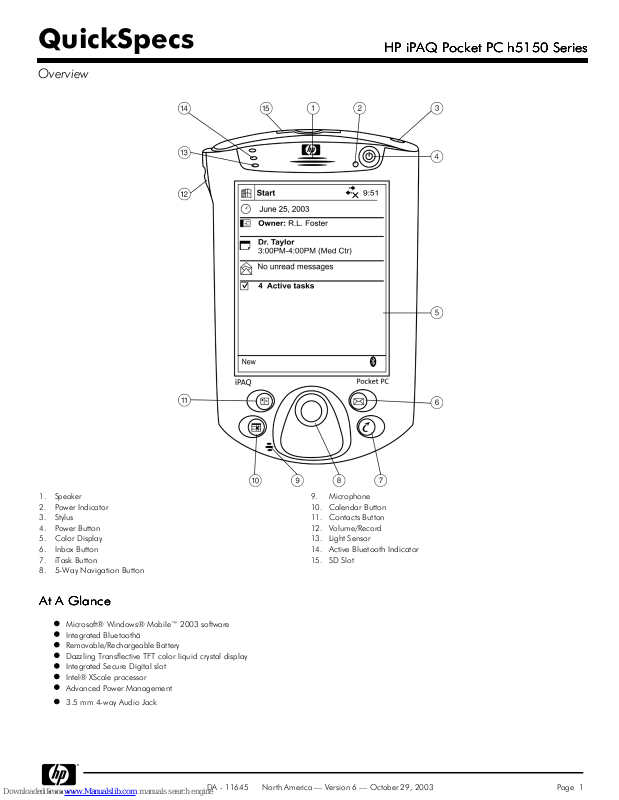

Page 1
1.
Speaker
9.
Microphone
2.
Power Indicator
10.
Calendar Button
3.
Stylus
11.
Contacts Button
4.
Power Button
12.
Volume/Record
5.
Color Display
13.
Light Sensor
6.
Inbox Button
14.
Active Bluetooth Indicator
7.
iTask Button
15.
SD Slot
8.
5-Way Navigation Button
At A Glance
At A GlanceAt A Glance
At A Glance
Microsoft® Windows® Mobile™ 2003 software
Integrated Bluetoothä
Removable/Rechargeable Battery
Dazzling Transflective TFT color liquid crystal display
Integrated Secure Digital slot
Intel® XScale processor
Advanced Power Management
3.5 mm 4-way Audio Jack
QuickSpecs
HP iPAQ Pocket PC h5150 Series
HP iPAQ Pocket PC h5150 SeriesHP iPAQ Pocket PC h5150 Series
HP iPAQ Pocket PC h5150 Series
Overview
DA - 11645 North America — Version 6 — October 29, 2003
Page 1
Page 2
Models
ModelsModels
Models
iPAQ Pocket PC h5150– 32-MB ROM/64-MB RAM BT/SD
iPAQ Pocket PC h5150– 32-MB ROM/64-MB RAM BT/SDiPAQ Pocket PC h5150– 32-MB ROM/64-MB RAM BT/SD
iPAQ Pocket PC h5150– 32-MB ROM/64-MB RAM BT/SD
FA106A#8ZQ– U.S. Commercial, English
Processor
ProcessorProcessor
Processor
400 MHz Intel® XScale™ technology-based processor
Memory
MemoryMemory
Memory
64-MB SDRAM; 32-MB Flash ROM Memory
Input Method
Input MethodInput Method
Input Method
Handwriting recognition, soft keyboard, character recognition, voice recorder, inking
Interfaces
InterfacesInterfaces
Interfaces
3-mode alarm notification
Flashing green LED, tone, pop-up message
Charge active: flashing / solid amber LED
Bluetooth active: flashing blue LED
Cradle Interfaces
Cradle InterfacesCradle Interfaces
Cradle Interfaces
Connector
1
Cable
1 USB or Serial cable connects to PC
DC Jack connector for AC
Adapter
1
Stylus Holder
2 holes, on left and right front
Stabilizing Tab Release Button
2 Tabs engage the sides of Pocket PC when no Expansion Pack is in use
Display
DisplayDisplay
Display
Transflective TFT liquid crystal display
64K color (65,536 colors) 16-bit touch-sensitive transflective thin film transistor (TFT) liquid crystal display (LCD) Viewable
image size – 2.26 in wide x 3.02 in tall (57.6 mm wide x 76.8 mm tall), 3.8 in Diagonal (96 mm)
Power Supply
Power SupplyPower Supply
Power Supply
1250 mAh Lithium-Ion Polymer removable / rechargeable battery (in docking cradle or with AC Adapter)
Internal Back up battery - Allows user to swap main removable battery with the system power in standby
2500 mAh Lithium-Ion Polymer Extended Battery (sold as an accessory)
Battery Re-Charge Time
System in OFF mode or Standby 2.5 hours
System ON (depending on system power consumption) 3 to 6 hours
NOTE:
NOTE: NOTE:
NOTE:
Battery life will vary based on the usage pattern of an individual user and the configuration of the handheld. Use
of some attachments may significantly decrease battery life.
Expansion Capabilities
Expansion CapabilitiesExpansion Capabilities
Expansion Capabilities
Supports PC card, CF and other iPAQ Expansion Packs
Integrated SD slot - supports SD/MMC type standard, SDIO ready
Audio Capabilities
Audio CapabilitiesAudio Capabilities
Audio Capabilities
Audio record and playback (play MP3 music or audio programs from the Web, as well as records and plays back
voice notes or meeting notes)
Volume up/down
Integrated speaker, 3.5 mm stereo headphone and microphone jack
QuickSpecs
HP iPAQ Pocket PC h5150 Series
HP iPAQ Pocket PC h5150 SeriesHP iPAQ Pocket PC h5150 Series
HP iPAQ Pocket PC h5150 Series
Standard Features
DA - 11645 North America — Version 6 — October 29, 2003
Page 2
Page 3
Ergonomic Design
Ergonomic DesignErgonomic Design
Ergonomic Design
Features
FeaturesFeatures
Features
Multifunction power button
5-way Navigation Button
Volume up/down
Touch-sensitive display for stylus or fingertip
Microphone and Speaker on front-side of unit
HP Exclusive Applications
HP Exclusive ApplicationsHP Exclusive Applications
HP Exclusive Applications
(On device)
These are the extras that HP put in ROM
These are the extras that HP put in ROMThese are the extras that HP put in ROM
These are the extras that HP put in ROM
iPAQ File Store: non-volatile storage in flash ROM
iPAQ iTask Manager: access and launch programs easily
iPAQ Backup: utility for Backup/Restore to Main Memory, Memory Card, or iPAQ File Store
iPAQ Image Viewer: view images and create slide shows
Adjustable Standby Settings: Utility for adjusting power conservation modes
Utilities: Self Test, Expansion pack, iPAQ Audio, Power Status
Companion CD from HP
Companion CD from HPCompanion CD from HP
Companion CD from HP
APPLICATIONS
APPLICATIONSAPPLICATIONS
APPLICATIONS
Full Versions
Full VersionsFull Versions
Full Versions
Trial Versions
Trial VersionsTrial Versions
Trial Versions
Westtek ClearVue Suite
F-Secure FileCrypto Data
Encryption
Colligo Personal Edition
Adobe PDF Viewer
RealOne Player for Pocket PC
iPresenter PowerPoint converter
MobiMate WorldMate
Xcellenet Afaria Device Management Agent
Margi Presenter-to-Go (requires purchase of additional hardware)
Illium Ewallet
Illium ListPro
CommonTime Cadenza mNotes
CD LINKS
CD LINKSCD LINKS
CD LINKS
HP Mobile Print Center
CheckPoint
NetMotion
Avaya IP Softphone
IP Blue VTGO!
Cisco CallManager
Pocket Presence Running Voice
IP
Vindigo
Audible Manager and Audible
Player (Service plan
required to download and play
Audible content – link)
SingleTap
Handango
CNM Network Xpress
Conferencer
Additional Documentation
Additional DocumentationAdditional Documentation
Additional Documentation
iPAQ Reference Guide on PDF
NOTE:
NOTE: NOTE:
NOTE:
Programs could vary based on SKU. Some programs are accessed through CD links to download web sites.
Operating System
Operating SystemOperating System
Operating System
Applications
ApplicationsApplications
Applications
Microsoft® Windows® Mobile™ 2003 Premium software for Pocket PC
Calendar, Contacts, Tasks, Voice Recorder, Notes, Pocket Word (with Spellchecker), Pocket Excel, Pocket Internet Explorer,
Windows Media Player 9 (MP3, audio and video streaming), Calculator, Solitaire, Jawbreaker, Inbox (with Spell Checker for
email), Microsoft Reader (eBooks), File Explorer, MSN Messenger, Pictures, Terminal Services Client, VPN Client, Infrared
Beaming, Clock, Align Screen, Memory, Volume control, ClearType Tuner (except for Asian languages)
QuickSpecs
HP iPAQ Pocket PC h5150 Series
HP iPAQ Pocket PC h5150 SeriesHP iPAQ Pocket PC h5150 Series
HP iPAQ Pocket PC h5150 Series
Standard Features
DA - 11645 North America — Version 6 — October 29, 2003
Page 3
Page 4
Applications from
Applications fromApplications from
Applications from
Microsoft on Companion
Microsoft on CompanionMicrosoft on Companion
Microsoft on Companion
CD
CDCD
CD
Additional Software from Microsoft
Additional Software from MicrosoftAdditional Software from Microsoft
Additional Software from Microsoft
Outlook 2002, Microsoft ActiveSync 3.7 (Desktop device synchronization), Microsoft Reader eBooks, Links to Microsoft
websites for additional downloadable applications (some programs may require purchase of additional desktop software to
utilize Pocket PC versions)
Bluetooth Specifications*
Bluetooth Specifications*Bluetooth Specifications*
Bluetooth Specifications*
Technology
TechnologyTechnology
Technology
High-speed, low-power, short-range
Bluetooth specification
Bluetooth specificationBluetooth specification
Bluetooth specification
1.1 compliant (2.4-GHz Industrial Scientific Medical Band)
System interface
System interfaceSystem interface
System interface
921k high-speed UART processor interface
User Interface
User InterfaceUser Interface
User Interface
Bluetooth Manager
Operating system support
Operating system supportOperating system support
Operating system support
Microsoft Pocket PC and Pocket PC 2003
Device type
Device typeDevice type
Device type
Class II device; up to 4 dBm transmit, typical 10 meter range
Power
PowerPower
Power
3.3V ± 5% Peak current - typical TX current at approximately 140 mA
Receiver sensitivity
Receiver sensitivityReceiver sensitivity
Receiver sensitivity
-78 dBm or greater
Regulatory standards
Regulatory standardsRegulatory standards
Regulatory standards
R&TT#-EN 300 328 and EN 300 826, UL 1950, CB Safety Scheme inclusive of EN 60950
and IEC 950, FCC Part 15 subpart C, Canadian, CE,
Profile Support
Profile SupportProfile Support
Profile Support
General Access Profile
Service Discovery Application Profile
Serial Port Profile
Generic Object Exchange Profile
File Transfer Profile
Dial-Up Networking Profile
LAN Access Profile
Object Push Profile
Personal Area Networking Profile
Basic Printing Profile
Hard Copy Replacement Profile (printing)
Headset profile
Usage Models *
Usage Models *Usage Models *
Usage Models *
Service Discovery
Service DiscoveryService Discovery
Service Discovery
Determine what Bluetooth devices are within range and support authorization
File Transfer
File TransferFile Transfer
File Transfer
File and directory browsing and navigation on another Bluetooth device.
File copying
Object manipulation – including add, delete, create new folders etc.
Serial Port
Serial PortSerial Port
Serial Port
Synchronization between PDAs and PCs
Access Point
Access PointAccess Point
Access Point
Wireless link to WAN thru cell phone*
Agnostic to WAN technology
Send/receive SMS messages
Connect your printer and scanner to your personal network wirelessly
Adhoc Bluetooth Pico-networking (point to multi-point)
LAN Access
LAN AccessLAN Access
LAN Access
Wireless link to Corporate LAN using Bluetooth and appropriate Bluetooth Access Point*
Corporate email, network neighborhood, access to LAN applications, file transfer, ftp,
Internet browsing, etc, using TCP/IP*
Access the Internet by connecting to your desktop or notebook over Bluetooth and using its
network connection*
Object Push
Object PushObject Push
Object Push
Exchange business cards, tasks, documents, appointments and more*
Personal Area Networking
Personal Area NetworkingPersonal Area Networking
Personal Area Networking
Collaborate, chat, play games, exchange data*
Adhoc peer to peer networking*
Basic Printing and Hard Copy Replacement Profiles
Basic Printing and Hard Copy Replacement ProfilesBasic Printing and Hard Copy Replacement Profiles
Basic Printing and Hard Copy Replacement Profiles
Print to any HP Bluetooth-enabled printer without the need for cables or specific print
drivers
QuickSpecs
HP iPAQ Pocket PC h5150 Series
HP iPAQ Pocket PC h5150 SeriesHP iPAQ Pocket PC h5150 Series
HP iPAQ Pocket PC h5150 Series
Standard Features
DA - 11645 North America — Version 6 — October 29, 2003
Page 4
Page 5
Bluetooth Headset Profile
Bluetooth Headset ProfileBluetooth Headset Profile
Bluetooth Headset Profile
Redirect your Pocket PC's audio to a Bluetooth headset or use a headset's microphone with
your handheld
Certifications
CertificationsCertifications
Certifications
All necessary regulatory approvals for countries we support including:
Bluetooth logo (FCC (47 CFR) Part 15C, Section 15.247&15.249 ETS 300 328, ETS 300
826 Low Voltage Directive IEC950 UL and CE Mark
NOTE:
NOTE: NOTE:
NOTE:
* A standard WLAN infrastructure, other devices enabled with Bluetooth, and a service contract with a wireless
airtime provider may be required for applicable wireless communication. Wireless Internet use requires a separately
purchased service contract. Check with a service provider for availability and coverage in your area. Not all web content
available.
Operating System
Operating SystemOperating System
Operating System
Microsoft® Windows® Mobile™ 2003 Premium software for Pocket PC
Service and Support
Service and SupportService and Support
Service and Support
One-year parts and labor in most regions; two-year warranty in Europe (one-year warranty for rechargeable battery pack) 90
days technical support for software in all regions. Optional HP CarePack available in North America for Next Business Day
replacement (at additional charge)
QuickSpecs
HP iPAQ Pocket PC h5150 Series
HP iPAQ Pocket PC h5150 SeriesHP iPAQ Pocket PC h5150 Series
HP iPAQ Pocket PC h5150 Series
Standard Features
DA - 11645 North America — Version 6 — October 29, 2003
Page 5
Page 6
System Unit
System UnitSystem Unit
System Unit
Dimensions
DimensionsDimensions
Dimensions
5.23 x 3.3 x 0.63 in. (133 x 84 x 15.9 mm)
Length of Unit
Length of UnitLength of Unit
Length of Unit
5.23 in (133.0 mm)
Width
WidthWidth
Width
3.30 to 3.03 in tapering (84.0 to 77.0 mm tapering)
Depth
DepthDepth
Depth
0.63 in (15.9 mm)
Weight
WeightWeight
Weight
6.59 oz (186.9 g)
Operating Temperature
Operating TemperatureOperating Temperature
Operating Temperature
32° to 104° F (0° to 40° C)
Operating Humidity
Operating HumidityOperating Humidity
Operating Humidity
10% to 90%
Regulatory Marks
Regulatory MarksRegulatory Marks
Regulatory Marks
Electrical
FCC Class B, VCCI, CE, C-Tick,
Safety
CE Marking, C-UL, NOM
RAM
RAMRAM
RAM
64 MB
ROM
ROM ROM
ROM
(Flash)
32 MB (Flash ROM)
Up to 4 MB non-volatile flash ROM storage available in
iPAQ File Store (varies by SKU)
TFT Color Display
TFT Color DisplayTFT Color Display
TFT Color Display
Number of Colors
Number of ColorsNumber of Colors
Number of Colors
65,536 (16-bit)
Resolution
ResolutionResolution
Resolution
(W x H)
240 x 320
Dot Pitch
Dot PitchDot Pitch
Dot Pitch
0.24 mm
Viewable Image
Viewable ImageViewable Image
Viewable Image
(W x H)
2.26 x 3.02 in (57.6 x 76.8 mm), 3.8 in Diagonal (96 mm)
Display Type
Display TypeDisplay Type
Display Type
Color (65,536 colors (16 bit) transflective thin film transistor (TFT) liquid crystal display
(LCD))
AC Adapter
AC AdapterAC Adapter
AC Adapter
Dimensions
DimensionsDimensions
Dimensions
(H x W x D)
3 x 1.9 x 1.8 in (76 x 48 x 44 mm) (including prongs)
Cord Length
Cord Length Cord Length
Cord Length
(approximate)
6 ft (1.83 m)
Power Supply Ratings
Power Supply RatingsPower Supply Ratings
Power Supply Ratings
Voltage Range
100 to 240 V Switching
Input Current
0.3 A
Input Frequency
50 to 60 Hz
Output Voltage
5 VDC
Output Current
2 Amp
Removable/ Rechargeable
Removable/ RechargeableRemovable/ Rechargeable
Removable/ Rechargeable
Battery
BatteryBattery
Battery
1250 mAh Lithium Ion Polymer
Internal backup battery (not removable)
Battery Life Estimations
Battery Life EstimationsBattery Life Estimations
Battery Life Estimations
Usage Scenarios using Slim Removable 1250 mAh battery
Usage Scenarios using Slim Removable 1250 mAh batteryUsage Scenarios using Slim Removable 1250 mAh battery
Usage Scenarios using Slim Removable 1250 mAh battery
Idle Mode (screen active with
no user Input or Output)
Up to 12 hours
Active Mode, Backlight off
(frequent user input)
Up to 10 hours
NOTE:
NOTE: NOTE:
NOTE:
These scenarios are estimations using the default Standby Setting of 72 hours. Battery life will vary based on an
estimated typical use pattern of an average user, the configuration of the computer and the usage pattern of the individual
user. Use of some attachments may significantly decrease battery life.
QuickSpecs
HP iPAQ Pocket PC h5150 Series
HP iPAQ Pocket PC h5150 SeriesHP iPAQ Pocket PC h5150 Series
HP iPAQ Pocket PC h5150 Series
TechSpecs
DA - 11645 North America — Version 6 — October 29, 2003
Page 6
Page 7
Expansion Packs
Expansion PacksExpansion Packs
Expansion Packs
CF Card Expansion Pack Plus
249709-B21
FA121A#AC3
PC Card Expansion Pack Plus
249708-B21
FA120A#AC3
CF Card Expansion Pack
170339-B22
FA115A#AC3
Dual-Slot PC Card Expansion Pack
216198-B21
FA116A#AC3
Style Packs
Style PacksStyle Packs
Style Packs
Cover Pack
FA119A#AC3
Memory/Storage
Memory/StorageMemory/Storage
Memory/Storage
IBM Microdrive with PC Card Adapter
217390-B25
DC379A
64-MB SD Memory Card
253478-B21
FA134A#AC3
128 MB SD Memory Card
253479-B21
FA135A#AC3
256 MB SD Memory Card
287464-B21
FA136A#AC3
Power
PowerPower
Power
AC Adapter
253629-xxx
FA130A#xxx
Auto Adapter
253508-B21
FA125A#AC3
Slim Battery for Expansion Pack Plus Products
253512-B21
FA127A#AC3
Extended Battery for Expansion Pack Plus Products
253514-B21
FA128A#AC3
iPAQ Pocket PC Slim Battery
290484-B21
FA139A#AC3
iPAQ Pocket PC Extended Battery
2904860B21
FA140A#AC3
Battery Charger
253516-B21
FA129A#AC3
Charger Adapter
274707-B21
FA133A#AC3
Synchronization
SynchronizationSynchronization
Synchronization
USB/Serial Autosync Cable
250178-B21
FA122A#AC3
USB/Serial Desktop Cradle
250182-B21
FA123A#AC3
Communications
CommunicationsCommunications
Communications
CompactFlash Modem 56K V.90 (requires CF Card Expansion Pack)
268927-001
FA132A#AC3
Cases
CasesCases
Cases
Expandable Case
217883-B22
FA117A#AC3
Premier Leather Case
253504-B21
FA124A#AC3
Zippered Leather Case
262207-B21
FA131A#AC3
Rugged Case
282348-B21
FA137A#AC3
Three Pack of Screen Protectors
FA138A#AC3
Custom Cases - To view, and place an order:
www.hp.com/products/pocketpc/options
Other
OtherOther
Other
Stylus Three-Pack Replacement Kit
253510-B21
FA126A#AC3
Slim Keyboard
312391-001
FA141A#AC3
Micro Keyboard
250111-001
Foldable Keyboard
249693-001
FA118A#AC3
Plantronics Headset - To view, and place an order:
www.hp.com/products/pocketpc/options
NOTE
NOTENOTE
NOTE
*: Options are sold separately
QuickSpecs
HP iPAQ Pocket PC h5150 Series
HP iPAQ Pocket PC h5150 SeriesHP iPAQ Pocket PC h5150 Series
HP iPAQ Pocket PC h5150 Series
Options
DA - 11645 North America — Version 6 — October 29, 2003
Page 7
Page 8
HP iPAQ Pocket PC h5150 is a Microsoft® Windows® Powered Pocket PC
HP iPAQ Pocket PC h5150 is a Microsoft® Windows® Powered Pocket PCHP iPAQ Pocket PC h5150 is a Microsoft® Windows® Powered Pocket PC
HP iPAQ Pocket PC h5150 is a Microsoft® Windows® Powered Pocket PC
For more information on HP iPAQ Pocket PC, visit our website at
http://www.hp.com/go/iPAQ
©2003 Hewlett-Packard Development Company, L.P.
The information in this document is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Microsoft,
Windows, the Windows Logo and ActiveSync are registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
Intel is a registered trademark of Intel Corporation in the U.S. and/or other countries.
QuickSpecs
HP iPAQ Pocket PC h5150 Series
HP iPAQ Pocket PC h5150 SeriesHP iPAQ Pocket PC h5150 Series
HP iPAQ Pocket PC h5150 Series
Options
DA - 11645 North America — Version 6 — October 29, 2003
Page 8
Loading...
