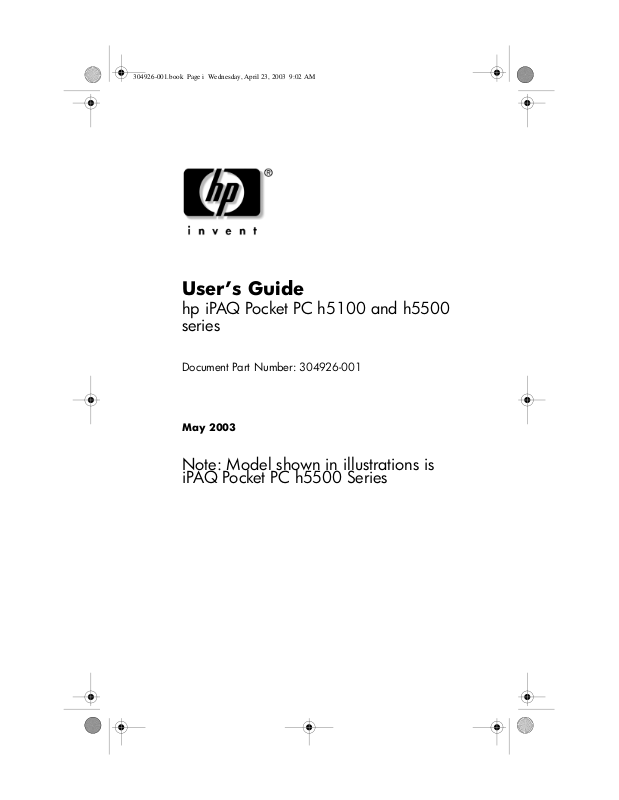

User’s Guide

hp iPAQ Pocket PC h5100 and h5500 series

Document Part Number: 304926-001

May 2003

Note: Model shown in illustrations is iPAQ Pocket PC h5500 Series

HP, Hewlett Packard, and the Hewlett-Packard logo are trademarks of Hewlett-Packard Company in the U.S. and other countries.

iPAQ is a trademark of Hewlett-Packard Development Company, L.P. in the U.S. and other countries.

Microsoft, Windows, the Windows logo, Outlook, and ActiveSync are trademarks of Microsoft Corporation in the U.S. and other countries.

hp iPAQ Pocket PC is Powered by Microsoft® Windows®.

SD Logo is a trademark of Secure Digital in the U.S. and other countries.

XScale is a registered trademark of Intel Corporation in the U.S. and other countries.

All other product names mentioned herein may be trademarks of their respective companies.

Hewlett-Packard Company shall not be liable for technical or editorial errors or omissions contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material. The information in this document is provided “as is” without warranty of any kind, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, and is subject to change without notice. The warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty.

This document contains proprietary information that is protected by copyright. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard Company.

WARNING: Text set off in this manner indicates that failure to

follow directions could result in bodily harm or loss of life.

CAUTION: Text set off in this manner indicates that failure to follow

directions could result in damage to equipment or loss of information.

User’s Guide hp iPAQ Pocket PC h5100 and h5500 series First Edition (May 2003)

Document Part Number: 304926-001

1 Getting to Know Your iPAQ Pocket PC

Using the Stylus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–5

Setting the Date and Time . . . . . . . . . . . . . . . . . . . . . . . . 1–6

Setting the Time for Home and Visiting

Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6

Setting the Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–7

Entering Owner Information . . . . . . . . . . . . . . . . . . . . . . 1–7

Resetting the Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–8

Performing a Normal Reset . . . . . . . . . . . . . . . . . . . . 1–8

Performing a Full Reset. . . . . . . . . . . . . . . . . . . . . . . 1–9

Aligning the Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–10

Routine Care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–11

2 Using ActiveSync

Connecting to a Computer . . . . . . . . . . . . . . . . . . . . . . . . 2–2

Synchronizing with Your Computer . . . . . . . . . . . . . 2–2

Using the Serial Infrared (IR) Connection . . . . . 2–3

Changing Synchronization Settings. . . . . . . . . . . . . . 2–4

Copying Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–5

Installing Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–6

Backing up and Restoring . . . . . . . . . . . . . . . . . . . . . . . . 2–6

Synchronizing Links . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–7

Sending and Receiving E-mail. . . . . . . . . . . . . . . . . . . . . 2–7

Requesting Meetings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–7

User’s Guide 1

3 Managing the Battery

Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–1

Removing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–3

Charging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–3

Charging with the AC Adapter and

Charger Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–4

Charging with the Universal Desktop

Cradle and AC Adapter . . . . . . . . . . . . . . . . . . . . . . . 3–5

Charging with the Optional USB

Autosync Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–7

Charging a Low Battery . . . . . . . . . . . . . . . . . . . . . . 3–7

Preserving Battery Time . . . . . . . . . . . . . . . . . . . . . . . . . 3–8

Adjusting the Standby Setting . . . . . . . . . . . . . . . . . . 3–8

Changing the Backlight Settings . . . . . . . . . . . . . . . 3–10

Disabling the Application and Record Buttons . . . . 3–10

Manually Monitoring the Battery . . . . . . . . . . . . . . 3–11

4 Learning the Basics

Using the Today Screen . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1

Navigation Bar and Command Bar . . . . . . . . . . . . . . 4–2

Status Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–3

Pop-Up Menus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–4

Creating information . . . . . . . . . . . . . . . . . . . . . . . . . 4–5

Customizing the Today Screen . . . . . . . . . . . . . . . . . 4–6

Using Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–8

Opening Applications . . . . . . . . . . . . . . . . . . . . . . . . 4–8

Minimizing Applications. . . . . . . . . . . . . . . . . . . . . . 4–8

Closing Applications . . . . . . . . . . . . . . . . . . . . . . . . . 4–9

Closing with iTask . . . . . . . . . . . . . . . . . . . . . . . 4–9

Closing Manually . . . . . . . . . . . . . . . . . . . . . . . . 4–9

Installing Applications. . . . . . . . . . . . . . . . . . . . . . . . 4–9

Contents

User’s Guide 2

Using iPAQ Image Viewer . . . . . . . . . . . . . . . . . . . 4–10

Locating an Image. . . . . . . . . . . . . . . . . . . . . . . 4–11

Viewing Image Information . . . . . . . . . . . . . . . 4–11

Changing the View . . . . . . . . . . . . . . . . . . . . . . 4–12

Creating a Slide Show. . . . . . . . . . . . . . . . . . . . 4–13

Saving a Slide Show . . . . . . . . . . . . . . . . . . . . . 4–14

Opening a Slide Show. . . . . . . . . . . . . . . . . . . . 4–15

Sorting Image Files . . . . . . . . . . . . . . . . . . . . . . 4–15

Viewing a Slide Show. . . . . . . . . . . . . . . . . . . . 4–16

Backing Up Information . . . . . . . . . . . . . . . . . . . . . 4–17

Backup/Restore using iPAQ Backup . . . . . . . . 4–17

Backup/Restore Using ActiveSync. . . . . . . . . . 4–18

Using iPAQ File Store Folder . . . . . . . . . . . . . . . . . 4–19

5 Learning Input Methods

Changing Word Suggestion Options . . . . . . . . . . . . . . . . 5–1

Using the On-Screen Keyboard . . . . . . . . . . . . . . . . . . . . 5–4

Writing with the Stylus and the Letter Recognizer . . . . . 5–5

Writing with the Stylus and Microsoft Transcriber . . . . . 5–7

Writing with the Stylus and Block Recognizer . . . . . . . . 5–8

Drawing and Writing on the Screen. . . . . . . . . . . . . . . . . 5–9

Converting Writing to Text . . . . . . . . . . . . . . . . . . . . 5–9

Contents

User’s Guide 3

6 Expansion Cards

Inserting a Secure Digital (SD) Expansion Card . . . . . . . 6–2

Removing a Secure Digital (SD) Expansion Card. . . . . . 6–4

Viewing the Content of Memory Cards . . . . . . . . . . . . . . 6–4

Using Expansion Packs . . . . . . . . . . . . . . . . . . . . . . . . . . 6–5

Using an Optional Single-Slot or Dual-Slot

PC Card Expansion Pack. . . . . . . . . . . . . . . . . . . . . . 6–5

Using an Optional CompactFlash Card

Expansion Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–6

7 Connecting to the Internet

Using a Modem Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–2

Connecting to a Private Network . . . . . . . . . . . . . . . . . . . 7–6

Entering an Internet Address . . . . . . . . . . . . . . . . . . . . . . 7–6

Using a Favorites List . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–7

8 Using Bluetooth

Getting Acquainted with Bluetooth . . . . . . . . . . . . . . . . . 8–2

Understanding Terms . . . . . . . . . . . . . . . . . . . . . . . . 8–3

Supported Services . . . . . . . . . . . . . . . . . . . . . . . . . . 8–4

Working with Bluetooth Settings. . . . . . . . . . . . . . . . . . . 8–5

Opening Bluetooth Settings. . . . . . . . . . . . . . . . . . . . 8–5

Turning on Bluetooth . . . . . . . . . . . . . . . . . . . . . 8–6

Setting Accessibility Properties. . . . . . . . . . . . . . . . . 8–7

Entering a Device Name . . . . . . . . . . . . . . . . . . . 8–7

Allowing Connections. . . . . . . . . . . . . . . . . . . . . 8–7

Enabling Bluetooth Services . . . . . . . . . . . . . . . . . . . 8–9

Automatically Enabling Services . . . . . . . . . . . . 8–9

Requiring Authorization to

Access Services. . . . . . . . . . . . . . . . . . . . . . . . . 8–10

Secure Connections using a

Passkey or Bond . . . . . . . . . . . . . . . . . . . . . . . . 8–10

Setting a Shared Folder . . . . . . . . . . . . . . . . . . . . . . 8–11

Contents

User’s Guide 4

Contents

Understanding Profiles . . . . . . . . . . . . . . . . . . . . . . 8–12

Creating a Profile . . . . . . . . . . . . . . . . . . . . . . . 8–12

Activating a Profile . . . . . . . . . . . . . . . . . . . . . . 8–13

Saving Bluetooth Configuration Settings

in a Profile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–14

Renaming a Profile . . . . . . . . . . . . . . . . . . . . . . 8–14

Deleting a Profile . . . . . . . . . . . . . . . . . . . . . . . 8–15

Working with Bluetooth Manager . . . . . . . . . . . . . . . . . 8–15

Opening Bluetooth Manager . . . . . . . . . . . . . . . . . . 8–16

Locating and Selecting a Device . . . . . . . . . . . . . . . 8–16

Pairing Devices . . . . . . . . . . . . . . . . . . . . . . . . . 8–16

Unpairing Devices. . . . . . . . . . . . . . . . . . . . . . . 8–18

Connecting to Other Devices . . . . . . . . . . . . . . . . . . . . . 8–18

Identifying the Communications Port . . . . . . . . . . . 8–18

Establishing an ActiveSync Connection . . . . . . . . . 8–19

Establishing a Serial Connection. . . . . . . . . . . . . . . 8–20

Dial-Up Networking . . . . . . . . . . . . . . . . . . . . . . . . 8–20

Using Dial-Up Networking. . . . . . . . . . . . . . . . 8–20

Join a Personal Area Network . . . . . . . . . . . . . . . . . 8–22

Establishing a Cell Phone Partnership. . . . . . . . . . . 8–22

Establishing a Headset Connection . . . . . . . . . . . . . 8–22

Working with Files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–23

Creating a File Transfer Connection . . . . . . . . . . . . 8–23

Sending Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–23

Creating a Folder on a Remote Device . . . . . . . . . . 8–24

Receiving a File from a Remote Device . . . . . . . . . 8–24

Deleting a File from a Remote Device . . . . . . . . . . 8–24

Using Business Card Exchange . . . . . . . . . . . . . . . . . . . 8–25

Setting Up Your Business Card Information . . . . . 8–25

Sending Business Cards. . . . . . . . . . . . . . . . . . . . . . 8–27

Requesting Business Cards . . . . . . . . . . . . . . . . 8–28

Exchanging Business Cards . . . . . . . . . . . . . . . 8–28

Opening a Connection . . . . . . . . . . . . . . . . . . . . . . . . . . 8–28

Viewing Connection Status . . . . . . . . . . . . . . . . . . . 8–29

Closing a Connection. . . . . . . . . . . . . . . . . . . . . . . . 8–29

Viewing Connection Information . . . . . . . . . . . . . . 8–29

User’s Guide 5

Working with Connections . . . . . . . . . . . . . . . . . . . 8–30

Creating a Shortcut . . . . . . . . . . . . . . . . . . . . . . 8–30

Deleting a Shortcut . . . . . . . . . . . . . . . . . . . . . . 8–30

Viewing Shortcuts. . . . . . . . . . . . . . . . . . . . . . . 8–30

9 Using the Wireless LAN (h5500 only)

Getting Acquainted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–1

Learning the Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–2

Getting Started with the Wireless LAN . . . . . . . . . . . . . . 9–3

Powering the WLAN On or Off . . . . . . . . . . . . . . . . 9–3

Automatically Connecting to a Network . . . . . . . . . . 9–4

Manually Entering New Network Settings . . . . . . . . 9–4

Searching for Networks to Access. . . . . . . . . . . . . . . 9–6

Managing Wireless Network Settings . . . . . . . . . . . . . . . 9–7

Viewing or Editing a Wireless Network . . . . . . . . . . 9–7

Deleting a Wireless Network. . . . . . . . . . . . . . . . . . . 9–7

Monitoring Signal Strength and Status . . . . . . . . . . . . . . 9–8

Working with Network Settings. . . . . . . . . . . . . . . . . . . . 9–9

Looking Up an IP Address . . . . . . . . . . . . . . . . . . . . 9–9

Changing TCP/IP Settings. . . . . . . . . . . . . . . . . . . . 9–10

Changing DNS and WINS Settings. . . . . . . . . . . . . 9–12

Setting Up VPN Server Connections. . . . . . . . . . . . 9–14

Changing VPN Server Connections . . . . . . . . . . . . 9–15

Starting VPN Server Connections . . . . . . . . . . . . . . 9–16

Setting Up Proxy Server Settings . . . . . . . . . . . . . . 9–16

Contents

User’s Guide 6

Contents

10Using the Fingerprint Reader (h5500 only)

Learning to Enroll a Fingerprint . . . . . . . . . . . . . . . . . . 10–1

Working with Fingerprints. . . . . . . . . . . . . . . . . . . . . . . 10–5

Enrolling a Fingerprint . . . . . . . . . . . . . . . . . . . . . . 10–6

Deleting a Fingerprint . . . . . . . . . . . . . . . . . . . . . . . 10–9

Setting Logon Passwords . . . . . . . . . . . . . . . . . . . . . . . 10–10

Setting “No password” for Logon . . . . . . . . . . . . . 10–11

Setting “Simple 4 digit PIN” for Logon . . . . . . . . 10–11

Setting “Strong alphanumeric password”

for Logon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–12

Setting “PIN OR fingerprint” for Logon . . . . . . . . 10–13

Setting “PIN AND fingerprint” for Logon . . . . . . 10–14

Setting “Password OR fingerprint” for Logon . . . 10–14 Setting “Password AND Fingerprint”

for Logon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–15

Setting “Fingerprint-only” for Logon . . . . . . . . . . 10–16

Logging On Using PIN, Passwords, and

Fingerprints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–17

Logging On with No Password . . . . . . . . . . . . . . . 10–17

Logging On Using a 4-digit PIN . . . . . . . . . . . . . . 10–17

Logging On Using a Password . . . . . . . . . . . . . . . 10–18

Logging On Using a PIN or Fingerprint . . . . . . . . 10–18

Logging On Using a PIN and Fingerprint . . . . . . . 10–18

Logging On Using a Password or Fingerprint. . . . 10–19

Logging On Using a Password and Fingerprint . . 10–19

Logging On Using a Fingerprint Only . . . . . . . . . 10–20

Setting Security Options . . . . . . . . . . . . . . . . . . . . . . . 10–20

Setting the Security Level . . . . . . . . . . . . . . . . . . . 10–21

Setting the Maximum Number of Attempts . . . . . 10–22

User’s Guide 7

11Troubleshooting

Common Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–1

ActiveSync . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–5

Expansion Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–7

Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–8

Wireless LAN (h5500 only). . . . . . . . . . . . . . . . . . . . . . . 9–9

A Regulatory Notices

Federal Communications Commission Notice. . . . . . . . . A–1

Modifications . . . . . . . . . . . . . . . . . . . . . . . . . . . A–2

Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–2

Declaration of Conformity for products marked

with the FCC logo—United States only . . . . . . . . . . A–2

Canadian Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–3

Avis Canadien . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–3

Japanese Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–3

European Union Notice . . . . . . . . . . . . . . . . . . . . . . . . . . A–4

Battery Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–5

Equipment Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–5

Airline Travel Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–6

Wireless Notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–6

U.S. Regulatory Wireless Notice. . . . . . . . . . . . . . . . A–6

Canadian Regulatory Wireless Notice. . . . . . . . . . . . A–6

Japanese Regulatory Wireless Notice . . . . . . . . . . . . A–7

Brazilian Regulatory Wireless Notice . . . . . . . . . . . . A–7

Contents

B Specifications

System Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . B–1

Physical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . B–2

Operating Environment . . . . . . . . . . . . . . . . . . . . . . . . . . B–3

User’s Guide 8

Getting to Know Your

iPAQ Pocket PC

Model shown in illustrations is iPAQ Pocket PC h5500 Series.

✎

Congratulations on purchasing an HP iPAQ Pocket PC h5100 or h5500 Series. Use this guide to find out about setting up your Pocket PC and to learn about how it works.

The software applications described below are preinstalled on your iPAQ Pocket PC. These preinstalled applications are not deleted if your Pocket PC loses power.

You can find detailed information for using these applications in the Help files on your iPAQ Pocket PC. To access these Help files, from the Start menu, tap Help and select an application. For Help on applications not listed in the table below, open the

application, then tap > Help.

User’s Guide 1–1

Getting to Know Your iPAQ Pocket PC

In addition, Microsoft Pocket PC Basics provides basic instructions on operating the Pocket PC. To locate Pocket PC Basics, go to the Tod ay screen and tap Start > Help.

hp iPAQ Software Functions

Bluetooth Allows short-range wireless communications

technology capable of exchanging information up to a distance of about 30 feet (10 meters).

iPAQ Backup Back up your data to protect it from loss due

to hardware failure, battery power failure, or accidental deletion.

iPAQ Image Viewer Display individual images and run slide shows.

Also display images from a digital camera storage card.

iTask Manage tasks that are running, and functions

as a shortcut to launch or close programs. Assigned, by default, to the fourth Application Button on the Pocket PC.

User’s Guide 1–2

Getting to Know Your iPAQ Pocket PC

Microsoft Pocket PC Software Functions

ActiveSync Synchronize the information between your Pocket

PC and personal computer so you have the latest information in both locations. Be sure you install ActiveSync on your personal computer before connecting the cradle and iPAQ Pocket pC to your computer.

Calculator Perform calculations.

Calendar Schedule appointments, meetings, and other

events, then set an alarm to remind you of the appointments. Appointments for the day are displayed on the Today screen.

Connections Connect your Pocket PC to the Internet and

intranet to browse Web sites, send and receive e-mail, and synchronize information using ActiveSync.

Contacts Keep an updated list of friends and colleagues to

e-mail and telephone.

Inbox Receive and send Internet e-mail messages

in Inbox. You must have an e-mail address provided by your Internet Service Provider (ISP) or employer to send and receive e-mail.

MSN Messenger Provide the same chat environment as MSN

Messenger on your computer including seeing who is online, sending and receiving instant messages, blocking contacts from seeing your status or sending you messages.

Notes Create handwritten or typed notes, drawings,

and recordings.

User’s Guide 1–3

Getting to Know Your iPAQ Pocket PC

Microsoft Pocket PC Software Functions

Pictures View individual pictures, run a slide show, or set

a picture as the background on the Today screen.

Pocket Excel Create and edit workbooks or view and edit

Excel workbooks created on your personal computer.

Pocket Internet Explorer Browse the Internet and download pages

through synchronization or by connecting to the Internet.

Pocket Word Create new documents or view and edit Word

documents created on your personal computer.

Settings Obtain quick instructions for setting the

backlight, clock, contrast, memory, power, regional settings, Today screen, password, sounds and notifications, etc.

Tasks Keep track of your to-do list.

Terminal Services Client Use programs available on your personal

computer from your Pocket PC.

Windows Media Player Play digital audio and video files in Windows

Media or MP3 format on your device.

User’s Guide 1–4

Using the Stylus

Your iPAQ Pocket PC comes with a stylus that you should use to tap or write on your screen.

CAUTION: To prevent damage to your iPAQ Pocket PC screen,

never use any device other than the stylus that comes with the Pocket PC or an approved replacement to tap or write on the screen. If you lose or break your stylus, you can order extras at

www.hp.com/products/pocketpc/options.

You can perform three basic actions using the stylus:

Tap —Lightly touch the screen to select or open an item. Lift the stylus after you tap an item. Tapping is equivalent to clicking an item with the mouse on your personal computer.

Drag—Place the point of the stylus on the screen and drag an item across the screen without lifting the stylus until you have completed the selection. Dragging is equivalent to dragging with the left mouse button pressed on your personal computer mouse.

Getting to Know Your iPAQ Pocket PC

Tap and hold—Hold the stylus pointer on an item for a short time until a menu displays. Tapping and holding is equivalent to right-clicking your personal computer mouse button. When you tap and hold, a circle of red dots appears around the stylus to indicate that the menu will soon pop up.

User’s Guide 1–5

Getting to Know Your iPAQ Pocket PC

Setting the Date and Time

When you turn on your iPAQ Pocket PC for the first time, you are requested to select your time zone. After setting the time zone, you still need to set the time and date on your unit. All three settings are located in the Clock Settings screen and can be set at the same time.

By default, the time on the iPAQ Pocket PC is synchronized with

✎

your personal computer each time the two devices connect using ActiveSync.

Setting the Time for Home and Visiting Locations

1. From the Start menu, tap Settings > System tab > Clock

icon.

SHORTCUT: From the To da y screen, tap the Clock icon to set the time.

2. Tap either Home or Visiting.

3. Tap the time-zone down arrow, then select the appropriate

time zone.

4. Tap the hour, minutes, or seconds, then use the up and down arrows to adjust the time.

SHORTCUT: You can also adjust the time by moving the hands of the clock with the stylus.

5. Tap AM or PM.

6. Tap OK.

7. Tap Ye s to save the time.

User’s Guide 1–6

Setting the Date

1. From the Start menu, tap Settings > System tab > Clock icon.

SHORTCUT: From the To da y screen, tap the Clock icon to set the date.

2. Tap the down arrow by the date.

3. Tap the left or right arrow to select a month and year.

4. Tap a day.

5. Tap OK.

6. Tap Ye s to save the date settings.

You need to reset your time zone, time, and date if:

■ The location time (Home or Visiting) needs to be changed.

■ All power to the iPAQ Pocket PC is lost, which removes all

saved settings.

■ You perform a full reset of your iPAQ Pocket PC.

Getting to Know Your iPAQ Pocket PC

SHORTCUT: From the To da y screen, tap the Clock icon to set the time zone, time, and date.

Entering Owner Information

You can personalize your iPAQ Pocket PC by entering owner information. To enter owner information:

1. From the Today screen, tap Start > Settings > Owner

Information.

SHORTCUT: From the To da y screen, tap Tap here to set owner information.

2. Tap in the Name field. A keyboard appears at the bottom of the screen. Tap on the characters to enter your name.

User’s Guide 1–7

Getting to Know Your iPAQ Pocket PC

3. Tap the Ta b key on the keyboard to move the cursor to the next field.

4. Continue entering whatever information you want to include.

5. To display owner information at startup, tap in the Show information when device is turned on checkbox.

6. Tap on the Notes tab to enter any notes.

7. Tap OK to save the information and return to the Today screen.

Resetting the Unit

Performing a Normal Reset

A normal reset is sometimes referred to as a “soft reset.” A normal reset stops all running applications but does not erase any programs or saved data.

CAUTION: Be sure to save any unsaved data before performing a

normal reset since normal reset erases all unsaved data.

To perform a normal reset:

1. Locate the Reset button on the bottom of your iPAQ Pocket PC.

2. Use the stylus to lightly press the Reset button. The Pocket PC restarts and displays the Today screen.

User’s Guide 1–8

Performing a Full Reset

A full reset is sometimes referred to as a “hard reset.” Perform a full reset when you want to clear all settings, programs, and data from RAM.

A full reset deactivates the battery. The power button does not function until the battery is reactivated.

CAUTION: If you perform a full reset, your iPAQ Pocket PC returns

to its default settings and loses all information that is not recorded in ROM.

To perform a full reset:

1. Press and hold Application Buttons 1 (Calendar) and 4 (iTask) on the front of the unit and, at the same time, use the stylus to press the Reset button on the bottom of your iPAQ Pocket PC.

Getting to Know Your iPAQ Pocket PC

2. Hold all buttons until the displayed image begins to fade (approximately four seconds).

User’s Guide 1–9

3. Release the Application Buttons and stylus.

To verify a full reset, press the Power button. If the iPAQ Pocket

✎

PC has been fully reset, it does not power on.

4. Reactivate the battery by:

❏ Connecting the iPAQ Pocket PC to AC power

❏ Pressing the Reset button with the stylus

Aligning the Screen

When the iPAQ Pocket PC is turned on for the first time, you are guided through a screen alignment process. You must realign your screen if:

■ The Pocket PC does not respond accurately to your taps.

■ You perform a full reset of your Pocket PC.

Getting to Know Your iPAQ Pocket PC

To realign the iPAQ Pocket PC screen:

1. From the Start menu, tap Settings > System tab > Screen icon.

2. Tap the Align Screen button.

To use an alternate path to the same destination without tapping

✎

on the screen, press and release all four Application Buttons at the same time.

3. Tap the cross-hair object at each location. Be precise when tapping the cross-hair object.

4. Tap OK.

User’s Guide 1–10

Routine Care

To keep your iPAQ Pocket PC in good condition and working properly, follow these guidelines:

■ Keep your Pocket PC away from excessive moisture and

temperature extremes.

■ Do not expose your Pocket PC to liquids or precipitation.

■ Do not place anything on top of your Pocket PC to prevent

damage to the screen.

■ Store your Pocket PC in a protective case when not in use.

■ Clean your Pocket PC by wiping the screen and the exterior

with a soft, damp cloth moistened only with water.

■ Avoid exposing your Pocket PC to direct sunlight or strong

ultraviolet light for extended periods of time.

■ Avoid scratching the surface of the screen and banging it

against hard objects.

Getting to Know Your iPAQ Pocket PC

■ Use only the stylus that comes with your Pocket PC or an

approved replacement on the screen to prevent scratching it.

CAUTION: To reduce the risk of electrical shock or damage to the

internal components, do not spray liquid directly on the screen or allow excess liquid to drip inside your iPAQ Pocket PC. Using soap or other cleaning products on the screen may discolor the finish and damage it.

User’s Guide 1–11

Using ActiveSync

You can use Microsoft ActiveSync to:

■ Synchronize information between your iPAQ Pocket PC and

your personal computer or server so that you have the latest information in all locations.

■ Change synchronization settings and the synchronization

schedule.

■ Copy files between your device and personal computer.

■ Install applications on your iPAQ Pocket PC.

■ Back up and restore device information.

■ Synchronize links.

■ Send and receive e-mail.

■ Request meetings.

User’s Guide 2–1

Connecting to a Computer

Connect your iPAQ Pocket PC to your personal computer using Microsoft ActiveSync and the Universal Desktop Cradle, a wireless infrared connection, or Bluetooth. For more information on using ActiveSync with Bluetooth, refer to Chapter 8, “Using Bluetooth.”

When using Microsoft ActiveSync to synchronize e-mail on

✎

your personal computer with your iPAQ Pocket PC, you must have Microsoft Outlook 98 or later installed on your personal computer. Outlook 2002 is included on the Companion CD. If you do not have Outlook, install the Microsoft Outlook 2002 software from the CD. Microsoft Outlook Express will not work with the iPAQ Pocket PC and ActiveSync.

Synchronizing with Your Computer

CAUTION: For synchronization to work properly, install Microsoft

ActiveSync on your personal computer before you connect your iPAQ Pocket PC to your computer.

Using ActiveSync

During ActiveSync installation, you can:

■ Create partnerships that enable you to synchronize

information with multiple computers.

■ Select information to be synchronized with your iPAQ Pocket

PC (for example, Contacts, Calendar, Inbox, Tasks, Favorites, Files, Notes, and AvantGo).

User’s Guide 2–2

Using ActiveSync

When you synchronize files, you can drag and drop the selected

✎

files from your personal computer to the synchronized folder on your iPAQ Pocket PC. If you named your device “PC1” when you created your partnership, then the synchronized folder is named “PC1.” When you synchronize, the files move to your iPAQ Pocket PC.

To install Microsoft ActiveSync on your personal computer:

1. Insert the Companion CD into the CD tray or slot on your personal computer.

2. Select the link to install Microsoft ActiveSync.

3. Follow the instructions in the installation wizard. For more help, click the ActiveSync Help button during installation.

The information you select automatically synchronizes when your installation is complete.

4. After installing ActiveSync on your personal computer, connect the iPAQ Pocket PC to the personal computer using the Universal Desktop Cradle.

Using the Serial Infrared (IR) Connection

After setting up a connection with the USB connector on the Universal Desktop Cradle, you can synchronize your iPAQ Pocket PC and your personal computer using an infrared connection if you have an infrared port or an infrared USB adapter installed on your computer. The infrared connection option works only on computers that have Microsoft Windows 98SE, Me, 2000, or XP operating systems installed.

User’s Guide 2–3

To set up an infrared connection to a computer:

1. Synchronize your iPAQ Pocket PC with your computer using the Universal Desktop Cradle.

2. Follow your computer manufacturer’s instructions to install and set up an infrared port.

3. Remove the iPAQ Pocket PC from the cradle and line up the infrared port with the computer infrared port so they are unobstructed and within 12 inches (30.5 cm) of each other.

4. Initiate a connection by tapping Start > ActiveSync > Tools > Connect via IR. Synchronization begins on your device.

5. To disconnect, move the devices away from each other or tap x to turn off.

Changing Synchronization Settings

You can modify your synchronization settings for Microsoft ActiveSync to:

Using ActiveSync

■ Change when your iPAQ Pocket PC synchronizes with your

personal computer or server.

■ Change the type of connection from your iPAQ Pocket PC

to your computer (for example, serial, USB, infrared connections).

■ Select the files and information to synchronize with your

computer.

■ Select the files and information you do not want to

synchronize with your computer (for example, e-mail attachments).

■ Determine how conflicts between information on your

iPAQ Pocket PC and information on your computer are handled.

User’s Guide 2–4

To change synchronization settings:

1. From the Start menu on your personal computer, click Programs > Microsoft ActiveSync > Tools > Options.

a. On the Sync Options tab, select the files and information

to synchronize with your computer.

b. On the Schedule tab, select when your iPAQ Pocket PC

synchronizes with your computer.

c. On the Rules tab, determine how conflicts between

information on your iPAQ Pocket PC and information on your computer are handled.

2. Tap OK when you are finished.

3. From the File menu, click Connection Settings. Select the type of connection to be allowed between the iPAQ Pocket PC and the computer.

Copying Files

Using ActiveSync

You can copy files to and from your personal computer using Explore in ActiveSync and Windows Explorer.

To copy files:

1. Insert your iPAQ Pocket PC into the Universal Desktop Cradle.

2. From the Start menu on your computer, click Programs >

Microsoft ActiveSync.

3. Click Explore.

4. Double-click the My Pocket PC icon.

5. On your personal computer, right-click the Start menu, then select Explore.

User’s Guide 2–5

6. Locate the file to be moved.

7. Drag and drop your files between your iPAQ Pocket PC and your computer. ActiveSync converts the files so that they can be used by the Pocket Office applications, if necessary.

Move your files directly into My Documents on your iPAQ

✎

Pocket PC or into a folder inside My Documents, so the applications on your iPAQ Pocket PC can locate them.

Installing Applications

To install applications on your iPAQ Pocket PC from your computer using ActiveSync:

1. Connect your iPAQ Pocket PC to your personal computer using the Universal Desktop Cradle.

2. Follow the instructions provided with the application and by the installation wizard.

Using ActiveSync

3. Check the screen of your iPAQ Pocket PC to see if any further steps are necessary to complete the application installation.

Backing up and Restoring

To help reduce the chance of losing information, you should back up information to your computer regularly. For more information on backing up and restoring information using Microsoft ActiveSync, refer to “Backing Up Information” in Chapter 4.

User’s Guide 2–6

Synchronizing Links

You can synchronize links to Web sites from your Favorites list on your computer to view them offline with Pocket Internet Explorer.

1. From the Start menu on your computer, click the Internet Explorer icon.

2. Click Favorites to see the list of links to your favorite Web sites.

3. To save a Web site link to Mobile Favorites, open the Web site, then click Create Mobile Favorite.

4. Open ActiveSync on your computer and click Options. Be sure Favorites is checked.

5. Click Sync to manually synchronize your iPAQ Pocket PC with your computer and add your Mobile Favorites list to your iPAQ Pocket PC.

Sending and Receiving E-mail

Using ActiveSync

You can send and receive e-mail messages by synchronizing your iPAQ Pocket PC with your personal computer using ActiveSync. If you are using ActiveSync to send and receive e-mail messages, the name of the folder you are using is displayed at the bottom of the screen. For more information on sending and receiving e-mail using ActiveSync, from the Today screen, tap Start > Help >

Inbox.

Requesting Meetings

You can schedule a meeting and send a meeting request through ActiveSync. Refer to “Calendar” in the Help files on your iPAQ Pocket PC. For more information, from the Today screen, tap Start > Help > Calendar.

User’s Guide 2–7

Managing the Battery

Model shown in illustrations is iPAQ Pocket PC h5500 Series.

✎

Installing the Battery

If you remove the main battery from your iPAQ Pocket PC, your device does not operate even if you try to use AC power. However, the Pocket PC has a small internal backup battery that allows you to change the main battery without losing RAM data (user-installed programs and data) as long as it is replaced within 10 minutes. If the battery is removed from the unit for longer than 10 minutes, you will lose unsaved RAM data and need to reset the unit.

It is recommended that you fully charge the iPAQ Pocket PC battery before setting up the unit, and recharge regularly. Your Pocket PC uses some power to maintain files in RAM and the clock. While working at your desk, keep the Pocket PC connected to the Universal Desktop Cradle. When you travel, it is recommended that you carry the AC Adapter, Charger Adapter plug, or an optional spare battery with you.

Your iPAQ Pocket PC is shipped with the battery partially charged.

User’s Guide 3–1

Managing the Battery

To install the removable/rechargeable battery:

1. Locate the battery.

2. Insert the tabs on the bottom of the battery 1 into the slots on the iPAQ Pocket PC.

3. Push the battery upward 2 and snap into place.

If the battery is not fully charged, you must connect the AC

✎

Adapter to the Pocket PC to fully charge it before continuing. It takes about four hours to fully charge the battery.

User’s Guide 3–2

Removing the Battery

To remove the battery from the iPAQ Pocket PC:

1. Push up on the latch at the top of the battery 1.

2. Pull the top of the battery away from the device 2.

3. Lift the battery up and out of the device 3.

Managing the Battery

CAUTION: Because most of the applications and data you install on

your iPAQ Pocket PC are held in memory (RAM), you need to reinstall them if the battery completely discharges or if the battery is removed from the unit for extended periods of time.

You do not need to reinstall applications and data installed in the iPAQ File Store folder because they are saved in ROM.

Charging

To recharge the battery, use one of the following methods:

■ AC Adapter with the Charger Adapter

■ Universal Desktop Cradle with the AC Adapter

■ Optional USB Autosync Cable

User’s Guide 3–3

Managing the Battery

Charging with the AC Adapter and Charger Adapter

The standard AC Adapter works in any household outlet. You can also purchase one that works in your vehicle’s cigarette lighter or a 12-volt power outlet.

CAUTION: Use only HP recommended AC adapters.

To charge the iPAQ Pocket PC using the AC Adapter:

1. Plug one end of the AC Adapter into an electrical outlet 1.

2. Plug the other end of the AC Adapter into the bottom of the Charger Adapter 2.

3. Plug the Charger Adapter 3 into the charging port on the bottom of the iPAQ Pocket PC.

User’s Guide 3–4

Managing the Battery

4. When the power indicator on the top of the iPAQ Pocket PC turns solid amber, the unit is fully charged and you can disconnect the AC Adapter. The approximate time to fully charge a unit is four hours.

The amber charge light blinks while the battery is recharging and

✎

turns solid (nonblinking) when the battery is fully charged.

If you receive a low backup battery warning, charge your unit immediately before removing the main battery to avoid data loss. To view the amount of charge left in the backup battery, tap Start > Settings > System tab > Power.

Charging with the Universal Desktop Cradle and AC Adapter

Use the Universal Desktop Cradle to:

■ Charge the iPAQ Pocket PC.

■ Synchronize the Pocket PC with your computer. (For

information on synchronizing, refer to Chapter 2, “Using ActiveSync.”)

User’s Guide 3–5

Managing the Battery

To charge the iPAQ Pocket PC using the Universal Desktop Cradle:

1. Plug the AC Adapter into an electrical outlet 1 and connect the other end of the AC Adapter to the AC connector on the Universal Desktop Cradle 2.

2. Slide the bottom of your iPAQ Pocket PC into the cradle 3 and push firmly to seat it.

CAUTION: To avoid damaging your iPAQ Pocket PC or the cradle,

check to be sure the pins are aligned before pushing the Pocket PC into the cradle.

The amber charge light blinks while the battery is recharging and

✎

turns solid (nonblinking) when the battery is fully charged.

There are stabilizers located in the Universal Desktop Cradle. These stabilizers assist in aligning the unit when there is no expansion pack attached. When you place your iPAQ Pocket PC with an expansion pack attached into the Universal Desktop

User’s Guide 3–6

Managing the Battery

Cradle, the stabilizers will be pushed down by the expansion pack. To release the stabilizers for use without an expansion pack, press the button on the back of the cradle.

Charging with the Optional USB Autosync Cable

You can charge your iPAQ Pocket PC using the optional USB Autosync Cable. Connect the Autosync Cable to the Pocket PC and your personal computer. The Pocket PC will be charged using power from the personal computer.

For more information on charging your Pocket PC using the optional USB Autosync Cable, from the Toda y screen, tap

Start > Settings > System tab > Power > USB Charging tab > Settings > Help.

Charging a Low Battery

Your iPAQ Pocket PC will not power on if the battery has a low charge (less than 3.2 Volts). It is recommended that you fully charge the battery prior to using the Pocket PC.

If the charge on the battery goes below the 3.2 Volts as a result of not being connected to the Universal Desktop Cradle or the AC Adapter, no damage will occur to the battery. However, the iPAQ Pocket PC charge indicator light will not flash until the battery reaches the minimum charge of 3.2 Volts and you perform a normal reset.

To charge and reset the iPAQ Pocket PC:

1. Connect the iPAQ Pocket PC to an A/C power supply.

2. Charge the battery to the minimum level of 3.2 Volts. This will take 5 to 30 minutes depending on the current charge level.

User’s Guide 3–7

3. Perform a normal reset (refer to “Performing a Normal Reset” in Chapter 1).

4. Power on the iPAQ Pocket PC.

It is recommended that you keep the iPAQ Pocket PC connected to the Universal Desktop Cradle or AC Adapter when it is not in use.

Preserving Battery Time

Adjusting the Standby Setting

Adjusting the Standby setting can preserve battery time. During Standby, the unit turns off so very little power is being consumed. This helps to preserve programs and data stored in RAM.

■ Lower Standby Period—Increases the usable battery time.

If you use the iPAQ Pocket PC for extended periods of time, you can choose to select a lower Standby Period.

Managing the Battery

■ Higher Standby Period—Decreases the usable battery

time and allocates it for standby usage. If you leave your iPAQ Pocket PC off for extended periods of time without recharging it, you can choose to select a higher Standby Period.

For more information on using the Standby setting, tap

Start > Settings > System tab > Power icon > Standby tab > Settings > Help.

User’s Guide 3–8

Managing the Battery

To adjust the Standby setting:

1. From the Start menu, tap Settings > System tab > Power icon.

2. Tap the Standby tab.

3. Drag the pointer to adjust the standby period.

User’s Guide 3–9

Managing the Battery

Changing the Backlight Settings

To change the backlight settings in order to conserve more battery power:

1. From the Start menu, tap Settings > System tab >

Backlight.

Shortcut: Press Application Button 4 (iTask), then tap the

Light bulb icon.

2. Select the following backlight settings:

■ Battery Power

■ External Power

■ Brightness

Disabling the Application and Record Buttons

Pressing the Application Buttons or the Record Button on your iPAQ Pocket PC will turn your device on by default. To preserve power and extend the life of your battery if you accidentally press one of these buttons, you can disable either of these functions.

To disable the Auto Power On function of the Application Buttons:

1. Tap Start > Settings > Buttons > Lock tab.

2. Tap in the Disable the application buttons checkbox.

3. Tap OK.

User’s Guide 3–10

To disable the Auto Power On function of the Record Button:

1. Tap Start > Settings > Buttons > Lock tab.

2. Tap in the Disable the record button checkbox.

3. Tap OK.

If you disable the Auto Power On feature for the Application

✎

Buttons and the Record Button, the Power Button still turns the unit on. Once the unit is turned on, all buttons will function according to their programmed functions.

Manually Monitoring the Battery

To manually monitor the battery power:

1. From the Start menu, tap Settings > System tab > Power icon.

2. Tap OK.

Managing the Battery

User’s Guide 3–11

Learning the Basics

Using the Today Screen

When you first turn on your iPAQ Pocket PC, the To da y screen displays. You can also display it by tapping Start, then Toda y. Use the Toda y screen to view:

■ Owner information

■ Upcoming appointments

■ Unread and unsent messages

■ Tasks that need to be completed

Tap t o swi t ch to a program.

Tap to create a new item.

User’s Guide 4–1

Tap to set ISP or Work connections. Tap to change volume or mute all sounds.

Tap to change date and time.

Tap to set appointment or view existing appointment.

Tap to read e-mail.

Tap to power Bluetooth on/off

Navigation Bar and Command Bar

The Navigation bar is located at the top of the screen. It displays the active program and current time, and allows you to close screens. Use the Start menu to select your application.

Tap to select a program you used recently.

Tap to select a program.

Tap to see additional programs. Tap to customize the settings.

Tap to view online Help

Within each program, use the Command bar located at the bottom of the screen to perform tasks. Tap New to create a new item in the current program.

Learning the Basics

New button

actions

User’s Guide 4–2

Buttons

Input panel button

Status Icons

You may see the following status icons displayed on the Navigation bar or Command bar. Tap the icon on the screen to view more information related to the item.

Learning the Basics

Active connection to wireless network.

Inactive connection to wireless network.

Microsoft ActiveSync is synchronizing.

Speaker is on.

Speaker is off.

iPAQ Pocket PC is connected to the USB Desktop Cradle. This icon appears only when there is an active connection.

Bluetooth power-on/off icon. When the Bluetooth icon is blue, Bluetooth is active. When the Bluetooth icon is grayed with a red X, Bluetooth is inactive.

Wireless LAN network connection detected. (h5500 only)

User’s Guide 4–3

Pop-Up Menus

Pop-up menus allow you to quickly perform an action. Use the pop-up menu to cut, copy, rename, and delete an item, also send an e-mail or beam a file to another device.

To access a pop-up menu, tap and hold the stylus on the name of the item on which you want to perform the action. When the menu appears, tap the desired action, or tap anywhere outside the menu to close it without performing an action.

Learning the Basics

Tap and hold to display the pop-up menu.

Tap the action you want.

Tap outside the menu to close it without performing an action.

User’s Guide 4–4

Creating information

From the Today screen, you can create new information, including:

■ Appointments

■ Contacts

■ E-mail

■ Excel Workbook Information

■ Notes

■ Ta sk s

■ Word documents

1. From the Today screen, tap New.

Learning the Basics

2. Tap an option to create a new item.

3. Tap OK after you finished creating a new item.

User’s Guide 4–5

Customizing the Today Screen

From the Settings Today screen, you can:

■ Add a picture as the background.

■ Select the information you see.

■ Set the order of the information.

■ Set when to see the To day screen.

1. From the Today screen, tap Start > Settings > Tod ay.

2. Select the Use this picture as the background checkbox.

Learning the Basics

3. Tap Browse to select a picture from File Explorer.

User’s Guide 4–6

Learning the Basics

4. Tap the Items tab to select or reorder the information on the Tod ay screen.

5. Tap an item to highlight it.

6. Tap Move Up or Move Down to change the order of items on the Toda y screen.

You cannot change the placement of the Date on the Today

✎

screen.

7. Tap the down arrow next to the Display Today screen if device is not used for...hours checkbox to determine how many hours must pass before the Today screen displays.

8. Tap OK.

User’s Guide 4–7

Using Applications

Opening Applications

Open any application on your iPAQ Pocket PC from the Start menu.

You can also open an application by assigning it to an Application

✎

Button. To assign Application Buttons, from the To day screen, tap Start > Settings > Buttons.

To open an application:

1. Tap Start > Programs.

2. Tap the desired application title or logo.

Learning the Basics

Minimizing Applications

To minimize an open application, tap the x at the top right of the screen.

User’s Guide 4–8

Closing Applications

Applications automatically close based on available memory. However, if your iPAQ Pocket PC is running slowly, you can close applications using iTask or by manually closing them.

Closing with iTask

1. Press the iTask button (Application Button 4 on the lower right side of your unit).

2. Tap and hold the program to be closed.

3. From the pop-up menu, tap Close This Task.

Closing Manually

1. From the Start menu, tap Settings > System tab > Memory > Running Programs tab.

2. Tap Stop All or select a particular application, then tap Stop.

To bring a currently running program to the foreground, tap

✎

Activate.

Learning the Basics

Installing Applications

Install applications on your iPAQ Pocket PC from your:

■ Personal computer by using Microsoft ActiveSync.

■ iPAQ Pocket PC if the application file has a .cab extension.

■ iPAQ Pocket PC or your computer by copying an application

file that has an .exe or .cef extension.

User’s Guide 4–9

When installing applications, look for the correct version for your iPAQ model or Pocket PC 2003.

■ Follow the instructions provided with the application and by

the installation Wizard to install applications from your computer.

■ Tap the application file in File Explorer on your iPAQ Pocket

PC and follow the instructions on the installation Wizard to install applications on your Pocket PC.

Using iPAQ Image Viewer

You can use the iPAQ Image Viewer to view images with .bmp, .jpg, and .gif file extensions.

Using the Image Viewer, you can:

■ Create a slide show of images.

■ Sort and rotate images.

■ Adjust the timing between images in a show.

Learning the Basics

■ Set a variety of transition effects.

Your iPAQ Pocket PC is capable of handling large files and

✎

resizing photo images to screen size.

User’s Guide 4–10

Locating an Image

1. From the Start menu, tap Programs > iPAQ Image Viewer.

2. Tap the File tab > Look In.

3. Select a file, then tap OK.

Viewing Image Information

Learning the Basics

You can view the image size and type, date taken and modified, color, and file size of an image.

To view image information:

1. Locate an image and tap it to select it.

2. Tap View > Information Window.

User’s Guide 4–11

Changing the View

By default. the Image Viewer opens displaying the images in the Thumbnail View. You can change the view to full screen by:

■ Double-tapping a thumbnail.

■ Tapping View > Full Screen.

■ Tapping the View Full Screen icon.

Learning the Basics

User’s Guide 4–12

Creating a Slide Show

You can put images together to create a slide show and control display options such as:

■ Orientation

■ Zoom

■ Image Quality

■ Transition Effect

■ Timing

To create a slide show:

1. From the Today screen, tap Start > Programs > iPAQ

Image Viewer.

2. Tap Show > Set up Show... .

3. Select images for the show and modify any image settings.

Learning the Basics

To change settings for all images in the show, tap the Select All

✎

button.

4. Tap OK.

User’s Guide 4–13

Saving a Slide Show

To save a slide show:

1. From the Today screen, tap Start > Programs > iPAQ

Image Viewer.

2. Create a slide show.

3. Tap File > Save Show Settings or Save Show Settings As... .

Learning the Basics

4. Enter a name and the location where you want to save the settings.

5. Tap OK.

User’s Guide 4–14

Opening a Slide Show

To open a slide show:

1. From the Today screen, tap Start > Programs > iPAQ

Image Viewer.

2. Tap File, then Open Show Settings... .

3. Select a show setting.

Learning the Basics

Sorting Image Files

To sort image files:

1. From the Today screen, tap Start > Programs > iPAQ

Image Viewer.

2. Tap Edit > Sort Images.

3. Select sort order. You can sort by ascending or descending Name, Type, Size, or Date.

User’s Guide 4–15

Viewing a Slide Show

1. From the Today screen, tap Start > Programs > iPAQ Image Viewer.

2. Create or open an existing slide show.

Learning the Basics

3. Tap the

Show tab > View Show.

4. Select a method for advancing the images in the show:

Manual Advance, Automatic Advance, or Automatic Advance (Loop).

User’s Guide 4–16

Backing Up Information

Use iPAQ Backup or Microsoft ActiveSync Backup to back up and restore information on your iPAQ Pocket PC.

iPAQ Backup is already installed on the iPAQ Pocket PC. You

✎

must install ActiveSync on your personal computer before using ActiveSync Backup.

To help reduce the chance of losing information, you should back up information on a regular schedule.

Backup/Restore using iPAQ Backup

iPAQ Backup saves your data in a backup file. You may designate a file name and a location for the file to be saved. iPAQ Backup backs up to a memory card, main memory, or the iPAQ File Store folder.

Close all applications on your iPAQ Pocket PC before backing up or restoring your information.

Learning the Basics

CAUTION: Restoring your information replaces the current

information on your iPAQ Pocket PC with the information saved in your backup.

To backup/restore using iPAQ Backup:

1. From the Today screen, tap Start > Programs > iPAQ

Backup.

2. Tap the Backup tab or the Restore tab.

3. Select the files and folders to be backed up or restored.

4. Select file location for backed-up data.

5. Set backup or restore options.

User’s Guide 4–17

6. Press the Backup or Restore button, then press the Start button on the next screen.

For more information on backing up or restoring files, from the Backup or Restore tab, tap iPAQ Backup > Help.

Backup/Restore Using ActiveSync

Close all applications on your iPAQ Pocket PC before backing up or restoring your information.

CAUTION: Restoring your information replaces the current

information on your iPAQ Pocket PC with the information saved in your backup.

To backup/restore using ActiveSync:

1. Be sure the iPAQ Pocket PC is connected to your personal computer.

2. From your personal computer, open Microsoft ActiveSync. From the Start menu, click Programs >

Microsoft ActiveSync.

Learning the Basics

3. From the Tools menu, click Backup/Restore.

4. Click the Backup or Restore tab, then select your options.

5. Click Backup Now or Restore Now.

User’s Guide 4–18

Using iPAQ File Store Folder

You can install applications and save files to the iPAQ File Store folder, which is accessed from File Explorer on your iPAQ Pocket PC.

Applications and files stored in iPAQ File Store are held in read-only memory (ROM) and are saved if you perform a full reset of your iPAQ Pocket PC or if the battery discharges completely.

To save to iPAQ File Store:

1. Copy the files to be saved to the iPAQ File Store folder.

2. From the Start menu, tap Programs > File Explorer > My Device > iPAQ File Store.

3. Paste the selected files.

Before saving files to the iPAQ File Store folder, it is a good idea

✎

to determine how much memory is available in the folder. To view the amount of memory, from the Start menu, tap Settings >

System tab > Memory > Storage Card tab. Select iPAQ File Store from the drop down menu.

Learning the Basics

User’s Guide 4–19

Learning Input Methods

CAUTION: To avoid damaging your iPAQ Pocket PC screen, always

use a stylus. Never use a pen or any type of metal pointer on the screen.

To input information to your iPAQ Pocket PC, you can tap the keyboard or write with the Letter Recognizer, Microsoft Transcriber, or Block Recognizer in any application. You can use the stylus to draw and write on the screen in the Notes application and from any Notes tab in the Calendar, Contacts, and Tasks applications.

Changing Word Suggestion Options

As you type or write, the Pocket PC suggests words for you in a box above the Keyboard, Letter Recognizer, or Block Recognizer but not in Transcriber. You determine:

■ If words are suggested.

■ The number of letters you enter before a word is suggested.

■ The number of words that are suggested per entry.

If you do not want any words suggested, remove the checkmark by tapping the Suggest Words When Entering Text checkbox.

User’s Guide 5–1

Learning Input Methods

To change settings for word suggestions:

1. From the Today screen, tap Start > Settings > Input.

2. Tap the Word Completion tab.

3. Tap the down arrow associated with letters and select the number of letters you want to type before a word is suggested.

User’s Guide 5–2

Learning Input Methods

4. Tap the down arrow associated with words and select the number of words you want suggested.

5. Tap OK.

User’s Guide 5–3

Learning Input Methods

Using the On-Screen Keyboard

Use the stylus to tap letters, numbers, and symbols on the on-screen keyboard to enter typed text directly onto the screen.

1. From any application, tap the up arrow next to the Input Panel icon.

2. Tap Keyboard to display a keyboard on the screen.

To see symbols, tap the 123 or Shift key.

✎

3. Tap a letter, symbol, or number to enter information.

4. Tap OK.

User’s Guide 5–4

Learning Input Methods

Writing with the Stylus and the Letter Recognizer

Use the stylus and Letter Recognizer to write letters, numbers, and symbols on the screen. Create words and sentences by writing in uppercase (ABC), lowercase (abc), and symbols (123) as instructed here.

To write with the stylus and Letter Recognizer:

1. From any application, tap the up arrow next to the Input Panel icon.

2. Tap Letter Recognizer.

3. Write a letter or symbol between the dashed line and baseline.

a. To display in uppercase, write a letter between the hatch

marks labeled ABC.

b. To display in lowercase, write a letter between the hatch

marks labeled abc.

c. To display a number or symbol, write the number or

symbol between the hatch marks labeled 123.

What you write will be converted to text.

User’s Guide 5–5

Learning Input Methods

A question mark within an application indicates a Help file.

✎

For the Letter Recognizer to work effectively, write characters

✎

between the dashed line and baseline.

■ If you are writing a letter like “p,” write the top portion

within the dashed line and baseline, and the tail portion below the baseline.

■ If you writing a letter like “b,” write the bottom portion

within the dashed line and baseline, and the top portion above the dashed line.

User’s Guide 5–6

Writing with the Stylus and Microsoft Transcriber

Use the stylus and Microsoft Transcriber to write words, letters, numbers, and symbols anywhere on the screen.

1. From any application, tap the up arrow next to the Input Panel icon.

2. Tap Transcriber to display the Transcriber Intro screen.

Learning Input Methods

3. Tap OK.

4. Tap New at the bottom of the screen.

5. Begin writing on the screen. What you write will be converted to text.

To “teach” Transcriber your style of writing, tap on the “a ” icon

✎

at the bottom of the screen to display the Letter Shapes screen and follow the instructions.

User’s Guide 5–7

Learning Input Methods

Writing with the Stylus and Block Recognizer

Write letters, numbers, and symbols using the stylus and Block Recognizer. Create words and sentences by writing letters and numbers in specific areas.

1. From any application, tap the up arrow next to the Input Panel button.

2. Tap Block Recognizer.

For online Help, tap the ?

✎

3. Write a word, letter, or symbol between the hatch marks.

a. To type text, write a letter between the hatch marks

labeled “abc.”

b. To type numbers or symbols, write a number or symbol

between the hatch marks labeled “123.”

What you write will be converted to text.

User’s Guide 5–8

Learning Input Methods

Drawing and Writing on the Screen

Use the stylus as a pen to draw and write on the screen in the Notes application or from the Notes tab in Calendar, Contacts, or Tasks.

1. From the Start menu, tap Notes > New.

2. Draw and write on the screen.

3. Tap the Pen icon.

4. Tap OK.

Converting Writing to Text

You can convert your writing to text when you write with the stylus in the Notes application or from the Notes tab in:

■ Calendar

■ Contacts

■ Ta sk s

To convert writing to text:

1. From the Start menu, tap Notes.

Otherwise, tap the Notes tab in Calendar, Contacts, or Tasks.

✎

2. Tap a note to open it.

3. Tap Tools.

4. Tap Recognize.

To convert a particular word or phrase, disable the pen icon by

✎

tapping it, then highlight the word or phrase before you tap Recognize. If a word is not recognized, it will not be converted.

5. Tap OK.

User’s Guide 5–9

Expansion Cards

Model shown in illustrations is iPAQ Pocket PC h5500 Series.

✎

You can expand the memory and connectivity of your iPAQ Pocket PC. Use optional expansion cards for:

■ Connecting wirelessly or connecting by using a cable to the

Internet or to a network.

■ Adding functionality such as a digital camera.

■ Expanding the memory of your iPAQ Pocket PC.

■ Viewing the content of memory cards.

Expansion cards must be purchased separately and are not

✎

included with your iPAQ Pocket PC.

To locate information about expansion cards, visit the following HP Web site:

www.hp.com/products/pocketpc/options

User’s Guide 6–1

Inserting a Secure Digital (SD) Expansion Card

To install a Secure Digital (SD) card into the expansion slot on the iPAQ Pocket PC:

1. Locate the SDIO slot on the top of the iPAQ Pocket PC.

2. Before inserting an SD card into the SDIO slot, push in 1, then pull out 2 the plastic slot cover from the SDIO slot.

Expansion Cards

User’s Guide 6–2

3. Insert the expansion card into the SDIO expansion slot and push the connection edge of the card firmly into the expansion slot.

If your expansion card is not recognized, follow the card

✎

manufacturer’s instructions to install it.

Expansion Cards

To prevent power loss, remove any expansion cards from the SD

✎

expansion slot before turning off the iPAQ Pocket PC.

User’s Guide 6–3

Removing a Secure Digital (SD) Expansion Card

1. Close all applications that are using the expansion card.

2. Remove a card from the Secure Digital expansion slot by slightly pushing down on the card 1 to unlock it.

Expansion Cards

3. When the card disengages and pops up 2, pull it from the expansion slot.

CAUTION: SD cards must first be unlocked before removal. Failure

to do so will result in damage to the device and card.

Viewing the Content of Memory Cards

Use File Explorer to view the files that are located on your optional Secure Digital card.

1. From the Start menu, tap Programs > File Explorer.

2. Tap the root directory of My Device, and select the appropriate Storage Card folder to see a list of files and folders.

User’s Guide 6–4

Expansion Cards

Using Expansion Packs

If you would like to increase the storage and connectivity of your iPAQ Pocket PC, use the optional:

■ Single-Slot or Dual-Slot PC Card Expansion Pack

■ CompactFlash Card Expansion Pack

■ Expansion Pack Plus

Using an Optional Single-Slot or Dual-Slot PC Card Expansion Pack

You can use the optional Single-Slot or Dual-Slot PC Card Expansion Pack to:

■ Create dial-up and wireless connections with optional cards

■ Expand memory with optional cards

■ Attach options

■ Hold two Type II cards or one Type III card (Dual-Slot PC

Card Expansion Pack only)

CAUTION: You cannot install CompactFlash (CF) cards into the

Single-Slot or Dual-Slot PC Card Expansion Pack unless you have a PC Card adapter. Otherwise, install CompactFlash cards only into the CF Card Expansion Pack.

To install an optional Single-Slot or Dual-Slot PC Card Expansion Pack:

1. Slide the iPAQ Pocket PC into the expansion pack until it snaps into place.

2. Push firmly to attach the iPAQ Pocket PC connector to the expansion pack. The iPAQ Pocket PC automatically recognizes the expansion pack.

User’s Guide 6–5

Expansion Cards

Using an Optional CompactFlash Card Expansion Pack

You can use the optional CompactFlash (CF) Card Expansion Pack to:

■ Create a dial-up connection with optional cards

■ Expand memory with optional cards

■ Hold Type I or Type II cards

CAUTION: Use CompactFlash cards only in the CF Expansion Pack.

To install an optional CompactFlash Card Expansion Pack:

1. Slide the iPAQ Pocket PC into the expansion pack until it snaps into place.

2. Push firmly to attach the iPAQ Pocket PC connector to the expansion pack. The iPAQ Pocket PC automatically recognizes the expansion pack.

User’s Guide 6–6

Connecting to the Internet

Use your iPAQ Pocket PC to connect to the Internet or your Work network.

To send and receive e-mail with Inbox and to view Web sites with Pocket Internet Explorer, you must set up a remote connection with devices such as a Secure Digital Input/Output (SDIO) modem card, optional Expansion Pack with CompactFlash (CF) modem card installed, ethernet card, or a wireless 802.11x card. Another option is to use a Bluetooth-enabled device such as a phone or LAN Access point.

Use of dial-up and wireless Internet, e-mail, corporate networks,

✎

and other wireless communications, such as Bluetooth-enabled devices, may require separately purchased additional hardware and other compatible equipment, in addition to a standard Wireless LAN (WLAN) infrastructure and a separately purchased service contract. Check with your service provider for availability and coverage in your area. Not all Web content may be available. Some Web content may require installation of additional software.

For more information on this subject, refer to the Help file on

✎

your iPAQ Pocket PC by tapping Start > Help > Connections.

User’s Guide 7–1

Using a Modem Card

To connect to the Internet with a modem card, you need a phone line, a dial-up Internet Service Provider (ISP) or a Work Internet connection, and an optional Single-Slot or Dual-Slot PC Card Expansion Pack, Expansion Pack Plus, or CompactFlash (CF) Card Expansion Pack.

You must also obtain the following information from your ISP or your network administrator: telephone number, user name, password, domain name, and TCP/IP settings.

Insert your modem card before trying to set up a modem

✎

connection.

1. Insert your modem card into an expansion pack.

If your modem card is not recognized, follow your modem

✎

manufacturer’s instructions to install the modem card driver on your iPAQ Pocket PC.

Connecting to the Internet

2. From the Start menu, tap Settings > Connections tab > Connections icon.

User’s Guide 7–2

Connecting to the Internet

3. Under My ISP or My Work Network, tap Add a new modem connection.

To view additional information on any screen or while changing

✎

settings, tap the ?.

4. Enter a name for the connection, select the modem type, then tap Next.

User’s Guide 7–3

Connecting to the Internet

5. Enter the phone number exactly as it is dialed, then tap Next.

6. Enter your user name, password, and domain.

7. If you need to enter the specific TCP/IP settings, tap Advanced, then tap the TCP/IP tab.

8. Select “Use specific IP address.”

9. Enter your IP address.

User’s Guide 7–4

Connecting to the Internet

If your private network does not use dynamically-assigned IP

✎

addresses, ask your network administrator for the address.

10. Tap OK > Finish.

11. Tap OK twice to return to the To da y screen.

For information on connecting to the Internet using Bluetooth,

✎

refer to Chapter 8, “Using Bluetooth.” For information on connecting to the Internet using Wireless LAN, refer to Chapter 9, “Using the Wireless LAN.”

User’s Guide 7–5

Connecting to the Internet

Connecting to a Private Network

1. Before you start, be sure to have your server phone number, user name, and password. This information can be obtained from your network administrator.

2. Tap Start > Settings > Connections tab > Connections icon.

3. In My Work Network, set up a new modem connection, new VPN Server connection, or proxy server connection.

4. Start the connection by inserting the necessary modem card into the iPAQ Pocket PC, and start using Pocket Internet Explorer. Your device automatically begins connecting.

Entering an Internet Address

With Pocket Internet Explorer and a connection to the Internet, you can view Web sites on your iPAQ Pocket PC by typing an address or Universal Resource Locator (URL) in the Address bar.

Web sites that use HTML 4.0, DHTML, animated GIF images,

✎

and Java applets may not work correctly in Pocket Internet Explorer without additional software.

To enter an Internet address (URL) on your iPAQ Pocket PC:

1. From the Start menu, tap Internet Explorer > Address Bar.

If the Address Bar is not visible, tap the View tab > Address Bar

✎

to turn it on.

User’s Guide 7–6

2. Enter the Internet address (URL) in the Address bar.

3. Tap the Go icon.

Using a Favorites List

With Pocket Internet Explorer and a connection to the Internet, you can view Web sites on your iPAQ Pocket PC by selecting one from your Favorites list.

Connecting to the Internet

To select a Web site from your Favorites list:

1. From the Start menu, tap Internet Explorer.

2. Tap the Favorites icon and the Web site you want to view.

User’s Guide 7–7

Using Bluetooth

This iPAQ Pocket PC comes with built-in Bluetooth technology that allows short-range connections and provides fast, reliable, and secure wireless communication.

With Bluetooth powered on, you can send information or perform the following tasks wirelessly between two Bluetooth devices, within a range of approximately 10 meters (30 feet):

■ Exchange contacts, calendar items, and tasks

■ Send or exchange business cards

■ Transfer files

■ Synchronize with a computer through an ActiveSync

connection

■ Partner with a Bluetooth-enabled cell phone and use as a

wireless modem

■ Connect to other Bluetooth devices (Virtual COM port)

■ Connect to Bluetooth wireless local area networks (WLANs)

■ Print to a Bluetooth printer

■ Create a personal area network (PAN) to chat, play

games, etc.

■ Use a Bluetooth headset

User’s Guide 8–1

Using Bluetooth

Use of dial-up and wireless Internet, e-mail, corporate networks,

✎

Getting Acquainted with Bluetooth

Before you start using Bluetooth to establish wireless connections, take a few minutes and familiarize yourself with:

■ Terms used in this chapter

■ Supported Services

■ Bluetooth Settings

■ Bluetooth Manager

For more detailed help, refer to the Help files installed on your

✎

iPAQ Pocket PC. From the Start menu, tap Help > Bluetooth.

User’s Guide 8–2

Understanding Terms

The following Bluetooth terms are used throughout this chapter.

The Term... Means...

Authentication Verification of a numeric passkey before a

connection or activity can be completed.

Authorization Approval of a connection or activity before

it can be completed.

Using Bluetooth

Bonding (Paired devices)

Device address Unique electronic address of a Bluetooth

Device discovery Location and recognition of another

Device name Name that a Bluetooth device provides when

Encryption Method of protecting data.

Link key Code used to securely pair devices.

Passkey Code you enter to authenticate connections

Personal Information Manager (PIM)

Profiles Collection of Bluetooth settings.

Service discovery Determination of which applications you

Create a trusted connection between your device and another. After a bond is created, the two devices become paired.

A paired device does not require authentication or authorization.

device.

Bluetooth device.

discovered by another device.

or activities requested by other devices.

Collection of applications used to manage daily business tasks (for example, Contacts, Calendar, and Tasks).

have in common with other devices.

User’s Guide 8–3

Supported Services

The functions that Bluetooth supports are called services. You can communicate only with Bluetooth devices that support at least one of the following services:

■ BPP (Basic Printer profile)

■ DUN (Dial-up Networking profile)

■ FA X

■ FTP (File Transfer profile)

■ GAP (Generic Access profile)

■ HCRP (Hard Cable Replacement profile)

■ LAP (LAN Access profile)

■ OBEX (Object Exchange profile)

■ OPP (Object Push profile)

■ PAN (Personal Area Network profile)

Using Bluetooth

■ SPP (Serial Port profile)

■ ActiveSync (Uses SPP to connect to ActiveSync on

computer)

■ AGP (Audio Gateway Profile)

User’s Guide 8–4

Working with Bluetooth Settings

From the tabs in Bluetooth Settings, you can:

■ Turn Bluetooth on and off

■ Enter or change your iPAQ Pocket PC Bluetooth name

■ Set your connection preferences

■ Enable Bluetooth services

■ Specify security settings

■ Define settings for sharing and connecting

■ Select a user profile

■ View software and port information

Use the arrows to the right to scroll through the tabs.

Opening Bluetooth Settings

1. From the Today screen, tap the Bluetooth icon.

Using Bluetooth

2. From the pop-up menu, tap Bluetooth Settings.

User’s Guide 8–5

Turning on Bluetooth

To turn on Bluetooth from Bluetooth Settings:

1. From the Today screen, tap the Bluetooth icon.

2. From the pop-up menu, tap Bluetooth Settings.

3. Tap the Tu r n o n button to enable.

SHORTCUTS: There are two shortcuts for turning on Bluetooth.

■ From the Bluetooth pop-up menu, tap Tu rn

Bluetooth ON.

■ From the To day screen, tap Start > Bluetooth Manager

to automatically turn on Bluetooth.

When Bluetooth is turned on, the Bluetooth icon turns blue and the left LED on the iPAQ Pocket PC blinks blue. To preserve battery power, it is recommended that you turn on Bluetooth only when using it.

Tap the Turn off button to disable. When Bluetooth is turned off, the Bluetooth icon is grayed with a red X, and no incoming or outgoing connections are possible.

Using Bluetooth

User’s Guide 8–6

Setting Accessibility Properties

You can enter or change accessibility properties to define how your iPAQ Pocket PC interacts with other Bluetooth devices.

Entering a Device Name

The device name is what other devices see when they locate your device.

To enter a device name:

1. From the Today screen, tap the Bluetooth icon > Bluetooth Settings > Accessibility tab.

2. Highlight the name in the Name field and enter your new name.

3. Tap OK to save your changes.

Allowing Connections

You can determine if all devices or only paired devices can connect to your iPAQ Pocket PC.

Using Bluetooth

Allowing All Devices to Connect

1. From the Today screen, tap the Bluetooth icon > Bluetooth Settings > Accessibility tab.

2. Select Allow other devices to connect, then All devices.

3. Tap OK.

CAUTION: This allows any device, even those unknown to you, to

connect to your iPAQ Pocket PC. After they are connected, security settings for specific services apply as specified in the Bluetooth Settings.

User’s Guide 8–7

Using Bluetooth

Allowing Paired Devices to Connect

Paired devices share and exchange an internally generated Link Key before connecting. The Link Key is derived from a unique Bluetooth device address, a random number, and a user-defined password.

This feature allows only devices that you trust to connect to your iPAQ Pocket PC.

To allow paired devices to connect:

1. From the Today screen, tap the Bluetooth icon > Bluetooth Settings > Accessibility tab.

2. Select Allow other devices to connect, then Paired

devices only.

3. Tap OK.

Allowing Others to Locate Your Device

You can allow other devices to search and locate your iPAQ Pocket PC.

If another remote device has your device’s address, that device

✎

may be able to locate and connect to you even though you did not select for your device to be discovered.

To allow others to locate your device:

1. From the Today screen, tap the Bluetooth icon > Bluetooth Settings > Accessibility tab.

2. Select Other devices can discover me.

3. Tap OK to save the changes.

User’s Guide 8–8

Enabling Bluetooth Services

You can select to enable certain services:

■ Automatically when Bluetooth is activated

■ When you permit the connection

■ When a passkey or link key is correctly entered

You can use any of these security options when transferring files, creating a serial port connection, exchanging business card information, configuring dial-up networking, and joining a personal network.

Automatically Enabling Services

You can allow devices to connect without any authorization so that any time Bluetooth is on, it is ready for connections.

To automatically enable services:

1. From the Today screen, tap the Bluetooth icon > Bluetooth

Settings.

Using Bluetooth

2. Tap the tab for the service you want to enable: File Transfer, Information Exchange, Serial Port, Personal Network Server, or Audio Gateway.

3. Select Enable service.

4. Ensure there are no check marks in the Authorization required or Authentication (Passkey) required checkboxes.

5. Tap OK.

User’s Guide 8–9

Using Bluetooth

Requiring Authorization to Access Services

If you elect to require authorization to access services, you must authorize each connection. Then your iPAQ Pocket PC will always ask you if the connection should be permitted.

To require authorization to access services:

1. From the Today screen, tap the Bluetooth icon > Bluetooth

Settings.

2. Tap the tab for the service you want to enable: File Transfer, Information Exchange, Serial Port, Personal Network Server, or Audio Gateway.

3. Select Authorization required.

4. Tap OK.

Secure Connections using a Passkey or Bond

To establish a secure connection with another device, you can use the passkey feature or an established bond. You can also add data encryption to this type of security.

A passkey is a code you enter to authenticate connections requested by other devices. The passkey must be known and used by both parties or the connection will not be allowed.

To require a passkey or bond:

1. From the Today screen, tap the Bluetooth icon > Bluetooth

Settings.

2. Tap the tab for the service you want to enable: File Transfer, Information Exchange, Serial Port, Personal Network Server, or Audio Gateway.

3. Select Authentication (Passkey) required.

4. Select Encryption Required if you want to require all data exchanged between the devices to be encrypted.

5. Tap OK.

User’s Guide 8–10

Setting a Shared Folder

You can determine the folder that other devices access when they connect to your iPAQ Pocket PC.

To select a shared folder:

1. From the Today screen, tap the Bluetooth icon > Bluetooth

Settings.

2. Tap the File Transfer tab.

3. Tap the Folder icon and locate a desired file folder.

Using Bluetooth

4. Tap OK.

User’s Guide 8–11

Understanding Profiles

Use profiles to quickly enable selected personal settings in multiple environments.

Creating a Profile

To create a profile:

1. From the Today screen, tap the Bluetooth icon > Bluetooth Settings > General tab > Profile icon.

Using Bluetooth

2. Tap the New button.

User’s Guide 8–12

3. Enter a descriptive name.

4. Select an existing profile to use as a template.

5. Tap OK.

Activating a Profile

When a new profile is created, you will need to activate it.

Using Bluetooth

To activate a profile after creating it:

1. Create a profile.

2. From the Today screen, tap the Bluetooth icon > Bluetooth

Settings.

3. From the General tab, select it from the Current Profile down arrow list.

4. Tap OK.

User’s Guide 8–13

Using Bluetooth

Saving Bluetooth Configuration Settings in a Profile

To save the iPAQ Pocket PC Bluetooth configuration settings to any profile:

Bluetooth must be turned on for changes to be saved.

✎

1. From the Today screen, tap the Bluetooth icon > Bluetooth Settings.

2. From the

3. Select a profile from the Add/Delete Profiles list or create a new one.

4. Tap OK.

5. Set up your iPAQ Pocket PC by specifying the desired connection, sharing, and security settings in the General,

Accessibility, File Transfer, Information Exchange, Serial Port, Personal Network Server, and/or Audio Gateway

tabs under Bluetooth Settings.

6. Tap OK to close the Bluetooth Settings. The changes are automatically saved.

General tab, tap the Profile icon.

Renaming a Profile

1. From the Today screen, tap the Bluetooth icon > Bluetooth Settings.

2. From the General tab, tap the Profile icon.

3. Select a profile from the Add/Delete Profiles list.

4. Tap the Rename button.

5. Enter a new descriptive name.

6. Tap Enter.

7. Tap OK.

User’s Guide 8–14

Using Bluetooth

Deleting a Profile

1. From the Today screen, tap the Bluetooth icon > Bluetooth Settings.

2. From the General tab, tap the Profile icon.

3. Select a profile from the Add/Delete Profiles list.

4. Tap the Delete button.

5. Tap Ye s to confirm you want to delete the profile.

6. Tap OK.

An active profile cannot be deleted.

✎

Working with Bluetooth Manager

Use Bluetooth Manager to:

■ Establish connections

■ Display shortcuts

■ Exchange business cards

■ Control the on-screen display

User’s Guide 8–15

Opening Bluetooth Manager

From the Today screen, tap Start > Bluetooth Manager.

The first screen that displays is My Shortcuts.

Bluetooth Manager can also be accessed from the Today screen

✎

by tapping the Bluetooth icon > Bluetooth Manager.

Opening Bluetooth Manager automatically turns on Bluetooth.

✎

Locating and Selecting a Device

Several tasks require you to locate a device and connect to it. When you are required to locate a device, the Bluetooth browser assists by searching for your desired function that supports other Bluetooth devices.

Pairing Devices

Using Bluetooth

You can pair devices so they must exchange a computer generated security key prior to each connection. The security key is also called a “passkey.” It is generated from a unique Bluetooth device address, a random number, and a user-defined password.

After two devices are paired, they have a trusted relationship with each other that can be verified using a link key. No additional input is needed from the user. Therefore, connections and activities can be performed between the paired devices without constant authorization from the user.

User’s Guide 8–16

Using Bluetooth

To pair devices:

1. From the Today screen, tap Start > Bluetooth Manager.

2. Tap Tools > Paired devices.

3. Tap Add.

4. Tap the Lookup icon.

5. Tap a device.

6. Enter a password in the Passkey field.

7. Tap OK.

8. Enter the same passkey into the other device.

Some devices, such as mobile phones, need to be placed in

✎

discoverable mode to accept a bond from another device. Refer to that device’s user instructions for more information.

User’s Guide 8–17

Unpairing Devices

You can remove a paired relationship between devices.

1. From the Today screen, tap Start > Bluetooth Manager.

2. Tap Tools, then Paired devices.

3. Tap a device name.

4. Tap Remove.

5. Tap Ye s to remove the pairing.

Connecting to Other Devices

Use ActiveSync, serial and dial-up connections to communicate with other Bluetooth devices. Establish a partnership with a cell phone and set up the Bluetooth services it offers.

Identifying the Communications Port

You can identify the virtual COM ports used to create a serial port connection. You may need to identify these COM ports for

activities such as printing.

Using Bluetooth

Use the inbound COM port when other devices initiate a serial connection. Use the outbound COM port when you initiate a serial connection to another device.

To identify the communications port:

1. From the Today screen, tap the Bluetooth icon > Bluetooth

Settings.

2. Tab over to the Serial Port tab and tap it.

3. Note the names of your inbound and outbound COM ports.

4. Tap OK.

User’s Guide 8–18

Using Bluetooth

Establishing an ActiveSync Connection

You can set up an ActiveSync partnership with a Bluetoothenabled computer.

To establish an ActiveSync connection:

1. From the Today screen, tap Start > Bluetooth Manager.

2. Tap New, then Connect.

3. Tap ActiveSync via Bluetooth > Next.

4. Follow the connection wizard instructions.

User’s Guide 8–19

Establishing a Serial Connection

Use the wireless Bluetooth serial port connection just as you would a physical serial cable connection. You must configure the application that will use the connection to the correct serial port.

To establish a serial connection:

1. From the Today screen, tap Start > Bluetooth Manager.

2. Tap New > Connect.

3. Tap Explore a Bluetooth device > Next.

4. Follow the connection wizard instructions.

Dial-Up Networking

When you use dial-up networking (DUN), the remote device providing the dial-up networking service and the remote computer to which you are connecting must both have telephone access.

Devices that can provide dial-up networking include Bluetooth:

Using Bluetooth

■ Mobile phones

■ Desktop computers

■ Modems

Using Dial-Up Networking

To connect to a device that provides modem access:

1. From the Today screen, tap Start > Bluetooth Manager.

2. Tap New > Connect.

3. Tap Connect to the Internet > Next.

4. Follow the connection wizard instructions.

User’s Guide 8–20

Hp iPAQ h5100 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Using the Stylus

Setting the Date and Time

Setting the Time for Home and Visiting Locations

Setting the Date

Entering Owner Information

Resetting the Unit

Performing a Normal Reset

Performing a Full Reset

Aligning the Screen

Routine Care

Using ActiveSync

Connecting to a Computer

Synchronizing with Your Computer

Using the Serial Infrared (IR) Connection

Changing Synchronization Settings

Copying Files

Installing Applications

Backing up and Restoring

Synchronizing Links

Sending and Receiving E-mail

Requesting Meetings

Managing the Battery

Installing the Battery

Removing the Battery

Charging

Charging with the AC Adapter and Charger Adapter

Charging with the Universal Desktop Cradle and AC Adapter

Charging with the Optional USB Autosync Cable

Charging a Low Battery

Preserving Battery Time

Adjusting the Standby Setting

Changing the Backlight Settings

Disabling the Application and Record Buttons

Manually Monitoring the Battery

Learning the Basics

Using the Today Screen

Navigation Bar and Command Bar

Status Icons

Pop-Up Menus

Creating information

Customizing the Today Screen

Using Applications

Opening Applications

Minimizing Applications

Closing Applications

Closing with iTask

Closing Manually

Installing Applications

Using iPAQ Image Viewer

Locating an Image

Viewing Image Information

Changing the View

Creating a Slide Show

Saving a Slide Show

Opening a Slide Show

Sorting Image Files

Viewing a Slide Show

Backing Up Information

Backup/Restore using iPAQ Backup

Backup/Restore Using ActiveSync

Using iPAQ File Store Folder

Learning Input Methods

Changing Word Suggestion Options

Using the On-Screen Keyboard

Writing with the Stylus and the Letter Recognizer

Writing with the Stylus and Microsoft Transcriber

Writing with the Stylus and Block Recognizer

Drawing and Writing on the Screen

Converting Writing to Text

Expansion Cards

Inserting a Secure Digital (SD) Expansion Card

Removing a Secure Digital (SD) Expansion Card

Viewing the Content of Memory Cards

Using Expansion Packs

Using an Optional Single-Slot or Dual-Slot PC Card Expansion Pack
