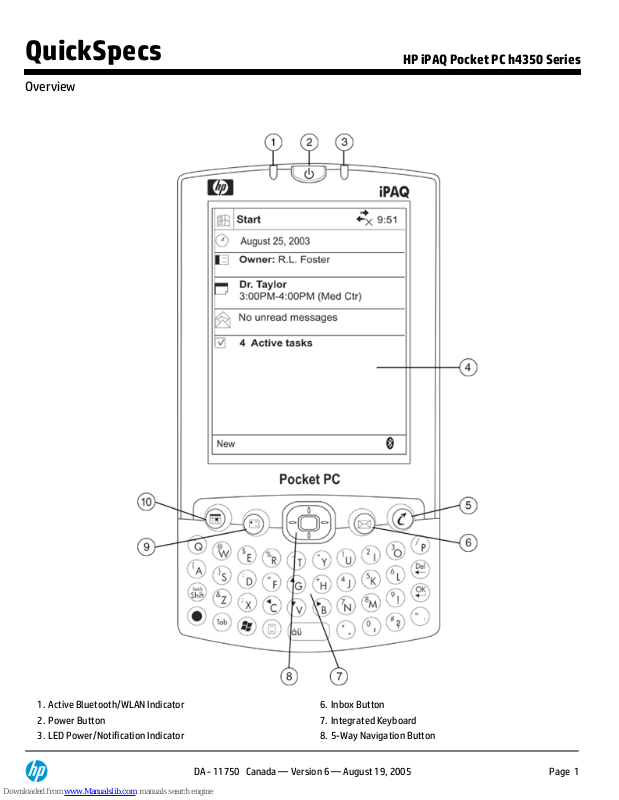

HP iPAQ h4350 Overview

1.

Active Bluetooth/WLAN Indicator

6.

Inbox Button

2.

Power Button

7.

Integrated Keyboard

3.

LED Power/Notification Indicator

8.

5-Way Navigation Button

QuickSpecs

HP iPAQ Pocket PC h4350 Series

Overview

DA - 11750 Canada — Version 6 — August 19, 2005

Page 1

4.

Colour Display

9.

Contacts Button

5.

iTask Button

10.

Calendar Button

At A Glance

Integrated WLAN 802.11b

1

Integrated Bluetooth™

1

Integrated Keyboard
Integrated SD expansion slot
Microsoft® Windows® Mobile™ 2003 software for Pocket PC
Dazzling Transflective TFT colour with LED backlight display
Removable/rechargeable battery
Stay productive with Pocket versions of familiar applications like Microsoft Outlook , Word and Excel

NOTE

1: A standard WLAN infrastructure, other devices enabled with Bluetooth, and a service contract with a wireless airtime
provider may be required for applicable wireless communication. Wireless Internet use requires a separately purchased service
contract. Check with a service provider for availability and coverage in your area. Not all web content available.

QuickSpecs

HP iPAQ Pocket PC h4350 Series

Overview

DA - 11750 Canada — Version 6 — August 19, 2005

Page 2

Models

iPAQ Pocket PC h4350 – 64-MB SDRAM

FA172A#ABA – US Commercial, English

NOTE:

These models will not be available in Canada until late November.

Processor

400 MHz Intel® Xscale™ technology-based processor

Memory

SDRAM

64-MB (55-MB user accessible)

Up to 2.8-MB iPAQ File Store (varies by SKU)

ROM

32-MB

Display

Type

Transflective type TFT colour with LED backlight

Number of colours

64K colour (65,536 colours) 16-bit

Touch Screen

Yes

Resolution

(W x H)

240 x 320

Viewable Image Size

3.5 in (89 mm)

Hardware Buttons/
Reset Buttons

One power button, one recording button, one soft reset switch, four software programmable application
buttons, one 5-way navigation button.

Stylus

One (extra stylus included in the box)

Audio

Integrated microphone, speaker and one 3.5 mm headphone jack, MP3 stereo (through audio jack)

Notification Systems

Alarms

Solid amber LED (right) - battery in unit fully charged
Flashing amber LED (right)- battery in unit is charging
Flashing green LED (right) - event alarm/notification
Flashing green LED (left) - WLAN active
Flashing blue LED (left) - Bluetooth active

Notification

Sound and message on the display

QuickSpecs

HP iPAQ Pocket PC h4350 Series

Standard Features

DA - 11750 Canada — Version 6 — August 19, 2005

Page 3

Cradle Interfaces

Connector

1

Cable

1 USB cable connects to PC

DC Jack connector for AC
Adapter

1

Additional batter charger

Charge additional slim or extended battery

SD Slot

Support SDIO and SD/Multimedia card type standard

Power Supply

Battery

Removable/Rechargeable 1560 mAh Lithium-lon user swappable battery.
Estimated usage time of fully charged battery up to17 hours (no wireless, no
backlight).
Optional extended 3600 mAh Lithium-lon battery available for purchase.

AC Power

AC Input: 100~240 Vac, 50/60 Hz, AC Input current: 0.2 Aac max
Output Voltage: 5Vdc (typical), Output Current: 2A (typical)

NOTE:

Battery run time varies based on the usage pattern of an individual user and the configuration of
the handheld. Use of internal wireless capabilities and backlight will significantly decrease battery run
time.

Ergonomic Design
Features

Integrated, lighted keyboard
Instant-on/off and Backlight
5-Way Navigation button
Touch-sensitive display for stylus
4 programmable application launch buttons - defaults configured for Calendar, Contacts, Inbox, and iTask
buttons
Record button
2 alarm settings
Built-in speaker

HP Exclusive Applications

Bluetooth Manager
iPAQ File Store: non-volatile storage in flash ROM (not available in Japanese, Simplified Chinese,
Traditional Chinese and Korean versions)
iPAQ Backup: utility for Backup/Restore to Main Memory, Memory Card or iPAQ File Store
iPAQ iTask Manager: access and launch programs easily
iPAQ Image Zone: view images and create slide shows
Utilities: Self Test, iPAQ Audio, Power Status

QuickSpecs

HP iPAQ Pocket PC h4350 Series

Standard Features

DA - 11750 Canada — Version 6 — August 19, 2005

Page 4
