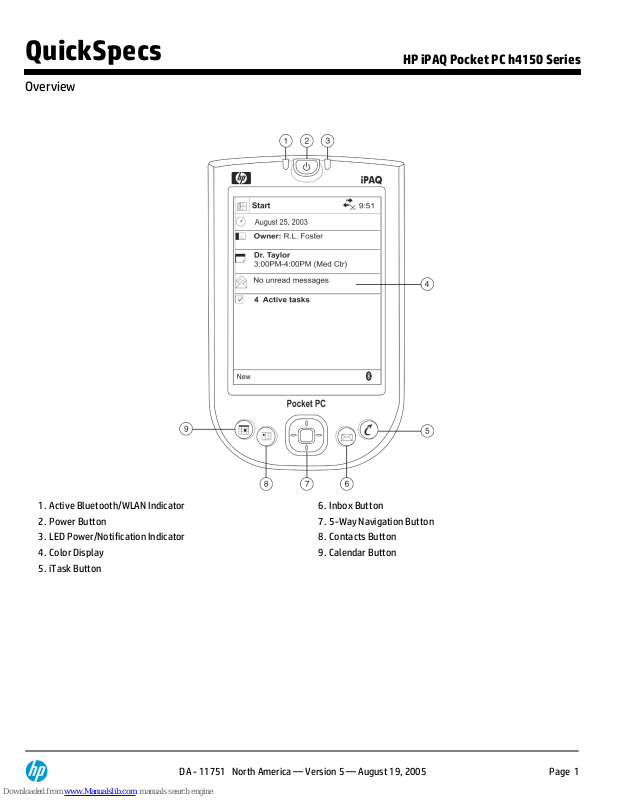

HP iPAQ h4150 Overview

1.

Active Bluetooth/WLAN Indicator

6.

Inbox Button

2.

Power Button

7.

5-Way Navigation Button

3.

LED Power/Notification Indicator

8.

Contacts Button

4.

Color Display

9.

Calendar Button

5.

iTask Button

QuickSpecs

HP iPAQ Pocket PC h4150 Series

Overview

DA - 11751 North America — Version 5 — August 19, 2005

Page 1

At A Glance

Integrated WLAN 802.11b

1

Integrated Bluetooth™

1

Integrated SD expansion slot
Microsoft® Windows® Mobile™ 2003 software for Pocket PC
Dazzling Transflective TFT color with LED backlight display
Removable/rechargeable battery
Stay productive with Pocket versions of familiar applications like Microsoft Outlook , Word and Excel

NOTE

1: A standard WLAN infrastructure, other devices enabled with Bluetooth, and a service contract with a wireless airtime
provider may be required for applicable wireless communication. Wireless Internet use requires a separately purchased service
contract. Check with a service provider for availability and coverage in your area. Not all web content available.

QuickSpecs

HP iPAQ Pocket PC h4150 Series

Overview

DA - 11751 North America — Version 5 — August 19, 2005

Page 2

Models

iPAQ Pocket PC h4150 – 64-MB SDRAM

FA174A#ABA – US Commercial, English

iPAQ Pocket PC h4155 – 64-MB SDRAM

FA175A#ABA – US Retail, English

Processor

400 MHz Intel Xscale™ technology-based processor

Memory

SDRAM

64-MB (55-MB user accessible)

Up to 2.8-MB iPAQ File Store (varies by SKU)

ROM

32-MB

Display

Type

Transflective type TFT color with LED backlight

Number of Colors

64K color (65,536 colors) 16-bit

Touch Screen

Yes

Resolution

(W x H)

240 x 320

Viewable Image Size

3.5 in (89 mm)

Hardware Buttons/
Reset Buttons

One power button, one recording button, one soft reset switch, four software programmable application
buttons, one 5-way navigation button

Stylus

One (extra stylus included in the box)

Audio

Integrated microphone, speaker and one 3.5 mm headphone jack, MP3 stereo (through audio jack)

Notification Systems

Alarms

Solid amber LED (right) - battery in unit fully charged
Flashing amber LED (right) - battery in unit is charging
Flashing green LED (right) - event alarm/notification
Flashing green LED (left) - WLAN active
Flashing blue LED (left) - Bluetooth active

Notification

Sound and message on the display

QuickSpecs

HP iPAQ Pocket PC h4150 Series

Standard Features

DA - 11751 North America — Version 5 — August 19, 2005

Page 3

Cradle Interfaces

Connector

1

Cable

1 USB cable connects to PC

DC Jack connector for AC
Adapter

1

Additional battery
charger

Charge additional slim or extended batter

SD Slot

Support SDIO and SD/Multimedia card type standard

Power Supply

Battery

Removable/Rechargeable 1000 mAh Lithium-lon user swappable battery.
Estimated usage time of fully charged battery up to12 hours (no wireless, no
backlight).
Optional extended 1800 mAh Lithium-lon battery available for purchase.

AC Power

AC Input: 100~240 Vac, 50/60 Hz, AC Input current: 0.2 Aac max
Output Voltage: 5Vdc (typical), Output Current: 2A (typical)

NOTE:

Battery run time varies based on the usage pattern of an individual user and the configuration of
the handheld. Use of internal wireless capabilities and backlight will significantly decrease battery run
time.

Ergonomic Design
Features

Instant-on/off and Backlight
5-way Navigation button
Touch-sensitive display for stylus
4 programmable application launch buttons - defaults configured for Calendar, Contacts, Inbox, and iTask
buttons
Record button
2 alarm settings
Built-in speaker

HP Exclusive Applications

Bluetooth Manager
iPAQ File Store: non-volatile storage in flash ROM (not available in Japanese, Simplified Chinese,
Traditional Chinese and Korean versions)
iPAQ Backup: utility for Backup/Restore to Main Memory, Memory Card or iPAQ File Store
iPAQ iTask Manager: access and launch programs easily
iPAQ Image Zone: view images and create slide shows
Utilities: Self Test, iPAQ Audio, Power Status

QuickSpecs

HP iPAQ Pocket PC h4150 Series

Standard Features

DA - 11751 North America — Version 5 — August 19, 2005

Page 4

Companion CD from HP

APPLICATIONS

Full Versions

Trial Versions

HP Web registration
HP Mobile Print Center
Westtek ClearVue Suite
F-Secure FileCrypto Data
Encryption
Colligo Personal Edition
Adobe PDF Viewer
RealOne Player for Pocket
PC
iPresenter PowerPoint
converter
MobiMate WorldMate
Resco File Explorer 2003 ­U.S. Retail only

Xcellenet Afaria Device Management Agent
Margi Presenter-to-Go (requires purchase of additional hardware)
Illium ListPro
CommonTime Cadenza mNotes
Resco Picture Viewer - U.S. Retail only

CD LINKS

NetMotion
Avaya IP Softphone
IP Blue VTGO!
Cisco CallManager
Pocket Presence Running
Voice IP
Vindigo
Audible Manager and
Audible Player (Service
plan
required to download and
play Audible content - link)
SingleTap
Handango
Pocket Backup Plus

Additional Documentation

Safety and Comfort Guide on PDF, and User Guide on PDF

NOTE:

Programs may vary based on SKU. Some programs are accessed through CD links to download web
sites.

Operating System

Microsoft Windows Mobile 2003 software for Pocket PC - Premium edition
Pocket versions of Microsoft software are included (Outlook, Word, Excel and Internet Explorer for Pocket
PC)

QuickSpecs

HP iPAQ Pocket PC h4150 Series

Standard Features

DA - 11751 North America — Version 5 — August 19, 2005

Page 5

Operating System
Applications

Powered by Microsoft Windows Mobile 2003 for Pocket PC
Calendar, Contacts, Tasks, Voice Recorder, Notes, Pocket Word (with Spellchecker), Pocket Excel, Pocket
Internet Explorer, Windows Media Player 9 (MP3, audio and video streaming), Calculator, Solitaire,
Jawbreaker, Inbox (with Spell Checker for email), Microsoft Reader (eBooks), File Explorer, Pictures,
Terminal Services Client, VPN Client, Infrared Beaming, Clock, Align Screen, Memory, Volume control,
ClearType Tuner (except for Asian languages)

Additional Software and
links

Outlook 2002, Microsoft ActiveSync 3.7 (Desktop device synchronization), Microsoft Reader eBooks, Links
to Microsoft websites for additional downloadable applications (some programs may require purchase of
additional desktop software to utilize Pocket PC versions)

Service and Support

One-year parts and labor in most regions; two-year warranty in Europe (one-year warranty for
rechargeable battery pack) 90 days technical support for software in all regions. Optional HP Care Pack
available in North America for Next Business Day replacement (at additional charge)

WLAN Specifications

1

Radio Specifications

RF Network Standard

IEEE 802 Part 11b (802.11b)

Frequency Band

2.4000 to 2.4835 GHz

2.4465 to 2.4835 GHz (France)

2.4000 to 2.497 GHz (Japan)

Antenna type

Embedded Inverted F Antenna

WEP Security

64/128-bit compliant to IEEE 802.11
Compliant to 802.1X

Network Architecture
Models

Ad-hoc (Peer to Peer)
Infrastructure (Access Points Required)

Modulation Technique

Direct Sequence Spread Spectrum

Modulation Schemes

DBPSK, DQPSK, CCK

Receiver Sensitivity ­Packet Error Rate

(8E-2)

11 Mbps: <-80 dBm

5.5 Mbps: <-82 dBm
2 Mbps: <-86 dBm
1 Mbps: <-89 dBm

Maximum Receive Level

-10dBm (1/2/5.5/11 Mbps)

Output Power

(maximum)

15 dBm
(limited due to FCC SARS requirements)

Power Management

Radio On/Off control through Microsoft Connection icon, Power Save mode
available in Power Settings

Power Consumption

Transfer mode: < 380 mA, average
Receive mode: < 280 mA, average

Power Saving Option

802.11 Compliant Power Saving, idle mode 25 mA

Media Access Protocol

CSMA/CA (Collision Avoidance) with ACK

Protocols Supported

TCP/IP
IPX/SPX
UDP

SAR

1.0 mW/g

QuickSpecs

HP iPAQ Pocket PC h4150 Series

Standard Features

DA - 11751 North America — Version 5 — August 19, 2005

Page 6

Throughput

>4.5 Mbps

Operating Distance

Up to 1000 feet - open sight

Certifications

All necessary regulatory approvals for countries we support including:
WECA Wi-Fi approval
FCC (47 CFR) Part 15C, Section 15.247&15.249
ETS 300 328, ETS 301 489-1
Low Voltage Directive IEC950
UL, CSA, and CE Mark

NOTE: 1 A standard WLAN infrastructure, other devices enabled with Bluetooth, and a service contract with

a wireless airtime provider may be required for applicable wireless communication. Wireless Internet use
requires a separately purchased service contract. Check with a service provider for availability and
coverage in your area. Not all web content available.

Bluetooth Specifications1Technology

High-speed, low-power, short-range

Bluetooth specification

1.1 compliant (2.4-GHz Industrial Scientific Medical Band)

System interface

High-speed UART processor interface

User Interface

Bluetooth Manager

Device type

Class II device; up to 4 dBm transmit, typical 10 meter range

Power

3.3V 5% Peak current - typical TX current at approximately 30mA

- typical RX current at approximately 50 mA

Receiver sensitivity

-78 dBm

Regulatory standards

R&TT#-EN 300 328 and EN 300 826, UL 1950, CB Safety Scheme inclusive of
EN 60950 and IEC 950, FCC Part 15 subpart C, Canadian, CE

Profile Support

General Access Profile
Service Discovery Application Profile
Serial Port Profile
Generic Object Exchange Profile
File Transfer Profile
Dial-Up Networking Profile
LAN Access Profile
Object Push Profile
Personal Area Networking Profile
Basic Printing Profile
Hard Copy Replacement Profile (printing)

Usage Models

1

Service Discovery

Determine what Bluetooth devices are within range and support authorization

File Transfer

File and directory browsing and navigation on another Bluetooth device.
File copying
Object manipulation - including add, delete, create new folders etc.

Serial Port

Synchronization between PDAs and PCs

QuickSpecs

HP iPAQ Pocket PC h4150 Series

Standard Features

DA - 11751 North America — Version 5 — August 19, 2005

Page 7

Dial Up Networking

Wireless link to WAN thru Bluetooth enabled cell phone1
Agnostic to WAN technology
Send/receive SMS messages

LAN Access

Wireless link to Corporate LAN using Bluetooth and appropriate Bluetooth
access point

1

Corporate email, network neighborhood, access to LAN applications, file
transfer, ftp, Internet browsing, etc, using TCP/IP

1

Access the Internet by connecting to your desktop or notebook over Bluetooth
and using its network connection

1

Generic Object Exchange and Object Push

Exchange business cards, tasks, documents, appointments and more

1

Personal Area Networking

Collaborate, chat, play games, exchange data

1

Adhoc peer to peer networking

1

Basic Printing and Hard Copy Replacement Profiles

Print to any HP Bluetooth enabled printer without the need for cables or
specific print drivers

Certifications

All necessary regulatory approvals for countries we support including:
Bluetooth logo, FCC (47 CFR) Part 15C, Section 15.247&15.249 ETS 300 328,
ETS 301 489-1/17 Low Voltage Directive IEC950 UL and CE Mark

NOTE: 1 A standard WLAN infrastructure, other devices enabled with Bluetooth, and a service contract with

a wireless airtime provider may be required for applicable wireless communication. Wireless Internet use
requires a separately purchased service contract. Check with a service provider for availability and
coverage in your area. Not all web content available.

QuickSpecs

HP iPAQ Pocket PC h4150 Series

Standard Features

DA - 11751 North America — Version 5 — August 19, 2005

Page 8

System Unit

Dimensions

(H x W x D)

4.47 in x 2.78 in x 0.5 in (113.6 mm x 70.6 mm x 13.5 mm)

Weight

4.67oz (132 g)

Operating Temperature

32° to 104° F (0° to 40° C)

Storage Temperature

–4° to 140° F (–20° to 60° C)

Operating Humidity

90% RH

Regulatory Marks

Electrical

FCC Class B, UL or CSA NRTL

Safety

C-UL, NOM

TFT Color Display

Number of Colors

65,536 (64K 16-bit)

Resolution

(W x H)

240 x 320

Dot Pitch

0.24 mm

Viewable Image

(W x H)

3.5 in (89 mm)

Display Type

64K color (16-bit) transflective type TFT color with LED

AC Adapter

Dimensions

(H x W x D)

3 x 1.9 x 1.8 in (76 x 48 x 44 mm) (including prongs)

Cord Length

(approximate)

6 ft (1.83 m)

Power Supply Ratings

Voltage Range

100 to 240 V Switching

Input Current

0.3 A

Input Frequency

50 to 60 Hz

Output Voltage

5 VDC

Output Current

2 Amp

QuickSpecs

HP iPAQ Pocket PC h4150 Series

Technical Specifications

DA - 11751 North America — Version 5 — August 19, 2005

Page 9

NOTE:

Optional accessories are available at additional cost.

Memory/Storage

64-MB SD Memory Card

253478-B21

FA134A#AC3

128 MB SD Memory Card

253479-B21

FA135A#AC3

256 MB SD Memory Card

287464-B21

FA136A#AC3

512-MB SD Memory Card

344310-B21

FA184A#AC3

Power

1800 mAH Lithium Ion Extended Battery

343110-001

FA192A#AC3

1000 mAh Lithium Ion Slim Battery

343111-001

FA191A#AC3

Auto Adapter

253508-B21

FA125A#AC3

Charger Adapter

274707-B21

FA133A#AC3

AC Adapter

U.S., Canada, Latin America, Japan, Taiwan

253629-001

FA130A#ABA

Synchronization

Desktop Cradle

343116-001

FA188A#AC3

USB Charge/Sync Cable

FA122A#AC3

Other

Stylus Three-pack

331311-B21

FA113#AC3

Foldable Keyboard

249693-001

FA118A#AC3

Micro keyboard

FA162A#AC3

Performance

Photosmart Mobile Camera (SDIO Camera)

FA185A#AC3

iPAQ Navigation System (U.S. only)

FA196A#AC3

Cases

Nylon Case

339657-B21

FA161A#AC3

Leather Belt Case

339656-B21

FA160A#AC3

Custom Cases: to view and order go to:

http://www.casesonline.com/

QuickSpecs

HP iPAQ Pocket PC h4150 Series

Options

DA - 11751 North America — Version 5 — August 19, 2005

Page 10

HP iPAQ Pocket PC h4150 is a Microsoft® Windows® Powered Pocket PC

For more information on HP iPAQ Pocket PC, visit our website at

http://www.hp.com/go/iPAQ

©2005 Hewlett-Packard Development Company, L.P.

The information in this document is subject to change without notice.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein. Microsoft, Windows and the Windows Logo are registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries. Intel is a registered trademark of Intel Corporation in the U.S. and/or other
countries.

QuickSpecs

HP iPAQ Pocket PC h4150 Series

Options

DA - 11751 North America — Version 5 — August 19, 2005

Page 11
