Product Category: Notebooks and Tablet PCs
Marketing Name / Model
[List multiple models if applicable.]
Name / Model #2
Name / Model #3
Name / Model #4
Name / Model #5
1.0 Items Requiring Selective Treatment
Quantity
in product
Printed Circuit Boards (PCB) or Printed Circuit
Assemblies (PCA)
With a surface greater than 10 sq cm
3
Batteries
All types including standard alkaline and lithium coin
or button style batteries
2
Mercury-containing components
For example, mercury in lamps, display backlights,
scanner lamps, switches, batteries
1
Liquid Crystal Displays (LCD) with a surface greater
than 100 sq cm
Includes background illuminated displays with gas
discharge lamps
1
Cathode Ray Tubes (CRT)
0
Capacitors / condensers (Containing PCB/PCT)
0
Electrolytic Capacitors / Condensers measuring
greater than 2.5 cm in diameter or height
0
External electrical cables and cords
0
Gas Discharge Lamps
0
Plastics containing Brominated Flame Retardants
0
Components and parts containing toner and ink,
including liquids, semi-liquids (gel/paste) and toner
Include the cartridges, print heads, tubes, vent
chambers, and service stations.
0
Components and waste containing asbestos
0
Components, parts and materials containing
refractory ceramic fibers
0
Product End-of-Life Disassembly Instructions
HP 620 Notebook PC
Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions
for the disassembly of HP products to remove components and materials requiring selective treatment, as defined by EU
directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).
1.1 Items listed below are classified as requiring selective treatment.
1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as
applicable.
Item Description Notes
of items
included
EL-MF877-00 Page 1
Template Revision A
Components, parts and materials containing
0
2.0 Tools Required
Tool Description
Tool Size (if
applicable)
Cross head
of screwdriver
TORX T8
(2.31mm)
Description #3 Motor-screw-driver “-”
3.0 Product Disassembly Process
radioactive substances
List the type and size of the tools that would typically be used to disassemble the product to a point where components
and materials requiring selective treatment can be removed.
Description #1 Motor-screw-driver “+”
Description #2 Motor-screw-driver “*”
3.1 List the basic steps that should typically be followed to remove components and materials requiring selective treatment:
1. Follow steps described in Disassembly instruction (file attached).
2. If parts can be removed without using a tool, remove it first.
3. Use correct screwdriver and torque value before unlock the screw.
4.
5. .
6.
7.
8.
3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items
contained in the product that require selective treatment (with descriptions and arrows identifying locations).
EL-MF877-00 Page 2
Template Revision A
MANUFACTURING PROCESS INSTRUCTIONS
Sub-assembly name:
Sub-assembly name:
Sub-assembly name:Sub-assembly name:
Document No.:
Document No.:
Document No.:Document No.:
MECHANICAL ASSEMBLY
MODEL : VV10
VV1 0 FA DIS-ASS’Y
VV1 0 FA DIS-ASS’Y
VV1 0 FA DIS-ASS’YVV1 0 FA DIS-ASS’Y
SOP VV1 0 FA ASSY DIS-ASS’Y
SOP VV1 0 FA ASSY DIS-ASS’Y
SOP VV1 0 FA ASSY DIS-ASS’YSOP VV1 0 FA ASSY DIS-ASS’Y
Written by:
Written by:
Written by:Written by:
Date:
Date: 2010/3/8
Date:Date:
A.Current station versio n list:
A.Current station versio n list:
A
.Cu rre nt station vers ion list:A.Current station versio n list:
Station Version Station Version Station Version Station Version Station Version Station Version
1
2 0.10 12 0.10 22 0.10 32 0.10 42 0.10 52 0.10
3 0.10 13 0.10 23 0.10 33 0.10 43 0.10
4 0.10 14 0.10 24 0.10 34 0.10 44 0.10
5 0.10 15 0.10 25 0.10 35 0.10 45 0.10
6 0.10 16 0.10 26 0.10 36 0.10 46 0.10
7 0.10 17 0.10 27 0.10 37 0.10 47 0.10
8 0.10 18 0.10 28 0.10 38 0.10 48 0.10
9 0.10 19 0.10 29 0.10 39 0.10 49 0.10
10 0.10 20 0.10 30 0.10 40 0.10 50 0.10
B.Version Modify list:
B.Version Modify list:
B.Version Modify list:B.Version Modify list:
0.10
Date Con tent
Date
ateDate
D
11
Station Ver.
Station
ta tionStation
S
ALL 0.1*2010/3/8 First SOP for mass production
0.10
Cui,Ju nhua
Cui,Ju nhua
Cui,Ju nhuaCui,Ju nhua
2010/3/8 Page:
2010/3/82010/3/8
21
0.10
Con tent Des ign
Con tentCon tent
31 0.10 41 0.10 51 0.10
Revision:
Revision:
Revision:Revision:
Page: 1 of 52
Page:Page:
Ver.
Ver.Ver.
Cui,Junhua
0.10
1 of 52
1 of 521 of 52
Des ign
Des ignDes ign
Auditor： Tabulator：
Zhang, Ying
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Disassemble Battery
Fig.1
STEP：
1. Disassemble Battery (Fig.1)。
：
：：
1(1/1)
2010/03/080.20
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Notebook 1
Scanner 1
Bar code printer 1
Qty
Tabulator：_Zhang Ying_
Fixture list（Fixture standard）
Issuing department： IE
Qty
Working Instruction
Document No. : SOP VV10 FA Station :
oosen screws & Disassemble Cover
Name : Ver. : Date :
L
STEP：
1. Loosen SET screws 。
T
13&14 Loosen screws*2；15 Loosen
2. Disassemble Cover 。
：
：：
orsion：1.0 ± 0.2 Kgf．cm
screws*4
13” & 14” 6070B0431301
15” 6070B0431201
2(1/1)
2010/03/080.20
13/14”
1
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
2
Qty
15”
2
1
Fixture list（Fixture standard）
3
4
Qty
Automatic crossing screw driver 1
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Loosen screws & Disassemble ODD
3
(1/1)
2010/03/080.20
For 13&14
STEP：
For All
1. Loosen screws (60520D046304) * 1 ，and
T
Screws can't be stripped.
：
：：
Disassemble ODD 。
orsion：2.0 ± 0.2Kgf．cm
For 15”
ODD
ODD screws
ODD
ODD screws
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Automatic crossing screw driver(T8) 1
Qty
Fixture list（Fixture standard）
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Disassemble HDD &Loosen screws
STEP：
1. Loosen HDD screws(6052B0080701) * 2 and
T
Screws can't be stripped.
2. Disassemble HDD and take it out。
：
：：
setscrews＊1
orsion：2.0 ±0.2Kgf．cm
4(1/1)
2010/03/080.20
1
6052B0080701
SET screws
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Automatic crossing screw driver 1
Qty
Fixture list（Fixture standard）
2
3
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
13”
Disassemble Antenna Cable
STEP：
：
：：
1.Disassemble Antenna interface from
WLAN。
2.Disassemble Antenna Cable。
5(1/1)
2010/03/080.20
15”
14”
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Qty
Fixture list（Fixture standard）
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
oosen screws & Disassemble WLAN
L
STEP：
：
：：
1. Loosen WLAN Screws(6052B0156101) * 2 。
orsion：1.5 ± 0.2Kgf．cm
T
Screws can't be stripped.
2. Take out WLAN。
6(1/1)
2010/03/080.20
1
2
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Automatic crossing screw driver 1
Qty
Fixture list（Fixture standard）
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
13/14”
1
1
2
2
Loosen screws
STEP：
1. Loosen screws (6052B0156101) 。
T
13”&14”Loosen 2 screws,15”Loosen 2 screws
Screws can't be stripped.
：
：：
orsion：1.5 ± 0.2 Kgf．cm
.20
7(1/1)
2010/03/080
15”
2
1
3
2
3
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Automatic crossing screw driver
Qty
1
Fixture list（Fixture standard）
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Disassemble FAN / BATT Cable
STEP：
1. Disassemble BATT Cable 。
2. Disassemble FAN Cable 。
：
：：
8(1/1)
2010/03/080.20
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Qty
Tabulator：_Zhang Ying_
Fixture list（Fixture standard）
Issuing department： IE
Qty
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
FOR 13” & 14”
Loosen screws
1
STEP：
2
3
：
：：
1. Loosen screws (6052B0096201) of SW
cover *3。
orsion：2.0 ± 0.2 Kgf．cm
T
13”&14”Loosen 3 screws，15” Loosen
4screws
Screws can't be stripped.
.20
9(1/1)
2010/03/080
FOR 15”
Qty
32
4
Fixture list（Fixture standard）
1
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
A
utomatic crossing screw driver 1
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Disassemble HDD extension board(for
15’)
STEP：
FOR 15” ONLY
1.Loosen screws (6052B0156101) * 1 。
Torsion：2.0 ± 0.2 Kgf．cm
Screws can't be stripped.
2.Take out HDD extension board (1310A2330401) 。
：
：：
10(1/1)
2010/03/080.20
15”
Loosen screws
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Take out CNTR ODD from extension board
Qty
Fixture list（Fixture standard）
Qty
Automatic crossing screw driver(1#) 1
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Disassemble FAN
STEP：
For 13&14:
1. Loosen FAN screws (6052B0156101) * 1。
T
Screws can't be stripped.
2. Take out FAN (6033B0014602)。
：
：：
orsion：2.0 ± 0.2 Kgf．cm
11(1/1)
2010/03/080.20
1
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Automatic crossing screw driver 1
Qty
Fixture list（Fixture standard）
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
1
Loosen screws
13/14”
2
STEP：
：
：：
1. Loosen screws (6052B0097001)*2 of K/B .
Torsion：2.0 ± 0.2 Kgf．cm
Screws can't be stripped.
12(1/1)
2010/03/080.20
1
2
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Automatic crossing screw driver 1
15”
Qty
Fixture list（Fixture standard）
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
15” ONLY – Loosen screws
2010/03/080.20
1
3(1/1)
15”
STEP：
FOR 15” ONLY
1. Loosen screws (60520D046304) * 4。
T
Screws can't be stripped.
：
：：
orsion：2.0 ± 0.2 Kgf．cm
4
3
1
2
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Automatic crossing screw driver(T8) 1
Qty
Fixture list（Fixture standard）
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Loosen screws
2010/03/080.20
1
4(1/1)
13/14”
1
15”
STEP：
For 13&14:
1. Loosen screws (60520D046304) * 4 。
T
Screws can't be stripped.
2
4
3
3
For 15:
1. Loosen screws (60520D046304) * 5 。
Torsion：2.0 ± 0.2 Kgf．cm
Screws can't be stripped.
：
：：
orsion：2.0 ± 0.2 Kgf．cm
4
2
1
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Automatic crossing screw driver(T8) 1
5
Qty
Fixture list（Fixture standard）
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Loosen screws
2010/03/080.20
1
5(1/1)
13/14”
1
15”
1
STEP：
4
2
2
3
3
5
4
：
：：
For 13&14
1. Loosen screws (60520D046304) *4 。
orsion：2.0 ± 0.2 Kgf．cm
T
Screws can't be stripped.
For 15
1. Loosen screws (60520D046304) * 5。
Torsion：2.0 ± 0.2 Kgf．cm
Screws can't be stripped.
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Automatic crossing screw driver(T8) 1
Qty
Tabulator：_Zhang Ying_
Fixture list（Fixture standard）
Issuing department： IE
Qty
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Fig.1
Disassemble K/B
13/14”
STEP：
1.Open LCM, turn the machine clock wisely
2. Disassemble K/B。
1
15‘ Disassembl from upper left corner first (Fig.2)
3.Disassemble K/B FFC CNTR。(Fig.3)
：
：：
3’14’ Disassemble from card ditch first (Fig.1)
16(1/1)
2010/03/080.20
Fig.2
Fig.3
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
15”
Qty
Fixture list（Fixture standard）
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Disassemble Palm from TPCB
STEP：
：
：：
1.Disassemble Palm rest from TPCB 。
Push down the plam rest, and slip it to
t
he right side.
17(1/1)
2010/03/080.20
Slip Palm rest to the right side，
and take it out
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Qty
Tabulator：_Zhang Ying_
，
，，
Fixture list（Fixture standard）
Issuing department： IE
Qty
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Fig.
1
Disassemble FFC
STEP：
：
：：
1. Push T/P CNTR lock slice aside, pull out
FFC from M/B CNTR
18(1/1)
2010/03/080.20
Fig.
2
Fig.
3
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Qty
Fixture list（Fixture standard）
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
13”
1
Loosen screws (for 13’14’)
2
STEP：
：
：：
For 13&14
1.Loosen screws (60520D046304)。
(13’’Loosen 2 screws,14’’Loosen 3
screws)。
orsion：2.0 ± 0.2 Kgf．cm
T
Screws can't be stripped.
。
。。
19(1/1)
010/03/080.20
2
14”
3
1
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Automatic crossing screw driver(T8) 1
2
Qty
Fixture list（Fixture standard）
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Loosen screws
STEP：
1. 13’&14’ Loosen screws (60520D046304)
Torsion：2.0 ± 0.2 Kgf．cm
Screws can't be stripped.
2. 15’Loosen screws (60520D046304) * 4.
T
Screws can't be stripped.
：
：：
* 3.
orsion：2.0 ± 0.2 Kgf．cm
20(1/1)
010/03/080.20
2
13/14”
1
FOR 13” & 14”
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Automatic crossing screw driver(T8) 1
2
3
Qty
15”
3
1
15”
Fixture list（Fixture standard）
2
4
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
FOR 13” & 14”
Loosen screws(For 13&14)
STEP：
For 13&14’’
1. Loosen screws(6052B0080701) * 1 from
T
Screws can't be stripped.
2. Loosen screws (6052B0094301) * 1。
Torsion：2.0 ± 0.2Kgf．cm
Screws can't be stripped.
：
：：
TPCB and BTCB 。
orsion：2.0± 0.2Kgf．cm
.20
21(1/1)
2010/03/080
1
Screws
(6052B0094301)
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Automatic crossing screw driver 1
Qty
Tabulator：_Zhang Ying_
Fixture list（Fixture standard）
Issuing department： IE
Screws
(6052B0080701)
2
Qty
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Disassemble TPCB from BTCB
2010/03/080.20
2
2(1/1)
Fig.1
STEP：
FOR ALL
1. Disassemble TPCB (Fig.1)
D
：
：：
isassemble the audio jack frist。
Audio jack
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Automatic crossing screw driver 1
Qty
Tabulator：_Zhang Ying_
Fixture list（Fixture standard）
Issuing department： IE
Qty
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
13”
Disassemble antenna cable (for 13’14’)
STEP：
：
：：
1. Disassembleantenna cable
3‘ Tear the tape of acetic acid
1
2pcs(6054A0076201)
14”
23(1/1)
2010/03/080.20
Tear the tape of acetic acid
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Qty
Fixture list（Fixture standard）
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Disassemble antenna cable
STEP：
13”
：
：：
1.Disassemble antenna cable
Disassemble antenna cable
Fig.13” 14” 15”)
(
24(1/1)
2010/03/080.20
14”
15”
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Qty
Fixture list（Fixture standard）
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Tear tape of cable
Disassemble MIC cable
Fig.1
STEP：
：
：：
1. Tear the tape of acetic acid from MIC cable
(Fig.1）
2.Disassemble MIC cable（Fig.2）
3. Take down MIC Cable(Fig.4) 。
25(1/1)
2010/03/080.20
Fig.2
Disassemble MIC cable
Fig.3
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Qty
Take down CNTR
Fixture list（Fixture standard）
Fig.4
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Disassemble LCM cable/MSI cable
STEP：
1.Disassemble MSI cable of M/B CNTR (Only for
2. Tear the tape of LCM cable，Disassemble LCM
：
：：
15’ MSI Model ）
cable.
26(1/1)
2010/03/080.20
15’ MSI Model
Disassemble cable
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Qty
Tabulator：_Zhang Ying_
Fixture list（Fixture standard）
Issuing department： IE
Qty
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Loosen screws (For Only 15) and
disassemble cable
STEP：
For all:
1.Disassemble cable。
15”
2. Loosen screws (60520D046304)* 3。
Torsion：3.0 ± 0.2 Kgf．cm
Screws can't be stripped.
：
：：
For Only 15”
27(1/1)
2010/03/080.20
2
3
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Automatic crossing screw driver(T8)
Disassemble线棒 1
Qty
1
Fixture list（Fixture standard）
1
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Left
1 2
Loosen screws
Right
13/14”
STEP：
13” & 14”
1.Loosen screws (60520D046304)* 2
Torsion：3.0 ± 0.2 Kgf．cm
Screws can't be stripped.
15”
1.Loosen screws (60520D046304) * 3
Torsion：3.0 ± 0.2 Kgf．cm
Screws can't be stripped.
：
：：
28(1/1)
010/03/080.20
2
Left
15”
1
3
Left
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Automatic crossing screw driver(T8) 1

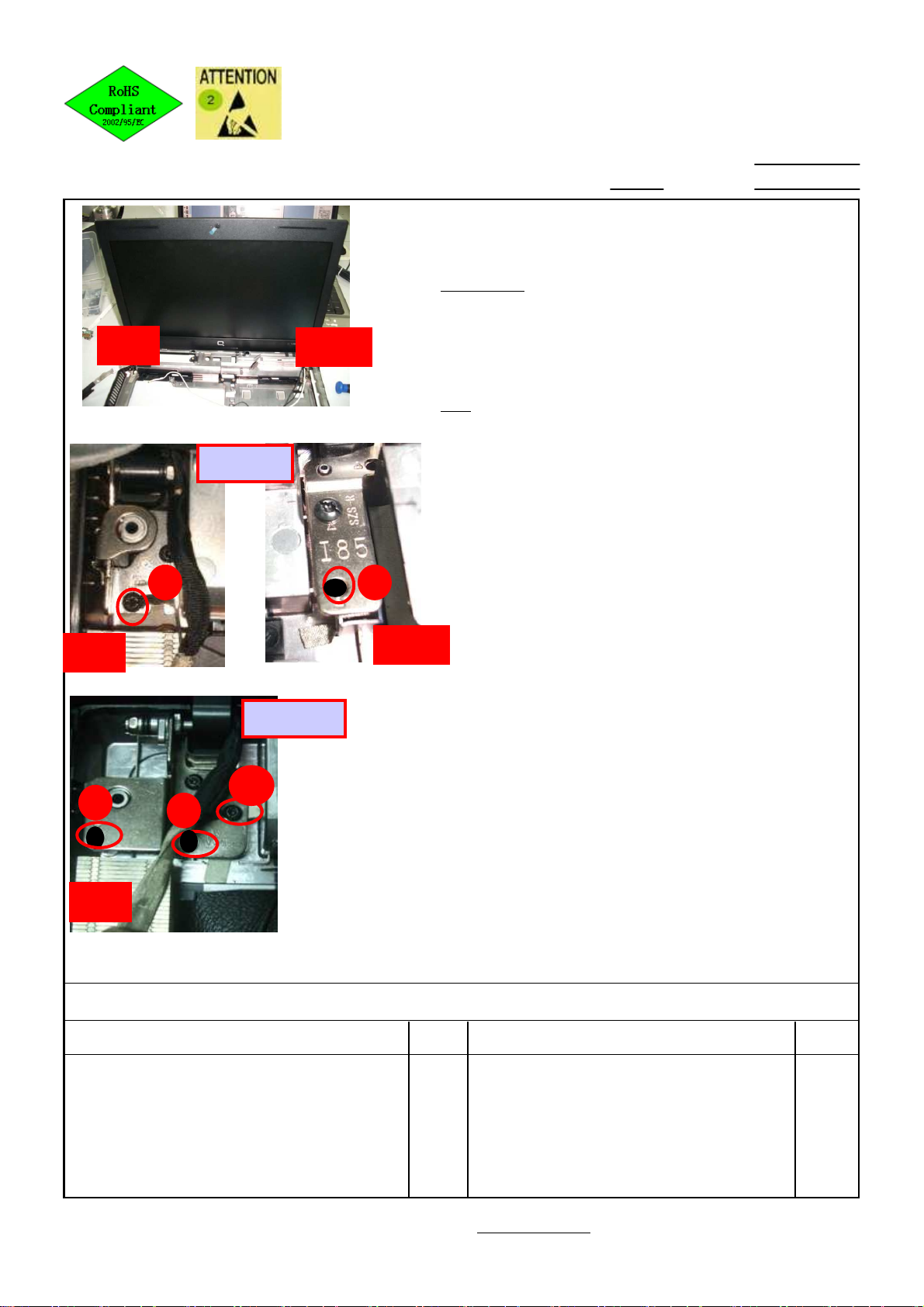

2
Right
Qty
Fixture list（Fixture standard）
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Left
Loosen screws & Disassemble LCM
STEP：
1. Hands support one side of LCM，and loosen
screws (60520D046304)* 2。
orsion：3.0 ± 0.2 Kgf．cm
T
crews can't be stripped.
Right
13/14”
2
1
S
(Fig.13”/14” 15”)
2. Take down the LCM.
：
：：
29(2/2)
2010/03/080.20
Left
15”
1
Left
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Automatic crossing screw driver(T8) 1
2
Right
Right
Qty
Fixture list（Fixture standard）
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
15”
13/14”
Disassemble speaker cable
the tape of acetic acid
STEP：
1.Take down the speaker cable from M/B CNTR
2. Disassemble speaker cable
13’14’ ：Tearthe tape of acetic acid
cable15‘：Tearthe tape of acetic acid
：
：：
(6054A0076201) 2pcs
(6054A0076201) 1pcs
30(1/1)
2010/03/080.20
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Qty
Tabulator：_Zhang Ying_
Fixture list（Fixture standard）
Issuing department： IE
Qty
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Fig.1
Loosen ODD extension board
s
crew & Disassemble Speaker
STEP：
1. Loosen ODD extension board screw
T
Screws can't be stripped.
2.Loosen screws(6052B0156101)*2 (Fig.2)
nd take down the Speaker(6039B0039401)
A
Torsion：1.5 ± 0.2Kgf．cm
Screws can't be stripped.
3
：
：：
(6052B0156101)*1 (Only for15’’) (Fig.1)
orsion：1.5 ± 0.2Kgf．cm
31(1/1)
2010/03/080.20
Fig.2
1
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Automatic crossing screw driver 1
Qty
2
Fixture list（Fixture standard）
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
13/14”
Disassemble Blue tooth Cable
STEP：
For 13&14:
1. Tear the tape of acetic acid (6054A0076201)
For 15:
1.Tear the tape of acetic acid (6054A0076201)
：
：：
*1 from cable.
*1 from cable.
32(1/1)
2010/03/080.20
Tear tape
Tear tape
15”
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Qty
Fixture list（Fixture standard）
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Fig.1
13/14”
Disassemble B/T cable (for B/T model)
Fig.2
STEP：
：
：：
For 13&14:
1. Disassemble cable from M/B CNTR
For 15:
1. Disassemble cable from M/B CNTR
2. Take down B/T
3. Disassemble下 B/T cable(6017B0260601)。
33(1/1)
2010/03/080.20
15”
Disassemble CNTR
Disassemble CNTR
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Qty
Fixture list（Fixture standard）
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Disassemble USB/B
2010/03/080.20
3
4(1/1)
For 15”
Fig.1
STEP：
：
：：
1, Disassemble FFC of M/B CNTR。
2, Tear all the tape。
3, Disassemble the USB/B。
3 ’ 14’ Disassemble the USB directly
1
15’ Loosen the screws of USB/B
(6052B0080701) *1 (Fig.3)
Torsion：2.0± 0.2Kgf．cm
Screws can't be stripped.
13”
15”
14”
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Automatic crossing screw driver 1
Qty
Fixture list（Fixture standard）
Fig.2
Loosen screws
Fig.3
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Disassemble RJ11 / Loosen screws
2010/03/080.20
3
5(1/1)
13”
STEP：
：
：：
1.DisassembleRJ11 cable(Fig.2)
2.Loosen M/Bscrews
3’14‘ Loosen M/B
1
screws(60520D046304)*1
15‘Loosen M/B screws(60520D046304)*2
(Fig.1)
Torsion：2.0± 0.2Kgf．cm
Screws can't be stripped.
13/14”
Fig.2
14”
15”
Loosen screws
15”
Fig.1
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Automatic crossing screw driver(T8) 1
Qty
Fixture list（Fixture standard）
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
For 15
Disassemble M/B
STEP：
For 13 & 14
1. Take down the FFC from M/B
For15
1.Disassemble the FFC from Audio/B
For All
2. Take down the Audio/B FFC
：
：：
36(1/1)
2010/03/080.20
15”
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Qty
Tabulator：_Zhang Ying_
13/14”
Fixture list（Fixture standard）
Issuing department： IE
Qty
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Disassemble M/B
STEP：
：
：：
37(1/2)
2010/03/080.20
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Qty
Tabulator：_Zhang Ying_
Fixture list（Fixture standard）
Issuing department： IE
Qty
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Disassemble M/B
2010/03/080.20
3
7(2/2)
For 15
For 14”
ODD/B
STEP：
For All
1. Disassemble the ODD extension board from
1
14’’ODDextension board (1310A2342701)
2. Disassemble MB。
Tilt M/B right side first .
14‘ Need to pull down the card trough ODD/B
：
：：
M/B
5’’ODDextension board (1310A2330601)
ODD/B
For 13”
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Qty
Fixture list（Fixture standard）
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Disassemble Audio/B
STEP：
：
：：
1. The left hand holds up BTCB gently , and
the right hand disassemble Audio/B,(Fig.1)
38(1/1)
2010/03/080.20
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Qty
Fixture list（Fixture standard）
Fig.1
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
13”
Disassemble BATT Cable
1
2
STEP：
For All:
1. Loosen screws (6052B0094301) * 2 。
T
Screws can't be stripped.
2. Take down the BATT Cable (6017B0261201)
：
：：
orsion：1.5 ± 0.2Kgf．cm
39(1/1)
2010/03/080.20
1
14”
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
2
1
15”
Qty
Fixture list（Fixture standard）
2
Qty
Automatic crossing screw driver 1
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Disassemble THERMAL (For AMD DIS)
STEP：
For AMD DIS:
1. Loosen Thermal screws(6052B0156101) * 2 。
T
Screws can't be stripped.
Don’t hold the Copper Pipe of Thermal.
2. Disassemble THERMAL MODULE
(6043B0081501) 。
：
：：
orsion：1.5 ± 0.2Kgf．cm
40(1/1)
2010/03/080.20
1
2
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Automatic crossing screw driver 1
Qty
Tabulator：_Zhang Ying_
Fixture list（Fixture standard）
Issuing department： IE
Qty
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Disassemble Thermal &Loosen Screws
2010/03/080.20
1(1/1)
4
STEP：
1. Loosen the screws of thermal。
Torsion：1.5 ± 0.2Kgf．Cm
Screws can't be stripped.
Don’t hold the Copper Pipe of Thermal.
2. Disassemble the Thermal Module from M/B 。
：
：：
5
6
2
4
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Automatic crossing screw driver 1
Qty
Fixture list（Fixture standard）
3
1
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Disassemble CPU & DDR
Fig.1
STEP：
1. DisassembleDDR * 2 from M/B CNTR
(If there is only one DDR, only need to insert one
2.Loosen CPU SOCKET，a
：
：：
DDR )
(Loosen anticlockwise )。
.20
nd take it down。
42(1/1)
2010/03/080
CPU
Fig.2
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Flat screw driver 1
suck pen 1
VV10 M/B B side supporting fixture 1
Qty
Tabulator：_Zhang Ying_
Fixture list（Fixture standard）
DDR
Issuing department： IE
Fig.3
Qty
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Disassemble RJ11 cable (For AMD DIS)
STEP：
For AMD UMA:
1.Tear下the tape of acetic acid (6054A0076201)
：
：：
*1 ，DisassembleRJ11 Cable (Fig.1)
43(1/4)
2010/03/080.20
RJ11 cable
Tear the tape of acetic acid
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
B side supporting fixture 1
Qty
Fixture list（Fixture standard）
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
DisassembleRJ11线(For AMD DIS)
STEP：
For AMD DIS:
1.Tear下the tape of acetic acid (6054A0076201)
：
：：
*1 ，DisassembleRJ11 Cable (Fig.1)
43(2/4)
2010/03/080.20
RJ11 cable
Tear the tape of acetic acid
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
B side supporting fixture 1
Qty
Tabulator：_Zhang Ying_
Fixture list（Fixture standard）
Issuing department： IE
Qty
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
L520
Disassemble RJ11 cable (For INTELUMA)
STEP：
For INTEL UMA
1.Tear下the tape of acetic acid (6054A0076201)
：
：：
*1 ，DisassembleRJ11 Cable (Fig.1)
43(3/4)
2010/03/080.20
RJ11 cable
Tearthe tape of acetic acid
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
B side supporting fixture 1
Qty
Tabulator：_Zhang Ying_
Fixture list（Fixture standard）
Issuing department： IE
Qty
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Disassemble RJ11 cabel (For INTEL DIS)
STEP：
For INTEL DIS
1.Tear下the tape of acetic acid (6054A0076201)
：
：：
*1 ，DisassembleRJ11 Cable (Fig.1)
43(4/4)
2010/03/080.20
RJ11 cable
Tear the tape of acetic acid
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
B side supporting fixture 1
Qty
Tabulator：_Zhang Ying_
Fixture list（Fixture standard）
Issuing department： IE
Qty
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Disassemble RJ11 Cable
Fig.1
Fig.2
STEP：
：
：：
1.Loosen crews (6052B0156101) *2 of
boss 。
orsion：1.5 ± 0.2Kgf．cm
T
Screws can't be stripped.
2. Disassemble the RJ11 Cable
6017B0199901)from Modem(Fig.2、
(
Fig.3)
44(1/1)
2010/03/080.20
Fig.3
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Automatic crossing screw driver 1
B side supporting fixture 1
Qty
Fixture list（Fixture standard）
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Disassemble Touchpad/B
STEP：
1. Tear the tape(6054B0141101)*1, (Fig.2)
2. Disassemble Touchpad/B FFC 。
：
：：
45(1/1)
2010/03/080.20
Fig
.1
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Qty
Fixture list（Fixture standard）
Fig.2
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Working Instruction
Document No. : SOP VV10 FA Station :
isassemble Touchpad/B
Name : Ver. : Date :
screws
D
STEP：
1. Loosen screws (6052B0156101) * 1
Torsion：1.5 ± 0.2Kgf．cm
Screws can't be stripped.
2.Disassemble Touchpad/B(1310A2342901)
：
：：
46(1/1)
2010/03/080.20
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Automatic crossing screw driver 1
Qty
Tabulator：_Zhang Ying_
Fixture list（Fixture standard）
Issuing department： IE
Qty
Working Instruction
Document No. : SOP VV10 FA Station :
Name : Ver. : Date :
Fig.1
Take out
Loosen screws & Disassemble power/B
Power/B
Loosen screws
STEP：
For 15’
1.Tear tapeof acetic acid of FFC(6054A0076201)*1
（Fig.3）
2. Loosen screws (6052B0096201) * 1 。
T
Screws can't be stripped.
While loosening the screws, hands need to pin
the power/B
3.Disassemble power/B(1310A2343201),
(Fig.2,Fig.3)。
：
：：
orsion：1.5 ± 0.2Kgf．cm
Take out
Loosen screws
47(1/1)
2010/03/080.20
Tear tape
13’14’
Fig.2
Point for attention：：：：If finding some defects, notice the gaffer and assistant
Fixture list（Fixture standard）
Automatic crossing screw driver 1
Qty
Fixture list（Fixture standard）
15‘
Fig.3
Qty
Tabulator：_Zhang Ying_
Issuing department： IE
Loading...
