User Guide
© Copyright 2015 Hewlett-Packard
Development Company, L.P.
Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. Intel and Centrino
are trademarks of Intel Corporation in the
U.S. and other countries. AMD is a
trademark of Advanced Micro Devices, Inc.
SD Logo is a trademark of its proprietor.
Java is a U.S. trademark of Sun
Microsystems, Inc. Microsoft and Windows
are U.S. registered trademarks of the
Microsoft group of companies.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
First Edition: January 2015
Document Part Number: 780898-001
Product notice
This user guide describes features that are
common to most models. Some features
may not be available on your computer.
This computer may require upgraded
and/or separately purchased hardware
and/or a DVD drive to install the Windows 7
software and take full advantage of
Windows 7 functionality. Go to
http://windows.microsoft.com/en-us/
windows7/get-know-windows-7 for details.
To access the latest user guide, go to
http://www.hp.com/support, and select your
country. Select Drivers & Downloads, and
then follow the on-screen instructions.
Software terms
By installing, copying, downloading, or
otherwise using any software product
preinstalled on this computer, you agree to
be bound by the terms of the HP End User
License Agreement (EULA). If you do not
accept these license terms, your sole
remedy is to return the entire unused
product (hardware and software) within 14
days for a full refund subject to the refund
policy of your seller.
For any further information or to request a
full refund of the price of the computer,
please contact your seller.
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not
place the computer directly on your lap or obstruct the computer air vents. Use the computer only on
a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to
contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer
and the AC adapter comply with the user-accessible surface temperature limits defined by the
International Standard for Safety of Information Technology Equipment (IEC 60950).
iii
iv Safety warning notice
Table of contents
1 Welcome ........................................................................................................................................................... 1
Finding information ............................................................................................................................... 2
2 Getting to know your computer ......................................................................................................................... 4
Tablet edge components ...................................................................................................................... 4
Display .................................................................................................................................................. 7
keyboard ............................................................................................................................................... 8
Top ....................................................................................................................................... 8
TouchPad ............................................................................................................................ 9
Lights ................................................................................................................................. 10
Keys ................................................................................................................................... 11
Right .................................................................................................................................. 12
Left ..................................................................................................................................... 14
Releasing the tablet from the keyboard ............................................................................. 15
Changing your tablet’s settings .......................................................................................................... 15
Changing your tablet's view ............................................................................................... 15
Adjusting your tablet’s autorotate lock .............................................................. 16
Adjusting your tablet’s screen brightness .......................................................... 16
3 Connecting to a network ................................................................................................................................. 17
Connecting to a wireless network ....................................................................................................... 17
Using the wireless controls ................................................................................................ 17
Using HP Connection Manager (select models only) ........................................ 17
Using the wireless button .................................................................................. 18
Using operating system controls ....................................................................... 18
Using a WLAN ................................................................................................................... 18
Using an Internet service provider .................................................................... 19
Setting up a WLAN ............................................................................................ 19
Configuring a wireless router ............................................................................ 19
Protecting your WLAN ....................................................................................... 20
Connecting to a WLAN ...................................................................................... 20
Using HP Mobile Broadband (select models only) ............................................................ 21
Inserting and removing a SIM ........................................................................... 21
Using GPS (select models only) ........................................................................................ 22
Using Bluetooth wireless devices ...................................................................................... 22
Using the Wireless Dock (WiDock) .................................................................................... 23
v
Connecting to a wired network ........................................................................................................... 23
Connecting to a local area network (LAN) ......................................................................... 24
4 Navigating using the keyboard, touch gestures and pointing devices ............................................................ 25
Using pointing devices ....................................................................................................................... 25
Setting pointing device preferences ................................................................................... 25
Using the TouchPad and gestures .................................................................................... 25
Tapping ............................................................................................................. 26
Scrolling ............................................................................................................ 27
2-finger pinch zoom ........................................................................................... 27
2-finger click ...................................................................................................... 28
Rotating (select models only) ............................................................................ 28
Flicking (select models only) ............................................................................. 29
Using the digitizer pen (select models only) ...................................................................... 29
Identifying the pen components ........................................................................ 29
Holding the pen ................................................................................................. 30
Storing the pen .................................................................................................. 30
Using the keyboard ............................................................................................................................ 30
Using the hot keys ............................................................................................................. 30
Using keypads ................................................................................................................... 30
Using the embedded numeric keypad ............................................................... 30
Turning the embedded numeric keypad on and off .......................... 31
Switching key functions on the embedded numeric keypad ............. 31
Using an optional external numeric keypad ...................................................... 31
5 Multimedia ....................................................................................................................................................... 32
Using the media activity controls ........................................................................................................ 32
Audio .................................................................................................................................................. 32
Connecting speakers ......................................................................................................... 32
Adjusting the volume ......................................................................................................... 32
Connecting headphones and microphones ....................................................................... 33
Checking audio functions on the computer ........................................................................ 33
Webcam ............................................................................................................................................. 33
Video .................................................................................................................................................. 34
DisplayPort (keyboard only) ............................................................................................... 34
Connecting wired displays using MultiStream Transport ................................................... 35
6 Power management ........................................................................................................................................ 37
Shutting down the computer ............................................................................................................... 37
Setting power options ......................................................................................................................... 37
vi
Using power-saving states ................................................................................................. 37
Intel Rapid Start Technology (select models only) ............................................ 38
Initiating and exiting Sleep ................................................................................ 38
Initiating and exiting Hibernation ....................................................................... 38
Using the power meter and power settings ....................................................... 39
Setting password protection on wakeup ........................................................... 39
Using battery power ........................................................................................................... 39
Factory-sealed battery (select models only) ..................................................... 39
Finding additional battery information ............................................................... 40
Using Battery Check ......................................................................................... 40
Displaying the remaining battery charge ........................................................... 40
Maximizing battery discharge time .................................................................... 40
Managing low battery levels .............................................................................. 41
Identifying low battery levels ............................................................. 41
Resolving a low battery level ............................................................ 41
Conserving battery power ................................................................................. 41
Using external AC power ................................................................................................... 42
Testing an AC adapter ...................................................................................... 42
Refreshing your software content with Intel Smart Connect Technology (select
models only) ...................................................................................................................... 43
7 External cards and devices ............................................................................................................................. 44
Using memory card readers ............................................................................................................... 44
Inserting a memory card .................................................................................................... 44
Removing a memory card .................................................................................................. 44
Using smart cards (keyboard only) ..................................................................................................... 45
Inserting a smart card ........................................................................................................ 45
Removing a smart card ...................................................................................................... 46
Using a USB device ........................................................................................................................... 46
Connecting a USB device .................................................................................................. 47
Removing a USB device .................................................................................................... 47
Using optional external devices .......................................................................................................... 47
Using optional external drives ............................................................................................ 48
8 Security ........................................................................................................................................................... 49
Protecting the computer ..................................................................................................................... 49
Using passwords ................................................................................................................................ 50
Setting passwords in Windows .......................................................................................... 50
Setting passwords in Computer Setup .............................................................................. 51
Managing a BIOS administrator password ........................................................................ 51
Entering a BIOS administrator password .......................................................... 52
vii
Managing a Computer Setup DriveLock password ........................................................... 52
Setting a DriveLock password ........................................................................... 53
Entering a DriveLock password ........................................................................ 54
Changing a DriveLock password ...................................................................... 54
Removing DriveLock protection ........................................................................ 54
Using Computer Setup Automatic DriveLock .................................................................... 55
Entering an Automatic DriveLock password ..................................................... 55
Removing Automatic DriveLock protection ....................................................... 55
Using antivirus software ..................................................................................................................... 56
Using firewall software ....................................................................................................................... 56
Installing critical security updates ....................................................................................................... 57
Using HP Client Security (select models only) ................................................................................... 57
Using the fingerprint reader (select models only) ............................................................................... 57
Locating the fingerprint reader ........................................................................................... 57
9 Maintenance ................................................................................................................................................... 58
Cleaning your computer ..................................................................................................................... 58
Cleaning procedures .......................................................................................................... 58
Cleaning the display (All-in-Ones or Notebooks) .............................................. 58
Cleaning the sides or cover ............................................................................... 58
Cleaning the TouchPad, keyboard, or mouse ................................................... 59
Updating programs and drivers .......................................................................................................... 59
Using SoftPaq Download Manager .................................................................................................... 59
10 Backup and recovery .................................................................................................................................... 60
Creating recovery media and backups ............................................................................................... 60
Guidelines .......................................................................................................................... 60
Creating recovery media with HP Recovery Disc Creator ................................................. 60
Creating recovery media ................................................................................... 61
Backing up your information .............................................................................................. 61
Performing a system recovery ............................................................................................................ 62
Using the Windows recovery tools ..................................................................................... 62
Using f11 recovery tools (select models only) ................................................................... 63
Using Windows 7 operating system media ........................................................................ 63
11 Computer Setup (BIOS), MultiBoot, and HP PC Hardware Diagnostics (UEFI) ........................................... 65
Using Computer Setup ....................................................................................................................... 65
Starting Computer Setup ................................................................................................... 65
Navigating and selecting in Computer Setup ..................................................................... 65
Restoring factory settings in Computer Setup ................................................................... 66
viii
Updating the BIOS ............................................................................................................. 67
Determining the BIOS version ........................................................................... 67
Downloading a BIOS update ............................................................................. 67
Synchronizing the tablet and keyboard .............................................................................................. 68
Using MultiBoot .................................................................................................................................. 68
About the boot device order ............................................................................................... 68
Choosing MultiBoot preferences ........................................................................................ 69
Setting a new boot order in Computer Setup .................................................... 69
Dynamically choosing a boot device using the f9 prompt ................................. 69
Setting a MultiBoot Express prompt .................................................................. 70
Entering MultiBoot Express preferences ........................................................... 70
Using HP PC Hardware Diagnostics (UEFI) (select models only) ..................................................... 70
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device ............................... 71
12 Support ......................................................................................................................................................... 72
Contacting support ............................................................................................................................. 72
Labels ................................................................................................................................................. 73
13 Specifications ................................................................................................................................................ 74
Input power ......................................................................................................................................... 74
Operating environment ....................................................................................................................... 74
Appendix A Traveling with or shipping your computer ....................................................................................... 75
Appendix B Troubleshooting .............................................................................................................................. 76
Troubleshooting resources ................................................................................................................. 76
Resolving issues ................................................................................................................................ 76
The computer is unable to start up .................................................................................... 76
The computer screen is blank ............................................................................................ 76
Software is functioning abnormally .................................................................................... 77
The computer is on but not responding ............................................................................. 77
The computer is unusually warm ....................................................................................... 77
An external device is not working ...................................................................................... 77
The wireless network connection is not working ................................................................ 78
Appendix C Electrostatic discharge ................................................................................................................... 79
Index ................................................................................................................................................................... 80
ix
x
1 Welcome
After you set up and register the computer, we recommend the following steps to get the most out of
your smart investment:
Connect to the Internet—Set up your wired or wireless network so that you can connect to the
●
Internet. For more information, see Connecting to a network on page 17.
Update your antivirus software—Protect your computer from damage caused by viruses. The
●
software is preinstalled on the computer. For more information, see Using antivirus software
on page 56.
Get to know your computer—Learn about your computer features. See Getting to know your
●
computer on page 4 and Navigating using the keyboard, touch gestures and pointing devices
on page 25 for additional information.
Find installed software—Access a list of the software preinstalled on the computer:
●
Select Start > All Programs. For details about using the software included with the computer, see
the software manufacturer's instructions, which may be provided with the software or on the
manufacturer's website.
Back up your hard drive by creating recovery discs or a recovery flash drive. See Backup and
●
recovery on page 60.
1
Finding information
You have already used
Setup Instructions
to turn on the computer and locate this guide. To locate
resources that provide product details, how-to information, and more, use this table.
Resources For information about
Setup Instructions
Help and Support
To access Help and Support, select Start > Help and
Support.
To access the latest user guide, go to
http://www.hp.com/support, and select your country.
Select Drivers & Downloads, and then follow the onscreen instructions.
Worldwide support
To get support in your language, go to
http://welcome.hp.com/country/us/en/
wwcontact_us.html.
HP website
To access the latest user guide, go to
http://www.hp.com/support, and select your country.
Select Drivers & Downloads, and then follow the onscreen instructions.
poster
How to set up the computer
●
Help to identify computer components
●
Operating system information
●
Software, driver, and BIOS updates
●
Troubleshooting tools
●
How to access support
●
Online chat with an HP technician
●
Support telephone numbers
●
HP service center locations
●
Support information
●
Ordering parts and finding additional help
●
Accessories available for the device
●
Safety & Comfort Guide
To access the user guides, select Start > Help and
Support > User guides.
– or –
Go to http://www.hp.com/ergo.
Regulatory, Safety, and Environmental Notices
To access the user guides, select Start > Help and
Support > User guides.
Limited Warranty
To access this guide, select Start > Help and Support
> User guides > View Warranty Information.
– or –
Go to http://www.hp.com/go/orderdocuments.
*You can find the expressly provided HP Limited Warranty applicable to your product located with the user guides on your
computer and/or on the CD/DVD provided in the box. In some countries/regions, HP may provide a printed HP Limited
Warranty in the box. For some countries/regions where the warranty is not provided in printed format, you may request a
printed copy from http://www.hp.com/go/orderdocuments or write to:
North America: Hewlett-Packard, MS POD, 11311 Chinden Blvd., Boise, ID 83714, USA
●
Europe, Middle East, Africa: Hewlett-Packard, POD, Via G. Di Vittorio, 9, 20063, Cernusco s/Naviglio (MI), Italy
●
Asia Pacific: Hewlett-Packard, POD, P.O. Box 200, Alexandra Post Office, Singapore 911507
●
When you request a printed copy of your warranty, please include your product number, warranty period (found on your
service label), name, and postal address.
*
Proper workstation setup, posture, health, and work habits
●
Electrical and mechanical safety information
●
Regulatory and safety information
●
Battery disposal information
●
Warranty information
2 Chapter 1 Welcome
Resources For information about
IMPORTANT: Do NOT return your HP product to the addresses above. For U.S. support, go to http://www.hp.com/go/
contactHP. For worldwide support, go to http://welcome.hp.com/country/us/en/wwcontact_us.html.
Finding information 3
2 Getting to know your computer
Tablet edge components
Component Description
(1) Internal microphone Record sound.
(2) Vents Enable airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during routine
operation.
(3) Webcam (rear) Records video and captures photographs. Some models
allow you to video conference and chat online using
streaming video.
For information on using the webcam, select Start > All
Programs > Communication and Chat > HP Webcam.
(4) Camera flash Provides light for rear webcam photos.
(5) Rotate lock button When the tablet is on, press the rotate lock button to lock
the autorotate feature of the display. To unlock the
autorotate feature, press the button again.
(6) Volume button Controls speaker volume on the tablet.
To increase speaker volume, press the + edge of the
●
button.
To decrease speaker volume, press the – edge of the
●
button.
(7) Pen holder (select models only) Holds the digital pen.
4 Chapter 2 Getting to know your computer
Component Description
(8) Alignment post connectors (2) Align and attach the tablet to the keyboard.
(9) Docking/adapter port Connects the tablet to the keyboard, or as a tablet only,
connects an optional adapter.
(10) Audio-out (headphone)/Audio-in
(microphone) jack
(11) SIM/SD card release access A pinhole for use in ejecting the door covering the SIM and
(12) SIM Card slot (select models only) A slot for a SIM card.
(13) Micro SD memory card reader Reads optional memory cards that store, manage, share,
Connects optional powered stereo speakers, headphones,
earbuds, a headset, or a television audio cable. Also
connects an optional headset microphone. This jack does
not support optional microphone-only devices.
WARNING! To reduce the risk of personal injury, adjust
the volume before putting on headphones, earbuds, or a
headset. For additional safety information, see the
Regulatory, Safety, and Environmental Notices
the user guides, select Start > Help and Support > User
Guides.
NOTE: When a device is connected to the jack, the
computer speakers are disabled.
NOTE: Be sure that the device cable has a 4-conductor
connector that supports both audio-out (headphone) and
audio-in (microphone).
SD card slots.
NOTE: This feature is available on select models only.
or access information.
To insert a card:
Hold the card label-side up, with connectors facing the slot,
insert the card into the slot, and then push in on the card
until it is firmly seated.
. To access
(14) Power button
To remove a card:
Press in on the card it until it pops out.
When the computer is off, press the button to turn on
●
the computer.
When the computer is on, press the button briefly to
●
initiate Sleep.
When the computer is in the Sleep state, press the
●
button briefly to exit Sleep.
When the computer is in Hibernation, press the button
●
briefly to exit Hibernation.
CAUTION: Pressing and holding down the power button
will result in the loss of unsaved information.
If the computer has stopped responding and Windows®
shutdown procedures are ineffective, press and hold the
power button for at least 15 seconds to turn off the
computer.
Tablet edge components 5
Component Description
NOTE: For select models, the Intel® Rapid Start
Technology feature is enabled at the factory. Rapid Start
Technology allows your computer to resume quickly from
inactivity. For more information, see Using power-saving
states on page 37.
To learn more about your power settings, see your power
options. From the Start screen, type power, select Power
and sleep settings, and then select Power and sleep from
the list of applications.
6 Chapter 2 Getting to know your computer
Display
Component Description
(1) WLAN antenna* Sends and receives wireless signals to communicate with
wireless local area networks (WLAN).
(2) WWAN antennas (2)* Send and receive wireless signals to communicate with wireless
wide area networks (WWAN).
(3) Webcam light On: The webcam is in use.
(4) Webcam Records video and captures photographs. Some models allow
you to video conference and chat online using streaming video.
For information on using the webcam, select Start > All
Programs > Communication and Chat > HP WebCam.
(5) WiGig antenna* Sends and receives wireless signals.
(6) Ambient light sensor Automatically adjusts the display brightness based on the
lighting conditions in your environment.
(7) Internal microphone Record sound.
(8) Speakers (2) Produce sound.
(9) Windows button Displays the Windows Start menu.
*The antennas are not visible on the outside of the computer. For optimal transmission, keep the areas immediately around
the antennas free from obstructions. To see wireless regulatory notices, see the section of the
Environmental Notices
User Guides.
that applies to your country or region. To access the user guides, select Start > Help and Support >
Regulatory, Safety, and
Display 7
keyboard
Top
Component Description
(1) Alignment posts (2) Align and attach the tablet to the keyboard.
(2) Docking connector Connects the tablet to the keyboard.
CAUTION: To prevent damage to the docking connector,
do not touch the connector when the tablet is detached
from the keyboard.
(3) Release latch Releases the tablet from the keyboard. To release the
tablet, press the release latch.
(4) Fingerprint reader (select models only) Allows a fingerprint logon to Windows, instead of a
password logon.
8 Chapter 2 Getting to know your computer
TouchPad
Component Description
(1) TouchPad zone Moves the pointer and selects or activates items on the
screen.
NOTE: The TouchPad also supports edge-swipe
gestures. For more information, see Edge swipes (select
models only) on page 34.
(2) Left TouchPad button Functions like the left button on an external mouse.
(3) Right TouchPad button Functions like the right button on an external mouse.
keyboard 9
Lights
Component Description
(1) Caps lock light On: Caps lock is on, which switches the keys to all capital
letters.
(2) TouchPad light
(3) Mute light
(4) Microphone mute light
(5) Wireless light On: An integrated wireless device, such as a wireless local
(6) Num lock light On: Num lock is on.
On: The TouchPad is off.
●
Off: The TouchPad is on.
●
Amber: Computer sound is off.
●
Off: Computer sound is on.
●
Amber: microphone sound is off.
●
Off: microphone sound is on.
●
area network (WLAN) device and/or a Bluetooth® device, is
on.
NOTE: On some models, the wireless light is amber when
all wireless devices are off.
10 Chapter 2 Getting to know your computer
Keys
Component Description
(1) esc key Displays system information when pressed in combination
with the fn key.
(2) Function keys Execute frequently used system functions when pressed in
combination with the fn key.
NOTE: Function keys do not display or function from the
on-screen tablet keyboard.
(3) num lock key Turns the embedded numeric keypad on and off when
pressed in combination with the fn key.
(4) fn key Executes frequently used system functions when pressed
in combination with a function key, the num lock key, or the
esc key.
(5) Windows key Displays the Windows Start menu.
(6) Embedded numeric keypad When num lock has been enabled, it can be used like an
external numeric keypad.
Each key on the keypad performs the function indicated by
the icon in the upper-right corner of the key.
keyboard 11
Right
Component Description
(1) Internal microphone Records sound.
(2) Power button
(3) Micro SD memory card reader Reads optional memory cards that store, manage, share,
When the computer is off, press the button to turn on
●
the computer.
When the computer is on, press the button briefly to
●
initiate Sleep.
When the computer is in the Sleep state, press the
●
button briefly to exit Sleep.
When the computer is in Hibernation, press the button
●
briefly to exit Hibernation.
CAUTION: Pressing and holding down the power button
will result in the loss of unsaved information.
If the computer has stopped responding and Windows®
shutdown procedures are ineffective, press and hold the
power button for at least 5 seconds to turn off the
computer.
NOTE: For select models, the Intel® Rapid Start
Technology feature is enabled at the factory. Rapid Start
Technology allows your computer to resume quickly from
inactivity. For more information, see Using power-saving
states on page 37.
To learn more about your power settings, see your power
options. From the Start screen, type power, select Power
and sleep settings, and then select Power and sleep from
the list of applications.
or access information.
12 Chapter 2 Getting to know your computer
To insert a card:
Hold the card label-side up, with connectors facing the slot,
insert the card into the slot, and then push in on the card
until it is firmly seated.
To remove a card:
Press in on the card it until it pops out.
Component Description
(4) SIM Card slot (select models only) A slot for a SIM card.
NOTE: This feature is available on select models only.
(5) SIM/SD card release access A pinhole for use in ejecting the door covering the SIM and
SD card slots.
(6) USB 3.0 charging (powered) port Connects an optional USB device, such as a keyboard,
mouse, external drive, printer, scanner or USB hub.
Standard USB ports will not charge all USB devices or will
charge using a low current. Some USB devices require
power and require you to use a powered port.
NOTE: USB charging ports can also charge select
models of cell phones and MP3 players, even when the
computer is off.
NOTE: For details about different types of USB ports, see
Using a USB device on page 46.
(7) Dual-Mode DisplayPort Connects an optional digital display device, such as a high-
performance monitor or projector.
(8) AC adapter/Battery light
(9) Power connector Connects an AC adapter.
White: The computer is connected to external power
●
and the battery is charged from 90 to 99 percent.
Amber: The computer is connected to external power
●
and the battery is charged from 0 to 90 percent.
Blinking amber: A battery that is the only available
●
power source has reached a low battery level. When
the battery reaches a critical battery level, the battery
light begins blinking rapidly.
Off: The battery is fully charged.
●
keyboard 13
Left
Component Description
(1) Volume button Controls speaker volume on the tablet.
To increase speaker volume, press the + edge of the
●
button.
To decrease speaker volume, press the – edge of the
●
button.
(2) LCD rotation lock button Locks orientation of the display, preventing automatic
rotation.
(3) Docking/adapter port Connects the tablet to the keyboard, or as a tablet only,
connects an optional adapter.
(4) USB 3.0 port Connects an optional USB device, such as a keyboard,
mouse, external drive, printer, scanner or USB hub.
NOTE: For details about different types of USB ports, see
Using a USB device on page 46.
(5) Audio-out (headphone)/Audio-in
(microphone) jack
Connects optional powered stereo speakers, headphones,
earbuds, a headset, or a television audio cable. Also
connects an optional headset microphone. This jack does
not support optional microphone-only devices.
WARNING! To reduce the risk of personal injury, adjust
the volume before putting on headphones, earbuds, or a
headset. For additional safety information, see the
Regulatory, Safety, and Environmental Notices
the user guides, select Start > Help and Support > User
Guides.
NOTE: When a device is connected to the jack, the
computer speakers are disabled.
NOTE: Be sure that the device cable has a 4-conductor
connector that supports both audio-out (headphone) and
audio-in (microphone).
. To access
(6) Smart card reader Supports optional Smart cards.
14 Chapter 2 Getting to know your computer
Releasing the tablet from the keyboard
To release the tablet from the keyboard, follow these steps:
CAUTION: To prevent damage to the docking connector, do not touch the connector when the
tablet is detached from the keyboard.
1. Press the release latch on the keyboard (1).
2. Lift and remove the tablet (2).
Changing your tablet’s settings
You can change view and screen brightness.
Changing your tablet's view
Your tablet's orientation, or view, changes automatically from landscape to portrait view, or from
portrait to landscape view.
1. To change the view of your tablet from landscape view to portrait view:
Hold the tablet vertically, and then turn it 90 degrees to the right (in a clockwise direction).
2. To change the view of your tablet from portrait view to landscape view:
Hold the tablet vertically, and then turn it 90 degrees to the left (in a counter-clockwise direction).
Changing your tablet’s settings 15
Adjusting your tablet’s autorotate lock
To adjust your tablet's autorotate lock when the tablet is undocked:
When the tablet is on, press the rotate lock button to lock the autorotate feature of the display.
▲
To unlock the autorotate feature, press the button again.
– or –
1. Swipe from the right edge of the TouchPad or touch screen to display the charms, and then tap
Settings.
2. Tap the Screen icon at the bottom right. Tap the Autorotate Lock icon to lock your current tablet
screen in place and to prevent rotation. The icon displays a lock symbol when autorotate lock is
active. To turn off the autorotate lock, tap the Autorotate Lock icon again.
Adjusting your tablet’s screen brightness
To adjust the screen brightness:
1. Swipe from the right edge of the TouchPad or touch screen to display the charms, and then tap
Settings.
2. Tap the Screen icon at the bottom right. A vertical slider displays that controls the screen
brightness.
NOTE: From the Windows desktop, you can also tap the Power Meter icon in the notification area at
the far right of the taskbar, tap Adjust screen brightness, and then move the slider next to Screen
brightness at the bottom of the screen.
16 Chapter 2 Getting to know your computer
3 Connecting to a network
Your computer can travel with you wherever you go. But even at home, you can explore the globe
and access information from millions of websites using your computer and a wired or wireless
network connection. This chapter will help you get connected to that world.
Connecting to a wireless network
Wireless technology transfers data across radio waves instead of wires. Your computer may be
equipped with one or more of the following wireless devices:
Wireless local area network (WLAN) device—Connects the computer to wireless local area
●
networks (commonly referred to as Wi-Fi networks, wireless LANs, or WLANs) in corporate
offices, your home, and public places such as airports, restaurants, coffee shops, hotels, and
universities. In a WLAN, the mobile wireless device in your computer communicates with a
wireless router or a wireless access point.
HP Mobile Broadband Module (select models only)—A wireless wide area network (WWAN)
●
device that gives you wireless connectivity over a much larger area. Mobile network operators
install base stations (similar to cell phone towers) throughout large geographic areas, effectively
providing coverage across entire states, regions, or even countries.
Wireless Dock (WiDock) (select models only)—Allows the computer to connect via its WiGig
●
connection to devices that are attached to the dock, such as keyboards, monitors and other
displays, and wired network connections.
Bluetooth device—Creates a personal area network (PAN) to connect to other Bluetooth-
●
enabled devices such as computers, phones, printers, headsets, speakers, and cameras. In a
PAN, each device communicates directly with other devices, and devices must be relatively
close together—typically within 10 meters (approximately 33 feet) of each other.
For more information about wireless technology, see the information and website links provided in
Help and Support. To access Help and Support, select Start > Help and Support.
Using the wireless controls
You can control the wireless devices in your computer using these features:
Wireless button, wireless switch, or wireless key (referred to in this chapter as the wireless
●
button)
Operating system controls
●
Using HP Connection Manager (select models only)
HP Connection Manager provides a central location for managing your wireless devices, an interface
for connecting to the Internet using HP Mobile Broadband, and an interface for sending and receiving
SMS (text) messages. HP Connection Manager allows you to manage the following devices:
Wireless local area network (WLAN)/Wi-Fi
●
Wireless wide area network (WWAN)/HP Mobile Broadband
●
Connecting to a wireless network 17
Wireless gigabit (WiGig)/Wireless Dock (WiDock)
●
Bluetooth
●
HP Connection Manager provides information and notifications on connection status, power status,
SIM details, and SMS messages. Status information and notifications are provided in the notification
area, at the far right of the taskbar.
To open HP Connection Manager:
Click the HP Connection Manager icon in the taskbar.
▲
-or-
Select Start > All Programs > Productivity and Tools > HP Connection Manager.
For more information, see the HP Connection Manager software Help.
Using the wireless button
The computer has a wireless button, one or more wireless devices, and one or two wireless lights,
depending on the model. All of the wireless devices on your computer are enabled at the factory, so
the wireless light is on (white) when you turn on the computer.
The wireless light indicates the overall power state of your wireless devices, not the status of
individual devices. If the wireless light is white, at least one wireless device is on. If the wireless light
is off, all wireless devices are off.
NOTE: On some models, the wireless light is amber when all wireless devices are off.
Because the wireless devices are enabled at the factory, you can use the wireless button to turn on or
turn off the wireless devices simultaneously.
Using operating system controls
The Network and Sharing Center allows you to set up a connection or network, connect to a network,
manage wireless networks, and diagnose and repair network problems.
To use operating system controls:
Select Start > Control Panel > Network and Internet > Network and Sharing Center.
▲
For more information, access Help and Support by selecting Start > Help and Support.
Using a WLAN
With a WLAN device, you can access a wireless local area network (WLAN), which is composed of
other computers and accessories that are linked by a wireless router or a wireless access point.
NOTE: The terms
A large-scale WLAN, such as a corporate or public WLAN, typically uses wireless access points
●
that can accommodate a large number of computers and accessories and can separate critical
network functions.
wireless router
and
wireless access point
are often used interchangeably.
A home or small office WLAN typically uses a wireless router, which allows several wireless and
●
wired computers to share an Internet connection, a printer, and files without requiring additional
pieces of hardware or software.
To use the WLAN device in your computer, you must connect to a WLAN infrastructure (provided
through a service provider or a public or corporate network).
18 Chapter 3 Connecting to a network
Using an Internet service provider
When you are setting up Internet access in your home, you must establish an account with an
Internet service provider (ISP). To purchase Internet service and a modem, contact a local ISP. The
ISP will help set up the modem, install a network cable to connect your wireless computer to the
modem, and test the Internet service.
NOTE: Your ISP will give you a user ID and a password to use for Internet access. Record this
information and store it in a safe place.
Setting up a WLAN
To set up a WLAN and connect to the Internet, you need the following equipment:
A broadband modem (either DSL or cable) (1) and high-speed Internet service purchased from
●
an Internet service provider
A wireless router (2) (purchased separately)
●
A wireless computer (3)
●
NOTE: Some modems have a built-in wireless router. Check with your ISP to determine what type
of modem you have.

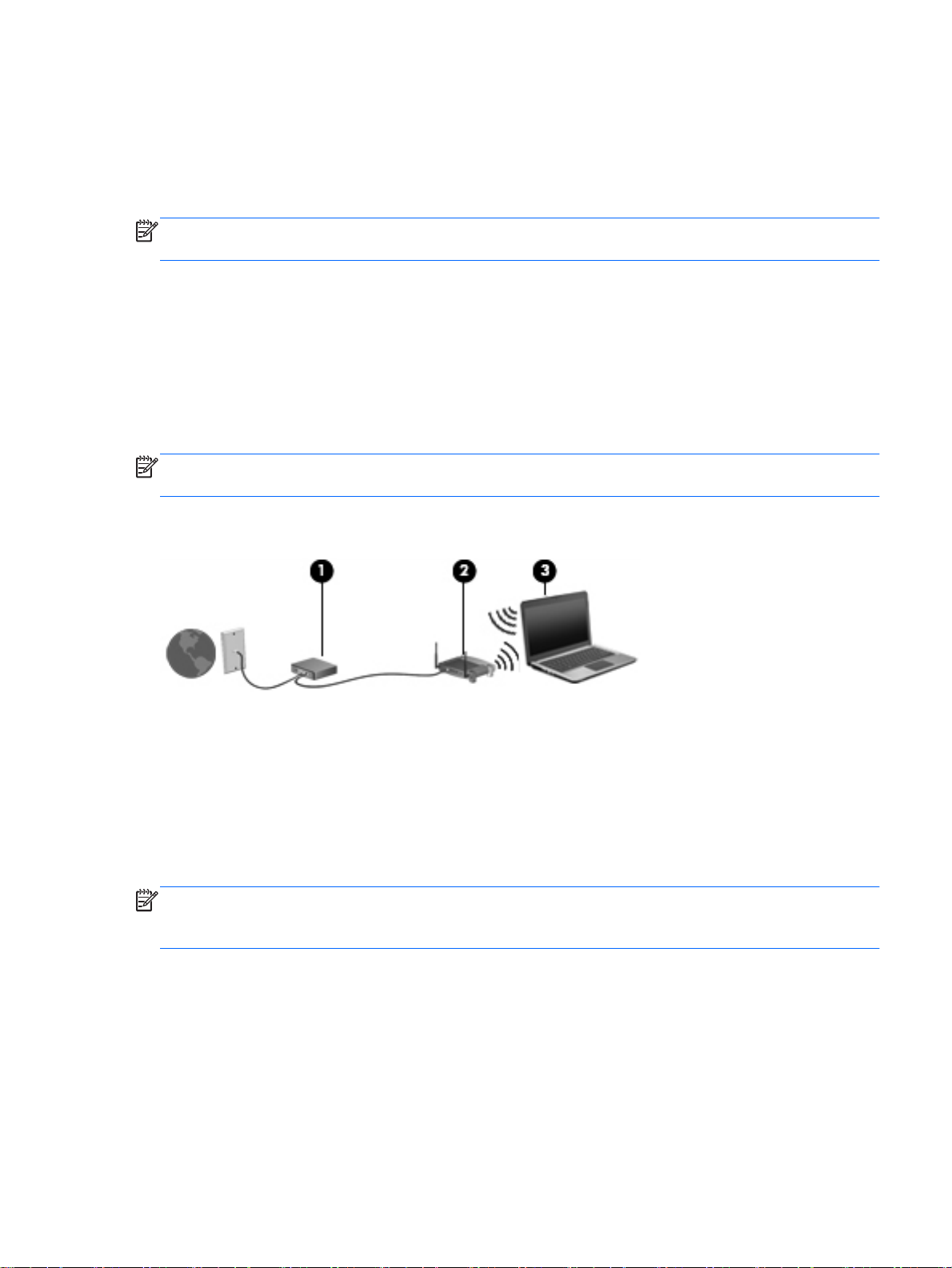

The illustration below shows an example of a wireless network installation that is connected to the
Internet.
As your network grows, additional wireless and wired computers can be connected to the network to
access the Internet.
For help in setting up your WLAN, see the information provided by your router manufacturer or your
ISP.
Configuring a wireless router
For help in configuring a wireless router, see the information provided by your router manufacturer or
your ISP.
NOTE: It is recommended that you initially connect your new wireless computer to the router by
using the network cable provided with the router. When the computer successfully connects to the
Internet, disconnect the cable, and access the Internet through your wireless network.
Connecting to a wireless network 19
Protecting your WLAN
When you set up a WLAN or access an existing WLAN, always enable security features to protect
your network from unauthorized access. WLANs in public areas (hotspots) like coffee shops and
airports may not provide any security. If you are concerned about the security of your computer in a
hotspot, limit your network activities to email that is not confidential and basic Internet surfing.
Wireless radio signals travel outside the network, so other WLAN devices can pick up unprotected
signals. Take the following precautions to protect your WLAN:
Use a firewall.
●
A firewall checks both data and requests for data that are sent to your network, and discards any
suspicious items. Firewalls are available in both software and hardware. Some networks use a
combination of both types.
Use wireless encryption.
●
Wireless encryption uses security settings to encrypt and decrypt data that is transmitted over
the network. For more information, access Help and Support by selecting Start > Help and
Support.
Connecting to a WLAN
To connect to the WLAN, follow these steps:
1. Be sure that the WLAN device is on. If the device is on, the wireless light is on. If the wireless
light is off, press the wireless button.
NOTE: On some models, the wireless light is amber when all wireless devices are off.
2. Click the network status icon in the notification area, at the far right of the taskbar.
3. Select a WLAN to connect to.
4. Click Connect.
If the WLAN is a security-enabled WLAN, you are prompted to enter a security code. Type the
code, and then click OK to complete the connection.
NOTE: If no WLANs are listed, you may be out of range of a wireless router or access point.
NOTE: If you do not see the WLAN you want to connect to, click Open Network and Sharing
Center. and then click Set up a new connection or network. A list of options is displayed,
allowing you to manually search for and connect to a network or to create a new network
connection.
5. Follow the on-screen instructions to complete the connection.
After the connection is made, place the mouse pointer over the network status icon in the notification
area, at the far right of the taskbar, to verify the name and status of the connection.
NOTE: The functional range (how far your wireless signals travel) depends on WLAN
implementation, router manufacturer, and interference from other electronic devices or structural
barriers such as walls and floors.
20 Chapter 3 Connecting to a network
Using HP Mobile Broadband (select models only)
HP Mobile Broadband enables your computer to use WWANs to access the Internet from more
places and over larger areas than it can by using WLANs. Using HP Mobile Broadband requires a
network service provider (called a
network operator. Coverage for HP Mobile Broadband is similar to cellular phone voice coverage.
When used with mobile network operator service, HP Mobile Broadband gives you the freedom to
stay connected to the Internet, send email, or connect to your corporate network whether you are on
the road or outside the range of Wi-Fi hotspots.
HP supports the following technologies:
HSPA (High Speed Packet Access), which provides access to networks based on the Global
●
System for Mobile Communications (GSM) telecommunications standard.
EV-DO (Evolution Data Optimized), which provides access to networks based on the code
●
division multiple access (CDMA) telecommunications standard.
You may need the HP Mobile Broadband Module serial number to activate mobile broadband service.
The serial number is printed on a label inside the battery bay of your computer.
Some mobile network operators require the use of a SIM. A SIM contains basic information about
you, such as a personal identification number (PIN), as well as network information. Some computers
include a SIM that is preinstalled in the battery bay. If the SIM is not preinstalled, it may be provided
in the HP Mobile Broadband information provided with your computer or the mobile network operator
may provide it separately from the computer.
mobile network operator
), which in most cases is a cellular phone
For information about inserting and removing the SIM, see the Inserting and removing a SIM
on page 21 section in this chapter.
For information about HP Mobile Broadband and how to activate service with a preferred mobile
network operator, see the HP Mobile Broadband information included with your computer. For
additional information, go to http://www.hp.com/go/mobilebroadband (select regions/countries only).
Inserting and removing a SIM
CAUTION: To prevent damage to the connectors, use minimal force when inserting a SIM.
To insert a SIM, follow these steps:
1. Shut down the computer.
2. Close the display.
3. Disconnect all external devices connected to the computer.
4. Unplug the power cord from the AC outlet.
5. Carefully insert a paperclip or other thin metal rod into the SIM/MicroSD memory card release
access located on the tablet. This will open the panel to the left of the release access, allowing
access to the SIM and MicroSD memory cards.
Connecting to a wireless network 21
6. Insert the SIM into the SIM slot, and gently push the SIM into the slot until it is firmly seated.
NOTE: The SIM in your computer may look slightly different from the illustration in this section.
NOTE: See the image on the battery bay to determine which way the SIM should be inserted
into your computer.
7. Replace the SIM/MicroSD slot cover.
8. Reconnect external power.
9. Reconnect external devices.
10. Turn on the computer.
To remove a SIM, press in on the SIM, and then remove it from the slot.
Using GPS (select models only)
Your computer may be equipped with a Global Positioning System (GPS) device. GPS satellites
deliver location, speed, and direction information to GPS-equipped systems.
For more information, see the HP GPS and Location software Help.
Using Bluetooth wireless devices
A Bluetooth device provides short-range wireless communications that replace the physical cable
connections that traditionally link electronic devices such as the following:
Computers (desktop, notebook, PDA)
●
Phones (cellular, cordless, smart phone)
●
Imaging devices (printer, camera)
●
Audio devices (headset, speakers)
●
Mouse
●
External keyboard
●
Bluetooth devices provide peer-to-peer capability that allows you to set up a personal area network
(PAN) of Bluetooth devices. For information about configuring and using Bluetooth devices, see the
Bluetooth software Help.
22 Chapter 3 Connecting to a network
Using the Wireless Dock (WiDock)
The HP Wireless Dock (WiDock) allows the computer to connect via its WiGig connection to devices
that are attached to the dock, such as keyboards, monitors and other displays, and wired network
connections.
NOTE: The WiDock and the device it is connecting to must be aligned. Do not place the WiDock
behind any other device that might block its signal.
For more information about using the WiDock, see the wireless dock user guide.
Connecting to a wired network
There are 2 kinds of wired connections: local area network (LAN) and modem connection. A LAN
connection uses a network cable and is much faster than a modem, which uses a telephone cable.
Both cables are sold separately.
WARNING! To reduce the risk of electric shock, fire, or damage to the equipment, do not plug a
modem cable or telephone cable into an RJ-45 (network) jack.
Connecting to a wired network 23
Connecting to a local area network (LAN)
Use a LAN connection if you want to connect the computer directly to a router in your home (instead
of working wirelessly), or if you want to connect to an existing network at your office.
Connecting to a LAN requires an 8-pin, RJ-45 network cable and USB-to-RJ45 adapter.
To connect the network cable, follow these steps:
1. Connect the USB-to-RJ45 adapter to the USB port on the computer and then plug the network
cable into the network jack end (1) of the adapter.
2. Plug the other end of the network cable into a network wall jack (2) or router.
NOTE: If the network cable contains noise suppression circuitry (3), which prevents
interference from TV and radio reception, orient the circuitry end of the cable toward the
computer.
24 Chapter 3 Connecting to a network
4 Navigating using the keyboard, touch
gestures and pointing devices
Your computer allows navigation using touch gestures (select models only) in addition to the
keyboard and mouse. Touch gestures can be used on your computer TouchPad or on a touch screen
(select models only).
Select computer models have special action key or hot key functions on the keyboard to perform
routine tasks.
Using pointing devices
NOTE: In addition to the pointing devices included with your computer, you can use an external
USB mouse (purchased separately) by connecting it to one of the USB ports on the computer.
Setting pointing device preferences
Use Mouse Properties in Windows to customize settings for pointing devices, such as button
configuration, click speed, and pointer options. You can also view demonstrations of TouchPad
gestures.
To access Mouse Properties:
Select Start > Devices and Printers. Then right-click the device representing your computer, and
●
select Mouse settings.
Using the TouchPad and gestures
The TouchPad allows you to navigate the computer screen and control the pointer by using simple
finger movements.
TIP: Use the left and right buttons on the TouchPad as you would use the corresponding buttons on
an external mouse.
NOTE: TouchPad gestures are not supported in all apps.
Using pointing devices 25
Tapping
To make an on-screen selection, use the Tap function on the TouchPad.
Tap one finger on the TouchPad zone to make a selection. Double-tap an item to open it.
●
26 Chapter 4 Navigating using the keyboard, touch gestures and pointing devices
Scrolling
Scrolling is useful for moving up, down, or sideways on a page or image.
Place two fingers slightly apart on the TouchPad zone and then drag them up, down, left, or
●
right.
2-finger pinch zoom
2-finger pinch zoom allows you to zoom out or in on images or text.
Zoom in by placing two fingers together on the TouchPad zone and then moving your fingers
●
apart.
Zoom out by placing two fingers apart on the TouchPad zone and then moving your fingers
●
together.
Using pointing devices 27
2-finger click
2-finger click allows you to make menu selections for an object on the screen.
NOTE: Using 2-finger click is the same action as using right-click with the mouse.
●
Place two fingers on the TouchPad zone and press to open the options menu for the selected
object.
Rotating (select models only)
Rotating allows you to turn items such as photos.
Anchor the forefinger of your left hand in the TouchPad zone. Using your right hand, slide your
●
forefinger in a sweeping motion from 12 o’clock to 3 o’clock. To reverse the rotation, move your
forefinger from 3 o’clock to 12 o’clock.
28 Chapter 4 Navigating using the keyboard, touch gestures and pointing devices
Flicking (select models only)
Flicking allows you to navigate through screens or quickly scroll through documents.
Place three fingers on the TouchPad zone and flick your fingers in a light, quick motion up,
●
down, left or right.
Using the digitizer pen (select models only)
You can write with the pen in pen-specific programs, in all Microsoft® Office programs, and in many
other Windows programs and utilities. The information you write on the screen with the pen can be
filed, searched, and shared among the programs.
Identifying the pen components
The pen interacts with the computer whenever the tip (1) of the pen is pressed against the screen.
The pen button (2) functions like the right button on an external mouse.
Using pointing devices 29
Holding the pen
Hold the pen as if you were writing with a standard pen or pencil.
Storing the pen
To store the pen when you are not using it, insert the pen, tip first, into the pen holder on the
computer.
NOTE: When you insert the pen in the pen holder, be sure that the end of the pen fits properly in the
pen holder.
Using the keyboard
The keyboard and mouse allow you to type select items, scroll and to perform the same functions as
using touch gestures. The keyboard also allows you to use action keys and hot keys to perform
specific functions.
NOTE: Depending on the country or region, your keyboard may have different keys and keyboard
functions than those discussed in this section.
Using the hot keys
A hot key is a combination of the fn key and the esc key , the spacebaror one of the function keys.
To use a hot key:
Briefly press the fn key, and then briefly press the second key of the hot key combination.
▲
Using keypads
The computer includes an embedded numeric keypad, and it also supports an optional external
numeric keypad, or an optional external keyboard that includes a numeric keypad. For more details
about the embedded numeric keypad, see Keys on page 11.
Using the embedded numeric keypad
30 Chapter 4 Navigating using the keyboard, touch gestures and pointing devices
Turning the embedded numeric keypad on and off
Press fn+num lk to turn on the embedded numeric keypad. Press fn+num lk again to turn off the
keypad.
NOTE: The embedded numeric keypad is turned off while an external keyboard or numeric keypad
is connected to the computer.
Switching key functions on the embedded numeric keypad
You can temporarily alternate the functions of keys on the embedded numeric keypad between their
standard keyboard functions and their keypad functions:
To use the navigational function of a keypad key while the keypad is off, press and hold the fn
●
key while pressing the keypad key.
To use the standard function of a keypad key while the keypad is on:
●
Press and hold the fn key to type in lowercase.
◦
Press and hold fn+shift to type in uppercase.
◦
Using an optional external numeric keypad
Keys on most external numeric keypads function differently according to whether num lock is on or
off. (Num lock is turned off at the factory.)For example:
When num lock is on, most keypad keys type numbers.
●
When num lock is off, most keypad keys function like the arrow, page up, or page down keys.
●
When num lock on an external keypad is turned on, the num lock light on the computer is turned on.
When num lock on an external keypad is turned off, the num lock light on the computer is turned off.
To turn num lock on or off on an external keypad as you work:
Press the num lk key on the external keypad, not on the computer.
▲
Using the keyboard 31
5 Multimedia
Your computer may include the following:
Integrated speaker(s)
●
Integrated microphone(s)
●
Integrated webcam
●
Preinstalled multimedia software
●
Multimedia buttons or keys
●
Using the media activity controls
Depending on your computer model, you may have the following media activity controls that allow
you to play, pause, fast forward, or rewind a media file:
Media buttons
●
Media hot keys (specific keys pressed in combination with the fn key)
●
Media keys
●
Audio
On your HP computer, you can download and listen to music, stream audio content from the web
(including radio), record audio, or mix audio and video to create multimedia. To enhance your
listening enjoyment, attach external audio devices such as speakers or headphones.
Connecting speakers
You can attach wired speakers to your computer by connecting them to a USB port (or the audio-out
jack) on your computer or on a docking station.
To connect wireless speakers to your computer, follow the device manufacturer's instructions. Before
connecting audio devices, be sure to adjust the volume.
Adjusting the volume
Depending on your computer model, you can adjust the volume using the following:
Volume buttons
●
Volume hot keys (specific keys pressed in combination with the fn key)
●
Volume keys
●
WARNING! To reduce the risk of personal injury, adjust the volume before putting on headphones,
earbuds, or a headset. For additional safety information, see the
Environmental Notices
Regulatory, Safety and
. To access the user guides, select Start > Help and Support > User guides.
NOTE: Volume can also be controlled through the operating system and some programs.
32 Chapter 5 Multimedia
NOTE: See Getting to know your computer on page 4 for information on what type of volume
controls your computer has.
Connecting headphones and microphones
You can connect wired headphones or headsets to the audio-out (headphone)/audio-in (microphone)
jack on your computer. Many headsets with integrated microphones are commercially available.
To connect
instructions.
WARNING! To reduce the risk of personal injury, lower the volume setting before putting on
headphones, earbuds, or a headset. For additional safety information, see the
Environmental Notices
wireless
headphones or headsets to your computer, follow the device manufacturer's
. To access this guide, select Start > Help and Support > User guides.
Checking audio functions on the computer
NOTE: For best results when recording, speak directly into the microphone and record sound in a
setting free of background noise.
To check the audio functions on your computer, follow these steps:
1. Select Start > Control Panel > Hardware and Sound > Sound.
2. When the Sound window opens, click the Sounds tab. Under Program Events, select any sound
event, such as a beep or alarm, and click the Test button.
You should hear sound through the speakers or through connected headphones.
To check the recording functions on your computer, follow these steps:
1. Select Start > All Programs > Accessories > Sound Recorder.
2. Click Start Recording and speak into the microphone.
3. Save the file to your desktop.
Regulatory, Safety and
4. Open a multimedia program and play back the sound.
To confirm or change the audio settings on your computer:
▲
Webcam
Some computers include an integrated webcam. With the preinstalled software, you can use the
webcam to take a photo or record a video. You can preview and save the photo or video recording.
The webcam software enables you to experiment with the following features:
●
●
●
Select Start > Control Panel > Audio.
Capturing and sharing video
Streaming video with instant message software
Taking still photos
Webcam 33
Video
Your HP computer is a powerful video device that enables you to watch streaming video from your
favorite websites and download video and movies to watch on your computer without needing to
connect to a network.
To enhance your viewing enjoyment, use one of the video ports on the computer to connect an
external monitor, projector, or TV. Your computer has an high-definition multimedia interface (HDMI)
port, which allows you to connect a high-definition monitor or TV.
Your computer has one or more of the following external video ports:
VGA
●
HDMI (High Definition Multimedia Interface)
●
DisplayPort
●
Thunderbolt
●
IMPORTANT: Be sure that the external device is connected to the correct port on the computer,
using the correct cable. Check the device manufacturer's instructions if you have questions.
NOTE: See Getting to know your computer on page 4 for information about your computer's video
ports.
DisplayPort (keyboard only)
The DisplayPort connects the computer to an optional video or audio device, such as a high-definition
television, or to any compatible digital or audio component. The DisplayPort delivers higher
performance than the VGA external monitor port and improves digital connectivity.
NOTE: To transmit video and/or audio signals through the DisplayPort, you need a DisplayPort
cable (purchased separately).
NOTE: One DisplayPort device can be connected to the DisplayPort port on the computer. The
information displayed on the computer screen can be simultaneously displayed on the DisplayPort
device.
To connect a video or audio device to the DisplayPort:
1. Connect one end of the DisplayPort cable to the DisplayPort port on the computer.
34 Chapter 5 Multimedia
2. Connect the other end of the cable to the digital display device.
3. Press fn+f4 to alternate the computer screen image between 4 display states:
PC screen only: View the screen image on the computer only.
●
Duplicate: View the screen image simultaneously on
●
device.
Extend: View the screen image extended across
●
device.
Second screen only: View the screen image on the external device only.
●
Each time you press fn+f4, the display state changes.
NOTE: For best results, especially if you choose the "Extend" option, adjust the screen
resolution of the external device, as follows. Select Start > Control Panel > Appearance and
Personalization. Under Display, select Adjust screen resolution.
NOTE: To remove the device cable, press down on the connector release button to disconnect
it on the computer.
both
both
the computer and the external
Connecting wired displays using MultiStream Transport
MultiStream Transport (MST) provides multiple display support from a single connector, the
DisplayPort (DP), on your computer.
NOTE: With an Intel graphics controller, you can connect up to 3 display devices.
To set up multiple displays, follow these steps:
the computer and the external
Video 35
1. Connect an external hub (purchased separately) to the DisplayPort on your computer, using a
DP-to-DP cable (purchased separately). Be sure that the hub power adapter is connected to AC
power.
2. Connect your external display devices to the VGA ports or DisplayPorts on the hub.
3. Multiple display choices include Duplicate, which mirrors your computer screen on all enabled
displays, or Extend, which extends the screen image across all enabled displays.
NOTE: Be sure that each external device is connected to the correct port on the hub.
For more information, select Start > Control Panel > Display, or press fn+f4, and then follow the
on-screen instructions.
36 Chapter 5 Multimedia
6 Power management
NOTE: A computer may have a power button or a power switch. The term
throughout this guide to mean both types of power controls.
Shutting down the computer
CAUTION: Unsaved information is lost when the computer shuts down.
The shutdown command closes all open programs, including the operating system, and then turns off
the display and computer.
Shut down the computer under any of the following conditions:
When you need to replace the battery or access components inside the computer
●
When you are connecting an external hardware device that does not connect to a Universal
●
Serial Bus (USB) port
When the computer will be unused and disconnected from external power for an extended
●
period
Although you can turn off the computer with the power button, the recommended procedure is to use
the Windows shutdown command:
NOTE: If the computer is in the Sleep state or in Hibernation, you must first exit Sleep or
Hibernation before shutdown is possible by briefly pressing the power button.
1. Save your work and close all open programs.
power button
is used
2. Select Start > Shut Down.
If the computer is unresponsive and you are unable to use the preceding shutdown procedure, try the
following emergency procedures in the sequence provided:
Press ctrl+alt+delete. Click the Power icon, and then click Shut Down.
●
Press and hold the power button for at least 5 seconds.
●
Disconnect the computer from external power.
●
On models with a user-replaceable battery, remove the battery. On models with a factory-sealed
●
battery, press and hold the power button for at least 15 seconds.
Setting power options
Using power-saving states
Sleep is enabled at the factory.
When Sleep is initiated, the power lights blink and the screen clears. Your work is saved to memory.
CAUTION: To reduce the risk of possible audio and video degradation, loss of audio or video
playback functionality, or loss of information, do not initiate Sleep while reading from or writing to a
disc or an external memory card.
Shutting down the computer 37
NOTE: You cannot initiate any type of networking connection or perform any computer functions
while the computer is in the Sleep state.
Intel Rapid Start Technology (select models only)
For select models, the Intel Rapid Start Technology (RST) feature is enabled by default. Rapid Start
Technology allows your computer to resume quickly from inactivity.
Rapid Start Technology manages your power-saving options as follows:
Sleep—Rapid Start Technology allows you to select the Sleep state. To exit from Sleep, press
●
any key, activate the TouchPad, or press the power button briefly.
Hibernation—Rapid Start Technology initiates Hibernation after a period of inactivity while in the
●
Sleep state when running on battery power or on external power or when the battery reaches a
critical level. After Hibernation is initiated, press the power button to resume your work.
NOTE: Rapid Start Technology can be disabled in Setup Utility (BIOS). If you want to be able to
initiate the Hibernation state, you must enable user-initiated Hibernation using Power Options. See
Initiating and exiting Hibernation on page 38.
Initiating and exiting Sleep
With the computer on, you can initiate Sleep in any of the following ways:
Briefly press the power button.
●
Close the display.
●
Select Start, click the arrow next to the Shut down button, and then click Sleep.
●
To exit Sleep
Briefly press the power button.
●
If the display is closed, open the display.
●
Press a key on the keyboard.
●
Tap or swipe the TouchPad
●
When the computer exits Sleep, the power lights turn on and the computer returns to the screen
where you stopped working.
NOTE: If you have set a password to be required on wakeup, you must enter your Windows
password before the computer will return to the screen.
Initiating and exiting Hibernation
The system is set at the factory to initiate Hibernation after a period of inactivity when running on
battery power or on external power, or when the battery reaches a critical battery level.
Power settings and timeouts can be changed in Windows Control Panel.
To initiate Hibernation
Select Start, click the arrow next to the Shut down button, and then click Hibernate.
▲
To exit Hibernation:
Briefly press the power button.
▲
The power lights turn on and your work returns to the screen where you stopped working.
38 Chapter 6 Power management
NOTE: If you have set a password to be required on wakeup, you must enter your Windows
password before your work will return to the screen.
Using the power meter and power settings
The power meter is located in the notification area, at the far right of the taskbar. The power meter
allows you to quickly access power settings and view the remaining battery charge.
To reveal the percentage of remaining battery charge and the current power plan, point over the
●
power meter icon.
To use Power Options, or to change the power plan, click the power meter icon and select an
●
item from the list.
Different power meter icons indicate whether the computer is running on battery or external power.
The icon also reveals a message if the battery has reached a low or critical battery level.
Setting password protection on wakeup
To set the computer to prompt for a password when the computer exits Sleep or Hibernation, follow
these steps:
1. Select Start > Control Panel > System and Security > Power Options.
2. In the left pane, click Require a password on wakeup.
3. Click Change Settings that are currently unavailable.
4. Click Require a password (recommended).
NOTE: If you need to create a user account password or change your current user account
password, click Create or change your user account password, and then follow the on-screen
instructions. If you do not need to create or change a user account password, go to step 5.
5. Click Save changes.
Using battery power
WARNING! To reduce potential safety issues, use only the battery provided with the computer, a
replacement battery provided by HP, or a compatible battery purchased from HP.
The computer runs on battery power whenever it is not plugged into external AC power. Computer
battery life varies, depending on power management settings, running programs, display brightness,
external devices connected to the computer, and other factors. Keeping the battery in the computer
whenever the computer is plugged into AC power charges the battery and also protects your work in
case of a power outage. If the computer contains a charged battery and is running on external AC
power, the computer automatically switches to battery power if the AC adapter is disconnected on the
computer or an AC power loss occurs.
NOTE: When you disconnect AC power, the display brightness is automatically decreased to save
battery life.
Factory-sealed battery (select models only)
To monitor the status of your battery, or if the battery is no longer holding a charge, run Battery Check
in Help and Support. To access battery information, select Start > Help and Support > Troubleshoot >
Power, Thermal, and Mechanical. Click the Power tab, and then click Battery Check. If Battery Check
indicates that your battery should be replaced, contact support.
Setting power options 39
The battery(ies) in this product cannot be easily replaced by users themselves. Removing or
replacing the battery could affect your warranty coverage. If a battery is no longer holding a charge,
contact support.
When a battery has reached the end of its useful life, do not dispose of the battery in general
household waste. Follow the local laws and regulations in your area for battery disposal.
Finding additional battery information
Help and Support provides the following tools and information about the battery:
Battery Check tool to test battery performance
●
Information on calibration, power management, and proper care and storage to maximize battery
●
life
Information on battery types, specifications, life cycles, and capacity
●
To access battery information:
Select Start > Help and Support > Learn > Power Plans: Frequently Asked Questions.
▲
Using Battery Check
Help and Support provides information on the status of the battery installed in the computer.
To run Battery Check:
1. Connect the AC adapter to the computer.
NOTE: The computer must be connected to external power for Battery Check to work properly.
2. Select Start > Help and Support > Troubleshoot > Power, Thermal, and Mechanical.
3. Click the Power tab, and then click Battery Check.
Battery Check examines the battery and its cells to see if they are functioning properly, and then
reports the results of the examination.
Displaying the remaining battery charge
Move the pointer over the power meter icon on the Windows desktop in the notification area, at
▲
the far right of the taskbar.
Maximizing battery discharge time
Battery discharge time varies depending on features you use while on battery power. Maximum
discharge time gradually decreases as the battery storage capacity naturally degrades.
Tips for maximizing battery discharge time:
Lower the brightness on the display.
●
Remove the battery on the computer when it is not being used or charged, if the computer
●
contains a user-replaceable battery
Store the user-replaceable battery in a cool, dry location.
●
Select the Power saver setting in Power Options.
●
40 Chapter 6 Power management
Managing low battery levels
The information in this section describes the alerts and system responses set at the factory. Some
low-battery alerts and system responses can be changed using Power Options. Preferences set
using Power Options do not affect lights.
Identifying low battery levels
When a battery that is the sole power source for the computer reaches a low or critical battery level,
the following behavior occurs:
The battery light (select models only) indicates a low or critical battery level.
●
– or –
The power meter icon in the notification area shows a low or critical battery notification.
●
NOTE: For additional information about the power meter, see Using the power meter and
power settings on page 39.
If the computer is on or in the Sleep state, the computer remains briefly in the Sleep state, and then
shuts down and loses any unsaved information.
Resolving a low battery level
Resolving a low battery level when external power is available
Connect one of the following devices:
▲
AC adapter
●
Optional docking or expansion device
●
Optional power adapter purchased as an accessory from HP
●
Resolving a low battery level when no power source is available
To resolve a low battery level when no power source is available, save your work and shut down the
computer.
Conserving battery power
Select low power-use settings through Power Options in Windows Control Panel.
●
Turn off wireless and LAN connections and exit modem applications when you are not using
●
them.
Disconnect unused external devices that are not plugged into an external power source.
●
Stop, disable, or remove any external memory cards that you are not using.
●
Decrease screen brightness.
●
Before you leave your work, initiate Sleep, or shut down the computer.
●
Setting power options 41
Using external AC power
WARNING! Do not charge the computer battery while you are onboard aircraft.
WARNING! To reduce potential safety issues, use only the AC adapter provided with the computer,
a replacement AC adapter provided by HP, or a compatible AC adapter purchased from HP.
NOTE: For information on connecting to AC power, see the
the computer box.
External AC power is supplied through an approved AC adapter or an optional docking or expansion
device.
Connect the computer to external AC power under any of the following conditions:
When charging or calibrating a battery
●
When installing or modifying system software
●
When writing information to a CD, a DVD, or a BD (select models only)
●
When running Disk Defragmenter
●
When performing a backup or recovery
●
When you connect the computer to external AC power, the following events occur:
The battery begins to charge.
●
If the computer is turned on, the power meter icon in the notification area changes appearance.
●
When you disconnect external AC power, the following events occur:
The computer switches to battery power.
●
The display brightness is automatically decreased to save battery life.
●
Setup Instructions
poster provided in
Testing an AC adapter
Test the AC adapter if the computer exhibits any of the following symptoms when it is connected to
AC power:
The computer does not turn on.
●
The display does not turn on.
●
The power lights are off.
●
To test the AC adapter:
NOTE: The following instructions apply to computers with user-replaceable batteries.
1. Shut down the computer.
2. Remove the battery on the computer.
3. Connect the AC adapter to the computer, and then plug it into an AC outlet.
4. Turn on the computer.
If the power lights turn on, the AC adapter is working properly.
●
If the power lights remain
●
Contact support for information on obtaining a replacement AC power adapter.
off
, the AC adapter is not functioning and should be replaced.
42 Chapter 6 Power management
Refreshing your software content with Intel Smart Connect Technology (select models only)
When the computer is in the Sleep state, Intel® Smart Connect Technology periodically causes the
computer to exit Sleep. If a network connection is available, Smart Connect updates open apps such
as your email inboxes, social network sites, and news pages and then returns the computer to the
Sleep state. Smart Connect also syncs content that you have created offline, such as emails. When
the computer exits Sleep, you have immediate access to your updated information.
To enable this feature or manually adjust the settings, select Start > All Programs > Intel > Intel®
▲
Smart Connect Technology.
To reveal the Intel Smart Connect Technology icon, hover over the icons in the notification area, at
the far right of the taskbar, and then click the icon.
Setting power options 43
7 External cards and devices
Using memory card readers
Optional memory cards provide secure data storage and convenient data sharing. These cards are
often used with digital media–equipped cameras and PDAs as well as with other computers.
To determine the memory card formats that are supported on your computer, see Getting to know
your computer on page 4.
Inserting a memory card
CAUTION: To reduce the risk of damage to the memory card connectors, use minimal force to
insert a memory card.
1. Hold the card label-side up, with the connectors facing the computer.
2. Insert the card into the memory card reader, and then press in on the card until it is firmly
seated.
You will hear a sound when the device has been detected, and a menu of options may be
displayed.
Removing a memory card
CAUTION: To reduce the risk of loss of data or an unresponsive system, use the following
procedure to safely remove the memory card.
1. Save your information and close all programs associated with the memory card.
2. Click the remove hardware icon on the Windows desktop in the notification area, at the far right
of the taskbar. Then follow the on-screen instructions.
44 Chapter 7 External cards and devices
3. Press in on the card (1), and then remove it from the slot (2).
NOTE: If the card does not eject, pull the card out of the slot.
Using smart cards (keyboard only)
NOTE: The term
Cards.
A smart card is a credit card-sized accessory that carries a microchip containing memory and a
microprocessor. Like personal computers, smart cards have an operating system to manage input
and output, and they include security features to protect against tampering. Industry-standard smart
cards are used with the smart card reader (select models only).
A PIN is needed to gain access to the contents of the microchip. For more information about smart
card security features, access HP Support Assistant. To access HP Support Assistant on the Start
screen, select the HP Support Assistant app.
Inserting a smart card
1. Hold the card label-side up, and gently slide the card into the smart card reader until the card is
seated.
smart card
is used throughout this chapter to mean both smart cards and Java™
2. Follow the on-screen instructions for logging on to the computer using the smart card PIN.
Using smart cards (keyboard only) 45
Removing a smart card
Grasp the edge of the smart card, and then pull it out of the smart card reader.
▲
Using a USB device
Universal Serial Bus (USB) is a hardware interface that can be used to connect an optional external
device, such as a USB keyboard, mouse, drive, printer, scanner, or hub.
Some USB devices may require additional support software, which is usually included with the
device. For more information about device-specific software, see the manufacturer's instructions.
These instructions may be provided with the software, on disc, or on the manufacturer’s website.
The computer has at least 1 USB port that supports USB 1.0, 1.1, 2.0, or 3.0 devices. Your computer
may also have a USB charging port that provides power to an external device. An optional docking
device or USB hub provides additional USB ports that can be used with the computer.
46 Chapter 7 External cards and devices
Connecting a USB device
CAUTION: To reduce the risk of damage to a USB connector, use minimal force to connect the
device.
Connect the USB cable for the device to the USB port.
▲
NOTE: The following illustration may look slightly different than your computer.
You will hear a sound when the device has been detected.
NOTE: The first time you connect a USB device, a message in the notification area lets you know
that the device is recognized by the computer.
Removing a USB device
CAUTION: To reduce the risk of damage to a USB connector, do not pull on the cable to remove
the USB device.
CAUTION: To reduce the risk of loss of information or an unresponsive system, use the following
procedure to safely remove the USB device.
1. To remove a USB device, save your information and close all programs associated with the
device.
2. Click the remove hardware icon on the Windows desktop in the notification area, at the far right
of the taskbar, and then follow the on-screen instructions.
3. Remove the device.
Using optional external devices
NOTE: For more information about required software and drivers, or to learn which computer port to
use, see the manufacturer's instructions.
To connect an external device to the computer:
CAUTION: To reduce the risk of damage to the equipment when connecting a powered device, be
sure that the device is turned off and the AC power cord is unplugged.
Using optional external devices 47
1. Connect the device to the computer.
2. If you are connecting a powered device, plug the device power cord into a grounded AC outlet.
3. Turn on the device.
To disconnect an unpowered external device, turn off the device, and then disconnect it from the
computer. To disconnect a powered external device, turn off the device, disconnect it from the
computer, and then unplug the AC power cord.
Using optional external drives
Removable external drives expand your options for storing and accessing information. A USB drive
can be added by connecting the drive to a USB port to the computer.
NOTE: HP external USB optical drives should be connected to the powered USB port to the
computer.
USB drives include the following types:
1.44-megabyte diskette drive
●
Hard drive module
●
External optical drive (CD, DVD, and Blu-ray)
●
MultiBay device
●
48 Chapter 7 External cards and devices
8 Security
Protecting the computer
Standard security features provided by the Windows operating system and the non-Windows
Computer Setup utility (BIOS) can protect your personal settings and data from a variety of risks.
NOTE: Security solutions are designed to act as deterrents. These deterrents may not prevent a
product from being mishandled or stolen.
NOTE: Before you send your computer for service, back up and delete confidential files, and
remove all password settings.
NOTE: Some features listed in this chapter may not be available on your computer.
NOTE: Your computer supports Computrace, which is an online security-based tracking and
recovery service available in select regions. If the computer is stolen, Computrace can track the
computer if the unauthorized user accesses the Internet. You must purchase the software and
subscribe to the service in order to use Computrace. For information about ordering the Computrace
software, go to http://hp-pt.absolute.com.
Computer risk Security feature
Unauthorized use of the computer HP Client Security, in combination with a password, smart
card, contactless card, registered face scenes, registered
fingerprints, or other authentication credential
Unauthorized access to Computer Setup (f10) BIOS administrator password in Computer Setup*
Unauthorized access to the contents of a hard drive DriveLock password or Automatic DriveLock password in
Computer Setup*
Unauthorized startup from an optional external optical drive
(select models only), optional external hard drive (select
models only), or internal network adapter
Unauthorized access to a Windows user account Windows user password
Unauthorized access to data
Unauthorized access to Computer Setup settings and other
system identification information
Unauthorized removal of the computer Security cable slot (used with an optional security cable)
*Computer Setup is a preinstalled, ROM-based utility that can be used even when the operating system is not working or will
not load. You can use either a pointing device (TouchPad, pointing stick, or USB mouse) or the keyboard to navigate and
make selections in Computer Setup.
Boot options feature in Computer Setup*
HP Drive Encryption software
●
Windows Defender
●
BIOS administrator password in Computer Setup*
Protecting the computer 49
Using passwords
A password is a group of characters that you choose to secure your computer information. Several
types of passwords can be set, depending on how you want to control access to your information.
Passwords can be set in Windows or in the non-Windows Computer Setup utility that is preinstalled
on the computer.
BIOS administrator and DriveLock passwords are set in Computer Setup and are managed by
●
the system BIOS.
Automatic DriveLock passwords are enabled in Computer Setup.
●
Windows passwords are set only in the Windows operating system.
●
If HP SpareKey has been set up previously, and if you forget the BIOS administrator password
●
set in Computer Setup, you can use HP SpareKey to access the utility.
If you forget both the DriveLock user password and the DriveLock master password set in
●
Computer Setup, the hard drive that is protected by the passwords is permanently locked and
can no longer be used.
You can use the same password for a Computer Setup feature and for a Windows security feature.
You can also use the same password for more than one Computer Setup feature.
Use the following tips for creating and saving passwords:
When creating passwords, follow requirements set by the program.
●
Do not use the same password for multiple applications or websites, and do not reuse your
●
Windows password for any other application or website.
Use HP Client Security's Password Manager to store your user names and passwords for all of
●
your websites and applications. You can securely read them in the future if they cannot be
remembered.
Do not store passwords in a file on the computer.
●
The following tables list commonly used Windows and BIOS administrator passwords and describe
their functions.
Setting passwords in Windows
Password Function
Administrator password* Protects access to a Windows administrator-level account.
User password* Protects access to a Windows user account.
*For information about setting a Windows administrator password or a Windows user password, access Help and Support by
selecting Start > Help and Support.
NOTE: Setting the Windows Administrator password does
not set the BIOS Administrator password.
50 Chapter 8 Security
Setting passwords in Computer Setup
Password Function
BIOS administrator password* Protects access to Computer Setup.
DriveLock master password* Protects access to the internal hard drive that is protected by
DriveLock user password* Protects access to the internal hard drive that is protected by
*For details about each of these passwords, see the following topics.
NOTE: If features have been enabled to prevent removing
the BIOS administrator password, you may not be able to
remove it until those features have been disabled.
DriveLock. It is also used to remove DriveLock protection.
This password is set under DriveLock Passwords during the
enable process.
NOTE: A BIOS Administrator password must be set before
you can set a DriveLock password.
DriveLock, and is set under DriveLock Passwords during the
enable process.
NOTE: A BIOS Administrator password must be set before
you can set a DriveLock password.
Managing a BIOS administrator password
To set, change, or delete this password, follow these steps:
Setting a new BIOS administrator password
1. Turn on or restart the computer, and then press esc or hold down the volume button while the
"Hold the Volume Down button to enter the BIOS Startup Menu" message is displayed at the
bottom of the screen.
2. Press or tap f10 to enter Computer Setup.
3. Use a pointing device, the arrow keys, or touch the screen to select Security > Setup BIOS
Administrator Password, and then press enter.
4. When prompted, type a password.
5. When prompted, type the new password again to confirm.
6. To save your changes and exit Computer Setup, click the Save icon and then follow the on-
screen instructions.
– or –
Select Main > Save Changes and Exit, and then follow the on-screen instructions.
Your changes go into effect when the computer restarts.
Changing a BIOS administrator password
1. Turn on or restart the computer, and then press esc or hold down the volume button while the
"Hold the Volume Down button to enter the BIOS Startup Menu" message is displayed at the
bottom of the screen.
2. Press or tap f10 to enter Computer Setup.
Using passwords 51
3. Use a pointing device, the arrow keys, or touch the screen to select Security > Change
Password, and then press enter.
4. When prompted, type your current password.
5. When prompted, type your new password again to confirm.
6. To save your changes and exit Computer Setup, click the Save icon in the lower-left corner of
the screen, and then follow the on-screen instructions.
– or –
Select Main > Save Changes and Exit, and then follow the on-screen instructions.
Your changes go into effect when the computer restarts.
Deleting a BIOS administrator password
1. Turn on or restart the computer, and then press esc or hold down the volume button while the
"Hold the Volume Down button to enter the BIOS Startup Menu" message is displayed at the
bottom of the screen.
2. Press or tap f10 to enter Computer Setup.
3. Use a pointing device, the arrow keys, or touch the screen to select Security > Change
Password, and then press enter.
4. When prompted, type your current password.
5. When prompted for the new password, leave the field empty, and then press enter.
6. Read the warning. To continue, select YES.
7. When prompted to type your new password again, leave the field empty, and then press enter.
8. To save your changes and exit Computer Setup, click the Save icon in the lower-left corner of
the screen, and then follow the on-screen instructions.
– or –
Select Main > Save Changes and Exit, and then follow the on-screen instructions.
Your changes go into effect when the computer restarts.
Entering a BIOS administrator password
At the BIOS administrator password prompt, type your password (using the same kind of keys you
used to set the password), and then press enter. After 3 unsuccessful attempts to enter the BIOS
administrator password, you must restart the computer and try again.
Managing a Computer Setup DriveLock password
CAUTION: To prevent the DriveLock-protected hard drive from becoming permanently unusable,
record the DriveLock user password and the DriveLock master password in a safe place away from
your computer. If you forget both DriveLock passwords, the hard drive will be permanently locked and
can no longer be used.
DriveLock protection prevents unauthorized access to the contents of a hard drive. DriveLock can be
applied only to the internal hard drive(s) of the computer. After DriveLock protection is applied to a
drive, a password must be entered to access the drive. The drive must be inserted into the computer
or an advanced port replicator in order for it to be accessed by the DriveLock passwords.
52 Chapter 8 Security
NOTE: A BIOS Administrator password must be set before you can access the DriveLock features.
To apply DriveLock protection to an internal hard drive, a user password and a master password
must be set in Computer Setup. Note the following considerations about using DriveLock protection:
After DriveLock protection is applied to a hard drive, the hard drive can be accessed only by
●
entering either the user password or the master password.
The owner of the user password should be the day-to-day user of the protected hard drive. The
●
owner of the master password may be either a system administrator or the day-to-day user.
The user password and the master password can be identical.
●
You can delete a user password or master password only by removing DriveLock protection
●
from the drive. DriveLock protection can be removed from the drive only with the master
password.
Setting a DriveLock password
To set a DriveLock password in Computer Setup, follow these steps:
1. Turn on the computer, and then press esc or hold down the volume button while the "Hold the
Volume Down button to enter the BIOS Startup Menu" message is displayed at the bottom of the
screen.
2. Press or tap f10 to enter Computer Setup.
3. Use a pointing device, the arrow keys, or touch the screen to select Security > Hard Drive Tools
> DriveLock, and then follow the on-screen instructions.
4. Click Set DriveLock Password (global).
5. Enter the BIOS Administrator password, and then follow the on-screen instructions.
6. Use a pointing device, the arrow keys, or touch the screen to select the hard drive you want to
protect, and then follow the on-screen instructions.
7. Read the warning. To continue, select YES.
8. When prompted, type a master password, and then follow the on-screen instructions.
9. When prompted, type the master password again to confirm, and then follow the on-screen
instructions.
10. When prompted, type a user password, and then follow the on-screen instructions.
11. When prompted, type the user password again to confirm, and then follow the on-screen
instructions.
12. To confirm DriveLock protection on the drive you have selected, type DriveLock in the
confirmation field, and then follow the on-screen instructions.
NOTE: The DriveLock confirmation is case sensitive.
13. To save your changes and exit Computer Setup, click the Save icon in the lower-left corner of
the screen, and then follow the on-screen instructions.
– or –
Select Main > Save Changes and Exit, and then follow the on-screen instructions.
Your changes go into effect when the computer restarts.
Using passwords 53
Entering a DriveLock password
Be sure that the hard drive is inserted into the computer (not into an optional docking device or
external MultiBay).
At the DriveLock Password prompt, type your user or master password (using the same kind of keys
you used to set the password), and then follow the on-screen instructions.
After 2 incorrect attempts to enter the password, you must shut down the computer and try again.
Changing a DriveLock password
To change a DriveLock password in Computer Setup, follow these steps:
1. Turn on the computer, and then press esc or hold down the volume button while the "Hold the
Volume Down button to enter the BIOS Startup Menu" message is displayed at the bottom of the
screen.
2. Press or tap f10 to enter Computer Setup.
3. Use a pointing device, the arrow keys, or touch the screen to select Security > Hard Drive Tools
> DriveLock, and then follow the on-screen instructions.
4. Enter the BIOS Administrator password, and then follow the on-screen instructions.
5. Use a pointing device or the arrow keys select Set DriveLock Password, and then follow the on-
screen instructions.
6. Use the arrow keys to select an internal hard drive, and then follow the on-screen instructions.
7. Use a pointing device, the arrow keys, or touch the screen to select Change Password.
8. When prompted, type your current password, and then follow the on-screen instructions.
9. When prompted, type a new password, and then follow the on-screen instructions.
10. When prompted, type the new password again to confirm, and then follow the on-screen
instructions.
11. To save your changes and exit Computer Setup, click the Save icon in the lower-left corner of
the screen, and then follow the on-screen instructions.
– or –
Select Main > Save Changes and Exit, and then follow the on-screen instructions.
Your changes go into effect when the computer restarts.
Removing DriveLock protection
To remove DriveLock protection in Computer Setup, follow these steps:
1. Turn on the computer, and then press esc or hold down the volume button while the "Hold the
Volume Down button to enter the BIOS Startup Menu" message is displayed at the bottom of the
screen.
2. Press or tap f10 to enter Computer Setup.
3. Use a pointing device, the arrow keys, or touch the screen to select Security > Hard Drive Tools
> DriveLock, and then follow the on-screen instructions.
4. Enter the BIOS Administrator password, and then follow the on-screen instructions.
54 Chapter 8 Security
5. Use a pointing device, the arrow keys, or touch the screen to select Set DriveLock Password,
and then follow the on-screen instructions.
6. Use a pointing device, the arrow keys, or touch the screen to select an internal hard drive, and
then follow the on-screen instructions.
7. Use a pointing device, the arrow keys, or touch the screen to select Disable protection.
8. Type your master password, and then follow the on-screen instructions.
9. To save your changes and exit Computer Setup, click the Save icon and then follow the on-
screen instructions.
– or –
Select Main > Save Changes and Exit, and then follow the on-screen instructions.
Your changes go into effect when the computer restarts.
Using Computer Setup Automatic DriveLock
In a multiple-user environment, you can set an Automatic DriveLock password. When the Automatic
DriveLock password is enabled, a random user password and a DriveLock master password will be
created for you. When any user passes the password credential, the same random user and
DriveLock master password will be used to unlock the drive.
NOTE: A BIOS Administrator password must be set before you can access the Automatic DriveLock
features.
Entering an Automatic DriveLock password
To enable an Automatic DriveLock password in Computer Setup, follow these steps:
1. Turn on or restart the computer, and then press esc or hold down the volume button while the
"Hold the Volume Down button to enter the BIOS Startup Menu" message is displayed at the
bottom of the screen.
2. Press or tap f10 to enter Computer Setup.
3. Use a pointing device, the arrow keys, or touch the screen to select Security > Hard Drive Tools
> Automatic DriveLock, and then follow the on-screen instructions.
4. Enter the BIOS Administrator password, and then follow the on-screen instructions.
5. Use a pointing device, the arrow keys, or touch the screen to select an internal hard drive, and
then follow the on-screen instructions.
6. Read the warning. To continue, select YES.
7. To save your changes and exit Computer Setup, click the Save icon and then follow the on-
screen instructions.
– or –
Select Main > Save Changes and Exit, and then follow the on-screen instructions.
Removing Automatic DriveLock protection
To remove DriveLock protection in Computer Setup, follow these steps:
Using passwords 55
1. Turn on or restart the computer, and then press esc or hold down the volume button while the
"Hold the Volume Down button to enter the BIOS Startup Menu" message is displayed at the
bottom of the screen.
2. Press or tap f10 to enter Computer Setup.
3. Use a pointing device, the arrow keys, or touch the screen to select Security > Hard Drive Tools
> Automatic DriveLock, and then follow the on-screen instructions.
4. Enter the BIOS Administrator password, and then follow the on-screen instructions.
5. Use a pointing device, the arrow keys, or touch the screen to select an internal hard drive, and
then follow the on-screen instructions.
6. Use a pointing device, the arrow keys, or touch the screen to select Disable protection.
7. To save your changes and exit Computer Setup, click the Save icon in the lower-left corner of
the screen, and then follow the on-screen instructions.
– or –
Select Main > Save Changes and Exit, and then follow the on-screen instructions.
Using antivirus software
When you use the computer to access e-mail, a network, or the Internet, you potentially expose it to
computer viruses. Computer viruses can disable the operating system, programs, or utilities, or cause
them to function abnormally.
Antivirus software can detect most viruses, destroy them, and, in most cases, repair any damage they
have caused. To provide ongoing protection against newly discovered viruses, antivirus software
must be kept up to date.
For more information about computer viruses, type viruses in the Search box in Help and Support.
Using firewall software
Firewalls are designed to prevent unauthorized access to a system or network. A firewall can be a
software program you install on your computer and/or network, or it can be a solution made up of
both hardware and software.
There are two types of firewalls to consider:
Host-based firewalls—Software that protects only the computer it is installed on.
●
Network-based firewalls—Installed between your DSL or cable modem and your home network
●
to protect all the computers on the network.
When a firewall is installed on a system, all data sent to and from the system is monitored and
compared with a set of user-defined security criteria. Any data that does not meet those criteria is
blocked.
Your computer or networking equipment may already have a firewall installed. If not, firewall software
solutions are available.
NOTE: Under some circumstances a firewall can block access to Internet games, interfere with
printer or file sharing on a network, or block authorized e-mail attachments. To temporarily resolve the
problem, disable the firewall, perform the task that you want to perform, and then reenable the
firewall. To permanently resolve the problem, reconfigure the firewall.
56 Chapter 8 Security
Installing critical security updates
CAUTION: Microsoft® sends out alerts regarding critical updates. To protect the computer from
security breaches and computer viruses, install all critical updates from Microsoft as soon as you
receive an alert.
Updates to the operating system and other software may have become available after the computer
left the factory. To be sure that all available updates are installed on the computer, observe these
guidelines:
1. Run Windows Update as soon as possible after you set up your computer.
2. Run Windows Update monthly thereafter.
3. Obtain updates to Windows and other Microsoft programs, as they are released, from the
Microsoft website and through the updates link in Help and Support.
Using HP Client Security (select models only)
HP Client Security software is preinstalled on select computer models. This software can be
accessed through Windows Control Panel. It provides security features that help protect against
unauthorized access to the computer, networks, and critical data. For more information, see the HP
Client Security software Help.
Using the fingerprint reader (select models only)
Integrated fingerprint readers are available on select computer models. In order to use the fingerprint
reader, you must enroll your fingerprints in the HP Client Security's Credential Manager. Refer to the
HP Client Security software Help.
After you enroll your fingerprints in Credential Manager, you can use HP Client Security's Password
Manager to store and fill in your user names and passwords in supported websites and applications.
Locating the fingerprint reader
The fingerprint reader is a small metallic sensor that is located in one of the following areas of your
computer:
Near the bottom of the TouchPad
●
On the right side of the keyboard
●
On the upper-right side of the display
●
On the left side of the display
●
Depending on your computer model, the reader may be oriented horizontally or vertically. Both
orientations require that you swipe your finger perpendicular to the metallic sensor. See Getting to
know your computer on page 4 for the location of the fingerprint reader on your computer.
Installing critical security updates 57
9 Maintenance
Cleaning your computer
Use the following products to safely clean your computer:
Dimethyl benzyl ammonium chloride 0.3 percent maximum concentration (for example,
●
disposable wipes, which come in a variety of brands).
Alcohol-free glass-cleaning fluid
●
Water with mild soap solution
●
Dry microfiber cleaning cloth or a chamois (static-free cloth without oil)
●
Static-free cloth wipes
●
CAUTION: Avoid strong cleaning solvents that can permanently damage your computer. If you are
not sure that a cleaning product is safe for your computer, check the product contents to make sure
that ingredients such as alcohol, acetone, ammonium chloride, methylene chloride, and hydrocarbons
are not included in the product.
Fibrous materials, such as paper towels, can scratch the computer. Over time, dirt particles and
cleaning agents can get trapped in the scratches.
Cleaning procedures
Follow the procedures in this section to safely clean your computer.
WARNING! To prevent electric shock or damage to components, do not attempt to clean your
computer while it is turned on.
Turn off the computer.
●
Disconnect AC power.
●
Disconnect all powered external devices.
●
CAUTION: To prevent damage to internal components, do not spray cleaning agents or liquids
directly on any computer surface. Liquids dripped on the surface can permanently damage internal
components.
Cleaning the display (All-in-Ones or Notebooks)
Gently wipe the display using a soft, lint-free cloth moistened with an alcohol-free glass cleaner. Be
sure that the display is dry before closing the display.
Cleaning the sides or cover
To clean the sides or cover, use a soft microfiber cloth or chamois moistened with one of the cleaning
solutions listed previously or use an acceptable disposable wipe.
NOTE: When cleaning the cover of the computer, use a circular motion to aid in removing dirt and
debris.
58 Chapter 9 Maintenance
Cleaning the TouchPad, keyboard, or mouse
WARNING! To reduce the risk of electric shock or damage to internal components, do not use a
vacuum cleaner attachment to clean the keyboard. A vacuum cleaner can deposit household debris
on the keyboard surface.
CAUTION: To prevent damage to internal components, do not allow liquids to drip between the
keys.
To clean the TouchPad, keyboard, or mouse, use a soft microfiber cloth or a chamois moistened
●
with one of the cleaning solutions listed previously or use an acceptable disposable wipe.
To prevent keys from sticking and to remove dust, lint, and particles from the keyboard, use a
●
can of compressed air with a straw extension.
Updating programs and drivers
HP recommends that you update your programs and drivers on a regular basis to the latest versions.
Updates can resolve issues and bring new features and options to your computer. Technology is
always changing, and updating programs and drivers allows your computer to run the latest
technology available. For example, older graphics components might not work well with the most
recent gaming software. Without the latest driver, you would not be getting the most out of your
equipment.
Go to http://www.hp.com/support to download the latest versions of HP programs and drivers. In
addition, register to receive automatic update notifications when they become available.
Using SoftPaq Download Manager
HP SoftPaq Download Manager (SDM) is a tool that provides quick access to SoftPaq information for
HP business computers without requiring the SoftPaq number. Using this tool, you can easily search
for SoftPaqs, and then download and unpack them.
SoftPaq Download Manager works by reading and downloading, from the HP FTP site, a published
database file containing computer model and SoftPaq information. SoftPaq Download Manager
allows you to specify one or more computer models to determine which SoftPaqs are available for
download.
SoftPaq Download Manager checks the HP FTP site for updates to the database and software. If
updates are found, they are downloaded and applied automatically.
SoftPaq Download Manager is available on the HP website. To use SoftPaq Download Manager to
download SoftPaqs, you must first download and install the program. Go to http://www.hp.com/go/
sdm, and follow the instructions to download and install SoftPaq Download Manager.
To download SoftPaqs:
Select Start > All Programs > HP > HP SoftPaq Download Manager.
▲
NOTE: If prompted by User Account Control, click Yes.
Updating programs and drivers 59
10 Backup and recovery
Your computer includes HP and Windows tools to help you safeguard your information and retrieve it
if you ever need to. These tools will help you return your computer to a proper working state, all with
simple steps. This section provides information about the following processes:
Creating recovery media and backups
●
Restoring and recovering your system
●
Creating recovery media and backups
Recovery after a system failure is only as good as your most recent backup.
1. After you successfully set up the computer, create HP Recovery media. This step creates a
Windows 7 operating system DVD and a
to reinstall the original operating system in cases where the hard drive is corrupted or has been
replaced. The
recovery media with HP Recovery Disc Creator on page 60.
2. Use Windows Backup and Recovery tools to perform the following:
Back up individual files and folders
●
Driver Recovery
DVD installs specific drivers and applications. See Creating
Driver Recovery
DVD. The Windows DVD can be used
Back up your entire hard drive (select models only)
●
Create system repair discs (select models only) with the installed optical drive (select
●
models only) or an optional external optical drive
Create system restore points
●
NOTE: This guide describes an overview of backing up, restoring, and recovering options. For more
details about the tools provided, see Help and Support. To access Help and Support, select Start >
Help and Support.
NOTE: HP recommends that you print the recovery procedures and save them for later use, in case
of system instability.
In case of system failure, you can use the backup files to restore the contents of your computer. See
Backing up your information on page 61.
Guidelines
When creating recovery media or backing up to discs, use any of the following types of discs
●
(purchased separately): DVD+R, DVD+R DL, DVD-R, DVD-R DL, or DVD±RW. The discs you
use will depend on the type of optical drive you are using.
Be sure that the computer is connected to AC power before you start the recovery media
●
creation process or the backup process.
Creating recovery media with HP Recovery Disc Creator
HP Recovery Disc Creator is a software program that offers an alternative way to create recovery
media. After you successfully set up the computer, you can create recovery media using HP
Recovery Disc Creator. This recovery media allows you to reinstall your original operating system as
60 Chapter 10 Backup and recovery
well as select drivers and applications if the hard drive becomes corrupted. HP Recovery Disc
Creator can create two kinds of recovery DVDs:
Windows 7 operating system DVD—Installs the operating system without additional drivers or
●
applications.
Driver Recovery
●
HP Software Setup utility installs drivers and applications.
DVD—Installs specific drivers and applications only, in the same way that the
Creating recovery media
NOTE: The Windows 7 operating system DVD can be created only once. Thereafter, the option to
create that media will not be available after you create a Windows DVD.
To create the Windows DVD:
1. Select Start > All Programs > Productivity and Tools > HP Recovery Disc Creator.
2. Select Windows disk.
3. From the drop-down menu, select the drive for burning the recovery media.
4. Click the Create button to start the burning process.
After the Windows 7 operating system DVD has been created, create the
1. Select Start > All Programs > Productivity and Tools > HP Recovery Disc Creator.
2. Select Driver disk.
3. From the drop-down menu, select the drive for burning the recovery media.
4. Click the Create button to start the burning process.
Backing up your information
Driver Recovery
DVD:
You should create system repair media and your initial backup immediately after initial system setup.
As you add new software and data files, you should continue to back up your system on a regular
basis to maintain a reasonably current backup. You should also create Windows system repair media
(select models only) which can be used to start up (boot) the computer and repair the operating
system in case of system instability or failure. Your initial and subsequent backups allow you to
restore your data and settings if a failure occurs.
You can back up your information to an optional external hard drive, a network drive, or discs.
Note the following when backing up:
Store personal files in the Documents library, and back it up regularly.
●
Back up templates that are stored in their associated directories.
●
Save customized settings that appear in a window, toolbar, or menu bar by taking a screen shot
●
of your settings. The screen shot can be a time-saver if you have to reset your preferences.
When backing up to discs, number each disc after removing it from the drive.
●
NOTE: For detailed instructions on various backup and restore options, perform a search for these
topics in Help and Support. To access Help and Support, select Start > Help and Support.
NOTE: Windows includes the User Account Control feature to improve the security of your
computer. You may be prompted for your permission or password for tasks such as installing
software, running utilities, or changing Windows settings. Refer to Help and Support. To access Help
and Support, select Start > Help and Support.
Creating recovery media and backups 61
To create a backup using Windows Backup and Restore:
NOTE: The backup process may take over an hour, depending on file size and the speed of the
computer.
1. Select Start > All Programs > Maintenance > Backup and Restore.
2. Follow the on-screen instructions to set up your backup, create a system image (select models
only), or create system repair media (select models only).
Performing a system recovery
In case of system failure or instability, the computer provides the following tools to recover your files:
Windows recovery tools: You can use Windows Backup and Restore to recover information you
●
have previously backed up. You can also use Windows Startup Repair to fix problems that might
prevent Windows from starting correctly.
f11 recovery tools (select models only): You can use the f11 recovery tools to recover your
●
original hard drive image. The image includes the Windows operating system and software
programs installed at the factory.
NOTE: If you are unable to boot (start up) your computer and you cannot use the system repair
media you previously created (select models only), you must purchase Windows 7 operating system
media to reboot the computer and repair the operating system. For additional information, see Using
Windows 7 operating system media on page 63.
Using the Windows recovery tools
Using the Windows recovery tools, you can:
Recover individual files
●
Restore the computer to a previous system restore point
●
Recover information using recovery tools
●
NOTE: For detailed instructions on various recovery and restore options, perform a search for these
topics in Help and Support. To access Help and Support, select Start > Help and Support.
NOTE: Windows includes the User Account Control feature to improve the security of your
computer. You may be prompted for your permission or password for tasks such as installing
software, running utilities, or changing Windows settings. Refer to Help and Support. To access Help
and Support, select Start > Help and Support.
To recover information you previously backed up:
1. Select Start > All Programs > Maintenance > Backup and Restore.
2. Follow the on-screen instructions to recover your system settings, your computer (select models
only), or your files.
To recover your information using Startup Repair, follow these steps:
CAUTION: Some Startup Repair options will completely erase and reformat the hard drive. All files
you have created and any software installed on the computer are permanently removed. When
reformatting is complete, the recovery process restores the operating system, as well as the drivers,
software, and utilities from the backup used for recovery.
62 Chapter 10 Backup and recovery
1. If possible, back up all personal files.
2. If possible, check for the presence of the Windows partition.
To check for the Windows partition, select Start > Computer.
NOTE: If the Windows partition is not listed, you must recover your operating system and
programs using the Windows 7 operating system DVD and the
additional information, see Using Windows 7 operating system media on page 63.
3. If the Windows partition is listed, restart the computer, and then press f8 before the Windows
operating system loads.
4. Select Startup Repair.
5. Follow the on-screen instructions.
NOTE: For additional information on recovering information using the Windows tools, select Start >
Help and Support.
Using f11 recovery tools (select models only)
CAUTION: Using f11 completely erases hard drive contents and reformats the hard drive. All files
that you have created and any software that you have installed on the computer are permanently
removed. The f11 recovery tool reinstalls the operating system and HP programs and drivers that
were installed at the factory. Software not installed at the factory must be reinstalled.
Driver Recovery
media. For
To recover the original hard drive image using f11:
1. If possible, back up all personal files.
2. If possible, check for the presence of the HP Recovery partition: click Start, right-click Computer,
click Manage, and then click Disk Management.
NOTE: If the HP Recovery partition is not listed, you must recover your operating system and
programs using the Windows 7 operating system media and the
additional information, see Using Windows 7 operating system media on page 63.
3. If the HP Recovery partition is listed, restart the computer, and then press esc while the “Press
the ESC key for Startup Menu” message is displayed at the bottom of the screen.
4. Press f11 while the “Press <F11> for recovery” message is displayed on the screen.
5. Follow the on-screen instructions.
Using Windows 7 operating system media
If you cannot use the recovery media you previously created using the HP Recovery Disc Creator
(select models only), you must purchase a Windows 7 operating system DVD to reboot the computer
and repair the operating system.
To order a Windows 7 operating system DVD, go to the HP website. For U.S. support, go to
http://www.hp.com/support. For worldwide support, go to http://welcome.hp.com/country/us/en/
wwcontact_us.html. You can also order the DVD by calling support. For contact information, see the
Worldwide Telephone Numbers
booklet included with the computer.
Driver Recovery
media. For
CAUTION: Using a Windows 7 operating system DVD completely erases hard drive contents and
reformats the hard drive. All files that you have created and any software that you have installed on
the computer are permanently removed. When reformatting is complete, the recovery process helps
you restore the operating system, as well as drivers, software, and utilities.
Performing a system recovery 63
To initiate recovery using a Windows 7 operating system DVD:
NOTE: This process takes several minutes.
1. If possible, back up all personal files.
2. Restart the computer, and then insert the Windows 7 operating system DVD into the optical
drive before the Windows operating system loads.
3. When prompted, press any keyboard key.
4. Follow the on-screen instructions.
5. Click Next.
6. Select Repair your computer.
7. Follow the on-screen instructions.
After the repair is completed:
1. Eject the Windows 7 operating system DVD and then insert the
2. Install the Hardware Enabling Drivers first, and then install Recommended Applications.
Driver Recovery
DVD.
64 Chapter 10 Backup and recovery
11 Computer Setup (BIOS), MultiBoot, and
HP PC Hardware Diagnostics (UEFI)
Using Computer Setup
Computer Setup, or Basic Input/Output System (BIOS), controls communication between all the input
and output devices on the system (such as disk drives, display, keyboard, mouse, and printer).
Computer Setup includes settings for the types of devices installed, the startup sequence of the
computer, and the amount of system and extended memory.
NOTE: Use extreme care when making changes in Computer Setup. Errors can prevent the
computer from operating properly.
Starting Computer Setup
NOTE: An external keyboard or mouse connected to a USB port can be used with Computer Setup
only if USB legacy support is enabled.
To start Computer Setup, follow these steps:
1. Turn on or restart the computer, and then press esc or hold down the volume button while the
"Hold the Volume Down button to enter the BIOS Startup Menu" message is displayed at the
bottom of the screen.
2. Press or tap f10 to enter Computer Setup.
Navigating and selecting in Computer Setup
To navigate and select in Computer Setup, follow these steps:
1. Turn on or restart the computer, and then press esc or hold down the volume button while the
"Hold the Volume Down button to enter the BIOS Startup Menu" message is displayed at the
bottom of the screen.
NOTE: You can use either a pointing device (TouchPad, pointing stick, or USB mouse) or the
keyboard to navigate and make selections in Computer Setup.
2. Press or tap f10 to enter Computer Setup.
To select a menu or a menu item, use the tab key and the keyboard arrow keys and then
●
press enter, or use a pointing device to click the item.
To scroll up and down, click the up arrow or the down arrow in the upper-right corner of the
●
screen, or use the up arrow key or the down arrow key on the keyboard.
To close open dialog boxes and return to the main Computer Setup screen, press esc, and
●
then follow the on-screen instructions.
To exit Computer Setup menus, choose one of the following methods:
To exit Computer Setup menus without saving your changes:
●
Click the Exit icon in the lower-right corner of the screen, and then follow the on-screen
instructions.
Using Computer Setup 65
– or –
Select Main > Ignore Changes and Exit, and then follow the on-screen instructions.
To save your changes and exit Computer Setup menus:
●
Click the Save icon in the lower-right corner of the screen, and then follow the on-screen
instructions.
– or –
Select Main > Save Changes and Exit, and then follow the on-screen instructions.
Your changes go into effect when the computer restarts.
Restoring factory settings in Computer Setup
NOTE: Restoring defaults will not change the hard drive mode.
To return all settings in Computer Setup to the values that were set at the factory, follow these steps:
1. Turn on or restart the computer, and then press esc or hold down the volume button while the
"Hold the Volume Down button to enter the BIOS Startup Menu" message is displayed at the
bottom of the screen.
2. Press or tap f10 to enter Computer Setup.
3. Use a pointing device, the arrow keys, or touch the screen to select Main > Restore Defaults.
4. Follow the on-screen instructions.
5. To save your changes and exit, click the Save icon in the lower-right corner of the screen, and
then follow the on-screen instructions.
– or –
Select Main > Save Changes and Exit, and then follow the on-screen instructions.
Your changes go into effect when the computer restarts.
NOTE: Your password settings and security settings are not changed when you restore the factory
settings.
66 Chapter 11 Computer Setup (BIOS), MultiBoot, and HP PC Hardware Diagnostics (UEFI)
Updating the BIOS
Updated versions of the BIOS may be available on the HP website.
Most BIOS updates on the HP website are packaged in compressed files called
Some download packages contain a file named Readme.txt, which contains information regarding
installing and troubleshooting the file.
Determining the BIOS version
To determine whether available BIOS updates contain later BIOS versions than those currently
installed on the computer, you need to know the version of the system BIOS currently installed.
BIOS version information (also known as
fn+esc (if you are already in Windows) or by using Computer Setup.
1. Start Computer Setup.
2. Use a pointing device, the arrow keys, or touch the screen to select Main > System Information.
3. To exit Computer Setup without saving your changes, click the Exit icon in the lower-right corner
of the screen, and then follow the on-screen instructions.
– or –
Select Main > Ignore Changes and Exit, and then follow the on-screen instructions.
Downloading a BIOS update
CAUTION: To reduce the risk of damage to the computer or an unsuccessful installation, download
and install a BIOS update only when the computer is connected to reliable external power using the
AC adapter. Do not download or install a BIOS update while the computer is running on battery
power, docked in an optional docking device, or connected to an optional power source. During the
download and installation, follow these instructions:
ROM date
and
System BIOS
SoftPaqs
) can be revealed by pressing
.
Do not disconnect power on the computer by unplugging the power cord from the AC outlet.
Do not shut down the computer or initiate Sleep.
Do not insert, remove, connect, or disconnect any device, cable, or cord.
1. Access Help and Support by selecting Start > Help and Support.
2. Select Updates and tune-ups, and then select Check for HP updates now.
3. At the download area, follow these steps:
a. Identify the most recent BIOS update and compare it to the BIOS version currently installed
on your computer. Make a note of the date, name, or other identifier. You may need this
information to locate the update later, after it has been downloaded to your hard drive.
b. Follow the on-screen instructions to download your selection to the hard drive.
If the update is more recent than your BIOS, make a note of the path to the location on your
hard drive where the BIOS update is downloaded. You will need to access this path when
you are ready to install the update.
NOTE: If you connect your computer to a network, consult the network administrator before
installing any software updates, especially system BIOS updates.
BIOS installation procedures vary. Follow any instructions that are revealed on the screen after the
download is complete. If no instructions are revealed, follow these steps:
Using Computer Setup 67
1. Select Start > Computer.
2. Click your hard drive designation. The hard drive designation is typically Local Disk (C:).
3. Using the hard drive path you recorded earlier, open the folder on your hard drive that contains
the update.
4. Double-click the file that has an .exe extension (for example,
The BIOS installation begins.
5. Complete the installation by following the on-screen instructions.
NOTE: After a message on the screen reports a successful installation, you can delete the
downloaded file from your hard drive.
Synchronizing the tablet and keyboard
When you attach the tablet to the keyboard and restart the computer, the BIOS checks to see if the
Embedded Controller firmware on the keyboard needs to be synchronized, and will start the
synchronization. If the synchronization is interrupted, a notification screen displays for 10 seconds
before the tablet restarts and attempts to synchronize again.
NOTE: The Embedded Controller firmware will only synchronize if the tablet or keyboard battery is
more than 50% charged, or if your tablet is connected to AC power.
Using MultiBoot
About the boot device order
As the computer starts, the system attempts to boot from enabled devices. The MultiBoot utility,
which is enabled at the factory, controls the order in which the system selects a boot device. Boot
devices can include optical drives, diskette drives, a network interface card (NIC), hard drives, and
USB devices. Boot devices contain bootable media or files that the computer needs to start and
operate properly.
filename
.exe).
NOTE: Some boot devices must be enabled in Computer Setup before they can be included in the
boot order.
You can change the order in which the computer searches for a boot device by changing the boot
order in Computer Setup. You can also press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen, and then press f9. Pressing f9 displays a menu
that shows the current boot devices and allows you to select a boot device. Or, you can use MultiBoot
Express to set the computer to prompt you for a boot location each time the computer turns on or
restarts.
68 Chapter 11 Computer Setup (BIOS), MultiBoot, and HP PC Hardware Diagnostics (UEFI)
Choosing MultiBoot preferences
You can use MultiBoot in the following ways:
To set a new boot order that the computer uses each time it is turned on, by changing the boot
●
order in Computer Setup.
To dynamically choose the boot device, by pressing esc while the “Press the ESC key for
●
Startup Menu” message is displayed at the bottom of the screen, and then pressing f9 to enter
the Boot Device Options menu.
To use MultiBoot Express to set variable boot orders. This feature prompts you for a boot device
●
each time the computer is turned on or restarted.
Setting a new boot order in Computer Setup
To start Computer Setup and set a boot device order that the computer uses each time it is turned on
or restarted, follow these steps:
1. Turn on or restart the computer, and then press esc or hold down the volume button while the
"Hold the Volume Down button to enter the BIOS Startup Menu" message is displayed at the
bottom of the screen.
2. Press or tap f10 to enter Computer Setup.
3. Use a pointing device, the arrow keys, or touch the screen to select the Legacy Boot Order list,
and then press enter.
4. To move the device up in the boot order, use a pointing device to click the up arrow, or press the
+ key.
– or –
To move the device down in the boot order, use a pointing device to click the down arrow, or
press the - key.
5. To save your changes and exit Computer Setup, click the Save icon in the lower-left corner of
the screen, and then follow the on-screen instructions.
– or –
Use the arrow keys to select Main > Save Changes and Exit, and then follow the on-screen
instructions.
Dynamically choosing a boot device using the f9 prompt
To dynamically choose a boot device for the current startup sequence, follow these steps:
1. Open the Select Boot Device menu by turning on or restarting the computer, and then pressing
esc or hold down the volume button while the "Hold the Volume Down button to enter the BIOS
Startup Menu" message is displayed at the bottom of the screen.
2. Press f9.
3. Use a pointing device, the arrow keys, or touch the screen to select a boot device, then press
enter.
Using MultiBoot 69
Setting a MultiBoot Express prompt
To start Computer Setup and set the computer to display the MultiBoot startup location menu each
time the computer is started or restarted, follow these steps:
1. Turn on or restart the computer, and then press esc or hold down the volume button while the
"Hold the Volume Down button to enter the BIOS Startup Menu" message is displayed at the
bottom of the screen.
2. Press or tap f10 to enter Computer Setup.
3. Use a pointing device, the arrow keys, or touch the screen to select System Configuration >
Boot Options, and then press enter.
4. In the MultiBoot Express Popup Delay (Sec) field, enter the length of time in seconds that you
want the computer to display the startup location menu before it defaults to the current MultiBoot
setting. (When 0 is selected, the Express Boot startup location menu is not displayed.)
5. To save your changes and exit Computer Setup, click the Save icon in the lower-left corner of
the screen, and then follow the on-screen instructions.
– or –
Select Main > Save Changes and Exit, and then follow the on-screen instructions.
Your changes go into effect when the computer restarts.
Entering MultiBoot Express preferences
When the Express Boot menu is displayed during startup, you have the following choices:
To specify a boot device from the Express Boot menu, select your preference within the allotted
●
time, and then press enter.
To prevent the computer from defaulting to the current MultiBoot setting, press any key before
●
the allotted time expires. The computer will not start until you select a boot device and press
enter.
To allow the computer to start according to the current MultiBoot settings, wait for the allotted
●
time to expire.
Using HP PC Hardware Diagnostics (UEFI) (select models only)
HP PC Hardware Diagnostics is a Unified Extensible Firmware Interface (UEFI) that allows you to run
diagnostic tests to determine if the computer hardware is functioning properly. The tool runs outside
of the operating system to isolate hardware failures from issues that may be caused by the operating
system or other software components.
To start HP PC Hardware Diagnostics UEFI:
1. Turn on or restart the computer, quickly press esc, and then press f2.
After pressing f2, the BIOS searches three places for the HP PC Hardware Diagnostics (UEFI)
tools in the following order:
70 Chapter 11 Computer Setup (BIOS), MultiBoot, and HP PC Hardware Diagnostics (UEFI)
a. Connected USB drive
NOTE: To download the HP PC Hardware Diagnostics (UEFI) tool to a USB drive, see
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device on page 71.
b. Hard drive
c. BIOS
2. Use the keyboard arrow keys to select the type of diagnostic test you want to run, and then
follow the on-screen instructions.
NOTE: If you need to stop a diagnostic test while it is running, press esc.
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device
NOTE: The HP PC Hardware Diagnostics (UEFI) download instructions are provided in English
only.
There are two options to download HP PC Hardware Diagnostics to a USB device:
Option 1: HP PC Diagnostics homepage— Provides access to the latest UEFI version
1. Go to http://hp.com/go/techcenter/pcdiags.
2. Click the UEFI Download link, and then select Run.
Option 2: Support and Drivers page—Provides downloads for a specific product for earlier and later
versions
1. Go to http://www.hp.com.
2. Point to Support, located at the top of the page, and then click Download Drivers.
3. In the text box, enter the product name, and then click Go.
– or –
Click Find Now to let HP automatically detect your product.
4. Select your computer model, and then select your operating system.
5. In the Diagnostic section, click HP UEFI Support Environment.
– or –
Click Download, and then select Run.
Using HP PC Hardware Diagnostics (UEFI) (select models only) 71
12 Support
Contacting support
If the information provided in this user guide or Help and Support does not address your questions,
you can contact support. For U.S. support, go to http://www.hp.com/go/contactHP. For worldwide
support, go to http://welcome.hp.com/country/us/en/wwcontact_us.html.
Here you can:
Chat online with an HP technician.
●
NOTE: When support chat is not available in a particular language, it is available in English.
Find support telephone numbers.
●
Locate an HP service center.
●
72 Chapter 12 Support
Labels
The labels affixed to the computer provide information you may need when you troubleshoot system
problems or travel internationally with the computer.
IMPORTANT: All labels described in this section will be located on the bottom of the keyboard and
on the back of the tablet.
Service label—Provides important information to identify your computer. When contacting
●
support, you will probably be asked for the serial number, and possibly for the product number or
the model number. Locate these numbers before you contact support.
Component
(1) Serial number
(2) Product number
(3) Warranty period
Microsoft® Certificate of Authenticity label (select models only prior to Windows 8)—Contains
●
the Windows Product Key. You may need the Product Key to update or troubleshoot the
operating system. HP platforms preinstalled with Windows 8 or Windows 8.1 do not have the
physical label, but have a Digital Product Key electronically installed.
NOTE: This Digital Product Key is automatically recognized and activated by Microsoft
Operating Systems on a reinstall of the Windows 8 or Windows 8.1 operating system with HPapproved recovery methods.
Regulatory label(s)—Provide(s) regulatory information about the computer.
●
Wireless certification label(s)—Provide(s) information about optional wireless devices and the
●
approval markings of some of the countries or regions in which the devices have been approved
for use.
Labels 73
13 Specifications
Input power
The power information in this section may be helpful if you plan to travel internationally with the
computer.
The computer operates on DC power, which can be supplied by an AC or a DC power source. The
AC power source must be rated at 100–240 V, 50–60 Hz. Although the computer can be powered
from a standalone DC power source, it should be powered only with an AC adapter or a DC power
source supplied and approved by HP for use with this computer.
The computer can operate on DC power within the following specifications.
Input Power Rating
Operating voltage and current 19.5 V dc @ 2.31 A – 45 W
19.5 V dc @ 3.33 A – 65 W
19.5 V dc @ 4.62 A – 90 W
19.5 V dc @ 10.25 A — Slim 200 W
19.5 V dc @ 11.79 A — Slim 230 W
NOTE: This product is designed for IT power systems in Norway with phase-to-phase voltage not
exceeding 240 V rms.
NOTE: The computer operating voltage and current can be found on the system regulatory label.
Operating environment
Factor Metric U.S.
Temperature
Operating (writing to optical disc) 5°C to 35°C 41°F to 95°F
Nonoperating -20°C to 60°C -4°F to 140°F
Relative humidity (noncondensing)
Operating 10% to 90% 10% to 90%
Nonoperating 5% to 95% 5% to 95%
Maximum altitude (unpressurized)
Operating -15 m to 3,048 m -50 ft to 10,000 ft
Nonoperating -15 m to 12,192 m -50 ft to 40,000 ft
74 Chapter 13 Specifications
A Traveling with or shipping your computer
If you have to travel with or ship your computer, here are some tips to keep in mind to keep your
equipment safe.
Prepare the computer for traveling or shipping:
●
Back up your information to an external drive.
◦
Remove all discs and all external media cards, such as memory cards, from the computer.
◦
Turn off and then disconnect all external devices.
◦
Shut down the computer.
◦
Take along a backup of your information. Keep the backup separate on the computer.
●
When traveling by air, carry the computer as hand luggage; do not check it in with the rest of
●
your bags.
CAUTION: Avoid exposing a drive to magnetic fields. Security devices with magnetic fields
include airport walk-through devices and security wands. Airport conveyer belts and similar
security devices that check carry-on baggage use X-rays instead of magnetism and do not
damage drives.
If you plan to use the computer during a flight, listen for the in-flight announcement that tells you
●
when you are allowed to use your computer. In-flight computer use is at the discretion of the
airline.
If you are shipping the computer or a drive, use suitable protective packaging and label the
●
package “FRAGILE.”
If the computer has a wireless device installed, the use of these devices may be restricted in
some environments. Such restrictions may apply aboard aircraft, in hospitals, near explosives,
and in hazardous locations. If you are uncertain of the policy that applies to the use of a
particular device, ask for authorization to use your computer before you turn it on.
If you are traveling internationally, follow these suggestions:
●
Check the computer-related customs regulations for each country or region on your
◦
itinerary.
Check the power cord and adapter requirements for each location in which you plan to use
◦
the computer. Voltage, frequency, and plug configurations vary.
WARNING! To reduce the risk of electric shock, fire, or damage to the equipment, do not
attempt to power the computer with a voltage converter kit sold for appliances.
75
B Troubleshooting
Troubleshooting resources
Access website links and additional information about the computer through Help and Support.
●
To access Help and Support, select Start > Help and Support.
NOTE: Some checkup and repair tools require an Internet connection. HP also provides
additional tools that do not require an Internet connection.
Contact HP support. For U.S. support, go to http://www.hp.com/go/contactHP. For worldwide
●
support, go to http://welcome.hp.com/country/us/en/wwcontact_us.html.
Choose from the following types of support:
Chat online with an HP technician.
◦
NOTE: When chat is not available in a particular language, it is available in English.
Find HP support worldwide telephone numbers.
◦
Locate an HP service center.
◦
Resolving issues
The following sections describe several common issues and solutions.
The computer is unable to start up
If the computer does not turn on when you press the power button, the following suggestions may
help you determine why the computer does not start up:
If the computer is plugged into an AC outlet, plug another electrical device into the outlet to be
●
sure that the outlet is providing adequate power.
NOTE: Use only the AC adapter provided with the computer or one approved by HP for this
computer.
If the computer is plugged into an external power source other than an AC outlet, plug the
●
computer into an AC outlet using the AC adapter. Be sure that the power cord and AC adapter
connections are secure.
The computer screen is blank
If the screen is blank but you have not turned off the computer, one or more of these settings may be
the cause:
The computer may be in the Sleep state. To exit Sleep, briefly press the power button. Sleep is
●
an energy-saving feature that turns off the display. Sleep can be initiated by the system while the
computer is on but is not in use, or when the computer has reached a low battery level. To
76 Appendix B Troubleshooting
change these and other power settings, right-click the Battery icon on the Windows desktop in
the notification area, at the far right of the taskbar, and then click Preferences.
The computer may not be set to display the image on the computer screen. To transfer the
●
image to the computer screen, press fn+f4. On most models, when an optional external display,
such as a monitor, is connected to the computer, the image can be displayed on the computer
screen or the external display, or on both devices simultaneously. When you press fn+f4
repeatedly, the image alternates among the computer display, one or more external displays,
and simultaneous display on all devices.
Software is functioning abnormally
If the software is unresponsive or responds abnormally, restart the computer. Click Start, click the
arrow next to Shut down, and then select Restart. If you cannot restart the computer using this
procedure, see the next section, The computer is on but not responding on page 77.
The computer is on but not responding
If the computer is turned on but is not responding to software or keyboard commands, try the
following emergency shutdown procedures, in the sequence provided, until shutdown occurs:
CAUTION: Emergency shutdown procedures result in the loss of unsaved information.
Press and hold the power button for at least 5 seconds.
●
Disconnect the computer from external power and remove the battery.
●
The computer is unusually warm
It is normal for the computer to feel warm to the touch while it is in use. But if the computer feels
unusually
If you suspect that the computer is overheating, allow the computer to cool to room temperature. Be
sure to keep all vents free from obstructions while you are using the computer.
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not
place the computer directly on your lap or obstruct the computer air vents. Use the computer only on
a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to
contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer
and the AC adapter comply with the user-accessible surface temperature limits defined by the
International Standard for Safety of Information Technology Equipment (IEC 60950).
NOTE: The fan in the computer starts up automatically to cool internal components and prevent
overheating. It is normal for the internal fan to cycle on and off during operation.
warm, it may be overheating because a vent is blocked.
An external device is not working
Follow these suggestions if an external device does not function as expected:
Turn on the device according to the manufacturer's instructions.
●
Be sure that all device connections are secure.
●
Be sure that the device is receiving electrical power.
●
Be sure that the device, especially if it is older, is compatible with the operating system.
●
Be sure that the correct drivers are installed and updated.
●
Resolving issues 77
The wireless network connection is not working
If a wireless network connection is not working as expected, follow these suggestions:
To enable or disable a wireless or wired network device, right-click the Network Connection icon
●
on the Windows desktop in the notification area, at the far right of the taskbar. To enable
devices, select the check box from the menu option. To disable the device, clear the check box.
Be sure that the wireless device is turned on.
●
Be sure that the computer wireless antennas are free from obstructions.
●
Be sure that the cable or DSL modem and its power cord are properly connected and that the
●
lights are on.
Be sure that the wireless router or access point is properly connected to its power adapter and to
●
the cable or DSL modem, and that the lights are on.
Disconnect and then reconnect all cables, and turn the power off and then back on.
●
78 Appendix B Troubleshooting
C Electrostatic discharge
Electrostatic discharge is the release of static electricity when two objects come into contact—for
example, the shock you receive when you walk across the carpet and touch a metal door knob.
A discharge of static electricity from fingers or other electrostatic conductors may damage electronic
components. To prevent damage to the computer, damage to a drive, or loss of information, observe
these precautions:
If removal or installation instructions direct you to unplug the computer, unplug it after being
●
properly grounded and before removing a cover.
Keep components in their electrostatic-safe containers until you are ready to install them.
●
Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.
●
Use nonmagnetic tools.
●
Before handling components, discharge static electricity by touching an unpainted metal surface
●
of the component.
If you remove a component, place it in an electrostatic-safe container.
●
If you need more information about static electricity or assistance with component removal or
installation, contact HP support.
79
Index
Symbols/Numerics
2-finger click TouchPad gestures
28
2-finger pinch zoom TouchPad
gesture 27
A
AC adapter, testing 42
AC adapter/battery light 13
administrator password 50
ambient light sensor 7
antivirus software 56
audio functions, checking 33
audio-in (microphone) jack,
identifying 5, 14
audio-out (headphone) jack,
identifying 5, 14
Automatic DriveLock password
entering 55
removing 55
B
Backup and Restore 62
backup tools 60
backups
creating 61
recovering 62
battery
conserving power 41
discharging 40
displaying remaining charge
40
low battery levels 41
Battery Check 40
battery information, finding 40
battery power 39
BIOS
determining version 67
downloading an update 67
updating 67
Bluetooth device 17, 22
Bluetooth label 73
buttons
left TouchPad 9
media 32
power 5, 12, 37
right TouchPad 9
volume 4, 14, 32
C
cables
USB 47
camera flash, identifying 4
caps lock light, identifying 10
caring for your computer 58
checking audio functions 33
cleaning your computer 58
components
display 7
left side 14
right side 12
Computer Setup
BIOS administrator password
51
DriveLock password 52
navigating and selecting 65
restoring factory settings 66
computer, traveling 75
connecting to a WLAN 20
connector, power 13
conservation, power 41
corporate WLAN connection 20
critical battery level 37
critical updates, software 57
D
DisplayPort
identifying 13
DisplayPort, connecting 34
drive media 37
DriveLock password
changing 54
description 52
entering 54
removing 54
setting 53
Driver Recovery DVD,
creating 60
using for restore 63
drives
external 48
hard 48
optical 48
E
electrostatic discharge 79
embedded numeric keypad,
identifying 11, 30
esc key, identifying 11
external AC power, using 42
external devices 47
external drive 48
F
f11 recovery 63
fingerprint reader 57
Fingerprint reader, identifying 8
firewall software 56
fn key, identifying 11, 30
function keys, identifying 11
G
GPS 22
H
hard drive
external 48
hard drive recovery 63
headphone (audio-out) jack 5, 14
headphones and microphones,
connecting 33
Hibernation
exiting 38
initiating 38
hot keys
description 30
using 30
hot keys, media 32
HP Client Security 57
HP Mobile Broadband, disabled
21
HP Recovery Disc Creator,
using 60
80 Index
HP Recovery partition
checking for presence 63
using for recovery 63
hubs 46
I
input power 74
internal microphone, identifying 4
internal microphones, identifying
7, 12
Internet connection setup 19
issues, resolving 76
J
jacks
audio-in (microphone) 5, 14
audio-out (headphone) 5, 14
Java Card
defined 45
inserting 45
removing 46
K
keyboard hot keys, identifying 30
keypad
embedded numeric 11
identifying 30
keypad, external
num lock 31
using 31
keys
esc 11
fn 11
function 11
media 32
volume 32
Windows key 11
L
labels
Bluetooth 73
Microsoft Certificate of
Authenticity 73
regulatory 73
serial number 73
wireless certification 73
WLAN 73
LCD rotation lock
identifying 14
legacy support, USB 65
lights
AC adapter/battery 13
caps lock 10
microphone mute 10
num lock 10
TouchPad 10
wireless 10
low battery level 41
M
media activity controls 32
media hot keys 32
memory card
inserting 44
removing 44
supported formats 44
memory card reader, identifying
5, 12
memory card, identifying 5, 12
microphone (audio-in) jack,
identifying 5, 14
microphone mute light,
identifying 10
Microsoft Certificate of Authenticity
label 73
mouse, external
setting preferences 25
N
num lock light 10
num lock, external keypad 31
O
operating environment 74
optical drive 48
optional external devices, using
47
P
passwords
administrator 50
BIOS administrator 51
DriveLock 52
user 50
pointing devices, setting
preferences 25
ports
DisplayPort 13, 34
USB 3.0 charging (powered)
13
power
battery 39
conserving 41
options 37
power button 37
power button, identifying 5, 12
power connector, identifying 13
power switch 37
power-saving states 37
product name and number,
computer 73
public WLAN connection 20
R
readable media 37
recovery media, creating 60
recovery media, using for
restore 63
recovery partition 63
recovery tools 60
recovery tools, Windows 62
recovery, system 62
regulatory information
regulatory label 73
wireless certification labels 73
restoring the hard drive 63
rotating TouchPad gesture 28
S
scrolling TouchPad gesture 27
security, wireless 20
serial number 73
serial number, computer 73
setting password protection on
wakeup 39
setting power options 37
setup of WLAN 19
setup utility
navigating and selecting 65
restoring factory settings 66
shutdown 37
SIM
inserting 21
SIM card slot 5, 13
Sleep
exiting 38
initiating 38
slots
memory card reader 5, 12
smart card 14
Index 81
smart card
defined 45
inserting 45
removing 46
smart card slot 14
software
antivirus 56
critical updates 57
firewall 56
speakers 7
Startup Repair, using 62
switch, power 37
T
testing an AC adapter 42
TouchPad
buttons 9
using 25
TouchPad gestures
2-finger click 28
2-finger pinch zoom 27
rotating 28
scrolling 27
using 25
TouchPad light, identifying 10
TouchPad zone
identifying 9
traveling with the computer 73,
75
turning off the computer 37
U
unresponsive system 37
USB 3.0 charging (powered) port,
identifying 13
USB 3.0 port 14
USB cable, connecting 47
USB devices
connecting 47
description 46
removing 47
USB hubs 46
USB legacy support 65
USB ports, identifying 14
user password 50
using
external AC power 42
power-saving states 37
video 34
volume
adjusting 32
buttons 32
keys 32
volume button, identifying 4, 14
W
webcam 7, 33
webcam, identifying 4, 7
WiGig antenna, identifying 7
Windows 7 operating system DVD
creating 60
using for restore 63
Windows 7 operating system
media
creating 60
using for restore 63
Windows button
identifying 7
Windows key, identifying 11
Windows Startup Repair, using
62
wireless antennas, identifying 7
wireless button 17
wireless certification label 73
wireless controls
button 17
operating system 17
wireless light 10, 17
wireless network (WLAN)
connecting 20
corporate WLAN connection
20
equipment needed 19
functional range 20
public WLAN connection 20
security 20
using 18
WLAN antennas, identifying 7
WLAN device 18, 73
WLAN label 73
writable media 37
WWAN antennas, identifying 7
WWAN device 17, 21
V
vents, identifying 4
82 Index
