HP DL185 User Manual

HP ProLiant DL185 Generation 5 Server

Maintenance and Service Guide

Part number 448688-006 Sixth edition November 2010

Legal notices

set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

AMD, Opteron are trademarks of Advanced Micro Systems, Inc.

Customer self repair ...............................................................................................................................5

Parts only warranty service........................................................................................................................ 5

Illustrated parts catalog......................................................................................................................... 16

Mechanical components ......................................................................................................................... 16

System components of 8 HDD server ........................................................................................................ 20

System components of 12HDD server ....................................................................................................... 22

HP Contact Information........................................................................................................................... 26

Before You Contact HP ........................................................................................................................... 26

Removal and Replacement Procedures ....................................................................................................27

Hardware Configuration Tools................................................................................................................. 27

Hardware Configuration Information ........................................................................................................ 27

Electrostatic Discharge Information ...................................................................................................... 27

Pre-Installation Procedure ................................................................................................................... 28

Post-installation instructions ................................................................................................................. 28

Server Warnings and Cautions................................................................................................................ 28

Symbols on Equipment............................................................................................................................ 29

Powering Down the Server ...................................................................................................................... 29

System Covers ....................................................................................................................................... 30

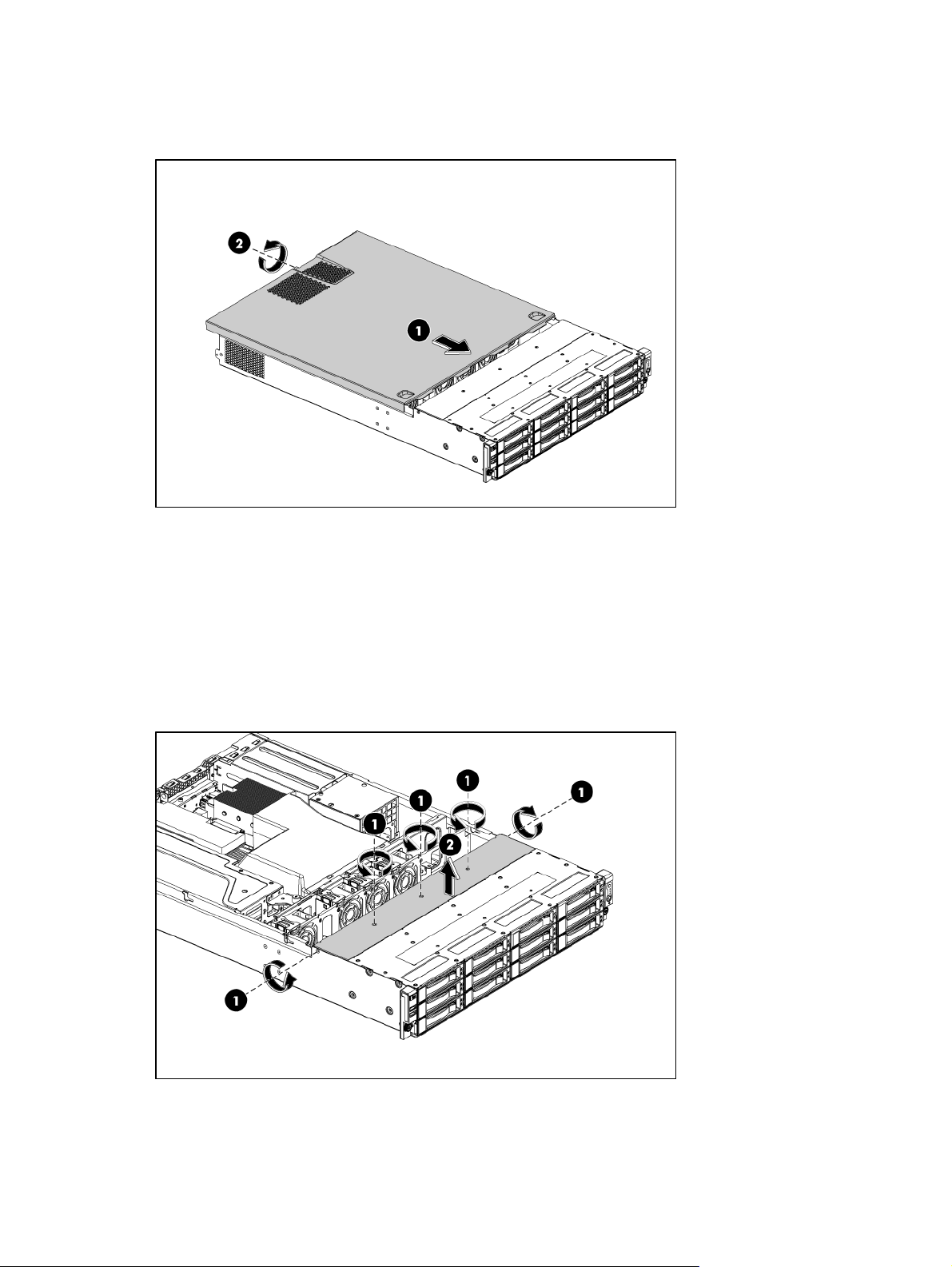

Top Cover........................................................................................................................................ 30

Top Middle Cover............................................................................................................................. 31

Drives................................................................................................................................................... 32

Cable Management .......................................................................................................................... 32

Drive Bay Configuration..................................................................................................................... 33

Optical Media Device Bay ................................................................................................................. 34

Hard Drives...................................................................................................................................... 39

SAS/SATA HDD Backplane................................................................................................................ 42

The Rear DVD/CDRW Optical Drive PCI cage...................................................................................... 45

System Board Configuration .................................................................................................................... 48

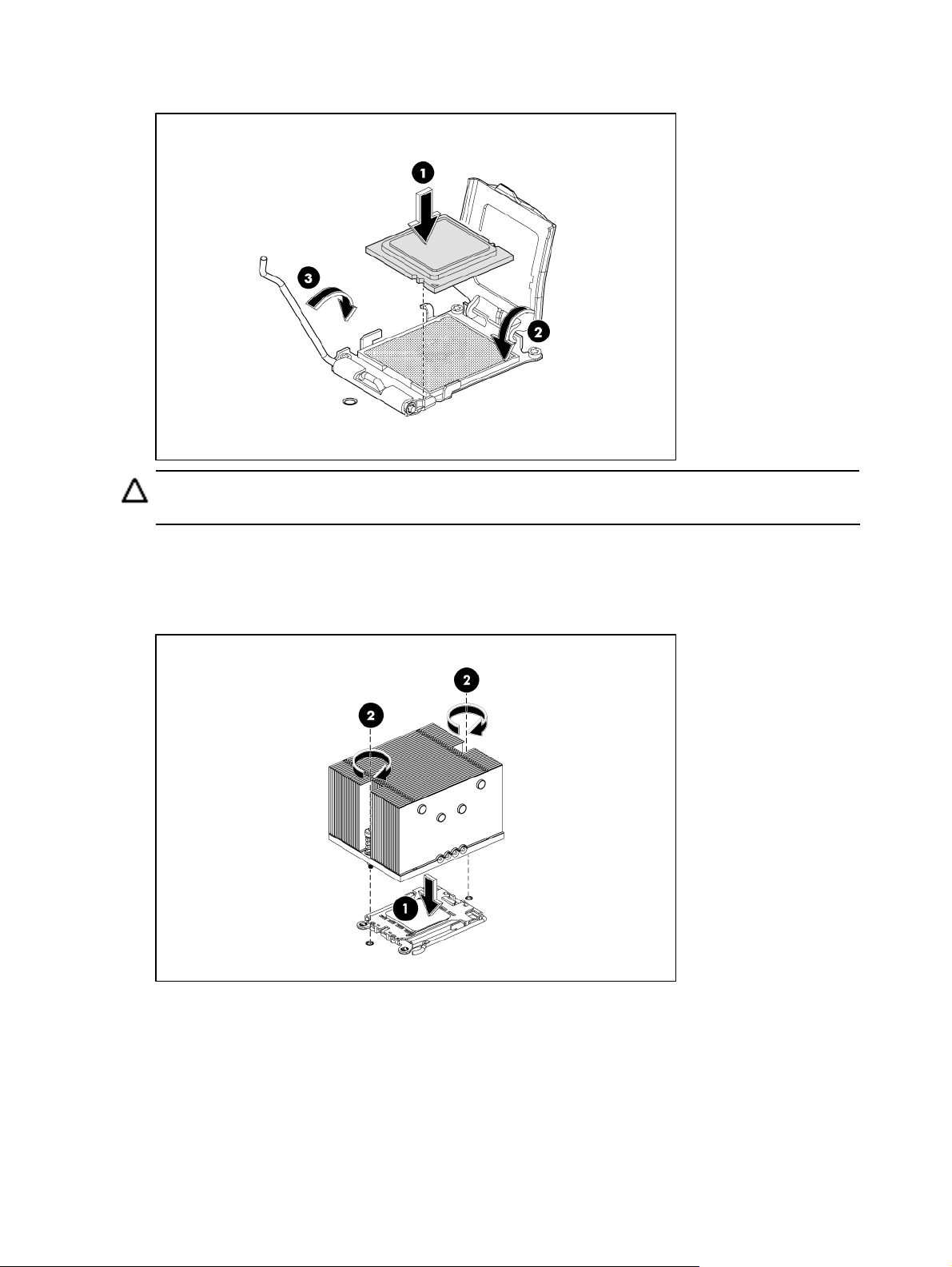

Processor ......................................................................................................................................... 48

Memory........................................................................................................................................... 53

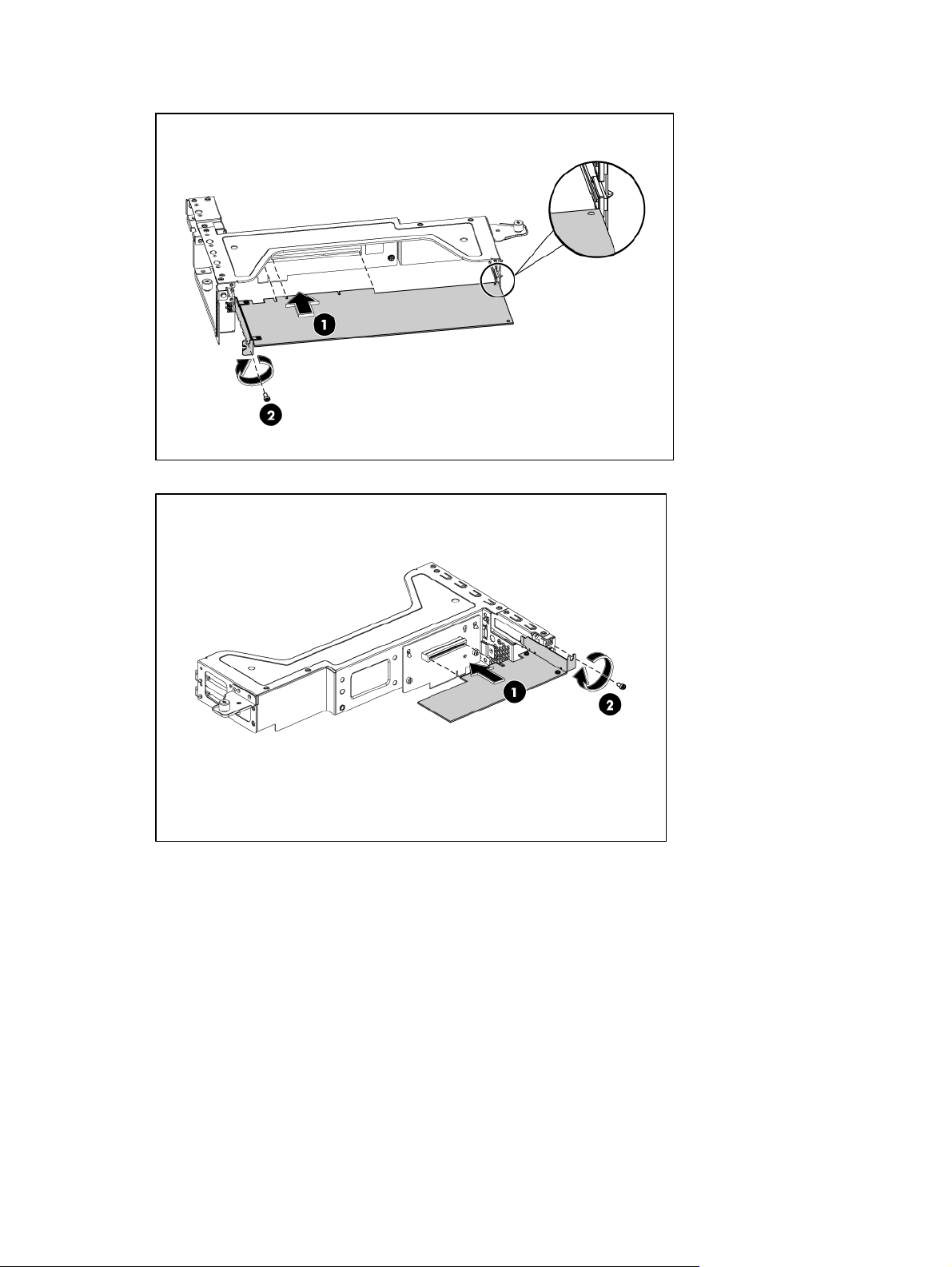

PCI Expansion Cards......................................................................................................................... 55

System Battery .................................................................................................................................. 63

System Board Removal and Replacement Procedure .............................................................................. 64

Power Supply Unit (PSU) .................................................................................................................... 65

System Fan....................................................................................................................................... 67

Connectors, Switches, and LEDs.............................................................................................................69

Connectors and Components................................................................................................................... 69

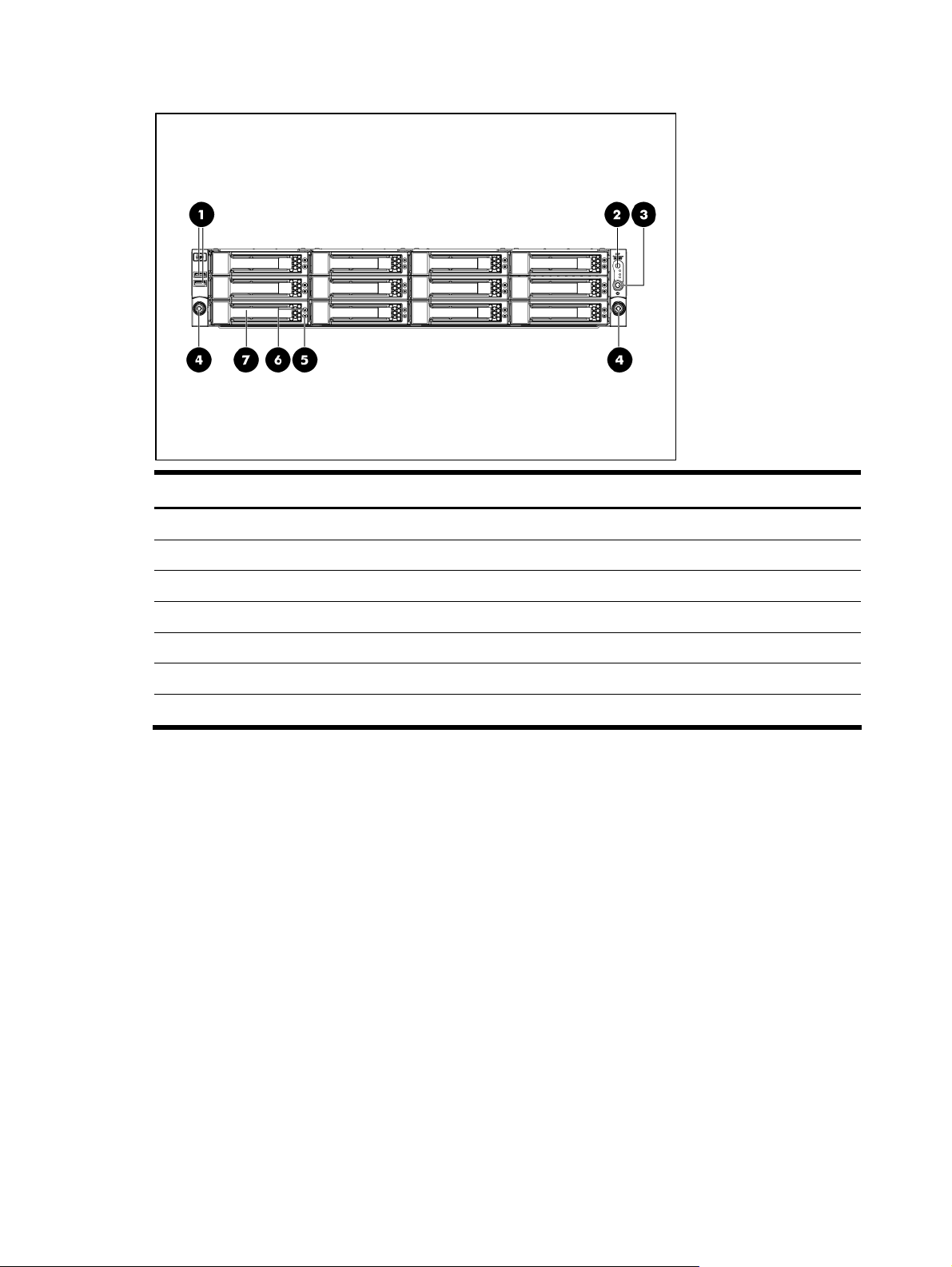

Front Panel Components .................................................................................................................... 69

Rear panel components ..................................................................................................................... 71

System board components.................................................................................................................. 73

Jumpers – Password, Rear HDD Opt Fan and Chassis ID........................................................................ 74

System Switches................................................................................................................................ 75

LED Indicators........................................................................................................................................ 75

Front panel LED indicators.................................................................................................................. 76

Rear panel LED indicators .................................................................................................................. 80

System board LED indicator................................................................................................................ 81

Contents 3

Diagnostic tools and Setup Utilities.........................................................................................................82

BIOS Software....................................................................................................................................... 82

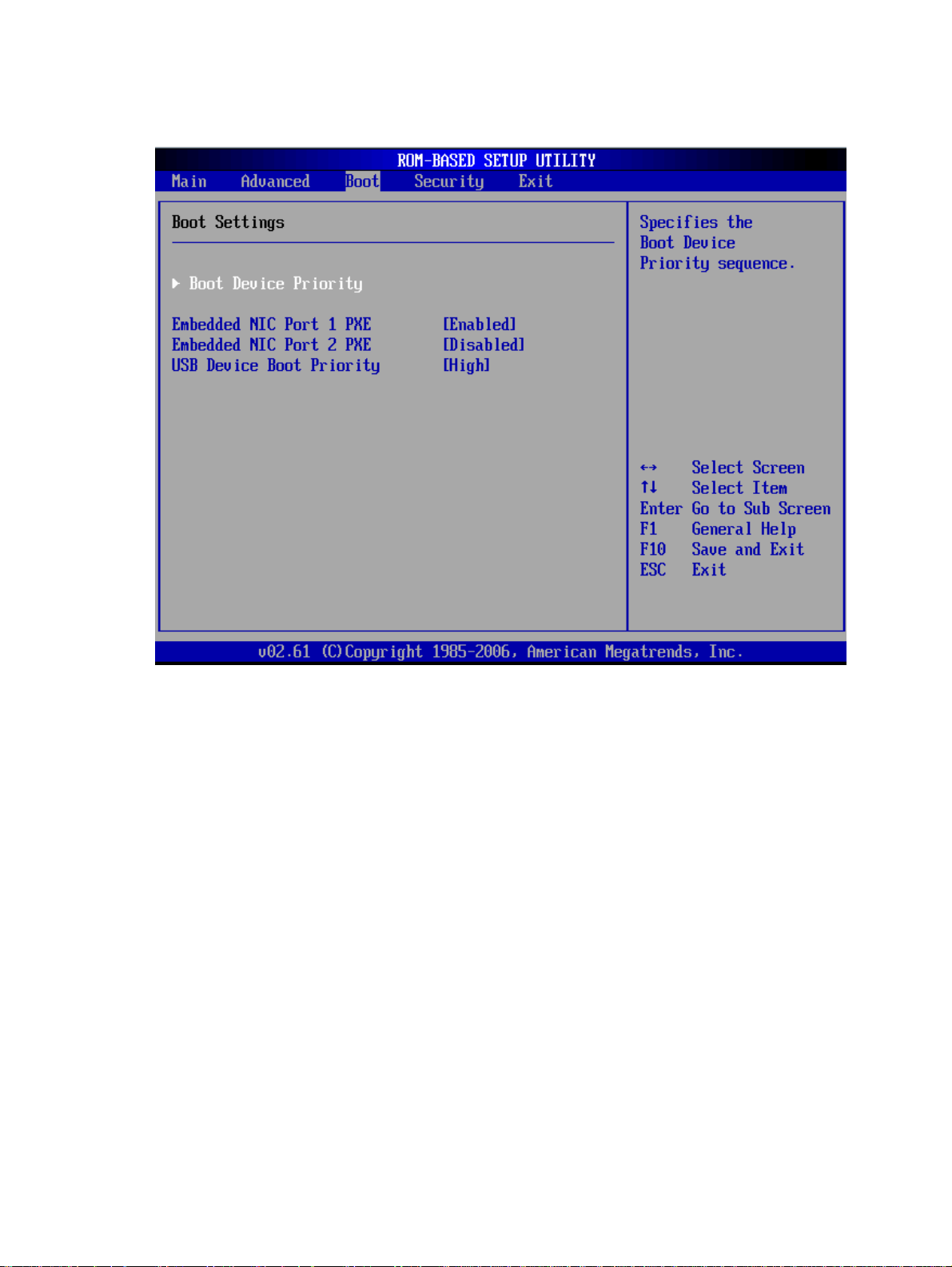

BIOS Setup Utility .................................................................................................................................. 82

Accessing the BIOS Setup Utility .............................................................................................................. 82

Navigating through the Setup Utility .................................................................................................... 83

Setup Utility Menu Bar ....................................................................................................................... 85

BIOS Update......................................................................................................................................... 93

Clear CMOS......................................................................................................................................... 94

Power-On Self-Test (POST)....................................................................................................................... 94

POST Error Indicators ........................................................................................................................ 94

POST Errors Message Definition.......................................................................................................... 95

POST Related Troubleshooting ............................................................................................................ 97

Physical and Operating Specifications.................................................................................................... 98

System Unit ........................................................................................................................................... 98

Index ................................................................................................................................................ 101

Contents 4

Customer self repair

HP products are designed with many Customer Self Repair (CSR) parts to minimize repair time and allow for greater flexibility in performing defective parts replacement. If during the diagnosis period HP (or HP service providers or service partners) identifies that the repair can be accomplished by the use of a CSR part, HP will ship that part directly to you for replacement. There are two categories of CSR parts:

• Mandatory—Parts for which customer self repair is mandatory. If you request HP to replace

these parts, you will be charged for the travel and labor costs of this service.

• Optional—Parts for which customer self repair is optional. These parts are also designed for

customer self repair. If, however, you require that HP replace them for you, there may or may not be additional charges, depending on the type of warranty service designated for your product.

NOTE: Some HP parts are not designed for customer self repair. In order to satisfy the customer warranty, HP requires that an authorized service provider replace the part. These parts are identified as "No" in the Illustrated Parts Catalog.

Based on availability and where geography permits, CSR parts will be shipped for next business day delivery. Same day or four-hour delivery may be offered at an additional charge where geography permits. If assistance is required, you can call the HP Technical Support Center and a technician will help you over the telephone. HP specifies in the materials shipped with a replacement CSR part whether a defective part must be returned to HP. In cases where it is required to return the defective part to HP, you must ship the defective part back to HP within a defined period of time, normally five (5) business days. The defective part must be returned with the associated documentation in the provided shipping material. Failure to return the defective part may result in HP billing you for the replacement. With a customer self repair, HP will pay all shipping and part return costs and determine the courier/carrier to be used.

For more information about HP's Customer Self Repair program, contact your local service provider. For the North American program, refer to the HP website (http://www.hp.com/go/selfrepair

Parts only warranty service

Your HP Limited Warranty may include a parts only warranty service. Under the terms of parts only warranty service, HP will provide replacement parts free of charge.

For parts only warranty service, CSR part replacement is mandatory. If you request HP to replace these parts, you will be charged for the travel and labor costs of this service.

Contents 5

Réparation par le client (CSR)

Les produits HP comportent de nombreuses pièces CSR (Customer Self Repair = réparation par le client) afin de minimiser les délais de réparation et faciliter le remplacement des pièces défectueuses. Si pendant la période de diagnostic, HP (ou ses partenaires ou mainteneurs agréés) détermine que la réparation peut être effectuée à l'aide d'une pièce CSR, HP vous l'envoie directement. Il existe deux catégories de pièces CSR:

• Obligatoire - Pièces pour lesquelles la réparation par le client est obligatoire. Si vous

demandez à HP de remplacer ces pièces, les coûts de déplacement et main d'œuvre du service vous seront facturés.

• Facultatif - Pièces pour lesquelles la réparation par le client est facultative. Ces pièces sont

également conçues pour permettre au client d'effectuer lui-même la réparation. Toutefois, si vous demandez à HP de remplacer ces pièces, l'intervention peut ou non vous être facturée, selon le type de garantie applicable à votre produit.

REMARQUE: Certaines pièces HP ne sont pas conçues pour permettre au client d'effectuer lui-même la réparation. Pour que la garantie puisse s'appliquer, HP exige que le remplacement de la pièce soit effectué par un Mainteneur Agréé. Ces pièces sont identifiées par la mention "Non" dans le Catalogue illustré.

Les pièces CSR sont livrées le jour ouvré suivant, dans la limite des stocks disponibles et selon votre situation géographique. Si votre situation géographique le permet et que vous demandez une livraison le jour même ou dans les 4 heures, celle-ci vous sera facturée. Pour bénéficier d'une assistance téléphonique, appelez le Centre d'assistance technique HP. Dans les documents envoyés avec la pièce de rechange CSR, HP précise s'il est nécessaire de lui retourner la pièce défectueuse. Si c'est le cas, vous devez le faire dans le délai indiqué, généralement cinq (5) jours ouvrés. La pièce et sa documentation doivent être retournées dans l'emballage fourni. Si vous ne retournez pas la pièce défectueuse, HP se réserve le droit de vous facturer les coûts de remplacement. Dans le cas d'une pièce CSR, HP supporte l'ensemble des frais d'expédition et de retour, et détermine la société de courses ou le transporteur à utiliser.

Pour plus d'informations sur le programme CSR de HP, contactez votre Mainteneur Agrée local. Pour plus d'informations sur ce programme en Amérique du Nord, consultez le site Web HP (http://www.hp.com/go/selfrepair

Service de garantie "pièces seules"

Votre garantie limitée HP peut inclure un service de garantie "pièces seules". Dans ce cas, les pièces de rechange fournies par HP ne sont pas facturées.

Dans le cadre de ce service, la réparation des pièces CSR par le client est obligatoire. Si vous demandez à HP de remplacer ces pièces, les coûts de déplacement et main d'œuvre du service vous seront facturés.

Contents 6

Riparazione da parte del cliente

Per abbreviare i tempi di riparazione e garantire una maggiore flessibilità nella sostituzione di parti difettose, i prodotti HP sono realizzati con numerosi componenti che possono essere riparati direttamente dal cliente (CSR, Customer Self Repair). Se in fase di diagnostica HP (o un centro di servizi o di assistenza HP) identifica il guasto come riparabile mediante un ricambio CSR, HP lo spedirà direttamente al cliente per la sostituzione. Vi sono due categorie di parti CSR:

• Obbligatorie – Parti che devono essere necessariamente riparate dal cliente. Se il cliente ne

affida la riparazione ad HP, deve sostenere le spese di spedizione e di manodopera per il servizio.

• Opzionali – Parti la cui riparazione da parte del cliente è facoltativa. Si tratta comunque di

componenti progettati per questo scopo. Se tuttavia il cliente ne richiede la sostituzione ad HP, potrebbe dover sostenere spese addizionali a seconda del tipo di garanzia previsto per il prodotto.

NOTA: alcuni componenti HP non sono progettati per la riparazione da parte del cliente. Per rispettare la garanzia, HP richiede che queste parti siano sostituite da un centro di assistenza autorizzato. Tali parti sono identificate da un "No" nel Catalogo illustrato dei componenti.

In base alla disponibilità e alla località geografica, le parti CSR vengono spedite con consegna entro il giorno lavorativo seguente. La consegna nel giorno stesso o entro quattro ore è offerta con un supplemento di costo solo in alcune zone. In caso di necessità si può richiedere l'assistenza telefonica di un addetto del centro di supporto tecnico HP. Nel materiale fornito con una parte di ricambio CSR, HP specifica se il cliente deve restituire dei componenti. Qualora sia richiesta la resa ad HP del componente difettoso, lo si deve spedire ad HP entro un determinato periodo di tempo, generalmente cinque (5) giorni lavorativi. Il componente difettoso deve essere restituito con la documentazione associata nell'imballo di spedizione fornito. La mancata restituzione del componente può comportare la fatturazione del ricambio da parte di HP. Nel caso di riparazione da parte del cliente, HP sostiene tutte le spese di spedizione e resa e sceglie il corriere/vettore da utilizzare.

Per ulteriori informazioni sul programma CSR di HP contattare il centro di assistenza di zona. Per il programma in Nord America fare riferimento al sito Web HP (http://www.hp.com/go/selfrepair

Servizio di garanzia per i soli componenti

La garanzia limitata HP può includere un servizio di garanzia per i soli componenti. Nei termini di garanzia del servizio per i soli componenti, HP fornirà gratuitamente le parti di ricambio.

Per il servizio di garanzia per i soli componenti è obbligatoria la formula CSR che prevede la riparazione da parte del cliente. Se il cliente invece richiede la sostituzione ad HP, dovrà sostenere le spese di spedizione e di manodopera per il servizio.

Contents 7

Customer Self Repair

HP Produkte enthalten viele CSR-Teile (Customer Self Repair), um Reparaturzeiten zu minimieren und höhere Flexibilität beim Austausch defekter Bauteile zu ermöglichen. Wenn HP (oder ein HP Servicepartner) bei der Diagnose feststellt, dass das Produkt mithilfe eines CSR-Teils repariert werden kann, sendet Ihnen HP dieses Bauteil zum Austausch direkt zu. CSR-Teile werden in zwei Kategorien unterteilt:

• Zwingend – Teile, für die das Customer Self Repair-Verfahren zwingend vorgegeben ist.

Wenn Sie den Austausch dieser Teile von HP vornehmen lassen, werden Ihnen die Anfahrt- und Arbeitskosten für diesen Service berechnet.

• Optional – Teile, für die das Customer Self Repair-Verfahren optional ist. Diese Teile sind auch

für Customer Self Repair ausgelegt. Wenn Sie jedoch den Austausch dieser Teile von HP vornehmen lassen möchten, können bei diesem Service je nach den für Ihr Produkt vorgesehenen Garantiebedingungen zusätzliche Kosten anfallen.

HINWEIS: Einige Teile sind nicht für Customer Self Repair ausgelegt. Um den Garantieanspruch des Kunden zu erfüllen, muss das Teil von einem HP Servicepartner ersetzt werden. Im illustrierten Teilekatalog sind diese Teile mit „No“ bzw. „Nein“ gekennzeichnet.

CSR-Teile werden abhängig von der Verfügbarkeit und vom Lieferziel am folgenden Geschäftstag geliefert. Für bestimmte Standorte ist eine Lieferung am selben Tag oder innerhalb von vier Stunden gegen einen Aufpreis verfügbar. Wenn Sie Hilfe benötigen, können Sie das HP technische Support Center anrufen und sich von einem Mitarbeiter per Telefon helfen lassen. Den Materialien, die mit einem CSR-Ersatzteil geliefert werden, können Sie entnehmen, ob das defekte Teil an HP zurückgeschickt werden muss. Wenn es erforderlich ist, das defekte Teil an HP zurückzuschicken, müssen Sie dies innerhalb eines vorgegebenen Zeitraums tun, in der Regel innerhalb von fünf (5) Geschäftstagen. Das defekte Teil muss mit der zugehörigen Dokumentation in der Verpackung zurückgeschickt werden, die im Lieferumfang enthalten ist. Wenn Sie das defekte Teil nicht zurückschicken, kann HP Ihnen das Ersatzteil in Rechnung stellen. Im Falle von Customer Self Repair kommt HP für alle Kosten für die Lieferung und Rücksendung auf und bestimmt den Kurier/Frachtdienst.

Weitere Informationen über das HP Customer Self Repair Programm erhalten Sie von Ihrem Servicepartner vor Ort. Informationen über das CSR-Programm in Nordamerika finden Sie auf der HP Website unter (http://www.hp.com/go/selfrepair

Parts-only Warranty Service (Garantieservice ausschließlich für Teile)

Ihre HP Garantie umfasst möglicherweise einen Parts-only Warranty Service (Garantieservice ausschließlich für Teile). Gemäß den Bestimmungen des Parts-only Warranty Service stellt HP Ersatzteile kostenlos zur Verfügung.

Für den Parts-only Warranty Service ist das CSR-Verfahren zwingend vorgegeben. Wenn Sie den Austausch dieser Teile von HP vornehmen lassen, werden Ihnen die Anfahrt- und Arbeitskosten für diesen Service berechnet.

Contents 8

Reparaciones del propio cliente

Los productos de HP incluyen muchos componentes que el propio usuario puede reemplazar (Customer Self Repair, CSR) para minimizar el tiempo de reparación y ofrecer una mayor flexibilidad a la hora de realizar sustituciones de componentes defectuosos. Si, durante la fase de diagnóstico, HP (o los proveedores o socios de servicio de HP) identifica que una reparación puede llevarse a cabo mediante el uso de un componente CSR, HP le enviará dicho componente directamente para que realice su sustitución. Los componentes CSR se clasifican en dos categorías:

• Obligatorio: componentes para los que la reparación por parte del usuario es obligatoria. Si

solicita a HP que realice la sustitución de estos componentes, tendrá que hacerse cargo de los gastos de desplazamiento y de mano de obra de dicho servicio.

• Opcional: componentes para los que la reparación por parte del usuario es opcional. Estos

componentes también están diseñados para que puedan ser reparados por el usuario. Sin embargo, si precisa que HP realice su sustitución, puede o no conllevar costes adicionales, dependiendo del tipo de servicio de garantía correspondiente al producto.

NOTA: Algunos componentes no están diseñados para que puedan ser reparados por el usuario. Para que el usuario haga valer su garantía, HP pone como condición que un proveedor de servicios autorizado realice la sustitución de estos componentes. Dichos componentes se identifican con la palabra "No" en el catálogo ilustrado de componentes.

Según la disponibilidad y la situación geográfica, los componentes CSR se enviarán para que lleguen a su destino al siguiente día laborable. Si la situación geográfica lo permite, se puede solicitar la entrega en el mismo día o en cuatro horas con un coste adicional. Si precisa asistencia técnica, puede llamar al Centro de asistencia técnica de HP y recibirá ayuda telefónica por parte de un técnico. Con el envío de materiales para la sustitución de componentes CSR, HP especificará si los componentes defectuosos deberán devolverse a HP. En aquellos casos en los que sea necesario devolver algún componente a HP, deberá hacerlo en el periodo de tiempo especificado, normalmente cinco días laborables. Los componentes defectuosos deberán devolverse con toda la documentación relacionada y con el embalaje de envío. Si no enviara el componente defectuoso requerido, HP podrá cobrarle por el de sustitución. En el caso de todas sustituciones que lleve a cabo el cliente, HP se hará cargo de todos los gastos de envío y devolución de componentes y escogerá la empresa de transporte que se utilice para dicho servicio.

Para obtener más información acerca del programa de Reparaciones del propio cliente de HP, póngase en contacto con su proveedor de servicios local. Si está interesado en el programa para Norteamérica, visite la página web de HP siguiente (http://www.hp.com/go/selfrepair

Servicio de garantía exclusivo de componentes

La garantía limitada de HP puede que incluya un servicio de garantía exclusivo de componentes. Según las condiciones de este servicio exclusivo de componentes, HP le facilitará los componentes de repuesto sin cargo adicional alguno.

Para este servicio de garantía exclusivo de componentes, es obligatoria la sustitución de componentes por parte del usuario (CSR). Si solicita a HP que realice la sustitución de estos componentes, tendrá que hacerse cargo de los gastos de desplazamiento y de mano de obra de dicho servicio.

Contents 9

Customer Self Repair

Veel onderdelen in HP producten zijn door de klant zelf te repareren, waardoor de reparatieduur tot een minimum beperkt kan blijven en de flexibiliteit in het vervangen van defecte onderdelen groter is. Deze onderdelen worden CSR-onderdelen (Customer Self Repair) genoemd. Als HP (of een HP Service Partner) bij de diagnose vaststelt dat de reparatie kan worden uitgevoerd met een CSRonderdeel, verzendt HP dat onderdeel rechtstreeks naar u, zodat u het defecte onderdeel daarmee kunt vervangen. Er zijn twee categorieën CSR-onderdelen:

• Verplicht: Onderdelen waarvoor reparatie door de klant verplicht is. Als u HP verzoekt deze

onderdelen voor u te vervangen, worden u voor deze service reiskosten en arbeidsloon in rekening gebracht.

• Optioneel: Onderdelen waarvoor reparatie door de klant optioneel is. Ook deze onderdelen

zijn ontworpen voor reparatie door de klant. Als u echter HP verzoekt deze onderdelen voor u te vervangen, kunnen daarvoor extra kosten in rekening worden gebracht, afhankelijk van het type garantieservice voor het product.

OPMERKING: Sommige HP onderdelen zijn niet ontwikkeld voor reparatie door de klant. In verband met de garantievoorwaarden moet het onderdeel door een geautoriseerde Service Partner worden vervangen. Deze onderdelen worden in de geïllustreerde onderdelencatalogus aangemerkt met "Nee".

Afhankelijk van de leverbaarheid en de locatie worden CSR-onderdelen verzonden voor levering op de eerstvolgende werkdag. Levering op dezelfde dag of binnen vier uur kan tegen meerkosten worden aangeboden, indien dit mogelijk is gezien de locatie. Indien assistentie gewenst is, belt u een HP Service Partner om via de telefoon technische ondersteuning te ontvangen. HP vermeldt in de documentatie bij het vervangende CSR-onderdeel of het defecte onderdeel aan HP moet worden geretourneerd. Als het defecte onderdeel aan HP moet worden teruggezonden, moet u het defecte onderdeel binnen een bepaalde periode, gewoonlijk vijf (5) werkdagen, retourneren aan HP. Het defecte onderdeel moet met de bijbehorende documentatie worden geretourneerd in het meegeleverde verpakkingsmateriaal. Als u het defecte onderdeel niet terugzendt, kan HP u voor het vervangende onderdeel kosten in rekening brengen. Bij reparatie door de klant betaalt HP alle verzendkosten voor het vervangende en geretourneerde onderdeel en kiest HP zelf welke koerier/transportonderneming hiervoor wordt gebruikt.

Neem contact op met een Service Partner voor meer informatie over het Customer Self Repair programma van HP. Informatie over Service Partners vindt u op de HP website (http://www.hp.nl/services/servicepartners

Garantieservice "Parts Only"

Het is mogelijk dat de HP garantie alleen de garantieservice "Parts Only" omvat. Volgens de bepalingen van de Parts Only garantieservice zal HP kosteloos vervangende onderdelen ter beschikking stellen.

Voor de Parts Only garantieservice is vervanging door CSR-onderdelen verplicht. Als u HP verzoekt deze onderdelen voor u te vervangen, worden u voor deze service reiskosten en arbeidsloon in rekening gebracht.

Contents 10

Reparo feito pelo cliente

Os produtos da HP são projetados com muitas peças para reparo feito pelo cliente (CSR) de modo a minimizar o tempo de reparo e permitir maior flexibilidade na substituição de peças com defeito. Se, durante o período de diagnóstico, a HP (ou fornecedores/parceiros de serviço da HP) concluir que o reparo pode ser efetuado pelo uso de uma peça CSR, a peça de reposição será enviada diretamente ao cliente. Existem duas categorias de peças CSR:

• Obrigatória – Peças cujo reparo feito pelo cliente é obrigatório. Se desejar que a HP substitua

essas peças, serão cobradas as despesas de transporte e mão-de-obra do serviço.

• Opcional – Peças cujo reparo feito pelo cliente é opcional. Essas peças também são

projetadas para o reparo feito pelo cliente. No entanto, se desejar que a HP as substitua, pode haver ou não a cobrança de taxa adicional, dependendo do tipo de serviço de garantia destinado ao produto.

OBSERVAÇÃO: Algumas peças da HP não são projetadas para o reparo feito pelo cliente. A fim de cumprir a garantia do cliente, a HP exige que um técnico autorizado substitua a peça. Essas peças estão identificadas com a marca "No" (Não), no catálogo de peças ilustrado.

Conforme a disponibilidade e o local geográfico, as peças CSR serão enviadas no primeiro dia útil após o pedido. Onde as condições geográficas permitirem, a entrega no mesmo dia ou em quatro horas pode ser feita mediante uma taxa adicional. Se precisar de auxílio, entre em contato com o Centro de suporte técnico da HP para que um técnico o ajude por telefone. A HP especifica nos materiais fornecidos com a peça CSR de reposição se a peça com defeito deve ser devolvida à HP. Nos casos em que isso for necessário, é preciso enviar a peça com defeito à HP dentro do período determinado, normalmente cinco (5) dias úteis. A peça com defeito deve ser enviada com a documentação correspondente no material de transporte fornecido. Caso não o faça, a HP poderá cobrar a reposição. Para as peças de reparo feito pelo cliente, a HP paga todas as despesas de transporte e de devolução da peça e determina a transportadora/serviço postal a ser utilizado.

Para obter mais informações sobre o programa de reparo feito pelo cliente da HP, entre em contato com o fornecedor de serviços local. Para o programa norte-americano, visite o site da HP (http://www.hp.com/go/selfrepair

Serviço de garantia apenas para peças

A garantia limitada da HP pode incluir um serviço de garantia apenas para peças. Segundo os termos do serviço de garantia apenas para peças, a HP fornece as peças de reposição sem cobrar nenhuma taxa.

No caso desse serviço, a substituição de peças CSR é obrigatória. Se desejar que a HP substitua essas peças, serão cobradas as despesas de transporte e mão-de-obra do serviço.

Contents 11

Contents 12

Contents 13

Contents 14

Contents 15

Illustrated parts catalog

Mechanical components

Table 1 Mechanical components spare parts list

Item Description Spare part number Customer self

repair

1 Top cover 454347-001 Mandatory

2 Rail kit 454367-001 Mandatory

3 Hard drive cage for 8 HDD model 454365-001 Mandatory

4 Hardware/Plastics Kit

a. Hard drive dummy (fixed) b. Hard drive dummy (removable) c. Power supply blank d. Optical drive blank

5 Hard drive cage for 12 HDD model 460289-001 Mandatory

6 Top middle cover 454347-001 Mandatory

7 Power supply cage 454354-001 Mandatory

454348-001

Mandatory

Contents 16

Table 1 Mechanical components spare parts list

Item Description Spare part number Customer self

repair

8 Air baffle 464420-001 Mandatory

9 PCI cage 454357-001 Mandatory

Mandatory—Parts for which customer self repair is mandatory. If you request HP to replace these

parts, you will be charged for the travel and labor costs of this service.

Optional—Parts for which customer self repair is optional. These parts are also designed for customer self repair. If, however, you require that HP replace them for you, there may or may not be additional charges, depending on the type of warranty service designated for your product.

No—Some HP parts are not designed for customer self repair. In order to satisfy the customer warranty, HP requires that an authorized service provider replace the part. These parts are identified as "No" in the Illustrated Parts Catalog.

Mandatory: Obligatoire—Pièces pour lesquelles la réparation par le client est obligatoire. Si vous demandez à HP de remplacer ces pièces, les coûts de déplacement et main d'œuvre du service vous seront facturés.

Optional: Facultatif—Pièces pour lesquelles la réparation par le client est facultative. Ces pièces sont également conçues pour permettre au client d'effectuer lui-même la réparation. Toutefois, si vous demandez à HP de remplacer ces pièces, l'intervention peut ou non vous être facturée, selon le type de garantie applicable à votre produit.

No: Non—Certaines pièces HP ne sont pas conçues pour permettre au client d'effectuer lui-même la réparation. Pour que la garantie puisse s'appliquer, HP exige que le remplacement de la pièce soit effectué par un Mainteneur Agréé. Ces pièces sont identifiées par la mention “Non” dans le Catalogue illustré.

Mandatory: Obbligatorie—Parti che devono essere necessariamente riparate dal cliente. Se il cliente ne affida la riparazione ad HP, deve sostenere le spese di spedizione e di manodopera per il servizio.

Optional: Opzionali—Parti la cui riparazione da parte del cliente è facoltativa. Si tratta comunque di componenti progettati per questo scopo. Se tuttavia il cliente ne richiede la sostituzione ad HP, potrebbe dover sostenere spese addizionali a seconda del tipo di garanzia previsto per il prodotto.

No: Non CSR—Alcuni componenti HP non sono progettati per la riparazione da parte del cliente. Per rispettare la garanzia, HP richiede che queste parti siano sostituite da un centro di assistenza autorizzato. Tali parti sono identificate da un “No” nel Catalogo illustrato dei componenti.

Mandatory: Zwingend—Teile, die im Rahmen des Customer Self Repair Programms ersetzt werden müssen. Wenn Sie diese Teile von HP ersetzen lassen, werden Ihnen die Versand- und Arbeitskosten für diesen Service berechnet.

Optional: Optional—Teile, für die das Customer Self Repair-Verfahren optional ist. Diese Teile sind auch für Customer Self Repair ausgelegt. Wenn Sie jedoch den Austausch dieser Teile von HP

Contents 17

vornehmen lassen möchten, können bei diesem Service je nach den für Ihr Produkt vorgesehenen Garantiebedingungen zusätzliche Kosten anfallen.

No: Kein—Einige Teile sind nicht für Customer Self Repair ausgelegt. Um den Garantieanspruch des Kunden zu erfüllen, muss das Teil von einem HP Servicepartner ersetzt werden. Im illustrierten Teilekatalog sind diese Teile mit „No“ bzw. „Nein“ gekennzeichnet.

Mandatory: Obligatorio—componentes para los que la reparación por parte del usuario es obligatoria. Si solicita a HP que realice la sustitución de estos componentes, tendrá que hacerse cargo de los gastos de desplazamiento y de mano de obra de dicho servicio.

Optional: Opcional— componentes para los que la reparación por parte del usuario es opcional. Estos componentes también están diseñados para que puedan ser reparados por el usuario. Sin embargo, si precisa que HP realice su sustitución, puede o no conllevar costes adicionales, dependiendo del tipo de servicio de garantía correspondiente al producto.

No: No—Algunos componentes no están diseñados para que puedan ser reparados por el usuario. Para que el usuario haga valer su garantía, HP pone como condición que un proveedor de servicios autorizado realice la sustitución de estos componentes. Dichos componentes se identifican con la palabra “No” en el catálogo ilustrado de componentes.

Mandatory: Verplicht—Onderdelen waarvoor Customer Self Repair verplicht is. Als u HP verzoekt deze onderdelen te vervangen, komen de reiskosten en het arbeidsloon voor uw rekening.

Optional: Optioneel—Onderdelen waarvoor reparatie door de klant optioneel is. Ook deze onderdelen zijn ontworpen voor reparatie door de klant. Als u echter HP verzoekt deze onderdelen voor u te vervangen, kunnen daarvoor extra kosten in rekening worden gebracht, afhankelijk van het type garantieservice voor het product.

No: Nee—Sommige HP onderdelen zijn niet ontwikkeld voor reparatie door de klant. In verband met de garantievoorwaarden moet het onderdeel door een geautoriseerde Service Partner worden vervangen. Deze onderdelen worden in de geïllustreerde onderdelencatalogus aangemerkt met "Nee".

Mandatory: Obrigatória—Peças cujo reparo feito pelo cliente é obrigatório. Se desejar que a HP substitua essas peças, serão cobradas as despesas de transporte e mão-de-obra do serviço.

Optional: Opcional—Peças cujo reparo feito pelo cliente é opcional. Essas peças também são projetadas para o reparo feito pelo cliente. No entanto, se desejar que a HP as substitua, pode haver ou não a cobrança de taxa adicional, dependendo do tipo de serviço de garantia destinado ao produto.

No: Nenhuma—Algumas peças da HP não são projetadas para o reparo feito pelo cliente. A fim de cumprir a garantia do cliente, a HP exige que um técnico autorizado substitua a peça. Essas peças estão identificadas com a marca “No” (Não), no catálogo de peças ilustrado.

Contents 18

Contents 19

System components of 8 HDD server

Table 2 System Components Spare Parts List

Item Description Spare Part

Number

1 System Fan 454350-001 Mandatory

2 Backplane Eight bays SAS/SATA Hard Drive 454349-001 Optional

3 Cable Assy, USB, Internal (optional) 454366-001 Mandatory

4 Cable, SAS/SATA 389952-001 Mandatory

5 Memory Module Mandatory

RDIMM, 512 MB (X72, ECC, SR) 240-Pin, DDR2-667, SDRAM 416355-001 Mandatory

RDIMM, 1 GB (X72, ECC, SR) 240-Pin, DDR2-667, SDRAM 416356-001 Mandatory

DIMM,REG,1GB PC2-5300,128Mx8,RoHS 488608-001 Mandatory

DIMM,REG,2GB PC2-5300,256Mx4,RoHS 416357-001 Mandatory

DIMM,REG,4GB PC2-5300,256Mx4,LP,RoHS 487945-001 Mandatory

DIMM,REG,1GB PC2-6400,128Mx8,RoHS 501156-001 Mandatory

DIMM,REG,2GB PC2-6400,256Mx4,RoHS 501157-001 Mandatory

DIMM,REG,4GB PC2-6400,256Mx4,RoHS 501158-001 Mandatory

DIMM,REG,8GB PC2-5300,512Mx4,RoHS 432671-001 Mandatory

6 Processors ,Opteron Series Optional

IC, uP, Opteron 2346HE, 1.8 GHz, 68W 457123-001 Optional

Customer Self Repair

Contents 20

Table 2 System Components Spare Parts List

Item Description Spare Part

Number

IC, uP, Opteron 2352, 2.1 GHz, 95W 448033-001 Optional

IC, uP, Opteron 2354, 2.2 GHz, 95W 448034-001 Optional

IC, uP, Opteron 2356, 2.3 GHz, 95W 448035-001 Optional

IC, uP, Opteron 2222 DP 3.0 GHz, 95W 451810-001 Optional

IC, uP, Opteron 2218 DP 2.6 GHz, 95W 419480--001 Optional

IC, uP, Opteron 2212 DP 2.0 GHz, 95W 457263-001 Optional

IC, uP, Opteron 2374HE 2.2 GHz, 55W 495652-001 Optional

IC, uP, OPteron 2376HE 2.3 GHz, 75W 502922-001 Optional

IC, uP, Opteron 2380, 2.5 GHz, 75W 500515-001 Optional

IC, uP, OPteron 2384 2.7 GHz 75W 505917-001 Optional

IC, uP, Opteron 2379HE, 2.4 GHz, 55W 538610-001 Optional

IC, uP, Opteron 2389, 2.9 GHz, 75W 457264-001 Optional

7 Processor Heat Sink 457264-001 Optional

8 System Board 452339-001 Optional

Customer Self Repair

9 750-W Power Supply 454353-001 Mandatory

10 Power Backplane Assy. 454355-001 Mandatory

11 Low Profile PCIe Riser Cards 454358-001 Mandatory

12 FH/FL PCIe Riser Card 459730-001 Mandatory

13 Rear DVD Cage Assy 480426-001 Mandatory1

Contents 21

System components of 12HDD server

Table 3 System Components Spare Parts List

Item Description Spare Part

Number

1 System Fan 454350-001 Mandatory

2 Backplane 12 bays SAS/SATA Hard Drive 460001-001 Optional

3 Cable Assy, USB, Internal (optional) 454366-001 Mandatory

4 Cable, SAS/SATA 389952-001 Mandatory

5 Memory Module RDIMM, 512 MB (X72, ECC, SR) 240-Pin, DDR2-667, SDRAM 416355-001 Mandatory

RDIMM, 1 GB (X72, ECC, SR) 240-Pin, DDR2-667, SDRAM 416356-001 Mandatory

DIMM,REG,1GB PC2-5300,128Mx8,RoHS 488608-001 Mandatory

DIMM,REG,2GB PC2-5300,256Mx4,RoHS 416357-001 Mandatory

DIMM,REG,4GB PC2-5300,256Mx4,LP,RoHS 487945-001 Mandatory

DIMM,REG,1GB PC2-6400,128Mx8,RoHS 501156-001 Mandatory

DIMM,REG,2GB PC2-6400,256Mx4,RoHS 501157-001 Mandatory

DIMM,REG,4GB PC2-6400,256Mx4,RoHS 501158-001 Mandatory

DIMM,REG,8GB PC2-5300,512Mx4,RoHS 432671-001 Mandatory

6 Processors ,Opteron Series Optional

Customer Self Repair

Mandatory

Contents 22

Table 3 System Components Spare Parts List

Item Description Spare Part

Number

IC, uP, Opteron 2346HE, 1.8 GHz, 68W 457123-001 Optional

IC, uP, Opteron 2352, 2.1 GHz, 95W 448033-001 Optional

IC, uP, Opteron 2354, 2.2 GHz, 95W 448034-001 Optional

IC, uP, Opteron 2356, 2.3 GHz, 95W 448035-001 Optional

IC, uP, Opteron 2222 DP 3.0 GHz, 95W 451810-001 Optional

IC, uP, Opteron 2218 DP 2.6 GHz, 95W 419480--001 Optional

IC, uP, Opteron 2212 DP 2.0 GHz, 95W 457263-001 Optional

IC, uP, OPteron 2374HE 2.2 GHz, 55W 495652-001 Optional

IC, uP, OPteron 2376HE 2.3 GHz, 75W 502922-001 Optional

IC, uP, Opteron 2380, 2.5 GHz, 75W 500515-001 Optional

IC, uP, OPteron 2384 2.7 GHz 75W 505917-001 Optional

IC, uP, Opteron 2379HE, 2.4 GHz, 55W 538610-001 Optional

IC, uP, Opteron 2389, 2.9 GHz, 75W 457264-001 Optional

7 Processor Heat Sink 457264-001 Optional

8 System Board 452339-001 Optional

Customer Self Repair

9 750-W Power Supply 454353-001 Mandatory

10 Power Backplane Assy. 454355-001 Mandatory

11 Low Profile PCIe Riser Cards 454358-001 Mandatory

12 FH/FL PCIe Riser Card 459730-001 Mandatory

13 Rear DVD Cage Assy 480426-001 Mandatory1

Mandatory—Parts for which customer self repair is mandatory. If you request HP to replace these parts, you will be charged for the travel and labor costs of this service.

Contents 23

demandez à HP de remplacer ces pièces, l'intervention peut ou non vous être facturée, selon le type de garantie applicable à votre produit.

Optional: Optional—Teile, für die das Customer Self Repair-Verfahren optional ist. Diese Teile sind auch für Customer Self Repair ausgelegt. Wenn Sie jedoch den Austausch dieser Teile von HP vornehmen lassen möchten, können bei diesem Service je nach den für Ihr Produkt vorgesehenen Garantiebedingungen zusätzliche Kosten anfallen.

Mandatory: Verplicht—Onderdelen waarvoor Customer Self Repair verplicht is. Als u HP verzoekt deze onderdelen te vervangen, komen de reiskosten en het arbeidsloon voor uw rekening.

Optional: Optioneel—Onderdelen waarvoor reparatie door de klant optioneel is. Ook deze onderdelen zijn ontworpen voor reparatie door de klant. Als u echter HP verzoekt deze onderdelen

Contents 24

voor u te vervangen, kunnen daarvoor extra kosten in rekening worden gebracht, afhankelijk van het type garantieservice voor het product.

Mandatory: Obrigatória—Peças cujo reparo feito pelo cliente é obrigatório. Se desejar que a HP substitua essas peças, serão cobradas as despesas de transporte e mão-de-obra do serviço.

Contents 25

HP Contact Information

For the name of the nearest HP authorized reseller:

• In the United States, call 1-800-345-1518.

• In Canada, call 1-800-263-5868.

• In other locations, refer to the HP website at http://www.hp.com/.

For HP technical support:

• In North America:

○ Call 1-800-HP-INVENT (1-800-474-6836). This service is available 24 hours a day, 7 days

a week. For continuous quality improvement, calls may be recorded or monitored.

○ If you have purchased a Care Pack (service upgrade), call 1-800-633-3600. For more

information about Care Packs, refer to the HP website at http://www.hp.com/

• Outside North America, call the nearest HP Technical Support Phone Center. For telephone

numbers for worldwide Technical Support Centers, refer to the HP website at

http://www.hp.com/

Before You Contact HP

Be sure to have the following information available before you call HP:

• Technical support registration number (if applicable)

• Product serial number

• Product model name and number

• Applicable error messages

• Add-on boards or hardware

• Third-party hardware or software

• Operating system type and revision level

Contents 26

Removal and Replacement Procedures

This chapter provides subassembly/module-level removal and replacement procedures for the HP ProLiant DL185 G5 server.

Review the specifications of a new component before installing it to make sure it is compatible with the server. When you integrate new components into the system, record its model and serial number, and any other pertinent information for future reference. After completing any removal or replacement procedure, run the diagnostics program to verify that all components operate properly.

NOTE: The figures used in this chapter to illustrate procedural steps are labeled numerically (i.e., 1,

2…). When these figures are used in substep items, the alphabetically labeled instructions correspond to the numbered labels on the related figure (i.e., label 1 corresponds to step a, label 2 corresponds to step b, etc.). The procedures described in this section assume that the server is out of the rack and is positioned on a flat, stable surface.

Hardware Configuration Tools

You need the following items for some procedures:

• T-10/T-15 screwdrivers

• Flat-blade screwdriver

The following references and software tools may also be used:

• HP ProLiant DL185 G5 Server Support CD

• Diagnostics Software

Hardware Configuration Information

Electrostatic Discharge Information

An electrostatic discharge (ESD) can damage static-sensitive devices or microcircuitry. Proper packaging and grounding techniques are necessary precautions to prevent damage. To prevent electrostatic damage, observe the following precautions:

• Transport products in static-safe containers such as conductive tubes, bags, or boxes.

• Keep electrostatic-sensitive parts in their containers until they arrive at static-free stations.

• Cover workstations with approved static-dissipating material. Use a wrist strap connected to the

work surface, and properly grounded (earthed) tools and equipment.

• Keep work area free of nonconductive materials, such as ordinary plastic assembly aids and

foam packing.

• Make sure that you are always properly grounded (earthed) when touching a static-sensitive

component or assembly.

• Avoid touching pins, leads, or circuitry.

• Always place drives with the Printed Circuit Board (PCB) assembly-side down.

• Use conductive field service tools.

Contents 27

Pre-Installation Procedure

Perform the steps below before you open the server or before you remove or replace any component.

WARNING: Failure to properly turn off the server before you open the server or before your start

installing/ removing components may cause serious damage as well as bodily harm.

1. Turn off the server and all the peripherals connected to it.

2. Unplug all cables from the power outlets to avoid exposure to high energy levels that may cause

burns when parts are short-circuited by metal objects such as tools or jewelry.

If necessary, label each one to expedite reassembly.

3. Disconnect telecommunication cables to avoid exposure to shock hazard from ringing voltages.

4. If server is installed in a rack, remove server and place it on a flat surface.

5. Remove the top cover according to the instructions described in the System Covers section in this

chapter.

6. Remove the top middle cover according to the instructions described in the System Covers

section in this chapter.

7. Follow the ESD precautions listed previously in this chapter when handling a server component.

IMPORTANT: To streamline the configuration process, read through the entire installation/removal

procedure first and make sure you understand them before you begin.

Post-installation instructions

Observe the following items after installing or removing a server component:

1. Be sure all components are installed according to the described step-by-step instructions.

2. Reinstall the peripherals, system cables, rear cage, and air baffle you have removed.

3. Reinstall the top middle cover.

4. Reinstall the top cover.

5. Reinstall server into rack.

6. Connect all external cables and the AC power cord to the system.

7. Press the power button on the front panel to turn on the server.

Server Warnings and Cautions

Before installing a server, be sure that you understand the following warnings and cautions.

WARNING: To reduce the risk of electric shock or damage to the equipment:

•

Do not disable the power cord grounding plug. The grounding plug is an important safety feature.

• Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all times.

• Unplug the power cord from the power supply to disconnect power to the equipment.

• Do not route the power cord where it can be walked on or pinched by items placed against it. Pay

particular attention to the plug, electrical outlet, and the point where the cord extends from the server.

WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the internal

system components to cool before touching them.

Contents 28

CAUTION: Do not operate the server for long periods with the access panel open or removed.

Operating the server in this manner results in improper airflow and improper cooling that can lead to thermal damage.

Symbols on Equipment

The following symbols may be placed on equipment to indicate the presence of potentially hazardous conditions.

This symbol indicates the presence of hazardous energy circuits or electric shock hazards. Refer all servicing to qualified personnel.

WARNING: To reduce the risk of injury from electric shock hazards, do not open this enclosure. Refer all maintenance, upgrades, and servicing to qualified personnel.

This symbol indicates the presence of electric shock hazards. The area contains no user or field serviceable parts. Do not open for any reason.

WARNING: To reduce the risk of injury from electric shock hazards, do not open this enclosure.

weight1_kg weight1_lb

This symbol on an RJ-45 receptacle indicates a network interface connection. WARNING: To reduce the risk of electric shock, fire, or damage to the equipment,

do not plug telephone or telecommunications connectors into this receptacle.

This symbol indicates the presence of a hot surface or hot component. If this surface is contacted, the potential for injury exists.

WARNING: To reduce the risk of injury from a hot component, allow the surface to cool before touching.

This symbol indicates that the component exceeds the recommended weight for one individual to handle safely.

WARNING: To reduce the risk of personal injury or damage to the equipment, observe local occupational health and safety requirements and guidelines for manual material handling.

These symbols, on power supplies or systems, indicate that the equipment is supplied by multiple sources of power.

WARNING: To reduce the risk of injury from electric shock, remove all power cords to completely disconnect power from the system.

Powering D own t he S erver

The server does not completely power down when the power button on the front panel is pressed. The button toggles between On and Standby. The standby position removes power from most electronics

Contents 29

and the drives, but some internal circuitry remains active. To completely remove all power from the system, disconnect all power cords from the server.

To power down the server:

1. Shut down server as directed by the operating system documentation.

2. Press the power button to toggle to Standby.

This places the server in standby mode changing the power LED indicator to amber. In this mode, the main power supply output is disabled. Standby does not completely disable or remove power from the system.

3. Disconnect the AC power cord from the AC outlet and then from the server.

4. Be sure that the power LED indicator is turned off and that the fan noise has stopped.

5. Disconnect all external peripheral devices from the server.

System Covers

The top cover and top middle cover are both detachable. You need to remove the top cover before you can remove or replace a server component. The middle cover needs to be removed to service the SAS/SATA backplane board, optical drive, or internal USB.

Top Cover

To remove the top cover:

1. Loosen the captive screw on the rear panel with a T-15 screwdriver.

2. Slide the cover approximately 1.25 cm (0.5 inch) toward the rear of the unit and then lift the

cover to detach it from the chassis.

3. Lift the top cover away from the chassis. Figure 1 Removing the Top Cover

To reinstall the top cover:

1. Align the top cover to the chassis and then slide it toward the front panel to position it into place.

Contents 30

Once the cover is attached to the chassis, tighten the captive screw on the rear panel with a T-15 screwdriver.

Figure 2 Reinstalling the Top Cover

Top Middle Cover

To remove the top middle cover:

1. Remove the top cover.

2. Remove the screws (one on each side of the chassis and those on the top middle cover) that

secure the top middle cover to the chassis.

3. Lift the top middle cover away from the chassis. Figure 3 Removing the Top Middle Cover

To reinstall the top middle cover:

1. Fasten the screws (one on each side of the chassis and those on the top middle cover) to secure

the top middle cover to the chassis.

Contents 31

Align the top middle cover to the chassis.

Figure 4 Reinstalling the Top Middle Cover

Drives

The server supports 9 to 12 drive bays --- 8 drive bays for 3.5-inch hard disk drives and 1 drive bay for optical disc drive; or 12 drive bays for 3.5-inch hard disk drives.

Cable Management

Always follow good cable management practices when working inside the computer.

• Keep cables away from major heat sources like heat sinks.

• Do not jam cables on top of expansion cards or memory modules. Printed circuit cards are not

designed to withstand excessive pressure.

• Keep cables clear of sliding or moveable parts to prevent cutting or crimping.

• When folding a flat ribbon cable, never fold to a sharp crease. Sharp creases may damage the

wires.

• Some flat ribbon cables come pre-folded. Never change the folds on these cables.

• Do not sharply bend any cable. A sharp bend can break the internal wires.

• Never bend a SATA data cable tighter than a 30 mm (1.18 inch) radius.

• Never crease a SATA data cable.

• Do not rely on components like the drive cage, power supply, or system cover in order not to

push cables down into the chassis.

Removing power supply power cables from the system board connectors follow below steps:

1. Squeeze on the top of the retaining latch attached to the cable end of the connector.

2. Grasp the cable end of the connector and pull it straight up.

CAUTION: Always pull the connector-NEVER pull on the cable. Pulling on the cable could damage

the cable and result in a failed power supply.

Contents 32

Figure 5 unplugging power cables

Drive Bay Configuration

Figure 6 System Drive Bays / 8 HDD model

Item Description

1 Optical drive bay

2 3.5 Inch Hard Disk Drive Bays (8 )

The HDD bays support both non-hot-plug and hot-plug SATA drives, as well as hot-plug SAS drives.

Contents 33

Figure 7 System Drive Bays / 12 HDD model

Item Description

1 3.5 Inch Hard Disk Drive Bays (12 )

The HDD bays support both non-hot-plug and hot-plug SATA drives, as well as hot-plug SAS drives.

Optical Media Device Bay

The optical media device bay of servers with 8 HDD supports the installation of a 127mm DVD/RW or DVD/ROM drive. For servers with 12 HDD the optical drive is optional, with the addition of a rear PCI cage. The following process is for servers with 8 HDD.

To remove the optical drive carrier:

1. Remove the top cover.

2. Remove the top middle cover.

3. Remove the screw that secures the optical drive carrier to the chassis.

4. Push the carrier toward the front of the unit.

5. Pull the carrier out of the chassis.

Contents 34

Figure 8 Removing the Optical Drive Carrier

To remove the bezel blank from the optical drive carrier:

1. Press in the four tabs (two on the top and two on the bottom) to release the bezel blank from the

carrier.

2. Pull the bezel blank out of the carrier.

CAUTION: Do not discard the bezel blank. If the optical drive is removed in the future, you must

reinstall the bezel blank to maintain proper system function.

Figure 9 Removing the Bezel Blank

To install the optical carrier with optical drive:

1. Align the optical drive in the carrier and install drive.

2. Secure the optical drive to the carrier with the two mounting screws.

Contents 35

Figure 10 Assembling the Optical Drive and Carrier

3. Slide the optical drive assembly into the chassis.

4. Secure the optical drive to the chassis with the screw.

Figure 11 Installing the optical drive assembly

5. Connect the IDE data and power cables to their corresponding connectors on the optical drive.

Contents 36

Figure 12 Connecting the Cables

To remove the optical drive:

1. Remove the screw that secures the optical drive carrier to the chassis.

2. Push the carrier toward the front of the unit.

3. Pull the carrier with optical drive out of the chassis.

Figure 13 Removing the Optical Drive

To remove the optical drive from its carrier:

1. Remove the two screws that secure the optical drive to the carrier.

2. Remove the optical drive from its carrier.

Contents 37

Figure 14 Removing the Optical Drive from its Carrier

IMPORTANT: If you remove an optical drive without plans of installing a new one, you must reinstall

the blank to maintain proper system airflow.

Contents 38

Hard Drives

The drive bays on the front panel can accommodate up to 8 hard drives. You can install 8 SAS hard drives or SATA hard drives in the server.

For server with 8 HDD the hard drives installed in the server are labeled from Device 1 to Device 8, from left to right, top to bottom, when viewed from the front of the server.

Figure 15 Hard Drive Bays Configuration / 8 HDD model

Item Description

1 1st SAS/SATA Hard Drive

2 2nd SAS/SATA Hard Drive

3 3rd SAS/SATA Hard Drive

4 4th SAS/SATA Hard Drive

5 5th SAS/SATA Hard Drive

6 6th SAS/SATA Hard Drive

7 7th SAS/SATA Hard Drive

8 8th SAS/SATA Hard Drive

Contents 39

For server with 12 HDD the hard drives installed in the server are labeled from Device 1 to Device 12, from left to right, top to bottom, when viewed from the front of the server.

Figure 16 Hard Drive Bays Configuration / 12 HDD model

Item Description

1 1st SAS/SATA Hard Drive

2 2nd SAS/SATA Hard Drive

3 3rd SAS/SATA Hard Drive

4 4th SAS/SATA Hard Drive

5 5th SAS/SATA Hard Drive

6 6th SAS/SATA Hard Drive

7 7th SAS/SATA Hard Drive

8 8th SAS/SATA Hard Drive

9 9th SAS/SATA Hard Drive

10 10th SAS/SATA Hard Drive

11 11th SAS/SATA Hard Drive

12 12th SAS/SATA Hard Drive

Contents 40

To install a hard drive:

1. Pull the hard drive blank out of the chassis.

Figure 17 Removing the Hard Drive Blank

IMPORTANT: Do not discard the hard drive blank. If the drive is removed in the future, you must

reinstall the hard drive blank to maintain proper system airflow.

2. Install a hard drive.

a. Push the hard drive assembly into the drive bay until it stops. b. Press the HDD carrier latch inward until it clicks.

Figure 18 Installing a Hard Drive Assembly

To remove hard drive:

1. Press the hard disk carrier button to release the ejector lever.

2. Use the HDD carrier latch to pull the drive out of the cage.

Make sure to support the drive when pulling it out of the cage.

3. Pull the hard drive assembly out of the drive bay.

Contents 41

Figure 19 Removing the Hard Drive

SAS/SATA HDD Backplane

Figure 20 Backplane Connectors of server with 8 HDD (component side)

Item Description

1 Hard drive connectors

2 Screw holes

3 LED indicators

Contents 42

Figure 21 Backplane Connectors of server with 12 HDD (component side)

Item Description

1 Hard drive connectors

2 Screw holes

3 LED indicators

Figure 22 Backplane Connectors of server with 8 HDD (solder side)

Item Description

1 SAS/SATA cable connectors

2 10-pin power connector

Contents 43

Figure 23 Backplane Connectors of server with 12 HDD (solder side)

Item Description

1 10-pin power connector

2 LED signal cable connect to rear 2 HDD option

3 SAS connector

4 Cable connectors for rear 2 HDD option

WARNING: Ensure that the system is powered off and all power sources have been disconnected from the server. Voltages are present at various locations within the server whenever an AC power source is connected. This voltage is present even when the main power switch is in the off position.

To remove the backplane:

1. Remove all drives out of the drive bays. Refer to the Hard Drives section in this chapter for

detailed procedures.

2. Remove the top cover.

3. Remove the top middle cover.

4. Remove the backplane.

a. Remove all cables including optical drive cables. b. Remove the screws that secure the backplane to the hard drive cage. c. Pull the backplane up and out to release it from the hard drive cage.

Contents 44

Figure 24 Removing the backplane

To install the backplane:

1. Orient the backplane so that the three notches on the board align with the three hooks on the

drive cage and press the board down until it clicks into place.

2. Secure the backplane with screws. Figure 25 Installing the backplane

3. Install all cables including optical drive cables.

The Rear DVD/CDRW Optical Drive PCI cage

To remove the Rear DVD/CDRW Optical Drive PCI cage：

1. Remove the screw that secures the optical drive carrier to the rear DVD/CDRW optical drive PCI

cage using a T-10 driver. (step 1 in figure 26)

2. Pull the optical drive carrier out of the cage. (step 2 in figure 26)

Contents 45

Figure 26 Removing the optical carrier

3. Align the optical drive in the carrier and install drive. (step 1 in figure 27)

4. Secure the optical drive to the carrier with the provided mounting screws. (step 2 in figure 27)

5. Connect the IDE data and power cables to their corresponding connectors on the optical drive.

To Install the Rear DVD/CDRW Optical Drive PCI cage

Figure 27 Assembling the optical drive and carrier

：

6. Slide the optical drive assembly into drive bay on the PCI cage. (Step 1 in figure 28). Be sure to

feed IDE and power cables through first.

Contents 46

Figure 28 Installing the optical drive assembly

7. Reinstall any PCI cards from the old rear cage.

8. Connect the IDE data and power cables to their corresponding connectors on the optical drive. Figure 29 Installing the rear DVD/CDRW optical drive PCI cage

9. Install the rear DVD/CDRW optical drive PCI cage to the chassis. (step 1 in figure 29)

10. Tighten the two captive thumbscrews to secure the PCI cage to the chassis. (step 2 in figure 29)

Contents 47

System Board Configuration

Processor

HP ProLiant DL185 G5 Server supports dual-processor operation. If a single processor is installed, then use socket 0. When two processors are used, the server supports boot functions through the processor installed in processor socket 0. However, if processor 0 fails, the system can’t boot up, and if processor 1 fails, the system will automatically boots from processor 0 and provides a processor failure message.

The processor socket supports 2P AMD Opteron 2000 series.

CAUTION: It is recommended to use processors of same speeds or cache sizes to prevent possible server malfunction.

Figure 30 Processor Locations

WARNING: To reduce the risk of personal injury from hot surfaces, allow the heat sink and the

processor to cool before touching them.

NOTE: Before installing the processor, remove the air baffle.

To remove the air baffle:

1. Gently rock the air baffle up.

2. Take the air baffle out from the chassis.

Contents 48

Figure 31 Removing the Air Baffle

To remove the heat sink:

1. Loosen the two mounting pins.

2. Lift the heat sink away from the system board.

CAUTION: Place heat sink down in an upright position with the thermal patch facing upward. Do

not let the thermal patch touch the work surface.

Figure 32 Removing the heat sink assembly

IMPORTANT: If the heat sink has been removed for any reason on a previously installed processor,

it is critical that you apply more thermal interface material to the integrated heat spreader on the processor to ensure proper thermal bonding between the processor and the heat sink.

Contents 49

To remove a processor:

1. Disengage the load lever.

2. Lift the retention plate to expose the socket body.

3. Grasp the processor by its edges and lift it out of its socket. Figure 33 Removing the processor

CAUTION: The pins of the socket are very fragile. Do not bend or damage them.

CAUTION: Place the processor on a static-dissipating work surface or in an anti-static bag.

CAUTION: There must be good contact between the heat sink base and the top of the processor. To

ensure good contact, you must apply thermal interface material.

To apply the thermal grease compound:

1. Use a clean cloth dipped in rubbing alcohol to clean the contact surface on the heat sink and on

the new processor. Wipe the contact surfaces several times to make sure that no particles or dust contaminants are evident.

2. Apply the thermal grease compound to the CPU contact surface.

CAUTION: HP recommends using Shin-Etsu X-23-7783D thermal grease compound for your ProLiant

server.

3. Apply all the grease to the top of the processor in one of the following patterns to ensure even

distribution.

Contents 50

Figure 34 The top of the processor

CAUTION: Never touch the bottom of the processor; any contaminant could prevent the mounting

pads from making contact with the socket.

CAUTION: Applying too much grease creates a gap between the contact surfaces, significantly reducing the ability of the heat sink to draw out heat. Installing the heat sink with excessive grease can also cause the grease to spread over the processor pins or the system board base, which can cause electrical shorts that damage the system.

To install the new processor:

1. Insert the processor into the socket, using the key on the processor.

CAUTION: With the load lever and the retention plate disengaged, hold the processor by its edges

and align it over the empty processor socket. Make sure that you properly align the processor with the orientation notch on the socket.

2. Engage the retention plate.

3. Engage the load lever.

Contents 51

Figure 35 Installing the processor

CAUTION: To prevent overheating or a possible system crash, use only a heat sink model specified

for the HP ProLiant DL185 G5 server.

To install the heat sink:

1. Properly align the heat sink mounting pins to the system board mounting holes.

2. Tighten the mounting pins clockwise to secure the heat sink connection to the system board. Figure 36 Installing the heat sink

To install the air baffle:

1. Align the air baffle hooks with the holes on the chassis.

2. Gently place in the air baffle.

Contents 52

Figure 37 Installing the air baffle

Memory

HP ProLiant DL185 G5 server has 8 DIMM slots that support up to 32 GB maximum system memory (4 GB in each of the eight DIMM slots).

You must adhere to the following guidelines when adding or replacing memory modules:

• For 2P system, both physical processors must be of the same type and speed.

• Use 677 MHz Registered DDR2.

• Supported DIMM: 512 MB, 1 GB, 2 GB and 4 GB (32 GB maximum capacity).

• Supported configurations: Dual memory channels, four DIMM sockets per processor, two each

channel.

Figure 38 DIMM slots

NOTE: Before installing the memory, remove the air baffle first, for detailed procedure, refer to the

Processor section in this chapter.

Contents 53

To remove memory module:

1. Completely open the holding clips securing the module.

2. Gently pull the memory module upward to remove it from the slot. Figure 39 Removing a memory module

CAUTION: Place the memory module on a static-dissipating work surface or inside of an anti-static

bag.

To install a memory module:

1. Align the notch on the bottom edge of the module with the keyed surface of the DIMM slot and

then press the module fully into the slot.

2. Firmly press the holding clips inward to secure the memory module in place. Figure 40 Installing a memory module

Contents 54

CAUTION: The memory slots are structured to ensure proper installation. If you insert a memory module but it does not fit easily into the slot, you may have inserted it incorrectly. Double-check the orientation of the module and reinsert. If the holding clips do not close, the module is not inserted correctly.

PCI Expansion Cards

System Board PCI Expansion Slots

There are two PCI expansion slots on the system board.

Figure 41 System board PCI expansion slots

Item Component

Component Function

Designator

1 J19 PCI slot Supports a PCIe Riser Card

2 J33 PCI slot Supports a PCIe Riser Card

PCI Riser card Expansion Slots

The two PCI Express riser cards attached to the PCI cage convert the functionality of the system board expansion slots to the slots positioned at a 90° angle from the system board.

NOTE: Users have the option to replace the Dual Slot PCI Express riser cards in Slot 2 with a PCI-X model using the PCI-X riser card option kit. This will allow support for PCI-X devices.

Contents 55

Figure 42 Installing the Dual-slot Riser card

• Dual-Slot PCIe riser card (x8 link with x8 slot)

Figure 43 PCIe Riser card connector location

• PCIe riser card (x4 link with x8 slot)

PCI cage

To remove the PCI cage:

NOTE: Disconnect all cables connecting an existing expansion board to the system board.

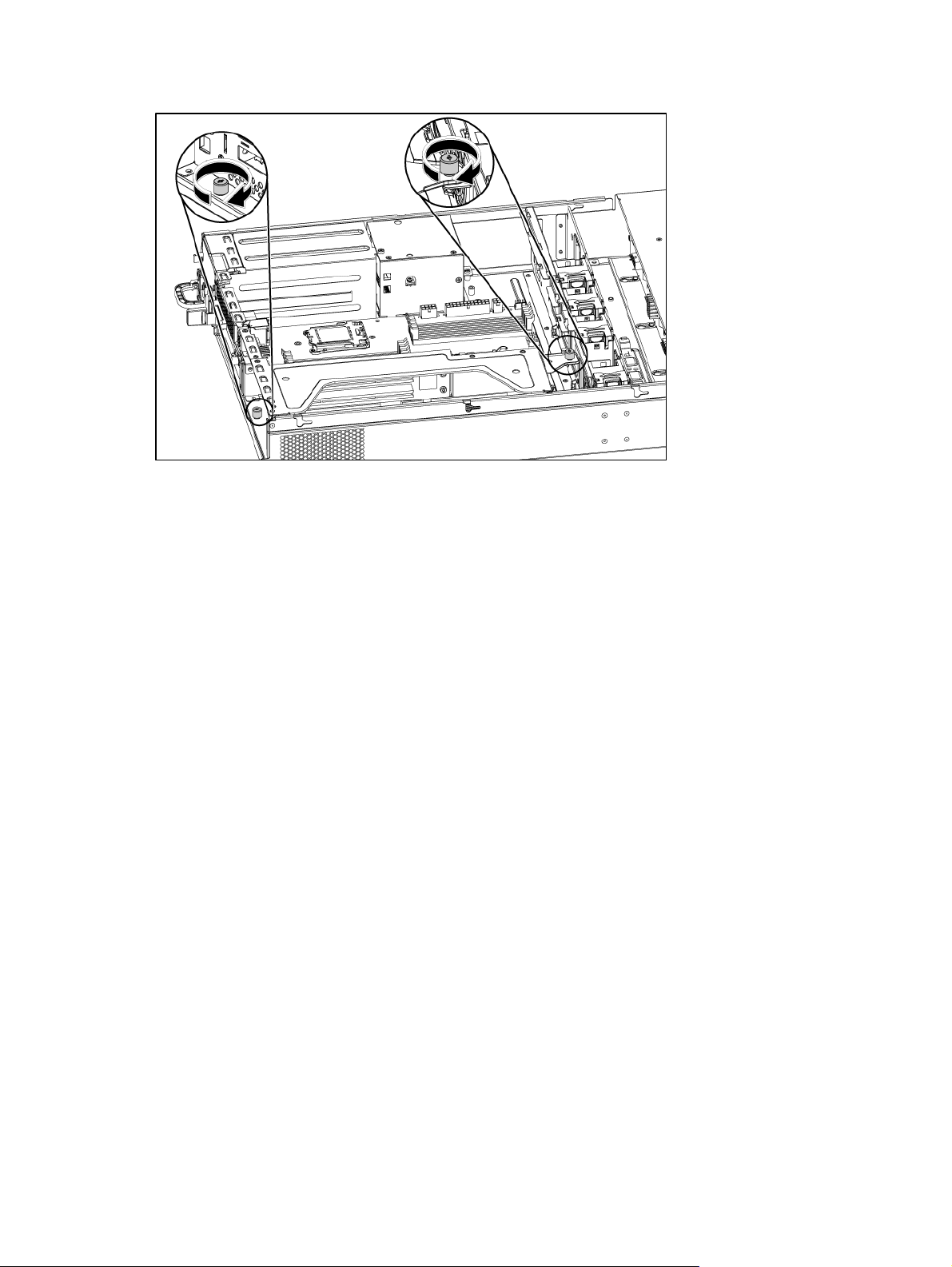

1. Loosen the two captive screws that secure the PCI cage to the chassis.

2. Lift the PCI cage away from the chassis.

Contents 56

Figure 44 Removing the PCI cage

To install the PCI cage:

1. Align the PCI cage to the system board expansion slot, and then press it down to ensure full

connection to the system board.

Figure 45 Installing the PCI cage

Contents 57

Figure 46 Securing the PCI cage

2. Tighten the two captive screws to secure the PCI cage to the chassis.

Installing PCIe/PCI-X Riser Board

The system supports up to two riser boards at a time. Use only HP supported expansion boards that meet the following specifications:

• Compliance

○ PCI Express x4 or x8 ○ PCI-X (available only when the optional PCI-X riser board is installed)

• Form Factor

○ Low-profile ○ Full-Height/Full-Length

Contents 58

To remove the PCIe riser card:

1. Remove the two screws securing the riser card to the PCI cage.

2. Push the riser card down and away from the PCI cage. Figure 47 Removing the PCIe Riser card

Figure 48 Removing the PCIe Riser card

To install the PCIe riser card:

1. Align the two riser card slots to the standoff on the PCI cage, and then push the card up.

2. Install and tighten the two screws that secure the riser card to the PCI cage.

Contents 59

Figure 49 Installing the PCIe Riser card

Figure 50 Installing the PCIe Riser card

To remove the slot cover:

1. Remove the screw(s) that secure(s) the slot cover(s) to the chassis.

2. Remove the slot cover(s) on the PCI cage.

CAUTION: Do not discard the slot cover. If the expansion board is removed in the future, the slot

cover must be reinstalled to maintain proper cooling.

Contents 60

Figure 51 Removing the slot cover (1)

Figure 52 Removing the slot cover (2)

To install the PCI card:

1. Slide the expansion board into the slot, aligning the board with its matching connector.

Firmly press the board to seat it properly on the slot.

2. Tighten the screw that secures the card to the PCI cage.

Contents 61

Figure 53 Installing the PCI card (1)

Figure 54 Installing the PCI card (2)

Contents 62

System Battery

The server uses nonvolatile memory that requires a battery to retain system information when power is removed.

This 3-volt lithium coin cell battery is located on the system board.

Figure 55 System battery location

WARNING: Note the following reminders when replacing the system battery:

Replace the battery with the same type as the battery recommended by HP. Use of another battery may

•

present a risk of fire or explosion.

• A risk of fire and chemical burn exists if the battery is not handled properly. Do not disassemble, crush,

puncture, or short external contacts, or expose the battery to temperatures higher than 60°C (140°F).

• Do not dispose of used battery in water or fire. Dispose of used batteries according to manufacturer's

instructions.

CAUTION: Loss of BIOS settings occurs when the battery is removed. You must reconfigure BIOS settings whenever you replace the battery.

NOTE: If the server no longer automatically displays the correct date and time, you may need to replace the system battery. Under normal usage, battery life is three years.

To replace the system battery:

1. To release the battery from its holder, squeeze the metal clamp that extends above one edge of

the battery. When the battery pops up, lift it out.

2. To insert the new battery, slide one edge of the replacement battery under the holder’s lip with

the positive side up. Push the other edge down until the clamp snaps over the other edge of the battery.

Contents 63

Figure 56 Replacing the battery

System Board Removal and Replacement Procedure

To remove the system board:

1. Remove the top cover.

2. Remove the air baffle.

3. Disconnect all cables connected to the system board.

4. Loosen the nine screws that secure the system board to the chassis.

5. Slide the system board back, up and out of the chassis. Remove the system board from the

chassis.

Figure 57 Removing the system board

To replace the system board:

1. Align the system board I/O connectors to their openings and slide the system into place. The

nine screw holes on the chassis should align with the system board.

Contents 64

Fasten the nine screws on the system board to secure the system board to the chassis.

Figure 58 Installing the system board

Power Supply Unit (PSU)

Located on the rear panel of the server power supply is a standard autoranging 750-watt PSU with PFC (power factor correction) function.

Figure 59 Power supply unit

WARNING: Take note of the following reminders to reduce the risk of personal injury from electric

shock hazards and/or damage to the equipment.

Installation of power supply units should be referred to individuals who are qualified to service server

•

systems and are trained to deal with equipment capable of generating hazardous energy levels.

• DO NOT open the power supply unit. There are no serviceable parts inside it.

To remove the power supply:

1. Disconnect the power cable connecting the power supply and the motherboard.

Contents 65

Press the blue colored handle.

3. Slide the power supply out of the power supply bay. Figure 60 Removing the power supply

To replace the power supply:

1. Align the power supply cage connector with the open slot of power supply, and slide the power

supply into the power supply bay until it snaps into place.

2. Snap the blue latch cover over port colored handle. Blue latch cover only installs one way. Figure 61 Installing the power supply

Contents 66

System Fan

The server has four system fans located on the chassis’ center wall.

The figure below identifies the system fans by their device number and shows their corresponding cable connections.

Figure 62 System fan connections

Device number Connector

System fan 1 P12 on the system board

System fan 2 P18 on the system board

System fan 3 P13 on the system board

System fan 4 P19 on the system board

System fans 1 to 3 are for the memory modules and processors, while system fan 4 is for the PCI slots and system chipsets.

A new system fan can be installed to allow the server to operate properly in case a default system fan becomes defective.

To remove the system fan:

1. Disconnect the fan cable from its corresponding board connector.

2. Release the fan cable from the cable clip securing it to the chassis partition wall.

3. Squeeze the release tab on the system fan to release it from the chassis.

4. Lift the system fan away from the chassis.

Contents 67

Figure 63 Removing the system fan

To replace the system fan:

1. Squeeze the release tab.

2. Insert the system fan into the fan bracket.

3. Secure the cable using the cable clip located on the chassis’ partition wall.

4. Connect the fan cable to its corresponding board connector. Figure 64 Installing the system fan

Contents 68

Connectors, Switches, and LEDs

This chapter contains illustrations and tables identifying and describing the connectors, switches, buttons, and LED indicators located on the front panel, rear panel, system board and hard drives of the HP ProLiant DL185 G5 server.

Connectors and Components

Front Panel Components

Figure 65 Front Panel Components for 8 HDD Server

Item Description

1 Two Front USB 2.0 Ports

2 Optical Disc Drive (optional)

3 Optical Disc Drive Activity Indicator

4 Optical drive eject button

5 Optical Drive Manual Ejection Hole

6 Power button, Health/UID LED, NIC 1/2 Activity

7 Rack thumbscrews

8 Drive Activity LED

9 Drive Online/Error LED

10 Hard Disk Drive (HDD) Bay

Contents 69

Figure 66 Front Panel Components for 12 HDD Server

Item Description

1 Two Front USB 2.0 Ports

2 UID LED button

3 Power LED button

4 Rack thumbscrews

5 Drive Activity LED

6 Drive Online/Error LED

7 Hard Disk Drive (HDD) Bay

Contents 70

Rear panel components

Figure 67 Rear panel components for PCI

Figure 68 Rear panel components for HDD

Contents 71

Figure 69 Rear panel components for ODD

Item Description

1 Power supply cable socket

2 T10/T15 Wrench

3 Thumbscrew for top cover

4a Low-profile PCI expansion card slot

4b Optical disc drive (ODD) bay

5a PCI card slot cover

5b Hard disk drive (HDD) bay

6 Thumbscrew for PCI cage

7 Serial port

8 VGA port

9 Management LAN port

10 Two USB 2.0 ports

11 GbE LAN port for NIC2

12 GbE LAN port for NIC1

13 PS/2 keyboard port (purple)

14 PS/2 mouse port (green)

Contents 72

System board components

Figure 70 System board components

Item Designator Description

1 J22 Top: PS/2 mouse port

Bottom: PS/2 keyboard port

2 J16 Dual LAN port

3 CN21 Top: USB 2.0 port

Bottom: USB 2.0 port

4 CN20 Management port

5 P7 Top: Serial port

Bottom: VGA port

6 SW6 UID LED button

7 XBT1 3V COMS battery

8 J19 PCIe X8 slot

9 J33 PCIe X16 slot

10 MT9 Redundant Power Supply Management Interface Connector

11 J21 Internal USB connector

Contents 73

Item Designator Description

12 P141 Power for rear HDD backplane

13 P20 Password jumper

14 J20 PSMI

15 J36 Front panel sensor connector

16 P10 Front panel port

17 P19 5-pin system fan header

18 P25 IDE connector

19 SATA SATA connector

20 P11 Front USB connector

21 P13 5-pin system fan header

22 XU2 Processor 1 socket

23 P18 5-pin system fan header

24 DIMM DIMM slot for processor 1

25 P12 5-pin system fan header

26 P24 Power connector

27 P21 Power connector

28 P23 Power connector

29 DIMM DIMM slot for processor 0

30 XU1 Processor 0 socket

Jumpers – Password, Rear HDD Opt Fan and Chassis ID

The system board password (P20), chassis ID1 (P26), chassis ID2 (P27) and Rear HDD Opt fan (P28) jumpers. Table 4 System configuration switch settings describes the jumper settings.

Table 4

Jumper Status

P20 1-2, password enable

P26 2-3, default setting

P27 1-2 : default setting

System configuration switch settings

P28 1-2 : Disable; 2-3 : Enable

Contents 74

System Switches

NMI button (SW5)

If the system crashes or stops operating, you can momentary press the NMI button (SW5) to manually force the server to issue a Non-Maskable Interrupt (NMI). This will perform a memory dump—writing the contents in the server's CPU registers and system memory to a network server or to diskettes. This memory dump can later be analyzed to determine the cause of the problem. By default, the NMI switch is always disabled.

Figure 71 NMI button

NOTE: Use of the NMI button is not supported in all NOS. As of the present, NMI implementation is

not available for systems running on Solaris and Linux operating systems.

Clear CMOS Button (SW4)

The system board has a system configuration (CMOS) button (SW4). To clear system configuration, remove AC power and press the CMOS button for seconds.

Figure 72 CMOS button

Contents 75

LED Indicators

This section contains illustration and descriptions of internal and external status LED indicators located on the:

• Front panel

• Rear panel

• System board

These LED indicators aid in problem diagnosis by indicating the status of system components and operations of the server.

Front panel LED indicators

The front panel LED indicators allow constant monitoring of basic system functions while the server is operating.

Optical drive activity LED indicator

The optical drive has an activity indicator that indicates when the drive is reading media.

Figure 73 Optical drive activity LED indicator of server with 8 HDD

Activity states for the optical drive are as follows:

• Flashing green – Ongoing drive activity

• Off – No drive activity

Contents 76

Power LED Indicator

The power status of the server is indicated by the bicolor LED on the front panel.

Figure 7 Power LED Indicator Location

Table 5

Power LED indicator status

Component Status Description

Power LED indicator Steady green The server is operating normally.

Steady Amber The server is system off or in

hibernation with A/C power.

Off The server is system off without A/C

power.

Hard drive activity LED indicator

The status of hard drives installed in the server is indicated by the drive activity LED indicator located on the front panel of the server.

Contents 77

Figure 7 Drive activity LED indicator

Table 6

Hard drive activity LED indicator status

Item LED indicator Status Description

1 Drive Online/Error LED

indicator

Forced off (override drive activity output)

• The drive is not a member

of any RAID volumes; or the drive is configured but is in a replacement or failed state for at least one volume that it is a member of; or the drive is a spare drive that is inactive or has been activated but has not been rebuilt.

• The drive is not rebuilding.

• The drive is not a member

of a volume undergoing capacity expansion or RAID migration.

Solid green

• The drive is a member of a

RAID volume.

• The drive is not an inactive

spare drive.

• The drive is not in a

replacement or failed state for any volumes that it is a member of.

• The drive is not currently

performing any I/O activity.

Contents 78

Table 6 Hard drive activity LED indicator status

Item LED indicator Status Description

Flashing green during a

drive activity (if command is outstanding continually the indicator is forced to flash at 4 Hz 50% duty cycle instead of solid off)

Flashing green @ 1 Hz

50% duty cycle (override drive activity output)

2 Drive activity LED indicator Off

• The drive is currently

performing an I/O activity.

• The drive is a member of a

RAID volume.

• The drive is not in a

replacement or failed state for any volumes that it is a member of (drive is online).

• The drive is not rebuilding.

• The drive is not a member

of a volume undergoing capacity expansion or RAID migration.

• The drive is rebuilding.

• The drive is a member of a

volume undergoing capacity expansion or RAID migration.

• The drive is not in a failed

state.

• The drive is not selected

(unit identification).

Solid blue

Solid amber

Flashing amber @ 1 Hz

0% duty cycle 5

Flashing amber/blue @ 1 Hz 50% duty cycle

• The drive is not in a failed

state.

• The drive is selected (unit

identification)

• The drive is in a failed sta

The drive is not selected.

•

• a predictive

The drive is in failure state.

• ive is not in a failed

The dr state.

The drive is not selected.

•

• r

The drive is in a failed o predictive failure state

• The drive is selected.

te.

Contents 79

Rear panel LED indicators

The LAN port on the rear panel has two LED indicators that allow monitoring of network activity.

Figure 7 LAN/LED indicators location

Table 7

LAN/LED indicator states

Item Component Status Description

1 LAN network speed LED

indicator

Steady amber The LAN connection is

Off No connection.

2 LAN activity status LED

indicator

Off No network data activity

Steady green The LAN connection is

using a GbE link.

using 10Mbps/100 Mbps link.

Flashing green Ongoing network data

activity.

or no connection.

Contents 80

System board LED indicator

The system board contains internal status LED indicators for use during troubleshooting operations.

Figure 7 System board LED indicator

Table 8

System board LED indicator

Item Component Status Description

1 Management processor indicator Blinking The management

processor is running

Contents 81

Diagnostic tools and Setup Utilities

This chapter provides an overview of the Power-On Self-Test (POST), the POST error messages, and BIOS, SAS and SATA setup utilities.

BIOS Software

The server uses BIOS to boot up the system. BIOS software is a ROM-based firmware that allows reliability, manageability, and connectivity for server platforms. This software contains a set of programs permanently stored in an EEPROM chipset located on the system board. These programs assist in managing, initializing, and testing the hardware devices installed on the computer.

BIOS software allows you to:

• Perform configuration from the BIOS Setup Utility

Using the Setup Utility, you can install, configure, and optimize the hardware devices on the system board. In addition, you can set various features such as serial console redirection, PXE boot, and much more.

• Initialize hardware at boot up using POST routines

During power-on or warm reset, the BIOS perform Power-On Self-Test (POST) routines to test system components, to allocate resource for various hardware devices, and to prepare the system to boot to various operating systems.

BIOS Setup Utility

The HP server BIOS Setup Utility is used to configure five primary menu selections:

• Main

• Advanced

• Boot

• Security

• Exit

Accessing the BIOS Setup Utility

1. Turn on the monitor and server.

If the server is already turned on, save your data and exit all open applications, then restart the server.

2. When the HP logo is displayed during POST, press F10 into BIOS Setup Utility when prompt is

displayed after BIOS POST. If you fail to press F10 before POST is completed, you will need to restart the server.

3. The first page displayed is the Main menu showing the Setup Utility menu bar. Use the left (←)

and right (→) arrow keys to move between selections on the menu bar. Use the up (↑) and down (↓) arrow keys to select items within a menu.

Contents 82

Navigating through the Setup Utility

Use the keys listed in the legend bar on the right of the Setup screen to navigate through the various menu and submenu screens of the Setup Utility. Table 9 lists these legend keys and their respective functions.

Table 9

Setup Utility Navigation Keys

Key Function

← and → To move between selections on the menu bar.

↑ and ↓ To move the cursor to the field you want.

The currently selected field is highlighted. The right side of each menu screen displays a field help panel—Item Specific Help panel. This panel displays the help text for the currently selected field. It updates as you move the cursor to each field.

<+>, <–> To select a value for the currently selected field (only if

it is user-configurable). A parameter that is enclosed in square brackets is user-

configurable. Grayed-out parameters are not user-configurable for

one of the following reasons:

• The field value is auto-configured or auto-detected.

• The field value is informational only.

• The field is password-protected.

Enter To select a field value or display a submenu screen.

Displays more option for items marked with .

<Page Up> and <Page Down> Moves the cursor to the first/last item (each menu), the

item will be display highlight.

<Home> and <End> Moves the cursor to the first/last item (each menu), the

item will be display highlight.

F1 To bring up the General Help window.

The General Help window describes other Setup navigation keys that are not displayed on the legend bar.

F2, F3 To change BIOS Setup Utility screen colours.

F7 Discard any changes you have made.

F9 To load default system values.

F10 To save changes and close the Setup Utility.

Contents 83

Table 9 Setup Utility Navigation Keys

Key Function

Esc If you press this key:

• On one of the primary menu screens, the Exit menu

displays.

• On a submenu screen, the previous screen

displays.

• When you are making selections from a pop-up

menu, the pop-up closes without making a selection.

Figure 7 Setup Utility General Help screen

Press F1 to get the general help message box.

Contents 84

Setup Utility Menu Bar

The BIOS Setup Utility provides a menu bar with the menu selections. The menu bar choices are described in the topics below.

Main Menu

Figure 7 Main menu of the BIOS Setup Utility

Contents 85

Figure  Main menu of the BIOS Setup Utility

Use this menu to set the system time and date, and configure the following items:

• View BIOS build date and version.

• View CPU type / CPU speed.

• View System memory size.

• View System serial number.

• View MAC address for the embedded NIC.

• Set Server Asset Tag.

• Set system time and date.

• Set boot features:

○ Enable or Disable the BIOS summary display. ○ Turn on or off Bootup Num-Lock. ○ Set restore on AC power loss options, such as last state, power off, and power on. ○ If BIOS displays an error message, set POST F1 Prompt for selections, such as delayed,

enabled, or disabled.

Contents 86

Advanced Menu

Figure 8 Advanced menu of the BIOS Setup Utility 1

WARNING: Incorrect settings may cause the server to malfunction. To correct the settings, press F9

key to restore the default settings.

• CPU Configuration --- Configure and view the current CPU configuration and settings.

• IO Device Configuration --- Configure Super IO chipset SCH4307.

• S-ATA Configuration --- Configure Server Works HT 1000 S-ATA.

• ACPI Configuration --- Section for Advanced ACPI configuration.

• EVENT Log Configuration --- Mark as read, clear or View Event Log.

• IPMI Configuration --- IPMI Configuration including server monitoring and event log.

• Remote Access Configuration --- Configure Remote Access.

• USB Configuration --- Configure the USB support.

• PCI BUS Configuration --- Configure video card support function.

Contents 87

Figure 8 IPMI submenu of the BIOS Setup Utility

• SEL Configuration --- Configuration of the BMC System Event Log.

• Serial Port Configuration --- Select to configure system serial ports.

• LAN Configuration --- Select for LAN configuration.

• Watchdog Configuration --- Select to configure POST Watchdog Timer Action and BMC Watch

Dog Time Out.

• Hardware health information --- Select to get information about CPU temperature, ambient

temperature, rear HDD Opt fan speed and system fan speed.

Contents 88

Boot Menu

Figure 8 Boot menu of the BIOS Setup Utility

Use this menu to configure the boot priority.

• Boot Device Priority --- Use this screen to specify the order in which the system checks for a boot

device.

• Embedded NIC Port 1 PXE --- Use this screen to configure the embedded NIC Port 1 PXE boot

option. The default is enabled.

• Embedded NIC Port 2 PXE --- Use this screen to configure the embedded NIC Port 2 PXE boot

option. The default is disabled.

• USB Device Boot Priority --- Use this screen to control the latest added USB Functions by setting

the item to the desired value.

Contents 89

Security Menu

Figure 8 Security menu of the BIOS Setup Utility 1

Contents 90

Figure 8 Security menu of the BIOS Setup Utility 2

Use this menu to configure the following items:

Contents 91

• Administrator Password --- Display if an administrator password is Set or Not.

• Change Administrator Password --- Allows you to access and change all settings in the Setup

Utility. The administrator password allows you to configure access for system users.

To set a new administrator password:

1. In the Security screen, select a set password field - Change Administrator Password, and then

press Enter.

2. Type a new password in the Enter New Password box.

3. The password may consist of up to six characters. Alphanumeric characters (A-Z, a-z, 0-9) are

recommended to avoid system error.

4. Retype the password to verify the first entry, and then press Enter.

5. Press F10 to close the Setup Utility.

6. After setting the password, Setup automatically sets the password check to Setup. Figure 8 Security menu of the BIOS Setup Utility 3

When administer password is installed, use this menu to check password:

• Setup --- Check password while invoking setup.

• Always --- Check password while invoking setup as well as on each boot.

Contents 92

Exit Menu

Figure 8 Exit menu of the BIOS Setup Utility

Use this menu to save changes or discard changes. When you save and exit, the server reboots.

• Save Changes and Exit --- Save the changes you have made and exit the BIOS Setup Utility. (You

can also press F10 key.)

• Discard Changes and Exit --- Exit the BIOS Setup Utility without saving the changes you have

made. (You can also press Esc key.)

• Discard Changes --- Discard any changes you have made. (You can also press F7 key.)

• Load Optimal Defaults --- Load the factory default values for all items. (You can also press F9

key.)

BIOS Update

Perform the steps below to update BIOS:

1. Download the Smart Component (SPxxxxx.exe) to a directory on your hard drive.

2. Execute (SPxxxxx.exe) and followed with direction to complete the steps. “ProLiant Flash Update”

interface will appear.

3. Select items which need to execute:

○ Create a bootable ROMPaq diskette ○ Create a bootable ROMPaq USB Key ○ Create a bootable ROMPaq CD ○ ROMPaq Diskette Flat Files

Contents 93

○ Create a label for the ROMPaq diskette ○ Network ROM Flashing Capabilities

4. Reboot DL185 G5 Server with one of the above bootable devices and make sure the BIOS

setting allows booting from the USB disk.

5. Follow the on-screen instructions to finish the flashing of the BIOS.

Clear CMOS

You may need to clear the Setup configuration values (CMOS) if the configuration has been corrupted, or if incorrect settings made in the Setup Utility have caused error messages to be unreadable.

To clear CMOS:

1. Perform the Pre-Installation Procedure.

2. If necessary, remove any accessory boards or cables that prevent access to the system

configuration switch.

3. Locate the system configuration button (SW4) on the system board.

4. Press the button. AC power must not be connected.

5. Perform the Post-installation instructions.

6. During POST, press F10 to access the Setup Utility.

7. Load setup defaults by pressing F9.

8. Set time, date, and other system values.

9. Press F10 to close the Setup Utility.

NOTE: Clearing CMOS restore all system configurations and password default settings.

Power-On S elf-Test ( POST)

Before you can use a server, all devices must be tested and initialized, and the operating system must be bootstrapped to the memory. This is referred to as Power–On Self-Test or POST. POST is a series of diagnostic tests that checks firmware and hardware components on the system to ensure that the server is properly functioning. This diagnostic function automatically runs each time the server is powered on.

These diagnostics, which reside in the BIOS ROM, isolate server-related logic failures and indicate the board or component that you need to replace, as indicated by the error messages. Most server hardware failures will be accurately isolated during POST. The number of tests displayed depends on the configuration of the server.

During POST you can:

• Press ESC to go to POST boot progress display system summary screen.

• Press F10 to access the Setup Utility.

• Press F12 to request a network boot (PXE).

POST Error Indicators

When POST detects a system failure, it displays a POST error message.

Contents 94

POST Errors Message Definition

Whenever a non-fatal error occurs during POST, an error message describing the problem appears onscreen. These error messages are displayed in normal video (white text on black background), and show the details of the error. The following is an example of a POST error message:

012 --- CMOS Date/Time not set

Table 10 POST Error Messages lists the most common POST error messages with corresponding troubleshooting recommendation. HP recommends that you correct the error, even if the server appears to boot successfully.

Table 10

POST Error Messages

Error-Code Error Message Description / Corrective Action

000 Timer Error Indicates an error while programming the count

register of channel 2 of the 8254 timer. This may indicate a problem with system hardware. Requires repair of the system board.

003 CMOS Battery Low CMOS Battery is low. This message usually

indicates that the CMOS battery needs to be replaced. It could also appear when the users intentionally discharge the CMOS battery.

004 CMOS setting Wrong CMOS settings are invalid. This error can be

resolved by using F9 to load optimal default in the Setup Utility.

005 CMOS checksum bad and boot in a

safe configuration please reboot again for optimal default settings.

012 CMOS Date/Time not Set The CMOS Date and/or Time are invalid. This

CMOS contents failed the Checksum check. Indicates that the CMOS data has been changed by a program other than the BIOS or that the CMOS is not retaining its data due to malfunction. This error can be resolved by using F9 to load optimal default in the Setup Utility.

error can be resolved by readjusting the system time in the Setup Utility.

048 Password check failed Password is incorrect after retried a few times.

Users might need to reset the password.

04D Primary Master Hard Disk Error The IDE/ATAPI device configured as Primary

Master could not be properly initialized by the BIOS. This message is typically displayed when the BIOS is trying to detect and configure IDE/ATAPI devices in POST.

04E Primary Slave Hard Disk Error The IDE/ATAPI device configured as Primary

Slave could not be properly initialized by the BIOS. This message is typically displayed when the BIOS is trying to detect and configure IDE/ATAPI devices in POST.

Contents 95

Table 10 POST Error Messages

Error-Code Error Message Description / Corrective Action

04F Secondary Master Hard Disk Error The IDE/ATAPI device configured as Secondary

Master could not be properly initialized by the BIOS. This message is typically displayed when the BIOS is trying to detect and configure IDE/ATAPI devices in POST.

050 Secondary Slave Hard Disk Error The IDE/ATAPI device configured as Secondary

Slave could not be properly initialized by the BIOS. This message is typically displayed when the BIOS is trying to detect and configure IDE/ATAPI devices in POST.

051 Master Hard Disk Error The IDE/ATAPI device configured as Master in

the 3rd IDE controller could not be properly initialized by the BIOS. This message is typically displayed when the BIOS is trying to detect and configure IDE/ATAPI devices in POST.

052 Master Slave Disk Error The IDE/ATAPI device configured as Slave in the

3rd IDE controller could not be properly initialized by the BIOS. This message is typically displayed When the BIOS is trying to detect and configure IDE/ATAPI devices in POST.

202 CPU mismatch detected You should use the CPU of same frequency.

203 Unsupported processor You should change another type of processor.

Uncorrectable memory error System halts after displaying this message. If the

problem persists, contact HP Customer Support.

Microcode Error BIOS could not find or load the CPU Microcode

Update to the CPU. The message is most likely to appear when a new CPU is installed in a system board with outdated BIOS. In this situation, you must update the BIOS to include the Microcode Update for the new CPU.

Checking NVRAM Update Failed BIOS could not write to the NVRAM block. This

message appears when the FLASH part is malfunctioning.

Operating system not found Operating system can not be located on any of

the boot drives Verify that the priority boot drive has power and

that the IDE cable is connected properly. Verify that the desired boot drive has power. Verify that the IDE cable is securely plugged into

the respective system board connectors. Verify that the boot device is enabled in the

Setup Utility. Verify that the boot device has an operating

system installed. If the problem persists, contact your HP Customer

Support provider.

Contents 96

Table 10 POST Error Messages

Error-Code Error Message Description / Corrective Action

601 BMC Not Responding BMC not responding, you can load the optimal

default value, or you must change the LO100 card.

603 System Fan 1 Missing System fan 1 is not installed, user should install

the system fan 1.

604 System Fan 2 Missing System fan 2 is not installed, user should install

the system fan 2.

605 System Fan 3 Missing System fan 3 is not installed, user should install

the system fan 3.

606 System Fan 4 Missing System fan 4 is not installed, user should install

the system fan 4.

610 Temperature violation Detected Wait 5 minutes for system to cool.

Press ESC key is not recommended as system may shutdown unexpectedly.

611 System Event Log full You must enter BIOS SETUP UTILITY and then

POST Related Troubleshooting

Perform the following procedures when POST fails to run, displays error messages, or emits beep codes.

If a failure occurs during POST, check the following:

• All external cables and power cables should be firmly plugged in.

• The power outlet to the server should be connected and works correctly.

• The server and monitor are both turned on. The bicolor status LED indicator on the front panel

must be lit up green.

• The monitor's contrast and brightness settings are correct.

• All internal cables are properly connected and all boards firmly seated.

• The processor is fully seated in its socket on the system board.

• The heat sink assembly is properly installed on top of the processor.

• All memory modules are properly installed.

• If you have installed a PCI accessory board, verify that the board is firmly seated and any

switches or jumpers on the board are properly set. Refer to the documentation provided with the accessory board.

• All internal cabling and connections are in their proper order.

Clean the System Event Log.

If you have changed any switches on the system board, verify that each is properly set.

Contents 97

Physical and Operating Specifications

This chapter provides physical and operating specifications for the HP ProLiant DL185 G5 server. Specifications include:

System Unit

Table 11 Hardware Specifications

Item Components

Processor socket AMD F1207

Processor support 2P AMD Opteron 2000 series processor

Chipset HT2100 /HT1000

Hardware monitoring device ServerEngines management controller

Gigabit Ethernet controller

IDE controllers HT1000

Embedded video controller ServerEngines VGA core integrated into Pilot

I/O subsystem

BCM5704C dual GbE channels support

• Two PCIe x8 links with x8 slot

• One PCIe x4 links with x8 slot

Memory Eight DDR2-667 MHz DIMM slots with ECC, up to 32

Default media storage One-half height IDE CD-ROM drive, SATA hard drive

Optional media storage

• One slim ODD drive bay for CD-ROM/DVD-ROM

drive, non-hot-plug SATA hard drive, and SAS device

• Eight bays hot-plug HDD cage for SAS or SATA

drives

I/O ports PS2 keyboard port, PS2 mouse port, USB 2.0 ports

(two rear USB ports, one internal USB port (J 21), two front USB ports), video port, serial port and GbE port.

Status LED indicators Front panel

Rear Panel

System Board

• NIC 1/2 activity

• Power LED

• Health LED

• UID LED

• UID SW/LED

• LAN link status

• Management processor indicator

Contents 98

Table 11 Hardware Specifications

Item Components

Power Supply unit (PSU) 750W, Redundant power supply

Thermal solution Four system fans

Table 12 Physical Dimensions

Item Description

System board platform ATX (Advanced Technology Extended)

System board dimension 12 in x 13.5 in (304.8mm x 342.9mm)

Server dimensions Rack

Server weight Basic Configuration ( excludes keyboard and monitor):

17.63 in x 3.44 in x 27.5 in 448W x 87.5H x 698.7D (mm)

20 kg

Table 13 Environmental Specifications

Item Description

Temperature: Operating Non-operating Storage Wet-bulb temperature

Relative humidity: Operating Non-operating Storage

Altitude: Operating Non-operating

+10 to +35°C (+50 to +95°F)

-30 to 60°C (-22 to 140°F)

38.7° (101.7°F)

10% to 90% (non-condensing) 5% to 95% 5% to 95%

0 to 3049 meters (0 to 10,000 ft) 0 to 9146 meters (0 to 30,000 ft)

Thermal output (maximum operating) Acoustic emissions Normal configuration

392 W/hr LWad: 6.7 Bels (operating at room temperature) LWad: 6.7 Bels (Idle at room temperature)

Contents 99

Table 14 Power Supply Specifications

Item Description

Dimensions (H x W x D) 40.5 mm x 86.4 mm x 190.5 mm Weight (approximate)

Input requirements: Rated input voltage Normal line voltage

Line frequency 47 – 63 Hz

Rated input current 9.10 ARMS max @ 100V

BTU rating N/A

Power supply output power: Rated steady state power Maximum peak power

Temperature range: Operating Shipping

Relative humidity: Operating Non-operating

1.1 kg

90 VAC to 264 VAC 100 VAC to 120 VAC /200 VAC to 240 VAC

750W (1+1 Redundant) N/A

+5℃ to +50℃ –40℃ to +85℃

5% to 95% relative humidity, non-condensing. 5% to 95% relative humidity, non-condensing

Contents 100
