HP Compaq 8300 Elite Specification

Download

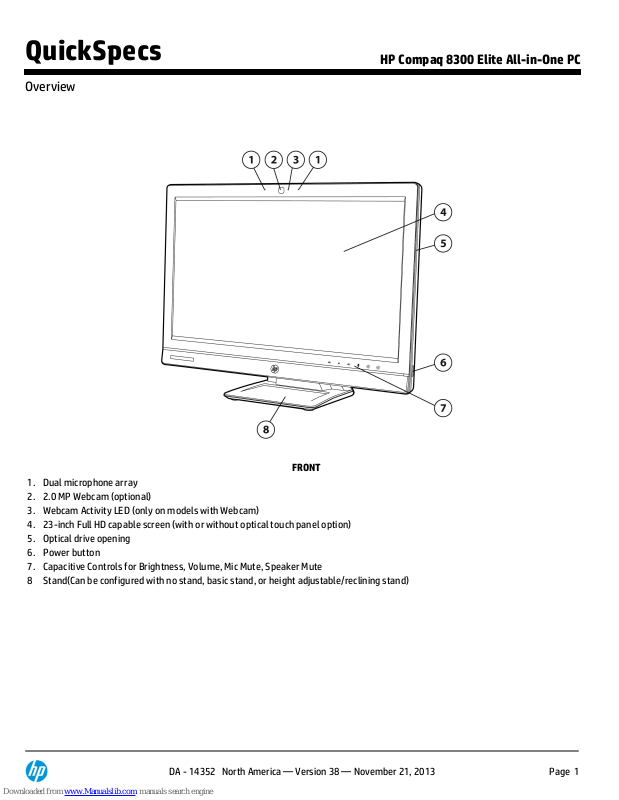

FRONT

Dual microphone array

2.0 MP Webcam (optional)

Webcam Activity LED (only on models with Webcam)

23-inch Full HD capable screen (with or without optical touch panel option)

Optical drive opening

Power button

Capacitive Controls for Brightness, Volume, Mic Mute, Speaker Mute

Stand(Can be configured with no stand, basic stand, or height adjustable/reclining stand)

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Overview

DA - 14352 North America — Version 38 — November 21, 2013

Page 1

BACK

Vent slots

Side venting

SD Media Card Reader (optional)

(2) USB 3.0 ports

Mic input jack

Headphone jack

Access panel latches

Rear port cover

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Overview

DA - 14352 North America — Version 38 — November 21, 2013

Page 2

REAR PORTS (BEHIND COVER)

Security lock slot

Power connector

PS/2 mouse and keyboard connectors

(2) USB 2.0 ports

(2) USB 3.0 ports

DisplayPort connector

RJ-45 Gigabit Ethernet port

Stereo line out

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Overview

DA - 14352 North America — Version 38 — November 21, 2013

Page 3

SIDE

Slim tray-load optical drive

Security screw

Optional serial port

Power button

At A Glance

Windows 7 or Windows 8 UEFI BIOS developed and engineered by HP for better security, manageability and software image stability Integrated all-in-one form factor 23-inch (1920 x 1080) diagonal widescreen WLED backlit anti-glare LCD, with or without Optical Touch Panel option Landscape or portrait display orientation

Optional height adjustable/reclining stand Intel® Q77 chipset Intel 2nd & 3rd generation Core™ processors Intel vPro™ Technology available with select processors Integrated Intel HD Graphics Optional MXM Discrete graphics Integrated Intel 82579LM Gigabit Network Connection Optional wireless connectivity:

Intel Advanced-N 6205 WLAN (mini PCI Express) - Intel 802.11 a/b/g/n WLAN (mini PCI Express) - HP 802.11 b/g/n WLAN and Bluetooth Combo Card - HP 802.11 a/b/g/n and Bluetooth® 4.0

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Overview

DA - 14352 North America — Version 38 — November 21, 2013

Page 4

WiDi support (with Intel 6205 WLAN) Optional Integrated 2.0 MP webcam & Dual Microphone Array High performance integrated stereo speakers SRS Premium Sound PRO™ Up to 16 GB of DDR3 SDRAM, dual channel memory support, two SODIMM slots Support for up to 3 storage drives (2 SATA, 1 mSATA) with RAID support Up to 1 TB SATA hard drive, up to 128GB Solid State Drive and 256GB Self-Encrypting Solid State Drive Optional Intel Smart Response Technology support with 24GB mSATA SSD Flash Cache Module Optional slim Tray-load SuperMulti Optical Disc Drive or DVD ROM Optical Disc Drive Optional SD Media Card Reader Optional serial port DisplayPort out Integrated VESA 100min x 100max mounting holes Lockable rear access panel with intrusion sensor ENERGY STAR® qualified. EPEAT® registered where applicable/supported. See www.epeat.net for registration status by country. CCC, CECP & SEPA Certified Qualified for Microsoft Lync TCO AiO and Edge Arsenic Free Protected by HP Services, including standard warranties up to 5-5-5 (terms and conditions vary by country; certain restrictions and exclusions apply)

Portrait orientation not recommended for Touch

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Overview

DA - 14352 North America — Version 38 — November 21, 2013

Page 5

OPERATING SYSTEM

Preinstalled

Windows 8 Pro (64-bit)*, ± Windows 8 (64-bit)*, ± Windows® 7 Ultimate (32-bit)** Windows® 7 Ultimate (64-bit)** Windows® 7 Professional (32-bit)** Windows® 7 Professional (64-bit)** Windows® 7 Professional (32-bit) (available through downgrade rights from Windows 8 Pro)***, ± Windows® 7 Professional (64-bit) (available through downgrade rights from Windows 8 Pro)***, ± Windows® 7 Home Premium (32-bit)** Windows® 7 Home Premium (64-bit)** Windows® 7 Home Basic (32-bit)** , ± FreeDOS 2.0 Novell SUSE Linux Enterprise Desktop 11

±Not available with Touch option.

*Not all features are available in all editions of Windows 8. Systems may require upgraded and/or separately purchased hardware, drivers and/or software to take full advantage of Windows 8 functionality. See

http://www.microsoft.com

**Not all features are available in all editions of Windows 7. This system may require upgraded and/or separately purchased hardware to take full advantage of Windows 7 functionality. See http://windows.microsoft.com/en-us/windows7/products/home

for details.

***This system is preinstalled with Windows® 7 Pro software and also comes with a license and media for Windows 8 Pro software. You may only use one version of the Windows software at a time. Switching between versions will require you to uninstall one version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data.

PROCESSOR

Intel® 3rd Generation Core™ i7 Processors

Intel® Core™ i7-3770 Up to 3.9 GHz Max. Turbo Frequency (3.4 GHz base frequency), 8 MB cache, 4 cores, 8 threads Intel HD Graphics 4000 Supports DDR3 memory up to 1600 MT/s data rate Supports Intel vPro Technologies and Intel's Stable Image Platform Program (SIPP)

Intel® 3rd Generation Core™ i5 Processors

Intel® Core™ i5-3570 Up to 3.8 GHz Max. Turbo Frequency (3.4 GHz base frequency), 6 MB cache, 4 cores, 4 threads Intel HD Graphics 2500 Supports DDR3 memory up to 1600 MT/s data rate Supports Intel vPro Technologies and Intel's Stable Image Platform Program (SIPP)

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Standard Features

DA - 14352 North America — Version 38 — November 21, 2013

Page 6

Intel® Core™ i5-3470 Up to 3.6 GHz Max. Turbo Frequency (3.2 GHz base frequency), 6 MB cache, 4 cores, 4 threads Intel HD Graphics 2500 Supports DDR3 memory up to 1600 MT/s data rate Supports Intel vPro Technologies and Intel's Stable Image Platform Program (SIPP)

Intel® 3rd Generation Core™ i3 Processors

Intel® Core™ i3-3240

3.4 GHz base frequency, 3 MB cache, 2 cores, 4 threads Intel HD Graphics 2500 Supports DDR3 memory up to 1600 MT/s data rate

Intel® Core™ i3-3225

3.3 GHz base frequency, 3 MB cache, 2 cores, 4 threads Intel HD Graphics 4000 Supports DDR3 memory up to 1600 MT/s data rate

Intel® Core™ i3-3220

3.3 GHz base frequency, 3 MB cache, 2 cores, 4 threads Intel HD Graphics 2500 Supports DDR3 memory up to 1600 MT/s data rate Intel® Core™ i3-3210

3.2 GHz base frequency, 3 MB cache, 2 cores, 4 threads Intel HD Graphics 2500 Supports DDR3 memory up to 1600 MT/s data rate

Intel® 3rd Generation Pentium® Processors

Intel® Pentium® G2120

3.1 GHz base frequency, 3 MB cache, 2 cores, 2 threads Intel HD Graphics Supports DDR3 memory up to 1600 MT/s data rate. Intel® Pentium® G2020

2.9 GHz base frequency, 3 MB cache, 2 cores, 2 threads Intel HD Graphics Supports DDR3 memory up to 1333 MT/s data rate

Intel® Pentium® G2010

2.8 GHz base frequency, 3 MB cache, 2 cores, 2 threads Intel HD Graphics Supports DDR3 memory up to 1333 MT/s data rate

Intel® 2nd Generation Pentium® Processors

Intel® Pentium® G870

3.1 GHz base frequency, 3 MB cache, 2 cores, 2 threads Intel HD Graphics Supports DDR3 memory up to 1333 MT/s data rate

Intel® Pentium® G860

3.0 GHz base frequency, 3 MB cache, 2 cores, 2 threads Intel HD Graphics Supports DDR3 memory up to 1333 MT/s data rate

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Standard Features

DA - 14352 North America — Version 38 — November 21, 2013

Page 7

Intel® Pentium® G645

2.9 GHz base frequency, 3 MB cache, 2 cores, 2 threads Intel HD Graphics Supports DDR3 memory up to 1066 MT/s data rate

Intel® Pentium® G640

2.8 GHz base frequency, 3 MB cache, 2 cores, 2 threads Intel HD Graphics Supports DDR3 memory up to 1066 MT/s data rate

CHIPSET

Intel® Q77

INTEL VPRO TECHNOLOGY CAPABLE

Intel Core i5 with vPro and Core i7 with vPro technology is a selectable feature that is available on units configured with select processors, and a preinstalled Windows operating system. It provides advances in remote manageability, security, energy efficient performance, and wireless connectivity. Intel Active Management Technology 8.0 (iAMT) offers an advanced set of remote management features and functionality which provides network administrators the latest and most effective tools to remotely discover, heal, and protect networked client systems regardless of the system's health or power state. AMT 8.0 includes the following advanced management functions:

Power Management (on, off, reset) Hardware Inventory (includes BIOS and firmware revisions Hardware Alerting Agent Presence System Defense Filters SOL/IDER Cisco NAC/SDN Support ME Wake-on-LAN DASH 1.1 compliance IPv6 Support Fast Call for Help - a client inside or outside the firewall may initiate a call for help via BIOS screen, periodic connections, or alert triggered connection Remote Scheduled Maintenance - pre-schedule when the PC connects to the IT or service provider console for maintenance. Remote PCs can get required patches, be inventoried, etc by connecting to their IT console or Service Provider when it's convenient Remote Alerts - automatically alert IT or service provider if issues arise Access Monitor - Provides oversight into Intel® AMT actions to support security requirements PC Alarm Clock Microsoft NAP Support Host Base set-up and configuration Management Engine (ME) firmware roll back Wireless AMT functionality on Desktop (WoDT)* Enhanced KVM resolution

* Requires Intel Advanced-N 6205 WLAN 802.11a/b/g/n PCIe Minicard Wireless Module

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Standard Features

DA - 14352 North America — Version 38 — November 21, 2013

Page 8

INTEL® STANDARD MANAGEABILITY

Includes DASH 1.0/1.1 compliance plus:

System Defense Agent Presence SOL/IDE Redirection CISCO NAC/SDN support ME Wake on LAN Host Based Configuration ME Firmware Rollback IPv6 Support

DASH 1.0/1.1 compliance:

Boot Control HW Inventory SW Inventory Power State Management HW Alerting

SMBIOS

System Management BIOS, previously known as DMI BIOS, is used to store system management information

GRAPHICS

Integrated

(depends on processor)

Intel HD Graphics: Basic, 2000, 2500, or 4000

Models with Intel Core i3/i5/i7 processors include HD 2000, 2500, or 4000 graphics. Models with Pentium or Celeron processors include HD graphics. Please see specific processors for graphics configuration.

Discrete (optional)

AMD Radeon HD 7650A 2GB DDR3 MXM Graphics

Graphics controller

AMD Radeon HD 7650A

Core clock

600MHz max

Memory clock

800MHz max

Memory frame buffer

2GB, DDR3, 128-bit wide

Memory

2GB DDR3

Supported Graphics APIs

DX11, OpenGL, full 1080p Blu-Ray Disc (H264) playback in hardware, MultiStream DisplayPort support (supports up to 4 displays total - 4 independent video and audio streams)

NVIDIA GeForce GT 630M 2GB DDR3 MXM Graphics

Graphics controller

NVIDIA GF108

Core clock

675MHz

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Standard Features

DA - 14352 North America — Version 38 — November 21, 2013

Page 9

Memory clock

900MHz

Memory frame buffer

2GB, DDR3, 128-bit wide

Memory

2GB DDR3

Supported Graphics APIs

DX11, OpenGL, full 1080p Blu-Ray Disc (H264) playback in hardware

WIRELESS DISPLAY

WiDi support with Intel Advanced-N 6205 WLAN (mini PCI Express)

Desktop system requirements for Intel Wireless Display

System Component

Requirement

Processor

3rd generation Intel® Core processor

Graphics

Intel® HD Graphics

Wireless

Intel Advanced-N 6205 WLAN (mini PCI Express)

Software

Intel® My WiFi Technology and Intel® Wireless Display must be pre-installed and enabled.

Windows 7 64-bit, Home Premium, Ultimate or Professional

DISPLAY

Optical and non-touch 23"diagonal TN widescreen WLED backlit anti-glare2 LCD; orientation designed to operate in portrait or landscape; with or without Optical Touch Panel option

Display Panel

Type

TN (Twisted Nematic) LED Backlit LCD

Viewable image area - 23" models (horizontal & vertical)

509.76(H) x 286.74(V)

Screen opening 23" models (H x V)

513.8 (H) x 290.8 (V)

Native Resolution

1920 x 1080

Aspect ratio

16:9

Contrast ratio (typical)

1000:1

Brightness (typical)

250 nits (cd/m2)

Viewing angle (typical)

85/85/80/80 (L/R/U/D)

Pixel pitch

0.2655(H) x 0.2655(V)

Backlight lamp life (to half brightness)

30,000 hours minimum

Color support

Over 16 million colors (through FRC)

Color gamut (typical)

72%

Anti-glare

Yes

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Standard Features

DA - 14352 North America — Version 38 — November 21, 2013

Page 10

Default color temperature

Warm (6500K)

8300 Non-touch is anti-glare

NOTE:

All performance specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower.

Basic Stand:

Tilt Angle

-5° to +30°

Rotation

360° swivel

Height Adjustable /Reclining Stand:

Vertical Adjustment

Up to 110 mm

Recline Angle

Low position sliding height adjustment => -5° to +60°

Tilt Angle

High position sliding height adjustment => -5° to +30°

Rotation

360° swivel

WEBCAM & MIC

Optional integrated 2 MP webcam & dual microphone array; maximum resolution of 1920 x 1080

STORAGE

3.5" SATA Hard Drive

250 GB, 7200 rpm, SATA 6.0 Gb/s, SMART IV 500 GB, 7200 rpm, SATA 6.0 Gb/s, SMART IV 1 TB, 7200 rpm, SATA 6.0 Gb/s, SMART IV

2.5 " SATA Hard Drive

320 GB, 7200 rpm, SATA 6.0 Gb/s, SMART IV 500 GB, 7200 rpm, SATA 6.0 Gb/s, SMART IV

2.5" Solid State Drive

120 GB, SATA, Solid State Drive 128 GB, SATA, Solid State Drive 160 GB, SATA, Solid State Drive

2.5" Self-Encrypting Solid State Drive

256 GB, SATA, Self-Encrypting Solid State Drive

2.5" Self-Encrypting Drive

500 GB, SATA, Self-Encrypting Drive

Removable

HP Slim Removable SATA HDD frame/carrier

Flash Cache Module

24GB mSATA SSD Flash Cache Module (Intel Smart Response Technology - Optional with Core Processors) 32GB mSATA SSD Flash Cache Module (Intel Smart Response Technology - Optional with Core Processors)

Optical Disc Drive

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Standard Features

DA - 14352 North America — Version 38 — November 21, 2013

Page 11

Slim Tray-load SATA DVD-ROM Slim Tray-load SATA SuperMulti DVD Writer No included Optical Disc Drive

Media Card Reader (optional)

4-in-1 PCIe Interface Supports Secure Digital (SD, SDHC), Memory Stick, Memory Stick Pro

MEMORY

Type

Non-ECC, DDR3 SDRAM, 1600 MT/s, SODIMM

Maximum

16 GB

# of Slots

2 204-pin supporting dual-channel memory Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.

NOTE:

Full availability of 4 GB or more of memory requires a 64-bit operating system. With Windows 32-bit operating systems, the amount of usable memory is dependent upon your configuration, so that above 3 GB all memory may not be available due to system resource requirements.

Memory modules support data transfer rates up to 1600 MT/s; actual data rate is determined by the system's configured processor. See processor specifications for supported memory data rate.

NETWORKING/COMMUNICATIONS

Ethernet (RJ-45)

Integrated Intel 82579LM Gigabit Network Connection

NOTE:

The term "10/100/1000" or "Gigabit" Ethernet indicates compliance with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required.

Wireless LAN (optional)

Intel 802.11a/b/g/n wireless 6205 PCIe minicard Up to 300 mbps data rate

HP 802.11b/g/n wireless PCIe minicard Up to 300 mbps data rate

HP 802.11a/b/g/n wireless minicard with Bluetooth Combo Up to 300 mbps data rate Bluetooth 4.0 compliant Works with a wide range of Bluetooth devices

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Standard Features

DA - 14352 North America — Version 38 — November 21, 2013

Page 12

AUDIO/MULTIMEDIA

SRS Premium Sound PRO™ IDT 92HD91 Audio - 16 & 24-bit PCM High performance integrated stereo speakers Volume control and mute buttons Stereo headphone jack Microphone in Stereo line out Integrated 2.0 MP webcam (up to 30 frames/sec ) & dual microphone array (optional)

KEYBOARDS AND POINTING DEVICES

Keyboard

HP PS/2

104 keys plus special functions for Mute, Volume Up, Volume Down, Sleep Separate numeric keypad Cable length 51 in (130 cm)

HP USB Keyboard

104 keys plus special functions for Mute, Volume Up, Volume Down, Sleep Separate numeric keypad Cable length 51 in (130 cm)

HP Wireless Keyboard & Mouse

104 keys plus special functions for Mute, Volume Up, Volume Down, Sleep Separate numeric keypad; two buttons with scroll wheel acting as third button Operates at ~ 2.4 GHz and supports a working distance of up to 32 ft (10m) Cable length 6ft (1.8m) (Keyboard contains 25% post-consumer recycled plastic material)

HP USB CCID SmartCard Keyboard

104, 105, 106, 107, 109 layout (depending upon country Carbonite/Silver All ISO 7816 smart cards

HP USB PS/2 Washable Keyboard

SpillSeal® keyboard technology protection USB & PS/2 support in one solution Separate numeric keypad Cable length 7ft (2.2m)

Mice

HP PS/2 Mouse

Two buttons with scroll wheel

72.8 in (185 cm)

HP USB Optical Mouse

Two buttons with scroll wheel

72.8 in (185 cm)

HP USB 1000dpi Laser Mouse

1000 dpi support Two buttons with scroll wheel Cable length 70.8 in (180 cm)

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Standard Features

DA - 14352 North America — Version 38 — November 21, 2013

Page 13

HP USB PS/2 Washable Scroll Mouse

SpillSeal® mouse technology protection Two buttons with scroll wheel

8.8 ft total 70 cm+ 2m extension

HP BIOS

Key features of the HP BIOS include:

Deployment and manageability - HP BIOS provides several technologies that help integrate the HP Compaq Elite 8300 Business PC into the enterprise, such as PXE, remote configuration, remote control, and F10 Setup support for 12 languages. Select models feature either Intel Standard Manageability or Intel Core vPro Processor Technology. Stability - HP BIOS supports the HP stable product roadmap by releasing only critical BIOS changes to the factory and advanced change notification. Support UEFI specification 2.1 Computrace agent - For tracking and tracing services, available in select countries, separate software and purchase of a subscription is required. Thermal and power management - The HP BIOS provides and enables thermal and power management technologies so component temperatures are managed for high reliability and to assist in operating the HP Business Desktop computer in any enterprise environment. Thermal Controlled Fans - Automatic or manual controlled fan speeds for cooling and acoustic performance. Serviceability

- HP BIOS provides diagnostic and detailed service information. Upgrades and recovery - HP BIOS provides numerous ways to upgrade HP Business Desktop computers, including BIOS updates from within DOS (DOSFlash), BIOS updates from within Windows (HPQFlash), HP Client Manager, and fail-safe recovery (Emergency Boot Block Recovery). In addition, the HP Business Desktop BIOS Utilities tool enables replicated BIOS setup throughout the Enterprise; it is available from within the BIOS software and from the support website. HP BIOS uses PKI signing of the BIOS for trusted BIOS upgrades and recovery. Serviceability - HP BIOS provides diagnostic and detailed service information.

Additional HP BIOS Features:

Power-On password - Helps prevent an unauthorized user from powering on the system. Administrator password - Also known as the setup password, this helps prevent unauthorized changes to the system configuration. If the administrator password is not known, the BIOS version cannot be changed and changes cannot be made to BIOS settings using F10 setup or under the OS. Advanced Configuration and Power Interface (ACPI) - Represents a significant innovation in power and configuration management, allowing operating systems and applications to manage power based on activity and usage. HP Elite models use ACPI to provide power conservation features. S5 Max Power Savings setting supports EU Lot6 requirement and allows the computer to power down below 1W is S5 (when turned off). When S5 Max Power Savings feature is enabled power to slots is turned off along with WOL functionality. Master Boot Record Security - Helps to prevent changes and/or infections to the Master Boot Record caused by viruses or malicious code. HP BIOS Protection - prevents unauthorized updates or changes to the BIOS due to malware, viruses, or malicious BIOS updates. Based on NIST SP800-147 policy guidelines.

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Standard Features

DA - 14352 North America — Version 38 — November 21, 2013

Page 14

SECURITY

USB port disable Lockable Access Panels Security Screw HP Keyed Cable Lock (optional) Common Criteria Certified, Infineon TPM SLB9635TT1.2 - 3.17 FW Intrusion Detector Wall Mountable via VESA bracket Support for Nobel Locking Plate (3rd party option) Support for 3M Privacy Screen (3rd party option), for non-touch models

POWER

Internal 230W, 90% efficient, active PFC 100-240V AC

HP Power Assistant software (optional) Provides real-time reporting of how system settings impact the energy consumed by the PC and the potential savings over time.

SOFTWARE

Included

Windows 8 Windows 7

Security

HP Client Security*****

Credential Manager Password Manager One Step Logon Face Recognition SpareKey Device Access Manager w/JITA Drive Encryption* Computrace -

optional

Windows Defender

HP Client Security*****

Credential Manager Password Manager One Step Logon Face Recognition SpareKey DigitalPass Device Access Manager w/ JITA Drive Encryption (McAfee) File Sanitizer Privacy Manager

Computrace -

optional

Microsoft Security Essentials

Windows Applications

Internet Explorer Store Desktop Photos Mail Games Calendar People (contacts) Messaging SkyDrive Music Video

Internet Explorer Bing Search

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Standard Features

DA - 14352 North America — Version 38 — November 21, 2013

Page 15

Camera News Sports Weather Maps Finance Bing (Search)

Productivity

Buy Office MS Office 2013*****

HP Additions

SRS Premium Sound PRO HP Quick Start HP PageLift for Windows 8 HP Registration HP Getting Started with Windows 8 HP ePrint*** HP Support Assistant HP Wallpaper CyberLink Media Suite Windows 8 CyberLink Media Suite CyberLink YouCam (Pre-installed on models with Webcam)**** CyberLink YouCam Windows 8**** CyberLink Webcam Sharing Manager**** CyberLink Power2Go CyberLink Photo Director CyberLink Power Director HP Mobile Connect Evernote Skype

SRS Premium Sound PRO HP Marketplace HP Wallpaper CyberLink Media Suite CyberLink YouCam (Pre-installed on models with Webcam)**** CyberLink Webcam Sharing Manager**** CyberLink Power2Go CyberLink Photo Director CyberLink Power Director

Desktop Applications

HP Wireless Hotspot HP Support Assistant PDF Complete, corporate edition

PDF Complete Corporate Edition WinZip Basic Adobe Flash Player

HP Documentation (eDOCS)

HP eHelp Documentation HP Hardware Reference Guide HP Quick Setup & Getting Started Guide HP Regulatory and Safety Information HP Safety and Comfort Guide HP Warranty Documentation

HP Support Applications

HP EUDI Support Environment HP Help and Support HP Registration HP Support Assistant

HP EUDI Support Environment HP Help and Support HP Recovery Manager HP Setup v9.0 HP Support Assistant

AiO Applications

HP TouchSmart -

only Touch option

HP Magic Canvas -

only Touch option

HP MyDisplay HP Linkup Intel Wireless Display

HP TouchSmart -

only Touch option

HP Magic Canvas -

only Touch option

HP MyDisplay HP Linkup Intel Wireless Display

*Available via download

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Standard Features

DA - 14352 North America — Version 38 — November 21, 2013

Page 16

** Computrace agent is shipped turned off, and must be activated by customers when they purchase a subscription. Subscriptions can be purchased for terms ranging from one to five years. Service is limited, check with Absolute for availability outside the U.S. *** Requires an Internet connection to HP web-enabled printer and HP ePrint account registration (for a list of eligible printers, supported documents and image types and other HP ePrint details, see

www.hp.com/go/eprintcenter

). Requires optional broadband module. Broadband use requires separately purchased service contract. Check with service provider for coverage and availability in your area. Separately purchased data plans or usage fees may apply. Print times and connection speeds may vary. ****Preinstalled on models with webcam *****Optional

ENVIRONMENTAL & INDUSTRY

Energy Star® qualified models available EPEAT® registered where applicable/supported. See

www.epeat.net

for registration status by country.

Industry standard certifications

: UL CSA FCC compliance ENERGY STAR® EPEAT® Gold EUP Lot6 Tier2 CCC CECP SEPA TCO AiO and Edge Qualified for Microsoft Lync Low Halogen Arsenic Free 80 PLUS® TAA compliant

For accessibility information on HP products, please visit:

http://www.hp.com/accessibility

WEIGHTS & DIMENSIONS

Weight

Product Weight

Basic stand

21.7 - 25.5 lbs

9.85 - 11.55 kg Height adjustable/reclining stand

33.4 - 37.1 lbs

15.15 - 16.85 kg Without stand

16.9 - 20.6 lbs

7.65 - 9.35 kg

Shipping Weight

Box

Pallet

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Standard Features

DA - 14352 North America — Version 38 — November 21, 2013

Page 17

Basic Stand

30.78 lbs

13.96 kg

Basic Stand (18 units)

595.35 lbs 270 kg

Height adjustable/reclining stand

43.81 lbs

19.87 kg

Height adjustable/reclining stand (12 units)

567.66 lbs

257.44 kg

Without stand

28.38 lbs

12.87 kg

Without stand (18 units)

595.35 lbs 270 kg

Weight without Touch Panel

Product Weight

Basic stand

19.9 - 23.6lbs

9.02 - 10.72 kg Height adjustable/reclining stand

31.6 - 35.3 lbs

14.32 - 16.02 kg Without stand

15 - 18.8 lbs

6.82 - 8.52 kg

Shipping Weight

Box

Pallet

Basic Stand

30.78 lbs

13.96 kg

Basic Stand (18 units)

595.35 lbs 270 kg

Height adjustable/reclining stand

43.81 lbs

19.87 kg

Height adjustable/reclining stand (12 units)

567.66 lbs

257.44 kg

Without stand

26.06 lbs

11.82 kg

Without stand (18 units)

510.41 lbs

231.48 kg

Dimensions (W x D x H)

Product Dimensions

Basic stand

22.1 x 7.7 x 17.2 in

561.9 x 195.6 x 436.23 mm Height adjustable/reclining stand

60 degrees

22.1 x 14.7 x 11 in

561.9 x 374.5 x 278.5 mm

0 degrees

22.1 x 9.7 x 20.9 in

561.9 x 247.5 x 529.7 mm

Without stand

22.1x2.6x15.2 in

561.9x65x387.1 mm

Shipping Dimensions Box

Pallet

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Standard Features

DA - 14352 North America — Version 38 — November 21, 2013

Page 18

Basic stand

25.98 x 10.67 x 21.61 in 660 x 271 x 549 mm

Basic stand (18 units)

47.24 x 39.37 x 69.57 in 1200 x 1000 x 1767 mm

Height adjustable/reclining stand

28.54 x 12.95 x 21.26 in 725 x 329 x 540 mm

Height adjustable/reclining stand (12 units)

47.24 x 39.37 x 68.50 in 1200 x 1000 x 1740mm

Without stand

25.98 x 10.67 x 21.61 in 660 x 271 x 549 mm

Without stand (18 units)

47.24 x 39.37 x 69.57 in 1200 x 1000 x 1767 mm

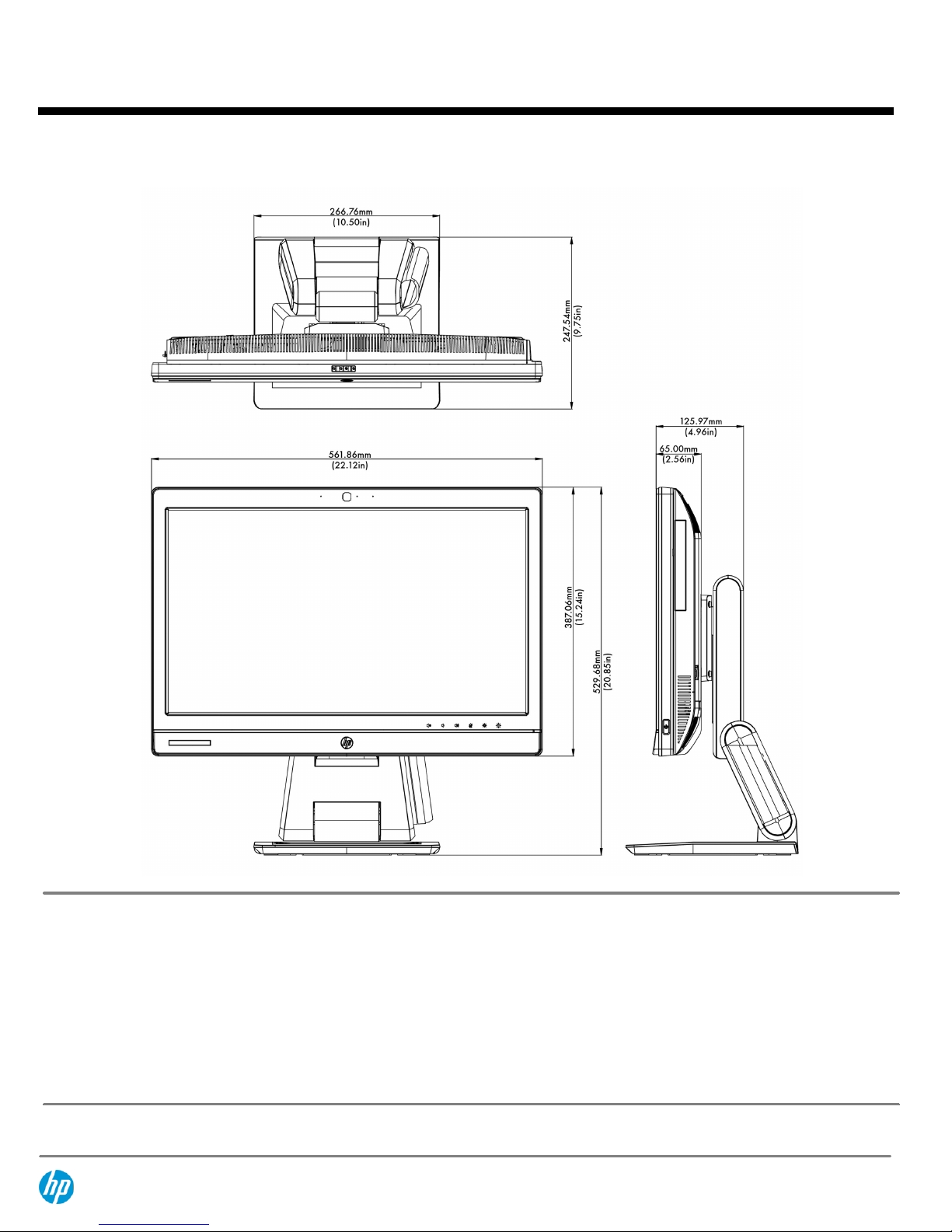

BASIC STAND DIMENSIONS

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Standard Features

DA - 14352 North America — Version 38 — November 21, 2013

Page 19

HEIGHT ADJUSTABLE/RECLINING STAND DIMENSIONS

TEMPERATURE, HUMIDITY, ALTITUDE

Temperature

Operating

50° to 95° F (10° to 35° C)

Non-operating

-22° to 140° F(-30° to 60° C)

Relative humidity

Operating

10% to 90% (non-condensing at ambient)

Non-operating

5% to 95% (non-condensing at ambient)

Altitude

(unpressurized)

Operating

10,000 ft (3048 m)

Non-operating

30,000 ft (9144 m)

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Standard Features

DA - 14352 North America — Version 38 — November 21, 2013

Page 20

PORTS

I/O Ports - Standard

4 - USB 3.0 (2 side, 2 rear) 2 - USB 2.0 (2 rear) 2 - PS/2 (legacy) (one keyboard, one mouse) 1 - Microphone in (side) 1 - Headphone jack (side) 1 - Serial RS-232 (rear) (optional) 1 - Stereo audio line out (rear) 1 - Power connector (rear) 1 - RJ-45 (rear)

1 - DisplayPort DisplayPort connector supports multimode technology to support connection to DVI-D, HDMI and VGA monitors with optional adapters or to a DisplayPort monitor with a DisplayPort Cable.

DisplayPort Cable

Provides a direct connection between the PC's DisplayPort interface to the display's DisplayPort interface

DisplayPort To DVI-D Adapter

Provides a connection from the PC's DisplayPort interface to the display's DVI-D interface; adapts the DP output to the DVI-D input

DisplayPort To HDMI Adapter

Provides a connection from the PC's DisplayPort interface to the display's HDMI interface; adapts the DP output to the HDMI input

DisplayPort To VGA Adapter

Provides a connection from the PC's DisplayPort interface to the display's analog VGA interface; adapts the digital DP output to the analog VGA input

SLOTS

1 - Mini PCIe half-length (used by wireless LAN module) 1 - MXM 3.0 Type A - 35W 1 - mSATA

BAYS

1 - 3.5" internal; Supports One - 3.5" hard drive or up to Two - 2.5" hard drives (HDD/SSD/SED) 1 - 5.25" external; Slim Line Optical Drive

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Standard Features

DA - 14352 North America — Version 38 — November 21, 2013

Page 21

SERVICE AND SUPPORT

On-site Warranty 1: Three-year (3-3-3) limited warranty delivers three years of on-site, next business day 2 service for parts and labor and includes free telephone support 3 24 x 7. Three-year onsite and labor are not available in all countries. Service offers terms up to 5 years by choosing a Care Pack. To choose the right level of service for your HP product, visit HP Care Pack Central:

www.hp.com/go/cpc

NOTE 1:

Terms and conditions may vary by country. Certain restrictions and exclusions apply. Other warranty variations may be

offered in your region.

NOTE 2:

On-site service may be provided pursuant to a service contract between HP and an authorized HP third-party provider, and is not available in certain countries. Global service response times are based on commercially reasonable best effort and may vary by country.

NOTE 3:

Technical telephone support applies only to HP-configured Compaq and third-party HP qualified hardware and software. Toll-free calling and 24 x 7 support may not be available in some countries.

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Standard Features

DA - 14352 North America — Version 38 — November 21, 2013

Page 22

Intel HD Graphics

VGA Controller

Integrated

DisplayPort

1.1a; integrated, multimode capable; supports HDCP and audio over DisplayPort

Bus Type

PCI Express x16

RAMDAC

Integrated, 350 MHz

Memory

Intel graphics do not have dedicated memory but utilizes some of the computer's system memory The amount of memory used for graphics depending on the amount of system memory installed, BIOS settings, operating system, and system load. 32 MB is pre-allocated for graphics use at system boot time. Additional memory can be allocated at boot time by the BIOS for PAVP (Protected Audio Video Playback) support for playback of protected video content.

Additional memory is allocated for graphics as needed using Intel's Dynamic Video Memory Technology (DVMT), to provide an optimal balance between graphics and system memory use.

Maximum Graphics Memory

Microsoft Windows 7

Windows 8

Up to 1.7GB Up to 1.8GB

Note

: the actual amount of maximum graphics memory can be less than the amounts listed above

depending upon your computer's configuration.

HW Video Decode

AVC/VC1/MPEG2/JPEG/MJPEG/PAVP

Maximum Color Depth

32 bits/pixel

Graphics/Video API Support

Generation Core processors:

The Processor Graphics contains a refresh of the seventh generation graphics core enabling substantial gains in performance and lower power consumption. Up to 16 EU support. Next Generation Intel Clear Video Technology HD Support is a collection of video playback and enhancement features that improve the end user's viewing experience

Encode/transcode HD content Playback of high definition content including Blu-ray Disc Superior image quality with sharper, more colorful images Playback of Blu-ray disc S3D content using HDMI (V.1.4 with 3D)

DirectX Video Acceleration (DXVA) support for accelerating video processing

Full AVC/VC1/MPEG2 HW Decode Advanced Scheduler 2.0, 1.0, XPDM support Windows 7, Windows XP, OSX, Linux OS Support DirectX 11, DirectX 10.1, DirectX 10, DirectX 9 support OpenGL 3.3 support

2nd Generation Core processors:

The Processor Graphics contains a refresh of the sixth generation graphics core enabling substantial gains in performance and lower power consumption. Next Generation Intel Clear Video Technology HD support is a collection of video playback and enhancement features that improve the end user's viewing experience.

Encode/transcode HD content

Playback of high definition content including Blu-ray Disc

Superior image quality with sharper, more colorful images

Playback of Blu-ray disc S3D content using HDMI (V.1.4 with 3D) DirectX Video Acceleration (DXVA) support for accelerating video processing

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Technical Specifications – Graphics

DA - 14352 North America — Version 38 — November 21, 2013

Page 23

Full AVC/VC1/MPEG2 HW Decode Advanced Scheduler 2.0, 1.0, XPDM support Windows 7, XP, Windows Vista, OSX, Linux OS Support DirectX 10.1, DirectX 10, DirectX 9 support OpenGL 3.0 support

Supported Display Resolutions and Refresh Rates

NOTE:

other resolutions may be available but are not recommended as they may not have been tested and qualified by HP

Resolution

Refresh Rates

800x600

60 Hz

1024x768

60 Hz

1152x864

60 Hz

1280x600

60 Hz

1280x720

60 Hz

1280x800 1280x960

60 Hz 60 Hz

1280x1024

60 Hz

1360x768 1366x768

1400x1050

60 Hz 60 Hz 60 Hz

1440x900

60 Hz

1600x900

60 Hz

1600x1200*

60 Hz

1680x1050

60 Hz

1920x1080

60 Hz

1920x1200*

60 Hz

1920x1440*

60 Hz

2560x1440*

60 Hz

2560x1600*

60 Hz

* Only supported on displays connected to the external DisplayPort connector.

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Technical Specifications – Graphics

DA - 14352 North America — Version 38 — November 21, 2013

Page 24

AMD Radeon HD 7650A Graphics Card

Form Factor

MXM 3.0

Graphics Controller

AMD Radeon HD 7650A

Core Clock

600MHz

Memory Clock

800MHz

Memory

2GB, DDR3, 128-bit wide

Bus Type

MXM

Max. Power

35W

Power Source Support

12V and 19V

3D API Support

DX11, SMS

HDCP Support

Yes

Display Max. Resolution

Digital 2560 x 1600 Analog 2048 x 1536

Supported Graphics APIs

DX11, OpenGL, full 1080p BD (H264) playback in hardware, Multi-Stream DisplayPort support

Supported Display Resolutions and Refresh Rates

NOTE:

other resolutions may be available but are not recommended as they may not have been tested and qualified by HP

Resolution

Refresh Rates

800 x 600 1024 x 768 1280 x 720 1280 x 768

1280 x 1024

1360 x 768 1440 x 900 1600 x 900

1680 x 1050 1920 x 1080

60 Hz 60 Hz 60 Hz 60 Hz 60 Hz 60 Hz 60 Hz 60 Hz 60 Hz 60 Hz

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Technical Specifications – Graphics

DA - 14352 North America — Version 38 — November 21, 2013

Page 25

Introduction

HP Serial Advanced Technology Attachment (SATA) Hard Drives maximize the performance of HP Business PCs by providing the technologies to meet your increasing storage demands with high-capacity drives offering superior reliability and performance.

SATA provides faster data transfer speeds, better system cooling airflow, more bandwidth, more headroom for speed increases in future generations and better data integrity. A next-generation technology, the SATA interface connects hard drives to the PC platform enabling easy aggregation of multiple hard drives into a single PC. This offers you the additional benefits of dedicated bandwidth, the ability to more easily identify device failures and scalability. The HP Compaq 6300 Pro Series supports the latest SATA 6.0Gb/s specification.

HP Drive Lock

HP Serial ATA Hard Drives offer enhanced security via a new Drive Lock. When enabled, this ATA security feature set prevents software access to user data on the drive until one or two user-defined passwords are provided.

SMART IV Technology

Self Monitoring Analysis and Reporting Technology (SMART) hard drive technology allows hard drives to monitor their own health and to raise flags if imminent failures are predicted. If the drive determines that a failure is imminent, the SMART hard drive technology enables the intelligent manageability or management software to generate a fault alert. While the current versions of SMART hard drives do a good job monitoring the data on the hard drive media, the ever increasing emphasis on reliability and quality has promoted HP to implement SMART IV technology which constantly checks that the data flow from host interface to media and media to host interface is not compromised. This is accomplished by inserting a 2 byte parity code into every 512 byte block in the data path of the hard drive's Cache RAM. This unique parity checking performed by HP's SMART IV technology hard drives, allows for more complete error detection coverage encompassing the entire data path between the host and the hard drive.

Smart IV is also known as IOEDC: I/O Error Detection Code.

Native Command Queuing

NCQ or Native Command Queuing is a SATA protocol extension that allows the hard drive to have several write or read commands outstanding at the same time. In contrast, normal non-queued operation requires each command to be completed before the next command is issued by the host system. Queuing allows the drive to complete the commands in the order that allows for best overall throughput. It also involves an advanced method of transferring data to or from the host, called First Party Direct Memory Access (FPDMA), which allows the hard drive and the host controller to manage the data transfers for multiple outstanding commands, without involving the host processor. NCQ can contribute to better performance but the results are dependent on many factors, including the access patterns of the various applications and operating system functions that are initiating drive accesses. Enabling NCQ features in the hard drive requires AHCI support from the host system BIOS, controller, and driver. AHCI support is typically implemented in RAID configurations.

Note:

GB = 1 billion bytes. Actual available capacity is less.

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Technical Specifications – Hard Disk and Solid State Storage

DA - 14352 North America — Version 38 — November 21, 2013

Page 26

HP 250-GB 7.2K SATA 6.0Gb/s 3.5" Hard Disk Drive

Capacity

250,059,350,016 bytes

Rotational Speed

7,200 rpm

Interface

Serial ATA 3.0 (6.0 Gb/s)

Buffer Size

8 MB

Logical Blocks

488,397,168

Seek Time

(typical reads, includes controller overhead, including settling)

Single Track:

1.0 ms

Average:

8.5 ms

Full-Stroke:

18 ms

Height

(nominal)

1 in (2.54 cm)

Width

(nominal)

Media diameter: 3.5 in (8.89 cm) Physical size: 4 in (10.2 cm)

Operating Temperature

41° to 131° F (5° to 55° C)

HP 500-GB 7.2K rpm SATA 6.0Gb/s 3.5” Hard Disk Drive

Capacity

500,107,862,016 bytes

Rotational Speed

7,200 rpm

Interface

Serial ATA 3.0 (6.0 Gb/s)

Buffer Size

16 MB

Logical Blocks

976,773,168

Seek Time

(typical reads, includes controller overhead, including settling)

Single Track:

2.0 ms

Average:

11 ms

Full-Stroke:

21 ms

Height

(nominal)

1 in/2.54 cm

Width

(nominal)

Media diameter: 3.5 in/8.89 cm Physical size: 4 in/10.2 cm

Operating Temperature

41° to 131° F (5° to 55° C)

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Technical Specifications – Hard Disk and Solid State Storage

DA - 14352 North America — Version 38 — November 21, 2013

Page 27

HP 1-TB 7.2K rpm SATA 6.0Gb/s 3.5” Hard Disk Drive

Capacity

1,000,204,886,016 bytes

Rotational Speed

7,200 rpm

Interface

Serial ATA 3.0 (6.0 Gb/s)

Buffer Size

32 MB

Logical Blocks

1,953,525,168

Seek Time

(typical reads, includes controller overhead, including settling)

Single Track:

2.0 ms

Average:

11 ms

Full-Stroke:

21 ms

Height

(nominal)

1 in/2.54 cm

Width

(nominal)

Media diameter: 3.5 in/8.89 cm Physical size: 4 in/10.2 cm

Operating Temperature

41° to 131° F (5° to 55° C)

HP 320-GB 7.2K SATA 6.0Gb/s 2.5" Hard Disk Drive

Capacity

320,072,933,376 bytes

Rotational Speed

7,200 rpm

Interface

Serial ATA 2.0 (6.0 Gb/s)

Buffer Size

16 MB

Logical Blocks

488,397,168

Seek Time

(typical reads, includes controller overhead, including settling)

Single Track:

2.0 ms

Average:

11 ms

Full-Stroke:

22 ms

Height

(nominal)

0.374 in/9.5 mm

Width

(nominal)

Media diameter: 2.5 in/63.5 mm Physical size: 2.75 in/70 mm

Operating Temperature

41° to 131° F (5° to 55° C)

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Technical Specifications – Hard Disk and Solid State Storage

DA - 14352 North America — Version 38 — November 21, 2013

Page 28

HP 500-GB 7.2K SATA 6.0Gb/s 2.5" Hard Disk Drive

Capacity

500,107,862,016 bytes

Rotational Speed

7,200 rpm

Interface

Serial ATA 2.0 (3.0 Gb/s)

Buffer Size

16 MB

Logical Blocks

976,773,168

Seek Time

(typical reads, includes controller overhead, including settling)

Single Track:

2.0 ms

Average:

12 ms

Full-Stroke:

25 ms

Height

(nominal)

0.374 in/9.5 mm

Width

(nominal)

Media diameter: 2.5 in/63.5 mm Physical size: 2.75 in/70 mm

Operating Temperature

41° to 131° F (5° to 55° C)

HP 500-GB 7200 RPM SATA 2.5" Self-Encrypting (SED) Hard Disk Drive

Capacity

500,107,862,016 bytes

Rotational Speed

7,200 rpm

Drive Type

Self-Encrypting Drive (SED) with SATA interface

Interface

SATA Interface conforming to Serial ATA International Organization: Serial ATA Revision 2.6

Segmented Buffer with write cache

32768 KB - A portion of buffer capacity used for firmware

Number of Sectors

976,773,168

Seek Time

(typical reads, includes controller overhead, including settling)

Single Track:

1.0 ms

Average:

13 ms

Full-Stroke:

25 ms

Media Diameter

2.5 in/63.5 mm

Height

0.267 in/6.8 mm, ±0.2mm

Width

2.75 in/69.85 mm, ±0.25mm

Length

3.945 in/100.2 mm, ±0.25mm

Weight

3.35 oz/95 g (max)

Operating Temperature

41° to 131° F (5° to 55° C)

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Technical Specifications – Hard Disk and Solid State Storage

DA - 14352 North America — Version 38 — November 21, 2013

Page 29

HP 120-GB Solid State Drive

Unformatted Capacity

120 GB

Architecture

Multi Level Cell (MLC) NAND Flash with wear leveling 10 channel controller

Interface

Serial ATA 2.0 (3.0 Gb/s)

Dimensions

(W x H x D)

2.74 x 0.37 x 4 in/6.98 x 0.95 x 10.2 cm

Weight

0.18 lb/80 g

Bandwidth Performance

Sustained Sequential Read:

Up to 250 MB/s

Sustained Sequential Write:

Up to 70 MB/s

Random Read:

Up to 35K IOPs

Random Write:

Up to 6.6K IOPs

Latency

Read:

65-ms

Write:

85-ms

Power

DC power requirement:

5 VDC 5%-100 mV ripple p-p

Total power consumption:

0.15W (active); 0.075W (idle)

Useful Drive Life

35TB written, up to 20GB/day for 5 years

Environmental

(all conditions, non-condensing)

Operating Temperature:

32° to 158° F (0° to 70° C)

Relative Humidity:

5% to 95%

Maximum Wet Bulb

Temperature

(operating):

84° F (29° C)

Shock:

1,500 G/0.5-ms

HP 128 GB Solid State Drive

Unformatted Capacity

128 GB*

Architecture

Multi Level Cell (MLC) NAND

Interface

SATA 6 GB/sec

Dimensions

(W x H x D)

2.75 x 0.276 x 3.96 in (6.985 x 0.7 x 10.05 cm)

Weight

0.16 lb (73 g)

Bandwidth Performance

Sustained Sequential Read:

Up to 450 MB/s

Sustained Sequential Write:

Up to 260 MB/s

Random Read:

up to 46K IOPs

Random Write:

up to 56K IOPs

Latency

Read:

55ms (TYP)

Write:

55ms (TYP)

Power

DC power requirement:

Min 4.5 V; Max 5.5 V

Total power consumption:

160 mW (Active) ; <85 mW; (Idle)

Useful Drive Life

1.2 million device hours**

Environmental

Operating Temperature:

32° to 158° F (0° to 70° C)

Relative Humidity:

5% to 95%

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Technical Specifications – Hard Disk and Solid State Storage

DA - 14352 North America — Version 38 — November 21, 2013

Page 30

Environmental

(all conditions, non-condensing)

Maximum Wet Bulb

Temperature

(operating):

84° F (29° C)

Shock:

1,500 G/1.0 msec

Regulations

UL, CSA, EN 60950-2000, CISPR Pub 22 Class B, CNS 13438, AS/NZS CISPR 22:2002 Class B, Korea KCC, CE Mark

Option kit contents

HP 128 GB Solid State Drive, documentation, 3.5-inch bay adapter bracket,

3.5-inch bay adapter bracket screws, SATA cable

* For solid state disk drives, GB means 1 billion bytes. 128GB is the unformatted capacity of this drive before a portion of the drive is reserved for flash management features. Actual capacity will vary by content ** The product achieves a mean time between failure (MTBF) based on population statistics not relevant to individual units.

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Technical Specifications – Hard Disk and Solid State Storage

DA - 14352 North America — Version 38 — November 21, 2013

Page 31

HP Slim SuperMulti DVD Writer Drive

Height

12.7mm height

Orientation

Either horizontal or vertical

Interface type

SATA/ATAPI

Disc recording capacity

Up to 8.5 GB DL or 4.7 GB standard

Dimensions

(W x H x D)

5.0 x 0.5 x 5.0 in (128 x 13.6 x 129 mm)

Weight

(max)

0.42 lb (190 g)

Write speeds

DVD-RAM

Up to 5X

DVD-R DL

Up to 4X

DVD+R

Up to 8X

DVD+RW

Up to 4X

DVD+R DL

Up to 4X

DVD-R

Up to 8X

DVD-RW

Up to 6X

CD-R

Up to 24X

CD-RW

Up to 16X

Read speeds

DVD-RAM

Up to 5X

DVD-RW, DVD+RW

Up to 8X

DVD-R DL, DVD+R DL

Up to 6X

DVD+R, DVD-R

Up to 8X

DVD-ROM DL, DVD-ROM

Up to 8X

CD-ROM, CD-R

Up to 24X

CD-RW

Up to 24X

Access time

(typical reads, including settling)

Random

DVD: < 140 ms (typical), CD: < 125 ms (typical)

Full Stroke

DVD: < 250 ms (seek), CD: < 210 ms (seek)

Stop Time

< 4 seconds

Cache Buffer

2 MB (minimum)

Data Transfer Modes

ATA PIO mode 4 (16.7 MB/s); ATA Multi-word DMA mode 2 (16.7 MB/s); ATA UltraDMA Mode 3 (44.4 MB/s - default)

Source

Four-pin, DC power receptacle

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Technical Specifications – Removable Storage

DA - 14352 North America — Version 38 — November 21, 2013

Page 32

Power

DC Power Requirement

5 VDC ± 5%-100 mV ripple p-p

12 VDC ± 5%-200 mV ripple p-p

DC Current

5 VDC (< 1000 mA typical, 1600 mA maximum)

12 VDC (< 600 mA typical, 1400 mA maximum)

Total Drive Power (standby mode)

< 2.5 Watt

Audio output

Line-Out

0.7 VRMS

Signal-to-Noise Ratio

74 dB

Channel Separation

65 dB

Environmental conditions

(operating - non-condensing)

Temperature

41° to 122° F (5° to 50° C)

Relative Humidity

10% to 90%

Maximum Wet Bulb Temperature

86° F (30° C)

HP Slim DVD-ROM Drive

Height

12.7mm

Orientation

Either horizontal or vertical

Interface type

SATA/ATAPI

Dimensions

(W x H x D)

5.0 x 0.5 x 5.0 in (128 x 13.6 x 129 mm)

Weight

(max)

0.42 lb (190 g)

Read speeds

DVD+R/-R/+RW/

-RW/+R DL /-R DL

Up to 4X

DVD-ROM

Up to 8X

CD-ROM, CD-R

Up to 24X

CD-RW

Up to 24X

Access time

(typical reads, including settling)

Random DVD

DVD: < 140 ms (typical), CD: < 125 ms (typical)

Random CD

DVD: < 250 ms (seek), CD: < 210 ms (seek)

Data Transfer Modes

ATA PIO mode 4 (16.7 MB/s); ATA Multi-word DMA mode 2 (16.7 MB/s)

Power

Source

Four-pin, DC power receptacle

DC Power Requirement

5 VDC ± 5%-100 mV ripple p-p

DC Current

5 VDC - <1000 mA typical, < 1600 mA maximum

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Technical Specifications – Removable Storage

DA - 14352 North America — Version 38 — November 21, 2013

Page 33

Total Drive Power (standby mode)

< 2.5 Watt

Audio output

Line-Out

0.7 VRMS

Signal-to-Noise Ratio

74 dB

Channel Separation

65 dB

Environmental

(all conditions

non-condensing)

Temperature

41° to 122° F (5° to 50° C)

Relative Humidity

5% to 85%

Maximum Wet Bulb Temperature (operating)

86° F (30° C)

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Technical Specifications – Removable Storage

DA - 14352 North America — Version 38 — November 21, 2013

Page 34

System Memory Support

The HP Compaq Elite 8300 Business PC supports the 2nd and 3rd generation Intel® Core™ processor families. Based on a new PC microarchitecture, the processor is designed for a two-chip platform consisting of a processor and Platform Controller Hub (PCH). Unlike previous generations, the processor includes an integrated memory controller (IMC). The IMC supports DDR3 protocols with two independent, 64-bit wide channels each accessing one SODIMM.

Two channels of non-ECC DDR3 unbuffered small outline dual in-line memory modules (SODIMM) with a maximum of one SODIMM per channel Single-channel and dual-channel memory organization modes Data burst length of eight for all memory organization modes DDR3 memory data transfer rates of up to 1600 MT/s; actual supported DDR3 data transfer rate determined by the configured processor. 64-bit wide channels DDR3 system memory I/O voltage of 1.5V Theoretical Maximum Memory Bandwidth:

10.6 GB/s in single-channel mode of 21.3 GB/s in dual-channel mode assuming DDR3 1333 MT/s

12.8 GB/s in single-channel mode or 25.6 GB/s in dual-channel mode assuming DDR3 1600 MT/s 16 GB maximum memory support

CAUTION:

You must shut down the computer and disconnect the power cord before adding or removing memory modules. Regardless of the power-on state, voltage is always supplied to the memory modules as long as the computer is plugged in to an active AC outlet. Adding or removing memory modules while voltage is present may cause irreparable damage to the memory modules or system board.

Memory Configurations:

Slot 1 must always be populated. Not all memory configurations possible are represented below.

NOTE:

For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory may not be available due to

system resource requirements. Addressing memory above 4 GB requires a 64-bit operating system.

Total Memory

Socket

Channel A (black)

Channel B (black)

2 GB

Unpopulated

4 GB (dual channel)

2 GB 2 GB

8 GB (dual channel)

4 GB 4 GB

16 GB (dual channel)

8 GB 8 GB

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Technical Specifications – Memory

DA - 14352 North America — Version 38 — November 21, 2013

Page 35

Intel 82579LM GbE Network Connection

(integrated)

Connector

RJ-45

System Interface

Integrated on PCA

Controller

Intel 82579LM GbE platform LAN connect networking controller

Memory

24 KB FIFO packet buffer memory

Data rates supported

10/100/1000 Mbps

IEEE Compliance

802.1P

802.1Q

802.2

802.3

802.3ab

802.3az

802.3u

Bus architecture

PCI Express and SMBus

Data transfer mode

PCIe-based interface for active state operation (S0 state) and SMBus for host and management traffic (Sx low power state)

Power requirement

Requires 3.3V and 1.05V or just 3.3V with integrated regulators Power consumption 0.697 Watts

Boot ROM support

Yes

Network transfer mode

Full-duplex Half-duplex (not supported for the 1000BASE-T transceiver)

Network transfer rate

10BASE-T (half-duplex) 10 Mbps 10BASE-T (full-duplex) 20 Mbps 100BASE-TX (half-duplex) 100 Mbps 100BASE-TX (full-duplex) 200 Mbps 1000BASE-T (full-duplex) 2000 Mbps

Environmental

Operating Temperature:

0° to 85° C

Operating Humidity:

60% RH

Management

WOL, auto MDI crossover, PXE, Muti-port teaming, RSS, Advanced cable diagnostic.

Alerting

ASF 2.0 support; AMT 7.0 support

Intel Centrino Advance-N 6205 Wireless Network Interface Connection

Wireless LAN Standards

IEEE 802.11a/b/g/n IEEE 802.11 e, 802.11i, 802.11d, 802.11d, 802.11h

Interoperability

Wi-Fi certified (802.11 a/b/g/n WMM, WPA, WPA2 and WPS) Tested with wireless access points from several major manufacturers OS compatible with Microsoft Windows, Win7 and XP Cisco Compatible Extensions Program compliant (802.11a/b/g only) with Microsoft Windows XP and

Windows 7

Frequency Band

2.4 GHz and 5 GHz

Antenna Structure

2 transmit; 2 receive (2x2)

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Technical Specifications – Networking and Communications

DA - 14352 North America — Version 38 — November 21, 2013

Page 36

Data Rates

802.11b: 1, 2, 5.5, 11 Mbps

802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: 66 possible data rates, ranging from 6 Mbps to 300 Mbps, depending on the combination of Bandwidth, Modulation Coding Scheme, and Guard Interval used, as defined in IEEE 802.11n specification

Modulation

Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM

Security

Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES (support for key sizes of 128bits), TKIP, 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP, MSCHAP, PEAP-MSCHAPv2, LEAP, EAP-FAST, EAP-SIM, EAP-AKA PAP, CHAP, TLS, GTC

Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program Version 4) with Microsoft Windows XP only.

Sub-channels

Multinational support with frequency bands and channels compliant to local regulations.

Media Access Protocol

CSMA/CA (Collision Avoidance) with ACK

Network Architecture Models

Ad-hoc (Peer to Peer) Infrastructure (Access Point Required) Intel® My Wifi Technology (iPAN)

Roaming

Provide seamless roaming between like access points (same frequency band)

Output Power (for CCK)

15 dBm

Output Power (for OFDM; power varies by data rate)

15 dBm

Power Consumption

Transmit: 2.3 Watts (average, with one spatial streams) Receive: 1.9 Watts (average with two receive chains) Idle mode: 30mW – 40mW (average) Radio off: 20 mW (max)

Power Management

ACPI compliant power management

802.11 compliant power saving mode

Antenna Connections

3 U.FL type connectors, 50 ohm nominal impedance

Range

802.11 a - Typical (@6 Mbps)

600 feet - Outdoor Open Area 150 feet - Indoor, Office environment

802.11 b - Typical (@1 Mbps)

1200 feet - Outdoor Open Area 300 feet - Indoor, Office environment

802.11 g - Typical (@1 Mbps)

1200 feet - Outdoor Open Area 300 feet - Indoor, Office environment

Form Factor

MiniPCI-Express

Weight

0.013 lb (4.0 g)

Dimensions

1.1 x 1.2 in (26.8 x 30.0 mm)

Operating Voltage

3.3V +/- 9%, 1.5V +/- 5%

Temperature

Operating: Non-operating:

32° to 176° F (0° to 80° C)

-40° to 176° F (-40° to 80° C)

Humidity

Operating: Non-operating:

10% to 90% (non-condensing) 5% to 90% (non-condensing)

Microsoft Windows XP

Microsoft Windows Win 7

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Technical Specifications – Networking and Communications

DA - 14352 North America — Version 38 — November 21, 2013

Page 37

Configuration Utility

Microsoft Windows XP Wireless Network Connection Manager Intel PROSet for Microsoft Windows XP (required for Cisco Compatible Extensions support)

Intel IHV extensions for Win7 available to support Cisco Compatible Extensions

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Technical Specifications – Networking and Communications

DA - 14352 North America — Version 38 — November 21, 2013

Page 38

IDT 92HD91Audio

Type

Integrated

HD Stereo Codec

IDT92HD91 4-channel codec

Ports

Line-In/Microphone input ports are 50K (nominal) at the pin Line-Out intended to drive an external 10K load (nominal) and an on board shunt resistor of 20-47K

(nominal) Headphone-Out designed to drive 32 ohm (nominal) headphones or a 10K (nominal) load All ports are 3.5 mm

Internal Speaker Amplifier

2W/channel Class-D stereo BTL speaker amplifier@ 4 ohms and 4.75V

Sampling

The 92HD91 audio CODEC provides stereo 24- bit, full duplex resolution supporting sample rates up to 192kHz by the DAC and ADC. SPDIF outputs support sample rates of 192kHz, 96kHz, 88.2kHz, 48kHz, and 44.1kHz. Additional sample rates are supported by the driver software.

Wavetable Syntheses

Yes – Uses OS soft wavetable

Analog Audio

Yes

# of Channels on Line-Out

4 Channels (2 stereo DACs and 2 stereo ADCs) with 24-bit resolution

Internal Speaker

Yes

External Speaker Jack

Yes

SRS Premium Sound Technology

Introduction

SRS Premium Sound™

is a state-of-the-art solution suite which optimizes the audio experience for all business applications including VoIP, computer based training, business presentations and digital content creation for any speaker configuration (notebook/desktop speakers or headphones). SRS Premium Sound delivers natural and immersive surround sound complete with deep, enveloping bass and crystal clear dialog which allows users to clearly hear audio and voice in communications or presentations and ensures that digital content can be experienced with uncompromised quality.

SRS Premium Sound Features

Premium audio experience for all applications including VoIP, Video Conferencing, Webcasts, Multimedia Presentations and Digital Content Creation Natural and Immersive sound from two speakers or headphones Custom-tuned solutions to provide superior natural sound from desktop speakers and headphones Crystal clear dialog Deep, rich bass Intuitive user interface with presets for ease of use

SRS Premium Sound Benefits

Turn your desktop into a multimedia powerhouse! Bring your business communication to life with natural sounding voice and clear dialog Increase productivity by making computer based training, webcasts and VoIP available anytime and anywhere with crystal clear audio Make presentations shine with rich, expansive sound without the need for external speakers Take digital content creation to a new level with deep bass, enhanced fidelity and immersive surround sound which ensures that your content is heard with uncompromised quality and detail

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Technical Specifications – Audio

DA - 14352 North America — Version 38 — November 21, 2013

Page 39

HP USB Keyboard

Physical characteristics

Keys

104, 105, 106, 107, 109 layout (depending upon country)

Dimensions (L x W x H)

18.12 x 6.47 x 0.96 in (46.03 x 16.43 x 2.44 cm)

Weight

2 lb (0.9 kg)

Electrical

Operating voltage

+ 5VDC ± 5%

Power consumption

50-mA maximum (with three LEDs ON)

System interface

USB Type A plug connector

ESD

CE level 4, 15-kV air discharge

EMI - RFI

Conforms to FCC rules for a Class B computing device

Microsoft® PC 99 - 2001

Functionally compliant

Mechanical

Keycaps

Low-profile design

Switch actuation

55-g nominal peak force with tactile feedback

Switch life

20 million keystrokes (using Hasco modified tester)

Switch type

Contamination-resistant switch membrane

Key-leveling mechanisms

For all double-wide and greater-length keys

Cable length

6 ft (1.8 m)

Microsoft PC 99 - 2001

Mechanically compliant

Environmental

Acoustics

43-dBA maximum sound pressure level

Operating temperature

50° to 122° F (10° to 50° C)

Non-operating temperature

-22° to 140° F (-30° to 60° C)

Operating humidity

10% to 90% (non-condensing at ambient)

Non-operating humidity

20% to 80% (non-condensing at ambient)

Operating shock

40 g, six surfaces

Non-operating shock

80 g, six surfaces

Operating vibration

2-g peak acceleration

Non-operating vibration

4-g peak acceleration

Drop (out of box)

26 in (66 cm) on carpet, six-drop sequence

Drop (in box)

42 in (107 cm) on concrete, 16-drop sequence

Approvals

UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC

Ergonomic compliance

ANSI HFS 100, ISO 9241-4, and TUVGS

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Technical Specifications – Keyboards and Pointing Devices

DA - 14352 North America — Version 38 — November 21, 2013

Page 40

Kit contents

Keyboard

Installation Guide

Warranty Card

Safety and Comfort Guide

HP PS/2 Keyboard

Physical Characteristics

Keys

104, 105, 106, 107, 109 layout (depending upon country)

Dimensions (L x W x H)

18.12 x 6.47 x 0.96 in (46.03 x 16.43 x 2.44 cm)

Weight

2 lb (0.9 kg) minimum

Electrical

Operating voltage

+ 5VDC ± 5%

Power consumption

50-mA maximum (with three LEDs ON)

System interface

PS/2 6-pin mini din connector

ESD

CE level 4, 15-kV air discharge

EMI - RFI

Conforms to FCC rules for a Class B computing device

Microsoft PC 99 - 2001

Functionally compliant

Mechanical

Keycaps

Low-profile design

Switch actuation

55-g nominal peak force with tactile feedback

Switch life

20 million keystrokes (using Hasco modified tester)

Switch type

Contamination-resistant switch membrane

Key-leveling mechanisms

For all double-wide and greater-length keys

Cable length

6 ft (1.8 m)

Microsoft PC 99 - 2001

Mechanically compliant

Environmental

Acoustics

43-dBA maximum sound pressure level

Operating temperature

50° to 122° F (10° to 50° C)

Non-operating temperature

-22° to 140° F (-30° to 60° C)

Operating humidity

10% to 90% (non-condensing at ambient)

Non-operating humidity

20% to 80% (non-condensing at ambient)

Operating shock

40 g, six surfaces

Non-operating shock

80 g, six surfaces

Operating vibration

2-g peak acceleration

Non-operating vibration

4-g peak acceleration

Drop (out of box)

26 in (66 cm) on carpet, six-drop sequence

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Technical Specifications – Keyboards and Pointing Devices

DA - 14352 North America — Version 38 — November 21, 2013

Page 41

Drop (in box)

30 in (107 cm) on concrete, 16-drop sequence

Approvals

UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, KC

Ergonomic compliance

ANSI HFS 100, ISO 9241-4, and TUVGS

HP USB Smart Card (CCID) Keyboard Introduction

Boost your security, simplify access procedures and reduce the costs associated with managing networks by preventing unauthorized access to your computers and networks using smartcard technology with the HP Smart Card (CCID) Keyboard.

The USB Smart Card (CCID) Keyboard is a full-sized keyboard that takes advantage of digital signatures and certificates to secure the environment for transactions performed on both public and private networks. The USB Smart Card (CCID) Keyboard works with all smart cards that comply with ISO standard 7816.

Smart cards are easy-to-use credit card-sized devices which require multiple forms of information to be validated before you gain access to your accounts or resources. Used worldwide, smart cards strengthen access to a network or other resource using dual-factor authentication. Implementing a two-factor authentication (or multi-factor authentication) process reduces the risk of unauthorized access by verifying and validating your identity in one of the following ways:

Something you know – a combination of username and password or PIN Something you have – a smart card or security token.

Something you have (smart card) plus something you know (PIN), improves user-access security within corporate network environments. Smart cards are used in government agencies, healthcare companies and the finance industry.

HP ProtectTools Smart Card Manager provides authentication software for the smart card. The Smart Card Reader module works with the HP ProtectTools Security Manager and enables the user to setup, use, and manage the smart card. This allows strengthened security with HP patented technology.

Key Benefits:

Protects against unauthorized access with smart card technology Delivers even greater security when combined with a HP ProtectTools smart card and the HP ProtectTools Security Software Combination of username and password or pin with a smart card or security token Secures online transactions using digital signatures and certificates Conforms to industry standards for ease of setup and use Delivers long product life and quiet operation with high-impact materials and lubricated keys Spill drain feature

Physical Characteristics

Keys

104, 105, 106, 107, 109 layout (depending upon country

Form factor

USB basic smart card keyboard

Colors

Carbonite/Silver

Dimensions (H x W x D)

18.2 x 6.3 x 1.3 in (46.3 x 16.1 x 3.3 cm)

Weight

2 lb (0.9 kg) minimum

Operating voltage

+ 5VDC ± 5%

Power consumption

100-mA maximum (with four LEDs ON)

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Technical Specifications – Keyboards and Pointing Devices

DA - 14352 North America — Version 38 — November 21, 2013

Page 42

Electrical

System interface

USB Type A plug connector

ESD

CE level 4, 15-kV air discharge

EMI - RFI

Conforms to FCC rules for a Class B computing device

Microsoft PC 99 - 2001

Functionally compliant

Mechanical

Languages

30+ available

Keycaps

Standard design

Switch actuation

55 g nominal peak force with tactile feedback

Switch life

20 million keystrokes (using Hasco modified tester)

Switch type

Contamination-resistant membrane

Key-leveling mechanisms

For all double-wide and greater-length keys

Cable length

6 ft (1.8 m)

Microsoft PC 99 - 2001

Mechanically compliant

Acoustics

43-dBA maximum sound pressure level

Environmental

Operating temperature

50° to 122° F (10° to 50° C)

Non-operating temperature

-22° to 140° F (-30° to 60° C)

Operating humidity

10% to 90% (non-condensing at ambient)

Non-operating humidity

20% to 80% (non-condensing at ambient)

Operating shock

40 g, six surfaces

Non-operating shock

80 g, six surfaces

Operating vibration

2-g peak acceleration

Non-operating vibration

4-g peak acceleration

Drop (out of box)

26 in (66 cm) on carpet, six-drop sequence

Drop (in box)

42 in (107 cm) on concrete, 16-drop sequence

SmartCard Function

Support

All ISO 7816 smart cards

Interface

Reads from and writes to all ISO7816-1, 2, 3, 4 memory and microprocessor smart cards (T=0, T=1)

Chipset

SCM STCIII

Standard APIs supported

PC/SC, EMV2000, CT-API

Power

USB Port Short circuit detection (protects smart card and reader) Power supply compliant with ISO7816 and EMV (5V, 60 mA) Supports 3-V and 5-V cards

Power consumption

100-mA maximum draw

Communication

From card

9600 bps to 330,000 bps

From computer

12 Mbps (USB transfer speed)

Landing mechanism

Contact device

Friction contact

Card insertions rating

Up to 100,000 insertion cycles

Interface modes

CCID protocol

Reader performance interface

USB connection

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Technical Specifications – Keyboards and Pointing Devices

DA - 14352 North America — Version 38 — November 21, 2013

Page 43

Electro-magnetic standards

Europe

2004/108/EC

USA

USAFCC part 15

Approvals

CE-Mark, UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC, EMV2000, USB-IF

Ergonomic Compliance

ISO 9241-4, TUVGS

Kit Contents

Keyboard, I/O Security and Documentation CD, warranty card

HP USB PS/2 Washable Keyboard

Physical Characteristics

Keys

104 (US) Layout, 105 (EU) layout - depending upon country

Dimensions (L x W x H)

17.67x 6.62 x 1.38 in (449 x 168 x 35 mm)

Weight

1.7 lb (0.77 kg) minimum

Electrical

Operating voltage

+ 5VDC ±5%

Power consumption

50-mA maximum (with three LEDs ON)

System interface

USB Type A plug connector

ESD

CE level 4, 15-kV air discharge

EMI - RFI

Conforms to FCC rules for a Class B computing device

Microsoft® PC 99 - 2001

Functionally compliant

Mechanical

Keycaps

Stepped -profile design

Switch actuation

55-g nominal peak force with tactile feedback

Switch life

20 million keystrokes

Switch type

Contamination-resistant switch membrane

Key-leveling mechanisms

For all double-wide and greater-length keys

Cable length

7 ft (2.2 m)

Microsoft PC 99 - 2001

Mechanically compliant

Acoustics

43-dBA maximum sound pressure level

Environmental

Operating temperature

50° to 122° F (10° to 50° C)

Non-operating temperature

-22° to 140° F (-30° to 60° C)

Operating humidity

10% to 95% (non-condensing at ambient)

Non-operating humidity

0% to 95% (non-condensing at ambient)

Operating shock

40 g, six surfaces

Non-operating shock

80 g, six surfaces

Operating vibration

2-g peak acceleration

Non-operating vibration

4-g peak acceleration

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Technical Specifications – Keyboards and Pointing Devices

DA - 14352 North America — Version 38 — November 21, 2013

Page 44

Drop (out of box)

26 in (66 cm) on carpet, six-drop sequence

Drop (in box)

42 in (107 cm) on concrete, 16-drop sequence

Operating system support

Windows® 7, Windows Vista, Windows XP Professional

Approvals

UL, cUL, FCC, CE, TUV GS, VCCI, BSMI, C-Tick, KCC, USB-IF, WHQL, EN/IEC 60601-1, IP66/NEMA4X

Ergonomic compliance

ANSI HFS 100, ISO 9241-4, and TUVGS

HP Wireless Keyboard and Mouse

Keyboard

Dimensions (H x L x W)

1.09 x 18.1 x 6.47 in (27.87 x 460.3 x 164.3 mm

Weight – Without Two AA Alkaline Batteries

1.94 lb (880 g)

Mouse

Dimensions (H x L x W)

1.46 x 4.53 x 2.47 in (37 x 115 x 62.9 mm)

Weight – Without Two AA Alkaline Batteries

0.15 lb (67 g)

Receiver

Dimensions (H x L x W)

0.33x 1.79 x 0.72 in (8.4 x 45.5 x 18.4 mm)

Weight

0.21 oz (5.9 g)

Cable Length – Minimum

6 ft (1.8 m)

Range

32.8 ft (10 m)

System Requirements

Windows 7 Home Basic*, Windows 7 Home Premium*, Windows 7 Professional Edition 32*, Windows 7 Professional Edition 64*, Windows 7 Ultimate Edition 32*, Windows 7 Ultimate Edition 64* Windows Vista or Windows XP Available USB port for the receiver CD-ROM Drive

*This system may require upgraded and/or separately purchased hardware and/or a DVD drive to install the Windows 7 software and take full advantage of Windows 7 functionality. See http://www.microsoft.com/windows/windows-7/

for details.

Product Safety

UL; CSA /TUV (Europe only); CE Mark; CB Report

Ergonomics

ANSI; ISO (Europe only); GS Mark (Germany only)

EMC

FCC; CE; ACA (-tick); BSMI; KC ; VCCI

CE Mark

EN 55022:2010; EN 55024; EN 301489-1; EN 61000

Design Guidelines for PCs

PC 99 - connector overmold colors; PC 2001 - full functionality

Telecom

All local telecom requirements and approvals for intended markets

USA

FCC Title 47 CFR, Par 15, Subpart C; other local requirements

Country Support

US, Belgium, Switzerland, Spain, Denmark, Netherlands, France, Germany, Italy, Portugal, Sweden, Norway, Finland, UK, Poland, Czech Republic, Turkey, Greece, Austria, Bulgaria, Cyprus,

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Technical Specifications – Keyboards and Pointing Devices

DA - 14352 North America — Version 38 — November 21, 2013

Page 45

Estonia, Hungary, Ireland, Latvia, Lithuania, Luxemburg, Malta, Romania, Slovakia, Slovenia, Vietnam, HK, Australia, NZ, Malaysia, Singapore, Indonesia, Philippines, Thailand, Canada, China, Japan, Korea, Taiwan, India, Venezuela, Ecuador, Russia, Ukraine, Israel, Croatia, United Arab Emirates, Peru, Brazil, Chile, Argentina, Mexico, South Africa, and up to 193 countries worldwide.

Environmental

Keyboard contains 25% post-consumer recycled plastic material

HP PS/2 Mouse

Dimensions

(H x L x W)

1.46 x 2.48 x 4.53 in (3.70 x 6.29 x 11.50 cm)

Weight

3.53 oz (100g; +10g/- 5 g)

Environmental

Operating temperature

-32° to 104°F (0° to 40° C)

Non-operating temperature

-4° to 140°F (-20° to 60° C)

Operating humidity

10% to 90% (non condensing at ambient)

Non-operating humidity

10% to 90% (non condensing at ambient)

Operating shock

40 g, 6 surfaces

Non-operating shock

80 g, 6 surfaces

Operating vibration

2 g peak acceleration

Non-operating vibration

4 g peak acceleration

Drop (out of box)

80 cm height onto asphalt tile over concrete or equivalent, 5-drop in 5 direction except the cable face

Electrical

Operating voltage

5 VDC ± 10%

Power consumption

100mA

System consumption

PS/2 mini-din connector

ESD

CE level 4, 15 kV air discharge

EMI-RFI

Conforms to FCC rules for a Class B computing device

Microsoft PC99 - 2001

Functionally compliant

Resolution

800 DPI

Tracking speed

10 in/s (25.4 cm/s) maximum

Acceleration

±15%

Switch actuation

65±20 gf

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Technical Specifications – Keyboards and Pointing Devices

DA - 14352 North America — Version 38 — November 21, 2013

Page 46

Mechanical

Switch life

3,000,000 operations (using Hasco modified tester)

Switch type

Low force micro-switches

Tracking mechanism life

80 km

Cable length

6 ft (1.8 m)

Microsoft PC99 - 2001

Mechanically compliant

Scroll wheel

Width

6 mm

Diameter

22.5 ± 0.2 mm

Maximum rotation force

50 gf-cm

Switch type

Light force micro-switch

Switch life

1 million operations

Mechanical life

Minimum 200,000 revolutions

Regulatory Approvals

UL/cUL, FCC, CE Mark, TUV/GS, VCCI, KCC, BSMI, C-Tick

HP USB Mouse

Dimensions

(H x L x W)

1.5 x 4.5 x 2.5 in (3.8 x 11.6 x 6.3 cm)

Weight

0.22 lb (0.10 kg)

Cable length

70.9 in (180 cm)

System requirements

Available USB port

HP USB 1000dpi Laser Mouse

Dimensions

(H x L x W)

1.47 x 4.53 x 2.47 in (37.3 x 114.97 x 62.86 mm)

Weight

3.360 oz (102g)

Cable length

70.9 in (180 cm)

System requirements

Available USB port

Environmental

Operating Temperature

32° to 104° F (0° to 40° C)

Non-operating Temperature

-4° to 140° F (-20° to 60° C)

Operating Humidity

10% to 90% (non-condensing at ambient)

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Technical Specifications – Keyboards and Pointing Devices

DA - 14352 North America — Version 38 — November 21, 2013

Page 47

Mechanical

Resolution

1000dpi

Tracking Speed

45 cm/sec

Cable Length

70.9 in (180 cm)

HP USB PS/2 Washable Mouse

Dimensions

(H x L x W)

1.56 x 2.44 x 4.61 in (3.95 x 6.21 x 11.7 cm)

Weight

4.44 oz (126 g)

Environmental

Operating temperature

–32° to 104°F (0° to 40° C)

Non-operating temperature

–4° to 140°F (–20° to 60° C)

Operating humidity

10% to 90% (non-condensing at ambient)

Non-operating humidity

10% to 90% (non condensing at ambient)

Operating shock

40 g, 6 surfaces

Non-operating shock

80 g, 6 surfaces

Operating vibration

2 g peak acceleration

Non-operating vibration

4 g peak acceleration

Drop (out of box)

80 cm height onto asphalt tile over concrete or equivalent, 5-drop in 5 direction except the cable face

Electrical

Operating voltage

5 VDC ± 10%

Power consumption

100mA

System consumption

PS/2 mini-din connector

ESD

CE level 4, 15 kV air discharge

EMI-RFI

Conforms to FCC rules for a Class B computing device

Microsoft® PC99 – 2001

Functionally compliant

Mechanical

Resolution

400 ± 20% DPI

Tracking speed

10 in/s (25.4 cm/s) maximum

Acceleration

100 in/s/s (2.54 m/s/s)

Switch actuation

61 g nominal peak force

Switch life

3,000,000 operations (using Hasco modified tester)

Switch type

Low force micro-switches

Tracking mechanism life

155 mi (250 km) at average speed of 10 in/s

Cable length

6 ft (1.8 m)

Microsoft PC99 – 2001

Mechanically compliant

Scroll wheel

Width

8 mm

Diameter

1.01 in (25.6 mm)

Maximum rotation speed

48 rats/sec

Switch type

Light force micro-switch

Switch life

1 million operations

Mechanical life

Minimum 200,000 revolutions

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Technical Specifications – Keyboards and Pointing Devices

DA - 14352 North America — Version 38 — November 21, 2013

Page 48

Regulatory approvals

Compliant

UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC

Compatibility

Operating system support

Windows 7, Windows Vista Business 64*, Windows Vista Business 32*, Windows Vista Home Basic 32*, Windows 2000, Windows XP Professional or Windows XP Home 32* (No driver is required for this device. Native support is provided by the operating system.), xpe, ce.net, Linux, XP-64

* Certain Windows Vista product features require advanced or additional hardware. Windows Vista Upgrade Advisor can help you determine which features of Windows Vista will run on your computer. To download the tool, visit:

http://www.windowsvista.com/upgradeadvisor

. For Windows Vista system requirements, visit: http://www.windowsvista.com/systemrequirements

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Technical Specifications – Keyboards and Pointing Devices

DA - 14352 North America — Version 38 — November 21, 2013

Page 49

Environmental Data

Eco-Label Certifications & Declarations

This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks:

US ENERGY STAR®] IT ECO declaration EPEAT® Gold registered in the United States. See

http://www.epeat.net

for registration status in

your country

System Configuration

The configuration used for the Energy Consumption and Declared Noise Emissions data for the Ultra-slim Desktop model is based on a typically configured product

Energy Consumption

115 VAC 230 VAC 100 VAC

Normal Operation

37.76 W 32.71 W 37.11 W

Sleep (Energy Star low power mode)

2.43 W 2.36 W 2.48 W

Off

1.33 W 1.34 W 1.33 W

NOTE:

Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within the model family . HP computers marked with the ENERGY STAR® Logo are compliant with the applicable U.S. Environmental Protection Agency (EPA) ENERGY STAR® specifications for computers. If a model family does not offer ENERGY STAR® compliant configurations, then energy efficiency data listed is for a typically configured model.

Heat Dissipation

115 VAC 230 VAC 100 VAC

Normal Operation

126 BTU/hr 127 BTU/hr 127 BTU/hr

Sleep

8 BTU/hr 8 BTU/hr 8 BTU/hr

Off

4 BTU/hr 4 BTU/hr 4 BTU/hr

NOTE:

Heat dissipation is calculated based on the measured watts, assuming the service level is attained

for one hour.

Declared Noise Emissions (in accordance with ISO 7779 and ISO 9296)

Sound Power

(LWAd, bels)

Sound Pressure

(LpAm, decibels)

(Typically Configured) Idle

3.3

Fixed Disk (random writes)

3.3

Longevity and Upgrading

This product can be upgraded, possibly extending its useful life by several years. Upgradeable features and/or components contained in the product may include:

6 USB 2.0 ports 2 memory slots 1 Mini PCIe half-length slot 1 MXM 3.0 Type A - 35W slot 1 mSATA slot 1 3.5" internal bay supporting up to Two 2.5" hard drives (HDD/SSD/SED/SSHD) 1 5.25" external supporting optical drive

Spare parts are available throughout the warranty period and or for up to 5 years after the end of

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Environmental Data

DA - 14352 North America — Version 38 — November 21, 2013

Page 50

production.

Batteries

This battery(s) in this product comply with EU Directive 2006/66/EC

Batteries used in the product do not contain: Mercury greater the 5ppm by weight Cadmium greater than 10ppm by weight Battery size: CR2032 (coin cell) Battery type: Lithium

Additional information

This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive 2002/95/EC. This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive - 2002/96/EC. This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water and Toxic Enforcement Act of 1986). This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold level where HP registers commercial desktop products. See

http://www.epeat.net

for registration status in your country. Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and ISO1043. This product contains 36.9% post consumer recycled plastic (by wt.) This product is 95.2% recyclable when properly disposed of at end of life.

Packaging Materials

External: o PAPER/Corrugated 1516g o PAPER/Paper 94g Internal: o PLASTIC/Polyethylene high density 39 g o PLASTIC/EPE-Expanded Polyethylene 533 g

The PAPER/Corrugated packaging material is made from 25% recycled content. The PAPER/Paper packaging material is made from 25% recycled content. The PLASTIC/Polyethylene high density packaging material is made from 0% recycled content The PLASTIC/EPE-Expanded Polyethylene packaging material is made from 0% recycled content

RoHS Compliance

Hewlett-Packard is committed to compliance with all applicable environmental laws and regulations, including the European Union Restriction of Hazardous Substances (RoHS) Directive. HP's goal is to exceed compliance obligations by meeting the requirements of the RoHS Directive on a worldwide basis. By July 1, 2006, RoHS substances will be virtually eliminated (virtually = to levels below legal limits) for all HP electronic products subject to the RoHS Directive, except where it is widely recognized that there is no technically feasible alternative (as indicated by an exemption under the EU RoHS Directive).

Material Usage

This product does not contain any of the following substances in excess of regulatory limits (refer to the HP General Specification for the Environment at

http://www.hp.com/hpinfo/globalcitizenship/environment/

supplychain/gen_specifications.html)

Asbestos Certain Azo Colorants Certain Brominated Flame Retardants - may not be used as flame retardants in plastics Cadmium Chlorinated Hydrocarbons Chlorinated Paraffins

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Environmental Data

DA - 14352 North America — Version 38 — November 21, 2013

Page 51

Formaldehyde Halogenated Diphenyl Methanes Lead carbonates and sulfates Lead and Lead compounds Mercuric Oxide Batteries Nickel - finishes must not be used on the external surface designed to be frequently handled or carried by the user. Ozone Depleting Substances Polybrominated Biphenyls (PBBs) Polybrominated Biphenyl Ethers (PBBEs) Polybrominated Biphenyl Oxides (PBBOs) Polychlorinated Biphenyl (PCB) Polychlorinated Terphenyls (PCT) Polyvinyl Chloride (PVC) - except for wires and cables, and certain retail packaging has been voluntarily removed from most applications. Radioactive Substances Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)

Packaging

HP follows these guidelines to decrease the environmental impact of product packaging:

Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging materials. Eliminate the use of ozone-depleting substances (ODS) in packaging materials. Design packaging materials for ease of disassembly. Maximize the use of post-consumer recycled content materials in packaging materials. Use readily recyclable packaging materials such as paper and corrugated materials. Reduce size and weight of packages to improve transportation fuel efficiency. Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.

End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas. To recycle your product, please go to:

http://www.hp.com/go/reuse-recycle

or contact your nearest HP

sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at:

http://www.hp.com/go/recyclers

. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

Hewlett-Packard Corporate Environmental Information

For more information about HP's commitment to the environment: Global Citizenship Report

http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html

Eco-label certifications

http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/ecolabels.html

ISO 14001 certificates:

http://www.hp.com/hpinfo/globalcitizenship/environment/operations/envmanagement.html

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Environmental Data

DA - 14352 North America — Version 38 — November 21, 2013

Page 52

AFTER MARKET OPTIONS:

MEMORY

Part Number

HP 2GB DDR3-1600 (PC3-12800) SODIMM

B4U38AA

HP 4GB DDR3-1600 (PC3-12800) SODIMM

B4U39AA

HP 8GB DDR3-1600 (PC3-12800) SODIMM

B4U40AA

DATA STORAGE DRIVES AND ACCESSORIES

Part Number

1 TB, 7200 rpm, SATA -6.0 Gb/s

QK555AA

500 GB, 7200 rpm, SATA -6.0 Gb/s

QK554AA

128 GB SATA Solid State Drive

QV063AA

HP Slim DVD-ROM Drive

VP033AA

HP Slim SuperMulti DVD Writer Drive

QS209AA

INPUT DEVICES

Part Number

HP PS/2 Mouse

QY775AA

HP USB 1000dpi Laser Mouse

QY778AA

HP USB Mouse

QY777AA

HP USB PS/2 Washable Scroll Mouse

BM866AA

HP Mouse Pad

AT485AA

HP PS/2 Keyboard

QY774AA

HP USB Smart Card (CCID) Keyboard

BV813AA

HP Wireless Keyboard & Mouse (Keyboard contains 25% post-consumer recycled plastic material)

QY449AA

HP USB PS/2 Washable Keyboard

VF097AA

HP USB Keyboard

QY776AA

HP USB Grey Keyboard

B6B64AA

SECURITY

Part Number

HP Keyed Cable Lock

BV411AA

MISCELLANEOUS

Part Number

Belkin 7-Outlet Surge Protector

AG290AA

Belkin USB to Serial Adapter

EM449AA

Belkin CAT5e Patch Cable

AH122AA

DisplayPort Cable

VN567AA

DisplayPort To DVI-D Adapter

FH973AA

DisplayPort To HDMI Adapter

BP937AA

DisplayPort To VGA Adapter

AS615AA

HP DVI Cable

DC198A

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Options and Accessories (sold separately)

DA - 14352 North America — Version 38 — November 21, 2013

Page 53

STANDS AND MONITOR ARMS

Part Number

AiO Height Adjustable and Reclining Stand

C1N43AA

HP Single Monitor Arm

BT861AA

HP (Flat Panel Monitor) Quick Release

EM870AA

All rights reserved. Microsoft, Windows and Windows 7 are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. Intel and Core are registered trademarks or trademarks of Intel Corporation in the U.S. and/or other countries. Bluetooth is a registered trademark of Bluetooth SIG, Inc., in the U.S. and other countries. All other product names mentioned herein may be trademarks of their respective companies.

The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

QuickSpecs

HP Compaq 8300 Elite All-in-One PC

Options and Accessories (sold separately)

DA - 14352 North America — Version 38 — November 21, 2013

Page 54

HP Compaq 8300 Elite Specification

Specifications and Main Features

Frequently Asked Questions

User Manual
